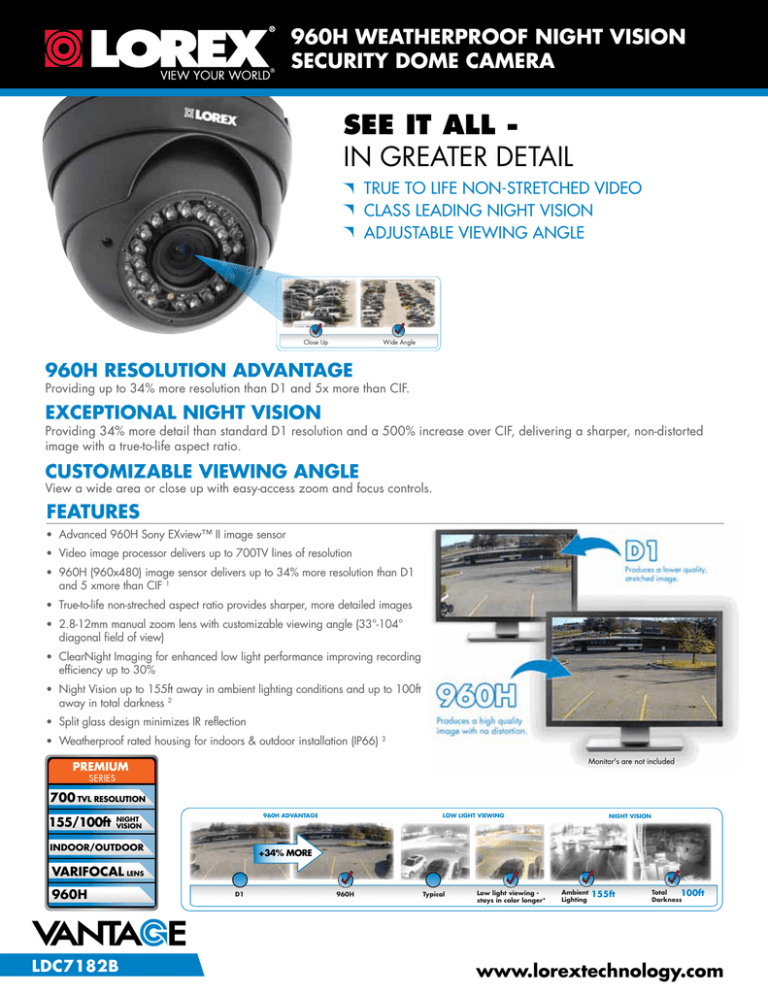

960H WEATHERPROOF NIGHT VISION
SECURITY DOME CAMERA
SEE IT ALL IN GREATER DETAIL
TRUE TO LIFE NON-STRETCHED VIDEO
CLASS LEADING NIGHT VISION
ADJUSTABLE VIEWING ANGLE
Close Up
Wide Angle
960H RESOLUTION ADVANTAGE
Providing up to 34% more resolution than D1 and 5x more than CIF.
EXCEPTIONAL NIGHT VISION
Providing 34% more detail than standard D1 resolution and a 500% increase over CIF, delivering a sharper, non-distorted
image with a true-to-life aspect ratio.
CUSTOMIZABLE VIEWING ANGLE
View a wide area or close up with easy-access zoom and focus controls.
FEATURES
•• Advanced 960H Sony EXview™ II image sensor
•• Video image processor delivers up to 700TV lines of resolution
•• 960H (960x480) image sensor delivers up to 34% more resolution than D1
and 5 xmore than CIF 1
•• True-to-life non-streched aspect ratio provides sharper, more detailed images
•• 2.8-12mm manual zoom lens with customizable viewing angle (33°-104°
diagonal field of view)
•• ClearNight Imaging for enhanced low light performance improving recording
efficiency up to 30%
•• Night Vision up to 155ft away in ambient lighting conditions and up to 100ft
away in total darkness 2
•• Split glass design minimizes IR reflection
•• Weatherproof rated housing for indoors & outdoor installation (IP66) 3
Monitor's are not included
PREMIUM
SERIES
700 TVL RESOLUTION
155/100ft
960H ADVANTAGE
NIGHT
VISION
INDOOR/OUTDOOR
LOW LIGHT VIEWING
NIGHT VISION
+34% MORE
VARIFOCAL LENS
960H
LDC7182B
D1
960H
Typical
Low light viewing stays in color longer*
Ambient
Lighting
155ft
Total
100ft
Darkness
www.lorextechnology.com
960H WEATHERPROOF NIGHT VISION
SECURITY DOME CAMERA
PRODUCT Information
Specifications
Image Sensor
LDC7182B
7-78597-71820-1
Package Weight:
0.9 kg / 2.6 lbs
Package Dimensions:
(W x D x H)
243mm x 149mm x 119mm/9.6” x 5.9” x 4.7”
Package Cube:
0.006 CBM / 0.23 CBF
Contents:
1 x Camera, 1 x 60ft BNC/Power extension cable, 1 x BNC
female/RCA male adapter, 1 x 12V DC power adapter
1/3” 960H Sony EXview
HAD™ CCD II
Video Format NTSC
Effective Pixels
H: 976 V: 494
Resolution
up to 700 TV Lines
Scan System
2:1 Interlace
Sync System Internal
S / N Ratio>48dB
IrisAES
dimensions
AES Shutter Speed 1/60 ~ 1/100,000 sec.
Min. Illumination 0.1 Lux without IR LED
0 Lux with IR LED
Video Output Composite 1.0Vpp @ 75ohm
Lens / Lens Type 2.8-12mm F1.4 / Varifocal
FOV (Diagonal) 33-104°
Termination BNC Type
IR LED Qty. / Type 36 pieces / 850nm
Night Vision Range
155ft (50m) / 100ft (34m) 3
Power Requirement 12V DC ±10%
DISCLAIMERS
Power Consumption Max. 450mA (w / IR)
Operating Temp. Range 14° ~ 122°F / –10° ~ 50°C
1. When connected to a 960H capable DVR.
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time
ambient lighting and in total darkness. Actual range and image clarity depends on
installation location, viewing area and light reflection/ absorption level of object.
3. Not intended for submersion in water. Installation in a sheltered location recommended.
* If light level is too low, camera will switch over to B/W for increased light sensitivity.
Operating Humidity Range
< 80% RH
Environmental Rating IP66
Weight (including stand) 1.4lbs / 0.6kg
INSTALLATION DIAGRAM
TV/
Monitor
BNC
BNC
(video)
DVR
(video)
Power
BNC/RCA Adapter
(Included )
BNC Extension cable
(included)
Power
Power Adapter
LDC7182B
www.lorextechnology.com
Lorex Technology Inc.
250 Royal Crest Court,
Markham, Ontario L3R 3S1
Canada.
Camera
(Included)
901 Elkridge Landing Road, Suite 100
Linthicum, Maryland 21090,
USA.
©2013 Lorex Technology Inc.
As our product is subject to continuous improvement, Lorex Technology &
subsidiaries reserve the right to modify product design, specifications & prices
without notice and without incurring any obligation. E&OE.
1-05102013
