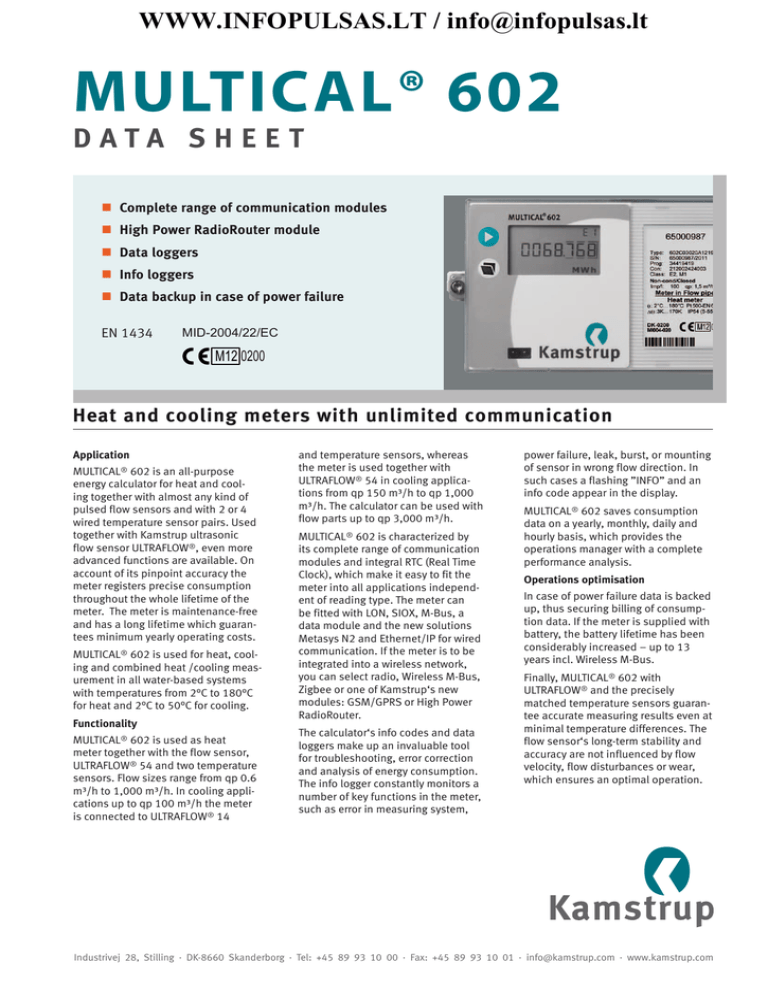

MULTICAL® 602 Heat and cooling meters with unlimited communication

MULTICAL® 602 Heat and cooling meters with unlimited communication

WWW.INFOPULSAS.LT / [email protected]

MULTICAL® 602

D A T A S H E E T

„

Complete range of communication modules

„

High Power RadioRouter module

„

Data loggers

„

Info loggers

„

Data backup in case of power failure

EN 1434 MID-2004/22/EC

M12 0200

Heat and cooling meters with unlimited communication

Application

MULTICAL® 602 is an all-purpose energy calculator for heat and cooling together with almost any kind of pulsed flow sensors and with 2 or 4 wired temperature sensor pairs. Used together with Kamstrup ultrasonic flow sensor ULTRAFLOW®, even more advanced functions are available. On account of its pinpoint accuracy the meter registers precise consumption throughout the whole lifetime of the meter. The meter is maintenance-free and has a long lifetime which guarantees minimum yearly operating costs.

MULTICAL® 602 is used for heat, cooling and combined heat /cooling measurement in all water-based systems with temperatures from 2°C to 180°C for heat and 2°C to 50°C for cooling.

Functionality

MULTICAL® 602 is used as heat meter together with the flow sensor,

ULTRAFLOW® 54 and two temperature sensors. Flow sizes range from qp 0.6 m³/h to 1,000 m³/h. In cooling applications up to qp 100 m³/h the meter is connected to ULTRAFLOW® 14 and temperature sensors, whereas the meter is used together with

ULTRAFLOW® 54 in cooling applications from qp 150 m³/h to qp 1,000 m³/h. The calculator can be used with flow parts up to qp 3,000 m³/h.

MULTICAL® 602 is characterized by its complete range of communication modules and integral RTC (Real Time

Clock), which make it easy to fit the meter into all applications independent of reading type. The meter can be fitted with LON, SIOX, M-Bus, a data module and the new solutions

Metasys N2 and Ethernet/IP for wired communication. If the meter is to be integrated into a wireless network, you can select radio, Wireless M-Bus,

Zigbee or one of Kamstrup‘s new modules: GSM/GPRS or High Power

RadioRouter.

The calculator‘s info codes and data loggers make up an invaluable tool for troubleshooting, error correction and analysis of energy consumption.

The info logger constantly monitors a number of key functions in the meter, such as error in measuring system, power failure, leak, burst, or mounting of sensor in wrong flow direction. In such cases a flashing ”INFO” and an info code appear in the display.

MULTICAL® 602 saves consumption data on a yearly, monthly, daily and hourly basis, which provides the operations manager with a complete performance analysis.

Operations optimisation

In case of power failure data is backed up, thus securing billing of consumption data. If the meter is supplied with battery, the battery lifetime has been considerably increased – up to 13 years incl. Wireless M-Bus.

Finally, MULTICAL® 602 with

ULTRAFLOW® and the precisely matched temperature sensors guarantee accurate measuring results even at minimal temperature differences. The flow sensor‘s long-term stability and accuracy are not influenced by flow velocity, flow disturbances or wear, which ensures an optimal operation.

Industrivej 28, Stilling · DK-8660 Skanderborg · Tel: +45 89 93 10 00 · Fax: +45 89 93 10 01 · [email protected] · www.kamstrup.com

MULTICAL® 602

D A T A S H E E T

Content

Calculator functions

Pulse outputs and pulse inputs of the modules

Cabinet design

Approved meter data

Electrical data

Mechanical data

12

15

Materials 15

Order specifications

Tolerance band

Dimentional sketches

Accessories 20

16

17

18

3

10

11

12

2

5810939_J1_GB_03.2012

MULTICAL® 602

D A T A S H E E T

Calculator functions

Energy calculation

MULTICAL® 602 calculates energy based on the formula in prEN 1434-1:2009, in which the international temperature scale from 1990 (ITS-90) and the pressure definition of 16 bar is used.

The energy calculation can in a simplified way be expressed as:

Energy = V x

∆Θ x k.

V is the supplied water volume

∆Θ k is the temperature difference measured is the thermal coefficient of water

The calculator always calculates energy in [Wh], and then it is converted into the selected measuring unit.

5810939_J1_GB_03.2012

E [Wh] =

E [kWh] =

E [MWh] =

E [GJ] =

E [Gcal] =

V x

∆Θ x k x 1000

E [Wh] / 1.000

E [Wh] / 1.000.000

E [Wh] / 277.780

E [Wh] / 1.163.100

Application types

MULTICAL® 602 operates with 9 different energy formulas, E1...E9, that are all calculated in parallel in connection with each integration no matter how the meter is configured.

The energy types E1 to E9 are calculated as follows:

E1=V1(T1-T2)k Heat energy (V1 in flow or return)

E2=V2(T1-T2)k Heat energy (V2 in return)

E3=V1(T2-T1)k Cooling energy (V1 in flow or return)

E4=V1(T1-T3)k Flow energy

E5=V2(T2-T3)k Return energy or tapping from return

E6=V2(T3-T4)k Tap water energy, separate

E7=V2(T1-T3)k Tap water energy, flow pipe

E8=m³xT1

E9=m³xT2

Basis for calculating volume based average temperatures in flow T1

Basis for calculating volume based average temperatures in return T2

This renders MULTICAL® 602 capable of calculating the heat and cooling energy of most applications, both closed and open systems.

All energy types are data logged and can be displayed dependent of configuration.

3

MULTICAL® 602

D A T A S H E E T

Calculator functions

Example 1:

Closed thermal system with 1 or 2 flow sensors

Example 2:

2 string system with 2 flow sensors

Example 3:

2 heat circuits with joint flow

Example 4:

Open system with 2 flow sensors

Flow measurement

MULTICAL® 602 calculates current water flow according to two different principles depending on the connected flow sensor type:

– The flow indication of electronic flow meters is updated every 10 seconds.

– The flow indication of mechanical flow meters, typically with reed contact, is calculated on the basis of

periodic time measurement and is updated with each volume pulse.

4

5810939_J1_GB_03.2012

MULTICAL® 602

D A T A S H E E T

Calculator functions

Power measurement

MULTICAL® 602 calculates current power on the basis of current water flow and the temperature difference measured in connection with the latest integration.

Current power is updated in the display simultaneously with the flow update.

Min. and max. flow and power

MULTICAL® 602 registers minimum and maximum flow and power on a monthly as well as on a yearly basis. The registrations which appear from the display or can be read via data communication include max. and min. flow and power values, all with date indication.

All max. and min. values are calculated as largest and smallest average respectively of a number of current flow or power measurements. The average period used for all calculations is selected in the interval 1…1440 min.

Temperature measurement

MULTICAL® 602 is available in different versions for either Pt100 or Pt500 sensors as well as in 2-wire and 4-wire versions.

The measuring circuit includes a high resolution analog/digital converter with a temperature range of

0.00...185.00

°C.

In addition to current temperatures for the energy calculation average temperatures on a yearly and monthly basis can also be displayed.

5810939_J1_GB_03.2012

5

MULTICAL® 602

D A T A S H E E T

Calculator functions

Display functions

MULTICAL® 602 is equipped with a clear LC display including 8 digits, units of measurement and information panel. In connection with energy and volume readings 7 digits and the units of measurement to match are used, whereas 8 digits are used when e.g. meter number is read.

As a starting point the display shows accumulated energy. When the push buttons are activated the display reacts immediately by calling other readings. The display automatically returns to accumulated energy reading 4 minutes after the latest activation of the push buttons.

MULTICAL® 602

The upper push button is used to switch between the primary readings. The consumers typically use the first primary readings in connection with self-reading for billing purposes.

The lower push button is used to show secondary information on the selected primary reading.

Set/reset function

The set/reset function of MULTICAL® 602 makes it possible to change a number of parameters by means of the two buttons on the meter’s front.

The following parameters can be changed:

• Date

• Hour

• Input A (preset of register)

• Input B (preset of register)

• Meter no. of Input A

• Meter no. of Input B

• Pulse value for Input A

• Pulse value for Input B

• Primary M-Bus address

• Operating hour counter (reset)

• Info-event counter (reset)

As the installation seal is broken, the change can only be made by the energy supplier.

6

5810939_J1_GB_03.2012

MULTICAL® 602

D A T A S H E E T

Calculator functions

Info codes

MULTICAL® 602 constantly monitors a number of important functions, e.g. power supply, temperature sensors and leakage alarms. Should a serious error occur in the measuring system or in the installation, a flashing

“info” will appear in the display whilst the error exists. The “Info” panel will automatically disappear when the error has been corrected.

An info event logger indicates how many times the info code has been changed.

An error hour counter registers the hours during which the info code exceeds zero.

The info logger stores the latest 50 changes, of which 36 can be displayed.

Info code Description Response time

0 No irregularities -

1 Supply voltage has been cut off -

8 Temperature sensor T1 outside measuring range 1…10 min.

4 Temperature sensor T2 outside measuring range 1…10 min.

32 Temperature sensor T3 outside measuring range 1…10 min.

64 Leak in the cold-water system

256 Leak in the heating system

512 Burst in the heating system

1 day

1 day

120 sec.

Connecting ULTRAFLOW ® 54 to MULTICAL ® 602, 2-way communication is achieved between the flow meter and calculator and an additional set of info codes are available:

Info code Description

16 Flow sensor V1, Data communication error

1024 Flow sensor V2, Data communication error

2048 Flow sensor V1, Wrong meter factor

128 Flow sensor V2, Wrong meter factor

4096 Flow sensor V1, Signal too low (Air)

8192 Flow sensor V2, Signal too low (Air)

16384 Flow sensor V1, Wrong flow direction

32768 Flow sensor V2, Wrong flow direction

Response time

After reset and 1 day (00:00)

After reset and 1 day (00:00)

After reset and 1 day (00:00)

After reset and 1 day (00:00)

After reset and 1 day (00:00)

After reset and 1 day (00:00)

After reset and 1 day (00:00)

After reset and 1 day (00:00)

7

5810939_J1_GB_03.2012

MULTICAL® 602

D A T A S H E E T

Calculator functions

Data loggers

MULTICAL® 602 contains a permanent memory (EEPROM), where the results of a number of various data loggers are stored. The meter contains the following data loggers which can be read on the display or via serial data:

Data logging interval

Yearly logger

Monthly logger

Daily logger

Hourly logger

Programmable data logger

(option)

Info logger

Data logging depth

15 years

36 months

460 days

1392 hours

1080 loggings

Logging interval 1-1440 min.

(e.g. 45 days’ hour loggings or

11 days‘ 15 min. loggings)

50 events

Logged value

Counter registers

(as seen on the display)

Counter registers

(as seen on the display)

Consumption (increase)/day

Consumption (increase)/hour

30 registers and values

Info code, date, time and energy

(E1/E2)

Leak surveillance

16

10

8

6

4

14

12

2

0

-2

400 410 420 430 440 450 460

District heating systems

The leak surveillance system is primarily intended for direct connected district heating installations. The surveillance system consists of two water meters based on the ultrasonic principle, placed in flow and return pipe respectively, and of temperature sensors in both pipes. MULTICAL® 602 monitors the mass difference that may appear between flow and return pipe.

Cold-water systems

The pulse signal from the cold-water meter of the house can be connected to MULTICAL® 602. In this way it can monitor the cold-water consumption. A flushing toilet cistern, leaky heating coils in the water tanks or other leaks will cause that impulses from the cold-water meter are received 24 hours a day.

8

5810939_J1_GB_03.2012

MULTICAL® 602

D A T A S H E E T

Calculator functions

Voltage supply

MULTICAL® 602 is available with battery supply, 230 VAC mains module, or 24 VAC mains module. The supply modules are exchangeable without breaking the verification seal.

Plug-in modules

Plug-in modules can be added to MULTICAL® 602 both in the calculator top (top modules) and in the base unit (base modules), in this way the meter can adapt to various applications and data reading

methods. The modules can be seen in “Order specifications” on page 16.

Programming and verification

METERTOOL for MULTICAL® 602 is a Windows® -based software which includes all facilities for calculator programming. If the software is used together with VERIFICATION EQUIPMENT for MULTICAL® 602, the calculator can be tested and verified.

Tariff functions

MULTICAL® 602 has 2 extra registers TA2 and TA3 to accumulate energy parallelly to the main register based on a programmed tariff condition.

No matter which tariff type you select the tariff registers will be displayed as TA2 and TA3.

The main register is always accumulated, irrespective of the selected tariff function, as it is considered the legal billing register. Tariff conditions TL2 and TL3 are monitored before each integration. If the tariff conditions are fulfilled, the consumed heat energy is accumulated in either TA2 or TA3, as well as the main register.

5810939_J1_GB_03.2012

9

MULTICAL® 602

D A T A S H E E T

Pulse outputs and pulse inputs of the modules

Pulse outputs CE and CV

MULTICAL® 602 has pulse outputs for energy and volume pulses respectively. CE on terminals 16-17 releases one pulse per least significant digit of the energy count in the display and CV on terminals 18-19 releases one pulse per least significant digit of the volume count in the display.

If a higher resolution of pulse outputs is required, a CCC code with high resolution must be selected.

Pulse inputs VA and VB

MULTICAL® 602 has two extra pulse inputs, VA and VB, to collect and accumulate pulses remotely, e.g from cold-water meters and electricity meters. The pulse inputs are physically placed on the plug-in modules.

The pulse inputs VA and VB function independently of the other inputs/ outputs.

10

5810939_J1_GB_03.2012

MULTICAL® 602

D A T A S H E E T

Cabinet design

Top module

Cable relief

Pulse outputs

(CE and CV)

Connection terminals for power supply/battery

Connection terminals for temperature sensors

(T1 + T2)

Connection terminals for flow sensors (V1+V2)

Connection terminals for temperature sensors

(T3)

Connector between the top and bottom

Base module

Pulse inputs (VA and VB)

Power supply/battery

Cable relief

11

5810939_J1_GB_03.2012

MULTICAL® 602

D A T A S H E E T

Approved meter data

Approval Standard: EN 1434:2007, prEN 1434:2009 and OIML R75:2002

EU-directives

– MID (Measuring Instruments Directive)

– LVD (Low Voltage Directive)

– EMC (Electromagnetic Compatibility Directive)

Heat meter

– Approval

– Temperature range

– Differential range

DK-0200-MI004-020

θ: 2°C...180°C

∆Θ: 3 K...170 K

The stated minimum temperatures apply to the type approval only. The meter has no cutoff for low temperature and thus measures as low temperatures as 0.01

°C and 0.01 K.

Cooling meter

– Temperature range

– Differential range

θ: 2°C...50°C

∆Θ: 3 K...40 K

E

C

±(0.5 +

∆Θ min

/

∆Θ)%

Accuracy

Temperature sensors

– Type 602-A

– Type 602-B+602-D

– Type 602-C

Flow sensor types

Pt100 EN 60 751, 2-wire connection

Pt500 EN 60 751, 4-wire connection

Pt500 EN 60 751, 2-wire connection

– ULTRAFLOW®

– Electronic meters with active 24 V pulse output

– Mechanical meters with electronic pick-up

– Mechanical meters with reed switch

Flow sensor sizes

– [kWh]

– [MWh]

– [GJ]

EN 1434 designation q p q p q p

0.6 m 3

0.6 m 3

0.6 m 3

/h...q

p

15 m 3 /h

/h...q

p

1500 m 3

/h...q

p

3000 m 3

/h

/h

Environmental class A and C

MID designation

– Mechanical environment

– Electromagnetic environment

Electrical data

Class M1

Class E1 and E2

Calculator data

Typical accuracy

– Calculator

– Sensor set

Display

Resolution

Energy units

E

C

E

T

±(0.15 + 2/∆Θ)%

±(0.4 + 4/∆Θ)%

LCD – 7 (8) digits with a digit heigth of 7.6 mm

9999.999 – 99999.99 – 999999.9 – 9999999

MWh – kWh – GJ – Gcal

12

5810939_J1_GB_03.2012

MULTICAL® 602

D A T A S H E E T

Electrical data

Data logger (Eeprom)

– Standard

– Option

Clock/calendar

Data communication

Power in temperature sensors

Supply voltage

Battery

Closed circuit

Replacement interval

– Mounted on wall

– Mounted on flow sensor

Mains supply

Insulation voltage

Power supply

Backup supply

1392 hours, 460 days, 36 months, 15 years, 50 info codes

Data loggers with programmable interval

Clock, calendar, leap-year compensation, target date, Real time clock with battery back-up

KMP protocol with CRC16 used for optical communication and for top and base modules

< 10 µW RMS

3.6 VDC ± 0.1 VDC

3.65 VDC, D-cell lithium

< 35 µA excluding flow sensor

12 + 1 years @ t

BAT

10 years @ t

BAT

< 30°C

< 40°C

The replacement interval is reduced when using data modules, frequent data communication or high ambient temperature.

230 VAC +15/-30%, 50/60 Hz

24 VAC ±50%, 50/60 Hz

4 kV

< 1 W

Integral super-cap eliminates operational stop-down due to shortterm power cuts (this only applies for supply modules type

602-0000-7 and 602-0000-8).

Meets prEN 1434-4:2009 Class C (MID Class E2) EMC data

Temperature measurement

Sensor inputs T1, T2, T3

– Measuring range

Temperature T3, T4

– Preset range

Max. cable lengths

– Pt100, 2-wire

– Pt500, 2-wire

– Pt500, 4-wire

0.00…185.00°C

0.01…180.00°C

2 x 0.25 mm²: 2.5 m

2 x 0.50 mm²: 5 m

2 x 0.25 mm²: 10 m

2 x 0.50 mm²: 20 m

4 x 0.25 mm²: 100 m

13

5810939_J1_GB_03.2012

MULTICAL® 602

D A T A S H E E T

Electrical data

Flow measuring

V1 and V2

EN 1434 pulse class

Pulse input

Pulse ON

Pulse OFF

Pulse frequency

Integration frequency

Electrical isolation

Max. cable length

ULTRAFLOW®

V1: 9-10-11 and V2: 9-69-11

IC

680 k

Ω pull-up to 3.6 V

< 0.4 V for > 0.5 msec.

> 2.5 V for > 10 msec.

< 128 Hz

< 1 Hz

No

10 m

Reed switches

V1: 10-11 and V2: 69-11

IB

680 k

Ω pull-up to 3.6 V

< 0.4 V for > 100 msec.

> 2.5 V for > 100 msec.

< 1 Hz

< 1 Hz

No

25 m

24 V active pulses

V1: 10B-11B and V2: 69B-79B

(IA)

12 mA at 24 V

< 4 V for > 3 msec.

> 12 V for > 10 msec.

< 128 Hz

< 1 Hz

2 kV

100 m

Pulse inputs without bounce damping VA and VB

VA: 65-66 og VB: 67-68

Pulse input

Pulse ON

Pulse OFF

Pulse frequency

Electrical isolation

Max. cable length

Requirements to external contact

Water meter connection

FF(VA) and GG(VB) = 71…90

680 k

Ω pull-up to 3.6 V

< 0.4 V for > 30 msec.

> 2.5 V for > 100 msec.

< 1 Hz

No

25 m

Electricity meter connection

FF(VA) and GG(VB) = 50…60

680 k

Ω pull-up to 3.6 V

< 0.4 V for > 30 msec.

> 2.5 V for > 100 msec.

< 3 Hz

No

25 m

Leakage current at function open

< 1µA

Pulse inputs with bounce damping VA and VB

VA: 65-66 and VB: 67-68

Pulse input

Pulse ON

Pulse OFF

Pulse frequency

Electrical isolation

Max. cable length

Requirements to external contact

Water meter connection

FF(VA) and GG(VB) = 01…40

680 k

Ω pull-up to 3.6 V

< 0.4 V for > 200 msec.

> 2.5 V for > 500 msec.

< 1 Hz

No

25 m

Leakage current at function open

< 1µA

Pulse outputs CE and CV

Type

Pulse length

External voltage

Current

Residual voltage

Electrical isolation

Max. cable length

Via top module 67-OB

Opto FET

Via top module 602-OC

Open collector (OB)

Optional 32 msec. or 100 msec.

5…48 VDC/AC

1…50 mA

R

ON

≤ 40 Ω

2 kV

25 m

5…30 VDC

1…10 mA

U

CE

≈ 1 V at 10 mA

2 kV

25 m

14

5810939_J1_GB_03.2012

MULTICAL® 602

D A T A S H E E T

Mechanical data

Environmental class

Ambient temperature

Protection class

Storage temperature

Weight

Connection cables

Supply cable

Meets EN 1434 Class A and C

5…55°C non condensing, closed location (indoor installation)

IP54

-20…60°C (drained flow meter)

0.4 kg excluding sensors and flow sensor

ø3.5…6 mm

ø5…10 mm

Materials

Top co ver

Base unit

Print box

Wall bracket

PC

ABS with TPE gaskets (thermoplastic elastomer)

ABS

PC + 30% glass

5810939_J1_GB_03.2012

15

MULTICAL® 602

D A T A S H E E T

Order specifications

MULTICAL® 602 Type 602-

  

Sensor connection

Pt100 2-wire (T1-T2)

Pt500 4-wire (T1-T2)

Pt500 2-wire (T1-T2-T3)

Pt500 4-wire (T1-T2) w/24 V pulse inputs

Top module

No module

RTC +

∆Energy calculation + hourly data logger

RTC + PQ or

∆t-limiter + hourly data logger

RTC + data output + hourly data logger

RTC + M-Bus

RTC +

∆Volume + hourly data logger

RTC + 2 pulse outputs for CE and CV + hourly data logger + scheduler

RTC + 2 pulse outputs for CE and CV + prog. data logger

2 pulse outputs CE and CV

Base module

No module

Data + pulse inputs

M-Bus + pulse inputs

Radio Router + pulse inputs

Prog. datalogger + RTC + 4…20 mA inputs + pulse inputs

0/4…20 mA outputs

LonWorks + pulse inputs

Radio + pulse inputs (internal antenna) 434 or 444 MHz

Radio + pulse inputs (external antenna connection) 434 or 444 MHz

M-Bus module with alternative registers + pulse inputs

M-Bus module with medium data package + pulse inputs

M-Bus module with MC-III data package + pulse inputs

Wireless M-Bus Mode C1 + pulse inputs

Wireless M-Bus Mode C1 alternative registers + pulse inputs

ZigBee 2.4 GHz int.ant. + pulse inputs

Metasys N2 (RS485) + pulse inputs

SIOX module (Auto detect Baud rate)

GSM/GPRS (GSM6H)

Ethernet/IP (IP201)

High Power Radio Router + pulse inputs

Supply

No supply

Battery, D-cell

230 VAC High Power isolated SMPS

24 VAC High Power isolated SMPS

230 VAC isolated linear supply

24 VAC isolated linear supply

Pt500 sensor set

No sensor set

Pocket sensor set w/1.5 m cable

Pocket sensor set w/3.0 m cable

Pocket sensor set w/5 m cable

Pocket sensor set w/10 m cable

Short direct sensor set w/1.5 m cable

Short direct sensor set w/3.0 m cable

3 Pocket sensors in sets w/1.5 m cable

3 Short direct sensors in sets w/1.5 m cable

Flow sensor/pick-up unit

Supplied w/1 ULTRAFLOW®

Supplied w/2 (identical) ULTRAFLOW®

Prepared for 1 ULTRAFLOW®

Prepared for 2 (identical) ULTRAFLOW®

Prepared for meters w/electronic pulse output

Prepared for meters w/reed switch output (both V1 and V2)

Prepared for meters w/24 V active pulses

Meter type

Heat meter (MID module B + D)

Heat meter, closed systems

Cooling meter

Heat/cooling meter

Volume meter, hot water

Volume meter, cooling water

Energy meter, open systems

Country code (language on label etc.)

A

B

C

D

0

2

3

5

7

9

A

B

C

Require High Power supply modules

80

82

84

(Please specify type)

(Please specify type)

(Please specify type)

(Please specify type)

30

35

60

62

64

26

27

28

29

22

23

24

25

00

10

20

21

When placing orders please state ULTRAFLOW® type numbers separately.

3

4

0

2

7

8



00

0A

0B

0C

0D

0F

0G

0L

Q3

  

K

L

M

7

8

1

2

2

4

5

6

7

8

9

XX

16

5810939_J1_GB_03.2012

MULTICAL® 602

D A T A S H E E T

Tolerance band

Max. permitted error [%]

MULTICAL® 602

The above diagram shows the tolerance band of MULTICAL® 602 compared to the tolerance requirements of EN 1434.

5810939_J1_GB_03.2012

17

MULTICAL® 602

D A T A S H E E T

Dimentional sketches

MULTICAL® 602 mounted on ULTRAFLOW®

10190

63

81

91

27

Front dimensions of MULTICAL® 602

MULTICAL® 602

45°

18

5810939_J1_GB_03.2012

MULTICAL® 602

D A T A S H E E T

Dimentional sketches

Wall-mounted MULTICAL® 602 seen from the side

Panel-mounted MULTICAL® 602 seen from the side

Panel mounted MULTICAL® 602 seen from the front

MULTICAL® 602

5810939_J1_GB_03.2012

19

MULTICAL® 602

D A T A S H E E T

Accessories

Description

D-cell battery

230 VAC High Power isolated SMPS

24 VAC High Power isolated SMPS

230 VAC isolated linear supply

24 VAC isolated linear supply

Pulse transmitter/divider for 602-A and 602-C

4-wire connection PCB with pulse inputs for 24 V active pulses (for 602-D)

Data cable w/USB plug

Infrared optical reading head w/USB plug

Infrared optical reading head w/D-sub 9F

Data cable RS232, D-sub 9F

Infrared optical reading head for Kamstrup/EVL w/USB plug

Verification unit (used with METERTOOL)

Temperature sensor set with connecting head (2/4 wired)

External communication box

Type No.

66-00-200-100

60200003000000

60200004000000

60200007000000

60200008000000

66-99-624

66-99-614

66-99-098

66-99-099

66-99-102

66-99-106

66-99-144

66-99-397/-398/-399

65-56-4x-xxx

67-9x-xxxxx-2xx

METERTOOL for MULTICAL® 602

METERTOOL LogView for MULTICAL® 602

Please contact Kamstrup A/S for questions concerning further accessories.

66-99-718

66-99-719

20

5810939_J1_GB_03.2012

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
