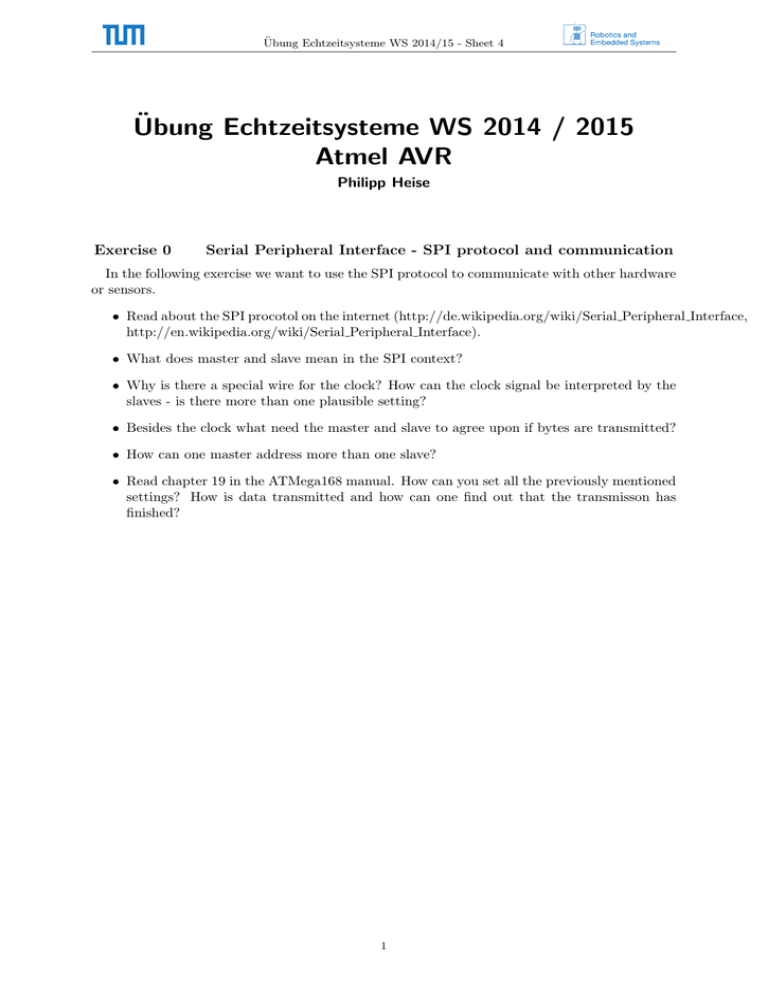

Übung Echtzeitsysteme WS 2014/15 - Sheet 4
Übung Echtzeitsysteme WS 2014 / 2015
Atmel AVR
Philipp Heise
Exercise 0
Serial Peripheral Interface - SPI protocol and communication
In the following exercise we want to use the SPI protocol to communicate with other hardware
or sensors.
• Read about the SPI procotol on the internet (http://de.wikipedia.org/wiki/Serial Peripheral Interface,
http://en.wikipedia.org/wiki/Serial Peripheral Interface).
• What does master and slave mean in the SPI context?
• Why is there a special wire for the clock? How can the clock signal be interpreted by the
slaves - is there more than one plausible setting?
• Besides the clock what need the master and slave to agree upon if bytes are transmitted?
• How can one master address more than one slave?
• Read chapter 19 in the ATMega168 manual. How can you set all the previously mentioned
settings? How is data transmitted and how can one find out that the transmisson has
finished?
1
Übung Echtzeitsysteme WS 2014/15 - Sheet 4
Exercise 1
SPI LC-Display
In this exercise we will communicate with an SPI compatible display. The schematic of the
display and its carrier board are shown below.
PWR
J1
J1
+
+
–
+
+
J2
+
+
+
+
+
+
+
J3
J2
+
J3
5V mode
/RES RS CS R
3.3V mode
E D0 D1 D2 D3 D4 D5 D6 D7
PWR
+ –
1
/RES
Hold in reset
Control reset
Normal operation
RS
CS
–1
Chip not selected
Control Cmd/Data
Control CS
–1
Chip selected
R
–1
Control Read/Write
SPI mode
1
E
–
Control Enable
SPI mode
D0
–1
Control D0
SPI / 4 Bit mode
D1
–1
Control D1
SPI / 4 Bit mode
D2
–
1
Control D2
SPI / 4 Bit mode
D3
–1
Control D3
SPI / 4 Bit mode
D4
–1
Control D4
SPI mode
D5
–1
Control D5
SPI mode
D6
–1
Control D6
–1
D7
1
Control D7
–1
–
Power connector
Do not use
• Connect the display to the STK500. The PWR connector has to be connected to VTG and
GND on STK500 (respecting polarity). D6 (CLK) has to be connected to PB5 (SCK) and D7
(SI) to PB3 (MOSI). Further we connect RS to PB1 and /RES to PD2 to be able to reset the
display controller upon startup (needed for reliable initialization). With /RES we can reset
the display controller. The RS pin allows us to tell the display controller if the transfered
data has to be interpreted as a command or if it should be displayed.
• Why is it not necessary to connect the slave output to the AVR? What are the implications
of this?
• Edit the spi.c file and setup the control registers for the AVR in the spi init routine.
The AVR needs to be the master, MSB first and CPHA,CPOL should both be zero. The SCK
rate should be set to 14 of the oscillator frequency (no double rate).
2
Übung Echtzeitsysteme WS 2014/15 - Sheet 4
• What does the function lcd command mode( uint8 t cmd ) in lcd.c do? Implement
the functions void lcd set cursor(uint8 t pos) and void lcd showchar( char c )
in lcd.c. Keep in mind to respect the maximum timings and command codes provided
in the datasheet of the display.
• Modify main.c to show some other text on the display. Find out how and why fprintf
together with stderr can be used to show text on the display. Can you change it to
stdout and use printf?
3
