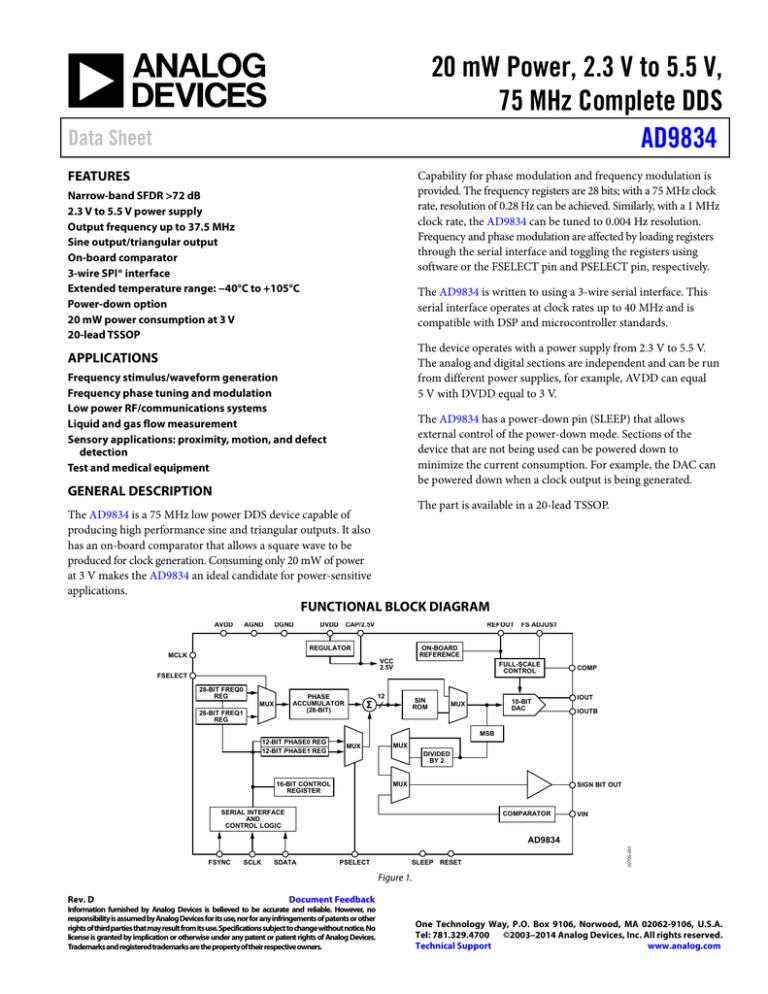

AD9834

AD9834

Data Sheet

20 mW Power, 2.3 V to 5.5 V,

75 MHz Complete DDS

AD9834

FEATURES

Narrow-band SFDR >72 dB

2.3 V to 5.5 V power supply

Output frequency up to 37.5 MHz

Sine output/triangular output

On-board comparator

3-wire SPI® interface

Capability for phase modulation and frequency modulation is provided. The frequency registers are 28 bits; with a 75 MHz clock rate, resolution of 0.28 Hz can be achieved. Similarly, with a 1 MHz clock rate, the AD9834 can be tuned to 0.004 Hz resolution.

Frequency and phase modulation are affected by loading registers through the serial interface and toggling the registers using software or the FSELECT pin and PSELECT pin, respectively.

Extended temperature range: −40°C to +105°C

Power-down option

20 mW power consumption at 3 V

The AD9834 is written to using a 3-wire serial interface. This serial interface operates at clock rates up to 40 MHz and is compatible with DSP and microcontroller standards.

20-lead TSSOP

APPLICATIONS

Frequency stimulus/waveform generation

Frequency phase tuning and modulation

The device operates with a power supply from 2.3 V to 5.5 V.

The analog and digital sections are independent and can be run from different power supplies, for example, AVDD can equal

5 V with DVDD equal to 3 V.

Low power RF/communications systems

Liquid and gas flow measurement

Sensory applications: proximity, motion, and defect detection

Test and medical equipment

The AD9834 has a power-down pin (SLEEP) that allows external control of the power-down mode. Sections of the device that are not being used can be powered down to minimize the current consumption. For example, the DAC can be powered down when a clock output is being generated.

GENERAL DESCRIPTION

The AD9834 is a 75 MHz low power DDS device capable of

The part is available in a 20-lead TSSOP. producing high performance sine and triangular outputs. It also has an on-board comparator that allows a square wave to be produced for clock generation. Consuming only 20 mW of power at 3 V makes the AD9834 an ideal candidate for power-sensitive applications.

FUNCTIONAL BLOCK DIAGRAM

AVDD AGND DGND REFOUT FS ADJUST DVDD CAP/2.5V

MCLK

FSELECT

REGULATOR ON-BOARD

REFERENCE

VCC

2.5V

28-BIT FREQ0

REG

28-BIT FREQ1

REG

MUX

PHASE

ACCUMULATOR

(28-BIT)

12-BIT PHASE0 REG

12-BIT PHASE1 REG

MUX

Σ

12

MUX

SIN

ROM

DIVIDED

BY 2

MUX

MSB

FULL-SCALE

CONTROL

10-BIT

DAC

COMP

IOUT

IOUTB

16-BIT CONTROL

REGISTER

MUX

SIGN BIT OUT

SERIAL INTERFACE

AND

CONTROL LOGIC

COMPARATOR

VIN

AD9834

FSYNC SCLK SDATA PSELECT

Figure 1.

SLEEP RESET

Rev. D Document Feedback

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

Technical Support

©2003–2014 Analog Devices, Inc. All rights reserved. www.analog.com

AD9834* Product Page Quick Links

Last Content Update: 04/12/2016

Comparable Parts

View a parametric search of comparable partsView a parametric search of comparable parts

Evaluation Kits

• AD9834 Evaluation Board

Documentation

Application Notes

• AN-1044: Programming the AD5932 for Frequency Sweep and Single Frequency Outputs

• AN-1070: Programming the AD9833/AD9834

• AN-1248: SPI Interface

• AN-1389: Recommended Rework Procedure for the Lead

Frame Chip Scale Package (LFCSP)

• AN-237: Choosing DACs for Direct Digital Synthesis

• AN-280: Mixed Signal Circuit Technologies

• AN-342: Analog Signal-Handling for High Speed and

Accuracy

• AN-345: Grounding for Low-and-High-Frequency Circuits

• AN-419: A Discrete, Low Phase Noise, 125 MHz Crystal

Oscillator for the AD9850

• AN-423: Amplitude Modulation of the AD9850 Direct

Digital Synthesizer

• AN-543: High Quality, All-Digital RF Frequency

Modulation Generation with the ADSP-2181 and the

AD9850 DDS

• AN-557: An Experimenter's Project:

• AN-587: Synchronizing Multiple AD9850/AD9851 DDS-

Based Synthesizers

• AN-605: Synchronizing Multiple AD9852 DDS-Based

Synthesizers

• AN-621: Programming the AD9832/AD9835

• AN-632: Provisionary Data Rates Using the AD9951 DDS as an Agile Reference Clock for the ADN2812 Continuous-

Rate CDR

• AN-769: Generating Multiple Clock Outputs from the

AD9540

• AN-772: A Design and Manufacturing Guide for the Lead

Frame Chip Scale Package (LFCSP)

• AN-823: Direct Digital Synthesizers in Clocking

Applications Time

• AN-837: DDS-Based Clock Jitter Performance vs. DAC

Reconstruction Filter Performance

• AN-843: Measuring a Loudspeaker Impedance Profile

Using the AD5933

• AN-847: Measuring a Grounded Impedance Profile Using the AD5933

• AN-851: A WiMax Double Downconversion IF Sampling

Receiver Design

• AN-927: Determining if a Spur is Related to the DDS/DAC or to Some Other Source (For Example, Switching

Supplies)

• AN-939: Super-Nyquist Operation of the AD9912 Yields a

High RF Output Signal

• AN-953: Direct Digital Synthesis (DDS) with a

Programmable Modulus

Data Sheet

• AD9834: 20 mW Power, 2.3 V to 5.5 V, 75 MHz Complete

DDS Data Sheet

User Guides

• UG-266: Evaluating the AD9834 20 mW Power, 2.3 V to

5.5 V, 75 MHz Complete DDS

Software and Systems Requirements

• AD9834 - Microcontroller No-OS Driver

• AD9834 IIO Direct Digital Synthesis Linux Driver

• AD9834 FMC-SDP Interposer & Evaluation Board / Xilinx

KC705 Reference Design

• BeMicro FPGA Project for AD9834 with Nios driver

Tools and Simulations

• ADIsimDDS™ (Direct Digital Synthesis)

Reference Designs

• CN0156

• CN0304

Reference Materials

Analog Dialogue

• Ask The Application Engineer—33: All About Direct

Digital Synthesis

• Direct Digital Synthesis (DDS) Controls Waveforms in

Test, Measurement, and Communications

Technical Articles

• 400-MSample DDSs Run On Only +1.8 VDC

• AD9858: Flexible Integrated Synthesizer For Wireless

• ADI Buys Korean Mobile TV Chip Maker

• Basics of Designing a Digital Radio Receiver (Radio 101)

• Clock Requirements For Data Converters

• DDS Applications

• DDS Circuit Generates Precise PWM Waveforms

• DDS Design

• DDS Device Produces Sawtooth Waveform

• DDS Device Provides Amplitude Modulation

• DDS IC Initiates Synchronized Signals

• DDS IC Plus Frequency-To-Voltage Converter Make Low-

Cost DAC

• DDS Simplifies Polar Modulation

• DDS Tackles BaseStations Head On

• Digital Potentiometers Vary Amplitude In DDS Devices

• Digital Up/Down Converters: VersaCOMM™ White Paper

• Digital Waveform Generator Provides Flexible Frequency

Tuning for Sensor Measurement

• Improved DDS Devices Enable Advanced Comm Systems

• Integrated DDS Chip Takes Steps To 2.7 GHz

• Introducing Digital Up/Down Converters: VersaCOMM™

Reconfigurable Digital Converters

• Simple Circuit Controls Stepper Motors

• Speedy A/Ds Demand Stable Clocks

• Synchronized Synthesizers Aid Multichannel Systems

• The Year of the Waveform Generator

• Two DDS ICs Implement Amplitude-shift Keying

• Video Portables and Cameras Get HDMI Outputs

Design Resources

• AD9834 Material Declaration

• PCN-PDN Information

• Quality And Reliability

• Symbols and Footprints

Discussions

View all AD9834 EngineerZone Discussions

Sample and Buy

Visit the product page to see pricing options

Technical Support

Submit a technical question or find your regional support number

* This page was dynamically generated by Analog Devices, Inc. and inserted into this data sheet. Note: Dynamic changes to the content on this page (labeled “Important Links”) does not constitute a change to the revision number of the product data sheet.

This content may be frequently modified.

AD9834

TABLE OF CONTENTS

Features .............................................................................................. 1

Applications ....................................................................................... 1

General Description ......................................................................... 1

Functional Block Diagram .............................................................. 1

Revision History ............................................................................... 3

Specifications ..................................................................................... 4

Timing Characteristics ................................................................ 6

Absolute Maximum Ratings ............................................................ 7

ESD Caution .................................................................................. 7

Pin Configuration and Function Descriptions ............................. 8

Typical Performance Characteristics ........................................... 10

Terminology .................................................................................... 14

Theory of Operation ...................................................................... 15

Circuit Description ......................................................................... 16

Numerically Controlled Oscillator Plus Phase Modulator ... 16

SIN ROM ..................................................................................... 16

Digital-to-Analog Converter (DAC) ....................................... 16

Comparator ................................................................................. 16

Regulator ...................................................................................... 17

Output Voltage Compliance ...................................................... 17

Functional Description .................................................................. 18

Rev. D | Page 2 of 32

Data Sheet

Serial Interface ............................................................................ 18

Powering Up the AD9834 ......................................................... 18

Latency ......................................................................................... 18

Control Register ......................................................................... 18

Frequency and Phase Registers ................................................ 20

Writing to a Frequency Register ............................................... 21

Writing to a Phase Register ....................................................... 21

RESET Function ......................................................................... 21

SLEEP Function .......................................................................... 21

SIGN BIT OUT Pin .................................................................... 22

The IOUT and IOUTB Pins ...................................................... 22

Applications Information .............................................................. 23

Grounding and Layout .................................................................. 26

Interfacing to Microprocessors ..................................................... 27

AD9834 to ADSP-21xx Interface ............................................. 27

AD9834 to 68HC11/68L11 Interface ....................................... 27

AD9834 to 80C51/80L51 Interface .......................................... 28

AD9834 to DSP56002 Interface ............................................... 28

Outline Dimensions ....................................................................... 29

Ordering Guide .......................................................................... 29

Data Sheet

REVISION HISTORY

3/14—Rev. C to Rev. D

Changes to Table 3 ............................................................................ 7

Deleted Evaluation Board Section ................................................ 29

Changes to Ordering Guide ........................................................... 35

2/11—Rev. B to Rev. C

Changes to I

DD

Parameter, Table 1 .................................................. 5

Changes to FS ADJUST Description, Table 4 ................................ 8

Added Output Voltage Compliance Section................................ 17

Changes to Figure 31 ...................................................................... 23

Changes to Figure 32 ...................................................................... 24

Deleted Using the AD9834 Evaluation Board Section and the

Prototyping Area Section ............................................................... 28

Added System Development Platform Section, AD9834 to

SPORT Interface Section, Figure 39, and Figure 40;

Renumbered Sequentially .............................................................. 29

Changes to XO vs. External Clock Section and Power Supply

Section .............................................................................................. 29

Deleted Bill of Materials, Table 19;

Renumbered Sequentially .............................................................. 30

Added Evaluation Board Schematics Section and Figure 41 .... 30

Added Figure 42 .............................................................................. 31

Added Evaluation Board Layout Section and Figure 43 ............ 32

Added Figure 44 .............................................................................. 33

Added Figure 45 .............................................................................. 34

Changes to Ordering Guide ........................................................... 35

AD9834

4/10—Rev. A to Rev. B

Changes to Comparator Section ................................................... 15

Added Figure 28 .............................................................................. 16

Changes to Serial Interface Section .............................................. 17

8/06—Rev. 0 to Rev. A

Updated Format ................................................................. Universal

Changed to 75 MHz Complete DDS ............................... Universal

Changes to Features Section ............................................................ 1

Changes to Table 1 ............................................................................ 4

Changes to Table 2 ............................................................................ 6

Changes to Table 3 ............................................................................ 8

Added Figure 10, Figures Renumbered Sequentially ................... 9

Added Figure 16 and Figure 17, Figures Renumbered

Sequentially ...................................................................................... 10

Changes to Table 6 .......................................................................... 19

Changes to Writing a Frequency Register Section ..................... 20

Changes to Figure 29 ...................................................................... 21

Changes to Table 19 ........................................................................ 30

Changes to Figure 38 ...................................................................... 28

2/03—Revision 0: Initial Version

Rev. D | Page 3 of 32

AD9834 Data Sheet

SPECIFICATIONS

VDD = 2.3 V to 5.5 V, AGND = DGND = 0 V, T

A

= T

MIN

to T

MAX

, R

SET

= 6.8 kΩ, R

LOAD

= 200 Ω for IOUT and IOUTB, unless otherwise noted.

Table 1.

Parameter 2

SIGNAL DAC SPECIFICATIONS

Resolution

Update Rate

I

OUT

Full Scale 3

V

OUT

Max

V

OUT

Min

Output Compliance 4

DC Accuracy

Integral Nonlinearity

Differential Nonlinearity

DDS SPECIFICATIONS

Dynamic Specifications

Signal-to-Noise Ratio

Total Harmonic Distortion

Spurious-Free Dynamic Range (SFDR)

Wideband (0 to Nyquist)

Narrow Band (±200 kHz)

B Grade

C Grade

Clock Feedthrough

Wake-Up Time

COMPARATOR

Input Voltage Range

Input Capacitance

Input High-Pass Cutoff Frequency

Input DC Resistance

Input Leakage Current

OUTPUT BUFFER

Output Rise/Fall Time

Output Jitter

VOLTAGE REFERENCE

Internal Reference

REFOUT Output Impedance 5

Reference Temperature Coefficient

LOGIC INPUTS

Input High Voltage, V

INH

Input Low Voltage, V

INL

Input Current, I

INH

/I

INL

Input Capacitance, C

IN

3

1.18

1

100

10

4

5

12

120

−78

−74

−50

1

60

−66

−60

Grade B, Grade C 1

Typ Max

10

3.0

0.6

30

±1

±0.5

75

0.8

−67

−65

−56

−56

0.6

0.7

0.8

10

1.24

1

10

2.0

2.8

1.12

1.7

55

Min Unit

Bits

MSPS mA

V mV

V

LSB

LSB

Test Conditions/Comments

f

MCLK

= 75 MHz, f

OUT

= f

MCLK

/4096 f

MCLK

= 75 MHz, f

OUT

= f

MCLK

/4096 dBc dBc dBc ms dB dBc dBc

V p-p pF

MHz

μA f

MCLK

= 75 MHz, f

OUT

= f

MCLK

/75 f

MCLK

= 50 MHz, f

OUT

= f

MCLK

/50 f

MCLK

= 75 MHz, f

OUT

= f

MCLK

/75

AC-coupled internally ns Using a 15 pF load ps rms 3 MHz sine wave, 0.6 V p-p

V

V

V

V

V

µA pF

V kΩ ppm/°C

V 2.3 V to 2.7 V power supply

2.7 V to 3.6 V power supply

4.5 V to 5.5 V power supply

2.3 V to 2.7 V power supply

2.7 V to 3.6 V power supply

4.5 V to 5.5 V power supply

Rev. D | Page 4 of 32

Data Sheet AD9834

Parameter

DVDD

I

AA

6

I

DD

6

2

POWER SUPPLIES

AVDD

B Grade

C Grade

I

AA

+ I

DD

6

B Grade

Min

2.3

2.3

Grade B, Grade C

Typ

3.8

2.0

2.7

5.8

5

3

8

1

Max

5.5

5.5

3.7

Unit

V

V mA mA mA mA

I

I

Test Conditions/Comments

f

MCLK

= 75 MHz, f

OUT

DD

DD

= f

MCLK

/4096

code dependent (see Figure 8)

code dependent (see Figure 8)

C Grade

Low Power Sleep Mode

B Grade

C Grade

6.5

0.5

0.6

8.7 mA mA mA

DAC powered down, MCLK running

DAC powered down, MCLK running

1 B grade: MCLK = 50 MHz; C grade: MCLK = 75 MHz. For specifications that do not specify a grade, the value applies to both grades.

2 Operating temperature range is as follows: B, C versions: −40°C to +105°C, typical specifications are at 25°C.

3 For compliance, with specified load of 200 Ω, I

OUT

full scale should not exceed 4 mA.

4 Guaranteed by design.

5 Applies when REFOUT is sourcing current. The impedance is higher when REFOUT is sinking current.

6

Measured with the digital inputs static and equal to 0 V or DVDD.

R

SET

6.8kΩ

100nF 10nF

CAP/2.5V

REGULATOR

REFOUT

ON-BOARD

REFERENCE

FS ADJUST

FULL-SCALE

CONTROL

COMP

AVDD

10nF

AD9834

12

SIN

ROM

10-BIT DAC

IOUT

R

LOAD

200Ω

Figure 2. Test Circuit Used to Test the Specifications

20pF

Rev. D | Page 5 of 32

AD9834

TIMING CHARACTERISTICS

DVDD = 2.3 V to 5.5 V, AGND = DGND = 0 V, unless otherwise noted.

Table 2.

Parameter

1

Limit at T

MIN

to T

MAX

t

1 t

2 t

3 t

4 t

5 t

6 t

7 t

8 MIN

10

10

5

10

20/13.33

8/6

8/6

25 t

8 MAX t

9 t

10 t

4

− 5

5

3 t

11 t

11A

8

8 t

12

5

1

Guaranteed by design, not production tested.

Unit

ns min ns min ns min ns min ns min ns min ns min ns min ns max ns min ns min ns min ns min ns min

Test Conditions/Comments

MCLK period: 50 MHz/75 MHz

MCLK high duration: 50 MHz/75 MHz

MCLK low duration: 50 MHz/75 MHz

SCLK period

SCLK high duration

SCLK low duration

FSYNC-to-SCLK falling edge setup time

FSYNC-to-SCLK hold time

Data setup time

Data hold time

FSELECT, PSELECT setup time before MCLK rising edge

FSELECT, PSELECT setup time after MCLK rising edge

SCLK high to FSYNC falling edge setup time

Data Sheet

Timing Diagrams

t

1

MCLK t

2 t

3

Figure 3. Master Clock

MCLK

FSELECT,

PSELECT

VALID DATA t

11

VALID DATA t

11A

VALID DATA

Figure 4. Control Timing

t

5 t

4 t

12

SCLK

FSYNC t

7 t

6 t

8

SDATA D15 D14 t

9 t

10

D1 D2

Figure 5. Serial Timing

D0 D15 D14

Rev. D | Page 6 of 32

Data Sheet

ABSOLUTE MAXIMUM RATINGS

T

A

= 25°C, unless otherwise noted.

Table 3.

Parameter

AVDD to AGND

DVDD to DGND

AGND to DGND

CAP/2.5V

Digital I/O Voltage to DGND

Analog I/O Voltage to AGND

Operating Temperature Range

Industrial (B Version)

Storage Temperature Range

Maximum Junction Temperature

TSSOP Package

Ratings

−0.3 V to +6 V

−0.3 V to +6 V

−0.3 V to +0.3 V

2.75 V

−0.3 V to DVDD + 0.3 V

−0.3 V to AVDD + 0.3 V

−40°C to +105°C

−65°C to +150°C

150°C

θ

JA

Thermal Impedance

θ

JC

Thermal Impedance

143°C/W

45°C/W

Lead Temperature, Soldering (10 sec) 300°C

IR Reflow, Peak Temperature 220°C

Reflow Soldering (Pb-Free)

Peak Temperature

Time at Peak Temperature

260°C (+0/–5)

10 sec to 40 sec

AD9834

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

ESD CAUTION

Rev. D | Page 7 of 32

AD9834

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

FS ADJUST 1

REFOUT 2

COMP

3

AVDD 4

DVDD 5

CAP/2.5V

6

DGND 7

MCLK 8

FSELECT 9

PSELECT

10

AD9834

TOP VIEW

(Not to Scale)

20 IOUTB

19 IOUT

18 AGND

17

VIN

16

SIGN BIT OUT

15 FSYNC

14 SCLK

13 SDATA

12 SLEEP

11 RESET

Figure 6. Pin Configuration

Table 4. Pin Function Descriptions

Data Sheet

ANALOG SIGNAL AND REFERENCE

ADJUST

SET

) is connected between this pin and AGND. This determines the magnitude of the full-scale DAC current. The relationship between R

SET

and the full-scale current is as follows:

IOUT

FULL SCALE

= 18 × FSADJUST/R

SET

2 REFOUT

FSADJUST = 1.15 V nominal, R

Voltage Reference Output. The

SET

= 6.8 kΩ typical.

AD9834 has an internal 1.20 V reference that is made available at this pin.

3 COMP DAC Bias Pin. This pin is used for decoupling the DAC bias voltage.

17 VIN

Input to Comparator. The comparator can be used to generate a square wave from the sinusoidal DAC output. The

DAC output should be filtered appropriately before being applied to the comparator to improve jitter. When Bit

OPBITEN and Bit SIGN/PIB in the control register are set to 1, the comparator input is connected to VIN.

19, 20 IOUT,

IOUTB

Current Output. This is a high impedance current source. A load resistor of nominally 200 Ω should be connected between IOUT and AGND. IOUTB should preferably be tied through an external load resistor of 200 Ω to AGND, but it can be tied directly to AGND. A 20 pF capacitor to AGND is also recommended to prevent clock feedthrough.

POWER SUPPLY

4 AVDD Positive Power Supply for the Analog Section. AVDD can have a value from 2.3 V to 5.5 V. A 0.1 μF decoupling capacitor should be connected between AVDD and AGND.

5 DVDD Positive Power Supply for the Digital Section. DVDD can have a value from 2.3 V to 5.5 V. A 0.1 μF decoupling capacitor should be connected between DVDD and DGND. regulator (when DVDD exceeds 2.7 V). The regulator requires a decoupling capacitor of typically 100 nF that is connected from CAP/2.5 V to DGND. If DVDD is equal to or less than 2.7 V, CAP/2.5 V should be shorted to DVDD.

DIGITAL INTERFACE AND CONTROL

8 MCLK Digital Clock Input. DDS output frequencies are expressed as a binary fraction of the frequency of MCLK. The output frequency accuracy and phase noise are determined by this clock. accumulator. The frequency register to be used can be selected using Pin FSELECT or Bit FSEL. When Bit FSEL is used to select the frequency register, the FSELECT pin should be tied to CMOS high or low. output. The phase register to be used can be selected using Pin PSELECT or Bit PSEL. When the phase registers are being controlled by Bit PSEL, the PSELECT pin should be tied to CMOS high or low.

11 RESET Active High Digital Input. RESET resets appropriate internal registers to zero; this corresponds to an analog output of midscale. RESET does not affect any of the addressable registers.

12 SLEEP Active High Digital Input. When this pin is high, the DAC is powered down. This pin has the same function as

Control Bit SLEEP12.

Rev. D | Page 8 of 32

Data Sheet AD9834

Pin No. Mnemonic Description

13

14

15

16

SDATA

SCLK

FSYNC

SIGN BIT

OUT

Serial Data Input. The 16-bit serial data-word is applied to this input.

Serial Clock Input. Data is clocked into the AD9834 on each falling SCLK edge.

Active Low Control Input. This is the frame synchronization signal for the input data. When FSYNC is taken low, the internal logic is informed that a new word is being loaded into the device.

Logic Output. The comparator output is available on this pin or, alternatively, the MSB from the NCO can be output on this pin. Setting Bit OPBITEN in the control register to 1 enables this output pin. Bit SIGN/PIB determines whether the comparator output or the MSB from the NCO is output on the pin.

Rev. D | Page 9 of 32

AD9834

TYPICAL PERFORMANCE CHARACTERISTICS

4.0

T

A

= 25°C

3.5

3.0

2.5

2.0

1.5

1.0

5V

3V

0.5

0

0 15 30 45

MCLK FREQUENCY (MHz)

60 75

Figure 7. Typical Current Consumption (I

DD

) vs. MCLK Frequency

2.5

2.0

1.5

1.0

0.5

4.0

3.5

3.0

T

A

= 25°C 5V

3V

0

100 1k 10k 100k f

OUT

(Hz)

1M 10M

Figure 8. Typical I

DD

vs. f

OUT

for f

MCLK

= 50 MHz

100M

–60

–65

AVDD = DVDD = 3V

T

A

= 25°C

–70

–75

–80

SFDR dB MCLK/50

–85

SFDR dB MCLK/7

–90

0 15 30 45

MCLK FREQUENCY (MHz)

60

Figure 9. Narrow-Band SFDR vs. MCLK Frequency

75

Data Sheet

0

–10

AVDD = DVDD = 3V

T

A

= 25°C

–20

–30

–40

–50

–60

SFDR dB MCLK/7

–70 f

OUT

= 1MHz

–80

0 10 20 30 40 50

MCLK FREQUENCY (MHz)

60

Figure 10. Wideband SFDR vs. MCLK Frequency

70

–30

–40

–50

0

–10

AVDD = DVDD = 3V

T

A

= 25°C

–20

–60

–70

30MHz CLOCK

50MHz CLOCK

–80

0.001

0.01

0.1

1.0

10 100 f

OUT

/f

MCLK

Figure 11. Wideband SFDR vs. f

OUT

/f

MCLK

for Various MCLK Frequencies

–40

–45

T

A

= 25°C

AVDD = DVDD = 3V f

OUT

= MCLK/4096

–50

–55

–60

–65

–70

1.0

5.0

10.0

12.5

MCLK FREQUENCY (MHz)

Figure 12. SNR vs. MCLK Frequency

25.0

50.0

Rev. D | Page 10 of 32

Data Sheet

1000

950

900

850

800

750

700

650

600

550

500

–40

5.5V

2.3V

25

TEMPERATURE (°C)

Figure 13. Wake-Up Time vs. Temperature

105

1.250

1.225

1.200

1.175

1.150

1.125

1.100

–40

UPPER RANGE

LOWER RANGE

25

TEMPERATURE (°C)

Figure 14. V

REFOUT

vs. Temperature

105

–100

–110

–120

–130

AVDD = DVDD = 5V

T

A

= 25°C

–140

–150

–160

100 1k 10k

FREQUENCY (Hz)

100k 200k

Figure 15. Output Phase Noise, f

OUT

= 2 MHz, MCLK = 50 MHz

AD9834

0.10

0.08

0.06

0.04

0.20

0.18

0.16

DVDD = 2.3V

0.14

0.12

DVDD = 3.3V

DVDD = 5.5V

0.02

0

–40 –20 0 20 40

TEMPERATURE (°C)

60 80

Figure 16. SIGN BIT OUT Low Level, I

SINK

= 1 mA

100

5.5

5.0

4.5

4.0

3.5

3.0

2.5

2.0

DVDD = 5.5V

DVDD = 4.5V

DVDD = 3.3V

DVDD = 2.7V

DVDD = 2.3V

1.5

–40 –20 0 20 40

TEMPERATURE (°C)

60 80

Figure 17. SIGN BIT OUT High Level, I

SINK

= 1 mA

100

0

–10

–20

–30

–40

–50

–60

–70

–80

–90

–100

0

RWB 100 VWB 30

FREQUENCY (Hz)

100k

ST 100 SEC

Figure 18. f

MCLK

= 10 MHz; f

OUT

= 2.4 kHz, Frequency Word = 000FBA9

Rev. D | Page 11 of 32

AD9834

0

–40

–50

–60

–70

–80

–90

–10

–20

–30

0

–10

–20

–30

–40

–50

–60

–100

0

RWB 1k VWB 300

FREQUENCY (Hz)

5M

ST 50 SEC

Figure 19. f

MCLK

= 10 MHz; f

OUT

= 1.43 MHz = f

MCLK

/7,

Frequency Word = 2492492

–70

–80

–90

–100

0

RWB 1k VWB 300

FREQUENCY (Hz)

5M

ST 50 SEC

Figure 20. f

MCLK

= 10 MHz; f

OUT

= 3.33 MHz = f

Frequency Word = 5555555

MCLK

/3,

–30

–40

–50

0

–10

–20

–60

–70

–80

–90

–100

0

RWB 100 VWB 30

FREQUENCY (Hz)

160k

ST 200 SEC

Figure 21. f

MCLK

= 50 MHz; f

OUT

= 12 kHz, Frequency Word = 000FBA9

Data Sheet

–30

–40

–50

0

–10

–20

–60

–70

–80

–90

–100

0

RWB 100 VWB 300

1.6M

ST 200 SEC

FREQUENCY (Hz)

Figure 22. f

MCLK

= 50 MHz; f

OUT

= 120 kHz, Frequency Word = 009D496

–30

–40

–50

–60

0

–10

–20

–70

–80

–90

–100

0

RWB 1k VWB 300

25M

ST 200 SEC

FREQUENCY (Hz)

Figure 23. f

MCLK

= 50 MHz; f

OUT

= 1.2 MHz, Frequency Word = 0624DD3

0

–10

–20

–30

–40

–50

–60

–70

–80

–90

–100

0

RWB 1k VWB 300

25M

ST 200 SEC

FREQUENCY (Hz)

Figure 24. f

MCLK

= 50 MHz; f

OUT

= 4.8 MHz, Frequency Word = 189374C

Rev. D | Page 12 of 32

Data Sheet

0

–10

–20

–30

–40

–50

–60

–70

–80

–90

–100

0

RWB 1k VWB 300

FREQUENCY (Hz)

25M

ST 200 SEC

Figure 25. f

MCLK

= 50 MHz; f

OUT

= 7.143 MHz = f

MCLK

/7,

Frequency Word = 2492492

AD9834

0

–10

–20

–30

–40

–50

–60

–70

–80

–90

–100

0

RWB 1k VWB 300

FREQUENCY (Hz)

25M

ST 200 SEC

Figure 26. f

MCLK

= 50 MHz; f

OUT

= 16.667 MHz = f

MCLK

/3,

Frequency Word = 5555555

Rev. D | Page 13 of 32

AD9834

TERMINOLOGY

Integral Nonlinearity (INL)

INL is the maximum deviation of any code from a straight line passing through the endpoints of the transfer function. The endpoints of the transfer function are zero scale, a point 0.5 LSB below the first code transition (000 . . . 00 to 000 . . . 01), and full scale, a point 0.5 LSB above the last code transition (111 . . . 10 to

111 . . . 11). The error is expressed in LSBs.

Differential Nonlinearity (DNL)

DNL is the difference between the measured and ideal 1 LSB change between two adjacent codes in the DAC. A specified

DNL of ±1 LSB maximum ensures monotonicity.

Output Compliance

The output compliance refers to the maximum voltage that can be generated at the output of the DAC to meet the specifications.

When voltages greater than that specified for the output compliance are generated, the AD9834 may not meet the specifications listed in the data sheet.

Spurious-Free Dynamic Range (SFDR)

Along with the frequency of interest, harmonics of the fundamental frequency and images of these frequencies are present at the output of a DDS device. The SFDR refers to the largest spur or harmonic present in the band of interest. The wideband SFDR gives the magnitude of the largest harmonic or

Data Sheet

spur relative to the magnitude of the fundamental frequency in the 0 to Nyquist bandwidth. The narrow-band SFDR gives the attenuation of the largest spur or harmonic in a bandwidth of

±200 kHz about the fundamental frequency.

Total Harmonic Distortion (THD)

THD is the ratio of the rms sum of harmonics to the rms value of the fundamental. For the AD9834 , THD is defined as

THD

20 log

V

2

2

V

3

2

V

4

2

V

1

V

5

2

V

6

2 where V

1

is the rms amplitude of the fundamental and V

2

, V

3

,

V

4

, V

5

, and V

6

are the rms amplitudes of the second harmonic through the sixth harmonic.

Signal-to-Noise Ratio (SNR)

SNR is the ratio of the rms value of the measured output signal to the rms sum of all other spectral components below the

Nyquist frequency. The value for SNR is expressed in decibels.

Clock Feedthrough

There is feedthrough from the MCLK input to the analog output. Clock feedthrough refers to the magnitude of the

MCLK signal relative to the fundamental frequency in the output spectrum of the AD9834 .

Rev. D | Page 14 of 32

Data Sheet

THEORY OF OPERATION

Sine waves are typically thought of in terms of their magnitude form a(t) = sin (ωt). However, these are nonlinear and not easy to generate except through piecewise construction. On the other hand, the angular information is linear in nature, that is, the phase angle rotates through a fixed angle for each unit of time. The angular rate depends on the frequency of the signal by the traditional rate of ω = 2πf.

MAGNITUDE

+1

0

2π 4π

–1

2p

PHASE

0

Figure 27. Sine Wave

AD9834

Knowing that the phase of a sine wave is linear and given a reference interval (clock period), the phase rotation for that period can be determined.

Phase = ωt

Solving for ω,

ω = ∆Phase/∆t = 2πf

Solving for f and substituting the reference clock frequency for the reference period (1/f

MCLK

= ∆t),

f = ∆Phase × f

MCLK

/

The AD9834 builds the output based on this simple equation. A simple DDS chip can implement this equation with three major subcircuits: numerically controlled oscillator + phase modulator,

SIN ROM, and digital-to-analog converter (DAC). Each of these

subcircuits is discussed in the Circuit Description section.

Rev. D | Page 15 of 32

AD9834

CIRCUIT DESCRIPTION

The AD9834 is a fully integrated direct digital synthesis (DDS) chip. The chip requires one reference clock, one low precision resistor, and eight decoupling capacitors to provide digitally created sine waves up to 37.5 MHz. In addition to the generation of this RF signal, the chip is fully capable of a broad range of simple and complex modulation schemes. These modulation schemes are fully implemented in the digital domain, allowing accurate and simple realization of complex modulation algorithms using DSP techniques.

The internal circuitry of the AD9834 consists of the following main sections: a numerically controlled oscillator (NCO), frequency and phase modulators, SIN ROM, a DAC, a comparator, and a regulator.

NUMERICALLY CONTROLLED OSCILLATOR PLUS

PHASE MODULATOR

This consists of two frequency select registers, a phase accumulator, two phase offset registers, and a phase offset adder. The main component of the NCO is a 28-bit phase accumulator. Continuous time signals have a phase range of 0 π to 2π. Outside this range of numbers, the sinusoid functions repeat themselves in a periodic manner. The digital implementation is no different. The accumulator simply scales the range of phase numbers into a multibit digital word. The phase accumulator in the AD9834 is implemented with 28 bits. Therefore, in the AD9834 , 2π = 2 28 .

Likewise, the ∆Phase term is scaled into this range of numbers:

0 < ∆Phase < 2 28 − 1.

Making these substitutions into the previous equation

f = ∆Phase × f

MCLK

/2

28 where 0 < ∆Phase < 2

28

− 1.

The input to the phase accumulator can be selected either from the FREQ0 register or FREQ1 register and is controlled by the

FSELECT pin or the FSEL bit. NCOs inherently generate continuous phase signals, thus avoiding any output discontinuity when switching between frequencies.

Following the NCO, a phase offset can be added to perform phase modulation using the 12-bit phase registers. The contents of one of these phase registers is added to the MSBs of the NCO.

The AD9834 has two phase registers, the resolution of these registers being 2π/4096.

Data Sheet

SIN ROM

To make the output from the NCO useful, it must be converted from phase information into a sinusoidal value. Phase information maps directly into amplitude; therefore, the SIN ROM uses the digital phase information as an address to a look-up table and converts the phase information into amplitude.

Although the NCO contains a 28-bit phase accumulator, the output of the NCO is truncated to 12 bits. Using the full resolution of the phase accumulator is impractical and unnecessary because it requires a look-up table of 2 28 entries. It is necessary only to have sufficient phase resolution such that the errors due to truncation are smaller than the resolution of the 10-bit DAC.

This requires the SIN ROM to have two bits of phase resolution more than the 10-bit DAC.

The SIN ROM is enabled using the OPBITEN and MODE bits

in the control register. This is explained further in Table 18.

DIGITAL-TO-ANALOG CONVERTER (DAC)

The AD9834 includes a high impedance current source 10-bit

DAC capable of driving a wide range of loads. The full-scale output current can be adjusted for optimum power and external load requirements using a single external resistor (R

SET

).

The DAC can be configured for either single-ended or differential operation. IOUT and IOUTB can be connected through equal external resistors to AGND to develop complementary output voltages. The load resistors can be any value required, as long as the full-scale voltage developed across it does not exceed the voltage compliance range. Because full-scale current is controlled by R

SET

, adjustments to R

SET

can balance changes made to the load resistors.

COMPARATOR

The AD9834 can be used to generate synthesized digital clock signals. This is accomplished by using the on-board self-biasing comparator that converts the sinusoidal signal of the DAC to a square wave. The output from the DAC can be filtered externally before being applied to the comparator input. The comparator reference voltage is the time average of the signal applied to V

IN

.

The comparator can accept signals in the range of approximately

100 mV p-p to 1 V p-p. As the comparator input is ac-coupled, to operate correctly as a zero crossing detector, it requires a minimum input frequency of typically 3 MHz. The comparator output is a square wave with an amplitude from 0 V to DVDD.

Rev. D | Page 16 of 32

Data Sheet

The AD9834 is a sampled signal with its output following

Nyquist sampling theorem. Specifically, its output spectrum contains the fundamental plus aliased signals (images) that occur at multiples of the reference clock frequency and the selected output frequency. A graphical representation of the

sampled spectrum, with aliased images, is shown in Figure 28.

The prominence of the aliased images is dependent on the ratio of f

OUT

to MCLK. If ratio is small, the aliased images are very prominent and of a relatively high energy level as determined by the sin(x)/x roll-off of the quantized DAC output. In fact, depending on the f

OUT

/reference clock relationship, the first aliased image can be on the order of −3 dB below the fundamental.

A low-pass filter is generally placed between the output of the

DAC and the input of the comparator to further suppress the effects of aliased images. Obviously, consideration must be given to the relationship of the selected output frequency and the reference clock frequency to avoid unwanted (and unexpected) output anomalies. To apply the AD9834 as a clock generator, limit the selected output frequency to <33% of reference clock frequency, and thereby avoid generating aliased signals that fall within, or close to, the output band of interest (generally dcselected output frequency). This practice eases the complexity

(and cost) of the external filter requirement for the clock generator application. Refer to the AN-837 Application Note for more information.

To enable the comparator, Bit SIGN/PIB and Bit OPBITEN in the control resister are set to 1. This is explained further in

Table 17.

f

OUT sin x/x ENVELOPE x = π ( f

/ f

C

) f

C

– f

OUT f

C

+ f

OUT

2 f

C

– f

OUT

AD9834

REGULATOR

The AD9834 has separate power supplies for the analog and digital sections. AVDD provides the power supply required for the analog section, and DVDD provides the power supply for the digital section. Both of these supplies can have a value of

2.3 V to 5.5 V and are independent of each other. For example, the analog section can be operated at 5 V, and the digital section can be operated at 3 V, or vice versa.

The internal digital section of the AD9834 is operated at 2.5 V.

An on-board regulator steps down the voltage applied at DVDD to 2.5 V. The digital interface (serial port) of the AD9834 also operates from DVDD. These digital signals are level shifted within the AD9834 to make them 2.5 V compatible.

When the applied voltage at the DVDD pin of the AD9834 is equal to or less than 2.7 V, Pin CAP/2.5V and Pin DVDD should be tied together, thus bypassing the on-board regulator.

OUTPUT VOLTAGE COMPLIANCE

The AD9834 has a maximum current density, set by the R

SET

, of 4 mA. The maximum output voltage from the AD9834 is

V

DD

− 1.5 V. This is to ensure that the output impedance of the internal switch does not change, affecting the spectral performance of the part. For a minimum supply of 2.3 V, the

maximum output voltage is 0.8 V. Specifications in Table 1 are

guaranteed with an R

SET

of 6.8 kΩ and an R

LOAD

of 200 Ω.

f

C

2 f

C

2 f

C

+ f

OUT

3 f

C

– f

OUT

3 f

C

3 f

C

+ f

OUT

0Hz FIRST


SECOND


THIRD


FOURTH


SYSTEM CLOCK

FREQUENCY (Hz)

Figure 28. The DAC Output Spectrum

FIFTH


SIXTH


Rev. D | Page 17 of 32

AD9834

FUNCTIONAL DESCRIPTION

SERIAL INTERFACE

The AD9834 has a standard 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards.

Data is loaded into the device as a 16-bit word under the control of a serial clock input (SCLK). The timing diagram

for this operation is given in Figure 5.

For a detailed example of programming the AD9833 and

AD9834 devices, refer to the AN-1070 Application Note .

The FSYNC input is a level triggered input that acts as a frame synchronization and chip enable. Data can only be transferred into the device when FSYNC is low. To start the serial data transfer, FSYNC should be taken low, observing the minimum

FSYNC-to-SCLK falling edge setup time (t

7

). After FSYNC goes low, serial data is shifted into the input shift register of the device on the falling edges of SCLK for 16 clock pulses. FSYNC can be taken high after the 16th falling edge of SCLK, observing the minimum SCLK falling edge to FSYNC rising edge time

(t

8

). Alternatively, FSYNC can be kept low for a multiple of

16 SCLK pulses and then brought high at the end of the data transfer. In this way, a continuous stream of 16-bit words can be loaded while FSYNC is held low, with FSYNC only going high after the 16th SCLK falling edge of the last word is loaded.

The SCLK can be continuous, or alternatively, the SCLK can idle high or low between write operations but must be high when FSYNC goes low (t

12

).

POWERING UP THE

AD9834

The flow chart in Figure 31 shows the operating routine for the

AD9834 . When the AD9834 is powered up, the part should be reset. This resets appropriate internal registers to 0 to provide an analog output of midscale. To avoid spurious DAC outputs during AD9834 initialization, the RESET bit/pin should be set to 1 until the part is ready to begin generating an output. RESET does not reset the phase, frequency, or control registers. These registers contain invalid data, and, therefore, should be set to a known value by the user. The RESET bit/pin should then be set

Data Sheet

to 0 to begin generating an output. The data appears on the

DAC output eight MCLK cycles after RESET is set to 0.

LATENCY

t

Latency is associated with each operation. When Pin FSELECT and Pin PSELECT change value, there is a pipeline delay before control is transferred to the selected register. When the t

11

and

11A

timing specifications are met (see Figure 4), FSELECT and

PSELECT have latencies of eight MCLK cycles. When the t

11

and t

11A

timing specifications are not met, the latency is increased by one MCLK cycle.

Similarly, there is a latency associated with each asynchronous write operation. If a selected frequency/phase register is loaded with a new word, there is a delay of eight to nine MCLK cycles before the analog output changes. There is an uncertainty of one

MCLK cycle because it depends on the position of the MCLK rising edge when the data is loaded into the destination register.

The negative transition of the RESET and SLEEP functions are sampled on the internal falling edge of MCLK. Therefore, they also have a latency associated with them.

CONTROL REGISTER

The AD9834 contains a 16-bit control register that sets up the

AD9834 as the user wants to operate it. All control bits, except

MODE, are sampled on the internal negative edge of MCLK.

Table 6 describes the individual bits of the control register. The

different functions and the various output options from the

AD9834

are described in more detail in the Frequency and

Phase Registers section.

To inform the AD9834 that the contents of the control register are to be altered, DB15 and DB14 must be set to 0 as shown in

Table 5.

Table 5. Control Register

DB15 DB14

0 0

DB13 . . . DB0

CONTROL bits

Rev. D | Page 18 of 32

Data Sheet

SLEEP12

SLEEP1

AD9834

PHASE

ACCUMULATOR

(28-BIT)

SIN

ROM

0

MUX

1

(LOW POWER)

10-BIT DAC

IOUT

IOUTB

MSB

MODE + OPBITEN

0

MUX

1

DIVIDE

BY 2

COMPARATOR

1

MUX

0

DIGITAL

OUTPUT

(ENABLE)

VIN

SIGN BIT OUT

SIGN/PIB

OPBITEN

Figure 29. Function of Control Bits

DB15 DB14 DB13 DB12 DB11 DB10 DB9

0 0 B28 HLB FSEL PSEL

DB8 DB7 DB6 DB5 DB4 DB3 DB2 DB1

PIN/SW RESET SLEEP1 SLEEP12 OPBITEN SIGN/PIB DIV2 0

DB0

MODE 0

Table 6. Description of Bits in the Control Register

Bit Name Description

DB13 B28 Two write operations are required to load a complete word into either of the frequency registers.

DB12 HLB

DB11 FSEL

DB10 PSEL

B28 = 1 allows a complete word to be loaded into a frequency register in two consecutive writes. The first write contains the 14 LSBs of the frequency word and the next write contains the 14 MSBs. The first two bits of each 16-bit word define the frequency register the word is loaded to and should, therefore, be the same for both of the consecutive

writes. Refer to Table 10 for the appropriate addresses. The write to the frequency register occurs after both words have been loaded. An example of a complete 28-bit write is shown in Table 11. Note however, that consecutive 28-bit writes

to the same frequency register are not allowed, switch between frequency registers to do this type of function.

B28 = 0, the 28-bit frequency register operates as two 14-bit registers, one containing the 14 MSBs and the other containing the 14 LSBs. This means that the 14 MSBs of the frequency word can be altered independent of the 14 LSBs, and vice versa. To alter the 14 MSBs or the 14 LSBs, a single write is made to the appropriate frequency address. The

Control Bit DB12 (HLB) informs the AD9834 whether the bits to be altered are the 14 MSBs or 14 LSBs.

This control bit allows the user to continuously load the MSBs or LSBs of a frequency register ignoring the remaining

14 bits. This is useful if the complete 28-bit resolution is not required. HLB is used in conjunction with DB13 (B28). This control bit indicates whether the 14 bits being loaded are being transferred to the 14 MSBs or 14 LSBs of the addressed frequency register. DB13 (B28) must be set to 0 to be able to change the MSBs and LSBs of a frequency word separately.

When DB13 (B28) = 1, this control bit is ignored.

HLB = 1 allows a write to the 14 MSBs of the addressed frequency register.

HLB = 0 allows a write to the 14 LSBs of the addressed frequency register.

The FSEL bit defines whether the FREQ0 register or the FREQ1 register is used in the phase accumulator. See Table 8 to

select a frequency register.

The PSEL bit defines whether the PHASE0 register data or the PHASE1 register data is added to the output of the phase

accumulator. See Table 9 to select a phase register.

DB9 PIN/SW Functions that select frequency and phase registers, reset internal registers, and power down the DAC can be implemented using either software or hardware. PIN/SW selects the source of control for these functions.

DB8 RESET

PIN/SW = 1 implies that the functions are being controlled using the appropriate control pins.

PIN/SW = 0 implies that the functions are being controlled using the appropriate control bits.

RESET = 1 resets internal registers to 0, this corresponds to an analog output of midscale.

RESET = 0 disables RESET. This function is explained in the RESET Function section.

DB7 SLEEP1 SLEEP1 = 1, the internal MCLK is disabled. The DAC output remains at its present value as the NCO is no longer accumulating.

SLEEP1 = 0, MCLK is enabled. This function is explained in the SLEEP Function section.

DB6 SLEEP12 SLEEP12 = 1 powers down the on-chip DAC. This is useful when the AD9834 is used to output the MSB of the DAC data.

SLEEP12 = 0 implies that the DAC is active. This function is explained in the SLEEP Function section.

Rev. D | Page 19 of 32

AD9834 Data Sheet

Bit Name Description

DB5 OPBITEN The function of this bit is to control whether there is an output at the SIGN BIT OUT pin. This bit should remain at 0 if the user is not using the SIGN BIT OUT pin.

OPBITEN = 1 enables the SIGN BIT OUT pin.

DB3 DIV2

OPBITEN = 0, the SIGN BIT OUT output buffer is put into a high impedance state, therefore no output is available at the

SIGN BIT OUT pin.

DB4 SIGN/PIB The function of this bit is to control what is output at the SIGN BIT OUT pin.

SIGN/PIB = 1, the on-board comparator is connected to SIGN BIT OUT. After filtering the sinusoidal output from the

DAC, the waveform can be applied to the comparator to generate a square waveform. Refer to Table 17.

SIGN/PIB = 0, the MSB (or MSB/2) of the DAC data is connected to the SIGN BIT OUT pin. Bit DIV2 controls whether it is the MSB or MSB/2 that is output.

DIV2 is used in association with SIGN/PIB and OPBITEN. Refer to Table 17.

DIV2 = 1, the digital output is passed directly to the SIGN BIT OUT pin.

DIV2 = 0, the digital output/2 is passed directly to the SIGN BIT OUT pin.

DB2 Reserved This bit must always be set to 0.

DB1 MODE

The function of this bit is to control what is output at the IOUT pin/IOUTB pin. This bit should be set to 0 if the Control

Bit OPBITEN = 1.

MODE = 1, the SIN ROM is bypassed, resulting in a triangle output from the DAC.

MODE = 0, the SIN ROM is used to convert the phase information into amplitude information, resulting in a sinusoidal

signal at the output. See Table 18.

DB0 Reserved This bit must always be set to 0.

FREQUENCY AND PHASE REGISTERS

The AD9834 contains two frequency registers and two phase

registers. These are described in Table 7.

Table 7. Frequency/Phase Registers

Register Size Description

FREQ0 28 bits Frequency Register 0. When either the

FSEL bit or FSELECT pin = 0, this register defines the output frequency as a fraction of the MCLK frequency.

FREQ1 28 bits Frequency Register 1. When either the

FSEL bit or FSELECT pin = 1, this register defines the output frequency as a fraction of the MCLK frequency.

PHASE0 12 bits Phase Offset Register 0. When either the

PSEL bit or PSELECT pin = 0, the contents of this register are added to the output of the phase accumulator.

PHASE1 12 bits Phase Offset Register 1. When either the

PSEL bit or PSELECT pin = 1, the contents of this register are added to the output of the phase accumulator.

0

1

X

Access to the frequency and phase registers is controlled by both the FSELECT and PSELECT pins, and the FSEL and PSEL control bits. If the Control Bit PIN/SW = 1, the pins control the function; whereas, if PIN/SW = 0, the bits control the function.

This is outlined in Table 8 and Table 9. If the FSEL and PSEL

bits are used, the pins should be held at CMOS logic high or low. Control of the frequency/phase registers is interchangeable from the pins to the bits.

Table 8. Selecting a Frequency Register

FSELECT

X

FSEL PIN/SW

X

X

0

1

1

1

0

0

Table 9. Selecting a Phase Register

PSELECT PSEL PIN/SW

Selected Register

FREQ0 REG

FREQ1 REG

FREQ0 REG

FREQ1 REG

Selected Register

0

1

X

X

X

0

1

1

0

PHASE0 REG

PHASE1 REG

PHASE0 REG

The analog output from the AD9834 is

X 1 0 PHASE1 REG

f

MCLK

/2 28 × FREQREG where FREQREG is the value loaded into the selected frequency register. This signal is phase shifted by

2π/4096 × PHASEREG

The FSELECT pin and PSELECT pin are sampled on the internal falling edge of MCLK. It is recommended that the data on these pins does not change within a time window of the falling edge of

MCLK (see Figure 4 for timing). If FSELECT or PSELECT changes

value when a falling edge occurs, there is an uncertainty of one

MCLK cycle because it pertains to when control is transferred to the other frequency/phase register. where PHASEREG is the value contained in the selected phase register. Consideration must be given to the relationship of the selected output frequency and the reference clock frequency to avoid unwanted output anomalies.

The flow charts in Figure 32 and Figure 33 show the routine

for selecting and writing to the frequency and phase registers of the AD9834 .

Rev. D | Page 20 of 32

Data Sheet

WRITING TO A FREQUENCY REGISTER

When writing to a frequency register, Bit DB15 and Bit DB14 give the address of the frequency register.

Table 10. Frequency Register Bits

DB15 DB14 DB13 . . . DB0

0

1

1

0

14 FREQ0 REG BITS

14 FREQ1 REG BITS

If the user wants to alter the entire contents of a frequency register, two consecutive writes to the same address must be performed because the frequency registers are 28 bits wide. The first write contains the 14 LSBs, and the second write contains the 14 MSBs. For this mode of operation, Control Bit B28

(DB13) should be set to 1. An example of a 28-bit write is

shown in Table 11.

AD9834

Table 13. Writing 00FF to the 14 MSBs of FREQ0 REG

SDATA Input Result of Input Word

0001 0000 0000 0000 Control word write

(DB15, DB14 = 00), B28 (DB13) = 0,

HLB (DB12) = 1, that is, MSBs

0100 0000 1111 1111 FREQ0 REG write

(DB15, DB14 = 01), 14 MSBs = 00FF

WRITING TO A PHASE REGISTER

When writing to a phase register, Bit DB15 and Bit DB14 are set to 11. Bit DB13 identifies which phase register is being loaded.

Table 14. Phase Register Bits

DB15 DB14 DB13 DB12 DB11

1

1

1

1

0

1

X

X

MSB 12 PHASE0 bits

MSB 12 PHASE1 bits

DB0

LSB

LSB

Note however that continuous writes to the same frequency register are not recommended. This results in intermediate updates during the writes. If a frequency sweep, or something similar, is required, it is recommended that users alternate between the two frequency registers.

Table 11. Writing FFFC000 to FREQ0 REG

SDATA Input Result of Input Word

0010 0000 0000 0000

0100 0000 0000 0000

0111 1111 1111 1111

Control word write

(DB15, DB14 = 00), B28 (DB13) = 1,

HLB (DB12) = X

FREQ0 REG write

(DB15, DB14 = 01), 14 LSBs = 0000

FREQ0 REG write (DB15, DB14 = 01),

14 MSBs = 3FFF

In some applications, the user does not need to alter all 28 bits of the frequency register. With coarse tuning, only the 14 MSBs are altered; though with fine tuning only the 14 LSBs are altered.

By setting Control Bit B28 (DB13) to 0, the 28-bit frequency register operates as two 14-bit registers, one containing the

14 MSBs and the other containing the 14 LSBs. This means that the 14 MSBs of the frequency word can be altered independent of the 14 LSBs, and vice versa. Bit HLB (DB12) in the control register identifies the 14 bits that are being altered. Examples of

this are shown in Table 12 and Table 13.

Table 12. Writing 3FFF to the 14 LSBs of FREQ1 REG

SDATA Input Result of Input Word

0000 0000 0000 0000 Control word write

(DB15, DB14 = 00), B28 (DB13) = 0,

HLB (DB12) = 0, that is, LSBs

1011 1111 1111 1111 FREQ1 REG write

(DB15, DB14 = 10), 14 LSBs = 3FFF

RESET FUNCTION

The RESET function resets appropriate internal registers to 0 to provide an analog output of midscale. RESET does not reset the phase, frequency, or control registers.

When the reset the

AD9834

AD9834

is powered up, the part should be reset. To

, set the RESET pin/bit to 1. To take the part out of reset, set the pin/bit to 0. A signal appears at the DAC output seven MCLK cycles after RESET is set to 0.

The RESET function is controlled by both the RESET pin and the RESET control bit. If the Control Bit PIN/SW = 0, the

RESET bit controls the function, whereas if PIN/SW = 1, the

RESET pin controls the function.

Table 15. Applying RESET

RESET Pin RESET Bit PIN/SW Bit Result

0

1

X

X

X

X

0

1

1

1

0

0

No reset applied

Internal registers reset

No reset applied

Internal registers reset

The effect of asserting the RESET pin is evident immediately at the output, that is, the zero-to-one transition of this pin is not sampled. However, the negative transition of RESET is sampled on the internal falling edge of MCLK.

SLEEP FUNCTION

Sections of the AD9834 that are not in use can be powered down to minimize power consumption by using the SLEEP function. The parts of the chip that can be powered down are the internal clock and the DAC. The DAC can be powered down through hardware or software. The pin/bits required for

the SLEEP function are outlined in Table 16.

Rev. D | Page 21 of 32

AD9834

Table 16. Applying the SLEEP Function

SLEEP

Pin

0

1

SLEEP1

Bit

X

X

SLEEP12

Bit

X

X

PIN/SW

Bit

1

1

X

X

X

X

0

0

1

1

0

1

0

1

0

0

0

0

Result

No power-down

DAC powered down

No power-down

DAC powered down

Internal clock disabled

Both the DAC powered down and the internal clock disabled

DAC Powered Down

This is useful when the AD9834 is used to output the MSB of the DAC data only. In this case, the DAC is not required and can be powered down to reduce power consumption.

Internal Clock Disabled

When the internal clock of the AD9834 is disabled, the DAC output remains at its present value because the NCO is no longer accumulating. New frequency, phase, and control words can be written to the part when the SLEEP1 control bit is active.

The synchronizing clock remains active, meaning that the selected frequency and phase registers can also be changed either at the pins or by using the control bits. Setting the

SLEEP1 bit to 0 enables the MCLK. Any changes made to the registers when SLEEP1 is active are observed at the output after a certain latency.

The effect of asserting the SLEEP pin is evident immediately at the output, that is, the zero-to-one transition of this pin is not sampled. However, the negative transition of SLEEP is sampled on the internal falling edge of MCLK.

SIGN BIT OUT PIN

The AD9834 offers a variety of outputs from the chip. The digital outputs are available from the SIGN BIT OUT pin. The available outputs are the comparator output or the MSB of the

DAC data. The bits controlling the SIGN BIT OUT pin are

outlined in Table 17.

Data Sheet

from the DAC, the waveform can be applied to the comparator to generate a square waveform.

MSB from the NCO

The MSB from the NCO can be output from the AD9834 . By setting the SIGN/PIB (DB4) control bit to 0, the MSB of the

DAC data is available at the SIGN BIT OUT pin. This is useful as a coarse clock source. This square wave can also be divided by two before being output. Bit DIV2 (DB3) in the control register controls the frequency of this output from the SIGN BIT OUT pin.

0

1

1

1

1

1

Table 17. Various Outputs from SIGN BIT OUT

OPBITEN

Bit

MODE

Bit

SIGN/PIB

Bit

DIV2

Bit SIGN BIT OUT Pin

X

0

0

0

0

1

X

0

0

1

1

X

X

0

1

0

1

X

High impedance

DAC data MSB/2

DAC data MSB

Reserved

Comparator output

Reserved

THE IOUT AND IOUTB PINS

The analog outputs from the AD9834 are available from the

IOUT and IOUTB pins. The available outputs are a sinusoidal output or a triangle output.

This pin must be enabled before use. The enabling/disabling of this pin is controlled by the Bit OPBITEN (DB5) in the control register. When OPBITEN = 1, this pin is enabled. Note that the

MODE bit (DB1) in the control register should be set to 0 if

OPBITEN = 1.

Comparator Output

The AD9834 has an on-board comparator. To connect this comparator to the SIGN BIT OUT pin, the SIGN/PIB (DB4) control bit must be set to 1. After filtering the sinusoidal output

V

OUT MIN

Rev. D | Page 22 of 32

Sinusoidal Output

The SIN ROM converts the phase information from the frequency and phase registers into amplitude information, resulting in a sinusoidal signal at the output. To have a sinusoidal output from the IOUT and IOUTB pins, set

Bit MODE (DB1) to 0.

Triangle Output

The SIN ROM can be bypassed so that the truncated digital output from the NCO is sent to the DAC. In this case, the output is no longer sinusoidal. The DAC produces 10-bit linear triangular function. To have a triangle output from the IOUT and IOUTB pins, set Bit MODE (DB1) to 1.

Note that the SLEEP pin and SLEEP12 bit must be 0 (that is, the

DAC is enabled) when using the IOUT and IOUTB pins.

Table 18. Various Outputs from IOUT and IOUTB

OPBITEN Bit MODE Bit IOUT and IOUTB Pins

0

0

1

1

0

1

0

1

Sinusoid

Triangle

Sinusoid

Reserved

V

OUT MAX

3π/2 7π/2

Figure 30. Triangle Output

11π/2

Data Sheet

APPLICATIONS INFORMATION

Because of the various output options available from the part, the AD9834 can be configured to suit a wide variety of applications.

One of the areas where the AD9834 is suitable is in modulation applications. The part can be used to perform simple modulation such as FSK. More complex modulation schemes such as GMSK and QPSK can also be implemented using the AD9834 .

In an FSK application, the two frequency registers of the

AD9834 are loaded with different values. One frequency represents the space frequency, and the other represents the mark frequency. The digital data stream is fed to the FSELECT

AD9834

pin, causing the AD9834 to modulate the carrier frequency between the two values.

The AD9834 has two phase registers, enabling the part to perform PSK. With phase shift keying, the carrier frequency is phase shifted, the phase being altered by an amount that is related to the bit stream that is input to the modulator.

The AD9834 is also suitable for signal generator applications.

With the on-board comparator, the device can be used to generate a square wave.

With its low current consumption, the part is suitable for applications where it is used as a local oscillator.

DATA WRITE

SEE FIGURE 33

SELECT DATA

SOURCES

SEE FIGURE 34

WAIT 8/9 MCLK

CYCLES

SEE TIMING DIAGRAM

FIGURE 3

INITIALIZATION

SEE FIGURE 32

V

OUT

= V

REFOUT

× 18 × R

LOAD

/R

SET

DAC OUTPUT

× (1 + (SIN(2π(FREQREG × f

MCLK

× t/2

28

+ PHASEREG/2

12

))))

CHANGE PHASE?

NO

YES

CHANGE PSEL/

PSELECT?

NO

YES

CHANGE FSEL/

FSELECT?

NO

YES

CHANGE FREQUENCY

REGISTER?

YES

YES

CHANGE FREQUENCY?

NO

CHANGE DAC OUTPUT

FROM SIN TO RAMP?

NO

CONTROL

REGISTER

WRITE

YES

CHANGE OUTPUT AT

SIGN BIT OUT PIN?

NO

Figure 31. Flow Chart for Initialization and Operation

CHANGE PHASE

REGISTER?

YES

YES

Rev. D | Page 23 of 32

AD9834 Data Sheet

INITIALIZATION

USING CONTROL

BIT

(CONTROL REGISTER WRITE)

RESET = 1

PIN/SW = 0

APPLY RESET

USING PIN

(CONTROL REGISTER WRITE)

PIN/SW = 1

SET RESET PIN = 1

WRITE TO FREQUENCY AND PHASE REGISTERS

FREQ0 REG = f

OUT0

/f

MCLK

× 2

28

FREQ1 REG = f

OUT1

/f

MCLK

× 2

28

PHASE0 AND PHASE1 REG = (PHASESHIFT × 2

12

)/2π

(SEE FIGURE 33)

SET RESET = 0

SELECT FREQUENCY REGISTERS

SELECT PHASE REGISTERS

USING CONTROL

BIT

(CONTROL REGISTER WRITE)

RESET BIT = 0

FSEL = SELECTED FREQUENCY REGISTER

PSEL = SELECTED PHASE REGISTER

PIN/SW = 0

USING PIN

(APPLY SIGNALS AT PINS)

RESET PIN = 0

FSELECT = SELECTED FREQUENCY REGISTER

PSELECT = SELECTED PHASE REGISTER

Figure 32. Initialization

DATA WRITE

WRITE A FULL 28-BIT WORD

TO A FREQUENCY REGISTER?

NO

YES

(CONTROL REGISTER WRITE)

B28 (D13) = 1

WRITE 14 MSBs OR LSBs

TO A FREQUENCY REGISTER?

NO

YES

(CONTROL REGISTER WRITE)

B28 (D13) = 0

HLB (D12) = 0/1

WRITE TWO CONSECUTIVE

16-BIT WORDS

(SEE TABLE 11 FOR EXAMPLE)

WRITE A 16-BIT WORD

(SEE TABLES 12 AND 13

FOR EXAMPLES)

WRITE TO PHASE

REGISTER?

YES

(16-BIT WRITE)

D15, D14 = 11

D13 = 0/1 (CHOOSE THE

PHASE REGISTER)

D12 = X

D11 ... D0 = PHASE DATA

YES

WRITE ANOTHER FULL

28-BIT TO A

FREQUENCY REGISTER?

NO

WRITE 14 MSBs OR LSBs

TO A

FREQUENCY REGISTER?

NO

YES

Figure 33. Data Write

WRITE TO ANOTHER

PHASE REGISTER?

NO

YES

Rev. D | Page 24 of 32

Data Sheet

SELECT DATA SOURCES

FSELECT AND PSELECT

PINS BEING USED?

NO

(CONTROL REGISTER WRITE)

PIN/SW = 0

SET FSEL BIT

SET PSEL BIT

YES

SET FSELECT

AND PSELECT

(CONTROL REGISTER WRITE)

PIN/SW = 1

Figure 34. Selecting Data Sources

AD9834

Rev. D | Page 25 of 32

AD9834

GROUNDING AND LAYOUT

The printed circuit board (PCB) that houses the AD9834 should be designed so that the analog and digital sections are separated and confined to certain areas of the board. This facilitates the use of ground planes that can easily be separated. A minimum etch technique is generally best for ground planes because it gives the best shielding. Digital and analog ground planes should only be joined in one place. If the AD9834 is the only device requiring an AGND-to-DGND connection, the ground planes should be connected at the AGND and DGND pins of the AD9834 . If the AD9834 is in a system where multiple devices require AGND-to-DGND connections, the connection should be made at one point only, establishing a star ground point as close as possible to the AD9834 .

Avoid running digital lines under the device because these couple noise onto the die. The analog ground plane should be allowed to run under the AD9834 to avoid noise coupling. The power supply lines to the AD9834 should use as large a track as possible to provide low impedance paths and reduce the effects of glitches on the power supply line. Fast switching signals, such as clocks, should be shielded with digital ground to avoid radiating noise to other sections of the board. Avoid crossover of digital and analog signals. Traces on opposite sides of the board should run at right angles to each other to reduce the effects of feedthrough through the board. A microstrip technique is by far the best, but it is not always possible with a double-sided board. In this technique, the component side of the board is dedicated to ground planes and signals are placed on the other side.

Data Sheet

Good decoupling is important. The analog and digital supplies to the AD9834 are independent and separately pinned out to minimize coupling between analog and digital sections of the device. All analog and digital supplies should be decoupled to

AGND and DGND, respectively, with 0.1 μF ceramic capacitors in parallel with 10 μF tantalum capacitors. To achieve the best performance from the decoupling capacitors, they should be placed as close as possible to the device, ideally right up against the device. In systems where a common supply is used to drive both the AVDD and DVDD of the AD9834 , it is recommended that the system’s AVDD supply be used. This supply should have the recommended analog supply decoupling between the AVDD pins of the AD9834 and AGND, and the recommended digital supply decoupling capacitors between the DVDD pins and DGND.

Proper operation of the comparator requires good layout strategy.

The strategy must minimize the parasitic capacitance between

VIN and the SIGN BIT OUT pin by adding isolation using a ground plane. For example, in a multilayered board, the VIN signal could be connected to the top layer, and the SIGN BIT OUT could be connected to the bottom layer so that isolation is provided by the power and ground planes between them.

Rev. D | Page 26 of 32

Data Sheet

INTERFACING TO MICROPROCESSORS

The AD9834 has a standard serial interface that allows the part to interface directly with several microprocessors. The device uses an external serial clock to write the data/control information into the device. The serial clock can have a frequency of 40 MHz maximum. The serial clock can be continuous, or it can idle high or low between write operations. When data/control information is being written to the AD9834 , FSYNC is taken low and is held low until the 16 bits of data are written into the AD9834 . The

FSYNC signal frames the 16 bits of information being loaded into the AD9834 .

AD9834

TO

ADSP-21xx

INTERFACE

Figure 35 shows the serial interface between the

AD9834 and the ADSP-21xx . The ADSP-21xx should be set up to operate in the SPORT transmit alternate framing mode (TFSW = 1). The

ADSP-21xx is programmed through the SPORT control register and should be configured as follows:

 Internal clock operation (ISCLK = 1)

 Active low framing (INVTFS = 1)

 16-bit word length (SLEN = 15)

 Internal frame sync signal (ITFS = 1)

 Generate a frame sync for each write (TFSR = 1)

Transmission is initiated by writing a word to the Tx register after the SPORT has been enabled. The data is clocked out on each rising edge of the serial clock and clocked into the AD9834 on the SCLK falling edge.

ADSP-21xx 1

AD9834 1

TFS

DT

SCLK

FSYNC

SDATA

SCLK

1

ADDITIONAL PINS OMITTED FOR CLARITY.

Figure 35. ADSP-21xx to AD9834 Interface

Rev. D | Page 27 of 32

AD9834

AD9834

TO 68HC11/68L11 INTERFACE

Figure 36 shows the serial interface between the

AD9834 and the 68HC11/68L11 microcontroller. The microcontroller is configured as the master by setting Bit MSTR in the SPCR to 1, providing a serial clock on SCK while the MOSI output drives the serial data line SDATA. Because the microcontroller does not have a dedicated frame sync pin, the FSYNC signal is derived from a port line (PC7). The setup conditions for correct operation of the interface are as follows:

 SCK idles high between write operations (CPOL = 0)

 Data is valid on the SCK falling edge (CPHA = 1)

When data is being transmitted to the AD9834 , the FSYNC line is taken low (PC7). Serial data from the 68HC11/68L11 is transmitted in 8-bit bytes with only eight falling clock edges occurring in the transmit cycle. Data is transmitted MSB first. To load data into the AD9834 , PC7 is held low after the first eight bits are transferred and a second serial write operation is performed to the AD9834 .

Only after the second eight bits have been transferred should

FSYNC be taken high again.

68HC11/68L11 1

AD9834 1

PC7

MOSI

SCK

FSYNC

SDATA

SCLK

1

ADDITIONAL PINS OMITTED FOR CLARITY.

Figure 36. 68HC11/68L11 to AD9834 Interface

AD9834

AD9834

TO 80C51/80L51 INTERFACE

Figure 37 shows the serial interface between the

AD9834 and the 80C51/80L51 microcontroller. The microcontroller is operated in Mode 0 so that TXD of the 80C51/80L51 drives SCLK of the AD9834 , and RXD drives the serial data line (SDATA). The

FSYNC signal is derived from a bit programmable pin on the port

(P3.3 is shown in the diagram). When data is to be transmitted to the AD9834 , P3.3 is taken low. The 80C51/80L51 transmits data in 8-bit bytes, thus only eight falling SCLK edges occur in each cycle. To load the remaining eight bits to the AD9834 , P3.3 is held low after the first eight bits have been transmitted, and a second write operation is initiated to transmit the second byte of data. P3.3 is taken high following the completion of the second write operation. SCLK should idle high between the two write operations. The 80C51/80L51 outputs the serial data in an LSBfirst format. The AD9834 accepts the MSB first (the four MSBs being the control information, the next four bits being the address, and the eight LSBs containing the data when writing to a destination register). Therefore, the transmit routine of the

80C51/80L51 must take this into account and rearrange the bits so that the MSB is output first.

80C51/80L51 1

AD9834 1

P3.3

RXD

TXD

FSYNC

SDATA

SCLK

1

ADDITIONAL PINS OMITTED FOR CLARITY.

Figure 37. 80C51/80L51 to AD9834 Interface

Data Sheet

AD9834

TO DSP56002 INTERFACE

Figure 38 shows the interface between the

AD9834 and the

DSP56002. The DSP56002 is configured for normal mode asynchronous operation with a gated internal clock (SYN = 0,

GCK = 1, SCKD = 1). The frame sync pin is generated internally

(SC2 = 1), the transfers are 16 bits wide (WL1 = 1, WL0 = 0), and the frame sync signal frames the 16 bits (FSL = 0). The frame sync signal is available on Pin SC2, but needs to be inverted before being applied to the AD9834 . The interface to the DSP56000/

DSP56001 is similar to that of the DSP56002.

DSP56002 1

AD9834 1

SC2

STD

SCK

FSYNC

SDATA

SCLK

1

ADDITIONAL PINS OMITTED FOR CLARITY.

Figure 38. DSP56002 to AD9834 Interface

Rev. D | Page 28 of 32

Data Sheet

OUTLINE DIMENSIONS

AD9834

6.60

6.50

6.40

20 11

4.50

4.40

4.30

6.40 BSC

1 10

PIN 1

0.65

BSC

0.15

0.05

1.20 MAX

0.20

0.09

COPLANARITY

0.10

0.30

0.19

SEATING

PLANE

COMPLIANT TO JEDEC STANDARDS MO-153-AC

Figure 39. 20-Lead Thin Shrink Small Outline Package [TSSOP]

(RU-20)

Dimensions shown in millimeters

0.75

0.60

0.45

ORDERING GUIDE

Model

1

Maximum MCLK (MHz) Temperature Range Package Description

AD9834BRU

AD9834BRU-REEL

AD9834BRU-REEL7

AD9834BRUZ

AD9834BRUZ-REEL 50

AD9834BRUZ-REEL7 50

AD9834CRUZ 75

AD9834CRUZ-REEL7 75

1 Z = RoHS Compliant Part.

50

50

50

50

−40°C to +105°C

−40°C to +105°C

−40°C to +105°C

−40°C to +105°C

−40°C to +105°C

−40°C to +105°C

−40°C to +105°C

−40°C to +105°C

20-Lead Thin Shrink Small Outline Package [TSSOP]

20-Lead Thin Shrink Small Outline Package [TSSOP]

20-Lead Thin Shrink Small Outline Package [TSSOP]

20-Lead Thin Shrink Small Outline Package [TSSOP]

20-Lead Thin Shrink Small Outline Package [TSSOP]

20-Lead Thin Shrink Small Outline Package [TSSOP]

20-Lead Thin Shrink Small Outline Package [TSSOP]

20-Lead Thin Shrink Small Outline Package [TSSOP]

Package

Option

RU-20

RU-20

RU-20

RU-20

RU-20

RU-20

RU-20

RU-20

Rev. D | Page 29 of 32

AD9834

NOTES

Data Sheet

Rev. D | Page 30 of 32

Data Sheet

NOTES

AD9834

Rev. D | Page 31 of 32

AD9834

NOTES

Data Sheet

©2003–2014 Analog Devices, Inc. All rights reserved. Trademarks and

registered trademarks are the property of their respective owners.

D02705-0-3/14(A)

Rev. D | Page 32 of 32

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
