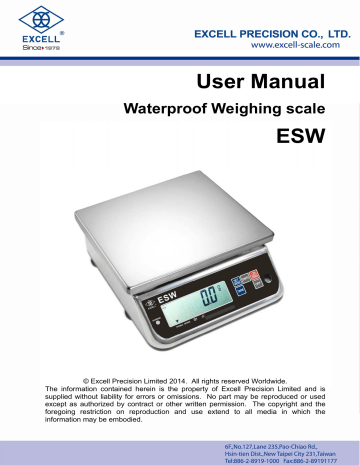

User Manual

Waterproof Weighing scale

ESW

© Excell Precision Limited 2014. All rights reserved Worldwide.

The information contained herein is the property of Excell Precision Limited and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorized by contract or other written permission. The copyright and the foregoing restriction on reproduction and use extend to all media in which the information may be embodied.

EXCELL PRECISION CO., LTD.

Table of Content

INSTRUCTION FOR USE ...................................................................................................2

PREPARING TO USE THE SCALE .....................................................................................2

CHAPTER 1 INTRODUCTION ............................................................................................4

1-1 F

EATURES AND

S

PECIFICATIONS

.....................................................................................4

1-2 P

OWER

S

UPPLY

............................................................................................................5

1-3 P

ANEL AND

K

EYBOARD

I

NTRODUCTION

...........................................................................5

1-4 O

PERATING THE

S

CALE

.................................................................................................6

1-5 S

ELF

-T

EST

M

ODE

.........................................................................................................7

1-6 E

RROR

M

ESSAGES

.......................................................................................................8

1-7 W

EIGHT

U

NIT

...............................................................................................................8

CHAPTER 2 ADVANCED FUNCTIONS ..............................................................................9

2-1 A

DVANCED

F

UNCTION

S

ETTING

T

ABLE

............................................................................9

2-2 A

DVANCED

F

UNCTION

S

ETTING

W

ORKFLOW

.................................................................10

2-3 G

ENERAL

F

UNCTION

S

ETTING

.............................................................. 11

2-3-1 Automatic Backlight Function Setting .......................................12

2-3-2 Automatic Power-off Timer Setting ...........................................13

2-3-3 Hi/Lo/OK Function Setting ........................................................14

2-3-4 Restore to the Default Setting ...................................................15

2-3-5 Noise Filter Setting ...................................................................16

2-3-6 Hold Function Setting ..............................................................17

2-3-7 Auto Unit Weight Averaging Setting ........................................18

2-4 W

EIGHT

C

ALIBRATION

..............................................................................19

APPENDIX 1 7-SEGMENT DISPLAY CHARACTERS ......................................................20

02005311

1

ZSME3000000272

EXCELL PRECISION CO., LTD.

Thank you for purchasing EXCELL waterproof weighing scale. In order to use the scale properly, please read this instruction carefully before use. If you have a problem concerning the scale, please contact your supplier.

Instruction for Use

1. Please keep the scale in a cool dry place. Do not store it at high temperature.

2. Avoid objects impacting with the scale. Do not drop loads onto the scale or subject the weigh pan to any strong shock loads.

3. The load placed on the weigh pan must not exceed the maximum weighing capacity of the scale.

4. If the scale is not going to be used for some time, please clean it and store it in a plastic bag in dry conditions. A desiccant sachet may be included to prevent any moisture build up.

Preparing To Use the Scale

1. Adjust the four levelling feet (if fitted) to set the scale pan level using the spirit level bubble located at the front of the scale.

2. Avoid operating the scale in direct sunlight or drafts of any kind.

3. If possible avoid connecting the scale to ac power outlet sockets which are adjacent to other appliances to minimise the possibility of interference affecting the performance of the scale.

4. Remove any weight that might be on the weigh pan before the scale is switched on and avoid leaving weight on the pan for long periods of time

5. All goods weighed should be placed in the centre of the weigh pan for accurate weighing. The overall dimensions of the goods being weighed should not exceed the dimension of the weigh pan.

6. We suggest to warm up the scale for 15~20 minutes before operation to ensure best accuracy.

7. Please note when the symbol keeps flashing on the screen, the batteries need to be replaced.

8. Introduction of Storage Battery

02005311 ZSME3000000272

2

EXCELL PRECISION CO., LTD.

Due to the storage battery adopt the advanced free-maintaining technique, customers need not to replenish electrolyte.

The scale should be recharged every 3 months to prevent failure of the internal rechargeable battery.

1. The battery should be charged for 8~10 hours.

2. The temperature of battery should below 45

.

Maintaining

1. Please do not discharge with over-current when using the battery. Please charge the battery after discharging current.

2. Please take down the battery when the scale is not used for a long time or break the connection of cathode.

3. Do not short the battery terminals to check whether there is current. Please check whether the connection point is firm to guarantee good connection.

4. The battery should be replaced by specialized person.

No reverse-battery or the product will be damaged.

a) Anode of battery should be connected with Anode of product battery

( usually red cable

) b) Cathode of battery should be connected with Cathode of product battery (usually brown cable or black cable) c) See the picture following

Brown cable(or black cable) connected with Anode of battery

Red cable connected with

Cathode of battery

Safety warnings

1. The electrolyte of battery is caustic which causes metal, cotton, etc to corrode.

2. The hydrogen will be resolved when using or charging the battery and it will cause explosion when approaches fire.

02005311

3

ZSME3000000272

EXCELL PRECISION CO., LTD.

Chapter 1 Introduction

1-1 Features and Specifications

Features:

‹

Sealed waterproof silica gel strip blocks water from infiltrating into the scale.

‹

Surrounded by waterproof grade sheeting to ensure the water free.

‹

1/3,000~1/6,000 display resolution available.

‹

Aluminum frames coated with anti-corrosion treatment for longer lifespan.

‹

Stainless steel made feet and platter for anti-rust.

‹

High speed of 24bits AD fast reacts and shortens the weighing operation duration.

‹

Selectable units: Kilogram (kg), gram (g), ounce (oz), and pound (lb) weighing units available.

‹

Built-in rechargeable battery can be easily replaced.

‹

Low power indication and auto power off.

‹

Well-designed protection point for transportation.

‹

Concave handle for easy carrying.

Specifications:

ESW-3 3kg

ESW-6 6kg

ESW-15 15kg

ESW-30 30Kg

0.5g

1g

1g

2g

2g

5g

5g

10g

Operating Temperature: Non-approval model:

0°C ~ 40°C (32°F ~ 104°F)

Approval model:

-10°C ~ 40°C (14°F ~ 104°F)

Dimensions:

240 x 120 x 280 mm ( W x H x D)

1/6,000

1/3,000

1/6,000

1/3,000

1/7,500

1/3,000

1/6,000

1/3,000

Weight of the scale:

Around 3.5kg

120mm

280mm

240mm

02005311

4

ZSME3000000272

EXCELL PRECISION CO., LTD.

1-2 Power Supply

Power Supply Selection

1. DC 6V / 4Ah rechargeable battery

2. AC 110V~240V (±10

) adapter

Power Consumption

14mA (system no backlight

Single display) about 275 hours

19mA (system backlight

; single display) about 200 hours

Low Battery Warning

Please note when the ( ) symbol keeps flashing on the display, the batteries should be changed.

The scale will turn off automatically after a few hours when the low battery warning symbol shows up. The scale must be fully charged, before operating again.

1-3 Panel and Keyboard Introduction

Icon Introduction

STABLE

:

The weight is stable.

GROSS

:

The scale is in the gross mode. The display shows the goods and any

P c s container weight. This Gross status indication is on when the TARE function is used.

:

The unit weight is not sufficient. When the icon is on, the counting function is operational but the count may contain errors.

.

.

.

.

.

.

.

.

.

.

:

The sampling size is not sufficient When the icon is on, the counting function is operational but the count may contain errors.

Keyboard Function

ON/ZERO KEY

This key possesses two functions: Power On and Zero function.

OFF KEY

When the scale is switched on, press the

OFF

key, the scale will switch off.

TARE KEY

The tare function will not operate during the following conditions:

02005311

5

ZSME3000000272

EXCELL PRECISION CO., LTD.

1. When the scale powers on if the weight is negative and after a container is placed on the weigh pan if the weight is still below zero.

2. The tare value is over the full scale capacity.

UNITS KEY

Press the

UNITS

key to switch weight units; the icons will indicate the active units.

NET/GROSS KEY

In the Tare mode, the screen displays the “TARE” icon; press the

NET/GROSS

key to switch between the “Net value” and the “Gross value”.

1-4 Operating the Scale

POWER ON

When the scale is off, press the

ON/ZERO

key, the scale will switch on.

POWER OFF

When the scale is on, press the OFF key, the scale will switch off.

ZERO

When the weigh pan is empty (free of load) and the display is not showing zero, press the

ON/ZERO

key to zero the scale. At zero, the “

Æ

0

Å

” indication is on.

When the weight value is within the zero range, the zero function operates to zero the scale or cancel the tare function.

Zero range: The OIML & NTEP models have a zero range of

±

2% of Full Scale. The

Sri Lanka model has a zero range of

±

4% of Full Scale.

SWITCHING UNITS

Press the

UNITS

key to switch weight units, the icons or arrows will indicate the active units as appropriate. The units available are dependent on the exact scale model.

After power off, the scale will memorize the active units. When the scale is powered on again, it displays the previously active units.

TARE FUNCTION

(1) Put a container on the weigh pan and after the weight is stable, press the

TARE

key to zero the weight of the container. The screen displays the “Net” icon.

(2) Put the goods in the container, the screen displays the net weight value of the goods.

(3) Remove the full container; the screen displays the negative weight value of the container. At this time pressing the

TARE

key again will cancel the tare and the scale reverts back to zero. The “Net” icon is switched off.

The tare function can be operated continually to the full weighing capacity of the scale.

Continual tare operation is adding or removing tare objects on weigh pan and pressing the

TARE

key each time.

NET/GROSS FUNCTION

In the Tare mode, the screen displays the “Net” icon, press the

NET/GROSS

key to switch between the “Net value” and the “Gross value”.

When the GROSS icon is on, the weight value on the display is the total amount of the tare value and net value.

At the Gross status, only

OFF

and

NET/GROSS

keys are functional.

NET/GROSS

key is only used in Tare mode.

02005311

6

ZSME3000000272

EXCELL PRECISION CO., LTD.

SIMPLE COUNTING FUNCTION

(1) Use the UNITS key to enter into the “PCS” mode

(2) Press the NET/GROSS key to select the counting sample size

(S = 10, S = 20, S = 50, S = 100, S=200).

The LCD shows , , , , in order

.

(3) Put the samples on the weigh pan and press the UNITS key, the screen displays

“------”. After the sampling process is complete, put the goods on the weigh pan and the screen shows the quantity of the items.

The sample weight should be heavier then the minimum capacity of the scale (20d), If

.

.

.

.

.

.

.

.

.

The weight of a sample should be heavier than the 0.2d (d=division), or the arrow pointing to the icon will be on.

P c s

.

.

.

.

.

.

.

.

.

.

contain errors.

To power off in this mode, the scale will memorize the “Pcs” unit. When the scale is powered on again, it directly enters the simple counting mode.

While the “Auto unit weight average” function is available in the Advanced Function, the goods on the weigh pan are 5pcs greater than the sample size and less than double the sample size, the scale will automatically re-sample the unit weight.

1-5 Self-Test Mode

Set the switch SWA1 on the bottom of machine to the LOCK position.When power is off, hold NET/GROSS , and press ON/ZERO key, Wait till display shows to enter “Self-Test Mode”.

Press

ON/ZERO

key

Press

ON/ZERO

key

Press

ON/ZERO

key

Press

ON/ZERO

key

Press

UNITS

key

Press

UNITS

key

Press

UNITS

key

Press

UNITS

key

02005311

7

ZSME3000000272

EXCELL PRECISION CO., LTD.

INTERNAL VALUE MODE

(must hook up Load Cell to test) c

Press

TARE

to enter, and the display shows internal value d

Please check whether the internal value has changed obviously with weight changing. e

Please check the backlight. f

Press

ON/ZERO

key to back to the last screen , the display shows

KEYPAD TEST MODE

c

Press

TARE to enter, display shows

Keypad’s internal code:

TARE

key= 07

UNITS

key= 06

NET/GROSS

key=05 d

Press

ON/ZERO

key to back to the last screen , the display shows

FIRMWARE VERSION DISPLAY MODE

c

Press

TARE

to enter , display shows the firmware version d

Press

TARE

key again, the display shows maintenance number for 2 secs e

Press

ON/ZERO

key to back to the last screen, display shows

BACK TO THE LAST SCREEN

Press

TARE

key to exit self-test mode, the scale will restart automatically.

1-6 Error Messages

Unable to read the EEPROM

The EEPROM is not mounted yet, or the circuit near EEPROM is broken.

Initial zero is higher than the zero range when switching the indicator on.

(Approval models)

Initial zero is lower than the zero range when switching the indicator on.

(Approval models)

Internal value is below Zero.

A/D IC malfunction (cannot read A/D value). The load cell may not be connected to the scale correctly.

The weight of the object is over 9 divisions of the maximum capacity.

A/D IC value is over the maximum range.

1-7 Weight Unit

(kg) 1 g = 0.001 kg

(g)

(lb)

1 g = 1 g

1 g = 0.002204623 lb

(lb/oz) 1 g = 0.03527396 oz

02005311

8

ZSME3000000272

EXCELL PRECISION CO., LTD.

Chapter 2 Advanced Functions

2-1 Advanced Function Setting Table

Below is an overview of the advanced functions. For detailed settings refer to the following sections:

DISPLAY LEVEL 2 FUNCTIONS DISPLAY LEVEL 1 FUNCTION

Exit the

ADVANCED

FUNCTION

setting mode

--- ---

Return to the

ADVANCED

FUNCTION

setting menu

Automatic backlight function setting

Automatic power-off timer setting

02005311

General Function setting mode

Hi/Lo/OK function setting

Restore the default settings

Noise filter setting

Hold function setting

Auto unit weight averaging setting

External Weight

Calibration

--- ---

Reserved Reserved Reserved

9

ZSME3000000272

EXCELL PRECISION CO., LTD.

2-2 Advanced Function Setting Workflow

In the weighing mode, press the

NET/GROSS

and

ON/ZERO

keys at the same time to enter the

Advanced Function

setting mode. The LCD shows .

Overall workflow of the Advanced Function setting mode:

Press UNITS key

Press ON/ZERO key Press UNITS key

Press ON/ZERO key Press UNITS key

Press ON/ZERO key

Press ON/ZERO key

Press UNITS key

General Function setting mode

External Weight Calibration

Reserved

Exit the Advanced Function setting mode

Refer to the following sections for the detailed operation procedures of each function setting.

02005311

10

ZSME3000000272

EXCELL PRECISION CO., LTD.

2-3 General Function Setting

There are 7 functions in the general function setting mode from

to .

Workflow of the General Function setting:

ACTIONS

DISPLAY NOTE

Press

TARE

key

Use the keys to select the function

Key in “00” and press TARE key to return to the Advanced function setting menu

ON/ZERO

key

Upward key (from 0 to 9)

UNITS

key

Downward key (from 9 to 0)

TARE

key

Move the cursor to right

NET/GROSS

key

Move the cursor to left

Return to the Advanced Function Setting Mode Menu

Automatic Backlight Function Settings

Automatic Power-off Timer Settings

Hi/Lo/OK Settings

Restore the Default Settings

Noise Filter Settings

Hold Function Settings

Auto Unit Weight Averaging Setting

Refer to the following sections for detailed operation procedures of each setting.

02005311

11

ZSME3000000272

EXCELL PRECISION CO., LTD.

2-3-1 Automatic Backlight Function Setting

Select in the General Function setting mode to change the backlight function setting.

ACTIONS

Press

TARE

key

Use

ON/ZERO

or

UNITS

key to select function

“on” or “off

Press

TARE

key

Press

TARE

key to complete the general setting procedures

DISPLAY

Key in the parameter “00”

Automatic backlight function

NOTE

LCD displays the last status

When the weight is over 10d, the display backlight will be on. After the weight is stable for 10 seconds or when the scale returns to zero, the display backlight switches off.

02005311

12

ZSME3000000272

EXCELL PRECISION CO., LTD.

2-3-2 Automatic Power-off Timer Setting

Select in the General Function setting mode to change the automatic power-off timer setting.

ACTIONS

Press

TARE

key

DISPLAY NOTE

LCD displays the last status

Use

ON/ZERO

key to key in parameter

Press

TARE

or

key

UNITS

Key in the parameter “00”

Press

TARE

procedures

key to complete the general setting

Automatic power-off function

Automatic power-off timer setting

Use

ON/ZERO

or

UNITS

key to key in parameter

0

No auto power-off

1

When the scale is idle for 1 minute, the scale

2

When the scale is idle for 2 automatically switches off minutes, the scale automatically switches off

9

When the scale is idle for 9 minutes, the scale automatically switches off

ON/ZERO

key

Upward key (from 0 to 9)

UNITS

key

Downward key (from 9 to 0)

TARE

key

Move the cursor to right

NET/GROSS

key

Move the cursor to left.

When the weight on weigh pan is less than 10d or keeps idle for the set time, the scale will automatically switch off.

02005311

13

ZSME3000000272

EXCELL PRECISION CO., LTD.

2-3-3 Hi/Lo/OK Function Setting

Select in the General Function setting mode to set the Hi/Lo/OK function. This function is available in all unit modes. In one specific unit mode, enter to set the Hi/Lo/OK values.

ACTIONS

DISPLAY

NOTE

When the high limit and low limit are both set as “0”, the Hi/Lo/OK function is disabled.

ON/ZERO

key

Upward key (from 0 to 9)

UNITS

key

Downward key (from 9 to 0)

Press

TARE

key

Key in the desired high limit value

.

.

lb lb

TARE

key

Move the cursor to right

NET/GROSS

key

Move the cursor to left.

LCD displays the last status

Press

TARE

key

Key in the desired low limit value

Press

TARE

key

.

.

lb lb

LCD displays the last status

LCD displays the last status

Alarm setting

Key in the parameter setting for alarm

Press

TARE

key

(a) (b) (c)

The definition of a, b, c positions:

(a)

1 = beep sound on

0 = beep sound off

(b)

1 = beep sound on when stable

0 = beep sound on when unstable

(c)

1 = beep sound on when the weight is between high and low limits

0 = beep sound on when the weight is not between high and low limits and higher than 10d

Key in the parameter and then press

TARE

key to go back to the

Advanced function setting menu

02005311

14

ZSME3000000272

EXCELL PRECISION CO., LTD.

2-3-4 Restore to the Default Setting

Select in the General Function setting mode to restore to the default setting.

ACTIONS

Press

TARE

key

Use

ON/ZERO

or

UNITS

keys to select “return” or

“format”

Press

TARE

key

Key in the parameter “00”

DISPLAY NOTE

ON/ZERO

key

Upward key (from 0 to 9)

UNITS

key

Downward key (from 9 to 0)

TARE

key

Move the cursor to right

NET/GROSS

key

Move the cursor to left.

Return (Cancel the restoration)

Restore to the default setting

Press

TARE

key to complete the general setting procedures

The default setting includes the following:

1) External weight calibration

2) HI/LO/OK setting value

3) Noise filter setting (External)

4) Sampling setting for the counting function

For OIML, NTEP or Sri Lanka approved models, setting is disabled.

02005311

15

ZSME3000000272

EXCELL PRECISION CO., LTD.

2-3-5 Noise Filter Setting

Select in the General Function setting mode to set the noise filter setting.

ACTIONS

DISPLAY

NOTE

Press

TARE

key

Use

ON/ZERO

or

UNITS

key to key in the parameters

Press

TARE

key

Use

ON/ZERO

or

UNITS

key to key in the parameters

Press

TARE

key

Use

ON/ZERO

or

UNITS

key to key in the parameters

Press

TARE

key

Returning to zero point setting

LCD displays the last status

Returning to the zero point setting

Use

ON/ZERO

or

UNITS

key to key in the parameters or zero point

Default setting = 0

0

No skip 5

skip 5d

1

skip 1d 6

skip 6d

2

skip 2d 7

skip 7d

3

skip 3d 8

skip 8d

4

skip 4d 9

skip 9d

When the weight on the scale is over

1/3 full capacity, the function is on.

Digital switch & Stabilization range setting

LCD displays the last parameter setting

Digital switch & Stabilization range setting

Use

ON/ZERO

or

UNITS

keys to key in the parameters. Default setting = 0

Parameter 0 ~ 9, the larger the number the more stable the weight.

Filter parameter setting

LCD displays the last parameter setting

Filter parameter setting

Use

ON/ZERO

or

UNITS

keys to key in the parameters. Default setting = 5

Parameter 0 ~ 9, the larger the number, the faster the filter response. Fast response can lead to weight instability.

Key in the parameter and then press

TARE

key to go back to the

Advanced function setting menu

For OIML, NTEP or Sri Lanka approved models, setting is disabled.

02005311

16

ZSME3000000272

EXCELL PRECISION CO., LTD.

2-3-6 Hold Function Setting

Select in the General Function setting mode to set the hold function.

ACTIONS

DISPLAY

Press

TARE

key

Use

ON/ZERO

or

UNITS

key to key in the parameters

Press

TARE

key

NOTE

Hold function setting

LCD displays the last parameter setting

Hold function setting

Use

ON/ZERO

or

UNITS

keys to key in the parameters

Default setting = 0

0

Hold function disabled

1

“Peak hold” mode

2

“Stable hold 1” mode

3

“Stable hold 2” mode

Key in the parameter “00”

Press

TARE

key to complete the general setting procedures

ON/ZERO

key

Upward key (from 0 to 9)

UNITS

key

Downward key (from 9 to 0)

TARE

key

Move the cursor to right

NET/GROSS

key

Move the cursor to left.

= Hold function disabled

= “Peak hold” mode

Keep displaying the maximum weight when the weight is continually changing

To exit this mode, press any key.

= “Stable hold 1” mode

When the weight is stable, the LCD shows the current weight value. To exit this mode, press any key.

= “Stable hold 2” mode

When the weight is stable, the LCD shows the current weight value. When the weight returns to zero (<10d), the hold mode is cancelled automatically.

02005311

17

ZSME3000000272

EXCELL PRECISION CO., LTD.

2-3-7 Auto Unit Weight Averaging Setting

Press

TARE

key

Use

ON/ZERO

or

UNITS

key to key in the parameters

Press

TARE

key

Auto unit weight averaging setting

LCD displays the last parameter setting

Auto unit weight averaging setting

Use

ON/ZERO

or

UNITS

keys to key in the parameters

Default setting = 0

0

Auto unit weight averaging

1

Non auto unit weight averaging

Key in the parameter “00”

Press

TARE

procedures

key to complete the general setting

ON/ZERO

key

Upward key (from 0 to 9)

UNITS

key

Downward key (from 9 to 0)

TARE

key

Move the cursor to right

NET/GROSS

key

Move the cursor to left.

02005311

18

ZSME3000000272

EXCELL PRECISION CO., LTD.

2-4 Weight Calibration

In the weighing mode, press the

NET/GROSS

and

ON/ZERO

keys at the same time to enter the

Advanced Function

setting mode. The LCD shows and use the

NET/GROSS

or

UNITS

key to select to enter the weight calibration mode.

ACTIONS

DISPLAY

Press

TARE

key

.

When the digit on the right flashes, ensure that the weigh pan is empty. Then

Press the key.

TARE

After stabilization

Place the displayed weight on the weigh pan. Press the

TARE

key. The scale calculates the full capacity internal value and after

.

stabilization, the buzzer beeps 3 times. Remove the weight from the weigh pan and the procedure is completed.

kg kg kg

For approved models, is disabled.

NOTE

The LCD displays the calibration weight value (the maximum capacity of 1 st

unit) and the unit. The digit on the right side keeps flashing.

The scale is calculating the internal value of the zero point. After stabilization, the LCD shows the calibration weight value.

ON/ZERO

key

Upward key (from 0 to 9)

UNITS

key

Downward key (from 9 to 0)

TARE

key

Move the cursor to right

NET/GROSS

key

Move the cursor to left.

Weight calibration conditions:

The calibration weight value placed on the weight pan must be over e100, and the standard deviation of the weight must be within 10%.

02005311

19

ZSME3000000272

EXCELL PRECISION CO., LTD.

Appendix 1 7-Segment Display Characters

Digit 7 segments letter Alphabet 7 segments letter Alphabet 7 segments letter

0 A N

1 B O

2 C P

3 D Q

4 E R

5 F S

6 G T

7 H U

8 I V

9 J W

K X

L Y

02005311

M Z

20

ZSME3000000272

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
