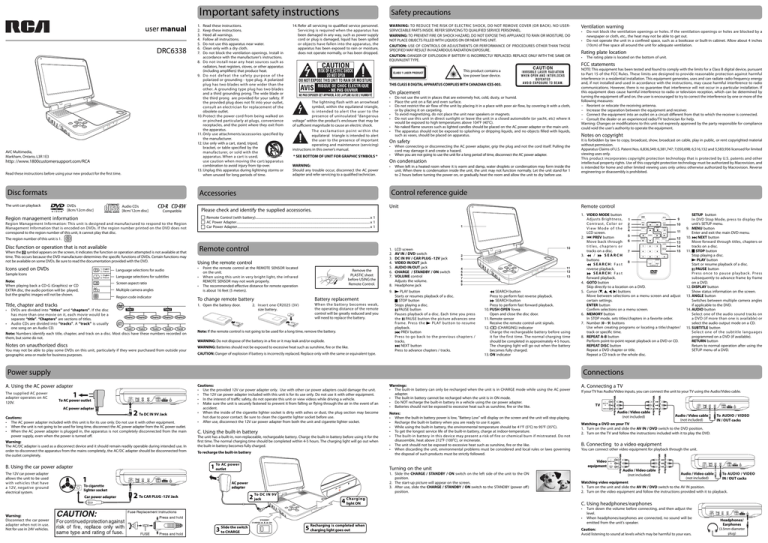

RCA DRC6309 User manual
Important safety instructions
user manual
DRC6338
AVC Multimedia,
Markham, Ontario, L3R 1E3
http: //www.1800customersupport.com/RCA
Read these instructions before using your new product for the first time.
1.
2.
3.
4.
5.
6.
7.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block the ventilation openings. Install in
accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. D o n o t d e f e a t t h e s a f e t y p u r p o s e o f t h e
polarized or grounding - type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety. If
the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with a cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
Disc formats
Safety precautions
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
DVDs
[8cm/12cm disc]
Audio CDs
[8cm/12cm disc]
This product contains a
low power laser device.
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
On placement
The lightning flash with an arrowhead
symbol, within the equilateral triangle,
is intended to aler t the user to the
presence of uninsulated ”dangerous
voltage” within the product's enclosure that may be
of sufficient magnitude to cause an electric shock.
T h e e xc l a m a t i o n p o i n t w i t h i n t h e
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in this owner’s manual.
* SEE BOTTOM OF UNIT FOR GRAPHIC SYMBOLS *
WARNING:
Should any trouble occur, disconnect the AC power
adapter and refer servicing to a qualified technician.
•
•
•
Do not use the unit in places that are extremely hot, cold, dusty, or humid.
Place the unit on a flat and even surface.
Do not restrict the air flow of the unit by placing it in a place with poor air flow, by covering it with a cloth,
or by placing it on carpeting.
To avoid magnetizing, do not place the unit near speakers or magnets.
Do not use this unit in direct sunlight or leave the unit in a closed automobile (or yacht, etc) where it
would be exposed to high temperatures above 104°F (40°C).
No naked flame sources such as lighted candles should be placed on the AC power adapter or the main unit.
The apparatus should not be exposed to splashing or dripping liquids, and no objects filled with liquids,
such as vases, should be placed on apparatus.
•
•
•
•
On safety
•
When connecting or disconnecting the AC power adapter, grip the plug and not the cord itself. Pulling the
cord may damage it and create a hazard.
When you are not going to use the unit for a long period of time, disconnect the AC power adapter.
•
On condensation
•
When left in a heated room where it is warm and damp, water droplets or condensation may form inside the
unit. When there is condensation inside the unit, the unit may not function normally. Let the unit stand for 1
to 2 hours before turning the power on, or gradually heat the room and allow the unit to dry before use.
Unit
Region Management Information: This unit is designed and manufactured to respond to the Region
Management Information that is encoded on DVDs. If the region number printed on the DVD does not
correspond to the region number of this unit, it cannot play that disc.
•
Do not block the ventilation openings or holes. If the ventilation openings or holes are blocked by a
newspaper or cloth, etc., the heat may not be able to get out.
Do not operate the unit in a confined space, such as a bookcase or built-in cabinet. Allow about 4 inches
(10cm) of free space all around the unit for adequate ventilation.
Rating plate location
•
The rating plate is located on the bottom of unit.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Notes on copyright
It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material
without permission.
Apparatus Claims of U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132 and 5,583,936 licensed for limited
viewing uses only.
This product incorporates copyright protection technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
Remote control
1. VIDEO MODE button
9
Adjusts Brightness, 1
Contrast, Color or 2
10
3
View Mode of the
4
11
LCD screen.
5
PREV button
2.
12
M
6
Move back through
13
14
titles, chapters or
tracks on a disc.
15
7
/
SEARCH
3.
buttons
8
S E A R C H : Fa s t
reverse playback.
S E A R C H : Fa s t
forward playback.
4. GOTO button
Skip directly to a location on a DVD.
5. Cursor ( , , , ) buttons
Move between selections on a menu screen and adjust
certain settings.
ENTER button
Confirm selections on a menu screen.
6. MEMORY button
In STOP mode, sets titles/chapters in a favorite order.
7. Number (0 - 9) buttons
Use when creating programs or locating a title/chapter/
track or specific time.
8. REPEAT A-B button
Perform point-to-point repeat playback on a DVD or CD.
REPEAT DISC button
Repeat a DVD chapter or title.
Repeat a CD track or the whole disc.
VIDEO
MODE
Remote Control (with battery)...............................................................................................................................................x 1
AC Power Adapter.......................................................................................................................................................................x 1
Car Power Adapter......................................................................................................................................................................x 1
Region management information
•
Control reference guide
Please check and identify the supplied accessories.
Compatible
Ventilation warning
FCC statements
Accessories
The unit can playback
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO
NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS UNIT.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR
EQUIVALENT TYPE.
MENU
PREV
SEARCH
NEXT
STOP
PAUSE
ANGLE
DISPLAY
GOTO
PLAY
ENTER
The region number of this unit is 1.
MEMORY
AUDIO
Disc function or operation that is not available
When the symbol appears on the screen, it indicates the function or operation attempted is not available at that
time. This occurs because the DVD manufacturer determines the specific functions of DVDs. Certain functions may
not be available on some DVDs. Be sure to read the documentation provided with the DVD.
Icons used on DVDs
Language selections for audio
Sample lcons
Language selections for subtitles
Note:
When playing back a CD-G (Graphics) or CD
EXTRA disc, the audio portion will be played,
but the graphic images will not be shown.
Screen aspect ratio
Multiple camera angles
1
Region code indicator
Title, chapter and tracks
Title1
Title2
DVDs are divided into “titles” and “chapters”. If the disc
has more than one movie on it, each movie would be a
Chapter1 Chapter2
Chapter3 Chapter1 Chapter2
separate “title”. “Chapters” are sections of titles.
• Audio CDs are divided into “tracks”. A “track” is usually
one song on an Audio CD.
Track1
Track2
Track3
Track4
Track5
Note: Numbers identify each title, chapter, and track on a disc. Most discs have these numbers recorded on
them, but some do not.
Remote control
Using the remote control
•
•
•
Point the remote control at the REMOTE SENSOR located
on the unit.
When using this unit in very bright light, the infrared
REMOTE SENSOR may not work properly.
The recommended effective distance for remote operation
is about 16 feet (5 meters).
You may not be able to play some DVDs on this unit, particularly if they were purchased from outside your
geographic area or made for business purposes.
LCD screen
AV IN / DVD switch
DC IN 9V / CAR PLUG -12V jack
VIDEO IN/OUT jack
AUDIO IN/OUT jack
CHARGE / STANDBY / ON switch
VOLUME control
Adjusts the volume.
8. Headphone jack
9.
To change remote battery
Battery replacement
1. Open the battery door.
When the batter y becomes weak ,
the operating distance of the remote
control will be greatly reduced and you
will need to replace the battery.
2. Insert one CR2025 (3V )
size battery.
•
Notes on unauthorized discs
Remove the
PLASTIC sheet
before USING the
Remote Control.
1.
2.
3.
4.
5.
6.
7.
Note: If the remote control is not going to be used for a long time, remove the battery.
WARNING: Do not dispose of the battery in a fire or it may leak and/or explode.
WARNING: Batteries should not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
PLAY button
Starts or resumes playback of a disc.
STOP button
Stops playing a disc.
PAUSE button
Pauses playback of a disc. Each time you press
the PAUSE button the picture advances one
frame. Press the
PLAY button to resume
playback.
PREV button
Press to go back to the previous chapters /
tracks.
NEXT button
Press to advance chapters / tracks.
7
8
9
0
SETUP
SEARCH button
Press to perform fast reverse playback.
SEARCH button
Press to perform fast forward playback.
10. PUSH OPEN fovea
Open and close the disc door.
11. Remote sensor
Receive the remote control unit signals.
(CHARGING) indicator
12.
Charge the rechargeable battery before using
it for the first time. The normal charging time
should be completed in approximately 4-5 hours.
The charging light will go out when the battery
becomes fully charged.
13. ON indicator
DISC
REPEAT
The unit has a built-in, non-replaceable, rechargeable battery. Charge the built-in battery before using it for the
first time. The normal charging time should be completed within 4-5 hours. The charging light will go out when
the built-in battery becomes fully charged.
1
AC power
adapter
To cigarette
lighter socket
Car power adapter
2 To CAR PLUG -12V Jack
Audio / Video cable
(not included)
Watching a DVD on your TV
1. Turn on the unit and slide the AV IN / DVD switch to the DVD position.
2. Turn on the TV and follow the instructions included with it to play the DVD.
To DC IN 9V
2 jack
h a rg i n g
4 Clight
ON
You can connect other video equipment for playback through the unit.
Video
equipment
C. Using headphones/earphones
•
3
Slide the switch
to CHARGE
5
Audio / Video cable
(not included)
Audio / Video cable
To AUDIO / VIDEO
(not included)
IN / OUT cacks
Watching video equipment
1. Turn on the unit and slide the AV IN / DVD switch to the AV IN position.
2. Turn on the video equipment and follow the instructions provided with it to playback.
•
Recharging is completed when
charging light goes out
To AUDIO / VIDEO
IN / OUT cacks
B. Connecting to a video equipment
Turning on the unit
1. Slide the CHARGE / STANDBY / ON switch on the left side of the unit to the ON
position.
2. The start-up picture will appear on the screen.
3. After use, slide the CHARGE / STANDBY / ON switch to the STANDBY (power off )
position.
Audio / Video cable
(not included)
White Red Yellow
AC power
1 To
outlet
B. Using the car power adapter
TV
White Red Yellow
To recharge the built-in battery
If your TV has Audio/Video inputs, you can connect the unit to your TV using the Audio/Video cable.
White Red Yellow
C. Using the built-in battery
Notes:
• When the built-in battery power is low, "Battery Low" will display on the screen and the unit will stop playing.
• Recharge the built-in battery when you are ready to use it again.
• While using the built-in battery, the environmental temperature should be 41°F (5°C) to 95°F (35°C).
• To get the longest service life of the built-in battery, charge at indoor-temperature.
• The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not
disassemble, heat above 212oF (100oC), or incinerate.
• The unit should not be exposed to excessive heat such as sunshine, fire or the like.
• When discarding the unit, environmental problems must be considered and local rules or laws governing
the disposal of such products must be strictly followed.
A. Connecting a TV
White Red Yellow
Warning:
The AC/DC adapter is used as a disconnect device and it should remain readily operable during intended use. In
order to disconnect the apparatus from the mains completely, the AC/DC adapter should be disconnected from
the outlet completely.
Warnings:
• The built-in battery can only be recharged when the unit is in CHARGE mode while using the AC power
adapter.
• The built-in battery cannot be recharged when the unit is in ON mode.
• Do NOT recharge the built-in battery in a vehicle using the car power adapter.
• Batteries should not be exposed to excessive heat such as sunshine, fire or the like.
White Red Yellow
2
To DC IN 9V Jack
Cautions:
• The AC power adapter included with this unit is for its use only. Do not use it with other equipment.
• When the unit is not going to be used for long time, disconnect the AC power adapter from the AC power outlet.
• When the AC power adapter is plugged in, the apparatus is not completely disconnected from the main
power supply, even when the power is turned off.
Cautions:
• Use the provided 12V car power adapter only. Use with other car power adapters could damage the unit.
• The 12V car power adapter included with this unit is for its use only. Do not use it with other equipment.
• In the interest of traffic safety, do not operate this unit or view videos while driving a vehicle.
• Make sure the unit is securely fastened to prevent it from falling or flying through the air in the event of an
accident.
• When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug section may become
hot due to poor contact. Be sure to clean the cigarette lighter socket before use.
• After use, disconnect the 12V car power adapter from both the unit and cigarette lighter socket.
White Red Yellow
1
To AC power outlet
AC power adapter
Warning:
Disconnect the car power
adapter when not in use.
Not for use in 24V vehicles.
6
Connections
A. Using the AC power adapter
The 12V car power adapter
allows the unit to be used
with vehicles that have
a 12V, negative ground
electrical system.
3
5
A-B
Power supply
The supplied AC power
adapter operates on AC
120V.
2
SUBTITLE/
RETURN
4
SETUP button
In DVD Stop Mode, press to display the
unit’s SETUP menu.
9. MENU button
Enter and exit the main DVD menu.
NEXT button
10.
Move forward through titles, chapters or
tracks on a disc.
11. STOP button
Stop playing a disc.
PLAY button
Start or resume playback of a disc.
PAUSE button
Pre s s o n ce to p a u s e p l ay b a c k . Pre s s
subsequently to advance frame by frame
on a DVD.
12. DISPLAY button
Show status information on the screen.
13. ANGLE button
Switches between multiple camera angles
if applicable to the DVD.
14. AUDIO button
Select one of the audio sound tracks on
a DVD (if more than one is available) or
select the audio output mode on a CD.
15. SUBTITLE button
S elec t one of the subtitle languages
programmed on a DVD (if available).
RETURN button
Return to normal operation after using the
SETUP menu of a DVD.
Turn down the volume before connecting, and then adjust the
level.
When headphones/earphones are connected, no sound will be
emitted from the unit's speaker.
Caution:
Avoid listening to sound at levels which may be harmful to your ears.
Headphones/
Earphones
(3.5mm diameter
plug)
Playing a disc (basic playback)
Repeat playback
This owner’s manual explains the basic instructions for operating this unit. Some DVDs are produced in
a manner that allows specific or limited operation during playback. Therefore, this unit may not respond
to all operating commands. THIS IS NOT A DEFECT. Please refer to the instructions accompanying the
specific DVD in question for more information about the options available on that DVD.
” may appear on the screen during operation. A “
” means the desired operation is not permitted
“
by the unit or disc.
Playing a disc
Stopping playback
1. Slide the CHARGE / STANDBY / ON switch on
the left side of the unit to the ON position.
See Customizing the function settings before
proceeding to step 2.
2. Press the PUSH OPEN fovea on the disc door to
open the disc door.
3. Hold the disc by its sides and carefully place it
onto the spindle with the label side facing up,
pushing gently until you hear a “click”.
4. Press the PUSH OPEN fovea to close the disc
door. It takes a short while for your unit to load
the disc. After loading, the unit will automatically
bring you to the main menu of the DVD or start
playing the DVD.
5. If the unit does not automatically start playing
PLAY button.
the DVD, press the
Press the STOP button at the location where you
want to interrupt playback. To resume playback at
the position where the disc was stopped, press the
PLAY button.
If you press the STOP button twice, the unit’s
memory will be cleared and pressing the
PLAY
button will reset the DVD to the beginning.
Subtitle selection
Angle selection
•
1. While a DVD is playing, press the SUBTITLE
button to display the current language setting,
as shown in the example.
Some DVDs contain scenes which have been shot from a number of different angles. For these discs, the same
scene can be viewed from each of these different angles.
•
•
Press the
NEXT button to advance chapters/
tracks.
PREV button to go back to current
Press the
or previous chapters/tracks.
For Audio CDs, use the number buttons on the
remote control to jump directly to the desired
track.
Audio selection
On some DVDs, the sound is recorded in two or more
formats. Follow the directions below to select the
preferred language and sound system.
1. While a disc is playing, press the AUDIO button
to show the current audio format number.
Fast forward / Fast reverse
1. Press the SEARCH
or
SEARCH button
when a disc is playing. Each time you press the
or
SEARCH button, the playback
SEARCH
speed changes in the following sequence:
x2
x4
x8
x 16
x2
x4
x8
x 16
Pausing playback (still mode)
Press the PAUSE button. To resume normal
playback, press the PLAY button.
For a DVD, each time you press the PAUSE button,
the picture advances one frame.
Skip (forward / reverse)
2. Press the
PLAY button when you reach the
desired point to resume normal playback.
Notes:
• The DVD player mutes sound and subtitles
during reverse and forward scan of DVDs.
• The fast playback speed may differ depending
on the disc.
Locating a desired section
2. Press the AUDIO button repeatedly to select the
desired audio format.
Notes:
• If only one audio format is recorded on the DVD,
the number does not change.
• Some DVDs allow you to change audio selections
using the disc menu only. If this is the case, press
the MENU button and choose the appropriate
language on the disc menu.
• You can select different audio channels (Stereo,
Left or Right) on an Audio CD by pressing the
AUDIO button repeatedly.
1/4
2. Press the SUBTITLE button repeatedly to select
the desired subtitle language. You can turn
subtitles off by pressing the SUBTITLE button
repeatedly until “
Off ” is displayed.
Notes:
• Some DVDs are set to display subtitles
automatically, and you cannot turn them off
even if you set the subtitle function to off.
• During some scenes, the subtitles may not
appear immediately after you select your desired
scene.
• The number of subtitle languages recorded
differs depending on the disc. I f only one
language is recorded, the language does not
change.
• This function can only be used for discs on
which subtitles have been recorded in multiple
languages.
• Some DVDs allow you to change subtitles using
the disc menu only. If this is the case, press
the MENU button and choose the appropriate
subtitle on the disc menu.
1. While you are playing a DVD with different angles
1/3
recorded, press the ANGLE button to view the number
of current angles available.
Sequence
of
angle
shots (Example)
2. Press the ANGLE button repeatedly to change the
scene to the next recorded angle.
• After approx. two seconds, playback will continue
from the new angle selected.
• If no button is pressed within 10 seconds, playback
continues without changing the current angle.
Notes:
• This function can only be used for discs on which scenes shot from multiple angles have been recorded.
• If only one angle is recorded, “
1/1 ” is displayed.
Display function
Elapsed Time
Elapsed Time:
Elapsed time from the beginning of the title which
is currently playing.
Title 1/3
Remain Time:
Remaining time of the title which is currently
playing.
Playing titles/chapters in a favorite order
If a DVD contains title numbers, you can locate a specific title by directly selecting its title number.
1. Press the GOTO button.
Title
2. Press the corresponding number button(s) for the title you want.
3. Press the ENTER button to confirm. Playback starts from the selected section.
You can combine your favorite titles/chapters and play them in the order you determine.
1. When a DVD is stopped, press the MEMORY button. The following display appears.
2. Select the items in the order you want by pressing the number
buttons.
Each time you press the Cursor buttons ( , , , ), the space is
highlighted. Highlight where you want to enter, then press the
corresponding number buttons.
3. Press the Cursor buttons ( , , , ) to move the highlighted bar to
”Play”, then press the ENTER button.
Title Chapter
The DVD player starts memory playback.
number number
4. To resume normal playback from memory playback
1). Press the MEMORY button in stop mode.
2). Press the Cursor buttons ( , , , ) to move the highlighted bar to ”Clear All”, then press the ENTER
button. All input programs will be cleared.
PLAY button to resume normal playback.
3). Press the
---
Locating a specific chapter
If you know the chapter number for the chapter that you want to play, you can locate it by directly selecting that
number.
Chapter
--1. Press the GOTO button.
2. Press the or button to display Chapter and press the corresponding number button(s) for the chapter
you want.
3. Press the ENTER button to confirm. Playback starts from the selected section.
Locating a specific time
You can move to a specific location by entering its corresponding time (hours, minutes, seconds).
1. Press the GOTO button.
Time
--:--:-2. Press the or button to display Time and press the corresponding
number buttons for the setting point you want.
3. Press the ENTER button to confirm. Playback starts from the selected section.
Notes:
• If the numbers you entered is not permited by the DVD, after you press the ENTER button, it will restore to
“- - -”. You should re-enter correct numbers.
• Some discs may not respond to this process.
• Some scenes may not be located as precisely as you specified.
• This method for accessing specific locations is available only within the current title of the DVD.
Notes:
• If the title or chapter numbers you entered is not permited by the DVD, after you press the ENTER button,
it will restore to ”- - -”. You should re-enter correct numbers.
• Some discs may not permit memory playback operation.
• If you select repeat during memory playback, the DVD player repeats the current memory playback.
• If you press the MEMORY button while the display appears on the TV screen, the display disappears.
• The programmed selections will be cleared when you open the disc tray or turn off the DVD player.
00:05:18
Remain Time
00:30:28
Chapter 1/5
Audio
Subtitle 1/4 Eng
Angle 1/3
Adjust the LCD screen
You can adjust the Brightness, Contrast, Color or View Mode of the LCD screen.
1. Press the VIDEO MODE button.
2. Press the / button to select Brightness, Contrast, Color or View Mode.
3. Then press the / button to change the setting (For View Mode, press the ENTER button to change the
setting).
4. Press the VIDEO MODE button to exit the menu.
DVD programmable memory
Locating a specific title
Sequence of Display (Example)
While the disc is playing, press the DISPLAY button repeatedly to
display information on operation status.
Viewing JPEG files
This unit can play JPEG files recorded on a CD-R or CD-ROM disc (CD-RW is not recommended).
Viewing JPEG files
1. Press the PUSH OPEN fovea on the disc door to open the disc
door.
2. Hold the disc by its edges and gently push it onto the spindle
with label side facing towards you until you hear a “click”.
3. Press the PUSH OPEN fovea to close the disc door. A list of
folders/files will appear on the screen.
4. Press the or button to select your desired file. The selected
PLAY
picture will appear in the lower right corner. Press the
button to start playback. Press the STOP button to display a
folder list.
Notes:
PLAY button to resume slide
• You can press the PAUSE button to freeze the picture, and press the
show.
• You can press the STOP button to quit playback.
PREV or
NEXT button to change the picture. Press the
PREV button to view
• You can press the
NEXT button to view the next picture.
the previous picture. Press the
• You can use the number buttons on the remote control to jump immediately to the desired picture.
• You can press the ANGLE buttonon on the remote control to rotate the direction of the picture by 90°.
• Some discs may not permit this operation.
You can play a specific title or chapter repeatedly.
(Title repeat, chapter repeat, A-B repeat)
Repeating a chapter
1. While the DVD is playing, press the REPEAT
DISC button until the “ Repeat Chapter ” indicator
displays on the screen. The current chapter is
played repeatedly.
Repeating a title
2. While the DVD is playing, press the REPEAT
DISC button until the “ Repeat Title ” indicator
displays on the screen. The current title is played
repeatedly.
To resume normal playback
3. While the DVD is playing, press the REPEAT DISC
button until the “ Repeat Off ” indicator displays
on the screen.
Repeating a single track
1. While the CD is playing, press the REPEAT
DISC button until the “ Repeat single ” indicator
displays on the screen. The current track is
played repeatedly.
Repeating a specific section
You can play a specific section repeatedly.
1. While the disc is playing, press the REPEAT A-B
button at the beginning of the section (“ Rep A” is displayed) you want to play repeatedly.
2. Press the REPEAT A-B button again at the end of
the section (“ Rep A-B ” is displayed).
3. The unit will immediately begin replaying your
selection.
To resume normal playback
4. While the disc is playing, press the REPEAT A-B
” indicator displays
button until the “
on the screen.
Notes:
• Some discs may not permit A-B repeat operation.
• You can not set the A-B repeat function for a
segment that includes multiple camera angles.
• You can specify a segment only within the
current title or track.
• There may be a slight difference between point
A and the location where playback actually
resumes depending on the disc.
Repeating a whole disc
2. While the CD is playing, press the REPEAT DISC
button until the “ Repeat all ” indicator displays on
the screen. The whole disc is played repeatedly.
To resume normal playback
3. P r e s s t h e R E P E AT D I S C b u t t o n u n t i l t h e
“ Repeat off ” indicator displays on the screen.
Play modes for CD or JPEG disc
Play modes for CD or JPEG disc
When playing CD / JPEG discs, you can modify the Play Modes through the Toolkit which appears on the bottom
right of the screen. Press the
/
button to navigate between the windows and the / button to select
files/tracks or play mode items. Then press the ENTER button.
1. In Stop mode, press the Cursor buttons ( , , , ) to select ”Edit mode” then press the ENTER button.
2. Use the / button to select tracks/files shown on the left hand side of the window. Press the ENTER
” will appear in front of the selected tracks/files.
button to confirm the selected tracks/files. ”
” will disappear from the screen. It means that
3. Select ”Add to program” then press the ENTER button. ”
the tracks/files you have selected are added into the ”Program view”.
4. Select ”Program view” to view programmed files. To add more files by ”Browser view” repeat the above
steps.
5. Press the
PLAY button to start the program playback.
The Toolkit has the following play mode items:
• Repeat (Off/Single/All):
Off : Resumes normal playback.
Single: Repeats the current track/file.
All: Repeats all files on the current folder or all tracks on the disc.
• Mode (Normal / Shuffle / Music Intro):
Normal: Resumes normal playback.
Shuffle: Playbacks track/file in random order.
Music Intro (for Audio CD only): Only plays the first 10 seconds of all the tracks on the current folder/disc.
• Edit mode: Program operation works only when ”Edit mode” is selected.
• Program view: To view tracks/files in the ”Program view” list. It is disabled when the ”Program view” list is
empty.
• Add to program: Add files/tracks to the ”Program view” list. It is disabled if the ”Edit mode” is not selected.
• Browser view: To view files/tracks in the original view list.
• Clear program: Delete the files/tracks in the ”Program view” list.
Select a file/track you want to delete in complete stop mode (press the STOP button twice).
” will appear besides the deleted file/track. Select ”Clear program” and then press the ENTER button.
”
It is disabled if the ”Edit mode” is not selected.
Note: The program will be deleted if disc door is opened or selected files are deleted by selecting ”Clear
program” in ”Edit mode”.
Customizing the function settings
Language
1. Press the SETUP button in stop mode.
2. Press the button, then the / button to select the option
(OSD Language, Subtitle, Audio or DVD Menu).
3. Press the ENTER button, then the / button to shift and
change the Language.
4. Press the ENTER button.
5. Press the SETUP or RETURN button to exit the menu.
Notes:
• Some DVDs are programmed with a specific language. You may
not be able to change this feature.
• Some DVDs allow you to change languages using the disc menu only. If this is the case, press the MENU
button and choose the appropriate languages from the selection on the disc menu.
Video
1. Press the SETUP button in stop mode.
2. Press the / button to select Video.
3. Press the button, then the / button to select the option
(Aspect Ratio or View Mode).
4. Press the ENTER button, then the / button to shift and
change the selection.
5. Press the ENTER button.
6. Press the SETUP or RETURN button to exit the menu.
Aspect Ratio
• The displayable picture size is preset on the DVD. Therefore, the playback picture of some DVDs may not
conform to the picture size selected.
• When you play DVDs recorded in the 4:3 picture size only, the playback picture always appears in the 4:3
picture size regardless of the Aspect Ratio setting.
• Select 16:9 to conform to the LCD screen on the unit. Always be sure that your Aspect Ratio conforms to
the actual TV in use if you connect the unit to a TV.
Sound system
View Mode
Fill
Fill the screen with decoded image.
Original Display image as it’s original size.
Auto Fit Automatically fit the decoded image on screen without distortion. Black bars will be present on top/
bottom or left/right of screen.
Pan Scan Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your TV screen. Sides of
the picture are cut off.
Note: Depending on the DVD, you may not be able to view the mode as selected.
Dolby Digital
Symptom
Cause (and remedy)
No power.
•
•
Ensure the AC power adapter is connected.
The unit is not turned on.
The remote
control does not
function.
•
•
•
•
Make sure the infrared remote sensor is not blocked.
Make sure the plastic sheet has been removed from the remote control.
Point the remote directly at the infrared remote sensor on the unit.
Replace the battery in the remote control with a new one.
No sound or only
a very low-level
sound is heard.
•
•
•
•
•
•
Make sure DVD mode is selected.
The system is in pause mode. Press the
PLAY button to return to normal play mode.
The unit is in fast-forward or fast-reverse mode. Press the
PLAY button to return to
normal play mode.
Make sure the AUDIO/VIDEO output connections are correct.
The DTS DVD cannot be decoded to have speaker output.
The unit is too hot; shut off the unit for 30 minutes to cool it down.
No picture.
•
The region number of the disc doesn't match the region number of this unit.
The picture is not
clear.
•
•
•
Clean the disc.
The disc is scratched.
Adjust the LCD's brightness, contrast and color using the VIDEO MODE button on the
remote control.
Cleaning the unit
Severe hum or
noise is heard.
•
•
The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.
Clean the disc.
•
•
The disc does not
play.
•
•
•
•
•
There is no disc inside (“No Disc” appears on the screen).
Insert the disc correctly with the playback side facing down.
Clean the disc.
A non-NTSC disc has been inserted. The unit and disc region number are incompatible.
Condensation may have formed inside the unit due to a sudden change in temperature.
Wait about an hour for it to clear and try again.
Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby Digital can
reproduce from one to 5.1 discrete channels of excellent quality audio.
The unit automatically recognizes the Dolby Digital bitstream and provides a downmix suitable for twochannel listening. An additional Dolby Digital decoder is required for reproduction of the discrete multi-channel
soundtracks available on many DVDs.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Misc
Use Default Settings
1. Press the SETUP button in stop mode.
2. Press the / button to select Misc.
3. Press the button, then press the / button to select Use
Default Settings.
4. Press the ENTER button followed by the / button to select
“Yes”, then press the ENTER button again. The original setting
will be restored. The unit will exit the menu automatically and
re-load the disc in the disc tray.
Note: It will take 3-5 seconds to reset the DVD player to the factory default.
Screen Saver
1. Press the SETUP button in stop mode.
2. Press the / button to select Misc.
3. Press the button, then press the / button to select Screen Saver.
4. Press the ENTER button, then press the / button to change the On/Off mode.
5. Press the ENTER button.
6. Press the SETUP or RETURN button to exit the menu.
Troubleshooting guide
Maintenance
Cleaning the disc
A defective or soiled disc inserted into the unit can cause sound to drop out during playback.
Handle the disc by holding its inner and outer edges.
• Do NOT touch the surface of the unlabeled side of the disc.
• Do NOT stick paper or tape on the surface.
• Do NOT expose the disc to direct sunlight or excessive heat.
• Clean the disc before playback. Wipe the disc from the center outward with a cleaning cloth.
• NEVER use solvents such as benzine or alcohol to clean the disc.
• Do NOT use irregular shaped discs (example: heart shaped, octagonal, etc.). They may cause malfunctions.
•
Be sure to turn the unit off and disconnect the AC power adapter before cleaning the unit.
Wipe the unit with a dry soft cloth. If the surfaces are extremely dirty, wipe clean with a cloth that has
been dipped in a weak soap-and-water solution and wrung out thoroughly, then wipe with a dry cloth.
Never use alcohol, benzine, thinner, cleaning fluid or other chemicals. Do NOT use compressed air to
remove dust.
Important note
•
Before transporting the unit, remove the disc from the disc compartment.
Printed in China
811-633891W011
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
