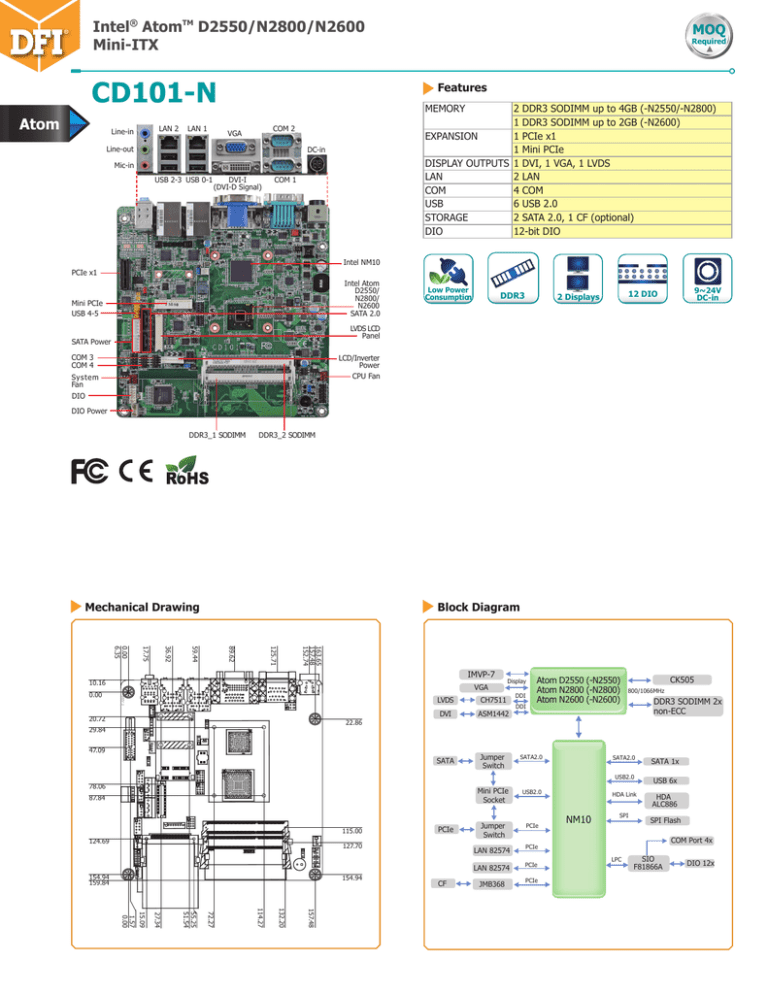

CD101 N
Intel® AtomTM D2550/N2800/N2600
Mini-ITX
CD101-N
Atom
LAN 2
Line-in
LAN 1
Features
MEMORY
2 DDR3 SODIMM up to 4GB (-N2550/-N2800)
1 DDR3 SODIMM up to 2GB (-N2600)
EXPANSION
1 PCIe x1
1 Mini PCIe
DISPLAY OUTPUTS 1 DVI, 1 VGA, 1 LVDS
LAN
2 LAN
COM
4 COM
USB
6 USB 2.0
STORAGE
2 SATA 2.0, 1 CF (optional)
DIO
12-bit DIO
COM 2
VGA
Line-out
DC-in
Mic-in
USB 2-3 USB 0-1
MOQ
Required
DVI-I
(DVI-D Signal)
COM 1
Intel NM10
PCIe x1
Intel Atom
D2550/
N2800/
N2600
SATA 2.0
Mini PCIe
USB 4-5
Low Power
Consumption
DDR3
9~24V
DC-in
12 DIO
2 Displays
LVDS LCD
Panel
SATA Power
COM 3
COM 4
LCD/Inverter
Power
CPU Fan
System
Fan
DIO
DIO Power
DDR3_1 SODIMM
DDR3_2 SODIMM
Mechanical Drawing
Block Diagram
163.65
157.48
152.74
125.71
89.62
59.44
36.92
17.75
0.00
6.35
IMVP-7
10.16
VGA
REV.2
0.00
20.72
22.86
29.84
LVDS
CH7511
DVI
ASM1442
SATA
Jumper
Switch
47.09
78.06
87.84
115.00
124.69
PCIe
127.70
154.94
159.84
154.94
Display
CF
DDI
DDI
Atom D2550 (-N2550)
Atom N2800 (-N2800)
Atom N2600 (-N2600)
SATA2.0
Mini PCIe
Socket
USB2.0
Jumper
Switch
PCIe
LAN 82574
PCIe
LAN 82574
PCIe
JMB368
PCIe
NM10
CK505
800/1066MHz
DDR3 SODIMM 2x
non-ECC
SATA2.0
SATA 1x
USB2.0
USB 6x
HDA Link
HDA
ALC886
SPI
SPI Flash
COM Port 4x
LPC
SIO
F81866A
DIO 12x
157.48
132.20
114.27
72.27
55.25
51.54
27.34
1.57
0.00
15.09
Intel® AtomTM D2550/N2800/N2600
Mini-ITX
Specifications
* Optional and is not supported in standard model. Please contact your sales representative for more information.
PROCESSOR
• CD101-N2550:
- Intel® AtomTM D2550, 1.86GHz, 2x 512K L2, 10W TDP, dual-core
• CD101-N2800:
- Intel® AtomTM N2800, 1.86GHz, 2x 512K L2, 6.5W TDP, dual-core
• CD101-N2600:
- Intel® AtomTM N2600, 1.6GHz, 2x 512K L2, 3.5W TDP, dual-core
CHIPSET
• Intel® NM10 Express chipset
SYSTEM MEMORY
•Supports DDR3 1066MHz (CD101-N2550/CD101-N2800)
Supports DDR3 800MHz (CD101-N2600)
•Supports single channel memory interface
•Two 204-pin DDR3 SODIMM sockets support up to 4GB system memory
(CD101-N2550/CD101-N2800)
One 204-pin DDR3 SODIMM socket supports up to 2GB system memory
(CD101-N2600)
•DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM technologies are
supported for x8 and x16 devices, unbuffered, non-ECC
EXPANSION SLOTS
• 1 PCIe x1 slot
• 1 Mini PCIe slot
- Supports USB and PCIe signals
- Supports half size and/or full size Mini PCIe card
• 1 CompactFlash socket*
ONBOARD GRAPHICS FEATURES
•Intel® GMA 3650 (CD101-N2550/CD101-N2800)
Intel® GMA 3600 (CD101-N2600)
•Supports DVI (DVI-D signal), VGA, and LVDS interfaces
•LVDS: 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
•DVI, VGA: resolution up to 1920x1200 @ 60Hz
•Supports Hardware H.264/AVC, MPEG-2 video decoder, VC-1, DirectX 9, 1080p
decoder
ONBOARD AUDIO FEATURES
• Realtek ALC886 5.1-channel High Definition Audio
ONBOARD LAN FEATURES
• 2 Intel® 82574L Gigabit Ethernet Controllers; or 2 Intel® I210 PCI
Express Gigabit Ethernet controllers*
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
SERIAL ATA (SATA) INTERFACE
• Supports 2 Serial ATA interfaces
• SATA 2.0 with data transfer rate up to 3Gb/s
• Integrated Advanced Host Controller Interface (AHCI) controller
REAR PANEL I/O PORTS
• 1 4-pin 9~24V DC-in jack (default) or 4-pin power connector*
• 1 DVI-I port (DVI-D signal)
• 1 VGA port
• 2 DB-9 serial ports
- 1 RS232/422/485 (RS232 and/or Power)
- 1 RS232
• 2 LAN ports
• 4 USB 2.0/1.1 ports
• Mic-in, Line-in, Line-out jacks
I/O CONNECTORS
• 1 connector for 2 external USB 2.0/1.1 ports
• 2 connectors for 2 external RS232 serial ports (2.0mm pitch)
• 1 LVDS LCD panel connector
• 1 LCD/inverter power connector
• 1 12-bit Digital I/O connector
• 1 Digital I/O power connector
• 1 front audio connector for line-out and mic-in jacks
• 2 SATA 2.0 ports
• 2 SATA power connectors
• 1 touch panel connector*
• 1 chassis intrusion connector
• 1 front panel connector
• 2 fan connectors
BIOS
•AMI BIOS
- 16Mbit SPI BIOS
ENERGY EFFICIENT DESIGN
• ACPI v3.0 specification
• System Power Management
• Wake-On-Events include:
- Wake-On-USB KB/Mouse
- Wake-On-LAN
- RTC timer to power-on the system
• AC power failure recovery
DAMAGE FREE INTELLIGENCE
• Monitors CPU/system temperature and overheat alarm
• Monitors VCORE/VGFX/1.05V/3.3V/5VSB/3VSB/VBAT voltages and failure alarm
• Monitors CPU/system fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan speed
• Watchdog timer function
- Watchdog timeout programmable via software from 1 to 255 seconds
POWER CONSUMPTION
• 21.6W with D2550 at 1.86GHz and 2x 2GB DDR3 SODIMM
• 19.104W with N2800 at 1.86GHz and 2x 2GB DDR3 SODIMM
• 16.92W with N2600 at 1.60GHz and 1x 2GB DDR3 SODIMM
OS SUPPORT
• Windows XP Professional x86 & SP3 (32-bit)
• Windows 7 Ultimate x86 & SP1 (32-bit)
TEMPERATURE
• Operating: 0oC to 60oC
• Storage: -20oC to 85oC
HUMIDITY
• 10% to 90%
DIMENSIONS
• Mini-ITX form factor
• 170mm (6.7") x 170mm (6.7")
CERTIFICATION
• CE
• FCC Class B
• RoHS
Optional Items
Packing List
•
•
•
•
•
•
•
1
1
1
1
1
1
1
CD101-N motherboard
Serial ATA data with power cable: A81-002013-005G
I/O shield: A49-CD1011-001G
QR (Quick Reference)
DVD
Heat sink with fan: A71-110012-000G (CD101-N2550)
Heat sink: A71-010012-000G (CD101-N2800/N2600)
www.dfi.com
CD101-N
•
•
•
•
USB port cable: 332-253010-026G
COM port cable: A81-015001-001G
Serial ATA data with power cable: A81-002013-005G
Power adapter (60W, 12V) : 671-106004-000G
