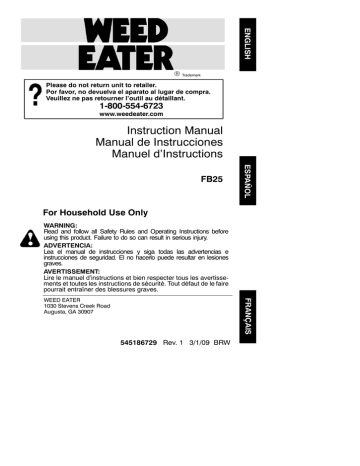

ENGLISH
R Trademark
Please do not return unit to retailer.
Por favor, no devuelva el aparato al lugar de compra.
Veuillez ne pas retourner l’outil au détaillant.
1-800-554-6723
www.weedeater.com
Instruction Manual
Manual de Instrucciones
Manuel d’Instructions
ESPAÑOL
FB25
For Household Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Lire le manuel d’instructions et bien respecter tous les avertissements et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
FRANÇAIS
WEED EATER
1030 Stevens Creek Road
Augusta, GA 30907
545186729 Rev. 1 3/1/09 BRW
IDENTIFICATION OF SAFETY SYMBOLS
WARNING: This unit can be dangerous! Careless or improper
use can cause serious injury.
Read your operator’s manual carefully until you completely understand
and can follow all warnings and safety rules before operating the unit.
Failure to do so can result in serious injury. Save operator’s manual.
The blower can throw objects violently. You can be blinded or injured.
Always wear hearing protection and
safety glasses marked Z87. Always
wear heavy, long pants, long
sleeves, boots and gloves.
Hazard zone for thrown objects. Keep children, bystanders, and animals away from work area a minimum of 30 feet (10 meters) when starting or operating
unit. Do not point blower nozzle in the direction of
people or pets.
Secure hair above shoulder length. Do
not wear jewelry, loose clothing, or
clothing with loosely hanging straps,
ties, tassels, etc. They can be caught in
moving parts.
Always stop unit and disconnect spark plug before
cleaning or servicing.
WARNING: Fire hazard. Never mix, pour, or store gasoline or
use the unit near a flame or sparks (including smoking, open flames, or
work that can cause sparks).
-- 2 --
SAFETY RULES
WARNING: Failure to follow all
Safety Rules and Precautions can result in
serious injury.
KNOW YOUR UNIT
S Read your instruction manual carefully until
you completely understand and can follow
all warnings and safety rules before operating the unit.
D Restrict unit to users who understand and
will follow all warnings and safety rules in
this manual.
WARNING: Inspect the area before
starting the unit. Remove all debris and hard
objects such as rocks, glass, wire, etc. that
can ricochet, be thrown, or otherwise cause
injury or damage during operation.
D Use your unit as a blower for:
D Sweeping debris or grass clippings from
driveways, sidewalks, patios, etc.
D Blowing grass clippings, straw, or leaves
into piles, around joints, or between bricks.
D
D
D
D
D
Always wear eye protection when operating,
servicing, or performing maintenance on unit.
Wearing eye protection will help to prevent
rocks or debris from being blown or ricocheting into eyes and face which can result in
blindness and/or serious injury. Eye protection should be marked ANSI Z87.
Always wear foot protection. Do not go
barefoot or wear sandals.
Always wear respirator or face mask when
working with unit in dusty environments.
Secure hair above shoulder length. Secure
or remove jewelry, loose clothing, or clothing with loosely hanging straps, ties, tassels, etc. They can be caught in moving
parts.
Do not operate unit when you are tired, ill, upset, or if you are under the influence of alcohol, drugs, or medication.
Keep children, bystanders, and animals
away from work area a minimum of 30 feet
(10 meters) when starting or operating unit.
Do not point blower nozzle in the direction
of people or pets.
HANDLE FUEL WITH CAUTION, IT IS
HIGHLY FLAMMABLE
D
D
D
D
D
D
D
Eliminate all sources of sparks or flame (including smoking, open flames, or work that
can cause sparks) in the areas where fuel is
mixed, poured, or stored.
Mix and pour fuel in an outdoor area; store
fuel in a cool, dry, well ventilated place; use an
approved, marked container for all fuel purposes.
Do not smoke while handling fuel or while
operating the unit.
Make sure the unit is properly assembled
and in good operating condition.
Do not fill fuel tank while engine is running.
Avoid spilling fuel or oil. Wipe up fuel spills before starting engine.
Move at least 10 feet (3 meters) away from
fuel and fueling site before starting engine.
Always store gasoline in a container approved for flammable liquids.
OPERATE YOUR UNIT SAFELY
D
D
D
D
D
D
PLAN AHEAD
D
D
D
D
D
D
D
D
D
Inspect unit before each use for worn,
loose, missing, or damaged parts. Do not
use until unit is in proper working order.
Keep outside surfaces free from oil and
fuel.
Never start or run engine inside a closed
room, building or other unventilated area.
Breathing exhaust fumes can kill.
To avoid static electricity shock, do not
wear rubber gloves or any other insulated
gloves while operating unit.
Do not set unit on any surface except a
clean, hard area while engine is running.
Debris such as gravel, sand, dust, grass,
etc. could be picked up by the air intake and
thrown out through discharge opening,
damaging unit, property, or causing serious
injury to bystanders or operator.
Avoid dangerous environments. Do not use
in unventilated areas or where explosive
vapors or carbon monoxide build up could
be present.
Do not overreach or use from unstable surfaces such as ladders, trees, steep slopes,
rooftops, etc. Keep firm footing and balance
at all times.
Never place objects inside the blower
tubes; always direct the blowing debris
away from people, animals, glass, and solid
objects such as trees, automobiles, walls,
etc. The force of air can cause rocks, dirt, or
sticks to be thrown or to ricochet which can
hurt people or animals, break glass, or
cause other damage.
Never run unit without the proper equipment attached. When using your unit as a
blower, always install blower tube.
Check air intake opening and blower tube
frequently, always with engine stopped and
spark plug disconnected. Keep vents and
discharge tubes free from debris which can
accumulate and restrict proper air flow and
cause damage to the unit.
Never use for spreading chemicals, fertilizers, or other substances which may contain
toxic materials.
To avoid spreading fire, do not use near leaf
or brush fires, fireplaces, barbecue pits,
ashtrays, etc.
Use only for jobs explained in this manual.
MAINTAIN YOUR UNIT PROPERLY
D
D
D
-- 3 --
Have all maintenance other than the recommended procedures described in the instruction manual performed by an authorized service dealer.
Disconnect spark plug before performing
maintenance except for carburetor adjustments.
Use only recommended WEED EATER
parts; use of any other parts may void your
warranty and cause damage to your unit.
D
D
D
D
Empty the fuel tank before storing the unit.
Use up fuel left in carburetor by starting the
engine and letting it run until it stops.
Do not use any accessory or attachment
other than those recommended by the
manufacturer for use with your unit.
Do not store the unit or fuel in a closed area
where fuel vapors can reach sparks or an
open flame from water heaters, electric motors or switches, furnaces, etc.
Store in a dry area out of reach of children.
WARNING: The engine exhaust from
this product contains chemicals known to the
State of California to cause cancer, birth
defects or other reproductive harm.
SPECIAL NOTICE: Exposure to vibrations through prolonged use of gasoline powered hand tools could cause blood vessel or
nerve damage in the fingers, hands, and
joints of people prone to circulation disorders
or abnormal swelling. Prolonged use in cold
weather has been linked to blood vessel damage in otherwise healthy people. If symptoms
occur such as numbness, pain, loss of
strength, change in skin color or texture, or
loss of feeling in the fingers, hands, or joints,
discontinue the use of this tool and seek
medical attention. An anti- vibration system
does not guarantee the avoidance of these
problems. Users who operate power tools on
a continual and regular basis must monitor
closely their physical condition and the condition of this tool.
SPECIAL NOTICE: This unit is equipped
with a temperature limiting muffler and spark
arresting screen which meets the requirements of California Codes 4442 and 4443. All
U.S. forest land and the states of California,
Idaho, Maine, Minnesota, New Jersey, Oregon, and Washington require by law that
many internal combustion engines be
equipped with a spark arresting screen. If you
operate in a locale where such regulations exist, you are legally responsible for maintaining
the operating condition of these parts. Failure
to do so is a violation of the law. For normal
homeowner use, the muffler and spark arresting screen will not require any service. After
50 hours of use, we recommend that your
muffler be serviced or replaced by your authorized service dealer.
ASSEMBLY
NOTE: It is normal for the fuel filter to rattle in
the empty fuel tank.
BLOWER TUBE
D
ASSEMBLY
WARNING: If received assembled,
repeat all steps to ensure your unit is properly
assembled and all fasteners are secure.
Follow all safety information in the manual
and on the unit.
D
No tools are required for assembly.
Push the blower tube into the blower outlet until it snaps into place.
Blower Outlet
Blower Tube
-- 4 --
OPERATION
KNOW YOUR BLOWER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
UNIT. Compare the illustrations with your unit to familiarize yourself with locations of the various
controls and adjustments. Save this manual for future reference.
Primer Bulb
Throttle Lever
Fuel Cap
Starter Handle
Blower Tube
Choke
Lever
THROTTLE LEVER
The throttle lever is used to select the desired
engine speed and to stop the engine. To stop
engine, move the throttle lever to the STOP
position and hold until engine stops running.
PRIMER BULB
The PRIMER BULB removes air from the carburetor and fuel lines and fills them with fuel.
This allows you to start the engine with fewer
CHOKE LEVER
The CHOKE helps to supply fuel to the engine
to aid in cold starting. The RUN position is
used for full speed operation. The HALF
CHOKE position is used for a brief initial
warm-up period.
S To reduce noise levels, limit the number of
pieces of equipment used at any one time.
S Use rakes and brooms to loosen debris before blowing.
S In dusty conditions, slightly dampen surfaces when water is available.
S Conserve water by using power blowers
instead of hoses for many lawn and garden
applications, including areas such as gutters,
screens, patios, grills, porches, and gardens.
S Watch out for children, pets, open windows,
or freshly washed cars. Blow debris away
safely.
S Use the full blower tube extension so the air
stream can work close to the ground.
S After using blowers and other equipment,
CLEAN UP! Dispose of debris in trash receptacles.
OPERATING
POSITION
Eye Protection
OPERATING TIPS
pulls on the starter rope. Activate the primer
bulb by pressing it and allowing it to return to
its original form.
S To reduce the risk of hearing loss
associated with sound level(s), hearing
protection is required.
S Operate power equipment only at reasonable
hours--not early in the morning or late at night
when people might be disturbed. Comply with
times listed in local ordinances. Usual recommendations are 9:00 a.m. to 5:00 p.m.,
Monday though Saturday.
S To reduce noise levels, operate power
blowers at the lowest possible throttle
speed to do the job.
BEFORE STARTING ENGINE
WARNING: Be sure to read the fuel
information in the safety rules before you
begin. If you do not understand the safety
rules, do not attempt to fuel your unit. Call
1-800-554-6723.
FUELING ENGINE
WARNING:
when refueling.
-- 5 --
Remove fuel cap slowly
HELPFUL TIP
STARTING
POSITION
To obtain the correct oil mix
ratio, pour 3.2 ounces of
2-- cycle synthetic oil into
one gallon of fresh gas.
This engine is certified to operate on unleaded gasoline. Before operation, gasoline
must be mixed with a good quality synthetic
2-cycle air-cooled engine oil designed to be
mixed at a ratio of 40:1. Poulan/WEED EATER
brand synthetic oil is recommended. Mix gasoline and oil at a ratio of 40:1. A 40:1 ratio is
obtained by mixing 3.2 fluid ounces (95 ml) of
oil with 1 gallon (4 liters) of unleaded gasoline.
DO NOT USE automotive oil or boat oil.
These oils will cause engine damage. When
mixing fuel, follow instructions printed on container. Once oil is added to gasoline, shake
container momentarily to assure that the fuel
is thoroughly mixed. Always read and follow
the safety rules relating to fuel before fueling
your unit.
CAUTION: Never use straight gasoline in
your unit. This will cause permanent engine
damage and void the limited warranty.
WARNING: When starting engine,
hold the unit as illustrated. Do not set unit on
any surface except a clean, hard area when
starting engine or while engine is running.
Debris such as gravel, sand, dust, grass, etc.
could be picked up by the air intake and
thrown out through the discharge opening,
damaging the unit or property, or causing
serious injury to bystanders or the operator.
HELPFUL TIP
If your engine still does not
start after following these
instructions, please call
1-- 800-- 554-- 6723.
FUEL REQUIREMENTS
This engine requires the use of minimum 87
octane [R+M]/2 clean gasoline.
IMPORTANT
Use of alcohol blended fuels (called gasohol or
using ethanol or methanol) can cause major engine performance and durability problems.
WARNING:
Alternative fuels (not
gasoline) such as E--15 (15% alcohol), E--20
(20% alcohol), E--85 (85% alcohol) are NOT
classified as gasoline and are NOT approved
for use in 2--stroke gasoline engines. Use of
alternative fuels will cause problems such as:
improper clutch engagements, overheating,
vapor lock, power loss, lubrication deficiency,
deterioration of fuel lines, gaskets and internal
carburetor components, etc. Alternative fuels
cause high moisture absorption into the fuel/oil
mixture leading to oil and fuel separation.
STARTING A COLD ENGINE (or a
warm engine after running out of
fuel)
1. Slowly press the primer bulb 6 times.
2. Move throttle lever to the START position.
3. Move choke lever to the FULL CHOKE
position.
Primer Bulb
Throttle Lever
TO STOP THE ENGINE
D
To stop the engine, move the throttle lever
position and hold until ento the STOP
gine stops running.
Fuel Cap
STARTING YOUR ENGINE
WARNING: You MUST make sure
the tube is secure before using the unit.
D Fuel engine. Move at least 10 feet (3 meters) away from the fueling site.
D Hold the unit in the starting position as
shown. Make sure the blower end is directed away from people, animals, glass,
and solid objects.
Choke
Lever
4. Pull starter rope sharply until engine attempts to run, but no more than 5 pulls.
5. Move choke lever to HALF CHOKE position. Pull starter rope sharply until engine
runs.
NOTE: If engine has not started after 5 pulls,
repeat all of the above steps.
6. After a 10 second warm-up, move the
choke lever to the RUN position.
-- 6 --
NOTE: The engine speed can be adjusted
by moving the throttle lever to the left for low
speed or right for high speed.
Throttle Lever
STARTING A WARM ENGINE
1. Move throttle lever to the START position.
2. Move the choke lever to the HALF
CHOKE position.
3. Pull starter handle sharply until engine
runs.
NOTE: If engine does not run after 5 pulls, repeat STARTING A COLD ENGINE procedure.
4. After a 10 second warm-up, move the
choke lever to the RUN position.
DIFFICULT STARTING (or starting a
flooded engine)
7. To stop engine, move the throttle lever to
position and hold until enthe STOP
gine stops running.
NOTE: If engine does not stop, move choke
lever to FULL CHOKE.
Flooded engines can be started by placing the
choke lever in the RUN position and the throttle
lever in the START position; then, pull the starter handle sharply to clear the engine of excess
fuel. This could require pulling the starter handle
many times depending on how badly the unit is
flooded. If the unit still does not start, refer to
TROUBLESHOOTING TABLE or call
1-800-554-6723.
MAINTENANCE
We recommend all maintenance, service and
adjustments not listed in this manual be performed by an authorized service dealer.
HELPFUL TIP
IMPORTANT: Have all
repairs other than the recommended maintenance
described in the instruction
manual performed by an
authorized service dealer.
If any dealer other than an authorized
service dealer performs work on the
product, WEED EATER may not pay for
repairs under warranty. It is your responsibility to maintain and perform
general maintenance.
INSPECT AND CLEAN UNIT AND
DECALS
S After each use, inspect complete unit for
loose or damaged parts. Clean the unit using a damp cloth with a mild detergent.
S Wipe off unit with a clean dry cloth.
CLEAN AIR FILTER
Air Filter Cover
GENERAL RECOMMENDATIONS
The warranty on this unit does not cover items
that have been subjected to operator abuse
or negligence. To receive full value from the
warranty, the operator must maintain unit as
instructed in this manual. Various adjustments will need to be made periodically to
properly maintain your unit.
CHECK FOR LOOSE
FASTENERS AND PARTS
S Spark Plug Boot
S Air Filter
S Housing Screws
CHECK FOR DAMAGED OR
WORN PARTS
Contact an authorized service dealer for replacement of damaged or worn parts.
S Throttle Lever -- Ensure throttle lever functions properly by moving the throttle lever to
position and holding until enthe STOP
gine stops running; then restart engine and
continue.
S Fuel Tank -- Discontinue use of unit if fuel
tank shows signs of damage or leaks.
Air Filter
Button
Cleaning the air filter:
A dirty air filter decreases engine performance and increases fuel consumption and
harmful emissions. Always clean after every
5 hours of operation.
1. Clean the cover and the area around it to
keep debris from falling into the carburetor chamber when the cover is removed.
2. Press button to open air filter cover. Remove air filter.
NOTE: Do not clean filter in gasoline or other
flammable solvent. Doing so can create a fire
hazard or produce harmful evaporative emissions.
3. Wash the filter in soap and water.
4. Allow filter to dry.
5. Apply a few drops of oil to the filter;
squeeze filter to distribute oil.
6. Replace parts.
-- 7 --
REPLACE SPARK PLUG
Replace spark plug each year to ensure the
engine starts easier and runs better. Set
spark plug gap at 0.025 inch. Ignition timing is
fixed, nonadjustable.
1. Twist, then pull off spark plug boot.
2. Remove spark plug from cylinder and discard.
3. Replace with Champion RCJ-6Y spark
plug and tighten securely with a 3/4 inch
socket wrench.
4. Reinstall the spark plug boot.
INSPECT MUFFLER AND SPARK
ARRESTING SCREEN
WARNING: The muffler on this
product contains chemicals known to the
State of California to cause cancer.
As your unit is used, carbon deposits build up
on the muffler and spark arresting screen and
must be removed to avoid creating a fire hazard or affecting engine performance.
For normal homeowner use, the muffler and
spark arresting screen will not require any
service. After 50 hours of use, we recommend that your muffler be serviced or replaced by your authorized service dealer.
CARBURETOR ADJUSTMENTS
There is no screw for idle adjustment on your
blower. The throttle lever is used to control engine speed. The engine speed can be adjusted by moving the throttle lever to the left
for low speed or right for high speed. If your
engine will not run properly or you require further assistance, contact an authorized service dealer or call 1--800--554--6723.
STORAGE
WARNING: Perform the following
steps after each use:
S Allow engine to cool, and secure the unit
before storing or transporting.
S Store unit and fuel in a well ventilated area
where fuel vapors cannot reach sparks or
open flames from water heaters, electric
motors or switches, furnaces, etc.
S Store unit with all guards in place. Position
unit so that any sharp object cannot accidentally cause injury.
S Store unit and fuel well out of the reach of
children.
SEASONAL STORAGE
Prepare unit for storage at end of season or if
it will not be used for 30 days or more.If your
unit is to be stored for a period of time:
S Clean the entire unit before lengthy storage.
S Store in a clean dry area.
S Lightly oil external metal surfaces.
FUEL SYSTEM
Under FUELING ENGINE in the OPERATION section of this manual, see message labeled IMPORTANT regarding the use of gasohol in your engine.
Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits
during storage. Add stabilizer to gasoline in fuel
tank or fuel storage container. Follow the mix
instructions found on stabilizer container. Run
engine at least 5 minutes after adding stabilizer.
HELPFUL TIP
During storage of your gas/
oil mixture, the oil will separate from the gas.
We recommend that you
shake the gas can weekly
to insure proper blending of
the gas and oil.
ENGINE
S Remove spark plug and pour 1 teaspoon of
40:1, 2-cycle engine oil (air cooled) through
the spark plug opening. Slowly pull the
starter rope 8 to 10 times to distribute oil.
S Replace spark plug with new one of recommended type and heat range.
S Clean air filter.
S Check entire unit for loose screws, nuts,
and bolts. Replace any damaged, broken,
or worn parts.
S At the beginning of the next season, use
only fresh fuel having the proper gasoline to
oil ratio.
OTHER
S Do not store gasoline from one season to
another.
S Replace your gasoline can if it starts to rust.
-- 8 --
TROUBLESHOOTING TABLE
WARNING: Always stop unit and disconnect spark plug before performing any of the
recommended remedies below other than remedies that require operation of the unit.
TROUBLE
Engine will not
start.
Engine will not
idle properly.
Engine will not
accelerate,
lacks power, or
dies under a
load.
Engine smokes
excessively.
CAUSE
REMEDY
1. Engine flooded.
2. Fuel tank empty.
3. Spark plug not firing.
4. Fuel not reaching
carburetor.
5. Compression low.
1. Fuel not reaching
carburetor.
2. Carburetor requires
adjustment.
3. Crankshaft seals worn.
4. Compression low.
1. Air filter dirty.
2. Fuel not reaching
carburetor.
3. Spark plug fouled.
4. Carburetor requires
adjustment.
5. Carbon build up.
6. Compression low.
1. Choke partially on.
2. Fuel mixture incorrect.
3. Air filter dirty.
4. Carburetor requires
adjustment.
Engine runs hot.
1. Fuel mixture incorrect.
2. Spark plug incorrect.
3. Carburetor requires
adjustment.
4. Carbon build up.
-- 9 --
1. See “Starting a Flooded Engine”
in Operation section.
2. Fill tank with correct fuel mixture.
3. Install new spark plug.
4. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
5. Contact an authorized service dealer.
1. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
2. Contact an authorized service dealer.
3.
4.
1.
2.
Contact an authorized service dealer
Contact an authorized service dealer.
Clean or replace air filter.
Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
3. Clean or replace spark plug
and re-gap.
4. Contact an authorized service dealer.
5. Contact an authorized service dealer.
6. Contact an authorized service dealer.
1. Adjust choke.
2. Empty fuel tank and refill with
correct fuel mixture.
3. Clean or replace air filter.
4. Contact an authorized service dealer.
1. See “Fueling Engine” in Operation
section.
2. Replace with correct spark plug.
3. Contact an authorized service dealer.
4. Contact an authorized service dealer.
LIMITED WARRANTY
WEED EATER, a division of Husqvarna Consumer Outdoor Products N.A., Inc., warrants to
the original consumer purchaser that each new
WEED EATER brand gasoline tool or attachment is free from defects in material and workmanship and agrees to repair or replace under
this warranty any defective gasoline product or
attachment as follows from the original date of
purchase.
2 YEARS - Parts and Labor, when used for
household purposes.
90 DAYS - Parts and Labor, when used for
commercial, professional, or income producing
purposes.
30 DAYS - Parts and Labor, if used for rental
purposes.
This warranty is not transferable and does not
cover damage or liability caused by improper
handling, improper maintenance or alteration, or
the use of accessories and/or attachments not
specifically recommended by WEED EATER
for this tool. This warranty does not cover tune-up, spark plugs, filters, starter ropes, or blower
tubes that will wear and require replacement
with reasonable use during the warranty period.
This warranty does not cover pre--delivery setup or normal adjustments explained in the instruction manual. This warranty does not cover
transportation costs.
In the event you have a claim under this warranty, you must return the product to an authorized
service dealer.
Should you have any unanswered questions
concerning this warranty, please contact:
WEED EATER, a division of Husqvarna
Consumer Outdoor Products N.A., Inc.
1030 Stevens Creek Road
Augusta, GA 30907
1--800--554--6723
In Canada, contact:
WEED EATER
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
Giving the model number, serial number and
date of purchase of your product and the name
and address of the authorized dealer from
whom it was purchased.
THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO
STATE.
NO CLAIMS FOR CONSEQUENTIAL OR
OTHER DAMAGES WILL BE ALLOWED,
AND THERE ARE NO OTHER EXPRESS
WARRANTIES EXCEPT THOSE EXPRESSLY STIPULATED HEREIN.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY
TO YOU.
This is a limited warranty within the meaning of
that term as defined in the Magnuson--Moss Act
of 1975.
The policy of WEED EATER is to continuously improve its products. Therefore, WEED
EATER reserves the right to change, modify,
or discontinue models, designs, specifications, and accessories of all products at any
time without notice or obligation to any purchaser.
U.S. EPA/CALIFORNIA
EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS: The U.S. Environmental
Protection Agency, California Air Resources
Board, Environment Canada and WEED
EATER are pleased to explain the emissions
control system warranty on your year 2009 and
later small off--road engine. In California, all
small off--road engines must be designed, built,
and equipped to meet the State’s stringent anti-smog standards. WEED EATER must warrant the emission control system on your
small off--road engine for the periods of time
listed below provided there has been no
abuse, neglect, or improper maintenance of
your small off--road engine. Your emission
control system includes parts such as the carburetor, the ignition system and the fuel tank.
Where a warrantable condition exists, WEED
EATER will repair your small off--road engine
at no cost to you. Expenses covered under
warranty include diagnosis, parts and labor.
MANUFACTURER’S WARRANTY COVERAGE: If any emissions related part on your
engine (as listed under Emissions Control
Warranty Parts List) is defective or a defect in
the materials or workmanship of the engine
causes the failure of such an emission related
part, the part will be repaired or replaced by
WEED EATER. OWNER’S WARRANTY RESPONSIBILITIES: As the small off--road engine owner, you are responsible for the performance of the required maintenance listed
in your instruction manual. WEED EATER
recommends that you retain all receipts covering maintenance on your small off--road engine, but WEED EATER cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the small off--road engine owner, you should be aware that WEED
EATER may deny you warranty coverage if
your small off--road engine or a part of it has
-- 10 --
failed due to abuse, neglect, improper maintenance, unapproved modifications, or the use
of parts not made or approved by the original
equipment manufacturer. You are responsible
for presenting your small off--road engine to an
WEED EATER authorized repair center as
soon as a problem exists. Warranty repairs
should be completed in a reasonable amount of
time, not to exceed 30 days. If you have any
questions regarding your warranty rights and responsibilities, you should contact your nearest
authorized service center, call WEED EATER at
1--800--554--6723, or send e-mail correspondence to [email protected]
com.
WARRANTY
COMMENCEMENT
DATE: The warranty period begins on the date
the small off--road engine is purchased.
LENGTH OF COVERAGE: This warranty shall
be for a period of two years from the initial date
of purchase. WHAT IS COVERED: REPAIR
OR REPLACEMENT OF PARTS. Repair or replacement of any warranted part will be performed at no charge to the owner at an approved WEED EATER servicing center. If you
have any questions regarding your warranty
rights and responsibilities, you should contact
your nearest authorized service center, call
WEED EATER at 1--800--554--6723, or send
e-mail correspondence to emission.warranty
@HCOP--emission.com. WARRANTY PERIOD: Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only for regular
inspection to the effect of “repair or replace as
necessary” shall be warranted for 2 years.
Any warranted part which is scheduled for replacement as required maintenance shall be
warranted for the period of time up to the first
scheduled replacement point for that part.
DIAGNOSIS: The owner shall not be
charged for diagnostic labor which leads to
the determination that a warranted part is de-
fective if the diagnostic work is performed at
an approved WEED EATER servicing center.
CONSEQUENTIAL DAMAGES: WEED
EATER may be liable for damages to other
engine components caused by the failure of a
warranted part still under warranty. WHAT IS
NOT COVERED: All failures caused by
abuse, neglect, or improper maintenance are
not covered. ADD-- ON OR MODIFIED
PARTS: The use of add--on or modified parts
can be grounds for disallowing a warranty
claim. WEED EATER is not liable to cover failures of warranted parts caused by the use of
add--on or modified parts. HOW TO FILE A
CLAIM: If you have any questions regarding
your warranty rights and responsibilities, you
should contact your nearest authorized service center, call WEED EATER at
1--800--554--6723, or send e-mail [email protected]
to
emission.com. WHERE TO GET WARRANTY SERVICE: Warranty services or repairs
shall be provided at all WEED EATER service
centers. Call: 1--800--554--6723 or send
e-mail correspondence to [email protected]
HCOP--emission.com. MAINTENANCE, REPLACEMENT AND REPAIR OF EMISSION
RELATED PARTS: Any WEED EATER approved replacement part used in the performance of any warranty maintenance or repair
on emission related parts will be provided
without charge to the owner if the part is under
warranty. EMISSION CONTROL WARRANTY PARTS LIST: Carburetor, air filter (covered
up to maintenance schedule), ignition system:
spark plug (covered up to maintenance schedule), ignition module, muffler including catalyst (if
equipped), fuel tank.
MAINTENANCE
STATEMENT: The owner is responsible for
the performance of all required maintenance
as defined in the instruction manual.
The information on the product label indicates which standard your engine is certified.
Example: (Year) EPA and/or CALIFORNIA.
This engine is certified to be emissions compliant for the following use:
Moderate (50 hours)
Intermediate (125 hours)
Extended (300 hours)
-- 11 --
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
