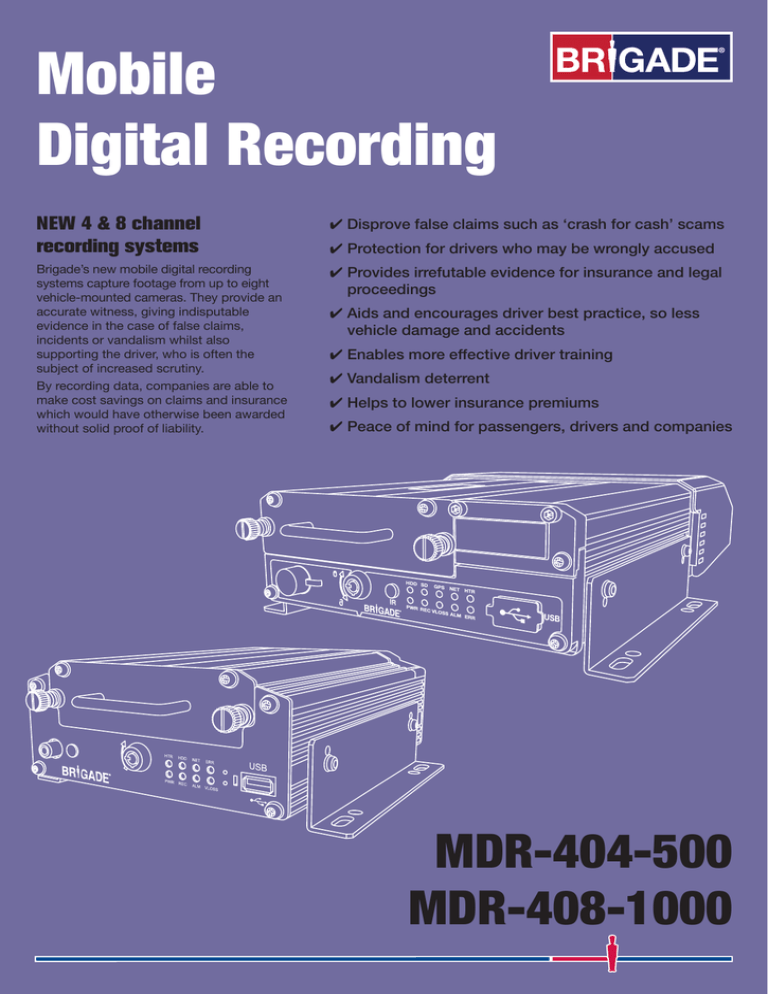

Mobile Digital Recording
Mobile
Digital Recording
NEW 4 & 8 channel
recording systems
Disprove false claims such as ‘crash for cash’ scams
Brigade’s new mobile digital recording
systems capture footage from up to eight
vehicle-mounted cameras. They provide an
accurate witness, giving indisputable
evidence in the case of false claims,
incidents or vandalism whilst also
supporting the driver, who is often the
subject of increased scrutiny.
By recording data, companies are able to
make cost savings on claims and insurance
which would have otherwise been awarded
without solid proof of liability.
Provides irrefutable evidence for insurance and legal
proceedings
Protection for drivers who may be wrongly accused
Aids and encourages driver best practice, so less
vehicle damage and accidents
(QDEOHVPRUHHσHFWLYHGULYHUWUDLQLQJ
Vandalism deterrent
Helps to lower insurance premiums
Peace of mind for passengers, drivers and companies
MDR-404-500
MDR-408-1000
Mobile
Digital
Recording
Protecting your driver.
Providing your witness.
Insurance claims and vehicle accidents are common issues for
businesses to deal with, however a lack of evidence is leading
to many out of court settlements.
By recording footage from vehicle mounted cameras, Brigade’s
UL^4+9Z`Z[LTZVɈLY[OLZVS\[PVU;OL`WYV]PKLHUHJJ\YH[L
witness, giving irrefutable evidence in the case of accidents
and insurance claims.
The MDR-404-500 is a four channel recorder with a 500Gb
hard drive and the eight channel MDR-408-1000 a 1TB hard
drive, both allowing up to 1164 hours of recording time.
Digital recording can be used for a wide range of reasons
including; monitoring passenger safety, insurance purposes,
crash scene investigations, monitoring driving behaviour and
M\LS[OLM[*VTIPULK^P[O[OLILULÄ[ZVM[OLJHTLYHTVUP[VY
system, which helps eliminate driver blind spots and prevent
costly vehicle damage, the rewards are even more far reaching.
MDR-404-500
MDR-408-1000
Recording features
࠮*HUYLJVYK\W[VLPNO[JOHUULSZZPT\S[HULV\ZS`
࠮<W[VOV\YZYLJVYKPUN[PTL
࠮:PT\S[HULV\ZTPYYVYYLJVYKPUNVU[VHUPUI\PS[:+JHYK
meaning there is always a back-up of footage.
࠮)\PS[PU.7:MVYYLJVYKPUNZWLLKHUKSVJH[PVU<ZLM\S
evidential information in the case of a claim or accident.
MDR Dashboard
Recorded footage from
up to 8 cameras.
(4 cameras shown:
Front, right, rear and left)
Date, time
and speed
Image quality
Route taken shown on Google
Maps or Bing
Vehicle
registration
number
࠮,PNO[JVUÄN\YHISL[YPNNLYPUW\[ZPL!ZWLLK.-VYJL
motion detection, voltage, video signal loss, and
optional remote panel with panic button.
࠮7YLHUKWVZ[[YPNNLYYLJVYKPUNVM\W[VTPU\[LZMVY
highlighting events leading up to or following an incident.
࠮(\KPVM\UJ[PVUHSP[`^P[OOPNOX\HSP[`JVTWYLZZPVU
(monitor and/or camera must have microphone).
࠮-V\YYLJVYKPUNTVKLVW[PVUZ"JVUZ[HU[VUS`YLJVYKPUN
HSHYTZZWLJPÄLK[PTLZZL[I`[OL\ZLYVYI`[OLYLTV[L
panel (sold separately) which provides additional
security for the driver at the touch of a panic button.
࠮4V[PVUKL[LJ[PVUMVYJHW[\YPUNMVV[HNL^OLU[OL
vehicle is unattended.
࠮.ZLUZVYI\PS[PUVU4+9VW[PVUHSVU
MDR-404-500) provides useful impact data in the case
of a collision and harsh accelerating and braking.
Data access
࠮:LHYJOI`KH[L[PTLHUK[YPNNLYLKL]LU[ZZ\JOHZ
.-VYJLZWLLKVYTV[PVUKL[LJ[PVU
࠮<:))PU[LYMHJLHSSV^ZLHZ`JVUULJ[PVUVM[OL/++[V
H7*SHW[VW
࠮+V^USVHKMVV[HNLKPYLJ[S`MYVT[OL4+9[VH<:)
storage device.
࠮;OL4+9+HZOIVHYKZVM[^HYLNP]LZM\SSJVU[YVSV]LY
recorded information allowing clips and footage to be
saved individually.
࠮;OL4+97SH`LYZVM[^HYLPZI\PS[PU[VL_WVY[LKJSPWZ
allowing footage to be viewed without the need for
additional software.
Recording log
Search (triggered
event shown)
Location,
G Force, voltage and
temperature
Up to 8 triggers (Shown here: Left indicator,
right indicator, brake, reverse gear, panic
button and Ignition)
Security
࠮-VV[HNLPZWYV[LJ[LKI`HUVU]PZPISLKPNP[HS^H[LYTHYR
-PSLZ[OH[OH]LILLU[HTWLYLK^P[OUVSVUNLYWSH`;OPZ
makes it a more reliable source of evidence to be used
in legal proceedings.
࠮0M[OL]VS[HNLMHSSZILSV^HZL[SL]LS[OLZ`Z[LT^PSS
safely shut down until the voltage is restored. This
ensures no drain on vehicle battery and no damage to
the MDR recordings.
Compatibility
࠮-\SS`JVTWH[PISL^P[O)YPNHKL»ZJHTLYHTVUP[VY
Z`Z[LTZHUK)HJRL`LŽ[OLPU[LSSPNLU[JHTLYH
system which provides a real-time bird’s-eye view of
the vehicle in a single image.
MDR-404-500 4 channel recorder
MDR-408-1000 8 channel recorder
Mobile digital recording
NEW
MOBILE DIGITAL RECORDER
MDR-404-500 - 4 channel 500GB hard disk recorder
• 9-32Vdc
• 4 camera inputs
• 8 trigger/alarm inputs
• Lockable and removable
Mobile Caddy Unit
• Fast, easily downloadable
recordings and data
• Size (WxHxD)
190 x 75 x 212mm
• 3 year warranty
NEW
Contents
• 1 x Mobile Digital Recorder with 2.5"
500GB SATA HDD
• 1 x Remote control
• 1 x Trigger cable loom
• 1 x Power cable
• 1 x Video output cable
• 1 x GPS antenna
• 1 x USB A to B cable
• 1 x Security key
• 1 x 32Gb SD card
• 1 x Mounting bracket and screws
• Installation guide & CD
4868
• Record images prior to alarm activation
and after vehicle switched off
• MDR-Dashboard (full player) and
MDR-Player (portable) with Google
and MS Bing maps (English only)
• Search by date, time or triggered
events
• Multi-level password protected access
• Mobile caddy unit directly pluggable to
PC via USB-B port
• Remote control
• 8 x trigger Inputs, 2x trigger outputs
and 1x12V power output
• Built-in HDD heater
Features
• Robust aluminium housing
• Anti-vibration mounting allows for
installation at any angle
• Built-in GPS
• Up to 1164 hours recording
• Recordings saved to hard disk
(protected by non-visible digital
watermark) and in-built Mirror
recording onto SD card
• Recording modes: normal, alarm and
timer
• Configurable alarm trigger settings
(speed, optional G-force, motion
detection, video loss, voltage)
Image and audio Quality
• High quality H.264 image compression
* ADPCM - audio compression
• Choice of 8 low to high resolution
settings
• Record at between1 and 25 frames
per second per channel
Durability & Standards
• Mechanical vibration: 1G
• Mechanical shock: 40G
• Operating temperature: -25 to +60°C
• EMC approved: E
• CE certified
• RoHS2 Compliant
MOBILE DIGITAL RECORDER
MDR-408-1000 - 8 channel 1TB hard disk recorder
• 9-32Vdc
• 8 camera inputs
• 8 trigger/alarm inputs
• Lockable and removable
Mobile Caddy Unit
• Fast, easily downloadable
recordings and data
• Size (WxHxD)
215 x 78 x 292mm
• 3 year warranty
Contents
• 1 x Mobile Digital Recorder 2.5" 1TB
SATA HDD
• 1 x Remote control
• 1 x Trigger cable loom
• 1 x Power cable
• 1 x Video output cable
• 1 x GPS antenna
• 1 x USB A to B cable
• 1 x Security key
• 1 x 64Gb SD card
• 1 x Mounting bracket and screws
• Installation guide & CD
4869
• Record images prior to alarm activation
and after vehicle switched off
• MDR-Dashboard (full player) and
MDR-Player (portable) with Google
and MS Bing maps (English only)
• Search by date, time or triggered
events
• Multi-level password protected access
• Mobile caddy unit directly pluggable to
PC via USB-B port
• Remote control
• 8 x trigger Inputs, 2x trigger outputs
and 1x12V power output
• Built-in HDD heater
Features
• Robust aluminium housing
• Anti-vibration mounting allows for
installation at any angle
• Built-in GPS
• Built -in G-sensor
• Up to 1164 hours recording
• Recordings saved to hard disk
(protected by non-visible digital
watermark) and in-built Mirror
recording onto SD card
• Recording modes: normal, alarm and
timer
• Configurable alarm trigger settings
(speed, G-force, motion detection,
video loss, voltage)
Image and audio Quality
• High quality H.264 image compression
* ADPCM - audio compression
• Choice of 8 low to high resolution
settings
• Record at between1 and 25 frames
per second per channel
Durability & Standards
• Mechanical vibration: 1G
• Mechanical shock: 40G
• Operating temperature: -25 to +60°C
• EMC approved: E
• CE certified
• RoHS2 Compliant
Brigade Electronics Group Plc. Brigade House, The Mills, Station Road, South Darenth. DA4 9BD United Kingdom. Fax: +44 (0)1322 420343
Tel: +44 (0)1322 420300
email: [email protected]
brigade-electronics.com
