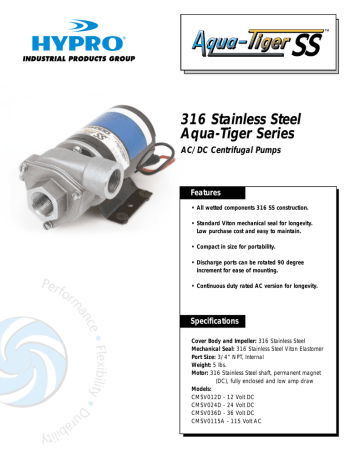

AT12SS

AT12SS
™
316 Stainless Steel
Aqua-Tiger Series
AC/DC Centrifugal Pumps
Features
• All wetted components 316 SS construction.
• Standard Viton mechanical seal for longevity.
Low purchase cost and easy to maintain.
• Compact in size for portability.
• Discharge ports can be rotated 90 degree
increment for ease of mounting.
• Continuous duty rated AC version for longevity.
Specifications
Cover Body and Impeller: 316 Stainless Steel
Mechanical Seal: 316 Stainless Steel Viton Elastomer
Port Size: 3/4’’ NPT, Internal
Weight: 5 lbs.
Motor: 316 Stainless Steel shaft, permanent magnet
(DC), fully enclosed and low amp draw
Models:
CMSV012D - 12 Volt DC
CMSV024D - 24 Volt DC
CMSV036D - 36 Volt DC
CMSV0115A - 115 Volt AC
Dimensions
Performance
Performance Curve
25
Head (feet)
20
15
10
5
0
0
5
10
15
20
25
Flow (gpm)
Form 4036
3/2000
375 Fifth Avenue NW • New Brighton, MN 55112 • Phone 800 471-0460 • Fax 800 672-7023
www.hypropumps.com
