PLUMBING

Escape Hunt TI

Project # _151213

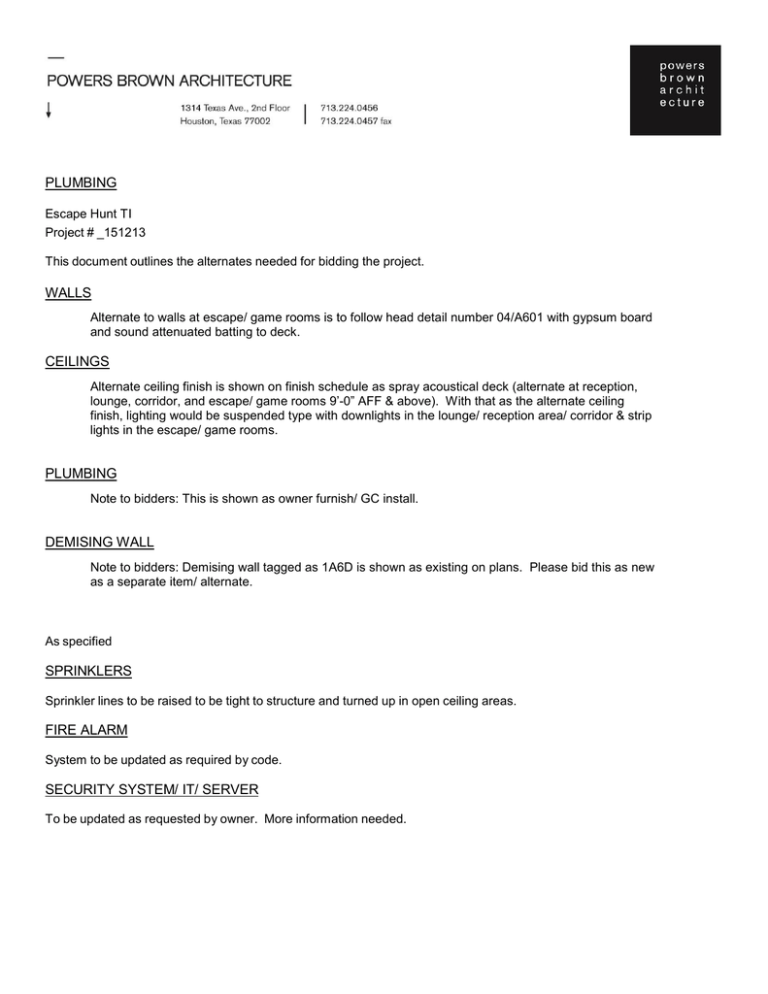

This document outlines the alternates needed for bidding the project.

WALLS

Alternate to walls at escape/ game rooms is to follow head detail number 04/A601 with gypsum board and sound attenuated batting to deck.

CEILINGS

Alternate ceiling finish is shown on finish schedule as spray acoustical deck (alternate at reception, lounge, corridor, and escape/ game rooms 9’-0” AFF & above). With that as the alternate ceiling finish, lighting would be suspended type with downlights in the lounge/ reception area/ corridor & strip lights in the escape/ game rooms.

PLUMBING

Note to bidders: This is shown as owner furnish/ GC install.

DEMISING WALL

Note to bidders: Demising wall tagged as 1A6D is shown as existing on plans. Please bid this as new as a separate item/ alternate.

As specified

SPRINKLERS

Sprinkler lines to be raised to be tight to structure and turned up in open ceiling areas.

FIRE ALARM

System to be updated as required by code.

SECURITY SYSTEM/ IT/ SERVER

To be updated as requested by owner. More information needed.
