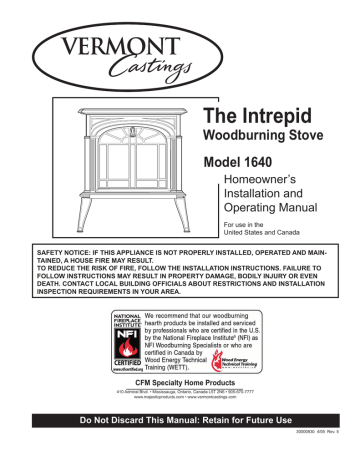

The Intrepid
Woodburning Stove
Model 1640
Homeowner’s
Installation and
Operating Manual
For use in the
United States and Canada
SAFETY NOTICE: IF THIS APPLIANCE IS NOT PROPERLY INSTALLED, OPERATED AND MAINTAINED, A HOUSE FIRE MAY RESULT.
TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. FAILURE TO
FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN
DEATH. CONTACT LOCAL BUILDING OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION
INSPECTION REQUIREMENTS IN YOUR AREA.
CFM Specialty Home Products
410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com
Do Not Discard This Manual: Retain for Future Use
30000830 4/05 Rev. 5
Intrepid 1640 Woodburning Stove
Introduction
Thank you for choosing a Vermont Castings Intrepid to meet your heating needs. We’re confident you will find the
Intrepid to be an effective wood-burning heater incorporating modern, non-catalytic combustion technology with the
classic aesthetic appeal of its Vermont Castings lineage.
The Intrepid achieves high-efficiency through precisely calibrated delivery of primary and secondary air into a refractory-insulated firebox. Properly operated and maintained according to the guidelines in this manual, your Intrepid will
provide safe, dependable, and economical heating for years to come.
The Intrepid Model 1640 series has been tested and is listed by the Canadian Standards Association (CSA). The test standards are ANSI/UL-1482 for the United States and ULC S627 and CAN/CSA
B366.2 for Canada.
The Intrepid Model 1640 is listed for burning wood fuel only. Do not burn other fuels.
The Intrepid Model 1640 is approved for installation in manufactured (mobile) homes in the United
States only using the optional Mobile Home Kit #1881 in accordance with the instructions in that kit
and any local codes.
C
US
The Intrepid Model 1640 complies with the standards set forth by the Federal Environmental Protection Agency, 40
CFR Part 60.532(b)(2), as stated on the permanent label attached to each stove.
We recommend that you hire a professional, solid-fuel stove technician to install your Intrepid, or to advise you on the
installation should you attempt to install it yourself. Consult the authority having local jurisdiction (such as a municipal
building department, fire department, fire prevention bureau, etc.) before installation to determine the need for a building permit. Also, consult your insurance agent to be sure your installation complies with specific requirements that may
vary locally.
In addition to directions on installation and operation, this manual includes directions on maintenance and assembly.
Please read this entire manual before you install or operate your new room heater.
Save These Instructions For Future Reference.
Proposition 65 Warning: Fuels used in gas, woodburning or oil fired appliances, and the products of
combustion of such fuels, contain chemicals known to
the State of California to cause cancer, birth defects
and other reproductive harm.
California Health & Safety Code Sec. 25249.6
Installation Accessories
Table of Contents
Specifications .....................................3
Installation Requirements ................... 4
Clearances .........................................14
Assembly ...........................................16
Operation ............................................18
Maintenance .......................................22
Appendix - Draft Management ........... 25
Parts List ...........................................28
2
#1878
#1881
#0307
#0868
#1515
#1512
#1520
#1510
#0136
#0098
#1355
#1362
#1363
#1365
Outside Air Kit
Mobile Home Kit
Bottom Heat Shield
Short Legs - Classic Black
Short Legs - Red
Short Legs - Sand
Short Legs - Moonlight Blue
Short Legs - Green
Sparkscreen
Warming Shelf - Classic Black
Warming Shelf - Red
Warming Shelf - Sand
Warming Shelf - Moonlight Blue
Warming Shelf - Forest Green
30000830
Intrepid 1640 Woodburning Stove
Specifications
Intrepid, Model 1640
This value can vary depending on how the stove is operated,
the type and moisture content of the fuel used, as well as
the design, construction and climatic location of your home.
Figures shown are based on maximum fuel consumption
obtained under laboratory conditions and on average efficiencies.
1
Maximum Heat Output ............8,200 - 19,500 Btu’s/hr.
Maximum Heat Output ..........................22,00 Btu’s/hr.1
Area Heated .....................Up to 1000 sq. ft.(92 sq. m) 2
Fuel Size / Type ................................16” (410 mm) logs
EPA Emissions Rating (g/h, non-catalytic) ..............3.33
Loading Front
Chimney Connector .................... 6” (150 mm) diameter
Chimney Flue Size .....................6” (150 mm) minimum
Flue Exit Position ..................... Reversible, Top or Rear
Primary Air ... Manually set, thermostatically maintained
Secondary Air .........................................Self-regulating
Ash Handling System ................... Removable Ash Pan
Glass Panels ................High-temp Ceramic, IR Coated
Weight 255 lbs. (116kg.)
Height to top of flue collar:
With regular legs...........25¹⁄₄” (630mm) top exit
....................................... 24” (610mm) rear exit
With optionalshort legs .21¹⁄₄” (540mm) top exit
....................................... 20” (510mm) rear exit
3
These values are based on operation in building codeconforming homes under typical winter climate conditions
in New England. If your home is of nonstandard construction (e.g., unusually well insulated, not insulated, built under
ground, etc.) or if you live in a more severe or more temperate
climate, these figures may not apply. Since so many variables
affect performance, consult your Vermont Castings authorized
dealer to determine realistic expectations for your home.
2
Under specific conditions used during EPA emissions testing.
3
21���”
540mm
18���”
470mm
4���”
112 mm
C
L
Top Exit
22”
560mm
18���”
473 mm
Flue Collar
Rear Exit
Flue Collar
C
L
20���”
520mm
25���”
630mm
Top Exit
Flue Collar
Height
24”
610mm
14”
356mm
21���”
545mm
19”
482mm
0830
Fig. 1 Intrepid 1640 dimensions.
30000830
0830
Intrepid 1640
dimensions
12/00
3
Intrepid 1640 Woodburning Stove
Installation
SAFETY NOTICE: IF YOUR STOVE IS NOT PROPERLY INSTALLED, OPERATED AND MAINTAINED, A
HOUSE FIRE MAY RESULT. FOR SAFETY, FOLLOW
ALL INSTALLATION, OPERATION AND MAINTENANCE DIRECTIONS. CONTACT LOCAL BUILDING
OFFICIALS ABOUT RESTRICTIONS AND IN�.
Before you begin an installation, review your plans to
be certain that:
• Your stove and chimney connector will be far
•
•
enough from combustible material to meet all clearance requirements.
The floor protector is large enough and is constructed properly to meet all requirements.
You have all necessary permits from local authorities.
Your local building official is the final authority for approving your installation as safe and determining that it
meets local and state codes.
The metal label permanently attached to the back of
the stove indicates that the Intrepid has been tested
to current UL and ULC standards by CSA. Clearance and installation information is also printed on the
label. Local authorities generally will accept the label
as evidence that, when the stove is installed according
to the information on the label and in this manual, the
installation meets codes and can be approved. Codes,
however, vary in different areas. Before starting the
installation, review your plans with the local building
authority. Your local dealer can provide any additional
information needed.
For any unresolved questions about installation, refer
to the National Fire Protection Association’s publication
ANSI/NFPA 211–1988 Standard for Chimneys, Fireplaces, Vents and Solid Fuel Burning Appliances. In
Canada, the equivalent publication is CSA CAN-B365,
Installation Code for Solid Fuel Burning Appliances and
Equipment. These standards are the bases for many
national codes. They are nationally recognized and are
accepted by most local authorities. Your local dealer
or your local building official may have a copy of these
regulations.
IMPORTANT: FAILURE TO FOLLOW THESE INSTALLATION INSTRUCTIONS MAY RESULT IN A
DANGEROUS SITUATION, INCLUDING A CHIMNEY
OR HOUSE FIRE. FOLLOW ALL INSTRUCTIONS
EXACTLY AND DO NOT ALLOW MAKESHIFT COMPROMISES TO ENDANGER PROPERTY AND PERSONAL SAFETY.
Chimneys
Your stove must be connected either to a sound
masonry chimney that meets local codes, to a relined
masonry chimney that meets local codes, or to an
approved prefabricated metal chimney. Whichever of
those types you use, the chimney and chimney connector must be in good condition and kept clean.
If you use an existing masonry chimney, it must be
inspected to ensure safe condition before the stove is
installed. Your local professional chimney sweep, building inspector, or fire department official will be able to
make the inspection or direct you to someone who can.
The chimney should extend at least 3’ (914mm) above
the highest point where it passes through a roof, and at
least 2’ (610mm) higher than any portion of a building
within 10’ (3m).
To assure proper draft and good performance, any
chimney used with this stove should extend at least 16’
(5 m) above the flue collar of the stove.
0 To 10'
2' Min.
3'
Min.
0 To 10'
2' Min.
3'
Min.
Reference Point
AC617
Fig. 2 The 2’-3’-10’ Chimney Rule.
Masonry
Chimneys
AC617
RLTSKC8
2/11/98 must be inspected to conAn existing masonry chimney
firm that it has a lining. Do not use an unlined chimney.
The chimney also should be examined for cracks,
loose mortar, other signs of deterioration, and blockage.
Repair any defects before the chimney is used with
your stove.
A prefabricated doublewall insulated chimney
A tile-lined
masonry
chimney
ST241
Fig. 3 Standard Chimney Types
4
ST241
chimney types
12/13/99 djt
30000830
Intrepid 1640 Woodburning Stove
Masonry Chimneys, cont’d.
• Unused openings in an existing masonry chimney
must be sealed with masonry to the thickness of
the chimney wall, and the chimney liner should be
repaired. Openings sealed with pie plates or wallpaper are a hazard and should be sealed with mortar
or refractory cement. In the event of a chimney
fire, flames and smoke may be forced out of these
unused thimbles.
• The chimney should be thoroughly cleaned before
use.
• A newly-built masonry chimney must conform to the
standards of local building code, or, in the absence
of a local code, to a recognized national code. Masonry chimneys must be lined, either with code-approved masonry or precast refractory tiles, stainless
steel pipe, or a code-approved, “poured-in-place”
liner. The chimney clean-out door must seal tightly to
ensure a good draft.
Prefabricated Chimneys
A prefabricated metal chimney must be one that is tested and listed for use with solid-fuel burning appliances
to the High-Temperature (H.T.) Chimney Standard
UL-103-1985 (2100°F.) for the United States, and High
Temperature (650°C) Standard ULC S-629 for Canada.
Chimney Size
This stove is approved for venting into a masonry chimney with a nominal flue size of 8” x 8” (203 x 203mm),
and into a round flue size of 8” (203mm) or 6” (152mm).
It may be vented into larger chimneys as well. However, chimneys with liners larger than 8” x 12” (203 x
305mm) may experience rapid cooling of smoke and
reduction in draft, especially if they are located outside
the home. Such large chimneys may need to be insulated or have the flue relined for proper stove performance.
Do not connect this unit to a chimney flue serving another appliance.
Note: Do not vent this stove into a factory-built
(zero-clearance) fireplace. This stove has not
been tested and listed for that type of installation. Factory-built fireplaces and their chimneys
are specifically designed as a unit for use as
fireplaces. It may void the listing or be hazardous to adapt them for any other use.
Do not connect the STOVE to any air distribution duct or system.
30000830
Ask your dealer about components available for connecting the stove to a steel chimney liner.
Chimney Connector Guidelines
A chimney connector is the double-wall or single-wall
pipe that connects the stove to the chimney. The chimney itself is a masonry or prefabricated structure that
encloses the flue. Chimney connectors are used only
to make the connection from the stove to the chimney.
They are for interior use only.
Double-wall connectors must be tested and listed for
use with solid-fuel burning appliances. Single-wall connectors should be made of 24 gauge or heavier steel,
and should be 6” (152mm) in diameter. Do not use
galvanized chimney connector; it cannot withstand the
high temperatures that can be reached by smoke and
exhaust gases, and may release toxic fumes under high
heat.
If possible, do not pass the chimney connector through
a combustible wall or
ceiling. If passage
Toward
through a combustible
stove
wall is unavoidable,
refer to the recommendations in the section
following on Wall Passthroughs. Do not pass
Flue gas
the connector through
direction
an attic, a closet or
any similar concealed
space. The whole
chimney connector
Fig. 4. Chimney connector.
should be exposed and
ST242
accessible for inspection and cleaning.
Chimney connector
12/13/99 djt
Install the single wall chimney connector not less than
18” (457mm) from the ceiling. Keep it as short and
direct as possible, with no more than two 90° turns. If
possible, use 45° elbows. Slope horizontal runs of connectors upward 1/4” per foot (20 mm per meter) going
from the stove toward the chimney. The recommended
maximum length of a horizontal run is 3 feet (1 meter),
and the total length of chimney connector should be no
longer than 8’ (2.4meters).
In cathedral ceiling installations, extend the prefabricated chimney downward to within 8’ (2.4m) of the stove.
SAFETY NOTE: ALWAYS WEAR GLOVES AND PROTECTIVE EYEWEAR WHEN DRILLING, CUTTING OR
JOINING CHIMNEY CONNECTOR SECTIONS .
5
Intrepid 1640 Woodburning Stove
Double-wall Chimney Connectors
The Intrepid is approved for installation in the U.S. and
Canada with double-wall chimney connectors that have
been tested and listed for use with solid-fuel burning
appliances by a recognized testing laboratory.
Follow the instructions for assembling and installing
double-wall connectors provided by the manufacturer of
the double-wall chimney. To ease assembly and help
assure safety, use chimney components manufactured
by a single source.
NOTE: For installations using double-wall connectors, minimum clearances must conform to those
listed in the clearance chart on Page 14.
Single-wall Chimney Connectors
• Beginning at the flue collar of the stove, assemble
•
•
•
the chimney connector. Insert the first crimped end
into the stove’s flue collar, and keep each crimped
end pointing toward the stove. Using the holes in
the flue collar as guides, drill 1/8” (3mm) holes in the
bottom of the first section of chimney connector and
secure it to the flue collar with three #10 x 1/2” sheet
metal screws.
Secure each joint between sections of chimney
connector, including telescoping joints, with at least
three sheet metal screws. The predrilled holes in
the top of each section of chimney connector serve
as guides when you drill 1/8” (3mm) holes in the bottom of the next section.
Secure the chimney connector to the chimney. Instructions for various installations follow.
Be sure the installed stove and chimney connector
are correct distances from nearby combustible material.
Note: Special slip pipes and thimble sleeves that form
telescoping joints between sections of chimney connector are available to simplify assembly. Slip pipes
eliminate the need to cut individual connector sections.
Consult your local dealer about these special connector
sections.
Securing the Single-wall Connector to a
Prefabricated Chimney
Follow the installation instructions of the chimney
manufacturer exactly.
Thimble Sleeve
Chimney
Connector
Flue
Keep sleeve
end flush with
flue tile
ST243
Fig. 6 The thimble, made of either ceramic or metal, must be
cemented securely in place.
The adapter forms a union between the chimney and
ST243
chimney connector that
ensures any soot or creosote
thinble connection
falling from the inner
walls
of the chimney will stay
12/13/99 djt
inside the chimney connector.
Securing the Single-wall Connector to a
Masonry Chimney
The Intrepid may be connected to either a freestanding
masonry chimney or to a fireplace masonry chimney.
Freestanding Installations
If the chimney connector must pass through a combustible wall to reach the chimney, follow the recommendations for Wall Pass-Through construction on Pages 7-8.
The opening through the chimney wall to the flue - the
“breech” – must be lined with a ceramic or metal
thimble which is securely cemented in place.
A metal pipe section called the “thimble sleeve,” slightly
smaller in diameter than standard connector and the
thimbles, will allow the removal of the chimney connector system for inspection and cleaning. Thimble
sleeves are available from your local dealer.
To install a thimble sleeve, slide it into the breech until
it is flush with the inner flue wall. Be sure that it does
not extend into the flue passage where it could interfere
with the draft.
The thimble sleeve should protrude 1-2” (25-50mm) into
the room. Use furnace cement and thin gasketing to
seal the sleeve in place in the thimble. Secure the chimney connector to the outer end of the sleeve with sheet
metal screws.
Special adaptors are available from your local dealer to
make the connection between the prefabricated chimney and the chimney connector. The top of such adaptors attach directly to the chimney or to the chimney’s
ceiling support package. The bottom of the adaptor is
secured to the chimney connector.
6
30000830
Intrepid 1640 Woodburning Stove
Connection Above the Fireplace
• Check the stove and chimney connector clearances
to combustible mantel and trim materials. If necessary, use a combination of mantel, trim, and connector heat shields to provide the required clearances.
Refer to Page 12.
• Double-check connector clearance to the ceiling.
• The fireplace damper must be closed and sealed to
prevent room air from being drawn up the flue which
could reduce performance. However, it must be
possible to reopen the damper to inspect or clean
the chimney.
• Floor protection requirements also apply to fireplace
installations. Refer to Page 8.
With Chimney Connector Heat Shields
Whenever possible, design the installation so that the
connector does not pass through a combustible wall.
If you must include a wall pass-through in your installation, check with your building inspector before you
begin. Also check with the chimney connector manufacturer for any specific requirements.
Consult with your dealer regarding special connection
components available for use as wall pass-throughs.
Use only parts that have been tested and listed for
use as a wall pass-through. Refer to Figures 9 - 12 for
further details.
U.S. Requirements:
The National Fire Protection Association (NFPA) has
established guidelines for use in the United States for
passing chimney connectors through combustible walls.
Many building code inspectors follow these guidelines.
Figure 9 shows one NFPA-approved method. All combustible material in the wall is cut away to provide 12”
(305mm) clearance to the connector. Brick and mortar
are used to enclose the clearance area.
Fire clay liner
Masonry
Chimney
constructed
to NFPA 211
A
10”
(250 mm)
A
10”
(250 mm)
Min. 2” (51mm) Chimney clearance to brick and combustibles
Chimney Flue
In this installation, the chimney connector enters the
fireplace flue though a thimble located above the fireplace. The liner of the fireplace chimney should extend
at least to the point at which the chimney connector
enters the chimney. Follow all the guidelines for installing a chimney connector into a freestanding masonry
chimney, and pay special attention to these additional
points:
Wall Pass-throughs
Min. 12”
(305 mm)
Chimney connector
Fire clay
liner
A = Minimum 12” (305 mm) brick construction between liner and combustible
framing materials
Fig. 9 Masonry Wall Pass-through with single wall
chimney connector.
ST272
Alternate Methods
Approved
the NFPA:
masonry
wall passby
through
w/ single wall
• Using a section ofconnector
double-wall chimney with a 9”
(229mm) clearance
to combustibles. (Fig. 10)
12/99
Mantel
• Placing a chimney connector pipe inside a steel
double-wall ventilated thimble, which is then separated from combustibles by 6” (152mm) of fiberglass
insulating material. (Fig. 11)
ST244a
Fig. 7 If the clearance between the chimney connector and
either the ceiling or the mantel is inadequate, a protective
heat shield is required. ST244a
• Placing a chimney connector pipe inside a section
of 9” (229mm) diameter, solid-insulated, factory-built
chimney, with two inches of air space between the
chimney section and combustibles. (Fig. 12)
Intrepid
fplc over mantel
12/00
30000830
7
Intrepid 1640 Woodburning Stove
Min. 9”
230mm
In Canada, this type of installation must conform to
CAN/CSA-B365, Installation Code for Solid Fuel Burning Appliances and Equipment.
Chimney Flue
Min. 9”
(230mm)
Masonry
Chimney
constructed to
NFPA 211
ST273
Min. 2”
(51mm)
Chimney
Connector
Air Space
Non-soluble refractory cement
Sheet Steel
Supports
Min. 18”
(460mm)
Chimney clearance to sheet steel
supports and combustibles
24 ga.Sheet
Steel Supports
Fig. 10 Wall Pass-through using factory-built insulated
chimney section.
ST273
2” (51mm) Min.
nfpa
factory built insulated
chimney section Min. 6”
(152mm)
12/99
Masonry Chimney constructed to NFPA 211
Chimney Flue
Chimney clearance to sheet steel
supports and combustibles
Steel Thimble
with two 1”
(25mm) Ventilated
Channels
Chimney Connector
Glass Fiber
Insulation
24 ga.Sheet
Steel Supports
ST274
2” (51mm)
ST274
Min.
single
wall
2” (51mm) Min.
air space
2” (51mm) Min.
w/ventilated thimble
12/99
ST275
Chimney Flue
Chimney clearance to sheet steel
supports and combustibles
24 ga. Sheet
Steel Supports
Chimney Connector
Prefab
Chimney
Section
24 ga. Sheet
Steel Supports
Masonry Chimney constructed to NFPA 211
Fig. 12 Wall Pass-through with ventilated steel thimble.
Canadian Requirements:
ST275
In Canada, the Canadian
Standards Association has
wall with
established specificventilated
guidelines regarding wall passthough design. Figure 13 shows one approved method
steel thimble
in which all combustible material in the wall is cut away
to provide the required 18” (457mm) clearance around
the connector. The resulting space must remain empty.
A flush-mounted sheet metal cover may be used on one
side only. If covers must be used on both sides, each
cover must be mounted on noncombustible spacers at
least 1” (25mm) clear of the wall. Your local dealer or
8
Min. 18”
(460mm)
24 ga. Sheet
Steel Support
(one side only)
Chimney
Connector
24 ga.Sheet
Steel Support
Masonry Chimney
constructed to CAN/CSAB365
ST276
Fig. 13 CSA approved Wall Pass-through.
ST276
Floor Protection
CSA approved wall
A tremendous amount of heat radiates from the bottom
pass-through
plate of an Intrepid II, and the floor beneath requires
two kinds of special 12/99
protection.
Heat protection is provided by a Vermont Castings Bottom Heat Shield, part #0307.
Spark and ember protection is provided by a floor protector, which may be any noncombustible material.
Fig. 11 Wall Pass-through using single wall chimney
connector with a ventilated steel thimble.
Prefab Chimney
Section
2” (51mm)
Min.
Chimney Flue
Solid insulated,
listed factorybuilt chimney
length set flush
with flue
your local building inspector can provide details of other
approved methods of passing a chimney connector
through a combustible wall.
For a new hearth, we recommend a noncombustible
floor protector such as 1/4” non-asbestos mineral board
or its equivalent, or 24 gauge sheet metal. If carpeting
is present, it must be removed before installation of the
floor protector. The floor protector may be covered with
a noncombustible decorative material if desired. When
using brick, tile, or stone, individual pieces must be
mortared so sparks cannot fall through.
When the optional 3” (75mm) short legs are used, the
bottom heat shield must be used.
Most installations will require that the bottom heat
shield be attached. Only when the stove is placed
on a completely noncombustible surface, such as
unpainted concrete over earth, may it be used without the bottom heat shield.
Even with the bottom heat shield installed, you must
also use a floor protector.
In the United States, the floor protector required under
the stove must extend at least 16” from the front of the
stove - not from the ashlip - ( ‘E’ in Fig. 14), and at least
6” from the sides and rear (‘D’, Fig. 14).
To meet the requirement in the United States, a floor
protector must be at least 34” wide and 40” deep.
30000830
Intrepid 1640 Woodburning Stove
In Canada, the floor protector required under the stove
must extend 18” (457mm) to the front (‘E’, Fig. 14), and
8” (203mm) from the sides and rear. (‘D’ ,Fig. 14)
To meet Canadian requirements, a floor protector must
be at least 43” (1092mm) wide and 48” (1219mm)
deep.
Floor protection also must extend under the chimney
connector and 2 inches to either side. (‘C’, Fig. 14)
For 6” (152mm) connector used with the Intrepid II, the
protector must be a minimum of 10” (254mm) wide,
centered under the connector.
Wooden Framing
Floor Protection Requirements
Top Exit
Fig. 15 Supporting timbers under fireplace hearths are
considered to be combustible.
Rear Exit
C
from the front in the United States and 18” (457 mm)
from the front in Canada.
D
B
D
D
D
ST247b
D
ST247b
The optional 3” (75 mm) legs
may be used only on
Intrepid
1640requirements.
hearths that meet the width
and depth
Rear
exit
floor dgrm
Hearth rugs do not satisfy the requirements
for floor
12/00
djt
protection as they are only fire-retardant, not fire proof.
Mobile Home Installation
E
E
A
The Intrepid is approved for use in manufactured
(mobile) homes when installed with the optional Vermont Castings Mobile Home Kit #1881 in accordance
with the instructions provided with that kit and any local
codes. This approval applies only in the United States.
A
U.S.
A
B
C
D
E
Canada
34”
38”
40”
42”
10”ST567
10”
6” floor protection
8”
12/21/00
16”
18”
(965 mm)
(1067 mm)
(254 mm)
(203 mm)
(457 mm)
In addition to the standard installation requirements
described in this manual, the following guidelines apply
to mobile home installations:
ST567
Fig. 14 These dimensions are minimum requirements only.
Use greater dimensions whenever possible.
Fireplace Hearth Protection
Do not assume that your fireplace hearth is completely
noncombustible. Many fireplace hearths do not satisfy
the “completely noncombustible” requirement because
the brick or concrete in front of the fireplace opening
is supported by heavy wood framing. Because heat
is readily conducted by brick or concrete, it can easily
pass through to the wood. As a result, such fireplace
hearths can be a fire hazard and are considered a combustible floor.
For all fireplace installations, follow the floor protection
guidelines described above.
Keep in mind that many raised hearths will extend
less than the required clearance from the front of the
heater when it is installed. In such cases, sufficient
floor protection as described above must be added in
front of the hearth to satisfy the minimum floor protector
requirement from the front of the stove: 16” (416 mm)
30000830
1. The stove must be permanently secured to the floor
using the leg clamps and fasteners provided in the
kit.
2. The stove must have a permanent connection to the
outside to supply combustion air.
3. The stove must be grounded to the steel chassis of
the mobile home.
4. A listed chimney system, including roof thimble,
spark arrestor, chimney supports, roof flashing and
any other components suitable for use in mobile
homes must be used. The chimney system must
comply with the standard for Chimneys Factory-Built
Residential Type and Building Heating Appliances
UL 103.
5. The chimney must be attached directly to the stove
and must extend at least 3’ (914 mm) above the part
of the roof through which it passes. The top of the
chimney must extend at least 2’ (610 mm) above the
highest point of any part of the mobile home structure within 10’ (3 m) of the chimney.
9
Intrepid 1640 Woodburning Stove
6. If the chimney exits the mobile home through a wall
at a point 7’ (2.1 m) or less above the ground level
on which the mobile home is located, a guard or
other noncombustible enclosure must be fitted at the
point of exit and extend up to a height of 7’ (2.1m).
Any openings in this guard must be smaller than 3/4”
(19mm).
7. Check all local building codes, specifically those
related to mobile homes. Other requirements may
be applicable to chimney system removal for transportation of the mobile home.
WARNING: Do not install the Intrepid in a sleeping
room or hallway.
CAUTION: The structural integrity of the mobile
home roof, floor, walls and ceiling must be maintained.
Clearance to Surrounding
Combustible Materials
When the stove is operating, both the stoveplate and
the chimney connector radiate heat in all directions. A
safe installation requires that adequate clearance be
maintained between the stove and nearby combustible
materials to ensure that those materials do not overheat.
Clearance is the distance between either your stove
or chimney connector, and nearby walls, floors, the
ceiling, and any other fixed combustible surface. Keep
furnishings and other combustible materials away
from the stove as well. In general, a distance of 48”
(1219mm) must be maintained between the stove and
moveable combustible items such as drying clothes,
furniture, newspapers, firewood, etc. Keep this area
empty of any combustible material.
Safe Ways To Reduce Clearances
The Intrepid clearance requirements, listed and
diagramed on Pages 14-15, have been established
through testing to UL and ULC standards to meet most
installation configurations. These involve four basic
variables:
• When the stove has no listed heat shield installed.
• When the stove does have a listed heat shield
mounted on it.
• When the wall has no listed heat shield installed.
• When the wall does have a listed heat shield
mounted on it.
In general, the greatest clearance is required when the
stove will be positioned with no heat shield near a wall
with no heat shield. The least clearance is required
when both the stove and the wall have heat shields.
10
Reducing a stove clearance may require installation of
a listed heat shield on the chimney connector as well.
Clearances may be reduced only by means approved
by the regulatory authority, or in accordance with the
clearances listed in this manual.
When determining clearance, always measure from
the top plate of the stove, or, from the chimney connector itself, to the adjacent combustible surface. Do not
measure from the heat shields of the stove or connector
to the combustible surface.
Wall Shields
Wall shields should be constructed of 24 gauge or
heavier sheet metal, or another noncombustible material such as 1/2” (13mm) insulation board or common
brick “laid on flat,” with the 3¹⁄₂" (89mm) side down.
Shields must be spaced out from the combustible surface 1" (25mm) on noncombustible spacers. The spacers should not be directly behind the stove or chimney
connector. (Fig. 16)
Air must be able to flow between the wall and the
shield. At least 50% of the bottom 1" (25mm) of the
shield should be open and the shield must be open at
the top.
Air flow
Screen
llaw dutS
gnimarf
Wall shield
Noncombustible spacers
and fasteners
Shield
Metal Spacer
Drywall
Air flow
ST248
Fig. 16 Approved Wall shield construction
The following examples
of wall shield construction illusST248
trate common wall
designs
to safely achieve reduced
shieldused
construction
clearances to combustible
12/14/99 djt wall materials.
Parallel installation, vertical chimney connector,
two wall shields. Fig. 17: Reduced clearances for
both rear and side walls. Wall shields may meet at
corner if desired. Shielding for connector is centered
behind connector.
30000830
Intrepid 1640 Woodburning Stove
C
C
B
A
E
F
D
D
INTR
EPID
A.
B.
C.
D.
E.
F.
36”
30”
1”
35”
44”
40”
(914mm)
(762mm)
(25mm)
(889mm)
(1118mm)
(1016mm)
A.
B.
C.
D.
E.
F.
G.
B
A
F
G
E
C
C
36”
13”
35”
1”
40”
30”
44”
(914mm)
(330mm)
(889mm)
(25mm)
(1016mm)
(762mm)
(1118mm)
II
D
C
D
C
ST509a
ST508a
Fig. 17 Parallel installation, vertical chimney connector, two
ST508
wall shields.
Fig. 18 Parallel
wall shields.
ST509a
Wall shield
installation
BB
11/00
with rear wall pass-through, two
Intrepid II
wall shield
11/00
Parallel installation with rear wall pass-through, two
wall shields. Fig. 18: Reduced clearances for both
rear and side walls. Wall shields may meet at corner
if desired. Shielding for connector is centered behind
connector. Wall pass-through must comply with codes.
Corner installation, vertical chimney connector, two
wall shields. Fig. 19: Reduced side clearances. Wall
shields MUST meet at corner.
A
A.
B.
C.
D.
A
B
C
B
1”
34”
48”
35”
(25mm)
(864mm)
(1219mm)
(889mm)
C
D
D
A
A
ST510a
Fig. 19 Corner
wall shields.
30000830
ST510
Wall shield
installation,
cc
11/00
vertical chimney connector, two
11
Intrepid 1640 Woodburning Stove
Fireplace Clearances and
Mantel Trim Shields
A fireplace installation requires special clearance between the side of the stove and the right and left walls,
between the side of the stove and the decorative side
trim on the fireplace face, and between the top of the
stove and the mantel.
Noncombustible shields installed 1” (25mm) away from
the combustible surface on noncombustible spacers,
called ventilated shields, may be used to reduce clearances.
To protect a mantel from the heat of an Intrepid II in a
fireplace installation, the ventilated mantel shield must
be at least 48” (1219mm) long, and it must be centered
over the stove. Ventilated shields for side trim must
extend the full length of the trim.
An unprotected mantel (“A” , Fig. 20. ) cannot be more
than 9” (229mm) deep and must have a minimum clearance of 30” (762mm), measured from the stove’s top
plate. With a ventilated shield, this clearance may be
reduced safely to 14” (357mm).
A
B
C
C
ST253
Fireplace Mantel and Trim Clearances
Measured from the top and sides of the stove.
Unprotected
Protected
A. Mantel
30”
(762mm)
14” (356mm)
ST253
B. Top Trim
24”
(610mm)
trim
clearances 14” (356mm)
C. Side Trim
15”
(381mm)
10” (254mm)
12/15/99
djt
Fig. 20 Maintain clearances to combustible components of
the mantelpiece.
Unprotected top trim (B) protruding 2” (51mm) or less
from the face of the fireplace must be a minimum of 24”
(610 mm) from the stove’s top surface. With a ventilated trim shield, this clearance may be reduced safely
to 14” (357mm).
Unprotected side trim (C) that protrudes 2” (51mm) or
less from the face of a fireplace must have a minimum
clearance of 15” (381mm), measured from the stove’s
top side edge. With a ventilated trim shield, the clearance may be reduced safely to 10” (254mm). If the trim
extends more than 2” (51mm), wall clearance requirements apply.
1" (25 mm)
1/4" (6 mm)
ST501
Fig. 21 A custom-formed mantel shield.
ST501
mantel and
trim shield
11/10/00 djt
12
30000830
Intrepid 1640 Woodburning Stove
Alcove Installations
Because of their restricted air flow and heat retention
characteristics, specific construction requirements and
special clearances apply to installations into alcoves.
No stove or chimney connector heat shields are used in
alcove installations.
ALCOVE INSTALLATION OF THE INTREPID II IS
NOT PERMITTED IN CANADA.
Construction Requirements
The following illustrations show noncombustible ceiling
framing and maximum and minimum permitted dimensions for alcove construction.
ST504
7/16” Durock®
(or equivalent)
spaced 1” off
wood studs on
non-combustible
spacers
36" Use recommended
Max. floor protection
48" Min.
ST502
Fig. 22 Alcove floor plan. Sheetrock on front face butts to
Durock® (or equivalent) alcove lining.
Joist shield
(supplied by
chimney manufacturer)
Fig. 24 Cutaway perspective of alcove installation.
St504
Existing combustible
Alcove cutaway
framing 11/00
11"
Min.
Metal studs
support 7/16”
Durock® (or
equivalent)
ceiling
36"
Min.
14¹⁄₄"
ST502
Intrepid
Alcove floor plan
11/10/00 djt
48" Min.
ST505
Fig. 25 Reflected ceiling plan.
Metal
stud
1” air gaps,
top and
bottom, on
both sides
and back
wall
24"
B: Combustible
facing may overlap metal studs
by only 1”
Ceiling support package
extends 2”
below Durock®
(or equivalent)
ceiling
ST505
Alcove Ceiling plan
11/00
B
A
7/16” Durock®
(or equivalent)
1” air gap,
top and
bottom, on
both sides
and back
wall
65"
62" Min.
to Alcove
Ceiling
A: This area, from
62” to 65” must
be covered with a
non-combustible
material
ST506
ST503
Fig. 23 Alcove side section.
30000830
ST503
Alcove side view
11/10/00 djt
Fig. 26 Front view: 65” minimum clearance from hearth to
combustibles on front face. Combustible facing may overlap
metal studs by only 1”. It should not extend below the height
of the non-combustible ceiling.
ST506
Alcove front view
11/00
13
Intrepid 1640 Woodburning Stove
Intrepid 1640 Clearance Chart
Use the chart below together with the diagrams on the next page to determine the required clearance for your particular installation.
Stove clearances are measured from the top plate to the combustible surface.
Chimney connector clearances are measured from the connector surface.
Unprotected Surfaces
Protected Surfaces
Stove Clearance
Stove Installed Parallel to Wall
Side
Stove in
Corner
Stove in
Corner
Stove Installed Parallel to Wall
Rear
Corners
(A) 22”
(559 mm)
(B) 26”
(660 mm)
(C) 20”
(508 mm)
(D) 12”
(305 mm)
(E) 16”
(406 mm)
(F) 10”
(254 mm)
Top Exit, Single-wall
(G) 24”
Chimney Connector with
Connector Heat Shields 1, 2, 4 (610 mm)
(H) 16”
(406 mm)
(I) 12”
(305 mm)
(J) 12”
(305 mm)
(K) 9”
(229 mm)
(L) 10”
(254 mm)
Rear Exit 3
(M) 24”
(610 mm)
(N) 14”
(356 mm)
(NA)
(P) 12”
(305 mm)
(Q) 9”
(229 mm)
Top Exit, Double-wall
Chimney Connector 5
(G) 24”
(610 mm)
(H) 16”
(406 mm)
(I) 12”
(305 mm)
Top Exit, Single-wall
Chimney Connector
without Connector Shields
Side
Rear
Corners
(NA)
*
Chimney Connector Clearance
Single-wall Chimney
Connector, without
Connector Heat Shields
26 “ (660 mm)
12” (305 mm)
Single-wall Chimney
Connector, with Connector
Heat Shields
10” (254 mm)
5” (127 mm)
Double-wall Connector
5
12” (305 mm)
4
*
Front Clearance to Combustibles
48” (1219 mm)
1. Shielding for a top exit stove must include the stove rear heat shield insert to protect the area behind the flue collar.
2. Chimney connector heat shields, in an installation that goes through a combustible ceiling, must extend to 1” (25mm) below
the ceiling heat shield, which is 22” (559 mm) in diameter. The ceiling heat shield should be 24 gauge or heavier sheet metal,
centered on the chimney connector, and mounted on non-combustible spacers.
3. Rear Exit—horizontal connection from flue collar directly back through wall.
4. The ceiling heat shield required when chimney connector shields are used should meet the wall protector. This will require
trimming the ceiling shield along the line of intersection with the wall protector.
5. Requires the Flue Collar Shield Insert installed on the stove.
14
30000830
Intrepid 1640 Woodburning Stove
Unprotected Surfaces
Stove Installed Parallel to Wall
Protected Surfaces
Stove in Corner
Stove Installed
Parallel to Wall
Stove in Corner
Top Exit
No Chimney Connector Shields
C
B
A
D
C
F
E
F
Top Exit
with Chimney Connector Shields or Double-wall Chimney Connector
I
H
G
J
I
L
K
L
Rear Exit
Q
N
N/A
N/A
M
P
ST507
ST507
Intrepid Clearance
Diagrams
11/00
30000830
15
Intrepid 1640 Woodburning Stove
Assembly
You will need the following tools to assemble the Intrepid:
• 9/16” open end wrench • safety glasses & gloves
• flat head screwdriver
• power drill w/ 1/8” (3mm) bit
Caution. The Intrepid is very heavy. Do not attempt
to handle the stove without assistance.
Unpack the Stove
1. Remove the shipping straps and plastic wrap.
2. Inspect the stove and contents for shipping damage
or missing parts. Immediately notify your dealer of
any damage. Do not install this stove if any damage
is evident or any parts are missing.
Firebox Contents:
• Smokeshelf Plate
• Upper Firebricks, 3
• Hardware Bag
Hardware Bag contents:
• Stove Legs, 4
• Hex Head Leg bolts with washers, 4
• #10 x 1/2” sheet metal screws, 3
• Door Handle Holder
• 5/32” Allen Wrench
• 1/8” Allen Wrench
• Furnace Cement, 3 oz. Tube
• Owner’s Registration Card
• Touch-up Paint (Porcelain enamel stoves only)
3. Remove any wooden or cardboard packing material
from the stove.
Install Stove Legs
Remove and discard the four slot-head screws from
the stove bottom. Have an assistant tilt the stove while
you install first the back and then the front legs using
the four 3/8-16 x 1” hex head bolts with 3/8” washers
from the parts bag. The shoulder of the legs should
seat within the locator tabs cast into the stove bottom
at each corner. Tighten the bolts with the 9/16” wrench.
CAUTION: Overtighening can strip tapped threads.
Install the Door Handle Holder between the Right Front
leg and the stove. (Fig. 27)
Door Handle
Holder
C-Clip
Wingbolt
Bottom Heat Shield
ST568
Fig. 27 Install Legs
and optional Bottom Heat Shield. The
ST568
Handle Holder should
Install be at the right front.
bottom heat shield
clips
12/00
10³⁄₄"
(273mm)
9³⁄₄"
(248mm)
ST512
Fig. 28 Bottom Heat Shield orientation.
ST512
Install the
Bottom Heat Shield
Attach
The optional # 0307bottom
Bottomheat
Heat Shield must be used
in the U.S. and Canada
in
any
installation on a floor that
shield
is not comprised of unpainted
cement
on earth.
11/00
1. Loosen each leg bolt enough to slip the shield CClips onto the bolt.
2. Orient the Bottom Heat Shield so that the longer
edge is at the front. Refer to Figure 28. Attach the
Bottom Heat Shield to the C-Clips using the wingbolts
3. Re-tighten the leg bolts
16
30000830
Intrepid 1640 Woodburning Stove
Install Smokeshelf / Firebricks
Look inside the firebox and locate the position for the
Smokeshelf. It will seat against the upper Back, directly
under the Flue Collar. It is supported by ribs cast into
the air manifolds on either side and along the back
plate. (Fig. 29)
1. Orient the Smokeshelf Plate as illustrated and apply
a bead of furnace cement along the rib at the back
edge.
2. Apply a bead of cement along the top of each Side
Rib on which the Smokeshelf will rest. (Fig. 29)
3. Position the Smokeshelf above the #3 Air Tube so
that it seats against the Back wall and upon the Side
Ribs.
4. Insert the three Upper Firebricks into position above
the Secondary Air Tubes as shown in Figure 30. Insert the bricks up betweeen the #1 and #2 Air Tubes.
The firebricks do not need cement - they simply rest
directly upon the air tubes. Push each firebrick fully
back against the Smokeshelf plate.
Flue Collar Reversal
Cement Here
1
2
3
ST569
Cement Along
This Rib
ST569
smokeshelf ribs
12/00
FRONT FACE
Push plate against stove Back
The Intrepid is shipped with the Flue Collar in the Top
Exit position. Follow these steps to orient th collar for a
Rear Exit installation.
3
2
1
1. Remove the Flue Collar Heat Shield, (used for topexit installations only).
2. Remove the two screws that attach the flue collar to
the stove and turn the collar upside-down to face the
rear.
3. Confirm that the gasket is seated properly and resecure the screws.
Install the Outside Air Adaptor
The optional #1878 Outside Air Adaptor provides a collar to which a 3 inch diameter air duct may be attached
directly to the air inlet area at the back of the stove.
Use the four sheet metal screws provided in the kit to
attach the adaptor to the center mounting flange at the
bottom of the Rear Shroud.
ST570
Fig. 29 Installing the Smokeshelf.
Firebrick
ST570
smokeshelf
Firebrick
placement
12/00
Firebrick
3
2
1
Attach the Chimney Connector
1. Insert the crimped end of the first section of chimney
connector into the flue collar.
2. Using the holes in the collar as guides, drill 1/8”
(3mm) holes through the connector pipe.
3. Use the three #10 x 1/2” sheet metal screws provided to secure the chimney connection to the flue
collar.
If applicable, attach Chimney Connector Heat Shields
following the instructions included with those parts.
30000830
ST571
Fig. 30 Install the Upper Firebricks.
ST571
Install upper firebricks
12/00
17
Intrepid 1640 Woodburning Stove
Operation
How the Intrepid Works
Combustion control is achieved in the Intrepid through
two separate air delivery systems.
The Primary Air Control Lever, located at the left rear
corner of the stove, controls the amount of incoming primary air for starting, maintaining, and reviving the fire.
More air entering the stove makes the fire burn hotter
and faster, while less air prolongs the burn at a lower
heat level.
For the greatest air supply and maximum heat output
(but the shortest burn time), place the lever all the way
to the LEFT at the HIGH position. For a fire that will
last longer with less heat, move the lever to the RIGHT
toward the LOW position. You can set the lever anywhere in between the upper and lower extremes to
moderate the fire intensity. (Fig. 27)
Another separate supply of oxygen is delivered to the
upper area of the firebox to support combustion of
gases released from the main fuel bed. This Secondary Air enters the stove through two, unrestricted inlets
and is heated while passing through separate channels
before being delivered through three stainless steel
multi-ported tubes located at the top of the firebox.
Burn Only High-Quality Wood
The Intrepid is designed to burn natural wood only;
do not burn any other fuels.
Do not use chemicals or fluids to start the fire.
Do not burn garbage or flammable fluids such
as gasoline, naptha, or engine oil. Also, never
use gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start or
“freshen up” a fire. Keep all such liquids well
away from the Intrepid while it is in use.
Caution: The Intrepid will be hot while in operation. Keep children, clothing and furniture
away. Contact may cause skin burns.
Do not overfire this heater. Overfiring may
cause a house fire, or can result in permanent
damage to the stove. If any part of the stove
glows, you are overfiring.
18
You will enjoy the best results when burning wood that
has been adequately air-dried. Avoid burning “green”
wood that has not been properly seasoned. The wood
should be no longer than 16” (410 mm) in length,
however, you will find that shorter wood lengths ease
refueling and promote the most efficient combustion.
The best hardwood fuels include oak, maple, beech,
ash, and hickory that has been split, stacked, and airdried outside under cover for at least one year.
For areas that do not have a supply of hardwood, commonly burned softwoods include tamarack, yellow pine,
white pine, Eastern red cedar, fir, and redwood. These
too should be properly dried.
Keep wood a safe distance from the heater and keep
it out of the areas around the heater used for refueling
and ash removal.
Use the Air Control Setting that Works
Best for You
No single air control setting will be appropriate for
every situation. Settings will differ depending on the
quality of the fuel, the amount of heat desired, and how
long you wish the fire to burn.
The control setting also depends on your particular
installation’s “draft,” or the force that moves air from
the stove up through the chimney. Draft is affected
by such things as the length, type, and location of the
chimney, local geography, nearby obstructions, and
other factors.
Too much draft may cause excessive temperatures in
the Intrepid, and could even damage it. On the other
hand, too little draft can cause backpuffing into the
room and/or the “plugging” of the chimney.
How do you know if your draft is excessively high or
low? Symptoms of too much draft include an uncontrollable burn or a glowing-red stove part. A sign of inadequate draft is smoke leaking into the room through
the stove or chimney connector joints, low heat, and
dirty glass.
In newer homes that are well-insulated and weathertight, poor draft may result from insufficient air in the
house. In such cases, a slightly opened window near
the stove on the windward side of the house will provide the fresh air needed.
30000830
Intrepid 1640 Woodburning Stove
A more effective option for delivering ample combustion
air to the stove is to duct air directly from outdoors to
the stove. In fact, in some areas, provisions for outside
combustion air are required in all new construction. The
optional Intrepid Outside Air Adaptor is available from
your dealer.
Control Lever
HIGH
LOW
When you first begin using the stove, pay attention
to the effects of different air control settings. You will
quickly find that a specific setting will give you a fixed
amount of heat. It may take some time to determine
the amount of heat and the length of burn you should
expect from various settings.
Do not for any reason attempt to increase the firing
of your heater by altering the air control adjustment
range outlined in these directions.
Before you start using the stove, please read the Appendix on Draft Management starting on Page 24 to
learn how the characteristics of your installation will
affect the stove’s performance. You and the stove are
parts of a system, and other parts of the system have a
strong effect on operation; you may need to vary your
firing technique to get the performance you want.
High Heat / Shorter Burn Time
Control
Lever
Starting and Maintaining a Fire
Conditioning Your Stove
Cast iron is extremely strong, but it can be broken with
a sharp blow from a hammer or from the thermal shock
of rapid and extreme temperature change. The cast
plates expand and contract with changes in temperature. When you first begin using your Intrepid, minimize
thermal stress by allowing the plates to adjust gradually
during three or four initial break-in fires following Steps
1- 3.
HIGH
LOW
Burn solid wood fuel only, and burn it directly on
the grate. Do not elevate the fuel. Do not burn coal
or other fuels.
WARNING: operate this stove only with the door
fully closed.
The Primary Air Inlet must be open when starting a
fire or when refueling.
Low Heat / Longer Burn Time
ST572
1. Open the primary air control fully by placing the Control Lever all the way to the LEFT (HIGH).
Fig. 31 Primary Air Inlet Settings.
2. Place several sheets of crumpled newspaper in the
stove. Avoid using glossy or colored paper, as these
burn poorly. At the front of the firebox, place on the
paper six or eight pieces of dry kindling split to a
finger-width size, and on the kindling lay two or three
larger sticks of split dry wood approximately 1-2” (2550 mm) in diameter. (Fig. 28)
3. Light the newspaper and close the door. Gradually
Thermostat settings
build up the fire by adding a few 3-5” (80-120 mm)
12/00
diameter splits. (Fig.
29) If this is one of the first few
“break-in” fires, let the fire burn brightly, and then let
it die out.
30000830
ST572
19
Intrepid 1640 Woodburning Stove
• During the break-in fires, don’t let the stove get
hotter than 500°F. (260°C) as measured on an optional stove-top thermometer. Adjust the air control
lever as necessary to control the fire.
• Some odor from the stove’s hot metal, the paint,
and the cement is normal for the first few fires.
NOTE: Some chimneys need to be “primed,” or
warmed up, before they will draw sufficiently to
sustain a fire. Roll up a couple pieces of newspaper, place them on top of the kindling and toward
the front of the stove, light them, and close the door.
This should heat the chimney enough to initiate
strong draft.
Once the draft is established, open the front door
and light the rest of the fuel bed at the bottom. Do
not light the main bed of fuel until the chimney begins drawing.
4. Afer the stove has been broken-in using Steps 1-3,
continue to build the fire gradually. Add larger wood
with a diameter of 3-4” (76-102mm).
Continue adding split logs of this size to the brisklyburning fire until there is a glowing ember bed at
least 2” (51mm) deep. A good ember bed is necessary for proper functioning and may take up to an
hour to establish.
ST263
Fig. 32 Start a fire with small, dry kindling.
ST263
starting a fire
12/99
5. Adjust the Air Control Lever to maintain the desired
heat output.
Refuel While the Embers Are Still Hot
WARNING: For safety and greatest efficiency, operate your stove only with all doors fully closed. The
test standard for your stove when it is operated in this
mode is UL 1482 for the United States and ULC S627
for Canada.
Your stove may be used as a fireplace with the front
doors open or removed only when the spark screen is
placed correctly in the opening to protect against the
possibility of sparks and embers leaving your stove.
The test standard for your stove when it is operated in
this mode is UL 737 for the United States and CAN/
CSA-B366.2 for Canada.
Use only the Intrepid Spark Screen, #0136 with your
Intrepid. Intrepid Spark Screens are available from your
Vermont Castings’ Authorized Dealer.
Reload the Intrepid while it is still hot and there are
plenty of glowing embers to re-kindle the fire. Include
some smaller pieces of wood in the new load of fuel
to help the stove return to its operating temperature
quickly. Wear stove gloves, and follow this procedure
when you reload your stove:
20
ST264
Fig. 33 Gradually add larger pieces of wood until all the wood
is burning well.
1. Place the Air Control Lever to the fully open (HIGH)
position
2. Open the door
and check the ash level in the ash
ST264
pan. If necessary, dispose of the ashes and replace
good fire
the pan.
12/99
3. Use a fireplace
tool to break up the charcoal and
direct ash through the grate. Pull the charcoal from
the back to the front. (Fig. 30) This will encourage
efficient combustion as the fuel burns from front to
rear.
4. Load wood — smaller, split pieces first. Close the
door. Ideal performance will be achieved by operating with the air control set at HIGH for several
minutes after refueling. Adjust the Air Control Lever
for the desired heat output after the fire is re-established.
30000830
Intrepid 1640 Woodburning Stove
Ash Disposal
Your Intrepid utilizes an ash grate to facilitate ash
removal. You may wish to use an ash hoe to pull the
accumulation forward from the firebricks to the grate
where it will fall into the ashpan for easy removal.
Remove ash before it reaches the top of the ash pan.
Check the level at least once a day, and before each
re-fueling. Using stove gloves, pull the ash pan out of
the stove by its handle. Remove the ash pan and properly dispose of the ashes. Be sure to keep the pan level
during disposal.
CAUTION: Avoid slamming the stove door or
striking the glass panel. Do not operate the
stove with the glass panel missing, damaged,
or broken. Do not install substitute materials. See Maintenance section for replacement
instructions.
Smoke Detectors
Empty the ash pan regularly, typically every one to
three days. The frequency will vary depending on how
you operate your Intrepid; if you burn more wood at
higher heat output settings, ash will accumulate rapidly.
The use of smoke detectors throughout the home is
strongly advised, if not required by building codes or insurance regulations. It is a good idea to install a smoke
detector in the living areas and each bedroom.
Dispose of ashes into a metal container with a tight-fitting lid kept outdoors. Put the closed container of ash
on a noncombustible floor or on the ground, well away
from all combustible materials, pending final disposal.
If the ash is disposed of by burial in soil or otherwise
locally dispersed, keep it in the closed container until
all cinders have thoroughly cooled. You can use wood
ash as a garden fertilizer.
You may not, however, wish to install a detector in the
immediate vicinity of the stove. Depending on the sensitivity of the unit, the alarm can be set off while you are
tending the fire or emptying the ashes. If you install a
detector in the same room, locate it as far away from
the stove as possible.
CAUTION: Never use your household or shop vacuum cleaner to remove ash from the stove; always
remove and dispose of the ash properly.
30000830
21
Intrepid 1640 Woodburning Stove
Maintenance
Let the fire in the stove go out and allow the stove to
cool completely before beginning any maintenance
procedure.
Care of the Cast Iron Surface
An occasional dusting with a dry rag will keep the
painted cast iron of your Intrepid looking new.
The stove’s paint can be touched up as needed. First,
clean the areas to be painted with a wire brush. Then,
touch up the stove with Vermont Castings high temperature stove paint. Apply the paint sparingly, and
keep in mind that two light coats of paint are better than
a single heavy one.
Care of Porcelain Enamel Finish
Use a dry or slightly damp rag or a soft brush to remove
spills or stains. For difficult jobs that require a cleaning
agent, use only a kitchen appliance cleaner or polish
recommended for use on enamel surfaces.
Cleaning the Glass
Most of the carbon deposits on the glass will burn off
during hot fires. However, the ash residue that accumulates on the glass surface should be removed regularly
to prevent etching. Follow this procedure to clean the
glass:
• Be sure the glass is completely cool.
• Clean the glass with water or a cleaner made
especially for this purpose. Do not use abrasive
cleaners.
• Rinse the glass thoroughly.
• Dry the glass completely.
4. Install the Glass. Lay the glass on the inner gasket
with the coated side down (toward the outside of the
door). Tighten the screws snugly, but loose enough
to allow for a little movement of the glass when the
stove is in operation. Overtightening can crack the
glass immediately or cause it to crack if it is unable
to expand when hot.
Gasket Replacement
Your Intrepid uses 5/16” dia. rope-type fiberglass
gaskets to make a tight seal at the Front Doors and the
Flue Collar. With use, particularly on those parts that
move, gaskets can become brittle and compressed and
may require replacement.
Wait until the fire is out and the stove has cooled. Be
sure to follow the standard safety procedure for working
with dusty materials: Wear safety goggles and a dust
mask.
1. Remove the existing gasket by grasping an end and
pulling firmly.
2. Use a wire brush or a screwdriver to clean the
channel of any remaining cement or bits of gasket.
Remove stubborn deposits of cement with a cold
chisel if necessary.
3. Determine the correct length of the appropriatesized gasket by laying it out in the channel. Allow
an extra 1-2” (25-50 mm), and mark the spot to be
cut.
Glass Replacement
Replace glass only with Vermont Castings part no.
1401156 Right Side and 1401157 Left Side Glass
Panels. The glass panel rests on a cushion provided
by 3/16” rope gasket, #1203556 and is held in place
by clips. (Fig. 35) The glass is IR coated on one side
which is marked THIS SIDE OUT.
1. Remove the door from the stove and place it on a
sturdy, level work surface. Use a towel to protect the
porcelain enamel finish.
2. Remove phillips head screws and retainer clips.
3. Inspect the Gasket. If the window gasket is in good
condition, you can leave it in place. If you replace it,
use only #1203556. Be sure the channel around the
window opening is clean, and free of dust.
22
Gasket
KT160
Fig. 35 Door glass installation.
KT160
Intrepid
glass replacement
addendum
11/00
30000830
Intrepid 1640 Woodburning Stove
4. Remove the gasket from the channel, place it on a
wood cutting surface, and cut it at the marked spot
with a utility knife. Twist the ends slightly to discourage the gasket from unraveling.
5. Lay an unbroken 1/8” (3 mm) bead of gasket cement
in the newly-cleaned channel.
6. Starting at one end, press the gasket into the channel. Ensure a good joint where the gasket meets before trimming any excess. Do not overlap the gasket
ends or leave ends with ragged edges.
7. Press the gasketed part firmly against its normal
mating surface to seat the gasket evenly in its channel. Close and latch the door to do this; close the
door on a piece of waxed paper to keep the cement
from migrating onto the non-gasketed part, or tap
other parts
8. Clean excess cement from around the channel. Let
the cement that holds the new gasket dry thoroughly.
Adjust the Door Latch
Over time, the door latch mechanism may need adjustment to compensate for compression of the door
gasketing.
1. Using the 5/32” Allen wrench supplied with the stove,
loosen the Small Locknut enough to extend the
Striker Screw one turn clockwise into the Pawl.
2. Retighten the Small Locknut while keeping the Striker Screw from turning. Test the door latch closure.
You should feel some resistance as you turn the
handle down through the fully closed position. Make
small adjustments as necessary to achieve a secure
latch.
Pawl
Small Locknut
Stricker Screw
Large
Locknut
Fig. 36 Door Latch Adjustment
ST531
Door Pawl
11/00
30000830
Creosote
Your Intrepid is designed to reduce creosote buildup
significantly. However, regular chimney inspection and
maintenance must still be performed. For safety, good
stove performance, and to protect your chimney and
chimney connector, inspect your chimney and chimney
connector on a regular schedule. Clean the system if
necessary. Failure to keep the chimney and connector
system clean can result in a serious chimney fire.
When wood is burned slowly, it produces tar,
organic vapors and moisture that combine to form
creosote. The creosote vapors condense in the
relatively cool chimney flue. As a result, creosote
residue accumulates on the flue lining. When
ignited, this creosote makes an extremely hot fire
within the flue system that can damage the chimney
and overheat adjacent combustible material.
If you do have a chimney fire, promptly:
• Shut off the air supply by placing the Air
Control lever all the way to the left (LOW).
• Get everyone out of the house.
• Call the Fire Department.
You should inspect the system every two weeks during
the heating season as part of a regular maintenance
schedule. To inspect the chimney, let the stove cool
completely. Then, using a mirror and a strong light,
sight up through the flue collar into the chimney flue. If it
is not possible to inspect the flue system in this fashion,
the stove must be disconnected to provide better viewing access.
If a significant layer of creosote has accumulated
— 1/8” (3 mm) or more — remove it to reduce the risk
of a chimney fire.
Clean the chimney using a brush the same size and
shape as the flue liner. Flexible fiberglass rods are
used to run the brush up and down the liner, causing
any deposits to fall to the bottom of the chimney where
they can be removed through the clean-out door.
The chimney connector should be cleaned by disconnecting the sections, taking them outside, and removing
any deposits with a stiff wire brush. Reinstall the connector sections after cleaning, being sure to secure the
individual sections with sheet metal screws.
Set Screw
Handle Stub
The Chimney System
ST531
If you cannot inspect or clean the chimney yourself,
contact your local Vermont Castings’ Authorized Dealer
or hire a professional chimney sweep.
23
Intrepid 1640 Woodburning Stove
Annual Maintenance
Perform a thorough cleaning, inspection and repair
each Spring, at the end of the heating season.
• Thoroughly clean the chimney and chimney connector.
• Inspect the chimney for damage and deterioration.
Replace weak sections of prefabricated chimney.
Have a mason make repairs to a masonry chimney.
• Inspect the chimney connector and replace any damaged sections.
• Check gasketing for wear or compression, and
replace if necessary. A ‘paper test’ will guide you on
this. Close and lock the door or damper on a slip of
paper and then try to pull the paper out. If the paper
pulls out with little or no resistance, the gasket isn’t
snug enough at that spot. If adjusting the damper or
latch doesn’t result in a seal that makes it hard to pull
the paper out, replace the gasketing.
• Check door handle for tightness. Adjust if needed.
• Check heat shield screws. Tighten as necessary.
• Clean dust from the inner sides of bottom, rear and
connector heat shields.
• Remove ashes from the ash pan and replace with
moisture absorbing material (such as cat litter) to
keep the stove interior dry. Close the stove door to
keep cats from using the litter.
• Touch up the paint on black stoves.
24
30000830
Intrepid 1640 Woodburning Stove
Draft Management
Your stove is only one part of a system that includes the
chimney, the operator, the fuel and the home. The other
parts of the system will affect how well the stove works.
When there is a good match between all the parts, the
stove works well.
Wood stove operation depends on natural (unforced)
draft. Natural draft occurs when exhaust gas is hotter
(and therefore lighter) than the outdoor air at the top
of the chimney. The greater the temperature difference, the stronger the draft. As the hot exhaust gas
rises out of the chimney it generates suction that draws
air into the stove for combustion. A slow, lazy fire with
the stove’s air inlets fully open indicates a weak draft.
A brisk fire, supported only by air entering the stove
through the normal inlets, indicates a good draft. The
inlets are passive; they regulate how much air can enter
the stove, but they do not move air into it.
The efficiency of a modern woodburning appliance,
(in which the amount of air available for combustion is
regulated), depends on the chimney to keep exhaust
gases warm all the way outdoors. The characteristics
of your chimney - whether it is steel or masonry, interior
or exterior, matched or mismatched to the stove collar
- determine how quickly it will warm up and how well
it will sustain the optimum temperatures necessary to
maintain strong draft and efficient combustion. Here follows a description of various flue system characteristics
and related effects on stove performance.
Masonry Chimney
Although masonry is the traditional material used for
chimney construction, it can have distinct performance
disadvantages when used to vent a controlled-combustion woodstove. Masonry forms an effective ‘heat sink’
- that is, it absorbs and holds heat for long periods of
time. The large mass, however, may take a long time to
become hot enough to sustain a strong draft. The larger
the chimney (in total mass), the longer it will take to
warm up. Cold masonry will actually cool exhaust gases
enough to diminish draft strength. This problem is compounded if the chimney is located outside the home or if
the chimney flue has a cross-sectional size larger than
the stove outlet.
Steel Chimney
Most factory-made ‘Class A’ steel chimneys have a
layer of insulation around the inner flue. This insulation
keeps the smoke warm and protects the surrounding
structure from the high flue temperatures. Because the
insulation is less dense than masonry, the inner steel
liner warms up more quickly than a masonry chimney.
Although steel chimneys are not as attractive as their
30000830
masonry counterparts, they are very durable and generally outperform masonry.
Inside/Outside Location
Because the chimney’s function is to keep the smoke
warm, it is best to locate it inside the house. This location uses the house as insulation for the flue and allows
some radiant heat release from the flue into the home.
Since an interior chimney does not continuously lose its
heat to the outdoors, it takes less heat from the stove to
get it warm and keep it warm.
Flue Sizing
The flue size for a controlled-combustion appliance
should be based on the cross-sectional volume of the
stove flue outlet. In this case, more is definitely not
better. Hot gases lose heat through expansion; if a
stove with a six-inch flue collar (28 square inch area)
is vented into a 10” x 10” flue, the gases will expand to
over three times their original volume. As gases cool
with expansion, draft strength decreases. If an oversized flue is also outside the house, the heat it absorbs
will be conducted to the outdoor air and the flue will
remain relatively cool.
It is common for a masonry flue to be oversized for the
stove. Such a chimney can take quite a while to warm
up and the stove performance will likely be disappointing. The best solution to an oversize flue problem is
the installation of an insulated steel chimney liner of
the same diameter as the appliance flue outlet. The
liner keeps the exhaust gas warm and the result is a
stronger draft. An uninsulated liner is a second choice
- although the liner will keep the exhaust restricted to its
original volume, the air around the liner will require time
and heat energy to warm up.
Check your local codes. You may be required to install
a flue liner in any oversize or masonry flue.
Pipe & Chimney Layout
Every bend in the flue will act as a brake on the exhaust
as it flows from the firebox to the chimney cap. The
ideal pipe and chimney layout is straight up from the
stove through a completely straight chimney. Use this
layout if at all possible as it will promote optimum stove
performance and simplify maintenance.
If the stovepipe must elbow to enter a chimney, locate
the elbow about midway between the stove top and
the chimney thimble. This configuration lets the smoke
speed up before it must turn, keeps some pipe in the
room for heat transfer, and allows long-term flexibility
for installing a different appliance without relocating the
thimble.
25
Intrepid 1640 Woodburning Stove
There should be no more than eight feet of single-wall
stove pipe between the stove and a chimney. Longer
runs can cool the smoke enough to cause draft and
creosote problems. Use double-wall stove pipe for
longer runs.
Single Venting
Your stove requires a dedicated flue. Do not connect
the stove to a flue used by any other appliance. Chimney draft is a natural form of energy and follows the
path of least resistance. If the stove is vented to a flue
that also serves an open fireplace or another appliance,
the draft will also pull air in through those avenues. The
additional air flow will lower flue temperatures, reduce
draft strength and promote creosote development; overall stove performance will suffer. The effect is similar
to that of a vacuum cleaner with a hole in the hose. In
some extreme instances, the other appliance can even
impose a negative draft and result in a dangerous draft
reversal.
Fuel
Even the best stove installation will not perform well if
poor fuel is used. I available, always use hardwood that
has been air-dried (‘seasoned’) 12-18 months. Softwood burns more rapidly than hardwood and has a high
resin content conducive to creosote production. Decayed wood of any type has little heat value and should
not be used.
All unseasoned (‘green’) wood has a high moisture content. Much of its heat value will be used to evaporate
moisture before the wood can burn. This significantly
reduces not only the amount of energy available to
warm your home, but also the intensity of the fire and
temperature of the exhaust gas. Incomplete combustion
and cool flue temperatures promote creosote formation
and weak draft.
You can judge the moisture content of wood by its appearance and weight or use a commercially available
moisture meter for an exact measurement. Unseasoned
wood will be a third heavier than dry wood. Also, look
for cracks (‘checking’) in the ends of the log that result
from contraction as the wood dries. The longer and
wider the cracks, the dryer the wood is.
Purchase your fuel from a reputable dealer.
26
Creosote
Creosote is a by-product of low-temperature stove
operations, weak draft or both. It is a tar that results
when unburned gases condense inside the flue system at temperatures below 290°F. Creosote is volatile
and can generate chimney fire. All of the installation
characteristics that adversely affect chimney draft also
promote creosote condensation. Consequently, you can
minimize creosote accumulation with an effective chimney design and the use of operational techniques that
encourage good draft and complete combustion.
Backpuffing
Backpuffing is a condition that results when the draft is
too weak to pull flue gases out of the chimney system
as fast as the fire is generating more. Volatile gases
build up within the firebox until reaching a density and
temperature at which they ignite. With this ignition, you
may hear a muffled popping sound and see a bit of
smoke forced out of the air inlets.
This condition is most likely to occur in the spring or fall
when moderate outdoor temperatures and low intensity fires combine to inhibit draft strength. If your stove
backpuffs, open the damper to let the smoke rise to the
flue more quickly. Also, open the air inlets to induce a
livelier fire and speed airflow through the stove. Avoid
large loads of firewood at one time. You should always
see lively, dancing flames in the firebox; a lazy, smoky
fire is inefficient and will promote draft problems.
Draft Testing
An easy way to determine whether your chimney draft
is strong enough is to close the stove damper, wait a
few minutes to let the airflow stabilize, and then test
whether you can vary the strength of the fire by swinging the air control open and closed. Results here are
not always instant; you may need to wait a few minutes
for a change in the air control setting to have an effect on the fire. If there is no change, the draft is not
yet strong enough to let you close the damper. You will
need to open it for awhile longer and manage the fire
with the air inlet until the draft strengthens. Keep a record of your operational habits and relate them to their
effects on the stove’s function. You will be rewarded
with safe and efficient performance.
30000830
Intrepid 1640 Woodburning Stove
Negative Pressure
Good draft also depends on a sufficient supply of air
to the stove. The chimney cannot pull more air than is
available. Sluggish draft can be caused by a house that
is tight enough to prevent the ready flow of air to the
stove, or by competition between the stove and other
appliances that vent indoor air to the outside; i.e., exhaust fans for range hoods, clothes dryers, bathroom,
etc. If the chimney draws well when all such equipment
is turned off (or sealed, in the case of the fireplaces
and/or other stoves), you simply need to be attentive in
timing the use of the other appliances. If you need to
crack a nearby window or door to enable the chimney
to pull well, you should install an outside-air intake to
bring combustion air directly to the stove. Consult your
Vermont Castings dealer regarding an adapter to attach
to the stove to connect an air duct for outdoor combustion air.
Conclusion
Woodburning is more an art than a science. Art includes technique and since installations, homes and
fuel vary, the stove operator must also vary technique,
(mostly timing), to achieve satisfying results. Over
time, you will become familiar with the intricacies and
nuances of your particular installation and you will be
able to identify cause and effect in a variety of seasonal
circumstances.
30000830
27
Intrepid 1640 Woodburning Stove
68
1
70
30
61
66
55
67
56
69
65 26
6
65
2
2
11
7
3
9
35
35
34
25
33
34
65
23
39
38
48
47
32
33 65
29
52
51
15
37
24
28
31
21
59
28
34
8
35
7
65
3
2
65
31
10
31
65
65
1
16
4
60
2
17
26
60
13
65
60
65
63
58
32
60
60
62
54
57
5
27
64
65
37
22
54
75 14
36
53
43
44
65
2
72
73 42
54
65
74
49
13
18
12
45
52
47
41
46
51
54
20
53
19
38
50
40
0830
CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products
at any time, without notice.
Intrepid NC Woodburning Stove
0830
Intrepid NC
parts
8/02
Model 1640
Item Description
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
28
Top
Hex Nut, 1/4-20 (5)
Right Side
Secondary Air Manifold, Right
Left Side
Secondary Air Manifold, Left
1/4-20 x 2 1/4, CS Hex Hd Screw (2)
Secondary Air Tube, #A
Secondary Air Tube, #B
Secondary Air Tube, #C
#6-5/8 CS Socket Hd, SS Screw (3)
Bottom
1/4-20x1” CS Hex Hd, Blk Screw (2)
Ashpan Assembly
Shelf, Bottom
Part Number
See Chart Pg. 29
1203210
See Chart Pg. 29
30000819
See Chart Pg. 29
30000820
1201403
30000825
30000898
30000805
30000975
See Chart Pg. 29
1201376
30000966
30000823
Item Description
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
Part Number
Back
30000821
Smokeshelf
30000822
Leg (Single)
See Chart Pg. 29
Leg Bolt, 3/8”-16x1” hex Bolt (4)
1201432
3/8” Flat Washer (4)
1202488
Primary Air Manifold, Right
30000836
Primary Air Manifold, Left
30000837
Front Air Manifold, Right
30000838
Front Air Manifold, Left
30000839
1/4-20x3/4” CS Hex Hd, Blk Screw
1201374
Secondary Air Cover (2)
30000869
1/4-20 x 3/4”, Blk Flat Hd Phillips Screw 1200881
Grate, Ash (2)
30000856
Grate, Lip
30000807
Flue Collar
See Chart Pg. 29
30000830
Intrepid 1640 Woodburning Stove
Intrepid NC Woodburning Stove
Model 1640 (continued)
Item Description
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
Part Number
Item Description
Firebrick, Sides and Back (5)
30000969
Firebrick, Upper (3) and Mid. Bottom (1) 1601103
Firebrick, Bottom - Left & Right (2)
30000971
Brick Bracket (3)
30000986
1/4-20 x 1/4” Phillips Flt Hd Screw Blk (3) 1200897
Front
See Chart Pg. 29
1/4-20x1” Flat Hd Philips, Blk Screw (2) 1200815
5/16” Fiberglass Gasket, Doors (5 ft.)
1203588
Right Door
See Chart Pg. 29
Left Door
See Chart Pg. 29
Ceramic Handle Assembly
0004342
Door Pawl Assembly
5004025
Nut, Hex Jam, 3/8-16
1203290
1/4-20x3/4” Rnd Hd Phillip Screw Blk
1200461
Handle Holder
1600600
1201294
Handle Bolt, 1/4-20x 3³⁄₈”
Gasket, Fiberglas 3/16” 4nd, Blk
1203556
Glass Panel, Right2
1401156
1401157
Glass Panel, Left2
Hinge Pin, Door (4)
1600535
Side Glass Clip (2)
30000833
Corner Glass Clips (2)
30000834
Bottom Glass Clips (2)
30000832
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
72.
73.
74.
75.
76.
Part Number
Truss Hd, PH 10-24 x 1/2-Z (10)
1200998
1601755
Spacer, HS 1¹⁄₄” (3)
Primary Air Rod
30000892
Hex Nut, 1/4-20 Flex Lock
1203213
Primary Air Flap
30000827
1/4-20x5/8" Black Hex Screw (2)
1201372
Rod, Threaded Ends (5)
1204214
1/4-20x3/4" Rnd Hd Phillip Screw Ni (2) 1200901
Ball Chain, #6
1201960
Jump Ring
1201985
Ball Chain Fitting
1201972
1/4 Flat Washer, 7/8” O.D. (13)
1202470
10-24x3/8" Rnd Hd Sltd Screw, Black (6) 1200985
Gasket- Flue Collar , 5/16” Self-adhesive 1203591
Flue Collar Heat Shield
30000863
Rear Convection Shroud
30000826
#10 x 1/2” Blk Phillips Sheetmetal Screw (2)1202058
Faucet Stub Chrome w/Shaft
5004245
Ashpan Front
1306493
Ashpan Handle
30000973
Ashpan Only
30000966
Pan Hd, P 10-24 x 3/8-Z (1)
1200983
Shell Enamel Parts - Intrepid NC Model 1640
Part Name
Top
Bottom
Left Side
Right Side
Flue Collar
Front
Left Door
Right Door
Single Leg
Classic
30000824
30000855
30000854
30000853
1306561
30000852
1308649
1308648
1306333
Green
30000955
30000959
30000958
30000957
2316561
30000956
2318649
2318648
2316333
Moonlight
30001411
30001407
30001409
30001408
2376561
30001410
2378649
2378648
2376333
Notes:
1. In this diagram and throughout this manual, ‘left’ and
‘right’ mean as you face the stove.
2. Use only Vermont Castings Glass Panels for replacement.
3. Part numbers for cast iron parts in this diagram are for
‘Classic’ (Black painted) stoves. When ordering enamelled parts, be sure to specify color.
4. Hardware in this stove is instandard U.S. (inch) sizes.
Most fastener items are available at local hardware
stores.
30000830
Sand
30000945
30000949
30000948
30000947
1326561
30000946
1328648
1328648
1326333
Red
30000940
30000944
30000943
30000942
2326561
30000641
2328649
2328648
2326333
Blue
30000950
30000954
30000953
30000952
1336561
30000951
1338649
1338648
1336333
Suede
Brown
30002507
30002501
30002503
30002502
30002508
30002504
30002506
30002505
30002509
Maintenance Kits available from your dealer:
#1884 Gasket Kit
#3427 Glass Door Gasket Kit
To learn the name of the dealer nearest you, call or write:
CFM Specialty Home Products
475 Admiral Blvd.
Mississauga, Ontario L5T 2N1
800 525-1898
29
Intrepid 1640 Woodburning Stove
30
30000830
Warranty
Limited 3 Year Warranty
CFM Specialty Home Products warrants that this woodburning stove will
be free of defects in material and workmanship for a period of three years
from the date you receive it, except that the catalyst, thermostat assembly,
handles, glass door panels, cement, and gasketing shall be warranted as
described below.
CFM Specialty Home Products will repair or replace, at its option,
any part found to be defective upon inspection by a Vermont Castings,
Authorized Dealer. The customer must return the defective part or the
stove, with shipping prepaid, to the Authorized Dealer or pay for any
Authorized Dealer in-home travel fees or service charges for in-home
repair work. It is the dealer’s option whether the repair work will be
done in the customer’s home or in the dealer’s shop. If, upon inspection, the damage is found to be the fault of the manufacturer, repairs will
be authorized at no charge to the customer for parts and/or labor.
Any woodburning stove or part thereof that is repaired or replaced during the limited warranty period will be warranted under the
terms of the limited warranty for a period not to exceed the remaining
term of the original limited warranty or six (6) months, whichever is
longer.
Limited 1 Year Warranty
The following parts of the woodburning stove are warranted to be free
of defects in material and workmanship for a period of one year from
the date you receive it: The thermostat assembly, handles, glass door
panels, cement, and gasketing. Any of these items found to be defective will be repaired or replaced at no charge, upon the return of the part
with postage prepaid to a Vermont Castings Authorized Dealer.
Any part repaired or replaced during the limited warranty period
will be warranted under the terms of the limited warranty for a period not
to exceed the remaining term of the original limited warranty or six (6)
months, whichever is longer.
Limited Catalyst Warranty
The catalyst will be warranted for a six year period as follows: If the
original catalyst or a replacement catalyst proves defective or ceases to
maintain 70% of its particulate emission reduction activity (as measured
by an approved testing procedure) within 24 months from the date the
stove is received, the catalyst itself will be replaced free.
From 25 - 72 months a pro-rated credit will be allowed against a
replacement catalyst and the cost of labor necessary for its installation
at the time of replacement.
For stove purchases made after June 30, 1990, a third year
(25 - 36 months) of no charge replacement will be made when combustor failure is due to thermal degradation of the substrate (crumbling of
ceramic material). The customer must pay for any in-home travel fees,
service charges, or transportation costs for returning the stove to the
Authorized Dealer.
Amount of Time
Credit Towards
Since Purchase
Replacement Cost
0 - 24 months
100%
25 - 36 months
50 %
37 - 48 months
30%
49 - 60 months
20%
61 - 72 months
10%
Any replacement catalyst will be warranted under the terms of the
catalyst warranty for the remaining term of the original warranty. The
purchaser must provide the following information in order to receive a
replacement catalyst under the terms of this limited warranty:
1. Name, address and telephone number.
2. Proof of original purchase date.
3. Date of failure of catalyst.
4. Any relevant information or circumstances regarding determination of failure.
5. In addition, the owner must return the failed catalyst.
30000830
Intrepid 1640 Woodburning Stove
Exclusions & Limitations
1. This warranty is transferable; however, proof of original retail
purchase is required.
2. This warranty does not cover misuse of the stove. Misuse
includes overfiring which will result if the stove is used in such a manner
as to cause one or more of the plates to glow red. Overfiring can be
identified later by warped plates and areas where the paint pigment
has burned off. Overfiring in enamel fireplaces is identified by bubbling, cracking, chipping and discoloration of the porcelain enamel
finish. CFM Specialty Home Products offers no warranty on chipping of
enamel surfaces. Inspect your woodburning stove prior to accepting it
for any damage to the enamel.
3. This warranty does not cover misuse of the stove as described in
the Owner’s Guide, nor does it cover an stove which has been modified
unless authorized by a CFM Specialty Home Products representative in
writing. This warranty does not cover damage to the stove caused by
burning salt saturated wood, chemically treated wood, or any fuel not
recommended in the Owner’s Guide.
4. This warranty does not cover a stove repaired by someone other
than a Vermont Castings Authorized Dealer.
5. Damage to the unit while in transit is not covered by this warranty
but is subject to a claim against the common carrier. Contact Vermont
Castings Authorized Dealer from whom you purchased your stove or
CFM Specialty Home Products if the purchase was direct. (Do not
operate the stove as this may negate the ability to process the claim
with the carrier.)
6. Claims are not valid where the installation does not conform to local building and fire codes or, in their absence, to the recommendations
in our Owner’s Guide.
7. The salt air environment of coastal areas, or a high-humidity
environment, can be corrosive to the porcelain enamel finish. These
conditions can cause rusting of the cast iron beneath the porcelain
enamel finish, which will cause the porcelain enamel finish to flake off.
This warranty does not cover damage caused by a salt air or high-humidity environment.
8. CFM Specialty Home Products shall have no obligation to enhance or update any unit once manufactured.
IN NO EVENT SHALL CFM SPECIALTY HOME PRODUCTS BE
LIABLE FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES. ALL
IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS, ARE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. THIS WARRANTY SUPERCEDES ALL OTHER ORAL OR WRITTEN WARRANTIES.
Some states do not allow the exclusion or limitations of incidential and consequential damages or limitations on how long an implied
warranty lasts, so the above limitations may not apply to you. This warranty gives you specific rights and you may have other rights which vary
from state to state.
How to Obtain Service
If a defect is noted within the warranty period, the customer should
contact a Vermont Castings Authorized Dealer or CFM Specialty Home
Products if the purchase was direct with the following information:
1. Name, address, and telephone number of the purchaser.
2. Date of purchase.
3. Serial number from the label on the back.
4. Nature of the defect or damage.
5. Any relevant information or circumstances, e.g., installation,
mode of operation when defect was noted.
A warranty claim will then start in process. CFM Specialty Home Products reserves the right to withhold final approval of a warranty claim
pending a visual inspection of the defect by authorized representatives.
31
CFM Specialty Home Products
410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com
© CFM Specialty Home Products
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
