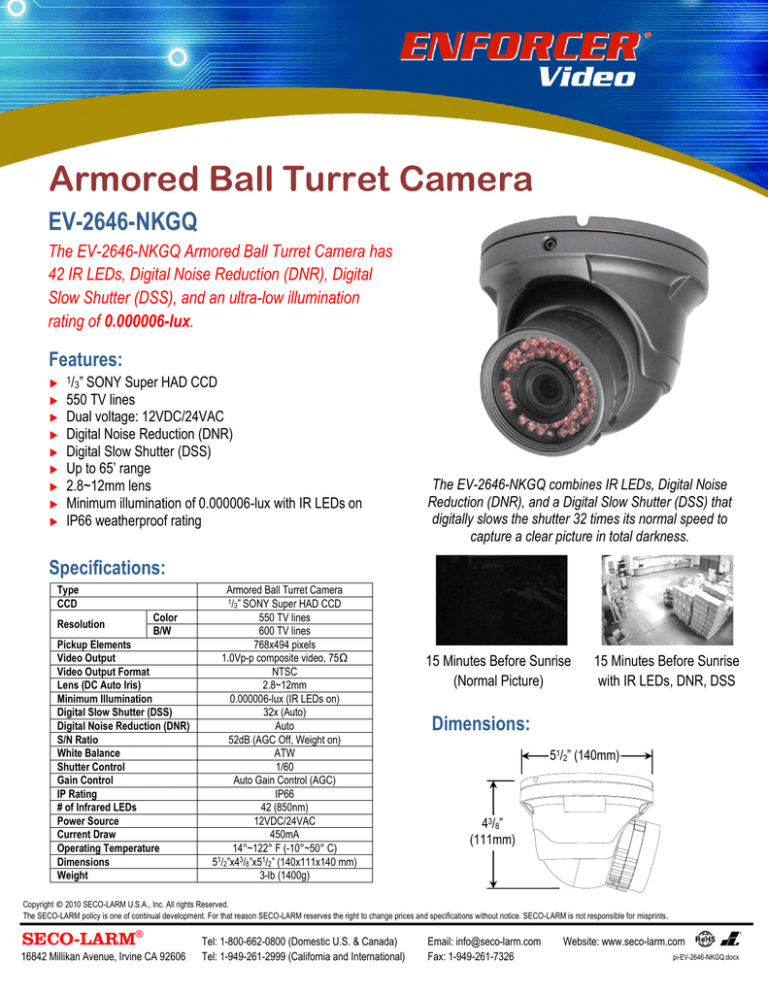

Armored Ball Turret Camera
EV-2646-NKGQ
The EV-2646-NKGQ Armored Ball Turret Camera has
42 IR LEDs, Digital Noise Reduction (DNR), Digital
Slow Shutter (DSS), and an ultra-low illumination
rating of 0.000006-lux.
Features:
 1 /3 ”








SONY Super HAD CCD
550 TV lines
Dual voltage: 12VDC/24VAC
Digital Noise Reduction (DNR)
Digital Slow Shutter (DSS)
Up to 65’ range
2.8~12mm lens
Minimum illumination of 0.000006-lux with IR LEDs on
IP66 weatherproof rating
The EV-2646-NKGQ combines IR LEDs, Digital Noise
Reduction (DNR), and a Digital Slow Shutter (DSS) that
digitally slows the shutter 32 times its normal speed to
capture a clear picture in total darkness.
Specifications:
Type
CCD
Resolution
Color
B/W
Pickup Elements
Video Output
Video Output Format
Lens (DC Auto Iris)
Minimum Illumination
Digital Slow Shutter (DSS)
Digital Noise Reduction (DNR)
S/N Ratio
White Balance
Shutter Control
Gain Control
IP Rating
# of Infrared LEDs
Power Source
Current Draw
Operating Temperature
Dimensions
Weight
Armored Ball Turret Camera
1/3” SONY Super HAD CCD
550 TV lines
600 TV lines
768x494 pixels
1.0Vp-p composite video, 75Ω
NTSC
2.8~12mm
0.000006-lux (IR LEDs on)
32x (Auto)
Auto
52dB (AGC Off, Weight on)
ATW
1/60
Auto Gain Control (AGC)
IP66
42 (850nm)
12VDC/24VAC
450mA
14°~122° F (-10°~50° C)
51/2”x43/8”x51/2” (140x111x140 mm)
3-lb (1400g)
15 Minutes Before Sunrise
(Normal Picture)
15 Minutes Before Sunrise
with IR LEDs, DNR, DSS
Dimensions:
51/2” (140mm)
43/8”
(111mm)
Copyright © 2010 SECO-LARM U.S.A., Inc. All rights Reserved.
The SECO-LARM policy is one of continual development. For that reason SECO-LARM reserves the right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
SECO-LARM®
16842 Millikan Avenue, Irvine CA 92606
Tel: 1-800-662-0800 (Domestic U.S. & Canada)
Tel: 1-949-261-2999 (California and International)
Email: [email protected]
Fax: 1-949-261-7326
Website: www.seco-larm.com
pi-EV-2646-NKGQ.docx
