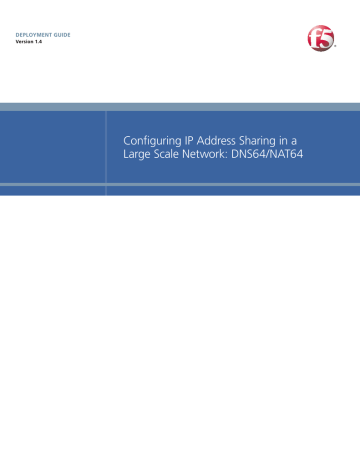

DEPLOYMENT GUIDE
Version 1.4
Configuring IP Address Sharing in a
Large Scale Network: DNS64/NAT64
Table of Contents
Table of Contents
Configuring IP address sharing in a large scale network ........................................................... 1
Product versions and revision history ................................................................................. 1
Configuring the BIG-IP LTM for the private IPv4 network ...................................................... 2
Creating the SNAT Pool ......................................................................................................... 2
Supporting NAT with active FTP mode (optional) ........................................................... 5
Configuring the BIG-IP LTM for global IPv6 with DNS64 and NAT64 ................................. 7
Configuring the BIG-IP LTM for DNS64 ............................................................................. 8
Configuring the BIG-IP LTM for NAT64 ........................................................................... 12
Creating the IPv6 network virtual server ......................................................................... 14
Supporting NAT with active FTP mode (optional) ......................................................... 14
i
Configuring IP address sharing in a large scale
network
Welcome to the F5 deployment guide for configuring IP address sharing in a
large scale network. This document details how to configure the BIG-IP
Local Traffic Manager (LTM) to address the looming IPv4 global address
depletion dilemma, as well as for large organizations who want to deploy a
large IPv4 private network or global IPv6 network internally.
While there are a number of possible ways to configure F5 devices to
address these issues, this document focuses on two solutions that are
straightforward and easy to implement. This guide is broken up into the
following sections that give step-by-step guidance on how to configure the
BIG-IP LTM for these solutions:
◆
Configuring the BIG-IP LTM for the private IPv4 network, on page 2
◆
Configuring the BIG-IP LTM for global IPv6 with DNS64 and NAT64,
on page 7
For more information on the BIG-IP LTM, see
www.f5.com/products/big-ip/product-modules/local-traffic-manager.html.
Product versions and revision history
Product and versions tested for this deployment guide:
Product Tested
Version Tested
BIG-IP System
10.1
Revision history:
1
Document Version
Description
1.0
New deployment guide
1.1
Updated the full version of the iRule linked to on
page 10 to properly rewrite the DNS compression
pointer for the NS record's RDATA.
1.2
- Changed the virtual server Type to Performance
(Layer 4) for the NAT64 virtual server on page 14. 
- Added guidance for Address translation and Port
translation on the same virtual server.
- Added a note about configuring an IPv4 Default
Gateway for NAT64.
1.3
Removed the wildcard virtual server for outbound
DNS traffic on page 13, as it was unnecesary.
1.4
Corrected the description of the iRule to choose a
SNAT address (optional) on page 3.
Configuring IP Address Sharing in a Large Scale Network
Configuring the BIG-IP LTM for the private IPv4
network
It is well-known that private IP addresses (defined per RFC1918) have been
used by most enterprises, some small service providers and mobile
operators. The same private space could also be used to help overcome
global IPv4 depletion.
In this scenario, the BIG-IP LTM acts as a gateway device that translates
clients' private addresses to a set of global IPv4 addresses. This requires a
wildcard forwarding virtual server with SNAT pool on the BIG-IP LTM.
Creating the SNAT Pool
In this procedure, we configure a SNAT pool. A secure network address
translation (SNAT) translates the source IP address within a connection to a
BIG-IP system IP address that you define. A SNAT pool is a group of these
IP addresses.
Popular websites with heavy traffic (such as Google and Facebook) may
require more SNAT addresses than typical websites. To estimate number of
SNAT address you need for these high-traffic sites, you must have a number
of SNAT addresses larger than the maximum number of concurrent
connections per destination IP address divided by 64,000 (Number of SNAT
address > (maximum concurrent connections per destination IP address /
64,000)).
For example, if the destination IP address has 250,000 maximum concurrent
connections, you would need 4 SNAT addresses in the SNAT pool
(250,000/64,000 = 3.906). You want to make sure you have enough SNAT
addresses to cover the site with the highest expected traffic.
Tip
It is outside the scope of this document to show you how to determine the
number of concurrent connections, we recommend you use an appropriate
monitoring tool. You could also use the BIG-IP LTM to determine
concurrent connections by creating a virtual server that has a destination
that matches the website you want to monitor. Then view the virtual server
statistics to view the number of connections. 
Another indicator is if any of the log messages in /var/log/ltm mention port
exhaustion.
For more information, see the BIG-IP LTM documentation.
For more information on SNAT pools, see the Configuring SNATs chapter
in the Configuration Guide for Local Traffic Management.
To create the SNAT pool
1. On the Main tab, expand Local Traffic, and then click SNATs.
2. On the Menu Bar, click SNAT Pool List.
F5® Deployment Guide
2
3. Click the Create button.
4. In the Name box, type a name for this SNAT pool. In our example,
we type LSN-snat-pool.
5. In the IP Address box, type an otherwise unused IP address, and
click the Add button.
Repeat this step for each additional address needed, from your
calculation above.
6. Click Finished.
Figure 1 SNAT pool configuration
Using an iRule to choose a SNAT address (optional)
You can optionally define an iRule on the BIG-IP system that selects a
specific SNAT address. By default, the BIG-IP LTM picks address from the
SNAT pool in a round-robin fashion. Some applications or websites may
use multiple connections (or even multiple destinations) per session, and the
application may break if the client accesses from a different source IP. The
following simple iRule can be used to ensure client always uses the same
SNAT address.
This iRule picks a SNAT address related to the last octet of the client IP
address. For example, if the client address is 172.16.33.57, the BIG-IP
system uses the SNAT address 10.10.10.58 (notice the last octet is one
higher). This simple example assumes there are 64 SNAT addresses from
10.10.10.1 through 10.10.10.64.
To create the iRule
1. On the Main tab, expand Local Traffic, and then click iRules.
2. Click the Create button.
3. In the Name box, type a name. We type snat-pool-irule.
3
Configuring IP Address Sharing in a Large Scale Network
4. In the Definition section, copy and paste the following iRule:
1
when CLIENT_ACCEPTED {
snat 10.10.10.[expr ( [getfield [IP::client_addr] "." 4] % 64 ) + 1 ]
2
3
}
5. Click Finished.
Note
This SNAT iRule overwrites the SNAT setting from the virtual server.
Creating the wildcard virtual server
The next task it to configure a wildcard virtual server that contains the
SNAT pool you created.
By default, this wildcard virtual server is enabled on all VLANs. As an
optional step for added security, you can lock down the virtual server to
specific VLANs in step 11.
To create the wildcard virtual server
1. On the Main tab, expand Local Traffic, and then click Virtual
Servers.
2. Click the Create button.
3. In the Name box, type a name. We type LSN_wildcard.
4. In the Destination row, click the Network option button.
5. In the Address box, type 0.0.0.0.
6. In the Mask box, type 0.0.0.0.
7. In the Service Port box, type * or select *All Ports from the list.
8. From the Configuration list, select Advanced.
9. From the Type list, select Forwarding (IP).
10. From the Protocol list, select *All Protocols.
11. Optional: From the VLAN and Tunnel Traffic (or VLAN Traffic
in some versions) list, select Enabled on. 
From the Available list, select the appropriate VLANs and then
click the Add (<<) button.
12. From the SNAT Pool list, select the SNAT Pool you created in
Creating the SNAT Pool. In our example, we select lns-snat-pool.
F5® Deployment Guide
4
13. Optional: If you created the iRule in Using an iRule to choose a
SNAT address (optional), in the Resources section, from the iRule
Available list, select the iRule you created and click the Add (<<)
button.
14. Click Finished.
Figure 2 Wildcard virtual server configuration (truncated)
Note
Because this is a forwarding virtual server, the BIG-IP system forwards
traffic based on routing. You may need to configure a default gateway on the
BIG-IP LTM. See the online help or BIG-IP documentation for more
information.
Supporting NAT with active FTP mode (optional)
To support active mode FTP traffic from clients, you need to configure an
additional wildcard virtual server and apply an FTP profile to it. We create
this virtual server so the BIG-IP system can detect the ephemeral data port
which the client opens, and rewrite it to the SNAT address/available
5
Configuring IP Address Sharing in a Large Scale Network
ephemeral port. The BIG-IP system also listens on the address/port (that it
rewrites) and translates it to the actual address/port to which the client is
listening.
The first task in this section is to create a FTP profile.
To create the FTP profile
1. On the Main tab, expand Local Traffic, and then click Profiles.
The HTTP Profiles screen opens.
2. On the Menu bar, from the Services menu, click FTP.
3. Click the Create button.
4. In the Name box, type a name. In our example, we type LSN-ftp.
5. Configure any of the settings as applicable for your configuration.
In our example, we leave the defaults.
6. Click Finished.
Next we create the virtual server.
To create the wildcard virtual server
1. On the Main tab, expand Local Traffic, and then click Virtual
Servers.
2. Click the Create button.
3. In the Name box, type a name. We type FTP_wildcard.
4. In the Destination row, click the Network option button.
5. In the Address box, type 0.0.0.0.
6. In the Mask box, type 0.0.0.0.
7. In the Service Port box, type 21 or select FTP from the list.
8. Leave the Type list set to Standard.
9. From the FTP Profile list, select profile you created in the
preceding procedure. In our example, we select LSN-ftp.
10. Optional: From the VLAN and Tunnel Traffic (or VLAN Traffic
in some versions) list, select Enabled on. 
From the Available list, select the appropriate VLANs and then
click the Add (<<) button.
11. From the SNAT Pool list, select the SNAT Pool you created in
Creating the SNAT Pool. In our example, we select LNS-snat-pool.
12. Click Finished.
This concludes the BIG-IP LTM configuration for the private IPv4 network.
F5® Deployment Guide
6
Configuring the BIG-IP LTM for global IPv6 with
DNS64 and NAT64
In this section, we configure the BIG-IP LTM for global IPv6 with DNS64
and NAT64.
With this solution, clients are in IPv6 network, and the BIG-IP system
should be on both the IPv6 and IPv4 networks (see Figure 3).
NAT64
IPv6 client
1. Client sends a DNS query:
www.server.com
v6
Virtual
Server
4. Client sends traffic to the
AAAA address.
Forwarding/
Mapping
VS
5. BIG-IP LTM transforms IPv6 address
to IPv4 addresses for outgoing
6. BIG-IP LTM maps and transforms
IPv4 addresses to IPv6 for
return traffic
IPv4
Internet/Network
2. BIG-IP LTM sends AAAA
and A Queries to DNS
www.server.com (AAAA)
www.server.com (A)
DNS Servers
3a. If a valid AAAA answer
is received, an AAAA
record is returned to the client.
3b. If no valid AAAA answer is returned from
the server and there is an A answer, the BIG-IP
LTM adds a 96 bit prefix to the A record, converts
A to an AAAA record, and then returns the
AAAA record to the client
DNS64
Figure 3 Logical configuration example and flow
For this solution, the BIG-IP system should be on both IPv6 and IPv4
network as shown.
Note
The IPv6 network may or may not connect to the global IPv6 network. Also,
IPv6 clients maybe able to access full or parts of the global IPv6 network.
When a client initiates access the Internet, the process typically begins by
sending a DNS request for the IP address of the destination they are trying to
access. The DNS requests can take one of two forms:
◆
IPv6
The DNS query from an IPv6 client is called an AAAA query. The client
uses the AAAA query to request an IPv6 address that is associated with
the name.
◆
IPv4
The DNS query from an IPv4 client is called an A query. The client uses
the A query to request an IPv4 address that is associated with the name.
See RFC3596 for more information: http://www.ietf.org/rfc/rfc3596.txt.
7
Configuring IP Address Sharing in a Large Scale Network
Important
You must configure the client or the network so that the DNS requests are
routed to BIG-IP. Consult the appropriate documentation.
Once the BIG-IP receives an AAAA DNS query, it forwards it to the DNS
server. If the DNS server returns the AAAA answer with the associated IPv6
address record, the BIG-IP system forwards the answer back to the IPv6
client.
If the server responds that there is no IPv6 address associated to this name,
BIG-IP issues another DNS query, but this time an A query.
If the DNS server returns an A answer that there is no IPv4 address
associated with this name, the BIG-IP transforms the A answer to an AAAA
answer and forwards it to the IPv6 client.
If the DNS server returns an A answer with an associated IPv4 address
record, the BIG-IP creates the IPv6 address record from the IPv4 address
record, transforms the A answer to an AAAA answer, including the
synthesized IPv6 address, and sends it back to IPv6 client.
The easiest way to create an IPv6 address from an IPv4 address is to put a
96-bit prefix in front of the 32-bit IPv4 address (IPv6 addresses contain 128
bits). The 96-bit prefix could be an unused routable /96 IPv6 subnet. 
Important: The traffic destined to this /96 IPv6 subnet must be routed to
BIG-IP system.
You can also find recommendations regarding /96 bit prefixes from the
following IETF dns64 draft document:
https://datatracker.ietf.org/doc/draft-ietf-behave-dns64/.
This section is divided into two parts: Configuring the BIG-IP LTM for
DNS64, and Configuring the BIG-IP LTM for NAT64, on page 12.
Configuring the BIG-IP LTM for DNS64
In this section, we configure the BIG-IP LTM for DNS64.
Important
This configuration assumes the DNS servers have connectivity to the
Internet.
Creating a DNS health monitor
In the following procedure, we use the DNS Application Template to create
the DNS health monitor. The DNS Application Template is only available in
BIG-IP LTM versions 10.2 and later.
To run the generic DNS application template
1. Verify that your current administrative partition is set to Common.
The Partition list is in the upper right corner.
F5® Deployment Guide
8
2. On the Main tab, expand Templates and Wizards, and then click
Templates. The Templates screen opens.
3. In the Application column, click Generic DNS.
4. In the Virtual Server Questions section, complete the following:
a) You can type a unique prefix for the DNS objects this template
creates. In our example, we leave this setting at the default,
my_DNS_.
b) Select Yes from the list asking if you only want the template to
configure the monitor.
5. In the Monitor Questions section, complete the following:
a) From the Record type list, select the record type you want to use
to test the DNS servers. In our example, we leave this at the
default A.
b) Type the host name you want to send the DNS server for this
monitor. In our example, we type www.example.com.
c) Type IP address you expect to receive from the DNS server from
the host name in step b. In our example, we type 192.0.2.50.
6. Click the Finished button.
Figure 4 DNS monitor configuration
Creating the DNS pool
Next, we create the load balancing pool that contains the DNS servers. The
servers can have IPv4 or IPv6 addresses.
9
Configuring IP Address Sharing in a Large Scale Network
To create the pool
1. On the Main tab, expand Local Traffic, and then click Pools.
2. Click the Create button. The New Pool screen opens.
3. In the Name box, type a name for your pool. We type DNS-pool.
4. In the Health Monitors section, select the name of the monitor that
was created by the template in Creating a DNS health monitor (or
the transparent monitor if you created one), and click the Add (<<)
button. In our example, we select my_DNS__monitor.
5. From the Load Balancing Method list, choose your preferred load
balancing method (different load balancing methods may yield
optimal results for a particular network).
In our example, we select Least Connections (member).
6. In this pool, we leave the Priority Group Activation Disabled.
7. In the New Members section, select the New Address option.
8. In the Address box, add the first DNS server to the pool. In our
example, we type 10.132.81.100.
9. In the Service Port box, type 53.
10. Click the Add button to add the member to the list.
11. Repeat steps 8-10 for each server you want to add to the pool. 
In our example, we repeat these steps four times for the remaining
servers, 10.132.81.101 - .104.
12. Click the Finished button.
Creating the iRule
The next task is to create an iRule for the DNS traffic. There are two options
for this iRule, choose the version appropriate for your configuration. For
convenience, the iRule code is available in downloadable text files.
◆
Simple version
This version of the iRule assumes the IPv6 client does not have a route to
any global IPv6 network (IPv6 Internet). In this case, the AAAA query is
transformed to an A query.
Download:
http://www.f5.com/solutions/resources/deployment-guides/files/dns64_simple.txt
◆
Full version
This is the complete version of the iRule that sends out an AAAA query
first before sending an A query.
Download:
http://www.f5.com/solutions/resources/deployment-guides/files/dns64_full.txt
Be sure to download the appropriate iRule before performing the following
procedure.
F5® Deployment Guide
10
To create the iRule
1. On the Main tab, expand Local Traffic, and then click iRules.
2. Click the Create button.
3. In the Name box, type a name. We type DNS64-irule.
4. In the Definition section, copy and paste the iRule you downloaded:
5. Important: Locate the following lines in the iRule, and change the
96-bit prefix to a prefix applicable to your configuration:
when RULE_INIT {
set static::prefix "200201230000000000000000"
}
6. Click Finished.
Creating a SNAT pool
The next task is to create a SNAT Pool. To create the SNAT pool, use the
procedure Creating the SNAT Pool, on page 2.
Creating the virtual server
The next task is to create the virtual server. For this virtual server,
configuring a SNAT pool is optional. If your configuration requires a SNAT
pool, before configuring this virtual server, see Creating the SNAT Pool, on
page 2 before configuring this virtual server.
To create the virtual server
1. On the Main tab, expand Local Traffic, and then click Virtual
Servers. The Virtual Servers screen opens.
2. Click the Create button. The New Virtual Server screen opens.
3. In the Name box, type a name for this virtual server. In our
example, we type dns-virtual.
4. In the Destination section, select the Host option button.
5. In the Address box, type the IP address of this virtual server. In our
example, we use 2001:0db8:85a3:08d3:1319:8a2e:0370:7334.
6. In the Service Port box, type 53.
7. From the Configuration list, select Advanced.
8. From the Protocol list, select UDP (see Figure 5).
11
Configuring IP Address Sharing in a Large Scale Network
Figure 5 IPv6 virtual server configuration (truncated)
9. Optional: From the SNAT Pool list, select the SNAT Pool you
created in Creating a SNAT pool. In our example, we select
lns-SNAT-pool.
10. Optional: From the VLAN and Tunnel Traffic (or VLAN Traffic
in some versions) list, select Enabled on. 
From the Available list, select the appropriate VLANs and then
click the Add (<<) button.
11. In the Resources section, from the iRule Available list, select the
iRule you created in Creating the iRule, on page 10 and click the
Add (<<) button.
12. From the Default Pool list, select the pool you created in Creating
the DNS pool, on page 9.
13. Click the Finished button.
Configuring the BIG-IP LTM for NAT64
In this section, we configure the BIG-IP system for NAT64. NAT64 is a
common solution put in place to overcome IPv4 depletion. NAT64 is simply
a NAT, but it is actually NAT’ing all IPv4 addresses to an IPv6 subnet (with
a /96 mask).
Note
Your BIG-IP LTM must have an IPv4 Default Gateway that allows the LTM
to reach any address behind it. In our example, we would have an IPv4
Default Gateway of 192.0.2.254. For information on configuring a Default
Gateway on the BIG-IP LTM, see the BIG-IP LTM documentation. You can
also see the online help (on the Main tab, expand Network, click Routes,
click the Add button, and then click the Help tab).
F5® Deployment Guide
12
Creating a SNAT pool
The first task is to create a SNAT Pool. To create the SNAT pool, use the
procedure Creating the SNAT Pool, on page 2.
Creating the translation iRule
The BIG-IP system acts as a gateway between the IPv6 and IPv4 networks.
When IPv6 clients send out a packet, the BIG-IP translates both source IP
and destination IP; the source IP translation is handled by the SNAT pool,
and the destination IP address translation is handled by the following iRule.
This iRule takes the last 32 bits from IPv6 destination address and uses that
as a new IPv4 destination address when it forwards this packet out on IPv4
network.
To create the iRule
1. On the Main tab, expand Local Traffic, and then click iRules.
2. Click the Create button.
3. In the Name box, type a name. We type NAT64-irule.
4. In the Definition section, copy and paste the following iRule:
1
when CLIENT_ACCEPTED {
2
3
}
node [string range [IP::addr [IP::local_addr] mask ::ffff:ffff] 0 end]
5. Click Finished.
Optional: You can optionally add a line to the iRule that selects a specific
SNAT address. By default, the BIG-IP LTM picks address from the SNAT
pool in a round-robin fashion. Some applications or websites may use
multiple connections (or even multiple destinations) per session, and the
application may break if the client accesses from a different source IP. The
following simple iRule can be used to ensure client always uses the same
SNAT address. This iRule picks a SNAT address by using the last octet of
the client IP address. For example, if client address is 172.16.33.57, the
BIG-IP system uses SNAT address 10.10.10.57. This simple example
assumes there are 64 SNAT addresses starting from 10.10.10.1 to
10.10.10.64.

To use this optional line, step 4 in the preceding procedure would be:
4. In the Definition section, copy and paste the following iRule:
1
when CLIENT_ACCEPTED {
2
node [string range [IP::addr [IP::local_addr] mask ::ffff:ffff] 0 end]
3
4
13
snat 10.10.10.[expr ( [getfield [IP::addr [IP::client_addr] mask ::ff] "." 4] % 64 ) + 1 ]
}
Configuring IP Address Sharing in a Large Scale Network
Creating the IPv6 network virtual server
The next task is to create the IPv6 forwarding virtual server.
To create the virtual server
1. On the Main tab, expand Local Traffic, and then click Virtual
Servers.
2. Click the Create button.
3. In the Name box, type a name. We type NAT64-virtual.
4. In the Destination section, click the Network option button.
5. In the Address box, type the appropriate IPv6 address based on the
96-bit prefix. For example, if 96-bit prefix is
2002:0123:0000:0000:0000:0000, the IP address should be
2002:0123:0000:0000:0000:0000::
6. In the Mask box, type the associated subnet mask. Using the
Address in the example above, we type ff:ff:ff:ff:ff:ff:: for the
mask.
7. In the Service Port box, type * or select *All Ports from the list.
8. From the Type list, select Performance (Layer 4).
9. From the Protocol list, select *All Protocols.
10. From the Address Translation row, make sure the Enabled box is
checked to enable Address Translation (the default).
11. From the Port Translation row, clear the check from the Enabled
box to disable Port Translation.
12. In the Resources section, from the iRule Available list, select the
iRule you created in Creating the translation iRule, on page 13. In
our example, we select NAT64-irule.
13. Click Finished.
Supporting NAT with active FTP mode (optional)
You can optionally configure the BIG-IP LTM to support NAT with active
FTP mode.
To configure support for active FTP, follow Supporting NAT with active
FTP mode (optional), on page 5 and 6 with the following exceptions:
F5® Deployment Guide
◆
Step 5 of creating a virtual server: In the Destination section, click the
Network button. In the Address box, type the appropriate IPv6
destination. In our example, we type 2002:123::.
◆
Step 6 of creating a virtual server: In the Mask box, type the appropriate
IPv6 mask. In our example, we type ff:ff:ff:ff:ff:ff::
14
◆
Additional step: In the Resources section, from the iRule Available list,
select the iRule you created in Creating the translation iRule, on page 13.
In our example, we select NAT64-irule.
This concludes the configuration.
15
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
