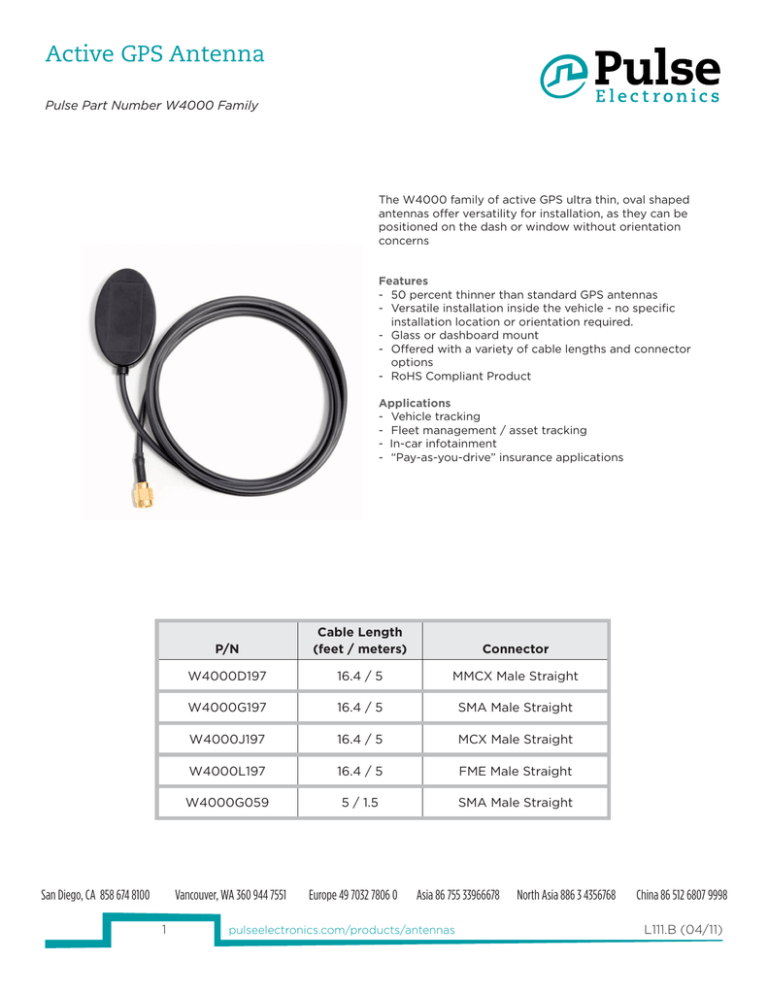

Active GPS Antenna
Pulse Part Number W4000 Family
The W4000 family of active GPS ultra thin, oval shaped
antennas offer versatility for installation, as they can be
positioned on the dash or window without orientation
concerns
Features
- 50 percent thinner than standard GPS antennas
-Versatile installation inside the vehicle - no specific
installation location or orientation required.
- Glass or dashboard mount
-Offered with a variety of cable lengths and connector
options
- RoHS Compliant Product
Applications
- Vehicle tracking
- Fleet management / asset tracking
- In-car infotainment
- “Pay-as-you-drive” insurance applications
San Diego, CA 858 674 8100
P/N
Cable Length
(feet / meters)
Connector
W4000D197
16.4 / 5
MMCX Male Straight
W4000G197
16.4 / 5
SMA Male Straight
W4000J197
16.4 / 5
MCX Male Straight
W4000L197
16.4 / 5
FME Male Straight
W4000G059
5 / 1.5
SMA Male Straight
Vancouver, WA 360 944 7551
1
Europe 49 7032 7806 0
Asia 86 755 33966678
pulseelectronics.com/products/antennas
North Asia 886 3 4356768
China 86 512 6807 9998
L111.B (04/11)
Active GPS Antenna
Pulse Part Number W4000 Family
Electrical Specifications
LNA Specifications
Frequency [MHz]
1575.42
Gain [dB ± 2]
26
Nominal Impedance [Ω]
50
Noise Figure [dBi]
1 Max
VSWR Max
1.5:1
Current Draw [mA]
12 typical
Gain [dBi Max]
Radiation Pattern
1.5
Voltage [Dc]
3 - 5 (± 10%)
Omni-directional
Cable Type
RG-174
Environmental Specifications
Mechanical Specifications
Radome Material
Color
PC-ABS Plastic Blend
Width [Inches/Meters]
1.18 x 2 / 30 x 50
-40 to +85
20 to 95
Die cut double-sided
tape included
Vancouver, WA 360 944 7551
2
Storage Temperature [°C]
Relative Humidity [%]
.2 / 5.45
San Diego, CA 858 674 8100
-40 to +85
Black
Height [Inches/Meters]
Mounting
Operating Temperature [°C]
Europe 49 7032 7806 0
Asia 86 755 33966678
pulseelectronics.com/products/antennas
North Asia 886 3 4356768
L111.B (04/11)
China 86 512 6807 9998
Active GPS Antenna
Pulse Part Number W4000 Family
Radiation Patterns
XZ Plane
ZY Plane
XY Plane
For More Information
Pulse Worldwide Headquarters
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
Larsen Brand Antennas
3611 NE 112th Avenue
Vancouver, WA 98682
USA
Europe Headquarters
Pulse GmbH & Do, KG
Zeppelinstrasse 15
Herrenberg
Germany
Asia Headquarters
B402, Shenzhen Academy of
Aerospace Technology Bldg.
10th Kejinan Road, High-Tech Zone
Nanshan District, Shenzen, PR China 518057
Pulse North Asia
3F, No. 198, Zhongyuan Road
Zhongli City, Taoyuan County 320
Taiwan R. O. C.
Pulse (Suzhou) Wireless Products Co, Inc.
99 Huo Ju Road, (#29 Bldg, 4th Phase)
Suzhou New District
Science & Tech Industrial Park
Jiangsu Province, Suzhou 215009 PR China
Tel: 49 7032 7806 0
Tel: 86 755 33966678
Tel: 886 3 4356768
Tel: 86 512 6807 9998
Tel: 858 674 8100
Tel: 360 944 7551
Fax: 858 674 8262
Fax: 369 944 7556
Fax: 49 7032 7806 135
Fax: 86 755 33966700
Fax: 886 3 4356823
Fax: 86 512 6809 8023
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2010. Pulse Electronics, Inc. All
rights reserved.
3
pulseelectronics.com/products/antennas
L111.B (04/11)
