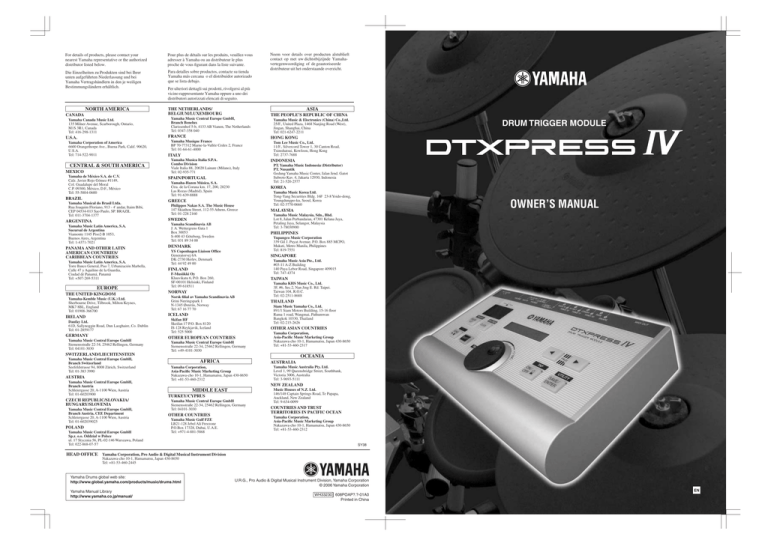

DRUM TRIGGER  MODULE
For details of products, please contact your
nearest Yamaha representative or the authorized
distributor listed below.
Pour plus de détails sur les produits, veuillez-vous
adresser à Yamaha ou au distributeur le plus
proche de vous figurant dans la liste suivante.
Die Einzelheiten zu Produkten sind bei Ihrer
unten aufgeführten Niederlassung und bei
Yamaha Vertragshändlern in den je weiligen
Bestimmungsländern erhältlich.
Para detalles sobre productos, contacte su tienda
Yamaha más cercana o el distribuidor autorizado
que se lista debajo.
NORTH AMERICA
CANADA
Yamaha Canada Music Ltd.
135 Milner Avenue, Scarborough, Ontario,
M1S 3R1, Canada
Tel: 416-298-1311
Per ulteriori dettagli sui prodotti, rivolgersi al più
vicino rappresentante Yamaha oppure a uno dei
distributori autorizzati elencati di seguito.
ASIA
THE NETHERLANDS/
BELGIUM/LUXEMBOURG
Yamaha Music Central Europe GmbH,
Branch Benelux
Clarissenhof 5-b, 4133 AB Vianen, The Netherlands
Tel: 0347-358 040
FRANCE
U.S.A.
Yamaha Corporation of America
6600 Orangethorpe Ave., Buena Park, Calif. 90620,
U.S.A.
Tel: 714-522-9011
CENTRAL & SOUTH AMERICA
MEXICO
Yamaha de México S.A. de C.V.
Calz. Javier Rojo Gómez #1149,
Col. Guadalupe del Moral
C.P. 09300, México, D.F., México
Tel: 55-5804-0600
BRAZIL
Yamaha Musical do Brasil Ltda.
Rua Joaquim Floriano, 913 - 4' andar, Itaim Bibi,
CEP 04534-013 Sao Paulo, SP. BRAZIL
Tel: 011-3704-1377
Yamaha Musique France
BP 70-77312 Marne-la-Vallée Cedex 2, France
Tel: 01-64-61-4000
ITALY
Yamaha Musica Italia S.P.A.
Combo Division
Viale Italia 88, 20020 Lainate (Milano), Italy
Tel: 02-935-771
SPAIN/PORTUGAL
Yamaha-Hazen Música, S.A.
Ctra. de la Coruna km. 17, 200, 28230
Las Rozas (Madrid), Spain
Tel: 91-639-8888
Yamaha Music Latin America, S.A.
Sucursal de Argentina
Viamonte 1145 Piso2-B 1053,
Buenos Aires, Argentina
Tel: 1-4371-7021
PANAMA AND OTHER LATIN
AMERICAN COUNTRIES/
CARIBBEAN COUNTRIES
Yamaha Music Latin America, S.A.
Torre Banco General, Piso 7, Urbanización Marbella,
Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, Panamá
Tel: +507-269-5311
EUROPE
THE UNITED KINGDOM
Yamaha-Kemble Music (U.K.) Ltd.
Sherbourne Drive, Tilbrook, Milton Keynes,
MK7 8BL, England
Tel: 01908-366700
GREECE
Philippos Nakas S.A. The Music House
147 Skiathou Street, 112-55 Athens, Greece
Tel: 01-228 2160
Yamaha Scandinavia AB
J. A. Wettergrens Gata 1
Box 30053
S-400 43 Göteborg, Sweden
Tel: 031 89 34 00
Danfay Ltd.
61D, Sallynoggin Road, Dun Laoghaire, Co. Dublin
Tel: 01-2859177
GERMANY
Yamaha Music Central Europe GmbH
Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: 04101-3030
Yamaha Music & Electronics (China) Co.,Ltd.
25/F., United Plaza, 1468 Nanjing Road (West),
Jingan, Shanghai, China
Tel: 021-6247-2211
HONG KONG
Tom Lee Music Co., Ltd.
11/F., Silvercord Tower 1, 30 Canton Road,
Tsimshatsui, Kowloon, Hong Kong
Tel: 2737-7688
INDONESIA
PT. Yamaha Music Indonesia (Distributor)
PT. Nusantik
Gedung Yamaha Music Center, Jalan Jend. Gatot
Subroto Kav. 4, Jakarta 12930, Indonesia
Tel: 21-520-2577
Yamaha Music Korea Ltd.
Tong-Yang Securities Bldg. 16F 23-8 Yoido-dong,
Youngdungpo-ku, Seoul, Korea
Tel: 02-3770-0660
AUSTRIA
Yamaha Music Central Europe GmbH,
Branch Austria
Schleiergasse 20, A-1100 Wien, Austria
Tel: 01-60203900
CZECH REPUBLIC/SLOVAKIA/
HUNGARY/SLOVENIA
Yamaha Music Central Europe GmbH,
Branch Austria, CEE Department
Schleiergasse 20, A-1100 Wien, Austria
Tel: 01-602039025
POLAND
Yamaha Music Central Europe GmbH
Sp.z. o.o. Oddzial w Polsce
ul. 17 Stycznia 56, PL-02-146 Warszawa, Poland
Tel: 022-868-07-57
OWNER’S MANUAL
MALAYSIA
Yamaha Music Malaysia, Sdn., Bhd.
Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,
Petaling Jaya, Selangor, Malaysia
Tel: 3-78030900
Yupangco Music Corporation
339 Gil J. Puyat Avenue, P.O. Box 885 MCPO,
Makati, Metro Manila, Philippines
Tel: 819-7551
DENMARK
YS Copenhagen Liaison Office
Generatorvej 6A
DK-2730 Herlev, Denmark
Tel: 44 92 49 00
SINGAPORE
Yamaha Music Asia Pte., Ltd.
#03-11 A-Z Building
140 Paya Lebor Road, Singapore 409015
Tel: 747-4374
FINLAND
F-Musiikki Oy
Kluuvikatu 6, P.O. Box 260,
SF-00101 Helsinki, Finland
Tel: 09 618511
TAIWAN
Yamaha KHS Music Co., Ltd.
3F, #6, Sec.2, Nan Jing E. Rd. Taipei.
Taiwan 104, R.O.C.
Tel: 02-2511-8688
NORWAY
Norsk filial av Yamaha Scandinavia AB
Grini Næringspark 1
N-1345 Østerås, Norway
Tel: 67 16 77 70
THAILAND
Siam Music Yamaha Co., Ltd.
891/1 Siam Motors Building, 15-16 floor
Rama 1 road, Wangmai, Pathumwan
Bangkok 10330, Thailand
Tel: 02-215-2626
Skifan HF
Skeifan 17 P.O. Box 8120
IS-128 Reykjavik, Iceland
Tel: 525 5000
OTHER ASIAN COUNTRIES
OTHER EUROPEAN COUNTRIES
Yamaha Music Central Europe GmbH
Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: +49-4101-3030
Yamaha Corporation,
Asia-Pacific Music Marketing Group
Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: +81-53-460-2317
SWITZERLAND/LIECHTENSTEIN
Yamaha Music Central Europe GmbH,
Branch Switzerland
Seefeldstrasse 94, 8008 Zürich, Switzerland
Tel: 01-383 3990
DRUM TRIGGER MODULE
PHILIPPINES
ICELAND
IRELAND
THE PEOPLE’S REPUBLIC OF CHINA
KOREA
SWEDEN
ARGENTINA
Neem voor details over producten alstublieft
contact op met uw dichtstbijzijnde Yamahavertegenwoordiging of de geautoriseerde
distributeur uit het onderstaande overzicht.
OCEANIA
AFRICA
AUSTRALIA
Yamaha Corporation,
Asia-Pacific Music Marketing Group
Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: +81-53-460-2312
Yamaha Music Australia Pty. Ltd.
Level 1, 99 Queensbridge Street, Southbank,
Victoria 3006, Australia
Tel: 3-9693-5111
NEW ZEALAND
MIDDLE EAST
TURKEY/CYPRUS
Yamaha Music Central Europe GmbH
Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: 04101-3030
OTHER COUNTRIES
Yamaha Music Gulf FZE
LB21-128 Jebel Ali Freezone
P.O.Box 17328, Dubai, U.A.E.
Tel: +971-4-881-5868
Music Houses of N.Z. Ltd.
146/148 Captain Springs Road, Te Papapa,
Auckland, New Zealand
Tel: 9-634-0099
COUNTRIES AND TRUST
TERRITORIES IN PACIFIC OCEAN
Yamaha Corporation,
Asia-Pacific Music Marketing Group
Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: +81-53-460-2312
SY38
HEAD OFFICE Yamaha Corporation, Pro Audio & Digital Musical Instrument Division
Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: +81-53-460-2445
Yamaha Drums global web site:
http://www.global.yamaha.com/products/music/drums.html
Yamaha Manual Library
http://www.yamaha.co.jp/manual/
U.R.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation
© 2006 Yamaha Corporation
EN
WH33230 608POAP?.?-01A0
Printed in China
SPECIAL MESSAGE SECTION
This product utilizes batteries or an external power supply
(adapter). DO NOT connect this product to any power supply or
adapter other than one described in the manual, on the name
plate, or specifically recommended by Yamaha.
WARNING: Do not place this product in a position where anyone
could walk on, trip over ,or roll anything over power or connecting
cords of any kind. The use of an extension cord is not recommended! If you must use an extension cord, the minimum wire size
for a 25’ cord (or less ) is 18 AWG. NOTE: The smaller the AWG
number ,the larger the current handling capacity. For longer extension cords, consult a local electrician.
This product should be used only with the components supplied
or; a cart, rack, or stand that is recommended by Yamaha. If a cart,
etc., is used, please observe all safety markings and instructions
that accompany the accessory product.
SPECIFICATIONS SUBJECT TO CHANGE:
The information contained in this manual is believed to be correct
at the time of printing. However, Yamaha reserves the right to
change or modify any of the specifications without notice or obligation to update existing units.
This product, either alone or in combination with an amplifier and
headphones or speaker/s, may be capable of producing sound levels that could cause permanent hearing loss. DO NOT operate for
long periods of time at a high volume level or at a level that is
uncomfortable. If you experience any hearing loss or ringing in the
ears, you should consult an audiologist.
IMPORTANT: The louder the sound, the shorter the time period
before damage occurs.
Some Yamaha products may have benches and / or accessory
mounting fixtures that are either supplied with the product or as
optional accessories. Some of these items are designed to be
dealer assembled or installed. Please make sure that benches are
stable and any optional fixtures (where applicable) are well
secured BEFORE using.
Benches supplied by Yamaha are designed for seating only. No
other uses are recommended.
want you to be aware of the following:
Battery Notice:
This product MAY contain a small non-rechargeable battery which
(if applicable) is soldered in place. The average life span of this
type of battery is approximately five years. When replacement
becomes necessary, contact a qualified service representative to
perform the replacement.
This product may also use “household” type batteries. Some of
these may be rechargeable. Make sure that the battery being
charged is a rechargeable type and that the charger is intended for
the battery being charged.
When installing batteries, do not mix batteries with new, or with
batteries of a different type. Batteries MUST be installed correctly.
Mismatches or incorrect installation may result in overheating and
battery case rupture.
Warning:
Do not attempt to disassemble, or incinerate any battery. Keep all
batteries away from children. Dispose of used batteries promptly
and as regulated by the laws in your area. Note: Check with any
retailer of household type batteries in your area for battery disposal information.
Disposal Notice:
Should this product become damaged beyond repair, or for some
reason its useful life is considered to be at an end, please observe
all local, state, and federal regulations that relate to the disposal of
products that contain lead, batteries, plastics, etc. If your dealer is
unable to assist you, please contact Yamaha directly.
NAME PLATE LOCATION:
The name plate is located on the bottom of the product. The model
number, serial number, power requirements, etc., are located on
this plate. You should record the model number, serial number, and
the date of purchase in the spaces provided below and retain this
manual as a permanent record of your purchase.
NOTICE:
Service charges incurred due to a lack of knowledge relating to
how a function or effect works (when the unit is operating as
designed) are not covered by the manufacturer’s warranty, and are
therefore the owners responsibility. Please study this manual carefully and consult your dealer before requesting service.
ENVIRONMENTAL ISSUES:
Serial No.
Yamaha strives to produce products that are both user safe and
environmentally friendly. We sincerely believe that our products
and the production methods used to produce them, meet these
goals. In keeping with both the letter and the spirit of the law, we
Purchase Date
92-BP (bottom)
2
Model
PLEASE KEEP THIS MANUAL
DTXPRESS IV Owner’s Manual
Introduction
Thank you for purchasing the YAMAHA DTXPRESS IV.
The DTXPRESS IV is a compact drum trigger module that includes a wealth of rich, highquality drum voices and is compatible with snare pads equipped with a pad controller. It also
has a comprehensive variety of features that help you build your drumming and rhythm section skills, a built-in sequencer for recording your own songs and performances, an effective
Groove Check function that helps you tighten your timing, and a versatile, multi-function
metronome for enhancing your practice sessions. Moreover, it provides a large selection of
preset songs that you can play along with and improve your ability in a variety of musical
styles.
To get the most out of your DTXPRESS IV, please read this manual carefully. After reading
through the manual, make sure to store it in a safe place so that you can refer back to it
again as needed.
Accessories
Yamaha AC power adaptor (PA-3C)*
Module stand
Module stand fastening screws x 2
Owner’s Manual (this book)
* May not be included depending on your particular area. Please check with your Yamaha dealer.
About the Descriptions and Conventions in this Manual
• [DRUM KIT], [CLICK], etc.
Panel buttons and controls are indicated with [ ] (brackets).
• [SHIFT] + [DRUM KIT], etc.
This means to simultaneously hold down the [SHIFT] button and press the [DRUM KIT] button.
• [<]/[>], etc.
This means that you can use either the [<] button or [>] button in the operation.
• “Completed!”, etc.
Words in quotation marks indicate a message shown on the LCD display.
The illustrations and LCD screens as shown in this owner’s manual are for instructional purposes only, and may
appear somewhat different from those on your instrument.
DTXPRESS IV Owner’s Manual
3
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
* Please keep this manual in a safe place for future reference.
WARNING
Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical
shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:
Power supply/AC power adaptor
Water warning
• Only use the voltage specified as correct for the instrument. The required
voltage is printed on the name plate of the instrument.
• Use the specified adaptor (PA-3C or an equivalent recommended by Yamaha)
only. Using the wrong adaptor can result in damage to the instrument or
overheating.
• Check the electric plug periodically and remove any dirt or dust which may have
accumulated on it.
• Do not place the AC adaptor cord near heat sources such as heaters or radiators,
and do not excessively bend or otherwise damage the cord, place heavy objects
on it, or place it in a position where anyone could walk on, trip over, or roll
anything over it.
Do not open
• Do not open the instrument or attempt to disassemble the internal parts or
modify them in any way. The instrument contains no user-serviceable parts. If it
should appear to be malfunctioning, discontinue use immediately and have it
inspected by qualified Yamaha service personnel.
• Do not expose the instrument to rain, use it near water or in damp or wet
conditions, or place containers on it containing liquids which might spill into
any openings.
• Never insert or remove an electric plug with wet hands.
Fire warning
• Do not put burning items, such as candles, on the unit.
A burning item may fall over and cause a fire.
If you notice any abnormality
• If the AC adaptor cord or plug becomes frayed or damaged, or if there is a
sudden loss of sound during use of the instrument, or if any unusual smells or
smoke should appear to be caused by it, immediately turn off the power switch,
disconnect the adaptor plug from the outlet, and have the instrument inspected
by qualified Yamaha service personnel.
CAUTION
Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage
to the instrument or other property. These precautions include, but are not limited to, the following:
Power supply/AC power adaptor
• When removing the electric plug from the instrument or an outlet, always hold
the plug itself and not the cord.
• Unplug the AC power adaptor when not using the instrument, or during
electrical storms.
Location
• Do not expose the instrument to excessive dust or vibrations, or extreme cold or
heat (such as in direct sunlight, near a heater, or in a car during the day) to
prevent the possibility of panel disfiguration or damage to the internal
components.
(3)-10
DTXPRESS IV Owner’s Manual
• Do not place the instrument in an unstable position where it might accidentally
fall over.
• Before moving the instrument, remove all connected adaptor and other cables.
• Do not connect the instrument to an electrical outlet using a multiple-connector.
Doing so can result in lower sound quality, or possibly cause overheating in the
outlet.
4
• Do not use the instrument in the vicinity of a TV, radio, stereo equipment,
mobile phone, or other electric devices. Otherwise, the instrument, TV, or radio
may generate noise.
• When setting up the product, make sure that the AC outlet you are using is
easily accessible. If some trouble or malfunction occurs, immediately turn off
the power switch and disconnect the plug from the outlet. Even when the power
switch is turned off, electricity is still flowing to the product at the minimum
level. When you are not using the product for a long time, make sure to unplug
the power cord from the wall AC outlet.
• Use only the stand/rack specified for the instrument. When attaching the stand
or rack, use the provided screws only. Failure to do so could cause damage to
the internal components or result in the instrument falling over.
• Do not place objects in front of the instrument's air vent, since this may prevent
adequate ventilation of the internal components, and possibly result in the
instrument overheating.
1/2
• Do not rest your weight on, or place heavy objects on the instrument, and do not
use excessive force on the buttons, switches or connectors.
Connections
• Before connecting the instrument to other electronic components, turn off the
power for all components. Before turning the power on or off for all
components, set all volume levels to minimum. Also, be sure to set the volumes
of all components at their minimum levels and gradually raise the volume
controls while playing the instrument to set the desired listening level.
• Do not use the instrument/device or headphones for a long period of time at a
high or uncomfortable volume level, since this can cause permanent hearing
loss. If you experience any hearing loss or ringing in the ears, consult a
physician.
Saving data
Maintenance
• When cleaning the instrument, use a soft, dry cloth. Do not use paint thinners,
solvents, cleaning fluids, or chemical-impregnated wiping cloths.
Handling caution
• Never attempt to turn off the power while data is being written to Flash ROM
(while a "now storing..." message is shown). Turning the power off in this state
results in loss of all user data and may cause the system to freeze (due to
corruption of data in the Flash ROM). This means that this instrument may not
be able to start up properly, even when turning the power on next time.
• Never insert or drop paper, metallic, or other objects into the gaps on the panel.
If this happens, turn off the power immediately and unplug the power cord from
the AC outlet. Then have the instrument inspected by qualified Yamaha service
personnel.
• Do not place vinyl, plastic or rubber objects on the instrument, since this might
discolor the panel.
Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.
Always turn the power off when the instrument is not in use.
Even when the power switch is in the “STANDBY” position, electricity is still flowing to the instrument at the minimum level. When you are not using the instrument for a long
time, make sure you unplug the AC power adaptor from the wall AC outlet.
• This product incorporates and bundles computer programs and contents in which Yamaha owns copyrights or with respect to which it has license to
use others’ copyrights. Such copyrighted materials include, without limitation, all computer software, style files, MIDI files, WAVE data, musical
scores and sound recordings. Any unauthorized use of such programs and contents outside of personal use is not permitted under relevant laws. Any
violation of copyright has legal consequences. DON'T MAKE, DISTRIBUTE OR USE ILLEGAL COPIES.
• Copying of the commercially available musical data including but not limited to MIDI data and/or audio data is strictly prohibited except for your
personal use.
• The company names and product names in this Owner’s Manual are the trademarks or registered trademarks of their respective companies.
(3)-10
2/2
DTXPRESS IV Owner’s Manual
5
Main Features
The DTXPRESS IV is equipped with a high-quality 32-polyphony tone generator that produces
realistic voices, includes a high-performance, multi-function metronome, a built-in sequencer
and a variety of songs—all combined into a compact, portable package. The DTXPRESS IV is an
exceptionally versatile instrument that can be used in a variety of situations such as live performance, personal practice, and much more.
■ Drum Triggers
• Built into the unit are twelve trigger input jacks and a hi-hat controller jack. The instrument also features jacks that are
compatible with two-zone or three-zone pads (pads that transmit different signals depending on the area that is hit).
Moreover, the snare drum jack is compatible with pad-controller-equipped pads. This lets you adjust the ‘virtual’
snares and the tuning—just as you would with an acoustic snare drum. All in all, the DTXPRESS IV has the operability, functionality and performance that is virtually equivalent to an acoustic drum kit.
• You can connect the DTXPRESS IV to an acoustic drum kit by using drum triggers such as Yamaha DT20. The setup
data such as the trigger input types and sensitivity can be customized to suit your playing preferences, style and particular setup.
• Also included in the unit are 50 preset drum kits which naturally contain acoustic drum kits, and cover a wide range of
music genres, such as rock, funk, jazz, reggae, Latin, etc. Moreover, User kit memory is available for storing 20 sets.
With this, you can set up your own original drum kits using the various drum voices.
* The word “trigger” refers to the means by which hitting a pad sends a signal to the DTXPRESS IV as to what sound to play on the
built-in tone generator and how loud the sound should be played.
■ Tone Generator
• The DTXPRESS IV is equipped with a high-quality, 16-bit AWM2 (PCM) tone generator with 32-voice polyphony
that produces dynamic voices or exceptional realism. The voices—totalling 427—cover a wide range sounds, such as
authentic acoustic drums, unique electronic percussion, sound effects, and much more. The instrument also features a
built-in high-quality digital reverb for enhancing the sound.
■ High-performance Metronome
• The DTXPRESS IV provides with a comprehensive, multi-function metronome, allowing various click settings for
each note value. Each note value can be assigned its own separate click sound and pitch. You can also set a timer that
will determine when the click stops and set breaks which how many measures the click will play and then be muted.
• The DTXPRESS IV also features a “Tap” function that lets you set the tempo for the song or click by tapping in tempo
on a pad to any tempo you like. This lets you set whatever tempo you desire for playing or practicing.
■ Sequencer
• The built-in sequencer contains a wide variety of 63 preset songs. Two functions that make the DTXPRESS IV great
for practice are the Drum Mute Function, which mutes a specific drum part, and the Bass Solo function, which lets you
play along with just the song’s bass part. The DTXPRESS IV also allows you to record your performance in real
time—and allows you to play along with your recorded performance data.
• In addition to one main song that is controlled from the panel, three pad songs can be individually controlled and
simultaneously played by trigger input from the pads.
■ Groove Check
• The Groove Check function monitors your playing and provides instant feedback on your rhythmic skills, providing a
powerful way to quickly improve your technique. It includes a Rhythm Gate function that produces sounds only if
your timing is accurate, and also has a Challenge mode that evaluates your playing, giving you a letter grade—and
makes mastering the drums easier and more fun than ever before.
■ Interface
• A MIDI OUT jack on the rear panel lets you connect other devices and play sounds from an external tone generator or
synchronize the metronome with an external sequencer. Also provided are an AUX IN jack, which lets you plug in and
play along with an external audio device, such as a CD player or MD player, and a headphones jack for convenient
practice without disturbing others.
6
DTXPRESS IV Owner’s Manual
Contents
Introduction ............................................................3
5 Using the Groove Check Function ............... 24
Accessories ...............................................................3
Groove Check Mode ............................................... 24
About the Descriptions and Conventions in
this Manual ................................................................3
6 Record Your Performance............................. 26
Main Features ...........................................................6
Controls and Functions.........................................8
Top Panel ..................................................................8
Recording System .................................................. 26
7 Create Your Own Original Drum Kit ............. 28
Factory Set ............................................................. 35
Rear Panel ................................................................9
1 Connections ....................................................10
1 Connecting the Pads ..........................................10
8 Trigger Setup Edit .......................................... 36
Trigger Setup procedure ......................................... 36
Explanations of Each Display Page........................ 37
DTXPRESS IV Standard Set...........................10
DTXPRESS IV Special Set .............................11
Setting up with Acoustic Drums.......................11
Error Messages ................................................... 40
2 Setting Up the Power Supply..............................12
3 Connecting to Speakers or Headphones............12
Trobleshooting .................................................... 40
4 Turning the Power On.........................................13
5 Selecting the Trigger Setup ................................14
Index ..................................................................... 42
2 Time to Play.....................................................15
Appendix .............................................................. 43
Adjusting the Hi-hat .................................................16
MIDI Data Format ................................................... 43
LCD Displays .......................................................... 44
MIDI Implementation Chart ..................................... 47
Drum Voice List ...................................................... 48
Preset Drum Kit List ................................................ 49
Preset Song List ..................................................... 49
Specifications.......................................................... 50
Pad Controller Settings ...........................................17
3 Playing Along With the Click .........................18
Click Out Select.......................................................20
Tap Tempo Function ...............................................21
LED Display Setting ................................................21
4 Playing Along With a Song ............................22
Pad Function Settings .............................................23
DTXPRESS IV Owner’s Manual
7
Controls and Functions
Top Panel
i
o
8.8.8.
~~~~~YAMAHA ~~~~ !0
~~~DTXPRESS IV~~
w
q
e
r
t
!1
y
u
q Drum Kit button (DRUM KIT)
y Click ON/OFF button (
• For entering the Drum Kit Select display. (p. 15)
• Hold the [SHIFT] button and press the [DRUM KIT] button to
enter the Trigger Setup Select page. (p. 14)
• This button can also be used to temporarily mute all sounds of
all voices.
• For starting/stopping the click sound (metronome). (p. 18)
• Hold the [SHIFT] button and press the [
ON/OFF] button to
enter the Tap Tempo Setting page. (p. 21)
w Click button (CLICK)
• For entering the Click (Metronome) Setting page. (p. 18)
• Hold the [SHIFT] button and press the [CLICK] button to enter
the Groove Check Setting display. (p. 24)
e Song button (SONG >/■)
• For entering the Song Select page. (p. 22)
• Hold the [SHIFT] button and press the [SONG >/■] button to
enable recording standby mode for the DTXPRESS IV.
• Press this button to start/stop song playback or recording.
r Shift button (SHIFT)
Holding this button and pressing another specific button switches
to the function printed above each button on the top panel.
t Select buttons (<, >)
• For selecting an item you want to edit (the selected item
flashes). If there are multiple pages either before or after the
page currently displayed, the buttons are used to view the next
or previous page. Hold the button to continuously move the
flashing cursor.
• Press these two buttons together to scroll continuously back
and forth through the pages. Holding the [<] button first and
pressing the [>] button moves to the previous page while
holding the [>] button first and pressing the [<] button moves
to the next.
• Hold the [SHIFT] button and press the [<]/[>] buttons to
select the trigger input you want to edit.
8
DTXPRESS IV Owner’s Manual
ON/OFF)
u Save/Enter button (SAVE/ENTER)
• For saving data or executing an operation (Enter).
• Hold the [SHIFT] button and press the [SAVE/ENTER] button
to enter the Utility page, which is used to make overall settings
for operating the DTXPRESS IV.
i Click lamp
The red lamp lights on the first beat of every measure when the
click or a song is playing. The other beats are indicated with a
green light.
o LED display
For indicating the tempo, the number selected in the current page,
or the click timer depending on the setting made. (p. 21)
!0 LCD display
For displaying important information and data used in operating
the DTXPRESS IV.
!1 Jog dial
Rotate the jog dial to change the value selected with the cursor
(the flashed item to be edited) in the display. Rotate the dial to the
right (clockwise) to increase the value, and to the left to decrease.
Hold the [SHIFT] button and rotate the knob to change the current tempo.
Controls and Functions
Rear Panel
!2
!3
!5
!6
!4
!7
!9
!8
@0
@1
!2 MIDI OUT jack
!5 Output jacks (OUTPUT L/MONO, R)
For sending data from the DTXPRESS IV to an external MIDI
device. With this jack, you can use the DTXPRESS IV as a control device to trigger voices from an external tone generator, or
synchronize song playback or the click of the DTXPRESS IV
with the playback of an external sequencer. (p. 13)
For connecting the DTXPRESS IV to an external amplifier, mixer,
etc.
For mono playback use the L/MONO jack. For stereo playback
connect both L and R jacks. (p. 12)
!3 Trigger Input jacks (1SNARE thru 8KICK/9)
For connecting pads or drum triggers (Yamaha DT20, etc.) to
receive trigger signals.
Connect external pads such as a snare, tom, etc., according to the
indication below each input. (p. 10, 11)
1SNARE ..................... Compatible with three-zone pads and the pad
controller.
2TOM1/10, 3TOM2/11, 4TOM3/12, 8KICK/9
.............................. Mono x 2 inputs
A parallel cable (stereo plug—mono jack x 2;
refer to the illustration below) connected to
this jack lets you connect two mono pads to the
jack. Also, if the KP65 kick pad is connected
to this jack with a stereo cable, the external pad
input jack on the KP65 can be used as the input
for input jacks 9, 10, 11, or 12.
5RIDE, 6CRASH ..... Compatible with three-zone pads.
7HI HAT ..................... Compatible with stereo pads (with switches)
● Parallel cable
Mono phone jack
!6 Headphones jack (PHONES)
Connect a set of stereo headphones to this jack to monitor the
DTXPRESS IV. (p. 12)
!7 AUX IN jack
Connect the output of an external audio device, etc., to this jack
(stereo mini jack). (p. 13)
This is convenient for playing along with music from a CD
player, etc.
* Use the volume control on the external device to adjust the
volume balance.
!8 Master Volume (VOLUME)
Adjusts the DTXPRESS IV’s overall volume (output level of the
signal sent via the OUTPUT jacks and PHONES jack). Rotate the
knob clockwise to increase the volume, or counter-clockwise to
decrease it.
!9 Power supply jack (DC IN 12V)
Connect the supplied AC power adaptor to this jack. To prevent
the adaptor from becoming unplugged, secure the cable to the
cable clip.
@0 Cable clip
Stereo phone plug
Mono phone jack
Prevents the power cord from accidentally becoming unplugged.
(p. 12)
@1 POWER Switch
!4 Hi-hat controller jack (HI HAT CONTROL)
For connecting a hi-hat controller. (p. 10, 11)
The power is turned on when the button is set to this position:
(>). The power is off when set this way: (?).
* Use a cable with a stereo plug (shown below) when connecting a hi-hat controller.
Double insulator
DTXPRESS IV Owner’s Manual
9
1
Connections
In this chapter, you’ll learn how to set up the DTXPRESS IV. Read these instructions carefully
and in the following order to ensure that the instrument sounds and operates properly:
1 Connecting the Pads → 2 Setting Up the Power Supply (p. 12) → 3 Connecting to Speakers or Headphones (p. 12) → 4 Turning the Power On (p. 13) → 5 Selecting the Trigger Setup (p. 14)
!! IMPORTANT !!
You’ll need to change the Trigger Settings of the DTXPRESS IV according to the type of drum set you are using
(Standard Set/Special Set/Acoustic Drums, etc.). If the setting is not appropriate, problems may occur—such
as improper sound, or inappropriate volume balance among the pads.
Refer to the “Selecting the Trigger Setup” section on page 14 on how to select the appropriate setup.
1 Connecting the Pads
Referring to the illustration below, connect the output cable from each pad to each Trigger Input jack located on the rear panel of the DTXPRESS IV. All Trigger Input jacks are conveniently labeled (1 SNARE, etc.), so make sure each pad is connected to its corresponding
Trigger Input jack.
CAUTION
To prevent electric shock and damage to the devices, make sure the power is switched OFF on the DTXPRESS
IV and all related devices before making any connections to the DTXPRESS IV’s input and output jacks.
DTXPRESS IV Standard Set
Attaching the Module Stand
Attach the included module stand to
the DTXPRESS IV using the module
stand fastening screws.
To 6CRASH
To 5RIDE
DTXPRESS IV
Module stand
(included)
To 2TOM1
To 3TOM2
To 7HI HAT
Module stand fastening
screws (2; included)
* Be sure to use the included screws.
To 1SNARE
NOTE
To 8KICK
• The module stand having four holes
(included with the RS70 drum rack system) cannot be used for the DTXPRESS
IV. Use only the module stand w ith two
holes included with the DTXPRESS IV.
• The hi-hat pad can also be attached to the
pipe to which the DTXPRESS IV is
attached.
10
DTXPRESS IV Owner’s Manual
To HI HAT
CONTROL
* Foot pedal is not included
in the Standard Set.
To 4TOM3
1 Connections
DTXPRESS IV Special Set
DTXPRESS IV
Attaching the Module Stand
Attach the included module stand to
the DTXPRESS IV using the module
stand fastening screws.
CAUTION
When assembling the Special Set, the legs
of the rack must be slid backwards to
maintain proper balance of the set. For
details, refer to the assembly instructions
of the rack system.
* Be sure to use the included screws.
Module stand
(included)
Module stand fastening screws
(2; included)
To 6CRASH
To 5RIDE
To 2TOM1
To 3TOM2
To 7HI HAT
* First, connect the RHH130’s [PAD]
output jack to the 7 HI HAT jack on
the DTXPRESS IV, then connect the
RHH130’s [HI HAT CONTROL] output jack to the HI HAT CONTROL
jack on the DTXPRESS IV.
To HI HAT
CONTROL
To the external pad input
jack of KP65 (kick pad)
To 1SNARE
To 8KICK
To 4TOM3
* Foot pedal is not included in the
Special Set.
Setting up with Acoustic Drums
The DTXPRESS IV can be played from an acoustic drum kit if the kit is fitted with an optional set of drum triggers (such as Yamaha DT20
Drum Triggers) and the triggers are properly connected to the input jacks of the DTXPRESS IV.
DTXPRESS IV Owner’s Manual
11
1 Connections
2 Setting Up the Power Supply
A special power source adaptor supplies power to the DTXPRESS IV.
2-1. Make sure that the power switch of the DTXPRESS IV is
set to the STANDBY(?) position.
3 Connecting to Speakers or
Headphones
Since the DTXPRESS IV has no built-in speakers, you’ll need an
external audio system or a set of stereo headphones to properly
monitor it.
Monitor system for the DTX series
MS100DRJ, MS50DRJ, etc.
2-2. Connect the DC plug of the included AC power adaptor to
the DC IN jack on the rear panel.
To prevent the cord from being unplugged accidentally,
wrap the cord around the cable clip and secure it.
OUTPUT L/MONO and R jacks
Headphones
PHONES jack
CAUTION
Whenever making connections, make sure that
the plug on the cable being used corresponds to
the type of jack on the device.
● OUTPUT L/MONO, R jacks (standard mono phone)
These jacks allow you to connect the DTXPRESS IV to an external amplifier + speakers and produce full, amplified sound, or
connect the DTXPRESS IV to audio recording equipment for
recording your own performance.
CAUTION
* Use the DTXPRESS IV’s OUTPUT L/MONO jack when
connecting to a device with a mono input.
Make sure that the power adaptor’s cord is not
bent at an extreme angle when wrapping the
cord around the clip. Doing this can damage or
sever the cord and create a fire hazard.
2-3. Connect the other end of the power cord to an AC outlet.
WARNING
• Please use the included AC power adaptor. The
use of any other adaptors may cause irregular
operation or damage to the device.
• Only use the voltage specified as correct for
the DTXPRESS IV. The required voltage is
printed on the name plate of the DTXPRESS IV.
CAUTION
• Unplug the AC Power Adaptor when not using
the DTXPRESS IV, or during electrical storms.
12
DTXPRESS IV Owner’s Manual
● PHONES jack (standard stereo phone jack)
Use the VOLUME knob on the rear panel to adjust the headphone
volume.
CAUTION
Do not use the DTXPRESS IV at a high volume
level for a long period of time, or your hearing
may be damaged.
1 Connections
● AUX IN jack (stereo mini phone jack)
The audio output from a MP3 player or CD player connected to
the AUX IN jack can be mixed with the sound of the DTXPRESS
IV and transmitted via the OUTPUT jacks or PHONES jack. This
jack can be used when you want to play along with your favorite
songs.
* Use the volume control on the external device (MP3 player,
etc.) to adjust the volume balance.
4 Turning the Power On
4-1. Make sure the volume settings of the DTXPRESS IV and
external devices are turned down to the minimum.
4-2. Turn the power on (>) by pressing the [STANDBY/ON]
switch on the rear panel of the DTXPRESS IV, then turn on
the power of the amplifiers.
● MIDI OUT jack
The MIDI functions on the DTXPRESS IV lets you play voices
on an external tone generator with the pads of the DTXPRESS
IV, or synchronize the DTXPRESS IV’s song or click playback
with the playback of an external sequencer.
About MIDI
MIDI (Musical Instrument Digital Interface) is a worldwide standard
that enables you to connect instruments and computers—of different
manufacturers and different types—and transmit performance and
other data among them.
4-3. To turn off the power, press the [STANDBY/ON] switch
again.
CAUTION
Even when the instrument is turned off, electricity is still flowing to the instrument at the minimum level. When you are not using the
DTXPRESS IV for a long time, make sure to
unplug the AC power adaptor from the wall AC
outlet.
● Connecting a Mixer or MIDI Devices
* Also, use a MIDI cable that is not more than 15 meters in
length. Using a longer cable may result in irregular operation
and other problems.
Make sure that all volume settings are turned down all the way to
the minimum. Then turn on the every device in your setup in the
order of MIDI masters (controllers), MIDI slaves (receivers),
then audio equipment (mixers, amplifiers, speakers, etc.).
When powering down the setup, first turn down the volume for
each audio devices, then switch off each device in the reverse
order (first audio equipment, then MIDI).
1
2
DTXPRESS IV (MIDI Master)
MIDI slave
MUSIC PRODUCTION SYNTHESIZER
8.8.8.
*~~DTXPRESS~IV~*
*~~~Welcome!~~~*
3
Audio equipment
(first mixer, then amplifier)
DTXPRESS IV Owner’s Manual
13
1 Connections
5 Selecting the Trigger Setup
This setting lets you select the Trigger Setup that most closely
matches the trigger output levels and functions of your pads.
Select an appropriate Trigger Setup for your drum kit from the
pre-programmed Trigger Setups in the DTXPRESS IV.
Use the operation described below to select the Trigger Setup you
want to use.
● Procedure
5-1. Press the [SHIFT] + [DRUM KIT] buttons to view Page 1 in
the Trigger Setup Select display (TRG1).
TRG1~~~ååååååååå
1~:SP~Med~~~~~~‚
5-2. Rotate the jog dial to select the Trigger Setup that matches
the drum kit you are using.
TRG1~~~ååååååååå
4~:STD~Med~~~~~‚
Trigger Setup
NOTE
• If you want to replace some of the pads from the DTXPRESS IV
Standard Set / Special Set, refer to the operation on page 36 (Trigger Setup Edit) after the above setting is done, to make sure that
the settings (such as sensitivity) are appropriate for each pad.
● About Connecting Pads
• The DTXPRESS IV’s input jack parameters are preset with
settings suitable for pads when an appropriate Trigger Setup
is selected. If you intend to connect any other type of pad or
a drum trigger (Yamaha DT20, etc.) to the input jack, that
jack’s parameters (sensitivity, etc.) should be changed to settings that suit the particular pad. Pad sensitivity is set in the
Trigger Setup Select display’s Page 3 [TRG3 Gain] setting
(p. 38).
• Pad-controller-equipped pads like the TP120SD, TP100,
etc., can be connected to Trigger Input jack 1SNARE.
• Three-zone pads like the TP65S, PCY150S, PCY130SC,
etc., can be connected to Trigger Input jacks 5RIDE and
6CRASH.
• 7HI HAT is a stereo input type jack. Pads equipped with
trigger switches like the TP65S, PCY65S, PCY130S, etc.
can be connected to this jack.
• The 2TOM1/10, 3TOM2/11, 4TOM3/12 jacks correspond to a two-trigger input that uses a stereo jack for L and
R. A parallel cable (stereo plug—mono jack x 2) can be
used to input two trigger signals.
• The 8KICK/9 jack accepts a two-trigger input using a stereo cable and jack for L and R signals. A parallel cable (stereo plug—mono jack x 2) can be used to input two trigger
signals.
Also, if the KP65 kick pad is connected to the DTXPRESS
IV’s input jack 9 with a stereo cable, the external pad input
jack on the KP65 can be used as the input for Input jack 9.
• In addition to the 8KICK/9 jack, the 2TOM1/10,
3TOM2/11, and 4 TOM3/12 jacks can be used to connect
a second bass drum pedal to create a double-bass drum set.
● Trigger Setup List
No.
Name
1
SP Med
Normal setting
Features
2
SP Dyna
Wide dynamic range. This setting is designed for maximum expressive control, allowing performance subtleties over a wide dynamic range. Excessive vibration however,
may result in crosstalk (sound being produced by other pads).
3
SP Easy
Controlled dynamic range delivers stable trigger detection. This setting is designed
for producing a smoother, more uniform sound with reduced volume fluctuations.
4
STD Med
Normal setting
5
STD Dyna
Wide dynamic range. This setting is designed for maximum expressive control, allowing performance subtleties over a wide dynamic range. Excessive vibration however,
may result in crosstalk (sound being produced by other pads).
6
STD Easy
7
DT10/20
—
Use for DT10/20 drum trigger systems applied to acoustic drums.
8
|
11
UserTrig
—
→Settings are made using Trigger Setup
Allows creation of custom trigger setups. (→
Edit on page 36.)
for Special Drum Set
for Standard Drum Set
Controlled dynamic range delivers stable trigger detection. This setting is designed
for producing a smoother, more uniform sound with reduced volume fluctuations.
* In the default setting, "1. SP Med" for Special Drum Set is selected.
14
DTXPRESS IV Owner’s Manual
2
Time to Play
Now that your DTXPRESS IV is properly connected, it’s time to make some music!
1
3
Play the DTXPRESS IV
While hitting the pads, turn the VOLUME knob on the rear
panel to raise the overall volume to a comfortable level.
Change the Volume for Each Pad
Change the volume for each pad and adjust the overall balance of the Drum Kit.
Press the [>] button once in the previous Drum Kit Select
page.
The following display appears and the flashing cursor is at
“˙” in the LCD.
KIT2~~~ƒsnare~~˙
”S01:OakCustom~‚
The trigger input level will be displayed in the bar graph in
the upper right corner of the display. The bar graph indicates
the input levels of the following input jacks.
KIT1~~~∑åååååø¥å
1~:Oak~Custom~~‚
2
Bar graph
Bar graph (from left)
Corresponding input jacks
1
2
3
4
5
6
7
8
9
1 SNARE
2 TOM1/10
3 TOM2/11
4 TOM3/12
5 RIDE
6 CRASH
7 HI HAT
8 KICK
8 PAD9
Select a Drum Kit
A ‘Drum Kit’ is a collection of drum sounds (or voices) that
play when you hit the pads. Try selecting some of the Drum
Kits (1–50) and enjoy the variety of sounds and drum setups
available.
* Preset Drum Kit List (p. 49)
Rotate the jog dial to select a Drum Kit.
KIT1~~~ååååååååå
1~:Oak~Custom~~‚
Drum kit Number
Press the [>] button again to move the flashing cursor to the
“S” position, the first character of “S01:OakCustom”.
KIT2~~~ƒsnare~~˙
”S01:OakCustom~‚
Press the [>] button twice to view the KIT 3 page.
KIT3~~~ƒsnare~~˙
”~~Volume=120~~‚
Use the [<]/[>] buttons in this manner to select the desired
item (the cursor flashes). When the page only contains a single item, pressing the [<]/[>] buttons will select the next or
previous page.
* The “‚” mark on the lower right side of the display indicates
that a succeeding page is available. Likewise, the “ ”” mark
on the lower left side of the display indicates that a previous
page is available.
In the KIT 3 page, hit the pad for which you want to change
the volume. The selected pad (input jack) is shown in the
upper half of the display.
Rotate the jog dial to adjust the volume (the value is flashing)
of the pad.
* Some drum voices have two voices in a layer (in other words,
two voices sound at the same time when a pad is hit). In case
of two-layer voices, select the ˙ or ¶ mark in the upper right
side of the display (press the [<]/[>] buttons so that the
mark flashes, and use the jog dial to select) then adjust each
volume.
Drum kit Name
Pad (Input jack)
Try out the different drum kits and select one drum kit you
like.
* Some Drum Kits have pad songs and drum loops that start
playback when the corresponding pad is hit.
KIT3~~~™tom1~~~˙
”~~Volume=120~~‚
˙/¶)
Layer (
Volume (0–127)
DTXPRESS IV Owner’s Manual
15
2 Time to Play
Adjusting the Hi-hat
CAUTION
An asterisk “*” will appear next to “KIT3” in the
display once the volume is changed, indicating
that the kit has been edited. This asterisk will
disappear after the Store operation (p. 34) is carried out. If a different drum kit is selected, etc.,
before carrying out the Store operation, the current settings will return to their original condition. If you want to keep changes made to the
data, make sure you carry out the Store operation.
KIT3*~~™tom1~~~˙
”~~Volume=110~~‚
4
Hi-hat adjustment is used to determine the point at which
the hi-hat closes when the hi-hat pedal (foot controller) is
pressed. You can also set the threshold at which foot
‘splashes’ are produced.
* This setting is only valid when a foot controller is connected to the HI HAT CONTROL jack. The setting has no
effect on a foot controller connected to any other jack.
Operation
1. Press the [SHIFT] + [SAVE/ENTER] buttons to view
Utility Page 1.
Use this display to adjust the hi-hat.
UTIL1~Hi-hat
HHofs=~~0~T=~~5‚
Change the Output Sound Quality
Use the Master Equalizer found on Utility Page 5 to change
the output sound quality. Overall settings for the DTXPRESS
IV are set in the Utility pages.
First, press the [SHIFT] + [SAVE/ENTER] buttons to view
the Utility pages.
2. To set the point at which the hi-hat closes, move the
flashing cursor to the “HHofs=” value then use the
jog dial to adjust the value.
The range of adjustment is -32 to 0 to +32. Smaller
values produce a shallower closing point.
Utility (Page 1)
UTIL1~Hi-hat
HHofs=~~0~T=~~5‚
Press the [>] button five times to view Utility Page 5.
UTIL5~MasterEQ
”Lo=+~2~Hi=+~2~‚
Now use the Master Equalizer (two-band shelving type) setting to change the sound quality.
“Lo=” is for the low-range gain setting (+0dB to +12dB) and
“Hi=” for the high-range gain setting (+0dB to +12dB).
Press the [<]/[>] buttons to move the flashing cursor to the
item you want to set, then rotate the jog dial to set its value.
UTIL5~MasterEQ
”Lo=+~8~Hi=+~0~‚
You can also adjust or set the individual pad voices,
tuning, reverb type/level, and other settings that fine
tune the DTXPRESS IV (p. 28).
16
DTXPRESS IV Owner’s Manual
UTIL1~Hi-hat
HHofs=-12~T=~~5‚
To set the ease at which foot splashes are produced,
move the flashing cursor to the “T=” value then use
the jog dial to adjust the value.
Settings include “off” and a range of 1 to 127. Larger
values make foot splashes that are long and easier to
produce. When this is set to “off,” foot splashes are
not produced.
* Too high a value will make foot splashes too easy to produce, resulting in the continuous production of foot
splashes when the pedal is held down continuously.
UTIL1~Hi-hat
HHofs=-12~T=~20‚
2 Time to Play
Pad Controller Settings
When a pad-controller-equipped pad (TP100, etc.) is connected, you can adjust the snares setting and tightness, tuning, or
tempo by rotating the pad controller knob of the pad.
Operation (for Special Set users)
In the default setting, you can adjust the snares setting
and tightness using the pad controller of the TP100 (the
snare drum pad). To use functions other than the snares
adjustment, change the setting as follows.
1. Press the [DRUM KIT] button to enter the Drum Kit
Select display.
KIT1~~~_________
1~:Oak~Custom~~‚
Operation (Replacing the pad with one equipped
with pad controller)
Here’s how you can use the pad with pad controller
(TP100) as a snare drum.
1. Use the TP100’s supplied cable to connect the TP100
with trigger input 1SNARE on the DTXPRESS IV.
* Use ONLY the TP100’s supplied cable. If another cable is
used, the pad controller or the pad may not perform properly.
* The other trigger input jacks other than the 1SNARE are
not compatible with pad-controller-equipped pads. The
pad controller will not work if this type of pad is connected
to a trigger input jack other than 1SNARE.
2. Next, continue pressing the [>] button until Page 22
of the Drum Kit Select pages is called up.
2. Press the [SHIFT] + [DRUM KIT] buttons to view the
Trigger Setup display.
3. Rotate the jog dial to change the value for
“PadCtl=”. You can select from the following functions.
off .......... No function is assigned.
snares .... Adjusting the snares setting and tightness (also affects the open rim sound)
tuning.....Tuning adjustment (also affects the open
rim sound)
tempo ...... Adjusting the tempo
TRG1~~~ååååååååå
4~:STD~Med~~~~~‚
KIT22*
”PadCtl=tuning~‚
3. Next, press the [>] button once to view the following
display (pad type).
Hit the snare pad to view “ƒsnare” in the upper half
of the display, then rotate the jog dial to set
“Type=~TP1/Snr.”
TRG2*~ƒsnare~~0%
”Type=~TP1/Snr~‚
CAUTION
CAUTION
An asterisk “*” will appear next to “KIT22” in
the display if the data has been changed.
This asterisk will disappear after the Store
operation (p. 34) is carried out. If a different
drum kit is selected or the power is turned
off before carrying out the Store operation,
the current settings will return to their original condition. If you want to keep changes
made to the data, make sure to carry out the
Store operation.
An asterisk “*” will appear next to “TRG2” in
the display if the data has been changed.
This asterisk will disappear after the Store
operation (p. 36) is carried out. If a different
drum kit is selected or the power is turned
off before carrying out the Store operation,
the current settings will return to their original condition. If you want to use the selected
pad again, make sure to carry out the Store
operation.
4. Now you are ready to use the pad-controllerequipped pad.
See the section “Operation (for Special Set users)” in
the left column to change the function you want to
use for the pad controller.
DTXPRESS IV Owner’s Manual
17
3
Playing Along With the Click
Play the DTXPRESS IV along with the click (metronome).
The DTXPRESS IV is equipped with a high-performance metronome that gives you a comprehensive variety of settings and allows you to create complex rhythms.
1
Start the Click (Metronome)
Press the [
ON/OFF] button to start the click sound. The
left lamp lights in red on the first beat of every measure when
the click is playing. Other beats are indicated with the right
lamp in green. The click tempo (q=) is also indicated on the
LED display. Press the [
ON/OFF] button again to stop.
* If tempo is not shown, change the LED display setting (p.
21) to “Disp=tempo.”
1st beat (red)
Use this display to select the desired Click Set, and then set
the beat, tempo, timer, and the click sound’s overall volume.
Press the [<]/[>] buttons to move the flashing cursor to the
item you want to set, then rotate the jog dial to set its value.
Click Setting display (page 1)
CLK1~~~~∫~B=4~÷ç
1~:User~~~⁄=123‚
Other beats (green)
Click Set Number:
Click Set Name
123
2
Click Master Volume
Beat
Set the settings for Click Set, Tempo, Beat,
etc.
By fine tuning the different note value clicks that are shown
in the illustration below, the DTXPRESS IV can be used to
create a variety of click patterns. The patterns you set are
called Click Sets, and you can save up to 30 original patterns
in the DTXPRESS IV’s memory.
Example: Beat timings used when Beat=4
Tempo
Click Timer
• Click Set Number [Range] 1 to 30
Selects the Click Set to be used.
• Beat [Range] 1 to 9
Determines the click’s time signature.
• Tempo [Range] 30 to 300
Determines the click’s tempo (q=).
* The tempo can also be set using the Tap Tempo Function. This function lets you set the song or click’s tempo
by tapping in tempo on a pad. With this, you can set the
tempo to one that feels best to you. Refer to page 21 for
more information.
• Click Timer [Range] 0 to 600 seconds (in 30-second
steps)
This function is used to automatically stop the click at the
time set in this setting.
* The value (the remaining number of seconds) of the Click
Timer can be shown in the LED display. Refer to page 21
for more information.
• Click Master Volume [Range] 0 to 16
Determines the click’s overall volume.
* When the flashing cursor is not positioned here, the
speaker icon will be displayed.
CAUTION
Press the [CLICK] button to view Click Setting Page 1.
CLK1~~~~∫~B=4~÷ç
1~:User~~~⁄=123‚
An asterisk “*” will appear next to “CLK1” in the
display if settings for beat and tempo are
changed. This asterisk will disappear after the
Store operation (p. 20) is carried out. If a different Click Set is selected, etc., before carrying
out the Store Operation, the current settings will
return to their original condition. If you want to
keep changes made to the data, make sure to
carry out the Store Operation.
CLK1*~~~∫~B=4~÷ç
1~:User~~~⁄=130‚
18
DTXPRESS IV Owner’s Manual
3 Playing Along With the Click
3
Create Your Own Original Click Set
6
Press the [>] button to view Click Setting Page 2.
Set the User Click Sounds
Press the [>] button to view Click Setting Page 5.
Click Value Type
CLK2*~A˘=9~⁄=9
”~‹=6~ßß=4~Œ=2~‚
CLK5*Sound=¤
”E20:Click1~~~~‚
Use this display to set the individual volume levels (0 to 9)
for each of the five click beats. Set the volume level to “0” if
you don’t want the beat to sound. Use this page to create your
own original click set.
Voice Category/Voice Number: Voice Name
You can assign a different drum voice to each of the five click
voices.
* For details about the five click beats, see the illustration
example “Beat timings used when Beat=4” in step 2 on page
18.
4
* This setting is only available if “UserClick” is selected in
the CLK4 page.
First, select the click value type (A˘, ⁄, ‹, ßß, Œ) in the
upper half of the display, then move the flashing cursor to the
lower half of the display and select the voice you want to
assign to the click.)
First, select the voice category.
Set the Click Measure Break
Press the [>] button to view Click Setting Page 3.
CLK3*MeasBreak
”Meas=1~Brk=3~~‚
● Voice Category
K : Kick
S : Snare
T : Tom
C : Cymbal
H : Hi-hat
P : Percussion
E : Effect
The Click Measure Break puts a muted “break” for the number of measures decided with the “Brk” setting (off, 1 to 9)
after the click has played for the number of measures determined by the “Meas” setting (1 to 9). When values are set as
above, the click is played for a measure then muted for 3
measures.
Next, select the voice number and voice name. If the voice
number is set to “00,” the indication “NoAssign” is shown
for the voice name and no sound will be produced.
* Decide the number of measures to be muted at “Brk=” then
the number of measures to be played at “Meas=.”
* If the setting “Brk=off” is used, the click will not be muted.
5
Set the Click Sound Set
Press the [>] button to view page 4 in the Click Setting display.
CLK4*Sound
”~1:Metronome~~‚
7
Tuning the User Click Sounds
Press the [>] button to view Click Setting Page 6.
Click Value Type
CLK6*Sound=¤
”~~Tune=+~0.0
Tuning
The Click Sound Set is used to assign the five different click
sounds that are produced by the metronome. The sounds are
changed as a group.
[Range]
Metronome, Wood Block, Percussion,
Agogo, Stick, Pulse, UserClick
With the “UserClick” setting you can use the CLK5 and
CLK6 pages to fine-tune the click sound settings.
You can individually tune each of the five click sounds.
* This setting is only available if “UserClick” is selected in
the CLK4 page.
First, select the click value type in the upper half of the display, and then move the flashing cursor to the lower half of
the display and set the tuning value in semitones (-24.0 to 0 to
+ 24.0).
DTXPRESS IV Owner’s Manual
19
3 Playing Along With the Click
8
Save an Original Click Set
After creating your own original Click Set, save it in the
DTXPRESS IV’s memory using the Store Operation
described below.
CAUTION
Any changes made to the data will be lost if
another Click Set is selected before carrying out
the store operation. If you want to keep settings
or changes, make sure to carry out the Store
Operation.
8-1.
Press the [SAVE/ENTER] button. The following display will appear.
Store Destination
CLK~save~to~1
:[User~~]
NOTE
• You can use the Factory Set operation to reset the click sets 1
through 30 to their original factory condition. However,
please proceed with caution because carrying out this operation will rewrite the DTXPRESS IV’s entire contents (all
Click Sets, User Trigger Setups 8–11, User Drum Kits 51–70,
User Songs 64–83, Utility settings) with the data that was set
in the unit’s memory when it was shipped from the factory (p.
35).
Click Out Select
The DTXPRESS IV lets you select from which output jack
the signal of the click (metronome) is sent. Click output
and performance output can be routed to separate outputs.
Operation
Click Set Name
8-2.
8-3.
Rotate the jog dial to select the destination memory
number (1 to 30) to which you want to store the Click
Set.
If you want to change the Click Set name, press the
[<]/[>] buttons to move the flashing cursor to the
character you want to edit, then rotate the jog dial to
select the desired character. A Click Set name can contain a maximum of six characters, and these can be
selected from the following list.
space
!"#$%&'()*+,-./0123456789:;<=>[email protected]
ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`
abcdefghijklmnopqrstuvwxyz{|}≥≤
8-4.
Press the [SAVE/ENTER] button again. A prompt
appears asking you to confirm the Store operation.
CLK~save~to~1
~Are~you~sure~?
1. First, press the [SHIFT] + [SAVE/ENTER] buttons to
call up the Utility display.
UTIL1~Hi-hat
HHofs=~~0~T=~~5‚
2. Next, press the [>] button twice to call up the following display.
UTIL2~Click
”OutSel=mix~~~~‚
3. Rotate the jog dial to select the output from the outputs listed below.
mix
This is the standard output setting. The click signal is output from both the OUTPUT L and R
jacks.
clickL The click signal is output from the OUTPUT L
jack only. All drum performance and song playback are output in mono via the OUTPUT R jack.
clickR The click signal is output from the OUTPUT R
8-5.
Press the [SAVE/ENTER] button to actually execute
the Store operation.
* To cancel the Store operation, press any button
except for the [SAVE/ENTER] and [SHIFT] buttons.
(When “Are you sure?” appears in the display, the jog
dial will also cancel the operation.)
The following display appears after the Store operation is complete.
~~~Completed!
20
DTXPRESS IV Owner’s Manual
jack only. All drum performance and song playback are output in mono via the OUTPUT L jack.
* The PHONES jack outputs the same signal as the OUTPUT jacks. The settings in this section would then also be
applied to the PHONES jack’s stereo L and R.
3 Playing Along With the Click
Tap Tempo Function
LED Display Setting
With the Tap Tempo Function, you can set the song or
click’s tempo by manually tapping in the tempo on a pad.
This lets you set the tempo to one that is most comfortable
for you.
The [<]/[>] buttons can also be used to set the tempo
instead of tapping on a pad.
Generally, the tempo is shown in the LED display. You can
change the value to be displayed to one of the following
three types.
tempo ..... Shows the current tempo.
mode........ • When pressing the [DRUM KIT] button:
Drum kit Number
• When pressing the [SHIFT] + [DRUM KIT]
buttons: Trigger Setup Number
• When pressing the [SONG] button: Song
Number
• When pressing the [CLICK] button: Click
Set Number
• When pressing the [SHIFT] + [SAVE/
ENTER] buttons: Shows nothing.
• Others: Shows the current tempo.
timer ......Shows the current click timer (p. 18).
Operation
1. Press the [SHIFT] + [
ON/OFF] button.
The Tap Tempo Setting display shown below will
appear.
* The Tap Tempo function can even be used during song
playback or while the click is sounding.
TAP~TEMPO
¤=123~≠ªªªª
Operation
2. Tap on the pad at the tempo in which you want to play
the song. (Or use the [<]/[>] buttons.) Tap on the pad
steadily and repeatedly—as many times as there are
circles (≠ªªªª) in the display. Every time you tap a
circle disappears, and the resulting tempo value is set
and shown in the LED display.
1. First, press the [SHIFT] + [SAVE/ENTER] buttons to
call up the Utility pages.
UTIL1~Hi-hat
HHofs=~~0~T=~~5‚
* Any pad will do.
* The jog dial can also be used to change the tempo value.
2. Next, press the [>] button four times to call up the following page.
UTIL4~LED
”~Disp=tempo~~~‚
3. Press the [
tempo.
ON/OFF] button to hear your newly set
4. Press the [DRUM KIT], [CLICK], or [SONG >/■] button to exit from the Tap Tempo page. In the Click Setting page and Song Select page, the tempo is set to
the newly selected tempo. If the song or click is playing, the tempo will immediately change to the new
tempo.
3. Rotate the jog dial to select the type you want to display.
Even though a parameter value other than “tempo”
is shown in the LED display, when tempo is
changed by one of the operations below, the new
tempo briefly appears in the LED after the change is
made.
• When the tempo is changed by holding the
[SHIFT] button and rotating the jog dial.
• When operating a pad controller (p. 17) whose
function is set to “tempo.”
• When hitting a specific pad whose pad function
(p. 23) is set to “inc tempo” or “dec tempo.”
DTXPRESS IV Owner’s Manual
21
4
Playing Along With a Song
The DTXPRESS IV contains a wide variety of 63 preset songs. Try selecting among these and
play along with them—they are effective tools that help you learn how to drum and master
drumming techniques. The DTXPRESS IV conveniently lets you mute the drum part of a song
and have only the bass part sound during playback, so you can play the drum part yourself.
1
Select a Song
Tempo
Select one of the DTXPRESS IV’s songs and listen. The
DTXPRESS IV contains 63 preset songs that, in addition to
drums, include accompaniment with keyboard, brass, and
other voices.
Song Volume
SONG1~~~⁄=130~11
1~:Demo~1~~~~∞¢‚
* “Preset Song List” (p. 49)
* The tempo can also be set using the Tap Tempo function.
This lets you set the song or click’s tempo by tapping in
tempo on a pad. With this, you can conveniently set the
tempo to one that feels best to you. Refer to page 21 for more
information.
Press the [SONG >/■] button to view the Song Select display.
SONG1~~~⁄=123~÷ç
1~:Demo~1~~~~∞¢‚
4
Make sure the song number is flashing, then use the jog dial
to select a song number (1 to 63) you want to listen to.
Try playing along with the song. To mute the drum part of the
song during playback, move the flashing cursor to the “∞¢”
mark in the lower right side of the display and use the jog dial
to change the mark to “˚¡.”
* When a different song is selected, the drum kit changes to
one that matches the song.
SONG1~~~⁄=123~÷ç
1~:Demo~1~~~~∞¢‚
Song Number
2
Mute the Drum Part
SONG1~~~⁄=130~÷›
1~:Demo~1~~~~∞¢‚
Song Name
Now play the drum part yourself.
To cancel the Drum Mute function and hear the original
drums, change the “˚¡” mark to “∞¢” again.
Listen to the Song
Press the [SONG >/■] button and after the count, the song
will start playback from the beginning.
After the song has played to the end, it will automatically
start playing from the beginning again.
Press the [SONG >/■] button to stop playback.
* If you’ve changed the song’s tempo or its voices and want to
return to the original, re-select the song.
* The Drum Mute setting can also be changed during song
playback.
5
Adjust the Tuning
The song’s tuning can be adjusted in increments of 10 cents.
The Tuning setting is found in the Utility pages.
First, press the [SHIFT] + [SAVE/ENTER] buttons to call up
the Utility pages. Next, press the [>] button 7 times to view
the Master Tuning page shown below, then use the jog dial to
adjust the tuning in semitones (-24.0 to 0 to +24.0).
* If a different song is selected during song playback, the new
song will start playback from the beginning.
3
Adjust the Song’s Volume and Tempo
Use the [<]/[>] buttons to select the tempo value (the value
flashes), and then use the jog dial to set the song’s playback
tempo (q = 30–300).
Next, press the [>] button to move the flashing cursor to the
right. The speaker icon will change to a numeric value and
flash. This determines the volume (range: 0–16) for parts
other than the drum. Rotate the jog dial and adjust the balance
between the song accompaniment and your performance.
22
DTXPRESS IV Owner’s Manual
UTIL6~MasterTune
”~~Tune=+18.0~~‚
4 Playing Along With a Song
6
Play Along with Bass Solo
The useful Bass Solo function lets you isolate just the bass
part during playback and play along with it. Since this function mutes the other accompaniment parts, it lets you concentrate on mastering the important technique of ‘locking in’
with the bass and forming a tight rhythm section.
First, press the [SHIFT] + [SAVE/ENTER] buttons to call up
the Utility pages.
Next, press the [>] button three times to call up the following page. Rotate the jog dial and select “BassSolo=on.”
UTIL3~Song
”~BassSolo=off~‚
With this set, press the [SONG >/■] button to start playback—only the bass part will be heard.
* You may find that with the drum part muted or the bass solo,
it may be a little difficult to keep time. In this case, use the
click along with the song. Using the click sound as a reference will make it easier to play along with the song.
Press the [
ON/OFF] button to have the click play in tempo
along with song playback. Press the [
ON/OFF] button
again to stop.
* Changing the song will normally change the drum kit to the
kit that is pre-assigned to the song.
If you want to use a different drum kit when playing along with
the song, press the [DRUM KIT] button to enter the Drum Kit
Select display, and then select another drum kit number.
If a different song is selected while Drum Mute is active, the
drum kit will not change when a different song is selected.
Pad Function Settings
The DTXPRESS IV conveniently lets you execute important operations by hitting a specific pad—without having
to press buttons on the panel. You can assign the following
functions to the pads.
off ................... Normal operation.
inc~kitNo..... Increases the drum kit number by 1
(increment).
dec~kitNo..... Decreases the drum kit number by 1
(decrement).
inc~clkNo..... Increases the click set number by 1
(increment).
dec~clkNo..... Decreases the click set number by 1
(decrement).
inc~tempo..... Increases the value of the tempo by 1
(increment).
dec~tempo..... Decreases the value of the tempo by 1
(decrement).
clkOn/Off..... Switches the click sound on/off.
Operation
1. First, press the [SHIFT] + [SAVE/ENTER] buttons to
call up the Utility pages.
UTIL1~Hi-hat
HHofs=~~0~T=~~5‚
2. Press the [>] button several times to call up the
UTIL7 page.
UTIL7~~ƒsnare
”Func=off~~~~~~‚
3. To select the pad (Trigger Input Source) to which you
want to assign a function, simply hit the target pad, or
press the [SHIFT] + [<]/[>] buttons.
4. Rotate the jog dial to select the desired function.
Pad (trigger input source) to which
a pad function is assigned
UTIL7~~™tom1
”Func=clkOn/Off‚
Function assigned to the pad
In the above setting, the click sound can be switched
ON/OFF by hitting the tom1 pad which is connected
to the 2TOM1/10 jack.
DTXPRESS IV Owner’s Manual
23
5
Using the Groove Check Function
Another highly useful feature of the DTXPRESS IV is the Groove Check function. As you play
along with a song or the click, Groove Check compares your timing with the song or click playback and lets you know how accurate your playing is.
The related Rhythm Gate function—in which the sound is cancelled if your timing is off—also
offers you a great way to improve your technique.
● Challenge Mode
Groove Check Mode
The Groove Check function has the following two modes.
● Numeric Display Mode
In this mode, the accuracy of your drum hits is shown in
numeric display.
The aspects shown in the numeric display are the average
inaccuracy in the timing of each hit and the deviation in timing inaccuracy of all hits. To use this mode, select one of the
modes other than “Challenge” from the Rhythm Gate settings in the GRV2 page.
* Hit timing display
If your timing is slow or you’re dragging the beat, the
mark will move to the right side of the display. If your
timing is fast or you’re pushing the beat, the mark will
move to the left.
* Rhythm Gate range
With the Rhythm Gate function, sound is produced only
if the hit is within the specified range, and sound is not
produced if the hit is outside this range. The range of
Rhythm Gate can be selected from three levels according
to the degree of difficulty and if this is set to off, sound is
always produced, no matter what your timing is. The
selected range is shown in the lower side of the upper half
of the display.
* Tempo
The jog dial can be used to adjust the tempo for the song
or click from 30 to 300.
* Inaccurate timing display
The average inaccuracies in timing as compared to the
note value set in page GRV4 are shown in numeric display. Range: 0 (perfectly accurate), 1–9 (in units of 1/24
of a 16th note)
The deviation in timing inaccuracy is 0.0 to 9.9. Of
course, the smaller this value is, more “in the pocket”
your playing is.
Your hit
Tempo
Average inaccuracy
in timing (-9 to +9)
* Hit timing display
Just as with the Numeric Display mode, your timing is
displayed with an icon.
* Rhythm gate range
The set range of the Rhythm Gate is shown in the lower
side of the upper half of the display.
After a pad (pads) is hit a specific number of times (99
hits), the DTXPRESS IV evaluates the accuracy of the
hits and sets the range of Rhythm Gate automatically.
● Hit accuracy evaluation
In the lower half of the display, the number of remaining
hits and the current evaluation result (%) are shown.
The current level (evaluation) and the status change during playback.
• Current level (evaluation): A (best) to F (worst)
• The icon and the meaning of evaluation
Ã: Increases the strictness (as you continue playing in
the same way)
≥: Maintains the same strictness (as you continue playing in the same way)
À: Decreases the strictness (as you continue playing in
the same way)
* Tempo
Tempo is not shown in the Challenge mode display. To
change the tempo, hold the [SHIFT] button and rotate the
jog dial. You can adjust the tempo for the song or click
from 30 to 300 (the tempo is shown in the LED display).
Your hit
Perfect timing
GRV1~--æ√æ’æææ-80Hits/~16%(DÀ)‚
Perfect timing
GRV1~--æ√æ’æææ-⁄=130~Gr=-2œ0.0‚
The DTXPRESS IV automatically evaluates the accuracy of
hits over six grade levels from A to F and sets the range of
Rhythm Gate according to the result. The tolerance automatically narrows if your hits are accurate and widens if your hits
are inaccurate.
This mode can be used by selecting “Challenge” from the
Rhythm Gate settings in the GRV2 page.
Rhythm gate range
Deviation in timing
inaccuracy (0.0 to 9.9)
Remaining
number of hits
The percentage in which
sound is produced
Rhythm gate range
Status display for evaluation
Ã, ≥, À
Current level (evaluation)
A (best) to F (worst)
Now let’s use the Groove Check function.
24
DTXPRESS IV Owner’s Manual
5 Using the Groove Check Function
1
4
Select a Song or a Click Set
First, select the song or click set that you want to play along
with.
2
Set the Timing (note value)
Press the [>] button to view page GRV4, then rotate the jog
dial to select the note value of the timing you want to check.
[Range]
Set the Rhythm Gate (select a mode)
Press the [SHIFT] + [CLICK] buttons to call up page 1
(GRV1) in the Groove Check Setting pages.
Accent A˘, quarter note ⁄(4),
eighth note Ö(8), sixteenth note Ü(16),
eighth note triplet Ö3
GRV4
”~~Note=⁄(4)
GRV1~--æææ’æææ-⁄=123~Gr=~0œ0.0‚
Timing (Note value)
Next, press the [>] button once to call up the GRV2 page,
then rotate the jog dial to set the Rhythm Gate.
5
After setup is complete, start playback of the song ([SONG
>/■]) or the click sound ([ ON/OFF]) and go back to the
Groove Check’s main menu (the GRV1 page).
Groove Check begins as soon as you hit the pad specified in
the GRV3 page.
GRV2~RhythmGate
”Mode=easy
Rhythm Gate setting
6
● Rhythm Gate settings
off .................Sound is always produced
easy...............Wide tolerance for sound production
(easy)
normal ..........Mid-level tolerance for sound production
(average)
pro .................Narrow tolerance for sound production
(difficult)
challenge...Tolerance changes by automatic evaluation (Challenge mode)
Note value set in GRV4 page
B
A
B
A
B
A
B
A: Range within which sound is produced. (The gate narrows
as the setting changes from “easy” to “normal” to “pro.”)
B: Range within which sound will not be produced even though
the pad is struck.
3
Start the Groove Check
Play as accurately as possible
Listen to the song or click and concentrate on playing the
pads accurately. The jog dial can be used to adjust the tempo
for the song or click.
If the Numeric Display mode is selected, stop the song or
click and check the results. Change the Rhythm Gate setting,
pad type, or note value as you like and enjoy practicing.
* The Groove Check’s results are reset the next time song or
click starts playing.
If the Challenge mode is selected, when the remaining hits
become zero, the final evaluation is displayed in six levels
from A to F. With this evaluation, the range over which the
sound is produced is set automatically. The higher the evaluation (A is the highest and F the lowest), the narrower the tolerance becomes.
* The Groove Check’s results are reset the next time song or
click starts playing. The current level (evaluation) and the
range over which sound is produced are also reset.
Select the Pad
Press the [>] button to call up the GRV3 page, then rotate the
jog dial to select the pad (Trigger Input Source) that you want
to check. The “ALL” setting selects all pads.
[Range]
ƒsnare, ™tom1, ... ƒ™pad12, all
GRV3
”~Input=ƒsnare~‚
Pad (Trigger Input Source)
DTXPRESS IV Owner’s Manual
25
6
Record Your Performance
In this section, you’ll learn how to record your performance to the DTXPRESS IV’s built-in
sequencer. In the song data you record, you can switch Drum Kits, change the tempo and playback in the same way as with Preset Songs.
Recording System
• Tempo [Range] 30 to 300
Sets the click’s tempo (q=) when recording.
• Recording can be done with any of the User Songs (64–83).
However, you cannot record to Preset Songs (1–63).
• A recorded song doesn’t contain recordings of the audio
‘sounds’ of the drums, but rather the performance ‘information’ or data of precisely when and how each pad was hit. This
information is called sequence data. Unlike audio data,
sequence data can be freely used to change the tempo, select
the voice or drum kit during playback.
• Beat [Range] 1 to 9
Sets the click’s beat when recording.
• Quantize [Range] ⁄, ⁄3, Ö (eighth note), Ö3 (eighth
note triplet), Ü (sixteenth note), Ü3 (sixteenth note triplet), no
The Quantize function can be applied during recording
and is used to align the timing of your performance with
that of the nearest specified beat. The accuracy of quantization is assigned with a note value.
* A setting of “no” results in no quantization.
Now, let’s start recording…
1
● How Quantize Works (an example)
Select the Song you want to record
Recorded notes were not played in time.
Press the [SONG] button to display the Song Select display,
select a User Song number (64–83).
If you want to play along with a Preset Song and record it,
select the desired song (1–63). In this case, the lowest numbered empty User Song will automatically be selected for
recording.
The Quantize Function aligns the timing.
CAUTION
If a User Song containing data is selected, any
recorded data previously existing is overwritten
and lost.
2
Set the Recording Conditions
Simultaneously hold down the [SHIFT] button and press the
[SONG >/■] button to call up the following Recording Conditions setting page.
Perfect timing
3
Start Recording
Press the [SONG >/■] button and after the count, recording
will start. Record while listening to the click sound.
* If a Preset Song is selected for recording and all User Songs
already contain data, the error message “Memory full” is
shown. Use the Song Clear function (p. 27) to prepare an
empty User Song, then set the recording conditions.
Current measure number during recording
REC~~Meas=~10
~Now~Recording.
In this display set the click tempo, beat, and quantize.
Press the [<]/[>] buttons to move the flashing cursor to the
item you want to set, then rotate the jog dial to set its value.
Tempo
REC~~~~~~~~⁄=130
Beat=4~Quant=⁄3
Beat
26
DTXPRESS IV Owner’s Manual
Quantize
CAUTION
Never attempt to turn off the power during
recording. All User Song data may be lost.
6 Record Your Performance
4
Finish recording
6-3.
Press the [SAVE/ENTER] button again. A prompt
appears asking you to confirm the Store operation.
Press the [SONG >/■] button to finish recording. A
“now~storing~...” message is shown for a short time.
SONG~save~name
~Are~you~sure~?
~now~storing~...
6-4.
Press the [SAVE/ENTER] button once more to actually execute the Store operation.
CAUTION
* To cancel the Store operation, press any button
except for the [SAVE/ENTER] and [SHIFT] buttons.
(When “Are you sure?” appears in the display, the jog
dial will also cancel the operation.)
Never attempt to turn off the power while the
“now storing ...” message is shown; all User
Song data may be lost.
When saving is complete, a “completed!” message
appears and the Song Select page will reappear. The
song name is confirmed.
When saving is complete, a “completed!” message is
shown and the Song Select page will reappear.
Even if the power is switched off, the completed song will be stored.
5
Listen to the Song
Following recording, the User Song number you recorded
flashes in the Song Select page.
Press the [SONG >/■] button, and playback of the song you
just recorded will start from its beginning.
7
Clearing a User Song
If you want to clear any unneeded User Songs, follow the
operation below.
* Preset Songs cannot be deleted.
7-1.
In the Song Select page, move the flashing cursor to
the song number, and use the jog dial to select the
User Song you want to delete.
Press the [>] button twice to view the SONG2 page.
7-2.
* You can change the Drum Kit used for the recorded song. To
change Drum Kits, press the [DRUM KIT] button to enter the
Drum Kit Select display (KIT1 page) and rotate the jog dial to
select a different kit.
6
Give the User Song a name
SONG2~Clear
”Are~You~Sure~?
7-3.
The song name of the recorded User Song is shown as the
song name of the Preset Song or “Untitled.” Enter your
own original name for the recorded User Song.
* The song names of the Preset Songs cannot be edited.
6-1.
Press the [SAVE/ENTER] button in the Song Select
page. The Song Name setting page is shown.
SONG~save~name
:[Untitled]
6-2.
Press the [<]/[>] buttons to move the flashing cursor
to the character you want to edit, then rotate the jog
dial to select a character. A User Song name can contain a maximum of eight characters, and these can be
selected from the following list.
space
!"#$%&'()*+,-./0123456789:;<=>[email protected]
ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`
abcdefghijklmnopqrstuvwxyz{|}≥≤
Press the [SAVE/ENTER] button. A “now~clearing~...” message is shown for a short time.
CAUTION
Never attempt to turn off the power while the
message “now clearing...” is shown; all User
Song data may be lost.
7-4.
When clearing data is complete, a “completed!”
message is shown and the SONG1 page will reappear.
NOTE
• If the Factory Set operation is executed, all User Songs (64–
83) will be lost. Please proceed with caution, since executing
this operation will also rewrite the entire memory contents of
the DTXPRESS IV (all Click Sets, User Trigger Setups 8–11,
User Drum Kits 51–70, Utility data) with the data that was set
in the unit’s memory when it was shipped from the factory (p.
35).
DTXPRESS IV Owner’s Manual
27
7
Create Your Own Original Drum Kit
The DTXPRESS IV lets you create your own original Drum Kit by assigning your favorite Drum
Voice to each pad and setting its tuning, pan, decay, reverb, etc.
* Drum Voice: Mainly individual percussion/drum sounds that are assigned to each of the pads.
* Drum Kit: A collection of Drum Voices assigned to pads.
1
Select a Drum Kit
Press the [DRUM KIT] button to view the Drum Kit Select
display (KIT1).
KIT1~~~ååååååååå
1~:Oak~Custom~~‚
Rotate the jog dial to select the Drum Kit you want to use as a
starting point for your original Drum Kit. A good idea is to
select a Drum Kit that is close in sound to the type of kit you
intend to create.
* Preset Drum Kits (1–50) and user Drum Kits (51–70) can be
used for editing as well.
2
Assign Drum Voices
● About the Trigger Input Sources
The Input Source indicates the trigger data that is transmitted by the pads
or drum triggers (Yamaha DT20, etc.) that are connected to trigger input
jacks 1SNARE to 8KICK/9 of the DTXPRESS IV.
When mono pads TP65, KP65, PCY65/130, DT10/20, etc. are used, one
Input Source is assigned to one input jack. When stereo pads RHH130,
PCY65S, etc. are used, two Input Sources (pad input and rim switch input
or 2 kinds of pad inputs, etc.) are assigned to one input jack.
When three-zone pads TP65S, TP120SD/100, PCY150S/130SC, etc., are
used, three Input Sources (pad input and two rim switch inputs, etc.) will
be assigned to one input jack.
Each Input Source is defined as follows.
ƒsnare
ƒsnrOp
ƒsnrCl
ƒsnrOff
ƒsnrOfOp
In this example, we’ll create a bass drum (kick) sound.
Pad input for 1SNARE jack.
Open rim switch input for 1SNARE jack.
Closed rim switch input for 1SNARE jack.
Pad input for 1SNARE jack with the snares off.
Open rim switch input for 1SNARE jack with the
snares off.
ƒsnrOfCl Closed rim switch input for 1SNARE jack with the
2-1.
Press the [>] button to view the Drum Voice Select
page (KIT2).
KIT2~~~ƒsnare~~˙
”S01:OakCustom~‚
2-2.
To select the pad (trigger input source) you want to
edit, simply hit the pad you want to edit or use the
[SHIFT] + [<]/[>] buttons.
Step on the kick pedal or press the [SHIFT] + [<]/
[>] buttons and select “äkick.” Now the pad that is
connected to the 8KICK Trigger Input Jack is
selected. In other words, the kick pedal’s pad input is
selected.
Pad to be edited
KIT2~~~äkick~~~˙
”K01:OakCustom~‚
snares off.
™tom1
£tom2
Ωtom3
•ride
•rideE
•rideC
öcrash
öcrashE
öcrashC
ühhOp
Pad input for 2TOM1 jack.
ühhOpE
Edge rim switch input for 7HI HAT jack when the hihat controller is open.
ühhCl
Pad input for 7HI HAT jack when the hi-hat controller
is closed.
ühhClE
Edge rim switch input for 7HI HAT jack when the hihat controller is closed.
ühhFtCl
ühhSplsh
äkick
“pad9
ƒπpad10
ƒƒpad11
Īpad12
Input when the hi-hat controller is pressed (foot close).
Pad input for 3TOM2 jack.
Pad input for 4TOM3 jack.
Pad input for 5RIDE jack.
Edge rim switch input for 5RIDE jack.
Cup switch input for 5RIDE jack.
Pad input for 6CRASH jack.
Edge rim switch input for 6CRASH jack.
Cup switch input for 6CRASH jack.
Pad input for 7HI HAT jack when the hi-hat controller
is open.
Foot splash input of the hi-hat controller.
Pad input for 8KICK jack.
Pad input for 8PAD9 jack.
Pad input for 2PAD10 jack.
Pad input for 3PAD11 jack.
Pad input for 4PAD12 jack.
* Mono pads do not have a rim switch function.
28
DTXPRESS IV Owner’s Manual
7 Create Your Own Original Drum Kit
2-3.
The letter “˙” displayed next to “äkick” indicates
layer number 1, and “¶” indicates layer number 2.
Two voices can be output (in a layer) through one
input source. Select the voice to be edited here.
KIT2~~~äkick~~~˙
”K01:OakCustom~‚
Layer number
Now you’ve selected the Drum Voice that will
be used as the base for your original Drum
Voice.
Next, let’s edit this Drum Voice and create
your original bass Drum Voice.
NOTE
2-4.
• Keep in mind that there are many parameters here and you
need not edit them all. Nor do you need to follow the steps
below in order. The instructions below show you all the
parameters available from the KIT3 to KIT25 pages, and
describe what they do and how to edit them. Once you’ve finished editing your original Drum Voice, you can then store it
for future recall. For details on storing the voice, refer to the
Store operation on page 26.
Next, decide the Drum Voice category. Drum Voice
categories are the same as those used in the user click
sound setting (p. 19).
● Voice Category
K: Kick
S: Snare
T: Tom
C: Cymbal
H: Hi-hat
P: Percussion
E: Effect
Here, select “K: Kick”. Press the [<]/[>] buttons to
move the flashing cursor to the Voice Category and
rotate the jog dial to select “K”.
3
This determines the volume of the Drum Voice that is output
when the pad is hit. Use this to adjust the volume balance
among the other pads.
Use the [>] button to call up the KIT3 page, then rotate the
jog dial to set the volume (0–127).
CAUTION
An asterisk “*” will appear next to “KIT” in the
display if data is changed. This asterisk will disappear after the Store operation (p. 34) is carried
out. If a different Drum Kit is selected, etc.,
before carrying out the Store operation, the current settings will return to their original condition. If you want to keep changes made to the
data, make sure to carry out the Store operation.
2-5.
KIT3*~~äkick~~~˙
”~~Volume=120~~‚
4
Use the [>] button to call up the KIT4 page, then rotate the
jog dial to set the tuning in semitones (-24.0 to 0 to +24.0).
KIT4*~~äkick~~~˙
”~~Tune=-~3.0~~‚
Here, select “K02:MapleCustm.”
* If the voice number is set to “00,” “NoAssign” is dis-
KIT2*~~äkick~~~˙
”K02:MapleCustm‚
NOTE
• When Drum Voices are set for both layers 1 and 2, layer icon
˙ or ¶ is shown in the upper right hand corner of the KIT3 to
KIT10 displays. Move the flashing cursor to this icon (if necessary) and rotate the jog dial to change the layer to be edited.
• When a Drum Voice is assigned to either of the layers 1 and 2
(the other is set to “NoAssign”), the layer icon is not shown
in the KIT3 to KIT10 displays. The layer which has a Drum
Voice is the target layer for editing.
Change the Tuning (Pitch)
This determines the tuning (pitch) of the Drum Voice.
Next, let’s select a Drum Voice.
Press the [<]/[>] buttons so that the voice number
flashes, then rotate the jog dial and assign a Drum
Voice. The voice number and voice name will be displayed.
played as the voice name and no sound will be produced.
Change the Volume
5
Change the Pan
This determines the Drum Voice’s pan setting (the voice’s
position within the stereo field).
Use the [>] button to call up the page KIT5, then rotate the
jog dial to set the voice’s pan position.
The range is from “L64” (hard left) to “C” (center) to “R63”
(hard right). As you rotate the dial, notice the voice change its
position within the stereo field according to the setting.
KIT5*~~äkick~~~˙
”~~~~Pan=L~5~~~‚
• When Drum Voices are not assigned for either layer 1 or 2
(“NoAssign”), “---” will be shown in the KIT3 to KIT18
displays and the settings cannot be made.
DTXPRESS IV Owner’s Manual
29
7 Create Your Own Original Drum Kit
6
Change the Decay
This determines the Drum Voice’s decay time (the time it
takes the sound to fade out after being produced).
Use the [>] button to call up the KIT6 page, then rotate the
jog dial to set the decay (-64–0–+63). Positive values produce
a crisper sound.
KIT6*~~äkick~~~˙
”~~Decay=+~8~~~‚
7
Change the Voice Character (Filter Setting)
This determines the filter’s cutoff frequency to change the
Drum Voice’s character (brightness).
Use the [>] button to call up the KIT7 page, then rotate the
jog dial to set the cutoff frequency (-64–0–+63). Positive values produce a brighter sound.
KIT7*~~äkick~~~˙
”CutOffFreq=+~4‚
9
Set the MIDI Channel
This determines the MIDI Transmit Channel for the MIDI
note on data that is transmitted when a signal is received from
the input source. This affects which particular channel will be
used when playing a voice on a connected MIDI device.
Use the [>] button to call up the KIT9 page, then rotate the
jog dial to set the MIDI Transmit Channel (1–16).
KIT9*~~äkick~~~˙
”~~MIDI~Ch=10~~‚
10 Set the Gate Time of the MIDI Output
This determines the Gate Time (the length of time from Key
On to Key Off) for the MIDI note on data.
Use the [>] button to call up the KIT10 page, then rotate the
jog dial to set the Gate Time (0.0s–9.9s).
KIT10*~äkick~~~˙
”GateTime=0.3s~‚
11 Set the MIDI Key On/Off
8
Set the MIDI Note Number
This determines the MIDI Note Number that is transmitted
when a signal is received from the input source. This affects
which particular percussion or drum sound of a voice will
play on a connected MIDI device.
Use the [>] button to call up the KIT8 page, then rotate the
jog dial to set the MIDI Note Number (0–127). Displays the
note number and note name (C-2–G8).
KIT8*~~äkick~~~˙
”Note=~~32/G#0~‚
This determines whether to recognize MIDI Key Off events
or not.
* This setting affects both layers ˙ and ¶. The ˙/¶ indication is
not shown in the upper right corner of the display.
Use the [>] button to call up the KIT11 page, then rotate the
jog dial to set Key On/Key Off.
KIT11*~äkick
”KeyOff=disable‚
enable ............Recognizes Key Off events.
disable .........Does not recognize Key Off events.
* When this is set to “disable,” some voices may sound continuously. Press the [DRUM KIT] button to stop the sound.
* When the selected MIDI Note Number has already been
assigned to another input source, an asterisk “ *” will be displayed next to “Note=.”
* If the same MIDI Note Number is set to more than one pad
within the same Drum Kit, the lowest numbered Input Source
will take priority. In the case of the duplicate input sources,
the same voice will be output.
If the setting is not available because of an already assigned
MIDI note number, “(Note# in use)” or “(# in
use)” is shown in the lower half of the display.
12 Set the Hold Mode
Every time the pad is hit, Key On and Key Off messages are
alternately sent. This means that one hit of the pad turns the
sound on and the next turns it off.
* This setting affects both layers ˙ and ¶. The ˙/¶ indication is
not shown in the upper right corner of the display.
Use the [>] button to call up the KIT12 page, then rotate the
jog dial to set the Hold Mode.
KIT12*~äkick
”~HoldMode=off~‚
30
DTXPRESS IV Owner’s Manual
7 Create Your Own Original Drum Kit
on ................... Each time the pad is hit, either a MIDI Key
On or MIDI Key Off event will be transmitted
alternately.
off................. Normal operation. When a pad is hit, only a
MIDI Key On event will be transmitted. After
the decay time elapses, a Key Off event will
be transmitted automatically.
* When this is set to “on,” you should also set the Key Assign
Mode to “high” in the KIT15 page.
13 Set the Cross Fade
14 Set the Alternate Group
This function allows you to assign different voices to the
same alternate group, so that the playing of one sound in the
group will automatically cancel others in the same group. A
practical example of this is with the open and closed hi-hat
voices. When you play an actual hi-hat—first open, then
closed—the closed hi-hat naturally mutes the ringing open
sound. Likewise, when the open and closed hi-hat voices are
assigned to the same alternate group, the playing of one
mutes the other.
This determines the Velocity Cross Fade between the layer
voices ˙ and ¶.
* This setting has no affect on two-layer input sources. The ˙/¶
indication is not shown in the upper right corner of the display.
* This setting affects both layers ˙ and ¶. The ˙/¶ indication is
not shown in the upper right corner of the display.
Use the [>] button to call up the KIT14 page, then rotate the
jog dial to set the Alternate Group.
Use the [>] button to call up the KIT13 page, then rotate the
jog dial to set the Cross Fade type.
KIT13*~äkick
”~~VelXFade=0~~‚
● Cross Fade Type
0 .........Cross Fade function is not in effect.
1
˙
¶
2
˙
¶
6
7
˙
¶
˙
¶
KIT14*~äkick
”~AltGrp=off~~~‚
off .................No cancellation
HH~pad ..........For the voice (ühhOp, ühhOpE, etc.) that is
played when the hi-hat pad is hit.
HH~pdl ..........For the voice (ühhFtCl, ühhSplsh,
ühhCl, ühhClE, etc.) that is played when
the hi-hat pedal is pressed.
1–9..................Alternate group number. Assigns the same
group number for voices that you do not want
to be output simultaneously.
15 Set the Key Assign Mode
3
4
5
˙
¶
8
˙
¶
9
˙
˙
˙
¶
¶
¶
Vertical axis: Balance between layers ˙ and ¶
Horizontal axis: Velocity
Layer ˙
Layer ¶
This defines the sound output rules when multiple voices that
are assigned to the same MIDI note number are simultaneously output.
* This setting affects both layers ˙ and ¶. The ˙/¶ indication is
not shown in the upper right corner of the display.
Use the [>] button to call up the KIT15 page, then rotate the
jog dial to set the key assign mode.
KIT15*~äkick
”KeyAssign=semi‚
poly ...............Voices are output simultaneously.
semi ...............Up to three voices for this note number can
be produced at one time. When a fourth voice
is triggered, one of the first two voices will be
muted (cancelled).
mono ...............One voice can be delivered at one time, and
the previous voice will be muted (cancelled).
high ...............One voice can be delivered at one time, and
the previous voice will be muted (cancelled).
However, even if the maximum number of 32
notes is exceeded, the note number selected
here will not be muted.
DTXPRESS IV Owner’s Manual
31
7 Create Your Own Original Drum Kit
16 Set the Pad Song
17 Set the Rim to Pad
When the pad is hit, the assigned pad song will start playback. In addition to one main song that is selected in the Song
Select display, a maximum of three Pad Songs can be individually set for a Drum Kit.
* This setting affects both layers ˙ and ¶. The ˙/¶ indication is
not shown in the upper right corner of the display.
Use the [>] button to call up the KIT16 page, then rotate the
jog dial to set the Song Number to be assigned, the Repeat
function, and the Playback mode.
KIT16*~äkick
”Song=~45áéplay‚
Song Number
* This setting affects both layers ˙ and ¶. The ˙/¶ indication is
not shown in the upper right corner of the display.
* When an input other than the rim switch is selected for the
input source, “RimToPad=---” will be displayed and the
settings cannot be made. The following display appears
when “ƒsnrOp” is selected for the input source.
Use the [>] button to call up the KIT17 page, then rotate the
jog dial to set the Rim to Pad.
Playback mode
Repeat
● Song Number
off, 45–63 ... Assigns the Song Number that is assigned to
the pad
● Repeat Playback
áé ................... Repeats playback of the song (when the song
reaches the end it will start again from the
beginning, continuously).
-≥ ................... Normal playback.
● Playback Mode
play .............. When the pad is hit, playback of the assigned
pad song will start/stop.
chse .............. When the pad is hit, one measure of the
assigned pad song will start playback then
pause.
ctof .............. When the pad is hit, playback of the assigned
pad song will start/stop. However, if the pad
song is set to “ctof,” the pad song will stop
when another pad song with the “ctof” setting
is started. This function allows only one
“ctof” pad song to be played at a time.
* Up to three pad songs can be set for each Drum Kit. To
assign a pad song for other pads, hit the target pad, or press
the [SHIFT] + [<]/[>] buttons, so that the target pad name
(trigger input source) is shown in the upper half of the display.
However, when three pad songs are set, “Song=off” is shown
and the settings cannot be made.
* The tempo of the pad song is the same as that of the main
song that is found in the Song Select display or the Click Setting display.
* If a function is already assigned in the UTIL7 page to the
input source that the pad song is assigned, “ Song=(in
use!)” is shown and the setting in the UTIL7 takes priority.
(p. 23)
* When multiple pad songs are assigned and played back in
combination, the voices within the songs may change unexpectedly or sound different than intended.
32
This function is effective only when the input source is from
a rim switch. When the rim is hit, pad events triggered from
the same pad (trigger input jack) can be simultaneously transmitted with rim switch events. With this setting, a snare pad’s
sound can be triggered at the same time as the snare’s rim
shot.
DTXPRESS IV Owner’s Manual
KIT17*~ƒsnrOp
”~RimToPad=off~‚
off .....................Only transmits rim switch event.
on ........................Transmits both rim switch event and pad event.
18 Change the Reverb Level (1)
This determines the Reverb Send Level for the voices (layers
1, 2) triggered by the input source. This effectively allows
you to adjust the reverb depth.
* This setting affects both layers ˙ and ¶. The ˙/¶ indication is
not shown in the upper right corner of the display.
* The actual Reverb Send Level is determined by adding the
Send Level set here to the Drum Reverb Send Level set in
the KIT19 page.
Use the [>] button to call up the KIT18 page, then rotate the
jog dial to set the Reverb Send Level (0–127).
KIT18*~äkick
”~RevSend=~30~~‚
19 Change the Reverb Level (2)
This determines the Overall Reverb Send Level of the Drum
Voice.
* This setting affects the entire Drum Voice. The ˙/¶ indication
is not shown in the upper right corner of the display.
Use the [>] button to call up the KIT19 page, then rotate the
jog dial to set the Drum Reverb Send Level (0–127).
KIT19*
”~RevSendDr=~40‚
7 Create Your Own Original Drum Kit
20 Change the Reverb Type
This determines the Type of Reverb effect for each Drum Kit.
The same Reverb Type is applied to the entire Drum Kit.
* This setting affects the entire Drum Voice. The ˙/¶ indication
is not shown in the upper right corner of the display.
Use the [>] button to call up the KIT20 page, then rotate the
jog dial to set the Reverb Type.
KIT20*
”RevType=hall1~‚
none .............. No reverb (same as thru).
hall1–5 ....... Simulates the reverb in a hall.
room1–5 ....... Simulates the reverb in a room.
stage1–5 ..... Simulates the ambience of a stage.
plate............ Simulates a steel plate reverb.
white............ A special short reverb effect.
tunnel ......... Simulates the reverb of a tunnel.
bsemnt ......... Simulates the reverb of a basement.
* The hall, room, or stage types with larger values produce a
more pronounced reverb effect.
21 Change the Reverb Level (3)
This determines the Signal Return Level from the reverb
effect for every Drum Kit. The same reverb type is applied to
the entire Drum Kit.
By setting the level, you can adjust the reverb effect for the
overall DTXPRESS IV system.
* This setting affects the entire Drum Voice. The ˙/¶ indication
is not shown in the upper right corner of the display.
Use the [>] button to call up the KIT21 page, then rotate the
jog dial to set the Reverb Master Return level (0–127).
KIT21*
”RevMastRet=~64‚
22 Set the Pad Controller
This is effective only when a pad equipped with pad controller is connected to the 1SNARE jack, and also when
“Type=TP1/Snr” is assigned in the TRG2 page (pad type)
of the Trigger Setup pages.
The following settings can be made by rotating the pad controller knob.
off .................No function is assigned.
snares ..........Adjusting the snares (also effective for the
open rim sound)
tuning ..........Adjusting the tuning (also effective for the
open rim sound)
tempo.............Adjusting the tempo
For users of the DTXPRESS IV Special Set, set the Trigger
Setup to “1 :SP Med” (p. 14) to enable this function.
Depending on the Drum Kit you use, the default setting that
can be adjusted by the pad controller varies.
* The ˙/¶ indication is not shown in the upper right corner of
the display.
Use the [>] button to call up the page KIT22, then rotate the
jog dial to set the Pad Controller function.
KIT22*
”PadCtl=snares~‚
23 Set the Snares
This adjusts the snares effect (the characteristic sound of the
coiled wires on the bottom of an actual snare drum) of the
pad connected to the 1SNARE jack.
This also applies to pads not having a pad controller.
* The ˙/¶ indication is not shown in the upper right corner of
the display.
Use the [>] button to call up the KIT23 page, then rotate the
jog dial to set the Snares adjustment level.
KIT23*
”~~Snares=24~~~‚
off .................Snares off (reproduces the sound with the
snares lifted off the drum)
1–24 ...............Snares are applied to the sound; the higher
the value, the tighter the snares sound. (A
value of “1” is the “loosest” snares setting.)
* When you change this setting, the decay setting (KIT6) for
the input sources “ƒsnare” and “ƒsnrOp” also changes.
24 Set the Program Change and Bank Select
When a Drum Kit is selected, this function sets the MIDI Program Change Number and the Bank Select MSB and LSB
that will be transmitted. This can be set for each MIDI channel.
By transmitting a program change message, you can have the
voice of an external MIDI device automatically change when
switching the Drum Kit on the DTXPRESS IV.
* The ˙/¶ indication is not shown in the upper right corner of
the display.
DTXPRESS IV Owner’s Manual
33
7 Create Your Own Original Drum Kit
Use the [>] button to call up the KIT24 page, then rotate the
jog dial to make the following settings.
Program Change
Transmit On/Off
MIDI Channel
KIT24*PC~Ch1=on
”PC003~M000L003‚
Program Change Number
Bank Select LSB
Bank Select MSB
* When the Program Change Transmit On/Off is set to “ off,”
values for PC, M and L will be “---” and the settings cannot
be made.
● MIDI Channel
1–16............... Target MIDI channel for the Program Change
● Program Change Transmit On/Off
on ................... Transmits.
off................. Does not transmit.
1–16 ...............Target MIDI channel for Control Change
messages
● Control Change Transmit On/Off
on....................Transmits.
off .................Does not transmit.
● Volume
0–127 .............Sets the Volume Control Change data value
that will be transmitted.
● Pan
0–127 .............Sets the Pan Control Change data value that
will be transmitted.
26 Save the Original Voice
To save the Drum Voice you created, use the Store operation
described below and save it to the DTXPRESS IV’s memory.
Original kits can be saved as a Drum Kit to the User Drum
Kit (51–70) memory locations.
CAUTION
000–127 ....... Bank select MSB number, LSB number
If you select a different Drum Kit before performing the Store operation, all changes you have
made to the data will be lost. If you want to keep
settings or changes, make sure to perform the
Store operation.
* For more information on Bank Select MSB and LSB, refer to
the Voice List and MIDI Data Format documents, etc. of the
particular external MIDI device you are using.
26-1. Press the [SAVE/ENTER] button. The following display will appear.
● Program Change Number
001–128 ....... Transmitted program change number.
● Bank Select MSB, LSB
Store destination
25 Set MIDI Volume and Pan—Control
Change
This function sets the MIDI Control Change Volume and Pan
values that will be transmitted when a Drum Kit is selected.
This can be set independently for each MIDI channel.
This lets you automatically change the voice Volume and Pan
on an external MIDI device when you switch the Drum Kit of
the DTXPRESS IV.
* The ˙/¶ indication is not shown in the upper right corner of
the display.
Use the [>] button to call up the KIT25 page, then rotate the
jog dial to make the following settings.
MIDI Channel
Control Change
Transmit On/Off
KIT25*CC~Ch1=on
”Vol=127~Pan=~64
Volume
Pan
* When the Control Change Transmit On/Off is set to “ off,”
values for Vol and Pan will show “---” and the settings cannot be made.
● MIDI Channel
34
DTXPRESS IV Owner’s Manual
KIT~save~to~51
:[Oak~Custom~~]
Edited Drum Kit name
26-2. Rotate the jog dial to select the destination user Drum
Kit number (51–70) that you want to store.
* Data cannot be stored to the Preset Drum Kits (1–50).
* You can save data to a User Drum Kit number that
already contains data. However, be careful when
doing this, since the previous data will be overwritten
with the new data.
26-3. If you want to change the Drum Kit name, press the
[<]/[>] buttons to move the flashing cursor to the
character you want to edit, then rotate the jog dial to
select a character. A Drum Kit name can contain a
maximum of 12 characters, and these can be selected
from the following list.
space
!"#$%&'()*+,-./0123456789:;<=>[email protected]
ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`
abcdefghijklmnopqrstuvwxyz{|}≥≤
7 Create Your Own Original Drum Kit
26-4. Press the [SAVE/ENTER] button again. A prompt
appears asking you to confirm the Store operation.
KIT~save~to~51
~Are~you~sure~?
26-5. Press the [SAVE/ENTER] button once more to actually execute the Store operation.
*To cancel the Store operation, press any button except
for the [SAVE/ENTER] and [SHIFT] buttons. (When
“Are you sure?” appears in the display, the jog dial will
also cancel the operation.)
When the Store operation is complete, the following
display appears.
Factory Set
This operation returns all of the DTXPRESS IV’s internal
settings back to their original factory defaults.
Please proceed with caution, since executing
this operation will also rewrite the entire memory contents of the DTXPRESS IV (all Click Sets,
User Trigger Setups 8–11, User Drum Kits 51–70,
User Songs 64–83, Utility data) with the data that
was set in the unit’s memory when it was
shipped from the factory.
Operation
~~~Completed!
With this operation, you have now created a
Drum Kit that has an original bass Drum
Voice.
Use the same procedure to create Drum
Voices for the other pads (input sources) and
create a complete custom Drum Kit of your
own.
1. First, press the [SHIFT] + [SAVE/ENTER] buttons to
call up the Utility pages.
UTIL1~Hi-hat
HHofs=~~0~T=~~5‚
2. Press the [>] button several times to call up the
UTIL8 page.
UTIL8
”~Factory~Set
3. From the page shown above, press the [SAVE/
ENTER] button to call up the prompt shown below,
asking for confirmation of the Factory Set operation.
* To cancel the Factory Set operation, press any button
except for the [SAVE/ENTER] and [SHIFT] buttons (the
jog dial can also be used to cancel the operation).
All~data~will~be
lost.AreYouSure?
4. Once again, press the [SAVE/ENTER] button to proceed with the operation.
~All~Memory
~Initializing...
DTXPRESS IV Owner’s Manual
35
8
Trigger Setup Edit
Trigger Setup Edit contains various settings related to trigger input signals received from pads
or drum triggers (Yamaha DT20, etc.) that are connected to the trigger input jacks. These settings let you optimize the DTXPRESS IV for best operation and response to these signals.
If you are using drum triggers attached to acoustic drums, or pads other than those that came
with the DTXPRESS IV set, you’ll need to adjust the sensitivity and assign voices to the individual trigger inputs. This section also has settings that help prevent crosstalk* and double triggering*.
* Crosstalk: The interference between trigger signals of physically adjacent pads, producing unexpected notes.
* Double triggering: The condition where a single pad hit causes multiple (usually two) triggers.
Trigger Setup procedure
3
* An asterisk “*” will appear next to “TRG” in the display if data
is changed. This asterisk will disappear after the Store operation is carried out.
If you are using pads or drum triggers other than those that came
with your DTXPRESS IV Set (Standard Set/Special Set), or if
you need to solve problems with double triggering or crosstalk,
the Trigger Setup provides more detailed settings—such as
changing the preset’s trigger setup—for individual pads.
If you’ve created a custom setup for these reasons or others, that
setup can be saved to one of the Trigger Setup locations (8–11).
1
Press the [SHIFT] + [DRUM KIT] buttons to call up the Trigger Setup Select page (TRG1). The currently selected Trigger
Setup is indicated in the display.
* If you want to edit a different trigger setup, use the jog dial
and select the setup here.
Rotate the jog dial to change the setting.
* The Trigger Input Level produced when a pad is hit is shown
on the upper right side of the display. When setting the gain,
use this level as a guide to measure how hard a pad is being
hit.
Trigger Input Level
TRG2* ƒsnare~~0%
”Type=DT~Snare~‚
4
To save changes you’ve made to the data, use the procedure
described below to store them to a User Trigger Setup (8–11).
Trigger Setup Select display (page 1)
TRG1~~~ååååååååå
1~:SP~Med~~~~~~‚
Trigger Setup Number: Setup Name
2
Use pages TRG2 through TRG8 to edit the Trigger Setup.
Press the [<]/[>] buttons to change pages and move the
flashing cursor to the parameter you want to set.
CAUTION
If a different trigger setup is selected before executing the Store operation, all changes you have
made to the data will be lost. If you want to keep
settings or changes, make sure to carry out the
Store operation.
4-1.
Store destination
TRG~save~to~8
:[SP~Med~~]
* Refer to pages 37 to 39 for more information on individual
parameters.
To select the Trigger Input (input jack) you want to edit, simply hit the pad you want to edit or use the [SHIFT] + [<]/
[>] buttons.
Press the [SAVE/ENTER] button. The following display will appear.
Trigger Setup name
4-2.
Rotate the jog dial to select the destination trigger
setup number (8–11).
4-3.
If you want to change the Trigger Setup name, press
the [<]/[>] buttons to move the flashing cursor to the
character you want to edit, then rotate the jog dial to
select a character. A Trigger Setup name can contain a
maximum of eight characters, and these can be
selected from the following list.
space
!"#$%&'()*+,-./0123456789:;<=>[email protected]
ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`
abcdefghijklmnopqrstuvwxyz{|}≥≤
Trigger Input to be edited
TRG2~ ƒsnare~~0%
”Type=~TP1/Snr~‚
Next page icon
Previous page icon
Flashing cursor (parameter)
36
DTXPRESS IV Owner’s Manual
8 Trigger Setup Edit
4-4.
Press the [SAVE/ENTER] button again. A prompt
appears asking you to confirm the Store operation.
TRG~save~to~8
~Are~you~sure~?
Explanations of Each Display Page
The following explanations cover the available parameters in the
pages TRG1 through TRG8. To save the edited data, refer to step
4 on page 36.
TRG1
4-5.
Trigger Setup Select
Press the [SAVE/ENTER] button once more to actually execute the Store operation.
TRG1~~~ååååååååå
1~:SP~Med~~~~~~‚
* To cancel the Store operation, press any button
except for the [SAVE/ENTER] and [SHIFT] buttons.
(When “Are you sure?” appears in the display, the jog
dial will also cancel the operation.)
The following display appears after the Store operation is complete.
[Range]
1–11
Selects the Trigger Setup Type (p. 14)
TRG2
Type (Pad Type)
~~~Completed!
CAUTION
Never attempt to turn off the power while the
message “now storing...” is shown. All Trigger Setup data may be lost.
TRG2~ ƒsnare~~0%
”Type=TP1/Snr~~‚
Sets the type of pad that is connected to the input jack assigned in
the upper half of the display ([1SNARE] in the example shown
above).
* Values set in [TRG3 Gain, MVl (Mininimum Velocity)] (p. 38)
and [TRG5 RejTime (Self Rejection Time)] (p. 38) will automatically changed to the proper values for the pad type you
set here.
Pad types are defined as follows.
KP
KP80S/80/65/60
TP1/Snr TP100/120SD
TP2/SnrA TP65S/65 (mainly used as a snare pad) *1
TP2/SnrB TP65S/65 (mainly used as a snare pad) *1, *2
TP2/Tom TP65S/65 (mainly used as a tom pad) *1
TP3-A
TP80S/80/65/60 *3
TP3-B
TP80S/80/65/60 *3
PCY1
PCY150S
PCY2
PCY130SC
PCY3
PCY130S/130
PCY4
PCY80S/80/65/60/10
RHH
RHH130
RHP~Pad RHP120SD/120/100/80 (pad side) *4
RHP~Rim RHP120SD/120/100/80 (rim side) *4
RHP~Kick KP120
BP
BP80 *5
DT~Snare DT series drum trigger (for a snare drum)
DT~HiTom DT series drum trigger (for small toms)
DT~LoTom DT series drum trigger (for large toms)
DT~Kick DT series drum trigger (for a bass drum)
misc~1–6 Other manufacturer’s pads 1 to 6
DTXPRESS IV Owner’s Manual
37
8 Trigger Setup Edit
TRG4
TRG4~ ƒsnare~~0%
”VelCurve=norm~‚
Rim 1
*2 Rim1 and rim2 sounds on the “TP2/SnrB” are reversed from
those on “TP2/SnrA”. This provides left-handed drummers
with a proper setting when using a left-handed setting.
*3 When a stereo pad such as the TP80S is connected to the
1SNARE, 5RIDE, or 6CRASH input, “TP3-A” will produce
the sound that is assigned to rim 1, and “TP3-B” will produce
the sound assigned to rim 2 (p. 28)
*4 When using an RHP series stereo pad, connect the pad to
Input 2TOM1/10, 3TOM2/11, 4TOM3/12, or 8KICK/9,
and set the pad type in “™tom1”, “£tom2”, “Ωtom3”, or
“äkick” input to “RHP~pad” and the pad type in “ƒπpad10”,
“ƒƒpad11”, “ƒ™pad12”, or ““pad9” to “RHP~rim.”
Sets the Input Velocity Curve for the input jack assigned in the
upper half of the page.
norm
TRG5
hard2
RejTime (Self Rejection Time)
0–9
[Range]
0–99
Prevents double triggering from occurring in the input jack
assigned in the upper half of the page. After an event is detected,
further events will be automatically muted for a certain length of
time. The larger the value, the longer time events will be muted.
TRG6
Adjusts the input gain (sensitivity) for the input jack assigned in
the upper half of the page.
Setting a larger value lets a smaller input level from the pad create sound.
* This value will be automatically set after the appropriate pad
type is set in [TRG2 Type (Pad Type)]. Some fine-tuning of the
value will be necessary.
* Some pads are equipped with a sensitivity adjustment knob.
For details, refer to the owner’s manual that came with the
particular pad.
[Range]
1–127
Sets the MIDI Velocity (volume) that is transmitted when the pad
is hit the softest. Large values will produce a high volume level
even if the pad is hit softly. However, this will result in a narrow
volume range making it difficult to adequately produce wider
dynamic levels.
The Trigger Input Level will be displayed in percentage in the
upper right hand corner of the display. The maximum velocity
(input level 99 percent) will be 127. The lower the level is when
the pad is hit the weakest, the wider the potential dynamic range
will be.
* This value is automatically set after the appropriate pad type
is set in [TRG2 Type (Pad Type)]. Some fine-tuning of the
value will be necessary.
38
hard1
Gain, MVI (Minimum Velocity)
TRG3~ ƒsnare~~0%
”Gain=65MVl=~12‚
MVI
loud1
TRG5 ~ƒsnare~~0%
”~~RejTime=1~~~‚
[Range]
Gain
loud2
Strength of hit →
*5 To use the BP80 as a stereo pad, connect the pad to Input
2TOM1/10, 3TOM2/11, 4TOM3/12, or 8KICK/9.
TRG3
VelCurve (Velocity Curve)
Velocity →
*1 Three-zone function (pad voice x 1, rim
voice x 2) is available if a three-zone
compatible pad such as the TP65S, etc.
is connected to the 1SNARE, 5RIDE,
or 6CRASH input.
For producing closed rim shots, the
“TP2/SnrA” has a high sensitivity setting on rim 1, while the “TP2/SnrB” has
a high sensitivity setting on rim 2.
Rim 2
The same voice is assigned to “TP2/
Tom” and “TP2/SnrA” and the left and
right rim sensitivities are set to the same level.
DTXPRESS IV Owner’s Manual
RejLvlAll (Rejection Level)
TRG6 ~ƒsnare~~0%
”~RejLvlAll=2~~‚
[Range]
0–9
Prevents crosstalk from occurring in the input jack assigned in
the upper half of the page. Events triggered by other pads (input
jacks) that are of a lower input value than what is set here will not
be triggered for a certain length of time. Larger values require a
greater input level in order to produce a trigger event.
TRG7
RejLvl (Specified Rejection Level)
TRG7~ ƒsnare~~0%
”RejLv1=3Frm=56‚
RejLvl [Range]
0–9
Frm
1–6, 56 (5 and 6), 7–12
[Range]
This setting is used to prevent crosstalk between the input jack
assigned in the upper half of the page and the input jack assigned
in the “Frm=” setting.
8 Trigger Setup Edit
After an triggering event occurs from the pad that is assigned in
the “Frm=” setting, the pad assigned in the upper half of the display will not sound for a certain length of time unless the input
level is greater than the value set here. Larger values will require
a greater input level in order to produce a trigger event.
A “Frm=56” setting assigns both trigger input jacks 5 and 6.
TRG8
CopyToInput (Trigger Setup Copy)
TRG8 ~ƒsnare
”CopyToInput=~2‚
This function allows you to copy all data settings in pages [TRG2
Type (Pad Type)] through [TRG7 RejLvl (Specified Rejection
Level)] to another input jack.
CAUTION
When the Trigger Setup Copy operation is carried out, the Trigger Setup data will be replaced
with the settings of the copy source.
Operation
1. Hit a pad to select the copy source (input jack) from
which the data will be copied.
Rotate the jog dial and assign the copy destination (input
jack).
Copy source (input jack)
TRG8~ ƒsnare
”CopyToInput=~2‚
Copy destination (input jack)
2. Press the [SAVE/ENTER] button. A prompt appears asking confirmation of the Copy operation.
Input~Copy~to~2
~Are~you~sure~?
3. Press the [SAVE/ENTER] button to actually execute the
Copy operation.
* To cancel the Copy operation, press any button except for the
[SAVE/ENTER] and [SHIFT] buttons (the jog dial can also be
used to cancel the operation).
The following display appears after the Copy operation is
complete.
~~~Completed!
DTXPRESS IV Owner’s Manual
39
Error Messages
The DTXPRESS IV displays error messages when incorrect settings have been made or invalid
operations have been detected, or when any abnormal operation or malfunction occurs.
If an error message appears, check the list below and make the appropriate corrections.
ERROR
Data~Initialized
ERROR
Memory~full
ERROR
Can'tWriteMemory
This message appears just after the power is switched on and the device cannot correctly
read the data due to the Factory Reset operation being active.
The backup ROM data may have been damaged. Contact the nearest Yamaha Service Center or the dealer where you purchased the device.
You have exceeded the memory capacity of the user song.
Delete unused songs to make more memory available and try recording again.
Writing data to the backup ROM has failed.
Trobleshooting
The DTXPRESS IV does not produce sound, or does
not recognize trigger inputs.
● Are the pads or drum triggers (Yamaha DT20, etc.) properly
connected to the DTXPRESS IV’s trigger input jacks? (p. 10,
11)
● Is the DTXPRESS IV properly connected to headphones or an
external audio device such as an amplifier, speaker, etc.? (p.
12)
● Check the position of the power switches and volume levels of
any connected external audio devices, such as an amplifier,
speaker, etc.
● The volume knob on the rear panel may be turned down (p.
15).
● Is the input level displayed when the pad is hit? (p. 38 [TRG3
Gain, MVI (Minimum Velocity)])
● Is the gain set too low? (p. 38 [TRG3 Gain, MVI (Minimum
Velocity)])
● The volume setting on the Drum Kit Select display’s “KIT3 Volume” page (p. 29) may be set to “0.”
● Is the correct MIDI connector being used? (p. 13)
● Are the MIDI note number values appropriate?
(p. 30 Steps 8 to 10: [KIT8], [KIT9], [KIT10])
● The drum voices for both layers ˙ and ¶ may be set to
“00:NoAssign.” (p. 29 Step2: [KIT2])
A voice other than the set voice is produced.
● Is the transmitting MIDI channel set to a channel that is not
used for the drum voice (ch=10)? (p. 30, Step 9: [KIT9])
● Are two-layer voices set in the voice setting on the Drum Kit
Select display? (p. 29 Step 2: [KIT2])
Produces sound but the sensitivity is too low (volume
is low).
● Is the gain set too low? (p. 38: [TRG3 Gain, MVI (Minimum
Velocity)])
● Pads with a level adjustment knob should be adjusted
(increased).
● Is there a problem with the cable you are using?
● Is the minimum velocity set too low? (p. 38: [TRG3 Gain, MVI
(Minimum Velocity)])
● The drum voices for both layers ˙ and ¶ may be set to
“00:NoAssign.” (p. 29 Step2: [KIT2])
● Are you using a proper velocity curve? (p. 38: [TRG4 VelCurve
(Velocity Curve)])
The external tone generator does not produce sound.
● Is the MIDI cable (connector) properly connected? (p. 13)
40
DTXPRESS IV Owner’s Manual
● Is the volume of the voice you want to use too low? (p. 29 Step
3: [KIT3])
Trobleshooting
● Check the entry “Produces sound but the sensitivity is too low
(volume is low)” above.
● Lower the specified rejection setting of the pad (trigger input)
that is not producing sound (p. 38: [TRG7 RejLvl (Specified
Rejection Level)])
● Try selecting a larger pad type setting (DT snare → DT HiTom
→ DT LoTom → DT Kick). (p. 37: [TRG2 Type (Pad Type)])
● Are both pads (trigger inputs) set to the same alternate group?
(p. 31 Step 14: [KIT14])
The trigger sound is not stable. (For acoustic drums)
● Is the Drum Trigger (Yamaha DT20, etc.) improperly attached
with duct tape? (Is there any old adhesive remaining on the
head?)
● Is the cable securely connected to the drum trigger (Yamaha
DT20, etc.) jack?
Double triggering is produced.
● Pads with a level adjustment knob should be adjusted (lowered).
● Is the gain set too high? (p. 38: [TRG3 Gain, MVI (Minimum
Velocity)])
● Use the self-rejection setting. (p. 38: [TRG5 RejTime (Self
Rejection Time)])
● (KP65) Is the pad type for the input jack to which the KP65 is
connected set to Kick Pad? (p. 37: [TRG2 Pad Type])
● Are you using drum triggers (trigger sensors) made by other
manufacturers? Too large a signal can result in double triggering.
● Is the head causing irregular vibrations? It may be necessary
to mute the head.
● Is the sensor attached close to the center of the head? Move
the sensor closer to the rim.
The sound is always loud.
● Is the minimum velocities minimum value set too high? (p. 38:
[TRG3 Gain, MVI (Minimum Velocity)])
● Are you using an appropriate velocity curve? (p. 38: [TRG4
VelCurve (Velocity Curve)])
● Are you using a pad made by another manufacturer? Depending upon the manufacturer, output levels might be too large.
The DTXPRESS IV does not receive any switch or trigger signals.
● If you can access the Utility display, perform the Factory Set
operation. The DTXPRESS IV will reset to its factory settings.
(p. 35: [UTIL8 Factory Set])
● Turn the POWER switch OFF then ON while holding the [ <]
and [>] buttons together. The DTXPRESS IV will reset to its
factory settings.
The sound does not stop.
● Some voices have very long release times when the “key off”
parameter is set to “disable.” (p. 30 Step 11: [KIT11])
Press the [DRUM KIT] button to temporarily stop the sound.
● Is the sensor in contact with anything else?
The pad controller function does not work
Crosstalk (trigger interference from different inputs) is
produced.
● Is the gain set too high? (p. 38: [TRG3 Gain, MVI (Minimum
Velocity)])
● Try increasing the rejection parameter. However, avoid setting
this value too high since that may cause the sound to not be
produced when another pad (trigger input) is hit at the same
time. (p. 38: [TRG6 RejLvlAll (Rejection Level)])
● If crosstalk is produced with a specific trigger input, try using
specific rejection. (p. 38: [TRG7 RejLvl (Specified Rejection
Level)])
● Try placing sensors (Yamaha DT20, etc.) away from nearby
drums.
Sounds are cut when you play continuously.
● The maximum polyphony of 32 voices might be exceeded. In
the Drum Kit Select dispaly’s “KIT15 Key Assign Mode” page
(p. 31), set the “KeyAssign” value to “semi” or “mono.”
When two pads (drums) are played only one sound is
heard.
● Have you connected a pad equipped with a pad controller,
such as the TP100 or TP120SD?
● Are the pad controller settings properly set? (p. 17)
The Closed Hi-Hat voice is not produced.
● Is the proper pad type selected? If the RHH130 is used as a hihat controller, the pad type must be set to “RHH.” (p. 37: [TRG2
Pad Type])
The edge or cup sections of the cymbal pad do not produce sound when struck. The choke functions do not
work.
● Is the proper pad type selected? Select the appropriate pad
type for the kind of cymbal pad you are using. (p. 37: [TRG2
Pad Type])
Foot Splashes are not produced.
● Is the foot controller connected to the HI HAT CONTROL jack?
● Adjust the detection time of foot splashes. (p. 16: Adjusting the
Hi-hat)
● Raise the gain setting of the pad (trigger input) that is not producing sound. (p. 38: [TRG3 Gain, MVI (Minimum Velocity)])
● Lower the rejection setting of the pad (trigger input) that is not
producing sound. (p. 38: [TRG6 RejLvlAll (Rejection Level)])
DTXPRESS IV Owner’s Manual
41
Index
Symbols
” .................................... 15
‚ .................................... 15
[<], [>] ............................ 8
[ ON/OFF] ..............8, 18
* .................16, 17, 18, 29
˙, ¶ .............................. 15
˚¡, ∞¢ ......................... 22
A
Accessories ..................... 3
Acoustic drums .......11, 41
Alternate group ............. 31
AUX IN ......................9, 13
B
Bank select ................... 34
Bass solo ...................... 23
Beat ............................... 18
C
Cable clip ..................9, 12
Challenge mode ............ 24
Clear ............................. 27
[CLICK] ........................... 8
Click .............................. 18
Click lamp ....................... 8
Click master volume ...... 18
Click measure break ..... 19
Click out select .............. 20
Click set ..................18, 19
Click set name .............. 20
Click sound set .............. 19
Click timer ...............18, 21
Closed rim shot ............. 38
Closing point ................. 16
Connections .................. 10
Control change .............. 34
Copy .............................. 39
CopyToInput ................. 39
Cross fade ..................... 31
Crosstalk .......... 36, 38, 41
D
DC IN 12V .................9, 12
Decay ............................ 30
Double triggering
...................... 36, 38, 41
Double-bass drum set ... 14
[DRUM KIT] ..................... 8
Drum kit ...................15, 28
Drum kit list ................... 49
Drum kit name ............... 35
Drum voice .................... 28
42
Drum voice list ...............48
DT20 .................14, 36, 41
N
Numeric display mode .. 24
E
O
Error messages .............40
OUTPUT ...................9, 12
F
P
Factory set .....................35
Filter ..............................30
Foot controller ...............16
Foot splashes ......... 16, 41
Pad ............................... 28
Pad controller
................. 9, 14, 17, 33
Pad function .................. 23
Pad song .................15, 32
Pad type ........................ 37
Pad with switch .........9, 14
Pan .........................29, 34
Parallel cable ............9, 14
PHONES ...................9, 12
Playback mode ............. 32
Power supply ..... 9, 12, 13
POWER switch ............... 9
Program change ........... 34
Specified rejection level
...................................38
Standard set ........... 10, 14
Stereo pad ................ 9, 38
Stereo plug ......................9
Store operation
...................... 20, 34, 36
T
Quantize ....................... 26
Tap tempo .....................21
Tempo ........17, 18, 21, 22
Three-zone pad .. 9, 14, 38
Top panel ........................8
Trigger input jacks ...........9
Trigger input source ......28
Trigger setup .... 14, 36, 37
Trigger setup copy ........39
Trigger setup name .......36
Tuning
Click ...........................19
Drum voice .................29
Pad controller .............17
Song ..........................22
Type ..............................37
Input level ......................15
R
U
J
Rear panel ...................... 9
Record .......................... 26
Rejection level .............. 38
RejLvl ............................ 38
RejLvlAll ........................ 38
RejTime ........................ 38
Repeat playback ........... 32
Reverb ....................32, 33
Reverb type .................. 33
Rhythm gate ...........24, 25
Rim shot ........................ 32
Rim to pad .................... 32
User click sound ............19
User drum kit .................34
User song ......................27
User trigger setup ..........36
Utility .............................16
G
Gain ...............................38
Gate time .......................30
Groove check ................24
H
Headphones ............. 9, 12
HI HAT CONTROL ..........9
Hi-hat controller ...............9
Hi-hat pedal ...................16
Hold mode .....................30
I
Jog dial ............................8
K
Key assign mode ...........31
Kick pad .........................14
L
Layer ................15, 29, 31
LCD display .............. 8, 44
LED display .............. 8, 21
M
Master equalizer ............16
Metronome ....................18
MIDI ...............................13
MIDI channel .................30
MIDI data format ............43
MIDI implementation chart
...................................47
MIDI key on/off ..............30
MIDI note number ..........30
MIDI OUT ................. 9, 13
Minimum velocity ...........38
Module stand .......... 10, 11
Mute ....................... 19, 22
MVI ................................38
DTXPRESS IV Owner’s Manual
Q
S
Save ................. 20, 34, 36
[SAVE/ENTER] ............... 8
Self rejection time ......... 38
Sensitivity ......... 14, 38, 40
[SHIFT] ........................... 8
Snares ....................17, 33
[SONG >/■] .............8, 22
Song ............................. 22
Song list ........................ 49
Song name ................... 27
Sound quality ................ 16
Speaker ........................ 12
Special set ..............11, 14
Specifications ................ 50
V
VelCurve .......................38
Velocity curve ................38
Voice category
...................... 19, 29, 48
Voice character .............30
VOLUME .................. 9, 15
Volume
Click ...........................18
Control change ..........34
Drum voice .................29
Headphone ................12
Overall .................. 9, 15
Pad ............................15
Song ..........................22
Appendix
MIDI Data Format
1. Channel Messages
The channel messages described below are sent from the drum triggers only. Other messages are sent from both the drum
triggers and the sequencer.
1.1 Key On, Key Off
Note range: 0 (C-2)–127 (G8)
Velocity range: 0–127
1.2 Control Change
1.2.1 Bank select MSB, LSB–0, 32
data = 0–127
1.2.2 Foot controller–4 (Ch. 10 only)
1.2.3 Main volume–7
1.2.4 Pan–10 (left 0, right 127)
1.3 Program Change
2. System Exclusive Messages
2.1 Parameter Change
2.1.1 GM system ON
$F0 $7E $7F $09 $01 $F7 (hexadecimal)
Sets all messages (except MIDI master tuning) to their initial values.
3. System Realtime Message
3.1 Timing clock
Sends data.
3.2 Start, Stop
Sends data.
3.3 Active sensing
Sends the messages within an interval of approximately 300 msec.
DTXPRESS IV Owner’s Manual
43
Appendix
LCD Displays
* The above “LCD Displays” charts show you the pages available in each display.
Keep in mind that the actual displays on the instrument may be different from those shown here.
Drum Kit Settings
KIT1
ååååååååå
1 :Oak Custom ‚
KIT2
ƒsnare ˙
”S01:OakCustom ‚
KIT3
ƒsnare
” Volume=127
KIT4
ƒsnare
” Tune=+ 0.0
KIT5
ƒsnare
”
Pan= C
KIT6
ƒsnare
” Decay= 0
‚
‚
‚
‚
KIT7
ƒsnare
”CutOffFreq= 0‚
KIT8
ƒsnare
”Note= 32/G#0 ‚
KIT9
ƒsnare
” MIDI Ch=10
‚
KIT10 ƒsnare
”GateTime=0.3s ‚
KIT11 ƒsnare
”KeyOff=disable‚
KIT12 ƒsnare
” HoldMode=off ‚
44
DTXPRESS IV Owner’s Manual
KIT13 ƒsnare
” VelXFade=0
(Page 15)
(Page 28)
(Page
15, 29)
(Page 29)
(Page 29)
(Page 30)
(Page 30)
(Page 30)
(Page 30)
(Page 30)
(Page 30)
(Page 30)
KIT14 ƒsnare
” AltGrp=off
‚
KIT save to 51
:[Oak Custom ]
‚
KIT15 ƒsnare
”KeyAssign=poly‚
KIT16 ƒsnare
”Song= 45áéplay‚
KIT17 ƒsnare
” RimToPad=--- ‚
KIT18 ƒsnare
” RevSend= 75
(Page 31)
‚
KIT19
” RevSendDr= 40‚
(Page 31)
(Page 31)
KIT save to 51
Are you sure ?
(Page 32)
(Page 32)
(Page 32)
(Page 32)
KIT20
”RevType=hall2 ‚
(Page 33)
KIT21
”RevMastRet= 64‚
(Page 33)
KIT22
”PadCtl=snares ‚
KIT23
” Snares=32
(Page 34)
(Page
17, 33)
‚
(Page 33)
KIT24 PC Ch1=on
”PC001 M000L001‚
(Page 33)
KIT25 CC Ch1=on
”vol=127 Pan= 64
(Page 34)
(Page 35)
Appendix
Song Selection
Click Settings
SONG1
⁄=123 ÷›
1 :Demo 1
∞¢‚
CLK1
∫ B=4 ÷›
1 :User
⁄=130‚
(Page 18)
CLK2 A˘=9 ¤=9
” ‹=6 ßß=4 Œ=2 ‚
(Page 19)
CLK3 MeasBreak
”Meas=1 Brk=3 ‚
(Page 19)
CLK4 Sound
” 1:Metronome
‚
(Page 19)
CLK5 Sound=¤
”E20:Click1
‚
(Page 19)
SONG2 Clear
”Are You Sure ?
SONG save name
:[Untitled]
SONG save name
Are you sure ?
(Page 22)
* Displayed when
a user song is
selected.
(Page 27)
(Page 27)
(Page 27)
Song Recording
REC
⁄=120
Beat=4 Quant=⁄
REC Meas= 10
Now Recording.
(Page 19)
CLK save to 1
:[User ]
(Page 20)
CLK save to 1
Are you sure ?
(Page 20)
(Page 26)
(Page 26)
Groove Check Function
GRV1 --æ√æ’æææ-⁄=130 Gr=-2œ0.0‚
CLK6 Sound=¤
” Tune=+ 0.0
(Page 24)
Challenge Mode
GRV1 --æ√æ’æææ-80Hits/ 16%(DÀ)‚
(Page 24)
GRV2 RhythmGate
”Mode=challenge‚
(Page 25)
GRV3
” Input=ƒsnare ‚
(Page 25)
GRV4
” Note=⁄(4)
(Page 25)
DTXPRESS IV Owner’s Manual
45
Appendix
Utility Settings
Trigger Setup Edit
UTIL1 Hi-hat
HHofs=-13 T=112‚
(Page 16)
TRG1
ååååååååå
1 :SP Med
‚
(Page 20)
TRG2 ƒsnare 0%
”Type=TP1/Snr ‚
(Page 23)
TRG3 ƒsnare 0%
”Gain=65MVl= 12‚
(Page 21)
TRG4 ƒsnare 0%
”VelCurve=norm ‚
(Page 16)
TRG5 ƒsnare
” RejTime=1
(Page 22)
TRG6 ƒsnare 0%
” RejLvlAll=2 ‚
(Page 23)
TRG7 ƒsnare 0%
”RejLvl=3Frm=56‚
(Page 38)
(Page 35)
TRG8 ƒsnare
”CopyToInput= 1
(Page 39)
TRG save to 8
:[SP Med ]
(Page 36)
TRG save to 8
Are you sure ?
(Page 37)
UTIL2 Click
”OutSel=clickR ‚
UTIL3 Song
” BassSolo=off ‚
UTIL4 LED
” Disp=tempo
‚
UTIL5 MasterEQ
”Lo=+ 4 Hi=+ 0 ‚
UTIL6 MasterTune
” Tune=+15.7 ‚
UTIL7 ƒsnare
”Func=off
UTIL8
” Factory Set
‚
Tap Tempo Function
TAP TEMPO
¤=123 ≠ªªªª
46
DTXPRESS IV Owner’s Manual
(Page 21)
0%
‚
(Page 14, 36)
(Page 17, 37)
(Page 38)
(Page 38)
(Page 38)
(Page 38)
MIDI Implementation Chart
YAMAHA
[ DRUM TRIGGER MODULE ]
Model DTXPRESS IV MIDI Implementation Chart
Transmitted
Recognized
Date:27-Mar-2006
Version : 1.0
Remarks
Function ...
Basic
Channel
Default
Changed
1 - 16
1 - 16
x
x
Mode
Default
Messages
Altered
x
x
**************
x
x
x
Note
0 - 127
Number : True voice **************
x
x
Velocity Note ON
Note OFF
o 9nH,v=1-127
x 9nH,v=0
x
x
After
Touch
x
x
x
x
Pitch Bender
x
x
0,32
4,7,10
1,2,5,6,8,11,12,13
16-19
Control
33-63
64-84
Change
91-95
96-101
o
o
x
x
x
x
x
x
x
x
x
x
x
x
x
x
Prog
Change : True #
o 0 - 127
**************
x
x
System Exclusive
o
x
: Song Pos.
Common : Song Sel.
: Tune
x
x
x
x
x
x
System
:Clock
o
Real Time :Commands o
x
x
:All Sound Off
Aux :Reset All Cntrls
:Local ON/OFF
Mes- :All Notes OFF
sages:Active Sense
:Reset
x
x
x
x
x
x
Key's
Ch's
x
o
x
x
o
x
memorized
Bank Select
Notes:
Mode 1 : OMNI ON, POLY
Mode 3 : OMNI OFF, POLY
Mode 2 : OMNI ON, MONO
Mode 4 : OMNI OFF, MONO
o : Yes
x : No
DTXPRESS IV Owner’s Manual
47
Appendix
Drum Voice List
Voice Category
K : Kick
S : Snare
T : Tom
C : Cymbal
H : Hi-hat
P : Percussion
E : Effect
K:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
Kick
OakCustom
MapleCustm
MapleVintg
Beech
BirchDry
BirchJazz
DryDeep
DryTight 1
DryTight 2
SoTight
2Head
BigSofty
RockAmb 1
RockAmb 2
BD Room 1
BD Room 2
GateKick1
GateKick2
T8 Kick
T9 Kick
CR Kick
T9 HrdAtk
T9 Long
Sm Kick
T8 Down
T9 Dist
TechKick1
TechKick2
TechKick3
BreakKick1
BreakKick2
BreakKick3
BreakKick4
BreakKick5
BreakKick6
VoxKick
KickBass
ResoKick1
ResoKick2
DidgerKick
ReversBD
S:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Snare
OakCustom
OakCusOpRm
OakCusClRm
OakCusOff
OakCusOffO
OakCusOffC
MapleCustm
MapCusOpRm
MapCusClRm
MplCusOff
MplCusOffO
MplCusOffC
Beech
BeechOpRim
BeechClRim
BeechOff
BeechOffOR
BeechOffCR
Metal
MetalOpRim
48
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
MetalClRim
MetalOff
MetalOffOp
MetalOffCl
MapleVtg
MapleVtgR
Loosy
LoosyRim
LiteWood
LiteWoodRm
RockAmb 1
RockAmb 2
RockAmb R
BirchDeep
BirchDeepR
Studio
StudioRim
MapleLite
MapleLiteR
DryMute
Brush
BrushRim
BrushOff
BrshOffRim
SnareRoll*
GateSnare1
GateSnare2
GateSnare3
GateSnare4
GateSnare5
T8 Snare1
T8 Snare2
T8 Rim
T9 Rim
Tek Snare
LoBitSnare
Sm Snare1
Sm Snare2
SynSnare
BreakSnr 1
BreakSnr 2
BreakSnr 3
BreakSnr 4
DB Snare1
DB Snare2
DB Snare3
DB Snare4
DB Snare5
DB Snare6
Snappy
R&BSnare1
R&BSnare2
R&BSnare3
VoxSnare1
VoxSnare2
GunSnare
ResoSnare1
ResoSnare2
T : Tom
1 OakCustomH
2 OakCustomM
3 OakCustomL
4 MapleCus H
5 MapleCus M
6 MapleCus L
7 BeechCus H
8 BeechCus M
9 BeechCus L
10 Studio H
11 Studio M
12 Studio L
13 RockAmb H
14 RockAmb M
15 RockAmb L
DTXPRESS IV Owner’s Manual
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
MapleAmb H
MapleAmb M
MapleAmb L
JazzTom H
JazzTom M
JazzTom L
BrushTom H
BrushTom M
BrushTom L
T8 Tom1 H
T8 Tom1 M
T8 Tom1 L
T8 Tom2 H
T8 Tom2 M
T8 Tom2 L
T9 Tom1 H
T9 Tom1 M
T9 Tom1 L
T9 Tom2 H
T9 Tom2 M
T9 Tom2 L
Sm Tom1 H
Sm Tom1 M
Sm Tom1 L
Sm Tom2 H
Sm Tom2 M
Sm Tom2 L
PulseTom H
PulseTom M
PulseTom L
VoxTom
E.BendTom
E.Talking
DidgeriTom
ReverseTom
C : Cymbal
1 Bright18
2 Bright18Eg
3 Bright18Cp
4 Warm16
5 Warm16Edge
6 Warm16Cup
7 Dark18
8 Dark18Edge
9 Dark18Cup
10 CrCustom17
11 CrLight17
12 CrFast16
13 CrFast14
14 Bright20
15 Bright20Eg
16 Bright20Cp
17 Warm20
18 Warm20Edge
19 Warm20Cup
20 Dark20
21 Dark20Edge
22 Dark20Cup
23 RideCool
24 RideCoolCp
25 RideDry
26 RideDryCup
27 SizzleRide
28 SizzRideEg
29 SizzRideCp
30 ChinaHi
31 ChinaLoCtr
32 ChinaLoEg
33 Splash 1
34 Splash 2
35 Trash 1
36 Trash 2
37 T8 Crash
38 T9 Crash
39
40
41
42
43
44
45
46
T8 Ride
T9 Ride
ElecCymbal
NoiseCym1
NoiseCym2
VoxCymbal1
VoxCymbal2
ReverseCym
H : Hi-Hat
1 Dark14 Opn
2 Dark14 OpE
3 Dark14 Cls
4 Dark14 ClE
5 Dark14 Ft
6 Dark14 Sp
7 Dark13 Opn
8 Dark13 OpE
9 Dark13 Cls
10 Dark13 ClE
11 Dark13 Ft
12 Dark13 Sp
13 Bright14Op
14 Bright14OE
15 Bright14Cl
16 Bright14CE
17 Bright14Ft
18 Bright14Sp
19 Warm13Opn
20 Warm13OpE
21 Warm13Cls
22 Warm13ClE
23 Warm13Ft
24 Warm13Sp
25 Tight12Opn
26 Tight12OpE
27 Tight12Cls
28 Tight12ClE
29 Tight12Ft
30 Tight12Sp
31 T8 HH Opn
32 T8 HH Cls
33 T9 HH Opn
34 T9 HH Cls
35 CR HH Opn
36 CR HH Cls
37 Break HHOp
38 Break HHCl
39 Brack HHFt
40 NoiseHHOpn
41 NoiseHHCls
P:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Percussion
CongaHiOpn
CongaHiSlp
CongaHiOSw
CongaHiTip
CongaHiHel
CongaLoOpn
BongoHi
BongoLo
TimbalHi
TimbalLo
PailaHi
PailaLo
SurdoOpn
SurdoMt
SurdoHO
SurdoSw
PandieroOp
PandieroMt
PandieroSl
Tambarin1
Tambarin2
Tambarin3
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
Cowbell 1
Cowbell 2
Cowbell 3
Cowbell3Mt
Cowbell 4
Cowbell4Mt
Claves
Maracas
Vibraslap
Castanet
TriangleOp
TriangleCl
TriangleHO
TriangleSw
GuiroShort
GuiroLong
Agogo Hi
Agogo Lo
WoodBlockH
WoodBlockL
Shaker1
Shaker2
Caxixi1
Caxixi2
DjembeOpen
DjembeSlap
DjembeMute
CajonLo
CajonHi
CajonSlp
TalkDrOp
TalkDrMt
TalkDrSlp
TalkDrBend
PotDrOpn
PotDrCls
PotDrMute
PotDrBody
TablaOpen1
TablaOpen2
TablaMute
TablaSlp
BayaOpn
BayaMute
BayaBend
CuicaHi
CuicaLo
WhistleH
WhistleL
SleighBell
BellTree
WindChime
TimpaniF#2
Timpani B1
Timpani E1
ConctBDop
ConctBDmt
HandCymOp
HandCymMt
Gong
ChinaGong
Odaiko
OdaikoRim
Yagura
YaguraRim
Shimedaiko
ShimeRim
Atarigane
AtariganeM
AnaConga
AnaCowbell
AnaMaracas
AnaShaker1
AnaShaker2
Appendix
E:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Effect
StickHit1
StickHit2
FingerSnap
E.Clap1
E.Clap2
E.Clap3
NoiseHit
Metal1
Metal2
Metal3
AmbShot
Tunnel
HiQ
Noise 1
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Noise 2
Pulse
Zap
MetrBell 1
MetrBell 2
Click1
Click2
Vo Go!
Vo Hoo!
Vo Yoo!
Vo Ha!
Vo Uh!
Vo aYeah!
Scratch1
Scratch2
Scratch3
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
Scratch4
Scratch5
Scratch6
Scratch7
OrchHit1
OrchHit2
R&BHit1
R&BHit2
BrassHit
ScratchHit
Industry
CompuVoice
Radio
Thunder
Tire
Crash
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
Glass
GunShot1
GunShot2
Bomb
ResoNzClap
Strike
AmbientCym
SFXCymbal1
SFXCymbal2
SFXCymbal3
NzAmbient
LoDroneAmb
NzEcho
Vel-Decay1
Vel-Decay2
DlyScratch
63
64
65
66
67
68
69
70
71
72
73
74
75
Boyon
P!
E.Bass
SlapBass
Turntable*
Train*
Helicoptr*
Applause*
Police*
Ring*
FX Pad*
Didgerido*
VinylMan*
* Loop
Preset Drum Kit List
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
Name
Oak Custom
Maple Custom
Beech Custom
Rock Kit
Gate Kit
Hip Hop
Break Kit
Street Beat
Brazil Kit
Sm Kit
Studio Kit
Dry Beat
SessionMastr
No.
14
15
16
17
18
19
20
21
22
23
24
25
26
Name
T8 Kit
T9 Kit
Drum&Bass
Electro
Percuss Kit
Social Cuban
SE Kit
Funky Men
Power Kit
Resonance
Industry
Jazz Kit
Brush Kit
No.
27
28
29
30
31
32
33
34
35
36
37
38
39
Name
Matsuri
AsianGypsy
LoopLoop
Scratch
VOX Kit
Vintage Kit
Room Kit
Afro Kit
Latin Club
Drum Corps
Orchestra
See View
Boyon
No.
40
41
42
43
44
45
46
47
48
49
50
Name
WikkidPocket
Reggae Kit
BrokenFunk
GoGo1988
Re-0
Elec 5/4
Backbone
Groove Kit
8/8 Craze
[email protected]
GM Standard
Preset Song List
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Genre
Demo
Rock
Shuffle
Funk
Blues
Hip Hop
R&B
Name
Demo 1
Demo 2
Demo 3
Rock 1
Rock 2
Rock 3
Rock 4
Rock 5
Rock 6
Shuffle 1
Shuffle 2
Shuffle 3
Funk 1
Funk 2
Funk 3
Blues 1
Blues 2
HipHop 1
HipHop 2
R&B 1
R&B 2
No.
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
Genre
Dance
Pops
Pop Rock
Jazz
Bossa Nova
Fusion
Samba
Latin
Reggae
Soul
Ballad
Name
Dance 1
Dance 2
Pops 1
Pops 2
PopRock1
PopRock2
Jazz 1
Jazz 2
Bossa 1
Bossa 2
Fusion 1
Fusion 2
Samba 1
Samba 2
Samba 3
Latin 1
Latin 2
Reggae
Soul
Ballad 1
Ballad 2
No.
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
Genre
Second Line
Ska
Pad Song
Name
2ndLine
Ska
8Craze A
8Craze B
BassGrv
HornGrv
Jko?Naa
PadBass
GoGo Tp
GoGo Br
GoGo Lp
Re-O
BFunk A
BFunk B
BFunk C
Elec5/4A
Elec5/4B
Elec5/4C
Backb Ld
Backb St
Backb Pf
DTXPRESS IV Owner’s Manual
49
Appendix
Specifications
Tone Generator block
Trigger
Sequencer
Metronome
Others
Tone Generator
AWM2
Maximum Polyphony
32
Voices
427 Drum, Percussion Voices
22 Keyboard Voices
Drum Kits
Preset: 50
User: 20
Effects
Reverb x 19 types, Master EQ
Trigger Setups
Preset: 7
User: 4
Pad Controller
Snares adjustment, Tuning, Tempo
Pad Functions
Drum Kit INC/DEC, Click Set INC/DEC, Tempo INC/DEC, Click ON/OFF
Pad Songs
Start/Stop, Chase, Cut Off
3 songs (max.) can be played simultaneously.
Note Capacity
Approx. 16,000 notes
Note Resolution
96 parts per quarter note
Recording Type
Real Time Replace
Track
1
Songs
3 Demo Songs
41 Practice Songs
19 Pad Songs
20 User Songs
Tempo
30–300 beats/minute, Tap Tempo function
Beat
1–9
Timing
Accent, Quarter note, Eighth note, Sixteenth note, Triplet
Click Sound Sets
Preset: 6
User: 1
Click Sets
30
Click Timer
0–600 seconds (in 30-second steps)
Training Functions
Measure Break, Groove Check, Rhythm Gate
Controls
Buttons: DRUMKIT, CLICK, SONG >/■, SHIFT, <, >,
Controllers: Volume, Jog Dial
ON/OFF, SAVE/ENTER
Displays
16 characters x 2 lines backlit LCD, 7-segment LED (3-digit), Tempo LED x 2
Connectors
Trigger inputs 1, 5, 6, 7 (stereo phone jack L: trigger input, R: rim switch)
Trigger inputs 2, 3, 4, 8 (stereo phone jack L: trigger input, R: trigger input)
HI HAT CONTROL (stereo phone jack)
OUTPUT L/MONO, R (mono phone jack)
PHONES (stereo phone jack), AUX IN (stereo mini jack)
MIDI OUT, DC IN
Power Consumption
13.0 W
Dimensions (W x D x H)
252 x 147 x 52 mm (9-15/16" x 5-13/16" x 2-1/16")
Weight
898 g (2 lbs.)
* Specifications and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves the right to
change or modify products or specifications at any time without prior notice. Since specifications, equipment or options may
not be the same in every locale, please check with your Yamaha dealer.
50
DTXPRESS IV Owner’s Manual
FCC INFORMATION (U.S.A.)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not
expressly approved by Yamaha may void your authority, granted
by the FCC, to use the product.
2. IMPORTANT: When connecting this product to accessories
and/or another product use only high quality shielded cables.
Cable/s supplied with this product MUST be used. Follow all
installation instructions. Failure to follow instructions could void
your FCC authorization to use this product in the USA.
3. NOTE: This product has been tested and found to comply with
the requirements listed in FCC Regulations, Part 15 for Class “B”
digital devices. Compliance with these requirements provides a
reasonable level of assurance that your use of this product in a
residential environment will not result in harmful interference with
other electronic devices. This equipment generates/uses radio
frequencies and, if not installed and used according to the
instructions found in the users manual, may cause interference
harmful to the operation of other electronic devices. Compliance
with FCC regulations does not guarantee that interference will not
occur in all installations. If this product is found to be the source of
interference, which can be determined by turning the unit “OFF”
and “ON”, please try to eliminate the problem by using one of the
following measures:
Relocate either this product or the device that is being affected by
the interference.
Utilize power outlets that are on different branch (circuit breaker
or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the
antenna. If the antenna lead-in is 300 ohm ribbon lead, change
the lead-in to co-axial type cable.
If these corrective measures do not produce satisfactory results,
please contact the local retailer authorized to distribute this type
of product. If you can not locate the appropriate retailer, please
contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620
The above statements apply ONLY to those products distributed
by Yamaha Corporation of America or its subsidiaries.
* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.
(class B)
IMPORTANT NOTICE FOR THE UNITED KINGDOM
Connecting the Plug and Cord
IMPORTANT. The wires in this mains lead are coloured in accordance with the following code:
BLUE
: NEUTRAL
BROWN : LIVE
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured makings identifying the terminals in
your plug proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.
Making sure that neither core is connected to the earth terminal of the three pin plug.
• This applies only to products distributed by Yamaha-Kemble Music (U.K.) Ltd.
(2 wires)
For details of products, please contact your
nearest Yamaha representative or the authorized
distributor listed below.
Pour plus de détails sur les produits, veuillez-vous
adresser à Yamaha ou au distributeur le plus
proche de vous figurant dans la liste suivante.
Die Einzelheiten zu Produkten sind bei Ihrer
unten aufgeführten Niederlassung und bei
Yamaha Vertragshändlern in den je weiligen
Bestimmungsländern erhältlich.
Para detalles sobre productos, contacte su tienda
Yamaha más cercana o el distribuidor autorizado
que se lista debajo.
CANADA
NORTH AMERICA
Yamaha Canada Music Ltd.
135 Milner Avenue, Scarborough, Ontario,
M1S 3R1, Canada
Tel: 416-298-1311
U.S.A.
Yamaha Corporation of America
6600 Orangethorpe Ave., Buena Park, Calif. 90620,
U.S.A.
Tel: 714-522-9011
CENTRAL & SOUTH AMERICA
MEXICO
Yamaha de México S.A. de C.V.
Calz. Javier Rojo Gómez #1149,
Col. Guadalupe del Moral
C.P. 09300, México, D.F., México
Tel: 55-5804-0600
BRAZIL
Yamaha Musical do Brasil Ltda.
Rua Joaquim Floriano, 913 - 4' andar, Itaim Bibi,
CEP 04534-013 Sao Paulo, SP. BRAZIL
Tel: 011-3704-1377
ARGENTINA
Yamaha Music Latin America, S.A.
Sucursal de Argentina
Viamonte 1145 Piso2-B 1053,
Buenos Aires, Argentina
Tel: 1-4371-7021
PANAMA AND OTHER LATIN
AMERICAN COUNTRIES/
CARIBBEAN COUNTRIES
Yamaha Music Latin America, S.A.
Torre Banco General, Piso 7, Urbanización Marbella,
Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, Panamá
Tel: +507-269-5311
EUROPE
THE UNITED KINGDOM
Yamaha-Kemble Music (U.K.) Ltd.
Sherbourne Drive, Tilbrook, Milton Keynes,
MK7 8BL, England
Tel: 01908-366700
IRELAND
Danfay Ltd.
61D, Sallynoggin Road, Dun Laoghaire, Co. Dublin
Tel: 01-2859177
GERMANY
Yamaha Music Central Europe GmbH
Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: 04101-3030
SWITZERLAND/LIECHTENSTEIN
Yamaha Music Central Europe GmbH,
Branch Switzerland
Seefeldstrasse 94, 8008 Zürich, Switzerland
Tel: 01-383 3990
AUSTRIA
Yamaha Music Central Europe GmbH,
Branch Austria
Schleiergasse 20, A-1100 Wien, Austria
Tel: 01-60203900
CZECH REPUBLIC/SLOVAKIA/
HUNGARY/SLOVENIA
Yamaha Music Central Europe GmbH,
Branch Austria, CEE Department
Schleiergasse 20, A-1100 Wien, Austria
Tel: 01-602039025
POLAND
Yamaha Music Central Europe GmbH
Sp.z. o.o. Oddzial w Polsce
ul. 17 Stycznia 56, PL-02-146 Warszawa, Poland
Tel: 022-868-07-57
Neem voor details over producten alstublieft
contact op met uw dichtstbijzijnde Yamahavertegenwoordiging of de geautoriseerde
distributeur uit het onderstaande overzicht.
Per ulteriori dettagli sui prodotti, rivolgersi al più
vicino rappresentante Yamaha oppure a uno dei
distributori autorizzati elencati di seguito.
ASIA
THE NETHERLANDS/
BELGIUM/LUXEMBOURG
Yamaha Music Central Europe GmbH,
Branch Benelux
Clarissenhof 5-b, 4133 AB Vianen, The Netherlands
Tel: 0347-358 040
FRANCE
Yamaha Musique France
BP 70-77312 Marne-la-Vallée Cedex 2, France
Tel: 01-64-61-4000
ITALY
Yamaha Musica Italia S.P.A.
Combo Division
Viale Italia 88, 20020 Lainate (Milano), Italy
Tel: 02-935-771
SPAIN/PORTUGAL
Yamaha-Hazen Música, S.A.
Ctra. de la Coruna km. 17, 200, 28230
Las Rozas (Madrid), Spain
Tel: 91-639-8888
Philippos Nakas S.A. The Music House
147 Skiathou Street, 112-55 Athens, Greece
Tel: 01-228 2160
SWEDEN
Yamaha Scandinavia AB
J. A. Wettergrens Gata 1
Box 30053
S-400 43 Göteborg, Sweden
Tel: 031 89 34 00
HONG KONG
Tom Lee Music Co., Ltd.
11/F., Silvercord Tower 1, 30 Canton Road,
Tsimshatsui, Kowloon, Hong Kong
Tel: 2737-7688
INDONESIA
PT. Yamaha Music Indonesia (Distributor)
PT. Nusantik
Gedung Yamaha Music Center, Jalan Jend. Gatot
Subroto Kav. 4, Jakarta 12930, Indonesia
Tel: 21-520-2577
Yamaha Music Korea Ltd.
Tong-Yang Securities Bldg. 16F 23-8 Yoido-dong,
Youngdungpo-ku, Seoul, Korea
Tel: 02-3770-0660
OWNER’S MANUAL
MALAYSIA
Yamaha Music Malaysia, Sdn., Bhd.
Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,
Petaling Jaya, Selangor, Malaysia
Tel: 3-78030900
Yupangco Music Corporation
339 Gil J. Puyat Avenue, P.O. Box 885 MCPO,
Makati, Metro Manila, Philippines
Tel: 819-7551
YS Copenhagen Liaison Office
Generatorvej 6A
DK-2730 Herlev, Denmark
Tel: 44 92 49 00
SINGAPORE
Yamaha Music Asia Pte., Ltd.
#03-11 A-Z Building
140 Paya Lebor Road, Singapore 409015
Tel: 747-4374
FINLAND
F-Musiikki Oy
Kluuvikatu 6, P.O. Box 260,
SF-00101 Helsinki, Finland
Tel: 09 618511
TAIWAN
NORWAY
Norsk filial av Yamaha Scandinavia AB
Grini Næringspark 1
N-1345 Østerås, Norway
Tel: 67 16 77 70
ICELAND
Skifan HF
Skeifan 17 P.O. Box 8120
IS-128 Reykjavik, Iceland
Tel: 525 5000
