LEDs

LEDs
Non-Directional
LED wiring

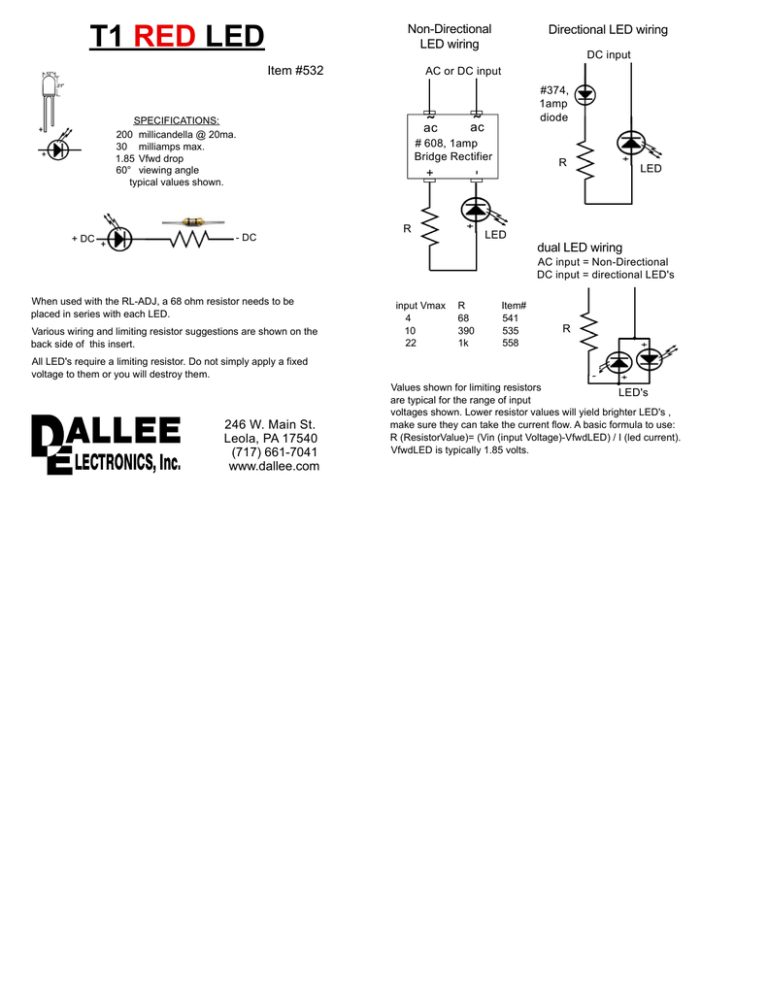

T1 RED LED
DC input
Item #532
AC or DC input
˜
SPECIFICATIONS:
200 millicandella @ 20ma.
30 milliamps max.
1.85 Vfwd drop
60° viewing angle
typical values shown.
+ DC
Directional LED wiring
- DC
ac
#374,
1amp
diode
˜
ac
R
-
+
# 608, 1amp
Bridge Rectifier
R
LED
LED
dual LED wiring
AC input = Non-Directional
DC input = directional LED's
When used with the RL-ADJ, a 68 ohm resistor needs to be
placed in series with each LED.
Various wiring and limiting resistor suggestions are shown on the
back side of this insert.
input Vmax
4
10
22
R
68
390
1k
Item#
541
535
558
R
All LED's require a limiting resistor. Do not simply apply a fixed
voltage to them or you will destroy them.
246 W. Main St.
Leola, PA 17540
(717) 661-7041
www.dallee.com
Values shown for limiting resistors
LED's
are typical for the range of input
voltages shown. Lower resistor values will yield brighter LED's ,
make sure they can take the current flow. A basic formula to use:
R (ResistorValue)= (Vin (input Voltage)-VfwdLED) / I (led current).
VfwdLED is typically 1.85 volts.
Non-Directional
LED wiring
DC input
Item #533
AC or DC input
˜
ac
SPECIFICATIONS:
250 millicandella @ 20ma.
20 milliamps max.
2 Vfwd drop
40° viewing angle
typical values shown.
+ DC
- DC
Directional LED wiring
#374,
1amp
diode
˜
ac
+
# 608, 1amp
Bridge Rectifier
R
-
T1 YELLOW LED
R
LED
LED
dual LED wiring
AC input = Non-Directional
DC input = directional LED's
When used with the RL-ADJ, a 68 ohm resistor needs to be
placed in series with each LED.
Various wiring and limiting resistor suggestions are shown on the
back side of this insert.
input Vmax
4
10
22
R
68
390
1k
Item#
541
535
558
R
All LED's require a limiting resistor. Do not simply apply a fixed
voltage to them or you will destroy them.
246 W. Main St.
Leola, PA 17540
(717) 661-7041
www.dallee.com
Values shown for limiting resistors
LED's
are typical for the range of input
voltages shown. Lower resistor values will yield brighter LED's ,
make sure they can take the current flow. A basic formula to use:
R (ResistorValue)= (Vin (input Voltage)-VfwdLED) / I (led current).
VfwdLED is typically 2.1 volts.
T1 GREEN LED
Non-Directional
LED wiring
DC input
Item #534
AC or DC input
˜
SPECIFICATIONS:
40 millicandella @ 20ma.
20 milliamps max.
2.2 Vfwd drop
40° viewing angle
typical values shown.
+ DC
Directional LED wiring
ac
#374,
1amp
diode
˜
ac
- DC
R
-
+
# 608, 1amp
Bridge Rectifier
R
LED
LED
dual LED wiring
AC input = Non-Directional
DC input = directional LED's
When used with the RL-ADJ, a 68 ohm resistor needs to be
placed in series with each LED.
Various wiring and limiting resistor suggestions are shown on the
back side of this insert.
input Vmax
4
10
22
R
68
390
1k
Item#
541
535
558
R
All LED's require a limiting resistor. Do not simply apply a fixed
voltage to them or you will destroy them.
246 W. Main St.
Leola, PA 17540
(717) 661-7041
www.dallee.com
Values shown for limiting resistors
LED's
are typical for the range of input
voltages shown. Lower resistor values will yield brighter LED's,
make sure they can take the current flow. A basic formula to use:
R (ResistorValue)= (Vin (input Voltage)-VfwdLED-0.7) / I (led
current). VfwdLED is typically 2.2 volts.
Non-Directional
LED wiring
T1 RED LED
special shape
Directional LED wiring
DC input
Item #542
AC or DC input
#374,
1amp
Rectifier
marker lights
˜
ac
˜
ac
# 608, 1amp
Bridge Rectifier
+
R
+ DC
R
-
+
SPECIFICATIONS:
0.7 millicandella @ 10ma.
25
milliamps max.
2.25 Vfwd drop
typical values shown.
LED
LED
- DC
dual LED wiring
AC input = Non-Directional
DC input = directional LED's
Measurements: Front nib 0.079" dia x 0.14" long, main body
0.196" dia x 0.177" long.
When used with the RL-ADJ, a 68 ohm resistor needs to be
placed in series with each LED.
Various wiring and limiting resistor suggestions are shown on the
back side of this insert.
All LED's require a limiting resistor. Do not simply apply a fixed
voltage to them or you will destroy them.
246 W. Main St.
Leola, PA 17540
(717) 661-7041
www.dallee.com
input V
3-5
12
16-24
R
68
390
1k
Item#
541
535
558
R
Values shown for limiting resistors
LED's
are typical for the range of input
voltages shown. Higher values will yield brighter LED's , make
sure they can take the current flow. A basic formula to use:
R (ResistorValue)= (Vin (input Voltage)-VfwdLED) / I (led current).
VfwdLED is typically 2.25 volts.
Dual color marker light wiring
T1 Red/Green LED
common Anode
flat edge
SPECIFICATIONS:
6 millicandella @ 20 ma., 30 ma max.
2.0 red, 2.1 grn, Vfwd drop
45° viewing angle. Typical values shown.
RAG
- DC
+ DC
R1
R
R
A
+ DC A
G
R1
R2
A
A
Item #593
G
R1
R2
- DC
- DC
G
LED
R
G
#374
1amp
diode's
Left rail
pickup
DC
input
Right rail
pickup
R1 = R2, select from chart below.
Most applications will use 1k, #558
R
For the second marker
LED, connect second
dual LED to the same dot
locations to the left. For
opposite end LED's,
connect another pair in a
similar fashion to the dot
locations, but reverse the
colors.
- DC
Method 1: using 1
resistor in series with
the common Anode.
Method 2: using 2 resistor's in
series with each cathode.
Required to balance the led's
when both are illuminated.
When used with the RL-ADJ (item 378), a 68 ohm resistor needs
to be placed in series with the LED's as shown above.
Marker lamp wiring and limiting resistor suggestions are shown on
the back.
All LED's require a limiting resistor. Do not simply apply a fixed
voltage to them or you will destroy them!
246 W. Main St.
Leola, PA 17540
(717) 661-7041
www.dallee.com
When connecting in this fashion, the Red and Green LED's will
operate when the track power reverses itself making dual color
marker lights possible.
3rail / AC operators can connect in the same fashion, but instead of
connecting to the rail pickup's as shown, connect to the motor
brushes. However, the e-unit must be a Dallee 518 or 400 or the
existing e-unit must be operating a DC motor.
input Vmax
4
12
25
R1
68
390
1k
Item#
541
535
558
Values shown for limiting resistors are typical for the range of input
voltages shown. Lower resistor values will yield brighter LED's ,
make sure they can take the current flow. A basic formula to use:
R (ResistorValue) = (Vin (input Voltage) - VfwdLED-0.7) / I (led
current). VfwdLED is typically 2 volts.
Incandescent White LED
(T1 - 3mm)
Non-Directional
LED wiring
Directional LED wiring
DC input
AC or DC input
Item #536
#374,
1amp
Rectifier
SPECIFICATIONS:
color temp
milliwatt max
milliamps typ.
milliamps max.
Vfwd drop
angle
Vpiv
˜
ac
˜
ac
# 608, 1amp
Bridge Rectifier
R
R
LED
R
68
390
1k
Item#
541
535
558
This Incandescent White LED represents the color of light bulbs.
Input Vmax represents the maximum input voltage. The LED will
start to illuminate at a lower voltage but the current rating of the
LED will be exceeded if a lower value resistor is selected and a
higher voltage is applied.
Improper handling or powering the LED will cause permanent
damage.
246 W. Main St.
Leola, PA 17540
(717) 661-7041
www.dallee.com
dual LED wiring
AC input = Non-Directional
DC input = directional LED's
Suggested Limiting Resistors
input Vmax
5.5
15
24
LED
-
millicandella
3000K
120
20
30
3.1 - 3.8
30º
5
+
3000
input Vmax
5.5
15
24
R
68
390
1k
Item#
541
535
558
R
LED's
Values shown for limiting resistors
are typical for the range of input
voltages shown. Lower resistor values will yield brighter LED's ,
make sure they can take the current flow. A basic formula to use:
R (ResistorValue)= (Vin (input Voltage)-VfwdLED) / I (led current).
VfwdLED is typically 3.45 volts.
