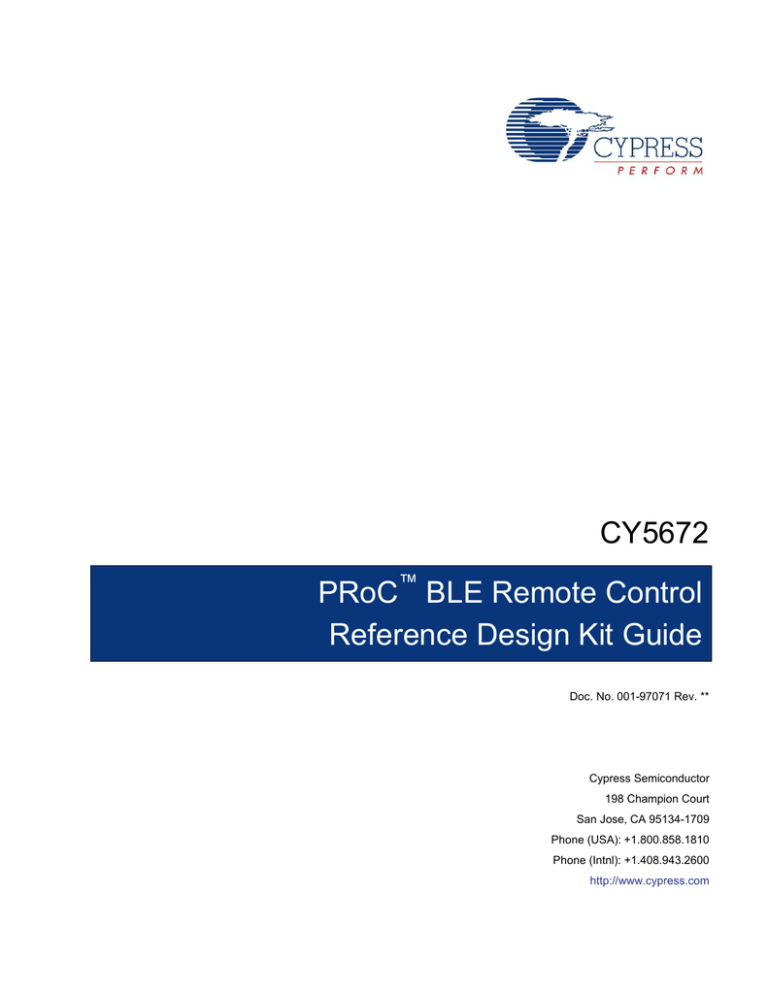

CY5672 PRoC BLE Remote Control Reference Design Kit Guide

CY5672 PRoC BLE Remote Control Reference Design Kit Guide

CY5672

PRoC

BLE Remote Control

Reference Design Kit Guide

Doc. No. 001-97071 Rev. **

Cypress Semiconductor

198 Champion Court

San Jose, CA 95134-1709

Phone (USA): +1.800.858.1810

Phone (Intnl): +1.408.943.2600 http://www.cypress.com

Copyrights

Copyrights

© Cypress Semiconductor Corporation, 2015. The information contained herein is subject to change without notice.

Cypress Semiconductor Corporation assumes no responsibility for the use of any circuitry other than circuitry embodied in a

Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Source Code

Any Source Code (software and/or firmware) is owned by Cypress Semiconductor Corporation (Cypress) and is protected by and subject to worldwide patent protection (United States and foreign), United States copyright laws and international treaty provisions. Cypress hereby grants to licensee a personal, non-exclusive, non-transferable license to copy, use, modify, create derivative works of, and compile the Cypress Source Code and derivative works for the sole purpose of creating custom software and or firmware in support of licensee product to be used only in conjunction with a Cypress integrated circuit as specified in the applicable agreement. Any reproduction, modification, translation, compilation, or representation of this Source Code except as specified above is prohibited without the express written permission of

Cypress.

Disclaimer

CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATERIAL,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described herein. Cypress does not assume any liability arising out of the application or use of any product or circuit described herein.

Cypress does not authorize its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress’ product in a life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Use may be limited by and subject to the applicable Cypress software license agreement.

Trademarks

CySmart, PRoC, PSoC Components, and PSoC Creator are trademarks, and CapSense and PSoC are registered trademarks, of Cypress Semiconductor Corporation. All other trademarks are the property of their respective owners.

Purchase of I

Philips I

2

2

C components from Cypress or one of its sublicensed Associated Companies conveys a license under the

C Patent Rights to use these components in an I

2

C system, provided that the system conforms to the I

2

C Standard

Specification as defined by Philips. As from October 1st, 2006 Philips Semiconductors has a new trade name - NXP

Semiconductors.

Flash Code Protection

Cypress products meet the specifications contained in their particular Cypress Datasheets. Cypress believes that its family of products is one of the most secure families of its kind on the market today, regardless of how they are used. There may be methods, unknown to Cypress, that can breach the code protection features. Any of these methods, to our knowledge, would be dishonest and possibly illegal. Neither Cypress nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as "unbreakable." Cypress is willing to work with the customer who is concerned about the integrity of their code. Code protection is constantly evolving.

We at Cypress are committed to continuously improving the code protection features of our products.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 2

Contents

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. **

Safety Information .................................................................................................................................................................. 6

1.

Introduction .................................................................................................................................................................... 8

1.1

Kit Contents ........................................................................................................................................................... 8

1.2

PRoC BLE Remote Control Details ....................................................................................................................... 9

1.3

PSoC Creator ...................................................................................................................................................... 11

1.4

Getting Started .................................................................................................................................................... 12

1.5

Additional Learning Resources ............................................................................................................................ 12

1.5.1

Beginner Resources ............................................................................................................................... 12

1.5.2

Component Datasheets .......................................................................................................................... 12

1.5.3

Learning from Peers: Cypress Developer Community Forums ............................................................... 12

1.5.4

Other Kits ................................................................................................................................................ 13

1.6

Technical Support ................................................................................................................................................ 13

1.7

Document Conventions ....................................................................................................................................... 13

1.8

Acronyms............................................................................................................................................................. 14

2.

Installation.................................................................................................................................................................... 15

2.1

Before You Begin ................................................................................................................................................ 15

2.2

Install Software .................................................................................................................................................... 15

2.3

Uninstall Software ................................................................................................................................................ 18

3.

Kit Operation ................................................................................................................................................................ 19

3.1

Connecting the PRoC BLE Remote Control with the CySmart USB Dongle to Communicate with PC ............... 19

3.2

Connecting the PRoC BLE Remote Control with the CySmart USB Dongle to Communicate with

the CySmart Software .................................................................................................................................................. 20

3.2.1

Connecting the CY5672 Remote Control RDK to CySmart Software ..................................................... 21

3.3

Programming and Debugging .............................................................................................................................. 25

3.3.1

Programming and Debugging PRoC BLE on the Remote Control and Dongle ...................................... 25

3.3.2

Programming PRoC BLE on the Remote Control and Dongle Using PSoC Programmer ..................... 25

3.3.3

Programming and Debugging PRoC BLE on Remote Control and Dongle Using PSoC Creator .......... 28

3.3.4

Programming PSoC 5LP on the CySmart USB Dongle .......................................................................... 32

4.

Hardware ...................................................................................................................................................................... 35

4.1

Board Details ....................................................................................................................................................... 35

4.2

Theory of Operation ............................................................................................................................................. 38

4.2.1

Overview of the PRoC BLE Remote Control .......................................................................................... 38

4.2.2

Overview of CySmart Dongle ................................................................................................................. 39

4.3

Functional Description – PRoC BLE Remote Control .......................................................................................... 40

3

Contents

4.3.1

Power Supply ......................................................................................................................................... 40

4.3.2

Clock and Reset ..................................................................................................................................... 41

4.3.3

Program and Debug Circuit .................................................................................................................... 42

4.3.4

PRoC BLE Device .................................................................................................................................. 42

4.3.5

LED ......................................................................................................................................................... 43

4.3.6

Button Matrix .......................................................................................................................................... 44

4.3.7

IR LED .................................................................................................................................................... 44

4.3.8

Motion Sensor ........................................................................................................................................ 45

4.3.9

Battery Monitoring................................................................................................................................... 46

4.3.10

Audio Input Device.................................................................................................................................. 46

4.3.11

Trackpad Interface .................................................................................................................................. 47

4.3.12

Test Points .............................................................................................................................................. 48

4.4

Functional Description – CySmart USB Dongle................................................................................................... 49

4.4.1

Power Supply System and Protection Circuitry ...................................................................................... 49

4.4.2

Clock and Reset ..................................................................................................................................... 49

4.4.3

Program and Debug Circuit .................................................................................................................... 50

4.4.4

PRoC BLE .............................................................................................................................................. 51

4.4.5

PSoC 5 LP .............................................................................................................................................. 52

4.4.6

LEDs and Buttons ................................................................................................................................... 53

4.4.7

USB Plug ................................................................................................................................................ 54

5.

Firmware....................................................................................................................................................................... 55

5.1

Firmware for PRoC BLE on the Remote Control ................................................................................................. 55

5.1.1

Firmware Architecture ............................................................................................................................. 56

5.1.2

Watchdog Timer Subsystem ................................................................................................................... 65

5.1.3

BLE Subsystem ...................................................................................................................................... 65

5.1.4

Trackpad Subsystem .............................................................................................................................. 73

5.1.5

Motion Sensor Subsystem ...................................................................................................................... 82

5.1.6

Button Subsystem................................................................................................................................... 92

5.1.7

Keyboard Subsystem .............................................................................................................................. 95

5.1.8

Timer Subsystem .................................................................................................................................... 98

5.1.9

Battery Monitoring Subsystem ................................................................................................................ 98

5.1.10

Audio Subsystem .................................................................................................................................. 100

5.1.11

IR LED Subsystem ............................................................................................................................... 108

5.1.12

LED Subsystem .................................................................................................................................... 113

5.1.13

Flash Subsystem .................................................................................................................................. 115

5.1.14

Debug Subsystem ................................................................................................................................ 115

5.2

Firmware for the PRoC BLE and PSoC 5LP on the CySmart USB Dongle ....................................................... 116

5.2.1

Firmware Architecture ........................................................................................................................... 116

5.2.2

BLE Subsystem .................................................................................................................................... 124

5.2.3

LED Subsystem .................................................................................................................................... 126

5.2.4

Button Subsystem................................................................................................................................. 127

5.2.5

UART Subsystem ................................................................................................................................. 127

5.2.6

USB Subsystem.................................................................................................................................... 135

6.

Advanced Topics ....................................................................................................................................................... 138

6.1

Connecting PRoC the BLE Remote Control with a Bluetooth Smart Ready Device .......................................... 138

6.1.1

Windows 8.1 PC ................................................................................................................................... 138

6.1.2

MacBook Pro ........................................................................................................................................ 139

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 4

Contents

6.1.3

Android ................................................................................................................................................. 139

6.2

Current Measurement ........................................................................................................................................ 140

6.2.1

Measure System Current Consumption ................................................................................................ 140

6.2.2

Measure PRoC BLE Current Consumption .......................................................................................... 140

6.2.3

Measure Voltage................................................................................................................................... 142

6.3

Assembling and Disassembling the Remote Control ......................................................................................... 142

6.3.1

Disassembly Procedure ........................................................................................................................ 142

6.3.2

Assembly Procedure ............................................................................................................................. 142

Appendix A. Schematics and FAQ ................................................................................................................................... 143

A.1 Schematics ............................................................................................................................................................ 143

A.1.1 Remote Control ........................................................................................................................................ 143

A.1.2 Dongle ...................................................................................................................................................... 148

A.2 FAQ ....................................................................................................................................................................... 150

A.3 Troubleshooting and FAQ for Interoperability Issues with Bluetooth Smart Ready Devices ................................. 152

Revision History ................................................................................................................................................................. 153

Document Revision History ......................................................................................................................................... 153

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 5

Safety Information

The CY5672 PRoC™ BLE Remote Control Reference Design Kit (RDK) is intended for use as a development, demonstration, and evaluation platform for hardware or software in a laboratory environment. The kit is not intended for general consumer use. It generates, uses, and can radiate radio frequency energy. It has not been tested for compliance with the limits applicable under any standard. Operation of the equipment may cause interference with radio communications, in which case users, at their expense, will be required to take whatever measures may be required to correct this interference. Cypress recommends that the kit be used only in a shielded room.

The CY5672 PRoC BLE Remote Control RDK boards contain electrostatic discharge (ESD)- sensitive devices. Electrostatic charges readily accumulate on the human body and any equipment, which can cause a discharge without detection. Permanent damage may occur to devices subjected to high-energy discharges. Proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Store unused CY5672 PRoC BLE

Remote Control RDK boards in the protective shipping package.

End-of-Life/Product Recycling

The end-of-life cycle for this kit is five years from the date of manufacture mentioned on the back of the box. Contact the nearest recycler to discard the kit.

General Safety Instructions

ESD Protection

ESD can damage boards and associated components. Cypress recommends that the user perform procedures only at an

ESD workstation. If an ESD workstation is not available, use appropriate ESD protection by wearing an antistatic wrist strap attached to the chassis ground (any unpainted metal surface) on the board when handling parts.

Handling Boards

The boards provided with CY5672 are sensitive to ESD. This also applies to the boards that are provided with a plastic casing when they are removed from the casing. Hold the boards only by the edges. After removing a board from the box/casing, place it on a grounded, static-free surface. Use a conductive foam pad, if available. Do not slide the board over any surface.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 6

Battery Care and Use

Safety Information

Use the correct size and type of battery specified in this guide.

Keep battery contact surfaces and battery compartment contacts clean by rubbing them with a clean pencil eraser or a rough cloth each time you replace the batteries.

Remove the battery from a device when it is not expected to be used for several months.

Make sure that you insert the battery into your device properly, with the + (plus) and – (minus) terminals aligned correctly.

Do not place the battery next to metallic objects such as keys and coins.

Never throw the battery into a fire.

Do not open up the battery.

Do not short the battery.

Do not subject the battery to high temperatures or high humidity.

Store the battery in a dry place.

Do not recharge a battery unless it is marked "rechargeable."

Battery Disposal

Batteries can be safely disposed of with normal household waste. Never dispose of batteries in a fire because they can explode.

It is important not to dispose of large amounts of batteries in a group. Used batteries are often not completely “dead.”

Grouping used batteries together can bring the “live” batteries into contact with one another, creating safety risks.

Regulatory Compliance Information

This kit contains devices that transmit and receive radio signals in accordance with the spectrum regulations for the

2.4-GHz unlicensed frequency range. This kit has passed precompliance tests for the following regulatory standards:

CE

FCC Part 15

Canadian RSS-210

EU EN 300 328

Contact Cypress technical support at [email protected]

for further details.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 7

1. Introduction

Thank you for your interest in the CY5672 PRoC™ BLE Remote Control Reference Design Kit (RDK). This kit provides an implementation of a Bluetooth LE (BLE), or Bluetooth Smart, remote control using the PRoC BLE single-chip solution.

PRoC BLE is a true single-chip solution that integrates Cypress’s industry-leading capacitive touch sensing, an energyefficient ARM

®

Cortex

TM

-M0 CPU core, Bluetooth 4.1–compliant Bluetooth Smart connectivity, and a balun to minimize external components for a wide variety of applications.

The kit includes a CySmart™ USB dongle, which can be used to connect the remote control to devices like PCs, laptops, tablets, and smartphones. The dongle acts as a serial-USB bridge and can either pass data directly to the PC’s HID drivers or it can interface with the CySmart tool for more detailed application analysis and debugging. The remote control and the dongle can be programmed, enabling users to customize and evaluate firmware per their requirements. Schematics, layout files, ready-to-use firmware, and source code are provided with the kit to enable PC peripheral designers to build their own remote control designs.

1.1

Kit Contents

The CY5672 PRoC BLE Remote Control RDK includes the following items, as shown in Figure 1-1 .

1. PRoC BLE remote control

2. CySmart USB dongle

3. MiniProg3 programmer/debugger

4. 10-pin ribbon cable

5. Two M2 X 5mm screws

6. Two AAA batteries

7. Phillips head screwdriver

8. USB 2.0 standard A to mini-B cable

The kit also includes a quick start guide to enable users to connect the PRoC BLE remote control to a PC using the

CySmart USB dongle.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 8

Figure 1-1. Kit Contents

Introduction

Note: The color of the remote control received as part of the kit may differ from the color shown in Figure 1-1.

If any part of the kit is missing, contact your nearest Cypress sales office for help: www.cypress.com/go/support .

1.2

PRoC BLE Remote Control Details

This section details the blocks and explains the features of the PRoC BLE remote control.

Note: Figure 1-2 shows the PRoC BLE remote control without the back cover, so you can see all its features.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 9

Figure 1-2. PRoC BLE Remote Control Features

Introduction

The PRoC BLE remote control can be connected to a host device like a PC, a smart TV, a tablet, or a smartphone using

Bluetooth Smart or USB (using the CySmart USB dongle). The quick start guide provided with the kit details the procedure to connect the PRoC BLE remote control to a PC using the CySmart USB dongle. You can connect the PRoC BLE remote control to any Bluetooth Smart or Bluetooth Smart Ready host device. Details for this procedure are available in the

Connecting PRoC the BLE Remote Control with a Bluetooth Smart Ready Device section.

Once connected (via Bluetooth Smart or via USB), the PRoC BLE remote control provides features that can be directly used with a PC, smart TV, tablet, or smartphone.

Features supported on a PC or smart TV include the following:

Gestures on trackpad

Single-finger tracking for mouse cursor movement

Single-finger tap for left-click and double-tap for double-click

Two-finger tap for right-click

Two-finger pinch in/out for zoom out/in

Single-finger swipe at right and bottom edges for vertical and horizontal scrolling respectively

Single-finger swipe down on top edge to navigate to Start screen in Windows 8 or later and to open Start menu in previous Windows versions

Note: The behavior of this gesture on a smart TV, tablet, or smartphone varies based on the model and operating system)

Buttons for left-click and right-click

Volume control buttons to adjust the volume

Advanced features supported on a smart TV or supported via the CySmart tool on a PC include the following:

Power button to switch on or switch off the smart TV

Channel control buttons to change channels

Source button to switch across audio-video inputs

Return button for going back to previous view on a smart TV

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 10

Introduction

When used with the CySmart USB dongle, the onboard microphone can be used to stream voice data to the PC, smart TV, and so on. The CySmart USB dongle enumerates as a USB microphone. A tool like a sound recorder can be used on the

PC to record the voice data coming from the remote. This feature cannot be used when directly connected to a Bluetooth

Smart Ready device since Bluetooth 4.0/4.1 does not specify standard audio profiles. The audio data is transmitted from the remote to the dongle using the HID Over GATT Profile (HOGP).

Note: When using the CySmart USB dongle, these features are dependent upon the operating system supporting the generic desktop and consumer usage pages of the human interface device (HID) class as well as the audio device class, over USB. When the PRoC BLE remote control is directly connected to a Bluetooth Smart Ready device, these features depend on the support available for the HOGP over Bluetooth Smart.

The PRoC BLE remote control also provides IR-based wireless connectivity. IR enables the PRoC BLE remote control to be backward compatible with legacy host devices such as TVs that do not support Bluetooth Smart or USB. The following features are supported over IR:

Power button to switch on or switch off the TV

Volume control buttons to adjust the volume

Channel control buttons to change channels

Source button to switch across audio-video inputs

Return button for going back to previous view on a smart TV

The remote control also provides LED-based notifications:

Red LED is on when remote control is advertising over Bluetooth Smart. It blinks three times and then switches off after successful connection.

Red LED blinks on user activity when the remote control has lost the BLE link and it is trying to connect back to the previously connected host such as a PC or smart TV. This typically occurs when the remote control goes out of range.

Red LED shows a slow breathing effect on user activity when the battery level is low (that is, the battery voltage is below 2.0 V).

Red LED shows a fast breathing effect on user activity if the remote control is not connected to the CySmart USB dongle or a Bluetooth Smart Ready host device.

Moreover, the remote control offers the ability to:

Debug and program the onboard PRoC BLE device using the 10-pin header

Measure the current consumed by PRoC BLE

1.3

PSoC Creator

PSoC Creator™ is a state-of-the-art, easy-to-use integrated design environment (IDE). It introduces a revolutionary hardware and software co-design platform, powered by a library of verified and characterized PSoC Components™.

With PSoC Creator, you can:

Drag and drop PSoC Components to build a schematic of your custom design

Automatically place and route Components and configure GPIOs

Develop and debug firmware using the included Component APIs

PSoC Creator also enables you to tap into an entire tool ecosystem, including integrated compiler chains and production programmers for PSoC

®

devices. For more information, visit www.cypress.com/creator .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 11

1.4

Getting Started

Introduction

This guide will help you get acquainted with the CY5672 PRoC BLE Remote Control RDK.

The Kit Contents section details the contents of the kit.

The quick start guide shipped with the kit provides instructions on how to start using the PRoC BLE remote control.

The PRoC BLE Remote Control Details section details the features of the remote control.

The

Installation

chapter describes the installation of the kit software. This includes the PSoC Creator IDE for development, programming, and debugging; PSoC Programmer for programming hex files; and the CySmart tool for

Bluetooth LE host emulation

The Kit Operation chapter describes common procedures like programming and debugging the PRoC BLE remote

control and the CySmart USB dongle. It also introduces the CySmart tool for Bluetooth LE host emulation.

The Hardware chapter describes the hardware contents of the kit.

The

Firmware chapter describes the firmware on the PRoC BLE remote control and the CySmart USB dongle.

The Advanced Topics chapter explains topics like connecting the remote control to Bluetooth Smart Ready devices,

assembling and disassembling the remote control, and measuring current/voltage on the remote control.

Appendix A. Schematics and FAQ provides schematics and a list of frequently asked questions (FAQs) for

troubleshooting.

1.5

Additional Learning Resources

Visit www.cypress.com/PRoCBLE for additional learning resources in the form of datasheets, technical reference manuals, and application notes.

1.5.1 Beginner Resources

PSoC Creator Training: www.cypress.com/go/creatorstart/creatortraining

1.5.2 Component Datasheets

To view the datasheet of a Component from PSoC Creator, right-click on the Component and select Open Datasheet (see

Figure 1-3 ).

Figure 1-3. Opening Component Datasheet

1.5.3 Learning from Peers: Cypress Developer Community Forums

Visit www.cypress.com/forums to interact with Cypress applications support teams.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 12

1.5.4 Other Kits

Other kits available for PRoC BLE include the following.

CY8CKIT-042-BLE Bluetooth Low Energy Pioneer Kit ( www.cypress.com/CY8CKIT-042-BLE )

CY5682 PRoC BLE Touch Mouse RDK ( www.cypress.com/CY5682 )

CY5671 PRoC BLE Module ( www.cypress.com/CY5671 )

CY5670 CySmart USB Dongle ( www.cypress.com/CY5670 )

CY5674 PRoC BLE SMA Module ( www.cypress.com/CY5674 )

Introduction

1.6

Technical Support

For assistance, visit Cypress Support or contact customer support at +1(800) 541-4736 Ext. 2 (in the USA) or +1 (408) 943-

2600 Ext. 2 (International).

1.7

Document Conventions

Table 1-1. Document Conventions for Guides

Convention

Courier New

Italics

[ Bracketed, Bold]

File > Open

Bold

Times New Roman

Text in gray boxes

Usage

Displays file locations, user-entered text, and source code:

C:\ ...cd\icc\

Displays file names and reference documentation:

Read about the sourcefile.hex file in the PSoC Designer User Guide.

Displays keyboard commands in procedures:

[

Enter] or [Ctrl] [C]

Represents menu paths:

File > Open > New Project

Displays commands, menu paths, and icon names in procedures:

Click the File icon and then click Open.

Displays an equation:

2 + 2 = 4

Describes Cautions or unique functionality of the product.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 13

Acronym

LED

MTU

PHY

PrISM

PRoC

PSoC

PWM

QFN

SAR

SWD

UART

GATT

GPIO

GUI

HID

HOGP

I

2

C

IAS

IDAC

IDE

ADC

AML

API

BD address

BLE

CDC

ESD

GAP

UUID

1.8

Acronyms

Table 1-2. Acronyms Used in This Document

Definition

Analog-to-digital converter

Air Motion Library

Application programming interface

Bluetooth device address

Bluetooth Low Energy

Communications Device Class

Electrostatic discharge

Generic Access Profile

Generic Attribute Profile

General-purpose I/O

Graphical user interface

Human-interface device

HID over GATT Profile

Inter-integrated circuit

Immediate Alert Service

Interconnecting digital-analog converter

Integrated development environment

Light-emitting diode

Maximum transmission unit

Physical layer

Precise Illumination Signal Modulation

Programmable Radio-on-Chip

Programmable System-on-Chip

Pulse-width modulator

Quad flat no-lead (package)

Successive approximation register (ADC)

Serial wire debug

Universal asynchronous receiver transmitter

Universally Unique Identifier

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. **

Introduction

14

2. Installation

This chapter describes the steps to install the software tools and packages on a PC for the CY5672 PRoC BLE Remote

Control RDK. The kit installer will install the following software tools and associated documentation on your PC.

PSoC Creator: IDE used to view, develop, and build firmware for PRoC BLE based devices.

PSoC Programmer: Software used to download a hex file to the PRoC BLE device.

CySmart: A Bluetooth LE host emulation tool for windows PCs. The tool works with the CySmart USB dongle and provides an easy-to-use GUI to enable customers to evaluate and debug Bluetooth LE peripheral applications. Refer to

the section Connecting the CY5672 Remote Control RDK to CySmart Software for more details on how to use the

CySmart tool.

Documentation: Includes kit documentation files, hardware schematics, layout, and BOM.

2.1

Before You Begin

All Cypress software installations require administrator privileges. Administrator privileges are not required to execute the software after installation. Before you install the kit software, close any other Cypress software that is currently running.

2.2

Install Software

Follow these steps to install the CY5672 PRoC BLE Remote Control RDK software:

1. Download the CY5672 PRoC BLE Remote Control RDK software from www.cypress.com/CY5672 . The kit software is available in three formats for download: a. CY5672 Kit Setup: This installation package contains all files related to the kit as well as PSoC Creator, PSoC

Programmer, and CySmart software. However, it does not include the Windows Installer or Microsoft .NET framework packages. If these packages are not on your computer, the installer directs you to download and install them from the Internet. b. CY5672 Kit Only: This executable file installs only the kit contents, which include kit source code and firmware, hardware files, and user documents. This package can be used if all the software prerequisites (PSoC Creator,

PSoC Programmer, and CySmart) are installed on your PC. c. CY5672 DVD ISO: This file is a complete package, stored in a DVD-ROM image format, that can be used to create a DVD or extract using an ISO extraction program such as WinRAR. The file can also be mounted like a virtual DVD using virtual drive programs such as Virtual CloneDrive and MagicISO. This file includes all the required software, utilities, drivers, hardware files, and user documents.

2. If you have downloaded the ISO file, mount it in a virtual drive. Extract the ISO contents if you do not have a virtual drive to mount. Double-click cyautorun.exe in the root directory of the extracted content or mounted ISO if “Autorun from CD/DVD” is not enabled on the PC. The installation window will appear automatically.

Note: If you are using the CY5672 Kit Setup or CY5672 Kit Only file, then double-click on the file and go to step 4.

3. Click

Install CY5672 PRoC BLE RDK, shown in Figure 2-1 , to start the kit installation.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 15

Figure 2-1. Kit Installer Screen

Installation

4. Select the folder in which you want to install the kit-related files by clicking

Change, as shown in Figure 2-2 . Choose

the directory and click Next.

Figure 2-2. CY5672 PRoC BLE RDK – InstallShield Wizard

5. Choose the “Typical,” “Custom,” or “Complete” installation type in the Product Installation Overview window, as

shown in Figure 2-3 . Click

Next after you select the installation type.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 16

Figure 2-3. Product Installation Overview

Installation

6. Read the license agreement and select

I accept the terms in the license agreement to continue with the installation.

Click Next. When you click Next, the installer automatically installs the required software, if it is not present on your computer. Following are the required software:

PSoC Creator 3.1 or later: Download from www.cypress.com/psoccreator .

PSoC Programmer 3.22 or later: Download from www.cypress.com/programmer .

CySmart 1.0 or later: Download from www.cypress.com/CySmart .

Note: If you are using the CY5672 Kit Only package, you must download and install the software manually.

7. The installation begins by presenting the list of packages on the installation page. A green check mark appears next to each package after successful installation.

8. Enter your contact information or select the option

Continue Without Contact Information, as shown in Figure 2-4 .

Click Finish to complete the kit installation.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 17

Figure 2-4. Installer Asking for Contact Information

Installation

Note: The PSoC Creator version number displayed in the figure may vary depending upon the latest PSoC Creator packaged in the installer.

9. After the installation is complete, the kit contents are available at the following location:

<Install_Directory>\CY5672 PRoC BLE RC RDK

Default location:

Windows 7 (64-bit):

C:\Program Files (x86)\Cypress

Windows 7 (32-bit):

C:\Program Files\Cypress

Note: For Windows 7/8/8.1 users, the installed files and the folder are read only.

2.3

Uninstall Software

The software can be uninstalled using one of the following methods:

Go to Start > All Programs > Cypress > Cypress Update Manager > Cypress Update Manager; click the Uninstall button for the appropriate software package.

Go to Start > Control Panel > Programs and Features; click the Uninstall/Change button for the appropriate software package.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 18

3. Kit Operation

This chapter introduces the features of the CY5672 PRoC BLE Remote Control RDK that will be used as part of the kit operation. Topics include:

Connecting the PRoC BLE Remote Control with the CySmart USB Dongle

Connecting the PRoC BLE Remote Control with the CySmart USB Dongle to Communicate with the CySmart Software

Programming and Debugging

3.1

Connecting the PRoC BLE Remote Control with the CySmart USB

Dongle to Communicate with PC

The first use for the dongle is to allow the remote control to interact with a PC, which may not necessarily have the built-in

Bluetooth Smart capability. In such a case, the dongle receives the BLE packets from the remote control, converts them to standard USB HID packets, and sends them to the PC.

In this document, “connecting” refers to establishing a Bluetooth Smart wireless link between the PRoC BLE remote control and the CySmart USB dongle. The process of establishing the connection for the first time involves “bonding,” which refers to storing encryption information from the remote control in the nonvolatile memory of the CySmart USB dongle. This stored information forms the “whitelist,” which is used by Bluetooth Smart and Bluetooth Smart Ready devices to scan and search for subsequent connections.

The PRoC BLE remote control is factory-bonded with the CySmart USB dongle. Therefore, when the dongle is plugged in, it begins to search for the bonded remote control (that is, remote control unit that is present in the dongle’s whitelist). After both AAA batteries are inserted, any user activity on the PRoC BLE remote control connects it to the dongle. Refer to step 1

in the Assembling and Disassembling the Remote Control

section for instructions on removing the back cover to insert the two AAA batteries.

The remote control needs to be reconnected to the CySmart USB dongle whenever the remote control or the dongle is reprogrammed. The steps to reconnect the PRoC BLE remote control with the CySmart USB dongle are as follows.

Note: Making changes to the remote control firmware or CySmart USB dongle firmware that impact the connection establishment behavior may invalidate the following steps.

Ensure that the two AAA batteries provided with the kit are inserted into the battery holder at the back of the remote control before following these steps.

1. Insert the dongle into a USB port on the PC. The red power LED on the dongle glows to show that the dongle is powered on, and the green status LED on the dongle glows to show that enumeration is complete on the dongle side.

The blue user LED on the dongle shows a slow breathing effect to indicate that the dongle is scanning for bonded devices.

Notes:

The time taken to complete enumeration on the PC side for the first time can vary based on driver installation time.

The blue user LED on the CySmart USB dongle does not show a slow breathing effect if the dongle is reprogrammed. In this case, press the user button (SW2) on the CySmart USB dongle to start scanning. The blue

LED shows the fast breathing effect.

2. Press the connect button on the remote control. The red LED on the remote control glows to show that the remote control is now in advertising mode. The remote control will try connecting to the CySmart USB dongle for a maximum interval of 30 seconds.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 19

Kit

Operation

3. When a successful connection is established, the red LED on the remote control blinks three times and then switches off, while the blue user LED on the CySmart USB dongle glows continuously. When the connection is unsuccessful, the

LED switches off after a 30-second timeout. In this event, repeat the sequence starting from step 2 to establish a connection.

Note: Do not turn off the remote control while the red LED is blinking after a successful connection is established.

4. Place and move your finger on the trackpad surface. If the connection is successful, the mouse cursor on the PC will follow your finger movement.

3.2

Connecting the PRoC BLE Remote Control with the CySmart USB

Dongle to Communicate with the CySmart Software

The second use for the dongle is as an interface to the CySmart software. CySmart is a Bluetooth LE host emulation tool for

Windows PCs. This tool provides an easy-to-use GUI that enables you to test and debug your Bluetooth LE peripheral applications. It supports device discovery, connection establishment, and pairing and bonding. It also provides the ability to access the Generic Attribute Profile (GATT) server database for the PRoC BLE remote control.

When plugged into a USB port, the CySmart USB dongle enumerates, exposing the USB interfaces. Figure 3-1 and Figure

3-2 show the drivers for the CySmart USB dongle installation on a Windows 7 PC.

Figure 3-1. Driver Installation in Progress for CySmart USB Dongle on Windows 7

Figure 3-2. Driver Installation Complete for CySmart USB Dongle on Windows 7

Note: The appearance of the windows shown in

and Figure 3-1 and Figure 3-2

may differ across operating systems and based on settings.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 20

3.2.1 Connecting the CY5672 Remote Control RDK to CySmart Software

1. Plug the CySmart USB dongle into the PC, as shown in Figure 3-3.

Figure 3-3. CySmart USB Dongle Connected to Laptop

Kit Operation

2. Open CySmart and click the

Select Dongle button. A window appears, as shown in Figure 3-4 .

Figure 3-4. BLE Dongle Target Window

3. Click the

Refresh button and verify that the Cypress BLE HID dongle is listed, as shown in Figure 3-5 . Click on

Cypress BLE HID Dongle (…), and click the Connect button. The CySmart tool appears as shown in Figure 3-6.

Figure 3-5. BLE Dongle Target Window

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 21

Figure 3-6. CySmart Window

Kit

Operation

Note: The Blue LED on the dongle turns OFF once the connection with CySmart tool is established. It will remain in the

OFF state as long as the communication with the CySmart tool is active.

4. Insert two AAA batteries into the battery holder of the remote control.

5. Press the Connect button on the remote control. The red LED glows to indicate that the remote control is now in advertising mode.

6. Click the Start Scan button on the CySmart tool to start scanning for BLE devices that are advertising. Verify that

“CY5672” is listed under

Discovered Devices, as shown in Figure 3-7 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 22

Figure 3-7. CySmart Discovered Devices Window

Kit Operation

7. Double-click on “CY5672.” Click Yes in the dialog box to activate the remote emulator tab.

Figure 3-8. CySmart Remote Emulation View Dialog Box

8. The remote emulator tab is displayed on the CySmart tool, as shown in Figure 3-9 . This will take several seconds as

the attributes are read from the remote. This tab allows you to test the features of the PRoC BLE remote control

described in the PRoC BLE Remote Control Details

section.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 23

Figure 3-9. RDK Emulator in CySmart

Kit

Operation

9. Invoke the remote control features. The invoked features are highlighted on the emulator tab. For example, when you

press VOL + on the remote control, the VOL + button on the remote control emulator is highlighted, as shown in Figure

3-10 as long as the VOL + button remains pressed on the remote control.

Figure 3-10. Testing Remote Control Features Using RDK Emulator

For more information on using the CySmart tool and the RDK Emulation View, download the guide for the CySmart tool from www.cypress.com/go/CySmartUserGuide

.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 24

3.3

Programming and Debugging

Kit Operation

3.3.1 Programming and Debugging PRoC BLE on the Remote Control and Dongle

The PRoC BLE remote control and the CySmart USB dongle support programming and debugging using the MiniProg3

programmer/debugger provided with the kit. Both expose a 10-pin connector. Figure 3-11 is a block diagram showing the

header and associated connections.

Figure 3-11. Programming/Debugging PRoC BLE

Notes:

Remove the warning sticker before using MiniProg3.

Before trying to program or debug the device, make sure that PSoC Creator and PSoC Programmer are installed on the PC.

You can program the remote control either with PSoC Programmer or directly from PSoC Creator.

3.3.2 Programming PRoC BLE on the Remote Control and Dongle Using

PSoC Programmer

To program the remote control using PSoC Programmer, follow these steps.

1.

Connect MiniProg3 to the PC using the USB A to mini-B cable provided with the kit.

When it is properly connected, the four LEDs on the MiniProg3 turn on for a few seconds.

2. Connect one end of the 10-pin ribbon cable, provided with the kit, to the 10-pin header on the MiniProg3.

3. Connect the other end of the 10-pin ribbon cable to the 10-pin connector (J3 on the remote control or J2 on the

CySmart USB dongle). Programming headers on both the remote control and the CySmart USB dongle (J3 and J2 respectively) are polarized. Do not apply excessive force; instead, ensure that the connectors are plugged in the correct orientation.

4. Run PSoC Programmer by choosing Start > All Programs > Cypress > PSoC Programmer.

Note: Ensure that only one instance of PSoC Programmer is running on the PC.

5. To establish the connection with a programmer, select either the “MiniProg3” device from the Port Selection list box or the

Connect/Disconnect icon, as shown in

Figure 3-12 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 25

Figure 3-12. PSoC Programmer

Kit

Operation

6. If the connection is successful, the green status LED on MiniProg3 lights up. A blue square with rounded corners appears next to “MiniProg3” in the Port Selection list box. Also, the status in the lower right corner of the PSoC

Programmer window turns green and displays Connected.

7. Ensure that the settings under Programming Parameters in the Programmer tab are set to the values specified in

Table 3-1 .

Table 3-1. Programming Parameters

Programming

Parameter

Setting

Programming Mode Remote Control: Reset (only if batteries are inserted) or Power Cycle

Dongle: Reset (if plugged into and powered via USB port) or Power Cycle ( when unplugged from USB port)

Verification

AutoDetection

Connector

On

On

10p

Clock Speed 1.6 MHz

Note: Reset mode can be used even when batteries are not inserted if the Toggle Power button shown in Figure 3-12

is pressed before step 9.

8. Ensure that the parameters under

Programmer Characteristics are set to the values specified in Table 3-2 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 26

Kit Operation

Table 3-2. Programmer Characteristics

Programmer Characteristics

Protocol

Setting

SWD (Serial Wire Debug)

Voltage 2.5 V

Note: The value of 5 V for Voltage in the Programmer Characteristics section is not supported, as it is beyond the operating voltage of the remote control. The remote control contains an overvoltage protection circuit to prevent damage to the kit if 5 V is selected.

9. Click on the File Load icon. A dialog box appears. Browse to the location of the hex file to be programmed and select the hex file. The selected file appears as the “File Path” in the Programmer tab. The hex file for the firmware provided with the kit is as follows:

PRoC BLE remote control: <Install_Directory>\CY5672 PRoC BLE RC RDK\1.0\Firmware\Hex Files\Remote

Control\CY5672_Remote_Control.hex

CySmart USB dongle:

<Install_Directory>\CY5672 PRoC BLE RC RDK\1.0\Firmware\Hex

Files\Dongle\BLE_HID_CySmart_Dongle.hex

10. Click the Program icon to program the PRoC BLE device on the remote control or the CySmart USB dongle with the selected hex file. After successful programming, the “Programming Succeeded” message will be displayed in the log

area, as shown in Figure 3-13.

Also the status in the lower right corner of the PSoC Programmer window turns green and shows PASS.

Figure 3-13. Programmer Window after Successful Programming

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 27

Kit

Operation

3.3.3 Programming and Debugging PRoC BLE on Remote Control and Dongle Using

PSoC Creator

To program and debug PRoC BLE on the remote control or CySmart USB dongle using PSoC Creator, follow these steps.

1. Run PSoC Creator by choosing Start > All Programs > Cypress > PSoC Creator.

2. Go to the Start page, expand Kits > CY5672 Remote Control RDK, and then click on the project that you want to open.

Figure 3-14. Opening a project in PSoC Creator

This allows you to save an editable copy of the project to the location of your choice. After the project is saved it is opened by the PSoC Creator for editing.

3. Note that the debug option is disabled by default in the remote control firmware to minimize power consumption. You can enable the debug option using the following procedure: a. Open CY5672_Remote_Control.cydwr from the Workspace Explorer, which is located by default along the lefthand side of the PSoC Creator window. b. Click the System tab. c. Choose the “SWD” option under

Debug Select, as shown in Figure 3-15 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 28

Figure 3-15. Enabling Debug Option in PSoC Creator

Kit Operation

4. Build the project by choosing

Build > Build <project name>, as shown in Figure 3-16 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 29

Figure 3-16. Building the Project in PSoC Creator

Kit

Operation

The Output window in PSoC Creator and the status bar display any errors encountered during the build process.

Ensure that the project builds without errors.

5. Connect the MiniProg3 to the PC using the USB A to mini-B cable provided with the kit. When it is properly connected, the four LEDs on the MiniProg3 turn on for a few seconds.

6. Connect one end of the 10-pin ribbon cable, provided with the kit, to the 10-pin header on the MiniProg3.

7. Connect the other end of the 10-pin ribbon cable to the 10-pin connector on the remote control (J3) or on the CySmart

USB dongle (J2).

8. Start programming by choosing

Debug > Program, as shown in Figure 3-17 . This will bring up the

Select Debug

Target window.

Figure 3-17. Programming via PSoC Creator

9. In the

Select Debug Target window, click the Port Setting button and set the configuration options, as shown in

Figure 3-18 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 30

Figure 3-18. Port Settings

Kit Operation

Notes:

Acquire Mode can be set to “Reset” only if batteries are inserted. Otherwise, set it to “Power Cycle” and choose the Power setting as 1.8 V, 2.5 V, or 3.3 V.

The

External selection for the Power setting works only if batteries are inserted, regardless of the Acquire Mode selection.

10. In the

Select Debug Target window, select the PRoC BLE device and click Connect, as shown in Figure 3-19 . Then

click OK.

Figure 3-19. Select Debug Target

11. Check the

Output window and the status bar to verify if programming is completed successfully.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 31

Kit

Operation

12. If you need to debug, choose

Debug > Debug, as shown in Figure 3-20 ,

or press [F5] in PSoC Creator. In debug mode, you can set the breakpoints and step through the code as required. Note that you must enable debugging in the

project for this to work, as shown in Figure 3-15 .

Figure 3-20. Debugging via PSoC Creator

Detailed PSoC Creator tutorials are available at: www.cypress.com/training .

3.3.4 Programming PSoC 5LP on the CySmart USB Dongle

The PSoC 5LP controller on the CySmart USB dongle acts as a UART-to-USB bridge, which transfers the data received

from PRoC BLE over UART to the USB interfaces listed in Table 3-3 . The PSoC 5LP controller provides USB bootloader

support to enable users to change the firmware.

Interface

Table 3-3. Exposed CySmart USB Dongle Interfaces

Description

USB Composite Device Generic USB device that supports multiple interfaces

USBUART (COM Port)

Mouse

USB-UART bridge to work with CySmart tool

Standard mouse device for generic mouse functionality

Keyboard Keyboard device for Windows based shortcuts

Cypress Digital Audio Microphone to stream voice data

Follow these steps to download the bootloadable project onto the PSoC 5LP device.

1. Keep the reset switch (SW1) pressed and insert the CySmart USB dongle into a USB port on the PC. If the switch is pressed for more than 100 ms, the PSoC 5LP on the dongle enters bootloader mode. This is indicated by a blinking green LED on the dongle.

2. Open the Bootloader Host tool from PSoC Creator by choosing

Tools > Bootloader Host, as shown in Figure 3-21 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 32

Figure 3-21. Open Bootloader Host Tool from PSoC Creator

Kit Operation

3. In the Bootloader Host tool, click Filters and add a filter to identify the USB device. Set VID as “0x04B4” and PID as “0xF13B”, and then click

OK, as shown in Figure 3-22.

Click on “USB Human Interface Device” under Ports.

Figure 3-22. Port Filters Tab in Bootloader Host Tool

4. In the Bootloader Host tool, click the

Open File button (shown in Figure 3-23 ) to browse to the location of the bootloadable file (*.cyacd), as shown in Figure 3-24 . The bootloadable file for the firmware provided with the kit is

<Install_Directory>\CY5672 PRoC BLE RC RDK\1.0\Firmware\Hex Files\Dongle\CY5672_Dongle_Bridge.cyacd

Note: The *.cyacd file is generated on building the project for PSoC 5LP, provided as part of the kit installable. This project is <Install_Directory>\CY5672 PRoC BLE RC

RDK\1.0\Firmware\Dongle\CY5672_Dongle_Bridge\

CY5672_Dongle_Bridge.cywrk.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 33

Open file button

Program button

Figure 3-23. Open/Program Bootloadable File from Bootloader Host Tool

Kit

Operation

Figure 3-24. Select Bootloadable File from Bootloader Host

5. Click the

Program button in the Bootloader Host tool to program the device, as shown in Figure 3-23 .

6. If the bootload is successful, the log of the tool displays “Successful”; otherwise, it displays “Failed” with a statement describing the failure.

For additional information on bootloaders, refer to Cypress application note AN73503 – USB HID Bootloader for PSoC 3

and PSoC 5LP.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 34

4. Hardware

This chapter describes the CY5672 RDK hardware such as the PRoC BLE remote control, the CySmart USB dongle, and its constituent blocks.

Note: “Module” in this chapter refers to a self-contained assembly of electronics components and circuitry, for example, the trackpad module.

4.1

Board Details

The PRoC BLE remote control has two boards connected via an 18-pin connector:

Main board

Trackpad module

The main board consists of the following components:

• CYBL10563-56LQXI PRoC BLE controller

• Buck-boost converter with two AAA batteries in series

• IR LED for sending commands

• Overvoltage protection circuit

• 10-pin SWD header for programming and debugging the PRoC BLE controller

• Onboard antenna for the BLE

• One red LED to indicate system status

• MEMS microphone for voice input

• Inertial motion sensor

• 3 × 3 button matrix + 3 additional buttons

• Battery monitoring circuit

• 18-pin male connector to connect to the trackpad module

• 24-MHz and 32.768-kHz crystals

• Wiggle antenna and matching network

The trackpad module board consists of the following key components:

Trackpad sensors

18-pin female connector to connect to the main board

Top and bottom views of the main board and the trackpad module, with several key components marked, are shown in

Figure 4-1

and Figure 4-2 respectively.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 35

Figure 4-1. CY5672 PRoC BLE Remote Control Main Board and Trackpad Module Top View

Hardware

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 36

Figure 4-2. CY5672 PRoC BLE Remote Control Main Board and Trackpad Module Bottom View

Hardware

The CySmart USB dongle board consists of the following key components, as shown in Figure 4-3 :

CYBL10162-56LQXI PRoC BLE controller

Hardware reset and button switch

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 37

CY8C5868LTI-LP039 PSoC 5LP controller

10-pin header for programming and debugging PRoC BLE using SWD

Onboard antenna for BLE

USB 2.0 connector

User and Reset buttons

LEDs (User, Status & Power)

24-MHz and 32.768-kHz crystals

Power and decoupling capacitor circuit

Wiggle antenna and matching network

Figure 4-3. CySmart USB Dongle Description

Hardware

4.2 Theory of Operation

The CY5672 RDK contains a PRoC BLE-based remote control device and a PRoC BLE-based CySmart USB dongle.

4.2.1 Overview of the PRoC BLE Remote Control

Figure 4-4

shows the block diagram for the PRoC BLE remote control (including the PRoC BLE remote control main board and trackpad module).

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 38

Figure 4-4. Block Diagram of PRoC BLE Remote Control

Hardware

4.2.2 Overview of CySmart Dongle

The CySmart USB dongle is a Bluetooth Smart-to-USB bridge for USB-enabled devices (PCs, smart TVs, tablets, and so on). The dongle includes a PRoC BLE device, which is programmed to receive data from the remote control over a

Bluetooth Smart link. It also contains a PSoC 5LP device, which functions as a serial-to-USB bridge by transferring the data

received from PRoC BLE over UART to the PC over USB, as shown in Figure 4-5 .

Figure 4-5. CySmart Dongle Block Diagram

The dongle is based on the CYBL10162-56LQXI PRoC BLE controller. It is intended to make it as easy as possible for

Cypress customers/distributors to get started with Cypress’s PRoC BLE-based reference designs (CY5672 PRoC BLE

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 39

Hardware

Remote Control RDK and CY5682 PRoC BLE Touch Mouse RDK). The dongle can be connected to any device like a PC or a smart TV that supports HID over USB. Note that the PRoC BLE remote control can also be directly connected to any

Bluetooth Smart Ready device; see the Connecting PRoC the BLE Remote Control with a Bluetooth Smart Ready Device

section for details.

The CySmart dongle has a USB A-type plug to connect the PSoC 5LP device to the USB port of the host PC. The PSoC

5LP device then communicates with the PRoC BLE device over UART. The firmware provided with the kit installer uses the

UART interface. The dongle has an onboard printed wiggle antenna. It also has a user LED, a user button, and a reset button for the PRoC BLE device. The CySmart USB dongle is powered directly through the USB port (VBUS) at 5.0 V.

PSoC 5LP enables bootloading over USB to change the firmware for PSoC 5LP. See the Programming PSoC 5LP on the

CySmart USB Dongle section for details on bootloading the PSoC 5LP.

4.3

Functional Description – PRoC BLE Remote Control

4.3.1 Power Supply

The remote control is powered using two AAA batteries connected in series to provide a maximum output voltage of 3 V.

Figure 4-6 shows the DC-DC (buck-boost) converter circuit that regulates the output voltage at 2.2 V. This voltage is further

dropped to 2.1 V because of the reverse protection diode, D1. The entire remote control circuit operates at 2.1 V.

Figure 4-6. Power Supply Circuit

The overvoltage protection circuit shown in Figure 4-7 ensures that using MiniProg3 at 5 V for programming does not

damage the system components.

Figure 4-7. Overvoltage Protection Circuit

The current consumption for the PRoC BLE device, IR LED, audio device, and motion sensor can be measured by using

the circuits shown in Figure 4-8

. For more information on how to measure the current consumption, refer to the Current

Measurement

section.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 40

Figure 4-8. Current Measurement Circuits

Hardware

4.3.2 Clock and Reset

The PRoC BLE device requires two crystal oscillators, one running at 24 MHz and the other at 32.768 kHz, for its operation,

as shown in Figure 4-9 . Both oscillators are in the Pierce configuration. The 24-MHz oscillator is used by the Bluetooth

Smart radio in the Active state, whereas the 32.768-kHz crystal is used to maintain Bluetooth Smart link timing in various

Sleep modes.

Figure 4-9. Clock Design

The RC reset circuit shown in Figure 4-10 provides the power-on reset pulse for the PRoC BLE device.

Figure 4-10. Reset Circuit

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 41

Hardware

4.3.3 Program and Debug Circuit

PRoC BLE exposes the SWD interface on the 10-pin header J3, as shown in Figure 4-11

. The Programming and

Debugging PRoC BLE on the Remote Control and Dongle section describes how to use the J3 header to debug or program

PRoC BLE on the remote control.

Figure 4-11. SWD Debug Header

4.3.4 PRoC BLE Device

The CYBL10563-56LQXI PRoC BLE is a 32-bit, 48-MHz ARM Cortex-M0 solution with CapSense

®

, a 12-bit SAR ADC, 4

Timer Counter Pulse Width Modulators (TCPWMs), 36 GPIOs, 2 Serial Communication Blocks (SCBs), an LCD direct drive, inter-IC Sound Bus (I2S), and an integrated Bluetooth Smart radio with a balun. PRoC BLE includes a royalty-free BLE stack compatible with Bluetooth 4.1 and provides a complete, programmable, and flexible solution for HID. In addition,

PRoC BLE provides a simple, low-cost way to add BLE connectivity to any existing system.

GPIOs and serial interfaces are used to interface the essential components for a working remote control—such as the microphone, motion sensor, trackpad, buttons, LEDs, and so on—with PRoC BLE. The data collected from these components is transmitted over the air using the Bluetooth Smart link. The PRoC BLE device is connected to a wiggle

antenna through an LC filter circuit for optimum RF performance, as shown in Figure 4-12 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 42

Figure 4-12. PRoC BLE Connections

Hardware

4.3.5 LED

This section describes the hardware circuit for the red LED, shown in Figure 4-13 , is used to show a notification for different

firmware states.

Figure 4-13. LED

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 43

Hardware

4.3.6 Button Matrix

This section describes the hardware circuit button matrix in CY5672. A button matrix provides most of the required remote

control key functionalities. A custom implementation is provided for two more buttons ( Figure 4-14 ): a button to enable the

motion sensor and the return button. These two buttons use GPIOs that are also assigned to rows in the keyboard matrix. A

description of how these buttons are scanned is located in the Keyboard Subsystem section. An additional button is

provided on the remote control, as shown in Figure 4-18 . In the firmware provided with this kit, this button is used to switch

between voice and normal remote control operation.

Figure 4-14. Button Matrix

4.3.7 IR LED

The IR LED onboard the remote control is used to implement the NEC and Samsung IR transmission protocols. These protocols are used to operate a TV in a traditional manner. The circuit uses a P-MOS (Q4) to switch the IR LED (LED1)

shown in Figure 4-15 . The switch is required because the IR LED operates at 30 mA (approximately), which is higher than

the PRoC BLE ports can drive/sink.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 44

Figure 4-15. IR LED Circuitry

Hardware

4.3.8 Motion Sensor

An inertial (motion) sensor (MPU-6500) is used to detect the movement and rotation information in 6 degrees of freedom (X,

Y and Z coordinates relative to the previous location). The motion sensor then provides an interrupt using INT pin

(MOTION_INT), which is connected to pin 0.5 of the PRoC BLE device as shown in Figure 4-16 and Figure 4-17 . On

receiving the interrupt, PRoC BLE reads the gyroscope and accelerometer data over the I

2

C interface, as shown in Figure

4-17. Finally, PRoC BLE processes this information to derive the X, and Y coordinates and sends it over the Bluetooth

Smart link.

Figure 4-16. Motion Sensor

Figure 4-17. I

2

C Connection between PRoC BLE and Motion Sensor

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 45

Hardware

4.3.9 Battery Monitoring

Figure 4-18 shows the battery monitoring circuit along with the microphone enable or voice enable button. Note that the

PRoC BLE pin P3[4] is used for following two purposes:

• To read the state of the microphone enable button

• To enable the battery voltage monitoring circuit

Figure 4-18. Battery Monitoring and Voice Enable Circuit

4.3.10 Audio Input Device

This section describes the hardware circuit implementation for sampling voice on the remote control in voice mode, as

shown in Figure 4-19 . This circuit utilizes a MEMS sensor–based single-chip solution (INMP441). It acts as the microphone

and also implements signal conditioning, an analog-to-digital converter, anti-aliasing filters, and power management. The audio input device is interfaced with the PRoC BLE via I2S.

Figure 4-19. Audio Circuit

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 46

Hardware

4.3.11 Trackpad Interface

This section describes the implementation of the trackpad module and its interface with the PRoC BLE device, as shown in

Figure 4-20 . The capacitive sensor array from the trackpad module is connected to the PRoC BLE GPIOs through series

resistors, and they are internally configured as CapSense input lines. The CapSense Gesture Component in PRoC BLE scans and processes these lines to determine the coordinates for finger movement on the trackpad.

Figure 4-20. Trackpad Circuit

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 47

4.3.12 Test Points

Table 4-1 lists the test points available on the CY5672 remote control hardware and the associated signal names.

Table 4-1. Test Points on Remote Control

Hardware

Test Point

TP11

TP12

TP13

TP14

TP15

TP16

TP17

TP18

TP6

TP7

TP8

TP9

TP1

TP2

TP3

TP4

TP5

Signal Name

VBAT

VDD_IR

VDD_AUDIO

System power VDD

System power GND

VDD_MOTION

PRoC BLE device power VDDD

PRoC BLE device power GND

VREF

AGND

AUDIO_WS

AUDIO_SD

AUDIO_SCK

AUDIO_CHIPEN

MOTION_I2C_SDA

MOTION_I2C_SCL

MOTION_INT

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 48

Hardware

4.4

Functional Description – CySmart USB Dongle

4.4.1 Power Supply System and Protection Circuitry

All devices on the CySmart USB dongle are powered using the 5-V power supply from USB (VBUS). The decoupling

capacitors are shown in Figure 4-21.

The decoupling capacitors decouple the noise in the power supply.

Figure 4-21. Decoupling Capacitors

4.4.2 Clock and Reset

The PRoC BLE device requires two crystal oscillators, one running at 24 MHz and the other at 32.768 kHz, for its operation,

as shown in Figure 4-22 . Both oscillators are in the Pierce configuration. The 24-MHz oscillator is used by the Bluetooth

Smart radio in the Active state, whereas the 32.768-kHz crystal is used to maintain Bluetooth Smart link timing in various

Sleep modes.

Figure 4-22. Crystal Circuit

The RC reset circuit for PRoC BLE, including the reset button SW1, is shown in Figure 4-23 . The PRoC BLE device is reset

when SW1 is pressed.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 49

Figure 4-23. Reset Circuit

Hardware

4.4.3 Program and Debug Circuit

PRoC BLE exposes the SWD interface on the 10-pin header J2, as shown in Figure 4-24

. The Programming and

Debugging PRoC BLE on the Remote Control and Dongle

section describes how to use the J2 header to debug or program the PRoC BLE on the CySmart dongle.

Figure 4-24. SWD Debug Header

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 50

Hardware

4.4.4 PRoC BLE

The CYBL10162-56LQXI PRoC BLE is a 32-bit, 48-MHz ARM Cortex-M0 solution with CapSense, a 12-bit SAR ADC, 4

TCPWMs, 36 GPIOs, 2 SCBs, LCD direct drive, I2S, and an integrated Bluetooth Smart radio with a balun. PRoC BLE includes a royalty-free BLE stack compatible with Bluetooth 4.1 and provides a complete, programmable, and flexible solution for HID. In addition, PRoC BLE provides a simple, low-cost way to add BLE connectivity to any existing system.

The PRoC BLE device on the CySmart dongle receives the data transmitted from the remote control over the Bluetooth

Smart link and sends it to the PC over USB through the PSoC 5 LP device. The PRoC BLE device is connected to a wiggle

antenna through an LC filter circuit for optimum RF performance. Figure 4-25 shows the hardware connections for the

PRoC BLE device.

Figure 4-25. PRoC BLE Connections

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 51

Hardware

4.4.5 PSoC 5 LP

The PSoC 5LP acts as a USB to UART bridge between PRoC BLE and the host device (PC, smart TV, and so on). In addition to the UART connection, there are SPI and I

2

C connections between the PSoC 5LP and the PRoC BLE devices.

Figure 4-26 shows the hardware connections for the PSoC 5LP device. The I

2

C bus contains firmware-controlled pull-ups

using FET, which can be enabled or disabled using PSoC 5LP pins, as shown in Figure 4-27 . Note that in the firmware

provided as part of the kit, only the UART connection between PSoC 5LP and PRoC BLE is used.

Figure 4-26. PSoC 5LP Connections

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 52

Figure 4-27. I

2

C Connection between PRoC BLE and PSoC 5LP

Hardware

4.4.6 LEDs and Buttons

There are three LEDs for different status indications and a switch for providing input to the PRoC BLE device, as shown in

Figure 4-28 . In the example firmware provided with the kit, the switch (SW2 or user button) is used as a bind initiation input

button. The red LED is for power indication. This LED is always on when the dongle is plugged into the USB port. The green LED turns on after enumeration is complete on the device side (that is, on the CySmart dongle). The blue LED indicates various Bluetooth Smart states. The behavior of the green and blue LEDs is controlled by the firmware on the

PSoC 5LP and PRoC BLE devices respectively.

Note: Enumeration completion on the device side is not same as on the host device, like a PC. The green LED stays on when enumeration is complete from the device side. The host may take additional time to load drivers and make the device available for use with other applications.

Figure 4-28. LEDs and Buttons

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 53

Hardware

4.4.7 USB Plug

The CySmart dongle uses the USB port to communicate with the PC and for its power supply, as shown in Figure 4-29 . The

USB differential lines are connected with PSoC 5LP. PSoC 5LP acts as a bridge between the PC and the PRoC BLE device.

Figure 4-29. USB Connector Circuit

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 54

5. Firmware

This chapter explains the firmware provided with the CY5672 RDK. Topics covered include the following:

Firmware for PRoC BLE on the Remote Control

Firmware for the PRoC BLE and PSoC 5LP on the CySmart USB Dongle

Note: “Subsystem” in this chapter refers to self-contained firmware that enables complete functionality for a hardware feature such as the UART subsystem. Multiple subsystems are integrated to form the complete firmware for an application like a mouse or remote control.

Table 5-1 lists the firmware project names for the Remote Control and the CySmart USB Dongle. Note that there are two

firmware projects for CySmart USB Dongle given that the hardware includes both PRoC BLE and PSoC 5LP silicon.

Table 5-1. CY5672 Remote Control RDK Firmware Projects

Hardware

Remote

Control

CySmart

USB Dongle

Silicon

Part

Associated Project Name and Project File Location

PRoC BLE Project Name: CY5672_Remote_Control.cywrk

Project Path: <Install Dir>\CY5672 PRoC BLE RC RDK\1.0\Firmware\RemoteControl

PRoC BLE Project Name: BLE_HID_CySmart_Dongle.cywrk

Project Path: <Install Dir>\CY5672 PRoC BLE RC RDK\1.0\Firmware\Dongle\BLE_HID_CySmart_Dongle

PSoC 5LP Project Name: CY5672_Dongle_Bridge.cywrk

Project Path: <Install Dir>\CY5672 PRoC BLE RC RDK\1.0\Firmware\Dongle\CY5672_Dongle_Bridge

5.1

Firmware for PRoC BLE on the Remote Control

The PRoC BLE device is the heart of the remote control. The remote control firmware project

( CY5672_Remote_Control.cywrk) runs on PRoC BLE and controls the following:

System power states

Bluetooth Smart and IR-based wireless communication

Trackpad scanning and gesture detection

Motion sensor

Button scanning

Audio acquisition

LED indications

Battery monitoring

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 55

5.1.1 Firmware Architecture

The remote control device firmware implements a state machine that has five states, as shown in Figure 5-1 .

Figure 5-1. State Machine for Remote Control

Firmware

Device Init state: The remote control firmware enters this state after the device is powered on. All subsystems (motion sensor, ISR for buttons, and trackpad) in the remote control firmware are initialized in this state. The firmware transitions to the Active state after the initialization process is complete.

Active state: The remote control firmware enters this state:

After device initialization from the Device Init state

On user activity from the Idle state

On user activity from the Sleep state

The remote control application demands a report rate of 100 Hz in the Active state; to satisfy this requirement, every input subsystem (such as the motion sensor, trackpad, and buttons) in the remote control is polled at 10 ms interval.

The firmware detects user activity and collects the data from the corresponding input subsystems. The device, in the connected state, sends this data over the Bluetooth Smart link per the HOGP specification.

When the device is not connected to a peer device (such as a CySmart dongle), it starts advertising to re-establish a connection. While trying to establish the reconnection, the remote control will also send a valid TV control command via the IR LED using the Samsung IR protocol. If the remote control is connected to the dongle and link loss occurs, the user will receive a red LED fast blinking notification on a user activity (such as pressing a button).

The firmware transitions to the Idle state if there is no user activity for three seconds.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 56

Firmware

The battery voltage is monitored every 3 seconds to save power. When the firmware detects a low-voltage condition (at approximately 2.0 V), it initiates a red LED slow blinking indication to notify the user about the battery condition. The firmware transitions to the Shutdown state when it detects a battery voltage below the critical voltage of 1.8 V.

Idle state: The remote control firmware enters this state from the Active state if there is no user activity for 3 seconds.

In this state, the firmware polls for user activity from the trackpad at a poll interval of 125 ms to save power. All other modules will interrupt if any user activity is present. The firmware also maintains the Bluetooth Smart link with a 10-ms connection interval and a slave latency of 100. The firmware returns to the Active state if any user activity is detected.

The firmware transitions to the Sleep state if there is no activity for 10 seconds or to the Shutdown state if the battery voltage is below the critical voltage of 1.8 V.

Sleep state: The remote control firmware enters this state from the Idle state if there is no user activity for 10 seconds.

In this state, the firmware polls the trackpad every 250 ms. The firmware maintains the Bluetooth Smart link with a

10-ms connection interval and a slave latency of 100.

While in this state, all other modules will generate interrupts on user activity, which wakes up the MCU and transitions the firmware to the Active state. The firmware transitions to the Shutdown state if the battery voltage is below the critical voltage of 1.8 V.

The system power consumption is considerably lower in this state compared to that in the Active and Idle states.

Shutdown state: The remote control firmware enters the Shutdown state when the battery voltage is below the critical voltage of 1.8 V. In this state, the firmware shuts down all input and output subsystems, including the BLE subsystem, and enters the MCU stop mode (PRoC BLE stop mode). This effectively renders the remote control nonfunctional. The user is expected to replace the batteries in this state to make the remote control operational again. That is, power must be removed from the system in this state before the remote control operates again.

In all the states except Shutdown, the battery is monitored every 3 seconds, and the MCU (PRoC BLE) is put into a Deep

Sleep state at every possible opportunity.

The remote control firmware implements these states in an application framework with the help of the PSoC Creator

Components noted in Figure 5-2 . The input subsystems can detect and record any user activity. The output subsystems

either transmit the data or provide an indication to the user. The framework implements the modes described previously.

Figure 5-2. Firmware Architecture

The following subsystems are present in the remote control device:

Watchdog timer subsystem: Restores the mechanism to reset the remote control if any subsystem enters an unknown state

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 57

BLE subsystem: Sends data over the air using the BLE HOGP

Firmware

LED subsystem: Indicates to the user certain activity by blinking or by glowing the red LED

IR LED subsystem: Sends the multimedia key over IR

Trackpad subsystem: Scans the trackpad for user activity and translates the user activity into the appropriate gesture

Battery monitoring subsystem: Detects the battery voltage and calculates the battery level

Button subsystem: Detects the user input to determine whether to enable audio input; also allows the user to switch between the trackpad and motion sensor.

Keyboard matrix subsystem: Detects any key press to provide multimedia control functionality

Motion sensor subsystem: Scans the motion sensor/gyro/accelerometer to detect user activity when the remote is moved and converts it into cursor movement

Audio subsystem: Takes input from the microphone connected to the INMP441 codec

Debug subsystem: Sends debug print using the UART

The IR LED subsystem, BLE subsystem, and LED subsystem are output subsystems, and the rest of the subsystems are

input subsystems. These subsystems use PSoC Creator Components. Figure 5-3 gives a schematic view of the PRoC BLE

remote control device.

Figure 5-3. PSoC Creator Schematic View of PRoC BLE Remote Control

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 58

Table 5-2 lists the file structure used by the remote control project and the key functions implemented in each file.

Firmware

Table 5-2. File Structure for the Remote Control Project

File Name Details

main.c

device.c

This file is the top-level application, which initializes the system and handles the switching between power states based on user activity.

This file has the following functions:

main() – The main function for the application.

Device_FW_Init()

– Initializes all system blocks.

Device_FW_Active()

– Watchdog timer counter 1 is configured to trigger an interrupt every 1 ms.

All subsystem blocks are polled every 10 ms, and notifications are sent to connected host when data is available.

Device_FW_Idle() – Watchdog timer counter 1 is configured to trigger an interrupt every 125 ms.

All system blocks are polled every 125 ms.

Device_FW_Sleep()

– Watchdog timer counter 1 is disabled and system blocks are put into a low-power mode.

Device_FW_Stop()

– All blocks are disabled and system is put into the hibernate mode.

This file handles the initialization of individual system blocks, time keeping, polling for events, lowpower mode implementation, and sending notifications to the connected host when data is available.

Device_Init() – Initializes all system blocks.

Device_Active () – Polls the data (based on activity) from all system blocks every 10 ms and sends a notification to the connected host.

Device_Low_Power_State() – Polls the data from button, battery monitoring, and trackpad (if enabled) every 125 and 250 ms in idle and sleep mode respectively. Other modules should raise the interrupt if any activity is detected.

Device_Timer_Callback() – This function is a callback from watchdog timer counter 1. The compare value for the Prism_Led (pseudo random PWM) is incremented. This is used to accomplish the breathing LED effect.

Device_ShutDown () – Disables all system blocks.

timer.c watchdog_timer.c

This file handles initialization and generation of a timer tick every 1 ms.

Timer_Init() Initializes the timer block.

Timer_Get_Time_Stamp() Returns the current timestamp.

Timer_Time_Elapsed() Returns true if the time exceeded an interval specified as one of parameters.

Timer_Set_Period() Sets the time period between timer interrupts.

Timer_CallBack() Increments the tick timer by a value equal to the tick increment. The tick increment depends on the state of the system.

This file handles watchdog timer reset functionality. Watchdog timer system reset is configured to occur after 6 seconds.

Watch_Dog_Timer_Init() Initializes the watchdog timer counter 0 and configures it to trigger a reset interrupt.

Watch_Dog_Timer_Clear() Clears the watchdog timer counter 0.

Watch_Dog_Timer_Disable() Disables the watchdog timer counter 0.

Watch_Dog_Timer_Enable() Enables the watchdog timer counter 0.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 59

Firmware

File Name Details

ble.c trackpad.c

This file handles BLE initialization, configuration, advertisement, notifications, and responses to BLE events.

Ble_Init()Initializes the BLE Component.

Ble_Is_Init_Completed()Returns the status of BLE initialization.

Ble_Configure()Configures the BLE Component after the BLE stack on event.

Ble_Set_Address()Sets the public BLE address for the device.

Ble_Create_Audio_Channel() Creates an audio channel by sending the audio command to the dongle.

Ble_Disconnect_Audio_Channel() – Disconnects the audio channel by sending the audio command to the dongle.

Ble_Send_Battery_Data()Sends the battery data to a connected client.

Ble_Send_Data()Sends the mouse/keyboard report to a connected client.

Ble_StartAdvertisement()Starts a directed/undirected advertisement.

Ble_StopAdvertisement()Stops a directed/undirected advertisement.

Ble_Get_State()Returns the current state of BLE.

Ble_Set_State()Sets the state of BLE based on the system state.

Ble_Stop()Stops the BLE block.

Ble_Enter_LowPowerMode() – Puts BLE into deep sleep mode.

Ble_WriteBondedList()Writes the bond information into flash for future retrieval.

Ble_Update_Serial_Number_String() – Updates the serial number string in the device information service with the silicon ID.

Ble_AppCallBack() Callback to get GAP, GATT, and L2CAP events from the BLE Component.

Ble_BasCallBack()Callback registered with the Battery Service.

Ble_ScpsCallBack()Callback registered with the Scan Parameters Service.

Ble_HidsCallBack()Callback registered with the HID service.

Ble_IasCallBack()Callback registered with the Immediate Alert Service.

Ble_LinkLossCallBack()Callback registered with the Link Loss Service.

Ble_TxPowerCallBack()Callback registered with the Tx Power Service.

This file handles trackpad initialization, configuration, polling, centroid calculation, and gesture detection.

Trackpad_Init() – Initializes the trackpad module.

Trackpad_Start_Poll() – Starts the trackpad sensor scanning.

Trackpad_IsComplete() – Returns the status of trackpad sensor scanning.

Trackpad_Poll() – Detects the number of fingers and decodes the gestures on the trackpad.

Trackpad_Get_Report() – Generates the report for gestures on the trackpad.

Trackpad_Set_State() – Sets the state of the trackpad module based on the system state.

Trackpad_IsActive() – Returns the user activity on the trackpad; returns true if the finger is present on the trackpad.

Trackpad_Stop() – Stops trackpad scanning.

trackpad_gesture_mapping.c This file maps the detected trackpad gestures with the appropriate HID commands that are recognized by the PC.

Trackpad_Gesture_Map() – Maps trackpad gestures to the appropriate HID report format.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 60

File Name

trackpad_custom_gesture.c keyboard.c

Firmware

Details

This file handles the detection of custom gestures that are not available in the CSD Component.

Trackpad_Custom_Gesture_Init() – Initializes various parameters required for custom gestures

Trackpad_Custom_Gesture_Detection() – Decodes custom gestures such as top-to-bottom swipe, vertical scroll, and horizontal scroll.

Trackpad_Custom_PointerMovement_Calulation() – Calculates pointer movement and fills the appropriate HID report format

Trackpad_Custom_PointerMovement_Reset() – Resets the pointer movement parameters

This file handles GPIO initialization for reading the buttons that are connected in the matrix. It also detects changes in button status and decodes to the appropriate HID codes. All buttons except for the microphone enable/disable, motion sensor switch and return buttons are handled by this module.

Keyboard_Init() Initializes the keyboard module.

Keyboard_Poll() Polls the keyboard for activity.

Keyboard_Get_Report() – Fills the HID data depending upon the button pressed.

Keyboard_Set_State() – Modifies the configuration of the keyboard module based on the system state (for example, enabling and disabling interrupts).

Keyboard_IsActive() – Checks if any key is pressed in the keyboard matrix.

Keyboard_Stop() – Stops the keyboard module by disabling the interrupts and changing the state of the GPIOs to Highz.

Keyboard_Scan() – Scans the keyboard matrix if any key is pressed.

Keyboard_Scan_Column() – Scans the columns by exciting one row at a time.

Keyboard_Detect_Ghost() – Detects a condition where three buttons are pressed between two rows and two columns and the algorithm detects that four keys are pressed.

Keyboard_Detect_Keys() – Identifies the keys that have been pressed.

Keyboard_Count_Active_Keys() – Counts the number of active columns.

Keyboard_Add_Queue() – Adds the corresponding button to the queue.

Keyboard_Update_Queue() – Updates the debounce value of the button that is present in the queue.

Keyboard_Update_Release_Key_State() – Updates the key status for the key that is released.

Keyboard_Remove_Queue() – Removes the button from the queue.

Keyboard_Interrupt_Callbck() – Interrupt callback function when there is a button status change in idle or sleep mode.

Keyboard_Update_BackChannel_Data() – Updates the status of the LED that can be used for keys such as Caps Lock, Num Lock, and Scroll Lock. This is disabled for the remote control project.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 61

button.c

File Name

audio.c motion_sensor.c motion_sensor_hal.c

Firmware

Details

This file handles GPIO initialization for buttons and decodes the state transition of buttons. This module only handles the microphone enable/disable, motion sensor switch and return buttons.

Button_Init() – Initializes the GPIO and configures the interrupts.

Button_Poll() – Polls for the button status.

Button_Set_State() – Modifies the configuration of buttons based on the system state (enabling and disabling interrupts).

Button_Get_Report() – Returns the button report only when there is a transition in button state.

Button_Stop() – Stops the button module. All button interrupts are disabled.

Button_Debounce() – Handles button debouncing and provides the correct button status.

This file handles I2S initialization for streaming audio.

Audio_ADPCM_Encode() – Encodes audio data using ADPCM compression.

Audio_CallBack() – Callback function when data is available in the audio module.

Audio_Init() – Initializes the audio module by starting the I2S Component.

Audio_Start() – Starts reading the audio data from the codec.

Audio_Poll() – Polls if any audio data is available.

Audio_Get_Report() – Packetizes the audio data if available.

Audio_Stop() – Stops the audio module by stopping the I2S Component.

Motion_Sensor_Init() – Initializes/configures the motion sensor.

Motion_Sensor_Start_Sampling()

– Starts the sampling of data inside the motion sensor.

Motion_Sensor_Poll() – Checks if the motion sensor has some movement detected.

Motion_Sensor_Stop_Sampling() – Stops the sampling of data inside the motion sensor.

Motion_Sensor_Set_Resolution()

– Updates the resolution of mouse movement

Motion_Sensor_Set_State()

– Sets the enable/disable state of the motion sensor depending upon the state.

Motion_Sensor_Get_Report() – Calculates the mouse position shift and updates the HID report passed as a parameter.

MotionSensor_IsMotionDetectedLowPower() –Polls for the motion sensor activity in lowpower mode.

Motion_Sensor_IsActive() – Checks if the motion sensor is active or not.

Motion_Sensor_Stop() – Changes the motion sensor’s state to low-power mode.

Motion_Sensor_CallBack() – Callback function called when motion sensor interrupt is triggered

Motion_Sensor_Hal_Init() – Initializes the motion sensor by calling the motion sensor driver.

Motion_Sensor_Hal_GetGyroData() – Collects the gyro data.

Motion_Sensor_Hal_GetAccData() Collects the accelerometer data.

Motion_Sensor_Hal_Enable_LowPowerMode() – Puts the motion sensor in low-power mode by disabling the gyro and enabling the accerolometer.

Motion_Sensor_Hal_Disable_LowPowerMode() – Disables the motion sensor low-power mode and restores the default configuration

Motion_Sensor_Hal_CallBack() – Provides call back to an interrupt from the motion sensor

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 62

battery.c

File Name

led.c flash.c debug.c platform.h

Firmware

Details

This file handles initialization of the ADC and the measurement of battery voltage using the ADC.

Battery_Init() – Starts the battery module by starting the ADC Component.

Battery_Get_Value() – Measures and returns battery voltage.

Battery_Stop() – Stops the battery module by stopping the ADC Component.

Battery_No_Battery_Connected() – Changes drives modes of the battery enable pin. This is enabled if macro ENABLE_MINIPROG_NO_BATTERY_WORKAROUND is enabled.

This file handles LED initialization and the creation of various effects in glowing LEDs.

Led_Init() – Initializes the LED block.

Led_Blinking() – Creates a specific LED effect based on the configuration of the LED breathing effect.

Led_On() – Keeps the LED in the ON state with a specific intensity.

Led_Update() – This function is a callback function. The compare value for the Prism_Led

(pseudo random PWM) is incremented in this function.

Led_IsComplete() – Returns the status of the LED breathing effect (complete/not complete).

Led_Stop() – Stops the LED module and resets all variables.

This file handles storage/retrieval of bond information to/from flash.

Flash_Save() – Stores the information into the flash.

Flash_Load() – Restores the information from flash and copies it into the RAM buffer.

This file handles print debug messages (logs) over the UART.

Putc() – This function is used to print a character on the UART.

Byte_To_ASCII() – This function is used to map a byte to its corresponding ASCII value.

Debug_Print_Start() – This function is used to initialize debug functionality.

Debug_Print() – This function is used to print a message (logs) on the UART.

This file contains macros that control various options in the firmware related to debug, touchpad tuning, use of MCU power states, manufacturing test kit (MTK), and BLE power states.

DEVICE_BATTERY_PARALLEL – Enables the macro if the battery terminal is of a parallel type; otherwise, the battery terminal is expected to be in series.

ENABLE_SYSTEM_DEEP_SLEEP – Enables deep sleep mode. BLE will be disconnected when it enters this mode.

MCU_DEEP_SLEEP_DISABLED – Disables the MCU deep sleep.

ENABLE_DEBUG_PIN – Enables the macro for toggling GPIO. Make sure the Debug_Pin component is enabled in the TopDesign schematic.

DEBUG_PRINT – Enables debug prints.

SOFTWARE_UART – Make sure to enable SW_Tx_UART component in the TopDesign after defining the SOFTWARE_UART macro. Else enable Debug_UART component. Debug_UART provides faster data transfer compared to SW_Tx_UART. However Debug_UART can be routed only to specific pins

DISABLE_TIMER – Disables the timer module. It not recommended to disable the timer block, as much of the functionality of this application depends upon it.

DISABLE_FLASH – Disables the flash module.

DISABLE_WATCH_DOG – Disables the watchdog reset function but not the use of watchdog as a 1-ms timer

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 63

File Name

Firmware

Details

DISABLE_BATTERY – Disables the battery module.

ENABLE_HARDWARE_WORKAROUND_MINIPROG - Enables the drive mode of the

BatteryEn_Voice_Button GPIO from Open Drain to Pull Up when powered using MiniProg3 and batteries are not connected. This is required as battery enable and voice button are mapped to the same GPIO. If this macro is not enabled and MiniProg3 is connected without batteries, there is a possibility of firmware sensing a voice button press even though it is not actually pressed.

DISABLE_AUDIO – Disables the audio module.

AUDIO_RUN_ON_ECO – Defines the macro to run the I2S on ECO, not on IMO.

AUDIO_SEND_FREQUENT_SYNC_PACKET – Enables the logic to send the sync packet frequently.

DISABLE_LED – Disables the LED module.

DISABLE_MOTION_SENSOR – Disables the motion sensor module.

DISABLE_MOTION_SENSOR_PINREAD Disables reading the pin status and he motion sensor register to detect user activity from the motion sensor in low-power mode.

ENABLE_MOTION_SENSOR_FLASH_WRITE Enables the logic to store the gyro offset on the flash.

DISABLE_IR – Disables the IR module.

NEC_PROTOCOL – Defines the macro for sending IR data in the NEC protocol format; otherwise, the custom IR format will be used for sending data.

IR_PIN_TOGGLE – Defines the macro for bit banging the IR data by toggling the GPIO.

Otherwise, TCPWM will be used for this purpose. Note: Please check the comment in the

TopDesign.cysch file.

DISABLE_BUTTON – Disables the button module.

DISABLE_KEYBOARD – Defines the macro for disabling the keyboard module. Note: When

DISABLE_KEYBOARD is defined, then BLE will advertise when powered on.

KEYBOARD_MULTIMEDIA_SUPPORT – Defines the macro for supporting multimedia keys.

ENABLE_IR_CODES Enables support for IR key codes in the Keyboard module.

DISABLE_KEYBOARD_INTER_COLUMN_BUTTON – Defines the macro for disabling button scanning between the rows.

DISABLE_BLE – Defines the macro for disabling the BLE module.

ENABLE_BLE_LOW_POWER_MODE – Defines the macro for enabling BLE low-power mode.

Note: If ENABLE_BLE_LOW_POWER_MODE is disabled, then the power of the remote will go high.

ENABLE_CONNECTION_UPDATE_DISCONNECT – Defines the macro for disconnecting from the peer device if the L2CAP parameter update is rejected.

ENABLE_BLESS_CLOCK_CONFIGURATION – Enables the logic to set the BLE clock configuration. Note: This needs to be set depending upon the WCO clocks.

ENABLE_BONDING – Defines the ENABLE_BONDING macro for storing the bond information in the flash.

BLE_GET_STACK_VERSION – Enables the code to get the version of the BLE stack being used in the firmware.

DISABLE_TRACKPAD –Disables the trackpad module.

TOUCHPAD_TUNER – Enables the logic for the trackpad to enter into tuner mode. The pins are available by default at P0[0] and P0[1].

DISABLE_TRACKPAD_SLEEP – Defines the DISABLE_TRACKPAD_SLEEP macro for disabling the trackpad sleep.

TRACKPAD_TEMPERATURE_VARIATION – Enables a logic to maintain the sensor baseline

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 64

File Name

Firmware

Details

when the device is exposed to sudden temperature variation

DISABLE_CUSTOM_POINTER_MOVEMENT – Enables the logic to disable the use of the ballistic movement from the BallisticMovement.a library.

DISABLE_CUSTOM_SCROLL_GESTURE – Enables the logic to disable the use of the scroll gesture from the scrollgesture.a library.

DISABLE_EDGE_SWIPE_TOP – Enables the logic to disable the top-edge swipe gesture.

DISABLE_CLICK_DETECTION_POINTER_MOVEMENT – Enables the logic to stop the pointer movement when click detection is in progress.

5.1.2 Watchdog Timer Subsystem

The Watchdog Timer subsystem provides a recovery mechanism from any undesired firmware behavior. It resets if the watchdog timer subsystem is not cleared. This subsystem uses the PRoC BLE counter 0 of the watchdog timer hardware block for this functionality. ( Note: The PRoC BLE watchdog timer has two 16-bit counters (counter 0 and counter 1) and one 32-bit counter (counter 2). These counters can be configured to work independently or in cascade). In this project,

counter 1 is used as a tick timer, which is described separately in the Timer Subsystem section.

Counter 0 is configured to generate a system reset interrupt after three continuous unhandled interrupts. A counter 0 interrupt is generated on reaching the specified terminal count. The terminal count value of the remote control firmware is set to 0xFFFF, which converts to approximately a 2-second time interval. Based on this terminal count setting, a system interrupt is generated approximately 6 seconds after three continuous interrupts are unhandled.

A system reset interrupt will cause the MCU to reset, and firmware execution will start from the beginning. To prevent a system reset, counter 0 must be cleared at least once in a 6-second time period. This is done in firmware in

Device_Active() and Device_Low_Power_State() functions of device.c.

5.1.3 BLE Subsystem

The BLE subsystem transmits data provided by the application framework over a Bluetooth Smart link. It implements the

HOGP and proximity profile (PXP) for the remote control. Figure 5-4

shows the flow chart for the BLE subsystem. The

HOGP provides the following services:

One HID service for transmitting the mouse, keyboard, multimedia, audio and power reports

Battery service for transmitting the battery status to the peer device

Device information service that exposes manufacturer and/or vendor information about a device

Scan parameter service that enables a GATT client to store the Bluetooth LE scan parameters it is using on a GATT server device so that the GATT server can use the information to adjust the behavior to optimize power consumption and/or reconnection latency

PXP is used to check the link loss status between the remote control and host device. The PXP provides the following services:

Link Loss Service (LLS) that defines behavior when a link is lost between two devices

Immediate Alert Service (IAS) that exposes a control point to allow a peer device to cause the device to alert immediately

Tx Power Service (TPS) that exposes a device’s current transmit power level in a connection

The IAS and TPS are used to determine path loss occurrence by monitoring the RSSI.

In all the firmware states, the BLE Component connection interval is set to 10 ms, and the slave latency is set to 100 ms.

The subsystem enters the Deep Sleep state when it is disconnected or if no peer device is found.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 65

Entry

Figure 5-4. BLE Subsystem Flow Chart

Is Connect button pressed?

YES

NO

Is Device connected?

YES

NO

Start undirected

Advertisement

Exit

User activity

detected ?

NO

YES

Is Device connected?

NO

YES

Bond information available?

NO

YES

Start Directed Advertisement

Transmit packet

Exit

The BLE subsystem is built using the BLE Component ( Figure 5-5 ) provided in PSoC Creator.

Figure 5-5. BLE Component in PSoC Creator

Firmware

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 66

5.1.3.1 Device Role/Profile Settings

The BLE Component is configured for multiple profiles and roles, as shown in Figure 5-6 .

Figure 5-6. General Tab of BLE Component

Firmware

The settings used for a remote control for the BLE subsystem General tab are as follows:

Profile: “HID over GATT” is selected for the remote control, as it is acts as an HID.

Profile role: “HID Device (GATT Server)” is selected for the remote control. It acts as a GATT server, which sends data over notification to the GATT client whenever data is available.

GAP role: “Peripheral” is selected based on the profile and profile role for remote control.

5.1.3.2 Profiles Settings

The

Profiles tab of the BLE Component is shown in Figure 5-7 . It consists of set of services, characteristics, and

descriptors, which are described in Table 5-3 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 67

Figure 5-7. Profiles Tab of BLE Component

Firmware

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 68

Services

Generic Access

Service

Firmware

Table 5-3. BLE Component Profile Details

Characteristic

Device Name

Details

Configure the value of this characteristic as “CY5672 Remote Control RDK.”

Appearance

Peripheral Preferred

Connection

Parameters

Configure the value of this characteristic as “Human Interface Device (HID).”

Characteristic values are automatically populated by the Component based on advertisement settings configured in the GAP Settings tab of the BLE Component.

The default BLE configuration of this service is used for remote control. Generic Attribute

Service

Human Interface

Device Service

Device Information

Service

Battery Service

Protocol Mode

Report Map

HID Information

HID Control Point

Boot Mouse Input

Report

Boot Keyboard Input

Report

Boot Keyboard Output

Report

Report Mouse

The default BLE configuration of this characteristic is used for the remote control.

The Report Map characteristic defines the HID descriptor for the remote control. The report map for the remote control consists of mouse, keyboard, power, multimedia, and audio report structure.

The default BLE configuration of this characteristic is used for the remote control.

The default BLE configuration of this characteristic is used for the remote control.

The default BLE configuration of this characteristic is used for the remote control.

The default BLE configuration of this characteristic is used for the remote control.

The default BLE configuration of this characteristic is used for the remote control.

Modify the read permissions to “Encryption Required” and configure the report ID of the report reference descriptor to “1”. The rest of the parameters are left as the default values set by the BLE Component.

Report Keyboard

Report Multimedia

Report Power

Report Audio Control

Modify the read permissions to “Encryption Required” and configure the report ID of the report reference descriptor to “2”. The rest of the parameters are left as the default values set by the BLE Component.

Modify the read permissions to “Encryption Required” and configure the report ID of the report reference descriptor to “3”. The rest of the parameters are left as the default values set by the BLE Component.

Modify the read permissions to “Encryption Required” and configure the report ID of the report reference descriptor to “4”. The rest of the parameters are left as the default values set by the BLE Component.

Modify the read permissions to “Encryption Required” and configure the report ID of the report reference descriptor to “31”. The rest of the parameters are left as the default values set by the BLE Component.

Report Audio Data Modify the read permissions to “Encryption Required” and configure the report ID of the report reference descriptor to “30”. The rest of the parameters are left as the default values set by the BLE component.

Configure the value as “Cypress Semiconductor.” Manufacturer String

Name

Firmware Revision

String

PnP ID

Configure the value as “1.0.0.0”

Hardware Revision

String

Serial Number String

Software Revision

String

Configure Vendor ID as “0x4B4,” Product ID as “0x5673,” and Product Version as

“0x0001.”

Configure the value as “1.0”

This value is over written by firmware with the BD Address generated using the silicon ID.

Configure the value as “PSoC Creator.”

Model String Number Configure the value as “CY5672.”

Configure the value as “100”; the rest of the values are the default values of the BLE Component.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 69

Firmware

Scan Parameter

Service

The default BLE configuration of this service is used for the remote control.

Link Loss Service The default BLE configuration of this service is used for the remote control.

Immediate Alert

Service

The default BLE configuration of this service is used for the remote control.

TX Power Service Configure the Tx Power Level as “0”. The remaining default BLE configuration of this service is left as the default values.

5.1.3.3 GAP Settings

The BLE Component supports different types of discovery modes. This application uses the limited discovery mode so that battery power is not wasted when the user presses the advertisement button. The advertising type is chosen to connect to any host that is HOGP-compliant. In the case of the remote control, the report rate expected is approximately 100 Hz. This means that the data must be sent out approximately every 10 ms. Thus, the firmware maintains the connection interval at

10 ms. Figure 5-9 shows the advertisement settings, and Figure 5-9 shows the security options chosen for the remote

control firmware.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 70

Figure 5-8. GAP Settings Tab of BLE Component Showing Advertisement Settings

Firmware

The settings used for a remote control for the BLE subsystem

GAP Settings > Advertisement settings are as follows:

Discovery mode: This mode is used by devices that need to be discoverable only for a limited period of time or for a specified event. The timeout duration is defined by the applicable advertising timeout parameter. The remote control configures this parameter as “Limited” so that it advertises for a limited period of time when the connect button is pressed.

Advertising type: This parameter defines the advertising type to be used by the link layer of PRoC BLE. The remote control configures it as “Connectable undirected advertising,” which allows any other device to connect to it.

Filter policy: This parameter defines how the scan and connection requests are filtered. The remote control configures it as ”Scan request: Any | Connection request: Any,” which allows it to process connection requests and scan requests from all devices.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 71

Firmware

Advertising channel map: This parameter is used to enable a specific advertisement channel. The remote control configures it as “All channels” so that it allows advertisement on all three possible BLE advertisement channels.

Advertising interval: This parameter defines the interval between two advertising events.

Fast advertising interval: This advertisement interval results in a faster connection.

Minimum (ms): This parameter defines the minimum interval for advertising the data and establishing a connection. It is configured to increment in multiples of 0.625 ms. The valid range is from 20 ms to 10240 ms. A minimum value of “20” is configured for the remote control.

Maximum (ms): This parameter defines the maximum interval for advertising the data and establishing a connection. It is configured to increment in multiples of 0.625 ms. The valid range is from 20 ms to 10240 ms. A maximum value of “30” is configured for the remote control.

Timeout (s): This parameter defines the timeout value of advertising with fast advertising interval parameters. A timeout interval of “30” is configured for the remote control.

Connection parameters: These parameters define the connection event timing for a central device communicating with the remote control. Consecutive connection events are separated by the defined

Connection interval.

Minimum (ms): This parameter is the minimum permissible connection time value to be used during a connection event. It is configured in steps of 1.25 ms. The range is from 7.5 ms to 4000 ms. A minimum connection interval of

“10” is configured for the remote control to achieve a report rate above 100 Hz.

Maximum (ms): This parameter is the maximum permissible connection time value to be used during a connection event. It is configured in steps of 1.25 ms. The range is from 7.5 ms to 4000 ms. A maximum connection interval of “10” is configured for the remote control to achieve a report rate above 100 Hz.

Slave latency: This parameter defines the latency of the slave in responding to a connection event in consecutive connection events. It is expressed in terms of multiples of connection intervals, where only one connection event is allowed per interval. The range is from 0 to 499 events. A slave latency of “100” is configured for the remote control.

Connection supervision timeout (ms): This parameter defines the link supervision timeout interval. It defines the timeout duration for which a link needs to be sustained in case of no response from a peer device over the LE link. The time interval is configured in multiples of 10 ms. The range is from 100 ms to 32000 ms. A connection supervision timeout of “3000” is configured for the remote control.

Figure 5-9. GAP Settings Tab of BLE Component Showing Security Options

The settings used for a remote control application for the BLE subsystem GAP Settings > Security are as follows:

Security mode: This parameter defines the GAP security modes for the Component. This mode is configured as

“Mode 1” for the remote control. Mode 1 is chosen when data encryption is required.

Security level: This parameter is configured as “Unauthenticated pairing with encryption.” With this level of security, the remote control will send encrypted data after establishing a connection with the client device.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 72

Firmware

I /O capabilities: This parameter refers to the device's input and output capability that can enable or restrict a particular pairing method or security level. It is configured as “No Input No Output,” as the remote control does not have the capability to enter and display authentication key data.

Pairing method: This parameter is configured as “Just works” for the remote control. The device will use the simple pairing procedure without authentication. With this method, transferred data is vulnerable to “man in the middle” attacks.

Bonding requirement: This parameter is used to configure the bonding requirements. The purpose of bonding is to create a relation between two Bluetooth devices based on a common link key (a bond). The link key is created and exchanged (pairing) during the bonding procedure and is expected to be stored by both Bluetooth devices, to be used for future authentication.

This parameter is configured as “Bonding” for the remote control. The remote control will store the link key of a connection after pairing with the client device. It uses a previously stored key for the connection when the connection is lost and then re-established.

Encryption key size (bytes): This parameter defines the encryption key size based on the profile requirement. The valid values of encryption key size are 7 to 16 bytes. This parameter is configured as “16” for the remote control.

The datasheet details the APIs supported by the BLE Component. To go to the datasheet, click the Datasheet button at the

bottom left corner of the BLE Component GUI, as shown in Figure 5-9 .

5.1.4 Trackpad Subsystem

The trackpad for the remote control is composed of eight rows and eight columns of sensors. The firmware detects and generates key codes for the different gestures and reports them to the application framework.

The CapSense Gesture Component provided in PSoC Creator supports capacitive touch sensor (trackpad) scanning, centroid calculation, and gesture detection. It provides an API for each of these functionalities. The trackpad subsystem calls the relevant APIs to detect user activity. The trackpad subsystem is executed every 10 ms in the Active state, every

125 ms in the Idle state, and every 250 ms in the Sleep state. The flow chart in Figure 5-10 shows the how the trackpad

subsystem operates.

Figure 5-10. Trackpad Subsystem Flow Chart

Entry

Scan Capacitive Touch sensors

Centroid calculation

(finger position detection)

Gesture detection

Map gestures to key codes

Exit

Scan: Detecting the trackpad activity involves scanning the capacitive touch sensors. The presence of a finger on the trackpad will result in non-zero values for signals on those particular sensors.

Centroid calculation: Signal values from the scanning stage are used as inputs for the centroid calculation algorithm.

This algorithm estimates the total number of fingers and their position on the trackpad.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 73

Firmware

Gesture detection: The number of fingers and finger positions calculated in the centroid calculation stage are used as

inputs to the gesture detection algorithm. Table 5-4 shows the gestures detected by firmware and the corresponding

key codes sent over BLE.

Table 5-4. List of Supported Gestures

Gesture

Left-click

Right-click

Double-click

Pointer movement

Vertical scroll

Horizontal scroll

Home screen

Action Performed

Single-finger single tap

Two-finger single tap

Single-finger double tap

Single-finger movement on trackpad area

Single-finger movement in a top/down motion on right edge

Single-finger movement in a left/right motion on bottom edge

Single-finger swipe in top/down direction starting from top edge

Two-finger pinch

Key Code

Left-click (0th bit in 0th byte of the mouse report)

Right-click (1st bit in 0th byte of the mouse report)

Left-click will be sent twice (0th bit in 0th byte of the mouse report)

X, Y (1st and 2nd byte of the mouse report)

Z-wheel (3rd byte of the mouse report)

H-wheel (4th byte of the mouse report)

Window key (3rd bit of the 0th byte of the keyboard report)

Zoom in/out Ctrl key (0th bit of the 0th byte of the keyboard report) + Z-wheel

(fourth byte of the mouse report)

Figure 5-11 shows the CapSense Gesture Component. The following sections describe its configuration for the remote

control.

Figure 5-11. CapSense Gesture Component in PSoC Creator

5.1.4.1 General Tab

Figure 5-12

shows the General tab of the CapSense Gesture Component.

Figure 5-12. General Tab of CapSense Gesture Component

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 74

Firmware

Tuning method: This parameter is configured as “Manual with run-time tuning” for the remote control. This option allows run-time tuning of the CSD_Touchpad Component.

Raw data noise filter: This parameter selects the raw data filter. Only one filter can be selected, which is applied to all sensors. The filter is used to reduce the effect of noise during sensor scans. This parameter is configured as “None” for the remote control.

Compensation IDAC: This mode provides increased sensitivity and SNR. The Compensation IDAC is connected to the AMUX bus full-time during CapSense operation and is intended to compensate for the sensor’s parasitic capacitance. This parameter is configured as “Enabled” for the remote control.

Auto calibration: This option allows IDAC auto-calibration, and it is enabled for the remote control.

5.1.4.2 Widgets Config Tab

The

Trackpad with gestures widget is added as shown in Figure 5-13 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 75

Figure 5-13. Widgets Config Tab of CapSense Gesture Component

Firmware

Number of sensor rows/Number of sensor columns: These parameters depend on the number of sensors along the

X and Y axis. Their values are set based on the trackpad design. These parameters are configured as “8” rows and “8” columns for the remote control.

Column Tuning/Row Tuning: The tuning parameters for the remote control are selected to achieve optimum touch performance.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 76

5.1.4.3 Gestures Tab

The General gesture, Clicks, Zoom and Edge swipes options are selected. The configuration of these gesture

parameters shown in Figure 5-14 is the default.

Firmware

Figure 5-14. Gestures Tab of CapSense Gesture Component

5.1.4.4 Scan Order Tab

The settings in the Scan Order tab are shown in

Figure 5-15 . The sense clock divider is modified to “2”. All other

parameters are left at their default settings.

The datasheet provides a detailed table for the selection of the sense clock divider in the

Sense clock divider section. To go to the datasheet, click the Datasheet button at the bottom left corner of the CapSense Gesture Component GUI.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 77

Figure 5-15. Scan Order Tab of CapSense Gesture Component

Firmware

5.1.4.5 Advanced Tab

The settings in this tab are not modified; that is, the default settings are retained, as shown in Figure 5-16 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 78

Figure 5-16. Advanced Tab of CapSense Gesture Component

Firmware

5.1.4.6 Trackpad Subsystem Tuning

The trackpad of the remote control RDK is already tuned; therefore, it is not necessary to repeat the tuning exercise. Tuning of the trackpad is required during the development phase. Every new design needs tuning to ensure optimal performance.

The following steps provide guidance for connecting to the tuner.

1. Enable the TOUCHPAD_TUNER macro in the platform.h file.

2. Enable the DISABLE_MOTION_SENSOR macro in the platform.h file.

3. Right-click on the “CSD_Touchpad_Tuner” Component and select “Enable” to enable the Component.

4. Right-click on the “Motion_Sensor_I2C” Component and select “Disable” to disable the Component.

5. Click the Tune Helper tab of the CSD_Touchpad Component and select the “Enable tune helper” option, as shown in

Figure 5-17 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 79

Figure 5-17. Tune Helper Tab of CapSense Gesture Component

Firmware

6. The CSD_Touchpad_Tuner:scl and CSD_Touchpad_Tuner:sda pins appear in the CY5672_Remote_Control.cydwr,

as shown in Figure 5-18 . Verify that the pins are assigned as P0[0] for SDA and P0[1] for SCL.

Figure 5-18. CY5672_Remote_Control.cydwr view

7. Rebuild the remote control by choosing Build > Clean and Build CY5672_Remote_Control. Program the hex into the remote control.

8. Solder four wires from the remote control to a five-pin male connector in the following order: VDD (TP7), GND (TP8), no connect, Pin0[1], and Pin0[0].

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 80

9. Connect the five-pin male header to the five-pin female header of MiniProg3.

10. Connect MiniProg3 to a PC or laptop using a USB cable.

11. Right-click on the CSD_Touchpad Component and select “Launch Tuner.”

12. The tuner tool pops up, as shown in Figure 5-19 .

Figure 5-19. Tuner Tool

Firmware

13. Click the Configuration button to invoke the Tuner Communication Setup window. Configure the settings as shown

in Figure 5-20.

Figure 5-20. Tuner Communication Setup

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 81

Firmware

14. Ensure that two AAA batteries are placed in the remote control.

15. Click the Start button and observe that tuner starts running. For more information on how to use the tuner GUI, refer to the PSoC 4 CapSense Tuning Guide .

The datasheet provides the APIs supported by the CapSense Gesture Component. It also provides documentation on all the configurable parameters mentioned previously in this section. To go to the datasheet, click the Datasheet button at the

bottom left corner of the CapSense Gesture Component GUI, as shown in Figure 5-16 .

5.1.5 Motion Sensor Subsystem

5.1.5.1 Motion Sensor Usage in the Remote Control RDK

The motion sensor subsystem implements the motion mouse feature in the remote control. The firmware detects the direction and magnitude of movement of the remote control and converts the device movement to mouse pointer movement. The change in mouse pointer position is sent to the BLE host through the HID report. The requirement of the motion mouse is to enable the user to use the remote for moving the mouse pointer through his or her gesture. It is similar to using a laser pointer (instead of a trackpad mouse) to point at a location on a screen. Now imagine how a laser pointer produces movement onscreen.

To move the laser pointer in the X direction of the screen, the presenter/user will either move himself laterally in the X

direction of the device or rotate the pointing device around the Z axis of the device, as shown in Figure 5-21 .

Figure 5-21. Moving Laser Pointer in X Direction

Similarly, to move the laser pointer in the Y direction of the screen, the presenter/user will either move himself laterally in

the Z direction of the device or rotate the pointing device around the X axis of the device, as shown in Figure 5-22 .

Figure 5-22. Moving Laser Pointer in Y Direction

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 82

Firmware

Practically, the user will remain steady in one place and use rotation of the device to move the pointer rather than moving around to laterally shift the device. Hence, while implementing the similar operation in the remote control RDK, you want only the rotation to control the pointer movement, and not the shift in position of the device.

Note that with the PRoC BLE remote control, the later shift also produces a pointer movement, but this is the result of unintended, unnoticeable rotation produced due to imperfect motion caused by the hand movement.

Thus the objectives can be summarized as follows:

Measure the angle of rotation of the remote about the Z-axis of the remote.

 Map it to the pointer movement on the screen in the X direction of the screen.

 Measure the angle of rotation of the remote about the X-axis of the remote control.

Map it to the pointer movement on the screen in the Y direction of the screen.

The motion sensor used in the remote control RDK for these measurements is MPU6500 from Invensense. It has three axis accelerometers and three axis gyroscopes. The output of the six sensors is read by PRoC BLE using the I

2

C bus. The output of the accelerometers and gyroscopes is 16-bit signed data for each sensor. The sampled output data from the motion sensor is converted to the mouse pointer movement in the form of a change in mouse pointer position in the X and Y direction of the screen.

A third-party library from Invensense, called the Air Motion Library (AML), is used to process the accelerometer and

gyroscope data, as shown in Figure 5-23 . The data from the motion sensor is polled every connection interval and passed

to the AML processing API. The API returns the delta X and delta Y for the mouse pointer, which are used to produce the mouse HID report. The polling routine is performed every 10 ms, as the connection interval is set to 10 ms for the remote.

Thus, the sampling frequency of the motion sensor is set to 100 samples per second.

Figure 5-23. Processing of Accelerometer and Gyroscope Data

5.1.5.2 Interfacing the Motion Sensor

The MPU6500 motion sensor provides two options for a communication interface: I interface is used for the communication. The reasons for choosing I

2

2

C and SPI. In the Remote RDK, the I

C are as follows:

2

C

• I

2

C needs only two I/O s.

• The Sampling speed required for the application is 100 samples per second, which is easily sufficed by I

2

C data rate.

The I2C Component in PSoC Creator is to be configured for the I

2 uses a 100-kHz I

2

C communication with MUP6500. Currently, the design

C clock. The figure below shows how the I2C Component is configured.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 83

Figure 5-24. Configuration Tab of I2C Component Configuration

Firmware

Figure 5-25. I2C Basic Tab of I2C Component Configuration

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 84

Figure 5-26. Advanced Tab of I2C Component Configuration

Firmware

After configuring the I

2

C Component, allocate the SCL and SDA lines to specific pins of PRoC. The I/O Allocation is done in the Pins tab of .cydwr file as shown below.

Figure 5-27. Pins Tab of .cydwr File Used to Select I/Os for I

2

C

Note that only a few specific pairs of I/Os can be routed to I

2

C lines. If some other I/Os are allocated for the I connected to P0.5 to trigger an interrupt. The INT pin can be used in two ways as follows:

2

C lines, the build process would give an error stating that those I/O could not be routed in the design. The INT pin of MPU6500 is

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 85

Firmware

1) The MPU6500, when configured in Low Power Motion detect mode, any motion of the device will assert a level triggered interrupt on INT pin of MPU6500. On the PRoC side, this will cause an interrupt on P0.5 and will wake up the PRoC if it is in deep sleep mode and trigger an interrupt and its ISR will be serviced. The ISR would lead to reading of sampled sensor data which will clear the INT pin of MPU6500.

2) When the MPU6500 is in normal sampling mode, the availability of samples in FIFO will trigger a level-trigger interrupt on INT pin of MPU6500. On PRoC interrupt on P0.5 will be disabled and will be polled as a input signal. If the pin is asserted, the polling routine will read the samples in FIO and the interrupt on INT pin of MPU6500 will be cleared.

5.1.5.3 Using AML: Hardware Abstraction Level

Figure 5-28 shows the motion sensor axis orientation with respect to the chip packaging. The rotation of the device that

produces a positive output on the corresponding gyroscope is indicated by the curved arrows.

Figure 5-28. Motion Sensor Axis Orientation

However, according to the placement of the motion sensor device on the remote PCBA, the motion sensor axis orientation

is different than that shown in Figure 5-28 . The chip is flipped about the Y axis and rotated around the Z axis, while the remote is held in a pointing position. The axes of the sensor mounted on the PCB is changed as shown in Figure 5-29 .

Figure 5-29. Placement of Motion Sensor on Remote PCBA

The AML is designed assuming the following referential conventions:

 A clockwise rotation around the gyroscope Y-axis generates positive values, that is, negative delta Y onscreen (cursor moves to the top).

 A clockwise rotation around the gyroscope Z-axis generates positive values, that is, positive delta X onscreen (cursor moves to the right).

 When the device lies flat on its back, the accelerometer must see +1G on the Z-axis.

 When the device lies on its right side, the accelerometer must see +1G on the Y-axis.

When the device is held vertically pointing down, the accelerometer must see +1G on the X-axis.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 86

Firmware

Considering these effective orientations of the motion sensor axes, it is concluded that the motion sensor mounted on the

Remote Control RDK produces positive output on the Z-axis while the cursor is moved to the right, as shown in Figure 5-30 ,

thus meeting AML convention 1.

Figure 5-30. Cursor Movement in X Direction

The motion sensor mounted on the Remote Control RDK produces a positive output on the Y axis while the cursor is moved

to the top, as shown in Figure 5-31,

thus meeting AML convention 2.

Figure 5-31. Cursor Movement in Y Direction

Conventions 3, 4, and 5 will not be met because the directions of the accelerometer axes are reversed due to flipping the chip for mounting. Hence, to meet conventions 3, 4, and 5, the reversed direction of the accelerometer axes will be compensated for by negating the output of the accelerometer.

When using other motion sensors and motion processing libraries, there may be a need to process the data read from the motion sensor to meet the conventions of the data processing library. This processing is part of the hardware abstraction layer of the firmware, so in the Remote Control RDK firmware, it is implemented in

Motion_Sensor_Hal_GetAccData() and Motion_Sensor_Hal_GetGyroData()in the motion_sensor_hal.c .

5.1.5.4 Using Air Motion Library at Application Level

The AML exposes the following two APIs.

AIR_MOTION_Init(): This function is used to initialize the processing logic with various configuration parameters.

These parameters are passed to the function through a structure. The elements of this structure and their significance are as follows:

DeltaGain: Delta gain values for X and Y axes. More gain results in more pointer displacement for the same angular change.

GyroOffsets: Initial gyroscope offset values. Specifying the correct offsets eliminates the time consumed during calibration.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 87

Firmware

GyroStaticMaxNoise: Gyroscope maximum value per axis for the device to be considered currently static.

StaticSamples: Number of consecutive “static” samples for the device to be considered fully static.

SwipeMinDist: Minimum distance, as deltas sum, for a swipe to be detected (‘0’ means no processing). Used only if gestures are enabled.

SwipeMaxNoise: Maximum noise level, as deltas sum, for a swipe to be rejected. Used only if gestures are enabled .

StartupSamples: Number of samples to discard before starting computation. It should be equal to the time taken by the gyroscopes to stabilize after powering up.

ClickStillSamples: Maximum number of null pointing samples after a button press. This should be equal to the time for which a button press can move the mouse pointer.

ClickStillTolerance: Stillness tolerance level, as maximum movement quantity, for pointing samples to be forced null after a click press.

IsRollCompEnabled: Activate roll compensation feature.

Acc1gLsb: Norm value read from the accelerometer when the device is static (Earth's gravitational acceleration).

Specify this value according to the full-scale range of the accelerometer set by the motion sensor driver.

GyroSensitivity: Gyroscope sensitivity as “16*LSB / °/s.” Specify this value according to the full-scale range of the gyroscope set by the motion sensor driver.

These parameters should be tuned properly to achieve an optimal performance of the motion mouse. Default values of the parameters used in the RDK firmware may need to be changed on the actual end-product depending on its structure and ergonomic characteristics.

 AIR_MOTION_ProcessDelta(): This function processes the motion sensor data. Motion sensor data is passed as parameters through a structure. The elements of the structure are as follows:

GyroSamples: Gyroscope samples

AccSamples: Accelerometer samples

ClickSample: Click buttons state sample. It notifies the library that a button is pressed. This information is used by the click tolerance logic to avoid wiggling of the mouse on button press.

This function returns the computed deltas for the mouse pointer and updated gyroscope offsets through a structure. Elements of this structure are the following:

Status: Status bits of the last sample processing. Holds the status of the device notifying and if the device is steady, if new gyroscope offsets are computed, and if the mouse delta is computed.

− GyroOffsets: Value of gyroscope offsets

− Delta: Computed delta values

− SwipesDetected: Bit field of detected swipes. This element is used only if gesture recognition is used.

The AIR_MOTION_Init() function is called while initializing the library or performance parameters such as gyroscope offsets, delta gain, and so on. The AIR_MOTION_ProcessDelta() function is called as part of the polling routine for the motion sensor. The structure returned by this API is used to generate the mouse report and update the gyroscope offsets.

The APIs exposed by the AML are independent of the motion sensor used and therefore can be used in the application layer of the motion sensor module for a motion sensor. The code corresponding to the application layer is organized in

motion_sensor.c.

5.1.5.5 AML Features

Apart from the computation of mouse pointer movement, the AML also implements features that improve the user experience and performance of the air mouse.

Auto-calibration of gyroscopes: The function of the auto-calibration feature is to eliminate gyroscope offset and drifts.

The calibration is automatically carried out when the motion sensor samples are passed to

AIR_MOTION_ProcessDelta()as part of polling routine. At the application layer, the generation of mouse reports stops until calibration is in progress. When the calibration is complete, the function indicates this fact through

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 88

Firmware the

NewGyroOffset element of t_struct_AIR_MOTION_Status. It also keeps updating the offsets automatically without interfering with the mouse movement computation (once calibration is successful). First-time calibration takes time corresponding to the initalization value of StaticSamples. Once the offsets of gyro are calculated, they can be saved in nonvolatile memory such as EEPROM or flash memory. These offsets can be used thereafter directly for initialization of the AML. Passing the gyroscope offsets saved in nonvolatile memory to the initialization structure of

AIR_MOTION_Init() at the beginning of device initialization bypasses the calibration, which enables seamless mouse operation after powering up the device.

Note: For the first time after the RDK is programmed, gyroscope offsets are not computed, so the default offsets used to initialize the AML are passed as 0x0000. This triggers auto-calibration at the beginning of motion sensor polling. The calibration logic waits for the device to be steady for StaticSamples amount of time before computing offsets and then starts the calibration. Hence, the RDK should be kept still for

StaticSamples amount of time for the completion of calibration; otherwise, calibration will not take place. If the calibration is not completed, the application will not generate mouse reports and the mouse pointer will be kept stalled.

Roll compensation: If the user holds the remote in a tilted manner, the gyroscope axes will also be tilted by the same angle. This angle is called the “roll” of the remote. The roll angle would tilt the x-y direction of pointer movement by a

roll angle, resulting in horizontal movement of the remote to produce a tilted pointer movement, as shown in Figure

5-32 .

Figure 5-32. Roll Compensation

The roll compensation features eliminates this issue. It rotates the x-y direction of the pointer movement by the same angle in which the remote is tilted, but in the opposite direction. The angle of the tilt is computed using accelerometer data. The accelerometer in a steady state is acted upon by acceleration due to gravity, which produces nonzero acceleration output on all the axes of the accelerometer, depending on the angles made by the motion sensor axes with the direction of gravity. Thus, the measurement from the accelerometer is used to calculate the orientation of the

device and hence the roll angle, as depicted in Figure 5-33 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 89

Figure 5-33. Estimation of Roll Using Accelerometer Output

Firmware

The AML uses this roll angle to nullify the effect of roll in the mouse pointer movement, called “roll compensation.”

However, the calculation of roll is performed only when the mouse pointer is steady. So, only the roll of the remote at the beginning of pointer movement is compensated for. The compensation logic does not take into account the tilt introduced in the discourse of movement.

The roll compensation feature is enabled by assigning the value of IsRollCompEnabled to 1 while initializing the

AML using AIR_MOTION_Init().

Click tolerance: When a button is being pressed on the remote, the remote moves a bit and causes unintended pointer movement. This movement creates difficulties when the user is trying to click on a specific location. The click tolerance feature resolves this issue. In this feature, the button press is reported to AIR_MOTION_ProcessDelta() by assigning parameter

ClickSample to 1 when a button press or release is detected. As soon as a button press is detected, the AML logic keep reporting zero delta for X and Y mouse pointer movement for a configurable time interval.

The time interval is configured using ClickStillSamples parameter, which is passed to AIR_MOTION_Init().

Typically this time is 300 ms. However, the movement of mouse is frozen only if the movement is within the level of

ClickStillTolerance. This tolerance level is also set in the firmware while initializing the AML library.

5.1.5.6 Power Management in Motion Sensing Mode

The most current-consuming process for the motion sensor module is sampling the motion sensor data when all the gyroscopes and accelerometers are active. Hence, polling is carried out in the Active state of the firmware state machine during the motion sensor polling routine. If the remote is steady, HID reports for the mouse are not generated, as delta X and delta Y are 0. If no mouse reports are generated for 3 seconds, it implies that the user is not making any activity, so the firmware moves into the Idle state.

In the Idle state, the firmware puts the motion sensor in the low-power motion detect mode. In this mode, the gyroscopes are turned off. Accelerometers are turned on and are sampled at a low frequency, typically eight samples per second. The internal motion detect logic present in MPU6500 is enabled. This logic detects the motion of the device and generates an interrupt on the INT pin of MPU6500, triggered when the accelerometer output data exceeds a programmable threshold level. This threshold is configured using the WOM_Threshold[7:0] register of MPU6500. In the RDK firmware, the threshold value is defined as MOTION_WAKEUP_THRESHOLD in MPU6500.h. This threshold value needs to be configured in the firmware by the developers per the performance requirement.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 90

Firmware

5.1.5.7 Tuning Parameters for Good Performance:

While deploying the motion mouse in the end product, the user experience for mouse handling needs to be optimized via the following parameters:

ClickStillTolerance

Description: This parameter determines the quantity of movement that should be tolerated during a button press.

Value: This parameter can be assigned three values:

o AirMotionLow o AirMotionNorma o AirMotionHigh.

Considerations: if this parameter is set to high ( AirMotionHigh), a greater movement in pointer is tolerated as a button press activity. However, a greater movement is required for pointer to start moving after the button press is complete. The effect of a high tolerance level would reflect in the click-and-drag action, which would show a jerk in pointer movement after the click action. Thus, an appropriate level needs to be decided that is suitable for the desired user experience.

Firmware details: Macro AIR_MOTION_DEFAULT_CLICKSTILLTOLERANCE in motion_sensor.h

ClickStillSamples

Description: This parameter determines the time for which the pointer needs to be frozen after a button press is detected.

Value: Can be any uint8 number. Typically, this value is 10 to 80 corresponding to a time duration of 100 to 800 ms.

Considerations: The optimal value for this parameter depends mostly on the mechanical and ergonomic aspect of the end product design. If the buttons of the remote are very soft for presses, the movement produced due to a button press will be small and of a shorter duration. On the other hand, if the buttons on the remote are harder, the movement produced by a button press would be of a longer duration. Therefore, this parameter should be set to a value that is high enough to last until the movement of the button press stops and low enough to report an immediate user activity after a button press.

Firmware details: Macro AIR_MOTION_DEFAULT_CLICKSTILLSAMPLES in motion_sensor.h

Motion Detect threshold

Description: This parameter specifies the value of the MPU6500 register used by the Motion Detect logic of the sensor.

Value: Any uint8 number. Typically, the value can be from 1 to 50.

Considerations: This parameter determines the amount of acceleration in milli-gravity (mg) that would be considered as movement of the device. The detection of motion would raise an interrupt to the firmware and move the firmware state machine from Idle or Low Power state to Active State. This threshold should be sufficiently low to detect a small amount of movement caused when the user picks up the remote from the desk. However, it should be high enough not to detect taps or vibrations on desk, if the threshold is low, and the remote wakes up due to vibration. This will not affect user experience, but it will cause the remote to spend more amount of time in the Active State and turn on the gyroscopes and process its data. This will increase average current consumption of the device, leading to reduced battery life.

Firmware details: Macro MOTION_WAKEUP_THRESHOLD in mpu6500.h

DeltaGain

Description: This parameter specifies the gain values that determine the sensitivity of the pointer to the movement of the device.

Value: Can be any int8 number. Typically, it ranges from 10 to 20.

Considerations: More gain results in greater pointer displacement for the same angular change. The end user experience is the only factor that can be used to tune this parameter.

Firmware details: Macro AIR_MOTION_DEFAULT_GAIN_DELTA_X, AIR_MOTION_DEFAULT_GAIN_DELTA_Y in motion_sensor.h

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 91

Firmware

GyroStaticMaxNoise

Description: This parameter specifies the amount of peak variations in the gyroscope output when the device is steady.

Value: Any uint8 number

Consideration: The value determines how much change in gyroscope output should the AML consider as noise. The value should be determined by separately analyzing the gyroscope output samples collected when the device is steady and determining the peak noise in the gyroscope output for a period of at least 1 second. Setting this parameter to more than the actual noise in the gyroscope output will not produce any movement when device is moved slowly. On the other hand, if this value is set to lower than the noise in the gyroscope output, an erroneous pointer movement can be observed when the mouse is steady.

Firmware details: Macro AIR_MOTION_DEFAULT_GYROSTATIC_NOISE in motion_sensor.h

StaticSamples:

Description: This parameter specifies the number of consecutive samples from the sensor for AML to conclude that the device is at rest.

Value: It can be any uint16 number. It can vary from 5 to 4000 depending on the use case.

Considerations: The value of static samples is used to update gyroscope offsets of the AML. Calling the

AIR_MOTION_ProcessDelta() function for SaticSamples number of times when the device is static results in an update in gyroscope offsets. The updated offsets are returned by this function in the form of the GyroOffsets element of the returned structure. Also Status.NewGyroOffset is set to TRUE in the same returned structure. Thus, a small value of the static sample will result in fast updates in the gyroscope offsets. If the firmware is writing the offsets into a nonvolatile memory when new offsets are available, the memory writes will be frequent. This may result in reduced age for the memory. On the other hand, if the value of the StaticSamples id very large, the gyroscope offsets will not be calculated for long durations. If the offsets are not updated frequently, the drifts in the gyroscope due to temperature changes and other possible reasons will not be compensated, which may result in unnecessary pointer movements.

Firmware details: Macro AIR_MOTION_DEFAULT_STATIC_SAMPLES in motion_sensor.h

5.1.6 Button Subsystem

The button subsystem checks the status of the following buttons:

Voice button: Activates the voice mode

Motion button: Activates the motion sensor and subsystem

Return button: Sends the return keyboard code of 0x9E over BLE

Figure 5-34 shows how the voice button is scanned. The voice button is connected to a dedicated GPIO, which is also used

in battery monitoring. For more information on the hardware, see the Battery Monitoring section.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 92

Figure 5-34. Voice Button Flow Chart

Start

Update button debounce value based on GPIO status

Is debounce value

> high threshold

Yes

No

Update voice button status as pressed

Is debounce value

< low threshold

No

Yes

Update voice button status released

End

The button subsystem uses the cy_pins Component shown in Figure 5-35 .

Figure 5-35. cy_pins Component for Button Module

Firmware

The cy_pins Component for the voice button is configured as a Digital output with Open drain, and Digital input as

shown in Figure 5-36 . The digital output function is used to drive the pin LOW during battery voltage measurement.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 93

Figure 5-36. Pins Tab Configuration Settings

Firmware

The motion and return button are multiplexed between the rows of the keyboard matrix. Figure 5-37 shows the flow chart for

scanning these buttons.

Figure 5-37. Keyboard Matrix Button Flow Chart

Start

Are keyboard rows activated?

Yes

Yes

Are keyboard columns activated?

No

Read button status by asserting row 1 and reading status on other rows

No

Map the button to the appropriate code

End

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 94

Firmware

5.1.7 Keyboard Subsystem

The keyboard subsystem is configured for three-row and three-column button matrix operation. The keyboard subsystem scans and debounces any activated keys in the keyboard matrix. The activated keys can be one of the following types:

standard, multimedia, or power keys. The information from this subsystem is passed to the application framework. Figure

5-38 shows the flow chart for the keyboard subsystem operation.

Figure 5-38. Keyboard Flow Chart

Start

Scan for keys in the keyboard matrix

Any new key pressed?

Yes

No

Any Key released?

Yes

Yes

Ghost detected?

No

Add to queue

Decrement the debounce value for the elements in the queue

No

Debounce value == 0

Yes

No

Any Key remains pressed?

Yes

No

Keep Alive packet Timeout occurs

No

Yes

Send the keys detected

End

To scan the keys, all the rows are pulled down to logic 0 first. Then, each column is pulled to logic 1 through a resistive pull- up and its status is read after a 20-µs delay. If any button on a given column is pressed, the firmware will read a logic 0 on that column. In this case, the firmware identifies the pressed button by pulling a row to logic 0 while keeping all other rows at logic 1 and reading the column status. If the pressed button is located on a given row, the firmware will read logic 0.

If a new key press is detected, the subsystem checks if it is a ghost key. A ghost key condition is detected when three physical keys are pressed but four keys are detected. If the identified key is not a ghost key, add the detected key to the queue for denouncing. After denouncing is complete, the detected keys are passed to the application framework. Refer to

Table 5-5 for a complete list of key codes implemented in the kit firmware.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 95

Firmware

Table 5-5. Keyboard Matrix Key Mappings

Key

Volume Up

Volume Down

Channel Up

Channel Down

Source

On/Off

Left button

Right button

Key Codes

0x00E9 (0th word of the of the multimedia report)

0x00EA (0th word of the of the multimedia report)

0x009C (0th word of the of the multimedia report)

0x009D (0th word of the of the multimedia report)

0x0087 (0th word of the of the multimedia report)

0x0030 (0th word of the of the multimedia report)

Left-click (0th bit of the 0th byte of the mouse report)

Right-click (1st bit of the 0th byte of the mouse report)

Connect Nothing is sent over BLE

The keyboard subsystem uses the cy_pins Component ( Figure 5-39 ) to interface with the key matrix. Separate sets of pins

are used for rows and columns.

Figure 5-39. cy_pins Component for Keyboard Module

The row and column cy_pins Components are configured as follows. Since the keyboard is an input device, all column and

row pins are configured as input, as shown in Figure 5-40 and Figure 5-41 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 96

Figure 5-40. cy_pins Component Settings for Columns

Firmware

Figure 5-41. cy_pins Component Settings for Rows

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 97

Firmware

5.1.8 Timer Subsystem

The timer subsystem is implemented using the watchdog timer. The PRoC BLE watchdog timer has two 16-bit counters

(counter 0 and counter 1) and one 32-bit counter (counter 2). These counters can be configured to work independently or in cascade.

The watchdog timer uses the 32767-Hz clock for its operations. It is the only timer that is available when the MCU is in

Deep Sleep. The watchdog timer is configured to generate an interrupt every 1 ms in the Active state, every 125 ms in the

Idle state, and every 250 ms in the Sleep state.

The remote firmware utilizes counter 1 for generating interrupts at a regular interval. The application framework uses this

timer value to switch between states. Figure 5-42 shows the flow chart for the timer subsystem.

Figure 5-42. Timer Module Flow Chart

Entry

Increment timer

Exit

5.1.9 Battery Monitoring Subsystem

The battery monitoring subsystem measures the voltage at the battery terminal. This subsystem is polled every 3 seconds.

The Sequencing SAR ADC Component provided in PSoC Creator is used to measure the battery voltage. Figure 5-43

shows the flow chart for this subsystem.

Figure 5-43. Battery Monitoring Module Flow Chart

Entry

Measure voltage

Exit

Figure 5-44 shows the schematic of the Sequencing SAR ADC Component. The following sections describe the

configuration settings.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 98

Figure 5-44. Sequencing SAR ADC Component in PSoC Creator

Firmware

5.1.9.1 General Tab

The

Clock frequency and other parameters shown in Figure 5-45 are selected to achieve a sampling rate of 3,906

samples per second.

Figure 5-45. General Tab of Sequencing SAR ADC Component

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 99

Firmware

5.1.9.2 Channels Tab

The ADC operates with a single 12-bit resolution channel input. The clock is set to “A clks” to get a conversion time of

256 µs, as shown in Figure 5-46 .

Figure 5-46. Channels Tab of Sequencing SAR ADC Component

The datasheet provides a list of APIs supported by the Sequencing SAR ADC Component. To go to the datasheet, click the

Datasheet button at the bottom left corner of the Sequencing SAR ADC Component GUI shown in Figure 5-46 .

5.1.10 Audio Subsystem

The CY5672 remote control supports audio capability to enable voice recognition function on the host device (PC or Smart

TV). The audio data (voice commands) are transferred over air to the host with voice recognition capability, which decodes

the voice commands and triggers the corresponding action. Figure 5-47 provides the system level view of voice command

transfer from the remote control.

Figure 5-47. Voice Recognition Using CY5672 Remote Control

The firmware data flow for the audio data on the remote control is illustrated in Figure 5-48 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 100

Firmware

Figure 5-48. Firmware Data Flow for Audio Feature

I2S

ADPCM

Encoding

Circular

Buffer

BLE Stack

4:1 Compression

40 ms

In the host side, the audio data is received as a HID report, depending on the host side implementation it can use a standard driver to collect the HID data and send to voice recognition software like Google voice or Nuance for decoding the voice command. When a CySmart dongle is used in the host system, the audio data received over BLE is sent to the dongle, which enumerates as an USB audio device to the host device.

The audio subsystem collects audio data from the INMP441 codec (16 bit, 16 kHz) over the I2S interface. The subsystem uses the I2S Component. The I2S interrupts when it receives audio data in the PCM format. The received data is read from the I2S Component and stored in a local buffer. The subsystem compresses the audio data in the buffer using the ADPCM

algorithm (compressing 16-bit audio data to 4-bit). Figure 5-49 shows the flow chart for the audio subsystem.

Figure 5-49. Audio Subsystem Flow Chart

Start

Yes

Is voice button pressed?

Yes

Was voice button in pressed state during previous poll?

No

No

Initialize the audio codec

Was voice button in released state in previous

No poll?

Stop the audio codec

Yes

ADPCM Encode

End

5.1.10.1 Quality of Voice Required for Voice Recognition

A typical voice recognition software requires a threshold signal-to-noise ratio (SNR) for the recognition of voice syllables correctly By using ADPCM as compression, the raw SNR is reduced as the 16-bit data is effectively reduced to 4 bits. The effective SNR after compression hovers around 20 dB.

Most of the prevalent voice recognition software like Google voice and Nuance operates well around 15 dB -20 dB SNR.

Figure 5-50 shows the SNR value for a frequency range of 100 Hz to 8000 Hz for the voice data processed using ADPCM

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 101

Firmware coding. The value of SNR is observed to be more than 15 dB. Typically, voices stay in the range of 200 Hz to 6000 Hz.

Thus, the ADPCM coding is still sufficient to enable voice recognition.

Figure 5-50. SNR for Voice Data Processed Using ADPCM Coding

5.1.10.2 ADPCM Encoding

The ADPCM algorithm takes advantage of the high correlation between consecutive speech samples, which enables future sample values to be predicted. Instead of encoding the speech sample, ADPCM encodes the difference between a predicted sample and the speech sample. This method provides more efficient compression with a reduction in the number

of bits per sample, yet preserves the overall quality of the speech signal. Figure 5-51 is the flow chart for the ADPCM

encoding algorithm.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 102

Firmware

Figure 5-51. ADPCM Algorithm Flow Chart

Start

Restore previous iteration predicted sample and step size index

Get the step size from lookup table

Calculate the difference between actual and predicted sample values

Is difference >= 0?

No

Yes

Save quantizer step size value in a temporary variable, Quantize the difference into ADPCM code using quantizer step size.

Set the sign bit of the ADPCM code, find absolute value of difference

Inverse quantize the ADPCM code into a predicted difference using the quantizer step size

Compute fixed predictor sample value

Check for the overflow of the new predicted sample

Find the new step size index

Save new predicted sample and step size index for next iteration, return

ADPCM code

Stop

5.1.10.3 Voice Performance of the Firmware

This section explains the key scientific audio quality parameters measured on the remote control. Note that the audio quality measurements were done by placing the speaker and remote in an anechoic box. This document does report the usual measurement in a normal environment instead of a professional acoustic measurement. Depending on the microphone and the speaker used with a particular enclosure, the results can vary. The measurement is more illustrative of the end-to-end system than as a reference benchmark.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 103

Firmware

Figure 5-52. Audio Quality Measurement Setup

Mic

Codec

I2S

PRoC BLE

PRoC BLE

UART

PSoC5LP

USB

Prism Software

USB

Prism Audio Analyzer Hardware

The three important considerations for voice subsystem are as follows:

1. Input Output characteristics

2. Frequency response

3. SNR

The measurement is done through Prism Audio Analyzer. The Prism audio analyzer drives the speaker that is kept at a distance of 4 inches from the microphone of the remote. The USB audio output is observed through Prism Audio analyzer.

Input –Output Test

In this test, the Prism Audio Analyzer hardware feeds the data to the remote control’s microphone using a speaker. The

data received on the CySmart dongle is received over USB by the Prism software running on the PC. Figure 5-53 shows

the audio data received on the PC in dB full-scale. The output is expected to track linearly.

Figure 5-53. Audio Input-Output Test

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 104

Signal-to-Noise Ratio

Firmware

The signal-to-noise ratio test specifies how much noise rides over the signal. This is a specification for many voice recognition systems. For this test the Speaker input was varied from 2 V to 20 µV from Prism Generator. The sound generated is in the normal voice level (96-20 dbSPL). The output total harmonic distortion and noise are read from the

Prism software. This is the negative of SNR.

Figure 5-54. SNR Plot

As seen from the graph, the SNR maximizes around 27 dB. This is expected from an ADPCM type encoding and decoding scheme. The linearity range observed t be approximately 33 dB.

The discontinuity in low-range, and occasionally in the mid-range points to the step adjustment of the ADPCM algorithm with RF disturbances. This is not a repeatable measurement and depending on the sweep of the input amplitude and the

ADPCM seed, the result will vary. This only shows the maximum THD-N that we can get in a ADPCM system. To get a better idea, the experiment should be performed without a sweep of amplitude from the audio generator and the THD-N should be observed for a single amplitude over a period of time and the plot should be reconstructed.

Frequency Sensitivity of Voice Input

The aim of this experiment is to observe if there is any frequency selectivity with ADPCM coding and I2S codec. It is observed that in frequency range from 8000 Hz to 200 Hz, the maximum deviation is -8 dBFS to 3 dBFS.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 105

Figure 5-55. Signal-to-Noise Ratio Plot

Firmware

The frequency response is dominated by the frequency response of the speaker. The electrical frequency response with

I2S input at the BLE chip and digital output at the USB audio device will be better than this as the speaker non linearity will be out of the system.

FFT Response

The FFT response shows any artifacts that arise from the coding or audio codec configuration. For the test, a 1-V, 1-K tone from Prism Audio Analyzer is applied to the speaker and the output spectrum is observed on the data received from USB.

FFT is performed on this digital data. The spectrum does not show any spurious tone.

Summary

The following table describes the critical scientific audio quality parameters, their pass criteria values to ensure optimal voice recognition performance, and the measured values on CY5672 remote control.

Table 5-6. Audio Quality Parameters: Pass Criteria and CY5672 Values

Parameter

Linearity 20 dB

Pass Criteria for Typical Voice Recognition

Implementation

Measured Results on CY5672 Remote

Control

30 dB

SNR >15 dB 15-20 dB

Frequency response 100-4 K 100-7 K

As specified in the above table, the CY5672 remote control implementation meets the pass criteria for the scientific audio quality parameters required to ensure optimal voice recognition performance.

The following sections explain the I2S Component ( Figure 5-56 ) configuration settings for remote control.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 106

Figure 5-56. I2S Component for Audio Subsystem

Firmware

5.1.10.4 General Tab

The

RX only direction is selected ( Figure 5-57 ), since the remote control contains only a microphone.

Figure 5-57. General Tab of I2S Component

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 107

Firmware

5.1.10.5 Advanced Tab

The

Number of channels is set as “Mono left” and the Interrupt source as “FIFO 0 not empty,” as shown in

Figure 5-58 .

Figure 5-58. Advanced Tab of I2S Component

5.1.11 IR LED Subsystem

When the remote control cannot communicate with the host over a Bluetooth LE link (for example, in the case of a legacy

TV that is not Bluetooth Smart Ready and does not have a USB port), the IR subsystem is used to send commands.

Regular TV control commands like volume controls, channel controls, source, power, and return command are sent via this

IR subsystem. The IR subsystem sends key codes over the IR LED interface using the Samsung or NEC IR protocols. A compile time switch (NEC_PROTOCOL) selects between the Samsung and NEC IR protocol implementation. By default,

the Samsung TV IR protocol is enabled in the firmware supplied with the kit. Figure 5-59 shows the flow chart for the IR

subsystem.

Figure 5-59. IR Subsystem Flow Chart

Start

BLE

Connected?

IR Start

No

Yes

Use BLE

Module to send data

No

Is

Command

Valid?

Yes

Send Command through IR

Stop

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 108

Firmware

5.1.11.1 Samsung Protocol

The Samsung protocol uses pulse-distance encoding of the bits, containing a 16-bit address and 8-bit command, followed by an 8-bit command inverse. Each pulse is a 624-µs long, 38-kHz carrier burst (about 21 cycles). A logical ‘1’ takes

2.25 ms to transmit, while a logical ‘0’ takes only half that time: 1.125 ms. The recommended carrier duty cycle is 1/4 or 1/3.

Figure 5-60 shows the Samsung protocol pulse train.

LSB

Figure 5-60. Samsung Protocol Pulse Train

MSB LSB MSB LSB MSB LSB MSB

Leader

Custom Custom Data

Data

End

Bit

4.5ms

Leader

4.5ms

0.624ms

0.876ms

Data: 0

0.624ms

1.626ms

Data: 1

8.8us

17.6us

Carrier frequency: 37.9kHz

5.1.11.2 NEC Protocol

The NEC protocol uses pulse distance encoding of the bits, which contains an 8-bit address followed by an 8-bit address inverse, and an 8-bit command followed by an 8-bit command inverse. Each pulse is a 562.5-µs long, 38-kHz carrier burst

(about 21 cycles). A logical ‘1’ takes 2.25 ms to transmit, while a logical ‘0’ takes only half that time: 1.125 ms. The

recommended carrier duty cycle is 1/4 or 1/3. Figure 5-61 shows the NEC protocol pulse train.

LSB

Figure 5-61. NEC Protocol Pulse Train

MSB LSB MSB LSB MSB LSB MSB

Start bit

Address

Address

Command

Command

9ms 4.5ms

Start bit

8.8us

17.6us

Carrier frequency: 37.9kHz

0.56ms

0.56ms

Data: 0

0.56ms

1.69ms

Data: 1

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 109

Firmware

5.1.11.3 Implementation of the IR Protocol Using PWMs

Both the Samsung and NEC IR protocols require a pulse train at 38 kHz. To generate the required binary pattern (which includes the leader/start, custom/address, and data/command in Samsung and NEC protocols respectively), the 38-kHz

pulse train must be turned ON and OFF for certain durations. Refer to Figure 5-60 and Figure 5-61 for the timing details.

Two PWMs are used in the firmware to generate the required binary pattern:

Pwm_IR: This PWM is used to generate the 38-kHz pulse train.

• Pwm_IR_Timer: This PWM is used to maintain the timing for transmitting a bit of information over IR. For example, to send one command bit of value ‘0’ using the Samsung IR protocol, the 38-KHz pulse train should be turned ON for

0.624 ms in the span of 1.125 ms as shown in Figure 5-60 . The Pwm_IR_Timer configuraton is modified dynamically

depending on the value of the bit to be transmitted. Note that with Pwm_IR_Timer, there are the following two types of interrupts:

• On terminal count : This interrupt is used to detect the completion of transmission of a bit. For a '0,' the value is set to 1.125 ms and for '1,' the value is set to 2.25 ms.

• On compare/capture count : This interrupt is used to detect the completion of transmission of the 38-KHz pulse train for a given bit and IR protocol.

The following sections discuss the configuration of the PWM Components.

Figure 5-62 Pwm_IR Component

Figure 5-63. Configuration Tab of Pwm_IR Component

In the PWM tab, the initial period and compare values are set as shown in Figure 5-63 . These values will generate a 38-kHz

pulse train with a 50-percent duty cycle. The interrupts for On terminal count and On compare/capture count are disabled.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 110

Figure 5-64. PWM Tab of Pwm_IR Component

Firmware

See the Component datasheet for information on the APIs supported by the PWM Component. Click the

Datasheet button

at the bottom left corner of the PWM Component GUI shown in Figure 5-64 to access the datasheet.

Figure 5-65. Pwm_IR_Timer Component

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 111

Figure 5-66. Configuration Tab of Pwm_IR_Timer Component

Firmware

In the PWM tab,

the Interrupts for On terminal count and On compare/capture count are enabled, as shown in Figure

5-64 .

Figure 5-67. PWM Tab of Pwm_IR_Timer Component

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 112

Firmware

Note that there is an alternate implementation of the IR protocol that uses bit banging. Do the following to enable it:

1. Enable IR_PIN_TOGGLE macro in platform.h.

2. Remove the existing Pwm_IR Component and its associated GPIO and clock.

3. Rename Pwm_IR_1 to Pwm_IR. Also, rename the associated GPIO and clock in the Schematics Editor.

5.1.11.4 List of IR Key Codes

Table 5-7 lists the IR key codes used for the Samsung and NEC protocols.

Table 5-7. IR Key Codes for NEC Protocol

Key

Volume Up

Volume Down

Channel Up

Channel Down

Source

Return

On/Off

IR Key Codes for Samsung Protocol

0x07

0x0B

0x12

0x10

0x01

0x58

0x02

IR Key Codes for NEC protocol

0x1F

0x40

0x49

0x4A

0x02

0x16

0x00

5.1.12 LED Subsystem

The LED subsystem shows device notifications to the user through the red LED and supports the breathing effect (at different rates). The LED subsystem provides the following LED effects:

LED ON: The LED is continuously in the ON state. The intensity can be varied by using PWM control. This indication is used to notify undirected advertisement (behavior is observed when the connect button is pressed on the remote control).

LED breathing effect: The LED gradually increases in brightness and goes to the maximum brightness state. From the maximum brightness state, it goes back gradually to the OFF state. The entire LED brightness behavior is displayed in

Figure 5-68 . This effect supports different blink rates (slow and fast). A slow breathing effect is used to indicate a low

battery, and a fast breathing effect is used to indicate directed advertisement to the host or undirected advertisement to the devices that is already present in the whitelist (behavior is observed if the remote control was bonded to at least one device earlier, and it is either out of range or received a disconnect).

Figure 5-68. Timing Diagram for Breathing Effect

REPEAT

RISE TIME ON TIME FALL TIME OFF TIME

RISE TIME: Time in milliseconds for rise time

ON TIME: Time in milliseconds for high standby time

FALLTIME: Time in milliseconds for fall time

OFF TIME: Time in milliseconds for low standby time

REPEAT: Repeating the above pattern

The blinking or breathing effect on the LEDs is generated via the PWM Component ( Figure 5-69 ) provided in PSoC Creator.

The following sections explain the configuration of the PWM Component.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 113

Figure 5-69. PWM Component

Firmware

5.1.12.1 Configuration Tab

The

PWM option is selected by default, as shown in

Figure 5-70 .

Figure 5-70. Configuration Tab of TCPWM Component

5.1.12.2 PWM Tab

The PWM mode is set as “Pseudo random PWM.” The Period and Compare values are set to “32767” and “1000”

respectively, as shown in Figure 5-71 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 114

Figure 5-71. PWM Tab of TCPWM Component

Firmware

The datasheet provides a list of APIs supported by the TCPWM Component. To go to the datasheet, click the

Datasheet

button at the bottom left corner of the TCPWM Component GUI shown in Figure 5-71 .

5.1.13 Flash Subsystem

The flash subsystem supports storing and retrieving of the peer device BD (Bluetooth Device) address and the motion sensor gyro offset data. The remote control receives the BD address of the peer device on a connection event. This address is stored in flash memory. The peer device BD address is needed for directed advertisement; therefore, it is retrieved from flash every time the remote control system power is reset.

The data stored in the flash by the firmware is protected using a 8-bit checksum. The firmware provides an option to disable writes to flash by disabling the macro DISABLE_FLASH in the platform.h file.

5.1.14 Debug Subsystem

The debug subsystem is used to print debug information on the UART terminal. This subsystem is disabled by default. The firmware provides an option to enable debug by enabling the DEBUG_PRINT or SOFTWARE_UART macro in the

platform.h file. If the DEBUG_PRINT macro is enabled, you should enable the SCB UART Component in the schematic view of PSoC Creator (Debug_Uart). If the SOFTWARE_UART macro is enabled, enable the software Transmit UART

Component (SW_Tx_UART). In addition, assign the corresponding pins from these Components to the appropriate GPIOs in CY5672_Remote_Control.cydwr.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 115

Firmware

The debug subsystem provides an option to print the selected debug logs by setting the appropriate debug level. For example, if the default debug level is set to ‘0’, during Device_FW_Init(), the debug prints with a setting greater than ‘0’ are printed.

5.2

Firmware for the PRoC BLE and PSoC 5LP on the CySmart USB

Dongle

The CySmart USB dongle firmware comprises the firmware for both PRoC BLE and PSoC 5LP devices. Note that these two

devices each have their own separate PSoC Creator projects as listed Table 5-8 , although they are described together in

the following section.

Table 5-8. CySmart USB Dongle Projects

Silicon Part

PRoC BLE BLE_HID_CySmart_Dongle.cywrk

Associated Project Name

PSoC 5LP CY5672_Dongle_Bridge.cywrk

The CySmart USB dongle has two modes of operation. The dongle can only operate in one mode at a time:

HID host: In this mode, the dongle acts as the HID host and transfers the BLE data to USB. This is the normal operating mode.

CySmart emulator: In this mode, the dongle performs all BLE operations triggered via the CySmart tool. This is used for examining the BLE data directly.

When powered on, the dongle is in the HID host mode and communicates with the HOGP-complaint BLE device. On connecting the dongle to the CySmart tool, the dongle switches to the CySmart emulator mode.

On disconnection from CySmart tool, the dongle switches back to the HID mode.

5.2.1 Firmware Architecture

The firmware for the CySmart USB dongle consists of the framework (on PRoC BLE and PSoC 5 LP) and various

input/output subsystems, as shown in Figure 5-72 .

Figure 5-72. PRoC BLE Firmware Architecture for CySmart USB Dongle

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 116

Firmware

In HID mode, only the audio interface and HID interface will be active. The PRoC BLE device will format the HID/audio packet along with a report ID and send it to PSoC 5LP with a unique code for each HID endpoint. For audio, PSoC 5LP will perform ADCPM decompression on an audio packet and send it to the USB audio interface.

In CySmart mode, only the UART interface will be used; other interfaces will be inactive. PSoC 5LP sends the UART data to the PC using a virtual COM port via the USB interface.

The dongle firmware includes the following subsystems:

BLE subsystem (PRoC BLE)

LED subsystem (PRoC BLE and PSoC 5LP)

Button subsystem (PRoC BLE)

UART subsystem (PRoC BLE and PSoC 5LP)

USB subsystem (PSoC 5LP)

These subsystems use PSoC Components. Figure 5-73

shows a schematic view of the PRoC BLE device, and Figure 5-74

shows a schematic view of the PSoC 5LP device.

Figure 5-73. Schematic View of BLE HID CySmart Dongle Firmware (PRoC BLE)

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 117

Figure 5-74. Schematic View of CY5672 Dongle Bridge Firmware (PSoC 5LP)

Firmware

The GPIOs are configured per the dongle hardware connections, as shown in Figure 5-75 and Figure 5-76 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 118

Figure 5-75. GPIO Configuration of BLE HID CySmart Dongle Firmware (PRoC BLE)

Firmware

Figure 5-76. GPIO Configuration of CY5672 Dongle Bridge Firmware (PSoC 5LP)

Table 5-9 describes the file structure used by the projects and lists the key functions implemented in each file.

Table 5-9. File Structure and Key Functions

File Name

Project:

BLE_HID_CySmart_Dongle

(PRoC) main.c

Details

This is the top-level application file. It initializes the system and runs the main loop.

main() – The main function for the application, which handles the switching between HID mode and CySmart mode

Device_Init() – Initializes all the blocks (BLE, UART, LED, Timer, and GPIOs) of the system

Device_Timer_Callback() – Handles the timer interrupt configured for the LED module

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 119

File Name

Project:

BLE_HID_CySmart_Dongle

(PRoC BLE)

Application.c

Firmware

Details

This file handles the HID mode functionality of the project. It handles the BLE events and the state machine of the HID host.

BLE_Init() – Handles the BLE-specific initialization and registers the callback functions for each profile. The BLE Component is started with HID mode configuration.

BLE_DeInit() – De-registers the callback functions for each profile and stops the HID mode

BLE Component.

Dongle_Ble_State_Handler() – Handles the state machines for BLE scanning, connection,

GATT discovery, and profile-level configurations.

FilterScanResponsePackets() – Parses the advertisement packet from the device and filters the packets for the HID service Universally Unique Identifier (UUID). The dongle will connect to devices containing the HID service or to devices sending a directed advertisement to the dongle.

SendEmptyReports() – Sends a dummy report on BLE disconnection. If any key down packet is sent by the device before disconnection, this dummy report will ensure that the key press state is reverted.

BleCallBack() – Handles general events from the BLE stack such as disconnect, timeout, scan response, authentication events, and so on.

HidsCallBack() – Handles the HID-specific events. This function gathers the report IDs of each report reference descriptor to match with the notification data. On receiving HID notification, this function matches it to the expected report ID and sends the report to the USB Bridge controller.

BasCallBack() – Handles the BAS-specific events for notification enable and notification events. The Battery notification will be sent as an HID feature report to the USB interface.

Process_Suspend_Command() – Handles the USB suspend command from the USB Bridge controller. The system will go into sleep mode as long as the suspend command is active. This function also sends the HID Suspend command to the HID device if it is connected. This will inform the device to enter sleep mode.

This module is same as described in the remote control project. See the LED Subsystem section.

Project:

BLE_HID_CySmart_Dongle

(PRoC BLE) led.c

Project:

BLE_HID_CySmart_Dongle

(PRoC BLE) timer.c

Project:

CY5672_Dongle_Bridge

(PsoC 5LP) main.c

This module is same as described in the remote control project. See the Timer Subsystem section.

The watchdog timer–based tick timer is used by default. The firmware has a provision to use the

Timer_HW Component instead of the watchdog timer by doing the following:

Enable the ENABLE_TIMER_COMPONENT macro in Timer.h.

Disable the ENABLE_WDT_TIMER macro in Timer.h.

 Right-click on the

Timer_HW Component in the schematic view and select “enable”.

This is the top-level application file. It initializes the system and runs the main loop.

main() – Handles the USB reset and runs the main loop to monitor UART and USB data transfers.

Device_Init() – Initializes all the blocks of the system, waits for the USB enumeration, and sets the enumeration LED. This function also resets PRoC BLE after system initialization to ensure that both the controllers are in sync.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 120

Firmware

File Name

Project:

CY5672_Dongle_Bridge

(PsoC 5LP)

USB_Interface.c

Details

This file handles the bridge functionality between the USB and UART interfaces.

UARTTransmit() – Checks for USB CDC OUT data and if it is present sends it to the UART by configuring the expected baud rate by PRoC BLE.

RxPktDecoder () – Parses the UART packets and loads them into the respective endpoint buffers. This runs a state machine on each RX byte and looks for the packet format.

Predefined opcodes are used to identify the endpoint to which the decoded packet is to be sent. If a proper packet is detected that does not belong to the known opcodes, it will be routed to the CDC endpoint, which will be used by the CySmart tool.

SendToUSB() – Monitors each endpoint status and loads the pending data when the endpoint is available. For the mouse and keyboard endpoints, both endpoints must be free before a new packet can be sent so that the HID combo key order is maintained.

Project:

CY5672_Dongle_Bridge

(PsoC 5LP)

AudioControl.c

This file handles the USB audio IN control and data path handling.

ConfigureAudioPath() – Initializes and configures the DMA channels required for the audio data path. This needs to be called after USB enumeration.

ProcessAudioIn()Handles the data transfer from the circular buffer to the USB endpoint.

HandleAudioInDisable()Stops the audio data path on a control request from USB.

HandleUnderflow()Maintains the dummy packet to be available for the USB Audio interface if no valid data is available.

Project:

CY5672_Dongle_Bridge

(PsoC 5LP)

ADPCMDecoder.c

This file handles the decompression of a nibble into a 2-byte word using the ADPCM decoder.

ADPCMDecoder() – Decompresses a nibble into a 2-byte voice sample using ADPCM

.

Project:

CY5672_Dongle_Bridge

(PsoC 5LP)

Interrupts.c

This file contains the ISRs for all the interrupts used in the system.

InDMADone_Interrupt() – Handles the data transfer to USB from the circular buffer.

RxDMADone_Interrupt() – Handles the data transfer to the circular buffer from the UART.

isr_PktDecoder() – Handles the timeout for the UART packet decoder state machine.

The framework running on PRoC BLE adheres to the state machine for the HID host mode, as shown in Figure 5-77 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 121

Figure 5-77. State Machine for PRoC BLE Firmware

Device Init

Firmware

Not Ready

Sleep Signal

On HID device state discovered

Wakeup

Sleep Signal

Configuration

Write/Read

Response

Write/Read

Request

Busy

Sleep Signal

Sleep

Hid Device config done

Sleep Signal

Active

The following sections describe the states in the state machine.

5.2.1.1 Device Init State

In the Device Init state, the following actions are performed:

All global variables are initialized.

The UART Component is initialized and started.

ISRs for UART, button, and sleep are initialized and started.

The LED module is initialized and started.

The BLE Component is started, and the callback functions for events are registered.

5.2.1.2 Not Ready State

The dongle will enter the Not Ready state on each power cycle. This state represents that the BLE Component is not ready to accept any commands. In this state, the firmware continuously scans for a peripheral device until it gets a scan response from an HID device, and then it issues a connect request. On successfully connecting to the HID device, the dongle starts

discovering the characteristics exposed by the server, as shown in Figure 5-78 . When the discovery is complete, the device

transitions to the Configuration state.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 122

Firmware

Figure 5-78. Code Flow in BLE Not Ready State

Init

No

Is Dongle prebonded ?

Yes

Scan for Pre-bonded Device

No

Is User Button pressed to start scanning ?

Yes

Scan for HID Device

No Is Device

Found?

Yes

Start Connection Process.

No

Is Device

Connected?

Yes

Complete GATT Discovery

5.2.1.3 Configuration State

In the Configuration state, the dongle starts configuring the connected HID device per the required behavior. It performs the following operations on every new connection:

Completes the bonding procedure with the security level “Unauthenticated pairing with encryption.” On successful bonding, the keys will be stored in flash.

Reads the “Peripheral preferred connection parameters” attribute and updates the connection parameters of the BLE link.

Configures the “HID Control Point” characteristic with the value “Exit Suspend,” signaling to the HID device that the HID host device is exiting the power-saving mode.

Configures the HID protocol mode with the value “Report Protocol Mode.”

Configures the Immediate Alert characteristic with “No alert.” This alert level will be changed when the path loss is below the threshold value.

Reads the Tx Power Level to calculate the path loss as required for the proximity monitor: Path loss = Tx Power –

RSSI.

Reads the “Report Reference descriptor index” that contains the report ID mapping for each type of HID report configured by the HID server, The dongle is configured to support a maximum of six HID input records. The dongle does not support HID output reports.

Configures the Link Loss Alert Level characteristic with a high alert level.

Enables notifications for the Scan Refresh and battery-level characteristics.

Enables notifications for all the HID report types: Mouse, Keyboard, multimedia, and power reports.

On each GATT request, which requires a response, the PRoC BLE application framework enters the Busy state until the corresponding pass/fail response is received from a peripheral such as a mouse or remote control. When the configuration is complete, the PRoC BLE application framework enters the Active state.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 123

Firmware

5.2.1.4 Busy State

This state indicates that the dongle is waiting for a response from a peer device and is not available to issue the next BLE command.

5.2.1.5 Active State

This state indicates that the dongle has completed the configuration of the HID device and is available for BLE commands.

The RSSI level is monitored continuously; when the signal strength is below the threshold, the dongle sets an immediate alert with “High alert,” which will be used by the peer device to signal the user about the signal quality. This alert will revert to “No alert” if the signal strength exceeds the threshold.

Note: By default, the proximity profile implementation is disabled. It can be enabled using the

ENABLE_PATH_LOSS_ALERT macro in the Application.c source file.

When the dongle reaches the Active state, it starts processing HID report notifications, encodes them into the UART packet

format, and sends them to PSoC 5LP. Figure 5-79 shows the flow chart of this operation when the HID report is received

from the BLE HID device.

Figure 5-79. Code Flow for HID Notifications

Notification from peripheral

Extract the data from notification event.

Decode the data.

Is a valid HID report as per report map?

Yes

Encode into a report packet and send over UART to PSoC 5LP

No

5.2.1.6 Sleep State

A host PC issues the USB suspend command if the PC is in sleep mode. To enable the PRoC BLE device to detect the suspend command, one GPIO of PSoC 5LP is used as a suspend indicator. This GPIO is triggered by PSoC 5LP on receiving the USB suspend command.

PRoC BLE monitors this pin for sleep and wake commands by configuring a GPIO interrupt. The dongle enters the lowpower mode on suspend; it exits the low-power mode when the pin state changes. This transition can happen in all other states as well.

5.2.2 BLE Subsystem

The PRoC BLE–based firmware configures the BLE Smart Component available in PSoC Creator with HOGP and the profile role as “Report and Boot Host (GATT client)” with support for the following services:

Device Information

Scan Parameters

Battery

Human Interface Device

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 124

Immediate Alert

Link Loss

Tx Power

Firmware

A GATT server (HID device) configured as a peripheral (GAP role) can start an advertisement to connect to the central device (CySmart USB dongle). When the peripheral advertises, the client detects the device and connects to it. After connecting to the device, the client discovers the services provided by the HID device and enables notifications for the characteristics it supports.

After the client configures the peripheral device, it receives data when the peripheral device sends a notification. The received data is then decoded by the application logic and transmitted to the PSoC 5LP firmware via UART.

The BLE subsystem is built on the BLE Component provided in PSoC Creator, as shown in Figure 5-80 .

Figure 5-80. BLE Component of PSoC Creator

Figure 5-81

and Figure 5-82 show the configuration for the BLE Component.

Figure 5-81. BLE Component General Configuration

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 125

Figure 5-82. Profiles Supported by the Host Device

Firmware

Open the BLE Component wizard from the project for more details about the Component configuration.

All the HID report notifications except keyboard are appended with the report ID before sending to the UART to match the report with the USB HID report map configured in the USB subsystem.

Audio data and control notifications will be received as HID feature reports, which will be forwarded to the UART system.

5.2.3 LED Subsystem

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 126

Firmware

The dongle has three LEDs. The red and green LEDs are connected to PSoC 5LP, while the blue LED is connected to

PRoC BLE. The blue LED has three modes of operation:

Blinking effect: The dongle is scanning for new HID devices; this is initiated by pressing the user button (SW2).

Slow breathing effect: The dongle is scanning for preconnected devices.

Stay on: The BLE connection to the HID device is active.

The LED subsystem uses the PWM and Timer Components to create the effects required by the dongle. The design is the

same as that of the remote control explained in the LED Subsystem section.

PSoC 5LP has two LEDs:

The red LED indicates the power status. It is ON if the dongle is powered.

The green LED indicates the USB status.

Stays on upon successful enumeration

Blinks if the dongle is in the bootloader mode

5.2.4 Button Subsystem

The dongle has one user button, which is configured for an edge-triggered input. This button is used as the pairing button, which triggers the dongle to scan for new BLE HID peripherals.

The dongle, by default, will only scan for prebonded devices if they are present in the bonded list. If no devices are present in the list, the dongle will wait for a button press to start scanning.

When this button is pressed, the dongle disconnects the current connection if one exists. It starts scanning for new devices by ignoring the prebonded device list. So, whenever you want to connect a new HID device to the dongle, press the pairing button.

5.2.5 UART Subsystem

The UART subsystem is the core subsystem in the dongle operation. The UART interface connects the PRoC BLE and

PSoC 5LP controllers to each other.

The PRoC BLE UART subsystem frames the packet for each type of data using the format described in the following section.

The PSoC 5LP UART subsystem decodes the packet and routes it to the corresponding USB endpoints.

5.2.5.1 PRoC BLE UART

The UART subsystem is built on the UART Component provided in PSoC Creator, as shown in Figure 5-83 . The UART

Component is configured as shown in Figure 5-84

and

Figure 5-85 .

Figure 5-83. UART Component of PSoC Creator

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 127

Figure 5-84. UART Component UART Basic Tab

Firmware

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 128

Figure 5-85. UART Component UART Advanced Tab

Firmware

This subsystem has two modes of operation:

HID host mode

CySmart emulator mode

In the HID host mode, the subsystem transfers the formatted packets to the UART. The BLE subsystem on PRoC BLE packetizes the received data notifications (mouse, keyboard, audio, multimedia, battery, and power data) over the BLE link and sends them to the UART subsystem.

The UART packet structure shown in Figure 5-95 is decoded by the PSoC 5LP UART subsystem.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 129

Firmware

0 4

0xBD

8

Packet Header

Figure 5-86. UART Packet Structure

12

0xA7

16 20 24 28

Parameter Total Length

Packet Type Code Event Parameter 1

31

Event Parameter 2

Event Parameter N - 1

Each row in Figure 5-86 corresponds to 4 bytes of data.

.

.

.

Event Parameter N

The packet type codes are predefined to differentiate among types of data to be sent to the PC:

MOUSE_REPORT = 0x0461u

KEYBOARD_REPORT = 0x0462u,

AUDIO_REPORT = 0x0463u,

AUDIO_CONTROL_STATUS = 0x0464u,

AUDIO_SYNC_PACKET = 0x0465u

In PSoC 5LP, the mouse endpoint is configured to use the report ID, whereas the keyboard endpoint does not use the report ID. See the USB Subsystem section.

To match this configuration, the report ID number is appended to the mouse report notifications before sending to the

UART. Keyboard notifications will be sent only by adding the packet header field.

The HID audio feature reports are packetized into audio control and data packets and sent to the UART.

In the CySmart emulator mode, the UART subsystem uses a custom command-event protocol to communicate with the

CySmart tool via a custom CDC interface.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 130

Firmware

5.2.5.2 PSoC 5LP UART

This subsystem decodes the data packets and sends them to the respective USB interface, as shown in Figure 5-87 . The

UART data is processed only if it follows the defined packet format.

Figure 5-87. UART-to-USB Subsystem Data Flow Chart

Start

Receive Data

Decode Data

HID data?

Yes

Send To HID endpoint on USB

No

CDC data from PRoC

BLE?

No

Yes

Send To CDC endpoint On USB

CDC data from

Host machine?

Yes

No

AUDIO data?

Yes

Send To PRoC BLE over UART

Decompress the

Audio Data

Send To Audio

Endpoint On USB

No

The state machine shown in Figure 5-88 decodes the packet format and extracts the data as described in the following

sections.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 131

Firmware

Figure 5-88. UART Packet State Machine

Device Init

Length

Packet Header

Received

Length bytes

Not Received

Header

Opcode not received

Payload data received or timeout

Payload

Length bytes received

Opcode

Opcode recieved

Device Init. In the Device Init state, the following activities are performed:

All global variables are initialized.

The power LED is turned on.

The ISR for the USB suspend command is started.

The ISR for the UART Component is started.

The USBFS Component is started and the status LED is switched on (after successful start and enumeration).

The UART Component is started.

PRoC BLE is reset.

Header State. In this state, the application logic processes the data received by the UART and transitions to the Length state on receipt of a valid header.

Length State. In this state, the application logic receives the length bytes and transitions to the Opcode state on receipt of a valid length; otherwise, it transitions to the Header state.

Opcode State. In this state, the application logic receives the opcode bytes and transitions to the Payload state on receipt of a valid opcode; otherwise it transitions to the Header state.

Payload State. In this state, the application logic receives the payload bytes, transitions to the Header state on receipt of a valid data payload, and starts processing the received packet. On receipt of an invalid payload, the application logic transitions to the Header state and repeats the entire cycle.

For audio packets, the payload data will go through the decompression module byte by byte, and decompressed data will be moved to the USB buffer.

The ADPCM decoding follows the same method as described in the ADPCM Encoding

section. The flow chart in Figure

5-89 explains the ADPCM decoding algorithm.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 132

Firmware

Figure 5-89. ADPCM Decoding Algorithm Flow Chart

Start

Restore previous iteration predicted sample and step size index

Get the step size from lookup table

Calculate the difference using ADPCM code and the quantizer step size

Inverse quantize the ADPCM code into a predicted difference using the quantizer step size

Check the sign bit of the ADPCM code and compute predicted sample from difference value

Check for the overflow of the new predicted sample

Find the new step size index and check for overflow

Save new predicted sample and step size index for next iteration, return

ADPCM code

Stop

Once all packet data is decompressed, it will be scheduled for USB audio endpoint transfer using the DMA channels.

This subsystem is built using the UART Component ( Figure 5-90 ) provided in PSoC Creator.

Figure 5-90. UART Schematic View

The Component is configured as shown in Figure 5-91

and Figure 5-92 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 133

Figure 5-91. UART Component Configure Tab

Firmware

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 134

Figure 5-92. UART Component Advanced Tab

Firmware

5.2.6 USB Subsystem

When connected to the host machine, the dongle enumerates as the following devices:

HID keyboard device

HID mouse device

Audio input device

CDC COM port (custom CySmart interface)

All the decoded packets will be loaded to the corresponding endpoint buffers, which are used by USB interfaces.

The USB subsystem is built on the USBFS Component provided in PSoC Creator ( Figure 5-93 ). The USBFS Component is configured with standard descriptors to comply with the USB device class, as shown in Figure 5-94 ,

Figure 5-95 , and Figure

5-96 .

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 135

Figure 5-93. USB Component of PSoC Creator

Figure 5-94. USBFS Component Device Configuration

Firmware

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 136

Figure 5-95. USBFS Component HID Descriptor Configuration

Firmware

Figure 5-96. USBFS Component CDC Descriptor Configuration

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 137

6. Advanced Topics

6.1

Connecting PRoC the BLE Remote Control with a Bluetooth Smart

Ready Device

The PRoC BLE remote control can be connected to any Bluetooth Smart Ready device provided that the device implements

(or is backward compatible with) the Bluetooth 4.0 or Bluetooth 4.1 specification (that is, the device is Bluetooth Smart

Ready) and the operating system on the device supports the HOGP. If your PC/operating system does not meet these

criteria, follow the steps outlined in the Connecting the PRoC BLE Remote Control with the CySmart USB Dongle

section.

Table 6-1 lists the Bluetooth Smart Ready devices and operating systems with which the CY5672 Remote Control RDK has

been tested, along with the mouse features supported on each.

Table 6-1. Remote Control Features Supported on Devices and OS

Bluetooth Smart Ready

Device

Operating System Operating System

Version

Remote Control Features

Supported

Lenovo T440

OnePlus One Mobile

Moto G

Windows

Android

8.0 and 8.1

4.4.2, 4.4.4 and 5.0.2

All features* except the audio feature

MacBook Pro OS X Yosemite 10.10.1

* Horizontal scroll will work only with applications that support the USB HID AC Pan application control feature. In addition, the action triggered for Channel +/-, Power, Source and Return button presses depends on the operating system and the application running on the device.

The steps to connect the remote control with a Bluetooth Smart Ready device depend on the operating system running on the device.

6.1.1 Windows 8.1 PC

For a PC running Windows 8.1, follow these steps.

6.1.1.1 Connecting to the PC

1. Insert two AAA batteries (provided with the kit) into the battery holder on the remote control.

2. On the PC, navigate to

PC Settings > PC and devices > Bluetooth. Turn ON Bluetooth

3. Press the pairing button on the remote control. The red LED is turned on to show that the remote control is now in advertising mode.

4. On the PC select the CY5672 Remote Control RDK device, and click

Pair.

5. Place and move your finger along the trackpad surface. If the connection is successful, the mouse cursor on the PC will follow the finger movement. If a connection is not established within 30 seconds, the red LED is switched off.

6.1.1.2 Removing from the PC

To clear the CY5672 Remote Control RDK from Windows 8.1, follow these steps.

1. Navigate to PC Settings > PC and devices > Bluetooth. Turn on Bluetooth.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 138

Advanced Topics

2. Locate “CY5672 Remote Control RDK” in the list of Bluetooth devices and click on it

3. Click the Remove device button.

4. A pop-up window appears with the message “Are you sure that you want to remove this device ?” Click

Yes to remove the CY5672 Remote Control RDK from list of Bluetooth devices.

5. Observe that “CY5672 Remote Control RDK” no longer appears in the list of Bluetooth devices.

6.1.2 MacBook Pro

6.1.2.1 Connecting to a MacBook Pro

To connect the remote control with a Bluetooth Smart Ready MacBook Pro follow these steps.

1. Navigate to System Preferences… > Bluetooth. Click on the Bluetooth icon.

2. Plug the two AAA batteries provided with the kit into the battery holder on the remote control.

3. Press the connect button on remote control. The red LED is turned ON to show that the remote control is now in the advertising mode.

4. The “CY5672 Remote Control RDK” device should appear in the list of available Bluetooth devices. Click on “CY5672

Remote Control RDK” and then click the Pair button. A “Connected” message appears below “CY5672 Remote Control

RDK.”

5. Wait while the CY5672 device is installed. Once the installation is complete, the “Connected” message below “CY5672

Remote Control RDK” disappears.

Note: Installation time may vary based on the operating system, system configuration, and Internet connection.

6. Place and move your finger along the trackpad surface. If the connection is successful, the mouse cursor on the

MacBook Pro will follow the movement of the finger. If a connection is not established within 30 seconds, the red LED turns OFF. In this case, repeat the sequence from step 4 to connect the remote control with the MacBook Pro.

6.1.2.2 Removing from a MacBook Pro

To clear the CY5672 Remote Control RDK from a MacBook Pro, follow these steps.

1. Navigate to

Terminal and get into the root directory.

2. Change the directory to Library/Preferences using the command “cd Library/Preferences” and press the Enter key on the keyboard

3. Enter the command “ls com.apple.Bluetooth*” and press the Enter key on the keyboard.

4. Observe “com.apple.Bluetooth.plist” in the list.

5. Enter the command “sudo rm com.apple.Bluetooth.plist” and press the Enter key on the keyboard.

6. A request for password appears. Enter the system password and press the Enter key on the keyboard

7. Enter the command “ls com.apple.Bluetooth*” and press the Enter key on the keyboard.

8. Observe the message “No such file or directory.”

9. Now the Bluetooth list is cleared. Restart the MacBook Pro and observe that there are no Bluetooth devices in the list.

6.1.3 Android

6.1.3.1 Connecting to an Android Device

To connect the remote control with a Bluetooth Smart Ready Android device, follow these steps.

1. Navigate to Settings > Bluetooth. Turn on Bluetooth and click SERACH FOR DEVICES to start scanning for devices..

2. Plug the two AAA batteries provided with the kit into the battery holder on the remote control.

3. Press the connect button on the remote control. The red LED is turned ON to show that the remote control is now in the advertising mode.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 139

Advanced Topics

4. “CY5672 Remote Control RDK” device should appear in the list of available Bluetooth devices. Click on “CY5672

Remote Control RDK” and observe the message “Pairing…” under “CY5672 Remote Control RDK.”

5. Wait while the CY5672 device is installed. The message “Connecting...” appears under “CY5672 Remote Control

RDK.” Once the installation is complete, “CY5672 Remote Control RDK” appears in the list with a message below it stating “Connected.”

Note: Installation time may vary based on the operating system, system configuration, and Internet connection.

6. Place and move your finger along the trackpad surface. If the connection is successful, the mouse cursor on the

Android device will follow the movement of the finger. If a connection is not established within 30 seconds, the red LED turns OFF. In this case, repeat the sequence from step 4 to connect the remote control with the Android device.

6.1.3.2 Removing from an Android Device

To clear the CY5672 Remote Control RDK from Android, follows these steps.

1. Navigate to

Settings > Bluetooth.

2. Locate “CY5672 Remote Control RDK” in the list of Bluetooth devices and click on the settings icon beside it.

3. Locate the Unpair button and click on it. Observe that “CY5672 Remote Control RDK” is removed from the list of

Bluetooth devices.

6.2

Current Measurement

6.2.1 Measure System Current Consumption

The system current can be measured by removing the batteries and powering up the remote control using an external power supply with an ammeter in series.

6.2.2 Measure PRoC BLE Current Consumption

Disassemble the remote control as described in the section Assembling and Disassembling the Remote Control

to remove the bottom cover.

1. The current consumed by PRoC BLE can be measured at header J1 of the remote control PCBA, as shown in Figure

6-1 .

Figure 6-1. Location of J1 Header and Jumper

2. Remove the jumper installed on header J1 and connect an ammeter on the header terminals

3. Put two AAA batteries in the battery compartment.

4. Measure the current consumed by PRoC BLE part across J1 as the remote control is operated.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 140

Advanced Topics

Note: The remote control can be operated without the bottom cover, as the remote control PCBA is mechanically integrated with the top cover via the screws. However, care must be taken to make sure that the AAA batteries do not fall from their positions.

5. When the current measurement is done, install the jumper at J1.

6. Assemble the remote control using the steps described in the Assembling and Disassembling the Remote Control

section.

Battery life:

Table 6-2 , Table 6-3 , and Table 6-4 present the battery life for the remote control for different modes of operation. It also

provides the current consumption measured in each state.

Table 6-2. Battery Life Calculation for Trackpad Mode of the Remote Control

State

Active with data transfer

Active without data transfer

Idle

Low Power

Current Measured at Battery

Terminals (mA) (System Current)

4.5

1.65

0.12

0.085

Usage Model

(Time Used per Week in Hours)

3.5

7

17.5

140

Total battery capacity per week : 41.3 mAh

Battery life with 1250-mAh battery capacity : 30.27 weeks

Table 6-3. Battery Life Calculation for Motion Sensor Mode of the Remote Control

Battery Capacity

Used (mAh)

15.75

11.55

2.1

11.9

State

Active with data transfer

Active without data transfer

Idle

Low Power

7.3

4.6

0.09

Current Measured at Battery

Terminals (mA) (System Current)

0.072

Total battery capacity per week : 69.405 mAh

Battery life with 1250-mAh battery capacity : 18.01 weeks

Usage Model

(Time Used per Week in Hours)

3.5

7

17.5

140

Battery Capacity

Used (mAh)

25.55

32.2

1.575

10.08

Table 6-4. Battery Life calculation for Audio Mode of the Remote Control

State

Active with data transfer

Active without data transfer

Idle

Low Power

Current Measured at Battery

Terminals (mA) (System Current)

13.9

1.6

0.12

0.085

Total battery capacity per week : 73.85 mAh

Battery life with 1250-mAh battery capacity : 16.93 weeks

The following are the assumptions made while calculating the battery life:

Usage model as described in the tables

Current measurement made at constant 3 V

Battery capacity assumed to be 1250 mAh

3.5

7

Usage Model

(Time Used per Week in Hours)

17.5

140

Battery Capacity

Used (mAh)

48.65

11.2

2.1

11.9

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 141

Advanced Topics

6.2.3 Measure Voltage

Test points for each power supply and ground are provided to measure the voltage. For details, refer to the Test Points

section.

6.3

Assembling and Disassembling the Remote Control

6.3.1 Disassembly Procedure

1. Remove the screws from the bottom cover.

Note: The screws are not fastened to the remote control at the time of shipment from the factory. This step is required only if you have fastened the screws to the remote.

2. Slide the bottom cover out.

3. Lift the bottom cover

6.3.2 Assembly Procedure

Follow the disassembly procedure in the reverse order to assemble the remote control.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 142

Appendix A. Schematics and FAQ

A.1 Schematics

A.1.1 Remote Control

Figure A-1. Remote Control Main Board Schematic – 1 of 4

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 143

Appendix A. Schematics and FAQ

Figure A-2. Remote Control Main Board Schematic – 2 of 4

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 144

Appendix A. Schematics and FAQ

Figure A-3. Remote Control Main Board Schematic – 3 of 4

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 145

Appendix A. Schematics and FAQ

Figure A-4. Remote Control Main Board Schematic – 4 of 4

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 146

Appendix A. Schematics and FAQ

Figure A-5. Remote Control Trackpad Module Schematic

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 147

A.1.2 Dongle

Figure A-6. Dongle Board Schematic – 1 of 2

Appendix A. Schematics and FAQ

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 148

Figure A-7. Dongle Board Schematic – 2 of 2

Appendix A. Schematics and FAQ

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 149

Appendix A. Schematics and FAQ

A.2 FAQ

My remote control does not work with the CySmart USB dongle out of the box. How can I resolve this issue?

This may happen very rarely due to human error while packaging the kit. You can easily resolve this issue by following

the steps in the Connecting the PRoC BLE Remote Control with the CySmart USB Dongle section.

Why does the Programming and Debugging PRoC BLE on the Remote Control and Dongle section recommend

programming at 2.5 V?

PRoC BLE has an operating voltage range of 1.9 V to 5.5 V. Cypress recommends programming the remote control at

2.5 V when powered using batteries as the hardware is designed to operate at 2.2V. Note that the remote control

incorporates an overvoltage protection circuit as described in the Power Supply section to prevent damage to the circuit

due to programming at high voltages.

How do I open the remote control to insert batteries?

The section Assembling and Disassembling the Remote Control provides instructions to open the remote control. Once

the remote control is opened, you will be able to see the two AAA battery holders.

What is the expected battery life of the remote control?

Battery life is dependent on the use model. Refer to Table 6-2 to get details about the battery life for a typical use-

case..

When the remote is moved over or shaken very fast in a perfectly horizontal plane, the mouse cursor shows some movement along the Y-axis as well as well as movement along the X-axis. Ideally this action should only result in mouse cursor movement along the X-axis. Why is this happening?

This issue is due to the roll compensation feature that is enabled while initializing the Air Motion Library (in

AIR_MOTION_Init()). There are many contributing factors to this accumulated error, however it is mainly caused by the choice not to calibrate accelerometers offsets, for more cost-efficient manufacturing. The implementation of Air

Motion Library on ARM Cortex-M0 processor core currently limits the improvement of performance and resolution of this behavior. For more details and queries on Air Motion Library, the alternative host-side solution or calibration-based solution, please contact Invensense Inc. ( [email protected]

). Note that this issue is not observed during normal usage and is only noticeable when moving the remote in a perfectly horizontal plane

.

Do’s and Don’ts

Avoid applying a voltage of more than 2.5 V to the test points provided on the remote control. This may cause damage to the circuit due to overvoltage or reverse voltage.

Avoid spilling any kind of liquid on the remote control or the CySmart USB dongle. These devices are not waterproof and may get damaged.

Do not press the Motion Sensor or Return button together with any other key on the remote control. This may trigger an unpredictable action on the host device. This is caused due to the keypad design where buttons are arranged in matrix and direct configuration to optimize the GPIO usage.

The trackpad has designated areas to trigger vertical scroll (right-side edge of the trackpad) and horizontal scroll

(bottom edge of the trackpad). Any finger movement initiated on these areas shall be processed with respect to scroll only as long as the finger stays within the designated area. Therefore, do not initiate other actions such as mouse pointer movement or gestures in the vertical/horizontal scroll area.

What does the mouse, keyboard, multimedia, power, audio control and audio report structure look like for the

CY5672 Remote Control

?

The mouse report is used to send codes related to trackpad use. The report ID is set to one. The zeroth byte is used to send left-click and right-click. The first and second bytes are used to send the delta X and delta Y respectively. The third byte is used to send vertical scroll data. Finally, the fourth byte is used to send horizontal scroll data. The left button, right button, pointer movement from the trackpad and motion sensor, and region-based scroll use this report. typedef struct _Mouse_Report_

{ uint8 click; /* Click button status

* Oth bit is used for left-click,

* 1st bit is used for right-click, and

* 2nd bit is used for middle–click.

* 3rd and 4th bits are used for user-

* defined click. */

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 150

Appendix A. Schematics and FAQ int8 x; /* Delta x movement */ int8 y; /* Delta y movement */ int8 zwheel; /* Delta vertical movement */ int8 hwheel; /* Delta horizontal movement */

}Mouse_Report;

The keyboard report is used to send codes related to keyboard/keypad use. The report ID is set to two. The zeroth byte is a modifier key that is used to send the Ctrl, Windows, Alt, and Shift keys. The first byte is used to learn the length of the key code. And the last six bytes are used to send keyboard keys. The top-to-bottom gesture and zoom gesture on the trackpad use this report. typedef struct _Keyboard_Report_

{ uint8 mkey; /* Modifier key */ uint8 keylength_used; /* Number of keys used in the key code*/ uint8 keycode[NUMBER_OF_KEYCODES]; /* Key codes */

}Keyboard_Report;

The multimedia report is used to send the consumer control usage page. The report ID is set to three. The first byte is used to align the multimedia key code to 16 bits. The multimedia_key_code is used to send consumer control codes.

The Volume Up, Volume Down, Channel Up, Channel Down, and source and power buttons use this report. typedef struct _Multimedia_Report_

{ uint16 multimedia_key_code; /* Multimedia key code */

}Multimedia_Report;

The power report is used to send system control codes. The report ID is set to four. The second byte is used to send the system control codes to the peer device. This report is not currently used in the remote control. typedef struct _Power_Report_

{ uint8 power_key_code; /* power key code */

}Power_Report;

The audio report is used to send the audio data using the HID vendor page. The report ID is set to 30. Multiple audio packets will be sent over the connection interval. The audio report collects all such packets. The audio_data variable in the Audio_Report structure is a pointer for collecting the audio data packet. noOfAudioPacket has the count of the audio packet. typedef struct _Audio_Report_

{

Audio_Data *audio_data[AUDIO_BUFFER];

/* Pointer for collecting the audio packet */ uint8 noOfAudioPacket;

/* Number of the audio packets to be sent */

}Audio_Report;

The Audio_Data is the structure that is used for collecting the audio data. The audio_buffer variable is used to send audio data. The audio_length variable indicates the number of bytes in the audio_data variable.

/* Structure for sending audio report */

typedef struct _Audio_Data_

{ uint8 audio_length;

/* Length of the Audio packet */

uint8 audio_buffer[AUDIO_BUFFER_LENGTH];

/* Audio data buffer */

}Audio_Data;

The Audio control structure is used to send the audio control information using the HID vendor page. The report ID is set to 31. The first byte is the control code. There can be two types of control codes that is used in the remote firmware:

0xFF and 0xFE. 0xFF is used for sending the status of the voice button. 0xFE is used to send the sync packet. The controlData is used to send the control information. The controlDataLength parameter is used to determine the length of the control information. The controlBufferPoint parametger is used to determine the audio packet number after which this information needs to be sent. This is to maintain the sync between the two devices.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 151

Appendix A. Schematics and FAQ typedef struct _Audio_Control_Packet_

{ uint8 controlCode;

/* Control data ID */ uint8 controlData[CONTROL_DATA_LENGTH];

/* Control information */ uint8 controlBufferPoint;

/* Position of the audio packet after which the control information need to be sent */ uint8 controlDataLength;

/* Length of the control information */

}Audio_Control_Packet;

A.3 Troubleshooting and FAQ for Interoperability Issues with

Bluetooth Smart Ready Devices

After a disconnection because the device was out-of-range, if the remote control is brought back in-range, it does not connect back to MacBook Pro.

In order to connect back to a MacBook Pro, the remote control does undirected advertisement with whitelist filtering that needs to be recognized and responded to by the MacBook Pro computer. It is observed that MacOS (10.10.1) on

MacBook Pro sometimes does not respond to the advertisement in this scenario. If the remote control is unable to connect back automatically, on your MacBook Pro, turn Bluetooth OFF and then turn it back ON. Now, move your finger on the remote control’s trackpad if the remote was in the trackpad mode, or move the remote if it was in the motion sensor mode. It should connect back automatically.

Buttons mapped to the HID consumer controls usage page do not work with Samsung Galaxy NotePRO and

Note3 running Android 4.4.2

It is observed that the Android 4.4.2 operating system running on Samsung Galaxy NotePRO and Note 3 do not enable the CCD values for Multimedia_Report characteristics. It is recommended to upgrade the devices to Android 4.4.4 or

5.0 and retest.

After a disconnection because the device was out of range, if the remote control is brought back in-range it

connects back but does not work with Samsung Galaxy Pro Tab XM-P9600 running Android 4.4.2

It is observed that the Samsung Galaxy Pro Tab XM-P9600 running Android 4.4.2 does not recognize the notifications sent by the remote control in this scenario. If this behavior is seen, turn Bluetooth OFF on the tab and then turn it back

ON. Now, move your finger on the remote control’s trackpad if the remote was in the trackpad mode or move the remote if it was in the motion sensor mode. The remote control should now work. To avoid this issue, upgrade the tab to Android 4.4.4 or Android 5.0.

Zoom In/Out does not work with my MacOS- or Android-based devices

The remote control firmware implementation sends a 'Ctrl + zwheel' keycode when a Zoom In/Out gesture is triggered.

The action triggered on the host device is dependent on the operating system and the application running in the foreground. It is possible to customize the remote control firmware implementation to change the key codes for this gesture. Refer to the FAQ section to get more details about the keyboard report structure that is used to send the keycode for Zoom In/Out gesture.

When the audio data received from the remote control is recorded on a MacBook Pro running MacOS 10.10.1, the volume of the recorded audio is found to be low. Why?

This is due to a limitation of the microphone (INMP441) used on the remote control which provides 24-bit audio data

over I2S, whereas the voice-over-BLE firmware implementation (see Audio Subsystem ) expects 16-bit audio samples.

This issue can be avoided by using a digital microphone which provides 16-bit audio samples over I2S. Note that voice recognition, which is the primary use case for the voice-over-BLE feature, is not affected by this issue and works fine on the MacBook Pro.

When the remote is continuously used with a Samsung Galaxy Pro Tab XM-P9600 running Android 4.4.2 operating system, the Bluetooth service on the tab stops working. Why is this happening?

This issue is typically observed after an hour of continuous usage on the Samsung Galaxy Pro Tab XM-P9600 running

Android 4.4.2 operating system. If the issue is encountered while using the remote control with the Samsung Galaxy

Pro Tab XM-P9600, restart the tab and move your finger on the remote control’s trackpad if the remote was in the trackpad mode or move the remote control if it was in the motion sensor mode; The Bluetooth service on the tab should work and the remote control should connect back automatically.

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 152

Revision History

Document Revision History

Document Title: CY5672 PRoC™ BLE Remote Control Reference Design Kit Guide

Document Number: 001-97071

Revision Issue Date

** 04/24/2015

Origin of

Change

SELV First version of this kit guide

Description of Change

CY5672 PRoC

BLE Remote Control Reference Design Kit Guide, Doc. No. 001-97071 Rev. ** 153
