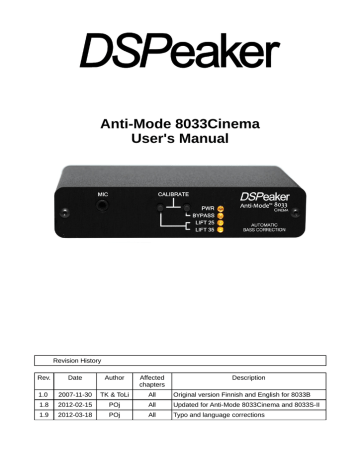

DSPeaker Anti-Mode 8033 cinema User`s manual
Anti-Mode 8033Cinema
User's Manual
Revision History
Rev.
Date
Author
Affected
chapters
Description
1.0
2007-11-30
TK & ToLi
All
Original version Finnish and English for 8033B
1.8
2012-02-15
POj
All
Updated for Anti-Mode 8033Cinema and 8033S-II
1.9
2012-03-18
POj
All
Typo and language corrections
ANTI-MODE 8033CINEMA
Recycling information
The product you have purchased is marked according to the Waste
Electrical and Electronic Equipment Directive (WEEE Directive).
There are take-back systems in place that help to preserve nature
and natural resources when products are disposed of appropriately.
If you need to dispose of this product, use the take-back system
that has dedicated collection facilities for electronic equipment. Do
not put the product into household waste disposal!
Also, the product has been manufactured using parts and processes that follow the directive
of the Restriction of the use of certain Hazardous Substances in Electrical and Electronic
Equipment (RoHS).
Intended Use
The Anti-Mode 8033s have been designed for normal indoor use and be connected to other
equipment with cables not exceeding 3m (10 feet) in length. If you use cables of extended
length, check that their quality is sufficient and observe electrostatic discharge precautions
when connecting or disconnecting them. Use of the device outdoors, in humid or other
extreme environments, may cause reduced performance or risks to the user of the
equipment.
Rev. 1.9
2012-03-20
Page 2 (12)
ANTI-MODE 8033CINEMA
Table of contents
1. Connections and Buttons.......................................................................................4
1.1. Front panel:........................................................................................................4
1.2. Back Panel.........................................................................................................4
2. Quick Setup Guide..................................................................................................5
2.1. Before Calibration..............................................................................................5
2.2. Calibration..........................................................................................................6
2.3. After Calibration..................................................................................................6
2.4. Subwoofer Placement........................................................................................7
2.5. Cross-Over Frequency.......................................................................................7
2.6. Multiple Subwoofers...........................................................................................7
3. Wider Area Correction............................................................................................8
3.1. Strategy 1, “Compensation of the worst response point”..................................8
3.2. Strategy 2, “Gradient compensation”.................................................................8
4. Basic operation........................................................................................................9
4.1. Bypass mode.....................................................................................................9
4.2. Lifting EQ............................................................................................................9
4.2.1. Flat.................................................................................................................... 9
4.2.2. Lifting 15-25Hz..................................................................................................9
4.2.3. Lifting 25-35Hz..................................................................................................9
4.2.4. Subsonic Filter Only..........................................................................................9
4.3. Input Level Warning.........................................................................................10
4.4. Output Level Warning......................................................................................10
4.5. Powering Up and Down...................................................................................10
5. Connection Examples...........................................................................................11
6. Frequency Responses..........................................................................................11
7. Technical Specifications.......................................................................................12
8. Manufacturer..........................................................................................................12
9. Contact...................................................................................................................12
Rev. 1.9
2012-03-20
Page 3 (12)
ANTI-MODE 8033CINEMA
ANTI-MODE 8033 User's Manual
1. Connections and Buttons
Figure 1: ANTI-MODE 8033 Front panel
1.1. Front panel:
1. Microphone input jack.
2. LIFT Button: LIFT25 / LIFT35 / FLAT selector.
•
Short press: Selects low frequency boost mode.
•
Long press (with bypass off): Stores current settings.
•
Long press (with bypass on): Enter filter selection mode (Anti-Mode 8033S-II).
3. BYPASS Button: BYPASS selector.
•
Short press: Toggle Bypass mode (disable / enable processing)
•
Long press: Begin secondary calibration for Wide Area Correction.
Long press of both LIFT and BYPASS buttons: Begin main calibration.
4. PWR LED: Lit when the device is on.
•
flashes in filter edit mode, other LEDs show selected filter (Anti-Mode 8033S-II).
5. BYPASS LED: Lit when the Anti-Mode correction and lifts are bypassed.
•
flickers for 3dB input level warning (if flickers constantly, please reduce input level)
6. LIFT25 LED: Lit when the 15-25Hz lifting EQ (equalization) and subsonic filter is on.
•
is dimly lit along with the LIFT35 LED when the subsonic filter is active without lift.
•
flashes during calibration.
•
flickers for output saturation warning (please reduce input level).
7. LIFT35 LED: Lit when the 25-35Hz lifting EQ and subsonic filter is on.
•
is dimly lit along with the LIFT25 LED when the subsonic filter is active without lift.
•
flickers for input overdrive warning (please reduce input level).
1.2. Back Panel
Figure 2: ANTI-MODE 8033Cinema rear panel
1. 9 VAC / 12 VDC connector: Input power.
2. LINE OUT / RCA connector: To subwoofer
3. LINE IN / RCA connector: LFE (Low-Frequency-Effects) or SUB (subwoofer) signal
from the pre-amplifier or AVR (Audio/Video Receiver).
Rev. 1.9
2012-03-20
Page 4 (12)
ANTI-MODE 8033CINEMA
2. Quick Setup Guide
1. Please read the rest of the manual to get the most out of your system and the
Anti-Mode 8033.
2. Connect the subwoofer signal to "LINE IN"
3. Connect the active subwoofer to “LINE OUT” output.
4. Connect the microphone plug to the "MIC" jack and place and fix the microphone as
close to the listening position (head of the listener) as possible. Use of a microphone
stand helps with correct microphone placement.
5. Connect the power supply to the "9 VAC / 12 VDC" connector and wall socket.
6. The Anti-Mode 8033 will turn on automatically when you plug it in.
Note: All LEDs on the front panel are lit if the device has never been calibrated.
7. Switch on the subwoofer and moderately reduce its volume setting.
8. Press and hold both LIFT and BYPASS buttons for three seconds to start the first
(main) calibration process. Release the buttons when the LIFT25 LED starts flashing.
If you keep holding the calibrate buttons down the calibration process will be aborted.
9. The Anti-Mode will generate at least four frequency sweeps for successful calibration.
When the LIFT25 LED stops flashing the calibration process is completed.
10. For best results, after the Anti-Mode calibration has finished run your AVR's calibration
program to set speaker levels and distances.
Figure 4: Setting up the ANTI-MODE 8033
2.1. Before Calibration
If you have a small reflex subwoofer, decrease its volume before calibration. If the subwoofer
has a built-in low-pass or other type of filter, it should be deactivated before the calibration
process and re-activated after calibration. Cross-over and low-pass filters in the AVR do not
affect calibration since they take place before the Anti-Mode 8033 in the signal chain. Also,
any other audio equipment connected before the Anti-Mode 8033 will not interfere with the
calibration process.
Pay close attention to the vertical positioning (height) of the calibration microphone since
proper room mode correction may be affected. The microphone is omnidirectional, so its
precise orientation doesn't matter. If you use your subwoofer with doors closed, keep them
closed during calibration. If you want the room correction to affect a wider area, the first
calibration point should be selected near the center of the listening area (or the primary
listening position). More about Wider Area Correction in section 3.
Rev. 1.9
2012-03-20
Page 5 (12)
ANTI-MODE 8033CINEMA
2.2. Calibration
Press both the LIFT and BYPASS buttons on the front panel and hold them down to start the
calibration process. Make sure that both of the buttons are pressed down at the same time.
After a couple of seconds the LIFT25 LED starts flashing and calibration begins. Now
release the buttons and wait for the automatic calibration to finish. The measurement
program analyzes the room utilizing four to six frequency sweeps.
The calibration starts with a moderate output volume. The measurement routine allows wide
range of input levels. The input level warning LED (BYPASS LED) starts to flicker if less than
3.0 dB of headroom is left during measurement. If this persists, the generated output level is
adjusted down. If the microphone is near overflow, the sweep is also restarted.
The calibration process is very robust and it tolerates background noise very well, therefore
speech and small noises do not affect the process. However, one should avoid making loud
noises, especially near the microphone. For example, tapping the microphone or its cable
can overflow the microphone input, causing the calibration process to restart.
Tip: Tapping the microphone with a finger is an easy way to test the microphone, you will see
the BYPASS LED flicker. A harder tap will drop the level or restart the calibration process.
If you initiate the calibration process by mistake, you can abort it by pressing either the LIFT
or BYPASS buttons. This will restore your saved settings, including the lift settings.
Calibration is automatically aborted after one sweep if the microphone is not connected
properly, is faulty, or the calibration signal is not detected (for example, the subwoofer is not
turned on). The previously saved settings are restored in this case.
2.3. After Calibration
Once the last sweep is over, the calibration process is finished. The subsonic filter is
automatically activated. The results are stored in the non-volatile memory inside the unit so
they are not lost if the Anti-Mode loses power. The Anti-Mode 8033 is now fully functional and
the microphone can be detached, unless the user wishes to perform Wider Area Calibration.
After calibration the subwoofer may sound more quiet. This is partly because the overall
sound level has dropped when the room resonances have been suppressed, and in part, it
just sounds more quiet, because you have been used to peaks in the audio output. It may
take a while to get accustomed to the new sound but you quickly start to notice sounds on
frequencies that were drowned out by the untreated peaks. The calibration process raises
the overall level, so the subwoofer volume needs to be increased only slightly (1-6 dB). For
best results perform this adjustment using the AVR's subwoofer volume control.
If the AVR supports speaker distances, you can add 90 cm (~36 inches) to the subwoofer
distance relative to other speakers to compensate for the internal processing delay. This is
not absolutely necessary since the delay is small enough that the human auditory system
generally cannot detect it.
You can also use your AVR's automatic calibration functions to determine the correct
distance and level settings. In this case, the processing latency of the Anti-Mode and the
new subwoofer level is automatically taken into account by the AVR and you do not need to
adjust them yourself. Use the AVR's “small” speaker setting best results. First calibrate the
Anti-Mode, then perform the AVR calibration so it sees the corrected response.
Whenever the placement of the subwoofer or listening position changes, the initial calibration
should be performed again to insure an optimal result.
Rev. 1.9
2012-03-20
Page 6 (12)
ANTI-MODE 8033CINEMA
Important! If only one sweep signal was generated during the calibration, one of the following
situations occurred: the microphone was not properly connected, the calibration signal was
not detected, or the calibration was aborted. If only two sweeps were generated, perhaps
both buttons on the front panel were not pressed. In any case, the calibration process must
be restarted.
2.4. Subwoofer Placement
There are several opinions available on how to determine the best place for your subwoofer.
Due to room reflections creating resonances, some frequencies are amplified (room modes /
peaks) and some are attenuated (nulls / dips). Without a sub EQ device, you need to locate
the subwoofer in a place that creates the flattest possible response in your room.
This is not what you want with the Anti-Mode. With the Anti-Mode you do not need to be
concerned about room modes because they are easily and effectively corrected. Instead,
you should concentrate on minimizing the number of nulls, because these cannot be
corrected by a sub EQ device.
If you are not happy with your subwoofer performance in its current location, try locating the
subwoofer in a corner. This causes the room modes to be excited maximally, but reduces the
occurrence of nulls. The boundary reinforcement from the corner walls also allows the sub to
reproduce lower frequencies without using extra power. Run the Anti-Mode calibration after
relocating the subwoofer.
Therefore, what was once considered the worst place to locate a sub is now the best place
when using the Anti-Mode!
2.5. Cross-Over Frequency
The appropriate cross-over frequency to use depends on the capabilities of the subwoofer
and main speakers. For best results, the main speakers should be set to 'small' in the AVR
so only the subwoofer that has its response corrected is reproducing the low frequencies.
With the Anti-Mode the subwoofer integration through the AVR should be more effortless.
You are now able to use a higher cross-over frequency than the standard 80Hz setting
without the sub becoming localizable. We recommend trying 100Hz or 120Hz cross-over
setting but because there are varying differences between individuals, let your ears decide
which setting is best for you.
2.6. Multiple Subwoofers
Having multiple subwoofers reproducing the same signal (dual mono) will result in a
smoother response. The Anti-Mode can be used with any system allowing you to use corner
placement of your subs. Connect the Anti-Mode to the signal going into each sub, and
calibrate them together. When calibrated together, the nulls created by one sub are filled in
by the other sub. The Anti-Mode takes this into account, creating a smoother overall
response than if the subs were calibrated separately.
If you want to reproduce low frequencies in stereo, you need either two Anti-Mode 8033's or
one Anti-Mode 2.0 Dual Core. Stereo at low frequencies is generally not needed, because
low frequencies are omnidirectional and directional cues are determined from harmonics and
other aural information. It is usually better to use the dual mono arrangement instead of
stereo to get a more even response.
Rev. 1.9
2012-03-20
Page 7 (12)
ANTI-MODE 8033CINEMA
3. Wider Area Correction
In some situations it is more favorable to compensate for room acoustics in a wider listening
area. When this is done, the result is no longer optimal in any single listening position but is
improved for a wider listening area. Before performing wider area correction the first (main)
calibration procedure described in the earlier section must be performed. As previously
discussed, the first calibration is done with the microphone at the center of the listening area
or primary listening position within the area.
The Anti-Mode 8033 can be calibrated for wider areas by moving the microphone to another
point within the listening area. Pressing and holding the BYPASS button will initiate a
secondary calibration utilizing two to three additional frequency sweeps. The Anti-Mode 8033
will use the results from these sweeps in conjunction with data gathered from the first
calibration to create a compensation model for a wider listening area.
Do not accidentally keep both the LIFT and BYPASS buttons pressed on the front panel as
this will start the first (main) calibration all over again overriding the current room data.
Secondary calibrations can be done multiple times and will not result is the loss of data from
the first (main) calibration. The previous secondary calibrations will not be retained. It is easy
to try different secondary calibration points for the best audible result. Following are several
strategies for choosing the microphone position for the secondary calibration.
3.1. Strategy 1, “Compensation of the worst response point”
When the first (main) calibration is performed at the primary listening position or at the
center of the listening area, you can then evaluate the result by listening at different positions
around the room.
If the result is not adequate at some location, that location can be used as a secondary
calibration point. Also any location between the secondary point and the first point can lead
to good results. Inevitably, the result will get less optimal at the first point, but is usually
improved everywhere else, including the worst response point.
3.2. Strategy 2, “Gradient compensation”
If it is difficult to find the worst response point in the listening area, Gradient compensation is
a good approach. Find the secondary calibration point by moving the microphone from the
first calibration point toward the closest corner of the listening room by 40-90 cm (16 to 36
inches) and downwards (towards the floor) approximately 10-20 cm (4 to 8 inches).
Perform the secondary calibration with the microphone in this position. If the first calibration
point was closer than a meter (39 inches) from the wall, the microphone should be moved
only about 20-40 cm (8 to 16 inches) towards that wall for the secondary calibration.
The Gradient compensation method works well in removing the resonances arising from
reflections between opposing walls or floor/ceiling (axial modes) for larger areas in a
rectangular room.
Rev. 1.9
2012-03-20
Page 8 (12)
ANTI-MODE 8033CINEMA
4. Basic operation
4.1. Bypass mode
If you want to compare the corrected and uncorrected operation, press the
BYPASS button quickly. This will switch between bypass and normal mode. The
first press will put the Anti-Mode into bypass mode, which is also indicated by the
BYPASS LED being lit. If the Bypass mode is already active, the unit switches back
to normal mode. In bypass mode no room corrections are active and user selected lifting EQ
is turned off.
4.2. Lifting EQ
The LIFT button switches between the EQ settings of the Anti-Mode 8033. The settings are
stored with a longer press of the LIFT button. A brief sound heard from the subwoofer after
settings have been stored indicates that you should release the LIFT button.
4.2.1. Flat
The first EQ setting is “flat” or no lifting. Neither the LIFT25 nor LIFT35 LED are lit.
In this setting, the target response is flat from 5Hz to 160Hz. This setting is
automatically changed to Subsonic-Filter-Only after the first (main) calibration. You
can override this and save the new setting.
4.2.2. Lifting 15-25Hz
The second EQ setting is LIFT25. When the LIFT25 LED is lit, the Anti-Mode boosts
frequencies between 15 and 25Hz (max. 8dB at 20Hz). This will also activate a
digital infrasonic filter, which will filter out frequencies below 10Hz, which can be
dangerous to ported subs without proper protection.
4.2.3. Lifting 25-35Hz
The third EQ setting is LIFT35. When LIFT35 LED is lit, the Anti-Mode boosts
frequencies between 25-35Hz (max. 8dB at 30Hz). As with LIFT25, the digital
infrasonic filter is also activated.
4.2.4. Subsonic Filter Only
A fourth EQ setting activates the digital subsonic filter without any lift. The SubsonicFilter-Only mode is active when the LIFT25 and LIFT35 LEDs are dimly lit. The “flat”
setting is automatically changed to this setting after the first (main) calibration.
All lifting modes decrease the overall level of the signal by 3 dB to reduce the risk of
clipping / saturating the output signal. Listening tells you which one of the lifting
settings gives best results. The 'flat' and 'subsonic-filter-only' settings are probably
the best options for music, because they give the most accurate transient response.
Rev. 1.9
2012-03-20
Page 9 (12)
ANTI-MODE 8033CINEMA
4.3. Input Level Warning
If the input signal level in the Anti-Mode 8033's Analog to Digital Converter (ADC) is near the
maximum input range, the user is warned in two phases. If the input signal level has only 3
dB of headroom remaining, the BYPASS LED will start flickering. If the level increases from
this, the signal starts to saturate at the ADC input and harmonic distortion increases. If the
input level reaches maximum, the LIFT35 LED starts flashing. When the input level is
reduced the LEDs resume normal operation.
The input level warning is useful in optimizing the signal level that goes into the Anti-Mode. If
the volume of your subwoofer is too high, the AVR's calibration may set unnecessarily low
levels for the subwoofer output. This leaves much of the Anti-Mode's available input range
unused and can cause an audible low level hum or noise from the subwoofer. This may be
the case if your AVR indicates its subwoofer output level is below -3dB.
To take advantage of the full input range of the Anti-Mode, decrease the subwoofer volume
and increase the output level from the pre-amplifier or AVR until you see only occasional 3dB
warnings, then lower the volume a few dB.
The level warning is also active during calibration. During calibration the output level is
decreased automatically if needed (microphone is saturated). The LIFT25 LED flashes to
indicate the progress of calibration.
4.4. Output Level Warning
The new Anti-Mode correction will raise the overall level of the output depending on how
drastic corrections were applied. This increase and an active lift mode can increase the
output level in some frequencies so much that the signal gets saturated in the output. In this
case the LIFT25 LED starts to flicker, and you should decrease the Anti-Mode 8033 input
level or turn off lift mode.
4.5. Powering Up and Down
The Anti-Mode 8033Cinema has almost no power-on and power-off transients, so you can
easily power it on and off using a switchable power cord or the switchable power output from
your AVR.
The Anti-Mode also fades in when the signal starts, so it can be powered on without
transients even while the audio signal is already applied to the input connector(s).
Because the Anti-Mode consumes very little power, you may choose to leave it powered on.
Rev. 1.9
2012-03-20
Page 10 (12)
ANTI-MODE 8033CINEMA
5. Connection Examples
In a basic home cinema configuration the
Anti-Mode 8033Cinema
is connected
between the AVR / pre-amplifier and the
subwoofer using line-level connections.
The Anti-Mode 8033Cinema can be used
when connecting into a 2.1 stereo system
which has only stereo pre-outs available (no
dedicated LFE or sub output), but it requires
an additional stereo to mono converter
cable.
Two or more subwoofers can be connected
using a splitter Y-cable.
See more connection
www.dspeaker.com .
examples
from
6. Frequency Responses
(from left to right)
Black:
Bypass
Red:
Lift 15-25
Blue:
Lift 25-35
Green:
Subsonic
Rev. 1.9
2012-03-20
Page 11 (12)
ANTI-MODE 8033CINEMA
7. Technical Specifications
Electrical characteristics:
Power consumption:
Input sensitivity:
Amplification:
Operation voltage:
Low-pass (analog):
Frequency range (-3 dB):
Dynamic ratio (unweighted):
1.2 W
Line level (1.0Vrms nominal, 1.75Vrms max)
3.0 dB (bypass)
9 VAC or 12 VDC
Bessel 12 dB/octave, Q ~ 0.5, fc = 250 Hz
5 – 160 Hz
> 90 dB
Firmware features:
Frequency resolution:
Maximum attenuation:
Filter Q-value range:
Sub-sonic filter:
Computation accuracy:
Latency:
Anti-Mode-Filters:
Correction range:
Lift filters:
< 0.5 Hz
96 dB
Unlimited (32-bit integer space)
10 Hz (user-selectable)
32 / 40-bit integer
2.7 ms
28
16 – 160 Hz
20Hz, 30Hz
8. Manufacturer
VLSI Solution / DSPeaker Division
Hermiankatu 8 B
FIN-33720 Tampere
FINLAND
Fax: +358-3-3140-8288
Tel: +358-3-3140-8200
Email: info@dspeaker.com
9. Contact
Website: http://www.dspeaker.com/
Technical Support: support@dspeaker.com
Product Information: info@dspeaker.com
Rev. 1.9
2012-03-20
Page 12 (12)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
