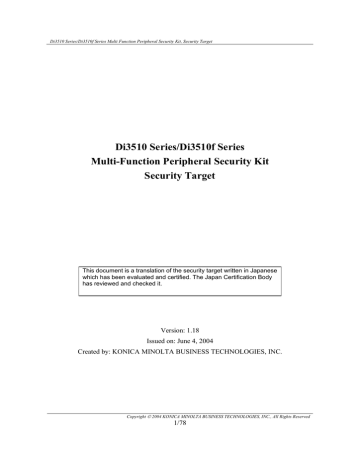

Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
Di3510 Series/Di3510f Series
Multi-Function Peripheral Security Kit
Security Target
This document is a translation of the security target written in Japanese
which has been evaluated and certified. The Japan Certification Body
has reviewed and checked it.
Version: 1.18
Issued on: June 4, 2004
Created by: KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
1/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
<Revision history>
Date
Ver.
1.00
1.01
1.02
1.03
1.04
1.05
1.06
1.07
Approved
by
Ishida
Ishida
Ishida
Ishida
Ishida
Ishida
Ishida
Ishida
Checked
by
Hashimoto
Hashimoto
Hashimoto
Hashimoto
Hashimoto
Hashimoto
Hashimoto
Hashimoto
Created
by
Nakayama
Nakayama
Nakayama
Nakayama
Nakayama
Nakayama
Nakayama
Nakayama
07/31/2003
08/28/2003
09/02/2003
09/05/2003
09/12/2003
10/06/2003
11/12/2003
11/28/2003
12/12/2003
1.08
Ishida
Hashimoto
Nakayama
12/17/2003
12/24/2003
01/08/2004
1.09
1.10
1.11
Ishida
Ishida
Ishida
Hashimoto
Hashimoto
Hashimoto
Nakayama
Nakayama
Nakayama
01/16/2004
1.12
Ishida
Hashimoto
Nakayama
02/13/2004
1.13
Ishida
Hashimoto
Nakayama
02/26/2004
1.14
Ishida
Hashimoto
Nakayama
04/02/2004
1.15
Ishida
Hashimoto
Nakayama
04/13/2004
05/24/2004
1.16
1.17
Ishida
Ishida
Hashimoto
Hashimoto
Nakayama
Nakayama
06/04/2004
1.18
Ishida
Hashimoto
Nakayama
Revision
Creation of the original version.
Reflected modifications in the specifications.
Typos corrected.
Typos corrected.
Typos corrected.
Typos corrected.
Typos corrected.
Corrections for the Observation Report (ASE001-01 to
ASE012-01).
Typos corrected.
Reflected modifications in the specifications.
Typos corrected.
Typos corrected.
Typos corrected.
Corrections for the Observation Report (ASE013-01 to
ASE014-01).
Typos corrected.
Corrections for the Observation Report (ASE015-01 to
ASE019-01).
Typos corrected.
Corrections for the Observation Report (ASE020-01 to
ASE022-01).
Typos corrected.
Corrections for the Observation Report (ASE023-01).
Typos corrected.
Corrections for the Observation Report (ASE024-01 to
ASE026-01).
Typos corrected.
Correction along with a modification in the UI version.
Corrections for the Observation Report (ASE027-01).
Typos corrected.
Corrections for the Observation Report (ASE028-01).
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
2/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
---- (Table of Contents) ----------------------------------------------------------------1. ST Introduction................................................................................................................... 6
1.1. ST Identification .......................................................................................................... 6
1.2. TOE Identification....................................................................................................... 6
1.3. CC Conformance Claim .............................................................................................. 6
1.4. ST Overview................................................................................................................ 7
1.5. Terminologies.............................................................................................................. 8
2. TOE Description............................................................................................................... 10
2.1. TOE Type .................................................................................................................. 10
2.2. Environment for the usage of MFP ........................................................................... 10
2.3. Roles of the TOE user ............................................................................................... 11
2.4. Operational environment of the TOE ........................................................................ 12
2.4.1. Hardware environment of the TOE .................................................................... 12
2.4.2. Software environment of the TOE ..................................................................... 12
2.5. Functions provided by the TOE ................................................................................ 15
2.5.1. General User Functions ...................................................................................... 15
2.5.2. Administrator function ....................................................................................... 17
2.5.3. Service engineer function ................................................................................... 18
2.6. Details of the security functions provided by the TOE ............................................. 18
2.6.1. Security function for general user functions ...................................................... 18
2.6.2. Security functions for the administrator functions ............................................. 20
2.6.3. Security functions for the service engineer function .......................................... 20
3. TOE Security Environment .............................................................................................. 21
3.1. Assumptions .............................................................................................................. 21
3.2. Threats ....................................................................................................................... 22
3.3. Organisational Security policies................................................................................ 22
4. Security Objectives........................................................................................................... 23
4.1. Security Objectives of the TOE................................................................................. 23
4.2. Security objectives for the environment.................................................................... 23
4.2.1. IT environment security objectives .................................................................... 23
4.2.2. Non-IT environment security objective.............................................................. 24
5. IT Security requirements .................................................................................................. 26
5.1. TOE security requirements........................................................................................ 26
5.1.1. TOE security function requirements .................................................................. 26
5.1.1.1. User data protection.................................................................................... 26
5.1.1.2. Identification and authentication................................................................. 28
5.1.1.3. Security management................................................................................... 32
5.1.1.4. Protection of the TSF................................................................................... 39
5.1.2. Minimum Security Strength of Function............................................................ 40
5.1.3. TOE Security Assurance Requirements ............................................................. 40
5.2. Security requirements for the IT environment .......................................................... 41
5.2.1. Security functional requirements for the IT environment .................................. 41
5.2.1.1. User data protection.................................................................................... 41
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
3/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
5.2.1.2. Identification and Authentication ................................................................ 43
5.2.1.3. Security management................................................................................... 43
5.2.2. Security assurance requirements for the IT environment................................... 43
6. TOE Summary Specification............................................................................................ 44
6.1. TOE Security Functions ............................................................................................ 44
6.1.1. F.ADMIN (Administrator mode security function) ........................................... 45
6.1.2. F.SECURE-PRINT (Secure print security function).......................................... 46
6.1.3. F.SERVICE (Service mode security function)................................................... 47
6.1.4. F.USER-BOX (User box security function)....................................................... 48
6.2. TOE Security Strength of Function ........................................................................... 48
6.3. Assurance measures................................................................................................... 49
7. PP Claims ......................................................................................................................... 50
8. Rationale........................................................................................................................... 51
8.1. Security objectives rationale...................................................................................... 51
8.1.1. Necessity............................................................................................................. 51
8.1.2. Sufficiency for the assumptions ......................................................................... 52
8.1.3. Sufficiency for the threats ................................................................................. 54
8.1.4. Sufficiency of the organisational security policies............................................. 55
8.2. IT security requirements rationale............................................................................. 56
8.2.1. Rationale for IT security functional requirements.............................................. 56
8.2.1.1. Necessity ...................................................................................................... 56
8.2.1.2. Sufficiency.................................................................................................... 57
8.2.1.3. Mutual support ............................................................................................ 62
8.2.2. Rationale for Minimum Strength of Function .................................................... 67
8.2.3. Rationale for IT security assurance requirements .............................................. 67
8.3. Rationale for TOE Summary Specifications ............................................................. 68
8.3.1. Rationale for the TOE security functions ........................................................... 68
8.3.1.1. Necessity ...................................................................................................... 68
8.3.1.2. Sufficiency.................................................................................................... 69
8.3.2. Rationale for TOE security strength of function ................................................ 77
8.3.3. Mutually supported TOE security functions ...................................................... 77
8.3.4. Rationale for assurance measures....................................................................... 77
8.4. PP claims rationale .................................................................................................... 78
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
4/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
---- (Figure List) ------------------------------------------------------------------------Figure 1 An example of the expected environment for usage of the MFP ........................... 10
Figure 2 Hardware structure of the MFP .............................................................................. 12
Figure 3 Structure of the MFP control software components ............................................... 13
Figure 4 MFP control software components that relate to the TOE operation processes..... 15
---- (Table List) --------------------------------------------------------------------------Table 1 Operational list for user box..................................................................................... 26
Table 2 List of security management functions .................................................................... 35
Table 3 TOE Security Assurance Requirements................................................................... 40
Table 4 List of operations for the secure print job information data file .............................. 41
Table 5 Security function name and identifier for TOE ....................................................... 44
Table 6 Correspondence between TOE security function and TOE security function
requirements .................................................................................................................. 44
Table 7Correspondence between TOE assurance requirements and assurance measures .... 49
Table 8 Conformity of security objectives to the assumptions and threats........................... 51
Table 9 Conformity of IT security functional requirements to the security objectives ........ 56
Table 10 Mutual support correlations of IT security functional requirements ..................... 62
Table 11 Dependencies of the IT security functional requirements...................................... 64
Table 12 Conformity of the TOE security functions with the TOE security functional
requirements .................................................................................................................. 68
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
5/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
1. ST Introduction
1.1. ST Identification
• ST Title
• Version
• CC version
• Created on
• Created by
: Di3510 Series/Di3510f Series1,
Multi-Function Peripheral Security Kit, Security Target
: 1.18
: 2.1
: June 4, 2004
: KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.
1.2. TOE Identification
• TOE Name
• TOE Version
• TOE type
• Created by
: Japan: Di3510 Series/Di3510f Series Multi-Function Peripheral Security Kit
Overseas: Di3510 Series/Di3510f Series Multi-Function Peripheral Security Kit
: * TOE is comprised of the following two software components, “User Interface”
and “Network Module,” and each has their own version.
¾ User Interface: 4030-20G0-05-00
¾ Network Module: 4030-A0G0-03-00
: Software
: KONICA MINOLTA BUSINESS TECHONOLOGIES, INC.
1.3. CC Conformance Claim
The TOE, which is the subject of this ST, conforms to the following.
• Security function requirement
Conformity to Part 2
• Security assurance requirement
Conformity to Part 3
• Evaluation assurance level
Conformity to EAL 3 (No additional assurance component)
• PP Reference
This ST does not carry out a PP reference.
1
“Di3510 Series” indicates the Multi-Function Peripherals (MFP) that are identified as Di1810, Di2010,
Di2510, Di3010, and Di3510. “Di3510f Series” indicates the MFPs that are identified as Di1810f, Di2010f,
Di2510f, Di3010f, and Di3510f. The fax function is an optional product for the “Di3510 Series,” whereas the
“Di3510f Series” is the MFPs that have a built-in fax function.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
6/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
• References
- Common Criteria for Information Technology Security Evaluation Part 1: Introduction and general
model version 2.1 August 1999 CIMB-99-031
- Common Criteria for Information Technology Security Evaluation Part 2: Security functional
requirements Version 2.1 August 1999 CCIMB-99-032
- Common Criteria for Information Technology Security Evaluation Part 3: Security assurance
requirements Version 2.1 August 1999 CCIMB-99-033
- CCIMB Interpretations - 0210
- Common Criteria for Information Technology Security Evaluation Part 1: Introduction and general
model version 2.1 August 1999 CIMB-99-031 (January 2001 Translation Version 1.2,
Information-technology Promotion Agency Japan , Security Center)
- Common Criteria for Information Technology Security Evaluation Part 2: Security functional
requirements Version 2.1 August 1999 CCIMB-99-032 (January 2001 Translation Version 1.2,
Information-technology Promotion Agency Japan, Security Center)
- Common Criteria for Information Technology Security Evaluation Part 3: Security assurance
requirements Version 2.1 August 1999 CCIMB-99-033 (January 2001 Translation Version 1.2,
Information-technology Promotion Agency Japan, Security Center)
- CCIMB Interpretations - 0210(Translation Version)
1.4. ST Overview
The Multi-Function Peripheral (MFP) is an office IT device that is comprised by selecting
and combining the functions of copying, printing, scanning and faxing. The target of evaluation
(TOE) of this ST is the “Di3510 Series/Di3510f Series Multi-Function Peripheral Security Kit” that
is comprised of the “User Interface,” which is a software component that carries out operational
control processes from the operations panel of the MFP body, and the “Network Module,” which is
a software component that carries out operational control processes from the client PC, from among
the built-in control software in the Di3510 Series/Di3510f Series MFP for monochrome printing,
which is provided by Konica Minolta Business Technologies, Inc., and the present ST explains the
security functions that are realized by the TOE.
The Di3510 Series/Di3510f Series MFP is installed in a general office environment, and its
variety of usage methods include copying, printing, scanning and fax transmissions and receptions
of a document. A wide variety of documents with low to high confidentiality are handled. For the
above, the security functions of the TOE provide a protective function for the exposure of document
data with high confidentiality that is spooled in the MFP during the use of a specific function of the
Di3510 Series/Di3510f Series MFP. The specific function is a secure print (Lock Job) function in
which a password is set and sent to the MFP by a client PC, and when the password is entered from
the MFP body operational panel and is matched, then the print data that was sent to the MFP and
which is in a print pending condition will be printed, and the user box function controls the access
to the user box that is set as the storage area for the scanned data.
This ST is a document that describes the necessity and sufficiency of the security function
of the TOE provided for the secure print function and user box function.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
7/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
1.5. Terminologies
In this section, terminologies that have a particular meaning in the present ST will be described.
Job
Operational unit for a series of functions in the MFP, such as the copying function, scanning
function, printing function, faxing function, etc.
Secure Print
A form of printing when printing from a client PC. When a password is set by the printer driver
on a client PC, and printing data is transmitted to MFP, the printing is not executed but rather is
pending at the MFP. When a set password is entered at the MFP, the pending is cancelled and the
printing is executed.
Secure Print Job Information Data
Print data received by the MFP for secure print. This ST handles this as a protective asset.
Job ID
A control number assigned to a series of every jobs at the MFP, including secure print.
Secure Print Password
A password set for secure print during secure printing. (A password entered for secure print
that is in the print pending state). A four-digit number can be entered.
User Box
A directory set as a storage area at the MFP for scanned image data when the HDD is loaded.
Individual users can set the name and password only from a client PC. The user box indicated as
“Public” is shared, so a password cannot be set. A name change cannot be carried out either.
User Box Identifier
A name set to the user box.
User Box Data
Image data stored in the user box. This ST handles this as a protective asset.
User Box Password
A password set for the individual user box. 95 types of ASCII codes can be set.
Administrator Mode
Functions that are provided for authenticated administrators only.
Administrator Mode Password
Passwords set for the administrator mode. Eight-digit numbers can be set.
Service Mode
Functions that are provided for authenticated service engineers only.
Service Code
A password that is set for the service mode, maintenance mode and initialization mode.
Eight-digit numbers and “*” and “#” can be used.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
8/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
Access Check Function
A function for which the operation setting is controlled by the administrator. When this
function is valid, the user box authentication function operates and a series of unsuccessful
authentication attempts is detected for each of the authentication functions for the administrator
function, secure print function and user box function, and depending on the number of
unsuccessful authentications, it locks each authentication function.
Unauthorized access detection count value for a user box
A value that is counted and stored as the number of unsuccessful trials, when an authentication
trial fails for the user box authentication function while the access check function is operating.
Unauthorized access detection count value for secure print
A value that is counted and stored as the number of unsuccessful trials, when an authentication
trial fails for the secure print authentication function while the access check function is operating.
Unauthorized access detection count value for administrator mode
A value that is counted and stored as the number of unsuccessful trials, when an authentication
trial fails for the administrator authentication function while the access check function is
operating.
Unauthorized access detection count value for service engineer
A value that is counted and stored as the number of unsuccessful trials, when an authentication
trial fails for the service engineer authentication function. Unlike other unauthorized access
detection count values, it does not rely on the operational setting of the access check function.
Penalty reset function
A function that clears the unauthorized access detection count value for a user box and the
unauthorized access detection count value for secure print to zero. When the authentication
function for a user box and secure print are locked, execution of this function unlocks them.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
9/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
2. TOE Description
2.1. TOE Type
The Di3510 Series/Di3510f Series Multi-Function Peripheral Security Kit that is the TOE is
a software product that comprises a portion of the MFP control software that is loaded on the MFP.
More specifically, it is comprised of the “User Interface” that executes operational control from the
operations panel on the MFP body, and the “Network Module” that executes operational control
from the client PC.
2.2. Environment for the usage of MFP
The expected general environment for usage is shown in Figure 1.
Office
MFP
E-mail server
FTP server
TOE
Firewall
Telephone line
External network
Internet
Intra office LAN
Client PC
Figure 1 An example of the expected environment for usage of the MFP
As described in the above-mentioned figure, the MFP is installed in a general office. The
office will have an operations management system that only allows personnel who are involved in
the usage, operation and maintenance of the MFP to enter the room. An intra-office LAN exists as a
network in the office. The MFP connects to the client PCs via the intra-office LAN, and has mutual
data communication. When an e-mail server and FTP server are connected to the intra-office LAN,
the MFP can carry out data communication by using these2. When the intra-office LAN connects to
an external network, measures such as connecting via a firewall are taken, and an appropriate setup
2
<Supplement: E-Mail server and FTP server>
Some office environments where the MFP is installed may not have an e-mail server or FTP server. Also, there may be
cases in which there is no connection to an external network or telephone line. In these cases, functions that relate to email, an FTP server or a FAX cannot be used; however, this does not affect the other MFP functions. The FTP server and
mail server are not necessarily required for the use of the security function for the TOE, and neither is a connection to an
external network or telephone line.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
10/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
to block access requests to the MFP from the external network is carried out. In addition, the intraoffice LAN provides a network environment where the communication data between the MFP and
the client PC cannot be intercepted, by using a switching hub and office operation. The MFP is
connected to the telephone line for fax transmission/reception and in order to communicate with the
support center that carries out the maintenance and management of the MFP.
2.3. Roles of the TOE user
The roles of the user that relate to the use of the TOE are defined as follows.
• General user
Personnel from the organization that use the MFP, who are allowed to enter the office where
the MFP is installed. S/he can use the general user function that is stipulated in 2.5.1.
• Administrator
Personnel from the organization that use the MFP, who are allowed to enter the office where
the MFP is installed, as well as carry out the management of the operation. The administrator can
use the general user function, for which details are stipulated in 2.5.1, as a general user, as well as
the administrator function that is stipulated in 2.5.2.
• Service engineer
Personnel who carry out management of the maintenance of the MFP, who are allowed to enter
the office where the MFP is installed. S/he carries out machine maintenance (physical
maintenance) of the printing engine, etc., of the MFP, and is also able to use the service engineer
function that is provided as a management of the maintenance function to adjust each setting, etc.
(See 2.5.3.) These personnel are not from the organization, so they are not involved in the
operation of the MFP. These maintenance operations are carried out under the monitoring of an
administrator and therefore there will be no unauthorized activities.
• Person in charge at the organization that uses the MFP
A person in charge at the organization that manages the office where the MFP is installed. This
person assigns an administrator who carries out the management of the operation of the MFP.
• Person in charge at the organization that manages the maintenance of the MFP
A person in charge at the organization that carry out management of the maintenance of the
MFP. This person assigns a service engineer who carries out the maintenance management of the
MFP.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
11/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
2.4. Operational environment of the TOE
2.4.1. Hardware environment of the TOE
MFP controller
MFP control software
VxWorks(OS )
MFP body hardware
Data
controller
G3 FAX
unit
Telephone line Telephone line
Printer
unit
Operations
panel
Centronics I/F
HDD
Panel operator
Network
unit
Client PC
Network
Figure 2 Hardware structure of the MFP
The hardware environment structure for the MFP is shown in the figure above. The MFP
controller is installed in the MFP body hardware. The MFP body hardware is loaded with, in
addition to the operations panel, a Centronics I/F, which is connected to the client PC, as standard. In
addition, the MFP body hardware requires a printer unit, a G3 Fax unit, a data controller (hardware
required for EP-NET), a hard disk (HDD), and a network unit, which is required when a printer unit
is loaded.
2.4.2. Software environment of the TOE
The “User Interface” and the “Network Module” that are the TOE operate on the OS
(VxWorks) that runs on the MFP controller in the MFP body as object code that is integrated with
other MFP control software components. Figure 3 shows the structure of these MFP control software
components. The physical area of the TOE is indicated in the dark color in the figure.
The operation overview of each software component including the TOE is described as
follows.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
12/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
MFP control software
Operation
Panel Controller
Modular Input Output
SCANNER
Driver
PRINTER
Driver
G3
FAX
EP-NET
Network
Module
User Interface
Application
Macro System Controller
System Manager
VxWorks (OS )
: TOE
Figure 3 Structure of the MFP control software components
• VxWorks (OS)
Basic software component required for the MFP control software to operate. An operating system.
It provides services such as network functions, file system functions and multi-processing for the
Di3510 series/Di3510f series MFP.
• System Manager
A software component that registers and starts up jobs, and manages resources.
• Operations Panel Controller (abbr. OPE)
A software component that controls hardware such as LCDs, LEDs and keys on the MFP body
operations panel. The information entered from the MFP body operations panel is processed by
this software component and is given to the “User Interface.” Also, it receives the processing
results from the “User Interface” and displays on the panel.
• User Interface (abbr. UI)
A software component, which is the target of evaluation in this ST. It processes the information
entered from the “Operations Panel Controller” and passes notification to the “System Manager,”
the “Macro System Controller,” or the “Network Module” depending on the process. In addition, it
processes messages from the “System Manager,” the “Network Module,” and the “Macro System
Controller” and passes notification to the “Operations Panel Controller.”
• Modular Input Output (abbr. MIO)
A software component that converts the data received from a variety of external interfaces
(network unit, Centronics I/F) to data that is handled by the “Application,” the “Network Module,”
and the “System Manger.” It realizes a WWW server function. In addition, it carries out a variety
of network setting processes for the IP address, DNS server, etc.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
13/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
• Network Module (abbr. NM)
A software component that is a target of evaluation in this ST. By responding to operation requests
from the client PC, it receives the data that the “Modular Input Output” received from the network
with a designated protocol (HTTP, IPP, MIB), and processes and control the data. Depending on
the process, it requests processing to “VxWorks,” the “System Manger,” the “Macro System
Controller,” or the “User Interface,” and receives the data that is processed by “VxWorks,” the
“System Manger,” the “Macro System Controller,” or the “User Interface,” and then requests
processing to the “Modular Input Output.”
• Macro Systems Controller (abbr. MSC)
A software component that analyzes scanned image data and registers it as a job. It also controls
the job sequence for copying, printing, scanning and faxing.
• Application
An application software component that carries out e-mail transmission and reception (Internet fax
transmission and reception), an FTP transmission and the receiving of print processing from a PC.
• SCANNER Driver
A software component that controls the scanner device that carries out the scanning process during
scanning.
• PRINTER Driver
A software component that controls the printer device during printing (*It is different from the
printer driver of the client PC.)
• G3 FAX
A software component for a G3 standard fax transmission and reception.
• EP-NET
A software component that receives access to a “remote maintenance function” from telephone
lines (public lines) or the “Module Input Output,” and carries out a remote maintenance function.
The remote maintenance function is a function that receives a request for access from the support
center via a telephone line. The support center collects information such as the number of MFP
problems, a value that indicates the wear and tear on the expendable parts, and a printing counter
value via a telephone line. In addition, it also has a function such that when a specific malfunction
(significant malfunction) is generated in the MFP, it automatically accesses the support center and
transmits the malfunction information for the MFP. An e-mail remote maintenance function that
realizes the same function using e-mail is also available.
The “User Interface” and “Network Module” that are the TOE are in the relationship that is
shown in the following figure with the other MFP control software components and the OS. The
details of functions provided by the TOE indicated in the following figure will be described in the
following section.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
14/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
Modular
Input Output
Operation
Panel Controller
Network Module
User Interface
General User functions
General User functions
Macro System Controller
>User box function
>Other miscellaneous
setting functions
Administrator function (PC)
System Manager
>Copying function
>Printing function
>Scanning function
>Faxing function
>Internet fax function
>Other miscellaneous setting
functions
Administrator functions (panel)
VxWorks(OS )
Service engineer functions
Figure 4 MFP control software components that relate to the TOE operation processes
2.5. Functions provided by the TOE
General users and the administrator use a variety of functions of the MFP with the built-in
TOE from the client PC and the operations panel of the MFP body. A service engineer can use the
functions for service engineers from the operations panel of the MFP body. General User Functions
that a general user and administrator operate, a variety of functions in the administrator mode that
can be operated only by administrators (Administrator Functions (Panel), Administrator
Functions (PC)) and a variety of functions for service engineers (Service Engineer Functions) are
described as follows.
2.5.1. General User Functions
General users can use the copying function, the printing function, the scanning function and
the faxing function, which are the main functions of the MFP. The TOE takes a partial role in the
controlling processes of these main functions. The general functions handled by the general users as
well as the processes run by the TOE for each function are described as follows.
(1) Copying function
A function that executes the scanning and printing of spooled image data as is by the MFP
body operations panel. During this copying function, the TOE receives the execution, and
indicates with a display the process in progress and receives the cancellation process.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
15/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
(2) Printing function
When print data is transmitted to the MFP using the printer driver of the client PC, the MFP
prints the received print data. The printing function includes the following printing method.
1) Normal print
A print function that prints the received print data via the MFP memory as is.
2) Reprint
A print function that allows re-printing or re-printing with different settings such as a print
finishing so that when a “reprint” is selected by the client PC, the print data is stored in
memory after the printing of the print data is completed. There is no specific access limit
during the print execution operation.
3) Secure print (Lock Job)
When a document with high confidentiality is printed, “Lock Job” is selected from the
printer driver of the client PC, the password is set and the print data is sent to the MFP. A
job ID is given by the “System Manager” to the print data received by the MFP and
registered as secure print job information data. The TOE verifies the password entered from
the operations panel of the MFP body with the password of the secure print job information
data and when they match, then notification is made to the “System Manager” for the
cancellation of print pending for the secure print job identified by the job ID, in order to
execute the printing. The secure print job information data that completed printing will be
automatically deleted.
4) HDD Store print
A function that stores the print job information data in the HDD of the MFP. Printing can be
done by operating the operations panel of the MFP body. There is no particular access limit
for the operation of print execution.
For the above-mentioned multiple print functions, the TOE executes display processing that
indicates the print data is being received, executes display processing that indicates that printing is in
progress, and executes the cancellation process for each of the print functions that are being
displayed. During secure printing, it receives and verifies the password while in the print pending
state.
(3) Scanning function
A function that executes scanning from the operations panel of the MFP body and stores the
image as data. There are several data transmission methods for the scanned image data such as
e-mail and FTP, and they are used by connecting with the scanning. The image data can be
stored in the user box of the HDD that is built in the MFP at the time of scanning without
sending it outside MFP. For the scanning function, the TOE carries out the reception of
execution, displays an indication of what is currently being executed and receives the
cancellation of scanning.
(4) Faxing function
A function that transmits and receives fax data via a telephone line that is designated for a fax.
In addition to the regular fax data transmission and reception function, it is compatible with fax
functions that use the F code. For this fax function, the TOE receives an execution for the fax
transmission, displays an indication for the transmission process, and executes the cancellation
process for the fax transmission.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
16/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
(5) Internet fax function
A function that receives and prints Internet faxes (e-mail with a standard attached image format).
Also, it is a function that converts the scanned image data in the MFP to an attachment in an
Internet Fax standard image compression format and sends an e-mail. For an Internet fax
transmission, the TOE receives the transmission execution, displays an indication for the
transmission process and executes a cancellation process for the transmission.
(6) User box function
Using the web-browser of the client PC, it creates a user box where the scanned image data will
be stored (new setting for the name, and password) and provides the following operations for the
user box* where the image data (hereinafter referred to as the user box data) is stored using the
web-browser of the client PC.
• Downloading the user box data to the client PC
• Deletion of user box data
• Deletion of user box
• Change in settings for the user box (name change, password change)
* There is a default user box that is named “public.” “Public” is a shared storage area for
general users and operations such as a password setting, a name change or a box deletion
cannot be carried out.
(7) Other miscellaneous setting functions
In addition to the above-mentioned (1) to (6), there are a multiplicity of functions that carry out
a variety of settings such as for Paper Select, Image Quality Select, and Zoom, etc., during
printing which are operated from the operations panel of the MFP body, as functions for the
general user. Furthermore, multiple functions, which carry out the viewing of the system status
(device structure and outline) of the MFP, the viewing of the job status, the transmission method
for the scanning function, and the setting of destination, etc., are available as functions that can
be operated using a web-browser from the client PC.
2.5.2. Administrator function
The TOE provides a management function (administrator function) that supervises the
general user functions with the administrator mode that is available only for the administrator. The
following are descriptions for two categories: the administrator functions (panel) that is management
function that can be executed from the operations panel of the MFP body, and the administrator
functions (PC) that is management function that can be executed from a client PC.
(1) Administrator functions (panel)
• Function to change the administrator mode password
• Function for setting the operational status of the access check function
• Penalty reset function (A function that clears the unauthorized access detection count value for
secure printing and for a user box to zero.)
• A variety of setting functions for the administrator (bulk deletion of secure print jobs,
automatic cancellation settings for user box data, a variety of settings for a network, settings for
limiting the number of copies, settings for date and time, etc.)
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
17/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
(2) Administrator functions (PC)
• Deletion of user box data
• Deletion of user box
• Change in settings for a user box (name change, password change)
• A variety of setting functions for the administrator (setting of the storage period for user box
data, a variety of settings for a network, settings for limiting the number of copies, settings for
date and time, etc.)
2.5.3. Service engineer function
The TOE provides a management function (service engineer function) for general user
functions and administrator functions in service mode, maintenance mode and initialization mode
that can only be operated by a service engineer from the operations panel of the MFP body. The
present functions are described as follows.
(1) Service mode
• ROM version display function
• Initialization function for administrator mode password
• Function to change the service code
• A variety of setting functions for service engineers (operation setting function for each setting
function provided for general users, settings for the counter for the number of pages to be
printed, operational checks for each function, a sensor check, settings for an HDD installation,
the HDD format, etc.)
(2) Maintenance mode
• A variety of setting functions for a service engineer (display adjustment for the operations
panel of the MFP body, etc.)
(3) Initialization mode
• A variety of setting functions for the service engineer (language setting, etc.)
2.6. Details of the security functions provided by the TOE
In this section, the functions that are related to assets to be protected will be described in
particular from among the functions of the TOE described in the previous section.
2.6.1. Security function for general user functions
With the general user functions, when using the printing function, the secure print function
is valid during the printing of a document with high confidentiality. The exposure prevention
function for secure print job information data is positioned as a security function. Also, to access
the user box where the scanned image data is stored, a password that is set for the user box is
required and this function, which controls access, is positioned as a security function to maintain
the confidentiality of the user box data.
Details of the functions positioned as security functions from among the general user
functions are described as follows.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
18/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
¾
Identification and authentication that allows access by a general user to a secure print job
A function that identifies and authenticates that a general user is a valid user for secure print
job information data when the secure print job information data is printed. After failing
three times at authentication it locks the authentication function for the concerned secure
print job information data and access is denied.
¾
Function to create a user box
A function by which a general user specifies a name and creates a user box.
¾
Identification and authentication that allows access to a user box by a general user and an
access control function
A function that identifies and authenticates that a general user is an authorized user of a user
box when accessing the user box. After failing three times at authentication, it locks the
authentication function for the concerned user box and access is denied.
When authentication is successful, the downloading of all the user box data in the user box
is permitted. (The user box named as “Public” is not subject to the present security
function.)
¾
User box control function for general users whose access is authenticated
A function by which a general user, who is a valid user of the user box, can change the
settings (name, password) of the user box.
For the secure printing function, secure print job information data that is spooled and stored
in the MFP is considered temporary data that is stored to maintain security during the printing of a
confidential document. In other words, this data is not intended to be stored in the MFP for a long
period of time, and therefore, a secure approach is not necessary for the deleting operation. When
it is accidentally deleted, in principle, the original data exists in the client PC, and therefore it is
not necessary to consider the lack of availability.
The user box function is a function to be used in order to handle printing material as
electronic data at the client PC, and user box data is temporary data that is stored until it is loaded
by the client PC. Therefore, as with the secure printing function, user box data is not intended to
be stored in the MFP for a long period of time, and therefore, a secure approach is not necessary
for the deleting operation. When it is accidentally deleted, in principle, the printing material that is
the source of the user box data still exists, and therefore, it is not necessary to consider the lack of
availability.
And thus, it is not necessary to set an appropriate protection function for the deletion
function for secure print job information data and user box data.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
19/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
2.6.2. Security functions for the administrator functions
There are management functions that involve assets to be protected from among the
administrator functions. The access to this administrator function including the management
function is limited to those authenticated by the administrator mode password, by using a
password that could only be known by the administrator. The identification and authentication
functions and the management functions that are related to the protected assets which can be
operated after authentication are security functions. The details are described as follows.
¾ Identification and authentication function that allows access to the administrator mode
A function that identifies and authorizes the administrator when accessing the administrator
mode using the operations panel of the MFP body or using a web-browser on the client PC.
Failing three times locks the authentication function and access is denied.
¾ Security-related functions for administrator mode
The following functions allowing operation from the operations panel of the MFP body in
administrator mode.
• Function to change the administrator mode password
• Function for setting the operation status of the access check function
• Penalty reset function
The following function, which can be operated from the client PC in administrator mode.
• Function to change the setting of the user box (name change, password change)
2.6.3. Security functions for the service engineer function
Some of the service engineer functions for the service mode are management functions that
involve assets to be protected. The access to the service mode, including these management
functions, is limited to those authenticated by the service code, by using a password that could
only be known by the service engineer, along with undisclosed secret information that could only
be known by the service engineer. The identification and authentication functions and the
management functions that are related to the protected assets which can be operated after
authentication are security functions. The details are described as follows.
¾ Identification and authentication function that allows access to the service mode
A function that identifies and authorizes the service engineer when accessing the service mode.
Failing three times locks the authentication function and access is denied.
¾ Security-related functions for service engineer mode
The following functions allowing operation in service mode.
• Initialization function for the administrator mode password.
• Function to change the service code.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
20/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
3. TOE Security Environment
This chapter will describe the assumptions, threats, and organisational security policies.
3.1. Assumptions
The present section identifies and describes the assumptions for the environment for using the TOE.
A.ACCESS-CHECK (Operation setting conditions for the access check function)
The user of the MFP uses the MFP under the condition of a setting in which the access check
function always runs.
A.ADMIN (Personnel conditions to be an administrator)
The administrator, in the role given to them, shall not carry out a malicious act during the series
of permitted operations given to them.
A.AUTH (Operation conditions for passwords)
Each password used for using the TOE shall be managed so that it will not be divulged by the
owner of the password.
A.HDD (Protection conditions for the HDD)
The HDD shall not be taken out, unless the administrator permits the service engineer to take it
out.
A.NETWORK (Network connection conditions for MFP)
• The organization that uses the MFP shall construct a network environment for an intra-office
LAN where the MFP will be installed, which will not be intercepted.
• When the intra-office LAN where the MFP with the TOE will be installed is connected to an
external network, access from the external network to the MFP is not allowed.
A.PHYSICAL (Installation conditions for the MFP)
The MFP where the TOE is loaded will be installed in a place where it is physically protected
and where only the general users, administrator and service engineer are permitted to enter.
A.SERVICE (Personnel conditions to be a service engineer)
The service engineer, in the role given to them, shall not carry out a malicious act during the
series of permitted operations during the installation of the TOE and the maintenance of the
MFP.
A.SESSION (Session control conditions)
• General users shall always terminate the session after using the box function whenever leaving
the place.
• The administrator shall always terminate the session after using the administrator function.
• The service engineer shall always terminate the session after using the service engineer
function.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
21/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
3.2. Threats
In this section, threats that are expected during the use of the TOE and the environment for
using the TOE are identified and described.
T.ACCESS-SECURE-PRINT (Unauthorized operation of the secure print job information
data)
Unauthorized exposure of secure print job information data when a malicious general user
accesses the secure print job information data from the operations panel of the MFP body and
prints the secure print job information data by pretending to be an authorized user.
T.ACCESS-USER-BOX (Unauthorized operation of the user box data)
Unauthorized exposure of user box data when a malicious general user accesses the created user
box from the client PC and downloads the user box data of a user box by pretending to be an
authorized user.
3.3. Organisational Security policies
P.BEHAVIOR-ACCESS-CHECK (Operation setting function for the access check function)
The access check function can be terminated to maintain compatibility with the existing model
for operation purposes under a secure environment.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
22/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
4. Security Objectives
In this chapter, in relation to the assumption, the threat and the organisational security
policy identified in Chapter 3, the required security objectives policy for the TOE and the
environment for the usage of the TOE is described by being divided into the categories of the
security objectives of the TOE and the security objectives for the environment, as follows.
4.1. Security Objectives for the TOE
In this section, the security objectives for the TOE is identified and described.
O.ACCESS-ADMIN (management function operated by an administrator)
The TOE permits execution of the operation of administrator functions for the administrator
only.
O.ACCESS-USER-BOX (user box access control)
The TOE permits the download operation of the user box data for a general user who is a valid
user only.
O.ACCESS-SERVICE (management function operated by a service engineer)
The TOE permits execution of operation of the service engineer functions for the service
engineer only.
O.I&A-ADMIN (identification and authentication of an administrator)
The TOE identifies and authenticates whether the user who accesses the administrator function
from the client PC or the operations panel of the MFP body is an administrator.
O.I&A-SERVICE (identification and authentication of a service engineer)
The TOE identifies and authenticates whether the user who accesses the service engineer
function from the operations panel of the MFP body is a service engineer.
O.I&A-USER (identification and authentication of a general user)
The TOE identifies and authorizes whether the user who accesses the secure print job
information data or user box data is a general user who is a valid user.
4.2. Security objectives for the environment
In this section, the security objectives for the environment, in the environment of the usage
of the TOE, is identified and described being divided into the IT environment security objectives and
the non-IT environment security objectives.
4.2.1. IT environment security objectives
OE.ACCESS-SECURE-PRINT (secure print job access control)
The System Manager permits the print operation of secure print job information data for the
general user who is a valid user only.
OE.SECURE-PRINT-QUALITY (quality scale for secure print job password)
The printer driver of the client PC adds a password, of which the strength is assured, to the
print data that is sent to the MFP as a secure print.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
23/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
4.2.2. Non-IT environment security objective
OE-N.ACCESS-CHECK (operation of the access check function)
The administrator shall always use the TOE with the access check function turned on.
OE-N.ADMIN (reliable administrator)
The person in charge in the organization who uses the MFP shall assign a person who can
faithfully execute the given role during the operation of the MFP with the TOE as an
administrator.
OE-N.AUTH (proper management and usage of password)
• The person in charge in the organization who uses the MFP shall have the administrator
execute the following operations.
- Administrator shall not use an administrator mode password that can be easily guessed.
- Administrator shall keep the administrator mode password confidential.
- Administrator shall appropriately change the administrator mode password.
- Administrator shall always carry out the modification operation when the administrator
mode password is initialized.
• The administrator shall have general users execute the following operations.
- General users shall keep the secure print password and user box password confidential.
- General users shall not use a secure print password and user box password that can be easily
guessed.
- General users shall appropriately change the user box password.
• The person in charge in the organization who manages the maintenance of the MFP shall
have the service engineer execute the following operations.
- Service engineer shall not use a service code that can be easily guessed.
- Service engineer shall keep the service code confidential.
- Service engineer shall appropriately change the service code.
OE-N.MAINTENANCE (maintenance and management of the MFP)
• The administrator shall not permit a person other than the service engineer to carry out the
maintenance operation.
• The administrator shall prevent unauthorized removal of the HDD by having the operation
management, in which the service engineer carries out the maintenance operation, be carried
out in the presence of the administrator.
OE-N.NETWORK (network environment in which the MFP is connected)
• The administrator shall install devices that realize a network environment for the office
LAN where the MFP with the TOE is installed that cannot be intercepted, and execute an
appropriate setting that does not allow interception.
• The administrator shall install devices that block access to the MFP with the TOE from an
external network, and execute an appropriate setting to block access.
OE-N.PHYSICAL (environment for the MFP installation)
The administrator shall install the MFP with the TOE in a physically protected office, and
execute operation management where only the general users, administrator, and service
engineer can enter the office.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
24/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
OE-N.SERVICE (reliable service engineer)
The person in charge of the organization that carries out the maintenance management of the
MFP shall assign a person who will faithfully carry out the given role for the installation of
the TOE and the maintenance of the MFP with the TOE as a service engineer.
OE-N.STRUCTURE (HDD installation structure of the MFP)
The HDD used in the MFP with the TOE shall have an installation structure such that it
cannot be removed by persons other than a service engineer.
OE-N.SESSION (termination of the session after use)
• The administrator shall have general users always terminate the session after use of the box
function.
• The administrator shall always terminate the session after use of the administrator function.
• The service engineer shall always terminate the session after use of the service engineer
function.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
25/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
5. IT Security requirements
In this chapter, the TOE security requirements and IT environment security requirements
are described.
5.1. TOE security requirements
5.1.1. TOE security function requirements
The security function requirements required for the TOE are described. Those regulated in
CC Part 2 shall be directly used for all the functional requirements components , and the same
labels shall be used as well. In the following description, when items are indicated in “italic” and
“bold” it means that they are assigned or selected. When indicated in “italic” and “bold” and
“underline” it means that they are refined. A number in the parentheses after a label means that
the functional requirement is used repeatedly. The label in the parentheses “( )” in the dependent
section indicates a label for the security functional requirements used in this ST. When it is a
dependency that is not required to be used in this ST, it is described as “N/A” in the same
parentheses.
5.1.1.1. User data protection
FDP_ACC.1
Subset access control
FDP_ACC.1.1
The TSF shall enforce the [assignment: access control SFP] on [assignment: list of
subjects, objects, and operations among subjects and objects covered by the SFP].
[assignment: list of subjects, objects, and operations among subjects and objects covered
by the SFP]:
Listed in “Table 1 Operational List for User Box”
[assignment: access control SFP]
User box access control
Hierarchical to:
No other components
Dependencies: FDP_ACF.1 (FDP_ACF.1)
Table 1 Operational list for user box
Subject
Operational processes
for the user box
Object
User box
Operational list
• Read user box data in the user box
• Creation
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
26/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
FDP_ACF.1
Security attribute based access control
FDP_ACF.1.1
The TSF shall enforce the [assignment: access control SFP] to objects based on
[assignment: security attributes, named groups of security attributes].
[assignment: security attributes, named groups of security attributes]:
User box identifier
[assignment: access control SFP]:
User box access control
FDP_ACF.1.2
The TSF shall enforce the following rules to determine if an operation among controlled
subjects and controlled objects is allowed: [assignment: rules governing access among
controlled subjects and controlled objects using controlled operations on controlled
objects].
[assignment: rules governing access among controlled subjects and controlled objects
using controlled operations on controlled objects]:
• During the process of operating the user box having a “user box identifier” selected
by a general user, the read operation of the user box data in the user box is permitted
only for the user box having an identical “user box identifier” as above.
• During the process of operating the user box having a “user box identifier” entered
by a general user, if there is no user box having an identical “user box identifier,”
the creation of a user box having the “user box identifier” entered by the general
user as the object attributes is permitted.
• During the process of operating the user box having a “user box identifier” entered
by a general user, if there is a user box having an identical “user box identifier,” the
creation of a user box having the “user box identifier” entered by the general user as
the object attributes is denied.
FDP_ACF.1.3
The TSF shall explicitly authorise access of subjects to objects based on the following
additional rules :[assignment: rules, based on security attributes, that explicitly authorise
access of subjects to objects].
[assignment: rules, based on security attributes, that explicitly authorize access of subjects
to objects]:
None
FDP_ACF.1.4[2]
The TSF shall explicitly deny access of subjects to objects based on the [assignment:
rules, based on security attributes, that explicitly deny access of subjects to objects].
[assignment: rules, based on security attributes, that explicitly deny access of subjects to
objects]:
None
Hierarchical to: No other components
Dependencies: FDP_ACC.1 (FDP_ACC.1), FMT_MSA.3 (FMT_MSA.3)
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
27/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
5.1.1.2. Identification and authentication
FIA_AFL.1[1]
Authentication failure handling
FIA_AFL.1.1[1]
The TSF shall detect when [assignment: number] unsuccessful authentication attempts
occur related to [assignment: list of authentication events].
[assignment: list of authentication events]:
Authentication of administrator
[assignment: number]:
3
FIA_AFL.1.2[1]
When the defined number of unsuccessful authentication attempts has been met or
surpassed, the TSF shall [assignment: list of actions].
[assignment: list of actions]:
Lock the authentication function of the administrator
<Operation for recovering the normal condition>
No function for resetting the lock is available.
Hierarchical to: No other components
Dependencies: FIA_UAU.1 (FIA_UAU.2[3])
FIA_AFL.1[2]
Authentication failure handling
FIA_AFL.1.1[2]
The TSF shall detect when [assignment: number] unsuccessful authentication attempts
occur related to [assignment: list of authentication events].
[assignment: list of authentication events]:
Authentication of a general user who is a valid user of the secure print job.
[assignment: number]:
3
FIA_AFL.1.2[2]
When the denied number of unsuccessful authentication attempts has been met or
surpassed, the TSF shall [assignment : list of actions].
[assignment: list of actions]:
Unless the following operation to recover the normal condition is carried out, the
authentication function is locked for the general user who is a valid user of the secure
print job.
<Operation for recovering the normal condition>
Carry out the penalty reset function for the secure print job.
Hierarchical to: No other components
Dependencies: FIA_UAU.1 (FIA_UAU.2[1])
FIA_AFL.1[3]
Authentication failure handling
FIA_AFL.1.1[3]
The TSF shall detect when [assignment: number] unsuccessful authentication attempts
occur related to [assignment: list of authentication events].
[assignment: list of authentication events]:
Authentication of a general user who is a valid user of the user box.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
28/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
[assignment: number]:
3
FIA_AFL.1.2[3]
When the denied of unsuccessful authentication attempts has been met or surpassed, the
TSF shall [assignment: list of actions].
[assignment: list of actions]:
Unless the following operation to recover the normal condition is carried out, the
authentication function is locked for the general user who is a valid user of the user
box.
<Operation for recovering the normal condition>
Carry out the penalty reset function for the user box.
Hierarchical to: No other components
Dependencies: FIA_UAU.1 (FIA_UAU.2[2])
FIA_AFL.1[4]
Authentication failure handling
FIA_AFL.1.1[4]
The TSF shall detect when [assignment: number] unsuccessful authentication attempts
occur related to [assignment: list of authentication events].
[assignment: list of authentication events]:
Authentication of a service engineer.
[assignment: number]:
3
FIA_AFL.1.2[4]
When the denied number of unsuccessful authentication attempts has been met or
surpassed, the TSF shall [assignment: list of actions].
[assignment: list of actions]:
Lock the authentication function of the service engineer.
<Operation for recovering the normal condition>
No function for resetting the lock is available.
Hierarchical to: No other components
Dependencies: FIA_UAU.1 (FIA_UAU.2[4])
FIA_SOS.1[1]
Verification of secrets
FIA_SOS.1.1[1]
The TSF shall provide a mechanism to verify that the user box password meets
[assignment: a defined quality metric].
[assignment: a defined quality metric]:
Minimum 4 digits, maximum 64 digits ASCII code 0x20 to 0x7E (95 types in
English one-byte characters and one byte symbols).
Hierarchical to: No other components
Dependencies: No dependencies
FIA_SOS.1[2]
Verification of secrets
FIA_SOS.1.1[2]
The TSF shall provide a mechanism to verify that the administrator mode password
meets [assignment: a defined quality metric].
[assignment: a defined quality metric]:
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
29/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
Exact 8-digit number (0 to 9).
Hierarchical to: No other components
Dependencies: No dependencies
FIA_SOS.1[3]
Verification of secrets
FIA_SOS.1.1[3]
The TSF shall provide a mechanism to verify that the service code meets [assignment: a
defined quality metric].
[assignment: a defined quality metric]:
Exact 8-digit number (0 to 9) or “*” or “#.”
Hierarchical to: No other components
Dependencies: No dependencies
FIA_UAU.2[1]
User authentication before any action
FIA_UAU.2.1[1]
The TSF shall require each general user who is a valid user of a secure print job to
authenticate itself before allowing any other TSF-mediated actions on behalf of that
general user who is a valid user of the secure print job.
Hierarchical to: FIA_UAU.1
Dependencies: FIA_UID.1 (FIA_UID.2[1])
FIA_UAU.2[2]
User authentication before any action
FIA_UAU.2.1[2]
The TSF shall require each general user who is a valid user of a user box to authenticate
itself before allowing any other TSF-mediated actions on behalf of that general user who
is a valid user of a user box.
Hierarchical to: FIA_UAU.1
Dependencies: FIA_UID.1 (FIA_UID.2[2])
FIA_UAU.2[3]
User authentication before any action
FIA_UAU.2.1[3]
The TSF shall require an administrator to authenticate itself before allowing any other
TSF-mediated actions on behalf of that administrator.
Hierarchical to: FIA_UAU.1
Dependencies: FIA_UID.1 (FIA_UID.2[3])
FIA_UAU.2[4]
User authentication before any action
FIA_UAU.2.1
The TSF shall require each service engineer to authenticate itself before allowing any
other TSF-mediated actions on behalf of that service engineer.
Hierarchical to: No other components
Dependencies: FIA_UID.1 (FIA_UID.2[4])
FIA_UAU.6
Re-authenticating
FIA_UAU.6.1
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
30/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
The TSF shall re-authenticate the user under the conditions [assignment: list of conditions
under which re-authentication is required].
[assignment: list of conditions under which re-authentication is required]
• Change administrator mode password.
• Change service code.
Hierarchical to: No other components
Dependencies: No dependencies
FIA_UAU.7
Protected authentication feedback
FIA_UAU.7.1
The TSF shall provide only [assignment: list of feedback] to the user while the
authentication is in progress.
[assignment: list of feedback]:
Display “*” for each character of character data entered as an administrator mode
password, service code, user box password or secure print password.
Hierarchical to: No other components
Dependencies: FIA_UAU.1 (FIA_UAU.2[1], FIA_UAU.2[2], FIA_UAU.2[3], FIA_UAU.2[4])
FIA_UID.2[1]
User identification before any action
FIA_UID.2.1[1]
The TSF shall require a general user who is a valid user of a secure print job to identify
itself before allowing any other TSF-mediated actions on behalf of that general user who
is a valid user of the secure print job.
Hierarchical to: FIA_UID.1
Dependencies: No dependencies
FIA_UID.2[2]
User identification before any action
FIA_UID.2.1[2]
The TSF shall require a general user who is a valid user of a user box to identify itself
before allowing any other TSF-mediated actions on behalf of that general user who is a
valid user of a user box.
Hierarchical to: FIA_UID.1
Dependencies: No dependencies
FIA_UID.2[3]
User identification before any action
FIA_UID.2.1[3]
The TSF shall require an administrator to identify itself before allowing any other TSFmediated actions on behalf of that administrator.
Hierarchical to: FIA_UID.1
Dependencies: No dependencies
FIA_UID.2[4]
User identification before any action
FIA_UID.2.1[4]
The TSF shall require a service engineer to identify itself before allowing any other TSFmediated actions on behalf of that service engineer.
Hierarchical to: FIA_UID.1
Dependencies: No dependencies
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
31/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
5.1.1.3. Security management
FMT_MOF.1
Management of security functions behaviour
FMT_MOF.1.1
The TSF shall restrict the ability to [selection: determine the behaviour of, disable, enable,
modify the behaviour of] the functions [assignment: list of functions] to [assignment: the
authorised identified roles].
[assignment: list of functions]:
Access check function
[selection: determine the behaviour of, disable, enable, modify the behaviour of ]
Enable, disable
[assignment: the authorised identified roles]:
Administrator
Hierarchical to: No other components
Dependencies: FMT_SMF.1 (FMT_SMF.1), FMT_SMR.1 (FMT_SMR.1[2])
FMT_MSA.1
Management of security attributes
FMT_MSA.1.1
The TSF shall enforce the [assignment: access control SFP, information flow control
SFP] to restrict the ability to [selection: change_default, query, modify, delete,
[assignment: other operations]] the security attributes [assignment: list of security
attributes] to [assignment: the authorised identified roles].
[assignment: list of security attributes]:
User box identifier
[selection: change_default, query, modify, delete, [assignment: other operations]] :
Modify
[assignment: the authorised identified roles]
General user who is a valid user of the user box, administrator
[assignment: access control SFP, information flow control SFP]
User box access control
Hierarchical to: No other components
Dependencies: FDP_ACC.1 or FDP_IFC.1 (FDP_ACC.1), FMT_SMF.1 (FMT_SMF.1),
FMT_SMR.1 (FMT_SMR.1[1], FMT_SMR.1[2])
FMT_MSA.3
Static attribute initialisation
FMT_MSA.3.1
The TSF shall enforce the [assignment: access control SFP, information flow control
SFP] to provide [selection: restrictive, permissive, other property] default values for
security attributes that are used to enforce the SFP.
[selection: restrictive, permissive, other property]:
Permissive
[assignment: access control SFP, information flow control SFP]:
User box access control
FMT_MSA.3.2
The TSF shall allow the [assignment: the authorised identified roles] to specify
alternative initial values to override the default values when an object or information is
created.
[assignment: the authorised identified roles]:
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
32/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
General user who creates the user box
Hierarchical to: No other components
Dependencies: FMT_MSA.1 (FMT_MSA.1), FMT_SMR.1 (FMT_SMR.1[4])
FMT_MTD.1[1] Management of TSF data
FMT_MTD.1.1[1]
The TSF shall restrict the ability to [selection: change_default, query, modify, delete,
clear, [assignment: other operations]] the [assignment: list of TSF data] to [assignment:
the authorised identified roles].
[assignment: list of TSF data]:
Administrator mode password
[selection: change_default, query, modify, delete, clear, [assignment: other operations]]:
Modify
[assignment: the authorised identified roles]:
Administrator
Hierarchical to: No other components
Dependencies: FMT_SMF.1 (FMT_SMF.1), FMT_SMR.1 (FMT_SMR.1[2])
FMT_MTD.1[2] Management of TSF data
FMT_MTD.1.1[2]
The TSF shall restrict the ability to [selection: change_default, query, modify, delete,
clear, [assignment: other operations]] the [assignment: list of TSF data] to [assignment:
the authorised identified roles].
[assignment: list of TSF data]:
User box password
[selection: change_default, query, modify, delete, clear, [assignment: other operations]]:
Modify
[assignment: the authorised identified roles]:
General user who is a valid user of the user box, administrator
Hierarchical to: No other components
Dependencies: FMT_SMF.1 (FMT_SMF.1), FMT_SMR.1 (FMT_SMR.1[1], FMT_SMR.1[2])
FMT_MTD.1[3] Management of TSF data
FMT_MTD.1.1[3]
The TSF shall restrict the ability to [selection: change_default, query, modify, delete,
clear, [assignment: other operations]] the [assignment: list of TSF data] to [assignment:
the authorised identified roles].
[assignment: list of TSF data]:
Service code
[selection: change_default, query, modify, delete, clear, [assignment: other operations]]:
Modify
[assignment: the authorised identified roles]:
Service engineer
Hierarchical to: No other components
Dependencies: FMT_SMF.1 (FMT_SMF.1), FMT_SMR.1 (FMT_SMR.1[3])
FMT_MTD.1[4] Management of TSF data
FMT_MTD.1.1[4]
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
33/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
The TSF shall restrict the ability to [selection: change_default, query, modify, delete,
clear, [assignment: other operations]] the [assignment: list of TSF data] to [assignment:
the authorised identified roles].
[assignment: list of TSF data]:
Administrator mode password
[selection: change_default, query, modify, delete, clear, [assignment: other operations]]:
[assignment: other operations]: initialization (operation to return to the default)
[assignment: the authorised identified roles]:
Service engineer
Hierarchical to: No other components
Dependencies: FMT_SMF.1 (FMT_SMF.1), FMT_SMR.1 (FMT_SMR.1[3])
FMT_MTD.1[5] Management of TSF data
FMT_MTD.1.1[5]
The TSF shall restrict the ability to [selection: change_default, query, modify, delete,
clear, [assignment: other operations]] the [assignment: list of TSF data] to [assignment:
the authorised identified roles].
[assignment: list of TSF data]:
• Unauthorized access detection count value for user box
• Unauthorized access detection count value for secure print
[selection: change_default, query, modify, delete, clear, [assignment: other operations]]:
Clear
[assignment: the authorised identified roles]:
Administrator
Hierarchical to: No other components
Dependencies: FMT_SMF.1 (FMT_SMF.1), FMT_SMR.1 (FMT_SMR.1[2])
FMT_SMF.1
Specification of management functions
FMT_SMF.1.1
The TSF shall be capable of performing the following security management functions:
[assignment: list of security management functions provided by the TSF].
[assignment: list of security management functions provided by the TSF]:
Listed in the applicable section of “Table 2 List of Security Management
Functions”
Hierarchical to: No other components
Dependencies: No dependencies
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
34/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
Table 2 List of security management functions
N/A: Not Applicable
Functional
requirement
components
FDP_ACC.1
FDP_ACF.1
Management items listed in CC Part 2
There are no management activities
foreseen for this component.
The following actions could be considered
for the management functions in FMT:
a) Managing the attributes used to make
explicit access or denial based decisions.
FIA_AFL.1[1]
The following actions could be considered
for the management functions in FMT:
a) Management of the threshold for
unsuccessful authentication attempts:
b) Management of actions to be taken in
the event of an authentication failure.
FIA_AFL.1[2]
The following actions could be considered
for the management functions in FMT:
a) Management of the threshold for
unsuccessful authentication attempts:
b) Management of actions to be taken in
the event of an authentication failure.
FIA_AFL.1[3]
The following actions could be considered
for the management functions in FMT:
a) Management of the threshold for
unsuccessful authentication attempts
b) Management of actions to be taken in
the event of an authentication failure.
Application
N/A
There is no management function that is
applicable for the management items on the
left; however, the following security
management functions are specified as related
items for the requirement.
• Creation function of user box identifier
• Modification function of user box identifier
(operated by the general user who is a valid
user of the user box)
• Modification function of user box identifier
(operated by the administrator)
There is no management function that is
applicable for the management items on the
left; however, the following security
management functions are specified as related
items for the requirement.
• Operation setting function for the access
check function
There is no management function that is
applicable for the management items on the
left; however, the following security
management functions are specified as related
items for the requirement.
• Operation setting function for the access
check function
• Penalty reset function that eliminates the
count value for detection of unauthorized
access for a secure print
There is no management function that is
applicable for the management items on the
left; however, the following security
management functions are specified as related
items for the requirement.
• Operation setting function for the access
check function
• Penalty reset function that eliminates the
count value for detection of unauthorized
access for a user box
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
35/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
Functional
requirement
components
FIA_AFL.1[4]
FIA_SOS.1[1]
FIA_SOS.1[2]
FIA_SOS.1[3]
FIA_UAU.2[1]
FIA_UAU.2[2]
FIA_UAU.2[3]
FIA_UAU.2[4]
Management items listed in CC Part 2
Application
The following actions could be considered
for the management functions in FMT:
a) Management of the threshold for
unsuccessful authentication attempts;
b) Management of actions to be taken in
the event of an authentication failure.
The following actions could be considered
for the management functions in FMT:
a) the management of the metric used to
verify the secrets.
The following actions could be considered
for the management functions in FMT:
a) the management of the metric used to
verify the secrets.
The following actions could be considered
for the management functions in FMT:
a) the management of the metric used to
verify the secrets.
The following actions could be considered
for the management functions in FMT:
Management of the authentication data by
an administrator;
Management of the authentication data by
the user associated with this data.
The following actions could be considered
for management functions in FMT:
Management of the authentication data by
the administrator;
Management of the authentication data by
the user associated with this data.
There is no management function that is
applicable for the management items on the
left.
The following actions could be considered
for the management functions in FMT:
Management of the authentication data by
an administrator.
Management of the authentication data by
the associated user:
Managing the list of actions that can be
taken before the user is authenticated.
The following actions could be considered
for the management functions in FMT:
Management of the authentication data by
an administrator;
Management of the authentication data by
the user associated with this data.
There is no management function that is
applicable for the management items on the
left.
There is no management function that is
applicable for the management items on the
left.
There is no management function that is
applicable for the management items on the
left.
There is no management function that is
applicable for the management items on the
left.
• Modification function for the user box
password (operated by the general user who is
a valid user of the user box)
• Modification function for the user box
password (operated by the administrator)
-----------------------------------------------Unlike the above, the following is not a
management function that is applicable for the
management items on the left; however, the
following security management functions are
specified as related items for the requirement.
• Operation setting function for the access
check function
• Modification function for the administrator
mode password
• Initialization function for the administrator
mode password
• Modification function for the service code
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
36/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
Functional
requirement
components
FIA_UAU.6
FIA_UAU.7
FIA_UID.2[1]
FIA_UID.2[2]
FIA_UID.2[3]
FIA_UID.2[4]
FMT_MOF.1
FMT_MSA.1
FMT_MSA.3
MFT_MTD.1[1]
FMT_MTD.1[2]
Management items listed in CC Part 2
The following actions could be
considered for the management functions
in FMT. If an authorised administrator
could request re-authentication, the
management includes a re-authentication
request.
There are no management activities
foreseen.
The following actions could be
considered for the management functions
in FMT:
a) the management of the user identities.
The following actions could be
considered for the management functions
in FMT:
a) the management of the user identities.
The following actions could be
considered for the management functions
in FMT:
a) the management of the user identities.
The following actions could be
considered for the management functions
in FMT:
a) the management of the user identities.
The following actions could be
considered for the management functions
in FMT Management:
a) Managing the group of roles that can
interact with the functions in TSF.
The following actions could be
considered for the management functions
in FMT Management:
a) Managing the group of roles that can
interact with the security attributes.
The following actions could be
considered for the management functions
in FMT Management:
a) Managing the group of roles that can
specify initial values.
b) Managing the permissive or restrictive
setting of default values for given access
control SFP.
The following actions could be
considered for the management functions
in FMT Management:
a) Managing the group of roles that can
interact with the TSF data.
The following actions could be
considered for the management functions
in FMT Management:
a) Managing the group of roles that can
interact with the TSF data.
Application
There is no management function that is
applicable for the management items on the
left.
N/A
There is no management function that is
applicable for the management items on the
left.
• Creation function of user box identifier
• Modification function of user box
identifier (operated by the general user who
is a valid user of the user box)
• Modification function of user box
identifier (operated by the administrator)
There is no management function that is
applicable for the management items on the
left.
There is no management function that is
applicable for the management items on the
left.
There is no management function that is
applicable for the management items on the
left.
There is no management function that is
applicable for the management items on the
left.
There is no management function that is
applicable for the management items on the
left.
There is no management function that is
applicable for the management items on the
left.
There is no management function that is
applicable for the management items on the
left.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
37/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
Functional
requirement
components
FMT_MTD.1[3]
FMT_MTD.1[4]
FMT_MTD.1[5]
FMT_SMF.1
FMT_SMR.1[1]
FMT_SMR.1[2]
FMT_SMR.1[3]
FMT_SMR.1[4]
FPT_RVM.1
FPT_SEP.1
Management items listed in CC Part 2
The following actions could be
considered for the management functions
in FMT Management:
a) Managing the group of roles that can
interact with the TSF data.
The following actions could be
considered for the management functions
in FMT Management:
a) Managing the group of roles that can
interact with the TSF data.
The following actions could be
considered for the management functions
in FMT Management:
a) Managing the group of roles that can
interact with the TSF data.
There are no management activities
foreseen for this component.
The following actions could be
considered for the management functions
in FMT Management:
a) Managing the group of users that are
part of a role.
The following actions could be
considered for the management functions
in FMT Management:
a) Managing the group of users that are
part of a role.
The following actions could be
considered for the management functions
in FMT Management:
a) Managing the group of users that are
part of a role.
The following actions could be
considered for the management functions
in FMT Management:
a) Managing the group of users that are
part of a role.
There are no management activities
foreseen.
There are no management activities
foreseen.
Application
There is no management function that is
applicable for the management items on the
left.
There is no management function that is
applicable for the management items on the
left.
There is no management function that is
applicable for the management items on the
left.
N/A
There is no management function that is
applicable for the management items on the
left.
There is no management function that is
applicable for the management items on the
left.
There is no management function that is
applicable for the management items on the
left.
There is no management function that is
applicable for the management items on the
left.
N/A
N/A
FMT_SMR.1[1] Security roles
FMT_SMR.1.1[1]
The TSF shall maintain the roles [assignment: the authorised identified roles].
[assignment: the authorised identified roles]:
General user who is a valid user of the user box
FMT_SMR.1.2[1]
The TSF shall be able to associate users with roles.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
38/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
Hierarchical to: No other components
Dependencies: FIA_UID.1 (FIA_UID.1[2])
FMT_SMR.1[2] Security roles
FMT_SMR.1.1[2]
The TSF shall maintain the roles [assignment: the authorised identified roles].
[assignment: the authorised identified roles]:
Administrator
FMT_SMR.1.2[2]
The TSF shall be able to associate users with roles.
Hierarchical to: No other components
Dependencies: FIA_UID.1 (FIA_UID.2[3])
FMT_SMR.1[3] Security roles
FMT_SMR.1.1[3]
The TSF shall maintain the roles [assignment: the authorised identified roles].
[assignment: the authorised identified roles]:
Service engineer
FMT_SMR.1.2[3]
The TSF shall be able to associate users with roles.
Hierarchical to: No other components
Dependencies: FIA_UID.1 (FIA_UID.2[4])
FMT_SMR.1[4] Security roles
FMT_SMR.1.1[4]
The TSF shall maintain the roles [assignment: the authorised identified roles].
[assignment: the authorised identified roles]:
General user who creates the user box
FMT_SMR.1.2[4]
The TSF shall be able to associate users with roles.
Hierarchical to: No other components
Dependencies: FIA_UID.1 (N/A)
5.1.1.4. Protection of the TSF
FPT_RVM.1
Non-bypassability of the TSP
FMT_RVM.1.1
The TSF shall ensure that TSP enforcement functions are invoked and succeed before
each function within the TSC is allowed to proceed.
Hierarchical to: No other components
Dependencies: No dependencies
FPT_SEP.1
TSF domain separation
FPT_SEP.1.1
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
39/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
The TSF shall maintain a security domain for its own execution that protects it from
interference and tampering by untrusted subject.
FPT_SEP.1.2
The TSF shall enforce separation between the security domains of subjects in the TSC.
Hierarchical to: No other components
Dependencies: No dependencies
5.1.2. Minimum Security Strength of Function
The minimum strength of function level of the TOE is
SOF-Basic. The required TOE security functions that use a probabilistic/permutational mechanism
are, FIA_UAU.2[1], FIA_UAU.2[2], FIA_UAU.2[3], FIA_UAU.2[4], FIA_UAU.6, FIA_SOS.1[1],
FIA_SOS.1[2], and FIA_SOS.1[3].
5.1.3. TOE Security Assurance Requirements
The TOE is a commercial office product that is used in a general office environment, and
therefore a TOE security assurance requirement that is required for EAL3 conformance, which is a
sufficient level as an assurance for commercial office products, is applied. The following table
summarizes the applied TOE security assurance requirements.
Table 3 TOE Security Assurance Requirements
TOE Security Assurance Requirements
Class ACM:
CM capabilities
Configuration
CM scope
management
Delivery
Class ADO: Delivery
Installation, generation and startand operation
up
Function specification
Class ADV:
High-level design
Development
Representation correspondence
Class AGD: Guidance
Administrator guidance
documents
User guidance
Class ALC: Life cycle
Development security
support
Coverage
Depth
Class ATE: Tests
Functional tests
Independent testing
Misuse
Class AVA:
Strength of TOE security
Vulnerability
functions
assessment
Vulnerability analysis
Component
ACM_CAP.3
ACM_SCP.1
ADO_DEL.1
ADO_IGS.1
ADV_FSP.1
ADV_HLD.2
ADV_RCR.1
AGD_ADM.1
AGD_USR.1
ALC_DVS.1
ATE_COV.2
ATE_DPT.1
ATE_FUN.1
ATE_IND.2
AVA_MSU.1
AVA_SOF.1
AVA_VLA.1
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
40/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
5.2. Security requirements for the IT environment
The security function requirements required for the IT environment are described. Those
regulated in CC Part 2 shall be directly used for all the functional requirements components, and the
same labels shall be used as well. In the following description, when items are indicated in “italic”
and “bold” it means that they are assigned or selected. When indicated in “italic” and “bold” and an
“underline” it means that they are refined. An identifier “E” in the parentheses, after the label, is
used in order to explicitly show this function requirement is a security requirement for the IT
environment. The label in the parentheses “( )” in the dependency section indicates a label for the
security function requirements used in this ST. When it is a dependency that is not required to be
used in this ST, it is described as “N/A” in the same parentheses.
5.2.1. Security functional requirements for the IT environment
5.2.1.1. User data protection
FDP_ACC.1[E] Subset access control
FDP_ACC.1.1[E]
System Manager shall enforce the [assignment: access control SFP] on [assignment: list
of subjects, objects and operations among subjects and objects covered by the SFP].
[assignment: list of subjects, objects and operations among subjects and objects covered
by the SFP]:
“Table 4 List of operations for the secure print job information data file”
[assignment: access control SFP]:
Secure print job access control
Hierarchical to: No other components
Dependencies: FDP_ACF.1 (FDP_ACF.1[E])
Table 4 List of operations for the secure print job information data file
Subject
Process that operates secure print
job
Object
Secure print job information data
file
Operation
• Print
• Registration
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
41/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
FDP_ACF.1[E] Security attribute based on access control
FDP_ACF.1.1[E]
System Manager shall enforce the [assignment: access control SFP] to objects based on
[assignment: security attributes, named groups of security attributes].
[assignment: security attributes, named groups of security attributes]:
Job ID
[assignment: access control SFP]:
Secure print job access control
FDP_ACF.1.2[E]
System Manager shall enforce the following rules to determine if an operation among
controlled subjects and controlled objects is allowed: [assignment: rules governing access
among controlled subjects and controlled objects using controlled operations on
controlled objects].
[assignment: rules governing access among controlled subjects and controlled objects
using controlled operations on controlled objects ]:
• The process that executes the secure print job having the “job ID” of the secure print
job selected by a general user is permitted a print operation only for the secure print job
information data file with a matched “job ID.”
• During the process that executes the secure print job, when a registration request for
a secure print job is received, a “job ID” that is newly assigned is created, and the
secure print job information data with the above-mentioned “ job ID” as the object
attribution are registered.
FDP_ACF.1.3[E]
System Manager shall explicitly authorise access of subjects to objects based on the
following additional rules: [assignment: rules, based on security attributes, that explicitly
authorise access of subjects to objects ].
[assignment: rules, based on security attributes, that explicitly authorise access of
subjects to objects ]:
None
FDP_ACF.1.4[E]
System Manager shall explicitly deny the access of subjects to objects based on the
[assignment: rules, based on security attributes, that explicitly deny access of subjects to
objects].
[assignment: rules, based on security attributes, that explicitly deny access of subjects to
objects]:
None
Hierarchical to: No other components
Dependencies: FDP_ACC.1 (FDP_ACC.1[E]), FMT_MSA.3 (FMT_MSA.3[E])
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
42/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
5.2.1.2. Identification and Authentication
FIA_SOS.1[E]
Verification of secrets
FIA_SOS.1.1[E]
Printer driver of the client PC shall provide a mechanism to verify that the secure print
password meets [assignment: defined quality metric].
[assignment: defined quality metric]:
4-digit number (0 to 9)
Hierarchical to: No other components
Dependencies: No dependencies
5.2.1.3. Security management
FMT_MSA.3[E] Static attribute initialisation
FMT_MSA.3.1[E]
System Manager shall enforce the [assignment: access control SFP, information flow
control SFP] to provide [selection: restrictive, permissive, other property ] default values
for a job ID that is used to enforce the SFP.
[selection: restrictive, permissive, other property ]:
Other characteristics (a value that can be uniquely identified for categorizing the
secure print job from other jobs )
[assignment: access control SFP, information flow control SFP]:
Secure print job access control
FMT_MSA.3.2[E]
System Manager shall allow the [assignment: the authorised identified roles] to specify
alternative initial values to override the default values when an object or information is
created.
[assignment: the authorised identified roles]:
None
Hierarchical to: No other components
Dependencies: FMT_MSA.1 (N/A), FMT_SMR.1 (N/A)
5.2.2. Security assurance requirements for the IT environment
Security assurance requirements for the IT environment are not regulated.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
43/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
6. TOE Summary Specification
6.1. TOE Security Functions
The security functions of the TOE satisfy, as shown in Tables 5 and 6 below, all the TOE
security function requirements described in the previous chapter.
Table 5 Security function name and identifier for TOE
Identifier
F.ADMIN
F.SECURE-PRINT
F.SERVICE
F.USER-BOX
TOE security function
Administrator mode security function
Secure print security function
Service mode security function
User box security function
Table 6 Correspondence between TOE security function and TOE security function
requirements
F.USER-BOX
F.SERVICE
F.SECURE-PRINT
TOE Security functional requirement
FDP_ACC.1
FDP_ACF.1
FIA_AFL.1[1]
FIA_AFL.1[2]
FIA_AFL.1[3]
FIA_AFL.1[4]
FIA_SOS.1[1]
FIA_SOS.1[2]
FIA_SOS.1[3]
FIA_UAU.2[1]
FIA_UAU.2[2]
FIA_UAU.2[3]
FIA_UAU.2[4]
FIA_UAU.6
FIA_UAU.7
FIA_UID.2[1]
FIA_UID.2[2]
F.ADMIN
TOE Security Function
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
44/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
F.USER-BOX
F.SERVICE
F.SECURE-PRINT
TOE Security functional requirement
FIA_UID.2[3]
FIA_UID.2[4]
FMT_MOF.1
FMT_MSA.1
FMT_MSA.3
FMT_MTD.1[1]
FMT_MTD.1[2]
FMT_MTD.1[3]
FMT_MTD.1[4]
FMT_MTD.1[5]
FMT_SMF.1
FMT_SMR.1[1]
FMT_SMR.1[2]
FMT_SMR.1[3]
FMT_SMR.1[4]
FPT_RVM.1
FPT_SEP.1
F.ADMIN
TOE Security Function
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
6.1.1. F.ADMIN (Administrator mode security function)
F.ADMIN is a series of security functions for the administration mode that are accessed
from the operations panel on the MFP body or the client PC, such as the administrator
identification and authentication functions, the security management function that changes the
administrator mode password, the user box password, and the user box identifier, the operation
setting function for the access check function, the penalty reset function, etc.
<Identification and authentication function during access to the administrator mode>
• Identifies the accessing user as an administrator by requesting access to the administrator
mode.
• Provides an administrator mode password authentication mechanism that authenticates the
accessing user as the administrator using the 8-digit number administrator mode password in
response to the access request to the administrator mode.
• Returns “*” for each character as feedback for the entered administrator mode password.
• Failing at authentication three times makes it determine that an unauthorized access is being
carried out and this authentication function is locked.
<Security management functions in administrator mode that are accessed from the client PC>
• If authentication of the administrator has been carried out for the accessi of the administrator
mode from the client PC, the access and operation of the security management function that
changes the user box identifier and the user box password for any user box are permitted.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
45/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
• For changing a user box password, when an entry of a newly set user box password, and a reentry to prevent an entry error are received, and when both match, the password is replaced for
the user box password of the concerned user box.
• Checks that the user box password is 4 to 64 digits and ASCII codes 0x20 to 0x7E (a total of
95 types of English one-byte characters and one byte symbols).
<Security management function in the administrator mode that is accessed from the operations
panel of the MFP body>
• When the authentication of an administrator is made for access to the administrator mode from
the operations panel on the MFP body, access and operation of (1) the administrator mode
password change function, (2) the operation setting function for the access check function and
(3) the penalty reset function are permitted.
(1) Administrator mode password change function,
¾ Provides an administrator mode password authentication mechanism that reauthenticates that it is the administrator with the administrator mode password.
¾ Returns “*” for each character as feedback for the entry of an administrator mode
password during re-authentication.
¾ When the entry of a newly set user box password, and the re-entry to prevent entry errors
are received, and when both match, the password is replaced as the administrator mode
password.
¾ Checks that the newly set administrator mode password is an 8-digit number.
¾ Counts the count value for the detected number of unauthorized accesses to the
administrator mode by the erroneous entries of the administrator mode password that are
entered for re-authentication. Failing three times cancels the access permission to the
administrator mode and locks the authentication function that accesses administrator
mode.
(2) Operation setting function for the access check function
¾ Turn on the access check function by selecting/executing “enable.”
¾ Turn off the access check function by selecting/executing “disable.”
(3) Penalty reset function
¾ Releases the lock on the authentication function that authenticates a general user who is a
valid user of a secure print job by clearing the count value to zero for detected
unauthorized accesses to secure print for each secure print job.
¾ Releases the lock on the authentication function that authenticates a general user who is a
valid user of a user box, by clearing the count value to zero for detected unauthorized
accesses to the user box for user boxes.
6.1.2. F.SECURE-PRINT (Secure print security function)
F.SECURE-PRINT is a function that identifies and authenticates if a user of secure
print job information data is valid for access to the secure print job information data from
the operations panel of the MFP body.
<Identification and authentication function to print the secure print job>
• When a secure print job is selected, it provides a secure print password authentication
mechanism that authenticates that the person who accesses the selected secure print job
information data is a general user who is a valid user of the secure print job, using a 4digit secure print password.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
46/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
• Returns “*” for each character as feedback for the entry of the secure print password.
• When the authentication fails three times, it determines that an unauthorized access is
being carried out and it locks the authentication function for accessing the secure print job
information data. This locked status is released by executing the penalty reset function for
the secure print job provided by F.ADMIN.
After it is identified and authenticated, it notifies the “System Manager,” which is
a TOE external entity (software component for the IT environment), that the ID and
authentication for the secure print job information data were valid. (* printing of the secure
print job information data is executed by the “System Manager.”)
6.1.3. F.SERVICE (Service mode security function)
F. SERVICE is a series of security functions for service mode that are accessed
from the operations panel of the MFP body, such as the service engineer identification and
authentication function, the modification function for the service code, and the initialization
function for the administrator mode password.
<Identification and authentication function for access to the service mode>
• Identifies the accessing user as a service engineer by requesting access to the service
mode (executes an operations procedure for the service mode that is not disclosed to
anyone other than to service engineers).
• When it receives an operations procedure for the service mode, it provides a service code
authentication mechanism that authenticates that the accessing user to the service mode is
the service engineer by using a password comprised of 8 digits of numbers, “#” or “*”
(service code).
• Returns “*” for each character as feedback for the service code entry.
• When the authentication fails three times, it determines that an unauthorized access is
being carried out and it locks the authentication function for access to the service mode.
<Security management function for service mode>
• When the person accessing the service mode is authenticated as the service engineer, it
permits the access and operation of the security management function for the service
mode.
(1) Modification function of the service code
¾ The modification function for the service code provides a service code authentication
mechanism that re-authenticates the service engineer, after an additional operation
procedure, which is not disclosed, is entered in the service mode.
¾ Returns “*” for each character as feedback for the service code entry during the reauthentication.
¾ Receives the service code entry for a new setting, and the re-entry to prevent an error,
and when both are identical, it replaces the service code with the password.
¾ Checks that the newly set service code is comprised of 8 digits of numbers, “#” or “*.”
¾ When the service code that was entered for this re-authentication is wrong, it cancels
the access permission to the service mode, and increments the count value of detected
unauthorized access for the service engineer.
(2) Initialization function for the administrator mode password
¾ When the initialization function for the administrator mode password is executed, it
sets the administrator mode password to default at the setup.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
47/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
6.1.4. F.USER-BOX (User box security function)
F.USER-BOX is a security function that identifies and authenticates that a general user’s
access to a user box from a client PC is a valid use of the user box data, controls the access to the
user box, creates a user box, and manages the setting of the user box.
<User box creation function>
• A user box creation function is provided to general users.
• When the user box creation function starts up, a process that operates the user box starts up.
• When a user box identifier entered by a general user through the process to operate the user
box has not been set to another user box, a user box with the user box identifier entered by the
general user as the attribute is created. (If it already exists, it is denied.)
<Identification and authentication function for accessing a user box>
• When a user box to be accessed is selected, it provides a user box password authentication
mechanism that authenticates that the user, who is attempting access, is the general user who is
the valid user of the user box with a user box password that is comprised of 4 to 64 digits of
ASCII code 0x20 to 0x7E (95 types of English one-byte characters and one byte symbols)
• Returns “*” as feedback for the user box password entry.
• When the authentication trial fails 3 times, it locks the authentication function for accessing
the target user box. This locked state is released by executing the penalty reset function for the
user box provided by F.ADMIN.
<User box access control function after identification and authentication>
• When a general user is authenticated as a general user who is a valid user of the user box,
based on the user box access control function, for the process that operates the user box, the
“read the user box data in the user box” operation for a user box with a “user box identifier”
that is identical to the subject attributes is permitted
<User box setting management function>
• Provides a function to modify the settings of a user box (modification of the user box identifier,
modification of the user box password) for the concerned user box to the identified and
authenticated valid user of the user box.
• During the modification of the user box password, the entry of a new user box password to be
set and the re-entry to prevent erroneous entries are received, and when both are identical, the
user box password is modified.
• Checks whether the newly set user box password is comprised of 4 to 64 digits of ASCII code
0x20 to 0x7E (95 types of English one-byte characters and one byte symbols).
• When the authentication trials fail 3 times, it locks the authentication function for the general
user who is a valid user of the user box. This locked state is released by executing the penalty
reset function for the user box provided by F.ADMIN.
6.2. TOE Security Strength of Function
The TOE security functions that have probabilistic/permutational mechanisms are (1) the
administrator mode password authentication mechanism by F. ADMIN, (2) the secure print
password authentication mechanism by F.SECURE-PRINT, (3) the user box password
authentication mechanism by F.USER-BOX and (4) the service code authentication mechanism
provided by F.SERVICE. The strength of each of the functions satisfies the SOF-Basic.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
48/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
6.3. Assurance measures
The following table shows the assurance measures to meet the component of the TOE
security assurance requirements for EAL3 that are stipulated in Table 7.
Table 7Correspondence between TOE assurance requirements and assurance measures
TOE security assurance requirement
CM capabilities
Class ACM:
Configuration
CM scope
management
Delivery
Class ADO: Delivery
and operation
Class ADO:
Development
Guidance document
Class ALC: Life cycle
support
Class ATE: Tests
Class AVA:
Vulnerability
assessment
Installation, generation
and start-up
Component
ACM_CAP.3
ACM_SCP.1
ADO_DEL.1
ADO_IGS.1
Functional specification
High-level design
Representation
correspondence
Administrator guidance
ADV_FSP.1
ADV_HLD.2
User guidance
AGD_USR.1
Development security
ALC_DVS.1
Coverage
Depth
Functional tests
Independent testing
Misuse
Strength of TOE security
functions
Vulnerability analysis
ATE_COV.1
ATE_DPT.1
ATE_FUN.1
ATE_IND.2
AVA_MSU.1
ADV_RCR.1
AGD_ADM.1
AVA_SOF.1
AVA_VLA.1
Assurance measures
• Configuration management plan
• Configuration list
• CM record
Delivery instructions
• Set-up instructions (*Japanese: for domestic
use)
• Set-up instructions/SET UP
INSTRUCTIONS (*Japanese/English
bilingual: for abroad)
• Installation checklist (*Japanese)
• Installation checklist (*English)
• Additional information/additional
information (*Japanese/English bilingual)
Security function specifications
Security high level design specifications
Representation correpondence analysis report
• User’s manual, security kit (*Japanese)
Di1810f/Di2510f/Di3010f/Di3510f
Di1810/Di2510/Di3010/Di3510
• User manual Security Kit (*English)
Di2010f/Di2510f/Di3010f/Di3510f
Di2010/Di2510/Di3010/Di3510
• User Manual PageScope Light (*Japanese)
• User Manual PageScope Light (*English)
• Service Manual Security Kit (*Japanese)
Di1810f/Di2510f/Di3010f/Di3510f
Di1810/Di2510/Di3010/Di3510
• Service Manual Security Kit (*English)
Di2010f/Di2510f/Di3010f/Di3510f
Di2010/Di2510/Di3010/Di3510
Development security instructions
Coverage analysis report
Depth analysis report
Test specification and results report
MFP control software including TOE
Reflected in the guidance documents
Strength of Function analysis report
Vulnerability analysis report
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
49/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
7. PP Claims
There is no conformance to a PP in this ST.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
50/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
8. Rationale
The justification of the contents regulated in this ST is described.
8.1. Security objectives rationale
8.1.1. Necessity
The correspondence between the assumptions, threats and security objectives are shown in
the following table. It shows that the security objectives corresponds to at least one assumption or
threat.
Table 8 Conformity of security objectives to the assumptions and threats
T.ACCESS-SECURE-PRINT
T.ACCESS-USER-BOX
P.BEHAVIOR-ACCESS-CHECK
A.SESSION
A.SERVICE
A.PHYSICAL
A.NETWORK
A.HDD
A.AUTH
A.ADMIN
Security objectives
O.ACCESS-ADMIN
O.ACCESS-USE-BOX
O.ACCESS-SERVICE
O.I&A-ADMIN
O.I&A-SERVICE
O.I&A-USER
OE.ACCESS-SECURE-PRINT
OE.SECURE-PRINT-QUALITY
OE-N.ACCESS-CHECK
OE-N.ADMIN
OE-N.AUTH
OE-N.MAINTENANCE
OE-N.NETWORK
OE-N.PHYSICAL
OE-N.SERVICE
OE-N.STRUCTURE
OE-N.SESSION
A.ACCESS-CHECK
Assumption/threat
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
51/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
8.1.2. Sufficiency for the assumptions
The security objectives for the assumptions are described as follows.
• A.ACCESS-CHECK (Operation setting conditions for access check function)
This condition assumes that the access check function always operates.
OE-N.ACCESS-CHECK assumes that the administrator turns on the access check function
during the use of the MFP with the TOE, and this assures the operation of the access check
function.
And therefore, this condition is realized.
• A.ADMIN (Roles and condition of the administrator)
This condition assumes that the administrator is not malicious.
With OE-N.ADMIN, the organization that uses the MFP assigns a person who is reliable in
the organization that uses the MFP, so the reliability of the administrator is assured.
And therefore, this condition is realized.
• A.AUTH (Operational condition regarding password)
This condition assumes that each password (secure print password, user box password,
administrator mode password, and service code) used for the use of the TOE is not divulged
by the user of the password.
OE-N.AUTH regulates that the person in charge of the organization that uses the MFP
enforces compliance, with the operation regulation for the administrator password, to the
administrator.
This security objective regulates that the administrator enforces compliance with the
operation rule, regarding the secure print password and user box password, to general users.
In addition, this security objective regulates that the person in charge of the organization
that manages the maintenance of the MFP enforces compliance of the operation rule
regarding the service code to the service engineer.
Therefore, the handling of each password that is used for the use of the TOE is explicitly
regulated by the operation rule, and so it is assured that the divulging of a password during
the operation should not occur. And therefore, this condition is realized.
• A.HDD (Protective condition of HDD)
This condition assumes that in principle, the HDD installed in the MFP is not taken out, and
even if it is unusually taken out by a service engineer, it cannot be taken out unless it is
permitted by the administrator.
The highest risk for an HDD to be taken out is assumed to exist during the maintenance
operation of the MFP. OE-N.MAINTENANCE regulates that the organization that uses the
MFP does not permit the carrying out of the maintenance operation of the MFP by someone
other than the service engineer, and in addition, the maintenance operation of the MFP is
carried out in the presence of the administrator so that even the service engineer cannot take
out the HDD without getting the permission of the administrator and therefore, it is assured
operationally that the HDD is not taken out unlawfully.
In addition, OE-N.STRUCTURE, assumes that structurally, the HDD cannot be taken out
by anyone other than the service engineer, and it physically assures that the HDD will not
be taken out.
This matter is handled operationally and physically, and therefore, this condition is realized.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
52/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
• A.NETWORK (network connection conditions for the MFP)
This condition assumes that there are no wiretapping activities for the intra-office LAN and
no access by an unspecified person from an external network, because of a variety of
conditions on the network environment connected to the MFP.
OE-N.NETWORK regulates measures such as the installation of devices such as a
switching hub and encoding between the MFP and client PC, and executes an appropriate
environmental setting that does not allow wiretapping, in order to realize a network
environment that does not allow wiretapping of the intra-office LAN. It also regulates the
installation of devices that block access from external networks to the MFP, and executes an
appropriate setting to block external access.
And therefore, this condition is realized.
A network environment that does not allow wiretapping can be realized specifically using
the following methods, etc.
(1) Structure the intra-office LAN using switching hubs only and use an intra-office LAN
environment based on the operation policy of an office that prohibits wiretapping
activities.
(2) Connect the MFP to the intra-office LAN via a specific device and execute a setting by
which all the communication data between the device and client PCs on the intra-office
LAN are encoded by, for example, IPsec.
• A.PHYSICAL (installation conditions for the MFP)
This condition assumes that the place where the MFP with the TOE is installed is a
physically protected place where only the general users, administrator and service engineer
are allowed to enter.
OE-N.PHYSICAL regulates that the installation of the MFP with the TOE is in an office
that is physically protected. In addition, this security objective regulates the execution of an
operation management that limits entry to the office to only general users, an administrator
and a service engineer, and this assures the physical protection of the TOE.
And therefore, this condition is realized.
• A.SERVICE (roles and conditions of service engineer)
This condition assumes that the service engineer is not malicious.
With OE-N.SERVICE, the organization that manages the maintenance of the MFP assigns a
reliable person, from the organization that manages the maintenance of the MFP, as the
service engineer, so that the reliability of the service engineer is assured.
And therefore, this condition is realized.
• A.SESSION (management method for sessions)
This condition assumes that a session is always terminated, after the use of each function by
each user is completed, as a session management method.
OE-N.SESSION regulates that the administrator has general users always terminate the
session after the use of box function by each user is completed, and the administrator
him/herself terminates the session after the use of the administrator function is completed
and it is assured that a threat by impersonation will not occur.
Furthermore, it regulates that the service engineer terminates the session after the use of
service engineer function is completed, and it is assured that a threat by impersonation will
not occur.
And therefore this condition is realized.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
53/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
8.1.3. Sufficiency for the threats
The security objectives against threats are described as follows.
• T.ACCESS-SECURE-PRINT (Unauthorized operation of the secure print job
information data)
This threat assumes the possibility that secure print job information data is accessed from
the operations panel of the MFP body, and the secure print job information data is
unlawfully printed. To counter this, verification is carried out that the accessing user is a
valid user and access and operation by persons other than authorized valid users is limited.
As a security objective to counter this threat, O.I&A-USER regulates the identification and
authentication of whether the user who is accessing the secure print job information data is
a general user who is a valid user of the secure print job. In addition, OE.ACCESSSECURE-PRINT regulates that only a general user who is identified and authenticated as a
valid user is permitted to execute the print operation for secure print job information data,
which is the target of the access.
With this authentication function, in order to maintain the strength of function , a certain
length of password is required. OE.SECURE-PRINT-QUALITY regulates such that only
data, which satisfies the quality metric that is regulated as a secure print password that is
configured for a secure print for the printer driver that is installed in the client PC, is
received.
In addition, an operation setting function for the access check function that detects
unauthorized access during the authentication function of a general user, who is a valid user
of a secure print job, and a penalty reset function that releases the lock status of the
authentication function, are provided in administrator mode. O.I&A-ADMIN regulates the
identification and authentication of whether the user who is accessing the administrator
mode is definitely the administrator, and in addition, O.ACCESS-ADMIN regulates it so
that only the administrator is allowed to operate the administrator function. Through the
above, we are protected from unauthorized access to the security management function
related to the secure print job information data in the administrator mode.
Furthermore, as countermeasures against service mode, which has a managing function to
initialize the administrator mode password, O.I&A-SERVICE regulates the identification
and authentication of whether the user who is accessing the service mode is definitely the
service engineer, and O.ACCESS-SERVICE regulates so that only the service engineer is
allowed to operate the security related functions in service mode.
And therefore fulfillment of these security objectives can sufficiently counterthis threat.
• T.ACCESS-USER-BOX (Unauthorized operation to user box data)
This threat assumes the possibility that the user box data is accessed from the client PC and
the user box data is unlawfully downloaded. To counter this, an accessing user should be
verified as a valid user and access and operation by anyone other than a person who is
authorized as a valid user should be limited.
As a security objective to counter this threat, O.I&A-USER regulates the identification and
authorization of whether the person who is accessing the user box is a general user who is a
valid user of the user box. In addition, O.ACCESS-USER-BOX regulates the permission for
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
54/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
the download operation of the user box data from the user box, which is the target of access,
to only be by the identified and authenticated general user who is a valid user.
In addition, the operation setting function for the access check function that detects
unauthorized access during the authentication function of a general user who is a valid user
of the user box, and the penalty reset function that releases the locked state of the concerned
authentication function, and the setting management function of the user box are provided
in the administrator mode. O.I&A-ADMIN regulates the identification and authentication of
whether a person who is accessing the administrator mode is definitely the administrator.
Furthermore, O.ACCESS-ADMIN regulates so that only the administrator is allowed to
operate the administrator function. By doing so, it is protected from unauthorized access to
the security management function for the user box data in the administrator mode.
Moreover, as a countermeasure against the service mode having a management function
that initializes the administrator mode password, O.I&A-SERVICE regulates the
identification and authentication of whether the person who is accessing the service mode is
definitely the service engineer. O.ACCESS-SERVICE regulates so that only the service
engineer is allowed to operate security-related functions in the service mode.
Therefore, by satisfying these security objectives , it is possible to sufficiently counter these
threats.
8.1.4. Sufficiency of the organisational security policies
The security objective that includes the measures for the organisational security policy is
described as follows.
• P.BEHAVIOR-ACCESS-CHECK (operation setting function of the access check
function)
The organisational security policy stipulates that it is possible to terminate the access check
function in order to realize operability with compatibility with the past, in the case it is used
in a secure environment. In order to realize this, an operation setting function for the access
check function shall be provided. The access check function has the great effect to strength
of function, and therefore the management of the function shall be limited to those who can
be trusted.
The security objective that realizes the organisational security policy is regulated by
O.I&A-ADMIN for the identification and authentication of whether the person accessing
the administrator mode is definitely the administrator. In addition, O.ACCESS-ADMIN
regulates so that only the administrator is allowed to operate the administrator function.
(The operation setting function of the access check function is provided as one of the
administrator functions.)
And therefore, by fulfilling these two security objectives, it sufficiently realizes the
organisational security policy.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
55/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
8.2. IT security requirements rationale
8.2.1. Rationale for IT security functional requirements
8.2.1.1. Necessity
The correspondence between the security objectives and the IT security functional
requirements are shown in the following table. It shows that the IT security functions
correspond to at least one security objective.
Table 9 Conformity of IT security functional requirements to the security objectives
OE.SECURE-PRINT-QUALITY
OE.ACCESS-SECURE-PRINT
O.I&A-USER
O.I&A-SERVICE
O.I&A-ADMIN
O.ACCESS-SERVICE
O.ACCESS-USER-BOX
Security Functional
Requirement
FDP_ACC.1
FDP_ACF.1
FIA_AFL.1[1]
FIA_AFL.1[2]
FIA_AFL.1[3]
FIA_AFL.1[4]
FIA_SOS.1[1]
FIA_SOS.1[2]
FIA_SOS.1[3]
FIA_UAU.2[1]
FIA_UAU.2[2]
FIA_UAU.2[3]
FIA_UAU.2[4]
FIA_UAU.6
FIA_UAU.7
FIA_UID.2[1]
FIA_UID.2[2]
FIA_UID.2[3]
FIA_UID.2[4]
FMT_MOF.1
FMT_MSA.1
O.ACESS-ADMIN
Security
Objective
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
56/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
Security Functional
Requirement
•
FMT_MSA.3
FMT_MTD.1[1]
FMT_MTD.1[2]
FMT_MTD.1[3]
FMT_MTD.1[4]
FMT_MTD.1[5]
FMT_SMF.1
FMT_SMR.1[1]
FMT_SMR.1[2]
FMT_SMR.1[3]
FMT_SMR.1[4]
FPT_RVM.1*
FPT_SEP.1*
FDP_ACC.1[E]
FDP_ACF.1[E]
FIA_SOS.1[E]
FMT_MSA.3[E]
OE.SECURE-PRINT-QUALITY
OE.ACCESS-SECURE-PRINT
O.I&A-USER
O.I&A-SERVICE
O.I&A-ADMIN
O.ACCESS-SERVICE
O.ACCESS-USER-BOX
O.ACESS-ADMIN
Security
Objective
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
*
*
•
*
*
*
*
*
*
*
*
•
*
*
•
•
•
•
* FPT_RVM.1 and FPT_SEP.1 are the requirements that do not directly relate to the security
objectives ; however, they are applied as requirements that support the functional requirements that
are applied by the related security objectives that are indicated with “*” in the above-mentioned table.
This relationship of support (mutual support) will be described in detail in a later section.
8.2.1.2. Sufficiency
The IT security functional requirements for the security objectives are described as follows.
• O.ACCESS-ADMIN (Management function operated by the administrator)
The security objective regulates access to the management functions provided in the
administrator mode, and the subject that operates each security management function
shall be regulated. For this, the following functional requirements are applied.
The operation setting management of the Access check function is limited to only the
administrator by FMT_MOF.1.
The operation of the changing of the administrator mode password is limited to the
administrator by FMT_MTD.1[1], MFT_SMF.1. The administrator password that is set
is verified by FIA_SOS.1[2] is an 8-digit number. The operation of changing the
administrator mode password is an important operation in security management, and
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
57/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
therefore, FIA_UAU.6 re-authenticates that it is an administrator upon use. At this time,
FIA_UAU.7 returns “*” for each character as feedback for the entered administrator
mode password. In addition, the number of unsuccessful attempts at this reauthentication is also counted by FIA_AFL.1[1] as unauthorized access to the
authentication of an administrator, and therefore the operation to change the
administrator mode password is even more strictly protected.
The count value for detected unauthorized access to the user box and the count value for
detected unauthorized access to a secure print is limited by FMT_MTD.1[5] and
FMT_SMF.1 so that only the administrator carries out the clear operation.
FMT_MTD.1[2], and MFT_SMF.1 allow, in addition to the general user who is a valid
user of the user box, the administrator to change the user box password. The set user box
password is verified as being 4 to 64 one-byte characters and one-byte symbols by
FIA_SOS.1[1].
FMT_MSA.1 and FMT_SMF.1 allow, in addition to the general user who is a valid user
of the user box, the administrator to change the user box identifier.
The role that is allowed by FMT_SMR.1[2] to operate the above-mentioned security
management function is the administrator.
By combining this multiplicity of functional requirements, this security objective is
realized.
• O.ACCESS-USER-BOX (user box access control)
This security objective regulates the download operation of the user box data by a
general user. A regulation that controls the creation of a user box and access to the user
box by general users is necessary. For this, the following functional requirements are
employed for this.
In accordance with FDP_ACC.1 and FDP_ACF.1, which define the access control
policy to the user box, during the process of user box operation, if there is no user box
with the same name as the entered “user box identifier” in existence, access control is
carried out so that an operation to create a user box with the name as its attribute is
permitted. (If a user box with the same name as the entered “user box identifier” exists,
the operation of creation is denied.)
In addition, with the same functional requirement, access control that permits an
operation, to “read the user box data in the user box” for the user box having the “user
box identifier,” which matches the selected “user box identifier selected by the general
user” and kept by the operated process by the user box, is executed.
In principle, this security objective is satisfied by the above-mentioned FDP-ACC.1 and
FDP_ACF.1. The following functional requirements that are described are the functional
requirements related to the user box access control.
FMT_MSA.3 gives a blank (null), which is a permitted value, as the default value of the
user box identifier that is used as a security attributes. This value can be set to an
appropriate default value by only the general user who creates the user box.
The role is given by FMT_SMR.1[4] to the general users who create the user box, in
order to set the blank of the above-described user box identifier to an appropriate default.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
58/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
FMT_MSA.1 and FMT_SMF.1 allow general users who are valid users of the user box
to change the user box identifier.
The role is given by FMT_SMR.1[1] to the general users who are valid users of the user
box so that they are allowed to operate the above-described security management
function.
In addition to the above-mentioned functional requirements that regulate access control,
the functional requirements that are equivalent to the management of the access control
are combined and therefore, this security objective is realized.
• O.ACCESS-SERVICE (management function operated by the service engineer)
This security objective regulates the access to the management function for the service
engineer that is provided under the service mode. Additionally, the subject that allows
operation of each security management function shall be regulated. For this, the
following functional requirements are applied.
FMT_MTD.1[3] and FMT_SMT.1 limit the changing of the service code so that only
the service engineer can change the setting. The set service code is limited by
FIA_SOS.1[3] to 8 digits of numbers and “#” and “*.” The changing of the service code
is an important operation for the security management and therefore, FIA_UAU.6 reauthenticates that the person is a service engineer upon use. At that time, FIA_UAU.7
returns “*” for each character entered as feedback for the entered service code. In
addition, the number of unsuccessful attempts at this re-authentication is also counted by
FIA_AFL.1[4] as unauthorized access to the authentication of a service engineer, and
therefore the operation to change the administrator mode password is even more strictly
protected.
The operation to initialize the administrator mode password is limited to the service
engineer only by FMT_MTD.1[4] and MFT_SMF.1.
The role is given by FMT_SMR.1[3] to the service engineer so that they can operate the
above-mentioned security management function.
By combining this multiplicity of functional requirements, this security objective is
realized.
• O.I&A-ADMIN (identification and authentication of the administrator)
This security objective regulates the authentication of whether the person who is
accessing the administrator mode is definitely the administrator, and appropriate
conditions upon authentication are required. The following functional requirements are
applied.
The user who accesses the administrator mode is identified and authenticated as the
administrator by FIA_UID.2[3] and FIA_UAU.2[3]. During the authentication,
FIA_UAU.7 returns “*” for each character entered as feedback for the entered
administrator mode password.
During accessing of the administrator mode, if the administrator authentication is
unsuccessful three times, FIA_AFL.1[1] determines it as an unauthorized access, and it
locks the access to the authentication function from thereon, and therefore it is strictly
protected.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
59/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
By combining this multiplicity of functional requirements, this security objective is
realized.
• O.I&A-SERVICE (identification and authentication of the service engineer)
This security objective regulates the authentication of whether the person who is
accessing the service mode is definitely the service engineer, and appropriate conditions
upon authentication are required. For this, the following functional requirements are
applied.
The user who accesses the service mode is identified and authenticated as the service
engineer by FIA_UID.2[4] and FIA_UAU.2[4]. During the authentication, FIA_UAU.7
returns “*” for each character entered as feedback for the entered service code.
During accessing of the service mode, if the service engineer authentication is
unsuccessful three times, FIA_AFL.1[4] determines it as an unauthorized access, and it
locks the access to the authentication function from thereon, and therefore it is strictly
protected.
By combining this multiplicity of functional requirements, this security objective is
realized.
• O.I&A-USER (identification and authentication of the general users)
This security objective regulates the identification and authentication of whether the user
who is accessing a secure print job is a general user who is a valid user of the secure
print job. In addition, it also regulates the identification and authentication of whether
the user who is downloading the user box data is a general user who is a valid user of the
user box, and therefore, appropriate conditions for the identification and authentication
are required. For this, the following functional requirements are applied.
<Identification and authentication of the general user for accessing a secure print job>
FIA_UID.2[1] and FIA_UAU.2[1] identify and authenticate whether a general user is
the valid user of the secure print job. (The authentication strength of the secure print
password used during this authentication is assured by OE.SECURE-PRINT-QUALITY.
See the description in a later section.)
During the authentication of a general user who is the valid user of the secure print job,
FIA-UAU.7 returns “*” for each character entered as feedback for the entered secure
print password.
If authentication for the secure print job fails 3 times, FIA_AFL.1[2] determines that it is
unauthorized access and the authentication function for the general user who is the valid
user of the secure print job is locked from thereon. The lock can be released by
FMT_MTD.1[5] that is related to O.ACCESS-ADMIN.
<Identification and authentication of the general user for accessing the user box data>
FIA_UID.2[2] and FIA_UAU.2[2] identify and authenticate whether a person accessing
the user box is the general user who is a valid user of the user box.
The above-mentioned, during each authentication according to FIA_UAU.2[2],
FIA_UAU.7 returns “*” for each character entered as feedback for the entered user box
password.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
60/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
If any authentication fails 3 times, FIA_AFL.1[3] determines that it is an unauthorized
access and the authentication function for the general user who is the valid user of the
user box is locked from thereon.
The lock can be released by FMT_MTD.1[5] that is related to O.ACCESS-ADMIN.
FMT_MSA.3 gives a blank (null), which is a permitted value, as the default value of the
user box identifier that is used to identify the general user who is a valid user of the user
box. This value can be set to an appropriate default value by only the general user who
creates the user box.
The role is given by FMT_SMR.1[4] to the general users who create the user box, in
order to set the blank of the above-described user box identifier to an appropriate default.
FMT_MSA.1 and FMT_SMF.1 allow general users who are valid users of the user box,
as well as the administrator to change the user box identifier.
FMT_MTD.1[2] and FMT_SMF.1 allow general users who are valid users of the user
box, as well as the administrator to change the user box password. FIA_SOS.1[1]
verifies that the set user box password is 4 to 64 digits of English one-byte characters
and one-byte symbols.
The role is given by FMT_SMR.1[1] to the valid users of the user box, in order to
operate the above-mentioned security management function.
By combining this multiplicity of functional requirements, this security objective is
realized.
• OE.ACCESS-SECURE-PRINT (secure print job access control)
This security objective regulates such that the System Manager, which is an IT
environment, limits the print operation of the secure print job information data. An
access control that is executed during the printing of a secure print job is required. For
this, the following functional requirements are applied.
When a request to register a secure print job is received, in accordance with
FDP_ACC.1[E] and FDP_ACF.1[E], a “newly assigned job ID” is created by the
process that operates the secure print job by the system manager, and an access control
that registers the secure print job information data file with the above as an attribute is
carried out. The default value of the job ID that is used as the security attributes is
isolated from other jobs by FMT_MSA.3[E], and a value that can be uniquely identified
is assigned.
During the printing, in accordance with FDP_ACC.1[E] and FDP_ACF.1[E], “A job ID
for the secure print job selected by a general user” is given to the process that operates
the secure print job by the system manager, and an access control that prints the secure
print job information data having the matched “job ID” is executed.
This security objective is realized by combining these multiplicities of functional
requirements.
• OE.SECURE-PRINT-QUALITY (quality metric of the secure print password)
This security objective regulates the addition of a password with an assured strength to
the secure print job information data when spooling the secure print to the MFP where
the TOE is loaded, at the printer driver of the client PC that is an IT environment.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
61/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
For this, in accordance with FIA_SOS.1[E], the printer driver of the client PC verifies
whether the set secure print password is a 4-digit number. Therefore when the secure
print is spooled to the MFP, a 4-digit password is always assigned.
This security objective is realized by this functional requirement.
8.2.1.3. Mutual support
(1) Complementarity
The IT Security functional requirements for effectively operating other security
functional requirements without having a direct corresponding relationship with the
security objectives are shown in the following table.
Table 10 Mutual support correlations of IT security functional requirements
IT Security
Functional
Requirement
FDP_ACC.1
FDP_ACF.1
FIA_AFL.1[1]
FIA_AFL.1[2]
FIA_AFL.1[3]
FIA_AFL.1[4]
FIA_SOS.1[1]
FIA_SOS.1[2]
FIA_SOS.1[3]
FIA_UAU.2[1]
FIA_UAU.2[2]
FIA_UAU.2[3]
FIA_UAU.2[4]
FIA_UAU.6
FIA_UAU.7
FIA_UID.2[1]
FIA_UID.2[2]
FIA_UID.2[3]
FIA_UID.2[4]
FMT_MOF.1
FMT_MSA.1
FMT_MSA.3
FMT_MTD.1[1]
FMT_MTD.1[2]
FMT_MTD.1[3]
FMT_MTD.1[4]
FMT_MTD.1[5]
FMT_SMF.1
FMT_SMR.1[1]
FMT_SMR.1[2]
FMT_SMR.1[3]
FMT_SMR.1[4]
FPT_RVM.1
FPT_SEP.1
FDP_ACC.1[E]
FDP_ACF.1[E]
FIA_SOS.1[E]
N/A:Not Applicable
Functional requirements component that operates other security functional requirements validly
(1) Bypass
(2) Interference/destruction
(3) Deactivation
(4) Disabling
Prevention
prevention
prevention
detection
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
FPT_RVM.1
FPT_SEP.1
FMT_MOF.1
N/A
FPT_RVM.1
FPT_SEP.1
FMT_MOF.1
N/A
FPT_RVM.1
FPT_SEP.1
FMT_MOF.1
N/A
FPT_RVM.1
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
FPT_RVM.1
FPT_SEP.1
FMT_MOF.1
N/A
FPT_RVM.1
FPT_SEP.1
N/A
N/A
FPT_RVM.1
FPT_SEP.1
N/A
N/A
FPT_RVM.1
FPT_SEP.1
N/A
N/A
FPT_RVM.1
FPT_SEP.1
N/A
N/A
FPT_RVM.1
FPT_SEP.1
N/A
N/A
FPT_RVM.1
FPT_SEP.1
N/A
N/A
FPT_RVM.1
FPT_SEP.1
N/A
N/A
FPT_RVM.1
FPT_SEP.1
N/A
N/A
FPT_RVM.1
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
FPT_SEP.1
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
62/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
IT Security
Functiona;
Requirement
FMT_MSA.3[E]
Functional requirements component that operates other security functional requirements validly
(1) Bypass
(2) Interference/destruction
(3) Deactivation
(4) Disabling
Prevention
prevention
prevention
detection
N/A
N/A
N/A
N/A
1) Bypass prevention
TSP execution functions are as follows.
1. An identification and authentication function for accessing a secure print job,
which is a function that should be executed before permitting the operation
advancement of the access control function for the secure print job (Executed by
FIA_UID.2[1], FIA_UAU.2[1], FIA_UAU.7, and FIA_AFL.1[2])
2. An authentication function for a general user who is a valid user of the user box,
which is a function that should be executed before permitting the operation
advancement of the access control function for the user box data and the setting
management of the user box (change in user box password and user box identifier)
operated by a general user. (Executed by FIA_UID.2[2], FIA_UAU.2[2],
FIA_UAU.7 and FIA_AFL.1[3].)
3. An identification and authentication for the administrator, which is a function that
should be executed before permitting the operation advancement of the security
management function in the administrator mode. (Executed by FIA_UID.2[3],
FIA_UAU.2[3], FIA_UAU.7 and FIA_AFL.1[1].)
4. An administrator re authentication function, which is a function that should be
executed before permitting the operation advancement of the function to change
the administrator mode password, from among the security management functions
in the administrator mode. (Executed by FIA_UAU.2[3], FIA_UAU.6,
FIA_UAU.7, and FIA_AFL.1[1].)
5. A function that identifies and authenticates the service engineer, which is a
function that should be executed before permitting the operation advancement of
the security management function in the service mode. (Executed by
FIA_UID.2[4], FIA_UAU.2[4], FIA_UAU.7, and FIA_AFL.1[4].)
6. A service engineer re authentication function, which is a function that should be
executed before permitting the operation advancement of the function to change
the service code, from among the security management functions in the service
mode. (Executed by FIA_UAU.2[4], FIA_UAU.6, FIA_UAU.7 and
FIA_AFL.1[4].)
As described above, the TSP execution function is supported such that everything is
always called by FPT_RVM.1 and successes.
2) Interference and destruction prevention
To realize FPT_SEP.1, the TOE maintains the following.
• Security domain in the individual user box
• Security domain in administrator mode
• Security domain in service mode
Therefore, there is support such that there is no interference or tampering by an
unreliable subject of the security domain that is the protected asset scope of the TOE
and the operation scope of the TSF.
3) Deactivation prevention
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
63/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
FMT_MOF.1 limits the management of the detection/lock during the detection of an
unsuccessful authentication (FIA_AFL.1[1], FIA_AFL.1[2], FIA_AFL.1[3]) and
operation of the authentication for accessing a user box (FIA_UAU.2[2]) to the
administrator only and FMT_MOF.1 provides a protection against an attack that
attempts to deactivate these operations.
4) Disabling detection
Because of the security functional requirements that have already been employed by
taking bypass prevention and interference and destruction prevention into account, even
though security that relates to disabling detection is not considered, it has a structure
that adequately satisfies the required security objective. Therefore, security functional
requirements to detect an attack that disables the security function are not applied.
(2) Dependencies of the IT security functional requirements
The dependencies of the IT security functional requirements components are shown in the
following table. When a dependency regulated in CC Part 2 is not satisfied, the reason is
provided in the section for the “dependencies Relation in this ST.”
Table 11 Dependencies of the IT security functional requirements
Functional requirements
Component for this ST
FDP_ACC.1
FDP_ACF.1
FIA_AFL.1[1]
Dependencies on CC
Part 2
FDP_ACF.1
FDP_ACC.1
FMT_MSA.3
FIA_UAU.1
FIA_AFL.1[2]
FIA_UAU.1
FIA_AFL.1[3]
FIA_UAU.1
FIA_AFL.1[4]
FIA_UAU.1
FIA_SOS.1[1]
FIA_SOS.1[2]
FIA_SOS.1[3]
None
None
None
Dependencies Relation in this ST
FDP_ACF.1
FDP_ACC.1, FMT_MSA.3
FIA_UAU.2[3]
<Supplement>
FIA_UAU.2 is hierarchical component to
FIA_UAU.1 and therefore, the dependencies are
satisfied.
FIA_UAU.2[1]
<Supplement>
FIA_UAU.2 is hierarchical component to
FIA_UAU.1 and therefore, the dependencies are
satisfied.
FIA_UAU.2[2]
<Supplement>
FIA_UAU.2 is hierarchical component to
FIA_UAU.1 and therefore, the dependencies are
satisfied.
FIA_UAU.2[4]
<Supplement>
FIA_UAU.2 is hierarchical component to
FIA_UAU.1 and therefore, the dependencies are
satisfied.
None
None
None
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
64/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
Functional requirements
Component for this ST
FIA_UAU.2[1]
Dependencies on CC
Part 2
FIA_UID.1
FIA_UAU.2[2]
FIA_UID.1
FIA_UAU.2[3]
FIA_UID.1
FIA_UAU.2[4]
FIA_UID.1
FIA_UAU.6
FIA_UAU.7
None
FIA_UAU.1
FIA_UID.2[1]
FIA_UID.2[2]
FIA_UID.2[3]
FIA_UID.2[4]
FMT_MOF.1
None
None
None
None
FMT_SMF.1
FMT_SMR.1
FDP_ACC.1 or
FDP_IFC.1
FMT_SMF.1
FMT_SMR.1
FMT_MSA.1
FMT_SMR.1
FMT_SMF.1
FMT_SMR.1
FMT_SMF.1
FMT_SMR.1
FMT_SMF.1
FMT_SMR.1
FMT_SMF.1
FMT_SMR.1
FMT_SMF.1
FMT_SMR.1
None
FMT_MSA.1
FMT_MSA.3
FMT_MTD.1[1]
FMT_MTD.1[2]
FMT_MTD.1[3]
FMT_MTD.1[4]
FMT_MTD.1[5]
FMT_SMF.1
Dependencies in this ST
FIA_UID.2[1]
<Supplement>
FIA_UID.2 is hierarchical component to
FIA_UID.1 and therefore, the dependencies are
satisfied.
FIA_UID.2[2]
<Supplement>
FIA_UID.2 is hierarchical component to
FIA_UID.1 and therefore, the dependencies are
satisfied.
FIA_UID.2[3]
<Supplement>
FIA_UID.2 is hierarchical component to
FIA_UID.1 and therefore, the dependencies are
satisfied.
FIA_UID.2[4]
<Supplement>
FIA_UID.2 is hierarchical component to
FIA_UID.1 and therefore, the dependencies are
satisfied.
None
FIA_UAU.2[1], FIA_UAU.2[2],
FIA_UAU.2[3], FIA_UAU.2[4]
None
None
None
None
FMT_SMF.1, FMT_SMR.1[2]
FDP_ACC.1, FMT_SMF.1, FMT_SMR.1[1],
FMT_SMR.1[2]
FMT_MSA.1, FMT_SMR.1[4]
FMT_SMF.1, FMT_SMR.1[2]
FMT_SMF.1, FMT_SMR.1[1], FMT_SMR.1[2]
FMT_SMF.1, FMT_SMR.1[3]
FMT_SMF.1, FMT_SMR.1[3]
FMT_SMF.1, FMT_SMR.1[2]
None
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
65/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
Functional requirements
Component for this ST
FMT_SMR.1[1]
Dependencies on CC
Part 2
FIA_UID.1
FMT_SMR.1[2]
FIA_UID.1
FMT_SMR.1[3]
FIA_UID.1
FMT_SMR.1[4]
FIA_UID.1
FPT_RVM.1
FPT_SEP.1
FDP_ACC.1[E]
FDP_ACF.1[E]
None
None
FDP_ACF.1
FDP_ACC.1
FMT_MSA.3
None
FMT_MSA.1
FMT_SMR.1
FIA_SOS.1[E]
FMT_MSA.3[E]
Dependencies in this ST
FIA_UID.2[2]
<Supplement>
FIA_UID.2 is hierarchical component to
FIA_UID.1 and therefore, the dependencies are
satisfied.
FIA_UID.2[3]
<Supplement>
FIA_UID.2 is hierarchical component to
FIA_UID.1 and therefore, the dependencies are
satisfied.
FIA_UID.2[4]
<Supplement>
FIA_UID.2 is hierarchical component to
FIA_UID.1 and therefore, the dependencies are
satisfied.
None
<Reason why it does not satisfy FIA_UID.1>
Creation of the user box is allowed for an
arbitrary general user and therefore there is no
need to identify the user that is related to this
role.
None
None
FDP_ACF.1[E]
FDP_ACF.1[E], FMT_MSA.3[E]
None
None
<Reason why it does not satisfy (1)
FMT_MSA.1 and (2) FMT_SMR.1>
(1) The job ID is an identifier that is assigned to
distinguish between jobs and therefore, there is
no need to allow an operation to change or
delete the default. In addition, the job ID is not
confidential, and therefore, there is no need to
limit users who make an inquiry.
(2) The job ID is an identifier that is assigned to
distinguish between jobs and therefore, there is
no need to change it to an alternative default
value. Thus, there is no need to regulate the role
designated based on the above.
As described above, sets of IT security requirements have a structure that mutually support each
other as a whole, as shown in the dependencies in (1) complementarity and (2) IT security
functional requirements.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
66/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
8.2.2. Rationale for Minimum Strength of Function
The MFP that is loaded with this TOE is installed in a general office environment
where an entry to the office is controlled, and is connected to an intra-office LAN with
appropriately controlled connections with external networks. Therefore, there is no
possibility that it is directly attacked by unspecified people via the Internet. As long as it has
a strength level that can counter the threat by general users who are users of the TOE and a
person in the office as an agent, it is acceptable, as explicitly described in section 3.2.
Therefore, this TOE regulates security objectives by assuming an unskilled attacker and
thus, the selection of the SOF-Basic as the minimum strength of function is reasonable.
8.2.3. Rationale for IT security assurance requirements
This TOE is installed and used in an environment where adequate security is
maintained in terms of the physical, personnel, and connectivity. Nonetheless, adequate
effectiveness in the environment where the TOE is used shall be assured. As a general
commercial office product, the execution of tests based on function specifications and high
level design, and analysis of the strength of function and a search for vulnerabilities are
required. In addition, it is desirable that it has a development environment control, a
configuration management for the TOE and a secure distribution procedure. And therefore,
the selection of EAL3, which provides an adequate assurance level is reasonable.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
67/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
8.3. Rationale for TOE Summary Specifications
8.3.1. Rationale for the TOE security functions
8.3.1.1. Necessity
The conformity of the TOE security functions and the TOE security functional requirements
are shown in the following table. It shows that the TOE security functions correspond to at least
one TOE security functional requirement.
Table 12 Conformity of the TOE security functions with the TOE security functional
requirements
F.USER-BOX
F.SERVICE
F.SECURE-PRINT
F.ADMIN
TOE Security function
TOE Security
Functional Requirement
FDP_ACC.1
FDP_ACF.1
FIA_AFL.1[1]
FIA_AFL.1[2]
FIA_AFL.1[3]
FIA_AFL.1[4]
FIA_SOS.1[1]
FIA_SOS.1[2]
FIA_SOS.1[3]
FIA_UAU.2[1]
FIA_UAU.2[2]
FIA_UAU.2[3]
FIA_UAU.2[4]
FIA_UAU.6
FIA_UAU.7
FIA_UID.2[1]
FIA_UID.2[2]
FIA_UID.2[3]
FIA_UID.2[4]
FMT_MOF.1
FMT_MSA.1
FMT_MSA.3
FMT_MTD.1[1]
FMT_MTD.1[2]
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
68/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
F.USER-BOX
F.SERVICE
F.SECURE-PRINT
TOE Security
Functional Requirement
FMT_MTD.1[3]
FMT_MTD.1[4]
FMT_MTD.1[5]
FMT_SMF.1
FMT_SMR.1[1]
FMT_SMR.1[2]
FMT_SMR.1[3]
FMT_SMR.1[4]
FPT_RVM.1
FPT_SEP.1
F.ADMIN
TOE Security function
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
8.3.1.2. Sufficiency
The TOE security functions for the TOE security functional requirements are described.
• FDP_ACC.1
FDP_ACC.1 regulates the relationship between the controlled subject to the object: the user
box and the operation.
F.USER-BOX executes the operation: “user box access control” that controls the “creation”
and the “reading of the user box data in the user box” to the object: “user box” of the subject:
“process that operates the user box.”
Therefore, this functional requirement is satisfied.
• FDP_ACF.1
FDP_ACF.1 regulates the regulation of the controlled subject: “a process that operates the
user box,” object: “user box,” and operation: “reading of the user box data in the user box”
and “creation.”
F.USER-BOX executes the user box access control that is comprised of the following three
regulations.
¾ The process that operates the user box having a selected “user box identifier” is
permitted the operation of reading the user box data in the user box to the user box
having an identical “user box identifier” as above.
¾ The process that operates the user box having the entered “user box identifier” is
permitted the operation of creating a user box having the entered “user box identifier”
as an object attributes when there is no user box having a “user box identifier” that is
identical to the above.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
69/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
¾
The process that operates the user box having the entered “user box identifier” executes
the denied control of the operation of creating a user box having an entered “user box
identifier” as an object attributes, when there is a user box having a “user box
identifier” that is identical to the above.
Therefore, this functional requirement is satisfied.
• FIA_AFL.1[1]
FIA_AFL.1[1] regulates the detection of unauthorized access, when a certain number of
unsuccessful authentication attempts for the authentication event related to the administrator
mode occurs, and the execution of some action after the detection of the unauthorized access.
F.ADMIN locks the authentication function when three unsuccessful attempts are detected
during the authentication to access administrator mode, or a re-authentication for the function
to change the administrator mode password. (In the case of re-authentication for the function
to change the administrator mode password, access to administrator mode is denied and then
the authentication function to access administrator mode is locked.) There is no function to
reset this lock.
Therefore, this functional requirement is satisfied.
• FIA_AFL.1[2]
FIA_AFL.1[2] regulates the detection of unauthorized access when a certain number of
unsuccessful authentication attempts for the authentication event related to the secure print
job information data occurs, and a method of recovery to the normal state after some action
is executed when an unauthorized access is detected.
F. SECURE-PRINT locks the authentication function when three unsuccessful attempts are
detected during the authentication to access secure print job information data. This locked
state is reset by executing the penalty reset function provided by F. ADMIN.
Therefore, this functional requirement is satisfied.
• FIA_AFL1[3]
FIA_AFL1[3] regulates the detection of unauthorized access when a certain number of
unsuccessful authentication attempts occurs for the authentication event related to the user
box data, and a method of recovery to the normal state after some action is executed when an
unauthorized access is detected.
F.USER-BOX locks the authentication function when three unsuccessful attempts are
detected during the authentication to access a user box. This locked state is reset by
executing the penalty reset function provided by F. ADMIN.
Therefore, this functional requirement is satisfied.
• FIA_AFL1[4]
FIA_AFL1[4] regulates the detection of unauthorized access when a certain number of
unsuccessful authentication attempts for the authentication event related to the authentication
of a service engineer occurs as well as the execution of some action after the detection of the
unauthorized action.
F.SERVICE locks the authentication function when three unsuccessful attempts are detected
during the authentication to access service mode, or the re-authentication for the function to
change the service code. (In the case of re-authentication for the function to change the
service code, access to the service is denied and then the authentication function to access
service mode is locked.) There is no function to reset this lock.
Therefore, this functional requirement is satisfied.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
70/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
• FIA_SOS.1[1]
FIA_SOS.1[1] regulates the quality metric of the user box password, which is a minimum of
4 digits and a maximum of 64 digits of one-byte English characters or one-byte symbols.
F.USER-BOX checks whether 4- to 64-digit ASCII code 0x20 to 0x7E (one-byte English
characters or one-byte symbols, 95 types) is set as the quality metric of the user box
password for the function to change the user box password.
F.ADMIN checks whether 4- to 64-digit ASCII code 0x20 to 0x7E (one-byte English
characters or one-byte symbols, 95 types) is set as the quality metric of the user box
password for the function to change the user box password.
Therefore, this functional requirement is satisfied.
• FIA_SOS.1[2]
FIA_SOS.1[2] regulates the quality metric of the administrator mode password, which is an
8-digit number.
F.ADMIN checks whether an 8-digit number is set as the quality metric for the administrator
mode password.
Therefore, this functional requirement is satisfied.
• FIA_SOS.1[3]
FIA_SOS.1[3] regulates the quality metric of the service code, which is 8 digits of numbers,
“*” or “#.”
F.SERVICE checks whether 8 digits of numbers, “*” or “#” is set as the quality metric for
the service code for the function to change the service code.
Therefore, this functional requirement is satisfied.
• FIA_UAU.2[1]
FIA_UAU.2[1] regulates the authentication of a general user who is a valid user of the secure
print job, during the access of a general user to the secure print job information data.
F. SECURE-PRINT authenticates a general user who is a valid user of a secure print job
through a secure print password during the access to the secure print job information, and
permits execution of the operations that are available for the secure print job information data,
for which the subject is only an authenticated general user who is the valid user of the secure
print job.
Therefore, this functional requirement is satisfied.
• FIA_UAU.2[2]
FIA_UAU.2[2] regulates the authentication of a general user who is a valid user of the user
box during the accessing by a general user to the user box.
F. USER-BOX authenticates a general user who is a valid user of the user box through a user
box password, and permits the execution of access to the user box, for which the subject is
only the authenticated general user who is the valid user of the user box.
Therefore, this functional requirement is satisfied.
• FIA_UAU.2[3]
FIA_UAU.2[3] regulates the authentication of the administrator before using the
administrator function.
F. ADMIN authenticates the administrator during the accessing of administrator mode, and
permits execution of the operations available only for the authenticated administrator in
administrator mode. In addition, it authenticates (re-authenticates) the administrator before
the execution of the function to change the administrator mode password, which is a security
management function in the administrator mode.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
71/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
Therefore, this functional requirement is satisfied.
• FIA_UAU.2[4]
FIA_UAU.2[4] regulates the authentication of the service engineer before using the service
engineer functions.
F.SERVICE authenticates the service engineer during the accessing of service mode, and
permits the execution of the operations available only to the service engineer in service mode.
In addition, it authenticates (re-authenticates) the service engineer before the execution of the
function to change the service code, which is a security management function in service
mode.
Therefore, this functional requirement is satisfied.
• FIA_UAU.6
FIA_UAU.6 regulates an authentication event that requires re-authentication.
F.ADMIN re-authenticates the administrator during the function to change the administrator
mode password, which is an important function in terms of the security for the administrator
who has already been permitted access to administrator mode, and it permits only a reauthenticated administrator to execute the function to change the administrator mode
password.
F.SERVICE re-authenticated the service engineer during the function to change the service
code, which is an important function in terms of security for the service engineer who has
already been permitted access to service mode, and it permits only a re-authenticated service
engineer to execute the function to change the service code.
Therefore, this functional requirement is satisfied.
• FIA_UAU.7
FIA_UAU.7 regulates the return of “*” as feedback during authentication.
F.SECURE-PRINT returns “*” for each character as feedback for the character entry (secure
print password) for authentication during access to secure print job information data.
F.USER-BOX returns “*” for each character as feedback for the character entry (user box
password) for authentication during access to the user box.
F.ADMIN returns “*” for each character as feedback for the character entry for the following
cases.
¾ Characters entered for the authentication function during accessing from the operations
panel of the MFP body or the client PC in administrator mode.
¾ Characters entered for the re-authentication function when changing the administrator
mode password.
F.SERVICE returns “*” for each character as feedback for the character entry for the
following cases.
¾ Characters entered for the authentication function that uses the service code during
accessing to service mode.
¾ Characters entered for the re-authentication function when changing the service code.
Therefore, this functional requirement is satisfied.
• FIA_UID.2[1]
FIA_UID.2[1] regulates the identification of the valid user of a secure print job during the
accessing of the secure print job information data by a general user.
F.SECURE-PRINT identifies a general user who is a valid user of the secure print job
through the selection of a secure print job, which is the object to be operated by the general
user, based on the name of the secure print job, during the accessing of the secure print job
information data.
Therefore, this functional requirement is satisfied.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
72/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
• FIA_UID.2[2]
FIA_UID.2[2] regulates the identification of a valid user of a user box during the access to
the user box by a general user.
F.USER-BOX identifies a general user who is a valid user of the user box through the
selection of the user box that is set, during the accessing of the user box.
Therefore, this functional requirement is satisfied.
• FIA_UID.2[3]
FIA_UID.2[3] regulates the identification of a user as an administrator before they use the
administrator functions.
F.ADMIN identifies the user as an administrator by the access request of the user to the
administrator mode.
Therefore, this functional requirement is satisfied.
• FIA_UID.2[4]
FIA_UID.2[4] regulates the identification of a user as a service engineer before they use the
service engineer functions.
F.SERVICE identifies the user as a service engineer by access request of the user to the
service mode (execution of an operation procedure that is not public).
Therefore, this functional requirement is satisfied.
• FMT_MOF.1
FMT_MOF.1 regulates the behavior management of the access check function by the
administrator.
F.ADMIN provides a setting management function that enables and disables the access
check function.
Therefore, this functional requirement is satisfied.
• FMT_MSA.1
FMT_MSA.1 regulates the limitation on the operation to change the user box identifier,
which is a security attribute that is used for the user box access control, to “a general user
who is the valid user of the user box” and the administrator.
F.ADMIN provides a function to change the user box identifier operated by the administrator
in administrator mode.
F.USER-BOX provides a function to change the user box identifier operated by the general
user who is the valid user, who is permitted to access the user box.
Therefore, this functional requirement is satisfied through the operation of these two TOE
security functions.
• FMT_MSA.3
FMT_MSA.3 regulates the permitted default value during the creation of the user box
identifier, which is the security attribution used during the user box access control. In
addition, it regulates the limitation on the role of setting an initial value that replaces the
default value to the general user who creates the user box.
F.USER-BOX provides a blank (null) as a default value for the user box identifier, when the
function to create a user box is started, and also provides a function to create a user box
identifier that sets an alternative initial value to the blank for the general user who creates the
user box.
Therefore, this functional requirement is satisfied.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
73/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
• FMT_MTD.1[1]
FMT_MTD.1[1] regulates the role of changing the administrator mode password, which is
TSF data.
F.ADMIN provides a function to change the administrator mode password operated by the
administrator in administrator mode.
Therefore, this functional requirement is satisfied.
• FMT_MTD.1[2]
FMT_MTD.1[2] regulates the role of changing the user box password, which is TSF data.
F.ADMIN provides a function to change the user box password operated by the administrator
in administrator mode.
F.USER-BOX provides a function to change the user box password operated by a general
user who is the valid user of the user box.
Therefore, this functional requirement is satisfied by the operation of these two TOE security
functions.
• FMT_MTD.1[3]
FMT_MTD.1[3] regulates the role of changing the service code.
F.SERVICE provides a function to change the service code operated by the service engineer
in service mode.
Therefore, this functional requirement is satisfied.
• FMT_MTD.1[4]
FMT_MTD.1[4] regulates the role of initializing the administrator mode password.
F.SERVICE provides a function to initialize the administrator mode password operated by
the service engineer in service mode. When this function is executed, a default value during
set up is set as the administrator mode password.
Therefore, this functional requirement is satisfied.
• FMT_MTD.1[5]
FMT_MTD.1[5] regulates the role of deleting the detected unauthorized access count value
for a secure print, and the detected unauthorized access count value for the user box.
F.ADMIN provides a penalty reset function operated by the administrator in administrator
mode. This function clears the detected unauthorized access count value for the secure print,
or the detected unauthorized access count value to zero.
Therefore, this functional requirement is satisfied.
• FMT_SMF.1
FMT_SMF.1 regulates the security management functions that are provided by the TOE.
F.USER-BOX provides the following security management functions, operated by a general
user who is the valid user of the user box, for the user box.
¾ Function to change the user box identifier of the user box
¾ Function to change the user box password for the user box
In addition, F.USER-BOX provides the following security management functions for the
general user who creates the user box, during the creation of a user box.
¾ Function to create a user box identifier
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
74/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
F.ADMIN provides the following security management functions operated by the
administrator in administrator mode.
¾ Operation setting function for the access check function
¾ Penalty reset function that clears the detected unauthorized access count value for a
secure print to zero
¾ Penalty reset function that clears the detected unauthorized access count value for a
user box to zero
¾ Function to change the administrator password.
¾ Function to change the user box identifier for any user box
¾ Function to change the user box password for any user box
F.SERVICE provides the following security management functions operated by the service
engineer in service mode.
¾ Function to change the service code
¾ Initialization function for the administrator mode password.
Therefore, this functional requirement is satisfied.
• FMT_SMR.1[1]
FMT_SMR.1[1] regulates the role as a “general user who is the valid user of the user box.”
F.USER-BOX authorizes an identified and authenticated user as the “general user who is a
valid user of the user box” for access to the user box. And therefore, this functional
requirement is satisfied.
• FMT_SMR.1[2]
FMT_SMR.1[2] regulates the role as an “administrator”
F.ADMIN authorizes an authenticated user as the “administrator” for access to administrator
mode.
Therefore, this functional requirement is satisfied.
• FMT_SMR.1[3]
FMT_SMR.1[3] regulates the role asa “service engineer”
F.SERVICE authorizes an authenticated user as the “service engineer” for access to service
mode.
Therefore, this functional requirement is satisfied.
• FMT_SMR.1[4]
FMT_SMR.1[4] regulates the role as a “general user who is the valid user of the user box.”
F.USER-BOX authorizes a user who starts a function to create a user box as a “general user
who is the valid user of the user box” for the creation of a user box.
Therefore, this functional requirement is satisfied.
• FPT_RVM.1
FPT_RVM.1 regulates support so that the TSP enforcement functions are always invoked
before each security function within the TOE is allowed to proceed.
F.ADMIN always
executes a function that identifies and authenticates the user who is accessing administrator
mode as the administrator before the security management function in administrator mode
becomes available to operate. In addition, the function to change the administrator mode
password provided by F.ADMIN executes a function to re-authenticate the administrator
before its execution is permitted. These authentication functions are the TSP enforcement
functions that are operated before each security function is allowed to proceed, and there is a
system so that they are always executed.
F.SECURE-PRINT always executes a function that identifies and authenticates a general
user who is the valid user of the secure print job information data, which is the subject of the
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
75/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
printing, before a secure print job information data is allowed to print. This identification and
authentication function is a TSP enforcement function that is operated before permission for
the print operation by the operation of the secure print job access control function, and it has
a system so that it is always executed.
F.SERVICE always executes a function that identifies and authenticates that the user who is
accessing the service mode is the service engineer, before the security management function
in the service mode becomes available to operate. In addition, the function to change the
service code provided by F.SERVICE executes a function to re-authenticate the service
engineer before the execution is permitted. These authentication functions are the TSP
enforcement functions that are operated before each security function is allowed to proceed,
and there is a system so that they are always executed.
F.USER-BOX executes a function that authenticates a general user who is the valid user of
the user box, before the downloading function of the user box data, and a function to change
the user box identifier and the user box password, which are security management functions
operated by the general user are allowed to execute. The authentication function for access to
the user box is a TSP enfocement function that is executed before each function is allowed to
execute, and it has a system so that they are always executed.
Therefore, each of the TSP enforcement functions are always invoked before each function,
wherein all of the identified TOE security functions are controlled, is allowed to proceed, and
therefore, this functional requirement is satisfied.
• FPT_SEP.1
FPT_SEP.1 regulates the maintenance of the security domains that protects it from
interference and tampering by untrusted subjects, and regulates the separation between the
security domains of subject.
With F.ADMIN, the security domain after the authentication of the administrators is
categorized in two ways, access from the panel and access from the client PC. Neither are
interfered with by an untrusted subject.
F.USER-BOX allows the receiving of access to the same user box by a multiplicity of users.
Nonetheless, the security domains maintained by each of the authorized valid users are
separated and therefore there is no interference
F.SERVICE does not receive any access from another subject while in service mode, which
is a security domain maintained after authentication by a service code.
Therefore, each of the security domains are not interfered with and thus, this functional
requirement is satisfied.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
76/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
8.3.2. Rationale for TOE security strength of function
The TOE security functions having a probabilistic/permutational mechanism are
(1) the administrator mode password authentication mechanism by F. ADMIN, (2) the
secure print password authentication mechanism by F.SECURE-PRINT, (3) the service
code authentication mechanism provided by F.SERVICE and (4) the user box password
authentication mechanism by F.USER-BOX. Each authentication mechanism has a
password space of (1) an 8-digit number, (2) a 4-digit number, (3) 8 digits of number or “#”
or “*,” and (4) 4 to 64 digit ASCII code 0x20 to 0x7E (95 types of characters), respectively,
and operates along with the access check function. (Three unsuccessful authentication
attempts lock the access. See Section 6.1 for details. Note, when the service code
authentication mechanism detects three unsuccessful trials it locks the access regardless of
the operation setting of the access check function.) Therefore, as claimed in Section 6.2, the
strength of function of the mechanisms adequately satisfies the SOF-Basic, and it is
consistent with the minimum strength of function: SOF-Basic that is claimed for the TOE
security functional requirement for the security strength of function, stipulated in item 5.1.2.
8.3.3. Mutually supported TOE security functions
The TOE security functional requirements that are satisfied by a combination of IT
security functions that are identified in the TOE summary specifications, are as shown in
the text regarding the rationale in the section of 8.3.1.2.
8.3.4. Rationale for assurance measures
The required document for the evaluation assurance level EAL3 is covered by the
reference document shown in the assurance measures described in Section 6.3. The TOE
security assurance requirements are satisfied through development, test conduction,
vulnerability analysis, the development environment control, configuration management,
life cycle management, and delivery procedures in accordance with the document provided
as the assurance measures, as well as the preparation of a proper guidance document.
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
77/78
Di3510 Series/Di3510f Series Multi Function Peripheral Security Kit, Security Target
8.4. PP claims rationale
There is no PP that is referenced by this ST.
~ LAST PAGE ~
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., All Rights Reserved
78/78
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
