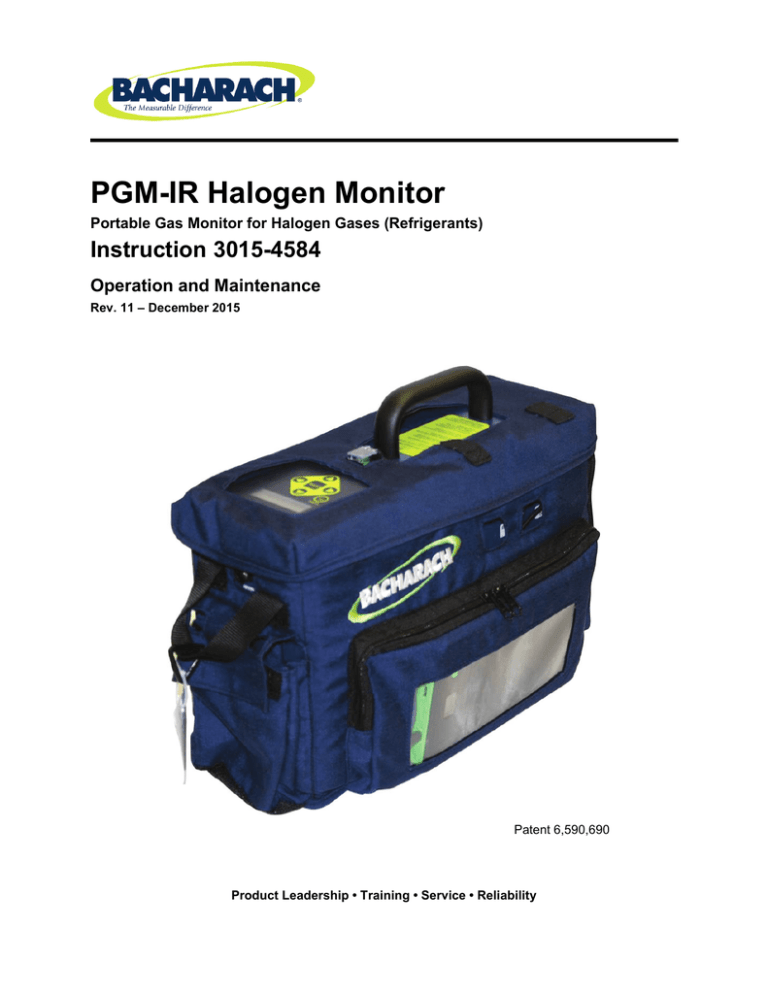

PGM-IR Halogen Monitor

Portable Gas Monitor for Halogen Gases (Refrigerants)

Instruction 3015-4584

Operation and Maintenance

Rev. 11 – December 2015

Patent 6,590,690

Product Leadership • Training • Service • Reliability

ii

Halogen Monitor

Instruction 3015-4584 Rev 11

Halogen Monitor

WARRANTY

Bacharach, Inc. warrants to Buyer that at the time of delivery this Product will be free from defects in material and manufacture and will conform substantially to Bacharach Inc.'s applicable specifications.

Bacharach's liability and Buyer's remedy under this warranty are limited to the repair or replacement, at

Bacharach's option, of this Product or parts thereof returned to Seller at the factory of manufacture and shown to Bacharach Inc.'s reasonable satisfaction to have been defective; provided that written notice of the defect shall have been given by Buyer to Bacharach Inc. within two (2) years after the date of delivery of this Product by Bacharach, Inc.

Bacharach, Inc. warrants to Buyer that it will convey good title to this Product. Bacharach's liability and

Buyer's remedy under this warranty of title are limited to the removal of any title defects or, at the election of Bacharach, to the replacement of this Product or parts thereof that are defective in title.

The warranty set forth in paragraph 1 does not apply to parts the Operating Instructions designate as having a limited shelf-life or as being expended in normal use (e.g., filters).

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND ARE GIVEN AND ACCEPTED IN LIEU OF (I)

ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE: AND (II) ANY OBLIGATION, LIABILITY, RIGHT, CLAIM OR REMEDY IN CONTRACT OR

TORT, WHETHER OR NOT ARISING FROM BACHARACH'S NEGLIGENCE, ACTUAL OR IMPLIED.

The remedies of the Buyer shall be limited to those provided herein to the exclusion of any and all other remedies including, without limitation incidental or consequential damages. No agreement varying or extending the foregoing warranties, remedies or this limitation will be binding upon Bacharach, Inc. unless in writing, signed by a duly authorized officer of Bacharach.

Register your warranty by visiting www.mybacharach.com

Product improvements and enhancements are continuous; therefore the specifications and information contained in this document may change without notice.

Bacharach, Inc. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Bacharach, Inc.

Copyright © 2015, Bacharach, Inc., all rights reserved.

BACHARACH

®

is a registered trademark of Bacharach, Inc. All other trademarks, trade names, service marks and logos referenced herein belong to their respective owners.

Instruction 3015-4584 Rev11 iii

Halogen Monitor

iv Instruction 3015-4584 Rev 11

Halogen Monitor

Instruction 3015-4584 Rev 11

Table of Contents

Table of Contents

1 INTRODUCTION ....................................................................................................................................... 1

1.1

How to Use This Manual ................................................................................................................ 1

1.2

Warning Statements ....................................................................................................................... 1

1.3

Caution Statements ........................................................................................................................ 1

1.4

Hazard Symbols on Monitor ........................................................................................................... 1

1.5

Safety Precautions ......................................................................................................................... 2

1.6

Unpacking and Initial Checks ......................................................................................................... 2

1.7

Shipping Precaution ....................................................................................................................... 3

1.8

Features and Capabilities ............................................................................................................... 3

1.9

Functional Overview ....................................................................................................................... 3

1.9.1

General Description ............................................................................................................ 3

1.9.2

Response to the Presence of Multiple Refrigerants ........................................................... 3

1.10

Specifications ................................................................................................................................. 4

2 OPERATION .............................................................................................................................................. 5

2.1

Front Panel Display & Controls ...................................................................................................... 5

2.2

Connecting Gas-Sample and Exhaust Lines ................................................................................. 5

2.2.1

Overview ............................................................................................................................. 5

2.2.2

Connecting the Gas-Sample Line ....................................................................................... 5

2.2.3

Connecting the Exhaust Line .............................................................................................. 6

2.3

General Operation .......................................................................................................................... 6

2.4

Time Weighted Average (TWA) Operation .................................................................................... 7

2.4.1

Overview ............................................................................................................................. 7

2.4.2

Starting a New or Continuing TWA/twa .............................................................................. 7

2.5

Peak Reading Operation ................................................................................................................ 8

2.6

Leak Detector Operation ................................................................................................................ 8

2.7

Standby Mode ................................................................................................................................ 8

2.8

Battery – Charging and Using ........................................................................................................ 8

2.8.1

Charging the Battery ........................................................................................................... 8

2.8.2

Using the Battery ................................................................................................................. 9

2.9

Display Screens .............................................................................................................................. 9

2.9.1

Initial Power Up ................................................................................................................... 9

2.9.2

Filling the Purge-Air Bag ..................................................................................................... 9

2.9.3

Data Display Screen ......................................................................................................... 10

2.9.4

Function Screens .............................................................................................................. 10

2.10

Gas Alarm ..................................................................................................................................... 12

2.10.1

Gas-Alarm Light ................................................................................................................ 12

2.10.2

Silencing a Gas Alarm....................................................................................................... 13

2.10.3

Viewing the Gas Alarm Log .............................................................................................. 13

2.11

System Faults ............................................................................................................................... 13

2.11.1

Functional Overview.......................................................................................................... 13

2.11.2

Clearing / Silencing a Fault Alarm ..................................................................................... 13

2.11.3

Viewing the Faults Log ...................................................................................................... 14

2.11.4

Fault Codes ....................................................................................................................... 15

2.12

Clearing the PPM, Alarms and Faults Data ................................................................................. 15

2.13

The DIAG Function ....................................................................................................................... 16

2.13.1

Overview ........................................................................................................................... 16

2.13.2

Keypad Functions ............................................................................................................. 16

2.13.3

First Diagnostic Screen ..................................................................................................... 16

2.13.4

Second Diagnostic Screen ................................................................................................ 16

2.14

The Calibration Function .............................................................................................................. 17

2.14.1

Calibration Procedure ....................................................................................................... 17

2.14.2

Adjusting Calibration Factor .............................................................................................. 17

2.15

The P-CHK Function .................................................................................................................... 17

2.15.1

Overview ........................................................................................................................... 17

2.15.2

Keypad Functions ............................................................................................................. 17

2.15.3

Screen Display .................................................................................................................. 18

2.16

Print/Plot Logged Gas Levels ....................................................................................................... 18

2.17

Downloading Stored Data to a Personal Computer ..................................................................... 19

v

Table of Contents Halogen Monitor

2.18

Importing Saved Data to a Spreadsheet ...................................................................................... 21

3 MAINTENANCE ...................................................................................................................................... 23

3.1

Disassembly ................................................................................................................................. 23

3.2

Internal Particulate/Hydrophobic Filter Replacement ................................................................... 24

3.3

Updating Firmware ....................................................................................................................... 24

4 PARTS AND SERVICE ........................................................................................................................... 25

4.1

Replacement Parts ....................................................................................................................... 25

4.2

Optional Accessories .................................................................................................................... 25

4.3

Service Centers ............................................................................................................................ 25

Declaration of Conformity ........................................................................................................................ 26

vi Instruction 3015-4584 Rev 11

Halogen Monitor

1 Introduction

Introduction

1.1 How to Use This Manual

This manual provides important information on how to operate and service Bacharach’s Refrigerant

Monitor.

To assure operator safety and the proper use of the monitor, please read, understand, and follow the directions in this manual.

If you have a working knowledge of gas monitors, you will find this manual useful as a reference tool. If you are new to the use of gas monitors, you can educate yourself about the principles of gas detection and the proper operation of this device by reading this manual thoroughly.

1.2 Warning Statements

The use of the word WARNING in this manual denotes a potential hazard associated with the use of this equipment. It calls attention to a procedure, practice, or condition, or the like, which if not correctly performed or adhered to, could result in personal injury or death.

1.3 Caution Statements

The use of the word CAUTION in this manual denotes a potential hazard associated with the use of this equipment. It calls attention to a procedure, practice, condition, or the like, which if not correctly performed or adhered to, could result in damage to the equipment.

1.4 Hazard Symbols on Monitor

This symbol indicates the need to consult this operating instruction manual when opening the enclosure.

WARNING: A potential risk exists if the operating instructions are not followed.

This symbol indicates the presence of electric shock hazards when the enclosure is opened.

WARNING: To avoid risk of injury from electric shock, do not open the enclosure when power is applied.

Instruction 3015-4584 Rev 11 1

Introduction

1.5 Safety Precautions

Halogen Monitor

HAZARDOUS AREA WARNING: This instrument has not been designed to be intrinsically safe for use in areas classified as hazardous locations. For your safety,

DO

NOT

use it in hazardous (classified) locations.

COMBUSTIBLE/FLAMMABLE GAS WARNING: This is NOT a safety device. Some gases which this instrument can detect may be combustible/flammable. When properly configured, this instrument is designed to alarm at concentrations that are lower than the explosive limit of the gas. As such, it is the buyer’s responsibility to initiate an immediate planned response to any gas leaks as soon as they are detected. This equipment should

NEVER be used to measure or sample gases at or above their respective lower explosive limits.

WARNING: Do not operate this equipment in the presence of flammable liquids, vapors or aerosols. Operation of any electrical equipment in such an environment constitutes a safety hazard.

CAUTION: The protection provided by the monitor may be impaired if the monitor is used in a manner not specified by these instructions. Changes or modifications to this monitor will void the warranty.

IMPORTANT: This device is designed for operation at or below an altitude of 6,562 ft

(2,000 m). Do not operate this device above this altitude limit.

NOTE: To clean the outside of the case use a dry cloth. DO NOT use soap and water.

1.6 Unpacking and Initial Checks

Your Refrigerant Monitor was carefully inspected at the factory before shipment, and packed so as to be highly resistant to damage while in transport. When you receive the instrument, however, please unpack it promptly and make a visual inspection to make sure that no damage has occurred during shipment.

Also check that all the following items have been received.

Item

Refrigerant Monitor

External Filter Assembly

Soft Carrying Case with Shoulder Strap

Battery Pack & Charger

Stainless Steel Probe

Instruction Manual

Elbow

Tubing (3 ft)

1

1

1

1

Qty

1

1

1

1

Part Number

3015-4484

3015-5324

3015-5700

3015-5743

3015-5326

3015-4584

3015-3234

0003-6182

If damage was found, immediately file a claim with the carrier. If an item is missing, please contact

Bacharach’s Service Department for assistance (refer to Section Service Centers).

2 Instruction 3015-4584 Rev 11

Halogen Monitor Introduction

1.7 Shipping Precaution

When shipping the instrument by air, deflate the purge-air bag to prevent it from bursting due to changes in air pressure. Deflate the bag by selecting the

EMTYBAG function as described on page 10.

1.8 Features and Capabilities

Detects and measures CFC, HCFC, HFC and halogen gases

Measures all gases up to 10,000 ppm with a sensitivity of 1 ppm

Automatically logs up to 200 gas readings that can be recalled later for analysis

Eliminates false alarms with use of non-dispersive IR source and sample draw system

Visual and audible gas alarm indictors that are turned ON when the detected gas level exceeds a user defined trip-point

Extensive self diagnostics, providing both visual and audible indications when a fault occurs

Battery powered, providing a minimum of 8 hours of operation

1.9 Functional Overview

1.9.1 General Description

The Bacharach Refrigerant Monitor is a portable refrigerant gas monitor. The unit is designed to test for a specific refrigerant gas for the purpose of determining the presence and level of that gas being tested.

The monitor self-zeros every 4 minutes to ensure accurate gas measurements.

During normal operation the HM unit displays the type of gas being monitored; along with displaying both the current gas level and the peak gas level detected in that area on its front panel LCD. The monitor retains a log of previous readings that can be easily accessed at a later time for analysis.

Front panel indicators and an audible alarm are provided to signal gas alarm and instrument fault conditions. The audible alarm can temporarily be silenced by a push of a button, but will reactivate if the gas level is still above the alarm trip point after a user defined time period has elapsed.

The HM unit requires only minor periodic maintenance such as the occasional replacement of filters. The monitor incorporates active diagnostics that continuously check the system for proper operation. A front panel indicator is provided to alert an operator of system malfunctions, and fault codes are generated that enable the operator to identify the cause of the fault.

1.9.2 Response to the Presence of Multiple Refrigerants

The HM is a refrigerant level monitor, not a gas analyzer. You must program the monitor to test for a specific refrigerant, and it will only return accurate concentration readings for that particular refrigerant.

When other types of refrigerant gas are present, the monitor may return incorrect readings.

Most applications only require detection of a single refrigerant and the problems that are associated with monitoring multiple gases are rarely an issue. If there is a possibility of multiple refrigerants leaking in the same sampling zone, then you should carefully consider which refrigerant compound you program the unit to monitor.

Instruction 3015-4584 Rev 11 3

Introduction Halogen Monitor

1.10 Specifications

Product Type ......................... Portable refrigerant gas monitor

Gas Library:

CFC:

HFC:

HCFC:

HALON:

Other:

R-11, R-12, R-113, R-114, R-502, HFP

R-404a (HP62), R-407a, R-407c (AC9000), R-134a, R-410a (AZ20),

R-507 (AZ50), R-508b (SUVA95), R236FA, R125, R245Fa, R422a, R422d,

R427a, R424a, R426a and R438a

R-22, R-123, R-124, R-500, R-503, R-401a (MP39), R-402a (HP80), R-402b

(HP81), R-408a, R-409a, R-23, R21, R227

H1301,H2402, H1211

FA188, FC72, N1230 , H1234YF, H1234ZE, N7000, N7200, N7300, N7600

Measuring Range .................. All gases 0 to 10,000 ppm

Warm-Up Time ...................... 5 minutes (300 seconds)

Detector Type ........................ Infrared, Non-Dispersive

Sensitivity .............................. 1 ppm

Accuracy................................ ±1 ppm ±10% of reading from 0-1000 ppm

(For R11, R22, R113: ±10 ppm ±15% of reading from 0-1000 ppm)

Response Time ..................... 90% of response within 5 seconds; 100% in 7 seconds

Temperature Drift .................. 1.5 ppm per °C between purge cycles

System Noise ........................ Less than 40dB (A) at 10 ft (3 m)

Operating Temperature ......... 32 to 122°F (0 to 50°C)

Ambient Humidity .................. 5 to 90% RH (non-condensing)

Altitude Limit .......................... 6,562 ft (2,000 m)

Power .................................... DC power pack, provides a minimum of 8 hours of operation

Power Consumption .............. 15 Watts maximum

Front panel ............................ 3 indicator lights:

ON Green LED flashes during warm-up, then glows steadily during normal operation

FAULT Yellow LED flashes when there is a system fault

ALARM Red LED flashes when the gas level is above its alarm setting

Audible Alarm ........................ Internal audible alarm programmable for any of the following conditions:

OFF, FAULT/ALARM, ALARM

Dimensions (D x L x W)......... 9.0 x 14.5 x 5.0 inches (229 x 368 x 127 mm)

Weight ................................... Less than 9 lbs (4 kg) including battery

Valid Calibration Period to Specifications .................... 12 months

Warranty ................................ 2 years from date of shipment

4 Instruction 3015-4584 Rev 11

Halogen Monitor

2 Operation

2.1 Front Panel Display & Controls

Operation

2.2 Connecting Gas-Sample and Exhaust Lines

2.2.1 Overview

A single gas-sample line needs to be run from the HM unit to the area to be monitored. An optional purgeair line can also be installed to bring fresh air into the monitor for the purpose of resetting its infrared detector to a baseline of 0 ppm during the purge cycle. Also, an optional exhaust line can be installed to vent refrigerant gas away from the monitor.

2.2.2 Connecting the Gas-Sample Line

To connect the gas-sample line to the monitor, simply push the tubing onto the elbow connector and attach the elbow onto the Gas Sample Port on the front of the monitor as shown in the illustration below.

The gas-sample line can be up to 50 ft (15.2 m) in length. All tubing bends should have a radius of no less than 5” to ensure proper airflow. If kinks or obstructions occur in the line the monitor may not function properly.

The end of this line should be placed near the potential leak source and positioned to reduce the possibility of mists, aerosols, oil, water, dust, or other contaminates being drawn into the monitor.

An external filter (P/N 3015-5324) should be attached to the end of this line (see figure below).

Instruction 3015-4584 Rev 11 5

Operation Halogen Monitor

2.2.3 Connecting the Exhaust Line

The exhaust line carries the exhausted gas sample away from the monitor, and is required if the monitor is located in a confined, poorly ventilated area.

The exhaust line can be up to 50 ft (15.2 m) in length. Ideally this line should terminate outdoors in a location that is not exposed to the elements.

Connect the exhaust line to the monitor by firmly pushing the tubing into the Exhaust Port’s push-toconnect (PTC) fitting. See below. If the exhaust line terminates outside the building, position the tubing so that no water or moisture can enter the line. Note that this line does not require a termination filter.

To connect the exhaust line to the exhaust port’s PTC fitting, firmly push the appropriate tubing into the hole in the center of the connector until it seats in the connector. Refer to the figures at the left.

To remove tubing from a PTC connector, push and hold the spring-loaded collar inwards, then simultaneously withdraw the tubing. Refer to the figures at the right.

6

2.3 General Operation

WARNING: Operate the monitor in its horizontal position (handle facing upwards). Tilting the

monitor to a vertical position while in operation may cause inaccurate measurements to occur.

To turn ON the monitor, lift up the shield located in front of the handle and press the red power ON/OFF toggle switch.

When the monitor has been powered ON, allow it to warm up for 5 minutes.

MEASURE 00020pk

10ppm R134A

MEASURE indicates when the monitor is actively measuring gas. The screen to the left shows that currently 10 ppm of R-134A refrigerant gas is being detected, and that a peak measurement of 20 ppm has been made.

The operator can reset the peak value to zero by pressing the ENTER button. The measurement cycle runs for 4 minutes. A log of up to 200 previous measurements can be viewed using the PPM LOG function (page

10).

Instruction 3015-4584 Rev 11

Halogen Monitor Operation

PURGE 00020pk

10ppm R134A

PURGE indicates when the monitor is resetting its infrared detector to a baseline of 0 ppm. The purge cycle runs for 10 seconds.

If the detected gas level exceeds a preset gas-alarm point, the unit will respond by turning ON the front panel ALARM (red) light. If the AUDALRM function is activated (page 11), the audible alarm will also turn

ON. Pressing the front panel SILENCE button turns OFF the audible alarm, but the ALARM light will continue to flash as long as the detected gas level is above the alarm point. The audible alarm will reactivate if the gas-alarm condition is not cleared within the time period set by the

SILENCE

function (page 11).

If a system fault occurs (see Fault Code list on page 15), the monitor responds by turning ON the front

panel FAULT (yellow) light. If the AUDALRM function is activated (page 11), the audible alarm will also turn ON. Pressing the front panel SILENCE button turns OFF the audible alarm, but the FAULT light will continue to flash as long as the fault is present. The audible alarm will reactivate if the fault condition is not cleared within the time period set by the

SILENCE function (page 11). Both the FAULT light and

audible alarm will automatically turn OFF after the cause of the fault has been eliminated.

A log of the last 30 fault events can be viewed using the monitor’s FAULTS function (page 10).

2.4 Time Weighted Average (TWA) Operation

2.4.1 Overview

In addition to displaying the current gas level, the monitor can also calculate and display a Time Weighted

Average ppm value. This value is available in two formats (8 Hour or Continuous). This provides users with the most appropriate data on their average ppm exposure in the working environment.

TWA operation is selected by using the

2ndUNIT function.

The two TWA formats are identified by the appearance of either “TWA” or ‘twa” in the upper-right corner of the Data Display screen.

TWA (upper case letters) is calculated over an 8-hour period. This format is designed to show the uers’s average ppm exposure level during a typical work day. After 8 hours has expired, an asterisk (*) will be displayed but the TWA will continue to be updated.

PURGE 00TWA

100ppm R134A

twa (lower case letters) is continuously calculated over the operating time of the monitor. This mode is useful for monitoring an area for a few minutes or more and is the preferred mode of operation for checking operating room atmospheres.

PURGE 00twa

100ppm R134A

2.4.2 Starting a New or Continuing TWA/twa

When the monitor is turned ON the following message appears if the monitor is set up to display

TWA/twa.

PRESS ENTER FOR

NEW TWA/twa

Press either . . .

ENTER to start a new TWA/twa

ESC to continue with the current TWA/twa.

Tip: If NO button is pressed within 60 seconds the monitor automatically continues

with the current TWA/twa.

Instruction 3015-4584 Rev 11 7

8

Operation Halogen Monitor

Note: During the time the monitor is OFF, the gas measurement is assumed to be

zero and will be factored into the TWA/twa calculation.

After selecting whether to start or continue a TWA/twa, the next screen shows the current elapsed

TWA/twa time.

ELAPSED TWA TIME

IS xx MINUTES

Where: xx is the accumulated time used by the monitor in calculating the TWA/twa.

2.5 Peak Reading Operation

In addition to displaying the current halogen level, the monitor can also be set up to display its peak ppm measurement. The peak reading display is selected by using the 2ndUNIT function.

PURGE 00020pk

10ppm R31A

The display above shows that currently the monitor is detecting 100 ppm R31A and that a peak measurement of 500 ppm has occurred.

The peak reading is reset by pressing the ENTER button.

2.6 Leak Detector Operation

The monitor can be configured to operate as a Leak Detector by setting the AUDALRM function (page

11) to LEAK DETECTOR.

When configured as a Leak Detector, the monitor will produce a leak detector type of audible feedback.

At zero ppm there will be a tic every 2 seconds with the tic rate increasing up to 20 tics/second when the ppm level reaches the

ALRMLVL setting.

2.7 Standby Mode

After becoming operational, the monitor can be placed into a Standby Mode. When taken out of standby the monitor is ready for operation without waiting an additional 15 minutes to warm up. While in standby the monitor will stop taking gas samples and stops purging itself from the purge-air bag.

Place the monitor into its Standby Mode by pressing both the ENTER and ESC buttons at the same time.

STAND BY

Take the monitor out of standby by again pressing both the ENTER and ESC buttons.

2.8 Battery – Charging and Using

IMPORTANT: If you replace the original PGM-IR battery, refer to the installation instructions included in the replacement kit, as the new replacement battery and cable may differ from the original cable and battery.

IMPORTANT: Cables and sockets are sized appropriately. As general rules of thumb:

• Note the initial orientation of your power cable, and

Never force a connector into a socket.

2.8.1 Charging the Battery

The monitor is powered by a rechargeable battery pack located in a pouch on the side of the monitor’s soft carrying case. The battery pack can be recharged at any time, regardless of the battery’s current

Instruction 3015-4584 Rev 11

Halogen Monitor Operation

charge state. The lithium-ion battery will likely be partially charged. However, you should fully charge the battery prior to operating the PGM-IR. Refer to the battery manufacturer’s instruction sheet for the proper charging procedure.

2.8.2 Using the Battery

To properly use the battery, follow the steps below.

1. The PGM-IR is designed for a 16VDC input. Set battery voltage output to 16V (refer to the battery manufacturer’s instruction sheet for details).

2. The battery pack provided with your PGM-IR uses a power cable with a straight connector and a

90-degree elbow connector. The battery provided with your PGM-IR may differ slightly from the photos shown in this manual, however, the 90-degree elbow connector must ALWAYS be the connector used to supply power to the PGM-IR. Refer to the figure below.

To PGM-IR

3. Ensure that the battery is powered ON per the instruction label on the battery pack.

4. Verify that the battery is properly connected to the PGM-IR (see above).

A fully charged battery pack will power the monitor for a minimum of 8 hours.

2.9 Display Screens

2.9.1 Initial Power Up

When the monitor is first powered up, all front panel lights turn ON and a splash screen appears showing the monitor’s current firmware revision level. After a brief moment the Warm Up screen is displayed along with the front panel ON light (green) blinking.

FIRMWARE

VERSION x.xx

WARM UP

The monitor requires 5 minutes to warm up; after which, the ON light glows steadily and the Data Display screen is displayed.

If the monitor is turned OFF and then turned back ON, the latter warm-up time may be less than

15 minutes depending on the temperature of the IR detector.

2.9.2 Filling the Purge-Air Bag

CAUTION: Fill the purge-air bag in a clean, fresh-air environment that is at the same temperature and humidity as the area being checked for gas. DO NOT fill the bag in an area that is contaminated with gas.

The following message is displayed and an audible alarm is sounded when the monitor’s purge-air bag is empty. This message appears immediately after warm-up, and approximately every 40 minutes during normal operation. Press the ENTER button to start the refill process.

Instruction 3015-4584 Rev 11 9

Operation Halogen Monitor

PURGE AIR EMPTY

<ENTER> TO FILL

RECHARGING PURGE

AIR...

After the air bag has been filled, the monitor starts or resumes normal operation by displaying the

Data Display screen.

2.9.3 Data Display Screen

MEASURE 00020pk

10ppm R134A

PURGE 00020pk

10ppm R134A

During normal operation, the Data Display screen shows when the monitor is performing the following two functions:

MEASURE indicates that the monitor is actively measuring gas. In the screen shown above, 10 ppm of

R-134A gas is currently being detected, and that a peak measurement of 20 ppm has occurred sometime in the past. The measurement cycle runs for 4 minutes.

To reset the peak value to zero, press the ENTER button.

2.9.4 Function Screens

The Function

screens are used to set up the monitor and display stored data.

From the Data Display screen, press both the Keypad Left and Right buttons at the same time to display the first Function Menu screen. Next, use the Keypad buttons to move the arrow (>) until it points to the desired function, and then press the ENTER button to select that function.

>FILLBAG EMTYBAG

ALRMLVL AUDALRM

>2ndUNIT PRINT

PLOT PC-DUMP

>PPM LOG LOG INT

FAULTS DIAG

>SILENCE P-CHK

GAS CLOCK

Once a function has been selected, use the

Keypad to scroll through the displayed data or to change a parameter associated with that function. Press ENTER to save any newly entered parameters. Press the

ESC button to return to the previous screen without saving.

Note that if no buttons are pressed within 90 seconds after selecting a function, the unit returns to the

Data Display screen.

FILLING BAG...

FILLBAG

– Press ENTER to manually fill the purge-air bag.

WARNING: Fill the purge-air bag in a clean, fresh-air environment that is at the same temperature and humidity as the area being checked for gas. DO NOT fill the bag in an area that is contaminated with gas.

EMTYBAG

– Press ENTER to manually empty the purge-air bag. Use this function to drain the bag if it becomes contaminated with gas.

DRAINING BAG...

ALRMLVL

– Detected gas level that causes the front panel ALARM

(red) light to turn ON and the audible alarm to sound (if AUDALRM function is set to ALARM or ALARM/FAULT).

EDIT ALARM LEVEL

300 ppm

10 Instruction 3015-4584 Rev 11

Halogen Monitor Operation

AUDALRM

follows:

– The internal audible alarm is programmable to function as

AUDIBLE ALARM IS

ALARM

OFF – Audible alarm is disabled.

ALARM – Alarm sounds when detected gas level exceeds the

ALRMLVL level as evidenced by the front panel ALARM (red) light turning ON.

ALARM/FAULT – Alarm sounds when either the detected gas level exceeds the ALRMLVL value, or if a system fault occurs, as evidenced by the front panel ALARM (red) light or FAULT (yellow) light turning ON.

LEAK DETECTOR – When selected, the monitor will produce a leak detector type of audible feedback. At zero ppm there will be a tic every 2 seconds with the tic rate increasing up to 20 tics per second when the ppm level reaches the ALRMLVL setting.

TWA ALARM – Audible alarm sounds when the TWA or twa, whichever is selected by the 2ndUNIT

Function, exceeds the ALARMLVL value.

The audible alarm can be temporarily silenced by pressing the SILENCE button.

PPM LOG

– Contains records of the last 200 measurements. Each record shows the measurement’s date, time, and ppm level.

Measurements are logged at an interval determined by the

LOG INT

function. After all 200 locations are filled the newest entries overwrite the oldest entries.

Use the Keypad Up and Down buttons to change the record number by a factor of 1. Use the Right and Left buttons to change the record number by a factor of 10. Press ESC to return to the previous screen.

To the right, record #025 shows that a gas level of 7 ppm was measured on 07/11/2005 at 3:35 PM.

The PPM Log can be cleared using the information discussed in

Clearing the PPM, Alarms and Faults Data on page 15.

LOG INT

– Sets the interval at which measurements are logged to memory from 1 to 9999 minutes. Factory default is 1 minute. The logged measurements can be viewed using the PPM LOG function.

Use the Keypad to enter the desired value, and then press ENTER to save that value and return to the previous screen.

#025 7PPM @

07/11/05 15:35

LOG INTERVAL IS

0001 min

FAULTS

– Contains records of the last 30 fault events. The most recent event is displayed when the

Fault screen is first displayed. After

30 events have been recorded, the newest record overwrites the oldest. Each record lists an event’s numeric fault code (refer to Section

2.11.4 Fault Codes on page 15) plus the date and time at which the

event occurred. Use any of the Keypad buttons to scroll through the other fault events. Press ESC to return to the previous screen.

To the right, record #15 shows that a Purge Flow Fault (fault code

<1000>) occurred on 07/11/2005 at 12:37 PM.

DIAG

– Enters the diagnostic function. Refer to Section 2.13.

#15 <1000> @

07/11/05 12:37

4.2159v <0000>

29.05cD 14.58psi

SILENCE

– Sets the length of time the internal audible alarm is turned

OFF when the front panel SILENCE button is pressed. The factory default is 30 seconds. If the cause of the gas-alarm has not been cleared at the end of this time period, the internal audible alarm will reactivate. Use the

Instruction 3015-4584 Rev 11

SILENCE TIMEOUT

0030 sec

11

Operation

Keypad to enter the desired time period, and then press ENTER to save that value and return to the previous screen.

P-CHK

– The Pressure Check function displays the current manifold pressure and the stored ambient pressure in psia, along with the difference between these two pressures and the current fault code.

Refer to Section 2.15.

Halogen Monitor

14.07 * AMB14.05

-0.02dif <1000>

GAS

Used to select one of any of the gas types available for monitoring. Factory default is R-134A. Note that the factory can program a custom gas type as specified on the sales order. Use the

Keypad to select the desired gas type, and then press ENTER to save the selection and return to the previous screen.

CLOCK

– Sets the monitor’s date and time. Use the Keypad to enter the correct date and time, and then press ENTER to save those values and return to the previous screen. Note that time is displayed in a

24 hour format, while the date is displayed as mm/dd/yy.

SELECT GAS TYPE

R134A

SET DATE & TIME

07/11/05 15:30

2ndUNIT

– One of following second measurements can be selected to appear in the upper-right hand corner of the Data Display Screen:

NONE – Blank

Peak PPM – Peak gas reading

Cont twa – Time Weighted Average calculated on a continuous basis

8hr TWA – Time Weighted Average calculated over an 8 hour period

MEASURE 00500pk

100ppm SF6

PRINT

– Refer to Section 2.16 Print/Plot Logged Gas Levels on page 17.

PLOT

– Refer to Section 2.16 Print/Plot Logged Gas Levels on page 18.

PC-DUMP

– A personal computer can be connected to the monitor’s

DB9 RS-232 connector for the purpose of downloading logged ppm measurements. These measurements can later be analyzed using any

common spreadsheet program. Refer to Section 2.17 Downloading

Stored Data to a Personal Computer on page 19 for detailed instructions

on how to transfer stored data to a personal computer.

2ndUNI >PRINT

PLOT PC-DUMP

2ndUNIT PRINT

>PLOT PC-DUMP

2ndUNIT PRINT

PLOT >PC-DUMP

2.10 Gas Alarm

2.10.1 Gas-Alarm Light

If the detected gas level reaches one the gas-alarm levels as set by the LEAKLVL, SPILLLVL, or

EVACLVL functions, the front panel ALARM light will flash and the audible alarm, if activated (refer to

AUDALRM function page 11), will start beeping. The ALARM light and audible alarm will automatically

turn OFF once the detected gas level drops below the gas-alarm level.

12 Instruction 3015-4584 Rev 11

Halogen Monitor Operation

2.10.2 Silencing a Gas Alarm

Pressing the

SILENCE button while the alarm circuit is activated causes the internal audible alarm to turn

OFF for a period of time as set by the

SILENCE function (page 11). The front panel ALARM light will

continue to flash, however, as an indication that an alarm condition still exists. The audible alarm will reactivate at the end of the silence period if the detected gas level is still above the gas-alarm level.

2.10.3 Viewing the Gas Alarm Log

From the Data Display screen, press any of the Keypad buttons to display the first Function Menu screen. Next, use the Keypad buttons to move the arrow (>) until it points to the ALARMS function, and then press the ENTER button to display the Alarm Log screen.

The alarm log shows the type of alarm (LEAK, SPILL, or EVAC), plus the date and time it occurred. If

CLEAR is displayed, this indicates that an alarm was acknowledged at the date and time shown.

Immediately after selecting the ALARMS function, the most recent alarm event is displayed. In the example to the right, record #03 shows that a

Spill Alarm occurred on 06/10/05 at 15:06. Note that if more than 30 alarm events have occurred, then the newest event overwrites the oldest.

#03 SPILL @

06/10/05 15:06

Note that the Alarm Log can be cleared as described in Section Clearing PPM, ALARMS & FAULTS Data

(page 15).

2.11 System Faults

2.11.1 Functional Overview

If a system malfunction occurs (see Fault Code list, page 15), the front panel

FAULT light will flash and the audible alarm, if activated (refer to

AUDALRM function page 11), will start beeping.

2.11.2 Clearing / Silencing a Fault Alarm

The FAULT light and audible alarm will automatically turn OFF after the cause of the fault has been eliminated.

Pressing the SILENCE button while a fault condition still exists causes the internal audible alarm to turn

OFF for a period of time as set by the

SILENCE function (page 11). The front panel FAULT light will

continue to flash, however, as a reminder that a fault condition still exists. The audible-alarm circuit will reactivate at the end of the silence period if the cause of the fault has not been corrected.

Instruction 3015-4584 Rev 11 13

Operation Halogen Monitor

2.11.3 Viewing the Faults Log

From the

Data Display screen, press any of the Keypad buttons to display the first Function Menu screen. Next, use the Keypad buttons to move the arrow (>) until it points to the FAULTS function, and then press the ENTER button to display the Faults Log screen.

#03 <0800> @

07/11/05 08:17

#04 <0000> @

07/11/05 09:00

The Faults Log screen shows the monitor’s current fault status. If the fault is still present when the

FAULTS function is selected, then the current cause of the fault is displayed along with the date and time it occurred. If the cause of the fault has been cleared, then the Faults Log screen will show <0000> along with the date and time the fault was cleared. Use the

Keypad buttons to scroll through the fault log. In the screens shown to the left, record #03 shows that a Sample Flow Fault

(fault code <0800>) occurred on 07/11/05 at 08:17, while record #04 shows that the fault was cleared on 07/11/05 at 9:00.

FAULT CODE<1800>

12 SAMPLE FLOW

FAULT CODE<1800>

13 PURGE FLOW

The cause of the fault is identified by a numeric fault code. To convert the fault code into a text description of the fault, first press the ENTER button and then use the Keypad buttons to scroll through the display until the text description of the fault appears. If the fault code is a combination of two or more faults, then continue to use the Keypad buttons until all fault text descriptions have been displayed. For example, the fault code <1800> represents the combination of both a Sample Flow

<0800> and a Purge Flow <1000> fault as shown to the left.

The Fault Log can be cleared as described in Clearing the PPM, Alarms

and Faults Data on page 15.

14 Instruction 3015-4584 Rev 11

Halogen Monitor Operation

2.11.4 Fault Codes

FAULT CODES ARE ADDITIVE. For example: A fault code of <0003> indicates that both a Box

Temperature Fault <0001> and a Bench Temperature Fault <0002> have occurred.

Code Fault Name

<0001>

<0002>

<0004>

<0020>

Box Temperature

Fault

Bench Temperature

Fault

Manifold Pressure

Fault (Sensor 1)

Manifold Pressure

Fault (Sensor 2)

Description

Enclosure temperature is outside normal range (or IR detector has failed).

Check that the monitor is not being subjected to extreme temperatures. Use the

DIAGNOS

function to check the Box Temperature.

Optical bench is outside normal operating range (or IR detector has failed).

Check that the monitor is not being subjected to extreme temperatures.

The manifold pressure is outside its normal operating range (or IR detector has failed). Enter the

DIAGNOS

function and record ALL data. Call the factory with this information for further instructions.

See fault code <0004>.

<0040> Fill Flow Fault

<0080> Over Range Fault

<0100> Zero Filter Fault

<0200> Gain Set Fault

<0400> A/D Fault

<0800> Sample Flow Fault

<1000> Purge Flow Fault

The purge-air bag’s pressure drop is outside expected limits. Check for a punctured bag or disconnected tubing.

Monitor exposed to a gas level that exceeded 65,000 ppm.

The purge-air bag is contaminated with gas. Take monitor to a clean-air area and use the EMPTYBAG and FILLBAG functions to decontaminate the purgeair bag. If an external filter is used, it may need to be replaced.

The digipot autotune sequence has failed. This fault will only occur on first boot up or after a firmware upgrade. Call the factory for further instructions.

A fault has occurred in the analog-to-digital circuitry. Contact the factory with this information for further instructions.

Check for: A restriction in the gas-sample inlet or exhaust; a blocked internal filter; or a failed pump.

Check for: A restriction in the gas-sample exhaust; a blocked internal filter; or a failed pump. Once the purge air stream has been restored, the monitor will return to normal operation after it completes a purge cycle.

<2000> Bag Fill Fault

<4000> Zero Range Fault:

The purge-air bag did not fill within the expected time allotment. Check for a punctured bag or disconnected tubing.

The IR detector’s output voltage is out of tolerance. Enter the

DIAGNOS

function and record all data. Call the factory with this information for further instructions.

<8000> Clipping Fault

The detector voltage may be out of tolerance. Use the

DIAGNOS

function to check the IR detector voltage. Call the factory with this information for further instructions.

2.12 Clearing the PPM, Alarms and Faults Data

Up to 200 gas measurements and 30 alarm and fault events are stored by the monitor.

To clear stored data, first display the data to be cleared by selecting the

PPM LOG, ALARMS or FAULTS function. Next, press both the ENTER and Keypad Right buttons at the same time. A single, long tone should be heard when the data has been successfully cleared.

Instruction 3015-4584 Rev 11 15

Operation

2.13 The DIAG Function

Halogen Monitor

2.13.1 Overview

The

DIAG function displays sensor data and status information useful to a service technician for troubleshooting various fault conditions. Explanations of the data shown in these screens are given below.

2.13.2 Keypad Functions

From the

Data Display screen, press any one of the Keypad buttons to display the first Function Menu screen. Next, use the Keypad buttons to move the arrow (>) until it is next to the DIAG function, and then press ENTER to display the first of two Diagnostic screens.

Press the Keypad Up button to toggle between the First and Second Diagnostic screen.

2.13.3 First Diagnostic Screen

4.20885v <0000>

29.05cD 14.58psi

Bench Voltage Fault Code

Detector Temperature °C ∗ Pressure Reading

0.00075n <0000>

Noise Fault Code

35.40cB 14.59psi

Box Temperature °C ∗ Pressure Reading

In the First Diagnostic screen, the user can toggle between displaying Bench Voltage / Detector

Temperature, and Noise / Box Temperature by pressing the Keypad Right button.

Bench Voltage – This is the current peak-to-peak output of the IR detector. In the absence of gas this value can range from 3.90000V to 4.50000V.

Noise –The Noise value is a 16 point running average of the noise portion of the IR detector’s output.

This reading is valuable mainly when gas is NOT present.

Detector Temperature – This is the current detector temperature in °C.

Box Temperature – This is the current internal enclosure temperature in °C.

Fault Code – Current fault code. A value of <0000> indicates that no faults are being detected.

Pressure Reading – This is the pressure as measured every purge cycle with the sample pump off and the gas-sample inlet open. Its value is weather and altitude dependent and can range from 10.0 to

15.5 PSIA.

Purge Valve Asterisk () – The purge valve can be opened and closed by pressing the Keypad Left button. An asterisk appears on the display when the purge valve is open causing the monitor to draw air from its purge-air port.

2.13.4 Second Diagnostic Screen

0.1ppm 0.01

0.00004au 4.210v

PPM Level µMole/Liter

Avg. Absorption Unit ∗ Detector Voltage

PPM Level – Parts Per Million Level is the current detected gas level, and is the volume concentration referenced to standard temperature and pressure.

Average Absorption Unit – This is the optical absorbency. In the absence of gas the absorbency is

0.00000 au. When sampling gas, its value varies proportionally with the gas concentration.

µMoles/Liter – This is the absolute concentration in micro-moles per liter of gas.

Detector Voltage – This is a running average of the IR detector’s bench voltage.

Purge Valve Asterisk () – The purge valve can be opened and closed by pressing the Keypad Left button. An asterisk appears on the display when the purge valve is open causing the monitor to draw air from its purge-air port.

16 Instruction 3015-4584 Rev 11

Halogen Monitor Operation

2.14 The Calibration Function

If greater than standard accuracy is desired, the factory’s default calibration factor of 1.000 may be adjusted by performing the calibration procedure as described below, and then selecting the monitor’s

CAL function to enter the new calibration factor.

IMPORTANT: Changing the calibration factor will VOID the factory calibration. Typically, the monitor will remain within the factory-calibrated accuracy indefinitely and no calibration is required. Complex software algorithms adjust for temperature drift, IR source aging, and pressure changes in order to keep the unit within factory accuracy specifications.

2.14.1 Calibration Procedure

The calibration factor is determined by sampling a known concentration of R-134A refrigerant gas. A cylinder of a certified calibration gas must be used to ensure that the gas sample is a known concentration at ambient conditions. A minimum sample size of 5 liters is required.

Calibration is best performed at or near full scale (1,000 ppm). It can, however, be done at any concentration and ideally in the range where maximum accuracy is desired down to, but not below,

100 ppm.

The monitor should be operating for at least one hour prior to performing a calibration.

Prepare the monitor for sampling by using the

CAL function to set the calibration factor to 1.000. Also, use the LOG INT function to set the log interval to 1 minute.

With the monitor operating normally, connect the gas-sample bag directly to the gas-inlet port and allow the monitor to sample the entire bag. When sampling is complete, view the logged ppm values using the

PPM LOG function. If the bag was large enough for multiple samples, average the most stable ones. The new calibration factor is computed by dividing the known gas concentration value by the measured value.

Typically this number will be between 0.95 and 1.05. Use the CAL function as described below to enter the new calculated calibration factor

2.14.2 Adjusting Calibration Factor

R134A CALFACTOR

1.000

From the Data Display screen, press any one of the Keypad buttons to display the first Function Menu screen. Next, use the Keypad buttons to move the arrow (>) until it is next to the CAL function, and then press

ENTER to display the Calibration screen.

With the Calibration screen displayed, use the Keypad buttons to enter the new calibration factor. Press

ENTER to save this value.

2.15 The P-CHK Function

2.15.1 Overview

The P-CHK function (Pressure Check function) is useful to a service technician for troubleshooting a flowfault problem. The monitor will trigger a flow fault if the pressure drop from ambient is less than 0.2 psi during a purge cycle, and 0.5 psi during a measurement cycle.

2.15.2 Keypad Functions

From the Data Display screen, press both the Keypad Left and Right buttons at the same time to display the first

Function Menu screen. Next, use the Keypad buttons to move the arrow (>) until it points to the P-CHK function, and then press ENTER to display the Pressure screen.

The Keypad Left button toggles the purge valve open and closed. Note that an asterisk (*) appears when the purge valve is open causing the monitor to draw air from the purge-air bag.

Instruction 3015-4584 Rev 11 17

Operation Halogen Monitor

The Keypad Down button toggles the pump ON and OFF.

Pressing the ENTER button stores the current manifold pressure shown on the left to the ambient pressure shown on the right (must be done with the pump OFF).

2.15.3 Screen Display

14.59 AMB14.75

-0.16dif <0000>

Current Manifold Pressure ∗ Stored Ambient Pressure

Pressure Difference Fault Code

Current Manifold Pressure – Current manifold pressure in psia.

Stored Ambient Pressure – Stored ambient pressure in psia.

Pressure Difference – The difference between the current manifold pressure and the stored ambient pressure.

Fault Code – Current fault code (see page 15).

Purge Valve Asterisk () – The purge valve can be opened and closed by pressing the Keypad Left button. An asterisk appears on the display when the purge valve is open causing the monitor to draw air from the purge-air bag.

2.16 Print/Plot Logged Gas Levels

A printout or plot of the last 200 ppm measurements can be made by connecting the optional Bacharach

printer and printer cable to the monitor as follows. (Refer to Replacement Parts on page 25 for printer

and cable part numbers).

1. For a printout or plot to be made, the monitor must have been set up to record gas measurements using the LOG INT function.

2. Interconnect the RS-232 connectors located on the printer and monitor.

3. If not already done, refer to the printer manual and set the printer’s communication parameters to:

• Data bit = 8

• Parity = None

• Baud rate = 19200

• Handshaking = DTR

4. From the Data Display screen, press both the Keypad Left and

Right buttons at the same time to display the first Function Menu screen. Next, use the Keypad buttons to move the arrow (>) until it points to either PRINT to produce a printout, or PLOT to generate a plot.

5. Press ENTER to start the print/plot process.

2ndUNIT >PRINT

PLOT PC-DUMP

18 Instruction 3015-4584 Rev 11

Halogen Monitor Operation

2.17 Downloading Stored Data to a Personal Computer

Using the monitor’s PC DUMP feature, the last 200 gas readings that were stored in memory can be downloaded to a personal computer in ASCII text, comma-delimited format, which can then be imported into most spreadsheet programs for analysis.

The following describes how to download data to a computer using Windows then consult the appropriate instruction manuals for those products.

®

HyperTerminal as the communications program. If a different operating system and/or communications program is being used,

1. Install serial data cable P/N 104-4027 (straight through, 6 foot, DB9 male to DB9 female) between the computer’s COM port and the analyzer’s RS-232 connector. (For computers having a 25-pin

COM port, use a 25-pin to 9-pin adapter or use a serial cable with appropriate connectors on each end.)

2. At the computer, start HyperTerminal by doing one of the following:

Instruction 3015-4584 Rev 11 19

Operation Halogen Monitor

• If HyperTerminal has already been set up to communicate with the Refrigerant Monitor, then click

Start, point to Programs, point to Accessories, point to Communications, click HyperTerminal, and double-click the file name or icon that has been associated with the monitor.

• If HyperTerminal has never been run in association with the monitor, then a new

HyperTerminal connection needs to be made as follows: a) Click

Start; click Run. In the Run box, type “hypertrm.exeand click OK. The New

Connection dialog box should appear. b) Type in a New Connection Name. Click OK to select the default icon (if desired, select a different icon before clicking OK). The “

Connect To” dialog box should appear. c) Click on Connect from the drop-down menu and choose the COM port to which the analyzer is connected. Then click OK to display the COM Properties dialog box for that

COM port. d) Set Port Settings to:

- Bits per second: ........ 19200

- Data bits: .......................... 8

- Parity: ........................ None

- Stop bits: .......................... 1

- Flow control: .............. None

Then click OK to display HyperTerminal’s main window. e) Click File; click Save. This creates a file with an .ht extension in the folder C:\Program

Files\Accessories\Hyper Terminal, using the name that was entered in Step b.

3. After HyperTerminal is running: click Transfer, click Capture Text, and then click Start to accept the default drive\directory\filename to which all received data will be stored as an ASCII text file.

NOTE: By default, the captured text file will be stored on the hard drive at

C:\Program Files\Accessories\HyperTerminal\CAPTURE.TXT. If desired, click

Browse to select a different drive, directory and filename. The next time data is captured, it will be stored under the same location and filename.

NOTE: Changing the filename extension to “CSV” (comma separated variable) will allow the file to be directly opened in the spreadsheet program. For example, double clicking the filename CAPTURE.CSV in Windows Explorer will automatically start

Microsoft Excel and load the file.

4. From the Data Display screen, press both the Keypad Left and Right buttons at the same time to display the first

Function Menu screen. Next, use the Keypad buttons to move the arrow (>) until it points to PC-DUMP, and then press the ENTER button to begin the download process.

2ndUNIT PRINT

PLOT >PC-DUMP

5. Observe that the monitor’s screen goes blank and that HyperTerminal displays the data as it is being received. After all data has been transmitted, the Refrigerant Monitor re-displays the

Function Menu screen.

6. To stop capturing data and save it, click Transfer, click Capture Text, click Stop.

7. HyperTerminal and the connection to the monitor can now be closed.

20 Instruction 3015-4584 Rev 11

Halogen Monitor Operation

2.18 Importing Saved Data to a Spreadsheet

A text file that was created as described in Section 2.17 can be imported into spreadsheet programs that are

capable of importing comma-delimited files.

The following describes how to generate a spreadsheet from a comma-delimited text file using Microsoft

Excel. If you are using a different spreadsheet program or a different version of Excel, please refer to its instruction manual for information on how to import comma-delimited text files.

Step Instructions

1. Start Microsoft Excel.

2.

3.

4.

5.

6.

7.

For Excel version 2003:

Click Data, Import External Data, and Import Data to display the “Select Data Source” dialog box.

For Excel versions 2007-2013:

Click the DATA tab, then click the FROM TEXT button. The IMPORT TEXT FILE dialog box is displayed.

Locate file saved earlier.

For Excel version 2003:

Select file, then click “Open” to display Excel’s

“Text Import Wizard.”

Choose the “Delimited” data option and click Next.

For Excel versions 2007-2013:

Select file, then click the “IMPORT” button.

Check the “Tab,” “Comma,” and “Space” delimiters and click Finish.

Choose “Existing worksheet” or “New worksheet” and click OK to create spreadsheet.

NOTE: A worksheet must be open in order to import data.

A sample spreadsheet is shown below.

Instruction 3015-4584 Rev 11 21

Operation Halogen Monitor

: : : :

22 Instruction 3015-4584 Rev 11

Halogen Monitor

3 Maintenance

Maintenance

3.1 Disassembly

When servicing the parts inside the HM unit, disassemble the monitor’s metal chassis as follows:

Items Required:

Medium Phillips head screwdriver

Procedure:

1. Remove monitor and its battery pack from the soft carrying case.

2. Unplug battery pack from monitor.

3. Remove a total of 10 screws from the locations shown in the illustrations below.

4. Carefully separate the metal chassis.

Remove

Screws (3)

Front

Remove Screws (2)

Remove

Screws (3)

Rear

Instruction 3015-4584 Rev 11

Right Side

23

Maintenance Halogen Monitor

3.2 Internal Particulate/Hydrophobic Filter

Replacement

Items Required:

Replacement filter (P/N 0007-1654)

Medium Phillips head screwdriver

Procedure:

1. Disassemble the monitor’s metal chassis per Section 3.1.

2. See illustration below and locate the internal particulate / hydrophobic filter to be replaced.

3. Pull off tubing from both ends of filter and remove filter from instrument.

4. Attach tubing to new filter

5. Reassemble monitor.

Particulate/Hydrophobic Filter

24

3.3 Updating Firmware

An RS-232 connector, located on the top panel, is used to update the monitor’s firmware.

Reprogramming the instrument with updated firmware should be done by qualified service technicians only using instructions provided by Bacharach.

Instruction 3015-4584 Rev 11

Halogen Monitor

4 Parts and Service

Maintenance

4.1 Replacement Parts

Item Description

Replacement Battery Kit

Replacement Cable (connects battery to PGM-IR)

Soft Carrying Case with Shoulder Strap

Bladder Bag Kit

Stainless Steel Probe

External Filter (fits onto probe tip)

Hydrophobic Filter (internal)

External Filter Assembly

Probe Tubing (3 ft)

Replacement Pump

Battery (for main PCB board)

Replacement Bench Kit

Replacement Power Cord (AUS)

Replacement Power Cord (UK)

Replacement Power Cord (EU)

Replacement Power Cord (US)

4.2 Optional Accessories

Item Description Part Number

IrDA Printer (includes printer, roll of thermal paper, 4 x AA batteries, manual)

Thermal printer paper, 1 roll

Thermal printer paper, 5 rolls

Cable (DB9 to RJ-45)

Computer Communications Cable (DB9 male to DB9 female)

0024-1400

0006-8733

0024-1310

3015-4214

0104-4027

4.3 Service Centers

Service and replacement parts can be obtained by contacting the Bacharach Service Centers listed below. Access http://mybacharach.com/rmaform/ on the web for return materials authorization.

United States

Bacharach, Inc.

621 Hunt Valley Circle

New Kensington, PA 15068

USA

Phone: 724-334-5051

Fax: 724-334-5723

Ireland

Bacharach - Europe

114A Georges Street Lower

Dun Laoghaire, Dublin

Ireland

Phone: +353 1 284 6388

Fax: +353 1 284 6389

Canada

Bacharach - Canada

20 Amber St. Unit #7

Markham, Ontario L3R SP4

Canada

Phone: 905-470-8985

Fax: 905-470-8963

Part Number

3015-5743

3015-5757

3015-5700

3015-5325

3015-5326

3015-2906

0007-1654

3015-5324

0003-6182

3015-4239

0204-0020

3015-4721

0304-3469

0304-3471

0304-3470

0304-3466

Instruction 3015-4584 Rev 11 25

Declaration of Conformity

The manufacturer of the products covered by this declaration:

Bacharach, Inc.

621 Hunt Valley Circle

New Kensington, PA 15068

Year conformity is declared:

Product:

2015

Portable Gas Monitor (PGM-IR)

Model(s):

All

The undersigned hereby declares that the above referenced product is in conformity with the provisions of the following standard and is in accordance with the following directive.

Directive:

2004/108/EC

Standard:

EMC Directive

EN 61326-1: 2013

EMC requirements for electrical equipment for measurement, control and laboratory use - Part 1: general requirements

Signature:

Name:

Title:

Date:

Aaron Kennison

Engineering Manager

10 August 2015

The technical documentation file required by this directive is maintained at the corporate headquarters of Bacharach, Inc.

26 Instruction 3015-4584 Rev 11

Halogen Monitor Maintenance

Instruction 3015-4584 Rev 11 27

Printed in U.S.A.

28

Headquarters:

621 Hunt Valley Circle, New Kensington, PA 15068

PH: 724-334-5000 • Toll Free: 800-736-4666 • FAX: 724-334-5001

Website: www.mybacharach.com • E-mail: [email protected]

® Registered Trademark of Bacharach Inc.

Instruction 3015-4584 Rev 11

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
