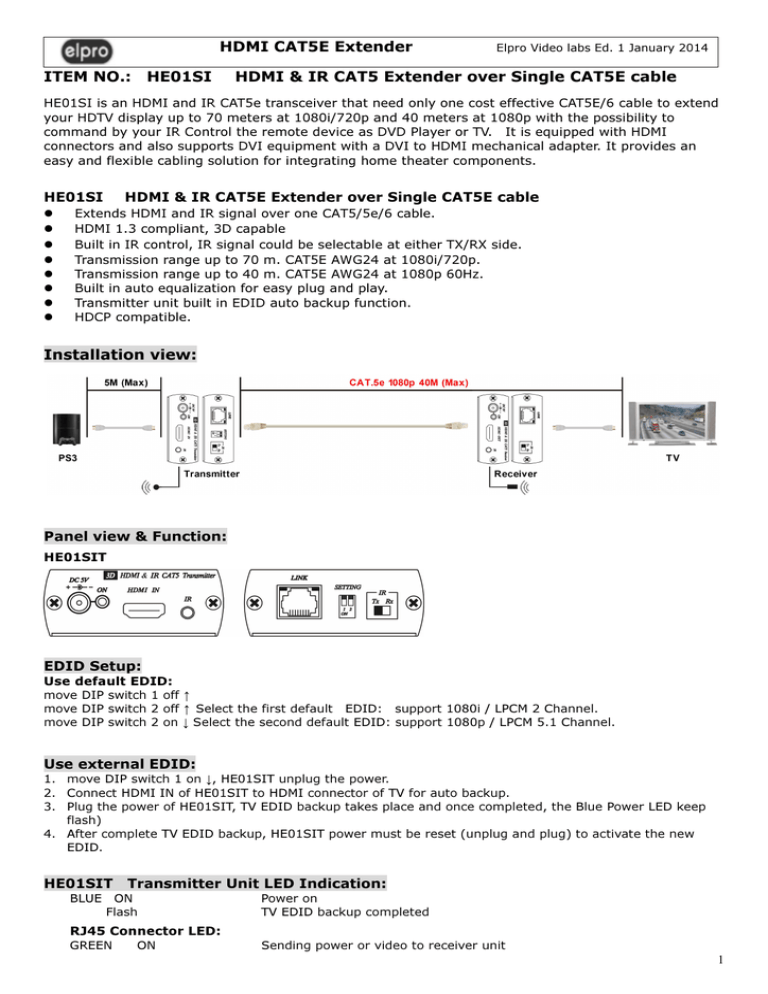

she_HE01SI-2_User_Manual
HDMI CAT5E Extender
ITEM NO.: HE01SI
Elpro Video labs Ed. 1 January 2014
HDMI & IR CAT5 Extender over Single CAT5E cable
HE01SI is an HDMI and IR CAT5e transceiver that need only one cost effective CAT5E/6 cable to extend
your HDTV display up to 70 meters at 1080i/720p and 40 meters at 1080p with the possibility to
command by your IR Control the remote device as DVD Player or TV. It is equipped with HDMI
connectors and also supports DVI equipment with a DVI to HDMI mechanical adapter. It provides an
easy and flexible cabling solution for integrating home theater components.
HE01SI
HDMI & IR CAT5E Extender over Single CAT5E cable
Extends HDMI and IR signal over one CAT5/5e/6 cable.
HDMI 1.3 compliant, 3D capable
Built in IR control, IR signal could be selectable at either TX/RX side.
Transmission range up to 70 m. CAT5E AWG24 at 1080i/720p.
Transmission range up to 40 m. CAT5E AWG24 at 1080p 60Hz.
Built in auto equalization for easy plug and play.
Transmitter unit built in EDID auto backup function.
HDCP compatible.
Installation view:
Panel view & Function:
HE01SIT
EDID Setup:
Use default EDID:
move DIP switch 1 off ↑
move DIP switch 2 off ↑ Select the first default EDID: support 1080i / LPCM 2 Channel.
move DIP switch 2 on ↓ Select the second default EDID: support 1080p / LPCM 5.1 Channel.
Use external EDID:
1. move DIP switch 1 on ↓, HE01SIT unplug the power.
2. Connect HDMI IN of HE01SIT to HDMI connector of TV for auto backup.
3. Plug the power of HE01SIT, TV EDID backup takes place and once completed, the Blue Power LED keep
flash)
4. After complete TV EDID backup, HE01SIT power must be reset (unplug and plug) to activate the new
EDID.
HE01SIT Transmitter Unit LED Indication:
BLUE
ON
Flash
RJ45 Connector LED:
GREEN
ON
Power on
TV EDID backup completed
Sending power or video to receiver unit
1
YELLOW
ON
No data input or unsupported video format
Dip Switch function:
1
2
↑
↓
↑
↓
Use the default EDID.
Use the backup TV EDID.
Select the first default EDID: support 1080i / LPCM 2 Channel.
Select the second default EDID: support 1080p / LPCM 5.1 Channel.
After complete Dip Switch setting, power must be reset ( unplug and plug) to activate the new
EDID.
HE01SIR
HE01SIR Receiver unit LED Indication:
BLUE
ON
Using external power adapter
RJ45 Connector LED:
ON
Power and HDMI signal received from transmitter unit
ON
No data input or signal too weak
GREEN
YELLOW
IR Switch Setting:
1. When use BD/DVD remote controller (DVD at remote side), HE01SIR IR switch move to RX and
connect with Receiver cable; HE01SIT IR switch move to TX and connect with Emitter cable to
spot DVD IR sensor.
2. When use TV remote controller (TV at remote side), HE01SIT IR switch move to RX and connect
with Receiver cable; HE01SIR IR switch move to TX and connect with Emitter cable to spot TV
IR sensor.
Cable:
Link cable use high quality CAT5e UTP or CAT6 UTP cable AWG24.
CAT6 cable is recommend based on distance over 30 meters.
Do not use STP cable which can cause wrong image.
Transmission Distance:
The transmission distance will be affected from different HDMI equipment and cable
quality.
HE01SIT to HE01SIR
Resolution/Cable
Distance(Meter)
AWG24
1080p/CAT5e
40
1080p/CAT6
45
1080i,720p/CAT5e
70
2
RJ45 Define:
Video Link (use TIA/EIA-568-B)
1. Orange-white
TMDS DATA2 +
2.
3.
4.
5.
6.
7.
8.
TMDS
TMDS
TMDS
TMDS
TMDS
TMDS
TMDS
Orange
Green-white
Blue
Blue-white
Green
Brown-white
Brown
DATA2 CLOCK + / HDMI 5V
DATA1 +
DATA1 CLOCK - / HDMI 0V
DATA0 +
DATA0 -
Caution:
1. The wiring must away from any equipment with electromagnetic wave, i.e.:
Mobile phone, microwave, radio equipment, fluorescent lamp, power lines.
2. If distance less 20meters and not using IR function, HE01SIR do not need external power
adapter.
3. This device is not network device, do not connect with Network to avoid damage.
Specification:
ITEM NO.
Resolution
IR Carrier Frequency
IR Emit/Receive angle
IR Emit/Receive Distance
IR Cable input/output interface
Video Input /Output
Linking interface
Switch
LED
Power Supply
Power Consumption (Max.)
Temperature
Dimension
mm
Weight
g
HE01SIT
HE01SIR
480i/p,720p,1080i/p 24/50/60Hz
30KHz ~ 60KHz
Tx : ± 30,Rx : ± 55
5 meters
3.5mm Phone Jack x 1
HDMI Type A x 1
RJ45 x 1
2 Pin Dip Switch x 1,Slide Switch x 1
Slide switch x 1
LED Blue x 1,RJ45 yellow/green x 1
DC 5V 1A
420mA
180mA
Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
67 x 102 x 27
67 x 91 x 27
150
140
Rev.A
3
