Network camera

Operating Instructions

Model Nos.

WV-NP1000

WV-NP1004

CT

K/EJE

LOC

H TO

PUS

WV-NP1004

(Lens is option.)

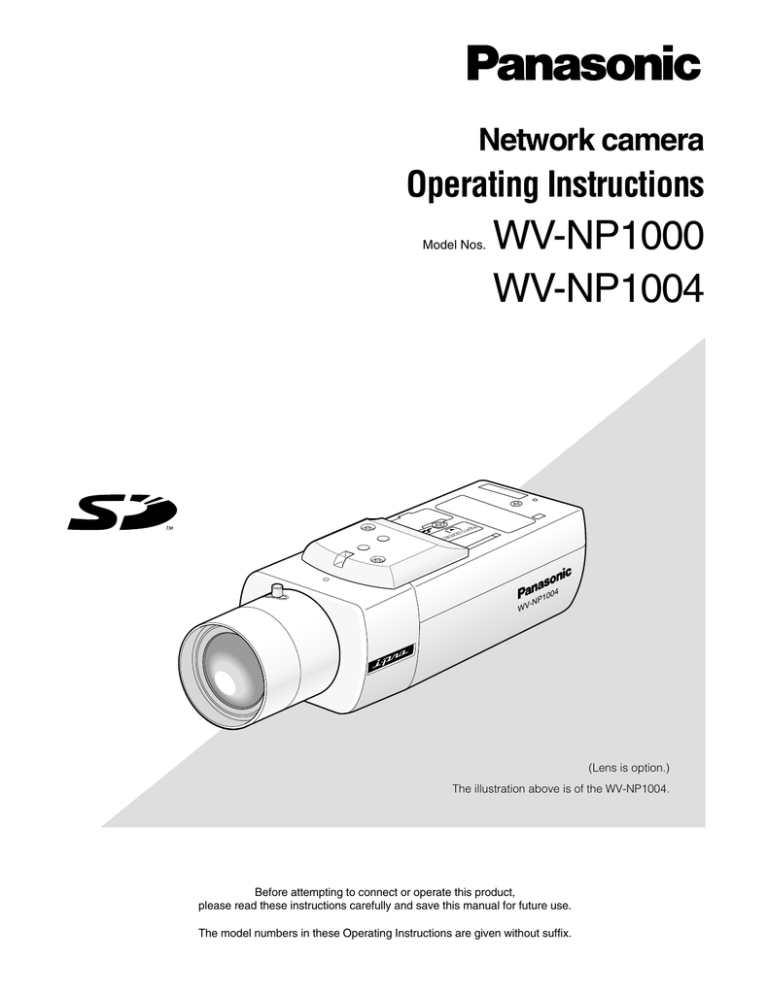

The illustration above is of the WV-NP1004.

Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.

The model numbers in these Operating Instructions are given without suffix.

2

We declare under our sole responsibility that the product to which this declaration relates is in conformity with the standards or other normative documents following the provisions of Directives EEC/73/23 and

EEC/89/336.

Wir erklären in alleiniger Verantwortung, daß das Produkt, auf das sich diese Erklärung bezieht, mit der folgenden Normen oder normativen

Dokumenten übereinstimmt. Gemäß den Bestimmungen der Richtlinie

73/23/EEC und 89/336/EEC.

Nous déclarons sous note seule responsabilité que le produit auquel se réfère la présente déclaration est conforme aux normes ou autres documents normatifs conformément aux dispositions des directives

CEE/73/23 et CEE/89/336.

Nosotros declaramos bajo nuestra única responsabilidad que el producto a que hace referencia esta declaración está conforme con las normas u otros documentos normativos siguiendo las estipulaciones de las directivas CEE/73/23 y CEE/89/336.

Noi dichiariamo sotto nostra esclusiva responsabilità che il prodotto a cui si riferisce la presente dichiarazione risulta conforme ai seguenti standard o altri documenti normativi conformi alle disposizioni delle direttive CEE/73/23 e CEE/89/336.

Wij verklaren als enige aansprakelijke, dat het product waarop deze verklaring betrekking heeft, voldoet aan de volgende normen of andere normatieve documenten, overeenkomstig de bepalingen van Richtlijnen

73/23/EEC en 89/336/EEC.

Vi erklærer os eneansvarlige for, at dette produkt, som denne deklaration omhandler, er i overensstemmelse med standarder eller andre normative dokumenter i følge bestemmelserne i direktivene

73/23/EEC og 89/336/EEC.

Vi deklarerar härmed värt fulla ansvar för att den produkt till vilken denna deklaration hänvisar är i överensstämmelse med standarddokument, eller andra normativa dokument som framställs i

EEC-direktiv nr. 73/23 och 89/336.

Ilmoitamme yksinomaisella vastuullamme, että tuote, jota tämä ilmoitus koskee, noudattaa seuraavia standardeja tai muita ohjeellisia asiakirjoja, jotka noudattavat direktiivien 73/23/EEC ja 89/336/EE. säädöksiä.

Vi erklærer oss alene ansvarlige for at produktet som denne erklæringen gjelder for, er i overensstemmelse med følgende normer eller andre normgivende dokumenter som følger bestemmelsene i direktivene

73/23/EEC og 89/336/EEC.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Turn the power off at the mains to disconnect the main power for all unit.

WARNING:

• This apparatus must be earthed.

• Apparatus shall be connected to a mains socket outlet with a protective earthing connection.

• The mains plug or an appliance coupler shall remain readily operable.

• To prevent fire or electric shock hazard, do not expose this apparatus to rain or moisture.

• The apparatus should not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, should be placed on the apparatus.

• All work related to the installation of this product should be made by qualified service personnel or system installers.

CAUTION:

An ALL-POLE MAINS SWITCH with a contact separation of at least 3 mm in each pole shall be incorporated in the electrical installation of the building.

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CARE-

FULLY.

WARNING: This apparatus must be earthed.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code.

Green-and-yellow:

Blue:

Earth

Neutral

Brown: Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol

I or coloured green or green-and-yellow.

The wire which is coloured blue must be connected to the terminal in the plug which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal in the plug which is marked with the letter L or coloured red.

The serial number of this product may be found on the surface of the unit.

You should note the serial number of this unit in the space provided and retain this book as a permanent record of your purchase to aid identification in the event of theft.

Model No.

Serial No.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

S3125A

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3

4

Limitation of Liability

THIS PUBLICATION IS PROVIDED "AS IS" WITHOUT WAR-

RANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO, THE IMPLIED WAR-

RANTIES OF MERCHANTABILITY, FITNESS FOR ANY PAR-

TICULAR PURPOSE, OR NON-INFRINGEMENT OF THE

THIRD PARTY’S RIGHT.

THIS PUBLICATION COULD INCLUDE TECHNICAL INAC-

CURACIES OR TYPOGRAPHICAL ERRORS. CHANGES

ARE ADDED TO THE INFORMATION HEREIN, AT ANY

TIME, FOR THE IMPROVEMENTS OF THIS PUBLICATION

AND/OR THE CORRESPONDING PRODUCT (S).

Disclaimer of Warranty

IN NO EVENT SHALL MATSUSHITA ELECTRIC INDUSTRI-

AL CO., LTD. BE LIABLE TO ANY PARTY OR ANY PER-

SON, EXCEPT FOR REPLACEMENT OR REASONABLE

MAINTENANCE OF THE PRODUCT, FOR THE CASES,

INCLUDING BUT NOT LIMITED TO BELOW:

(1) ANY DAMAGE AND LOSS, INCLUDING WITHOUT LIM-

ITATION, DIRECT OR INDIRECT, SPECIAL, CONSE-

QUENTIAL OR EXEMPLARY, ARISING OUT OF OR

RELATING TO THE PRODUCT;

(2) PERSONAL INJURY OR ANY DAMAGE CAUSED BY

INAPPROPRIATE USE OR NEGLIGENT OPERATION

OF THE USER;

(3) UNAUTHORIZED DISASSEMBLE, REPAIR OR MODIFI-

CATION OF THE PRODUCT BY THE USER;

(4) ANY PROBLEM, CONSEQUENTIAL INCONVENIENCE,

OR LOSS OR DAMAGE, ARISING OUT OF THE SYS-

TEM COMBINED BY THE DEVICES OF THIRD PARTY.

(5) ANY CLAIM OR ACTION FOR DAMAGES, BROUGHT

BY ANY PERSON OR ORGANIZATION BEING A PHO-

TOGENIC SUBJECT, DUE TO VIOLATION OF PRIVACY

WITH THE RESULT OF THAT SURVEILLANCE-CAMER-

A’S PICTURE, INCLUDING SAVED DATA, FOR SOME

REASON, BECOMES PUBLIC OR IS USED FOR THE

PURPOSE OTHER THAN SURVEILLANCE

(6) ANY PROBLEM, CONSEQUENTIAL INCONVENIENCE,

ANY LOSS OR DAMAGE, ARISING OUT OF THE

IMPROPER DETECTION OR SLIP-UP IN DETECTION

BY VMD (Video Motion Detector) FUNCTION OF THE

PRODUCT.

CONTENTS

Important Safety Instructions ............................................................................................................................................. 3

Limitation of Liability .......................................................................................................................................................... 4

Disclaimer of Warranty ...................................................................................................................................................... 4

Preface .............................................................................................................................................................................. 6

Features ............................................................................................................................................................................. 6

About these operating instructions .................................................................................................................................... 7

System requirements for a PC ........................................................................................................................................... 7

Trademarks and registered trademarks ............................................................................................................................. 7

Precautions ........................................................................................................................................................................ 8

Major Operating Controls and Their Functions .................................................................................................................. 10

Lens Mounting ................................................................................................................................................................... 12

Optional lens ................................................................................................................................................................... 12

Focus adjustment ........................................................................................................................................................... 12

How to use a varifocal lens ............................................................................................................................................. 13

How to use a fixed-focus lens ......................................................................................................................................... 13

Installations/Connections ................................................................................................................................................... 14

[Connection example] ..................................................................................................................................................... 16

Insert/Remove a SD Memory Card .................................................................................................................................... 17

How to insert a SD memory card .................................................................................................................................... 17

How to remove the SD memory card ............................................................................................................................. 17

Adjust the Back Focal Length ............................................................................................................................................ 18

Configure the Settings Using the Operation Buttons on the Camera ................................................................................ 19

Settings items of the camera setup page ....................................................................................................................... 19

Basic operation ............................................................................................................................................................... 20

Camera setup page chart ............................................................................................................................................... 21

Configure the Network Settings ......................................................................................................................................... 22

Install the software .......................................................................................................................................................... 22

Configure the network settings of the camera using the Panasonic IP setup software .................................................. 22

Troubleshooting ................................................................................................................................................................. 23

Specifications ..................................................................................................................................................................... 24

Standard Accessories ........................................................................................................................................................ 26

5

6

Preface

The network camera WV-NP1000/WV-NP1004 designed to operate using a PC on a network (10BASE-T/100BASE-TX) and equipped with the traditional analog video output connector (BNC).

By connecting to a network (LAN) or the Internet, images and audio from the camera can be monitored on a PC via a network. *

1

Features

The network camera WV-NP1000/WV-NP1004 designed to operate using a PC on a network (10BASE-T/100BASE-TX) and equipped with the traditional analog video output connector (BNC).

By connecting to a network (LAN) or the Internet, images and audio from the camera can be monitored on a PC via a network. *1

1.2 mega pixel CCD

This CCD achieves high resolution image display even when displaying analog video output.

Progressive scan

This scanning method brings high vertical and horizontal resolution, and achieves smooth video processing.

JPEG/MPEG-4 dual encode

JPEG and MPEG-4 images can be displayed simultaneously when being accessed by multiple PCs concurrently.

Auto back focus (ABF) function

By adjusting the CCD position inside the camera using the buttons on the camera or configuring the settings on the setup menu on the [Camera] tab of the "Camera setup" page, back focus will be adjusted automatically. The ABF settings can be configured even after the installation. It is also possible to configure the setup menu to make the camera to adjust the back focus automatically to correct out-of-focus which may be caused when switching between the color image display and the BW image display.

Featured noise reduction function achieves high sensitivity.

Low noise circuit design achieved the minimum illumination of 1.0 lx (F1.4).

Auto shifting to the BW mode in the nighttime

It is unnecessary to switch the color mode when a subject/scene becomes darker since the color mode will shift to the BW mode automatically under low illumination.

Motion detection function *2

This function issues an alarm signal when the camera lens is covered by something such as a cloth, or when the shooting direction of the camera is moved.

SD memory card slot

The FTP backup function and recording of each log on an optional SD memory card are available using the featured SD memory card slot *3

*1 It is necessary to configure the network settings of the PC and its network environment to monitor images and audio from the camera on the PC. It is also necessary that a web browser is installed on the PC.

*2 The motion detection function is not the dedicated function to prevent thefts, fires, etc. We assume no responsibility whatsoever for any damages resulting from the use of the motion detection function.

*3 This camera is applicable with Panasonic's SD memory card (64 MB, 128 MB, 256 MB, 512 MB and 1GB).

About these operating instructions

There are 2 sets of operating instructions for the WV-NP1004 as follows.

• Operating Instructions (book, these operating instructions)

• Operating Instructions (PDF)

These "Operating Instructions" contain descriptions of how to install and connect this camera, and how to perform the required network settings. These operating instructions contain also descriptions about the setup items on the [Camera] tab of the

"Camera setup" page and descriptions of how to configure the settings using the buttons on the camera.

Refer to the "Operating Instructions (PDF)" on the provided CD-ROM for descriptions of how to perform the camera settings and how to operate this camera. Adobe

®

Reader is required to read these operating instructions (PDF).

System requirements for a PC

OS:

Computer:

CPU:

Memory:

Monitor:

Network Interface:

Web Browser:

CD-ROM Drive:

Adobe

®

Reader

®

:

Microsoft

®

Windows

®

2000 Professional SP4

Microsoft

®

Windows

®

XP Home Edition SP2

Microsoft

®

Windows

®

XP Professional SP2

IBM PC/AT Compatible

Pentium

®

4 2.4GHz or faster

512 MB or more

1024 x 768 pixels or more, 24-bit True color or better

10/100Mbps Network interface card must be installed

Microsoft

®

Internet Explorer 6.0 SP2

It is necessary to read the operating instructions on the provided CD-ROM.

It is necessary to read the operating instructions on the provided CD-ROM.

* Audio will not be heard if a sound card is not installed on a PC. Audio may be interrupted depending on the network environment.

Trademarks and registered trademarks

• Microsoft, Windows and Windows XP are registered trademarks of Microsoft Corporation in the U. S. and/or other countries.

• Intel is a registered trademark and Pentium is a trademark of Intel Corporation or its subsidiaries in the United States and other countries (regions).

• Adobe, Adobe logos, and Acrobat are registered trademarks of Adobe Systems Incorporated in the U.S. and/ or other countries.

• SD logo is a trademark.

• Other names of companies and products contained in these operating instructions may be trademarks or registered trademarks of their respective owners.

7

8

Precautions

Refer to all work related to the installation of this product to qualified service personnel or system installer.

Do not attempt to disassemble the product.

There are no serviceable parts inside. Contact the qualified service personnel for maintenance.

Use this appliance for indoor use only.

Do not expose the appliance to direct sunlight for hours and do not install the product near a heater or an air conditioner. Otherwise, it may cause deformation, discoloration and malfunction. Keep the appliance away from water and moisture.

To keep on using with stable performance

• Parts of this product may deteriorate and it may shorten lifetime of this product when using in locations subject to high temperatures and high humidity. Do not expose the product to direct heat such from a heater.

• Use the appliance at temperature within +5 °C - +35 °C

(41 °F - 95 °F) and humidity below 90 %. (when using the appliance without turning the power off)

Handle the appliance with care.

Do not strike or shake, as this may damage the appliance.

It may cause a malfunction.

About the PC monitor

When displaying the same image on the PC monitor at length, the PC monitor may be damaged. It is recommended to use a screen-saver.

When an error is detected, the camera will restart automatically.

This camera will restart when detecting an error caused by any reason. The camera will be inoperable for around 1 minute after the restart just as when the power is turned on.

Cleaning the camera body

Turn the power off when cleaning of the camera. Use a dry cloth to clean the camera. When the dirt is hard to remove, use a mild detergent and wipe gently. Then, wipe with a dry cloth.

Do not use strong abrasive detergent when cleaning the camera body. Otherwise, it may cause discoloration.

When using a chemical cloth for cleaning, read the caution provided with the chemical cloth product.

Cleaning the lens

Use a lens cleaning paper (used to clean camera lenses or lenses of spectacles). When using solvent, use an alcohols solvent. Do not use a thinner or a glass cleaner.

SD memory card

• When insert a SD memory card into the SD memory card slot, turn the power of the camera off. Otherwise, it may cause malfunction or damage data recorded on the SD memory card.

Refer to page 16 for descriptions of how to insert/remove a SD memory card.

• When using an unformatted SD memory card, format it using this camera.

Recorded data on the SD memory card will be deleted when formatted.

If using an unformatted SD memory card or using a SD card formatted with other device, the camera may not work properly or performance deterioration may be caused.

Refer to the Operating Instructions (PDF) for descriptions of how to format a SD memory card.

• It is recommended to use Panasonic's SD memory card.

Otherwise, the camera may not work properly or performance deterioration may be caused.

• Images saved on the SD memory card may lead to personal information leakage. When it is necessary to give the camera to someone, even when for repair, make sure the SD memory card is removed from the camera.

Grounding (GND)

Confirm that the grounding is connected correctly and firmly.

When using the power plug equipped with a grounding device such as a ground pin, confirm that the grounding resistance is less than 100

Ω.

Before connecting the camera to the power source, confirm that the grounding is complete.

When it is necessary to disconnect the grounding, detach the power plug from the power source first.

Connection with the power supply

Connect the power cable in the following method:

1. Connect the power plug through the power supply control unit.

2. Install the unit near an AC outlet and connect the power cable through a power shutoff system.

3. Connect the power cable with a circuit breaker of a distribution board with contact length of 3.0 mm. A circuit breaker must be capable to shut off all polarities of the main power except the ground conductor.

Power cable

Connect the power cable firmly. Align the connected power cable not to be pulled/stressed when the camera pans or tilts. (Pull/stress made by panning/tilting of the camera may disconnect the power cable.)

Do not aim the camera at strong light sources.

A light source such as a spot light causes a blooming (light bleeding) or a smear (vertical lines).

Smear Blight subject

Save the configured settings

We recommend that you note down your settings and save them. We assume no responsibility whatever for any damages resulting from a lost of your settings.

Distributing, copying, disassembling, reverse compiling, reverse engineering, and also exporting in violation of export laws of the software provided with this product, is expressively prohibited.

Blooming

Broadband router

When it is necessary to use a broadband router to connect the camera to the Internet, use a broadband router with the port forwarding function (NAT, IP masquerade).

Refer to the Operating Instructions (PDF) for further information about the port forwarding function.

Radio disturbance

When the camera is used near TV/radio antenna, strong electric field or magnetic field (near a motor or a transformer), images may be distorted and noise sound may be produced.

Safety wire

The safety wire holder is provided on the top of the camera.

To prevent the camera from dropping that may cause accidental injury, attach one end of a safety wire (locally procured) to the safety wire holder of the camera and the other end to a locally procured safety wire holder (bracket, etc.) to be installed on the foundation part of the building.

Do not install the camera in a humid or dust-laden environment.

Otherwise, lifetime of the internal parts may be shortened.

Do not strike or shake, as this may damage the appliance.

It may cause a malfunction.

9

10

Major Operating Controls and Their Functions

Microphone

Tripod mount base

Fixing screw for transportation

* Remove the fixing screw for transportation before connecting the power cable.

Cover for the operation buttons

ALC lens connector

Inside the cover for the operation buttons

(Slide to the left until the cover is locked.)

INITIAL SET (UP)

NEAR ABF/MENU FAR

(LEFT)

(DOWN)

(SET) (RIGHT)

Operation buttons

* In these operating instructions, names of the buttons are as follows.

[UP] button

[DOWN] button

[LEFT/NEAR] button

[RIGHT/FAR] button

[SET, ABF/MENU] button

[INITIAL SET] button

• About the [INITIAL SET] button

Turn on the power of the camera while holding down this button, and wait for around 5 seconds without releasing this button. Wait another 30 seconds after releasing the button. The settings including the network settings will be initialized. However, the settings edited on the [Camera] tab of the "Camera setup" page will not be initialized.

<TOP>

SD memory card slot cover

<BOTTOM>

Screw hole for the camera mounting bracket (1/4-20UNC)

Safety wire holder

Screw holes for the camera mounting bracket (1/4-20UNC)

<REAR>

WV-NP1000

q e r

220V-240V ~ 50Hz

10BASE-T/

100BASE-TX

VIDEO OUT

POWER

SD CARD

LINK

1

2

GND

DAY/NIGHT IN

3

4

AUX OUT

ALARM OUT

5 ALARM IN

3

4

5

1

2

ACT i o t y u q AC Inlet 220V – 240V 50 Hz (only for the WV-NP1000)

Connect the power cord.

w AC 24V (only for the WV-NP1004)

Power cable terminals e SD memory card error indicator (red) r Link indicator t Video out connector y Power indicator (green) u External I/O terminals i Network connector o Access indicator

WV-NP1004

w e r

AC24V

IN

1-L

2-N

GND

10BASE-T/

100BASE-TX

VIDEO OUT

POWER

SD CARD

LINK

1

2

GND

DAY/NIGHT IN

3

4

AUX OUT

ALARM OUT

5 ALARM IN

3

4

5

1

2

ACT i o t y u

11

12

Lens Mounting

Mount the lens by rotating it clockwise slowly. Then, connect the lens cable to the ALC lens connector of the camera.

ALC lens connector

PUSH T

O LOCK

/EJECT

CS-mount lens (optional)

CS-mount: Less than 8 mm

Attach the ferrite core as close as possible to the ALC lens connector side of the lens cable.

Optional lens

Lens type

ALC lens for 1/3 inch CCD cameras 2x varifocal (high resolution)

Model number

WV-LZA62/2

Other lenses for 1/3 inch CCD cameras can be mounted on this camera. However, high resolution scanning of this camera may not be fully used for full-scanning (1280 x 960) or partial scanning (960 x 720).

It is recommended to use a dedicated high-resolution lens when shooting a dark subject with the aperture opened.

Focus adjustment

Focus adjustment

When shooting an object using an AF lens, the first adjusted focus may be out-of-focus depending on the focal depth of the lens in use. In this case, focus on a darker object with the aperture open to prevent out-of-focus.

When "ABF" is selected for "BACK-FOCUS" on the SETUP menu (

→ page 18), the camera can automatically focus on a subject with the best available conditions even when the illumination changes.

• Under near-infrared light, the focus may be slightly out-of-focus than under visible light.

When the "BACK-FOCUS SETUP" page is displayed and "AUTO" or "PRESET" is selected for "C/L

←→ B/W" using the operation buttons on the camera, the camera can focus on subjects both under near-infrared light and under visible light.

(However, the camera will not change the focus according to the illumination change when the focus had been adjusted once.)

How to use a varifocal lens

Before adjusting the varifocal lens, reset the back focal length position to the default position for the CS-mount (by simultaneously pressing the [LEFT] and [RIGHT] buttons for 2 seconds or more, or by simultaneously pressing the [LEFT] and [RIGHT] buttons after pressing the [SET] button when the cursor is on "MANUAL-ADJ" on the "BACK-FOCUS SETUP" page.

Method of adjustment may be different depending on the lens in use. For further information, refer to the operating instructions of the lens in use.

Notes:

• The following are descriptions of how to adjust a normal varifocal lens. For further information, refer to the operating instructions of the lens in use.

1. Focus on a subject which is located around 10 m away or farther to adjust the back focal length.

2. When using an 8x or 10x varifocal lens, adjust the back focal length after setting the zoom to the WIDE end and settings the focus to the FAR end.

When using a 2x or 3x varifocal lens, adjust the back focal length after setting the zoom to the TELE end and settings the focus to the FAR end.

3. Locate a subject at the center and roughly adjust the angular field of view and the focus by adjusting the zoom position and the focus position. Then, adjust the back focal length minutely. (

→ page 17)

• When the lens in use is not Panasonic's and whose focus range is scalable, adjust the back focal length after setting the focus position to one step short of the FAR end in step 2. When adjusting the focus in the scalable range, focus may not be adjusted appropriately.

How to use a fixed-focus lens

When using a fixed-focus lens featured the focus adjustment, adjust the back focal length after setting the lens focus to the

FAR end.

When using a manual lens

When using a manual lens, fit the provided connector cap into the ALC lens connector as shown in the illustrations below.

(The tab of the connector cap should be toward the lens.)

Connector cap

ALC lens connector

Manual lens

Tab

Fitted connector cap

13

14

Installations/Connections

Before start the installation/connection, prepare the required devices and cables.

Before starting the connection, turn the power of the devices including the camera and the PC off or disconnect the power cable from the outlet.

Fix an optional camera mounting bracket onto the desired place and mount the camera on it.

Use appropriate screws for the panel/wall material to secure an optional camera mounting bracket.

The following are examples of the camera installation using an optional mounting bracket.

The camera can be mounted on the bracket using the screw holes for the camera mounting bracket (1/4-20UNC).

<For wall installation>

Optional camera mounting bracket: WV-831

Important

• Make sure that the installing place is strong enough to support the total weight of the camera and the camera mounting bracket.

• Install the camera mounting bracket on the foundation part of the building or equivalent strong part.

• Method of installation may be different depending on the material of the place where the camera mounting bracket is to be installed.

When installing on steel: Fix with bolts and nuts

(M6 or M8).

When installing on concrete: Fix with anchor bolts. (M6 or M8)

• Do not use wood screws to fix the camera mounting bracket (option) since they are not strong enough to support the weight of the camera and the bracket.

• Refer to "Select Safety Wire Kit." for details on the installation height of camera mounting bracket.

Installation height

<For ceiling installation>

Optional camera mounting bracket: WV-7010A

Step 2

To prevent the camera from dropping that may cause accidental injury, attach a safety wire between the camera and the wall/panel.

Attach one end of the safety wire to the safety wire holder of the camera and the other end to a locally procured safety wire holder to be installed on the foundation part of the building.

<Example: Installing on the wall>

Safety wire

Installation height

Safety wire holder

100V ~ 50/60Hz

10BASE-T/

100BASE-TX

VIDEO OUT

POWER

SD CARD

LINK

3

4

5

1

2

1 GND

4

5

2

3

DAY/NIGHT IN

AUX OUT

ALARM OUT

ALARM IN

ACT

Safety wire

Safety wire

Foundation part of the building or equivalently strong part

(The illustration above is of the WV-NP1004.)

Important

• Make sure that the installing place is strong enough to support the total weight of the camera and the camera mounting bracket.

• Safety wire differs depending on the model and installation height of camera mounting bracket (option).

Procure the optional safety wire kit suited for installation. Refer to "Select Safety Wire Kit." for details.

Step 3

Connect a coaxial cable (optional) to the video out connector. (One BNC plug is provided with the camera.)

Step 5

Connect a LAN cable (category 5 or better) to the network connector on the rear of the camera.

LAN cable

AC24V

IN

1-L

2-N

GND

10BASE-T/

100BASE-TX

VIDEO OUT

POWER

SD CARD

LINK

1

2

3

4

5

1 GND

4

5

2

3

DAY/NIGHT IN

AUX OUT

ALARM OUT

ALARM IN

ACT

AC24V

IN

1-L

2-N

GND

10BASE-T/

100BASE-TX

VIDEO OUT

POWER

SD CARD

LINK

1

2

GND

DAY/NIGHT IN

3 AUX OUT

4

5

ALARM OUT

ALARM IN

1

2

3

4

5

ACT

Coaxial cable

(optional)

Connect to the video monitor, etc.

(The illustration above is of the WV-NP1004.)

Step 4

<For the WV-NP1000>

Connect the AC power cord (provided as a standard accessory) between the AC inlet of the camera and a 220 V

– 240 V AC 50 Hz outlet.

Power cord (provided)

Ferrite core

220V - 240V ~ 50Hz

10BASE-T/

100BASE-TX

VIDEO OUT

POWER

SD CARD

LINK

3

4

5

1

2

1

2

GND

DAY/NIGHT IN

3

4

AUX OUT

ALARM OUT

5 ALARM IN

ACT

Read this label

Note:

• Connect the power cord firmly.

<For the WV-NP1004>

Connect the AC inlet on the rear of the camera and the AC outlet with a power cable.

AC 24V,

50 Hz

Power cable

AC24V

IN

1-L

2-N

GND

10BASE-T/

100BASE-TX

VIDEO OUT

POWER

SD CARD

LINK

1

2

GND

DAY/NIGHT IN

3 AUX OUT

4

5

ALARM OUT

ALARM IN

1

2

3

4

5

ACT

Step 6

Connect an external device to the EXT I/O connector.

When connecting an external device, remove 9 mm – 10 mm of the outer jacket of the cable and twist the cable core to prevent the short circuit first.

Specification of cable (wire): AWG22 - AWG28

Single core, twisted

Cut

AC24V

IN

1-L

2-N

GND

10BASE-T/

100BASE-TX

VIDEO OUT

POWER

SD CARD

LINK

1

2

3

4

5

1

2

3

4

GND

DAY/NIGHT IN

AUX OUT

ALARM OUT

5 ALARM IN

ACT

GND

DAY/NIGHT IN (color/BW in)

AUX OUT

ALARM OUT

ALARM IN

Approx. 9 mm - 10 mm

<Ratings>

ALARM IN: 5 V DC pull-up, Drive ability 0.5 mA or more

ALARM OUT: Open collector output

OPEN: Open or DC 4 V – DC 5 V

Maximum applied voltage: 20 V

CLOSE: Make contact with GND (50 mA or less)

AUX OUT: Open collector output

OPEN: Open or DC 4 V – DC 5 V

Maximum applied voltage: 20 V

CLOSE: Make contact with GND (50 mA or less)

DAY/NIGHT IN: 5 V DC pull-up, Drive ability 0.5 mA or more

Color: Open

BW: Short circuit

* To validate the color/BW input, select "EXT" for "BW

MODE". (

→ page 18)

Important:

• Do not connect 2 wires or more directly to a terminal.

When it is necessary to connect 2 wires or more, use a splitter.

• Connect an external device with verifying that the ratings are within the specifications above.

15

[Connection example]

When connecting with a PC directly

PC

AC24V

IN

1-L

2-N

GND

10BASE-T/

100BASE-TX

VIDEO OUT

POWER

SD CARD

LINK

1 GND

2

3

4

5

DAY/NIGHT IN

AUX OUT

ALARM OUT

ALARM IN

1

2

3

4

5

ACT

(The illustration above is of the WV-NP1004.)

<Required cable>

LAN cable (category 5, cross)

LAN cable (category 5, cross)

When connecting via a network

AC24V

IN

1-L

2-N

GND

10BASE-T/

100BASE-TX

VIDEO OUT

POWER

SD CARD

LINK

1

2

3

4

GND

DAY/NIGHT IN

AUX OUT

ALARM OUT

5 ALARM IN

1

2

3

4

5

ACT

Network device

(Hub, router, ADSL/CATV modem, etc.)

System device

Connect to the video input connector of a frame switcher, matrix switcher, etc.

Video monitor

Recording device

Note: When connecting to the video input connector of a device that has the power switch for the connected camera, such as the

Panasonic WV-CM142, turn the power switch for the connected camera off.

Connect to the video input connector of a digital disk recorder, time lapse VCR, etc.

LAN/Internet

PC (Refer to page 7 for the system requirements for a PC)

16

(The illustration above is of the WV-NP1004.)

<Required hardware>

Switching hub or router

<Required cable>

LAN cable (category 5, straight)

Important:

• Use a switching hub or a router which is compliant with 10BASE-T/100BASE-TX.

• Power supply is required for each network camera.

• When connecting multiple network cameras, it is necessary to configure the settings of the broadband router in use. It is also necessary to configure port numbers for each network camera independently. Refer to page 22 for further information about the settings.

Refer to the operating instructions of the broadband router for descriptions of how to configure the broadband router.

Insert/Remove a SD Memory Card

How to insert a SD memory card

Important:

Before inserting a SD memory card, make sure that the power of the camera is turned off.

q SD memory card

Loosen the screw of the

SD memory slot cover.

PUSH TO

LOCK/E

JECT w SD memory card

Remove the cover.

PUSH TO

LOCK/E

JECT e SD memory card

Insert a SD memory card into the SD memory card slot.

r Attach the cover and tighten the screw.

t Select "Use" for "About SD memory card" on the [SD memory card] tab of "Basic Setup" on the setup menu. (

→ Operating

Instructions (PDF))

How to remove the SD memory card

Important:

Before removing the SD memory card, select "Not use" for "About SD memory card" on the [SD memory card] tab of "Basic

Setup" on the setup menu first. (

→ Operating Instructions (PDF)) q Loosen the screw of the SD memory card cover.

PUSH TO

LOCK/E

JECT w Detach the SD memory card cover.

PUSH TO

LOCK/E

JECT e Release the locked SD memory card by pushing the card and pull the SD memory card from the slot.

r Attach the cover and tighten the screw.

17

18

Adjust the Back focal Length

Before adjusting the back focal length, adjust the lens first. (

→ page 12)

Use the operation buttons on the camera (

→ page 10) to adjust the back focal length.

The back focal length can also be adjusted on the [Camera] tab of the "Camera setup" page. (

→ page 19)

Step 1

Adjust the angular field of view while monitoring the video monitor, then press the [SET] button.

Step 2

The focus position will be displayed at the bottom of the window and the back focal length will be automatically adjusted.

NEAR FAR

INDICATOR 255 FOCUSING

Step 3

When it is necessary to adjust the back focal length minutely after the auto adjustment of the back focal length, adjust by pressing the [LEFT] or [RIGHT] button.

Notes:

• The displayed focus position will disappear if no operation is performed for 10 seconds or more.

• The back focal length position will set to the default position for the CS-mount by pressing both the [Left] and [Right] buttons for 2 seconds or more.

Configure the Settings Using the Operation Buttons on the Camera

Each setup item on the [Camera] tab of the "Camera setup" page can be configured using the operation buttons on the camera. The settings relating to image quality, brightness, privacy zone and back focal length can be configured on the [Camera] tab of the "Camera setup" page. When using the operation buttons, configure the settings while displaying the "Camera" tab page on the video monitor.

The following are descriptions about the setup items on the [Camera] tab and of how to configure them using the operation buttons on the camera.

Refer to the operating instructions (PDF) for further information about the [Camera] tab.

Settings items of the camera setup page

Settings item

CAMERA

CAMERA ID

ALC/ELC

SHUTTER

AGC

SENS UP

SYNC

WHITE BAL

DNR

BW MODE

PRIVACY ZONE

EL-ZOOM

STABILIZER

BACK-FOCUS

SPECIAL

CHROMA GAIN

AP GAIN

PEDESTAL

PIX OFF

CAMERA RESET SETUP

NETWORK

Description

Configure the settings relating to camera operations

The camera title can be edited and displayed on the screen.

Select the light control method from "ALC", "ALC+" and "ELC" according to the lens in use.

Select the shutter speed.

Select the method of the gain adjustment.

Adjust the sensitivity.

Display the method of the synchronization.

Select the method of the white balance adjustment.

Configure the settings for the DNR (Digital Noise Reduction) function.

Configure the settings relating to the BW mode such as the settings for switching between the color mode and the BW mode.

It is possible to mask a designated zone and as a privacy zone.

Adjust the electronic zoom.

Select "ON" or "OFF" to determine whether or not to use the image stabilizer to prevent shaky images.

Select the method of the back focal length adjustment and adjust the back focal length minutely.

Adjust the chroma level (color density).

Adjust the aperture level.

Adjust the pedestal level (brightness).

Correct image defects such as pixel failure.

Reset the settings edited on the [Camera] tab to the default settings.

Configure the network settings.

19

20

Basic operation

The following are descriptions of how to configure each setup item on the [Camera] tab using the operation buttons on the camera.

Notes:

• The illustrations below are the examples of the [Camera] tab pages to be displayed on a video monitor.

• The images of the setup menus in these operating instructions are of the WV-NP1004.

Step 1

Hold down the [SET] button for around 2 seconds.

→ The top page will be displayed.

MODEL WV-NP1004

CAMERA

BACK-FOCUS

SPECIAL

NETWORK

END SETUP DISABLE

Step 2

Move the cursor onto "END" by press the [UP] or [DOWN] button.

Step 3

Press the [SET] button after moving the cursor onto

"SETUP" by pressing the [RIGHT] button.

→ The "DISABLE" indication will change into "ENABLE" and the settings will become editable.

MODEL WV-NP1004

CAMERA

BACK-FOCUS

SPECIAL

NETWORK

END SETUP ENABLE

Step 4

Move the cursor onto the desired setup item and press the

[SET] button.

→ The setup page of the selected setup item will be displayed.

**CAMERA SETUP** 1/2

CAMERA ID OFF

ALC/ELC ALC

SHUTTER OFF

AGC ON(HIGH)

SENS UP OFF

SYNC INT

WHITE BAL ATW1

DNR HIGH

BW MODE

PRIVACY ZONE OFF

EL-ZOOM OFF

**CAMERA SETUP** 2/2

STABILIZER OFF

RET TOP END

Step 5

Configure the settings for each item.

Select setup item: Move the cursor by pressing the [Up] or [Down] button.

Change the parameter: Press the [Left] or [Right] button.

Display the detailed settings page of the setup item:

Press the [SET] button when the setup item with the

[

O] mark is selected.

Go back to the previous page: Move the cursor onto "RET" and press the [SET] button.

Go back to the top page: Move the cursor onto "TOP" and press the [SET] button.

Step 6

To exit from the SETUP menu and display images from the camera: Move the cursor onto "END" and press the [SET] button.

Notes:

• To prevent erroneous operations, the "DISABLE" indication will always be displayed when the top page is displayed. To operate the SETUP menu, switch the "DIS-

ABLE" indication to the "ENABLE" indication first.

• The cursor position will be displayed highlighted.

Camera setup page chart

Note:

The illustrations below are of the WV-NP1004.

<Top page>

MODEL WV-NP1004

CAMERA

BACK-FOCUS

SPECIAL

NETWORK

END SETUP DISABLE

<CAMERA SETUP page>

**CAMERA SETUP** 1/2

CAMERA ID OFF

ALC/ELC ALC

SHUTTER OFF

AGC ON(HIGH)

SENS UP OFF

SYNC INT

WHITE BAL ATW1

DNR HIGH

BW MODE

PRIVACY ZONE OFF

EL-ZOOM OFF

<BACK-FOCUS SETUP page>

**BACK-FOCUS SETUP**

ABF PUSH SW

MANUAL-ADJ

C/L B/W AUTO

SETUP-SW LOCK OFF

NEAR FAR

.........

|.........

INDICATOR XXXX

RET TOP END

**CAMERA SETUP** 2/2

STABILIZER OFF

RET TOP END

<SPECIAL SETUP page>

**SPECIAL SETUP**

CHROMA GAIN ....

|

..160

AP GAIN .....

|

.193

PEDESTAL ...

|

...113

- +

PIX OFF

CAMERA RESET PUSH SW

RET TOP END

<NETWORK SETUP page>

**NETWORK SETUP**

DHCP OFF

IP ADDR 192.168. 0. 10

NETMASK 255.255.255. 0

GATEWAY 192.168. 0. 1

HTTP PORT NO. 80

RET TOP END

21

Configure the Network Settings

Install the software

Before installing the software, read the readme file on the provided CD-ROM first.

Software included on the provided CD-ROM

• Panasonic IP Setup Software

Configure the network settings of the camera. Refer to the following for further information.

• Viewer Software "Network Camera View2"

It is necessary to install the viewer software "Network

Camera Viewer2" to display images on a PC. Install the viewer software by double-clicking the "Setup.exe" icon on the provided CD-ROM.

Configure the network settings of the camera using the Panasonic IP setup software

The network settings of the camera can be configured using the Panasonic IP setup software.

When using multiple cameras, it is necessary to configure the network settings of each camera independently.

When the Panasonic IP setup software does not work to perform the network settings of the camera, perform the network settings of the camera and the PC individually on the "Network setup" page of the setup menu. Refer to the Operating Instructions

(PDF) for further information.

Important:

• When using Windows XP SP2, the "Windows Security Alert" window may be displayed when start the IP setup software. In this case, click the "Unblock" button on the displayed "Windows Security Alert" window.

• For the security enhancement, the Panasonic IP setup software will become inoperable when around 20 minutes have passed after turning on the power of the camera.

Step 1

Start the Panasonic IP setup software.

Step 2

Click the [IP setting] button after selecting the MAC address/IP address of the camera to be configured.

Step 3

Complete each network setup item and click the [SET] button.

22

Note:

When using a DHCP server, the IP address assigned to the camera can be displayed by clicking the

[REFRESH] button of the IP setup software.

Important:

• It may take for around 30 seconds to complete to upload the settings to the camera after clicking the

[SET] button. The settings may be invalidated when the

AC adapter or the LAN cable is disconnected before completing the upload. In this case, perform the settings again.

• When using a firewall (including software), allow access to all UDP ports.

Troubleshooting

Before asking for repairs, check the symptoms with the following table.

Contact your dealer if a problem cannot be solved even after checking and trying the solution or if the problem is not described below.

Symptom

The power cannot be turned on.

Cause/solution

When using AC 24V power supply (WV-NP1004)

• Is the power cable connected to the AC 24V power supply?

→ Confirm the cable is firmly connected.

When using AC 230V power supply (WV-NP1000)

• Is the power cord connected to the AC inlet firmly?

→ Confirm the power cord is firmly connected to the

AC inlet.

Reference pages

15

Check the power cable, AC inlet and the power plug periodically.

Cause/solution

Symptom

The power cable insulation is damaged.

The power cable, AC inlet or the power plug are hot during use.

The power cable gets warm or hot if bent or pulled during use.

Reference pages

• The power cable, AC inlet or the power plug is damaged.

If you continue to use it, a fire or an electric shock may occur.

Unplug the power plug immediately, and refer servicing to qualified service personnel.

23

Specifications

24

General specifications

Power source

Power consumption

Ambient temperature

Ambient humidity

Controller interface

Audio

Dimensions

Weight

CAMERA

Image sensor

Effective pixels

Scanning area

AGC

Aperture control

Shutter

Scanning method

Sensitivity up

White balance

DNR

Color/BW

Electronic Zoom

Image stabilizer

Camera ID

VMD alarm

ABF

ALC lens drive

Lens mount

Analog

Signal

Video output

Scanning frequency

Synchronization

Resolution

WV-NP1000: AC220 V - 240 V 50 Hz

WV-NP1004: AC24 V 50 Hz

WV-NP1000: Approx. 10.5 W

WV-NP1004: Approx. 9.5 W

–10 °C - +50 °C

90 % or less

Coaxial multiplex/Ethernet

Captured by the built-in microphone

84 mm (W) x 83 mm (H) x 197.5 mm (D) (excluding connectors/terminals)

Approx. 0.97 k g

1/3 inch interline transfer CCD

Full scanning mode: 1296 (H) x 966 (V)

Partial scanning mode: 960 (H) x 720 (V)

Full scanning mode: 4.8 mm (H) x 3.6 mm (V)

Partial scanning mode: 3.6 mm (H) x 2.7 mm (V)

ON (LOW, MID, HIGH)/OFF

ALC/ALC+/ELC (BLC ON/OFF available)

Full scanning mode: OFF(1/12.5), 1/25, 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000,

1/10000

Partial scanning mode: OFF(1/50), 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

Full scanning mode:

Partial scanning mode:

12.5 fps progressive scan

25 fps 2:1 interlace scan

(with motion adaptive interlace/progressive conversion for network)

OFF, x2AUTO, x4AUTO, x6AUTO, x10AUTO*, x2FIX, x4FIX, x6FIX, x10FIX*, x16FIX*, x32FIX*

(*: Selectable only when "Partial scanning" is selected for the resolution setting.)

ATW1/ATW2/AWC

LOW/HIGH

AUTO1/AUTO2/EXT/ON/OFF x5

ON/OFF

Up to 16 characters ON/OFF

ON/OFF, 4 areas available

ABF/MANUAL/CL/BW

DC drive

CS-mount

PAL

VBS: 1.0 V[P-P]/75

Ω, composite (BNC)

Horizontal: 15.625 kHz Vertical: 50 Hz

Internal, VD2

Full scanning mode: Horizontal: 600 TV lines or more (color mode)

780 TV lines or more (BW mode)

Vertical: 450 TV lines or more

Partial scanning mode: Horizontal: 540 TV lines or more (color mode)

570 TV lines or more (BW mode)

Vertical: 400 TV lines or more

S/N

Minimum illumination

50 dB or more (AGC OFF)

1.0 lx (color mode), 0.06 lx (BW mode) [Lens F1.4, AGC ON (HIGH), full scanning mode (shutter speed 1/25)/partial scanning mode (Electronic shutter speed OFF (1/50))]

Network

Network

Resolution

Full scanning mode

10BASE-T/100BASE-TX, RJ45 connector

JPEG: 1280 x 960/VGA (640 x 480)/QVGA (320 x 240)

MPEG-4: VGA (640 x 480)/QVGA (320 x 240), up to 12.5 fps

Partial scanning mode JPEG: 960 x 720/VGA (640 x 480)/QVGA (320 x 240)

MPEG-4:VGA (640 x 480)/QVGA (320 x 240), up to 25 fps

Image compression method

MPEG-4

JPEG

Refresh interval (JPEG)

Audio compression method

Bandwidth Control

Protocol

Image quality: LOW/NORMAL/FINE Transmission type: UNICAST/MULTICAST

Max bit rate: 64 kbps/128 kbps/256 kbps/1024 kbps/1536 kbps/2048 kbps/3072 kbps/4096 kbps

Image quality: 0 SUPER FINE/1 FINE/2/3/4/5 NORMAL/6/7/8/9 LOW (10 steps: 0-9)

Transmission type: PULL/PUSH

0.1 fps - 25 fps (Frame rate of JPEG will be limited when operating both JPEG and MPEG images.)

G.726 (ADPCM) 32 kbps/64 kbps

64 kbps/128 kbps/256 kbps/512 kbps/1024 kbps/2048 kbps/4096 kbps/10 Mbps/

Unlimited

TCPIP, UDP/IP, HTTP, RTP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP

OS

Web browser

Maximum concurrent access number

FTP client

Microsoft® Windows® 2000 Professional SP4, Microsoft® Windows® XP Home Edition SP2,

Microsoft® Windows® XP Professional SP2

Internet Explorer 6.0 Service Pack2

8 (Depends on network conditions.)

Multi-screen

SD memory card

(option)

External I/O terminals

Alarm FTP image transmission, FTP periodic transmission (When failed to transmit, backup on an optional SD memory card is available.)

Images from 8 cameras (4 cameras x 2 groups) can be displayed.

Manufactured by Panasonic

Capacity: 64 MB, 128 MB, 256 MB, 512 MB, 1 GB

DAY/NIGHT IN x1, AUX OUT x1, ALARM IN x1, ALARM OUT x1

Options

Lens: WV-LZA62/2 (x2 varifocal)

25

26

Standard Accessories

CD-ROM* ...................................................................... 1 pc.

Operating Instructions (this book) ................................ 1 pc.

ALC lens connector cap ............................................... 1 pc.

The following is for the installation.

Power cord (only for the WV-NP1000) .......................... 1 pc.

Ferrite core for the ALC lens connector cable ............. 1 pc.

* The IP setup software, the viewer software and the operating instructions (PDF) are included on the CD-ROM.

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

27

Matsushita Electric Industrial Co., Ltd.

Osaka, Japan http://www.panasonic.co.jp/global/

© 2005 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.

NM1205-0/1 3TR004264AAA Printed in Japan
