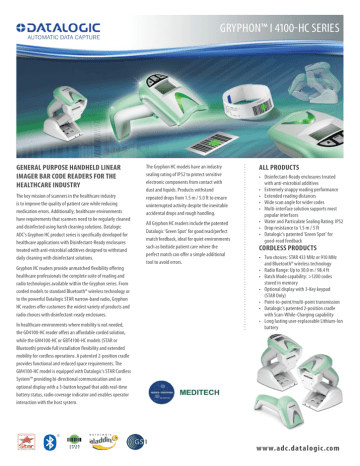

gryphon™ i 4100-hc series
General Purpose Handheld Linear
Imager Bar Code Readers for the
Healthcare Industry
The key mission of scanners in the healthcare industry
is to improve the quality of patient care while reducing
medication errors. Additionally, healthcare environments
have requirements that scanners need to be regularly cleaned
and disinfected using harsh cleaning solutions. Datalogic
ADC’s Gryphon HC product series is specifically developed for
healthcare applications with Disinfectant-Ready enclosures
treated with anti-microbial additives designed to withstand
daily cleaning with disinfectant solutions.
Gryphon HC readers provide unmatched flexibility offering
healthcare professionals the complete suite of reading and
radio technologies available within the Gryphon series. From
corded models to standard Bluetooth® wireless technology or
to the powerful Datalogic STAR narrow-band radio, Gryphon
HC readers offer customers the widest variety of products and
radio choices with disinfectant-ready enclosures.
In healthcare environments where mobility is not needed,
the GD4100-HC reader offers an affordable corded solution,
while the GM4100-HC or GBT4100-HC models (STAR or
Bluetooth) provide full installation flexibility and extended
mobility for cordless operations. A patented 2-position cradle
provides functional and reduced space requirements. The
GM4100-HC model is equipped with Datalogic’s STAR Cordless
System™ providing bi-directional communication and an
optional display with a 3-button keypad that adds real-time
battery status, radio coverage indicator and enables operator
interaction with the host system.
GREEN
S P O T
The Gryphon HC models have an industry
sealing rating of IP52 to protect sensitive
electronic components from contact with
dust and liquids. Products withstand
repeated drops from 1.5 m / 5.0 ft to ensure
uninterrupted activity despite the inevitable
accidental drops and rough handling.
All Gryphon HC readers include the patented
Datalogic ‘Green Spot’ for good read/perfect
match feedback, ideal for quiet environments
such as bedside patient care where the
perfect match can offer a simple additional
tool to avoid errors.
All Products
• Disinfectant-Ready enclosures treated
with anti-microbial additives
• Extremely snappy reading performance
• Extended reading distances
• Wide scan angle for wider codes
• Multi-interface solution supports most
popular interfaces
• Water and Particulate Sealing Rating: IP52
• Drop resistance to 1.5 m / 5 ft
• Datalogic’s patented ‘Green Spot’ for
good-read feedback
Cordless Products
• Two choices: STAR 433 MHz or 910 MHz
and Bluetooth® wireless technology
• Radio Range: Up to 30.0 m / 98.4 ft
• Batch Mode capability: >1200 codes
stored in memory
• Optional display with 3-Key keypad
(STAR Only)
• Point-to-point/multi-point transmission
• Datalogic’s patented 2-position cradle
with Scan-While-Charging capability
• Long lasting user-replaceable Lithium-Ion
battery
www.adc.datalogic.com
specifications
Decoding Capability
1D / Linear Codes
postal codes
Stacked Codes
Reading Performance
Autodiscriminates all standard 1D codes including GS1
DataBar™ linear codes.
China Post
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1
DataBar Stacked Omnidirectional
Electrical
Current
Input Voltage
Operating (Typical): 245 mA @ 5 VDC; Standby/Idle
(Typical): 120 mA @ 5 VDC
4.75 - 5.25 VDC
Environmental
Ambient Light
Drop Resistance
ESD Protection (Air Discharge)
Humidity (Non-Condensing)
Particulate and Water Sealing
Temperature
0 - 100,000 lux
Withstands repeated drops from 1.5 m / 5.0 ft onto a
concrete surface
16 kV
0 - 90%
IP52
Operating: 0 to 55 °C / 32 to 131 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F
RS-232 / USB / Keyboard Wedge / Wand Multi-Interfaces
Physical Characteristics
Colors Available
Dimensions
Enclosure
Weight
Imager Sensor
Light Source
Print Contrast Ratio (Minimum)
Read Rate (Maximum)
Reading Angle
Reading Indicators
Resolution (Maximum)
Light Green/Light Grey (Rubber/Plastic)
18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Disinfectant-Ready Enclosure Treated with Anti-Microbial
Additives
169.0 g / 6.0 oz
CCD Solid-State
Illumination: Dual LED Array 630 - 670 nm
15%
325 reads/sec.
Pitch: 65°; Roll (Tilt): 35°; Skew (Yaw): 65°
Beeper (Adjustable Tone and Volume); Datalogic ‘Green
Spot’ Good Read Feedback; Good Read LED
0.076 mm / 3 mils
Reading Ranges
Typical Depth of Field
Minimum distance determined by symbol length and scan
angle.
Printing resolution, contrast, and ambient light
dependent.
5 mils: 6.0 to 18.0 cm / 2.3 to 7.0 in
7.5 mils: 3.5 to 30.0 cm / 1.4 to 11.7 in
10 mils: 2.0 to 45.0 cm / 0.8 to 17.7 in
13 mils: 3.0 to 60.0 cm / 1.2 to 23.4 in
20 mils: 3.0 to 80.0 cm / 1.2 to 31.2 in
Safety & Regulatory
Agency Approvals
Interfaces
Interfaces gryphon™ i GD4100-hc
Environmental Compliance
LED Classification
The product meets necessary safety and regulatory
approvals for its intended use.
The Quick Reference Guide for this product can be referred
to for a complete list of certifications.
Complies to China RoHS; Complies to EU RoHS
IEC 60825-1 Class 1 LED Product
Utilities
Datalogic Aladdin™
remote host download
Datalogic Aladdin configuration program is available for
download at no charge.
Lowers service costs and improves operations: GD4100
Warranty
Warranty Datalogic ADC’s Disinfectant-Ready Enclosures
for Healthcare
Datalogic ADC offers bar code readers designed specifically for the healthcare
industry with Disinfectant-Ready enclosures treated with anti-microbial
additives that can help fight against the spreading of germs. This is particularly
important if the scanner is traveling room-to-room on a medication cart with
a nurse. The Disinfectant-Ready enclosures can withstand daily cleaning with
harsh chemical cleaning solutions commonly used in a healthcare environment.
5-Year Factory Warranty
PRODUCT
CHEMICAL CONTENT
Sani-Cloth® HB, Sani-Cloth® Plus,
Super Sani-Cloth®
Quaternary Ammonium Chloride solution
Hepacide Quat II
Virucidal disinfectant cleaner
Alcohol Wipes
70% Isopropyl Alcohol
CaviWipesTM
Isopropanol 10-20%;
Ethylene Glycol Monobutyl Ether 1-5%
Virex® 256
n-Alkyl Dimethyl Benzyl Ammonium
Chloride; Didecyl Dimethyl Ammonium
Chloride
409® Glass and Surface Cleaner
n-Alkyl Dimethyl Benzyl Ammonium
Chloride; n-Propoxypropanol
Windex® Blue
Isopropyl Alcohol
Clorox® Bleach
Sodium Hypochlorite;
Sodium Hydroxide
100% Gentle dish soap and water
Refer to the device instruction manual for proper cleaning methods when
using these chemicals.
Disinfectants should not be sprayed or poured onto the scanner unit.
the scanners must always be wiped dry after disinfecting.
specifications
gryphon™ i GM4100-hc
Cordless Communications Reading Performance
Datalogic STAR Cordless System™ Effective Radiated Power: 433.92 MHz: < 10 mW;
910 MHz: < 1 mW
Multi-Point Configuration: Max. Readers per Radio
Receiver: 16; Point-to-Point Configuration
Radio Frequency: 433.92 MHz; 910 MHz
Radio Range (Open Air):
433.92 MHz: 30.0 m / 98.4 ft; 910 MHz: 15.0 m / 49.2 ft
Two Way Communications
Light Source
Print Contrast Ratio (Minimum)
Read Rate (Maximum)
Reading Angle
Reading Indicators
Reading Ranges
Decoding Capability
1D / Linear Codes
Postal Codes
Stacked Codes
Autodiscriminates all standard 1D codes including GS1
DataBar™ linear codes.
China Post
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional
Electrical
Battery
Cradle Indicator LEDs
Current
Input Voltage
Battery Type: Lithium-Ion, 2100 mAh
Charge Time: External Power: 4 Hours @ 12 VDC
Reads per Charge: 50,000
Battery Charging (Red); Charge Completed (Green); Power/
Data (Yellow)
Charging (Typical): < 8 W; Operating (Typical): < 2.5 W @ 5
VDC; Standby/Idle (Typical): < 2.5 mA @ 5 VDC
4.75 - 14 VDC +/- 5%
Environmental
Ambient Light
Drop Resistance
ESD Protection (Air Discharge)
Humidity (Non-Condensing)
Particulate and Water Sealing
Temperature
100,000 lux
Withstands repeated drops from 1.5 m / 5.0 ft onto a
concrete surface
16 kV
5 - 95%
IP52
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F
Interfaces
Interfaces RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
Physical Characteristics
Colors Available
Dimensions
Display
Enclosure
Keypad
Weight
Resolution (Maximum)
Illumination: LED Array 630 - 670 nm
15%
325 reads/sec.
Pitch: +/- 65°; Roll (Tilt): +/- 35°; Skew (Yaw): +/- 65°
Beeper (Adjustable Tone and Volume); Datalogic ‘Green
Spot’ Good Read Feedback; Good Read LED
0.076 mm / 3 mils
Light Green/Light Grey (Rubber/Plastic)
Cradle: 18.6 x 9.9 x 5.6 cm / 7.3 x 3.9 x 2.2 in
Reader: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Display Type: GM4100-HC-D Only: Graphic with backlight;
Font Dimensions: User selectable (4 lines x 16 columns
default); Screen Dimensions: 32 x 96 pixels
Disinfectant-Ready Enclosure Treated with Anti-Microbial
Additives
GM4100-HC-D Only: 3-Key Keypad
Cradle: 246.0 g / 8.7 oz
Reader: 225.0 g / 8.0 oz
Typical Depth of Field
Minimum distance determined by symbol length and scan
angle.
Printing resolution, contrast, and ambient light
dependent.
5 mils: 6.0 to 18.0 cm / 2.3 to 7.0 in
7.5 mils: 3.5 to 30.0 cm / 1.4 to 11.7 in
10 mils: 2.0 to 45.0 cm / 0.8 to 17.7 in
13 mils: 3.0 to 60.0 cm / 1.2 to 23.4 in
20 mils: 3.0 to 80.0 cm / 1.2 to 31.2 in
Safety & Regulatory
Agency Approvals
Environmental Compliance
LED Classification
The product meets necessary safety and regulatory
approvals for its intended use.
The Quick Reference Guide for this product can be referred
to for a complete list of certifications.
Complies to China RoHS; Complies to EU RoHS
IEC 60825-1 Class 1 LED Product
Utilities
Datalogic Aladdin™
opos / javapos
remote host download
Datalogic Aladdin configuration program is available for
download at no charge.
OPOS Utilities are available for download at no charge.
Lowers service costs and improves operations: BC4010
Warranty
Warranty 3-Year Factory Warranty
specifications
gryphon™ i GBT4100-hc
Cordless Communications Reading Performance
Bluetooth Wireless Technology Protocol: Bluetooth 2.0 Certified Class 2
Radio Frequency: 2.4 GHz
Radio Range (Open Air): 30.0 m / 98.4 ft
Light Source
Print Contrast Ratio (Minimum)
Read Rate (Maximum)
Reading Angle
Reading Indicators
Decoding Capability
1D / Linear Codes
Postal Codes
Stacked Codes
Autodiscriminates all standard 1D codes including GS1
DataBar™ linear codes.
China Post
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional
Current
Input Voltage
Battery Type: Lithium-Ion, 2100 mAh
Charge Time: 4 Hours @ 12 VDC
Reads per Charge: 33,000
Battery Charging (Red); Charge Completed (Green); Power/
Data (Yellow)
Charging (Typical): < 8 W; Operating (Typical): < 2.5 W @ 5
VDC; Standby/Idle (Typical): < 2.5 mA @ 5 VDC
4.5 - 14 VDC +/- 5%
Environmental
Ambient Light
Drop Resistance
ESD Protection (Air Discharge)
Humidity (Non-Condensing)
Particulate and Water Sealing
Temperature
100,000 lux
Withstands repeated drops from 1.5 m / 5.0 ft onto a
concrete surface
16 kV
5 - 95%
IP52
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F
Interfaces
Interfaces RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
Physical Characteristics
Colors Available
Dimensions
Enclosure
Weight
Reading Ranges
Typical Depth of Field
Electrical
Battery
Cradle Indicator LEDs
Resolution (Maximum)
Illumination: LED Array 630 - 670 nm
15%
325 reads/sec.
Pitch: +/- 65°; Roll (Tilt): +/- 35°; Skew (Yaw): +/- 65°
Beeper (Adjustable Tone and Volume); Datalogic ‘Green
Spot’ Good Read Feedback; Good Read LED
0.076 mm / 3 mils
Minimum distance determined by symbol length and scan
angle.
Printing resolution, contrast, and ambient light
dependent.
5 mils: 6.0 to 18.0 cm / 2.3 to 7.0 in
7.5 mils: 3.5 to 30.0 cm / 1.4 to 11.7 in
10 mils: 2.0 to 45.0 cm / 0.8 to 17.7 in
13 mils: 3.0 to 60.0 cm / 1.2 to 23.4 in
20 mils: 3.0 to 80.0 cm / 1.2 to 31.2 in
Safety & Regulatory
Agency Approvals
Environmental Compliance
LED Classification
The product meets necessary safety and regulatory
approvals for its intended use.
The Quick Reference Guide for this product can be referred
to for a complete list of certifications.
Complies to China RoHS; Complies to EU RoHS
IEC 60825-1 Class 1 LED Product
Utilities
Datalogic Aladdin™
opos / javapos
remote host download
Datalogic Aladdin configuration program is available for
download at no charge.
OPOS Utilities are available for download at no charge.
Lowers service costs and improves operations: BC4010
Warranty
Warranty 3-Year Factory Warranty
Light Green/Light Grey (Rubber/Plastic)
Cradle: 18.6 x 9.9 x 5.6 cm / 7.3 x 3.9 x 2.2 in
Reader: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Disinfectant-Ready Enclosure Treated with Anti-Microbial
Additives
Cradle: 246.0 g / 8.7 oz
Reader: 225.0 g / 8.0 oz
Accessories
All Products
Cordless Products
Batteries/Battery Chargers
• RBP-GM40 Removable Battery Pack
Base Stations/Chargers
Mounts/Stands
• 11-0362: Holder, Multi-Purpose, Grey
• HLD-G040-WH: Desk/Wall Holder, G040, White
• STD-AUTO-G040-WH: Smart Stand, G040, White
• STD-G040-WH: Basic Stand, G040, White
Gryphon™ I GM4100-HC
• BC4030-HC (433 or 910 MHz): Base/Charger STD MultiInterface, Healthcare
• CHR-GM40-WH: Charging Only Base Station, White
Gryphon™ I GBT4100-HC
• BC4030-HC-BT: Base/Charger, Standard
Multi-Interface, Healthcare
• CHR-GM40-WH: Charging Only Base Station,
White
© 2010 - 2012 Datalogic ADC, Inc. • All rights reserved. • Protected to the fullest extent under U.S. and international laws. • Copying, or altering of this document is prohibited without express written consent from Datalogic
ADC, Inc. • Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S. and the E.U. and the Datalogic Automatic Data Capture logo is a trademark of Datalogic S.p.A.
•Datalogic Aladdin, Datalogic STAR and Datalogic STAR Cordless System are trademarks of Datalogic ADC Group S.r.l. • Gryphon is a trademark of Datalogic ADC, Inc. • The Bluetooth word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by Datalogic ADC, Inc. is under license. • All other brand and product names are trademarks of their respective owners. • DS-GRYPHON4100-HC-ENA4 20120821
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
