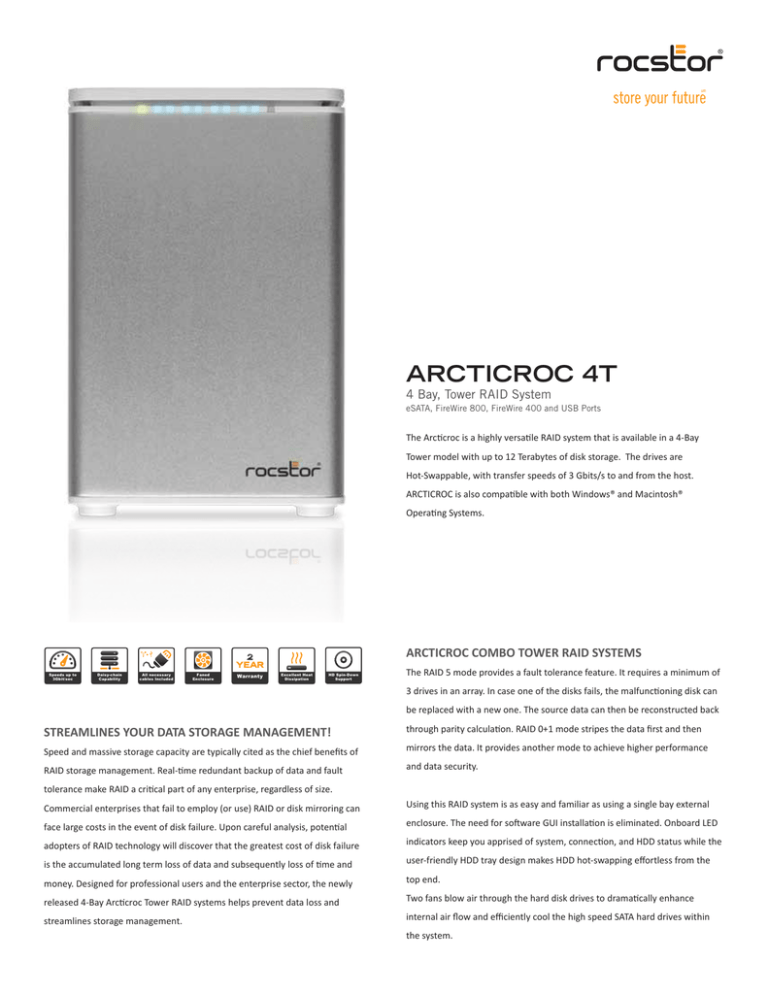

Arcticroc 4T Specifications
ARCTICROC 4T
4 Bay, Tower RAID System
eSATA, FireWire 800, FireWire 400 and USB Ports
The Arcticroc is a highly versatile RAID system that is available in a 4-Bay
Tower model with up to 12 Terabytes of disk storage. The drives are
Hot-Swappable, with transfer speeds of 3 Gbits/s to and from the host.
ARCTICROC is also compatible with both Windows® and Macintosh®
Operating Systems.
ARCTICROC COMBO TOWER RAID SYSTEMS
Speeds up to
3Gbit/sec
Daisy-chain
Capability
All necessary
cables Included
Faned
Enclosure
Warranty
Excellent Heat
Dissipation
HD Spin-Down
Support
The RAID 5 mode provides a fault tolerance feature. It requires a minimum of
3 drives in an array. In case one of the disks fails, the malfunctioning disk can
be replaced with a new one. The source data can then be reconstructed back
STREAMLINES YOUR DATA STORAGE MANAGEMENT!
through parity calculation. RAID 0+1 mode stripes the data first and then
Speed and massive storage capacity are typically cited as the chief benefits of
mirrors the data. It provides another mode to achieve higher performance
RAID storage management. Real-time redundant backup of data and fault
and data security.
tolerance make RAID a critical part of any enterprise, regardless of size.
Commercial enterprises that fail to employ (or use) RAID or disk mirroring can
Using this RAID system is as easy and familiar as using a single bay external
face large costs in the event of disk failure. Upon careful analysis, potential
enclosure. The need for software GUI installation is eliminated. Onboard LED
adopters of RAID technology will discover that the greatest cost of disk failure
indicators keep you apprised of system, connection, and HDD status while the
is the accumulated long term loss of data and subsequently loss of time and
user-friendly HDD tray design makes HDD hot-swapping effortless from the
money. Designed for professional users and the enterprise sector, the newly
top end.
released 4-Bay Arcticroc Tower RAID systems helps prevent data loss and
Two fans blow air through the hard disk drives to dramatically enhance
streamlines storage management.
internal air flow and efficiently cool the high speed SATA hard drives within
the system.
ARCTICROC 4T
4 Bay, Tower RAID System
eSATA, FireWire 800, FireWire 400 and USB Ports
SPECIAL FEATURES:
• Provides flexible connections including eSATA, USB 2.0, 1394b and 1394a ports.
• Hard Drives are hot-pluggable.
• Simplifies HDD installation: effortless HDD hot-swapping.
• Configures RAID modes via mode switch: no IT expertise required.
FireWire 800
• Simplifies RAID management: no software installation required.
FireWire 800
• Allows hardware RAID mode settings for effective storage management.
FireWire 400
• RAID 0 (Striping), RAID 1 (Mirroring), RAID 5, RAID 5+HotSpare, RAID 0+1
• Ensures data integrity with redundant backup capability.
RAID/HD Switches
Power Switch
USB 2.0
eSATA
Power Outlet
• Maximizes airflow with silent fans.
PACKAGE CONTENTS:
ARCTICROC 4T SPECS
Capacity
2TB, 4TB, 6TB, 8TB, 12TB
ARCTICROC 4T
4-Bay RAID System
Quick Installation Guide
Arcticroc 4T
4 Handles &
16 HDD Screws
Quick Installation
Guide
Power Cord
Rotational Speed
7200 RPM
RAID Supported
RAID 0 (Striping), RAID 1 (Mirroring), RAID 5,
RAID 5+HotSpare, RAID 0+1
Dimensions (LxWxH)
8.3" x 5.4" x 8.4" (210 x 138 x 213 mm)
FireWire 400
(6 to 6 pin) Cable
USB Cable
eSATA Cable
FireWire 800
(9 to 9 pin) Cable
MINIMUM SYSTEM REQUIREMENTS:
Mac and PC:
eSATA or
FireWire 800 (1394b IEEE) or
FireWire 400 (1394a IEEE) or
USB 2.0 (1.1) port(s.)
Mac: PowerPC or Intel Core Duo processor
PC: 266Mhz or faster Intel or equivalent processor
Recommended Memory: 512MB RAM
OS Requirements
Mac: PowerPC or Intel processor running Mac OS 9, X, (Snow) Leopard
PC: Microsoft® Windows 2000, Me, XP, Vista, or Windows 7.
Capacity Disclaimer: Actual accessible hard drive capacity will indicate up to 10% lower than stated under different
Operating Systems and formatting. Therefore, a 500GB capacity drive will show up as a 450GB drive (approximately.)
© 2011, Rocstorage, Inc.
Rocstor, Rocsecure and Rocpower are registered trademarks of Rocstorage, Inc. "store your future," "secure your future,"
“store your power” and “power your future” are the slogan marks of Rocstorage, Inc.
Apple, the Apple logo, Mac, Power Macintosh, FireWire, and Mac Pro, Leopard … are trademarks of Apple Computer, Inc.
Microsoft®, MS-DOS, Windows® CE, Windows® NT, Windows® 98, Soft Windows®, Vista, Windows® 7 … are registered
trademarks of Microsoft® Corporation.
All other names are trademarks of their respective companies in the United States and other countries. © 2000 – 2011
Designed/integrated/assembled in USA using domestic and/or foreign components.
Enclosure (without Hard Drive) is Made in China.
Weight
Without HDD 5.0 Lbs (2.3 Kgs)
With 4xHDD’s 8.4 Lbs (3.8 Kgs)
FAN
Two quiet fans
Power Requirement
AC outlet via Adaptor
Interface
USB 2.0 port x 1 up to 480MB/s,
FireWire 800 (1394b) x 1 up to 800MB/s,
FireWire 400 (1394a) x 1 up to 400MB/s
eSATA x 1 up to 3GB/s
Warranty
2 year limited warranty,
Unlimited toll-free telephone tech support
www.ROCSTOR.com
FireWire 400
FireWire 800
