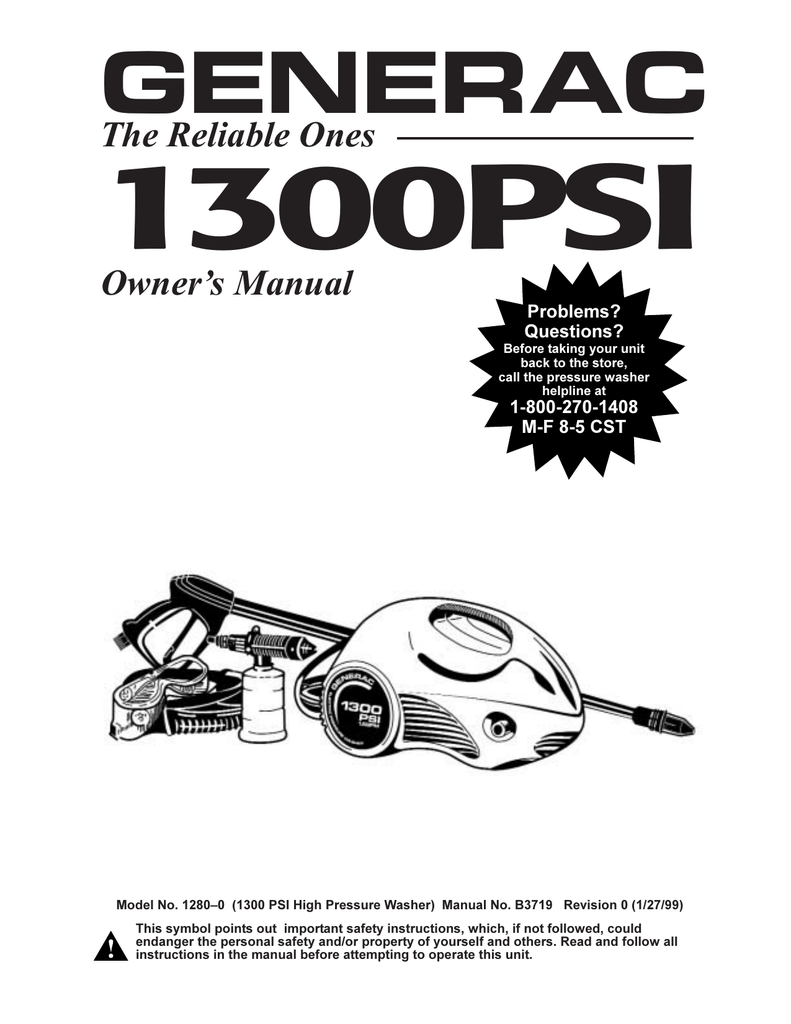

Simplicity 01280-0 Operator's Manual

GENERAC
The Reliable Ones
1300PSI
Owner’s Manual
Problems?
Questions?
Before taking your unit
back to the store,
call the pressure washer
helpline at
1-800-270-1408
M-F 8-5 CST
Model No. 1280–0 (1300 PSI High Pressure Washer) Manual No. B3719 Revision 0 (1/27/99)
This symbol points out important safety instructions, which, if not followed, could
endanger the personal safety and/or property of yourself and others. Read and follow all
instructions in the manual before attempting to operate this unit.
A
C
Th
eR
el
ia
bl
eO
ne
s
G
E
N
E
R
Generac 1300PSI High Pressure Washer
Important! — Safety Instructions — Important!
Save these instructions
CAUTION! Read all instructions before using
• Follow the maintenance instructions specified in the
manual.
this product to reduce the risk of injury.
• Inspect cord before every use. Do not use if cord is
damaged.
• This product shall only be connected to a power
supply receptacle protected by a Ground Fault
Circuit Interrupter (GFCI). This is done to comply
with National Electrical Code (NFPA 70) and to
provide additional protection from risk of electrical
shock.
• Keep all connections dry and off the ground.
• Save these instructions.
• Do not touch plug with wet hands.
• Operate this pressure washer only in areas away
from combustible materials, combustible fumes or
dust.
DANGER! Risk of electrocution!
• Double–insulated — When servicing, use only
identical replacement parts.
• Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea,
fainting or poisoning. The harmful elements may
cause property damage or severe injury.
• This product shall only be connected to a power
supply receptacle protected by a Ground Fault
Circuit Interrupter (GFCI).
• Read instruction manual before using.
• Do not allow CHILDREN to operate the Pressure
Washer at any time.
WARNING! To reduce the risk of injury, close
supervision is necessary when product is used
near children.
• Know how to stop the product and bleed the
pressure quickly. Be thoroughly familiar with
controls.
• Before starting the Pressure Washer in cold
weather, check all parts of the equipment and be
sure ice has not formed.
• Units with broken or missing parts, or without
protective housing or covers should NEVER be
operated.
• Stay alert. Watch what you are doing.
• Do not operate the product when fatigued or under
the influence of alcohol or drugs.
DANGER! Risk of Explosion — Do not spray
flammable liquids.
• Keep operating area clear of all persons.
• Never aim the gun at people, animals or plants.
WARNING! Risk of injury or injection to
persons – Do not discharge stream at persons
or animals.
• High pressure hose can develop leaks from wear,
kinking, abuse, etc. Water spraying from a leak is
capable of injecting material into skin. Do not point
the pressure washer spray at people or animals.
• For household use. For indoor or outdoor use.
• High pressure stream of fluid that this equipment
can produce may pierce skin and its underlying
tissues, leading to serious injury and possible
amputation.
• High pressure spray can cause paint chips or other
particles to become airborne and fly at high speeds.
• Do not overreach or stand on unstable support.
Keep good footing and balance at all times.
2
R
EOnes
Nble
Eelia
GThe R
Generac 1300PSI High Pressure Washer
C
A
Important! — Safety Instructions — Important!
Save these instructions
• Always wear eye protection when you use this
equipment or when you are in vicinity where the
equipment is in use.
• Store in a clean, dry area. Ideally, the unit should be
stored in a frost–free room.
Servicing of a Double Insulated Product.
• Never move the machine by pulling on high
pressure hose. Use the handle provided on the top
of the unit.
In a double–insulated product, two systems of
insulation are provided instead of grounding. No
means of grounding is provided on a
double–insulated product, nor should a means for
grounding be added.
• Use a respirator or mask whenever there is a
chance that vapors may be inhaled. Read all
instructions with the mask so you are certain the
mask will provide the necessary protection against
inhaling harmful vapors.
Servicing a double–insulated product requires
extreme care and knowledge of the system and
should be done only by qualified service personnel.
Replacement parts for a double–insulated product
must be identical to the parts they replace. Use only
genuine replacement parts. A double–insulated
product is marked with the words “DOUBLE
INSULATION” or “DOUBLE INSULATED”.
• High pressure spray may damage fragile items
including glass. Do not point spray gun at glass
when in the high pressure mode.
• Keep the hose connected to machine or the spray
gun while the system is pressurized. Disconnecting
the hose while the unit is pressurized is dangerous.
The symbol
• Hold the spray gun firmly in your hand before you
start the unit. Do not leave the pressure washer
unattended while the machine is turned on.
may also be marked on the product.
Extension Cords
Use only extension cords that are approved for
outside use. These extension cords are identified by
a marking “ACCEPTABLE FOR USE WITH
OUTDOOR APPLIANCES; STORE INDOORS
WHILE NOT IN USE.” Use only extension cords
having an electrical rating greater than the rating of
the product. Do not use damaged extension cords.
Examine extension cord before using and replace if
damaged. Do not abuse extension cord and do not
yank on any cord to disconnect it. Keep cord away
from heat and sharp edges. Always disconnect the
extension cord from the receptacle before
disconnecting the pressure washer from the
extension cord.
• Cleaning area should have adequate slopes and
drainage to reduce possibility of a fall due to
slippery surfaces.
• Keep water spray away from electric wiring or fatal
electric shock may result.
• Do not by–pass any safety device on this machine.
• Operate and store this unit on a stable surface.
• Inspect hose each time before using it. Check all
hoses for cuts, leaks, abrasions, bulging of cover,
damage or movement of couplings. If any of these
conditions exist, replace hose immediately. Never
repair high pressure hose. Replace it with another
hose that meets minimum pressure rating of your
pressure washer.
3
A
C
Th
eR
el
ia
bl
eO
ne
s
G
E
N
E
R
Generac 1300PSI High Pressure Washer
CONGRATULATIONS on your purchase of a
GENERAC electric high pressure washer. It has been
designed, engineered and manufactured to give you
the best possible dependability and performance.
PRODUCT
SPECIFICATIONS
Should you experience any problem you cannot easily
remedy, please contact your nearest GENERAC
Authorized Service facility, or call 1–800–270–1408.
We have competent, well–trained technicians and the
proper tools to service or repair this unit.
Pressure Washer Specifications
Pressure
1300 pounds per square inch
(PSI)
Flow Rate
1.5 gallons per minute (GPM)
Please read and retain this manual. The instructions
will enable you to assemble and maintain your high
pressure washer properly. Always observe the
“SAFETY INSTRUCTIONS.”
Detergent Mix
Use Undiluted Detergent
Water Supply
Temperature
Inlet water not to exceed
104°F
CUSTOMER
RESPONSIBILITIES
Motor
Brush Type (Universal)
Rated Voltage
120 Volts
Current
14 Amperes
Read these instructions and Operator’s Manual in its
entirety before you attempt to assemble or operate
your new high pressure washer. Your high pressure
washer has, for the most part, been assembled at the
factory. Before you can operate your new high
pressure washer, you must properly connect the high
pressure hose and the water supply.
• Read and observe the safety rules.
• Follow regular schedule in maintaining, caring for
and using your high pressure washer.
• Follow the instructions under “Maintenance” and
“Storage” sections of this Owner's Manual.
Model
Number
If you have any problems with the assembly of your
pressure washer, please call the pressure washer
helpline at 1–800–270–1408.
1280–0
Serial
Number_________________________________
Date of
Purchase________________________________
The model and serial numbers will be found on a
decal attached to the pressure washer. Record
both serial number and date of purchase and keep
in a safe place for future reference
4
R
EOnes
Nble
Eelia
GThe R
Generac 1300PSI High Pressure Washer
C
A
KNOW YOUR PRESSURE WASHER
Read this owner’s manual and safety rules before operating your high pressure washer. Compare the
illustrations with your high pressure washer to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
Spray Gun
Grip Start™
System
Goggles
Master On/Off Switch
Water Inlet
High Pressure
Hose
Foamer
High Pressure Outlet
Turbo Nozzle and
Extension
Foamer — Used to apply detergent. Mixes water
and detergent in outlet water flow.
Garden Hose Connector (Not Shown) — Allows
rapid connection of your garden hose to the water
inlet.
High Pressure Outlet — Connection for high
pressure hose.
Master On/Off Switch — This switch ONLY enables
the Grip Start™ system to function.
Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes safety
latch.
Turbo Nozzle and Extension — Attaches to the
spray gun and allows you to clean or rinse surfaces at
high pressure. You cannot apply detergent using the
turbo nozzle.
Water Inlet — Connection for garden hose.
Goggles — Always wear eye protection when
operating your pressure washer.
Grip Start™ System – Pressing and releasing the
spray gun trigger starts and stops the electric motor in
the pressure washer.
High Pressure Hose — Connect ends to spray gun
and high pressure outlet.
5
Th
eR
el
ia
bl
eO
ne
s
G
E
N
E
R
A
C
Generac 1300PSI High Pressure Washer
CARTON CONTENTS
Figure 2 — Attach High Pressure Hose to Main
Unit.
Items in the carton include:
• Main Unit
• Parts Box (which includes the following):
• Goggles
• Owner’s Manual
• Spray Gun
• Turbo Nozzle and Extension
• Foamer
• High Pressure Hose
• Garden Hose Connector
Refer to the above list for an illustrated listing of all
items included with your pressure washer. Become
familiar with each piece before assembling the
pressure washer. Check all contents against list. If
any parts are missing, call the pressure washer
helpline at 1–800–270–1408.
• Check the screen on the garden hose connector.
Make sure it is clean and check for damage. If you
see any damage in the screen, do not use
(Figure 3).
Figure 3 — Install Garden Hose Connector and
Attach Garden Hose.
HOW TO SET UP YOUR
PRESSURE WASHER
Check inlet screen.
Connect garden hose
here.
• Unwind the high pressure hose and attach it to
spray gun (Figure 1).
Figure 1 — Attach High Pressure Hose to Spray
Gun.
Connect high pressure
hose here
• Attach the garden hose connector to the pressure
washer.
• Attach garden hose to the pressure washer.
• Attach the high pressure hose to the high pressure
outlet and tighten by hand (Figure 2).
DANGER! When connecting the unit to a
power supply receptacle, use ONLY a
receptacle protected by a Ground Fault Circuit
Interrupter (GFCI). This will help protect
against electrical shock.
6
R
EOnes
Nble
Eelia
GThe R
Generac 1300PSI High Pressure Washer
C
A
CAUTION! Before starting you should be
• Press the master On/Off Switch to the “On” position
(Figure 5).
sure the electrical supply is rated at 120 volts,
15 amps.
Figure 5 — Press the Master On/Off Switch to
the “On” Position.
WARNING! To reduce the risk of
electrocution, keep ALL connections dry and
off the ground. DO NOT touch plug with wet
hands.
Note: We do not recommend that you use extension
cords with this pressure washer. If, however, your
application requires that you need an extension cord,
use only extension cords that are approved for
outside use. These extension cords are identified by a
marking “ACCEPTABLE FOR USE WITH OUTDOOR
APPLIANCES; STORE INDOORS WHILE NOT IN
USE.” Use only extension cords having an electrical
rating not less than the rating of the product. Do not
use damaged extension cords.
WARNING! Before starting the pressure
washer, be sure you are wearing adequate eye
protection. Goggles are included with this unit.
DANGER! You must attach the spray gun
WARNING! Gun kicks back. Use both
and all hoses before you start the motor.
hands.
• Turn on the water.
NOTE: Inlet water temperature should not exceed
104°F.
DANGER! Risk of injury or injection to
people and animals. DO NOT discharge
stream at people or animals.
• Squeeze trigger to produce spray.
DANGER! You must be careful at this point.
Anytime you squeeze the trigger, the motor will
start and water will spray out of the gun.
• Squeeze trigger to purge pump of system air and
impurities.
NOTE: Behind the trigger to the gun is a SAFETY
LATCH. You can place this latch as shown (Figure 6)
to keep the washer from accidentally spraying while
you are changing the nozzle head or foamer or
performing other tasks.
• Attach the turbo nozzle extension to spray gun by
aligning the locking tabs on the extension with the
grooves in the gun. Push extension inward and twist
clockwise to lock in place (Figure 4).
Figure 6 — Apply the Safety Latch.
Figure 4 — Connect the Turbo Nozzle Extension
to the Spray Gun.
7
A
C
Th
eR
el
ia
bl
eO
ne
s
G
E
N
E
R
Generac 1300PSI High Pressure Washer
STOPPING YOUR
PRESSURE WASHER
CAUTION! The turbo nozzle produces an
extremely high pressure spray which is
capable of removing paint and cutting holes
through surfaces if held too close. Always
make sure the surface you will clean will not
be damaged by the high pressure spray by
testing in a hidden area.
• If the pressure washer is running, release the
trigger.
DANGER! Releasing the trigger will shut off
the motor but does not shut off the unit. You
must also place the Master On/Off Switch to
the “OFF” position.
• Place Master On/Off switch in “Off” position.
Simply shutting OFF motor will not release
pressure in the system. Squeeze the trigger on the
gun to relieve the pressure in the hose.
Note: You cannot apply detergent with the turbo
nozzle.
Applying Detergent With Foamer
IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could
damage the pump.
NOTE: Never use garden hose inlet to siphon
detergent or wax.
DANGER: Never leave your pressure
washer unattended even when turned off.
DANGER: You MUST attach all hoses and the spray
gun before you start the motor.
HOW TO USE YOUR
WASHER
WARNING! Before removing any spray gun
extension, be sure to turn off the pressure
washer and relieve pressure by pressing the
trigger. You could be injured if you try to
remove an extension if the pressure washer is
running and there is pressure in the system.
Pressure washers are useful cleaning tools designed
to clean almost any surface in two easy steps.
You now should know how to START your pressure
washer and how to STOP it. The information in this
section will tell you how to adjust the spray pattern
and apply detergent or any other cleaning chemicals.
• First, apply an appropriate detergent/solvent
solution to penetrate and loosen grime. Apply
detergent at low pressure to avoid splashing,
overspraying and waste. Leave the solution on
surface for 3 to 5 minutes to allow solution to work.
Reapply as necessary to keep solution from drying.
How to Use the Turbo Nozzle
The turbo nozzle rotates the high pressure stream in
a rapid circular pattern. The high pressure spray is
most effective when the tip of the wand is held
between 8 to 24 inches from the surface being
cleaned.
• The second step involves cleaning the surface you
have prepared with the pressure washer and then
rinsing it clean.
Always start the turbo nozzle at a distance, gradually
getting closer to the surface until you get the cleaning
force you want.
8
R
EOnes
Nble
Eelia
GThe R
Generac 1300PSI High Pressure Washer
C
A
Figure 9 — Connecting the Foamer.
To apply detergent follow these steps:
• Detach the turbo nozzle extension from the spray
gun.
• To rinse, YOU MUST, stop the pressure washer,
remove the foamer and connect the adjustable
nozzle extension.
Note Detergents are most effective applied to a dry
surface.
• Remove the bottle from the foamer.
• Align the locking tabs on the foamer with the groves
in the gun. Push inward and twist clockwise to lock
in place. (Note: make sure that when you lock the
foamer into place you have the hose that connects
to the foamer bottle hanging downward.)
To Clean
Start at lower portion of area to be washed and work
upward, using long, even overlapping strokes.
Detergent or degreaser works best when you apply it
to a dry surface first. Let it set for 3–5 minutes before
washing and rinsing.
• Prepare your detergent solution as required by the
manufacturer and fill bottle with the solution.
• Attach bottle back onto foamer making sure the
bottle hangs down.
Rinse
• Start washer and apply detergent to a dry surface,
starting from the bottom and working up.
Start at the top of area to be rinsed, working down
with the same action as for cleaning.
9
A
C
Th
eR
el
ia
bl
eO
ne
s
G
E
N
E
R
Generac 1300PSI High Pressure Washer
CUSTOMER
RESPONSIBILITIES AND
MAINTENANCE
PURGE PUMP OF AIR AND
CONTAMINANTS
To remove the air from the pump, follow these
steps:
• Set up the pressure washer as described in the
ASSEMBLY section and connect the water supply.
The warranty of the high pressure washer does not
cover items that have been subjected to operator
abuse or negligence. To receive full value from the
warranty, operator must maintain high pressure
washer as instructed in this manual.
• Remove the turbo nozzle extension from the gun.
• Pull the trigger on the gun and hold.
BEFORE EACH USE
To remove the contaminant from the pump, follow
these steps:
• Set up the pressure washer as described in the
ASSEMBLY section, connect the water supply and
start the pressure washer according to instructions
in the OPERATION section.
Check and Clean Inlet Screen
Remove garden hose connector and examine the
inlet screen. Clean if clogged or replace the inlet
screen if damaged.
• Remove the turbo nozzle extension from the gun.
Check High Pressure Hose
• Pull the trigger on the gun and hold.
• When the water supply is steady and constant, you
may refasten the turbo nozzle extension and use
pressure washer normally.
DANGER: Water spraying from a leak is
capable of injecting material into skin. Inspect
hose each time before using it. Never repair
high pressure hose. Replace it with another
hose that meets minimum pressure rating of
your pressure washer.
High pressure hose can develop leaks from wear,
kinking, and abuse. Check all hoses for cuts, leaks,
abrasions or bulging of cover, or damage or
movement of couplings. If any of these conditions
exist, replace hose immediately.
PREPARING THE UNIT FOR
STORAGE
Water should not remain in the unit for long periods of
time. Sediments of minerals can deposit on pump
parts and “freeze” pump action. If you do not plan to
use the Pressure Washer for more than 30 days,
follow this procedure:
Check Gun and Wand
1. Shut off the pressure washer, unplug it and let it
cool, then remove all hoses.
Examine hose connection and make sure it is secure.
Test trigger by pressing it and making sure it springs
back into place when released. Put safety latch in ON
position and test trigger. You should not be able to
press trigger.
2. Store the pressure washer and its components in
such a way as to protect it from freezing.
5. Store in a clean, dry area. Ideally, the unit should
be stored in a frost–free room.
6. Coil the high pressure hose and inspect it for
damage. Cuts in the hose or fraying of it could result
in leaks and loss of pressure. Should any damage be
found, replace the hose. DO NOT attempt to repair a
damaged hose. Replace the hose with the genuine
Generac part.
7. Drain water from hose and properly store it to
prevent cuts and general wear.
10
R
EOnes
Nble
Eelia
GThe R
Generac 1300PSI High Pressure Washer
C
A
Troubleshooting Points
Problem
Pressure washer will not start.
Pressure washer does not
come up to pressure.
Cause
Correction
1. No electrical power is available.
1. Check cord, plug power, socket,
electrical supply and circuit
breaker/fuse.
2. Motor overheats.
2. Turn off the unit. Press trigger of
gun to relieve pressure on the
unit. Allow unit to cool for about 2
min. It should run when you turn it
ON again.
3. Low voltage.
3. Contact Generac service facility.
4. Trigger not open.
4. Open trigger.
5. Electrical defect.
5. Contact Generac service facility.
1. Pump is sucking air.
1. Water hose must be 1/2–inch
or greater in diameter.
Be sure water supply is ON.
Be sure water supply is clean.
Check all connections for leaks
or blockage.
Turn OFF the unit, hold trigger in
OPEN position to relieve pressure
and allow air in line to escape.
With trigger still in OPEN position
turn ON the unit. Repeat if
necessary.
High pressure spray is irregular.
2. Water inlet is clogged.
2. Clean water inlet screen.
3. Pump not bled to remove air.
3. Switch OFF washer, press trigger,
switch ON washer while pressing
trigger. Repeat if necessary.
4. Pump is faulty.
4. Contact Generac service facility.
1. Water supply is inadequate.
1. Turn ON water to full position.
11
A
C
Th
eR
el
ia
bl
eO
ne
s
G
E
N
E
R
Generac 1300PSI High Pressure Washer
Drawing No. B3653
Exploded View — Pump and Motor
12
R
EOnes
Nble
Eelia
GThe R
Generac 1300PSI High Pressure Washer
C
A
Parts List — Pump and Motor
Item
1
2
3
Part #
B1514
40945
97835
Qty
1
3
1
4
20610
2
5
97822
1
6
7
B2663
97826
1
1
8
97824A
1
9
97825
1
10
11
12
13
14
97833
97830
97832
99503
A1495
1
3
3
3
2
15
16
17
18
19
20
21
22
21055
28739A
20138
20928
B3660
B3568
21126
21125
1
1
1
1
1
1
1
1
23
20217
1
Description
ASSY, Motor Complete
BOLT, SHCS M6-1.0 x 20mm
“O” RING, Hsg Seal, dia. 82.2
x 2.62mm
WASHER, Brg dia. 35 x 55 x
3mm
BEARING, Ndle Thrust dia. 35
x 52mm
ASSY., Cam/Gear
WASHER, Brg dia. 40 x 60 x
1mm
BEARING, Needle dia. 40 x
60mm
WASHER, Brg dia. 36 x 60 x
6mm
SHAFT, Idler Axial Cam
RETAINER, Piston Spring
PISTON, dia. 15 x 65mm
SPRING, Piston Return
TAPTITE, M4-0.7x10mm SW
MTG
GROMMET, Rubber
TIE, Wrap
SWITCH, Auto
HOUSING, Auto-Switch
SPRING, P.A.S.S.
PISTON ASSY, P.A.S.S.
RING, Backup dia. 26.0 ID
“O” RING dia. 25.07 ID x 2.62
CS [.103"]
STOP, Piston Return
13
Item Part #
24
21124
Qty
1
25
26
20218
21123
1
1
27
28
29
30
31
32
33
34
37
38
B1124
97855
97100
B3570
93680
97831
97929
B3569
97841
97840
1
1
1
1
3
3
1
1
3
3
39
B1449
6
40
97934
7
41
42
43
44
45
46
48
49
50
76353A
97852
B2240
A1130
B1960
40946
B3571
93667
B2020
1
1
1
1
1
4
1
3
1
Description
RING, Backup dia. 4.34 Id x
1.24
CAP, Retainer
“O” RING dia. 3.68 Id x 1.78
CS [.070"]
CAP, Inlet
“O” RING, dia. 6.5 x 2.01mm
CAP, High Pressure
HOUSING, Piston
SEAL, Oil-piston dia. 15 TC4
SPACER, Pilot
SPRING, Check Valve
VALVE, Shuttle
CAP, Check Valve
“O” RING, Hi-press dia. 15.6 x
1.78mm
ASSY., Check Valve
“O” RING, Chk Valve dia. 12.4
x .78mm
PLUG, Taper dia. 5.4
BALL, dia. 3/16" Pop-off Valve
SCREW, Lock Socket
SPRING, Pop-off Valve
SEAT, Ball
BOLT, SHCS M6- 1.0 x 35mm
PUMP, Head
SEAL, Piston “U” Cup
O-RING, 3.68 I.D. x 1.78 CS
ELF
A
C
Th
eR
el
ia
bl
eO
ne
s
G
E
N
E
R
Generac 1300PSI High Pressure Washer
Drawing No. B3720
Exploded View — Main Unit
14
R
EOnes
Nble
Eelia
GThe R
Generac 1300PSI High Pressure Washer
C
A
Parts List — Main Unit
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
Part #
N/A
B1415
A1252
B2525
20566
98806
97893
20984
98801
B1566
20985
20986
84543B
98805
84358
B1866
B1053
NSP
NSP
21334
21335
21424
B1236D
A1484
A1485
97835
99350
21336
21337
B3337
B1300D
A1069
87815
Qty
1
1
1
1
1
1
1
1
4
1
1
1
2
1
4
1
1
1
1
1
1
1
1
1
1
1
6
1
1
1
1
1
1
Description
ASSY., Motor and Pump (see pump exploded view)
DECAL, Circuit
DECAL, Unit
DECAL, Instructions
DECAL, 1-800 #
FOAM, Air In, Fan-end
HOUSING, Switch and Cord
SWITCH, Rocker 16A
MOUNT, Rubber
COVER, Motor
ENCLOSURE, Rocker Switch Boot
BOOT, Rocker Switch
SCREW, 3.5mm x 12mm Plastite
CORD, Power
SCREW, #6-19 x .75 mm Plastite
DECAL, Gun Warning
DECAL, ETL
DECAL, Data
OVERLAMINATE
HOUSING, Inlet
HOUSING, Outlet
CONNECTOR, Garden Hose
NOZZLE, 1.15mm dia. (Lilac)
NUT, Strain Relief Lock
SEAL RING, Strain Relief
“O” RING, Hsg Seal, dia. 82.2 x 2.62mm
SCREW, #6 Plastite
GUN, Spray
WAND, Extension
HOSE, High Pressure
NOZZLE, Head
FOAMER
GOGGLES
15
A
C
Th
eR
el
ia
bl
eO
ne
s
G
E
N
E
R
Generac 1300PSI High Pressure Washer
Limited Pressure Washer Warranties
(includes “Master Contractor”)
Generac Portable Products warrants to the original retail purchaser, the pressure washer manufactured by Generac
Portable Products to be free from defects in material and workmanship for the period(s) set forth below from the date of
original purchase. This warranty is not transferable. The term “original purchaser” means the person for whom the
pressure washer is originally purchased.
Warranty Schedules
Electric Power Washer
All Other Engine-driven
1 year (does not apply to commercial or rental applications)
Engine:
CONSUMER*
Warranted solely by
Engine Manufacturer
COMMERCIAL*
Warranted solely by
Engine Manufacturer
Pump:
1 year
90 days
* NOTE: For the purpose of this warranty “consumer use” means personal residential household use by original
purchaser. “Commercial Use” means all other uses, including rental, construction, commercial and income producing
purposes. Once a pressure washer has experienced commercial use, it shall thereafter be considered a commercial use
pressure washer for the purposes of this warranty.
During said warranty period, Generac Portable Products will, at its option, repair or replace any part which, upon
examination by Generac Portable Products or Generac Portable Products Authorized Dealers, is found to be defective
under normal use and service**. All transportation costs under warranty, including return to the factory if necessary, are
to be borne by the purchaser and prepaid by the purchaser.
** NORMAL WEAR: As with all mechanical devices, pressure washers need periodic parts service and replacement to
perform well. This warranty will not cover repair when normal use has exhausted the life of a part or pressure washer
pump.
THIS WARRANTY DOES NOT INCLUDE: Used products and demonstration equipment. Parts such as GUNS, HOSES,
WANDS, NOZZLES or other wear items such as quick couplers, oil, gauges, belts, O-rings, filters, pump packing, etc.
Pumps which have been run without water supplied. Damage or malfunctions resulting from: accidents, abuse,
modifications, alterations, or improper servicing. Freezing or chemical deterioration. Normal maintenance such as
adjustments, fuel system cleaning and obstruction (due to chemical, dirt, carbon or lime, etc.).
THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, SPECIFICALLY, Generac
Portable Products MAKES NO OTHER WARRANTIES AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. The duration of any implied warranties which cannot be disclaimed is limited to the time period as specified
in the express warranty. LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, OR SPECIAL DAMAGES UNDER ANY AND
ALL WARRANTIES IS EXCLUDED, EVEN IF SUCH DAMAGES ARE A DIRECT RESULT OF Generac Portable
Products' NEGLIGENCE. Generac also disclaims any responsibility for incidental or consequential damages such as the
loss of time or the use of the power equipment, or any commercial loss due to the failure of the equipment: and any
implied warranties are limited to the duration of this written warranty.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific
legal rights and you may also have other rights, which vary from state to state.
For service, see your nearest Generac Portable Products authorized warranty service facility or call 1-877-544-0982.
Warranty service can be performed only by a Generac Portable Products authorized service facility. This warranty will
not apply to service at any other facility. At the time of requesting warranty service, evidence of original purchase date
must be presented.

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
