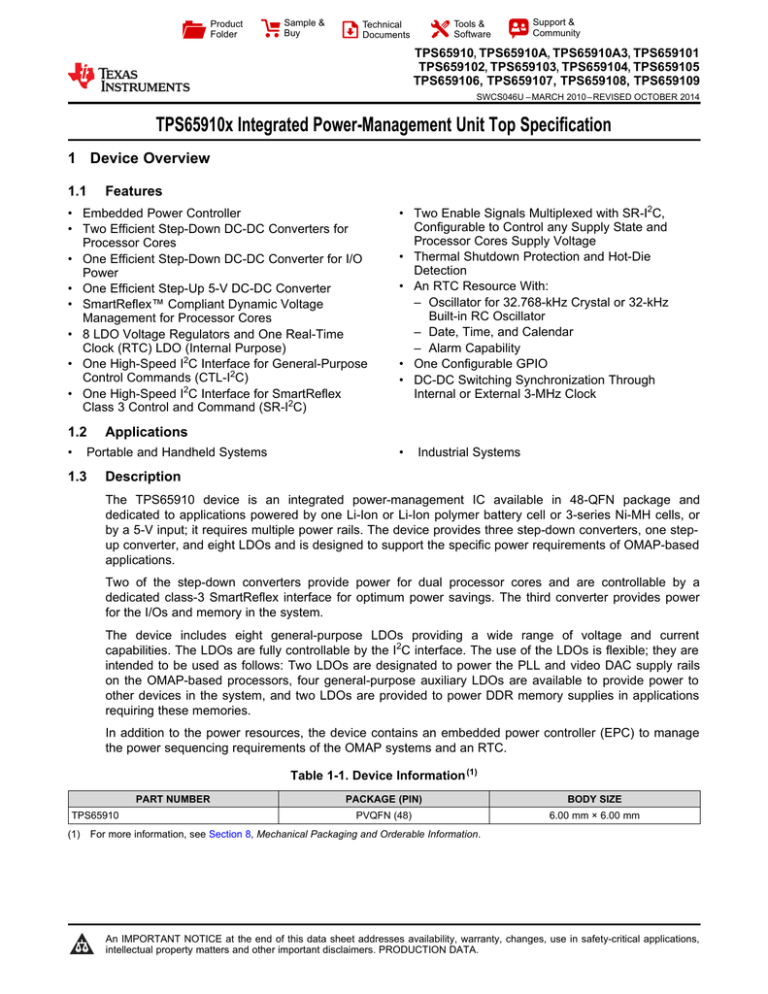

TPS65910, TPS65910A, TPS65910A3, TPS659101

TPS659102, TPS659103, TPS659104, TPS659105

TPS659106, TPS659107, TPS659108, TPS659109

SWCS046U – MARCH 2010 – REVISED OCTOBER 2014

TPS65910x Integrated Power-Management Unit Top Specification

1 Device Overview

1

1.1

Features

• Embedded Power Controller

• Two Efficient Step-Down DC-DC Converters for

Processor Cores

• One Efficient Step-Down DC-DC Converter for I/O

Power

• One Efficient Step-Up 5-V DC-DC Converter

• SmartReflex™ Compliant Dynamic Voltage

Management for Processor Cores

• 8 LDO Voltage Regulators and One Real-Time

Clock (RTC) LDO (Internal Purpose)

• One High-Speed I

2

C Interface for General-Purpose

Control Commands (CTL-I

2

C)

• One High-Speed I

2

C Interface for SmartReflex

Class 3 Control and Command (SR-I

2

C)

1.2

Applications

• Portable and Handheld Systems

• Two Enable Signals Multiplexed with SR-I

2

C,

Configurable to Control any Supply State and

Processor Cores Supply Voltage

• Thermal Shutdown Protection and Hot-Die

Detection

• An RTC Resource With:

– Oscillator for 32.768-kHz Crystal or 32-kHz

Built-in RC Oscillator

– Date, Time, and Calendar

– Alarm Capability

• One Configurable GPIO

• DC-DC Switching Synchronization Through

Internal or External 3-MHz Clock

• Industrial Systems

1.3

Description

The TPS65910 device is an integrated power-management IC available in 48-QFN package and dedicated to applications powered by one Li-Ion or Li-Ion polymer battery cell or 3-series Ni-MH cells, or by a 5-V input; it requires multiple power rails. The device provides three step-down converters, one stepup converter, and eight LDOs and is designed to support the specific power requirements of OMAP-based applications.

Two of the step-down converters provide power for dual processor cores and are controllable by a dedicated class-3 SmartReflex interface for optimum power savings. The third converter provides power for the I/Os and memory in the system.

The device includes eight general-purpose LDOs providing a wide range of voltage and current capabilities. The LDOs are fully controllable by the I

2

C interface. The use of the LDOs is flexible; they are intended to be used as follows: Two LDOs are designated to power the PLL and video DAC supply rails on the OMAP-based processors, four general-purpose auxiliary LDOs are available to provide power to other devices in the system, and two LDOs are provided to power DDR memory supplies in applications requiring these memories.

In addition to the power resources, the device contains an embedded power controller (EPC) to manage the power sequencing requirements of the OMAP systems and an RTC.

Table 1-1. Device Information

(1)

TPS65910

PART NUMBER PACKAGE (PIN)

PVQFN (48)

(1) For more information, see

Section 8 , Mechanical Packaging and Orderable Information.

BODY SIZE

6.00 mm × 6.00 mm

1

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA.

TPS65910, TPS65910A, TPS65910A3, TPS659101

TPS659102, TPS659103, TPS659104, TPS659105

TPS659106, TPS659107, TPS659108, TPS659109

SWCS046U – MARCH 2010 – REVISED OCTOBER 2014

1.4

Functional Block Diagram

Figure 1-1

shows the top-level diagram of the device.

Ci

(VCC7)

VBAT

VCC7

VRTC

Co

(VRTC)

OSC32KIN

OSC32KOUT

CLK32KOUT

SDA_SDI

SCL_SCK

GPIO_CKSYNC

Co

Ci

SDASR_EN2

SCLSR_EN1

(VREF)

VBAT

(VCC5)

Co

Co

Co

INT1

SLEEP

PWRON

BOOT1

BOOT0

PWRHOLD

NRESPWRON

VREF

TESTV

REFGND

(VPLL)

VDAC

(VDAC)

VCC5

VPLL

VAUX1

(VAUX1)

VBAT

VCC4

Ci

(VCC4)

VAUX2

Co

(VAUX2)

VDDIO

2

I C

2

I C

VCC 7 and comparators

VDAC

(LDO)

VPLL

(LDO)

VAUX1

(LDO)

C

BB

VRTC (LDO) and POR

GNDA

Backup management

Analog references

AGND

AGND

AGND2

GNDA

OSC

32-kHz

REFGND

Real-time clock

Bus control

Power control statemachine

Test interface

DGND

VBAT

VAUX33 VCC7

VDDIO

Ci

(VDD3)

SW3

GND3

VDD3

(SMPS)

AGND

VCC7

VFB3

VDD1

(SMPS)

VCC1

SW1

GND1

VFB1

Co

(VDD1)

VCC4

AGND

Co

(VDD3)

VBAT

Ci

(VCC1)

VDD2

(SMPS)

VCC7

AGND

VCC2

SW2

GND2

Co

(VDD2)

VFB2

VBAT

Ci

(VCC2)

VBAT

VIO

(SMPS)

VCCIO

SWIO

GNDIO

Co

(VIO)

VFBIO

Ci

(VCCIO)

AGND2

VCC7

VDIG1

(LDO) VDIG1

Co

(VDIG1)

AGND2

VCC7

VCC6

VDIG2

Co

(VDIG2)

VDIG2

(LDO)

AGND2

VAUX33

(LDO)

AGND2

VAUX2

(LDO)

AGND2

DGND AGND AGND2 GND3

VMMC

(LDO)

AGND2

GNDP: Power pad ground

VAUX33

Co

(VAUX33)

VBAT

VCC3

Ci

(VCC4)

VMMC

Co

(VMMC)

SWCS046-001

Figure 1-1. 48-QFN Top-Level Diagram www.ti.com

2

Device Overview

Copyright © 2010–2014, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

TPS65910 TPS65910A TPS65910A3 TPS659101 TPS659102 TPS659103 TPS659104

TPS659105 TPS659106 TPS659107 TPS659108 TPS659109

www.ti.com

TPS65910, TPS65910A, TPS65910A3, TPS659101

TPS659102, TPS659103, TPS659104, TPS659105

TPS659106, TPS659107, TPS659108, TPS659109

SWCS046U – MARCH 2010 – REVISED OCTOBER 2014

1 Device Overview

.........................................

1

1.1

Features

..............................................

1

1.2

Applications

...........................................

1

1.3

Description

............................................

1

1.4

Functional Block Diagram

............................

2

2 Revision History

.........................................

4

3 Device Comparison

.....................................

6

4 Terminal Configuration and Functions

..............

7

4.1

Signal Descriptions

5 Specifications

...................................

8

...........................................

10

5.1

Absolute Maximum Ratings

.........................

10

5.2

Handling Ratings

....................................

10

5.3

Recommended Operating Conditions

...............

11

5.4

Thermal Resistance Characteristics for RSL

Package

.............................................

13

5.5

I/O Pullup and Pulldown Characteristics

............

14

5.6

Digital I/O Voltage Electrical Characteristics

........

15

5.7

I

2

C Interface and Control Signals

...................

16

5.8

Power Consumption

.................................

17

5.9

Power References and Thresholds

.................

17

5.10

Thermal Monitoring and Shutdown

.................

18

5.11

32-kHz RTC Clock

..................................

18

5.12

Backup Battery Charger

............................

19

5.13

VRTC LDO

..........................................

19

5.14

VIO SMPS

...........................................

20

5.15

VDD1 SMPS

5.16

VDD2 SMPS

5.17

VDD3 SMPS

........................................

22

........................................

24

........................................

26

5.18

VDIG1 and VDIG2 LDO

.............................

27

5.19

VAUX33 and VMMC LDO

...........................

29

Table of Contents

5.20

VAUX1 and VAUX2 LDO

...........................

31

5.21

VDAC and VPLL LDO

...............................

33

5.22

Timing and Switching Characteristics

...............

35

6 Detailed Description

...................................

45

6.1

Power Reference

....................................

45

6.2

Power Sources

......................................

45

6.3

Embedded Power Controller

6.4

32-kHz RTC Clock

........................

45

..................................

52

6.5

RTC

.................................................

53

6.6

Backup Battery Management

.......................

55

6.7

Backup Registers

...................................

56

6.8

I

2

C Interface

.........................................

56

6.9

Thermal Monitoring and Shutdown

.................

56

6.10

Interrupts

............................................

57

6.11

Package Description

................................

57

6.12

Functional Registers

................................

58

7 Device and Documentation Support

7.1

Device Support

...............

95

......................................

95

7.2

Documentation Support

.............................

96

7.3

Related Links

........................................

96

7.4

Community Resources

..............................

97

7.5

Trademarks

..........................................

97

7.6

Electrostatic Discharge Caution

.....................

97

7.7

Export Control Notice

7.8

Glossary

...............................

97

.............................................

97

7.9

Additional Acronyms

................................

98

8 Mechanical Packaging and Orderable

Information

..............................................

99

8.1

Packaging Information

..............................

99
