Acer 700ed Specifications

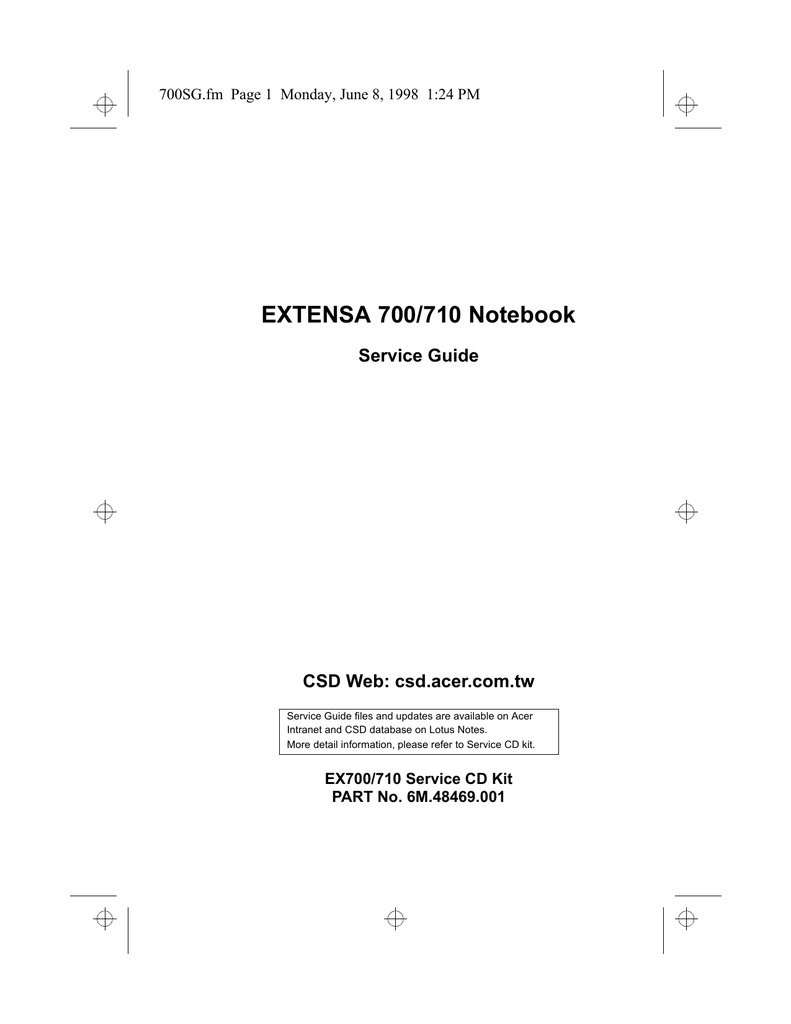

700SG.fm Page 1 Monday, June 8, 1998 1:24 PM
EXTENSA 700/710 Notebook
Service Guide
CSD Web: csd.acer.com.tw
Service Guide files and updates are available on Acer
Intranet and CSD database on Lotus Notes.
More detail information, please refer to Service CD kit.
EX700/710 Service CD Kit
PART No. 6M.48469.001
700SG.fm Page 2 Monday, June 8, 1998 1:24 PM
Copyright
Copyright * 1996 by Acer Incorporated. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or
by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of Acer Incorporated.
Disclaimer
Acer Incorporated makes no representations or warranties, either expressed
or implied, with respect to the contents hereof and specifically disclaims any
warranties of merchantability or fitness for any particular purpose. Any Acer
Incorporated software described in this manual is sold or licensed "as is".
Should the programs prove defective following their purchase, the buyer (and
not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of
all necessary servicing, repair, and any incidental or consequential damages
resulting from any defect in the software. Further, Acer Incorporated reserves
the right to revise this publication and to make changes from time to time in
the contents hereof without obligation of Acer Incorporated to notify any
person of such revision or changes.
Acer is a registered trademark of Acer Incorporated.
Intel is a registered trademark of Intel Corporation.
Pentium is a trademark of Intel Corporation.
Other brand and product names are trademarks and/or registered
trademarks of their respective holders.
700SG-1.fm Page 1 Monday, June 8, 1998 6:38 PM
Chapter1
System Specifications
Overview
This computer was designed with the user in mind. Here are just a few of its
many features:
Performance
• Intel Pentium® II processor or Intel Pentium® processor with MMX™
technology
• 64-bit main memory and external (L2) cache memory
• Large LCD display and PCI local bus video with 128-bit graphics
acceleration
• Internal removable CD-ROM drive (media bay)
• Internal 3.5-inch floppy drive
• High-capacity, Enhanced-IDE removable hard disk
• Lithium-Ion battery pack
• Heuristic power management system with standby and hibernation
power saving modes
Multimedia
• PCI-based 16-bit high-fidelity stereo audio with
3-D sound and wavetable synthesizer
• Built-in dual speakers
• S-video output
• Ultra-slim, high-speed CD-ROM drive
Connectivity
• High-speed fax/data modem port
• Fast infrared wireless communication
• USB (Universal Serial Bus) port
Human-centric Design and Ergonomics
• Lightweight and slim
Chapter 1
1-1
700SG-1.fm Page 2 Monday, June 8, 1998 6:38 PM
• Sleek, smooth and stylish design
• Full-sized keyboard
• Wide and curved palm rest
• Ergonomically-centered touchpad pointing device
Expansion
• CardBus PC card (formerly PCMCIA) slots (two type II/I or one type III)
with ZV (Zoomed Video) port support
• Mini docking station option for one-step connect/disconnect from
peripherals
• Upgradeable memory and hard disk
1-2
EXTENSA 700/710 Service Guide
700SG-1.fm Page 3 Monday, June 8, 1998 6:38 PM
System Status Indicators
The Power and Standby indicators are visible even when you close the
display cover so you can see the status of the computer while the cover is
closed.
Icon
Function
Description
Power
Lights when the computer is on.
Standby
Lights when the computer enters
Standby mode.
Media Activity
Lights when the floppy drive, hard disk
or CD-ROM drive (or other media bay
module) is active.
Battery Charge
Lights when the battery is being
charged.
Caps Lock
Lights when Caps Lock is activated
Num Lock
Lights when Numeric Lock is activated
Hot Keys
The computer employs hot keys or key combinations to access most of the
computer’s controls like screen contrast and brightness, volume output and
the BIOS setup utility
.
Hot Key
Fn-F1
Chapter 1
Icon
Function
Description
Hot key help
Displays a list of the hotkeys
and their functions.
1-3
700SG-1.fm Page 4 Monday, June 8, 1998 6:38 PM
Hot Key
Icon
Function
Description
Fn-F2
Setup
Accesses the notebook
configuration utility.
Fn-F3
Standby
Puts the computer in
Standby mode. Press any
key to return.
Fn-F4
Hibernation
Puts the computer in
Hibernation mode (if
PHDISK, the hibernation
utility, is installed, valid and
enabled). Press the power
switch to resume.
Otherwise, the computer
enters Standby mode.
1-4
Fn-F5
Display
toggle
Switches display output
between the display screen,
external monitor (if
connected) and both the
display screen and external
monitor.
Fn-F6
Screen blank
Turns the display screen
backlight off to save power.
Press any key to return.
Fn-F7
Touchpad on/
off
Turns the internal touchpad
on and off.
Fn-F8
Speaker on/
off
Turns the speakers on and
off; mutes the sound.
Fn-↑
Contrast up
Increases the screen
contrast (available only for
models with SCC displays).
Fn-↓
Contrast
down
Decreases the screen
contrast (available only for
models with SCC displays).
Fn-→
Brightness
up
Increases the screen
brightness.
Fn-←
Brightness
down
Decreases the screen
brightness.
EXTENSA 700/710 Service Guide
700SG-1.fm Page 5 Monday, June 8, 1998 6:38 PM
Hot Key
Fn-H
Icon
Function
Description
Turbo mode
on/off
Toggles turbo mode on and
off. With turbo mode off,
power management is
maximized.
Note: If you want to use an external PS/2 mouse, first enable the
touchpad, connect the external PS/2 mouse, then disable the
touchpad if necessary.
Activating Hot Keys
When activating hot keys, press and hold the first key Fn before pressing the
other key in the hot key combination.
Chapter 1
1-5
700SG-1.fm Page 6 Monday, June 8, 1998 6:38 PM
Hardware Configuration and Specification
Memory Address Map
Address Range
Definition
000000-09FFFF
Function
640 KB memory
Base memory
0A0000-0BFFFF
128 KB video RAM
Reserved
0C0000-0CBFFF
Video BIOS
Video BIOS
0F0000-0FFFFF
64 KB system BIOS
System BIOS
100000-top limited
Extended memory
SIMM memory
FE0000-FFFFFF
256 KB system ROM
Duplicate of code
assignment at 0E00000FFFFF
Interrupt channel default assignment
Channel
Default setting
mode
NMI
System errors
IRQ0
System timer
Edge
IRQ1
Keyboard
Edge
Remarks
IRQ2
(cascade)
Edge
IRQ3
Modem/COM1
(can be disable)
Edge
Dynamically
programmable
IRQ4
Infrared
Edge
Dynamically
programmable
IRQ5
SoundBlaster
Audio (PCI
device)
level
PCI interrupt
sharing
IRQ6
Floppy
Edge
IRQ7
Printer
Edge
IRQ8
Real time clock
Edge
IRQ9
(SCI for ACPI
OS) PCI device
level
PCI interrupt
sharing
IRQ10
Modem
Edge
Dynamically
programmable
IRQ11
PCI device
level
PCI interrupt
sharing
IRQ12
pointing device
Edge
IRQ13
Math
coprocessor
Edge
IRQ14
Hard disk driver
1-6
Dynamically
programmable
EXTENSA 700/710 Service Guide
700SG-1.fm Page 7 Monday, June 8, 1998 6:38 PM
Interrupt channel default assignment
Channel
IRQ15
Default setting
mode
Remarks
CD-ROM driver
DMA channel default assignment
Channel
Default setting
DRQ/DACK0
mode
8-bit
DRQ/DACK1
ECP
8-bit
DRQ/DACK2
Floppy
8-bit
DRQ/DACK3
Fast Infrared
8-bit
DRQ/DACK5
not use
16-bit
DRQ/DACK6
not use
16-bit
DRQ/DACk7
not use
16-bit
I/O address map
Address
000-00F
Drvice
DMA controller-1
020-021
Interrupt controller-1
040-043
Timer 1
048-04B
Timer2
060-06E
Keyboard controller 8742 chip select
070-071
Real-time clock and NMI mask
080-08F
DMA page register
0A0-0A1
Interrupt controller-2
0C0-0DF
DMA controller-2
1F0-1F7
Hard disk select
220-22F
Audio (option)
230-23F
Audio (option)
240-24F
Audio (option)
250-25F
Audio (option)
278-27F
Parallel port 3
2E8-2EF
COM4
2F8-2FF
COM2
378, 37A
Parallel port 2
3BC-3BE
paraller port 1
3B4, 3B5, 3BA
Video subsystem
3C0-3C5
Video subsystem
Chapter 1
1-7
700SG-1.fm Page 8 Monday, June 8, 1998 6:38 PM
I/O address map
Address
Drvice
3C6-3C9
Video DAC
3C0-3CF
Enhanced graphics adapter
3E0-3E1
PCMCIA controller
3E8-3EF
COM3
3F0-3F7
Floppy disk controller
3F8-3FF
COM1
CF8-Cff
PCI configuration register
Processor
item
Specification
CPU type
Intel Tillamook 166/200/233/266 Mhz or Deschutes
233/266
Tillamook--Intel Pentium architecture, 64 bit data bus,
16K-Byte code cache, 16 K-Bytes write back data,
cache, MMX
Deschutes--Intel Pentium II architecture, 16KB
instruction cache and 16 KB data cache, MMX, Quick
Start for low power.
CPU package
IMM module, 512KB L2 cache
CPU core voltage
1.8V
CPU I/O voltage
2.5V
BIOS
Item
Specification
BIOS vendor
Phoenix
BIOS Version
V1.0 R00M2F
BIOS ROM type
ROM
BIOS ROM size
256KB
BIOS package
32 PIn PLCC
Support protocol
PCI 2.1, APM 1.2, DMI 2.00.1, E-IDE, ACPI 1.0, ESCD
1.03, ANSI ATA 3.0, PnP 1.1a, Bootable CD-ROM 1.0,
ATAPI
BIOS password control
RTC battery
System Memory
Item
Memory controller
1-8
Specification
MTXC
EXTENSA 700/710 Service Guide
700SG-1.fm Page 9 Monday, June 8, 1998 6:38 PM
System Memory
Item
Specification
Onboard memory size
0MB
DIMM socket number
2 sockets (2 banks)
Supported memory size per DIMM
16/32/64
Supported maximum memory size
128MB (64MB x 2)
Supported DIMM type
Synchronous DRAM
Supported DIMM Speed
SDRAM: With SPD, no parity
Supported DIMM voltage
3.3V
Supported DIMM package
144-pin DIMM
DIMM Memory Combinations
Slot 1
Slot 2
Total Memory
0
0
0
0
16MB
16MB
0
32MB
32MB
0
64MB
64MB
16MB
16MB
32MB
16MB
32MB
48MB
16MB
64MB
80MB
16MB
128MB
144MB
32MB
32MB
64MB
32MB
64MB
96MB
32MB
128MB
160MB
64MB
64MB
128MB
Second-Level Cache
Item
Cache controller
Specification
MTXC
Tag RAm location
IMM
Tag RAM size
32K*8x1
Tag RAM voltage
3.3V
SRAM type
PBSRAM
SRAM size
256K/512K
SRAM location
IMM
SRAM configuration
32K*64 or 64K*32
SRAM speed
Cycle time = 7ns
Chapter 1
1-9
700SG-1.fm Page 10 Monday, June 8, 1998 6:38 PM
Second-Level Cache
Item
Specification
SRAM voltage
3.3V
1st level cache control
always enable
2st level cache control
always enable
Cache scheme control
Fixed in Write-back
Video memory
Item
Specification
Fixed or upgradeable
Fixed, built-in NM2160B video
controller
Memory size =/configuration
2MB
Video
item
Specification
Chip vendor
NeoMagic
Chip name
NM2160B
Chip voltage
3.3 Volts
ZV port support (Y/N)
Yes
Graph interface (ISA/VESA/PCI)
PCI bus
Max. resolution (LCD)
1024x768 (64K colors) True Color
Max. resolution (Ext. CRT)
1024x768 (64K colors) True Color
External CRT Resolutions Modes
Resolution
CRT Refresh Rate
Simultaneous
on TFT LCD
CRT only
Simultaneous
SVGA
640x480x256
60,75,85
60
Y
640x480x64K
60,75,85
60
Y
640x480x16M
60,75,85
60
Y
800x600x256
60,75,85
60
Y
800X600X64K
60,75,85
60
Y
800x600x16M
60,75,85
60
Y
1024x768x256
60
60
Y
1024x768x16M
60,75,85
60
Y
1-10
EXTENSA 700/710 Service Guide
700SG-1.fm Page 11 Monday, June 8, 1998 6:38 PM
Parallel Port
Item
Parallel port controller
Specification
NS PC97338
Number of parallel ports
1
Location
Rear side
Connector type
25-pin D-type
Parallel port function control
Enable/Diable by BIOS Setup
ECP support
Yes (set by BIOS setup)
Selectable ECP DMA channel (in BIOS
Setup)
DMA channel 1
DMA Channel 3
Selectable parallel port I/O address
(via BIOS Setup)
3E8h, 2E8, 378h, 278h, Disabled
Selectable parallel port IRQ (via BIOS
Setup)
IRQ5, IRQ7
Serial Port
Item
Specification
Serial port controller
NS PC97338
Number of serial ports
1
16550 UART support
Yes
Connector type
9-pin D-type
Location
Rear side
Serial port function control
Enable/disable by BIOS Setup
Selectable serial port (via BIOS Setup)
3F8h, 2F8h, 3E8h, 2E8h, Disabled
Selectable serial port IRQ (via BIOS
Setup)
IRQ3, IRQ4, IRQ10, IRQ11
FIR
Item
Vendor & model name
Specification
IBM31T1100
Input power supply voltage
5V
Transfer data rate
4 Mbps/s
Transfer distance
SIR mode--Min 2.0, Typ 2.6
1.2 Mbps--Min 1.4, Typ 2.0
4 Mbps--Min 1.1, Typ 1.5
Compatible standard
IrDA (Infrared Data Association) 1.1,
HP-SIR and Sharp ASK
Output Radiant Intensity Half Angle
+-15
Number of Irda ports
1
Chapter 1
1-11
700SG-1.fm Page 12 Monday, June 8, 1998 6:38 PM
FIR
Item
Specification
16550 UART support
Yes
FIR location
Left side
Selectable serial port (by BIOS Setup)
2F8h, IRQ3, Disabled
Audio
Item
Specification
Audio Controller
ESS PCI Maestro II
Audio onboard or optional
Built-in
Mono or Stereo
Stereo
Resolution
16-bit
Compatibility
SB-16, Windows Sound System
Mixed sound source
Voice, Synthesizer, Line-in,
Microphone, CD
Voice channel
8-/16-bit, mono/stereo
Voice control location
Right side
Sampling rate
44.1 KHz
Internal microphone
Yes, on the left-higher corner of LCD
panel
Internal speaker / Quantity
Yes / 2 pieces, on both hinge sides
MPU-401 UART support
Yes
PCMCIA
Item
Specification
PCMCIA controller
TI PCI1250A
PCMCIA voltage controller
TI TP2206
Supported card type
Type-II / Type-III
Number of slots
Two Type-II or one type-III
Access location
Right side
ZV (Zoomed Video) port support
Yes*2
32 bit CardBus support
Yes
Fax/Modem
Item
Specification
Chipset
Lucent
Fax modem data baud rate (bps)
56K
Data modem data baud rate (bps)
56K
1-12
EXTENSA 700/710 Service Guide
700SG-1.fm Page 13 Monday, June 8, 1998 6:38 PM
Fax/Modem
Item
Specification
Support modem protocol
V.34 data modem, V.17 fax modem,
voice/audio mode, and digital
simultaneous voice and data (DSVD)
operation over a dial-up telephone line
Modem connector type
RJ11
Modem connector location
Back side
Keyboard
Item
Specification
Keyboard controller
M38867
Keyboard vendor & model name
API
Total number of keypads
84-/85-/88-key
Windows 95 keys
Yes
Internal & external keyboard work
simultaneously
Yes
FDD
Item
Vendor & model name
Specification
D353F3(MISUMI)
Floppy Disk Specifications
Media recognition
2DD (720K)
2HD (1.2M,
3mode)
2HD (1.44M)
Sectors / track
9
15
18
Tracks
80
80
80
Data transfer rate (Kbit/
s)
250 300
500
500
Rotational speed
(RPM)
300 360
360
300
Read/write heads
2
Encoding method
MFM
Power Requirement
Input Voltage (V)
+5 +-10%
HDD
Item
Vendor & Model Name
Chapter 1
Specification
Hitachi
DK226A-21u
IBM DTCA23240
IBM DTCA24090
1-13
700SG-1.fm Page 14 Monday, June 8, 1998 6:38 PM
HDD
Item
Specification
Drive Format
Capacity (MB)
2160
3240
Bytes per sector
512
512
4090
512
Logical heads
16
16
16
Logical sectors
63
63
63
Drive Format
Logical cylinders
6225
3154
7944
Physical read/write heads
4
5
6
Disks
2
3
3
Spindle speed (RPM)
4000
4000
4000
Performance Specifications
Buffer size (KB)
128
512
512
Interface
IDE
IDE
IDE
Data transfer rete (diskbuffer, Mbytes/s)
6.0~9.1
6.4~10.4
6.46~10.4
Data transfer, rate
(host~buffer, Mbytes/s)
16.6/33.3
16.6/33.3
16.6/33.3
5+-5%
5+-5%
5+-5%
DC Power Requirements
Voltage tolerance
CD-ROM
Item
Vendor & Model Name
Specification
KMEUJDA150L 24X
Performance Specification
Speed (KB/sec)
2100 (ave.speed), 3600 (max)
Access time (ms)
150 (Typ.)
Buffer memory (KB)
128
Interface
Enhanced IDE compatible
Applicable disc format
CD-DA, CD-ROM, CD-ROM XA (except
ADPCM), CD-I, Photo CD (Multisession), Video
CD, CD+
Loading mechanism
Soft eject (with emergency eject hole)
Power Requirement
Input Voltage (V)
1-14
5
EXTENSA 700/710 Service Guide
700SG-1.fm Page 15 Monday, June 8, 1998 6:38 PM
Battery
Item
Specification
Vendor & model name
Sony BTP-1431
Battery Type
Li-ion
Pack capacity (mAH)
3000
Cell voltage (V)
3.6
Number of battery call
8
Package configuration
2P-4S
Package voltage (V)
14.4V
Charger
Item
Specification
Vendor & model name
T62.085.C.00
Input voltage (from adapter, V)
7V-24V
OUtput current (to DC/DC converter, A)
3.5
Battery Low Voltage
Li-ion
Battery Low 1 level (V)
11.41V
Battery Lower 2 level (V)
10.94V
Battery Low 3 level (V)
9.9V
Charge Current
Backgound charge (charge even system is still
operative)
Constant power 30W
Normal charge (charge while system is not
operative)
Constant power 45W
Charging Protection
Maximum temperature protection
60
DC-DC Converter
Item
Specification
Vendor & model name
Ambit T62.085.C.00
Input voltage (Vdc)
8~21
Output rating
5V
3.3V
+12V
6V
3.3VS
B
Current (w/load, A)
0~5.8
0~3.3
0~0.12
0~0.1
0.01
Voltage ripple (max.,
mV)
50
50
100
300
75
Voltage noise (max.,
mV)
100
100
200
500
200
Chapter 1
1-15
700SG-1.fm Page 16 Monday, June 8, 1998 6:38 PM
DC-DC Converter
Item
Specification
OVP (Over Voltage
Protection, V)
5.52~5
.55
3.642~
3.693
15~17
7~9
-
OCP (Over Current
Protection, A)
4~6
4~6
0.3~0.
4
-
-
DC-AC inverter is used to generate very high AC voltage, then support to
LCD CCFT backlight user, and is also responsible for the control of LCD
brightness. Avoid touching the DC-AC inverter area while the system unit is
turned on.
DC-AC Inverter
Item
Specification
Vendor & model
name
Ambit T622.087.C.00
Input voltage (V)
7.3 (min)
-
22 (max)
Input current
(mA)
-
-
700 (max)
Output voltage
(Vrms, no load)
1300 (min)
155
1600 (max)
Output voltage
frequency (kHz)
40 (min)
-
65 (max)
Output current
(mArms)
(T62.087.C.00)
0.7~5.9 (min)
1.0~6.5 (typ)
1.3~7.1 (max)
Output current
(mArms)
(T62.086.C.00)
0.6~5.4 (min)
1.0~6.0 (typ)
1.4~6.6 (max)
LCD
Item
Vendor & model name
Specification
Hitachi
SX31S002
IBM ITSV50D2
Hitachi
TX34D62
12.1
12.1
13.3
Display technology
STN
TFT
TFT
Resolution
SVGA
(800x600)
SVGA
(800x600)
XGA
(1024x768)
Support colors
-
262,144 colors
Mechanical Specifications
LCD display area
(diagonal, inch)
1-16
EXTENSA 700/710 Service Guide
700SG-1.fm Page 17 Monday, June 8, 1998 6:38 PM
LCD
Item
Specification
Optical Specification
Contrast ration
50 (typ)
100 (typ)
100 (typ)
Brightness (cd/m2)
70 (typ)
70 (typ)
100 (typ)
Brightness control
keyboard
hotkey
keyboard
hotkey
keyboard
hotkey
Contrast control
keyboard
hotkey
None
None
Supply voltage for
LCD display (V)
3.3 (typ)
3.0~3.6 (typ)
3.3 (typ)
Supply voltage for
LCD backlight (Vrms)
600 (typ)
650 (typ), 660
(max)
650 (typ)
Electrical Specification
AC Adapter
Item
Vendor & model name
Specification
Delta ADP-60HB.Rev.A
Input Requirements
nominal voltages
(Vrms)
90~270
Frequency variation
range (Hz)
47~63
Maximum input current
(A, @90Vac, full load)
1.5A
Inrush current
The maximum inrush current will be less than 50A and
100A when the adapter is connected to 115Vac (60Hz)
and 230Vac(50Hz) respectively.
Efficiency
It should provide an efficiency of 83% minimum, when
measured at maximum load under 115V (60Hz) &
230Vac (60Hz)
Output Ratings (CV mode)
DC output voltage (V)
+19.0V~20.5V
Noise + Ripple (mV)
300mvp-pmax (20Mhz bandwidth)
Output Ratings (CC mode)
Load (A)
0 (min) 3.16 (max)
Dynamic output Characteristics
Turn-on delay time (s,
@115Vac)
Chapter 1
2
1-17
700SG-1.fm Page 18 Monday, June 8, 1998 6:38 PM
AC Adapter
Item
Specification
Hold up time (ms;
@115 Vac input, full
load)
8 (min)
Over voltage
protection (OVP, V)
26
Short circuit protection
Output can be shorted without damage
Electrostatic discharge
(ESD, kV)
+-15 (at air discharge)
Dielectric withstand voltage
Primary to secondary
3000 Vac (or 4242 Vdc), 10mA for 1 second
Leakage current
0.25 mA maximum @ 254 Vac, 60Hz
Regulatory Requirements
Internal filter meets:
FCC class B requirements. (USA)
VDE 243/1991 class B requirements. (German)
CISPR 22 Class B requirements. (Scandinavia)
VCCI class II requirements. (Japan)
1-18
EXTENSA 700/710 Service Guide
700SG-2.fm Page 1 Monday, June 8, 1998 1:26 PM
Chapter2
System Utility
BIOS
The flash Memory Update: The flash memory update is required for the
following conditions:
• New versions of system programs
• New features or options
Create a bootable diskette
C:\Sys A:
Copy flash utility & new versions BIOS to the diskette, then boot from diskette
driver.
A:\plash 700-40.rom /mode=3
Note: mode=3, set DMI value to system.
To activate the Setup Utility, press F2 during POST (while the Extensa logo is
being displayed.
Chapter 2
2-1
700SG-2.fm Page 2 Monday, June 8, 1998 1:26 PM
Main
BIOS Setup Utility
Main
Power Saving
Exit
System Time:
Advanced
Security
[15:10:15]
System Data;
[04/13/1998]
<Tab>, <ShiftTab>, or
<Enter> selects
field.
Floppy Disk A:
[1.44 Mb 31/2”]
Hard Disk 0
[3253MB]
CD-ROM/ATAPI Device
[CD-ROM]
Boot Device Priority
Speaker:
[Enabled]
Boot Display Device:
[Auto]
Mic-In/Lin-in:
[Line-In]
System memory:
32 MB
Video Memory:
2 MB
CPU Type
Pentium II
CPU Speed
266 MHz
VGA BIOS Version:
V1.12.000.R01J
BIOS Version:
V1.0 R00M2F
F1 Help
Select Item
Change Values
F9 Setup Defaults
Esc Exit
Select Menu
Enter Select Sub-Menu
F10 Save and Exit
Floppy Disk A:
Selects the floppy disk drive type. Options: 1.44 MB, 3½” or Disabled.
Boot Device Priority:
Press Enter to access the Boot Device Priority submenu.
Speaker:
Enables or disables the internal speakers on boot-up. You can override this
by toggling Fn-F8 during computer operation. Options: Enabled or Disabled
Boot Display Device:
Sets the display on boot-up. When set to Auto, the computer automatically
determines the display device. If an external display device (e.g., monitor) is
connected, it becomes the boot display; otherwise, the computer LCD is the
boot display. When set to Both, the computer outputs to both the computer
2-2
EXTENSA 700/710 Service Guide
700SG-2.fm Page 3 Monday, June 8, 1998 1:26 PM
LCD and an external display device if one is connected. Options: Auto or
Both
Mic-In/Line-In:
Sets the function of the microphon-in/line-in jack. Options: Mic-in or Line-in
Hard Disk 0 Submenu
BIOS Setup Utility
Main
Hard Disk 0
[3253MB]
Item Specific Help
Type:
[Auto]
Cylinders:
[6304]
Heads:
[16]
Sectors/Track:
[63]
Maximum Capacity
3253MB
F1 Help
Select Item
Change Values
F9 Setup Defaults
Esc Exit
Select Menu
Enter Select Sub-Menu
F10 Save and Exit
Type:
Sets the hard disk type. Options: Auto, User or NoneMulti-Sector Transfers:
Chapter 2
2-3
700SG-2.fm Page 4 Monday, June 8, 1998 1:26 PM
Advanced
BIOS Setup Utility
Main
Advanced
Security
Power Saving
Exit
Setup Warning
Setting items on this menu to incorrect values may cause your system to
malfunction.
Serial Port:
[Enabled]
Base I/O address:
Interrupt:
Parallel Port:
[3F8]
[IRQ 4]
[Enabled]
Mode:
Base I/O address:
Interrupt:
[ECP]
[378]
[IRQ 7]
F1 Help
Select Item
Change Values
F9 Setup Defaults
Esc Exit
Select Menu
Enter Select Sub-Menu
F10 Save and Exit
Serial Port:
Enables or disabled the serial port. Options: Enabled or DisabledBase I/O
address:
Base I/O address
Sets the I/O address of the serial port. Options: 3F8, 2F8, 3E8 or 2E8
Interrupt:
Sets the interrupt request of the serial port. Options: IRQ4, IRQ10, IRQ11 or
IRQ 3
Parallel Port:
Mode:
Sets the operation mode of the parallel port. Options: ECP, Bi-directional or
Output only
2-4
EXTENSA 700/710 Service Guide
700SG-2.fm Page 5 Monday, June 8, 1998 1:26 PM
Security
BIOS Setup Utility
Main
Advanced
Security
Power Saving
User Password Is:
Disabled
Supervisor Password Is:
Disabled
Set User Password
[Enter]
Set Supervisor Password
[Enter]
Password on boot:
[Enabled]
Password check during resume:
[Disabled]
Exit
F1 Help
Select Item
Change Values
F9 Setup Defaults
Esc Exit
Select Menu
Enter Select Sub-Menu
F10 Save and Exit
User Password is
When set, this password protects the computer and this Setup Utility from
unauthorized entry. When Password on boot and/or Password check during
Resume is enabled, you need to enter this password to continue operation.
Before setting the user password, you need to set the Supervisor Password.
Options: Disabled or Enabled
Set Supervisor Password
When set, this password protects the computer and this Setup Utility from
unauthorized entry. It also protects certain parameters in the Setup Utility.
When Password on boot and/or Password check during Resume is enabled,
you need to enter this password to continue operation. Options: Disabled or
Enabled Password on boot: Enables password entry on boot
Password on boot
When enabled, the computer prompts you for a password when the computer
boots up. Options: Enabled or Disabled
Password check during resume:
When enabled, the computer prompts you for a password when the computer
resumes from standby or hibernation mode. Options: Disabled or Enabled
Chapter 2
2-5
700SG-2.fm Page 6 Monday, June 8, 1998 1:26 PM
Power Saving
BIOS Setup Utility
Main
Advanced
Security
Power Saving
Heuristic Power Management
[Enabled]
Display Always On
[Disabled]
Battery Low Suspend:
[Enabled]
Resume On Alarm:
[Disabled]
Resume Time:
[00:00:00]
Date:
Exit
[00/00/0000]
Wake On LAN:
[Disabled]
Battery Low Warning Beep:
[Enabled]
F1 Help
Select Item
Change Values
F9 Setup Defaults
Esc Exit
Select Menu
Enter Select Sub-Menu
F10 Save and Exit
Heuristic Power Management
Enables or disables heuristic power management. See “Power Management
Modes” on page 40 for more information on power management modes
Options: Enabled or Disabled
Display Always On
When enabled, the computer display is always on. You may want to set this if
you are making a presentation on your computer. Options: Disabled or
Enabled
Battery Low Suspend:
Enables or disables the hibernation function during a battery-low condition.
When the computer is running very low on battery power, the computer will
enter hibernation mode if PhDISK is installed and the hibernation file is valid.
Options: Enabled or Disabled
Resume On Alarm:
When enabled and the system resume date and time are valid, the computer
resumes (wakes up) at the set time and date. Options: Disabled or Enabled
2-6
EXTENSA 700/710 Service Guide
700SG-2.fm Page 7 Monday, June 8, 1998 1:26 PM
Resume Time
Sets the time the computer resumes at if Resume on Alarm is enabled.
Format: HH:MM:SS (hour:minute:second)
Wake On LAN:
When enabled, the computer wakes up from standby mode if the computer is
accessed through the network. Consult your network administrator for details.
Options: Disabled or Enabled
Battery Low Warning Beep:
Enables or disables warning beeps during a battery-low condition. Options:
Enabled or Disabled
Exit
BIOS Setup Utility
Main
Advanced
Security
Power Saving
Exit
Save Change & Exit
Discard Changes & Exit
Get Default Values
Load Previous value
Save Changes
F1 Help
Select Item
Change Values
F9 Setup Defaults
Esc Exit
Select Menu
Enter Select Sub-Menu
F10 Save and Exit
Save Change & Exit
Saves any changes made, exits the Setup utility and reboots.
Discard Changes & Exit
Discards any changes made, exits the Setup utility and reboots.
Chapter 2
2-7
700SG-2.fm Page 8 Monday, June 8, 1998 1:26 PM
Get Default Values
Resets all parameters to their factory-default values.
Load Previous value
Disregards any changes made in the current session and reloads their
previous values.
Save Changes
Saves any changes made.
Heuristic Power Management
This computer has a built-in heuristic power management unit that monitors
system activity. System activity refers to any activity involving one or more of
the following devices: keyboard, mouse, floppy drive, hard disk, peripherals
connected to the serial and parallel ports, and video memory. If no activity is
detected for a period of time (called an inactivity time-out), the computer
stops some or all of these devices in order to conserve energy.
This computer employs an innovative power management technique called
Heuristic Power Management or HPM. HPM allows the computer to provide
maximum power conservation and maximum performance at the same time.
Power management methods used by most computers are timer-based. You
set inactivity time-out values for the display, hard disk, and other devices. The
computer then "sleeps" when these time-outs elapse. The problem with this is
that no two users are alike. Each of us has his or her own habits when using
the computer, which makes timer-based power management ineffective.
With HPM, your computer manages its power according to the way you use
your computer. This means the computer delivers maximum power when you
need it, and saves power when you don’t need the maximum — all without
your intervention. There are no timers to set, because the HPM system
figures out everything for you.
We recommend you enable heuristic power management to prolong your
battery life.
Power Management Modes
Display Standby Mode
Screen activity is determined by the keyboard, the built-in touchpad, and an
external PS/2 pointing device. If these devices are idle for the period
2-8
EXTENSA 700/710 Service Guide
700SG-2.fm Page 9 Monday, June 8, 1998 1:26 PM
determined by the computer’s HPM unit, the display shuts off until you press
a key or move the touchpad or external mouse.
"Automatic Dim" Feature
The computer has a unique "automatic dim" power-saving feature. When the
computer is using AC power and you disconnect the AC adapter from the
computer, it automatically dims the LCD backlight to save power. If you
reconnect AC power to the computer, it automatically adjusts the LCD
backlight user setting to a brighter level.
Hard Disk Standby Mode
The hard disk enters standby mode when there are no disk read/write
operations within the period of time determined by the HPM unit. In this state,
the power supplied to the hard disk is reduced to a minimum. The hard disk
returns to normal once the computer accesses it.
Peripheral Standby Modes
The peripheral connections in your computer also power down to save power
if there is no activity within the period of time specified by the computer’s
HPM unit for these devices. These include audio, serial ports, floppy drive
and parallel port.
Standby Mode
The computer consumes very low power in Standby mode. Data remain
intact in the system memory until the battery is drained.
There is one necessary condition for the computer to enter Standby mode:
• Heuristic Power Management must be set to [ENABLED].
There are four ways to enter Standby mode:
• Pressing the Standby hot key Fn-F3
• If the waiting time determined by the computer’s HPM unit elapses
without any system activity
• Closing the display cover
• When the computer is about to enter Hibernation mode (e.g., during a
battery low condition), but the Hibernation file is invalid or not present
Note: If the computer beeps but does not enter Standby mode after
pressing the Standby hot key, it means the operating system will not
allow the computer to enter the power-saving mode.
The following signals indicate that the computer is in Standby mode:
Chapter 2
2-9
700SG-2.fm Page 10 Monday, June 8, 1998 1:26 PM
• The buzzer beeps
• The Standby indicator lights
Note: Unstored data is lost when you turn off the computer power in
Standby mode or when the battery is drained.
To leave Standby mode and return to normal mode:
• Press any key
• Move the active pointing device (internal or external, PS/2 or serial)
• Have the Resume Timer set and let it be matched
• Open the display cover
• Experience an incoming PC card modem event
Hibernation Mode
In Hibernation mode, all power shuts off (the computer does not consume
any power). The computer saves all system information onto the hard disk
before it enters Hibernation mode. Once you turn on the power, the computer
restores this information and resumes where you left off upon leaving
Hibernation mode.
There are two necessary conditions for the computer to enter Hibernation
mode:
• The Hibernation file created by PhDISK must be present and valid. See
“PhDISK” on page 73.
• Heuristic Power Management must be set to [ENABLED].
In this situation, there are four ways to enter Hibernation mode:
• Pressing the Hibernation hot key Fn-F4
• If the waiting time determined by the computer’s HPM unit elapses
without any system activity
• If a battery low condition occurs and the Battery Low Suspend
parameter in Setup is set to [ENABLED].
• Invoked by the operating system power saving modes
Note: If the computer beeps but does not enter Hibernation mode after
pressing the Hibernation hot key, it means the operating system will
not allow the computer to enter the power-saving mode.
2-10
EXTENSA 700/710 Service Guide
700SG-2.fm Page 11 Monday, June 8, 1998 1:26 PM
To exit Hibernation mode, press the power switch. The computer also
resumes from Hibernation mode if the resume timer is set and matched. The
computer also resumes via the network if the Wake On LAN parameter is
enabled.
Note: Do not change any devices (such as add memory or swap hard
disks) when the computer is in Hibernation mode.
Chapter 2
2-11
700SG-2.fm Page 12 Monday, June 8, 1998 1:26 PM
Advanced Power Management
This computer supports the APM standard designed to further reduce power
consumption. APM is a power-management approach defined jointly by
Microsoft and Intel. An increasing number of software packages support APM
to take advantage of its power-saving features and allows greater system
availability without degrading performance.
For more information about APM under Windows 95, refer to your Windows
95 user’s manual.
Note: If you enable heuristic power management in Setup without APM
installed and enabled (true by default), the system time and date do
not display the correct settings after the computer returns to normal
operation from Standby or Hibernation mode. To update the time
and date, reboot the computer. APM should be enabled to avoid this
problem. Advanced Power Management greatly prolongs battery
life. Use APM whenever possible.
2-12
EXTENSA 700/710 Service Guide
700SG-2.fm Page 13 Monday, June 8, 1998 1:26 PM
PhDISK
The PhDISK utility allows your computer to enter hibernation mode. Before
entering hibernation mode, your computer saves all necessary computer
information into a file or partition created by PhDISK, then shuts off power to
all system components. On the next startup, the computer reloads the
information from the PhDISK file or partition and resumes from where you left
off.
Note: By default, this program is automatically loaded and set up on your
computer so you do not need to run this program by yourself. You
only need to run this if you upgrade your memory. You can find
PhDISK in the \windows\command\ directory.
The program accepts the following parameters:
Syntax
PHDISK [options]
where options:
• /CREATE (/FILE or /PARTITION) creates the hibernation file or
partition
• /DELETE (/FILE or /PARTITION) deletes the hibernation file or partition
• /INFO displays information on the hibernation file or partition
• /REFORMAT PARTITION reformats the existing hibernation file or
partition
Note: The Hibernation file is a hidden file named SAVE2DSK.BIN; DO
NOT delete or alter this file in any way except by using the PHDISK
utility. Improper deletion or alteration of this file could cause you to
lose all access to your computer.
Example:
• C:/phdisk/create/file
• C:/phdisk/create/partition
Chapter 2
2-13
700SG-2.fm Page 14 Monday, June 8, 1998 1:26 PM
2-14
EXTENSA 700/710 Service Guide
700SG-3.fm Page 1 Monday, June 8, 1998 11:01 AM
Chapter3
Machine Disassembly
This chapter contains procedures on how to disassemble the notebook
computer for maintenance and troubleshooting.
To disassemble the computer, you need the following tools:
• Wrist grounding strap and conductive mat for preventing electrostatic
discharge
• Flat-bladed screwdriver
• Phillips screwdriver
• Hexagonal screwdriver
• Tweezers
• Plastic stick
The flowchart on the following page gives a clearer and more graphic
representation off the entire disassembly sequence. Please refer to it from
time to time, together with the screw list below. For a more detailed
disassembly procedure, please refer to the Service CD kit.
The screws for the different components vary in size. During the disassembly
process, group the screws together with the corresponding components to
avoid mismatch when putting back the components.
Chapter 3
3-1
3-2
C D -R O M
M o d u le o r
L S 12 0, D V D
LE D
C a b le
LCD FPC
C a b le
J x 2
LE D
B o a rd
J x 2
K x 4 (1 2 .1 ")
H x 4 (1 3 .3 ")
H x 4
LCD
P an el
L C D U n it
a n d In v e rt e r
B o ard
R ig h t &
L e ft H in g e
SCRE W LIST
A:M2 x4L(B/Z N)(NY LOK)
B:M2 x12L(NI )
C:M2 .5x4L(N I)(NY LOK)
D:M2 .5x6L(N I)(NY LOK)
E:M2 x4L(NI)
F:M2 .5x13.5 L (B/ZN)(NYLOK)
G:M2 .5x8L(B /ZN)( NYLOK)
H:M2 .5x6L(B /ZN)( NYLOK)
I:M2 .5x18L( B/ZN)
J:M2 x4L(NI)
K:M3 x5L(NI)
L:M2 x18L(NI )
M:M2 x14L(NI )
N:M2 .5x15L (B/ZN )x1
HDD
M o d u le
In te r n a l
M ic p h o n e
LC D
B e zel
H x 3
C x 2
LC D
M o d u le
F x 2
G x 2
B x 2 (1 2 '1 ")
L x 2 (1 3 .3 " )
LC D
H in g e
C ov er
To u c h P a d
To u c h P a d
B u tt o n
To u c h P a d
B ra c k e t
K ey bo ard
J x 4
B a t te r y
P a ck
B a t te r y
C ov er
P C M C IA
S o ck er
M a in
B oa rd
Fa n
Cx 2
IM M
S h ie ld
Hx 1
IM M
M o d u le
CPU
H e a t S in k
L x3
J x 4
Low e r
C ase
D IM M
B o ard
D IM M
D o or
D C -D C & C h arge r
B o ard
M x 4
L e ft o r R ig h t
C hannel S peaker
Jx 4
To p C o v e r
G x 5 ( on the bac k)
I x 2( on the ba c k)
G x 1(o n the top)
E x 1( on the top)
H x 2 (on th e top)
M a c h in e
C ase
U pper
H e a t S in k
E x1
N x1
M id d le
C ove r
A x 1
ID E
B o a rd
FDD
M o d u le
H x 1
Jx 4
MO DEM
B o ard
MO DEM
D o or
A x 1
700SG-3.fm Page 2 Monday, June 8, 1998 11:01 AM
EXTENSA 700/710 Service Guide
700SG-3.fm Page 3 Monday, June 8, 1998 11:01 AM
Installing Memory
Disassembling the DIMM module:
1. To remove the DIMM module, remove the screw from the DIMM cover.
2. Use a tweezers to remove the cover.
3. Use a flat-bladed screwdriver to push out the locks at both sides of the
DIMM socket.
4. Remove the DIMM module.
Disassembling the modem board
1.
2.
3.
4.
Remove the modem board by removing the screw.
Pull out the cover gently.
Remove the modem board using a flat-bladed screwdriver.
Reconnect the modem board to CN26 & CN27 on the mainboard.
Chapter 3
3-3
700SG-3.fm Page 4 Monday, June 8, 1998 11:01 AM
Removing the Hard Disk Drive
1. To remove the internal hard disk drive, remove the screw with a flat-bladed
screwdriver or a coin.
2. Carefully pull out the hard disk drive cover to remove.
Disassembling the hard disk drive:
1. To disassemble the hard disk module, remove the 2 screws on both sides
of the hard disk drive.
2. Separate the hard disk drive from its bezel.
3. Remove the hard disk drive from it’s shield plate
4. Disconnect the hard disk cable from the hard disk drive.
5. To re-connect the hard disk cable, be sure that the 1st pin is aligned up as
indicated.
3-4
EXTENSA 700/710 Service Guide
700SG-3.fm Page 5 Monday, June 8, 1998 11:01 AM
Removing the battery pack:
1. To remove the battery pack, press the battery compartment cover latch
and slide the cover out.
2. Pull out the battery pack.
3. To reinsert the battery pack, slide in the battery pack.
4. And slide the battery compartment cover into its place.
Disassembling the CD-ROM drive:
1. Push the CD-ROM drive locker forward and carefully pull out the CD-ROM
module.
2. To disassemble the CD-ROM module, remove the 2 screws from both
sides of the CD-ROM module and the screw on the CD-ROM chassis.
3. Remove the CD-ROM drive from the CD-ROM chassis.
4. Disconnect the cable of the CD-ROM drive.
Chapter 3
3-5
700SG-3.fm Page 6 Monday, June 8, 1998 11:01 AM
Removing the keyboard
1. Remove the hinge cover by sliding it out.
2. Remove the middle cover by using a flat-bladed screwdriver to release the
latches.
3. Lift the cover to remove
4. Replace the middle cover.
5. The latches of the middle cover and the upper case must be matched,
then place it into position.
6. Pull the keyboard up and outward to expose the keyboard connector at
CN22.
7. The keyboard can be removed by releasing this connector.
3-6
EXTENSA 700/710 Service Guide
700SG-3.fm Page 7 Monday, June 8, 1998 11:01 AM
Removing the Display Module
1.
2.
3.
4.
Disconnect the LED cable from the main board at CN13.
Remove the 2 screws of the LCD FPC cable.
Disconnect the LCD FPC cable from the motherboard at CN12.
Disconnect the internal microphone power cable on CN9 of the main
board.
5. Remove the 2 screws at the base and at the back of the lower case.
6. Carefully detach the display from the main unit
Removing the heat sink:
1. To detach the upper case, first remove the 2 screws from the heatsink.
2. Lift out the heat sink.
Chapter 3
3-7
700SG-3.fm Page 8 Monday, June 8, 1998 11:01 AM
Disassembling the Upper Case
Disassembly procedure of the upper case:
1. Remove the 11 screws from the upper case and base unit.
2. Disconnect the mouse cable at CN18 and the floppy drive cable at CN17.
3. Disconnect the suspend mode cable at CN7, the left channel speaker at
CN8 and the right channel speaker at CN10 from the main board.
TouchPad bracket disassembly procedure
1. Remove the 4 screws of the touch pad cover.
2. Detach the touch pad cover from the left and right side latches, then
remove the touch pad cover.
3. Disconnect the touch pad cable from the touch pad board.
4. Remove the touch pad board from the upper case.
5. Remove the right channel speaker by removing it’s 2 screws.
3-8
EXTENSA 700/710 Service Guide
700SG-3.fm Page 9 Monday, June 8, 1998 11:01 AM
6. To separate the left channel speaker from the upper case, release the
speaker cable from it’s latch.
Disassembling the CPU:
1.
2.
3.
4.
5.
Remove the 7 screws on the CPU heat sink.
Remove the CPU heat sink.
Lift the MMO CPU module up and remove.
Disconnect the IMM CPU module at U22.
Disconnect the SIR-Lens assembly from the lower case..
Disassembling the fan:
1.
2.
3.
4.
Disconnect the fan power cable at CN23 from the main board.
Remove the screw of the IMM shield.
Lift the IMM shield.
Remove the 2 screws from the fan and separate the fan from the IMM
shield.
Chapter 3
3-9
700SG-3.fm Page 10 Monday, June 8, 1998 11:01 AM
Disassembling the lower case:
1. Remove the main board from the lower case.
2. Disconnect the DC-DC charger board from the main board at CN24 and
CN21.
3. Remove the IDE card from the main board at CN30.
4. Remove the 4 screws on the PCMCIA card.
5. Lift the PCMCIA card from the main board at CN16.
6. This completes the disassembly procedure of the lower case.
3-10
EXTENSA 700/710 Service Guide
700SG-3.fm Page 11 Monday, June 8, 1998 11:01 AM
Disassembling the LCD:
1. Remove the 5 screws on the display bezel.
2. Pull out the LCD bezel carefully.
3. Remove the internal microphone from the display panel.
4. Remove the 2 screws located at either side of the LED board.
5. Lift off the LED board from the display.
6. Remove the 2 screws which secure the inverter board.
7. Remove the 4 screws from the LCD.
8. Detach the LCD and inverter board from the display panel.
9. Remove the inverter board by disconnecting the FPC cable and the LCD
power cable.
10. Remove the FPC cable from the display.
Chapter 3
3-11
700SG-3.fm Page 12 Monday, June 8, 1998 11:01 AM
3-12
EXTENSA 700/710 Service Guide
700SG-4.fm Page 1 Thursday, May 28, 1998 1:13 PM
Chapter4
Troubleshooting
Use the following procedure as a guide for computer problems.
Note: The diagnostic tests are intended to test only Acer products. NonAcer products, prototype cards, or modified options can give false
errors and invalid system responses.
1. Obtain the failing symptoms in as much detail as possible.
2. Verify the symptoms by attempting to re-create the failure by running the
diagnostic test or by repeating the same operation.
Note: To run the diagnostics, refer to “Running the Diagnostics”.
3. Use the following table with the verified symptom to determine which page
to go to. Search the symptoms column, and find the description that best
matches your symptom; then go to the page shown in the “Go To” column.
Symptoms (Verified)
Go To
Power failure. (The power indicator
does not go on or stay on.)
“Power Systems Checkout”.
POST does not complete. No beep or
error codes are
“Symptom-to-Spare Part Index”, and
then use the No Beep Symptoms table.
indicated.
POST beeps, but no error codes are
displayed.
“Symptom-to-Spare Part Index”, and
then use the Beep Symptoms table.
POST detected an error and displayed
numeric error codes.
“Symptom-to-Spare Part Index”, and
then use the Numeric Error Codes
table.
The diagnostic test detected an error
and displayed a Spare Part code.
“Running the Diagnostics”.
The configuration is not the same as
the installed devices.
“Checking the Installed Devices List”.
Other symptoms (such as LCD display
problems).
“Symptom-to-Spare Part Index”, and
then use the Other Symptoms table.
Symptoms cannot be re-created
(intermittent problems).
Use the customer-reported
Chapter 4
symptoms and go to “Symptom-toSpare Part Index”.
4-1
700SG-4.fm Page 2 Thursday, May 28, 1998 1:13 PM
Diskette Drive Checkout
Do the following to isolate the problem to a controller, driver, or diskette. A
write-enabled, diagnostic diskette is required.
Note: Make sure that the diskette does not have more than one label
attached to it. Multiple labels can cause damage to the drive or
cause the drive to fail.
Do the following to select the test device. See “Running the Diagnostics” for
details.
1. Boot from the diagnostics diskette and start the PQA program (please
refer to “Running PQA Diagnostics Program”).
2. Go to the diagnostic Diskette Drive in the test items.
3. Press F2 in the test items.
4. Follow the instructions in the message window.
If an error occurs with the internal diskette drive, reseat the connector on the
Main board.
If the error still remains:
1.
2.
3.
4.
5.
Reseat the diskette drive.
Replace the diskette driver cable.
Replace the diskette.
Replace the IDE board
Replace the Main board.
CD-ROM Driver Test
Do the following to isolate the problem to a controller, drive, or CD-ROM.
Make sure that the CD-ROM does not have any label attached to it. The label
can cause damage to the drive or can cause the drive to fail.
Do the following to select the test device:
1. Boot from the diagnostics diskette and start the PQA program (please
refer to “Running PQA Diagnostics Program”.
2. Go to the diagnostic CD-ROM in the test items.
3. Press F2 in the test items.
4. Follow the instructions in the message window.
If an error occurs, reseat the connector on the Main board. If the error still
remains:
1. Reseat CD-ROM drive.
4-2
EXTENSA 700/710 Service Guide
700SG-4.fm Page 3 Thursday, May 28, 1998 1:13 PM
2. Replace the CD-ROM drive.
3. Replace the IDE board.
4. Replace the Main board.
Keyboard or Auxiliary Input Device Checkout
Remove the external keyboard if the internal keyboard is to be tested.
If the internal keyboard does not work or an unexpected character appears,
make sure that the flexible cable extending from the keyboard is correctly
seated in the connector on the sub card.
If the keyboard cable connection is correct, run the Keyboard Test. See
“Running the Diagnostics” for details.
If the tests detect a keyboard problem, do the following one at a time to
correct the problem. Do not replace a nondefective Spare Part:
1. Reseat the keyboard cables.
2. Replace the keyboard.
3. Replace the Main board.
The following auxiliary input devices are supported for this computer:
• Numeric keypad
• External keyboard (with keyboard/mouse cable)
If any of these devices do not work, reseat the cable connector and repeat
the failing operation.
If the problem does not recur, recheck the connector. If the problem is not
corrected, replace the device and then the Main board.
Memory Checkout
DIMM cards are available for increasing memory capacity.
Slot 1 (MB)
Slot 2 (MB)
Total Memory (MB)
8
0
8
8
8
16
16
0
16
8
16
24
16
8
24
16
16
32
32
0
32
Chapter 4
4-3
700SG-4.fm Page 4 Thursday, May 28, 1998 1:13 PM
Slot 1 (MB)
Slot 2 (MB)
Total Memory (MB)
8
32
40
32
8
40
16
32
48
32
16
48
32
32
64
64
0
64
8
64
72
64
8
72
16
64
80
64
16
80
32
64
96
64
32
96
64
64
128
Memory errors might stop system operations, show error messages on the
screen, or hang the system.
1. Boot from the diagnostics diskette and start the PQA program (please
refer to “Running PQA Diagnostics Program”.
2. Go to the diagnostic memory in the test items.
3. Press F2 in the test items.
4. Follow the instructions in the message window.
Note: Make sure that the DIMM is fully installed into the connector. A
loose connection can cause an error.
4-4
EXTENSA 700/710 Service Guide
700SG-4.fm Page 5 Thursday, May 28, 1998 1:13 PM
Flash Memory Update:
The flash Memory Update: The flash memory update is required for the
following conditions:
• New versions of system programs
• New features or options
Power System Checkout
To verify the symptom of the problem, power on the computer using each of
the following power sources:
1. Remove the battery pack and diskette drive.
2. Connect the AC Adapter and check that power is supplied.
3. Disconnect the AC Adapter and install the charged battery pack; then
check that power is supplied by the battery pack.
If you suspect a power problem, see the appropriate power supply checkout
in the following list:
• “Checking the AC Adapter”
• “Checking Operational Charging”
• “Checking the Battery Pack”
Checking the AC Adapter:
• You are here because the computer fails only when the AC Adapter is
used:
• If the power problem occurs only when the port replicator is used,
replace the port replicator.
• If the power-on indicator does not turn on, check the power cord of the
AC Adapter for correct continuity and installation.
• If the operational charge does not work, go to “Checking Operational
Charging.”
1. Unplug the AC Adapter cable from the computer and measure the output
voltage at the plug of the AC Adapter cable. See the following figure
Chapter 4
4-5
700SG-4.fm Page 6 Thursday, May 28, 1998 1:13 PM
:
Pin
Voltage (Vdc)
1
+19 to +20.5
2
Ground
If the voltage is not correct, replace the AC Adapter.
If the voltage is within the range, do the following:
• Replace the Main board.
• If the problem is not corrected, go to “Undetermined Problems”.
• If the voltage is not correct, go to the next step.
Note: An audible noise from the AC Adapter does not always indicate a
defect.
Checking Operational Charging:
To check operational charging, use a discharged battery pack or a battery
pack that has less than 50% of the total power remaining when installed in
the computer.
Perform operational charging. If the battery status indicator does not turn on,
remove the battery pack and let it return to room temperature. Reinstall the
battery pack.
If the charge indicator still does not turn on, replace the battery pack. If the
charge indicator still does not turn on, replace the Main board. Then reinstall
the battery pack. If the reinstalled battery pack is not charged, go to the next
section.
Checking the Battery Pack:
Battery charging will not start until the Fuel-Gauge shows that less than 95%
of the total power remains; with this condition the battery pack can charge to
100% of its capacity. This protects the battery pack from being overcharged
or having a shortened life.
Do the following:
4-6
EXTENSA 700/710 Service Guide
700SG-4.fm Page 7 Thursday, May 28, 1998 1:13 PM
1. Power off the computer.
2. Remove the battery pack and measure the voltage between battery
terminals 1 (+) and 7. See the following figure:
If the voltage is still less than +10.0 Vdc after recharging, replace the battery.
TouchPad Checkout
If the TouchPad does not work, check the configuration in the ThinkPad BIOS
program. If the configuration of the TouchPad is disabled, select Enable to
enable it.
If this does not correct the TouchPad problem, continue with the following.
After you use the TouchPad, the pointer drifts on the screen for a short time.
This self-acting pointer movement can occur when a slight, steady pressure
is applied to the TouchPad pointer. This symptom is not a hardware problem.
No service actions are necessary if the pointer movement stops in a short
period of time.
If a click button problem or the pointing stick problem occurs, do the following:
1. Boot from the diagnostics diskette and start the PQA program (please
refer to “Running PQA Diagnostics Program”.
2. Go to the diagnostic Pointing Dev. in the test items.
3. Press F2 in the test items.
4. Follow the instructions in the message window.
If either the pointing stick or the click button do not work, do the following
actions one at a time to correct the problem. Do not replace a nondefective
Spare Part:
1. Reseat the TouchPad cables.
2. Replace the TouchPad.
3. Replace the TouchPad.
Chapter 4
4-7
700SG-4.fm Page 8 Thursday, May 28, 1998 1:13 PM
Symptom-to-Spare Part Index
The symptom-to-Spare Part index lists the symptoms and errors and their
possible causes. The most likely cause is listed first.
Note: Perform the Spare Part replacement or actions in the sequence
shown in the “Spare Part/Action” columns. If a Spare Part
replacement did not solve the problem, put the original part back in
the computer. Do not replace a nondefective Spare Part.
This index can also help you determine the next possible Spare Part to be
replaced when servicing a computer.
Numeric error codes show the errors detected in POST or system operation.
If no codes are available, use narrative symptoms.
If the symptom is not listed, go to “Undetermined Problems” .
Numeric Error Codes
The following is a list of the message that the BIOS can display. Most of them
occur during POST. Some of them display information about a hardware
device, e.g., the amount of memory installed. Others may indicate a problem
with a device, such as the way it has been configured. Following the list are
explanations of the messages and remedies for reported problem.
Note: If the system fails after you make changes in the Setup menus,
reset the computer, enter Setup and install Setup defaults or correct
the error
Numeric error Codes
Symptom / Error
Spare Part / Action in Sequence
0200
Failure Fixed Disk
1.
2.
3.
4.
0211
Stuck Key
1. Go to “Keyboard or Auxiliary Input Device Checkout”.
0211
Keyboard error
1. Go to “Keyboard or Auxiliary Input Device Checkout”.
0212
Keyboard Controller Failed
1. Go to “Keyboard or Auxiliary Input Device Checkout”.
0213
Keyboard locked - Unlock key
switch
1. Unlock external keyboard
4-8
Reseat Hard disk driver.
“Load Setup Defaults” in BIOS Setup Utility.
Hard disk driver
Main board
EXTENSA 700/710 Service Guide
700SG-4.fm Page 9 Thursday, May 28, 1998 1:13 PM
Numeric error Codes
Symptom / Error
Spare Part / Action in Sequence
0220
Monitor type does not match
CMOS - Run Setup
1. Run “Load Setup Defaults” in BIOS Setup Utility.
0230
Shadow RAM Failed at offset:
nnnn
1. BIOS ROM
2. Main board
0231
System RAM Failed at offset:
nnnn
1. DIMM
2. Main board
0232
Extended RAM Failed at
offset:nnnn
1. DIMM
2. Main board
0250
System battery is dead - Replace
and run Setup
1. Replace backup battery(RTC) and Run SETUP to
reconfigure System time, then reboot system.
0251
System CMOS checksum bad Default configuration used
1. Backup battery(RTC)
2. Run SETUP to reconfigure System, then reboot
system.
0260
System timer error
1. Backup battery(RTC)
2. Run SETUP to reconfigure System, then reboot
system.
3. Main board
0270
Real time clock error
1. Backup battery(RTC)
2. Run SETUP to reconfigure System, then reboot
system.
3. Main board
0280
Previous boot incomplete Default configuration used
1. Run “Load Setup Defaults” in BIOS Setup Utility.
2. Backup battery (RTC)
3. Main board
0281
Memory size found by POST
differed from CMOS
1. Run “Load Setup Defaults” in BIOS Setup Utility.
2. DIMM
3. Main board
02B0
Diskette driver A error
1. Check the drive is defined with the proper diskette type
in Setup
2. Go to “Diskette Drive Checkout”.
02B2
Incorrect Drive A type - run
SETUP
1. Check the drive is defined with the proper diskette type
in Setup
2. Go to “Diskette Drive Checkout”.
02D0
System cache error - Cache
disabled
1. IMM (CPU board)
2. Main board
02F0
CPU ID:
1. IMM (CPU board)
2. Main board
Chapter 4
4-9
700SG-4.fm Page 10 Thursday, May 28, 1998 1:13 PM
Numeric error Codes
Symptom / Error
Spare Part / Action in Sequence
02F5
DMA Test Failed
1. DIMM
2. IMM (CPU board)
3. Main board
02F6
Software NMI Failed
1. DIMM
2. IMM (CPU board)
3. Main board
02F7
Fail-Safe Timer NMI Failed
1. DIMM
2. IMM (CPU board)
3. Main board
Error Messages
Symptom / Error
Spare Part / Action in Sequence
Device Address Conflict
1. Run “Load Setup Defaults” in BIOS Setup Utility.
2. Backup battery (RTC)
3. Main board
Allocation Error for: device
1. Run “Load Setup Defaults” in BIOS Setup Utility.
2. Backup battery (RTC)
3. Main board
Failing Bits: nnnn
1. DIMM
2. BIOS ROM
3. Main board
Fixed Disk n
1. None
Invalid System Configuration
Data
1. BIOS ROM
2. Main board
I/O device IRQ conflict
1. Run “Load Setup Defaults” in BIOS Setup Utility.
2. Backup battery (RTC)
3. Main board
Operating system not found
1. Enter Setup and see if fixed disk and drive A: are
properly identified.
2. Diskette Driver
3. Hard Disk
4. Main board
No Beep Symptoms
Symptom / Error
Spare Part / Action in Sequence
No beep, power-on
indicator on, and a blank
LCD not POST
1.
2.
3.
4.
5.
4-10
Ensure every connector correctly
DIMM
Reseat IMM (CPU board)
IMM (CPU board)
Main board
EXTENSA 700/710 Service Guide
700SG-4.fm Page 11 Thursday, May 28, 1998 1:13 PM
No Beep Symptoms
Symptom / Error
Spare Part / Action in Sequence
No beep, power-on indicator not
on, and a blank LCD during
POST
1.
2.
3.
4.
5.
6.
7.
Reseat LCD connectors
LCD inverter ID
LCD FPC cable
LCD inverter
LCD
LED board
Main board
No beep, power-on indicator on,
and a blank LCD during POST.
1.
2.
3.
4.
5.
6.
Reseat the LCD connectors
LCD inverter ID
LCD FPC Cable
LCD inverter
LCD
Main board
No beep during POST but
system runs correctly.
1. Speaker
LCD-Related Symptoms
Symptom / Error
Spare Part / Action in Sequence
• LCD backlight not working
• LCD too dark
• LCD brightness can not be
1.
2.
3.
4.
5.
6.
7.
Reseat the LCD connector
Keyboard (if control is from the keyboard)
LCD inverter ID
LCD FPC Cable
LCD inverter
LCD
Main board
LCD screen unreadable
Characters missing pels
Screen abnormal
Wrong color displayed
1.
2.
3.
4.
5.
6.
Reseat the LCD connector
LCD inverter ID
LCD FPC Cable
LCD inverter
LCD
Main board
LCD has extra horizontal or
vertical lines displayed.
1.
2.
3.
4.
5.
LCD inverter ID
LCD inverter
LCD FPC Cable
LCD
Main board
adjusted
• LCD contrast cannot be
adjusted
•
•
•
•
Keyboard/TouchPad-Related Symptoms
Symptom / Error
Spare Part / Action in Sequence
Keyboard (one or more keys)
does not work.
1. Reseat the keyboard cable.
2. Keyboard
3. Main board
TouchPad does not work.
1. Reseat TouchPad cable.
2. TouchPad board
3. Main board
Chapter 4
4-11
700SG-4.fm Page 12 Thursday, May 28, 1998 1:13 PM
Indicator-Related Symptoms
Symptom / Error
Spare Part / Action in Sequence
Indicator incorrectly remains off
or on, but system runs correctly
1. Reseat the LED board
2. LED board
3. Main board
Power-Related Symptoms
Symptom / Error
Spare Part / Action in Sequence
Power shuts down during
operation
1.
2.
3.
4.
Battery
AC Adapter
DC/DC & Charge board
Main board
The system will not power-on.
1.
2.
3.
4.
Battery
AC adapter
DC/DC & Charge boar
Main board
The system will not power-off
1. DC/DC & Charge board
2. Main board
Battery can’t be charge
1.
2.
3.
4.
Battery
DC/DC & Charge board
IDE board
Main board
PCMCIA-Related Symptoms
Symptom / Error
Spare Part / Action in Sequence
System cannot detect the
PCMCIA
1. PCMCIA slots assembly
2. Main board
Memory-Related Symptoms
Symptom / Error
Spare Part / Action in Sequence
Memory count (size) appears
different from actual size.
1. Enter BIOS Utility to execute load setup default
settings, then reboot system.
2. DIMM
3. Main board
Speak-Related Symptoms
Symptom / Error
Spare Part / Action in Sequence
Speakers have noise or no
sound comes from system
1. Speaker
2. Main board
4-12
EXTENSA 700/710 Service Guide
700SG-4.fm Page 13 Thursday, May 28, 1998 1:13 PM
Power Management-Related Symptoms
Symptom / Error
Spare Part / Action in Sequence
The system will not enter
hibernation
1. Keyboard (if control is from the keyboard)
2. Hard disk
3. Main board
The system will not wake up from
hibernation
1. Keyboard (if control is from the keyboard)
2. Hard disk
3. Main board
The system will not enter standby
after close the LCD
1. LCD cover switch
2. Main board
Battery fuel gauge does not go
higher than 90%.
1. Remove battery pack and let it cool for 2 hours.
2. Refresh battery (continue use battery until power off,
then charge battery).
3. Battery
4. DC/DC & charge board
5. Main board
System configuration does not
match the installed devices.
1. Enter BIOS Utility to execute load setup default
settings, then reboot system.
2. Reseat CD-ROM/DVD module.
System hangs intermittently.
1. Hard Disk/CD-ROM/DVD drive connector
2. Fan
3. Main board
In DOS or Windows, multimedia
programs, no sound comes from
the computer.
1. Speaker
2. Main board
Peripheral-Device-Related Symptoms
Symptom / Error
Spare Part / Action in Sequence
External display does not work
correctly.
1. Main board
USB does not work correctly
1. Main board
Print problems.
1.
2.
3.
4.
Run printer self-test.
Printer driver
Printer cable
Main Board
Serial or parallel port device
problems.
1.
2.
3.
4.
Device driver
Device cable
Device
Main board
Note: If you cannot find a symptom or an error in this list and the problem
remains, see “Undetermined Problems”.
Intermittent Problems
Intermittent system hang problems can be caused by a variety of reasons
that have nothing to do with a hardware defect, such as: cosmic radiation,
Chapter 4
4-13
700SG-4.fm Page 14 Thursday, May 28, 1998 1:13 PM
electrostatic discharge, or software errors. Spare Part replacement should be
considered only when a recurring problem exists.
When analyzing an intermittent problem, do the following:
1. Run the advanced diagnostic test for the Main board in loop mode at least
10 times.
2. If no error is detected, do not replace any Spare Part.
3. If any error is detected, replace the Spare Part shown by the Spare Part
code. Rerun the test to verify that no more errors exist.
Undetermined Problems
You are here because the diagnostic tests did not identify which adapter or
device failed, installed devices are incorrect, a short circuit is suspected, or
the system is inoperative. Follow these procedures to isolate the failing Spare
Part (do not isolate nondefective Spare Part).
Note: Verify that all attached devices are supported by the computer.
Note: Verify that the power supply being used at the time of the failure is
operating correctly. (See “Power Systems Checkout”):
1. Power off the computer.
2. Visually check them for damage. If any problems are found, replace the
Spare Part.
3. Remove or disconnect all of the following devices:
a. Non-Acer devices
b. Devices attached to the port replicator
c. Printer, mouse, and other external devices
d. Battery pack
e. Hard disk drive
f. DIMM
g. CD-ROM
h. Diskette drive
i. PC Cards
4. Power on the computer.
5. Determine if the problem has changed.
6. If the problem does not recur, reconnect the removed devices one at a
time until you find the failing Spare Part.
7. If the problem remains, replace the following Spare Part one at a time. Do
not replace a nondefective Spare Part:
a. Main board
b. LCD assembly
c. CPU card
4-14
EXTENSA 700/710 Service Guide
700SG-4.fm Page 15 Thursday, May 28, 1998 1:13 PM
Utility Program Diskette
Setting LCD Panel ID
There is an EEPROM in the inverter which stores its supported LCD type ID
code. If you replace a LCD with one of a different brand or use a new inverter,
the ID information in the inverter EEPROM should be updated.
Follow the steps blew to see the LCD Panel ID:
1. Follow the instruction on screen to read current or to set new LCD Panel
ID code.
Note: When you set a new LCD Panel ID and the new LCD is not yet
enabled (to function), so connect an external CRT to see the
program execution process.
Note: Make sure the new ID code you choose corresponds with the LCD
brand and type. If you write a wrong ID into inverter, just reboot and
re-execute the program and input the correct ID code.
2. Restart computer - the new LCD should work normally.
Note: If LCD cannot display after change ID code, make sure you write
the correct ID code, or try reseating the LCD FPC cable connectors.
Setting Thermal Sensor Utility
The system is equipped with sensors to protect against system overheating.
By setting System and processor thermal thresholds, the system can turn on
the cooling fan or shut down automatically when temperatures reach the
defined threshold parameters.
Chapter 4
4-15
700SG-4.fm Page 16 Thursday, May 28, 1998 1:13 PM
Running PQA Diagnostics Program
Note: Before running PQA Diagnostic Program, make sure that the write
enable tab of the Diagnostic Program Diskette is set to enable.
PQA
Vx_x
Resoult
Diag
SysInfo
Option
xx-xx-xx
Exit
Press -> or <- to move around the main menu. Press Enter to enable the
selected option. The main options are Diag, Resoult, SysInfo, Option and
Exit.
The Diag option lets you select testing items and times.
The following screen appears when you select Diag from the main menu.
PQA
Diag
Vx_x
Resoult
SysInfo
Option
xx-xx-xx
Exit
Diag
MANUAL TEST
AUTO
TEST
This screen allows you to specify the number of tests to perform. The options
are as follows:
Manual Test Performs a single test and Manual checks the selected test
items in sequence.
4-16
EXTENSA 700/710 Service Guide
700SG-4.fm Page 17 Thursday, May 28, 1998 1:13 PM
Auto Test Performs multiple tests of the selected items and AUTO check the
select test items in sequence.
Note: PCMCIA Diagnostic Supports Manual test only. Do not select
PCMCIA Diagnostic in Auto Test.
The screen below appears if you select AUTO Test.
PQA
Vx_x
Resoult
Diag
SysInfo
xx-xx-xx
Option
Exit
Diag
MANUAL TEST
AUTO
TEST
TEST COUNT VALUE (1...9999) 1
Specify the desired number of tests and press Enter.
After you specify the number of tests to perform, the screen shows a list of
test items (see below).
PQA
Resoult
Diag
Diag
Items
MANUALTest
TEST
[ ] Sytem
Board
AUTO
TEST
[ ] Memory
[ ] Keyboard
[ ] Video
[ ] Parallel Port
[ ] Serial Port
[ ] Diskette Drive
[ ] Hard Disk
[ ] CD-ROM
[ ] Coprocessor
[ ] Pointing Dev.
[ ] Cache
Vx_x
SysInfo
Option
xx-xx-xx
Exit
SPACE: mark/ummark selecting item
ESC : return to upper menu
F2
: test the marked item(s)
ENTER: open subitem’s menu
Test Times = 1
Move the highlight bar from one item to another. Press Space to enable or
disable the item. Press Enter to view the available suboptions of each
selected item. Press Esc to close the close the submenu.
Chapter 4
4-17
700SG-4.fm Page 18 Thursday, May 28, 1998 1:13 PM
The right corner screen information gives you the available function keys and
the specified test number.
•
•
•
•
•
•
Space
ESC
F1
F2
Enter
Test Times
Enables/disables the item
Exits the program
Help
Tests the selected item(s)
Opens the available suboptions
Indicates the number of tests to perform.
Note: The F1 and F2 keys function only after you finish configuring the
Test option.
PQA Diagnostic Program Error Code and Messages
\
Error Code
Message
Spare Part/Action in Sequence
System
16XX
Backup battery error
Backup battery
1XXX
CPU or Main board error
1. Reload BIOS default setting.
2. CPU
3. Main board
2XXX
Memory error
1. Reseat CPU(IMM module)
2. DIMM
3. Main board
3XXX
Keyboard error
1. Reseat Keyboard
2. Keyboard
3. Main board
4XXX
Video error
1. Main board
5XXX
Parallel Port error
1. Main board
6XXX
Serial port or Main board
error
1. Main board
7XXX
Diskette drive error
1. Diskette drive
2. Main board
8XXX
Hard disk error
1. Reload BIOS default setting.
2. Hard disk
3. Main board
9XXX
CD-ROM error
1. Reseat CD-ROM cable
2. CD-ROM drive
3. Main board
10XXX
CPU or Main board error
1. CPU
2. Main board
11XXX
Pointing device error
1. Reseat Keyboard
2. Keyboard
3. Main board
4-18
EXTENSA 700/710 Service Guide
700SG-5.fm Page 1 Thursday, May 28, 1998 3:42 PM
Chapter5
Jumpers and Connectors
Top View
PCB No. 97143
CN12
LCD Connector
CN13
CN7
Cover Switch
CN8
LED Connector
Left Speaker
CN9
MIC
CN10
Right Speaker
CN5
MIC/Lin-In
CN6
Lin Out
CN11
PS2
CN18
PS2 mouse
GF1
Debug Board
CN17
FDD Conector
CN19
HDD Conector
CN22
Keyboard Connector
CN21&
CN24
DC/DC & Charger board
Connector
CN23
Fan Connector
CN14
USB Connector
JK2
S-Terminal Connector
SW1
BIOS
Acer
OEM
1
Off On Off
Chapter 5
English
Keyboard
Japanese European
2
3
Off
On Off
On Off
On
5-1
700SG-5.fm Page 2 Thursday, May 28, 1998 3:42 PM
BottoM View
CN30
5-2
IDE Board Conector
EXTENSA 700/710 Service Guide
700SG-6.fm Page 1 Monday, June 8, 1998 1:19 PM
Chapter6
Spare Parts List
Level
Description
Part No.
ADAPTER
ADT 90-264V ADP60HB700
25.10064.011
1
COVER BATTERY PC
42.47A17.001
1
ASSY BTY PACK LIION LIP848NLA
60.47A01.001
1
700 CD-ROM MODULE
6M.47A01.001
BATTERY COVER
CD-ROM
Chapter 6
6-1
700SG-6.fm Page 2 Monday, June 8, 1998 1:19 PM
Level
Description
Part No.
2
CD DRV CD-224E 24X
56.10061.081
2
CABLE ASSEMBLY
FPC CD-ROM 700
50.47A02.001
2
ASSY CD-ROM
CHASSIS 700
60.47A02.001
1
IC CPU TILLAMOOK
200M 512K1.8V
01.TLLAM.K0A
1
IC CPU TILLAMOOK
233M 512K1.8V
01.TLLAM.N3A
1
IC CPU TILLAMOOK
266M 512K1.8V
01.TLLAM.Q60
1
IC CPU INT MOBILE
PII-233 IMM
01.I0MP2.N30
1
IC CPU INT MOBILE
PII-266 IMM
01.I0MP2.Q60
CPU
DIMM
6-2
EXTENSA 700/710 Service Guide
700SG-6.fm Page 3 Monday, June 8, 1998 1:19 PM
Level
Description
Part No.
1
SDIMM 64MB
MH8S64AZ-10TA 3.3V
72.08S64.00E
1
SD RAM MDL 253309A10 16MB 3.3V
72.25330.00N
1
SO-DIM 253409-10
32MB (NEC)
72.25349.00N
1
SO-DIM 253509-10
64MB (NEC)
72.25359.00N
1
DIMM
KMM466S424AT-F0
100NS 32M
72.46424.04E
1
SO-DIMM
M5M4V16S30BTP-10
16MB
72.54163.00N
1
SO-DIMM
M5M4V64S40ATP-10L
32MB
72.54644.00N
1
ASSY DIMM DOOR
700
60.47A05.001
1
ASSY FDD MODULE
700
6M.47A02.001
DIMM DOOR
FDD MODULE
Chapter 6
6-3
700SG-6.fm Page 4 Monday, June 8, 1998 1:19 PM
Level
Description
Part No.
2
FDD1.44MB D353F3
000(3MODE)
56.01051.271
1
FDD 120MB 3.5" LS120/MF357H
56.01082.011
2
BRACKET FDD SECC
T-0.8
33.47A03.001
2
CABLE ASSEMBLY
FPC FDD 700
50.47A04.001
1
700DX HDD MODULE
2G
6M.47A03.001
1
710T HDD MODULE
3G
6M.47A03.011
1
711TE HDD MODULE
4GB
6M.47A03.021
HDD MODULE
6-4
EXTENSA 700/710 Service Guide
700SG-6.fm Page 5 Monday, June 8, 1998 1:19 PM
Level
Description
Part No.
2
HDD 2160MB HIT/
DK226-21U
56.02759.011
2
HDD 3240MB 2.5" IBM/
DTCA23240
56.02995.001
2
HDD 4090MB IBM/
DTCA24090 IDE
56.02834.071
2
CABLE ASSEMBLY
FPC HDD 2.5"700
50.47A01.001
2
ASSY HDD SHIELD
PLT 700
60.47A03.001
2
ASSY HDD BZL 700
60.47A04.001
1
HEAT SINK UP AL T-08
34.47A09.001
HEAT SINK
Chapter 6
6-5
700SG-6.fm Page 6 Monday, June 8, 1998 1:19 PM
Level
Description
Part No.
1
ASSY MMO HEAT
SINK(TILLA MOOK)
60.47A11.011
1
ASSY MMO HEAT
SINK(DESCHUE)
60.47A11.001
1
ASSY HINGE 12.1"
TFT/DSTN (700DX
710T)
6M.47A04.001
1
ASSY HINGE 13.3" TFT
(711TE)
6M.47A04.011
1
CAP HINGE (R) PC
42.47A14.001
1
CAP HINGE CAP (L)
PC
42.47A15.001
1
INVERTER T62..086.C
700
19.21030.181
1
INVERTER T62..087.C
700
19.21030.191
HINGE PACK
HINGE COVER
INVERTER
6-6
EXTENSA 700/710 Service Guide
700SG-6.fm Page 7 Monday, June 8, 1998 1:19 PM
Level
Description
Part No.
KEYBOARD
1
NSK-84A01
91.78S07.001
1
NSK-84A0A
91.78S07.00A
1
NSK-85A0B
91.78S07.00B
1
NSK-84A0C
91.78S07.00C
1
NSK-85A0D
91.78S07.00D
1
NSK-85A0E
91.78S07.00E
1
NSK-85A0F
91.78S07.00F
1
NSK-85A0G
91.78S07.00G
1
NSK-84A0H
91.78S07.00H
1
NSK-88A0J
91.78S07.00J
1
NSK-84A0K
91.78S07.00K
1
NSK-85A0N
91.78S07.00N
1
NSK-85A0P
91.78S07.00P
1
NSK-84A0R
91.78S07.00R
1
NSK-85A0S
91.78S07.00S
1
NSK-85A0T
91.78S07.00T
1
700DX LCD MODULE
DSTN 12.1"
6M.47A05.001
1
MICROPHONE Acer
700DX
6M.47A08.001
LCD MODULE 12.1" DSTN 700DX
Chapter 6
6-7
700SG-6.fm Page 8 Monday, June 8, 1998 1:19 PM
6-8
Level
Description
Part No.
2
MYLAR FOR HINGE
PC 390
40.43A01.081
2
RUBBER LCD
CUSHION SILICON
050
47.46930.011
2
C.A 15P 2C 100MM
LED AN700
50.47A09.001
2
EXTENSA 700 LED
BOARD
55.47A03.001
2
LCD SX31S002 12.1"
DSTN SVGA/HI
56.0747A.031
EXTENSA 700/710 Service Guide
700SG-6.fm Page 9 Monday, June 8, 1998 1:19 PM
Level
Description
Part No.
2
ASSY LCD FPC
HIT12.1 STN 700A
60.47A07.071
2
ASSY LCD PNL
(HIT12.1"DSTN)700
60.47A08.031
2
ASSY LCD BZL (12.1")
700
60.47A09.021
1
710T LCD MODULE
TFT 12.1"
6M.47A05.011
1
MICROPHONE Acer
700DX
6M.47A08.001
LCD MODULE 12.1" TFT 710T
Chapter 6
6-9
700SG-6.fm Page 10 Monday, June 8, 1998 1:19 PM
6-10
Level
Description
Part No.
2
MYLAR FOR HINGE
PC 390
40.43A01.081
2
RUBBER LCD
CUSHION SILICON
050
47.46930.011
2
C.A 15P 2C 100MM
LED AN700
50.47A09.001
2
EXTENSA 700 LED
BOARD
55.47A03.001
2
LCD ITSV50D1 12.1
55+/-5 700
56.0742A.031
EXTENSA 700/710 Service Guide
700SG-6.fm Page 11 Monday, June 8, 1998 1:19 PM
Level
Description
Part No.
2
ASSY LCD FPC IBM
12.1 TFT 700A
60.47A07.081
2
ASSY LCD PNL
(IBM12.1")700
60.47A08.021
2
ASSY LCD BZL (12.1")
700
60.47A09.021
EXTENSA 700 LVDS
BOARD
55.47A05.001
711TE LCD MODULE
TFT 13.3"
6M.47A05.021
LVDS BOARD 13.3" 711TE
1
LCD MODULE 13.3" TFT 711TE
1
Chapter 6
6-11
700SG-6.fm Page 12 Monday, June 8, 1998 1:19 PM
6-12
Level
Description
Part No.
1
MICROPHONE Acer
700DX
6M.47A08.001
2
MYLAR FOR HINGE
PC 390
40.43A01.081
2
RUBBER LCD
CUSHION SILICON
050
47.46930.011
2
C.A 15P 2C 100MM
LED AN700
50.47A09.001
2
EXTENSA 700 LED
BOARD
55.47A03.001
EXTENSA 700/710 Service Guide
700SG-6.fm Page 13 Monday, June 8, 1998 1:19 PM
Level
Description
Part No.
2
LCD
TX34D62VC1CAC
13.3 TFT XGA
56.0747A.001
2
ASSY LCD FPC
(HIT13.1TFT) 700A
60.47A07.091
2
ASSY LCD PNL
(HIT13.3"TFT) 700
60.47A08.001
2
ASSY LCD BZL (13.3")
700
60.47A09.001
1
ASSY LOW CASE 700
60.47A14.002
LOWER CASE
Chapter 6
6-13
700SG-6.fm Page 14 Monday, June 8, 1998 1:19 PM
Level
Description
Part No.
2
FOOT PU BLACK 350P
47.45001.001
1
EXTENSA 700 MAIN
BOARD
55.47A01.001
2
DC/DC &CHARG
T62.085.C 700
19.21030.171
2
EXTENSA 700 IDE
TRANSFER BOARD
55.47A04.001
2
BTY LI 3V CR1220
36MAH
23.20004.091
MAINBOARD
MIDDLE COVER
6-14
EXTENSA 700/710 Service Guide
700SG-6.fm Page 15 Monday, June 8, 1998 1:19 PM
Level
Description
Part No.
1
COVER MIDDLE PC
42.47A16.001
1
SSY MMO SHLD 700
60.47A13.002
1
FAN 30*30*10
UDQFB3E65F0A(WIRE
)
23.10033.001
1
MODEM 56K CSI AC5614BMC 365
54.09011.131
1
ASSY MODEM DOOR
700
60.47A06.001
MMO SHLD
MODEM
MODEM DOOR
Chapter 6
6-15
700SG-6.fm Page 16 Monday, June 8, 1998 1:19 PM
Level
Description
Part No.
PLATE NAME EX700
1
PLATE NAME (LOGO)
PC AN390
40.43A02.001
1
PLT NAME PC AN700
40.48406.161
1
PLT NAME (710) PC
AN700
40.48406.201
1
CORD SPT-2 #18*2C
7A125V1830MM
27.01618.001
700 SCRW
6M.47A07.001
1
ASSY SIR-LENS 700
60.47A10.001
1
CABLE ASSEMBLY
FPC TOUCHPAD700
50.47A03.001
POWER CORD
SCRW PACK
SIR-LENS ASSY
TOUCHPAD
6-16
EXTENSA 700/710 Service Guide
700SG-6.fm Page 17 Monday, June 8, 1998 1:19 PM
Level
Description
Part No.
1
TOUCH PAD
SYNAPTICS/TM4-220
56.1748A.001
1
ASSY TOUCH PAD 700
60.47A12.001
1
ASSY UPPER CASE
700
60.47A15.003
1
SPK 1W 3520-7CC W/
CABLE 700DX
6M.47A09.001
LEVEL 1 : Stands for Field Replaceable Units (FRU) and Customer
Replaceable Units (CRU) for system level 1 service repair use.
LEVEL 2 : Stands for subassemblies of FRUs and CRUs which are for
component level service repair use
Chapter 6
6-17
700SG-6.fm Page 18 Monday, June 8, 1998 1:19 PM
6-18
EXTENSA 700/710 Service Guide
700SG-A.fm Page 1 Wednesday, May 27, 1998 11:23 AM
AppendixA
Model Definition
700 Model Number Define
Model
Number
LCD
CPU
Memory
HDD
Battery
700DX
12.1” SCC
Tillamook
-200
32MB
2.1GB
Li-Ion
700T
12.1” TFT
PII-233
32MB
2.1GB
Li-Ion
710DX
12.1” SCC
PII-233
32MB
2.1GB
Li-Ion
710T
12.1” TFT
PII-233
32MB
3.2GB
Li-Ion
710TE
13.3” TFT
PII-233
32MB
4GB
Li-Ion
711TE
13.3” TFT
PII-266
64MB
4G
Li-Ion
Appendix A
A-1
700SG-A.fm Page 2 Wednesday, May 27, 1998 11:23 AM
A-2
EXTENSA 700/710 Service Guide
700SG-b.fm Page 1 Wednesday, May 27, 1998 11:34 AM
AppendixB
Compatibility Test
System Configuration
System Board
700-97143-SD
CPU
Intel Pentium MMX-166/200/233/266
Intel Pentium II 233/266
Coprocessor
On-chip
Main Memory
2 DIMM sockets, from 16MB up to 128MB
Cache
512KB L2 Cache on IMM
System Chip Sets
Intel 430TX/82371AB PIIX4E
Intel 440TX/82371AB PIIX4E
System BIOS
1.0 R01-36
Flash ROM
MXIC 28F002
IDE
Include by 82371AB PIIX4
SIO
NS 97338
KBC
Mitsubishi M38867
VGA
NeoMagic NM2160B
PCMCIA Ctrl.
TI 1250A
Audio
ESS Mastero II
Keyboard
Internal Keyboard
Mouse Interface
PS/2 Mouse
LCD
TFT 1024x768
TFT 800x600
STN800x600
S.P.S.
Delta Electronics, Inc Model:ADP-60BB Rev. D
Appendix B
B-1
700SG-b.fm Page 2 Wednesday, May 27, 1998 11:34 AM
Microsoft Windows 95
Application packages test
OA kit test
Env.
Windows 95
Application name
Office Professional
Version
V7.0
Test
result
Vendor
Microsoft
Pass
Word
PowerPoint
Excel
Access
Schedule
Communication test
Env.
Windows 95
Application name
Laplink
Version
V7.5
Test
result
Vendor
Traveling
software
Pass
Diagnostic test
Env.
Windows 95
Application name
QAplus/WIN
Version
R7.1
Test
result
Vendor
Diagsoft
Pass
Note: When select test memory will cause the program error and the program will
be closed.
CD title
Class
Education
Photo CD
B-2
CD name
Test result
Great cities of world
Pass
Encyclopedia
Pass
Microsoft bookshelf ‘96
Pass
Micro cinemania ‘96
Pass
Microsoft Encarta ‘96
Pass
Microsoft home service CD disc
Pass
Powerphoto CD
Pass
Coreldraw photo CD
Pass
EXTENSA 700/710 Service Guide
700SG-b.fm Page 3 Wednesday, May 27, 1998 11:34 AM
CD title
Class
Music
Game
Video CD 1.x, 2.0
Chapter B
CD name
Test result
The great fantasy adventure
album
Pass
Super bass sound
Pass
3 dimensional sound
Pass
High resolution
Pass
Music highlights
Pass
Diabb
Pass
KKND
Pass
Tomb raider
Pass
Mercer mayer’s just grandma
and me
Pass
Total annihilation
Pass
Microsoft golf
Pass
Virtua fighter 2
pass
Zoombini
Pass
Karaok CD
Pass
ovies CDs
Pass
B-3
700SG-b.fm Page 4 Wednesday, May 27, 1998 11:34 AM
PCMCIA Card
ATA Drive
Model name
Vendor
Test result
VIPER 170E (170MB)
VIPER
Pass
SunDisk ST72P5 (2.5MB)
Seagate
Pass
SunDisk ST75P5 (5MB)
Seagate
Pass
SunDisk ST710P5 (10MB)
Seagate
Pass
SunDisk ST720P5 (20MB)
Seagate
Pass
ATA flash card FL4M5VA (4MB)
Viking
Pass
ATA flash card FL8M5VA (8MB)
Viking
Pass
ATA flash card FL16M5VA (16MB)
Viking
Pass
SCSI Card
Model name
Vendor
Test result
APA-460 slim SCSI
Adaptec
Pass
APA-1480 SCSI
Adaptec
Pass
CD-ROM
Model name
Vendor
KXL-D740 (x4, SCSI)
Panasonic
Test result
Pass
ZV Card
Model name
Vendor
Test result
Margi
Margi
Pass
FujiFilm
Fuji
Pass
Peripheral devices test
Floppy disk drive
Device Name
D353F3 internal FDD
Bus type
3.5”, 1.44MB
Vendor
Mitsumi
Test result
Pass
Hard disk drive
Device name
Bus type
Vendor
Test result
DTNA-22160
IDE
IBM
Pass
DTCA-23240
IDE
IBM
Pass
B-4
EXTENSA 700/710 Service Guide
700SG-b.fm Page 5 Wednesday, May 27, 1998 11:34 AM
Hard disk drive
Device name
DTCA-24090
Bus type
Vendor
IDE
IBM
Test result
Pass
IDE Drive
Device name
Bus type
Vendor
Test result
UJDA150 (CD-ROM)
IDE (24X)
Matsushita
Pass
MF357H-252MR
(LS-120)
IDE
Mitsubishi
Pass
Keyboard
Device name
Type
Vendor
Test result
Acer 6511
PS/2 (104key)
Acer
Pass
Acer 6512
PS/2 (105 key)
Acer
Pass
Acer 6017 (keypad)
PS/2 (17 key)
Acer
Pass
Natural keyboard
PS/2 (104 key)
Microsoft
Pass
Mouse
Device name
Type
Vendor
Test result
Microsoft PS/2 mouse
PS/2
Microsoft
Pass
Microsoft Intellimouse
PS/2
Microsoft
Cursor crazy
Acer S-34 PS/2 mouse
PS/2
Acer
Pass
Logitech PS/2 mouse
PS/2
Logitech
Pass
Addonics PRO-5
Serial
Addonics
Pass
Microsoft home mouse-serial
Serial
Microsoft
Pass
Internal TouchPad
TouchPad
Synaptics
Pass
ECP/EPP and printer
Device name
Type
Vendor
HP
Test result
LaserJet 5MP
Laser
Pass
LaserJet 6MP
Laser (ECP)
HP
Pass
Canon BJ-200
Bubble Jet
Canon
Pass
Monitor
Device name
Type
Vendor
Test result
AcerView 56e
UVGA (DDC2B)
Acer
Pass
AcerView 76ie
UVGA (DDC2B)
Acer
Pass
Chapter B
B-5
700SG-b.fm Page 6 Wednesday, May 27, 1998 11:34 AM
Monitor
Device name
Type
Vendor
Test result
AcerView 98”
UVGA (Green)
Acer
Pass
Compaq V70
DDC2B
Compaq
Pass
USB Device
Device name
Camera (YC76)
Type
Camera
Vendor
Test result
Intel
Pass
M-UA34 USB Mouse
Mouse
Logitech
Pass *
Genius NICHE USB
Mouse
Mouse
KYE
Pass *
Note: * (cursor can’t be moved when resume from standby mode)
Acer 6511-M
Keyboard
API
Pass
Note: Windows key, application key, system hot key and LED can’t work well
Mini Dock
Device name
Type
Vendor
Test result
Acer Link
100 Base-T
Intel
Pass
Acer Link
Cardbus slot
TI
Pass
B-6
EXTENSA 700/710 Service Guide
700SG-b.fm Page 7 Wednesday, May 27, 1998 11:34 AM
PCMCIA Ethernet LAN Adapter
PCMCIA Ethernet LAN adapter
NW
3.12
NW
4.11
NT
3.51
3Com Etherlink III PCMCIA (3C589C)
v
v
v
v
3Com Etherlink III PCMCIA (3C589D)
v
v
v
v
Test item
NT
4.0
Ethernet
D-Link DE-650CT PCMCIA adapter
v
v
v
v
D-link DE-660 PCMCIA adapter
v
v
v
v
IBM Ethernet credit card adapter II
v
v
v
v
IBM EtherJet PC Card
v
v
v
v
Olicom OC-2220 Ethernet GoCard
v
v
v
v
SMC Elite card PCMCIA (SMC 8016)
v
v
v
v
TDK LAN LAC-CD021
v
v
v
v
TI Ethernet PCMCIA adapter II
v
v
v
v
Xircom CE-10/A corporate series creadit
card Ethernet adapter
v
v
v
v
Xircom credit card Ethernet adapter IIPS
v
v
v
v
Xircom credit card Ethernet 10/100 (CE310/100)
v
v
v
v
CardBus Card
3Com fast Etherlink XL (3C575-TX)
v
v
v
v
Xircom CardBus Ethernet 10/100 (Card
BUs)
v
v
v
v
TOSHIBA CardBus 100Base-TX (Card Bus)
v
v
v
v
Intel EtherExpress PRO/100 modile adapter
32 Bit (Card Bus)
v
v
v
v
v
v
v
v
Ethernet+Modem combo Card
3Com (3C562C/3C563C) EtherLink III +336
modem PC card
Eiger labs 28.8 LAN/modem combo card
V
v
v
v
Megahertz CC-XJEM3288 multifunction
card
v
v
v
v
Motorola PCMCIA 28.8 modem/fax/LAN
adapter
v
v
v
v
Olicom OC-2232 GoCard Ethernet/modem
336
v
v
v
v
Xicom credit card Ethernet + modem 28.8
v
v
v
v
Xicom credit card Ethernet + modem 33.6
v
v
v
v
Chapter B
B-7
700SG-b.fm Page 8 Wednesday, May 27, 1998 11:34 AM
PCMCIA Ethernet LAN adapter
NW
3.12
NW
4.11
NT
3.51
3Com TokenLink III 16/4 PC card adapter
(3C689)
v
v
v
v
IBM auto 16/4 Credit card adapter
v
v
v
v
Olicom Token-Ring GoCard
V
v
v
v
v
v
v
v
Test item
NT
4.0
Token-Ring
Token-Ring+Modem combo card
Olicom OC-2232 GoCard Token-Ring/
modem 336
PCMCIA Modem Card
Model name
Pass items
AT&T KeepInTouch card 14.4 datd/14.4 fax
• Driver installed
ActionTec DataLink 56K fax/modem (K56flex)
• Phone Dialer
Apollo FM560 fax/modem (K56flex)
D-Link DM-336 WinConnect 33.6 fax Modem
• Hyper Terminal
• Dial-Up Networking
Hayes OPTMA 288 V.34+FAX
Hayes OPTIMA 366 V.34+FAX for PCMCIA
Lasat credit 288 fax/medem
Megahertz XJ3288R modem
Megahertz XJ-CC4288 modem
Motorola XJ-4336 33.6 PC card modem
B-8
EXTENSA 700/710 Service Guide
700SG-b.fm Page 9 Wednesday, May 27, 1998 11:34 AM
PCMCIA Modem Card
Model name
Pass items
Motorola montana 28.8 modem/fax
• Driver installed
Xircom credit card modem 33.6 (CM-33)
• Phone Dialer
TDK CyberExpress 3000 V.34 data/fax modem
TDK DF2814 V.34 fax/modem
USRobotics sportster 28.8 fax/modem
• Hyper Terminal
• Dial-Up Networking
USR megahertz 56K PC card modem XJ1560
ZOOM PCMCIA V.34C fax/modem
3Com Etherlink III PCMCIA (3C562)
3Com Etherlink III LAN+336 modem (3C562C/
3C563C)
Megahertz CC-XJEM3288 multifunction card
Motorola maniner 28.8 modem/fax/LAN adapter
Olicom GoCard combo Eth/modem 336
Olicom GoCard combo TRN/modem 336
Xicom creadit card etherner+modem II (CEM2)
Xircom creadit card ethernet+modem 28.8 (PSCEM-28)
Xircom credit card ethernet+modem 33.6
(CEM33)
Olicom OC-2232 GoCard Token-Ring/modem 336
CIS 56K fax/modem
USRobotics sportster 28800 fax modem
ADI 33600 SVD modem
Chapter B
B-9
700SG-b.fm Page 10 Wednesday, May 27, 1998 11:34 AM
Microsoft Windows 95 (Japanese OSR2.1J)
Printer Test
Model Name
Laser shot B406GII
Vendor
Canon
Test result
Pass
PCMCIA Adapter Test
Model Name
Vendor
Windows95
Fast-SCSI
IBM
Pass
TDKLan LAK-CD021
TDK
Pass
IBM ethernet card II
IBM
Pass
SFM020W flash memory 20MB
TDK
Pass
VIPER 170E
VIPER
Pass
B-10
EXTENSA 700/710 Service Guide
700SG-b.fm Page 11 Wednesday, May 27, 1998 11:34 AM
Microsoft Windows 95 (Chinese OSR2.1)
Print
Model Name
Vendor
Windows95
HPLaserJet5MP
HP
Pass
HPLaserJet6MP
HP
Pass
Monitor
Model Name
AcerView 56e
Vendor
Acer
Windows95
Pass
AcerView 76ie
Acer
Pass
MAG DX15F
MAG
Pass
NEC MultiSync XE15
NEC
Pass
Mouse
Model Name
PS/2 Mouse
Chapter B
Vendor
Microsoft
Windows95
Pass
B-11
700SG-b.fm Page 12 Wednesday, May 27, 1998 11:34 AM
B-12
EXTENSA 700/710 Service Guide
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
