02r2719

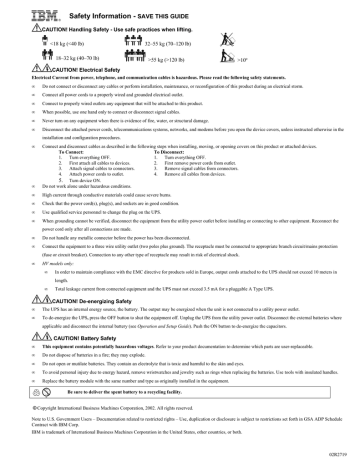

Safety Information - SAVE THIS GUIDE
CAUTION! Handling Safety - Use safe practices when lifting.
<18 kg (<40 lb)
32–55 kg (70–120 lb)
18–32 kg (40–70 lb)
>55 kg (>120 lb)
>10º
CAUTION! Electrical Safety
Electrical Current from power, telephone, and communication cables is hazardous. Please read the following safety statements.
•
Do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration of this product during an electrical storm.
•
Connect all power cords to a properly wired and grounded electrical outlet.
•
Connect to properly wired outlets any equipment that will be attached to this product.
•
When possible, use one hand only to connect or disconnect signal cables.
•
Never turn on any equipment when there is evidence of fire, water, or structural damage.
•
Disconnect the attached power cords, telecommunications systems, networks, and modems before you open the device covers, unless instructed otherwise in the
installation and configuration procedures.
•
•
Connect and disconnect cables as described in the following steps when installing, moving, or opening covers on this product or attached devices.
To Connect:
To Disconnect:
1.
Turn everything OFF.
1.
Turn everything OFF.
2.
First attach all cables to devices.
2.
First remove power cords from outlet.
3.
Attach signal cables to connectors.
3.
Remove signal cables from connectors.
4.
Attach power cords to outlet.
4.
Remove all cables from devices.
5. Turn device ON.
Do not work alone under hazardous conditions.
•
High current through conductive materials could cause severe burns.
•
Check that the power cord(s), plug(s), and sockets are in good condition.
•
Use qualified service personnel to change the plug on the UPS.
•
When grounding cannot be verified, disconnect the equipment from the utility power outlet before installing or connecting to other equipment. Reconnect the
power cord only after all connections are made.
•
Do not handle any metallic connector before the power has been disconnected.
•
Connect the equipment to a three wire utility outlet (two poles plus ground). The receptacle must be connected to appropriate branch circuit/mains protection
(fuse or circuit breaker). Connection to any other type of receptacle may result in risk of electrical shock.
•
HV models only:
•
In order to maintain compliance with the EMC directive for products sold in Europe, output cords attached to the UPS should not exceed 10 meters in
length.
•
Total leakage current from connected equipment and the UPS must not exceed 3.5 mA for a pluggable A Type UPS.
CAUTION! De-energizing Safety
•
The UPS has an internal energy source, the battery. The output may be energized when the unit is not connected to a utility power outlet.
•
To de-energize the UPS, press the OFF button to shut the equipment off. Unplug the UPS from the utility power outlet. Disconnect the external batteries where
applicable and disconnect the internal battery (see Operation and Setup Guide). Push the ON button to de-energize the capacitors.
CAUTION! Battery Safety
•
This equipment contains potentially hazardous voltages. Refer to your product documentation to determine which parts are user-replaceable.
•
Do not dispose of batteries in a fire; they may explode.
•
Do not open or mutilate batteries. They contain an electrolyte that is toxic and harmful to the skin and eyes.
•
To avoid personal injury due to energy hazard, remove wristwatches and jewelry such as rings when replacing the batteries. Use tools with insulated handles.
•
Replace the battery module with the same number and type as originally installed in the equipment.
Be sure to deliver the spent battery to a recycling facility.
© Copyright International Business Machines Corporation, 2002. All rights reserved.
Note to U.S. Government Users – Documentation related to restricted rights – Use, duplication or disclosure is subject to restrictions set forth in GSA ADP Schedule
Contract with IBM Corp.
IBM is trademark of International Business Machines Corporation in the United States, other countries, or both.
02R2719
