Carson SC-411RD-10 Operating instructions

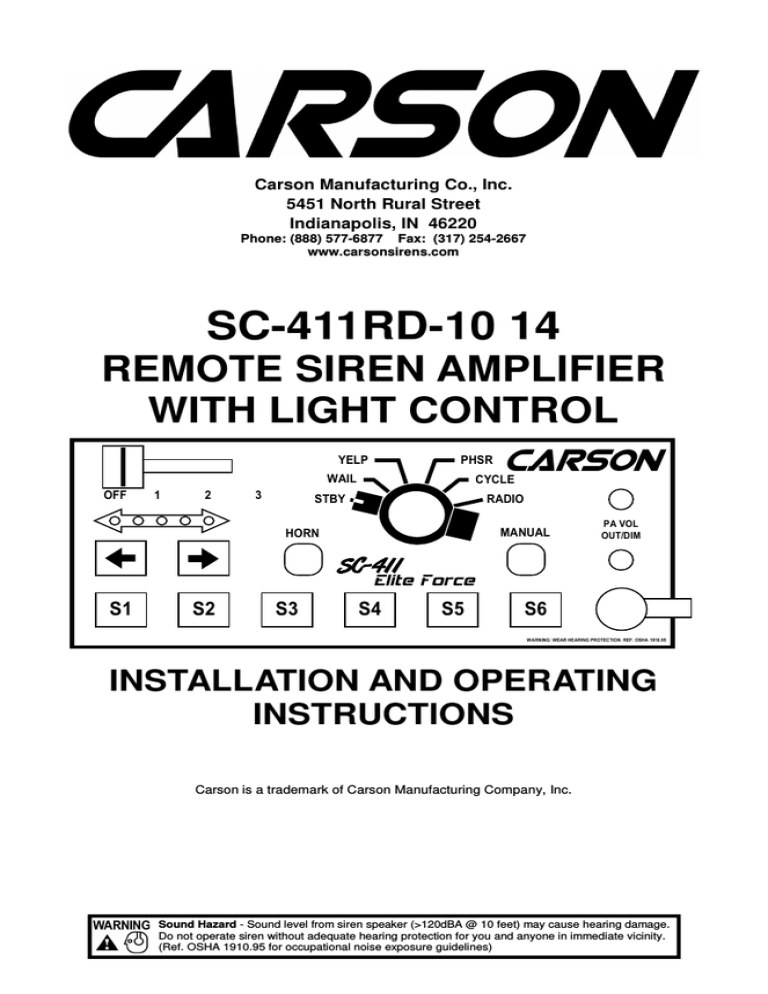

Carson Manufacturing Co., Inc.
5451 North Rural Street
Indianapolis, IN 46220
Phone: (888) 577-6877 Fax: (317) 254-2667
www.carsonsirens.com
SC-411RD-10 14
REMOTE SIREN AMPLIFIER
WITH LIGHT CONTROL
PHSR
YELP
WAIL
OFF
1
2
3
CARSON
CYCLE
STBY
RADIO
MANUAL
HORN
PA VOL
OUT/DIM
SCSC-411
Elite Force
S1
S2
S3
S4
S5
S6
WARNING: WEAR HEARING PROTECTION REF. OSHA 1910.95
INSTALLATION AND OPERATING
INSTRUCTIONS
Carson is a trademark of Carson Manufacturing Company, Inc.
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
Page 2 of 12
Installation and Operating Instructions
SC-411RD-10
TABLE OF CONTENTS
GENERAL DESCRIPTION ..................................................................................................................................... 3
SPECIFICATIONS .................................................................................................................................................. 3
INSTALLATION ....................................................................................................................................................... 4
SAFETY PRECAUTIONS................................................................................................................................... 4
UNPACKING ...................................................................................................................................................... 4
MOUNTING - Control Head................................................................................................................................ 4
MOUNTING - Amplifier....................................................................................................................................... 4
ELECTRICAL CONNECTIONS - Amplifier ........................................................................................................ 4
OPTIONAL CONNECTIONS - Amplifier ............................................................................................................ 4
AMPLIFIER WIRING DIAGRAM ........................................................................................................................ 5
OPTION SETTINGS................................................................................................................................................ 6
Enter/Exit Program Mode ................................................................................................................................... 6
S1 - S6 Switch Operation ................................................................................................................................... 6
Lever / S1 - S6 Switch Association .................................................................................................................... 6
Option Set 1 ........................................................................................................................................................ 7
Option Set 2 ........................................................................................................................................................ 7
Option Set 3 ........................................................................................................................................................ 7
Second Tone Control.......................................................................................................................................... 7
OPERATION ........................................................................................................................................................... 8
GENERAL........................................................................................................................................................... 8
POWER ON/OFF................................................................................................................................................ 8
SIREN CONTROLS............................................................................................................................................ 8
Rotary Switch ................................................................................................................................................ 8
Manual Button ............................................................................................................................................... 8
Horn Button ................................................................................................................................................... 8
PA ................................................................................................................................................................. 8
SIRCTRL Input (Optional)............................................................................................................................. 8
LITCTRL Input (Optional) ............................................................................................................................. 8
CUTOUT Input (Optional) ............................................................................................................................. 8
Timed Override (Optional) ........................................................................................................................... 8
Sweep/Intersection Function (Optional) ...................................................................................................... 8
Second Speaker Output (Dual Tone) ........................................................................................................... 8
LIGHT SYSTEM CONTROLS ............................................................................................................................ 9
Lever Switch ................................................................................................................................................. 9
Automatic Siren............................................................................................................................................. 9
Auxiliary Control Switches ............................................................................................................................ 9
Arrow Stick Control Switches........................................................................................................................ 9
Switch Legends............................................................................................................................................. 9
OUT/DIM ....................................................................................................................................................... 9
Video Trigger Output .................................................................................................................................... 9
Alert ............................................................................................................................................................... 9
DIAGNOSTICS ................................................................................................................................................... 9
PROGRAM TRANSFER..................................................................................................................................... 9
SERVICE............................................................................................................................................................... 10
PROBLEMS........................................................................................................................................................... 10
PARTS................................................................................................................................................................... 10
RETURN................................................................................................................................................................ 11
LIMITED WARRANTY........................................................................................................................................... 11
INSTALLATION CONFIGURATION RECORD .................................................................................................... 12
NOTICE
This Carson siren is intended for use by authorized personnel only. It is the user’s responsibility to ensure they understand and
operate this emergency warning device in compliance with all applicable city, state and federal laws and regulations.
Due to continuous product improvements, we must reserve the right to change any specifications and information, contained in this
manual at any time without notice.
Carson Manufacturing Co., Inc. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose.
Carson Manufacturing Co., Inc. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual.
7/30/12
CP5094C
SC-411RD-10
Installation and Operating Instructions
Page 3 of 12
GENERAL DESCRIPTION
The SC-411RD Remote Light Control/Siren is a premium unit designed for dual 100W speaker use. The primary operating modes are Radio, Cycler, Standby, Yelp, Wail, and Phaser. A Noise Canceling PA Override
and push-button Horn Override are available in all modes except Radio. A push-button is provided for toggling
between Wail, Yelp, and Phaser tones, and Manual siren control in silent modes. The Phaser tone can be
optionally replaced by Two-Tone or disabled entirely. Auxiliary inputs are provided for connection to horn ring
circuit or switch. A latching siren cutout input is provided for connection to a door switch, etc. to stop siren tones
when exiting the vehicle. PA volume control is on the front panel while Radio volume control is on the amplifier.
The front panel is backlit with LED's for night visibility, dimmable with a front panel switch and/or connection to
dash lights. The siren circuits utilize short circuit, high voltage, and reverse polarity protection for maximum
service life. An indicator light on face is provided for siren output diagnostics.
The SC-411RD also provides a 4-position lever switch with LED indicators for primary lighting system control of
up to 50 amps total and automatic siren tone in last position. Six programmable lighted push-button switches
with replaceable legends provide auxiliary lighting or other device control up to 10 amps per switch. Each output is fused and monitored with visual and audible indicators for diagnostics. An alert periodically sounds (may
be disabled) when outputs are on to help prevent leaving lights on unintentionally. A video camera trigger output
is activated with the lever switch or programmed auxiliary switches. Two switches are dedicated to arrow stick
control (left, right, center) with function indication and specific control outputs.
All optional settings are programmed from the remote head face. These settings are synchronized between the
head and amplifier using our QuickClone™ duplication technology, a quick-copy feature for simple transfer of
option setting among multiple heads and amplifiers for efficient fleet installations.
SPECIFICATIONS
Siren Section
Input Voltage
Input Current
10 - 16 VDC (negative ground)
16 AMPS (@14 VDC - dual 100W speakers)
Standby Current
Audio Frequency
Audio Distortion
Audio Output
Less than 300 ma
200Hz - 10 kHz + 3db
Less than 7% (@1 kHz - dual 100W speakers)
80 watts (@14 VDC - dual 100W speakers)
Audio Input
Output Power
Siren Frequency
Tones /
Cycle Rates
400 ohms + 10%
210 WATTS RMS MAX. (15 VDC - dual 100W speakers)
700Hz - 1500Hz (Two-Tone and Horn = 435 & 585Hz)
Horn
Wail
Yelp
109 CPS
13 CPM
190 CPM
High Voltage Protection
Short Circuit Current
Operating Temp.
Controls
16 - 18 VDC will cause siren output to cease, resume at normal voltage
50 AMPS (supply circuit must be capable of supplying this)
-15° F to +140°F
6-position rotary mode switch (Radio, Cycler, Standby, Yelp, Wail, and Phaser).
Momentary push-button Horn switch.
Momentary push-button Manual/Tone toggle switch.
Momentary push-button Dimming switch.
Enable input (positive) to turn on unit.
Auxiliary siren input programmable for positive or negative operation.
Auxiliary light control input programmable for positive or negative operation.
Cutout input programmable for positive or negative latching operation.
Face-programmable option settings.
(2) Neg, (3) Spkr, (2) Radio, Power, Siren Ctrl, Light Ctrl, Cutout, Backlit (#28-#12 AWG)
Connections (Rem. 12-Term Blk)
Phaser
15 CPS
Two-Tone
60 CPM
Light Control Section
Controls
Current (Lever Switch)
4-position lever switch with position 3 siren activation and LED indicators
8 - on/off lighted push-button switches with replaceable legends
20 AMPS per circuit, 50 AMPS total
Current (Aux. Sw.)
Connections
(Removable 3-Term Block)
(Removable 10-Term Block)
10 AMPS per switch, 30 AMPS total
Power Input - (2) screw terminal inputs (#22 to #6 AWG) 50A max each, external fuse reqd.
Lever Switch - (3) outputs (#22 to #10 AWG), 20A max each
Aux. Switches - (6) outputs (#22 to #12 AWG), 10A max each
Left, right & center arrow stick control outputs (#22 to #12 AWG), 0.2A max each
Video control output (#22 to #12 AWG), 0.2A max
General
Head/Amplifier Interconnect
CAT 5e cable 25ft (supplied)
Control Head Mounting
Flush, surface or bracket mount (supplied)
Size
Shipping Weight
Control Head: 6-1/8" X 2-5/8" X 1-1/4"
6 LBS.
CP5094C
Amplifier: 8-3/4" X 8-1/4" X 2-1/8"
7/30/12
Page 4 of 12
Installation and Operating Instructions
SC-411RD-10
INSTALLATION
Proper installation of the unit is essential for years of safe, reliable operation. Please read all instruction before
installing the unit. Failure to follow these instructions can cause serious damage to the unit or vehicle and may
void warranties.
SAFETY PRECAUTIONS
For the safety of the installer, vehicle operator, passengers and the community please observe the following
safety precautions. Failure to follow all safety precautions and instructions may result in property damage, injury or death.
Qualifications - The installer must have a firm knowledge of basic electricity, vehicle electrical systems and
emergency equipment.
Mounting - Mount the control head for easy access by the vehicle operator. DO NOT mount in air bag deployment area. Assure clearances before drilling in vehicle. Mount the amplifier in a protected area with at least 1”
clearance on all sides for heat dissipation.
Wiring - Use wiring capable of handling the current required. Make sure all connections are tight. Route wiring
to prevent wear, overheating and interference with air bag deployment. Install and check all wiring before connection to vehicle battery.
Testing - Test all siren functions after installation to assure proper operation. Test vehicle operation to assure
no damage to vehicle.
Keep These Instructions - Keep these instructions in the vehicle or other safe place for future reference.
Advise the vehicle operator of the location.
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
UNPACKING
Inspect contents for shipping damage. If found alert carrier immediately. Contents should include control
head with attached microphone, amplifier, (2) mounting brackets with screws, microphone bracket with screws,
legend sheet, (3) connectors, 25ft CAT 5e interconnect cable and these instructions. Contact supplier immediately if any components are missing.
MOUNTING - Control Head
Choose a mounting location convenient to the operator and away from any air bag deployment areas. Inspect
behind mounting area for clearance. Consider wire routing and microphone bracket placement. Connect interface cable prior to mounting.
The control head can be surface, flush or bracket mounted using the supplied brackets and hardware. If longer
fasteners are used assure that screws do not enter rear of unit more than 3/8".
MOUNTING - Amplifier
Choose a mounting location that will assure at least 1” clearance on all sides with adequate ventilation to prevent overheating. Inspect behind mounting area for clearance. Consider wire routing and access to connections. Make all wiring connections prior to mounting.
ELECTRICAL CONNECTIONS - Amplifier
Electrical connections to the unit are made using removable terminal blocks and screw terminals. Labels on the
unit identifies each terminal function. A CAT-5e cable connects between the control head and the amplifier. If
the unit needs service the plugs can be easily removed without unwiring. Connect all wires prior to applying
power to the unit and prior to final mounting. Attach leads by stripping 3/8", inserting into plug and clamp by
tightening screw. Make sure the screw is tight and the wire can't be pulled out. Failure to adequately tighten
the screw can result in improper operation or burning the connector and wire.
POWER Input - This is like a power switch for the entire unit. Connect to a positive circuit controlled by the
vehicle ignition switch, usually a terminal at the vehicle fuse panel.
OPTIONAL CONNECTIONS - Amplifier
SIRCTRL Input - This input allows activation by an external source of either the Horn or other function.
Settable for +12 (default) or ground activation.
LITCTRL Input - This input allows cycling by an external source through the lever switch positions. Settable for
+12 (default) or ground activation.
CUTOUT Input - The Cutout Input turns off any siren tone output when activated, and remains off until a control
is activated or changed. Settable for +12 (default) or ground activation.
RADIO Input - Connect to radio output terminals or its speaker. The Radio Volume control is on the amplifier
and is a one time setting depending on the radio connected.
VIDEO Output - A video camera trigger output is activated high (+12) with the lever switch or programmed
auxiliary switches. See OPTION SETTINGS section.
LFT-A, RGT-A, CTR-A Outputs - These 3 active high (+12) outputs are available for arrow stick control.
LFT-A, RGT-A AND CTR-A outputs are active when center selected.
7/30/12
CP5094C
SC-411RD-10
Installation and Operating Instructions
Page 5 of 12
AMPLIFIER WIRING DIAGRAM
Aux switch 3 output
Aux switch 4 output
Aux switch 2 output
Aux switch 5 output
Aux switch 1 output
Aux switch 6 output
Right arrow stick
Lever switch 1 output
Left arrow stick
Lever switch 2 output
Center arrow stick (if needed)
Lever switch 3 output
Video camera trigger
(2) 50A fused inputs
(customer supplied)
CAT-5e interface cable
50A brkr
50A brkr
3-Pin Block
10-Pin Terminal Block
L3
L1
0.2 A max
Control
Outputs
20 A max 50 A max
Lever
+12 V
Switch
Battery
Outputs
POS
Input
10 A max
Auxiliary
Switch
Outputs
L2
S6
S5
S4
S3
S2
S1
RGT-A
LFT-A
CTR-A
VIDEO
SERIAL
COM
(CAT-5e)
SPKR1
SPKRC
SPKR2
CUTOUT
SIRCTRL
LITCTRL
BACKLIT
RADIO
RADIO
POWER
GND
GND
(10 A / lead)
RADIO
VOL
12-Pin Terminal Block
Recommended
Wire Size
BATT NEG
+
Ignition Aux
+
Radio Spkr
Dash lights
Momentary switch
(to +12 or GND)
(5 A / spkr)
Amps
Size
<1
#22
1-5
#18
5 - 10
#16
10 - 15
#14
15 - 25
#12
25 - 40
#10
40 - 60
#8
60 - 80
#6
Use next larger size
if longer than 10 ft.
+VDC
HORN
RING
SWITCH
SPLICE
SIRCTRL
HORN
RING
SWITCH
HORN
Added
SPDT
Switch
HORN
AUX
SIRCTRL
+VDC Switching examples
CP5094C
MOMENTARY
FOOT
SWITCH
+VDC
-VDC
switching
example
ADDED DOOR
SWITCH
+VDC
DOOR
SWITCH
SPLICE
DOME
LIGHT
CUT
+VDC Switching
example
CUT
-VDC
switching
example
7/30/12
Page 6 of 12
Installation and Operating Instructions
SC-411RD-10
OPTION SETTINGS
Enter/Exit Program Mode
Turn unit on with POWER input.
Enter the program mode by pressing and holding OUT/DIM, S1 and S2 for 3 seconds.
The unit will beep 3 times and the backlighting will begin flashing to indicate that the unit is in program mode. It
will continue to flash until program mode is exited by pressing and holding OUT/DIM for 3 seconds, saving the
settings—the unit will emit a long beep.
NOTE: Press and hold the left directional indicator button for 3 seconds to reset to factory default.
Program Mode Sections
YELP
PHSR
WAIL
OFF
1
2
3
Press
OUT/DIM
0↓
1↓
2↓
3↓
4↓
50
CARSON
CYCLE
STBY
RADIO
MANUAL
HORN
PA VOL
OUT/DIM
SCSC-411
Elite Force
S1
S2
S3
S4
S5
S6
WARNING: WEAR HEARING PROTECTION REF. OSHA 1910.95
Lever Display
Programming
+ +
or or
blinking
blinking
blinking
+ blinking
S1-S6 Switch Operation
Lever / S1-S6 Switch Assoc
Option Set 1
Option Set 2
Option Set 3
Second Tone Control
S1 - S6 Switch Operation
Press
0↓
1↓
2↓
3↓
40
Lever Switch = OFF
S2
S3
S4
On
On
On
S1
On
Off
1-Flash
2-Flash
3-Flash
Off
1-Flash
2-Flash
3-Flash
Off
1-Flash
2-Flash
3-Flash
Shows
Off
1-Flash
2-Flash
3-Flash
S5
On
S6
On
Off
1-Flash
2-Flash
3-Flash
Off
1-Flash
2-Flash
3-Flash
+
+
(all on)
On/Off with Video Output
(Default)
On/Off without Video Output
Momentary
Momentary with 10-sec Hold
Momentary with 20-sec Hold
1.
With lever switch in off position, Lever numbers 1, 2 and 3 will be lit and each of the auxiliary switch’s
current operation program status is indicated on the face of the unit by flashing the RED lights on the push
buttons. See the table below for switch status definition.
2.
Change each switch’s operation by momentarily pushing the switch.
3.
Light ON - Push On / Push Off with video output trigger active (default)
4.
Light OFF - Push On / Push Off with video trigger output deactivated.
5.
Light flashing continuously - Momentary.
6.
Light flashing with double pulse - Timed Momentary (Gun Lock Timer) for duration of 10 seconds.
7.
Light flashing with triple pulse - Timed Momentary (Gun Lock Timer) for duration of 20 seconds.
8.
The options with cycle through and repeat with each push of the button.
Note: The Timed Momentary operation, typically used as a Gun Lock Timer, can be used with any Auxiliary
control switch but any switch so set will not be available to the Lever switch association.
Lever / S1 - S6 Switch Association
Press
0↓
1
Lever Switch = 1 or 2 or 3
S1
S2
S3
S4
Off
Off
Off
Off
On
On
On
On
Shows
S5
Off
On
S6
Off
On
or
or
No Association (Default)
Associated with 1 or 2 or 3
Set the lever switch to desired number position to program. The number corresponding to that position will light
up continuously.
Press the desired auxiliary switch to turn on or off the light and tie it to the lever switch position.
NOTE: The Timed Momentary (Gun Lock Timer) programmed switches may not be added to combination.
Press the OUT/DIM button momentarily to move into next section, or OUT/DIM for 3 seconds to save & exit.
7/30/12
CP5094C
SC-411RD-10
Installation and Operating Instructions
Page 7 of 12
Option Set 1
S1 (CUTOUT Input), S2 (SIRCTRL Input),
S3 (LITCTRL Input) - These inputs are
normally activated by a 12V input (ON).
Press the switch once until it FLASHES to
change to ground activation. Press the
switch again for OFF to disable.
S4 (Timed Override) - While In Wail, Yelp or
Phaser mode, momentarily pressing the
Manual push button will override the Wail,
Yelp or Phaser tone. With this option ON
the unit automatically goes back to the
previous tone after 10 seconds.
S5 (Sweep/Intersection Function) - While in
Wail, Yelp, or Phaser mode, momentarily
activating the siren control input will change
the unit into sweep and intersection mode.
S6 (Automatic Siren Enable) The Automatic Siren feature on the Lever switch
Position 3 may be enabled with this switch.
Press
0↓
1↓
2
0↓
1↓
2
0↓
1↓
2
0↓
1
0↓
1
0↓
1
Lever Switch = OFF
On (Default)
S1
Flash
Off
On (Default)
S2
Flash
Off
On (Default)
S3
Flash
Off
Off (Default)
S4
On
Off (Default)
S5
On
On (Default)
S6
Off
Shows blinking
Cutout Input Active +
Cutout Input Active Cutout Input Off
Siren Control Input Active +
Siren Control Input Active Siren Control Input Off
Light Control Input Active +
Light Control Input Active Light Control Input Off
Timed Override Off
Timed Override On
Sweep/Intersection Off
Sweep/Intersection On
Automatic Siren On
Automatic Siren Off
Press the OUT/DIM button momentarily to move into next section, or OUT/DIM for 3 seconds to save & exit.
Option Set 2
S1 (Two-Tone Enable) - Two-Tone replaces
Phaser tone when turned ON.
S2 (Phaser/Two-Tone Disable) - Phaser
and Two-Tone are disabled when ON.
S3 (Short Manual Enable) - The Manual
siren tone will normally die out and stop
when Manual push-button is released.
Turning option ON forces the Manual siren
tone to stop immediately.
S4 (Horn Disable) - Horn tone is disabled
when turned ON.
S5 (Lever 2 Isolated) - Turn ON for L2
output only in Lever switch position 2.
S6 (Lever 3 Isolated) - Turn ON for L3
output only in Lever switch position 3.
Press
0↓
1
0↓
1
0↓
1
0↓
1
0↓
1
0↓
1
Lever Switch = OFF
S1
S2
S3
S4
S5
S6
Off (Default)
On
Off (Default)
On
Off (Default)
On
Off (Default)
On
Off (Default)
On
Off (Default)
On
Shows
blinking
Phaser
Two-Tone Replace
Phaser/Two-Tone Enable
Phaser/Two-Tone Disable
Normal Manual
Short Manual
Horn Enable
Horn Disable
Lever 2 Progressive
Lever 2 Isolated
Lever 3 Progressive
Lever 3 Isolated
Press the OUT/DIM button momentarily to move into next section, or OUT/DIM for 3 seconds to save & exit.
Option Set 3
S1 (Alert Enable) - Turn off to disable Alert
feature (reminder beep).
S2 (Lever/Siren Video) - VIDEO output is
normally on when the Lever switch and/or
Siren is active. Press switch to disable.
(NOTE: this does not control the VIDEO
Output for S1 - S6. See S1 - S6 Operation)
Press
0↓
1
0↓
1
Lever Switch = OFF
S1
S2
On (Default)
Off
On (Default)
Off
Shows
blinking
Alert Enabled
Alert Disabled
Lever/Siren Video Enabled
Lever/Siren Video Disabled
Press the OUT/DIM button momentarily to move into next section, or OUT/DIM for 3 seconds to save & exit.
Second Tone Control
Press S1, S2, S3 or S4 to select the second speaker tone when in the corresponding Function switch setting.
Rotary
Position
WAIL
YELP
PHSR
Lever Switch = OFF
S1
S2
2nd = Wail
2nd = Yelp
2nd = Yelp
2nd = Wail
2nd = Wail
2nd = Yelp
Shows
S3
2nd = Phaser
2nd = Phaser
2nd = Phaser
&
blinking
S4
2nd = Two-Tone
2nd = Two-Tone
2nd = Two-Tone
Press the OUT/DIM button momentarily to go back to beginning, or OUT/DIM for 3 seconds to save & exit.
NOTE: These option setting can be easily transferred to another vehicle. See PROGRAM TRANSFER.
CP5094C
7/30/12
Page 8 of 12
Installation and Operating Instructions
SC-411RD-10
OPERATION
This unit is designed for easy operation under the stress associated with high-speed pursuit. Most siren functions are accessible with one simple motion. Certain operational features or controlled by option settings and/or
installation connections.
POWER ON/OFF
The unit is powered by the ignition switch.
SIREN CONTROLS
The Rotary Switch selects the primary operating mode of the siren.
RADIO - Also known as Radio Repeat, this function amplifies a radio speaker input for re-broadcast outside the
vehicle. A radio must be connected and the Radio Volume Adjusted. No siren tones or PA are available in this
position.
CYCLE - A standby position dedicated for Horn Ring Cycler 2 (HRC2). During installation, the siren control
input must be connected to the horn ring or other switching device. Tap the horn ring to bring the unit out of
standby into Wail tone. Repeatedly tapping the horn ring will cycle through Wail, Yelp, and Phaser tones.
Tapping the horn ring twice quickly will stop the siren tones and return the unit to standby. Pressing and holding
the horn ring will produce Horn tone until released.
STBY - A silent mode that allows Manual, Horn and Public Address operation.
WAIL - A slower changing tone used on highways.
YELP - A rapidly changing tone used in congested areas.
PHSR - A very rapidly changing tone used at intersections or in highly congested areas. May be replaced with
Two-Tone (or Hi - Lo, a common European Tone) or disabled entirely.
MANUAL Button - Provides manual control of siren tone rise and fall while in Cycler or Standby. The falling
tone may be stopped immediately by setting the Short Manual option. With rotary in WAIL, YELP, or PHSR this
button toggles between tones.
HORN Button - Produces a simulated Air-Horn tone while pressed. Overrides all siren tones except Radio.
Horn tone may be disabled.
PA - The noise- Rotary Normal
Horn
Manual
Siren Control Input
canceling microphone Position Tone
Push-Button
Push-Button
(Horn Ring)
is used for public
Radio
Radio Radio (No Effect) Radio (No Effect)
Radio (No Effect)
address
operation
Cycler
Silent Momentary Horn
Manual Siren
HRC2
and overrides any
Manual Siren
Momentary Horn
siren mode when the Standby Silent Momentary Horn
Wail
Wail
Momentary Horn Wail/Yelp Toggle Mom. Horn (Opt. SWP/INT)
button on the side is
pressed. Adjust the
Yelp
Yelp
Momentary Horn Yelp/Phaser Toggle Mom. Horn (Opt. SWP/INT)
PA Volume and hold
Phaser Phaser Momentary Horn Yelp/Phaser Toggle Mom. Horn (Opt. SWP/INT)
the microphone close
to your lips for proper operation.
SIRCTRL Input (Optional) - During installation, the siren control input may be connected to the horn ring or
other switching device. Activation of this input will produce Horn tone or other functions depending on Rotary
Switch position as shown in the above table.
LITCTRL Input (Optional) - During installation, the light control input may be connected to a momentary switch.
Activation of this input will cycle through the lever switch positions, with the lever switch overriding if moved.
CUTOUT Input (Optional) - During Installation, the cutout input may be connected to the vehicle door switch or
other switching device. Activation of this input will turn off any siren tone and remains off when deactivated until
a siren control is changed.
Timed Override (Optional) - With Rotary Switch in Wail, Yelp, or Phaser mode, momentarily pressing the
Manual push-button will toggle between tones overriding the Wail, Yelp, or Phaser tone. With this option selected the unit automatically goes back to the Wail, Yelp, or Phaser tone after 10 seconds.
Sweep/Intersection Function (Optional) - The Sweep function is an automatic sequence of Yelp, Phaser, and
Horn tones allowing hands free operation. The Intersection function is a more rapid automatic sequence of
Yelp, Phaser, and Horn tones allowing hands free operation through intersections.
With Rotary Switch in WAIL, YELP, or PHSR position, tap the horn ring to start Sweep function. Tap the horn
ring again to start Intersection function. Repeatedly tapping the horn ring will switch between Sweep and Intersection functions. Tapping the horn ring twice quickly will return to Wail, Yelp, or Phaser mode. Pressing and
holding the horn ring will produce Horn tone until released. Then the siren will return to the Sweep or Intersection sequence.
Second Speaker Output (Dual Tone) - This unit provides a second siren amplifier that will produce independent siren tones based on option settings. Radio Repeat and PA are reproduced through both amplifiers.
7/30/12
CP5094C
SC-411RD-10
Installation and Operating Instructions
PHSR
YELP
WAIL
OFF
1
2
3
Page 9 of 12
CARSON
CYCLE
STBY
RADIO
MANUAL
HORN
PA VOL
OUT/DIM
SCSC-411
Elite Force
S1
S2
S3
S4
S5
S6
WARNING: WEAR HEARING PROTECTION REF. OSHA 1910.95
LIGHT SYSTEM CONTROLS
A 4-position lever switch provides control of primary lighting functions. It also provides automatic activation of
the siren. Six additional programmable pushbuttons provided for auxiliary lighting or other device control. Two
dedicated switches operate directional control lights (“Arrow Stick”), with flashing indicators on the control panel.
Lever Switch - The lever switch by default provides progressive (additive) control of lighting functions. The
third position also provides Automatic Siren. The installer can change to non-progressive operation.
Automatic Siren - Position 3 of the lever switch provides Automatic Siren control. If the siren controls are set
where there is no siren tone output, the Automatic Siren will override with Wail or other tone. The cutout input
will stop the siren tone. This feature may be disabled.
Auxiliary Control Switches - Six lighted pushbutton switches are provided for various other lighting functions
or device control. The switch lights Red when activated. The switches may also be programmed for different
functions, and these switches may be combined with each lever switch position to automatically turn on and off.
Arrow Stick Control Switches - Two dedicated switches are provided to control traffic director lights on the
vehicle. Press left or right buttons to set the direction. Turning on both will set the output to left, right and center. Lights show the operation selected.
Switch Legends - Different legends may be selected to match the device controlled. A sheet of labels is supplied.
OUT/DIM - The backlighting and indicator lights can be dimmed or turned off by repeatedly pressing the OUT/
DIM button. An optional connection to the vehicle dash lights may also control this level. This button will light
whenever a siren tone is produced.
Video Trigger Output - A video camera trigger output is activated with the lever switch in position 1, 2, or 3.
Programmed auxiliary control switches may also activate the output.
Alert - While the lever switch or auxiliary control switches are on, an alert beep is sounded every 15 seconds.
This can be optionally disable.
DIAGNOSTICS
The unit monitors all outputs for faults, which are usually traced to shorted circuits. The unit indicates these
faults by flashing one or more lights and beeping. The following table shows fault indications and likely causes.
Control
Fault Indication
Likely Cause
Lever Switch light 1, 2 or 3
1, 2 or 3 flashes
Blown fuse at 1, 2 or 3
Switch 1 - Switch 6
Switch light flashes
Blown fuse at S1 - S6
Arrow Stick Switch
Switch light flashes
LFT-A, RGT-A or CTR-A output shorted (auto-reset)
Siren output 1
OUT/DIM light flashes
OUT/DIM light double
flashes
OUT/DIM light triple
flashes
Blown fuse at siren CH1
Siren output 2
Both siren outputs
Blown fuse at siren CH2
Blown fuses at siren CH1 & CH2
PROGRAM TRANSFER (QuickClone™)
To facilitate programming of multiple vehicles this unit automatically synchronizes option
control head and amplifier on power-up as shown. Transfer the
Option Settings
settings to multiple vehicles by temporarily installing with a common control head, power-up/down (transferring options to the
Head = Amp
amplifier), then permanently install the supplied control head. On Head ≠ Default and
power-up the options are transferred from the amplifier to the
Amp ≠ Default
control head.
Amp = Default and
If a control head or amplifier is sent in for service it will be set to
Head ≠ Default
default prior to return, and will automatically synchronize with the
Amp ≠ Default and
mating part on power-up.
Head = Default
CP5094C
settings between the
Action
Normal power-up
Head transferred to
Amp, power-up
Head transferred to
Amp, power-up
Amp transferred to
Head, power-up
7/30/12
Page 10 of 12
Installation and Operating Instructions
SC-411RD-10
SERVICE
This unit is designed to provide years of reliable service under even the worst conditions. Many times there
may appear to be a problem with the unit when the true problem is in the speaker(s), controlled devices, or
improper installation. The following chart shows typical symptoms and possible causes.
A blown siren fuse doesn't necessarily mean that the unit is bad. If a speaker or speaker lead is shorted the
internal fuse will blow before the unit is damaged. Disconnect the speaker leads and replace the fuse. If the
OUT/DIM light comes on with power on and Yelp selected it is OK. Check the speaker(s) or leads for possible
shorting.
PROBLEMS
Symptom
No power or siren
output
Possible Cause
Check
No power to POWER input
Bad speaker
Connector(s) loose
Amplifier fuse blown
Loose connection at power source
High Voltage Protection
Microphone button stuck
Cutout activated
Cutout Polarity set wrong
PA volume not set properly
Speaker assembly loose
Intermittent SIRCTRL Input connection
Low vehicle voltage
High Voltage Protection
Connector loose
Bad power connection
Microphone button activation
Circuit breaker in supply connection
Does backlighting come on?
Do you hear a "pop" when turned on?
With siren on and Yelp selected, listen for tone in amplifier.
Is an external fuse or circuit breaker used?
Are the negative leads connected to a good ground?
Input voltage must be less than highest rated voltage.
Does microphone button release properly?
Does the siren work when CUTOUT input is disconnected?
Is the Cutout Input option properly configured?
Have you tried adjusting the PA volume control?
Is the speaker bell or tip loose?
Is the SIRCTRL Input used and wired properly?
Input voltage must be greater than lowest rated voltage.
Is the vehicle voltage regulator working properly?
Is the connector tight on the back of the unit?
Is there a loose connection on a power lead?
Is something lying on the microphone?
Are circuit breakers used with at least a 50A rating?
Horn function stuck
on or
Manual stuck on
No Radio
Horn or Manual switch stuck
SIRCTRL Input improperly connected
SIRCTRL Input Polarity Option set wrong
Unit not connected to radio
Radio volume too low
Wrong siren tone
Two-Tone option installed
Aux Input set to wrong function
Tone disabled
Does the horn or manual switch return when released?
Is the SIRCTRL Input used and wired properly?
Is the Siren Control option properly configured?
Is the radio connected properly to the unit?
Can you here the radio in the vehicle?
Have you tried adjusting the radio volume control (amplifier)?
Is the Two-Tone option selected?
Is the Sweep/Intersection option selected?
Is Phaser/Two-Tone Enable option selected?
Is the Horn Enable option selected?
Is the Automatic Siren Enable option selected properly?
No siren tone - PA
works
No PA
Distorted siren
sound
Intermittent siren
tone
Phaser or Horn not
working
Automatic Siren not
working
Lever switch not
working at all
Lever switch not
working in some
positions
Aux control switch
not working
Automatic Siren disabled
No power to lever switch
No ground at siren connector
Loose lever switch output connection
Do the lever switch indicators light?
Does the siren work?
Does the lever switch indicator work in those positions?
Is the corresponding fuse blown?
No power to aux switches
Loose aux switch output connection
Do the aux switch indicators light?
Is the corresponding fuse blown?
PARTS
The following parts are available from Carson Manufacturing Company, Inc.:
Part
ED1943
ED1944
CP4688-10
CP4688-12
Description
Kit, Control Head Mounting (2-brackets, screws and lockwashers)
Kit, Lever Switch Replacement (Includes mounting screws & CP4960 knob)
Connector, 10-Pin Removable Terminal Block
Connector, 12-Pin Removable Terminal Block
CP5086-03
CP5090-25-BK
Connector, 3-Pin Removable Terminal Block
Cable, CAT5e 25ft Black
CP4990-150
CP4990-250
CP4960
CP4852
CP4895
Fuse, ATM 15 Amp Automotive Mini
Fuse, ATM 25 Amp Automotive Mini
Knob, Black Lever Switch
Knob, Black Rotary Switch
Label, Aux Output Legends
CP4750
CP3633
SR-15-1
CP4119
CP5094
Microphone, Noise Canceling w/Connector
Microphone Bracket with mounting screws
Microphone Strain Relief
Transistor, Output (2 required) (Industry Standard TIP36C, must have metal tab)
Manual, SC-411RD-10 Installation and Operating
7/30/12
CP5094C
SC-411RD-10
Installation and Operating Instructions
Page 11 of 12
RETURN
If you have any questions concerning this or any other Carson product, please contact our Technical Service
Department at (888) 577-6877. Many issues can be handled over the phone. We can also be reached via email at service@carson-mfg.com
If a product must be returned for any reason, please contact our Technical Service Department to obtain a
Returned Merchandise Authorization number (RMA#) before you ship the product to Carson. Please write the
RMA# clearly on the package near the mailing label. Be sure to provide a return address, contact and phone
number, along with a brief description of the problem.
LIMITED WARRANTY
Carson Manufacturing Company, Inc. warrants this new product to be free from defects
in material and workmanship, under normal use and service, for a period of five (5)
years from the date of delivery to the first user-purchaser.
During this warranty period the obligation of Carson Manufacturing is limited to repairing
or replacing, as Carson Manufacturing may elect, any part or parts of such product
which after examination by Carson Manufacturing is determined to be defective in material and/or workmanship.
This warranty does not cover labor charges for removal or re-installation of the product.
Fuses and lamps are not covered under this warranty.
This warranty does not extend to any unit that has been subjected to abuse, misuse,
improper installation or which has not been adequately maintained, nor to units which
have problems related to service or modification at any facility other than the manufacturer.
THERE ARE NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING
BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL CARSON MANUFACTURING COMPANY, INC. BE LIABLE FOR ANY LOSS OF PROFITS OR ANY
INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF ANY SUCH DEFECT
IN MATERIALS OR WORKMANSHIP.
CP5094C
7/30/12
Page 12 of 12
Installation and Operating Instructions
SC-411RD-10
INSTALLATION CONFIGURATION RECORD
Terminal AWG Color Connected to
Terminal AWG Color Connected to
POS (2)
L1
GND (2)
L2
POWER
L3
RADIO (2)
S1
BACKLIT
S2
LITCTRL
S3
SIRCTRL
S4
CUTOUT
S5
SPKR1
S6
SPKR2
RGT-A
SPKRC
LFT-A
VIDEO
CTR-A
S1—S6 Operation:
Blank=Default, V=No Video, M=Momentary, 10 or 20=Hold Time
Lever / S1 - S6 Switch Association: Blank=None, #=Pos
S1
S2
S3
S4
S5
S6
Operation
Association
Second Tone Control
Option Set 1
Option
Default
Setting
Cutout Input
POS
POS NEG OFF
Siren Control
POS
POS NEG OFF
Light Control
POS
POS NEG OFF
Timed Override
OFF
ON OFF
Sweep/Intersection
OFF
ON OFF
Automatic Siren
ON
ON OFF
Option Set 2
Two-Tone
OFF
ON OFF
Phaser/2-Tone Disable
OFF
ON OFF
Short Manual
OFF
ON OFF
Horn Disable
OFF
ON OFF
Lever 2 Isolated
OFF
ON OFF
Lever 3 Isolated
OFF
ON OFF
Rotary
Position
Default
Second Tone
WAIL
Wail
Wail Yelp Phaser Two-Tone
YELP
Wail
Wail Yelp Phaser Two-Tone
PHASER
Yelp
Wail Yelp Phaser Two-Tone
General Information
Vehicle ID
Control Head S/N
Amplifier S/N
Notes:
Option Set 3
Alert Enable
ON
ON OFF
Lever/Siren Video
ON
ON OFF
Installed by:
7/30/12
Date:
CP5094C
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
