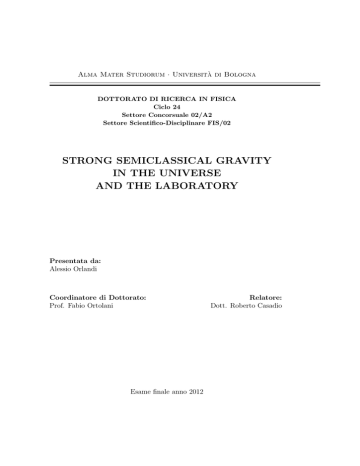

Alma Mater Studiorum · Università di Bologna
DOTTORATO DI RICERCA IN FISICA
Ciclo 24
Settore Concorsuale 02/A2
Settore Scientifico-Disciplinare FIS/02
STRONG SEMICLASSICAL GRAVITY
IN THE UNIVERSE
AND THE LABORATORY
Presentata da:
Alessio Orlandi
Coordinatore di Dottorato:
Prof. Fabio Ortolani
Esame finale anno 2012
Relatore:
Dott. Roberto Casadio
2
Introduction
Despite gravity was the first fundamental force to be recognized, three centuries ago, it will be the last one to be completely understood. One century
after the formulation of general relativity by Albert Einstein we do not have
yet any quantum theory of gravitation and the unification of gravity with
other fundamental forces is probably the most important and burdensome
problem in physics nowadays.
The need for a quantization of gravity comes from different aspects of the
theory itself. Just to give an example we remind that the source of gravity
could be any other quantized field (e.g. quantum harmonic oscillators), not
to mention all the problems related to divergences, singularities and final
stages of black hole collapse and evaporation. Another trouble with gravity
is the “hierarchy problem”: by this name one intends the great difference
between the scales of energy on which gravity “works” and the scales of
other fundamental forces. It seems in fact bizarre that gravity is by far the
weakest force in Nature: 1025 times feebler than the weak force, 1036 times
feebler than the electromagnetic force and 1038 times feebler than the strong
force. Despite this, the whole universe on large scale is ruled by gravitational
interaction.
In order to quantize gravity, two main roads are followed today: string
theory (stemming from particle physics) and loop quantum gravity (deriving
from quantum geometry). String theory is a candidate “Theory of Everything” which describes particles in terms of vibrating strings. This theory
presents itself in a variety of sub-theories, each characterized by its pro’s
and con’s. One peculiarity of string theory is the need for extra-spatial
dimensions in order to have a consistent quantum theory. By assuming supersymmetry, the number of dimensions would be 10+1 in the M-theory,
eventually reducing to 9+1 in other classes (“types”) of theory. By the way,
everyday experience tells that we are living in a 3+1 spacetime. To justify
this discrepancy between theoretical needs and empirical evidence, different
scenarios have been proposed. One in particular assumes that the 6 or 7
extra dimensions are compactified on very small scales. Another choice is
3
4
the brane world scenario according to which we inhabit a 3+1 subspace embedded in a 4+1 “bulk”. The extra dimension is accessible only by gravity.
We will be back on this specific topic in chapter 3, where we present some
possible experimental consequences of this assumption.
The other candidate for a quantum gravity theory is loop quantum gravity
(LQG). LQG does not make use of any extra dimensions nor vibrating strings.
Rather, it describes spacetime as a discretized network of loops. Spacetime
is no longer fundamental, but is the natural outcome of these spin networks,
from which surfaces can be constructed together with their related properties
(curvature, volume, area...).
The main problem with string theory and loop quantum gravity is that
they are not experimentally testable. String theory predicts unification of all
fundamental forces on unachievable energy scales and due to its perturbative
approach it is not background-independent. Also, string theory has a huge
number of solutions, called string vacua, constituting the landscape (on which
we will spend few more words in chapter 1). This causes the theory to predict
almost everything, and to a physicist this is like predicting nothing. On the
other side loop quantum gravity has no semiclassical limit, therefore does
not recover general relativity at low energies.
Waiting for a trustable theory of quantum gravity, we have to rely on
a compromise between general relativity and quantum mechanics. Semiclassical gravity is, by now, the only approach that can give experimentally
testable predictions. As already observed by Planck in 1899, one can use
the fundamentalpconstants of nature to construct a new fundamental unit
3
10−33 cm, and a new fundamental unit
of length `P =
p G~/c = 1.616 ×−44
s. These incredibly small values outof time tP = G~/c5 = 5.39 × 10
line the borders of quantum gravity and easily give an idea of the great
effort one has to take to experimentally reach them. It is curious on the
other hand
new fundamental mass unit, the Planck mass
p how big is the −8
MP = ~c/G = 2.176 × 10 Kg, more or less the same mass as a flea egg.
It is expected that on scales (energy, time, space...) much larger than `P , tP
and smaller than MP one could approximate quantum gravity by assuming
that all matter fields are quantized, whereas gravity preserves its classical
description. One has then to use a theory for quantum fields on curved
spacetimes which presents even more ambiguities than regular quantum field
theory, mostly related to the lack of global Lorentz invariance (this will be
discussed more deeply in chapter 2). Using other words, semiclassical gravity
corresponds to summing all Feynman diagrams which do not have loops of
gravitons (gravitational quanta) but can have any number of matter loops.
Contrary to string theory and loop quantum gravity, semiclassical gravity
5
already gives us some hints on what we should expect to see in forthcoming
experiments and astronomical observations. Thanks to the work developed
from the end of 1960’s by various brilliant physicists, we know what we
should be looking for when searching the sky with telescopes or probing
the “infinitely small” by means of particle accelerators. The most notable
semiclassical effects happen in the presence of event horizons: for this reason
most efforts, both theoretical and experimental, are directed towards the
study of black holes. However, this approach is not free of problems.
With the beginning of the third millennium, Physics reached a critical
point in its history. Probably for the first time since Galileo Galilei, experiments can’t keep pace with theory. Even the most advanced (and expensive)
technology seems unable to investigate as deep as needed the unexplored
folds of Nature, and no sufficient technological advancements are expected
in the next decades to survey the most fundamental theoretical models. The
Large Hadron Collider (LHC) at CERN is the biggest and most “extreme”
machine ever built by Mankind. It is expected that in the next years LHC
will be able to collide particles at 14 TeV, an energy scale never probed before. Despite this, the Physics we are looking for might be out of its reach. If
LHC fails in revealing new Physics, then we have to wait longtime before we
develop the technology needed to investigate the “infinitely small”. The only
alternative is to look the other way, to the “infinitely large”. Sky is crowded
with stars and galaxies: collisions between celestial objects and stellar collapses involve enough energy to test Physics beyond our most unattainable
requests, but they can’t be reproduced on demand and they always happen
far away, where we can barely see them. Astronomical incredibly high-energy
events occur for free, but as in every free show, we can only hope to be lucky
and find a good seat to enjoy the spectacle. While collecting astronomical
data, the scientific community is focusing on repeatable experiments performed with particle accelerators. Waiting for some concrete results, a lot
of hypothesis have been formulated on the possible outcome of such extreme
scenarios. Every new fundamental theory must be experimentally falsifiable,
and falsification is achieved by testing simple models to see whether they are
consistent with observations.
The scope of this Ph.D. thesis is to collect some theoretical models which
we elaborated relying on different popular theoretical backgrounds. Three
fundamental aspects of semiclassical gravity are discussed.
Firstly, we apply the simple notion of quantum tunneling to the primordial universe. Application of quantum mechanical concepts to cosmology led
in the 70’s to one of the first important achievements of semiclassical gravity.
It is supposed that our universe could have nucleated during a phase transition. Such nucleation more likely occurs in spherical symmetry, giving rise
6
to a new phase bubble that expands in the old medium. This model can be
applied to a variety of contexts. The growth or collapse of such a bubble is
not obvious at all in dynamical backgrounds: for this reason we worked out
a perturbative method to study its evolution.
Secondarily we investigate one of the most important phenomena in semiclassical gravity, the Unruh effect. Actually, Unruh effect is not gravitational
since it does not regard the bending of spacetime due to mass and energy,
strictly speaking. Despite this, there is a strong connection with general
relativity via the equivalence principle which states that the local effects of
motion in a curved space (gravitation) are indistinguishable from those of
an accelerated observer in flat space. Because of this, one expects an accelerated observer to measure some thermal radiation emitted from an horizon
the same way a static observer does when watching black hole. Anyway there
are some problems connected with the definition of the horizon temperature
in some cases. We are going to review these problems and study one possible
solution.
Finally we discuss a subject that is of great importance for the semiclassical theory: the possibility of observing black holes formation at LHC. If
extra dimensions are present it is possible that microscopic black holes are
created in the laboratory. The detection of the emitted Hawking radiation
would confirm the validity of the semiclassical approach but, as we will show,
there might be more accidents than expected.
Notation
In the present thesis we will mostly use the following notation, unless otherwise specified:
• c=~=1
• GN is the Newton constant
• κ = 8πGN /3
• ȧ is the derivative of the quantity a with respect to some specified
timelike coordinate
• a0 is the derivative of the quantity a with respect to some specified
spacelike coordinate (usually the radius)
7
8
Contents
1 New phase bubbles
1.1 Why bubbles? . . . . . . . . . . . . . . . . . .
1.2 Bubble nucleation: a summary . . . . . . . . .
1.3 Mathematical formalism and bubble dynamics
1.4 Flat FRW regions . . . . . . . . . . . . . . . .
1.5 Time transformations and expansion . . . . .
1.6 Radiation bubble inside dust . . . . . . . . . .
1.6.1 Collapsing dust . . . . . . . . . . . . .
1.6.2 Expanding dust . . . . . . . . . . . . .
1.7 Conclusions and outlook . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
11
11
12
17
20
22
24
28
28
32
2 The Kodama vector field
2.1 Particle production in curved spacetime . . .
2.2 The Kodama vector field . . . . . . . . . . .
2.2.1 Which surface gravity? . . . . . . . .
2.3 Unruh radiation . . . . . . . . . . . . . . . .
2.4 Unruh effect along the Kodama trajectory .
2.4.1 Pointlike detector . . . . . . . . . . .
2.4.2 Extended detector and backreaction .
2.5 Conclusions and outlook . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
35
35
42
45
47
51
53
54
57
3 Light Black Holes
3.1 Gravity with extra dimensions . . . .
3.2 The Randall-Sundrum model . . . .
3.2.1 The tidally charged black hole
3.3 Light black holes . . . . . . . . . . .
3.3.1 Compton classicality . . . . .
3.3.2 Entropic classicality . . . . .
3.3.3 ADD black holes . . . . . . .
3.3.4 Brane-world black holes . . .
3.4 Conclusions and outlook . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
59
59
61
64
66
68
68
70
71
72
9
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
10
4 Final remarks
CONTENTS
75
Chapter 1
New phase bubbles
In this chapter we discuss the bubble formation and expansion as a result of
a phase transition. Results have been published in [1].
In Section 1.1 we briefly introduce the main reasons for which physicists
have paid so much attention to new phase bubbles in the 80s and 90s and
why this topic is still discussed today.
In Section 1.2 one of the pioneering researches concerning new phase
bubbles is resumed.
In Section 1.3 we review the fundamental equations and constraints that
describe general timelike bubble dynamics.
In Sections 1.4, 1.5 and 1.6, we work out the explicit case of a radiation
bubble of constant surface density nucleated inside collapsing or expanding
dust, for which we obtain the initial minimum radius in terms of the inner
and outer energy densities.
Finally, in Section 1.7 we make some considerations about our findings
and possible future generalizations.
1.1
Why bubbles?
In physics jargon, bubbles are spherically symmetric objects whose interior
is separated from the exterior by a thin shell. In general relativity bubbles
refer to a spherical portion of spacetime in which physical parameters such as
energy density, equation of state and cosmological constant are different from
the exterior. Bubbles have been frequently used in different cosmological scenarios, with a peak of interest during the 80’s, following Guth’s and Linde’s
inflationary models [2, 3, 4]. In such models the inflating universe finds itself
in a false metastable vacuum and there are possibilities that a portion of
space undergoes phase transition to a stable vacuum (the true vacuum) at
11
12
CHAPTER 1. NEW PHASE BUBBLES
random times. The new vacuum is assumed to have spherical symmetry both
for simplicity and energetic “convenience”. Its interior can be regarded as a
new universe and this “bubbling” process is frequently invoked in the eternal
inflation scenario [3], where the rate of bubble formation is outpaced by the
accelerated expansion of the inflating false vacuum, and therefore inflation
does not end everywhere (for a review on this subject see [5]).
Attention towards this subject rose again thanks to string theory. String
theory is not yet completely understood: what is clear is that there is a
continuum of solutions to some Master theory, or simply M-theory: the space
of this solutions is called the moduli space of supersymmetric vacua, or briefly
the supermoduli-space [6, 7]. Moduli are like fields carrying information about
the different quantities that characterize a given universe. Unluckily the
supermoduli space only provides solutions for a supersymmetric universe with
zero cosmological constant, and this is clearly not our case. To justify the
existence of our universe we assume that there is a landscape [8, 9] consisting
of many metastable de Sitter vacua, populated by eternal inflation. Quantum
tunneling between vacua produces bubbles of new vacuum that look like
infinite open Friedmann universes to observers inside. Some of this vacua
might have anthropically favorable conditions and one among them is the
universe we live in.
There are other cases of particular physical interest that might be studied
by means of “bubbles”. For example, one can conceive the density inside a
collapsing astrophysical object might be large enough to allow for the creation of supersymmetric matter which, in turn, would then annihilate regular
matter and produce a ball of radiation [10, 11]. Also, the mathematical formalism that governs bubble dynamics has been used to model gravitational
vacuum stars (gravastars), an alternative solution to black holes as a result
of gravitational collapse [12]. Gravastars have an internal de Sitter core that
is matched to the exterior Schwarzschild metric by means of an intermediate
thin layer of matter with different equation of state.
In the next section we review the quantum mechanics behind the nucleation of new phase bubbles, and the mathematical tools needed to face this
subject are synthetically resumed in the following chapter, with references to
a complete and exhaustive bibliography.
1.2
Bubble nucleation: a summary
Coleman [13] in 1977 developed a theory on the decay from false vacuum
following the tracks of Voloshin, Kobzarev and Okun [14], and he did this
before any inflationary theory was formulated. Three years later Coleman
1.2. BUBBLE NUCLEATION: A SUMMARY
13
and De Luccia proposed a more general theory that included the effects of
gravity on the nucleation of the bubble [15]. Here we present a synthesis
of [15] where the effects of gravity are considered. We also recommend to
carefully read a recent paper by Copsey [16] where many subtleties are considered and new light is shed over this topic. By now, for simplicity, we just
present the original research.
Assume we have a potential U (φ) with two minima φ+ (relative minimum)
and φ− (absolute minimum), see figure (1.1).
U()
Figure 1.1: Tunneling through the potential barrier
Transition can occur between the two minima with relative probability Γ/V
per unit time and volume. In a semiclassical approximation this reads
Γ/V = Ae−B/~ [1 + O(~)]
(1.1)
B = SE (φ) − SE (φ+ ) ,
(1.2)
with
where SE is the euclidean action and A an undefined coefficient. Despite the
small (quantum) scale of the problem, gravity has its role in the nucleation.
In flat spacetime adding a constant term to a Lagrangian has no effect. On
√
the contrary when including gravitation, the square root of the metric −g
will multiply the constant term:
Z
S=
4
√
d x −g
1 µν
R
g ∂µ φ∂ ν φ − U (φ) −
2
16πGN
,
(1.3)
14
CHAPTER 1. NEW PHASE BUBBLES
i.e. introducing a potential U is like introducing a cosmological constant.
Once the vacuum decays and the bubble forms, the cosmological constant
may be different.
First of all we write the Euclidean action SE by means of Wick rotation;
then we find φ, the solution of the Euler-Lagrange equation with euclidean
signature (+ + ++). We demand that at euclidean infinity φ coincide with
the false vacuum field φ+ , that φ be not constant and that φ minimize the
action. Coleman calls φ the bounce.
If the whole (Euclidean) spacetime is O(4) symmetric (i.e. there is rotational invariance) the metric reads
ds2 = dξ 2 + ρ(ξ)2 dΩ2
(1.4)
where dΩ is the element of distance on a unit three-sphere and ρ gives the
radius of curvature of each three-sphere. One can then find the Euclidean
equations of motion for φ:
3ρ0 0 dU
φ +
φ =
ρ
dφ
00
(1.5)
where a prime denotes derivation by ξ, whereas Einstein equation
Gξξ = 3κTξξ
with κ = 8πGN /3 for later convenience, becomes
1 02
02
2
ρ = 1 + κρ
φ −U .
2
(1.6)
(1.7)
The other Einstein equations are identities of this one or at most simple
consequences. Evaluation of the angular components of the Euclidean action
gives:
Z
1 2 00
1 02
2
3
02
SE = 2π
dξ ρ
φ +U +
ρ ρ + ρρ − ρ
.
(1.8)
2
κ
In the thin-wall approximation one can demonstrate that ρ0 is negligible1 .
Also, we define a very small by
= U (φ+ ) − U (φ− )
(1.9)
U (φ) = U0 (φ) + O()
(1.10)
and write U as
1
See Copsey [16] for discussion on the validity of this approximation.
1.2. BUBBLE NUCLEATION: A SUMMARY
15
where U0 is a function such that U0 (φ− ) = U0 (φ+ ) and such that dU0 /dφ
vanishes at both φ± .
With this approximation we can easily integrate the equations of motion
to find that:
1 0 2
(φ ) − U0 (φ) = −U0 (φ± ) ,
(1.11)
2
in which we have considered that φ(∞) = φ+ . This equation determines φ
up to an integration constant ξ¯ that we choose to be the point at which φ is
the average of its two extreme values:
Z φ
Z ξ
−1/2
dξ = ξ − ξ¯ .
(1.12)
dφ [2 (U0 − U0 (φ± ))]
=
ξ̄
(φ+ +φ− )/2
¯ is the average curvature radius of the bubble, obtained by
Then ρ̄ ≡ ρ(ξ)
solving (1.7). To find ρ̄ one has to compute B, the difference in action
between the bounce and the false vacuum. Then, by demanding stationarity
of B, we get ρ̄. After integration by parts and discarding boundary terms,
one has
Z
1 02
1
2
3
02
SE = 4π
dξ ρ
φ +U −
ρρ + ρ .
(1.13)
2
κ
We substitute ρ0 using (1.7) and get
Z
1
2
3
SE = 4π
dξ ρ U − ρ .
k
(1.14)
We divide the integration interval in three parts: “outside” the bubble the
bounce and the false vacuum are identical:
Bout = SE (φ+ ) − SE (φ+ ) = 0 .
(1.15)
Within the wall we can set ρ = ρ̄ and U = U0 :
Bwall = 2π 2 ρ̄3 S1
where S1 is
Z
S1 =
φ+
1/2
dφ [2 (U0 (φ) − U0 (φ+ ))]
(1.16)
Z
=2
dξ [U0 (φ) − U0 (φ+ )]
(1.17)
φ−
and can be regarded to as the surface energy density of the bubble. Inside
the wall φ is constant, and by using the radial component of the FriedmannRobertson-Walker line element
dρ
(1.18)
dξ = p
1 − κρ2 U
16
CHAPTER 1. NEW PHASE BUBBLES
we define ξ to be the “physical length”. Hence:
h
i
o
3/2
4π 2 n
− 1 − (φ− 7→ φ+ ) . (1.19)
Bin = 2 U (φ− )−1 1 − κρ̄2 U (φ− )
3κ
Let’s make some considerations of physical nature. If we consider transitions from higher to lower energy densities then B is stationary at
ρ̄ =
12S1
ρ¯0
=
2
4 ± 9κS1
1 ± (ρ̄0 /2Λ)2
(1.20)
where ρ̄0 = 3S1 / is the bubble radius in the absence of gravity and Λ =
(κ)−1/2 is the Schwarzschild radius of a sphere that exactly matches its own
Schwarzschild radius (this outlines how gravitation enters the problem and
how much important it is). The ± sign changes according to the content
of the phases: it is + when transition occurs from a phase with positive
energy density to one with zero energy density (U (φ+ ) = , U (φ− ) = 0),
whereas it is − when going from zero energy density to negative energy
density (U (φ+ ) = 0, U (φ− ) = −). Hence:
B=
B0
[1 ± (ρ̄0 /2Λ)2 ]2
B0 = 27π 2 S14 /23
(1.21)
where B0 is the decay coefficient in the absence of gravity.
One can see then in the first case (decay from positive to zero energy
density) gravitation makes the nucleation more probable and reduces the
initial radius of the bubble. In the second case (decay from zero to negative
energy density) things go just the opposite way. We can understand this if
we keep in mind that during the phase transition energy must be conserved.
Assume that we are in a universe with positive energy density and a spherical portion of this old phase, with radius ρ̄ is converted into a new phase
bubble whose energy density is zero. The energy balance require that what
was inside the bubble (E = 4π ρ̄3 /3) must be totally transferred to the walls
(E = 4π ρ̄2 S, where S is the surface energy density of the bubble). Nothing
is left in the inside. In a flat geometry this is clear, but when introducing
gravity the presence of matter/energy curves the spacetime. Therefore the
volume of the bubble is not the same as before. One can see that positive energy densities cause the volume/surface ratio to increase, whereas negative
energy densities make the same ratio smaller. So, if the transition occurs
from a positive to a zero energy density phase there is more energy stored
inside a bubble of given radius: otherwise we can say that a smaller radius
is required to nucleate a bubble with given initial energy density and final
surface density S. The opposite is true for transition from a zero to a negative energy density phase. In this latter case it is then possible that, for
sufficiently small , no bubble could be created.
1.3. MATHEMATICAL FORMALISM AND BUBBLE DYNAMICS
1.3
17
Mathematical formalism and bubble dynamics
Bubbles, intended as spherically symmetric objects, have been studied in
General Relativity to answer the question: “What happens to the geometry
of spacetime when there is a discontinuity in the stress-energy tensor along
a surface?”. Originally there was no corellation with the study of the origin
of our universe: this only became clear later. An interesting approach was
formulated by Israel in 1965 [17].
Let’s take an infinitely thin, spherically symmetric shell Σ separating two
spacetime regions Ω± with given metrics. Given the symmetry of the system,
µ
we can use spherical coordinates y±
= {t± , r± , θ, φ} in Ω± , respectively, where
s
s
the angular coordinates are the same in both patches, and 0 ≤ r− < r−
, r+
<
s
s
r+ , with r± = r± (t± ) the (in general time-dependent) radial coordinates of
±
the shell in Ω± . One then takes specific solutions gµν
of the Einstein equations
inside Ω± and imposes suitable junction conditions across Σ, namely the
metric is required to be continuous across the shell:
+ − gµν
=
g
.
(1.22)
µν
Σ
Σ
One can do this by defining the shell’s hypersurface on both sides by the
equation F ± (y ± ) = 0 and introducing new coordinates (n, x) in Ω± in such
a way that n± = 0 coincides with F ± (y ± ) = 0. Then the metric in Ω± can
be written as:
ds2 = η dn+ 2 + γij+ (n+ , x+ )dx+ i dx+ j
(1.23)
ds2 = η dn− 2 + γij− (n− , x− )dx− i dx− j
(1.24)
where η = ±1 according to whether the shell is spacelike (−) or timelike
(+), xi are coordinates on the shell and italic indices run on the shell’s threedimensional world-sheet. Then one has to find the first junction
γij+ (0, x+ )
=
∂x− i
γij− (0, x− )
∂x+ k
dx− j
∂x+ l
(1.25)
and once the junction is carried out we can cover the whole manifold by
Gaussian coordiantes in which n = 0 is the equation of the hypersurface Σ:
ds2 = ηdn2 + γij (x, n)dxi dxj .
(1.26)
We can use coordinates (1.26) to define a discontinuous stress-energy tensor
over the whole spacetime, composed by the interior and exterior sources T
and the shell’s surface density σ
+
−
Tµν = Tµν
(y)Θ(n) + Tµν
(y)Θ(−n) + σµν (y)δ(n)
(1.27)
18
CHAPTER 1. NEW PHASE BUBBLES
where Θ is Heaviside’s step function and δ is the Dirac delta, and then find
Einstein equations on the shell:
(Γnij − γij Γnkl γ kl )+ − (...)− = 8πκσij .
(1.28)
It is more convenient to write this in terms of the extrinsic curvature Kij
of Σ. One then sees that the extrinsic curvature is allowed to have a jump
proportional to the surface stress-energy tensor of the time-like shell σij ,
Kµν = ηnα Γαµν
j
Ki − δi j [Kl l ] = κ σi j
(1.29)
,
(1.30)
in which nα is the unit vector normal to the shell and [Ki j ] ≡ Ki j |+ −
Ki j |− denotes the difference between extrinsic curvatures on the two sides
of the shell. Note that we set c = 1 and κ = 8 π GN /3 = `P /MP (= 1
when convenient), where GN is Newton’s constant and `P (MP ) the Planck
length (mass). Although the classical evolution equation (1.30) may appear
simple, it has been solved only in a few special cases, most notably for the
vacuum or with cosmological constants in Ω± (for an extensive bibliography
see Ref. [18]).
For our analysis, we will mostly follow the notation of Ref. [19], where
the metric in each portion Ω± of spacetime is given by
ds2 = eν(r,t) dt2 − eλ(r,t) dr2 − R2 (r, t) dΩ2 ,
(1.31)
where t = t± are the time coordinates inside the corresponding patches, and
likewise for the three spatial coordinates. On the shell time-like surface Σ,
one has the line element
(1.32)
ds2 Σ = dτ 2 − ρ2 (τ ) dΩ2 ,
in which τ is the proper time as measured by an observer at rest with the
s
shell of areal radius ρ = R± (r±
(t± ), t± ). The relation between τ and t± is
obtained from the equation of continuity of the metric, Eq. (1.22), and is
displayed below in Eq. (1.53) for the cases of interest. On solving Eq. (1.30)
in terms of ρ and ρ̇ = dρ/dτ , one gets the dynamical equation
ρ̇2 (τ ) = B 2 (τ ) ρ2 (τ ) − 1 ,
(1.33)
where
2
(+ + − + 9 κ σ 2 /4) − 4 − +
,
B =
9 σ2
2
(1.34)
1.3. MATHEMATICAL FORMALISM AND BUBBLE DYNAMICS
19
with σ = σ 00 (τ ) the shell’s surface density and ± = ± (t± ) the timedependent energy densities in Ω± respectively. It is important to recall that
metric junctions can involve different topologies for Ω± , but we are here
considering only the so-called “black hole” type, in which both portions of
spacetime have increasing area radii R± in the outward direction (of increasing r± ). Assuming the surface density of the shell is positive, one must then
have 2
+ (τ ) − − (τ ) >
9
κ σ 2 (τ ) ,
4
(1.35)
at all times, in order to preserve the chosen spacetime topology [19, 20].
In the pure vacuum case, ± are constant and for constant σ the solution
is straightforwardly given by
ρ(τ ) = B −1 cosh(B τ ) ,
(1.36)
where B = B(± , σ) from Eq. (1.34) is also constant [4].
In the non-vacuum cases, finding a solution is however significantly more
involved. Regardless of the matter content of Ω± , it is nonetheless possible
to derive a few general results for a bubble which nucleates at a time τ = τ0 ,
that is a shell that expands from rest,
ρ̇0 = 0 ,
(1.37)
with initial finite (turning) radius (ρ0 > 0), where the subscript 0 will always
indicate quantities evaluated at the time τ = τ0 . First of all, from Eq. (1.33),
the initial radius must be given by
ρ0 = B0−1 ,
(1.38)
which requires B0 real, or
2
0+ + 0− + 9 κ σ02 /4 > 4 0− 0+ .
(1.39)
This condition is always satisfied if dust
and rad
are both positive and will
0
0
therefore be of no relevance in the present case, but must be carefully considered when allowing for negative energy densities (and non-vanishing spatial
curvature). Further, upon deriving Eq. (1.33) with respect to τ (always denoted by a dot)
2 ρ̇ ρ̈ = 2 B Ḃ ρ2 + B 2 ρ ρ̇ ,
(1.40)
2
2
H+
This also implies that 0+ > 0− and, from the Friedmann equation (1.44) given below,
2
> H−
.
20
CHAPTER 1. NEW PHASE BUBBLES
and using Eq. (1.37), one also obtains
Ḃ0 = 0 ,
(1.41)
assuming ρ̈0 is not singular. The constraint in Eq. (1.35) at τ = τ0 ,
0+ − 0− >
9
κ σ02 ,
4
(1.42)
and the conditions in Eqs. (1.37) and (1.41) will play a crucial role in the
following.
1.4
Flat FRW regions
The approach we developed could turn out to be suitable to describe the
decay into radiation. We have focused our interest in presenting an analytical (perturbative in time) approach to study a time-like shell’s dynamics
and to obtain analytical conditions for the existence of expanding bubbles in
terms of the energy densities inside and outside the shell, when such regions
contain homogeneous dust or radiation. This problem is made technically
cumbersome because of the occurrence of algebraic constraints (to ensure
the arguments of proliferating square roots are positive). We shall therefore
consider in details only the specific case of nucleation of a spatially flat radiation bubble inside (spatially flat) collapsing or expanding dust, in order
to keep the presentation of our method more streamlined. Since we wish to
study the particular case of a shell Σ separating two regions Ω± filled with
homogeneous fluids, the metrics in Ω± will be taken to be the usual FRW expressions. Moreover, we already assumed Ω− has finite initial extension and,
by definition, represents the interior of the shell. As a further simplification,
we shall only consider flat spatial curvature and set the cosmological constant
Λ = 0 everywhere. One can use such a model to approximate the formation
of radiation from a decaying scalar field during reheating after inflation. It
is known that for an inflaton with a quadratic potential, the time averaged
dynamics of the final oscillation phase mimics that of matter. In the end,
knowing the correct evolution of such a bubble would be of great help in
understanding how defects formed during phase transitions are “ironed out”
by the expansion of the new phase.
The metrics (1.31) in the inner and outer regions are therefore given by
ds2 = dt2 − a2 (t) dr2 + r2 dθ2 + sin2 θ dφ2 ,
(1.43)
1.4. FLAT FRW REGIONS
21
where a(t) is the scale factor which evolves according to the Friedmann equations
2
1 da
2
H =
= κ
(1.44)
a dt
2
1 d2 a
1 da
= −3 κ p .
(1.45)
2
+
a dt2
a dt
We assume the energy density and pressure p of the fluids obey barotropic
equations of state,
p = w (t) ,
(1.46)
and recover the well-known behaviors
3 (w+1)
a(t)
(t)
= 0 ,
a0
(1.47)
in which 0 is the density evaluated at a reference instant of time t = t0 and
a0 = a(t0 ). For dust, w = 0 (p = 0), whereas for radiation w = 1/3, so that
dust (t) =
0 a30
a3 (t)
(1.48)
0 a4
rad (t) = 4 0 .
a (t)
The evolution of scale factors in cosmic time for expanding (↑) and contracting (↓) solutions are finally given by
1/2
√
rad t
arad
(t)
=
γ
±
2
M
↑↓
(1.49)
√
darad
M rad
↑↓
= ± rad
dt
a (t)
and
2/3
√
3
dust t
adust
(t)
=
δ
±
M
↑↓
2
dadust
↑↓
= ±
dt
s
(1.50)
M dust
adust (t)
,
22
CHAPTER 1. NEW PHASE BUBBLES
where, in the above r.h.s., the + signs are for expansion and − signs for
contraction,
M rad = κ a40 rad
0
(1.51)
,
M dust = κ a30 dust
0
and γ and δ integration constants that determine the size of the scale factors
at t = 0. Later, for convenience, we will set γ = δ = 1 at t = 0, so that
(0) = 0 and a(0) = a0 = 1.
s
(t± ) separating the
Let us now consider the time-like shell Σ at r± = r±
two regions Ω± . Clearly, metric continuity implies
s
(t± ) .
ρ = a± (t± ) r±
(1.52)
The inner and outer spaces are characterized by different physical parameters. In particular, as one can see from Eq. (1.34), the shell’s dynamics are
determined by:
1. The type of fluid inside the shell (its equation of state w− );
2. The initial values a0− and 0− ;
3. The type of fluid outside the shell (its equation of state w+ );
4. The initial values a0+ and 0+ ;
5. The shell surface density σ (as a function of the radius ρ).
A given configuration of dust, radiation and surface density is admissible
only if the corresponding initial conditions are such that Eqs. (1.37), (1.41)
and (1.42) are satisfied.
1.5
Time transformations and expansion
The densities ± in Eq. (1.48) are given in terms of coordinate times t± .
However, it is the time τ measured by an observer on the shell which appears
in the evolution equation (1.33). Hence we need to find the transformation
from t± to τ . Following Ref [19], we recall that metric continuity (1.22)
implies 3
s
"
#)
(
dt± H ρ ρ̇
∆2 − ∆ (ρ̇2 + H 2 ρ2 )
1± 1+
,
(1.53)
=
dτ Σ
∆
(H ρ ρ̇)2
±
3
There is a typo in Eq. (B10) of Ref [19]: ρ2 is missing in the last term in the square
root.
1.5. TIME TRANSFORMATIONS AND EXPANSION
23
in which H is again the Hubble “constant”, ∆ = κ ρ2 −1, and the expression
within braces must be estimated on the two sides of the shell 4 . Now, the
above two equations should be solved along with Eq. (1.33), which makes it
clear why it is impossible to obtain general analytic solutions.
An important result can be obtained by considering the time when the
bubble is at rest, that is t± = t0± and τ = τ0 , with ρ̇(τ0 ) = 0 and H0 ≡ H(t0 ),
namely
s
2
ρ20
H0±
dt± 1
−
.
(1.54)
=
±
dτ Σ,0
∆0±
From Eq. (1.44) we see that ∆ = H 2 ρ2 − 1, therefore
dt± ±1
±1
p
= p
=
2
dτ Σ,0
1 − H0±
ρ20
1 − κ 0± ρ20
±1
,
= √
−∆0±
(1.55)
with the signs in the numerator simply reflecting the directions t± flow relative to τ . It is clear that real solutions to Eq. (1.55) exist only if
∆0± < 0 .
(1.56)
Remarkably, this is the same as stating that the energy density inside the
radius ρ = ρ0 must not generate a black hole, as one can easily check by
considering the Schwarzschild radius rS = 2 GN M with M = (4 π/3) 0 ρ30 .
This is manifest when considering 0− inside the bubble, but it must also
hold for the energy density 0+ outside the bubble. For the outer region,
this means the bubble must lie inside the Hubble radius, ρ0 < H0−1 . Putting
together these conditions tells us that the temporal coordinates are properly
transformed only within a causal region of the spacetime.
In order to study how the bubble grows after nucleation, we can expand
t = t(τ ) for short times about t0± and τ0 . Further, we want all times directed
the same way, so we choose the + sign in the above expression and obtain,
to linear order,
τ − τ0
,
t± ' t0± + √
−∆0±
(1.57)
where t0± are integration constants.
4
Note the sign ambiguity ± in front of the square root just reflects the double root of
a second degree equation and is not associated with the interior or exterior regions.
24
CHAPTER 1. NEW PHASE BUBBLES
Unfortunately, a first order expansion is not sufficient to study the evolution of the bubble radius. Since ρ̇0 = 0, we need at least second order terms
in τ to get significant results, which makes all expressions very cumbersome.
We shall therefore just consider a few specific cases, generalizing the exact
result (1.36) for a shell of constant surface energy in vacuum. For such cases,
our perturbative approach will yield exact conditions for the bubble’s existence, which we see as a clear advantage with respect to purely numerical
solutions. Other advantages would be that having analytical expressions is
a necessary ingredient for quantum mechanical (or semiclassical) studies of
these systems. Moreover, adapting our procedure to all possible combinations of fluids in Ω± , and for more general shell surface density, should be
rather straightforward.
1.6
Radiation bubble inside dust
The main idea in our approach stems from the observation that the (three)
fundamental (first order differential) equations (1.33) and (1.53) contain six
functions of the proper time τ : the shell radius ρ, its surface density σ,
the two times t± and the two Hubble functions H± . Once we choose the
matter content inside Ω± and on the shell, the Hubble functions and surface
density are uniquely fixed and we are left with the three unknowns ρ and
t± (and a set of constraints for the initial conditions). To determine these
unknowns, we find it convenient to formally expand the shell radius ρ and
Hubble functions H± for short (proper) time “after the nucleation of the
bubble” (when ρ̇0 = 0), and solve Eqs. (1.33) and (1.53) order by order.
Since expressions rapidly become involved, and a general treatment for
all combinations of matter content in Ω± and shell surface density would be
hardly readable, we shall only consider the specific case of a radiation bubble
(w− = 1/3) inside a region filled with dust (w+ = 0). We further assume the
shell’s surface density
σ(τ ) = σ0 > 0
(1.58)
is constant and positive. Since one would expect the shell’s density decreases
as the shell’s surface grows, this assumption might appear rather strong.
However, it is the simplest way to ensure the junction remains of the “black
hole” type, and a more thorough discussion of this point can be found in
Ref. [19]. In order to keep the presentation uncluttered, we also set κ =
1 from now on and regard all quantities as dimensionless (tantamount to
assuming they are rescaled by suitable powers of κ = `P /MP ). This means
that densities will be measured in Planck units, that is = 1 corresponds
1.6. RADIATION BUBBLE INSIDE DUST
25
−1
2
to the Planck density P = MP /`3P = `−2
P and σ = 1 to σP = MP /`P = `P .
Likewise, ρ = 1 is the Planck length `P . We also express the shell surface
> 0,
density and radiation energy density as fractions of dust
0
q
rad
dust
y,
(1.59)
0 = 0 x ,
σ0 = dust
0
with 0 ≤ x ≤ 1 and y ≥ 0.
It is natural to choose τ0 = 0, and then proceed to analyze Eqs. (1.33)
and (1.53) by formally expanding all relevant time-dependent functions in
powers of τ − τ0 = τ :
Step 1) since ρ̇0 = 0 [see Eq. (1.37)], we can formally write the bubble
radius as
1
ρ(τ ) = ρ0 + ρ̈0 τ 2 + O(τ 3 ) ,
(1.60)
2
where ρ0 and ρ̈0 are parameters to be determined. In particular, from
Eqs. (1.34) and (1.38), we obtain the (not yet final) expression
3 σ0
ρ0 = q
2
(0+ + 0− + 9 κ σ02 /4) − 4 0− 0+
3 (dust
)−1/2 y
0
= q
,
2
2
(1 + x + 9 y /4) − 4 x
(1.61)
sets the overall scale
which only depends on 0± and σ0 . More precisely, dust
0
of the shell radius and the fractions x and y defined in Eq. (1.59) the detailed
form.
We next obtain t± = t± (τ ) by solving Eq. (1.53). However, for this
purpose we need the Hubble parameters H± as functions of τ , whereas they
explicitly depend on t± :
Step 2) we replace H in Eq. (1.53) with the formal expansion
H = H0 + Ḣ0 τ + O(τ 2 ) ,
(1.62)
where H0 and Ḣ0 are unknown constant quantities to be determined by
consistency. By expanding the right hand side of Eq. (1.53) to first order in
τ and then integrating, we obtain t to second order in τ ,
!
ρ0 H0±
ρ0 Ḣ0±
τ
+
ρ̈0 − √
τ 2,
(1.63)
t± ' t0± + √
2 ∆0±
−∆0±
−∆0±
where ρ0 must now be understood as the expression given in Eq. (1.61) and
t0± are integration constants we can set to zero without loss of generality. In
26
CHAPTER 1. NEW PHASE BUBBLES
fact, let us assume we are at rest in an expanding (or contracting) universe,
corresponding to the old exterior phase (with parameters 0+ and H0+ ), and
measure a time t0+ from the “Big Bang” (or beginning of collapse) of this
exterior universe [a+ (t0+ = 0) = 0 or a+ (t0+ = 0) > a(t0+ ) for t0+ > 0, respectively]. If, for instance, a new phase bubble arises at rest at the instant
t0+ = t00+ , we can define t+ = t0+ − t00+ , so that the bubble is created at
t+ = 0, and also set t0− = 0, since an “inner time” is meaningless before any
“inner part” exists. For different pictures, similar arguments can likewise be
formulated.
Step 3) From Eq. (1.49) and (1.50), we choose an expanding radiation
interior and contracting or expanding dust exterior,
a− = arad
↑ (t− ) ,
a+ = adust
↓↑ (t+ ) ,
(1.64)
set a0± = 1 and express t± according to Eq. (1.63). In so doing, a± and
da± /dt± become explicit functions of τ containing ρ0 , H0± and Ḣ0± . For
consistency with Eq. (1.62), we must therefore require
H(τ ) =
1 da
= H(τ ) ,
a dt
(1.65)
with H− = H− > 0 and H+ = H+ < 0 for collapsing dust, or H+ = H+ > 0
for expanding dust.
Step 4) To zero order in τ , Eq. (1.65) gives rise to a first-order equation
for H0 ,
da 1 da =
= H0 .
(1.66)
H0 =
a0 dt τ =0
dt τ =0
The solutions are uniquely given by
√
H0↑↓ = ± 0 ,
(1.67)
in which the ↑ and + sign (respectively ↓ and − sign) refer to expanding
(contracting) solutions, i.e. solutions with increasing (decreasing) scale factor, as before 5 . Note this result also follows directly from the Friedmann
equation (1.44) for τ = t = 0.
To first order in τ , one analogously obtains
Ḣ0↑↓ = − p
5
n 0
1 − ρ20 0
,
(1.68)
Note that, for example, the Hubble parameter for the expanding interior phase will
↑
carry a second subscript sign and will then be denoted as H−
, where the subscript −
indicates the inner region and the apex ↑ stands for expansion.
1.6. RADIATION BUBBLE INSIDE DUST
27
with n = 2 for radiation and n = 3/2 for dust, and ρ0 must again be understood as the expression given in Eq. (1.61).
Step 5) Replace ρ0 from Eq. (1.61) and the chosen combination of Hubble parameters (1.67) inside Ḃ0 , which must then satisfy Eq. (1.41). This
dust
and σ0 , so that it can be
equation will only contain 0− = rad
0 , 0+ = 0
used to determine σ0 = σ0 (0− , 0+ ). In particular, introducing the fractions
in Eq. (1.59), we obtain
Ḃ0 = dust
ḃ0 (x, y) ,
0
(1.69)
from which it appears that the dust energy density just sets the overall scale
, the shell surface density is
like in Eq. (1.61). For any given values of dust
0
instead determined by the radiation energy density according to
ḃ0 (x, y) = 0 ,
(1.70)
which, for the cases of interest, is a fourth-order algebraic equation for y.
Analytic solutions can be found (in suitable ranges of x), which we denote
as ȳ = ȳ(x), so that the allowed surface densities are given by
q
σ̄0 = dust
ȳ .
(1.71)
0
Step 6) Replace the above surface density σ̄0 into the initial radius (1.61)
and obtain its final expression,
ρ̄0 = q
3 (dust
)−1/2 ȳ
0
(1 + x +
9 ȳ 2 /4)2
,
(1.72)
− 4x
which can then be used to determine the final forms of Ḣ0± and the scale
factors a± to first order in τ .
Step 7) One must now check that σ̄0 and ρ̄0 satisfy all of the initial
constraints and lead to valid time transformations (1.53), at least for some
and dust
. If not all of these conditions are met, one must
values of rad
0
0
conclude the corresponding physical system may not exist. Moreover, we
note the condition (1.56) requires 0 . P in order to have a (semi)classical
bubble with ρ0 & `P . In the following Section, one should therefore consider
only dust and radiation energy densities 0 P and look at the limiting
case 0 ' P as a glimpse into the quantum gravity regime.
If a consistent solution for σ̄0 and ρ̄0 exists, one can proceed to determine
higher orders terms (in τ ). However, due to the increasing degree of complexity of the resulting expressions, we shall not go any further here. We
instead present our findings for the two cases of interest separately.
28
1.6.1
CHAPTER 1. NEW PHASE BUBBLES
Collapsing dust
This case is defined by choosing the scale factors
a− = arad
↑ (t− ) ,
a+ = adust
(t+ ) ,
↓
(1.73)
and proceeding as described above. We can then prove that this case does
not admit solutions, in general, by simply analyzing the constraint (1.70),
ḃ0 ∝ 16 x2 3 + 4 x3/2 + 4 x3/2 4 − 9 y 2 4 − 8 x − 9 y 2
(1.74)
+3 4 + 9 y 2 4 − 8 x + 9 y 2 = 0 ,
which admits the four solutions
s
√
2
2 x3/4 ± i 3
√ .
ȳ±± = ±
(1 − x)
3
2 x3/4 ∓ i 3
(1.75)
However, for x 6= 1, all the ȳ±± are complex and a complex surface density is
obviously unphysical. One is then apparently left with the only trivial case
x = 1, corresponding to ȳ = 0 and
s
3 + 4 x3/2
ρ̄0 = (dust
=1.
(1.76)
)−1/2
0
3 + 4 x1/2
This case however does not satisfy all the required constraints. For example,
Eq. (1.42) for σ0 = 0 yields
dust
dust
> rad
,
0
0 = x 0
(1.77)
which clearly contradicts x = 1. Correspondingly, the time transformations (1.53) are not well-defined, because t̄˙0+ = t̄˙+ (τ = 0; x) is complex for
0 < x < 1 and both ṫ0± diverge for x → 1.
The overall conclusion is thus that expanding radiation bubbles with a
turning point of minimum radius cannot be matched with a collapsing dust
exterior.
1.6.2
Expanding dust
This case is defined by choosing the scale factors
a− = arad
↑ (t− ) ,
a+ = adust
(t+ ) .
↑
(1.78)
The crucial task is again to solve the constraint in Eq. (1.70), namely
ḃ0 ∝ 16 x2 3 − 4 x3/2 − 4 x3/2 4 − 9 y 2 4 − 8 x − 9 y 2
−3 4 + 9 y 2 4 − 8 x + 9 y 2 = 0 ,
(1.79)
1.6. RADIATION BUBBLE INSIDE DUST
29
1.0
0.8
0.6
0.4
0.2
0.85
0.90
0.95
1.00
x
p
Figure 1.2: Plot of σ̄0 / dust
= ȳ+− (x) (magnified by a factor of 10 for
0
convenience, dashed line) and corresponding ρ̄0 /(dust
)−1/2 (solid line) in the
0
range (1.81).
admitting the four solutions
ȳ±±
2
=±
3
√
2 x3/4 ± 3
√ ,
(1 − x)
2 x3/4 ∓ 3
s
(1.80)
which are real for
xmin
2/3
3
=
<x<1.
4
(1.81)
We discard the negative solutions ȳ−± associated to negative surface densities
and just analyze the positive cases ȳ+± . It is then easy to see that ȳ++ leads
to a surface density that diverges for x → xmin , and is always too large to
satisfy the condition (1.42), since
√
9 2
3 (x − 1)
√ <0,
1 − x − ȳ++ =
4
2 x3/4 − 3
(1.82)
in the range (1.81). In the limit for x → 1, ȳ++ → 0, however, Eq. (1.42) is
still violated in the strict sense and one can in fact show that t̄˙0+ diverges.
30
CHAPTER 1. NEW PHASE BUBBLES
10
8
6
4
2
0.85
0.90
0.95
1.00
x
Figure 1.3: Plot of t̄˙0+ (solid line) and t̄˙0− (dashed line) for y = ȳ+− (x) in
the range (1.81).
3.0
2.5
2.0
1.5
1.0
0.5
0.85
0.90
0.95
1.00
x
Figure 1.4: Plot of ρ̄0 for y = ȳ+− (x) with dust
= P /10 (dashed line) and
0
dust
0 = P (solid line) in the range (1.81). Only values above `P = 1 represent
acceptable semiclassical radii.
1.6. RADIATION BUBBLE INSIDE DUST
0.85
0.90
31
0.95
1.00
-0.01
-0.02
x
-0.03
-0.04
-0.05
-0.06
-0.07
Figure 1.5: Plot of C̄0 /M̄0dust for σ̄0 > 0 and y = ȳ+− (x) in the range (1.81).
The only solution which appears consistent is therefore
q
σ̄0 = dust
ȳ+−
0
s
√
q
2 x3/4 − 3
2
dust
√ ,
0
(1 − x)
=
3
2 x3/4 + 3
(1.83)
with x again in the range (1.81). This expression yields a vanishing surface
density for the limiting values x → 1 and x → xmin (see Fig. 1.2) and further
satisfies the condition (1.42),
√
3 (1 − x)
9 2
√ >0.
1 − x − ȳ+− =
4
2 x3/4 + 3
(1.84)
The corresponding initial bubble radius is an increasing function of x (see
Fig.1.2),
s
ρ̄0 = (dust
)−1/2
0
4 x3/2 − 3
< (dust
)−1/2 ,
0
x (4 x1/2 − 3)
(1.85)
with ρ̄0 (x → 1) = (dust
)−1/2 . Further, the products
0
2
dust
ρ̄20 < 1 and rad
0
0 ρ̄0 < 1 ,
(1.86)
32
CHAPTER 1. NEW PHASE BUBBLES
for xmin < x < 1, as required by the condition (1.56). In fact the initial
time derivatives t̄˙0± are well defined in this range (see Fig. 1.3) and only
diverge for x → 1. Note the above initial radius can be larger than `P only
< P and for sufficiently large x, since ρ̄0 → 0 for x → xmin (see, for
if dust
0
example, Fig. 1.4).
Finally, let us check if one can use the process of bubble nucleation to
describe a phase transition from dust to radiation for the matter inside the
sphere of radius ρ̄0 , accompanied by the creation of a layer of non-vanishing
surface density σ̄0 . From Eqs. (1.83) and (1.85), one has
C̄0 ≡ M̄0dust − M̄0rad − Ē0Σ < 0 ,
(1.87)
which means the dust energy inside the sphere of radius ρ̄0 at time of bubble
, is not sufficient to produce the radiation
formation, M̄0dust = (4 π/3) ρ̄30 dust
0
rad
3 rad
energy M̄0 = (4 π/3) ρ̄0 0 and surface energy Ē0Σ = 4 π σ̄0 ρ20 . An extra
source is thus needed to provide the energy −C̄0 > 0. The reverse process of
collapsing radiation reaching a minimum size ρ = ρ̄0 and then turning into
collapsing dust would instead be energetically favored, with the amount of
energy −C̄0 now being released. Of course, in order to support this kind
of argument, the extra contribution should be a small perturbation on the
given background,
|C̄0 | M̄0dust ,
(1.88)
since it was not included in the dynamical equations. From Fig. (1.5), we
expect this is indeed a very good approximation since 0 < −C̄0 . 0.06 M̄0dust .
1.7
Conclusions and outlook
We have analyzed bubbles of radiation whose timelike surface starts to expand inside collapsing or expanding dust with vanishing initial rate, and with
the further (simplifying) assumptions that the bubble’s surface density is constant and positive, and both interior and exterior are spatially flat. These
bubbles generalize the simplest self-gravitating case of a shell with constant
surface density expanding in vacuum, for which the exact trajectories are
known [17, 18]. These generalizations are of potential interest both for the
physics of the early universe and the description of astrophysical processes.
However, although the general formalism was already developed a long time
ago [17], and the dynamics are ruled by apparently simple equations [19],
finding explicit solutions is not straightforward.
By developing an approach to obtain analytical expressions for the evolution of the bubble radius in the shell’s proper time, ρ = ρ(τ ) with ρ̇(τ =
1.7. CONCLUSIONS AND OUTLOOK
33
0) = 0, we determined the conditions which allow for the existence of such
configurations. Although our approach is perturbative (with an expansion
for short times after nucleation), the conditions for the bubble’s existence are
exact, which is a clear advantage with respect to purely numerical solutions.
We then found that:
• expanding radiation bubbles of constant surface density may not be
matched to a collapsing dust exterior. More precisely, we found that
inside collapsing dust there may not be a bubble of radiation whose
surface ever reaches vanishing speed of expansion at finite radius.
• Bubbles whose radius admits a turning point are instead allowed inside
an expanding dust-dominated universe.
In this latter case, bubbles can further be used to model a phase transition
from radiation to dust if an external source provides part of the the energy
required to build the shell, or the converse process with release of energy
(albeit, of an amount small enough to leave the background configuration
unaffected).
Let us clarify this point about energy conservation. The fundamental
Eqs. (1.33) and (1.53) are just a different form of the junction equations (1.22)
and (1.30) which, in turn, follow from the Einstein equations. Conservation of
the energy-momentum in a given system is therefore guaranteed. However,
when we use bubbles to model a phase transition, we are considering the
possibility that a region of space filled with dust be replaced by radiation
enclosed inside an expanding shell, or the reverse process. Technically, we
are therefore considering two different systems: one with dust and one with
a bubble of radiation within a shell of positive surface density whose radius
evolves along a trajectory with a turning point (zero speed at finite minimum
radius). The total energy in the two configurations differ by the amount
C̄0 defined in Eq. (1.87), and a (quantum) transition between them would
therefore violate energy conservation and be suppressed in the semiclassical
regime. By looking at Fig. 1.5, we however see that |C̄0 | M̄0dust . One
may thus argue the unspecified matter contribution carrying the energy |C̄0 |
should be well approximated as a perturbation with respect to the dust
and radiation, with its backreaction on the chosen configuration consistently
negligible. If so, one can further speculate if the extra energy required to
nucleate radiation could be provided by pressure in the initial cloud or by
the decay of a region of false vacuum (with vacuum energy or cosmological
constant Λ+ ) to true vacuum (with cosmological constant Λ− < Λ+ ), like in
the seminal Refs. [13].
34
CHAPTER 1. NEW PHASE BUBBLES
The fact that no consistent solution was found inside collapsing dust does
not mean that expanding radiation bubbles may not be produced at all in
this context, which includes, for example, the collapsing core of a supernova
or other astrophysical processes leading to black hole formation. In fact, the
situation might change if one, for instance (and more realistically), includes
matter pressure or a radius-dependent surface density, σ = σ(ρ). This observation thus brings us to briefly comment on the possible generalizations
and extensions of the present work, which include the just mentioned nonconstant σ, as well as different combinations of matter inside and outside the
shell, and cosmological constant(s) Λ± . Moreover, one might like to consider
the vacuum inside the shell and radiation outside (with or without Λ± ) and
apply the corresponding results to the thick shell model previously studied
in Refs. [21, 22, 23, 24].
Finally, our analysis is entirely based on classical General Relativity and
no attempt was made to compute the quantum mechanical “tunneling” probability for radiation bubbles to come into existence (or convert to dust). Such
an analysis requires the (effective Euclidean) action to be integrated along
the (classically forbidden) trajectory for the bubble radius ρ to go from 0 to
ρ0 [25], whose construction is clearly no easy task, given the classical trajectories are so difficult to determine. Nonetheless, another advantage of
our approach is that it provides analytical (albeit perturbative) expressions,
which is a property one needs for any quantum mechanical (or semiclassical)
studies of these systems. Of course, energy densities above the Planck scale
would not be meaningful in this context, since one then has no guarantee the
dynamical equations derived from General Relativity can be trusted at all.
Chapter 2
The Kodama vector field
Here is presented another original research developed jointly with a group
at Trento University [26]. In very recent years some attention has been paid
to the Kodama vector field [27] as a tool for solving dynamical problems in
general relativity. We decided to investigate the physical meaning of such
a vector field on the slippery ground of radiating horizons, by studying Unruh radiation as seen by a finite size particle detector accelerating along a
Kodama trajectory in a de Sitter universe.
In Section 2.1 we resume the most important notions about Hawking
radiation, underlining the role that Killing vectors play.
In Section 2.2 we introduce the Kodama vector field and discuss its geometrical properties.
In Section 2.3 the Unruh effect and the particle concept are explained.
In Section 2.4 the original content is presented: the amount and peculiarities of Unruh radiation as measured by a finite size, two-states detector
moving along a Kodama trajectory.
2.1
Particle production in curved spacetime
Since Hawking’s first papers on evaporating black holes [28, 29] and subsequent discovery by Bekenstein that black holes have an associated entropy [30], physicists devoted a lot of attention to black hole thermodynamics.
Black hole thermodynamics is the perfect ground for studying a semiclassical
approximation of quantum gravity, whereas a full unified theory is far from
being achieved. Starting from black holes, investigation has broadened to
include every kind of horizon allowed by general relativity.
We will now show the role played by Killing vectors in the black hole evaporation process by considering a Klein-Gordon field in a generic spacetime,
35
36
CHAPTER 2. THE KODAMA VECTOR FIELD
obeying
2Φ + m2 Φ = 0 ,
(2.1)
whose (classical) solutions are plane waves of the kind fω ∼ e−ikµ x
e−i(ωt−k·x) . The frequency ω must satisfy the dispersion relation
ω 2 = k2 + m2
µ
∼
(2.2)
and solutions will therefore be parametrized by k and the sign of ω. To
give the most general solution one must build a complete, orthonormal set of
modes by introducing a suitable inner product (Φ1 , Φ2 ). One general way to
define a pseudo-inner product is to use the particle number current j µ [Φ1 , Φ2 ]:
j µ [Φ1 , Φ2 ] = Φ1 ∇µ Φ∗2 − Φ∗2 ∇µ Φ1
Z
√
(Φ1 , Φ2 ) = −i d3 x h nµ jµ [Φ1 , Φ2 ]
ZΣ
√
= −i d3 x h nµ (Φ1 ∇µ Φ∗2 − Φ∗2 ∇µ Φ1 ) ,
(2.3)
(2.4)
(2.5)
Σ
where the integration is independent of the spacelike hypersurface Σ with
induced metric h and unit normal vector nµ [31, 32]. We call this a pseudoinner product since it is not positive definite. As an example, by multiplying
two plane waves with different frequencies ω1 and ω2 , and different wave
vectors k1 and k2 , one gets in flat spacetime
µ
µ
(e−ik1 xµ , eik1 xµ ) = (2π)3 (ω1 + ω2 )e−i(ω1 −ω2 )t δ 3 (k1 − k2 ) ,
(2.6)
and clearly this can be negative, depending on the sign of ω. In order to have
a real inner product we must select only positive ω. This is where things start
differing from flat to curved spacetime.
In Minkowski spacetime we can find a positive definite inner product by
integrating over constant time hypersurfaces Σt (the choice of the particular
spacelike hypersurface does not affect the result in virtue of Stoke’s theorem)
Z
(Φ1 , Φ2 ) = −i
(Φ1 ∂t Φ∗2 − Φ∗2 ∂t Φ1 ) d3 x .
(2.7)
Σt
From (2.2) we can impose ω > 0 by defining ω = |k|, and then the correct
normalization of the plane waves can be found
µ
e−ikµ x
fk (x ) = p
.
(2π)3 2ω
µ
(2.8)
2.1. PARTICLE PRODUCTION IN CURVED SPACETIME
37
The fk and fk∗ are the normal modes we need to expand the field solution Φ.
The fk are said to be positive-frequency and satisfy
∂t fk = −iωfk
(ω > 0)
(2.9)
whereas fk∗ modes are said to be negative-frequency and satisfy
∂t fk = +iωfk∗
(ω > 0) .
(2.10)
This neat distinction between positive and negative frequency modes is of
fundamental importance and let us build all the Hilbert space on which
quantum mechanics rely on. A quantum field can always be expanded by
means of a complete basis of solutions fi (xµ ), fi∗ (xµ ) (we now use discrete
indices to simplify calculations)
X
Φ=
âki fki + â†ki fk∗i ,
(2.11)
ki
with coefficients given by the usual annihilation and creation operators âki ,
â†ki such that
[âki , âkj ] = [â†ki , â†kj ] = 0 ,
[âki , â†kj ] = δij
(2.12)
and the vacuum state | 0f i for the basis f, f ∗ defined as
âki | 0f i = 0 ∀i .
(2.13)
A state with ni excitations of different momenta ki is created by repeated
action of â†ki :
nk1 nk2 nk
1
j
p
â†k1
â†k2
| n1 , n2 , ..., nj if =
... â†kj
| 0 if ,(2.14)
n1 !n2 !...nj !
and a number operator can be defined for each wave vector
n̂aki = â†ki âki .
(2.15)
We can of course consider an alternative set of modes gi (xµ ) and coefficients
b̂ki , b̂†ki satisfying the same properties as before
Φ=
X
ki
b̂ki fki + b̂†ki fk∗i
,
(2.16)
38
CHAPTER 2. THE KODAMA VECTOR FIELD
but with states built from another vacuum state that is generally different:
b̂ki | 0g i = 0 ∀i
(2.17)
n̂gki = b̂†ki b̂ki .
(2.18)
Since basis sets are complete, one can expand one set in terms of the other
by using Bogoliubov transformations (we omit index k for brevity):
X
gi =
αij fj + βij fj∗
(2.19)
j
fi =
X
∗
αij
gj − βij gj∗
(2.20)
j
where Bogoliubov coefficients can be found using the orthonormality of the
mode functions
αij = (gi , fj )
βij = − gi , fj∗
(2.21)
(2.22)
and they obey their own normalization conditions:
X
∗
∗
αik αjk
− βik βjk
= δij
(2.23)
j
X
(αik βjk − βik αjk ) = 0 .
(2.24)
j
Then, annihilation (and creation operators can be rewritten in terms of the
same operators in the other basis
X
∗ †
âi =
αji b̂j + βji b̂j
(2.25)
j
b̂i =
X
∗
αji
âj − βij∗ â†j
.
(2.26)
j
The vacuum defined by f -modes might be a non-vacuum state when expressed in g-modes. To see this, one uses the number operator of one basis
on the states of the other basis:
X
h 0f |n̂gi | 0f i = h 0f |b̂†i b̂i | 0f i =
|βij |2 .
(2.27)
j
If βij = 0 then the f-vacuum is perceived as a zero-particles state also in the
g-modes basis, whereas βij 6= 0 implies that in the g-basis one would actually
2.1. PARTICLE PRODUCTION IN CURVED SPACETIME
39
see some particles. The meaning of βij can be understood from (2.22): it
represents the orthogonality relation between particles of the g-basis and
antiparticles of the f-basis, i.e. vacuum in one basis becomes populated when
one can mix positive and negative frequency modes of the other basis. This
mixing can occur only if Lorentz invariance is violated. In flat spacetime we
can perform Lorentz transformations
t0 = γt − γv · x
x0 = γx − γvt
(2.28)
on the time derivative ∂t so that we get
∂t0 fk = iω 0 fk
ω 0 = γω − γv · k .
(2.29)
(2.30)
As one can see, all frequencies are boosted in the same exact way. Therefore
there is a 1-1 correspondence between different states in the two different reference frames. Particles of a given positive frequency might be “redshifted” or
“blueshifted” but their frequency can’t become negative. The same occurs
for antiparticles, whose frequency can change but will always be negative.
Therefore one has no mixing and βij = 0, so the vacuum state is the same
for every observer.
Things change when going to curved spacetime. There, global Lorentz invariance does not hold anymore and one can find transformations that mix up
positive and negative frequencies. Anyway, the signature of the frequencies
is strictly related to the existence of a timelike Killing vector K. Relations
(2.9) and (2.10) can be recast in a coordinate-invariant form as
LK fω = K µ ∂µ fω = iωfω ,
ω>0,
(2.31)
where LK denotes the Lie derivative along K. In static spacetime it is always
possible to find such a K along which the vacuum state keeps being “empty”.
Dynamical spacetimes on the other side lack any asymptotically timelike
Killing vector that could help us defining positive and negative frequencies.
To show the effects of a dynamical spacetime on the propagation of modes
consider a spherical ball of matter, centered in the origin of our coordinate
system and surrounded by empy space. Initially the ball of matter is extended
to the infinity and has infinitesimal density, so we can construct the standard
Minkowski vacuum. After the matter starts collapsing, on its outside the
metric will be the usual Schwarzschild metric
−1
2m
2m
2
2
dt − 1 −
dr2 − r2 dΩ2 ,
(2.32)
ds = 1 −
r
r
40
CHAPTER 2. THE KODAMA VECTOR FIELD
whereas the interior metric is of no practical importance. We then consider
a massless scalar field obeying 2Φ = 0 and, as shown before, we decompose
Φ into a complete set of positive frequency modes fω (indices referring to
observables associated with spherical simmetry are omitted)
Z
(2.33)
Φ = dω aω f + a†ω f ∗ ,
where the quantum vacuum is defined at the past infinite I − by aω | 0 i = 0.
Since the field is massless it will propagate in spacetime at the speed of light,
therefore passing through the collapsing matter shell before the collapse is
over. Because of this we assume that the field does not interact with the
matter and introduce the null coordinates
u = t − r∗ + R0∗ = t − r − 2m ln |r/2m − 1| + R0∗
v = t + r∗ − R0∗ = t + r + 2m ln |r/2m − 1| − R0∗
(2.34)
(2.35)
(2.36)
where R0∗ is a constant. Outside the ball of matter the line element reads
ds2 = C(r)dudv
Z
dr
∗
,
r =
C(r)
(2.37)
(2.38)
where C → 1 and ∂C/∂r → 0 as r → ∞. To describe the interior part, we
define other null coordinates
U = τ − r + R0
V = τ + r − R0
(2.39)
(2.40)
(2.41)
and we take the general line element
ds2 = A(U, V )dU dV
(2.42)
where A(U, V ) is arbitrary but smooth and non-singular. We assume that
collapse starts at t = τ = 0 and the ball has its surface at u = U = v = V = 0,
whereas it follows r = R(τ ) when shrinking.
By fixing these initial conditions, the mode solutions of the massless scalar
field is
fω = √
i
e−iωv − e+iωv
4πω
(2.43)
2.1. PARTICLE PRODUCTION IN CURVED SPACETIME
41
with
U = αu
v = β(V )
⇒ v = β[α(u) − 2R0 ] .
V = U − 2R0
(2.44)
(2.45)
On the event horizon (C = 0) one can approximate
dU
Ṙ − 1
∼ C(R)
du
2Ṙ
dv
(1 − Ṙ)
∼A
dV
2Ṙ
R(τ ) ∼ Rh − Ṙ(τh )(τh − t)
(2.46)
(2.47)
(2.48)
where the subscript h means that the variable is evaluated on the horizon.
By integrating one gets
κu = − ln |U + Rh − R0 − τh | + constant
1 ∂C κ=
2 ∂r (2.49)
(2.50)
r=Rh
where κ is the surface gravity on the horizon. We also integrate (2.47) by
considering A constant so that we get v and the late time asymptotic modes:
(1 − Ṙ)
v ∼ constant + AV
2Ṙ
i −iωv
+iω(ce−κu+d )
fω = √
e
−e
,
4πω
(2.51)
(2.52)
with c and d constants. Because of this complicated expression for the modes
at I + , the Bogoliubov coefficient βij in (2.22) will be non-zero:
|βω0 ω |2 =
1
1
.
0
2πω/κ
2πκω e
−1
(2.53)
By analogy with statistical mechanics one can therefore associate a temperature to the horizon:
T = κ/(2πkB )
(2.54)
where kB is the Boltzmann constant. As it can be seen from (2.53) the
absence of any horizon (i.e. κ = 0) leads to a vanishing β and the thermal
spectrum disappears: no particles are detected.
42
2.2
CHAPTER 2. THE KODAMA VECTOR FIELD
The Kodama vector field
As we’ve just seen, a timelike Killing vector field is need in order to define
positive and negative frequency modes since it corresponds to the operator
whose eigenvalue is associated to the energy. The lack of such a vector field
leave us no means to solve the problem of defining a common vacuum state
on which to define particles and antiparticles. In dynamical spacetimes there
are no asymptotically timelike Killing vectors in general. Because of this
we can’t define the temperature for a dynamical horizon via βij (see (2.22)),
and in general we can not define other conserved charges such as energy or
momentum.
The reason why timelike Killing vectors are required to find a conserved
charge is that we have to integrate over a spacelike hypersurface Σ to get the
total energy [32]:
Z √
h JTµ nµ d3 x ,
(2.55)
ET =
Σ
in which h is the induced metric on Σ, nµ is the unit vector normal to Σ
and JTµ = T µν Xν is the conserved current as determined by means of Killing
vectors X ν . The spacelike/timelike issue arises when trying to integrate such
expression.
In 1980 Kodama published a paper [27] in which he introduced a particular vector that can determine a conserved current in spherical symmetry
even if there is no suitable Killing vector field. In [34] Hayward reintroduced
this vector field referring to it as the Kodama vector, aiming to find a more
general definition of energy in General Relativity that could match the usual
definitions as given by Arnowitt-De Witt-Meser (ADM), Misner-Sharp (MS)
and Bondi-Sachs (BS) in the appropriate limits.
According to Hayward’s more formal definition, one can define the Kodama vector by:
k = curl r ,
(2.56)
where the curl is taken in the 1+1 dimensional space orthogonal to the
spheres of symmetry and r is the radius that gives the invariant area A =
4πr2 . Another definition can be given by means of the Hodge dual ?:
k = g −1 (?dr) .
(2.57)
g(j) = −T (k)
(2.58)
The Kodama current j satisfies
2.2. THE KODAMA VECTOR FIELD
43
where k is the Kodama vector, g is the metric tensor and T the stress-energy
tensor. In other words:
j a = T ab kb
∇a j a = 0
∇a k a = 0 .
(2.59)
(2.60)
(2.61)
In [35] the same expression as (2.55) is used to define energy with Kodama
vectors (we report it as it is found in the original paper):
Z
Z
[
E = − ?u · j =
?u · T [ · k
(2.62)
Σ
Σ
where ? denotes the volume form and u the unit future normal vector of
an arbitrary spatial hypersurface Σ with regular center. It follows that the
Kodama vector can define energy accordingly to Misner-Sharp [36] for a
Schwarzschild metric:
g(k, k) =
2E
−1 .
r
(2.63)
It seems like the Kodama vector can take the place of the Killing vector in
defining quantities such as surface gravity in spherical symmetric dynamical
scenarios. The Kodama vector seems to be preferable to the Killing vector
because:
1. It provides a conserved current (the energy) even in dynamical scenario, whereas the Killing vector cannot be used to determine the total
energy since it might not be asymptotically timelike and therefore no
integration can be performed to get the right value of the energy;
2. in some static spherically symmetric cases it agrees with the Killing
vector.
Using the general spherically symmetric metric
2
ds2 = g00 (dx0 )2 + 2g01 dx0 dx1 + g11 (dx1 )2 + r(0,1)
dΩ2
(2.64)
we write explicitly the most general Kodama vector:
√
k 0 = γ(g 00 g 11 − g 01 g 10 )∂1 r = √1γ ∂1 r
√
k 1 = γ(−g 00 g 11 + g 01 g 10 )∂0 r = − √1γ ∂0 r
kθ = kψ = 0
(2.65)
(2.66)
(2.67)
44
CHAPTER 2. THE KODAMA VECTOR FIELD
in which r is again the radius that gives the invariant area and γ is the
determinant of the 2-metric associated to coordiantes x0 , x1 normal to the
spheres of symmetry. Coordinates 0 and 1 can be chosen accordingly to our
preferences (temporal-radial, null, double null and so on).
Substituting the general expression for the Kodama vector into the Killing
equation leads to:
gνα ∇µ k α + gµβ ∇ν k β =
gνα ∇µ (ασ ∇σ r) + gµβ ∇ν βσ ∇σ r =
(2.68)
gνα ασ ∇µ ∇σ r + gµβ βσ ∇ν ∇σ r = 0 .
Since all the indices are 0 or 1, one has the conditions
g00 Γλ01 ∂λ r = g01 Γλ01 ∂λ r
g10 Γλ01 ∂λ r = g11 Γλ00 + g00 Γλ11 ∂λ r
(2.69)
g10 Γλ11 ∂λ r = g11 Γλ10 ∂λ r .
One can see that using the so-called dirty Schwarzschild metric
1 2
dr − r2 dΩ2
A
A = (1 − 2m/r) ,
ds2 = e2ψ Adt2 −
(2.70)
(2.71)
Killing and Kodama vectors only coincide if we set ψ = constant in the
metric. Solving for the clean (ψ = 0) Schwarzschild solution in the LemaitreRylov gauge
ds2 = dt2 − B1 dr2 − B 2 dΩ2
3/2
B = 32 (r − t)
(2.72)
(2.73)
shows that in this case too1 the Kodama vector is a Killing vector.
For a Schwarzschild-de Sitter metric the Kodama vector is k µ = (1, 0, 0, 0)
and also in this case the above criterion shows that this is a Killing vector
too.
Solving this equation in a flat Friedmann-Robertson-Walker (FRW) universe with metric given by
(2.74)
ds2 = dt2 − a2 (t) dr2 + r2 dθ2 + sin2 θ dφ2
one finds out that the Kodama vector is a Killing vector only if aä = aȧ (a
is the scale factor), i.e. when the universe is de Sitter.
1
This gauge is somehow unusual since the spherical radius is a function of time.
2.2. THE KODAMA VECTOR FIELD
2.2.1
45
Which surface gravity?
In [35] Hayward provides a new definition of surface gravity:
1
1
κH = ∇µ ∇µ |γ r = 2|γ r ,
2
2
(2.75)
where the d’Alembertian operator is taken in the 2-metric (time-radius) and
r is the area radius. According to the author this “gives a new definition
of surface gravity for spherically symmetric black holes, with the same form
as the usual stationary definitions involving the Killing vector on the Killing
horizon, but instead using the Kodama vector on the trapping horizon [...] A
trapping horizon is said to be outer, degenerate or inner as ∇2 r > 0, ∇2 r = 0
or ∇2 r < 0 respectively”. We just remind the definition of surface gravity
κX as can be found in [32] in terms of Killing vectors X µ :
p
∇µ V ∇µ V ,
p
V := −X µ Xµ .
κX =
(2.76)
(2.77)
At this point it might be useful to gather all the ingredients to make a
comparison that shows the main differences between the two definitions of
surface gravity. We “empirically” approach the problem of evaluating the
surface gravity by using:
• 2 kind of spherically symmetric metrics: stationary or dynamical, keeping in mind there are dynamical metrics that can be written in a static
way taking “pictures” of the universe at different times, such as it happens in FRW metrics
• 2 formulas for the surface gravity: the usual one and the new definition
given by Hayward (κH = 12 2r)
• 2 vector fields: Killing and Kodama
Of course we could use a very general metric, compute everything and then
simplify according to whether it is static, dynamical or whatever. Despite
being more general, this risks to distract from the main issue. Also consider
that calculating the surface gravity by means of Hayward’s expression does
not require any particular vector, so this shifts the question from “which
vector do we need?” to “is Hayward’s surface gravity correct?” We will
concentrate on two spherically symmetric metrics: the dirty metric (2.70)
and the geometrically flat Friedmann-Robertson-Walker (FRW) metric in its
46
CHAPTER 2. THE KODAMA VECTOR FIELD
“dynamical” version (2.74). Now we directly evaluate the 6 possible combinations for the surface gravity. We will define
1
κH ≡ 2r
2
(2.78)
where r is the physical radius of the invariant area, and
p
(2.79)
κY ≡ ∂µ V ∂ µ V
p
with V = −Yµ Y µ and Y can be the Kodama vector K or the Killing vector
X. Here are the results.
Static dirty metric
• κH =
ψ0
A
2
+ 12 A0
• the Kodama vector is (e−ψ , 0, 0, 0) and
κK = 21 A0
• the Killing vector is (1, 0, 0, 0) and
κX = 12 eψ A0 + ψ 0 eψ A
Dynamical FRW metric
• κH = − 12 (H +
Ḣ
H
+ 1)
• the Kodama vector is (1,
0, 0):
r−Hr,
2
Ḣ
κK = (H 2 r2 a2 − 1)−1/2 − H
− 2Ḣ, and this diverges in the limit
r→
1
aH
• κX with a test vector (1, 0, 0, 0): κX = 0
It is then clear by comparison that Hayward’s surface gravity only matches
the usual definition of surface gavity when the metric is static and clean,
i.e. when the Kodama vector reduces to the Killing vector. In dynamical
scenarios, when the Kodama vector should be useful, it seems that we have
two different choices for the surface gravity. Of course, Hayward’s surface
gravity gives the correct outcome only in a very special case, and there is no
way to grant that it is the right extension of the usual surface gravity, since it
does not match the well-know expression for κ in the dirty case. Because of
this discrepancies, we’ll try to better understand the meaning of the Kodama
vector in another scenario: the particle detection by an accelerated observer.
2.3. UNRUH RADIATION
2.3
47
Unruh radiation
A key concepts of Physics – no matter if classical or quantum – is the concept
of particle. The question “What is a particle?” is so important in our atomistic viewpoint that even in Quantum Field Theory (QFT) we feel necessary
to find an answer.
As far as gravitation is not considered (an approximation which turns
out to be often natural since gravity is the weakest known interaction),
the answer runs straight without many accidents: in this case, in fact,
the spacetime where quantum fields propagate is Minkowskian. It is well
known [39] that Minkowski spacetime possesses a rectangular coordinate system (t, x, y, z) naturally associated with the Poincaré group, whose action
leaves the Minkowski line element unchanged. The vector field ∂t is a Killing
vector of Minkowski spacetime orthogonal to the space-like hypersurfaces t =
constant and the wave modes uk ∝ exp(i ωk t − k · x) are eigenfunctions of
this Killing vector with eigenvalues i ω. Thus, a particle mode solution in
Minkowski space is one which is positive frequency (ω > 0) with respect to
the time coordinate t. Under Poincaré transformations, positive frequency
solutions transform to positive frequency solutions and the concept of particle
is the same for every inertial observer, in the sense that all inertial observers
agree on the number of particles present. Further, the Minkowski vacuum
state, defined as the state with no particles present, is invariant under the
Poincaré group.
Problems arise as one turns gravity on or in the presence of an accelerated observer. Equivalence principle equates (locally) a gravitational field
with a uniformly accelerating reference frame, and as shown by Rindler [33]
an accelerated rod in flat spacetime perceives the same physics as a static
observer in Schwarzschild spacetime, being the two cases formally equivalent.
In curved spacetime the Poincaré group is no longer a symmetry group. In
general, there are no Killing vectors with which to define positive frequency
modes and no coordinate choice is available to make the field decomposition
in some modes more natural than others. This, of course, is not just an
accident but is rooted in the same guiding principle of general relativity:
that coordinate systems are physically irrelevant.
As a possible way out, DeWitt and others suggested an operational definition of a particle: “a particle is something that can be detected by a particle
detector”. The particle detector proposed by Unruh [40] and later, in simplified version, by DeWitt [41] can be described as a quantum mechanical
particle with many energy levels linearly coupled to a massless scalar field
via a monopole moment operator. The particle is accelerated in Minkowski
vacuum and plays the role of the Rindler observer [33]. In Minkwoski coor-
48
CHAPTER 2. THE KODAMA VECTOR FIELD
dinates {t, x}, the trajectory of the accelerated particle/observer/detector is
given by the coordinate transformations

eaξ


t
=
sinh(aT )


a
,
(2.80)

aξ


 x = e cosh(aT )
a
where ae−aξ is the acceleration as measured at coordinate ξ (in the accelerated
detector’s rest frame one has ξ = 0). This leads to

∂t

t
aξ


 ∂T ≡ ũ = e cosh(aT )
(2.81)


∂x

x
aξ

≡ ũ = e sinh(aT )
∂T
with (ũt )2 − (ũx )2 = e2aξ . The Minkowksi line element in the coordinates
{T, ξ} is
ds2 = e2aξ dT 2 − dξ 2 ,
(2.82)
and the proper time of the Rindler observer
τ = eaξ T .
(2.83)
It is then easy to derive the components of the four-velocity and four-acceleration,
 t
 t
 u = cosh(ae−aξ τ )
 a = ae−aξ sinh(ae−aξ τ )
(2.84)
 x
 x
u = sinh(ae−aξ τ )
a = ae−aξ cosh(ae−aξ τ ) .
Therefore
(at )2 − (ax )2 = −a2 e−2aξ ,
aµ uµ = 0 ,
(2.85)
and we can check that the acceleration is ae−aξ .
Note that, by choosing ξ = 0, the parameter a equals the proper acceleration and the Rindler trajectory reduces to the simpler form


 t = 1 sinh(aτ )


a


1

 x = cosh(aτ ) ,
a
2.3. UNRUH RADIATION
49
without loss of generality.
Now let us consider a massless scalar field φ with Hamiltonian Ĥφ obeying
the massless Klein-Gordon equation. The free field operator is expanded in
terms of a complete orthonormal set of solutions to the field equation as
Z
dk −i(ωk t−k·x)
1
† i(ωk t−k·x)
√
φ̂(t, x) =
â
e
+
â
e
,
(2.86)
k
3
k
2ωk
(2π) 2
where, in the massless case, ωk = |k|. Field quantization is realized by
imposing the usual commutation relations on the creation and annihilation
operators,
[âk , â†k0 ] = δ 3 (k − k0 ) ,
[âk , âk0 ] = 0 = [â†k , â†k0 ] .
(2.87)
The Minkowski vacuum is the state | 0 i annihilated by âk , for all k.
The detector is a quantum mechanical system with a set of energy eigenstates {| 0 id , | Ei i} which moves along a prescribed classical trajectory t =
t(τ ), x = x(τ ), where τ is the detector’s proper time. The detector is coupled
to the scalar field φ via the interaction Hamiltonian
Ĥint = λ M̂ (τ )φ̂(τ ) .
(2.88)
λ is treated here as a small parameter while M̂ (τ ) is the detector’s monopole
moment operator whose evolution is provided by
M̂ (τ ) = eiĤd τ M̂ (0) e−iĤd τ ,
(2.89)
Ĥd being the detector’s Hamiltonian. This model is also known as the pointlike detector since the interaction takes place at a point along the given
trajectory at any given time.
Suppose that at time τ0 the detector and the field are in the product state
| 0, E0 i = | 0 i| E0 i, where | E0 i is a detector state with energy E0 [42]. We
want to know the probability that at a later time τ1 > τ0 the detector is
found in the state | E1 i with energy E1 ≷ E0 , no matter what is the final
state of the field φ. The answer is provided by the so-called interaction picture where we make both operators and states to evolve in time according to
the following understandings: operators evolution is governed by free Hamiltonians; states evolution is governed by the Schrödinger equation depending
on the interaction Hamiltonian, that is
i
d
| ϕ(τ ) i = Ĥint | ϕ(τ ) i .
dτ
(2.90)
50
CHAPTER 2. THE KODAMA VECTOR FIELD
The amplitude for the transition from the state | 0, E0 i at time τ = τ0 to
the state | ϕ, E1 i at time τ = τ1 is then provided by
Z τ1
dτ Ĥint (τ ) | 0, E0 i , (2.91)
h ϕ, E1 | 0, E0 i = h ϕ, E1 |T̂ exp −i
τ0
where T̂ is the time-ordering operator. To first order in perturbation theory,
we get
h ϕ, E1 | 0, E0 i = h ϕ, E1 |Î| 0, E0 i −
(2.92)
Z τ1
dτ eiĤd τ M̂ (0) e−iĤd τ φ̂(τ )| 0, E0 i + . . .
−i λ h ϕ, E1 |
τ0
= −i λ h E1 |M̂ (0)| E0 i ·
Z τ1
dτ eiτ (E1 −E0 ) h ϕ |φ̂(τ )| 0 i + . . .
·
(2.93)
(2.94)
τ0
The transition probability to all possible finale states of the field φ is given by
squaring (2.94) and summing over the complete set {| ϕ i} of final unobserved
field states,
X
|h ϕ, E1 | 0, E0 i|2 = λ2 |h E1 |M̂ (0)| E0 i|2 ·
(2.95)
ϕ
Z
τ1
·
Z
τ1
dτ
τ0
0
dτ 0 e−i(E1 −E0 )(τ −τ ) ·
(2.96)
τ0
·h 0 |φ̂(τ )φ̂(τ 0 )| 0 i .
(2.97)
This expression has two parts: the pre-factor λ2 |h E1 |M̂ (0)| E0 i|2 which
depends only on the peculiar details of the detector and the response function
Z τ1 Z τ1
0
Rτ0 ,τ1 (∆E) =
dτ
dτ 0 e−i∆E(τ −τ ) h 0 |φ̂(τ )φ̂(τ 0 )| 0 i ,
(2.98)
τ0
τ0
which is insensitive to the internal structure of the detector and is thus the
same for all possible detectors. Here, we have set the energy gap ∆E ≡
E1 − E0 ≷ 0 for excitations or decay, respectively. ¿From now on, we will
only consider the model-independent response function.
Introducing new coordinates u := τ, s := τ − τ 0 for τ > τ 0 and u :=
τ 0 , s := τ 0 − τ for τ 0 > τ , the response function can be re-written as
Z τ1
Z u−τ0
Rτ0 ,τ1 (∆E) = 2
du
ds Re e−i∆Es h 0 |φ̂(u)φ̂(u − s)| 0 i , (2.99)
τ0
0
2.4. UNRUH EFFECT ALONG THE KODAMA TRAJECTORY
51
having used h 0 |φ̂(τ 0 )φ̂(τ )| 0 i = h 0 |φ̂(τ )φ̂(τ 0 )| 0 i∗ , since φ̂ is a self-adjoint
operator. Eq. (2.99) can be differentiated with respect to τ1 in order to obtain
the transition rate
Z τ −τ0
−i∆Es
ds Re e
h 0 |φ̂(τ )φ̂(τ − s)| 0 i ,
(2.100)
Ṙτ0 ,τ (∆E) = 2
0
where we set τ1 ≡ τ . If the correlation function h 0 |φ̂(τ )φ̂(τ − s)| 0 i is
invariant under τ -translations, (2.100) can be further simplified,
Z τ −τ0
ds e−i∆Es h 0 |φ̂(s)φ̂(0)| 0 i .
(2.101)
Ṙτ0 ,τ (∆E) =
−(τ −τ0 )
The correlation function h 0 |φ̂(x)φ̂(x0 )| 0 i which appears in these expressions is the positive frequency Wightman function that can be obtained
from (2.86),
Z
1
dk −iωk (t−t0 )+ik·(x−x0 )
0
e
.
(2.102)
h 0 |φ̂(x)φ̂(x )| 0 i =
3
(2π)
2ωk
The integral in |k| contains UV divergences and can be regularized [39] by
introducing the exponential cut-off e−|k| , with > 0 and small, in the high
frequency modes. The resulting expression is
h 0 |φ̂(x(τ ))φ̂(x(τ 0 ))| 0 i =
1/4π 2
|x(τ ) − x(τ 0 )|2 − [t(τ ) − t(τ 0 ) − i]2
≡ W (x(τ ), x(τ 0 )) ,
(2.103)
so that, we finally have
Z
Ṙτ0 ,τ (∆E) = lim+
→0
2.4
τ −τ0
ds e−i∆Es W (x(s), x(0)) .
(2.104)
−(τ −τ0 )
Unruh effect along the Kodama trajectory
Our aim is to study the Unruh radiation as seen by an observer accelerated
along a Kodama trajectory in de Sitter spacetime. For an observer comoving
with the cosmic fluid, the de Sitter metric reads 2
ds2 = dt2 − e2Ht dr2 .
2
(2.105)
We consider a two-dimensional spacetime for simplicity. Alternatively, r = x1 can be
viewed as a cartesian coordinate on the sub-manifold x2 = x3 = 0.
52
CHAPTER 2. THE KODAMA VECTOR FIELD
We are here interested in a detector moving along the trajectory
r eHt = K ,
(2.106)
where K is constant. Its peculiar velocity is then given by
v=
de−Ht
dr
=K
= −HKe−Ht = −Hr .
dt
dt
(2.107)
From uµ uµ = 1, we obtain the dilatation factor
1
1
1
γ=√
=√
=√
2
2Ht
2
2
2Ht
1 − K 2H 2
1−v e
1−H r e
and the four-velocity of the detector in the de Sitter frame is
1
Hr
µ
u = (γ, γ v) = √
, −√
.
1 − H 2K 2
1 − H 2K 2
(2.108)
(2.109)
Analogously, the four-acceleration is
at = ut ∂t ut + ur ∂r ut + Γtrr ur ur
Hv 2 e2Ht
H 3K 2
H 3 r2 e2Ht
=
=
=
1 − H 2K 2
1 − H 2K 2
1 − H 2K 2
ar = ut ∂t ur + ur ∂r ur + 2Γrrt ut ur
= γ 4 Hv 3 e2Ht − γ 4 Hv 3 e2Ht − γ 2 Hv + 2Hu0 u1
= −γ 2 Hv + 2γ 2 Hv
Hv
H 2r
=−
=
1 − H 2K 2
1 − H 2K 2
H 4K 2
aµ aµ = γ 4 H 4 K 2 (H 2 K 2 − 1) = −
.
1 − H 2K 2
(2.110)
(2.111)
(2.112)
In the following we shall need to relate a change in acceleration (δa) to a
change in the trajectory (δr) at fixed time, namely

δat
2H 3 re2Ht

t


δa
=
δr
=
δr


δr
(1 − H 2 K 2 )2


δar
1 + H 2K 2


 δar =
δr = −H 2
δr .
δr
1 − H 2K 2
(2.113)
2.4. UNRUH EFFECT ALONG THE KODAMA TRAJECTORY
2.4.1
53
Pointlike detector
Let us apply the above construction to Kodama detectors in de Sitter spacetime. We first recall that de Sitter metric in the static patch is
−1 2
dr̄ − r̄2 dΩ2 ,
(2.114)
ds2 = 1 − H 2 r̄2 dt2 − 1 − H 2 r̄2
and in the cosmological global system
ds2 = dτ 2 − H −2 cosh2 (Hτ ) dΩ23 .
(2.115)
An easy calculation then gives the equivalent definitions of the Kodama trajectory (2.106)
r = K e−H t
⇐⇒
r̄ = K
⇐⇒
sin χ =
KH
.
cosh(Hτ )
(2.116)
Conceptually, the relevant equality is the second one: it means that the
Kodama observers are just the stationary de Sitter observers at constant
distance from their cosmological horizon. We know that these observers will
perceive a thermal bath at de Sitter temperature T = H/2π, so this must be
true in the inflationary patch as well.
We can confirm this expectation rewriting Eq. (2.103) by making use of
the following relations for de Sitter space
√
η = −H −1 e−H t , r = K e−Ht = −K H η, τ = t 1 − K 2 H 2 . (2.117)
Then, provided 1 − K 2 H 2 > 0, the Wightman function (2.103) becomes
W (x, x0 ) = −
1
H2
1
.
0)
2
H(t+t
2
2
−Ht
4π e
(1 − K H )(e
− e−Ht0 − i)2
(2.118)
and, in the limit of τ0 → −∞, the detector transition rate (2.104) becomes
√
Z +∞
exp(−i∆E 1 − K 2 H 2 s)
H2
Ṙ(∆E) = − 2 lim+
ds
.
(2.119)
4π →0
(eHs/2 − e−Hs/2 − i)2
−∞
As long as H > 0 (expanding universe) we can write the denominator as
eH s/2 − e−H s/2 − i
2
= 4 sinh2 [H (s − i)/2] .
(2.120)
This function has infinitely many double poles in the complex s-plane, namely
for s = sj with
2πi
sj =
j , j∈Z.
(2.121)
H
54
CHAPTER 2. THE KODAMA VECTOR FIELD
Since we are interested in the case of ∆E > 0, we can close the contour
of integration in the lower half plane, summing over the residues of all the
double poles in the lower complex s-plane, with the exception of the s = 0
pole which has been slightly displaced above the integration path by the
i-prescription. The well known result turns out to be confirmed, namely
√
√
∆E 1 − K 2 H 2 exp 2Hπ ∆E 1 − K 2 H 2
,
(2.122)
Ṙ(∆E) =
√
2
2
exp 2 π ∆E H1−K H − 1
showing the presence of a cosmological Unruh effect with de Sitter temperature
H
T =
,
(2.123)
2π
√
red-shifted by the Tolman factor 1 − K 2 H 2 , here appearing as a Doppler
shift due to the proper motion of the detector. In fact we remember after
Eq (2.116) that K is also the value of the static coordinate r̄ owned by the
detectors relative to the static patch. Another intriguing formula can be
written if we recall the value (2.112) of the acceleration: one easily sees that
1 √ 2
T
√
=
A + H2
2π
1 − H 2K 2
(2.124)
One can interpret this formula by saying that, actually, the temperature is
due to a mixing of a pure Unruh effect (the acceleration term) plus a cosmological expansion term (the H term) and it is the de Sitter version [43]of a
formula discovered by Deser & Levine for detectors in anti-de Sitter space[44].
Alternatively, we can understand this effect as the transition from cosmological energy ∆E, conjugated to cosmic de Sitter time, to the energy
√
(2.125)
∆E 1 − K 2 H 2
as measured locally by Kodama’s observers.
2.4.2
Extended detector and backreaction
We now repeat the previous analysis assuming the detector’s size is not a priori negligible. In order to simplify the computation, we still assume spherical
symmetry and the detector therefore only extends along one dimension. We
will not display all the details but focus on the main differences.
It is easy to see that a detector moving along a Kodama trajectory (2.106)
in an expanding de Sitter universe, has the same dynamics of a particle which
moves along the separatrix in the potential of an inverted harmonic oscillator.
2.4. UNRUH EFFECT ALONG THE KODAMA TRAJECTORY
55
From the equation of motion (2.106), we can therefore introduce the effective
Lagrangian
Liho = m
d2 r
+ H 2 r2
dt2
,
(2.126)
where m is a parameter with mass dimensions whose physical meaning will be
clarified later. Our detector is initially (at t = 0) represented by a Gaussian
wave packet of size b peaked around r = K,
H K m r (r − K)2
−
exp −i
~
2 b2
p √
ψ(t, r) =
b π
,
(2.127)
which is then propagated to later times by the propagator [37]
s
0
G(t, r; 0, r ) =
H m [(r2 − r02 ) cosh(H t) − 2 r r0 ]
iH m
exp i
.
2 π ~ sinh(H t)
2 ~ sinh(H t)
The complete expression of the detector’s propagated wavefunction is rather
cumbersome, however we notice that its square modulus yields
|ψ(t, r)| ∼ exp −
2
2 b2 H 2 m2 (r − K e−H t )2
b4 H 2 m2 − ~2 + (~2 + b4 H 2 m2 ) cosh(H t)
, (2.128)
and the classical behavior is properly recovered in the limit ~ → 0 followed
by b → 0 [37], in which the detector’s wavefunction ψ(r, t) reproduces the
usual delta-function peaked on the classical trajectory employed previously.
However, in order to study the probability for the detector to absorb a
scalar quantum and make a transition between two different trajectories (parameterized by different mi and Ki ), one needs to compute the transition
amplitude for finite b and ~ (otherwise the result would automatically vanish). The detector now interacts with the quantized scalar field ϕ = ϕ(t, r)
according to
Lint =
1
Q (ψ2∗ ψ1 + ψ2 ψ1∗ ) ϕ ,
2
(2.129)
where Q is a coupling constant and ψi = ψi (t, r) two possible states of the
detector corresponding to different trajectories ri = Ki e−H t and mass pa-
56
CHAPTER 2. THE KODAMA VECTOR FIELD
rameters mi 3 . We assume the difference between the two states is small,


 m1 = m − 21 δm
 K1 = K − 12 δK
(2.130)


K2 = K + 12 δK
m2 = m + 21 δm ,
and expand to leading order in δK and δm and, subsequently, for short times
(H t ∼ H t0 1). In particular, one obtains
ψ2∗
ψ1 (t) ψ1∗
H2 K2
0
ψ2 (t ) ∼ exp −i
δm (t − t ) ,
~
0
(2.131)
in which we have evaluated the phase for r along the average trajectory
between r1 and r2 . Upon comparing with the result obtained for the pointlike case, we immediately recognize that
H2 K2 m = E
√
1 − H2 K2 ,
(2.132)
where E is the detector’s proper energy and
√
i
∗
∗
0
0
ψ2 ψ1 (t) ψ1 ψ2 (t ) ∼ exp − δE 1 − H 2 K 2 (t − t )
(2.133)
~
2 − H2 K2
0
+ exp +i
E δK (t − t ) . (2.134)
~ K3 H2
We recall from Ref. [38] that, requiring the analogue of the second factor
above equaled one, leads to the equation of motion for a uniformly accelerated
detector in Minkowski spacetime, namely m a = f and constant. Following
the same line of reasoning, we now obtain the equation of motion
δK = 0 .
(2.135)
This can be interpreted as meaning the Kodama trajectory is stable against
thermal emission of scalar quanta in the de Sitter background.
The transition probability per unit de Sitter time can finally be computed
by taking the classical limit, in which one recovers the same result as in the
previous Section, namely Eq. (2.122) with ∆E = δE.
3
A fundamental difference with respect to the Unruh effect analyzed in Ref. [38] is that
the acceleration parameter H is not varied here, since it is a property of the background
spacetime. A change δK implies a change in the detector’s acceleration according to
Eq. (2.112).
2.5. CONCLUSIONS AND OUTLOOK
2.5
57
Conclusions and outlook
After 30 years the factual utility of Kodama vector is still uncertain. When a
Killing vector field is present, the Kodama vector seems to mimic its properties. On the other side, when there is no Killing vector, we have no comparison terms to decide whether this “new” vector field is meanin or not. The
Schwarzschild dirty metric (2.70) is the only proving ground on which one
has two distinct choices but there is no known criterion to decide which is
the right one.
When introducing the Kodama vector in the study of the Unruh effect,
one gathers few more informations. The Kodama trajectory is not a freefalling trajectory and this adds a redshift factor to the horizon thermal energy
measured by the detector, as one expects. What is more interesting is the
absence of any backreaction on the detector. In first approximation it seems
like the detector does not recoil (actually: “jumps outward”) but rather
stays stable on its trajectory. To clarify this one needs to investigate the
backreaction at higher orders of approximation to be sure that this curious
effect is not due to the lack of precision in the computation.
58
CHAPTER 2. THE KODAMA VECTOR FIELD
Chapter 3
Light Black Holes
The possibility of detecting microscopic black holes is presented in this last
chapter. In recent times there has been great interest in this subject, due to
the birth of new theoretical scenarios and the attainment of new records in
high energy physics experiments.
In Section 3.1 we present a synthetic resumée of the main concepts behind
theories of gravitation with extra-dimensions.
In Section 3.2 we focus on the Randall-Sundrum (RS) model [48]
In Section 3.3 we present our research [45] on the possibility that tidally
charged black holes could be created or not at the LHC.
3.1
Gravity with extra dimensions
At very high energies, Einstein’s theory of general relativity is not able to
give an exact description of Nature, and quantum gravity must be introduced. There is not yet any accepted quantum gravity theory. Two main
candidates are string theory and loop quantum gravity, both still presenting
major flaws. One of the fundamental aspects of string theory is the need
for extra spatial dimensions. The first theory with extra dimensions is the
Kaluza-Klein theory that dates back to the 1920’s and whose aim was to get
the photon field from a fifth component of the metric tensor. In the 1980’s
the wide-spreading String Theory attracted more and more interest on extra dimensions. To match the empirical evidence that our world only 1+3
dimensions, one can assume that the extra dimensions are very small and
compactified: therefore they can be “seen” only at very high energy scales.
The observable universe is then a 1+3-surface (called “brane”) embedded
in a 1+3+d - dimensional spacetime (called “bulk”), and Standard Model
particles and fields would live on the brane while gravitational interaction
59
60
CHAPTER 3. LIGHT BLACK HOLES
is located in the whole bulk. p-branes are branes with p spatial dimensions (then a 2-brane is a common “membrane” and a 1-brane is a string),
whereas D-branes (Dirichlet-branes) are surfaces where open string can end
on. Opens strings are the source of fields that generate the Standard Model.
A most exciting feature of models with large extra dimensions [46, 48] is
that the fundamental scale of gravity MG could be much smaller than the
Planck mass MP and as low as the electro-weak scale (MG ' 1 TeV), hence
solving the hierarchy problem. This can be seen by considering the action S
of the extra-dimensional theory (with d extra dimensions):
Z
p
2+d
(3.1)
S4+d = −MG
d4+d x g (4+d) R(4+d) .
Here g (4+d) and R(4+d) are the determinant of the metric and the Ricci scalar
in 4 + d dimensions, whereas MG is the new scale of gravity, needed to make
the action dimensionless. For d = 0 one recover the usual Planck mass
MG2 = MP2 ∼ 1019 GeV.
The static weak field limit of the field equations gives the Poisson equation
in 4 + d dimensions, whose solution is the gravitational potential
V (r) ∼
8π
MG2+d r1+d
.
(3.2)
Given L the length scale of the extra dimensions, on large scales (r > L) the
potential V (r) reduces to the usual form 1/r. By contrast on small scales
(r < L) all dimensions contribute and give the 4 + d dimensional potential
V (r) ∼ 1/r1+d . In virtue of (3.2) one can also write
MP2 = MG2+d V
(3.3)
where V ∼ rd is the volume of the extra dimensions. The dilution of gravity through the other dimensions would explain its relative weakness. How
“large” are these extra dimensions? Newtonian gravity has been tested down
to scales of one tenth of a millimeter. There, molecular forces are too strong
and prevent better measurements of the gravitational attraction. According
to (3.3) one has
1
r∼
MG
M
MG
2/d
.
(3.4)
Using this expression one can clearly see that if MG ∼ 1 TeV and d = 1, the
extra (flat) dimension would be of astronomical scales, then it would have
already been “detected” since longtime. For d = 2 anyway at the scale goes
3.2. THE RANDALL-SUNDRUM MODEL
61
down to millimeters. Therefore if there are two extra dimensions they might
be detected in present experiments at the TeV energy. For n > 2 the size of
the extra dimensions is less than 10−6 cm and MG could really be found at
the TeV scale without disagreeing with experimental evidences.
3.2
The Randall-Sundrum model
+y
0
-y
compactication
There exist actually different string theories, but it is supposed that they
are just limits of a single theory, the M theory. At low energies, M theory
can be approximated by 1+10 dimensional supergravity. In the HoravaWitten solution gauge fields of the standard model are confined on two 1+9
branes found at the end points of an S 1 /Z2 orbifold, i.e. a circle whose
points are identified two-by-two across a diameter (see figure 3.1). Of the
R
R
Figure 3.1: Representation of the S 1 /Z2 orbifold
9 spatial dimensions of the branes, 3 are the ordinary ones, whereas the
other 6 are compactified on very small scales. The Randall-Sundrum (RS)
model constitutes an effective 5-dimensional solution of Horava-Witten’s, the
difference being that in RS there is a “preferred” extra dimension, while at
the same time the others are negligible. The metric is obtained as follow.
Let’s denote by y the coordinate labeling the extra dimension: we want it to
be compactified with period πR ≡ L (here R is the compactification radius).
The extrema of this compactified circle are of course in y = 0 and y = L;
there are located the 3 branes where the gauge fields “live”. Then we have
two branes, at a distance L one from the other, enclosing a 5D bulk. We
start assuming that the action is the sum of the Einstein-Hilbert action SH
62
CHAPTER 3. LIGHT BLACK HOLES
and a matter part SM :
Z
S = SH + SM =
4
+L
Z
dx
√
dy −g(MG3 R − Λ) ,
(3.5)
−L
where MG is the fundamental scale of gravity, R the Ricci curvature scalar
and g the determinant of the 5D metric. The metric must preserve Poincaré
invariance on the brane; therefore we make the ansatz
ds2 = e−2A(y) ηµν dxµ dxν + dy 2
(3.6)
where greek indices run in the usual 4D spacetime. The warp factor e−2A(y)
is written as an exponential for convenience and its dependance on the extra
dimension y makes it non-factorizable (i.e.: the metric is not the product of
Minkowski spacetime with a sphere S 1 ).
By solving the 5D Einstein’s equations
1
GM N = RM N − gM N R = κ2 TM N
2
(3.7)
with M, N = 0, 1, 2, 3, 4 we find the 5-dimensional Newton constant
κ2 ≡
1
2MG3
(3.8)
and in particular the new (fifth) component of Einstein’s equations gives
2
G55 = 6A0 = −
Λ
Λ
2
⇒ A0 = −
≡ k2 .
3
3
2MG
12MG
(3.9)
This requires the bulk cosmological constant to be negative and defines A(y).
Requiring invariance under y 7→ −y (the orbifold symmetry) one finally finds:
A(y) = k|y|
(3.10)
from which the correct metric follows:
ds2 = e−2k|y| ηµν dxµ dxν + dy 2 .
(3.11)
Anyway we still need some corrections to the original action. We can see
that the Gµν components of Einstein’s equations contain first and second
derivatives of A(y):
2
2
Gµν = (6A0 − 3A00 )gµν
A0 = sgn(y)k
A00 = 2k(δ(y) − δ(y − L))
(3.12)
(3.13)
(3.14)
3.2. THE RANDALL-SUNDRUM MODEL
63
where we have kept account of the discontinuities of A in y = 0 and y = L.
These two delta terms found in Einstein’s equations need a counterpart in
the action, or their presence would be unexplained. For this reason we add to
the action (3.5) one term for each brane, corresponding to the brane tensions
λ1 and λ2 :
Z
Z
√
√
4
(3.15)
S1 = − d x −g1 λ1 = − d4 xdy −g1 λ1 δ(y)
Z
Z
√
√
4
S2 = − d x −g2 λ2 = − d4 xdy −g2 λ2 δ(y)
(3.16)
whre g1 and g1 is the determinant of the metric induced on the branes. To
satisfy Einstein’s equations one must have
λ1 = −λ2 = 12kMG3
(3.17)
and because of the definition of k we gets
Λ=−
λ21
.
12MG3
(3.18)
The positive tension brane is said to be the hidden brane, whereas the
Figure 3.2: Representation of the two branes
64
CHAPTER 3. LIGHT BLACK HOLES
negative tension brane is the visible brane (see figure 3.2). Because of the
warp factor, the effective Plank scale MG on the visible brane at y = L is
given by
M3
(3.19)
MP2 = G 1 − e−2Lk
k
All this makes the 4D universe flat and static, since the four-dimensional
brane sources are balanced by the 5D bulk cosmological constant Λ so that
the effective 4D cosmological constant is vanishing. This process of “flattening” the bulk by transferring the cosmological constant from the bulk to the
brane is called “off-loading”.
3.2.1
The tidally charged black hole
Finding nontrivial analytical solutions in the RS model is not an easy task.
There exists anyway an exact solution for a static black hole localized on a
3-brane in 5D gravity [78]. The field equations in the bulk are given by
h
i
G̃AB = κ̃2 −Λ̃g̃AB + δ(y)(−λgAB + TAB )
(3.20)
where the tildes denote bulk quantities and capital indices run from 0 to
4, with 4 ≡ y the extra dimension. The 5D Planck mass MG enters via
κ̃2 = 8π/MG3 . The brane tension is denoted by λ, whereas Λ̃ is the bulk
cosmological constant. The brane is found at y = 0. The field equations
induced on the brane can be derived from (3.20) and present themselves as
a modification of the standard Einstein equations [77]:
Gµν = −Λgµν + κ2 Tµν + κ̃4 Sµν − Eµν
(3.21)
where κ2 = 8π/MP2 . One also finds the useful relations:
r 3 MG2
4π
4π
√
λ2 .
MG ,
Λ = 3 Λ̃ +
(3.22)
MP =
4π
MG
3MG3
λ
In vacuum one has Tµν = Sµν = 0, and in order to have the brane cosmological constant Λ = 0 we set the bulk cosmological constant to Λ̃ = −4πλ2 /3MG3 .
Doing so, eq. (3.21) reduces to
Rµν = −Eµν ,
Rµµ = Eµµ
(3.23)
where Eµν is the bulk Weyl tensor projeted on the brane. Together with this
latter expression, a vacuum solution outside a mass localized on the brane
must satisfy ∇µ Eµν = 0. In general we can decompose Eµν as
4 κ̃
1
U(uµ uν + hµν ) + Pµν + 2Q(µ uν) .
(3.24)
Eµν = −
κ
3
3.2. THE RANDALL-SUNDRUM MODEL
65
Here uµ is a chosen 4-velocity vector field, hµν = gµν + uµ uν and round
brackets denote symmetrization. We also defined the energy density on the
brane by
κ 4
Eµν uµ uν .
(3.25)
U =−
κ̃
This energy density arises on the brane from the free gravitational field in
the bulk, and can be bot positive or negative. In the same way, there is an
effective anisotropic stress on the brane:
κ 4
1
(3.26)
Pµν = −
[h(µα hν)β − hµν hαβ ]Eαβ .
κ̃
3
The energy flux from the free gravitational field in the bulk is represented by
κ 4
Qµ =
hµα Eαβ uβ .
(3.27)
κ̃
If uµ is oriented along a Killing vector field, the vacuum is static and one has
Qµ = 0. We then define the 4-acceleration Aµ = uν ∇ν uµ . If the spacetime
is spherically symmetric and static, the one has
Aµ = A(r)r̂µ ,
1
Pµν = P(r)[r̂µ r̂ν − hµν ]
3
(3.28)
where r̂µ is a unit radial vector and r is the areal radius. Using the conservation law for the Weyl tensor and the given decomposition, one finds
κ 4 Q
1
U=
=− P ,
(3.29)
4
κ̃ r
2
with Q is the tidal charge to be determined. We now recall the most general
spherically symmetric line element
ds2 = −A(r)dt2 + B(r)dr2 + r2 dΩ2
(3.30)
and the modified Schwarzschild potential Φ
Φ=−
M
Q
+
.
MP2 r 2r2
(3.31)
Collecting all the above relations one arrives at
α
β
+ 2
r
r
β
= −Eφφ = 4
r
A = B −1 = 1 +
Et t = Er r = −Eθ θ
(3.32)
(3.33)
66
CHAPTER 3. LIGHT BLACK HOLES
where α can be determined in the far-field Newtonian limit α = −2M/MP2
and β is given by (3.24) and (3.29): β = Q. Finally, the metric of the tidally
charged black hole reads:
1
dr2 + r2 dΩ2
ds2 = −A(r)dt2 +
A(r)
q
2M 1
1
+
A(r) = 1 −
2
2
MP r
MG r2
(3.34)
(3.35)
where q = QMG2 is a dimensionless tidal charge parameter.
The 4D horizons of this solution depends on the sign of q. For q > 0 there
is a striking resemblance to the Reissner-Nördstrom solution for electrically
charged black holes:
s
"
#
M
MP4
(3.36)
r± = 2 1 ± 1 − q 2 2 .
MP
M MG
Both horizons lie inside the Schwarzschild horizon: 0 ≤ r− ≤ r+ ≤ rS =
2M/MP2 . The square root gives an upper limit for q:
q ≤ qmax =
MG
MP
M
MP
2
.
(3.37)
The case qith q < 0 is not contemplated in 4D general relativity, but in this
case there is one, with just one horizon:
s
"
#
M
MP4
r+ = 2 1 + 1 − q 2 2 > rS .
(3.38)
MP
M MG
The negative tidal charge then increase the horizon area and entropy, while
reducing the black hole temperature. One important difference is that when
q < 0 the singularity in the origin is spacelike just like in the usual Schwarzschild
case, whereas for q > 0 the singularity is timelike.
3.3
Light black holes
Due to the lowering of the effective scale of gravity, microscopic black holes
may be created in our accelerators [47, 49, 50, 51, 52] with a production cross
2
section given, according to the hoop conjecture [53], by σ ∼ RH
[49, 51],
where RH is the radius of the forming horizon and is bounded below by
the wavelength of typical quantum fluctuations [49, 54, 55]. After the black
3.3. LIGHT BLACK HOLES
67
hole has formed (and possible transients), the Hawking radiation [56] is expected to set off, with the most common description based on the canonical
Planckian distribution for the emitted particles and consequent instantaneous decay [51]. This standard picture and a variety of refinements have
been implemented in the most recent Monte Carlo codes [57] and the outcome is being confronted with Large Hadron Collider (LHC) data [58, 59].
One problem with the canonical description is that the black hole specific
heat is in general negative and one should therefore use the more consistent microcanonical description [60, 61], which however requires an explicit
counting of the black hole microscopic degrees of freedom (or degeneracy).
For this counting, one may appeal to the area law [62], from which it
can be inferred the horizon area describes the black hole degeneracy [63, 64].
The area–entropy correspondence has inspired the holographic principle [65]
in order to solve the black hole information paradox [66]. This principle
has widely been developed [67], and a theoretical support was found in the
AdS/CFT correspondence [68] that conjectures the equivalence of a string
theory with gravity in anti-de Sitter space with a quantum field theory without gravity on the boundary. In this letter we shall analyze the interplay
between the classicality condition that must be met in black hole formation
and the horizon area as a measure of the entropy of black holes in the braneworld [48]. Our results allow for the existence of “lightweight” microscopic
black holes (LBH) with mass below MG , or could explain the non existence of
black holes within the reach of LHC experiments [58, 59] even if MG ' 1 TeV.
The issue concerning the lowering of the minimum mass scale to values
that would make microscopic black hole production possible in our accelerators has been already considered from different points of view, for example,
in Refs. [49, 69]. In particular, warping of the extra spatial dimension was
identified in Ref. [69] as the possible cause of such lowering, which is precisely the Randall-Sundrum scenario [48] considered in the present work.
Successful black hole production in that context was however shown to occur if particles collide with their own orbifold images, and the generality, or
phenomenological relevance, of that argument therefore remains to be investigated. We must therefore point out that our approach here is different, in
that we are trying to derive a minimum black hole mass from the geometrical
properties of a candidate black hole metric discovered in Ref. [78], and we do
so without modeling collision processes (at the present stage). Eventually,
such processes will have to be investigated in more details, for example, by
supplementing the arguments of Refs. [55, 69] with the conclusions drawn
from the metric employed here, or by adapting the study of gravitational
collapse previously considered in Ref. [70] to the case of microscopic black
holes. In fact, only a fully dynamical description of black hole formation,
68
CHAPTER 3. LIGHT BLACK HOLES
a rather difficult task already at the purely classical level in any space-time
dimensions, and theory of gravity, will provide the much sought-after final
theoretical answer.
3.3.1
Compton classicality
A black hole is a classical space-time configuration and its production in a
collider is therefore a “classicalization” process in which quantum mechanical particles are trapped by gravitational self-interaction within the horizon [49, 54, 55]. Consequently, quantum fluctuations should be negligible for
the final state (of total energy M ) which sources such a metric. A widely
accepted condition of classicality is then expressed by assuming the Compton wavelength λC ' ~/M = `P MP /M 1 of the black hole, viewed as one
particle, is the lower bound for the “would-be horizon radius” RH , that is
RH & λC ,
(3.39)
where RH = RH (M ) depends on the specific black hole metric. In four
dimensions, using the Schwarzschild metric, one obtains
RH = 2 `P
MP
M
& `P
MP
M
⇒
M & MC ' MP ,
(3.40)
which is supported by perturbative calculations of scattering amplitudes for
particles with centre-mass energy M [55]. The above derivation does not
make full use of the space-time geometry and, in particular, neglects that,
for M approaching the scale MG , quantum fields should be affected by extraspatial dimensions (if they exist).
3.3.2
Entropic classicality
Another classicality argument can be given, which does not involve black
hole wavefunctions, but relies on Bekenstein’s conjectured correspondence
between the entropy of thermodynamical systems and the area of black hole
horizons [63]. Christoudolou [71] first pointed out that the irreducible mass
Mir of a Kerr black hole, i.e. the amount of energy that cannot be converted
into work by means ofpthe Penrose process
[72], is related to the horizon
√
2
area A as Mir = MP A/16 π `P ≡ Air . Now, in thermodynamics, an
increase in entropy is associated with a degradation of energy because the
work we can extract from the system is reduced. The similarity is clear,
1
We shall mostly use units with the Boltzmann constant kB = c = 1, GN = `P /MP
and ~ = `P MP = `G MG .
3.3. LIGHT BLACK HOLES
69
but goes beyond this simple statement. For a Schwarzschild black hole,
Mir = M and no energy at all can be extracted. Nonetheless, we can take
a collection of fully degraded subsystems (Schwarzschild black holes) and
still get some work out of them. In fact, if we merge two or more black
holes, the total horizon area must equal at least the sum of all their original
areas [62]. Denoting by Mi and Ai the initial irreducible masses and areas,
and by √
MF andp
AP
F the final
√
Pirreducible
Pmass and horizon area, we see that
A
<
A
=
MF = AF =
i
i i
i
i Mi . The final irreducible mass is
then less than the sum of all the initial irreducible masses: some more work
can be extracted by merging fully degraded black holes. The same occurs by
collecting thermodynamical systems that – individually – are fully degraded
but together can still provide work. Bekenstein [63] remarked how we can
clarify these similarities by invoking Shannon’s entropy
X
S=−
pn ln pn ,
(3.41)
n
where pn is the probability for a thermodynamical system to be found in the
n-th state. A thermodynamical system is described in terms of a few macroscopical variables (like energy, temperature and pressure). Once these variables are fixed, the system can nevertheless be described by a huge amount
of microscopically inequivalent states. Hence, entropy can be seen as the
lack of information about the actual internal structure of the system. Analogously, any four-dimensional black hole can be described in terms of three
macroscopic variables: mass, angular momentum and charge. All information about the matter which formed the black hole is lost beyond the horizon.
Because of properties shared by thermodynamical entropy and horizon area,
Bekenstein found the simplest expression (with dimensions of ~) which satisfies the conditions on the irreducible mass is
SBH =
MP A
.
16 π `P
(3.42)
Using a gedanken experiment, Bekenstein [73] further obtained the so-called
entropy bound SBH ≤ 2 π RH M , and this topic has by now been extended to
more general scenarios (for a review, see Ref. [74]).
From Eq. (3.42), we can now infer an entropic condition for black hole
classicality: a four-dimensional classical black hole should have a large degeneracy (in units of the Planck scale), that is
E
S̃(4)
2
SBH
4 π RH
≡
=
'
`P MP
16 π `2P
M
Meff
2
&1,
(3.43)
70
CHAPTER 3. LIGHT BLACK HOLES
which, for the Schwarzschild metric, leads to M & Meff ' MP . This conclusion is also supported by perturbative calculations of scattering amplitudes,
since the entropy (3.42) can be reproduced by assuming the final classical
black holes are composed of quanta with wavelength λ ∼ RH [55]. Note,
however, that the physical meaning of the two scales is not quite the same:
Meff is the natural unit for measuring black hole internal degrees of freedom
(like the gap between energy levels of the harmonic oscillator), whereas MC
is the minimum mass below which black holes do not exist (like the threshold in massive particle production). That Meff ' MC ' MP is expected –
because gravity in four dimensions entails one scale – but is till a remarkable
evidence that black holes hide most information about forming matter.
3.3.3
ADD black holes
Both classicality conditions (3.40) and (3.43) can be straightforwardly generalized to models with extra-spatial dimensions by replacing MP and `P with
MG and `G , and using the appropriate expressions for the horizon radius. For
example, in the ADD scenario of Refs. [46], the brane tension is neglected
and one can therefore consider vacuum solutions to the Einstein equations
in 4 + d dimensions to derive the following relation between the mass and
horizon radius [51],
`G
RH = √
π
M
MG
1
1+d
8 Γ d+3
2
2+d
1
! 1+d
,
(3.44)
where Γ is the usual Gamma function. Inserting the above into Eq. (3.39)
yields 2
RH & `G
MG
M
⇒
M & MC ' MG ,
(3.45)
as one would naively expect. Moreover, the same result is again obtained by
generalizing the entropic argument to 4 + d dimensions, namely
E
S̃(4+d)
'
RH
`G
2+d
∼
M
Meff
2+d
1+d
&1,
(3.46)
where Meff ' MG . One therefore concludes that even in the ADD scenario,
gravity enters black hole physics with one scale, MG , like in four dimensions.
2
This is the kind of condition employed in all Monte Carlo studies of black hole production at the LHC [57].
3.3. LIGHT BLACK HOLES
3.3.4
71
Brane-world black holes
The situation appears more involved in the brane-world (RS) scenario [48], in
which the brane tension is not ignored and the bulk is consequently warped.
This has made it very hard to describe black holes [75] 3 , and only a few
analytical candidates are known which solve the effective four-dimensional
vacuum Einstein equations [77]. We just remind the tidally charged metric
we worked out before:
ds2 = −A dt2 + A−1 dr2 + r2 dθ2 + sin2 θ dφ2 ,
(3.47)
with
A=1−
`2
2 `P M
− q G2 ,
MP r
r
(3.48)
which has been extensively studied in Refs. [61, 79, 80, 81]. In the above and
what follows, the tidal charge q and M are treated as independent quantities,
although one expects q vanishes when the black hole mass M = 0 (that is,
when there is no black hole). Further, we only consider the case q > 0 since
negative tidal charge would yield anti-gravity effects [80]. A relation q =
q(M ) should be obtained by solving the complete five-dimensional Einstein
equations [81] (or by means of supplementary arguments [82]). Nevertheless,
since we are here interested in black holes near their minimum possible mass
MC ∼ MG MP , we can approximate q ' q(MC ) and constant, and expand
all final expressions for M ∼ MG MP .
We can first apply the usual classicality argument (3.39), with the horizon
radius
s
!
MP2
M
M2
+
+q 2
,
(3.49)
RH = `P
MP
MP2
MG
and obtain M & MC , where the minimum mass
MG
MC ' √ ,
q
(3.50)
for M ∼ MG MP .
We can also repeat the entropic argument by employing the effective
four-dimensional action, namely
E
'
S̃eff
3
2
4 π RH
,
16 π `2P
(3.51)
Arguments have been formulated against the existence of static brane-world black hole
metrics [76]. Given the Hawking radiation is likely a strong effect for microscopic black
holes, their instability is here taken as granted.
72
CHAPTER 3. LIGHT BLACK HOLES
which, however, is not at a minimum for M ' MC , as one would instead
expect from previous cases. This discrepancy can be cured by recalling
the Euclidean action (as well as the thermodynamical entropy) is defined
modulo constant terms, which, for example, do not affect the value of the
Hawking temperature nor the microcanonical description of the Hawking
radiation [60]. By subtracting from Eq. (3.51) a suitable constant, namely
E
E
E
S̃sub
= S̃eff
(M ) − S̃eff
(MC ) ,
(3.52)
and expanding for M ∼ MG MP , we finally obtain
E
S̃sub
'
M
,
Meff
(3.53)
where there now appears the effective degeneracy scale
MG
Meff ' √ .
q
(3.54)
It is again remarkable that Meff ' MC and brane-world black holes are also
described by one scale [recall that q ' q(MC ) is not truly independent]. The
“natural” choice would now be q ' 1, so that Meff ' MC ' MG , but the
effective scale Meff ' MC could also be either larger (q 1) or smaller
(q 1) than MG .
3.4
Conclusions and outlook
Detection of black holes at the LHC would be a clear signal that we are
embedded in a higher-dimensional space-time and the fundamental scale of
gravity MG ' 1 TeV. The existence of extra spatial dimensions could also
be uncovered by means of particle processes which involve the exchange of
bulk gravitons [84]. Such processes are perturbatively described by operators
suppressed by inverse powers of MG , and might not be detectable if the latter
is larger than a few TeV [85]. We have shown that both classicality conditions, from quantum mechanics and the entropic counting of internal degrees
of freedom, allow for brane-world black holes with minimum mass (3.50).
The latter might be different from the fundamental scale MG , if q departs
significantly from 1 (which should be related to details of the mechanism
confining standard model particles and four-dimensional modes of gravity on
the brane). This introduces two alternative scenarios:
i) for q 1, “lightweight black holes” (LBH) with MC . M . MG may
exist and be produced at the LHC even if MG & 10 TeV. In this case, the
effects due to bulk graviton exchanges would remain undetected;
3.4. CONCLUSIONS AND OUTLOOK
73
ii) if q 1, black holes do not exist with M ' MG , even if MG ' 1 TeV, and
processes involving bulk gravitons are going to be the only available signature
of extra-spatial dimensions.
The former scenario might have important phenomenological implications
both for accelerator physics and in astrophysics. Although recent LHC data
at 7 TeV center mass energy seem to exclude the production of microscopic
black holes [58, 59], there is still the possibility that future runs at 14 TeV
will achieve this goal. Further, LHB might play a role in cosmological models
as primordial black holes produced in the early universe, and in astrophysics
as the outcome of high energy cosmic rays colliding against dense stars [86].
The case of q 1 might instead explain why there is no evidence of black
holes at the LHC [58, 59], even if extra spatial dimensions exist.
While only data collected by the LHC or cosmic rays detectors will finally
assess which of these scenarios is correct (if any), there clearly remains a fair
amount of theoretical work ahead of us. For example, one may hope to
estimate the dependence of the tidal charge q on other physical parameters,
such as the mass, by studying stars and black holes of astrophysical size [82],
and then devise some mathematically sensible limiting procedure to reduce
the mass down to the TeV range. And, eventually, one will have to tackle
the problem of black hole formation by collision or collapse in the braneworld [69, 70], using an approach which keeps the size of quantum fluctuations
under control and is still mathematically manageable. A problem which, as
we recalled in the Introduction, appears rather severe in any (classical) theory
of gravity.
74
CHAPTER 3. LIGHT BLACK HOLES
Chapter 4
Final remarks
This doctoral thesis is a collection of three original researches on various
subjects.
The first chapter is more “cosmology-oriented” and the original results
in it are purely relativistic (i.e. geometrical) in nature. Anyway, the shell
model is quite adaptable to a variety of cases, even black hole evaporation if
we assume that the final stages of emission consist in a massive spherically
symmetric outburst of particles, forming a shell. We successfully found a
perturbative solution to a problem that has never been treated because considered too complicated. Present day applications mostly use the thin shell
formalism to describe gravitational collapse or wormhole formation, but they
always restrict to the simple vacuum case. Our hope is that the procedure
we outlined will be of some help in facing more realistic, non-vacuum toy
models in the future.
In the second chapter we have used a typically semiclassical effect (the
Unruh effect) to investigate the qualities of a geometrical object, the Kodama
vector. By simply considering its geometrical properties, not much can be
said on the nature of the Kodama vector and its possible uses. The only way
to better understand the Kodama vector is a face to face comparison with the
Killing vector on different proving grounds. In the semiclassical framework,
in some cases, it can provide different temperature values for an horizon:
the temperature is redshifted by some function with respect to the original
results. In the meanwhile, more research has been done on this vector field
and results are going to be resumed and published.
The third chapter is more experimentally oriented and casts predictions
on the possible detection of microscopic black holes in particle accelerators. The tidally charged black hole is the simplest analytical solution of
the Randall-Sundrum model but is still not perfectly clear. The tidal charge
has a very important role in the horizon formation and at the same time is
75
76
CHAPTER 4. FINAL REMARKS
not well understood.
By one side it was certainly not easy to frame such different topics in
one unique work. On the other hand this gives an idea of the powerful
tools provided by the semiclassical theory of gravity: its relative simplicity
(both conceptual and technical) make us able to investigate the most different
features of borderline physics. We still have so much to learn (and verify)
from semiclassical gravity that any deeper inquiry might seem premature.
Our hope is to detect the first signs of black hole formation and evaporation at LHC in the next years. This might never happen of course, and in
this case we will have to face very important issues:
• what if the scale of gravity is really that far from the TeV scale?
• what if the scale of gravity is just few TeV out of reach? Is it worth to
build new accelerators?
• what if the scale of gravity is actually reachable but no semiclassical
effects are produced or recognized?
Different scenarios would open in each case, everyone carrying with itself a
whole “bouqet” of new theories and predictions. If nothing new is going be
observed in the next years, scientists will not be discouraged anyway. Physics
research needs affirmative results to achieve victory, but it is not success that
pushes physicists. It is challenge, indeed.
Acknowledgements
I would like to thank my advisors Roberto Casadio and Piero Nicolini. Also,
I’m grateful to Roberto Bonezzi for helping me everyday with his encyclopedic knowledge.
77
78
CHAPTER 4. FINAL REMARKS
Bibliography
[1] R. Casadio, A. Orlandi,
[arXiv:1105.5497 [gr-qc]].
Phys.
Rev.
D84,
024006
(2011).
[2] A. H. Guth, Phys. Rev. D23 (1981) 347-356.
[3] A. D. Linde, Phys. Lett. B129 (1983) 177-181.
[4] S. K. Blau, E. I. Guendelman, A. H. Guth, Phys. Rev. D35 (1987)
1747.
[5] A. Aguirre, [arXiv:0712.0571 [hep-th]].
[6] L. Susskind, In *Carr, Bernard (ed.): Universe or multiverse?* 247-266.
[hep-th/0302219].
[7] T. Clifton, A. D. Linde, N. Sivanandam, JHEP 0702 (2007) 024. [hepth/0701083].
[8] Y.S. Piao, “Island Cosmology in the Landscape,” Nucl. Phys. B 803,
194 (2008). [arXiv:0712.4184 []].
[9] D. Yamauchi, A. Linde, A. Naruko, M. Sasaki, T. Tanaka, Phys. Rev.
D84 (2011) 043513. [arXiv:1105.2674 [hep-th]].
[10] L. Clavelli, High Energy Dens. Phys. 0606
ph/0602024].
(2006) 002. [hep-
[11] P.L. Biermann and L. Clavelli, “A Supersymmetric model for triggering
Supernova Ia in isolated white dwarfs,” arXiv:1011.1687.
[12] P. O. Mazur, E. Mottola,
[gr-qc/0109035].
[13] S.R. Coleman, Phys. Rev. D 15, 2929 (1977) [Erratum-ibid. D 16, 1248
(1977)];
79
80
BIBLIOGRAPHY
[14] I. Y. .Kobzarev, L. B. Okun, M. B. Voloshin, Sov. J. Nucl. Phys. 20
(1975) 644-646.
[15] S.R. Coleman and F. De Luccia, Phys. Rev. D 21, 3305 (1980).
[16] K. Copsey,
[arXiv:1108.2255 [gr-qc]].
[17] W. Israel, Nuovo Cim. B44S10 (1966) 1.
[18] S. Ansoldi, Class. Quant. Grav. 19, 6321-6344 (2002). [gr-qc/0310004].
[19] V.A. Berezin, V.A. Kuzmin and I.I. Tkachev, Phys. Rev. D 36, 2919
(1987).
[20] N. Sakai and K.i. Maeda, “Bubble dynamics in generalized Einstein theories,” Prog. Theor. Phys. 90, 1001 (1993); N. Sakai and
K.i. Maeda, “Junction conditions of Friedmann-Robertson-Walker
spacetimes,” Phys. Rev. D 50, 5425 (1994) [arXiv:gr-qc/9311024].
[21] G. L. Alberghi, R. Casadio, G. P. Vacca, G. Venturi, Class. Quant. Grav.
16 (1999) 131-147. [gr-qc/9808026].
[22] G. L. Alberghi, R. Casadio, G. Venturi, Phys. Rev. D60 (1999) 124018.
[gr-qc/9909018].
[23] G. L. Alberghi, R. Casadio, G. P. Vacca, G. Venturi, Phys. Rev. D64
(2001) 104012. [gr-qc/0102014].
[24] G. L. Alberghi, R. Casadio, D. Fazi, Class. Quant. Grav. 23 (2006)
1493-1506. [gr-qc/0601062].
[25] E. Farhi, A. H. Guth, J. Guven, Nucl. Phys. B339 (1990) 417-490.
[26] R. Casadio, S. Chiodini, A. Orlandi, G. Acquaviva, R. Di Criscienzo,
L. Vanzo, Mod. Phys. Lett. A26 (2011) 2149-2158. [arXiv:1011.3336
[gr-qc]].
[27] H. Kodama, Prog. Theor. Phys. 63 (1980) 1217.
[28] S. W. Hawking, Nature 248 (1974) 30-31.
[29] S. W. Hawking, Commun. Math. Phys. 43 (1975) 199-220.
[30] J. D. Bekenstein, Phys. Rev. D7, 2333-2346 (1973).
BIBLIOGRAPHY
81
[31] R. M. Wald in “General Relativity”, chapter 12, The University of
Chicago Press (1984)
[32] S. Carroll, “Spacetime and Geometry, an introduction to General Relativity”, Addison Wesley.
[33] W. Rindler, Am. J. Phys. 34 (1966) 1174.
[34] S. A. Hayward, Phys. Rev. D53, 1938 (1996), gr-qc/9408002v2
[35] S. A. Hayward, Class.Quant.Grav. 15, 3147 (1998), gr-qc/9710089v2
[36] C. W. Misner, D. H. Sharp, Phys. Rev. 136, B571 (1964)
G. Abreu and M. Visser, Phys. Rev. D 82, 044027 (2010)
[37] R. Casadio and G. Venturi, Phys. Lett. A 199 (1995) 33.
[38] R. Casadio and G. Venturi, Phys. Lett. A 252 (1999) 109.
[39] N. D. Birrell and P. C. W. Davies, “Quantum Fields In Curved Space”,
Cambridge, Uk: Univ. Pr. (1982).
[40] W. G. Unruh, Phys. Rev. D14 (1976) 870.
[41] B. S. DeWitt, “Quantum gravity: the new synthesis” in General Relativity an Einstein centenary survey ed. S. W. Hawking, W. Israel, Cambridge University Press (Cambridge, 1979).
[42] P. Langlois, “Imprints of spacetime topology in the Hawking-Unruh effect,” arXiv:gr-qc/0510127.
[43] H. Narnhofer, I. Peter and W. E. Thirring, Int. J. Mod. Phys. B 10,
1507 (1996).
[44] S. Deser and O. Levin, Phys. Rev. D 59, 064004 (1999)
[45] G. L. Alberghi, R. Casadio, O. Micu and A. Orlandi, JHEP 1109 (2011)
023 [arXiv:1104.3043 [hep-th]].
[46] N. Arkani-Hamed, S. Dimopoulos and G. Dvali, Phys. Lett. B 429, 263
(1998); Phys. Rev. D 59, 086004 (1999).
[47] I. Antoniadis, N. Arkani-Hamed, S. Dimopoulos and G. Dvali, Phys.
Lett. B 436, 257 (1998).
82
BIBLIOGRAPHY
[48] L. Randall and R. Sundrum, Phys. Rev. Lett. 83, 4690 (1999); Phys.
Rev. Lett. 83, 3370 (1999).
[49] G.R. Dvali, G. Gabadadze, M. Kolanovic, F. Nitti, Phys. Rev. D65
(2002) 024031.
[50] T. Banks and W. Fishler, hep-th/9906038; S.B. Giddings and
S. Thomas, Phys. Rev. D 65, 056010 (2002); P.C. Argyres, S. Dimopoulos and J. March-Russell, Phys. Lett. B 441, 96 (1998);
[51] S. Dimopoulos and G. Landsberg, Phys. Rev. Lett. 87, 161602 (2001).
[52] M. Cavaglia, Int. J. Mod. Phys. A 18, 1843 (2003); P. Kanti, Int. J.
Mod. Phys. A 19, 4899 (2004).
[53] K.S. Thorne, in Magic without magic, ed. J. Klauder (Frieman, 1972).
[54] S.D.H. Hsu, Phys. Lett. B 555, 92 (2003).
[55] G. Dvali, C. Gomez and A. Kehagias, “Classicalization of Gravitons and
Goldstones,” arXiv:1103.5963 [hep-th];
[56] S.W. Hawking, Nature 248, 30 (1974); Comm. Math. Phys. 43, 199
(1975).
[57] D.C. Dai, et al., Phys. Rev. D 77, 076007 (2008); J.A. Frost, et al.,
JHEP 0910, 014 (2009).
[58] V. Khachatryan et al. [CMS Collaboration], Phys. Lett. B 697, 434
(2011).
[59] ATLAS internal reports and private communication.
[60] R. Casadio, B. Harms, Y. Leblanc, Phys. Rev. D 58, 044014 (1998);
Entropy 13, 502 (2011).
[61] R. Casadio and B. Harms, Phys. Rev. D 64, 024016 (2001); S. Hossenfelder, S. Hofmann, M. Bleicher and H. Stoecker, Phys. Rev. D 66,
101502 (2002); T.G. Rizzo, Class. Quant. Grav. 23, 4263 (2006);
R. Casadio and B. Harms, Phys. Lett. B 487, 209 (2000).
[62] S.W. Hawking, Phys. Rev. Lett. 26, 1344 (1971).
[63] J.D. Bekenstein, Phys. Rev. D 7, 2333 (1973); 9, 3292 (1974).
BIBLIOGRAPHY
83
[64] B. Harms and Y. Leblanc, Phys. Rev. D 46, 2334 (1992); Phys. Rev. D
47, 2438 (1993).
[65] G. ’t Hooft, Class. Quant. Grav. 22, 4179 (2005).
[66] J.M. Maldacena, “Black holes in string theory,” arXiv:hep-th/9607235.
[67] L. Susskind, J. Math. Phys. 36, 6377 (1995).
[68] J.M. Maldacena, Adv. Theor. Math. Phys. 2, 231 (1998); Int. J. Theor.
Phys. 38, 1113 (1999); E. Witten, Adv. Theor. Math. Phys. 2, 253
(1998).
[69] G. Dvali, S. Sibiryakov, JHEP 0803 (2008) 007.
[70] R. Casadio, C. Germani, Prog. Theor. Phys. 114 (2005) 23-56.
[71] D. Christoudolou, Phys. Rev. Lett. 25, 1596 (1970).
[72] R. Penrose, Nuovo Cimento 1, 252 (1969).
[73] J.D. Bekenstein. Phys. Rev. D 23, 287 (1981).
[74] R. Bousso, Rev. Mod. Phys. 74, 825 (2002).
[75] R. Whisker, arXiv:0810.1534 [gr-qc]; R. Gregory, Lect. Notes Phys. 769,
259 (2009).
[76] T. Tanaka, Prog. Theor. Phys. Suppl. 148, 307 (2003); R. Emparan,
A. Fabbri and N. Kaloper, JHEP 0208, 043 (2002); H. Yoshino, JHEP
0901, 068 (2009).
[77] T. Shiromizu, K.i. Maeda and M. Sasaki, Phys. Rev. D 62, 024012
(2000).
[78] N. Dadhich, R. Maartens, P. Papadopoulos, V. Rezania, Phys. Lett. B
487, 1 (2000).
[79] R. Casadio, et al. Int. J. Mod. Phys. A 17, 4635 (2002); Phys. Rev. D
80, 084036 (2009); JHEP 1002, 079 (2010); Phys. Rev. D 82, 044026
(2010); D.M. Gingrich, Phys. Rev. D 81, 057702 (2010).
[80] R. Casadio, A. Fabbri and L. Mazzacurati, Phys. Rev. D 65, 084040
(2002).
[81] R. Casadio, O. Micu, Phys. Rev. D 81, 104024 (2010);
84
BIBLIOGRAPHY
[82] J. Ovalle, “Braneworld Stars: Anisotropy Minimally Projected Onto the
Brane,” arXiv:0909.0531 [gr-qc]; and work in progress.
[83] D.J. Kapner, et al., Phys. Rev. Lett. 98, 021101 (2007).
[84] G.F. Giudice, R. Rattazzi and J.D. Wells, Nucl. Phys. B 544, 3 (1999).
[85] R. Franceschini, et al., JHEP 1105 (2011) 092.
[86] M. Fairbairn and V. Van Elewyck, Phys. Rev. D 67, 124015 (2003);
D. Clancy, R. Guedens and A.R. Liddle, Phys. Rev. D 68, 023507 (2003).
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
