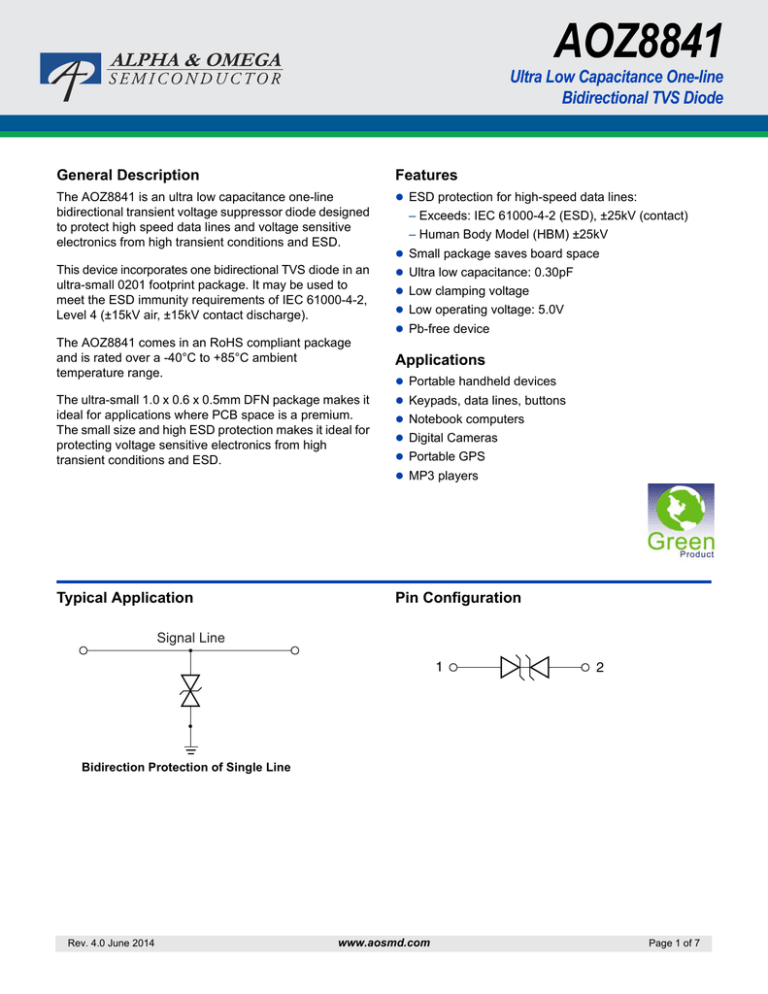

AOZ8841 Ultra Low Capacitance One-line Bidirectional TVS Diode

AOZ8841 Ultra Low Capacitance One-line Bidirectional TVS Diode
AOZ8841
Ultra Low Capacitance One-line
Bidirectional TVS Diode
General Description
Features
The AOZ8841 is an ultra low capacitance one-line
bidirectional transient voltage suppressor diode designed
to protect high speed data lines and voltage sensitive
electronics from high transient conditions and ESD.
 ESD protection for high-speed data lines:
This device incorporates one bidirectional TVS diode in an
ultra-small 0201 footprint package. It may be used to
meet the ESD immunity requirements of IEC 61000-4-2,
Level 4 (±15kV air, ±15kV contact discharge).
 Ultra low capacitance: 0.30pF
– Exceeds: IEC 61000-4-2 (ESD), ±25kV (contact)
– Human Body Model (HBM) ±25kV
 Small package saves board space
 Low clamping voltage
 Low operating voltage: 5.0V
 Pb-free device
The AOZ8841 comes in an RoHS compliant package
and is rated over a -40°C to +85°C ambient
temperature range.
The ultra-small 1.0 x 0.6 x 0.5mm DFN package makes it
ideal for applications where PCB space is a premium.
The small size and high ESD protection makes it ideal for
protecting voltage sensitive electronics from high
transient conditions and ESD.
Applications
 Portable handheld devices
 Keypads, data lines, buttons
 Notebook computers
 Digital Cameras
 Portable GPS
 MP3 players
Typical Application
Pin Configuration
Signal Line
1
2
Bidirection Protection of Single Line
Rev. 4.0 June 2014
www.aosmd.com
Page 1 of 7
AOZ8841
Ordering Information
Part Number
Ambient Temperature Range
Package
Environmental
AOZ8841DI-05
-40°C to +85°C
DFN 1.0 x 0.6
Green Product
RoHS Compliant
AOS Green Products use reduced levels of Halogens, and are also RoHS compliant.
Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information.
Absolute Maximum Ratings
Exceeding the Absolute Maximum Ratings may damage the device.
Parameter
Rating
VP – VN
5V
Peak Pulse Current (IPP), tP = 8/20µs
2A
Peak Pulse Power, tP = 8/20µs
40W
Storage Temperature (TS)
-65°C to +150°C
ESD Rating per IEC61000-4-2,
ESD Rating per Human Body
Contact(1)
±25kV
Model(2)
±25kV
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150pF, RDischarge = 330Ω.
2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100pF, RDischarge = 1.5kΩ.
Maximum Operating Conditions
The device is not guaranteed to operate beyond the Maximum Operating Conditions.
Parameter
Rating
Junction Temperature (TJ)
Rev. 4.0 June 2014
-40°C to +125°C
www.aosmd.com
Page 2 of 7
AOZ8841
Electrical Characteristics
TA = 25°C unless otherwise specified.
Symbol
Parameter
Diagram
IPP
Maximum Reverse Peak Pulse Current
VCL
Clamping Voltage @ IPP
VRWM
Working Peak Reverse Voltage
IR
Maximum Reverse Leakage Current
VBR
Breakdown Voltage
PPK
Peak Power Dissipation
CJ
Capacitance @ VR = 0 and f = 1MHz
I
IPP
VCL VBR VRWM
IR
IT
VRWM VBR VCL
V
IPP
VCL Max.
Device
Device
Marking
VRWM (V)
Max.
VBR (V)
Min.
IR (µA)
Max.
IPP = 1A
IPP = 2A
IPP = 5A
CJ (pF)
Typ.
AOZ8841DI-05
3
5.0
6.0
0.1
14.00
16.00
19.50
0.30
Rev. 4.0 June 2014
www.aosmd.com
Page 3 of 7
AOZ8841
Typical Performance Characteristics
Clamping Voltage vs. Peak Pulse Current
(tperiod = 100ns, tr = 1ns)
Insertion Loss (S21) vs. Frequency
5
0
Insertion Loss (dB)
Clamping Voltage, VCL (V)
30
25
20
15
-5
-10
-15
-20
-25
10
0
2
4
6
8
10
1
12
10
100
1000
10000
Frequency (MHz)
Peak Pulse Current, IPP (A)
Typical Variation of CIN vs. VR
Normalized Input Capacitance
(f = 1MHz, T = 25C)
1.20
1.00
0.80
0.60
0.40
0.20
0
0
1
2
3
4
5
Input Voltage (V)
Rev. 4.0 June 2014
www.aosmd.com
Page 4 of 7
AOZ8841
Package Dimensions, DFN 1.0 x 0.6
5 Index Area
(E/4xD)
2x
aaa C
3
e
A
aaa C 2x
D
ddd
C AB
B
E
Pin#1 ID
0.125x45°
2x b
L2
ddd
C AB
BOTTOM VIEW
TOP VIEW
6
A
Seating Plane
2x
7
ccc C
A1
C
SIDE VIEW
RECOMMENDED LAND PATTERN
1.00
0.30
0.55
0.40
0.125 x 45°
Dimensions in millimeters
Symbols
A
A1
b
D
E
e
L
aaa
ccc
ddd
Min.
0.47
0.00
0.45
Nom.
0.51
0.02
0.50
0.60 BSC
1.00 BSC
0.65 BSC
0.20
0.25
0.05
0.03
0.10
Max.
0.55
0.05
0.55
0.30
Dimensions in inches
Symbols
A
A1
b
D
E
e
L
aaa
ccc
ddd
Min.
0.019
0.000
0.018
0.008
Nom.
0.020
0.001
0.020
0.024
0.039
0.026
0.010
0.002
0.001
0.004
Max.
0.022
0.002
0.022
0.012
0.30
UNIT: mm
Notes:
1. Dimensions and tolerancing conform to ASME Y14.5-2009.
2. All dimensions are in milliteters.
3. “e” represents the terminal grid pitch.
4. N isthe total number of terminals.
5. A visual index feature must be located within the hatched area. Typical index feature (chamfer) must be located on the edge
of the Pin#1 feature.
6. This dimension includes stand-off height “A1” and packaged body thickness, but does not include attached feature e.g. external
heatsink or chip capacitors, an internal heatslug is not considered as attached feature.
7. Dimension “A1” is primarily terminal plating, and does not include small metal protrusions.
Rev. 4.0 June 2014
www.aosmd.com
Page 5 of 7
AOZ8841
Tape and Reel Dimensions, DFN 1.0 x 0.6
Carrier Tape
P1
P2
T
D1
E1
E2
E
B0
K0
P0
D0
A0
UNIT: mm
Option
A
Package
B0
A0
K0
DFN 1.0x0.6/ 0.69 1.19
0.66
DFN 1.0x0.6A ±0.05 ±0.05 ±0.05
(8 mm)
D0
0.40
±0.05
D1
E
E1
1.50
8.00
1.75
±0.10 +0.3/-0.1 ±0.10
E2
3.50
±0.05
P0
2.00
±0.05
P1
4.00
±0.10
T
P2
0.23
2.00
±0.05 ±0.02
B
0.61
DFN 1.0x0.6/ 0.65 1.05
DFN 1.0x0.6A ±0.04 ±0.04 ±0.04
(8 mm)
0.40
±0.05
1.50
8.00
1.75
±0.10 +0.3/-0.1 ±0.10
3.50
±0.05
2.00
±0.10
4.00
±0.10
2.00
0.20
±0.05 ±0.05
Reel
W1
S
G
N
M
K
V
R
H
W
UNIT: mm
Tape Size Reel Size
8mm
ø178
M
ø178
±0.5
N
ø55
±1
W
8.4
+1.5/-0
W1
Max.
14.4
H
ø13.0
±0.5
K
Max.
10.1
S
2.0
±0.5
G
N/A
R
N/A
V
N/A
Leader / Trailer & Orientation
TVS
Unit Per Reel:
10000pcs
Trailer Tape
300mm Min.
Rev. 4.0 June 2014
Components Tape
Orientation in Pocket
www.aosmd.com
Leader Tape
500mm Min.
Page 6 of 7
AOZ8841
Part Marking
3 X
Product Number Code
Date Code
LEGAL DISCLAIMER
Alpha and Omega Semiconductor makes no representations or warranties with respect to the accuracy or
completeness of the information provided herein and takes no liabilities for the consequences of use of such
information or any product described herein. Alpha and Omega Semiconductor reserves the right to make changes
to such information at any time without further notice. This document does not constitute the grant of any intellectual
property rights or representation of non-infringement of any third party’s intellectual property rights.
LIFE SUPPORT POLICY
ALPHA AND OMEGA SEMICONDUCTOR PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL
COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body or (b) support or sustain life, and (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury of
the user.
Rev. 4.0 June 2014
2. A critical component in any component of a life
support, device, or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
www.aosmd.com
Page 7 of 7
