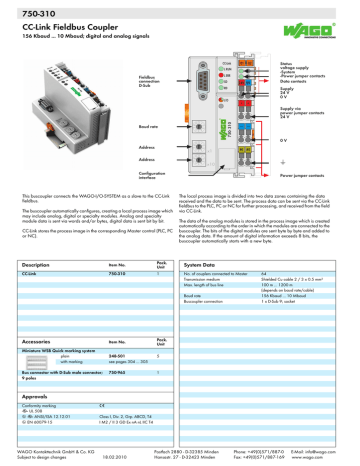

750-310
156 Kbaud ... 10 Mbaud; digital and analog signals
01 02
CC-Link
Fieldbus
connection
D-Sub
L RUN
A
L ERR
B
SD
D
24V 0V
78
23
901
Supply
24 V
0V
+
+
—
—
0V
78
23
901
Address
78
Address
23
901
x1
PE PE
x10
456
Configuration
interface
This buscoupler connects the WAGO-I/O-SYSTEM as a slave to the CC-Link
fieldbus.
The buscoupler automatically configures, creating a local process image which
may include analog, digital or specialty modules. Analog and specialty
module data is sent via words and/or bytes, digital data is sent bit by bit.
CC-Link stores the process image in the corresponding Master control (PLC, PC
or NC).
Power jumper contacts
The local process image is divided into two data zones containing the data
received and the data to be sent. The process data can be sent via the CC-Link
fieldbus to the PLC, PC or NC for further processing, and received from the field
via CC-Link.
The data of the analog modules is stored in the process image which is created
automatically according to the order in which the modules are connected to the
buscoupler. The bits of the digital modules are sent byte by byte and added to
the analog data. If the amount of digital information exceeds 8 bits, the
buscoupler automatically starts with a new byte.
Description
Item No.
Pack.
Unit
System Data
CC-Link
750-310
1
No. of couplers connected to Master
Transmission medium
Max. length of bus line
Baud rate
Buscoupler connection
64
Shielded Cu cable 2 / 3 x 0.5 mm²
100 m ... 1200 m
(depends on baud rate/cable)
156 Kbaud ... 10 Mbaud
1 x D-Sub 9; socket
Pack.
Unit
Accessories
Item No.
Miniature WSB Quick marking system
plain
with marking
248-501
see pages 304 ... 305
5
750-965
1
Bus connector with D-Sub male connector;
9 poles
Status
voltage supply
-System
-Power jumper contacts
Data contacts
Supply via
power jumper contacts
24 V
750- 310
W
I/O
Baud rate
C
RD
456
110
CC-Link Fieldbus Coupler
456
1
Approvals
Conformity marking
r UL 508
4 r ANSI/ISA 12.12.01
4 EN 60079-15
WAGO Kontakttechnik GmbH & Co. KG
Subject to design changes
1
Class I, Div. 2, Grp. ABCD, T4
I M2 / II 3 GD Ex nA nL IIC T4
18.02.2010
Postfach 2880 - D-32385 Minden
Hansastr. 27 - D-32423 Minden
Phone: +49(0)571/887-0
Fax: +49(0)571/887-169
E-Mail: [email protected]
www.wago.com
1
111
1
FIELDBUS
INTERFACE
I/O
modules
24 V
1
24 V
5
24 V /0 V
10 nF
5V
ELECTRONICS
5V
0V
2
6
24 V
24 V
ELECTRON ICS
3
FIELDBUS
INTERFACE
7
0V
0V
4
10 nF
8
750-310
Technical Data
Number of I/O modules
Station addresses
Fieldbus
Max. input process image
Max. output process image
Voltage supply
Max. input current (24 V)
Efficiency of the power supply
Internal current consumption (5 V)
Total current for I/O modules (5 V)
Isolation
Voltage via power jumper contacts
Current via power jumper contacts (max.)
General Specifications
64
up to 4
14-byte digital,
2-byte system,
32-byte analog
14-byte digital,
2-byte system,
32-byte analog
24 V DC (-15 % ... +20 %)
500 mA
87 %
300 mA
1700 mA
500 V system/supply
24 V DC (-15 % ... +20 %)
10 A DC
Operating temperature
Wire connection
Cross sections
Stripped lengths
Dimensions (mm) W x H x L
Weight
Storage temperature
Relative air humidity (no condensation)
Vibration resistance
Shock resistance
Degree of protection
EMC 1-Immunity to interference
EMC 1-Emission of interference
0 °C ... +55 °C
CAGE CLAMP®
0.08 mm² ... 2.5 mm² / AWG 28 ... 14
8 ... 9 mm / 0.33 in
51 x 65 x 100
Height from upper-edge of DIN 35 rail
210 g
-25 °C ... +85 °C
95 %
acc. to IEC 60068-2-6
acc. to IEC 60068-2-27
IP20
acc. to EN 61000-6-2 (2005)
acc. to EN 61000-6-4 (2007)
