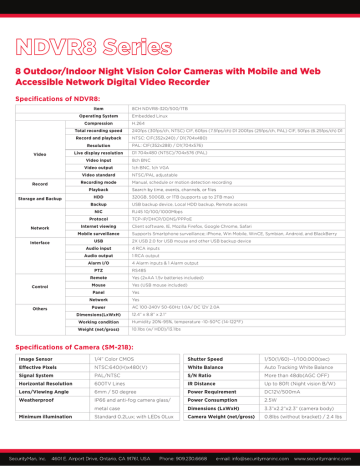

NDVR8 Series
8 Outdoor/Indoor Night Vision Color Cameras with Mobile and Web
Accessible Network Digital Video Recorder
Specifications of NDVR8:
Item
Operating System
Compression
H.264
240fps (30fps/ch, NTSC) CIF, 60fps (7.5fps/ch) D1 200fps (25fps/ch, PAL) CIF, 50fps (6.25fps/ch) D1
Record and playback
NTSC: CIF(352x240) / D1(704x480)
Live display resolution
Video input
Video output
Video standard
Record
Embedded Linux
Total recording speed
Resolution
Video
8CH NDVR8-320/500/1TB
Recording mode
PAL: CIF(352x288) / D1(704x576)
D1 704x480 (NTSC)/704x576 (PAL)
8ch BNC
1ch BNC, 1ch VGA
NTSC/PAL adjustable
Manual, schedule or motion detection recording
Playback
Storage and Backup
HDD
Backup
NIC
Protocol
Network
Internet viewing
Mobile surveillance
Interface
USB
RJ45 10/100/1000Mbps
TCP-IP/DHCP/DDNS/PPPoE
Client software, IE, Mozilla Firefox, Google Chrome, Safari
Supports Smartphone surveillance; iPhone, Win Mobile, WinCE, Symbian, Android, and BlackBerry
2X USB 2.0 for USB mouse and other USB backup device
4 RCA inputs
Audio output
1 RCA output
PTZ
Remote
Others
USB backup device, Local HDD backup, Remote access
Audio input
Alarm I/O
Control
320GB, 500GB, or 1TB (supports up to 2TB max)
4 Alarm inputs & 1 Alarm output
RS485
Yes (2xAA 1.5v batteries included)
Mouse
Yes (USB mouse included)
Panel
Yes
Network
Yes
Power
Dimensions(LxWxH)
AC 100-240V 50-60Hz 1.0A/ DC 12V 2.0A
12.4” x 8.8” x 2.1”
Working condition
Humidity 20%-95%, temperature -10~50°C (14-122°F)
Weight (net/gross)
10.1lbs (w/ HDD)/13.1lbs
Specifications of Camera (SM-218):
1/4” Color CMOS
Shutter Speed
1/50(1/60)--1/100,000(sec)
NTSC:640(H)x480(V)
White Balance
Auto Tracking White Balance
Signal System
PAL/NTSC
S/N Ratio
More than 48db(AGC OFF)
Horizontal Resolution
600TV Lines
IR Distance
Up to 80ft (Night vision B/W)
Lens/Viewing Angle
6mm / 50 degree
Power Requirement
DC12V/500mA
Weatherproof
IP66 and anti-fog camera glass/
Power Consumption
2.5W
metal case
Dimensions (LxWxH)
3.3”x2.2”x2.3” (camera body)
Minimum illumination
Standard 0.2Lux; with LEDs 0Lux
Camera Weight (net/gross)
0.8lbs (without bracket) / 2.4 lbs
Image Sensor
