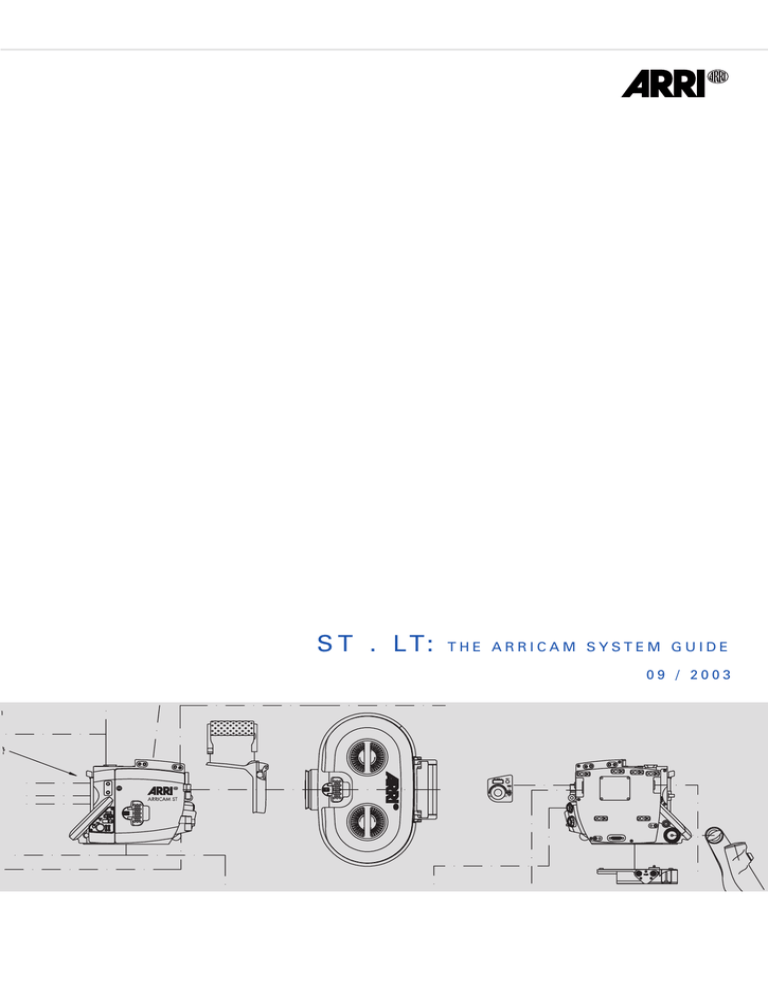

S T . L T:
THE ARRICAM SYSTEM GUIDE
09 / 2003
FPS / SHUTTER
BRIGHT
MANUAL
CONTROL
OFF
FPS 1
MIN
FPS 2
MAX
FPS
02
ARRICAM System Guide
09 / 2003
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Introduction to the ARRICAM System . . . . . . . . . . . . . . . . . . . . . .8
ARRICAM Studio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
ARRICAM Lite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Magazines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
ARRICAM Studio Magazines Overview . . . . . . . . . . . . . . . . . . . . .14
ARRICAM Lite Magazines Overview . . . . . . . . . . . . . . . . . . . . . . .15
Studio Magazine 120/400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Studio Magazine 300/1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Top Load Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Back Load Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Dual Port Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Studio Mag to Lite Camera Adapter . . . . . . . . . . . . . . . . . . . . . . . .17
Magazine Stabilization Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Lite Steadicam Magazine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Lite Shoulder Magazine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Lite Mag to Studio Camera Adapter . . . . . . . . . . . . . . . . . . . . . . . .18
Viewfinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ARRICAM Studio Viewfinder Overview . . . . . . . . . . . . . . . . . . . .20
ARRICAM Studio Universal Viewfinder Overview . . . . . . . . . . . .20
ARRICAM Lite Viewfinder Overview . . . . . . . . . . . . . . . . . . . . . .21
ARRICAM Lite Universal Viewfinder Overview . . . . . . . . . . . . . .21
Studio Viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Studio Universal Viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Studio Eyepiece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Studio Zoom Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Studio Medium Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Studio Anamorphic Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Studio Readout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Studio Integrated Video System (IVS) . . . . . . . . . . . . . . . . . . . . . . .24
Studio 100% Video Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Studio Mask Frameglow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Studio LCD Frameglow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Lite Viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Lite Eyepiece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Lite Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Lite Mask Frameglow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Lite Universal Viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Lite Universal Eyepiece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Lite Integrated Video System (IVS) . . . . . . . . . . . . . . . . . . . . . . . . .27
Lite 100% Video Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Heated Eyecup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
6.6” Video Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
2” Video Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
09 / 2003
Electronic Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Electronic Accessories Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Speed Control Box (SCB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Manual Control Box (MCB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
MCB Cable Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Timing Shift Box (TSB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Remote Control Station (RCS) . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
CAC Distribution Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Accessory Power Box (APB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Power Bridgeplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Work Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Lens Data System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Lens Data System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Studio Lens Data Box (LDB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Studio LDB Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Lite Lens Data Box (LDB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Lens Data Display Classic (LDD) . . . . . . . . . . . . . . . . . . . . . . . . . .38
Lens Data Display for the Focus Puller (LDD-FP) . . . . . . . . . . . .38
Wired Handgrip Attachment (WHA-2) . . . . . . . . . . . . . . . . . . . . . .39
WHA-2 Rod Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
WHA-2 Rosette Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Overview: Reflex Prevention Rings and Clamp Adapters . . . . . . .40
Ultra Prime LDS Lenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
In-camera Slate System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
In-camera Slate System Overview . . . . . . . . . . . . . . . . . . . . . . . . . .43
The In-camera Slate Systemconsists of these components: . . . . . . .44
Recording Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
In-camera Slate Box (ISB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Hand Held Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
In-camera Slate Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Mechanical Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Shoulder Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Shoulder Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Studio Camera Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Lite Camera Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Studio Center Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Lite Center Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Universal Low Mode Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Accessory Shoe Expander . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
3/8” Accessory Shoe Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Cables Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Ground Glass Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
ARRICAM System Guide
03
04
ARRICAM System Guide
09 / 2003
09 / 2003
Dear Friends,
Since its introduction in 1999, the ARRICAM system has quickly become
the premium choice for cinematographers worldwide. Since then we have
listened carefully to your feedback and analyzed the camera's performance
on a multitude of sets. As a result we have introduced numerous additions
and improvements.
To increase the system's breadth and flexibility we have added parts
like the Universal Viewfinders, extra magazine adapters or the Remote
Control Station. Based on popular demand we have introduced
improved camera control panels and wireless camera remote control.
And we have further extended revolutionary tools like the Lens Data
System, added lens information to the video assist image and created a
smaller Lens Data Display.
The ARRICAM system is a modern and complete camera system providing solutions for almost all shooting challenges. This guide was created
so you can easily navigate the many parts of this system. In addition to
descriptions of the new ARRICAM components it also contains many
updated or new overview graphics and look-up tables.
I hope this System Guide will be a useful tool for you,
Regards,
Prof. Ing. Fritz Gabriel Bauer, AAC
ARRICAM System Guide
05
06
ARRICAM System Guide
09 / 2003
09 / 2003
Introduction
This is the official illustrated guide to ARRICAM names, features and
compatibilities. It gives a brief overview of the major components of
the ARRICAM system. This System Guide has the order number
K5.58314.0.
Items that are the same for the ARRICAM and ARRIFLEX systems
(matte box, follow focus, eyepiece leveler, right side handgrip, etc.) are
not listed separately here.
A complete listing of all parts of the ARRICAM system can be found
in the ARRICAM price list. More detailed information on the ARRICAM system operation can be found in the ARRICAM system Users’
Guide (K5.58508.0), in the ARRICAM Studio Quick Guide (K5.58311.0),
in the ARRICAM Lite Quick Guide (K5.58312.0) and in the ARRICAM Accessories Quick Guide (K5.58313.0). A complete list of all
ARRICAM and ARRIFLEX ground glasses and format masks with
dimensions can be found in the ARRI Format Guide. All these documents
can be downloaded from the ARRI web site at http://www.arri.com.
This System Guide describes the ARRICAM system with Software
Packet 03E. Different software versions can result in different behaviors. Any authorized ARRI Service Center can check and update the
ARRICAM software. Please be aware that specifications are subject to
change without notice.
To o l s
Anyone operating the ARRICAM system should have these tools:
1. The ARRICAM Ground Glass/Fieldlens Tool.
One side of it is used to remove the ground glass and the field lens.
The 1.5 mm hex socket wrench on the other side can be used to
adjust the alignment of video assist and Frameglow.
2. A 3 mm metric hex wrench
is used to attach and remove most accessories.
3. A 5 mm metric hex wrench
is used to attach or remove the carrying handles, the 3/8” Accessory
Shoe Adapter and the WHA-2 Rosette Bracket.
4. A 8-10mm (5/16”) flathead long shaft screwdriver
is used to attach baseplates, the Magazine Stabilization Bracket and
the ARRICAM Shoulder Set. Please note that screwdrivers with a
short, stubby shaft will not work with the Shoulder Set.
ARRICAM System Guide
07
08
ARRICAM System Guide
09 / 2003
Introduction to the ARRICAM System
The ARRICAM system is a complete 35 mm film production system
with modern features including Super 35, dual pin registration, optional
3 perforation movements, brilliant viewfinders and high quality video
assists. The system consists of two camera bodies, the ARRICAM
Studio (ST) and the ARRICAM Lite (LT), which are accompanied by a
full range of electronic and mechanical accessories.
ARRICAM Studio
The Studio is an extremely quiet sync sound camera, and the Lite is a
small and lightweight camera designed specifically for Steadicam and
hand held operation. Both cameras have the basic controls (fps, shutter
angle, footage counter) built-in. Advanced features can be added with
integrated expansion modules, like the Speed Control Box, Manual
Control Box, Timing Shift Box, Lens Data Box, In-camera Slate Box
and wireless lens and camera controllers. The system’s modularity allows
productions to assemble camera packages with just the features they need.
A high level of component interchangeability gives rental houses great
flexibility.
Two magazines have been developed specifically for the Studio camera,
and two more for the Lite camera. The two Studio magazines are very
quiet and run forward and reverse, and the two Lite magazines were
kept to a minimum in size and weight through the active displacement
mechanism. With the use of adapters, all four magazines can be used on
both cameras.
A complete range of viewfinders can be mounted on either camera.
This system includes two viewfinders for spherical viewing: the Lite
Viewfinder and the Studio Viewfinder, and two viewfinders that switch
between spherical and anamorphic viewing: the Lite Universal Viewfinder
and the Studio Universal Viewfinder. All viewfinders can be equipped
with a large number of accessories. The two video assists for these
viewfinders have all 435 IVS features, including many improvements
and added functions.
With the Speed Control Box, camera speeds can be set with 0.001 fps
accuracy, the camera can be switched from forward to reverse run, simple
1-step speed ramps with shutter or iris compensation can be performed
and the camera can be synchronized to an external source, like a video
monitor.
09 / 2003
ARRICAM System Guide
09
With the Manual Control Box, camera speed and shutter angle can be set.
If used together with the Speed Control Box, manual speed/exposure
ramps or depth-of-field ramps can be performed.
For more sophisticated ramps, and for wireless remote control of all
camera functions, the Wireless Remote Control integrates seamlessly
into the ARRICAM system.
The Timing Shift Box gives the cinematographer the possibility to alter
the phase relationship between mirror shutter and movement, resulting
in a streaking effect.
The Lens Data System automatically reads focus, iris and zoom of LDS
lenses. All lens accessories connect to the Lens Data Box, which also contains the radio for wireless lens and camera control. Two Lens Data
Displays are available to show lens settings and camera status, to calculate depth of field and to set focus marks: the LDD Classic and the
smaller LDD-FP.
The In-camera Slate System is a replacement for smart slates. It exposes
man-readable characters onto film before an image is recorded, including Timecode. This data can be extracted manually or automatically
during telecine or afterwards in post production.
Compatible ARRIFLEX Accessories: Wireless Lens Control System
in wireless and hardwired configuration, Zoom Main Unit (ZMU-1),
Iris Control Unit (ICU-1), Controlled Lens Motors CLM-1 and CLM-2,
Controlled Focus Motor CFM-1, Wireless Remote Control (WRC-1),
Camera Handgrip Right, Remote Switch RS-4, matte boxes, follow
focus systems, Eyepiece Leveler, Bridgeplates, all PL mounted 35mm
lenses, Shift & Tilt System, Tilt Focus lenses, ARRI Macro lenses,
ARRIHEAD, ARRIMOTION, Obie Light, power supplies, batteries.
ARRICAM Lite
10
09 / 2003
ARRICAM System Guide
ARRICAM Studio
ARRICAM Studio
The ARRICAM Studio (ST) is a very quiet 35mm sync sound production
camera. Magazines can be top or back mounted. The basic controls are
built into the Studio camera control panel (see second picture): RUN
button, RUN LED, PHASE button, fps setting, fps display, shutter
selector and shutter display, as well as an UNLOCK button to activate
the fps and shutter selector buttons, and a BRIGHT button to adjust
the brightness of all LED displays on the camera. The FPS- and shutter
displays will also show warning messages. The integrated footage display
counts EXPOSED FILM and RAW STOCK. The same controls can be
found on the ARRICAM Lite. Other controls on the Studio are a
DUST CHECK button and a beeper volume dial. The film gate accepts
an aperture format mask and a gel filter holder. The internal heater is
thermostatically controlled and is automatically activated in low temperatures.
Included in the camera package are: Studio Viewfinder or Studio
Universal Viewfinder, Studio Eyepiece, Top Load Adapter, film gate,
filter holder, aperture format mask set.
Compatibility: Studio and Lite share the same field lenses and ground
glasses. The ARRICAM ground glasses do not fit in MOVIECAM or
ARRIFLEX cameras. The aperture format masks and gel filter holders
are the same as used in ARRIFLEX cameras. For shooting Super 35 in
ANSI format with an ARRIFLEX 435 or 535 camera, special ground
glasses and aperture format masks are available. In that case, timecode
cannot be recorded on the ARRIFLEX cameras.
ARRICAM Studio: Extended camera control panel
The camera accepts the Studio Magazine 120/400 and 300/1000 in top
load or back load position. With Lite Mag to Studio Camera Adapter
the Lite Steadicam and Shoulder Magazines can also be mounted in
back load position. The ARRICAM lens mount accepts all LDS and
non-LDS PL mount lenses for 35 mm film cameras.
K0.60001.0
K0.60002.0
K0.60007.0
K0.60009.0
ARRICAM Studio 4 p with Studio Viewfinder
ARRICAM Studio 4 p with Studio Universal Viewfinder
ARRICAM Studio 3 p with Studio Viewfinder
ARRICAM Studio 3 p with Studio Universal Viewfinder
Speed:
1-60 fps forward, 1-32 fps reverse
(reverse can be set with the Speed Control Box,
Wireless Remote Control or ARRIMOTION system;
camera runs reverse only with Studio magazines)
Shutter:
electronic shutter from 0° to 180°, adjustable in 0.1°
increments. For ramps the range of 11.2° to 180°
can be used.
Frameglow Mask | Ground Glass
Movement: 5-link with dual-pin registration and dual transport
claws, 4 or 3 perforation (4 p or 3 p).
Lens Mount: 54mm PL with Lens Data System contacts.
Switchable to Super 35.
Aperture Format Mask | Film Gate Gel Filter Holder
Power:
24 V DC, all fuses are self-resetting.
Sound:
less than 20 db/A
09 / 2003
ARRICAM System Guide
11
ARRICAM Lite
The ARRICAM Lite (LT) is a very small and lightweight 35mm camera
for Steadicam and hand held work. Magazines are back mounted. The
Lite camera control panel contains the following controls: RUN button,
RUN LED, PHASE button, fps setting, fps display, shutter setting and
shutter display, as well as a BRIGHT button to adjust the brightness of
all LED displays on the camera. The FPS and shutter displays will also
show warning messages. The integrated footage display counts
EXPOSED FILM and RAW STOCK. The same controls can be found
on the ARRICAM Studio. The film gate can accept an aperture format
mask and a gel filter holder. The internal heater is thermostatically controlled and is automatically activated in low temperatures.
ARRICAM Lite
Included in the camera package are: Lite Viewfinder or Lite Universal
Viewfinder, Lite Eyepiece or Lite Universal Eyepiece, film gate, filter
holder, aperture format mask set.
Compatibility: Studio and Lite share the same field lenses and ground
glasses. The ARRICAM ground glasses do not fit in MOVIECAM or
ARRIFLEX cameras. The aperture format masks and gel filter holders
are the same as used in ARRIFLEX cameras. For shooting Super 35 in
ANSI format with an ARRIFLEX 435 or 535 camera, special ground
glasses and aperture format masks are available. In that case, timecode
cannot be recorded on the ARRIFLEX cameras.
The camera accepts the Lite Steadicam and Shoulder Magazines in back
load position. With the Studio Mag to Lite Camera Adapter the Studio
Magazine 120/400 and 300/1000 can also be mounted in back load
position. The ARRICAM lens mount accepts all LDS and non-LDS
PL mount lenses for 35 mm film cameras.
K0.60005.0
K0.60006.0
K0.60008.0
K0.60010.0
ARRICAM
ARRICAM
ARRICAM
ARRICAM
Lite
Lite
Lite
Lite
4
4
3
3
p
p
p
p
with
with
with
with
Lite
Lite
Lite
Lite
Speed:
1-40 fps forward, 1-32 fps reverse
(reverse can be set with the Speed Control Box,
Wireless Remote Control or ARRIMOTION system;
camera runs reverse only with Studio magazines)
Shutter:
electronic shutter from 0° to 180°, adjustable in 0.1°
increments. For ramps the range of 11.2° to 180°
can be used.
ARRICAM Lite Extended Camera Footage Display
Viewfinder
Universal Viewfinder
Viewfinder
Universal Viewfinder
Movement: 5-link with dual-pin registration and dual transport
claws, 4 or 3 perforation (4 p or 3 p).
Lens Mount: 54 mm PL with Lens Data System contacts.
Switchable to Super 35.
Power:
24 V DC, all fuses are self-resetting.
Sound:
less than 24 db/A
ARRICAM Lite Extended camera control panel
12
ARRICAM System Guide
09 / 2003
09 / 2003
Magazines
All four ARRICAM magazines can be used on the ARRICAM Studio
and on the ARRICAM Lite camera. All four magazines have a built-in
thermostatically controlled heater.
On each ARRICAM magazine the amount of footage loaded can be set
on the magazine footage counter, either in meters or in feet. Also the
ASA value of the film stock in use can be set. Setting the ASA value is
essential only when working with the In-camera Slate System, since it
determines the intensity of the In-camera Slate data exposure.
To mount the Studio magazines on the Studio camera, either the Top
Load Adapter, the Back Load Adapter or the Dual Port Adapter is necessary. To mount the Studio magazines on the Lite camera, the Studio
Mag to Lite Camera Adapter is necessary. Lite magazines can be
mounted on the Lite camera without any adapters. To mount Lite magazines on the Studio camera the Lite Mag to Studio Camera Adapter is
used. Studio magazine run forward and reverse. Due to their compact
design Lite magazines run only forward.
To ensure that the Lite camera is as small and lightweight as possible,
it’s magazine attachment mechanism differs from the Studio camera’s
mechanism. Whereas the Studio has a mechanism reminiscent of the
435, the Lite uses a mechanism similar that of the 535B.
ARRICAM System Guide
13
14
09 / 2003
ARRICAM System Guide
ARRICAM Studio Magazines Overview
Top Load Adapter
Studio Magazine 300/1000
Dual Port Adapter
ARRICAM Studio
Studio Magazine 120/400
Back Load Adapter
Lite Shoulder Magazine
Lite Mag to
Studio Camera Adapter
Lite Steadicam Magazine
09 / 2003
ARRICAM System Guide
ARRICAM Lite Magazines Overview
Lite Shoulder Magazine
Lite Steadicam Magazine
ARRICAM Lite
Studio Magazine 120/400
Studio Mag to
Lite Camera Adapter
Studio Magazine 300/1000
15
16
09 / 2003
ARRICAM System Guide
Studio Magazine 120/400
The 120m/400ft displacement magazine is torque motor driven and
runs forward and reverse. Built-in controls include: electronic raw
stock counter, ASA setting and an ASA display.
The footage counter is switchable between meter and feet.
A loop protector is included.
Compatibility: Can be mounted on top or back of the ARRICAM
Studio (with Top Load Adapter, Back Load Adapter or Dual Port
Adapter) or on the back of the ARRICAM Lite (with Studio Mag to
Lite Camera Adapter).
K2.54015.0
Studio Magazine 120/400
Studio Magazine 120/400
Studio Magazine 300/1000
The 300m/1000ft displacement magazine is torque motor driven and
runs forward and reverse. Built-in controls include: mechanical raw stock
check, electronic raw stock counter, ASA setting and an ASA display.
The footage counter is switchable between meter and feet.
A loop protector is included.
Compatibility: Can be mounted on top or back of the ARRICAM Studio
(with Top Load Adapter, Back Load Adapter or Dual Port Adapter) or
on the back of the ARRICAM Lite (with Studio Mag to Lite Camera
Adapter). When mounted with Back Load Adapter on Studio camera it
interferes with the ARRIHEAD. Use the Dual Port Adapter instead.
Cannot be used on Lite camera with Universal Low Mode Set.
Studio Magazine 300/1000
K2.54027.0
Studio Magazine 300/1000
To p L o a d A d a p t e r
When this adapter is attached to the ARRICAM Studio camera, both
Studio magazines can be mounted on top of the camera. It is mounted
with six screws (use 3mm hex key).
Compatibility: Only for ARRICAM Studio.
Does not work on ARRICAM Lite or with Lite magazines.
The Lite or Lite Universal viewfinders can be used with the Top Load
Adapter, but the Lite Frameglow and the Lite IVS cannot, since they
interfere with the Top Load Adapter. Use the Back Load Adapter instead.
Top Load Adapter
K2.54045.0
Top Load Adapter
Back Load Adapter
When this adapter is attached to the ARRICAM Studio camera, both
Studio magazines can be mounted on the back of the camera. This
adapter brings the Studio magazines in a truly vertical position for
Steadicam use. It is mounted with six screws (use 3mm hex key).
Compatibility: Only for ARRICAM Studio. Does not work on
ARRICAM Lite or with Lite magazines. If used with the Lite IVS, the
handle of the Back Load Adapter must be taken off, and the Studio
Center Handle should replace the Studio Camera Handle.
K2.54047.0
Back Load Adapter
Back Load Adapter
09 / 2003
ARRICAM System Guide
17
Dual Port Adapter
This magazine adapter allows Studio magazines to be mounted on the
ARRICAM Studio in top load or in an angled back load position.
Magazines can be switched between the two positions without having
to switch adapters.
With a magazine mounted in top load position, the Dual Port Adapter
acts just like the Top Load Adapter. When mounted in the back load
position, the magazine is at a 30° angle. That way even the 300m/1000ft
magazine will clear the top of a geared head.
The Dual Port Adapter is mounted with six screws (use 3mm hex key).
Compatibility: Only for ARRICAM Studio.
Does not work on ARRICAM Lite or with Lite magazines.
Dual Port Adapter
The port that is not occupied by the magazine is covered with a light tight
magazine cover which has a removable carrying handle. Old covers cannot
be used since they are not light tight.
The Lite or Lite Universal viewfinders can be used with the Dual Port
Adapter, but the Lite Frameglow and the Lite IVS cannot, since they
interfere with the Dual Port Adapter. Use the Back Load Adapter instead.
K2.54139.0
Dual Port Adapter
Studio Mag to Lite Camera Adapter
When this adapter is attached to the ARRICAM Lite, the camera can
accept Studio magazines. The adapter slides into the Lite camera body
like the Lite magazines and must be fastened with three screws, two on
top and one on the side (use 3mm hex key). The adapter has a small
door to facilitate loading.
Studio Mag to Lite Camera Adapter
Compatibility: Fits only on the ARRICAM Lite.
Accepts Studio Magazine 120/400 and Studio Magazine 300/1000.
K2.54048.0
Studio Mag to Lite Camera Adapter
Magazine Stabilization Bracket
This bracket mounts between the Studio Camera Handle and the
Studio Magazine 300/1000. It provides additional stability for shots
that will put extreme g-forces on camera and magazine.
Magazine Stabilizing Brackett
Compatibility: The Magazine Stabilization Bracket can be used on the
ARRICAM Studio with Studio Camera Handle and Studio Magazine
300/1000 mounted in top load.
K2.54126.0
Magazine Stabilization Bracket
18
09 / 2003
ARRICAM System Guide
Lite Steadicam Magazine
This 120m/400ft lightweight DC motor magazine is designed for Steadicam
use. Front/back balance is maintained throughout the shot since feed
and take-up shafts are above each other. Extremely small size due to
active displacement. Runs forward only.
Built-in controls include: electronic footage counter, ASA setting and
an ASA display. The footage counter is switchable between meter and
feet. A loop protector is included.
Compatibility: Fits on the ARRICAM Lite, or with Lite Mag to
Studio Camera Adapter on ARRICAM Studio.
K2.54028.0
Lite Steadicam Magazine
Lite Steadicam Magazine
Lite Shoulder Magazine
This 120m/400ft lightweight DC motor magazine is designed for hand
held use. A long, angled throat provides better balance and more comfort
while hand holding. Extremely small size due to active displacement.
Runs forward only. Built-in controls include: electronic footage counter,
ASA setting and an ASA display. The footage counter is switchable
between meter and feet. A loop protector is included.
Compatibility: Fits on the ARRICAM Lite, or with Lite Mag to
Studio Camera Adapter on ARRICAM Studio.
K2.54097.0
K2.54165.0
Lite Shoulder Magazine with Spindle for Film Cores
Lite Shoulder Magazine with Collapsible Core
Lite Shoulder Magazine
Lite Mag to Studio Camera Adapter
The Lite Mag to Studio Camera Adapter allows the Lite Shoulder Magazine
and the Lite Steadicam Magazine to be mounted on the ARRICAM
Studio in back load position. It is mounted to the camera with six
screws (use 3mm hex key). A small door facilitates film threading.
Compatibility: Only for ARRICAM Studio.
Does not work on ARRICAM Lite or with Studio magazines.
If used with Lite IVS, the handle of the Lite Mag to Studio Camera
Adapter must be taken off, and the Studio Center Handle should
replace the Studio Camera Handle.
K2.54127.0
Lite Mag to Studio Camera Adapter
Lite Mag to Studio Camera Adapter
09 / 2003
Viewfinders
The ARRICAM viewfinder system includes two viewfinders for spherical
viewing (Studio Viewfinder and Lite Viewfinder) and two viewfinders
that can switch between spherical and anamorphic viewing (Studio
Universal Viewfinder and Lite Universal Viewfinder).
All viewfinders can be mounted on Lite and Studio camera. The two
Studio Viewfinders are bright and versatile with a brilliant image quality,
while the two Lite Viewfinders are optimized to be small, lightweight
and well balanced.
Both Studio viewfinders can use the Studio Integrated Video System (IVS),
which attaches to the viewfinder’s right side to leave space for top
mounted magazines. Both Lite viewfinders can use the Lite Integrated
Video System (IVS), which mounts on top of the viewfinders to provide
better balance. The beamsplitter for the video assists sends 80% of the
light to the operator and 20% to the video assist.
The Heated Eyecup, the 6.6” Video Monitor, and the 2” Video Monitor
can be used with all viewfinders.
ARRICAM System Guide
19
20
09 / 2003
ARRICAM System Guide
ARRICAM Studio Viewfinder Overview
Studio Integrated Video System (IVS)
Studio Readout
MINIMONITOR
Studio 100% Video Top
OPEN
CAUTION: HOLD TUBE
DURING RELEASE
LOCK
Studio Mask
Frameglow
FIX
Studio LCD
Frameglow
LCD
N35
Studio Eyepiece
Eyecup
Studio Anamorphic Extension
Studio Zoom Extension
Lite Universal Eyepiece
Heated Eyecup
Studio Medium Extension
ARRICAM Studio Universal Viewfinder Overview
Studio Integrated Video System (IVS)
Studio Readout
MINIMONITOR
Studio 100% Video Top
OPEN
CAUTION: HOLD TUBE
DURING RELEASE
LOCK
Studio Mask
Frameglow
LCD
N35
UNLOCK
OPEN
LOCK
FIX
Studio LCD
Frameglow
Studio Eyepiece
Eyecup
Studio Anamorphic Extension
Studio Zoom Extension
Lite Universal Eyepiece
Studio Medium Extension
Heated Eyecup
09 / 2003
ARRICAM System Guide
ARRICAM Lite Viewfinder Overview
Lite Integrated Video System (IVS)
Lite 100% Video Top
Lite Mask
Frameglow
Eyecup
Lite Extension
Lite Eyepiece
Heated Eyecup
ARRICAM Lite Universal Viewfinder Overview
Lite Integrated Video System (IVS)
Lite 100% Video Top
Lite Mask
Frameglow
UNLOCK
OPEN
LOCK
FIX
Eyecup
Studio Anamorphic Extension
Studio Zoom Extension
Lite Universal Eyepiece
Studio Medium Extension
Heated Eyecup
21
22
09 / 2003
ARRICAM System Guide
Studio Viewfinder
A very bright and versatile viewfinder with many accessories. Can be
used camera right or left. A telescoping feature moves the eyepiece closer
or farther from the camera body. The viewfinder keeps an upright image
in all positions, but the image can also be rotated manually. It includes an
ND.6 flip-in contrast filter. The optical system can be easily switched
to Super 35 by replacing a plate between viewfinder and camera body.
Compatibility: Can be mounted on the ARRICAM Studio or on the
ARRICAM Lite. It can be equipped with Studio Eyepiece, Lite Universal
Eyepiece, all Studio Viewfinder extensions, Studio Readout and the
Heated Eyecup. Accepts Studio Integrated Video System (IVS) and
Studio Mask– or LCD Frameglow Module.
Studio Viewfinder
K2.54175.0
Studio Viewfinder
Studio Universal Viewfinder
A very bright and versatile viewfinder with many accessories that can
be switched between spherical and anamorphic viewing. It can be used
on the camera’s right or left side. A telescoping feature moves the eyepiece closer or farther from the camera body. The viewfinder keeps an
upright image in all positions, but the image can also be rotated manually.
It includes an ND .6 flip-in contrast filter. The optical system can be
easily switched to Super 35 by replacing a plate between viewfinder and
camera body.
Studio Universal Viewfinder
The viewfinder arm can be rested on a stop on the viewfinder’s left side.
If a stop is also wanted on the right side, the additional Studio Universal
Viewfinder Bracket can be attached to the Studio camera’s right side.
This bracket is not compatible with the Lite camera, Lite Viewfinder or
Lite Universal Viewfinder.
Compatibility: Can be mounted on the ARRICAM Studio or on the
ARRICAM Lite. Can be equipped with Studio Eyepiece, Lite
Universal Eyepiece, all Studio Viewfinder extensions, Studio Readout
and Heated Eyecup. Accepts Studio Integrated Video System (IVS) and
Studio Mask or LCD Frameglow Module.
K2.54190.0
K2.54178.0
Studio Eyepiece
Studio Universal Viewfinder
Studio Universal Viewfinder Bracket
Studio Eyepiece
An eyepiece with a +/- 5.5 diopter adjustment range. Includes eyecup.
Compatibility: Fits on Studio Viewfinder, Studio Universal Viewfinder
and all Studio Viewfinder extensions. The eyecup is compatible with
the ARRIFLEX eyepieces.
K2.54003.0
Studio Eyepiece
09 / 2003
ARRICAM System Guide
23
Studio Zoom Extension
Extends the distance between viewfinder and eyepiece about
30cm / 11.8 inches. Turning the ring zooms the image from normal size
to 2x magnification.
Compatibility: Fits on Studio Viewfinder, Studio Universal Viewfinder
and Lite Universal Viewfinder. Uses the ARRIFLEX Eyepiece Leveler.
K2.54004.0
Studio Zoom Extension
Studio Medium Extension
Extends the distance between viewfinder and eyepiece about 15cm / 5.9 inches.
Compatibility: Fits on Studio Viewfinder, Studio Universal Viewfinder
and Lite Universal Viewfinder. Uses the ARRIFLEX Eyepiece Leveler.
K2.54005.0
Studio Zoom Extension
Studio Medium Extension
Studio Anamorphic Extension
Extends the distance between viewfinder and eyepiece about 30cm / 11.8 inches.
Turning the ring zooms the image from normal size to 2x magnification.
An anamorphic element can be switched into the light path.
Just like the 435 Anamorphic Viewfinder, the ARRICAM Studio and Lite
Universal Viewfinders only show a correctly de-squeezed, rotated and
shaped image when the viewfinder arm is in the horizontal position, either
on the left or right side of the camera. If the viewfinder arm is between
these two positions the image is distorted. This distortion cannot be corrected with the manual image rotation control. The situation is different
when using the ARRICAM Studio Anamorphic Extension to de-squeeze
the image. When the viewfinder arm is anywhere between the horizontal
and vertical positions, image squeeze and shape distortions can be compensated for with the manual image rotation control, even though this will
result in a rotated image. When the viewfinder arm is in the vertical position (the eyepiece is above the camera), a properly squeezed, rotated and
shaped image can be achieved by taking the Studio Anamorphic Extension
off the viewfinder, rotating it 90 degrees, and re-attaching it.
Studio Medium Extension
Compatibility: Fits on Studio Viewfinder, Studio Universal Viewfinder
and Lite Universal Viewfinder. Uses the ARRIFLEX Eyepiece Leveler.
K2.54018.0
Studio Anamorphic Extension
Studio Anamorphic Extension
Studio Readout
The Studio Readout mounts on top of the Studio Viewfinder or the Studio
Universal Viewfinder. On the left side it shows camera speed, shutter angle
and exposed film, plus a RUN and a BAT LED. By pushing the RAW
STOCK button, the magazine raw stock can be displayed. By pushing the
BRIGHT button, the brightness of all LED displays on the camera can be
adjusted. On the right side the Studio Readout shows camera speed and a
RUN LED. On the left a connector for the Lens Data Displays is provided.
Compatibility: Fits on the Studio Viewfinder or the Studio Universal
Viewfinder. Does not fit on Studio 100% Video Top.
K2.54008.0
Studio Readout
Studio Readout
24
09 / 2003
ARRICAM System Guide
Studio Integrated Video System (IVS)
A color video assist that shares all the 435 IVS II features, including frame
line and text insertion and direct accessible buttons for the most common
functions. In addition, it has a one-knob interface for further menu functions,
is flicker free from 5 to 60 fps, has manual color balancing and a video
shutter which can be synchronized to the camera shutter. The inserted
text lines can be configured to provide on-screen information about
camera status, In-camera Slate information, timecode and LDS.
Compatibility: Fits on Studio Viewfinder, Studio Universal Viewfinder
and Studio 100% Video Top. Functions and features are identical to the
Lite IVS. When used on the Lite Camera, the Lite Camera Handle must
be replaced with the Lite Center Handle.
Studio Integrated Video System (IVS)
K2.54041.0
K2.54042.0
Studio IVS PAL
Studio IVS NTSC
S t u d i o 1 0 0 % V i d e o To p
This module can be attached to the ARRICAM Studio or ARRICAM Lite
instead of a viewfinder when only video assist and no optical viewing is required.
The Studio IVS attaches to this module. All available light will be routed
to the video assist, and thus a better image quality can be achieved. The
optical system can be easily switched to Super 35 by replacing a plate
between Studio 100% Video Top and camera body.
Studio 100% Video Top
Compatibility: Can be mounted on the ARRICAM Studio or on the
ARRICAM Lite. When used with Studio IVS on the Lite Camera, the Lite
Camera Handle must be replaced by the Lite Center Handle. Mounting
holes for the Support Rod Bracket of the Universal Low Mode Set are
provided on the front side. The Studio Readout, the Studio LCD Frameglow
Module and the Studio Mask Frameglow cannot be attached.
K2.54033.0
Studio 100% Video Top
Studio Mask Frameglow
This module attaches to the Studio Viewfinder or the Studio Universal
Viewfinder. Physical masks slide into the module and determine the frame
lines that are illuminated. The brightness of these frame outlines can be
varied with the DIMMER knob.
Studio Mask Frameglow
Compatibility: Fits on the Studio Viewfinder or the Studio Universal
Viewfinder. Cannot be used with Studio 100% Video Top. Except for
three masks each, the masks for Studio Mask Frameglow and Lite Mask
Frameglow are identical.
K2.54017.0
Studio Mask Frameglow
Studio LCD Frameglow
This module attaches to the Studio Viewfinder or the Studio Universal
Viewfinder and provides 4 different types of preset illuminated frame outlines:
Academy (1.37), TV (1.33), HDTV (1.78) and Wide screen (1.85). Two of them
can be on at the same time. Their brightness can be varied with the DIMMER knob.
Compatibility: Fits on the Studio Viewfinder or the Studio Universal
Viewfinder. Cannot be used with Studio 100% Video Top. The preset
formats are in Normal 35 only.
Studio LCD Frameglow
K2.54007.0
Studio LCD Frameglow
09 / 2003
ARRICAM System Guide
25
Lite Viewfinder
A small and lightweight viewfinder. It can be used on the camera’s right
or left side. The viewfinder keeps an upright image in all positions, but
the image can also be rotated manually. It includes an ND .6 flip-in
contrast filter. The optical system can be easily switched to Super 35 by
replacing a plate between viewfinder and camera body. Can be
equipped with Lite Eyepiece, Lite Extension and Heated Eyecup.
Compatibility: Can be mounted on the ARRICAM Studio or on the
ARRICAM Lite. Accepts Lite Integrated Video System (IVS) and Lite
Mask Frameglow only. When used on the ARRICAM Studio with Lite
IVS and/or Lite Frameglow, the magazines must be mounted in back
load position since the Top Load Adapter or the Dual Port Adapter
would interfere with the Lite IVS and/or the Lite Frameglow. In that
case, the Back Load Adapter handle must also be removed.
K2.54049.0
Lite Viewfinder
Lite Viewfinder
Lite Eyepiece
An eyepiece with a +/- 5.5 diopter adjustment range. Includes eyecup.
Compatibility: Fits only on Lite Viewfinder and on Lite Extension.
The eyecup is compatible with ARRIFLEX eyepieces.
K2.54046.0
Lite Eyepiece
Lite Extension
Extends the distance between the Lite Viewfinder and the eyepiece
about 25cm / 9.8 inches. Turning the knob switches the image from
normal size to 2x magnification.
Lite Eyepiece
Compatibility: Fits only on the Lite Viewfinder. Uses the ARRIFLEX
Eyepiece Leveler.
K2.54050.0
Lite Extension
Lite Mask Frameglow
This module attaches to the Lite Viewfinder or the Lite Universal Viewfinder.
Physical masks slide into the module and determine the illuminated frame
lines. The brightness of these frame outlines can be varied with the DIMMER
knob. On top is a connector for the Lens Data Displays.
Lite Extension
Compatibility: Fits on Lite Viewfinder and on Lite Universal Viewfinder.
Cannot be used with Lite 100% Video Top. If a magazine is attached to
the Studio camera in the top-load position, the Lite Viewfinder or Lite
Universal Viewfinder with a Frameglow will not fit on the camera.
Except for three masks each, the masks for Studio Mask Frameglow and
Lite Mask Frameglow are identical.
K2.54037.0
Lite Mask Frameglow
Lite Mask Frameglow
26
09 / 2003
ARRICAM System Guide
Lite Universal Viewfinder
A small and lightweight viewfinder that can be switched between spherical
and anamorphic viewing. With excellent optical quality it still is small
and lightweight enough for handheld work on the ARRICAM Studio
or ARRICAM Lite. A telescoping feature moves the eyepiece closer or
farther from the camera body. The viewfinder keeps an upright image
in all positions, but the image can also be rotated manually. It includes
an ND .6 flip-in contrast filter. The optical system can be easily switched
to Super 35 by replacing a plate between viewfinder and camera body.
Includes Lite Universal Eyepiece.
The viewfinder arm can be rested on a stop on the viewfinder’s left side.
If a mechanical stop is also wanted on the right side, the additional Lite
Universal Bracket can be attached to the Lite Universal Viewfinder.
Lite Universal Viewfinder
Compatibility: The Lite Universal Viewfinder has its own small and
lightweight eyepiece. The Studio Eyepiece is not compatible. The use of the
Studio Zoom Extension, Studio Medium Extension or the Studio
Anamorphic Extension are possible. It accommodates Lite Integrated
Video System (IVS), Lite Mask Frameglow and Universal Low Mode Set.
Can be mounted on the ARRICAM Studio or on the ARRICAM Lite.
When used on the ARRICAM Studio with Lite IVS and/or Lite
Frameglow, the magazines must be mounted in back load position
since the Top Load Adapter or the Dual Port Adapter would interfere
with the Lite IVS and/or the Lite Frameglow. In that case, the Back
Load Adapter handle must also be removed.
Lite Universal Eyepiece
K2.54099.0
K2.54151.0
Lite Universal Viewfinder
Lite Universal Viewfinder Bracket
Lite Universal Eyepiece
An eyepiece with a +/- 5.5 diopter adjustment range. Used on the
Studio Viewfinder, the adjustment range is limited to +5/-2 diopters.
Includes eyecup.
Compatibility: Fits on Lite Universal Viewfinder, Studio Viewfinder,
Studio Universal Viewfinder and all Studio Extensions. The eyecup is
compatible with ARRIFLEX eyepieces.
K2.54734.0
Lite Universal Eyepiece
09 / 2003
ARRICAM System Guide
27
Lite Integrated Video System (IVS)
A color video assist that shares all the 435 IVS II features, including frame
line and text insertion and direct accessible buttons for the most common
functions. In addition, it has a one-knob interface for further menu functions,
is flicker free from 5 to 60 fps, has a manual color balancing and a video
shutter which can be synchronized to the camera shutter. The inserted
text lines can be configured to provide on-screen information about
camera status, In-camera Slate information, timecode and LDS.
Compatibility: Fits on Lite Viewfinder, Lite Universal Viewfinder and
Lite 100% Video Top. Functions and features are identical to the Studio
IVS. When used with Lite Viewfinder or Lite Universal Viewfinder on
the Studio camera, magazines cannot be top loaded. If the ARRICAM
Studio has a magazine in the back load position, the Back Load Adapter
handle has to be taken off. In addition, the Studio Camera Handle has
to be replaced with the Studio Center Handle.
K2.54039.0
K2.54032.0
Lite Integrated Video System (IVS)
Lite IVS PAL
Lite IVS NTSC
L i t e 1 0 0 % V i d e o To p
This module can be attached to the ARRICAM Studio or ARRICAM Lite
instead of a viewfinder when only video assist and no optical viewing is
required. The Lite IVS attaches to this module. All available light will be
routed to the video assist, and thus a better image quality can be achieved.
The optical system can be easily switched to Super 35 by replacing a
plate between viewfinder and camera body.
Compatibility: Can be mounted on the ARRICAM Studio or on the
ARRICAM Lite. When used with Lite IVS on the Studio camera, magazines
cannot be top loaded. If the ARRICAM Studio has a magazine in the
back load position, the Back Load Adapter handle has to be taken off.
In addition, the Studio Camera Handle has to be replaced by the Studio
Center Handle. Mounting holes for the Support Rod Bracket of the
Universal Low Mode Set are provided on the front side. The Lite Mask
Frameglow cannot be attached.
K2.54038.0
Lite 100% Video Top
Lite 100% Video Top
28
09 / 2003
ARRICAM System Guide
Heated Eyecup
An eyecup with a built-in heating element, operating on 24V. It can be
set to OFF, HI or LO.
Compatibility: The ARRICAM Heated Eyecup fits on all eyepieces of
the ARRICAM viewfinder system. The cable pictured connects from the
heated eyecup (Fischer connector) to the ARRICAM (LEMO Mini
Coax connector). This heated eyecup also fits on ARRIFLEX cameras,
but then the traditional heated eyecup cable (Fischer to Fischer) must
be used. The ARRIFLEX heated eyecups fit on the Lite Eyepiece and
the Lite Universal Eyepiece, but NOT on the Studio Eyepiece.
Note: The ARRICAM heated eyecup uses the same Mini Coax connector as the Work Light.
Heated Eyecup
K2.54002.0
Heated Eyecup (includes cable KC-63-S)
6.6” Video Monitor
This 6.6” LCD color video monitor with a high quality extremely bright
image automatically detects and switches between PAL and NTSC.
The image can be flipped upside down, in case the monitor is hung
upside down.
Compatibility: Can be mounted anywhere. The bracket of its flexible
arm fits any accessory shoe on the camera. Connects to the MINI
MONITOR connector on all ARRICAM and ARRIFLEX Integrated
Video Systems.
6.6” Video Monitor
K2.54031.0
6.6” Video Monitor
2” Video Monitor
A 2” LCD color video monitor with adjustments for brightness and color.
Compatibility: Can be mounted anywhere. The bracket of its arm fits
any accessory shoe on the camera. Connects to the MINI MONITOR
connector on all ARRICAM and ARRIFLEX Integrated Video Systems.
K2.54040.0
K2.54035.0
2” Video Monitor
2” Video Monitor PAL
2” Video Monitor NTSC
09 / 2003
Electronic Accessories
Through their built-in control panels, both ARRICAMs can be operated
without any electronic accessories. But for remote control, special effects,
synchronization or faster working a complete range of electronic accessories
is available. These accessories communicate through a robust and high
speed internal data network and most of them attach directly to the
cameras or can be operated remotely.
Beyond the camera controllers like Speed Control Box, Manual Control
Box or Timing Shift Box the ARRICAM electronic accessories also
encompass two revolutionary new systems: The Lens Data System and
the In-camera Slate System.
The Lens Data System is based on smart lenses that inform the camera
about their focus, iris and zoom settings. This information is used by
the camera and various accessories, making filming easier and faster.
With the Lens Data System the crew can work more efficiently, which
ultimately saves money on the set.
The In-camera Slate System records letters and numbers into the image
area before each take. This information is man and machine readable in
post production. It can either replace a smart slate or be used to automatically synch audio in telecine.
ARRICAM System Guide
29
30
09 / 2003
ARRICAM System Guide
Electronic Accessories Overview
Speed Control Box
Studio Lens Data Box
Manual Control Box
Timing Shift Box
Studio LDB Adapter
Remote Control Station
MCB Cable Adapter
ARRICAM Studio
Accessory Power Box
Lite Lens Data Box
In-camera Slate Box
Wired Handgrip Attachment 2
ARRICAM Lite
Power Bridgeplate
09 / 2003
ARRICAM System Guide
31
Speed Control Box (SCB)
The Speed Control Box integrates three main features into one accessory:
The speed control feature allows the setting of the camera speed with
0.001 fps accuracy, to switch from forward to reverse run and to perform
simple 1 step speed ramps with or without exposure compensation. The
iris control feature allows for iris compensated speed or shutter ramps
when a LDS lens and the Lens Data Box are present. The synchronization
feature synchronizes the camera to an external source, e.g. to a video
monitor. A RUN button makes it possible to start and stop the camera
from its right side or remotely. With the BRIGHT button the brightness
of all LED displays on the camera can be adjusted.
Compatibility: The SCB attaches directly to the Studio camera or to the
Remote Control Station without tools, using a quick release mechanism.
A connection to Studio or Lite camera with Remote Cable KC-65 (3m/9ft)
or KC-69 (15m/45ft) is also possible. The cable drum KC-73 (50m/150ft)
can be used for additional extension.
The Manual Control Box has to be removed to attach or remove the
Speed Control Box from the Studio camera.
For the SYNC function, the existing ARRI External Synchronization Unit
pickup and the new ARRICAM ESU cable KC-66 (10m/33ft) can be used
to sense the sync signal from Cathode Ray Tubes (CRT) monitors. For
synchronizing two or more cameras the Camera Sync Cable KC-78-S
connects the CAC connector of the master camera to the SYNC IN
connector on the SCB of the slave camera.
K2.54010.0
Speed Control Box (SCB)
Manual Control Box (MCB)
With this box camera speed or shutter angle can be changed on the fly,
just by turning a hand dial. If used without the Speed Control Box,
camera speed and shutter can be set over the whole available range. If
used with the Speed Control Box, the range from slowest and fastest
fps can be limited, and manual speed/exposure or shutter/iris (depth of
field) ramps can be performed.
Compatibility: This box attaches directly to the Studio camera or the
Remote Control Station, and can be connected to the Studio or Lite camera
with the MCB Cable Adapter and the Speed Control Box Remote Cable
KC-65 (3m/9ft) or KC-69 (15m/45ft), with or without the 50m/150ft
Cable Drum KC-73.
The Manual Control Box has to be removed to attach or remove the
Speed Control Box from the Studio camera. If a magazine is attached in
back load position to the Studio camera, the magazine has to be removed
before the Manual Control Box can be attached or removed.
K2.54021.0
Manual Control Box
MCB Cable Adapter
The MCB Cable Adapter can be used to control the ARRICAM Studio
or Lite remotely with the Manual Control Box or Timing Shift Box.
Compatibility: Manual Control Box or Timing Shift Box are attached to
the MCB Cable Adapter with two screws (use 3mm hex driver). The adapter
can then be connected to the camera CAC connector with the Speed Control
Box Remote Cable KC-65 (3m/9ft) or KC-69 (15m/45ft). The optional
Cable Drum KC-73 extends the whole setup another 50m/150ft.
K2.52213.0
Speed Control Box (SCB)
MCB Cable Adapter
Manual Control Box (MCB)
MCB Cable Adapter
32
09 / 2003
ARRICAM System Guide
Ti m i n g S h i f t B o x ( T S B )
The Timing Shift Box adjusts the phase relationship of the mirror shutter
to the movement. The result is that the film is exposed while being transported, which creates a streaking effect. A unique feature of the Timing
Shift Box is the Jitter function. It introduces a random fluctuation in the
timing shift, resulting in a fluctuation of the length of the streak.
Compatibility: This box attaches directly to the Studio camera or the
Remote Control Station, and can be connected to the Studio or Lite camera
with the MCB Cable Adapter and the Speed Control Box Remote Cable
KC-65 (3m/9ft) or KC-69 (15m/45ft), with or without the 50m/150ft
Cable Drum KC-73.
Timing Shift Box (TSB)
The Timing Shift Box has to be removed to attach or remove the Speed
Control Box from the Studio camera. If a magazine is attached in back
load position to the Studio camera, the magazine has to be removed before
the Timing Shift Box can be attached or removed.
Timing Shift Box, Manual Control Box and Speed Control Box can be
used simultaneously.
K2.54171.0
Remote Control Station (RCS)
Timing Shift Box
Remote Control Station (RCS)
The Remote Control Station is an adapter plate that allows the use of a
variety of accessories remotely. The connection of the Remote Control
Station to the CAC connector of the camera body is simply achieved
by one Speed Control Box Remote Cable KC-65 (3m/9ft) or KC-69
(15m/45ft), with or without the 50m/150ft Cable Drum KC-73.
Compatibility: These accessories can be mounted directly to the Remote
Control Station: Speed Control Box, Manual Control Box or Timing
Shift Box, Lens Data Display Classic or Lens Data Display for the Focus
Puller. In addition the WHA-2 can be connected with cable LC-M1,
LC-M2, LC-Z1 or LC-Z2. The hand units of the wireless Lens Control
System (WFU-1 and/or WZU-1) or the Wireless Remote Control (WRC-1)
can be attached to the WHA-2.
Two 3/8” threaded holes on the backside of the Remote Control Station
can be used to mount it in a variety of positions, e.g. on the camera’s left
side or on the Lite Camera Handle.
The WHA-2 connector on the Remote Control Station is meant ONLY
for the WHA-2. It is not compatible with the Zoom Main Unit (ZMU-1)
or the Controlled Lens Motor-1 (CLM-1).
The SYNC function of the Speed Control Box does not work when the
Cable Drum is used. It will work, however, when the 15m/45ft or the
3m/9ft Speed Control Box Remote cable is used.
K2.54143.0
Remote Control Station
09 / 2003
ARRICAM System Guide
33
CAC Distribution Box
The CAC Distribution Box allows more than one accessory to be connected
to the CAC connector at the same time. It connects to the Studio or Lite
CAC connector and provides three CAC connectors. The box is equipped
with a clamp, so it can be attached to a tripod leg, support rod or the
ARRICAM camera handles.
K2.54130.0
CAC Distribution Box
Accessory Power Box (APB)
The Accessory Power Box provides additional power outlets for accessories,
plus a RUN button. Three connectors supply 24V through a standard
RS 3 pin Fisher socket, and two connectors provide 12V through the
old standard 11 pin Fisher socket.
CAC Distribution Box
Compatibility: The Accessory Power Box can be mounted in place of
the In-camera Slate Box either directly to the ARRICAM Studio or to
the Lens Data Box of the ARRICAM Lite. Via a 3/8” threaded hole it can
alternatively be attached anywhere on the camera, and even to any other
camera, in which cases it needs to be powered from a separate battery
or through a Y-cable. The 12V and the 24V connectors provide power
only. They do not provide run/stop functionality or a shutter pulse.
K2.54177.0
K2.54191.0
Accessory Power Box (includes cover)
Power Y-Cable KC-62-S
Power Bridgeplate
Bridgeplate for 19 mm rods with two accessory power outlets (Fischer 3-pin).
Accessory Power Box (APB)
Compatibility: This bridgeplate fits on both ARRICAM cameras, but does
not fit on any other camera. The Remote Switch RS-4 cannot be used with
the two power outlets, since they do not support the camera run/stop
functionality.
Note: ARRIFLEX Bridgeplates also fit on the ARRICAM cameras.
K2.54011.0
Power Bridgeplate
Work Light
The lamp is mounted on a goose neck and can be used e.g. to illuminate
the lens barrel in low-light conditions or to facilitate threading the film.
It operates on 24V.
Power Bridgeplate
Compatibility: Fits on Studio and Lite cameras. Uses the same LEMO
Mini Coax connector as the heated eyepiece.
K2.54022.0
Work Light
Work Light
34
ARRICAM System Guide
09 / 2003
09 / 2003
Lens Data System
The Lens Data System (LDS) automatically reads focus, iris and zoom of
LDS lenses (currently Ultra Primes, Cooke S-4, Variable Primes and
other zooms). A Lens Data Box (LDB) each attaches to ARRICAM
Studio and Lite. The lens information gathered by the Lens Data Box
can then be used in a variety of ways:
•
The Lens Data Display (LDD or LDD-FP) shows lens settings and
camera status, calculates depth of field and allows setting of focus
marks and focus tracking.
•
The Studio and Lite Integrated Video Systems (IVS) can insert the
lens data information as text into the video assist image.
•
The Wireless Remote Control (WRC) and the Speed Control Box
(SCB) can use the lens information to run speed/iris or depth of
field ramps.
•
The ARRIMOTION system can read and record all lens information
and export it for further use in post production.
ARRICAM System Guide
35
36
09 / 2003
ARRICAM System Guide
Lens Data System Overview
Lens Data Display for the Focus Puller
WMU-1
Lens Data Display Classic
RF
CAL
BAT RDY
Lite Lens Data Box
Studio Lens Data Box
LDS Lens
Lens Data Functions
LDS READY
RF
LCS
FOCUS
LCS
Lens Control Functions
CLM-2
WFU-1
ZOOM
IRIS
WRC-1
WHA-2
Studio IVS
Lite IVS
WZU-1
CLM-1
Speed Control Box
L
IRIS
R
ZOOM
FOCUS
READY
In-camera Slate Box
ZMU-1/ZMU-2
09 / 2003
ARRICAM System Guide
37
Studio Lens Data Box (LDB)
The Lens Data Box (LDB) is the central processing point for the signals
from the Lens Control System (LCS) and from the Lens Data System (LDS).
It controls lens motors, supplies the Lens Data Displays and IVS with
information and manages the connection to the LCS hand units for
focus, zoom, iris and to WRC-1 for camera control, either hardwired
through the WHA-2 or wireless through the radio module.
Compatibility: The Studio Lens Data Box can be mounted to the
ARRICAM Studio or to the Studio LDB Adapter. It can be attached
without the use of tools. Compatible are all hand units and the Controlled
Lens Motor (CLM-2) of the wireless Lens Control System, and the
Zoom Main Unit (ZMU-1) and the Controlled Lens Motor (CLM-1)
of the wired Lens Control System (LCS). The wired Focus Iris Unit
(FIU-1) is not compatible.
K2.54014.0
Studio Lens Data Box (LDB)
Studio Lens Data Box (LDB)
Studio LDB Adapter
The Studio LDB Adapter allows the mounting of the Studio Lens Data
Box 1m/3ft away from the camera body. This is preferable under some
circumstances, most notably when using the ARRICAM Studio on a
Steadicam.
Compatibility: The Studio LDB Adapter works only on the ARRICAM
Studio with Studio Lens Data Box.
K2.54144.0
Studio LDB Adapter
Studio LDB Adapter
Lite Lens Data Box (LDB)
The Lens Data Box (LDB) is the central processing point for the signals
from the Lens Control System (LCS) and from the Lens Data System (LDS).
It controls lens motors, supplies the Lens Data Displays and IVS with
information and manages the wireless connection to the hand units for
focus, zoom, iris and to WRC for camera control, either hardwired
through the WHA-2 or wireless through the radio module.
Compatibility: The Lite Lens Data Box can only be mounted on the
ARRICAM Lite. It can be attached with a 3 mm hex key. Compatible
are all hand units and the Controlled Lens Motor (CLM-2) of the wireless Lens Control System, and the Zoom Main Unit (ZMU-1) and the
Controlled Lens Motor (CLM-1) of the wired Lens Control System
(LCS). The wired Focus Iris Unit (FIU-1) is not compatible. The Lite
Lens Data Box is necessary to mount the In-camera Slate Box or the
Accessory Power Box to the ARRICAM Lite.
K2.54025.0
Lite Lens Data Box (LDB)
Lite Lens Data Box (LDB)
38
09 / 2003
ARRICAM System Guide
Lens Data Display Classic (LDD)
The LDD displays lens ring position and camera status. Lens ring markings
can be displayed in feet or meters. The LDD graphically shows depth of
field, and allows for the setting, display and storage of focus marks. It can
be used on the camera or remotely, for instance when the camera is on
a crane.
Lens Data Display Classic (LDD)
Compatibility: The Lens Data Display Classic can be connected to the
ARRICAM Studio or to the ARRICAM Lite, as long as the respective
Lens Data Box is present. Cables KC-60 (0.5m/1.5ft) or KC-79 (3m/9ft)
can be used to connect the LDD on the Studio to the Studio Readout of
the Studio camera, or to the Lite Mask Frameglow of the Lite camera.
Alternatively, cables KC-67 (3m/9ft) or KC-68 (15m/45ft) connects the
LDD Classic to the CAC connectors of Studio or Lite. For remote
operation it can also be connected to the ARRICAM Remote Control
Station with cables KC-60 or KC-79.
K2.54012.0
Lens Data Display for the Focus Puller (LDD-FP)
Lens Data Display Classic (LDD),
includes Cable KC 60
Lens Data Display for the Focus Puller (LDD-FP)
The LDD-FP is a small and lightweight Lens Data Display showing
important lens informations and camera status. It can be configured to
show focus scale, zoom scale, iris scale and camera status in any combination.
Lens ring markings can be displayed in feet or meters. The LDD-FP
graphically shows depth of field, and allows for the setting, displaying
and storage of focus marks. Because of its small size it can be mounted
in many ways, allowing the assistant to see precise lens and camera
information while keeping an eye on the action.
Compatibility: The LDD-FP can be connected to the ARRICAM Studio
or to the ARRICAM Lite, as long as the respective Lens Data Box is
present. The cable LDDFP-RDO (0.6m/2ft) connects it to the Studio
Readout or to the Lite Mask Frameglow. With cable LDDFP-CAC
(1.5m/5ft) the LDD-FP can be connected to the CAC connectors of
Studio or Lite. Do not use the LDDFP-CAC cable with the Cable Drum.
For remote operation it can be connected to the ARRICAM Remote
Control Station with cable LDDFP-RDO.
Three different brackets are available for mounting the LDD-FP to different types of ARRI matte boxes.
K2.54163.0
Lens Data Display for Focus Puller (LDD-FP),
includes Cable LDDFP-RDO
K2.54166.0
K2.54167.0
K2.54168.0
Bracket for MB-14
Bracket for MB-16/MB-18
Bracket for MB-19
09 / 2003
ARRICAM System Guide
39
Wired Handgrip Attachment (WHA-2)
With this handgrip attachment the hand units of the wireless Lens Control
System (WFU-1 and/or WZU-1) or the Wireless Remote Control (WRC-1)
can be operated hardwired.
Compatibility: The WHA-2 works with the ARRIFEX 435 Advanced
if a FEM-2 is present as well as with the ARRICAM Studio and ARRICAM
Lite. It can be connected to the LCS socket of a Lens Data Box with cable
LC-M1, LC-M2, LC-Z1 or LC-Z2. Alternatively it can be connected
to the CAC connector of Studio or Lite using cable KC-70 (3m/9ft).
For lens control on an ARRICAM, a Lens Data Box must be present.
The WHA-2 can be mounted on the camera with the Rod Bracket or
with the Rosette Bracket.
Wireless Handgrip Attachment (WHA-2)
K2.54079.0
Wireless Handgrip Attachment 2
WHA-2 Rod Bracket
This bracket is used to mount the WHA-2 onto support rods. It connects to the WHA-2 with a quick release dovetail mechanism. Two
articulated hinges allow for flexible positioning of the WHA-2 and
attached controller.
K2.52150.0
WHA-2 Rod Bracket
WHA-2 Rosette Bracket
This bracket is used to mount the WHA-2 onto an ARRIHEAD. It
connects to the WHA-2 with a quick release dovetail mechanism. This
dovetail clamps onto a 15mm rod, which can be swiveled out for flexible positioning of the WHA-2 and attached controller.
WHA-2 Rod Bracket
A 5mm hex key is needed for mounting the bracket onto the ARRIHEAD rosette.
K2.52153.0
WHA-2 Rosette Bracket
WHA-2 Rosette Bracket
40
09 / 2003
ARRICAM System Guide
Overview: Reflex Prevention Rings and Clamp Adapters
necessary parts:
reduction ring
Lens
front dia
Matte Box
round filter size
LDS UP 12mm
156mm
MB-14
LMB-4
—
—
K2.45505.0
K2.45265.0
LDS UP 14mm, 180mm 114mm
MB-14
6”
138mm
4 1/2”
6”
138mm
4 1/2”
4 1/2”
4 1/2”
138mm
4 1/2”
138mm
4 1/2”
—
K2.52197.0
K2.52194.0
K2.52205.0
K2.52197.0
K2.52194.0
K2.52205.0
K2.52205.0
K2.52205.0
K2.52204.0
K2.52205.0
K2.52204.0
K2.52205.0
K2.47240.0
MB-15
MB-16
MB-17
MB-18
MB-19
LMB-5
LDS UP 16-135mm
104mm
MB-14
MB-15
MB-16
MB-17
MB-18
MB-19
LMB-5
LDS Cooke S4
110mm
MB-14
MB-15
MB-16
MB-17
MB-18
MB-19
LMB-5
6”
138mm
4 1/2”
6”
138mm
4 1/2”
4 1/2”
4 1/2”
138mm
4 1/2”
138mm
4 1/2”
—
6”
138mm
4 1/2”
6”
138mm
4 1/2”
4 1/2”
4 1/2”
138mm
4 1/2”
138mm
4 1/2”
—
K2.42304.0
K2.42304.0
K2.47115.0
K2.47115.0
K2.42304.0
K2.42304.0
K2.47115.0
K2.47115.0
K2.42304.0
K2.42304.0
K2.47115.0
K2.47115.0
filter ring
reflex prevention ring
connection ring
K2.52197.0
K2.52194.0
K2.52205.0
K2.52197.0
K2.52194.0
K2.52205.0
K2.52205.0
K2.52205.0
K2.52204.0
K2.52205.0
K2.52204.0
K2.52205.0
K2.47253.0
K2.52195.0
K2.52195.0
K2.52195.0
K2.52195.0
K2.52195.0
K2.52195.0
K2.52195.0
K2.52195.0
K2.52195.0
K2.52195.0
K2.52195.0
K2.52195.0
K2.52197.0
K2.52194.0
K2.52205.0
K2.52197.0
K2.52194.0
K2.52205.0
K2.52205.0
K2.52205.0
K2.52204.0
K2.52205.0
K2.52204.0
K2.52205.0
K2.52097.0
K2.52196.0
K2.52196.0
K2.52196.0
K2.52196.0
K2.52196.0
K2.52196.0
K2.52196.0
K2.52196.0
K2.52196.0
K2.52196.0
K2.52196.0
K2.52196.0
09 / 2003
ARRICAM System Guide
41
Ultra Prime LDS Lenses
Optically identical to their name sake non-LDS lenses, LDS lenses are
equipped with encoders that can read lens ring positions, and with contacts on the lens mount to communicate lens status to the camera. A
miniature chip inside the lens stores precise depth of field information
and other lens information. LDS Ultra Primes also have new housings and
larger index marks in a brighter color for better readability in low light.
Compatibility: LDS lenses can be mounted on all PL mount cameras.
On the ARRICAMs, LDS lenses should be mounted in the 12:00 or
3:00 o’clock position.
Ultra Primes
LDS Ultra Prime
LDS Ultra Prime
LDS Ultra Prime
LDS Ultra Prime
LDS Ultra Prime
LDS Ultra Prime
LDS Ultra Prime
LDS Ultra Prime
LDS Ultra Prime
LDS Ultra Prime
LDS Ultra Prime
LDS Ultra Prime
LDS Ultra Prime
LDS Ultra Prime
T
T
T
T
T
T
T
T
T
T
T
T
T
T
2/12mm
1.9/14mm
1.9/16mm
1.9/20mm
1.9/24mm
1.9/28mm
1.9/32mm
1.9/40mm
1.9/50mm
1.9/65mm
1.9/85mm
1.9/100mm
1.9/135mm
1.9/180mm
Meter Scale
K2.52198.0
K2.52111.0
K2.52112.0
K2.52113.0
K2.52114.0
K2.52115.0
K2.52116.0
K2.52117.0
K2.52118.0
K2.52200.0
K2.52119.0
K2.52120.0
K2.52121.0
K2.52202.0
LDS Ultra Prime T1.9/40mm | back view
Feet Scale
K2.52199.0
K2.52123.0
K2.52124.0
K2.52125.0
K2.52126.0
K2.52127.0
K2.52128.0
K2.52129.0
K2.52130.0
K2.52201.0
K2.52131.0
K2.52132.0
K2.52133.0
K2.52203.0
12 mm
14 mm
16 mm
20 mm
24 mm
28 mm
32 mm
40 mm
50 mm
65 mm
85 mm
100 mm
135 mm
180 mm
42
09 / 2003
ARRICAM System Guide
In-camera Slate System
The In-camera Slate System can be used just like a timecode slate. The
system accepts SMPTE timecode input. In addition slate information
can be entered via a Hand Held Computer. The In-camera Slate avoids
the disadvantages of conventional slates, such as poorly readable hand
writing, erroneous information, slates outside of the image area, out of
focus slates, underexposed slates and so on.
All information on film is clearly readable in post production and can
be read either in telecine or later by a human.
With the In-camera Slate Reader it is possible to automatically extract
the In-camera Slate information in telecine or later. Automatic audio
synching and logging of timecode and slate data speeds up post production.
09 / 2003
ARRICAM System Guide
In-camera Slate System Overview
Camera Start
at least 20 Frames
Pre Roll
ICS-Frame 1+2
Control Pattern
ICS-Frame 3+4
Production
ICS-Frame 5+6
Director
ICS-Frame 7+8
Cinematographer
ICS-Frame 9+10
Camera Roll / Camera Speed
ICS-Frame 11+12
Slate / Scene / Take
ICS-Frame 13
Date / Hour
ICS-Frame 14+15
Userbits
ICS-Frame 16+17+18
Timecode
First Frame of Take
Last Frame of Take
Camera Stop
ICS-Frame 1+2
Control Pattern
ICS-Frame 3+4+5
Timecode
ICS-Frame 6
Confirmation
at least 20 Frames
Post Roll
For the sake of readability the size of
the In-camera Slate information is exaggerated
and the color has been changed to white.
The In-camera Slate information appears
red on positive and green on negative film
(see image on opposite page).
Camera Status (RUN LED):
READY
NOT READY
S TA N D B Y
43
44
09 / 2003
ARRICAM System Guide
The In-camera Slate System
consists of these components:
Recording Module
The In-camera Slate Recording Module consists of an array of 16 by 36
LEDs and an optical system. The module is installed behind the ARRICAM
film gate below the aperture. The brightness of the LEDs during exposure
is controlled by the ASA setting of the magazine used.
Compatibility: The In-camera Slate Recording Module is identical for
Studio and Lite. It has to be installed by an authorized ARRI Service
Center..
In-camera Slate Redording Module
In-camera Slate Box (ISB)
The In-camera Slate Box is the system’s brain on the camera. It controls
the exposure process and sets the proper shutter angle during and after
exposure. It stores all slate information, as well as the timecode provided
by the built-in timecode clock.
To enter and edit timecode, userbits and slate information a Hand Held
PC is used. For timecode and userbits it is also possible to jam-sync to
an external timecode generator.
Compatibility: The In-camera Slate Box fits on both ARRICAM
Studio and ARRICAM Lite. On the ARRICAM Lite, the Lite Lens
Data Box must be present to mount the In-camera Slate Box.
In-camera Slate Box (ISB)
Hand Held Computer
With the Hand Held Computer slate information, timecode and userbits
can be entered into the In-camera Slate Box. This information can be exported
as takelist and transferred to another computer for post production purposes.
The cable KC-H-1 (0.5m/1.5ft) connects the Hand Held Computer to
the CAC connector of the camera.
K2.54093.0
Hand Held Computer
In-camera Slate System
09 / 2003
ARRICAM System Guide
45
In-camera Slate Reader
To dramatically improve comfort, reliability and throughput in postproduction the In-camera Slate Reader can automatically read all slate
data that was exposed on film. This is done through optical character
recognition in telecine or later while the images are loaded into the
editing system.
Using the In-camera Slate Reader in telecine makes creating video rushes considerably faster and simpler since the In-camera Slate Reader can
automatically synchronize the audio and log all In-camera Slate information.
For the use in non-linear editing systems, the film is transferred in telecine
without any extra steps. The footage is then loaded into the editing system
and at the same time sent to the In-camera Slate Reader. A list of all Incamera Slate information is created during this process, such as name of
production, director, Cinematographer, take number, scene number and
film timecode.
K2.47436.0
In-camera Slate Reader
In-camera Slate Reader (Screenshot)
46
09 / 2003
ARRICAM System Guide
Mechanical Accessories
Shoulder Set
A short bridgeplate with a tripod quick release plate on the bottom and
two handles that are adjustable up/down and can be flared out.
Compatibility: Works with both ARRICAM Studio and Lite. Without
shoulder pad it can also be used on all ARRIFLEX cameras. The RUN
button on the right handle can be connected to the Fisher 3 pin RS
connector and provides camera run/stop functionality.
K2.54023.0
Shoulder Set
Shoulder Set (includes Shoulder Pad)
Shoulder Pad
A soft foam pad for handheld applications.
Compatibility: The Shoulder Pad is mounted directly to the base of the
ARRICAM Studio or Lite. It cannot be used with the Lite Steadicam
Magazine.
K4.54469.0
Shoulder Pad
Shoulder Pad
Studio Camera Handle
This handle is attached to the ARRICAM Studio with three screws
(use 3mm hex key). Two accessory cubes provide 3/8” threaded holes for
mounting various accessories, including the 3/8” Accessory Shoe Adapter.
The two outer handle segments can be removed with a 5mm hex key
and freely positioned on the accessory cubes.
Compatibility: Fits on the Studio camera with Studio Viewfinder or Studio
Universal Viewfinder. Fits on Studio camera with Lite Viewfinder if Lite
IVS is not attached. Does not fit on Studio camera with Lite Viewfinder
if Lite IVS is attached. Does not fit on Lite camera.
K2.54064.0
Studio Camera Handle
Lite Camera Handle
This handle is attached to the ARRICAM Lite with two screws (use 3mm
hex key). The upper handle can be swiveled or completely removed.
The accessory cube provides 3/8” threaded holes for mounting various
accessories, including the 3/8” Accessory Shoe Adapter.
Studio Camera Handle
Compatibility: Fits only if the Lite Viewfinder or Lite Universal Viewfinder
are mounted to the Lite camera. Does not fit if the Studio Viewfinder or
the Studio Universal Viewfinder are on the Lite camera. In that case,
use the Lite Center Handle.
K2.54078.0
Lite Camera Handle
Lite Camera Handle
09 / 2003
ARRICAM System Guide
47
Studio Center Handle
When the Lite Viewfinder is mounted on the Studio camera, the Back Load
Adapter must be used. In that case, the Back Load Adapter handle has to be
removed. The Studio Center Handle can then be used instead of the Studio
Camera Handle. It is attached with two screws to each side of the Studio
camera body and with two screws to the Back Load Adapter (use 3mm
hex key). The accessory cube provides 3/8” threaded holes for mounting
various accessories.
Compatibility: This handle fits only on the Studio camera with the Lite
Viewfinder or Lite Universal Viewfinder attached and Back Load Adapter
with handle removed.
K2.54081.0
Studio Center Handle
Studio Center Handle
Lite Center Handle
When the Studio Viewfinder is mounted on the Lite camera, the Studio
IVS interferes with the Lite Camera Handle. The Lite Center Handle
can then be used instead of the Lite Camera Handle. It’s accessory cube
provides 3/8” threaded holes for mounting various accessories.
Compatibility: This handle fits only on the Lite camera. It can be used
with the Lite Viewfinder or Lite Universal Viewfinder if the Lite IVS is
not attached, or with the Studio Viewfinder or Studio Universal Viewfinder
with or without the Studio IVS.
K2.54082.0
Lite Center Handle
Lite Center Handle
Universal Low Mode Set
The Universal Low Mode Set allows the ARRICAM Studio or Lite camera
to be underslung on a Steadicam or other camera support device.
Compatibility: On the Studio camera, the left and right arms mount directly
to the camera body. On the Lite camera, the Lite Mounting Plate has to
be attached to the camera body first, and then the left and right arms
are attached to the Lite Mounting Plate.
The Universal Low Mode Set is compatible with all ARRICAM
viewfinders, all ARRICAM video assists and all 100% Video Tops. For
mounting the Support Rod Bracket the Studio 100% Video Top or the
Lite 100% Video Top needs to be present.
On the Lite camera with Universal Low Mode Set, the Studio
Magazine 300/1000 can’t be used.
K2.52214.0
Universal Low Mode Set
Universal Low Mode Set
48
09 / 2003
ARRICAM System Guide
Accessory Shoe Expander
Slides into any of the accessory shoes on the Studio or Lite cameras or
the 3/8” Accessory Shoe Adapter, and provides two more accessory shoes.
K2.54030.0
Accessory Shoe Expander
3/8” Accessory Shoe Adapter
A small block that can be screwed into the accessory cubes on the camera
handles, and that provides one accessory shoe. For mounting the adapter
a 5mm hex key is necessary.
K2.54077.0
Accessory Shoe Expander
3/8” Accessory Shoe Adapter
3/8” Accessory Shoe Adapter
09 / 2003
ARRICAM System Guide
49
50
09 / 2003
ARRICAM System Guide
Cables Overview
Description
Length
Connects…
KC-20-S
Camera Power Cable 24V
1.5m/4.5ft
KC-29-SP-S
Camera Power Cable 24V
KC-60-SP-S
LDD Cable
Connects LDD to
Studio Readout, Lite Frameglow
or Remote Control Station
Power Y-cable
1.5m/4.5ft
(coiled)
0.5m/1.5ft
(coiled)
Battery (3pin XLR)
to camera (BAT)
Battery (3pin XLR)
to camera (BAT)
LDD (LDD)
to Studio Readout(LDD)
or Lite Frameglow (LDD)
or Remote Control Station (LDD)
Supplys camera
and Accessory Power Box
from one single battery
KC-62-S
KC-63-S
KC-65-S
KC-66-S
KC-68-S
KC-69-S
KC-70-S
KC-72-S
KC-73-S
KC-74-S
KC-75-S
ARRICAM Heated Eyecup Cable
coiled
Connects ARRICAM heated
eyecup to ARRICAM
Speed Control Box Remote Cable
3m/9ft
Connects Speed Control Box,
MCB Cable Adapter
or Remote Control Station
to Studio or Lite CAC connector
Cable for Pick-up Box
10m/33ft
Connects the Pick-up Box
to the Speed Control Box SYNC IN
LDD Extension Cable
15m/45ft
Connects LDD
to Studio or Lite CAC connector
Speed Control Box Remote Cable
15m/45ft
Connects Speed Control Box,
MCB Cable Adapter
or Remote Control Station
to Studio or Lite CAC connector
WHA-2 Cable to CAC
3m/9ft
Connects WHA-2
to Studio or Lite CAC connectors.
For WZU-1, WFU-1 and WRC-1.
Also for software updates to WHA-2
ICU cable for ARRICAM
1m/3ft
Connects ICU
to Studio or Lite CAC connector
Cable Drum
50m/150ft
Extension for camera CAC connector
(when used with SCB,
no SYNC features are available)
CAC Distribution Box
with 3 Outlets
Connects to the Studio or Lite
CAC connector
and provides 3 CAC connectors.
LDB Adapter Cable
1m/3ft
Connects Studio Body Plate
with Studio LDB Plate
Ident#
K2.41966.0
K2.44693.0
K4.55855.0
K2.54191.0
K4.54460.0
SCB/MCB/RCS
to camera (CAC)
K2.54128.0
PickUp
to SCB (SYNC IN)
K2.54129.0
LDD (LDD)
to camera (CAC)
K2.54133.0
SCB/MCB/RCS
to camera (CAC)
K2.54131.0
WHA-2
to camera (CAC)
K2.54135.0
ICU
to camera (CAC)
K2.54137.0
CAC
K2.54134.0
CAC
K2.54130.0
ST Body Plate
to ST LDB Plate
K2.54150.0
09 / 2003
ARRICAM System Guide
Description
KC-76-S
KC-77-S
KC-78-S
KC-79
KC-H-1
KCV-2
LC-M1-SP-S
LC-Z1-S
LDDFP-CAC
LDDFP-RDO
WC-A1
WC-A2
S=
SP =
Length
LDD Cable
3m/9ft
Connects SCB
to LCS connector on LDD
Adapter Cable for KC-68-S
0.2m/8”
for LDD
Camera Sync Cable
15m/45ft
Synchronizes two cameras
frame accurately to each other
LDD Cable
3m/9ft
Connects LDD to Studio Readout,
Lite Frameglow
or Remote Control Station
Cable for In-camera Slate System
0.5m/1.5ft
Connects serial port of Hand Held PC
to CAC
Cable for 6,6 Video Monitor
WHA-2 LCS Cable
1m/3ft
Connects WHA-2 to Studio
(coiled)
or Lite Lens Data Box LCS connector
or to Remote Control Station
WHA-2 connector.
For WZU-1, WFU-1 and WRC-1
WHA-2 LCS Cable
3m/9ft
Connects WHA-2
to Studio or Lite Lens Data Box
LCS connector
or to Remote Control Station
WHA-2 connector.
For WZU-1, WFU-1 and WRC-1
LDD-FP Cable
1.5m/4.5ft
Connects LDD-FP to Studio
or Lite CAC connector
LDD-FP Cable
0.6m/2ft
Connects LDD-FP
(coiled)
with Studio Readout,
Lite Frameglow
or Remote Control Station.
Antenna Cable
15m/45ft
extends antenna of LDB
Antenna Cable
extends antenna of LDB
3m/9ft
shielded (ferrite rings at both ends)
coiled
Connects…
51
Ident#
LCS
to SCB (SAC)
K2.54153.0
KC-68-S to LDD
K2.54154.0
camera (CAC)
to SCB (SYNC IN)
K2.54155.0
LDD (LDD)
to RDO/LT-FGL(LDD)
K2.54156.0
PC Serial
to camera (CAC)
K4.52687.0
IVS (MINI-MONITOR)
WHA-2
to LDB(LCS)/RCS(WHA-2)
K4.47299.0
K4.41397.0
WHA-2
to LDB(LCS)/RCS(WHA-2)
K4.41395.0
LDD-FP (LDD)
to camera (CAC)
K2.52232.0
LDD-FP (LDD)
to RDO/LT-FGL(LDD)
K2.54172.0
Studio or Lite LDB
to LCS-antenna
K2.52081.0
Studio or Lite LDB
to LCS-antenna
K2.52096.0
52
09 / 2003
ARRICAM System Guide
Ground Glass Overview
This table is an overview of ARRICAM ground glasses, Frameglow masks, aperture format masks and the corresponding
items for the ARRIFLEX 435/535 cameras. A complete list of all ARRICAM and ARRIFLEX ground glasses and masks
with dimensions can be found in the ARRI Format Guide.
There are currently two types of ground glasses and corresponding masks for the ARRICAM cameras: Normal 35
(Academy) and Super 35 (ANSI). Note that ARRIFLEX cameras also have Super 35 (DIN) type ground glasses and
corresponding masks. Those are not as wide as the Super 35 (ANSI) format to make space for the ARRIFLEX timecode. When using Super 35 (ANSI) ground glasses and corresponding masks with an ARRIFLEX camera, the timecode cannot be used.
There are no aperture format masks when shooting with a 3 perforation movement. The cut out in the film gate
defines the image size. The cut out in the film gate defines the image size (13.9 x 24.9 mm).
Normal 35
N35 TV 1.33 safe
Groundglass
Frameglow
Aperture format mask
N35 1.66
Groundglass
Frameglow
Aperture format mask
N35 TV 1.78 trans
Groundglass
Frameglow
Aperture format mask
N35 1.78 + 1.55 + 1.33 CGG
Groundglass
Frameglow
Aperture format mask
N35 1.85
Groundglass
Frameglow
Aperture format mask
N35 1.85 + TV 1.33 safe
Groundglass
Frameglow
Aperture format mask
N35 1.37+ TV 1.33 safe
Groundglass
Frameglow
Aperture format mask
N35 1.66 + 1.37 + TV 1.33 safe Groundglass
Frameglow
Aperture format mask
N35 1.85 + 1.37 + TV 1.33 safe Groundglass
Frameglow
Aperture format mask
N35 Scope (factor 2) 2.35
Groundglass
Frameglow
Aperture format mask
N35 3P TV 1.33 SAFE-TRANS Groundglass
Frameglow
3-perforation camera
or conversion Kit
ARRICAM
K2.54100.0
K2.54117.0
K5.42387.0
K2.54101.0
K2.54118.0
K5.42390.0
K2.54102.0
K2.54113.0
K5.42390.0
K2.54086.0
K2.54090.0
K5.42390.0
K2.54103.0
K2.54112.0
K5.42391.0
K2.54104.0
K2.54120.0
K5.42387.0
K2.54000.0
K2.54051.0
K5.42387.0
K2.54058.0
K2.54052.0
K5.42387.0
K2.54059.0
K2.54053.0
K5.42387.0
K2.54084.0
K2.54123.0
K5.42388.0
K2.54062.0
K2.54056.0
ARRIFLEX 435/535
K2.41200.E
K2.47010.3
K5.42387.0
K2.44420.A
K2.47012.3
K5.42390.0
K2.44420.X
K2.47007.3
K5.42390.0
—
—
K5.42390.0
K2.44420.B
K2.47011.3
K5.42391.0
K2.44420.S
K2.44415.S
K5.42387.0
—
—
K5.42387.0
K2.44420.N
K2.47057.S
K5.42387.0
K2.44420.L
K2.47055.S
K5.42387.0
K2.44420.C
K2.47006.3
K5.42388.0
—
—
K2.54165.0
—
09 / 2003
ARRICAM System Guide
ANSI Super 35
ANSI S35 Silent 1,33
Groundglass
Frameglow
Aperture format
ANSI S35 TV 1.33 safe
Groundglass
Frameglow
Aperture format
ANSI S35 TV1.78 transmitted Groundglass
Frameglow
Aperture format
ANSI S35 TV 1.78 + 1.33 trans Groundglass
Frameglow
Aperture format
ANSI S35 TV 1.78 safe
Groundglass
Frameglow
Aperture format
ANSI S35 1.78+1.55+1.33 CGG Groundglass
Frameglow
Aperture format
ANSI S35 1.85
Groundglass
Frameglow
Aperture format
ANSI S35
Groundglass
2.35+1.85+TV1.33 trans
Frameglow
ANSI S35 2.35 centric
ANSI S35
2.35 + 1.85 1/4 offset
mask
mask
mask
mask
mask
mask
mask
Aperture format mask
Groundglass
Frameglow
Aperture format mask
Groundglass
Frameglow
Aperture format mask
ANSI S35 2.35 + 1.85 centric Groundglass
Frameglow
Aperture format mask
ANSI S35
Groundglass
2.35 + 1.85 common top
Frameglow
ANSI S35
3P TV 1.78+1.33 trans
Blank
Field lens
Groundglass/Fieldlens tool
Aperture format mask
Groundglass
Frameglow
3-perforation camera
or conversion Kit
Groundglass
Frameglow
ARRICAM
K2.54083.0
K2.54119.0
K5.54352.0
K2.54105.0
K2.54121.0
K5.54352.0
K2.54106.0
K2.54122.0
K5.59775.0
K2.54060.0
K2.54054.0
K5.59775.0
K2.54107.0
K2.54115.0
K5.59775.0
K2.54085.0
K2.54089.0
K5.59775.0
K2.54108.0
K2.54114.0
K5.59774.0
K2.54061.0
K2.54055.0
K2.54094.0
K5.59774.0
K2.54109.0
K2.54092.0
K5.59773.0
K2.54110.0
K2.54088.0
K2.54096.0
K5.59776.0
K2.54087.0
K2.54091.0
K5.59774.0
K2.54111.0
K2.54116.0
K2.54095.0
K5.59774.0
K2.54063.0
K2.54057.0
K2.54165.0
for ST
for LT
for ST
for LT
for ST
for LT
ARRIFLEX 435/535
K2.47433.0
K2.47434.0
K5.54352.0
K2.47413.0
K2.47425.0
K5.54352.0
K2.47414.0
K2.47426.0
K5.59775.0
K2.47410.0
K2.47422.0
K5.59775.0
K2.47415.0
K2.47427.0
K5.59775.0
K2.47419.0
K2.47431.0
K5.59775.0
K2.47409.0
K2.47421.0
K5.59774.0
K2.47411.0
K2.47423.0
K5.59774.0
K2.47416.0
K2.47428.0
K5.59773.0
K2.47417.0
K2.47429.0
K5.59776.0
K2.47420.0
K2.47432.0
K5.59774.0
K2.47418.0
K2.47430.0
K5.59774.0
K2.47412.0
K2.47424.0
435: 3-perforation camera
+ film gate for ANSI K2.47374.0
535/535 B
conversion kit K4.47760.0
+ANSI film gate K2.47375.0
ARRICAM
K2.54142.0
K2.54141.0
ARRIFLEX 435/535
—
K2.47169.0
K4.54015.0
K4.52685.0
K2.44410.0
K5.44948.0
53
54
ARRICAM System Guide
09 / 2003
09 / 2003
ARRICAM System Guide
55
ARNOLD & RICHTER CINETECHNIK
TÜRKENSTRASSE 89 / D-80799 MÜNCHEN
P H O N E + 4 9 - 8 9 - 3 8 . 0 9 - 0 / FA X + 4 9 - 8 9 - 3 8 . 0 9 - 1 2 4 4
w w w. a r r i . c o m
Technical Data are subject to change without notice
© ARRI/2003
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
