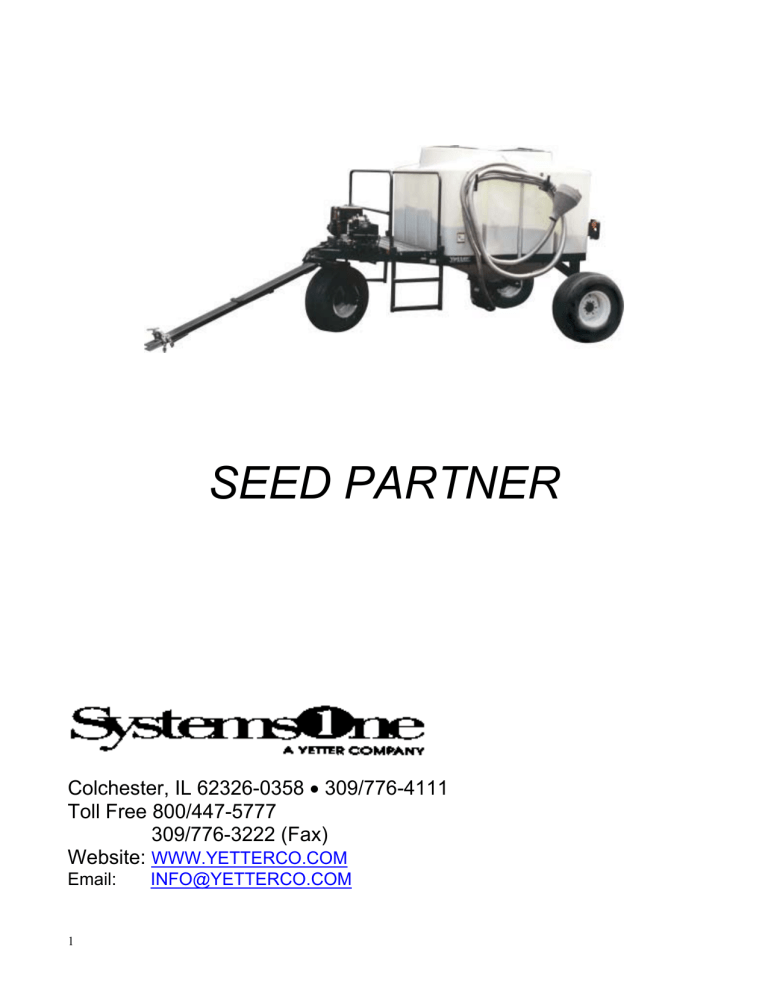

1300 Seed Partner
Colchester, IL 62326-0358
Toll Free 800/447-5777
Email: [email protected]
You’ve just joined an exclusive but rapidly growing club.
For our part, we want to welcome you to the group and thank you for buying a Yetter product.
We hope your new Seed Partner will help you achieve both increased productivity and increased efficiency so that you may generate more profit.
This operator’s manual has been designed into four major sections: Foreword, Safety
Precautions, Installation Instructions, and
SAFETY ALERT SYMBOL
indicates important safety messages in the manual.
When you see this symbol, be alert to the possibility of
and carefully read the message that follows.
is used to convey information that is out of context with the manual text. It contains special information such as specifications, techniques, reference information of a supplementary nature.
is used in the text when immediate damage will occur to the information as specified by note only of an immediate and urgent nature.
It is the responsibility of the user to read the operator’s manual and comply with the safe and correct operating procedure and to lubricate and maintain the product according to the maintenance schedule in the operator’s manual.
The user is responsible for inspecting his machine and for having parts repaired or replaced when continued use of the product would cause damage or excessive wear to the other parts.
It is the user’s responsibility to deliver his machine to the Yetter dealer who sold him the product for service or replacement of defective parts, which are covered by the warranty policy.
If you are unable to understand or follow the instructions provided in this publication, consult your local Yetter dealer or contact:
(309) 776-3222 (Fax)
EMAIL: [email protected]
machine due to improper technique or operation. Important will apply to the same
Yetter Manufacturing warrants all products manufactured and sold by it against defect in material. This warranty being expressly limited to replacement at the factory of such parts or products as shall appear to be defective after inspection. This warranty does not obligate the Company to bear cost of labor in replacement of parts. It is the policy of the company to make improvements without incurring obligations to add them to any unit already sold. No warranty is made or authorized to be made other than herein set forth. This warranty is in effect for one year after purchase.
Yetter Manufacturing warrants its own products only and cannot be responsible for damage to equipment on which mounted.
TABLE OF CONTENTS
SEED PARTNER SET UP & OPERATION……………………………………….5
SEED PARTNER SET UP & ASSEMBLY………………………………………...6
POWER UNIT SET UP………………………………………………………………8
You can make your farm a safer place to live and work if you observe the safety precautions given. Study these precautions carefully and insist those working with you and for you follow the precautions.
Finally, remember this an accident is usually caused by someone’s carelessness, neglect or oversight.
A brief description of signal words that may be used in this manual:
Used as a general reminder of good safety practices or to direct attention to unsafe practices.
Denotes a specific potential hazard.
Denotes the most serious specific potential hazard.
Consult your implement and tractor operator’s manual for correct and safe operating practices. Be aware of towed implement width and allow safe clearance.
CAUTION: SAFETY SIGNS
Safety decals are placed on the implement to alert the operator and others to the risk of personal injury or unsafe operation during normal operations and servicing.
1. The safety decals must be kept clean and in good condition to ensure that they are legible.
2. Safety decals must be replaced if they are missing or illegible.
3. When components are replaced during repair or servicing, check that the new components include the necessary safety signs.
4. Replacement safety decals may be obtained from your local dealer.
Read these instructions carefully to acquaint yourself with the Seed Partner. Working with unfamiliar equipment can lead to accidents.
Safety shields must always be in place during operation.
Never park the Seed Partner on a steep incline or leave the equipment running unattended.
Never clean, lubricate or adjust a machine that is in motion. Always remove spark plug wire before performing service.
Always replace safety shields after servicing.
If machine must be serviced in the raised position, jack or block it up to prevent it from accidentally falling and injuring someone.
Be sure the park brake is set before operating.
Do not allow children to operate this equipment.
Do not allow riders on the Seed Partner, tractor or pickup.
Use speeds and caution dictated by the terrain being traversed. Do not operate on any slope steep enough to cause tipping or loss of control.
Be sure all personnel are clear of the immediate area before operating.
Read and understand the operator’s manual and require all other persons who will operate the equipment to do the same.
If operating on public roadways, where legal, be certain all lighting is operating properly and observe all traffic laws.
Attach a slow moving vehicle emblem to the rear of the trailing implement.
Beware of increased stopping distances and control effort when operating with implements attached.
Be familiar with all controls and be prepared to stop engine and equipment quickly in an emergency.
If seed or seed treatment is dusty or dirty, wear a full-face respirator.
FAILURE TO HEED MAY RESULT IN PERSONAL INJURY OR DEATH.
SEED PARTNER SET UP & OPERATION
The Seed Partner consists of a Seed Cart and Seed Jet II. Your Seed Partner is shipped as an assembled unit with one pallet box. Please check that the following items are received in the container:
NOTE: Gasoline, oil and a 12-Volt battery (Group 58 or 26-70) will be required before the
unit can be operated.
1. The wheels and tires must be moved from the shipping position to the field position. Remove the two rear wheel, hub and tire assemblies from inside the frame install them in the same spindle tubes outside of the frame as shown in the illustration.
WARNING: Do not pull your Seed Partner in the field or on the road with the tires in the shipping position! If you pull it with the tires in the shipping position at any speed or over uneven surfaces the cart may tip over resulting in serious personal injury or death.
2. Check the tension in the tank strap and tighten if loose.
3. Check for loose bolts or damaged parts and tighten or repair as required.
4. Grease the front wheel pivot tube.
5. Check tire air pressure and inflate to 32psi if required.
6. Be sure that the tongue pin snaps into one of the holes in the inner tongue and is secure, before towing.
7. After filling your Seed Partner with seed, remove both ladders, turn them upside down and place in the field storage position. Secure the ladders in the field storage position with the klik pins.
WARNING: Never ride on the cart or allow anyone else to ride on it. The ladders and walkboard are to assist in filling the cart when it is not moving. If you ride on the cart or allow anyone to ride on it while it is moving, you or they may fall off resulting in serious personal injury or death.
8. The roll of stainless steel flex hose is to be connected to the airlock output.
NOTE: DO NOT START ENGINE OR USE BLOWER BEFORE FILLING WITH PROPER LUBRICANTS.
9. Adjust slide gate opening on airlock to maximum opening without overloading the engine and blower. It is advisable to close slide door and empty hopper before transporting the unit. Seed left in the airlock and exposed to moisture could swell and damage the airlock assembly.
10. Always shut off airlock and allow hose to clear of grain before throttling down the engine and shutting off the whole system.
NOTE: There is a time delay from turning off the switch to when the material quits flowing from the cyclone, some practice may be necessary for precise filling of seed boxes!
CAUTION: Ground clearance of the Seed Partner is reduced when airlock unit is attached, negotiate obstacles and uneven terrain carefully.
WARNING: Do not disconnect the air hoses while the blower is running. If you do seed may shoot out of the hose or the hose may whip resulting in possible personal injury and loss of seed.
DANGER: Do not pull the Seed Partner on steep slopes or above 20 mph. If you do the Seed
Partner may tip over resulting in damage to the cart and possible serious personal injury or death.
SEED PARTNER SET UP & ASSEMBLY
POWER UNIT SET UP
Gasoline, oil, and a 12-Volt Battery (Group 58 or 26-70) will be required before the unit can be operated.
DO NOT START ENGINE OR USE BLOWER BEFORE FILLING WITH PROPER
LUBRICANTS. ENGINE HAS AN OIL LEVEL SENSOR; OIL LEVEL MUST BE FULL ON
DIPSTICK. DO NOT OVERFILL!!
WARNING: Read and follow all safety procedures described in instructions provided by engine and blower manufacturers before attempting to operate this unit.
1. Fill crankcase of engine with oil as specified in the instructions supplied by the engine manufacturer. (High quality SAE 30 weight, SE, SF or SG service grade)
2. Fill gasoline tank with clean, fresh lead free gasoline (85 octane), refer to engine instruction book for specific details.
NOTE: Briggs & Stratton does not recommend the use of gasoline which contains alcohol such as gasohol. If gasoline with alcohol is used, it must not contain more than 10% Ethanol and
MUST be removed from the engine during storage. DO NOT use gasoline containing methanol.
3. Add oil to blower gear case as explained in blower operating manual. DO NOT OVERFILL.
4. Install and clamp securely a 12-Volt battery, Group 58 or 26-70.
5. Check that all electrical connections are tight.
6. Check tension of drive belt.
7. Ensure that all safety shields are in place.
NOTE: For questions concerning warranty on the engine or blower, contact the corresponding manufacturer or the local service/retail outlet.
WARNING: Never clean, lubricate or adjust a machine that is in motion. Failure to heed may result in serious personal injury or death.
1. Inspect daily and clean safety decals. Replace if torn or no longer functional.
2. Inspect daily the air cleaner element and clean or replace as required.
3. Inspect daily and retighten, as required, all bolts on the power unit and assemblies.
4. Inspect daily and repair, as required, all air hoses and fittings.
5. See blower manual for proper lubrication.
6. Inspect, refill and replace the blower oil per the instructions in the blower manual.
7. Inspect the airlock assembly, it must turn freely.
8. Do not allow the airlock assembly and the blower to be exposed to water.
9. Lubricate the airlock with “fogging oil” before and after the in-use season.
10. Clean and lubricate the machine before putting into storage. Do not leave seed or seed treatments/inoculants in or near the airlock.
1. Inspect, refill and replace the blower oil per the instructions in the blower manual. Use a high quality hydraulic oil.
2. Inspect the airlock assembly, it must turn freely.
3. Do not allow the airlock assembly and blower to be exposed to water, moisture or condensation. Store in a clean dry area.
NOTE: If airlock and/or blower are exposed to water they will rust and may cause
4. Lubricate the airlock and blower with “fogging oil” before and after the in-use season.
5. Clean and lubricate the machine before putting into storage. Do not leave seed or seed treatments/inoculants in or near the airlock.
IMPORTANT: Do Not Use a pipe wrench to free a stuck airlock.
6. Remove hoses from all fittings, cap or cover the hoses, airlock and blower fittings to repel rodents and moisture and to seal in lubricants.
7. Gasoline engines stored over 30 days need to be protected or drained of fuel to prevent gum from forming in fuel system or essential carburetor parts. For gasoline engine protection, we recommend use of Briggs &
Stratton fuel stabilizer available from an authorized Briggs & Stratton service dealer. Mix stabilizer with fuel tank or storage container. Run engine for a short time to circulate stabilizer through carburetor. Engine and fuel can be stored up to 24 months.
NOTE: If stabilizer is not used or if engine is operating on gasoline containing alcohol, e.g. gasohol, remove all fuel from tank and run engine until it stops from lack of fuel.
STORAGE PROCEEDURES FOR GAS/LPG/NG ENGINES
2. Remove spark plug and pour about 15 ml (1/2oz.) of engine oil into cylinder. Replace spark plug and crank slowly to distribute oil.
3. Clean chaff and debris from cylinder and cylinder head fins, under finger guard and behind muffler.
4. Store in a clean and dry area, but NOT near a stove, furnace or water heater which uses a pilot light or any device that create a spark.
1300-129 SEED PARTNER MAIN ASSEMBLY
1300-124 SEED JET II HOSE ASSEMBLY
1 1 1300-376
2 2 2570-717
3 1 1300-411
4 1 1300-395
HOSE CLAMP, #36, TYPE F, STYLE 1
4” X 3” DIA. BLACK SHRINK TUBE
2-1/4” ID X 35 FT. STAINLESS HOSE
WHEEL & HUB (31-13.5 X 15) ASSEMBLY
1 1 2570-192
2 1 2531-106
3 1 2520-501
4 1 2526-501
3/16 X 1-3/4” COTTER PIN, BLACK
3/4-16 SLOTTED HEX NUT ZP
3/4 STD. FLATWASHER ZP
5 1 2550-027
6 1 2550-029
7 1 2570-189
8 1 2550-030
9 1 2550-028
10 1 2570-191
11 1 6600-336
12 6 2570-190
13 1 6600-111
14 6 2520-360
15 1 7100-111
15A 1 2570-727
15B 1 2570-728
CONE, LM# 67048
CUP, LM #67010
HUB W/CUPS, LUGS
SPINDLE, 1-3/4” DRILLED
HUB & SPINDLE ASSY., 6 BOLT
1/2-20 LUG NUT
WHEEL/TIRE (31-13.5 X 15) ASSY
WHEEL, 15 X 10, WHITE
TIRE, 31-13.5 X 15, 8 PLY
Airlock will not turn on/off.
Airlock will not turn.
Low rate of discharge of grain.
Abnormal noises in power unit assembly.
Dust coming out of top of cyclone.
Frame mount relay not functioning.
No voltage from alternator.
Foreign objects jamming airlock.
12V motor faulty
Wet seed left in airlock.
Lack of air pressure
Airlock running too slow
Excessive discharge-height of cyclone
Drive belt too loose.
Dusty/dirty seed or seed treatment
Replace frame mounted solenoid.
Check output from alternator
Check plug in on duplex wires
Check connections at 12V motor
Check ground and solenoid connections
Replace 25 amp round fuse located in the 1300-405 interface module.
Check key between motor gearbox and airlock shaft
Check motor operation
Remove wet seed.
Check B & S motor is at full throttle.
Check for air leaks in hose or at couplers.
Ensure 12V supply is correct.
Overloaded, close up slide gate.
Reduce height of cyclone
Re-tension the V-belt.
Close up slide gate in hopper.
Refer to engine manual.
Refer to blower manual.
Install filter in top of cyclone.
Wear a full-face respirator.
Read the seed tag for respirator recommendations.
