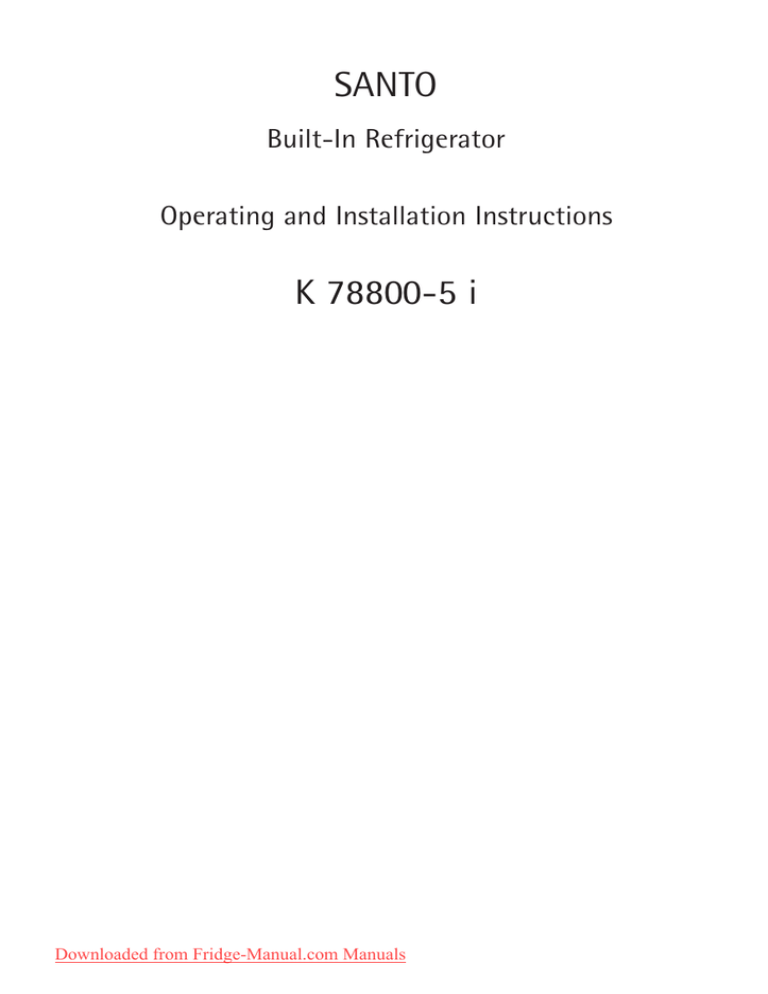

SANTO
Built-In Refrigerator
Operating and Installation Instructions
K 78800-5 i
Downloaded from Fridge-Manual.com Manuals
Dear customer,
Before switching on your new appliance please read these operating
instructions carefully. They contain important information for safe use,
for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass
them on to possible new owners of the appliance.
These operating instructions are for use with several technically comparable models with varying accessories. Please observe the notes
which apply to your model.
Notes which are important for your safety or for the proper functioning of the appliance are stressed with a warning triangle and/or with
signal words (Warning!, Caution!, Important!). Please observe the following carefully.
1. This symbol guides you step by step in the operation of the appliance.
2. .....
Supplementary information regarding operation and practical applications of the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use
of the appliance are marked with the cloverleaf.
☞
Explanations of the technical terminology used in the operating
instructions can be found at the end in the section "Technical
Terminology".
The operating instructions contain instructions for the correction of
possible malfunctions by the user in the section "What to do if ...". If
these instructions should not be sufficient, contact your local Service
Force Centre.
Printed on paper manufactured with environmentally sound processes
he who thinks ecologically acts accordingly...
2Downloaded from Fridge-Manual.com Manuals
Contents
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Appliance Packaging Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disposal of old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Remove transport packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Your refrigerator needs air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Building-in. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
View of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Prior to Initial Start–Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Starting up and temperature regulation . . . . . . . . . . . . . . . . . . . . . . . . 14
Switching off the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Storage shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Variable inner door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Correct storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
The fridge defrosts automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
What to do if.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Correcting Malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Changing the light bulb. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Noises during Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Technical terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Downloaded from Fridge-Manual.com Manuals
3
Important Safety Instructions
These warnings are provided in the interests of your safety. Ensure
you fully understand them before installing or using the appliance.
Your safety is of paramount importance. If you are unsure about the
meaning of these warnings contact the Customer Care Department
for assistance.
Intended use
• The refrigerator is intended for use in the home. It is suitable for the
storing of food at low temperature. If the appliance is used for purposes other than those intended or used incorrectly, no liability can
be accepted by the manufacturer for any damage that may be
caused.
• Alterations or changes to the refrigerator are not permitted for reasons of safety.
• If you use the refrigerator in a commercial environment or for purposes other than the cooling of foods, the manufacturer accepts no
liability for any damages which may occur.
Prior to initial start–up
• Check the appliance for transport damage. Under no circumstance
should a damaged appliance be plugged in. In the event of damage,
please contact your supplier.
• Ensure that the appliance does not stand on the electrical supply
cable. Important: if the supply cable is damaged, it must be replaced
by a cable available from the manufacturer or your local Service
Force Centre.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• Warning - During transportation and installation of the appliance,
be certain that none of the components of the refrigerant circuit
become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.
Safety of children
• Packaging (e.g. wraps, polystyrene) can be dangerous for children.
There is a risk of suffocation! Keep packaging material away from
children!
4Downloaded from Fridge-Manual.com Manuals
Important Safety Instructions
• Please make old appliances unusable prior to disposal. Pull out the
mains plug, cut off the mains cable, break or remove spring or bolt
catches, if fitted. By doing this you ensure that children cannot lock
themselves in the appliance when playing (there is risk of suffocation!) or get themselves into other dangerous situations.
• Often children cannot recognise the hazards present in household
appliances. It is therefore important that you ensure adequate supervision and never let children play with the appliance!
Daily Operation
• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers
with flammable materials such as spray cans, fire extinguisher refill
cartridges etc in the refrigerator and/or freezer.
• Warning - Do not operate any electrical appliances in the refrigerator and/or freezer (e.g. electric ice cream makers, mixers etc.).
• Warning - In order not to impair the function of the appliance,
never cover or obstruct the ventilation openings.
• Warning - Do not damage the cooling circuit.
• Before cleaning the appliance, always switch off the appliance and
unplug it, or pull the house fuse or switch off the circuit breaker.
• When unplugging always pull the plug from the mains socket, do not
pull on the cable.
In case of malfunction
• If a malfunction occurs on the appliance, please look first in the
"What to do if ..." section of these instructions. If the information
given there does not help, please do not perform any further repairs
yourself.
• This product should be serviced by an authorised engineer and only
genuine spare parts should be used.
• Under no circumstances should you attempt to repair the appliance
yourself. Repairs carried out by inexperienced persons may cause
injury or serious malfunctioning. Contact your local Service Force
Centre.
Downloaded from Fridge-Manual.com Manuals
5
Disposal
Appliance Packaging Information
All materials are environmentally sound! They can be disposed of or
burned at an incinerating plant without danger.
About the materials: The plastics can be recycled and are identified as
follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the
interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed
of at a waste-paper recycling collection location.
Disposal of Old Appliances
For environmental reasons, refrigeration appliances must be disposed
of properly. This applies to your old appliance, and - at the end of its
service life - for your new appliance as well.
Warning! Before disposing of old appliances make them inoperable.
Remove plug from mains, sever the power cable, remove or destroy
any snap or latch closures. This ensures that children do not lock
themselves inside the appliance (danger of suffocation!) or place
themselves into other life-endangering situations.
Disposal:
• The appliance may not be disposed of with domestic waste or bulky
refuse.
• The refrigerant circuit, especially the heat exchanger at the back of
the appliance, must not be damaged.
• The symbol
on the product or on its packaging indicates that
this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling
of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For
more detailed information about recycling of this product, please
contact your local city office, your household waste disposal service
or the shop where you purchased the product.
6Downloaded from Fridge-Manual.com Manuals
Remove transport packaging
The appliance and the interior fittings are protected for transport.
1. Pull off the adhesive tape on the left and right side of the door.
2. Remove all adhesive tape and packing pieces from the interior of the
appliance.
☞
Installation
Installation Location
The appliance should be set up in a well ventilated, dry room.
Energy use and efficient performance of the appliance is affected by
the ambient temperature.
The appliance should therefore
– not be exposed to direct sunlight;
– not be installed next to radiators, cookers or other sources of heat;
– only be installed at a location whose ambient temperature
corresponds to the climate classification, for which the appliance is
designed.
The climate classification can be found on the serial plate, which is
located at the left on the inside of the appliance.
The following table shows which ambient temperature is correct for
each climate classification:
Climate classification
for an ambient temperature of
SN
+10 to +32 °C
N
+16 to +32 °C
ST
+18 to +38 °C
T
+18 to +43 °C
Installation directly under a hob is not allowed. The temperatures of
the hob, which in part are quite high, may damage the appliance.
If a hob is installed near the appliance, the corresponding installation
and safety instructions must be adhered to. Considering the numerous
installation conditions which are possible, there is no way of providing
detailed information here.
Downloaded from Fridge-Manual.com Manuals
7
Installation
It is necessary to avoid overheating of the refrigerator by maintaining
adequate distances from heat sources and by the use of a suitable
thermal insulation plate. Proper ventilation of the appliance must also
be ensured.
Your refrigerator needs air
Integratable models (i-appliances)
The integrated door of the furniture cabinet largely seals the installation recess.
i-appliances must therefore be provided
with ventilation by having an opening in
the furniture plinth. The warmed air must
be able to be exhausted upwards through
the air shaft on the furniture back. The
ventilation cross-sections should be at least
200 cm2.
min. 200 cm2
50
min. 200 cm2
Warning - To ensure the appliance functions correctly, never cover or
obstruct the ventilation openings.
Building-in
Please check whether, after installing your appliance and especially
after reversing the door, the door seal seals right round. A badly fitting
door seal may lead to heavy frosting and thereby to a higher power
consumption (see also „What to do if...“).
8Downloaded from Fridge-Manual.com Manuals
Installation
Dimensions of the recess
Height of housing 880 mm
Depth of housing 550 mm
Width of housing 560 mm
It is necessary that the cabinet
has a ventilation recess (at least
200 cm2).
☞1. The appliance’s door has been locked in
position for transport by means of pins
on both sides. According to the door
opening direction, remove relevant pins
at the top and at the bottom.
A
B
2. Press in the joint covers between the
appliance and the kitchen furniture.
D765
Downloaded from Fridge-Manual.com Manuals
9
Installation
3. Fit the appliance in the niche by making
sure that it stands against the interior
surface of the unit on the side where the
door hinges of the appliances are fitted.
Insert the appliance until the upper strip
butts up against the unit (1) and make
sure that the lower hinge is in line with
the surface of the unit (2).
1
2
D022
4. Open the door and push the appliance
against the side of kitchen furniture opposite to that of the appliance hinges. Fasten
the appliance with 4 screws (I) provided in
the kit included with the appliance.
5. Snap vent grill (B) and hinge cover (E) into
position.
Apply blanking covers (C-D) as indicated.
I
D
C
E
B
6. Separate parts Ha, Hb, Hc, Hd as shown
in the figure.
Hb
Ha
Hc
Hd
10Downloaded from Fridge-Manual.com Manuals
Installation
7. Place guide (Ha) on the inside part of
the furniture door, upper and lower
positions as shown in the figure and
mark the position of external holes.
After having drilled holes, fix the guide
with the screws supplied.
ca. 50 mm
90°
21 m
m
90°
ca. 50 mm
21 m
m
8. Fix cover (Hc) on guide (Ha) until it clips
into place.
Ha
Hc
9. Open the appliance door and the furniture door at 90°. Insert the small square
(Hb) into guide (Ha). Put together the
appliance door and the furniture door
and mark the holes as indicated in the
figure.
8mm
Ha
PR167
9. Remove the squares and mark a distance
of 8 mm from the outer edge of the door
where the nail must be fitted (K).
Hb
8mm
K
Ha
Downloaded from Fridge-Manual.com Manuals
PR167
11
Installation
10. Place the small square on the guide
again and fix it with the screws supplied.
Should the alignment of the furniture
door be necessary, use the clearance of
slots.
At the end of this procedure, it is necessary to check if the door of the furniture closes properly.
Hb
PR168
11. Fix cover (Hd) on the small square (Hb)
until it clips into place.
Hb
Hd
PR167/1
Power Supply
☞
A correctly installed, earthed socket is required for the electrical supply. The supply must have a fuse rating of at least 13 Amps. If the
socket is not accessible once the appliance is built in, the electrical
installation must include suitable means of isolating the appliance
from the mains (e.g. a fused spur).
Before initial start-up, refer to the appliance rating plate to ascertain
if supply voltage and current values correspond with those of the
mains at the installation location.
e.g.: AC 220 ... 240 V 50 Hz or
220 ... 240 V ~50 Hz
(i.e. 220 to 240 volts alternating current, 50 Hertz)
The rating plate is inside the appliance on the left.
The mains cable may only be changed by a qualified electrician or
competent person. If your appliance needs repairing, please contact
your local Service Force Centre.
12Downloaded from Fridge-Manual.com Manuals
Installation
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
13 AMP
WARNING – THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should these safety measures not be observed.
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate. The rating plate is
inside, on the left.
The appliance is supplied with a 13 amp plug fitted. In the event of
having to change the fuse in the plug supplied, a 13 amp ASTA
approved (BS 1362) fuse must be used.
Important
The wires in the mains lead are coloured in
GREEN & YELLOW
13 AMP. FUSE
accordance with the following code:
Green and Yellow: Earth
Blue:
Neutral
Brown:
Live
As the colours of the wires in the mains lead
of this appliance may not correspond with
BROWN
the coloured markings identifying the termiBLUE
CORD CLAMP
nals in your plug, proceed as follows:
1.The wire coloured green and yellow must be connected to the terminal marked with the letter “E” or by the earth symbol or coloured
green and yellow.
2.The wire coloured blue must be connected to the terminal “N” or
coloured black.
3.The wire coloured brown must be connected to the terminal marked
“L” or coloured red.
4.Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.
Warning! A cut-off plug inserted into a 13 amp socket is a serious
safety (shock) hazard. Ensure that the cut-off plug is disposed of safely.
207
Downloaded from Fridge-Manual.com Manuals
13
Description of the appliance
View of the appliance
➅
➄
➀
➁
➁
➆
➃
➂
1 = Butter/cheese compartment
2 = Door shelves
3 = Bottle shelf
4 = Vegetable drawers
5 = Storage shelves
6 = Thermostat
7 = Rating plate
Prior to Initial Start–Up
☞
Please clean the appliance interior and all accessories prior to initial
start-up (see section: “Cleaning and Care”).
14Downloaded from Fridge-Manual.com Manuals
Starting up and temperature regulation
Important! Only use the appliance when built–in!
1. Connect the appliance to the mains electricity supply.
When the refrigerator compartment door is opened, the internal lighting is switched on.
The temperature control knob is
located on the right hand side of the
refrigerator compartment.
Setting “0” means: Off.
2. Turn the control knob clockwise past
“1”. The refrigerating unit is now on
and operates automatically.
Setting “1” means:
Hightest temperature, warmest setting.
Setting “6” (end-stop) means:
Lowest temperature, coldest setting.
Note: From a food safety point of view +5 °C should be considered
sufficiently cold for storing food in the fridge.
At a low ambient temperature of around 16°C, setting “1” should be
selected. At ambient temperatures of around 25°C, select setting “2”. If
you require a lower temperature, select setting “3” or “4”.
☞
AEG62
Important!
High ambient temperatures (e.g. on hot summer days) and a cold setting on the thermostat (position”5” to “6”) can cause the compressor
to run continuously.
Reason: when the ambient temperature is high, the compressor must
run continuously to maintain the low temperature in the appliance.
The fridge will not be able to defrost since automatic defrosting of the
fridge is only possible when the compressor is not running (see also
"Defrosting" section). The result is the build up of a thick layer of frost
on the fridge rear wall.
If this happens, turn the thermostat knob back to a warmer setting
(position “3” to “4”). At this setting the compressor will be switched on
and off as usual and automatic defrosting recommenced.
Downloaded from Fridge-Manual.com Manuals
15
Switching off the appliance
☞
To switch off the appliance, turn the temperature regulator to position
"0".
If the appliance is not going to be used for an extended period:
1. Remove all refrigerated packages.
2. Switch off the appliance by turning the thermostat knob to position
"0".
3. Remove the mains plug or switch off or disconnect from the electricity
supply.
4. Clean thoroughly (see section: “Cleaning and Care”).
5. Leave the door open to avoid the build up of odours.
☞
Interior Accessories
Storage shelves
Various glass storage shelves are included with your appliance.
The height of the storage shelves can be adjusted:
1. To do this pull the storage shelf forward until it can be swivelled
upwards or downwards and removed.
2. Please do the same in reverse to
insert the shelf at a different height.
☞
☞
Your appliance is equipped with two
half size glass storage shelves.
Storing tall items:
Slide the front half of the Vario storage shelf in another level to the rear.
By this means you will gain space to
place tall items on the storage shelf
below.
16Downloaded from Fridge-Manual.com Manuals
Variable Inner Door
The door compartments can be pulled up and removed, and inserted at
other positions as needed.
Correct storage
For physical reasons, there are different
temperature regions in the fridge. The
coldest region is on the lowest storage
shelf. Warmer regions are the top storage shelf, the vegetable drawer and the
storage compartments on the door. The
arrangement example shows at which
places in the refrigerator suitable temperatures for various types of foods exist.
The length of storage time depends on
the type of food - see manufacturer’s
instructions.
Tip: Food in the fridge should always be covered or packaged, to prevent drying and tainting of other food.
The following are suited for packaging:
– Polyethylene airtight bags and wraps;
– Plastic containers with lids;
– Special plastic covers with elastic;
– aluminium foil.
Defrosting
The fridge defrosts automatically
The rear wall of the fridge covers with frost when the compressor is
running, and defrosts when the compressor is off. The water from the
thawing frost evaporates by itself.
The water drainage hole must be cleaned regularly (see the section
"Cleaning and Care").
Downloaded from Fridge-Manual.com Manuals
17
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
Warning!
• The appliance must not be connected to the mains during cleaning.
Danger of electrical shock. Before cleaning switch the appliance off
and remove the plug from the mains, or disconnect from the electricity supply.
• Never clean the appliance with a steam cleaner. Moisture could
accumulate in electrical components and there is a danger of an
electrical shock. Hot vapours can lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.
Important!
• Ethereal oils and organic solvents can attack plastic parts, e.g.
– lemon juice or the juice from orange peals;
– butyric acid;
– cleansers which contain acetic acid.
Do not allow such substances to come into contact with appliance
parts.
• Do not use any abrasive cleansers.
☞1. Remove the food from the refrigerator. Store it in a cool place, well
covered.
2. Switch the appliance off and remove the plug from the mains, or disconnect from the electricity supply
3. Clean the appliance and the interior accessories with a cloth and lukewarm water.
4. After cleaning wipe with fresh water and rub dry.
5. Check the water drain hole in the rear
wall of the refrigeration chamber is
not blocked. Clear a blocked drain hole
with the aid of the green peg in the
pack of accessories included with the
appliance.
6. After everything is dry place appliance
back into service.
To guarantee a safe operation of the
fridge, once a year remove the ventilation grille at the base and clean the air channels with a vacuum
cleaner.
18Downloaded from Fridge-Manual.com Manuals
Energy Saving Tips
• Do not install the appliance near boilers, radiators or other sources
of heat. High ambient temperatures cause longer, more frequent
operation of the compressor.
• Ensure sufficient air circulation and exhaust at the appliance base
and at the back wall of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to
cool first.
• Do not leave the door open any longer than necessary.
• Do not set temperature any colder than necessary.
• Put frozen food in the fridge to defrost. The cold in the frozen food
will then be used to cool the fridge.
What to do if ...
Correcting Malfunctions
A malfunction may be caused by only a minor fault that you can rectify yourself using the following instructions. Do not perform any other
work on the appliance if the following information does not provide
assistance in your specific case.
Important! Repairs to appliances may only be performed by competent
service engineers. Improper repairs can give rise to significant hazards
for the user. If your appliance needs repairing, please contact your specialist dealer or your local Service Force Centre.
Symptom
Appliance does not work.
Possible Cause
Appliance is not switched
on.
Mains plug is not plugged
in or is loose.
Fuse has blown or is defective
Socket is defective.
Downloaded from Fridge-Manual.com Manuals
Remedy
Switch on the appliance.
Insert mains plug.
Check fuse, replace if necessary.
Mains malfunctions are to
be corrected by an
electrician.
19
What to do if ...
Symptom
Possible Cause
Remedy
The compressor runs continuously.
Temperature is set too
cold.
Turn the thermostat knob
to a warmer setting temporarily.
Interior lighting does not
work.
Light bulb is defective.
Please look in the “Changing
the Light Bulb” section.
The food is too warm.
Temperature is not properly adjusted.
Door was open for an
extended period.
A large quantity of warm
food was placed in the
appliance within the last
24 hours.
The appliance is near a
heat source.
Please look in the “Initial
Start Up” section.
Do not leave the door open
any longer than necessary.
Turn the thermostat knob
to a colder setting temporarily.
Please look in the
“Installation location” section.
Carefully warm the leaking
sections of the door seal
with a hair dryer (on a
cool setting). At the same
time shape the warmed
door seal by hand such
that it sits correctly.
Heavy build up of frost,
possibly also on the door
seal.
Door seal is not airtight
(possibly after reversing
the door).
The compressor does not
start immediately after
changing the temperature
setting.
This is normal, no error has The compressor starts after
occurred.
a period of time.
Water in the bottom of
the cabinet.
Water drain hole is
blocked.
20Downloaded from Fridge-Manual.com Manuals
See the “Cleaning and
Care” section.
Changing the light bulb
Warning! There is a risk of electric shocks! Before changing the light
bulb, switch off the appliance and unplug it, or disconnect from the
power supply.
Light bulb data: 220-240 V, max. 15 W
☞1. To switch off the appliance, turn the thermostat knob to position "0".
2. Unplug the mains plug.
3. To change the light bulb, undo the
screw.
4. Press the light bulb cover as shown
and slide it backwards.
5. Change the defective light bulb.
6. Refit the light bulb cover and the
screw.
7. Put the refrigerator back into operation.
AEG65
Noises during Operation
The following noises are characteristic of refrigeration appliances:
• Clicks
Whenever the compressor switches on or off, a click can be heard.
• Humming
As soon as the compressor is in operation, you can hear it humming.
• Bubbling/Splashing
When refrigerant flows into thin tubes, you can hear bubbling or
splashing noises. Even after the compressor has been switched off,
this noise can be heard for a short time.
Downloaded from Fridge-Manual.com Manuals
21
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured
in accordance with the appropriate standards. The necessary measures
in accordance with appliance safety legislation regulations (GSG), accident prevention regulations for refrigeration appliances (VBG 20) and
the regulations of the German Society of Electrical Engineers (VDE)
were observed in the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU
guidelines:
– 73/23/EWG dated 19 February 1973 - low voltage guidelines.
– 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
22Downloaded from Fridge-Manual.com Manuals
Technical terminology
• Refrigerant
Liquids that can be used to a generate a cooling effect are known as
refrigerants. They have a relatively low boiling-point, indeed so low,
that the warmth from the food stored in the fridge or freezer can
cause the refrigerant to boil and vaporise.
• Refrigerant Circuit
Closed circulation system that contains the refrigerant. The refrigerant circuit comprises primarily of an evaporator, a compressor, a condenser and pipe work.
• Evaporator
The refrigerant is evaporated in the evaporator. Similar to all other
liquids, refrigerant requires heat to evaporate. This heat is removed
from the interior of the appliance, as a result the interior is cooled.
The evaporator is therefore located inside the appliance or placed in
foam immediately behind the inner wall and thus not visible.
• Compressor
The compressor looks like a small drum. It is driven by a built-in
electric motor and is mounted on the base of the appliance at the
rear. The task of the compressor is to draw in vaporised refrigerant
from the evaporator, to compress it, and to pass it on to the condenser.
• Condenser
The condenser normally has the form of a grid. The refrigerant compressed in the compressor is liquefied in the condenser. During this
process, heat is released to the surrounding air at the surface of the
condenser. The condenser is mounted on the base of the appliance.
Downloaded from Fridge-Manual.com Manuals
23
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
2222 754-54 -00- 082007
Downloaded from Fridge-Manual.com Manuals
Subject to change without notice
Download PDF

advertising
