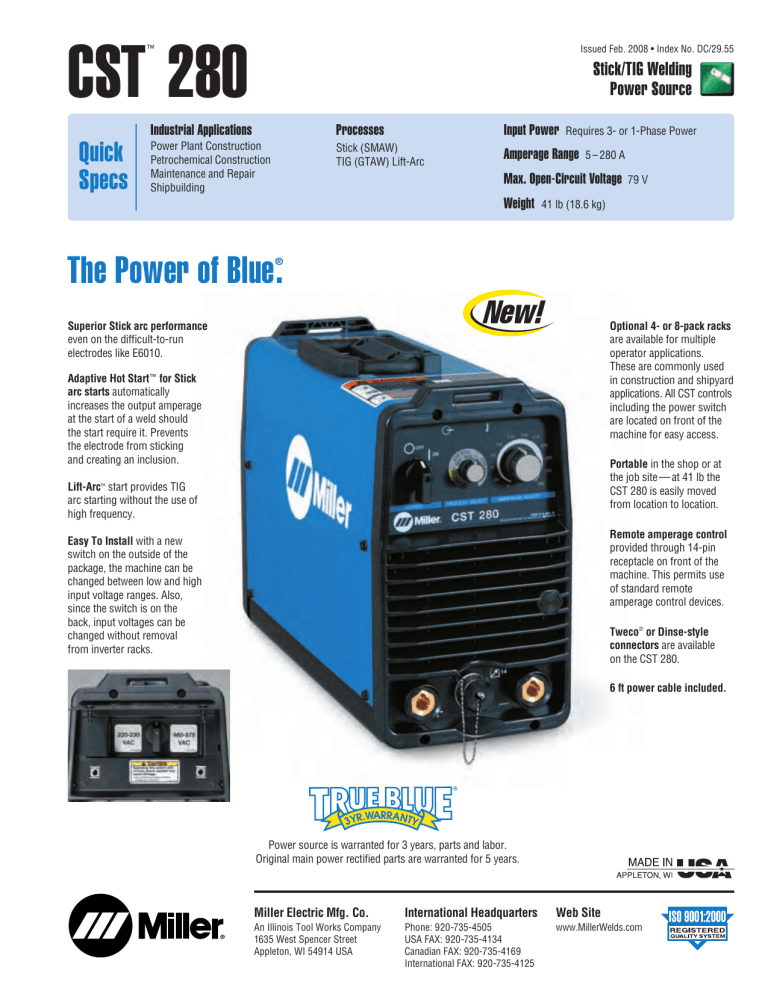

CST 280
Issued Feb. 2008 • Index No. DC/29.55
™
Quick
Specs
Stick/TIG Welding
Power Source
Industrial Applications
Processes
Input Power
Power Plant Construction
Petrochemical Construction
Maintenance and Repair
Shipbuilding
Stick (SMAW)
TIG (GTAW) Lift-Arc
Amperage Range
Requires 3- or 1-Phase Power
5 – 280 A
Max. Open-Circuit Voltage
Weight
79 V
41 lb (18.6 kg)
The Power of Blue .
®
Superior Stick arc performance
even on the difficult-to-run
electrodes like E6010.
Optional 4- or 8-pack racks
are available for multiple
operator applications.
These are commonly used
in construction and shipyard
applications. All CST controls
including the power switch
are located on front of the
machine for easy access.
Adaptive Hot Start™ for Stick
arc starts automatically
increases the output amperage
at the start of a weld should
the start require it. Prevents
the electrode from sticking
and creating an inclusion.
Portable in the shop or at
the job site — at 41 lb the
CST 280 is easily moved
from location to location.
Lift-Arc™ start provides TIG
arc starting without the use of
high frequency.
Remote amperage control
provided through 14-pin
receptacle on front of the
machine. This permits use
of standard remote
amperage control devices.
Easy To Install with a new
switch on the outside of the
package, the machine can be
changed between low and high
input voltage ranges. Also,
since the switch is on the
back, input voltages can be
changed without removal
from inverter racks.
Tweco® or Dinse-style
connectors are available
on the CST 280.
6 ft power cable included.
Power source is warranted for 3 years, parts and labor.
Original main power rectified parts are warranted for 5 years.
Miller Electric Mfg. Co.
International Headquarters
Web Site
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
www.MillerWelds.com
Specifications
Description
(Subject to change without notice.)
Welding Input
Mode
Power
Welding
Max. OpenAmperage Circuit
Range
Voltage
Rated Output
CST-280,
Stick
3-Phase 280 A at 31.2 V, 5–280 A
220-230/460- (SMAW)
35% Duty Cycle
575 Dinse
TIG
200 A at 28 V,
(GTAW)
100% Duty Cycle
CST-280,
220-230/4601-Phase 200 A at 28 V,
5–200 A
575 Tweco
50% Duty Cycle*
77 VDC
150 A at 26 V,
100% Duty Cycle*
CST-280,
Stick
3-Phase 280 A at 31.2 V, 5–280 A
208-230/400- (SMAW)
35% Duty Cycle
460 Dinse
TIG
200 A at 28 V,
(GTAW)
100% Duty Cycle
CST-280,
208-230/4001-Phase 200 A at 28 V,
5–200 A
460 Tweco
50% Duty Cycle*
67 VDC
150 A at 26 V,
100% Duty Cycle*
Amps Input at Rated Load Output, 50/60 Hz,
208 V 220 V 230 V 400 V 440 V 460 V 575 V
Net
KVA KW Dimensions Weight
—
35
34.2
—
—
17.8
14.7
—
23.3
22.5
—
—
11.7
9.7
—
43.9
43
—
—
—
—
14.6 10.2 H: 13-1/2 in 41 lb
(343 mm) (18.6 kg)
9.6 6.4 W: 7-1/2 in
(191 mm)
D: 18 in
10.1 6.6
(457 mm)
—
32.7
32
—
—
—
—
7.3
36
33
22.8
19.8
18
17.5
—
14
23.5
23
22.8
13.5
12
12.7
—
43.9
43.3
43
—
—
—
—
35
—
32.9
—
—
—
—
4.6
10.2 H: 13-1/2 in 41 lb
(343 mm) (18.6 kg)
10.2 6.9 W: 7-1/2 in
(191 mm)
D: 18 in
9.9 6.5
(457 mm)
7.6
4.8
*Output ratings on 230 V single-phase are reduced to comply with CSA current limitation on input power cable.
CSA approval. 1P23M approval.
Control Panel
4
1
1. Output Light
2. On/Off Switch
3. Weld Process Selector Switch
4. Overtemp Light
5. Amperage Adjustment Control (5–280 Amps)
150
125
OFF
18
EXX
STIFF
CK
™ TIG
RC
T-A
2
200
ICK EXX10
ST
STIF
FT
F
SO
ST
SO I
FT
ON
175
100
75
50
250
LIF
25
5
3
POWER
5
225
PROCESS SELECT
280
AMP ADJUST
CST 280
MILLER ELECTRIC MFG. CO. APPLETON, WI
Performance Data
DUTY CYCLE CHART
VOLT/AMP CURVE AT 150 AMPS
100
300
90
3-Phase Operation
80
70
200
1-Phase Operation
VOLTAGE
OUTPUT AMPERES
250
150
100
60
Setpoint
150 Amps
XX18
50
TIG
40
XX10
30
XX18
Soft
20
50
TIG
10
0
0
10
20
30
40
50
60
% DUTY CYCLE
2
70
80
90
100
0
50
100
150
AMPERAGE
XX18 Stiff,
XX10 Soft
200
XX10 Stiff
250
300
Genuine Miller Accessories
TIG (GTAW) Torches
Weldcraft® TIG Torches
The Weldcraft line of TIG torches complements
the most popular TIG power source line
available today. The Weldcraft torch line
includes both air-cooled and water-cooled
models. Available with genuine Weldcraft parts.
#WP-17V-12-2 150 A, 12 ft (3.7 m)
air-cooled torch with valve, two-piece cable.
#WP-17V-25-2 150 A, 25 ft (7.6 m)
torch with valve, two-piece cable.
#WP-26V-12-2 200 A, 12 ft (3.7 m)
air-cooled torch with valve
Remote Controls
RCC-14 Remote Contactor and Current
Control* #151 086 14-pin plug
Side-to-side rotary-motion fingertip control
fastens to TIG torch using two Velcro®
straps. Includes 28 ft (8.5 m) control cord.
Great for production or contractors that
need quick ramp-up.
RCCS-14 Remote Contactor and Current
Control* #043 688
Up-and-down rotary-motion fingertip
control fastens to TIG torch using two
Velcro® straps. Includes 28 ft (8.5 m)
control cord. Great for applications that
require a finer amperage control.
#WP-26V-25-2 200 A, 25 ft (7.6 m)
air-cooled torch with valve
These two-cable TIG torches require the installation of a
Dinse Connector (042418) or Tweco Style Connector
(195115) depending on the CST Model Connector Type.
RFCS-14 Foot Control* #043 554
Foot pedal provides remote current and
contactor control. Includes 20 ft (6 m) cord
and 14-pin plug.
RHC-14 Hand Control* #129 340
Miniature hand control for remote current
and contactor control. Dimensions: 4 x 4 x
3-1/4 in (102 x 102 x 82 mm). Includes
20 ft (6 m) cord and 14-pin plug.
RFCS-14 HD Foot Control* #194 744
For all Miller solid-state power sources
after serial number JK674521. This new
design increases stability with a larger
base, and durability with a heavier cord.
Maximum flexibility is accomplished with a
reconfigurable cord that can exit the front,
back or either side of the pedal. Foot pedal
provides remote current and contactor
control. Includes 20 ft (6 m) cord and
14-pin plug.
*Note: The remote controls provide amperage control
only on the CST 280, no remote contactor control.
Cable Connectors and Adapters
Note: The Dinse version of the CST 280 includes one
set of male connectors. The tweco version does not.
International-Style Connector
#042 418 50 mm
Accepts #1 or #2 AWG cable size. Required
if male plugs shipped with power source must
be replaced or if additional plugs are needed.
Kit includes one International-style male
plug which attaches to the work and/or
weld cables and plugs into the Internationalstyle receptacles on the power source.
Extension Kit for International-Style
Cable Connectors #042 419 50 mm
Accepts #1 or #2 AWG size cable. Used to
adapt or extend weld and/or work cables.
Kit includes one male International-style
plug and one in-line female Internationalstyle receptacle.
International/Tweco®
Adapter #042 465
A one-piece adapter
which has an
International-style male
plug (to power source)
on one end and a female Tweco receptacle
(for weld cable connection) on other end.
Tweco/Dinse Adapter
#195 116
A one-piece adapter
which has a Twecostyle male plug (to
power source) on one end and a female
Dinse or International-style receptacle (for
weld cable connection) on other end.
International/Cam-Lok
Adapter #042 466
A one-piece adapter
which has an
International-style
male plug (to power source) on one end
and a Cam-Lok receptacle (for weld cable
connection) on other end.
Tweco-Style
Connector
50 mm
#195 115
Accepts #1 or
#2 AWG cable
size. Kit includes one Tweco-style male plug
which attaches to the work and/or weld
cables and plugs into the receptacle on
the power source.
3
CST 280 Rack
™
(See Index No. DC/18.82 for additional information.)
The rack provides a simple means of
protecting and transporting welding power
sources for construction, power plant turnarounds, and shipbuilding applications.
The CST™ 280 Rack’s low weight (340 lb fully
loaded) enables use of elevators to move the rack.
Top cover to protect the machines from
falling debris.
Meets NEC requirements with appropriate fuses.
Lift truck side and end fork pockets.
Shown with
optional
running gear.
CST Rack Specifications
(Subject to change without notice.)
Power Source Input Power to Rack
CST 280
Lifting eye simplifies transportation using
crane or overhead lifting device.
One main disconnect box with fused circuit
breaker switches for each machine.
Common output ground connection
(for same polarity use only).
CSTs can be paralleled for Air Carbon Arc cutting.
Running gear (optional).
220/230/460/575 VAC, 60 Hz,
3-Phase
Capacity
Dimensions
Net Weight
4
H: 50-3/4 in (1289 mm)
W: 25-1/2 in (648 mm)
D: 26-1/2 in (673 mm)
355 lb
(161 kg)
8
H: 50-3/4 in (1289 mm)
W: 46 in (1165 mm)
D: 26-1/2 in (673 mm)
640 lb
(290 kg)
Ordering Information
Power Source and Options
Stock No.
Description
CST™ 280 w/ Dinse-style connectors*
CST™ 280 w/ Tweco-style connectors*
CST™ 280 w/ Dinse-style connectors*
CST™ 280 w/ Tweco-style connectors*
#907 244
#907 244-01-1
#907 251
#907 251-01-1
220-230/460 – 575 VAC, 50/60 Hz
220-230/460 – 575 VAC, 50/60 Hz
208-230/400 – 460 VAC, 50/60 Hz
208-230/400 – 460 VAC, 50/60 Hz
#907 245
#907 247
#907 365
#195 114
#195 436
#199 795
#212 541
Rack with 4 CST 280, 220/230/460/575 VAC (Includes 25 A fuses for 460 V)
Rack with 4 CST 280, 220/230/460/575 VAC (Includes 25 A fuses for 460 V)
Rack with 8 CST 280, 220/230/460/575 VAC (Includes 25 A fuses for 460 V)
For 4-Pack Rack
For 8-Pack Rack
30 amp fuse for 220 or 230-volt input (Order 12 per 4-pack rack)
20 amp fuse for 575-volt input (Order 12 per 4-pack rack)
Power Source Racks and Options
CST™ 280 Rack w/ Dinse-style connectors*
CST™ 280 Rack w/ Tweco-style connectors*
CST™ 280 Rack w/ Tweco-style connectors*
Running Gear for Rack
Fuse
TIG Accessories
Weldcraft® TIG Torches
Remote Controls
RHC-14 Remote Control
RCC-14
RCCS-14
RFCS-14
RFCS-14 HD
Extension Cord for Remote Controls
Qty.
See page 3
#129 340
#151 086
#043 688
#043 554
#194 744
#122 973
#122 974
#122 975
Remote current hand control
Remote current side-to-side rotary control
Remote current up and down rotary control
Remote current foot pedal control
Remote current foot pedal control with 20 ft (6 m) cord and 14-pin plug
25 ft (7.6 m)
50 ft (15.2 m)
75 ft (22.8 m)
Cable Connectors and Adapters
International-Style Connector
Extension Kit for International-Style
International/Tweco® Adapter
International/Cam-Lok Adapter
#042 418
#042 419
#042 465
#042 466
50 mm
50 mm
A one-piece adapter with International-style male plug
A one-piece adapter with International-style male plug
Tweco-style Connectors
Tweco-style Connector
Adapter, Tweco/International
#195 115
#195 116
50 mm
One-piece adapter with Tweco-style male connector and international-style female connector
Date:
Total Quoted Price:
*The Dinse version of the CST 280 includes one set of male connectors. The Tweco version does not.
Distributed by:
Litho in USA
Price
Thunderbolt XL AC/DC
Issued May 2008 • Index No. AD/8.0
®
Quick
Specs
Stick Welding
Power Source
Light Industrial Applications
Processes
Amperage Range
Garage/Job Shops
Plant Fabrication/Maintenance
Vocational Training
Light Production-line Work
Stick (SMAW)
225 AC/150 DC: HIGH 40 – 235 A (AC),
LOW 30 – 150 A (AC)
30 – 160 (DC)
300 AC/200 DC: HIGH 65 – 300 A (AC),
LOW 40 – 200 A (AC)
30 – 200 (DC)
Input Power
1-Phase Power
Max. Open-Circuit Voltage
80
The Power of Blue .
®
Comes Complete With:
Power source with 15 ft (4.5 m)
electrode cable, electrode holder,
10 ft (3 m) work cable with clamp,
and power cord (without plug).
Infinite current control allows the
operator to adjust output by as little as
1-amp increments. Users can always get
the exact heat they need, unlike the step
control design on competitive products.
Note: Thunderbolt XL 225 AC/150 DC
(#903 642) includes 230 V plug.
Models do not include wall receptacle.
High 100% duty cycle rating:
100 amps AC/65 amps DC for
the 225 AC/150 DC amp model.
130 amps AC/90 amps DC for
the 300 AC/200 DC amp model.
Output selector switch allows you
to quickly select AC, DCEP or DCEN
without adjusting the output leads.
The exclusive patented Accu-Set™
provides precise heat control with
infinite amperage control.
Fully varnished magnetic coils:
varnish protects and lengthens the
life of the coils inside.
High DC weld output: up to 150 amps
for the 225 AC/150 DC model, and up to
200 amps for the 300 AC/200 DC model,
available at 20% duty cycle. Thunderbolt XL
225 AC/150 DC model has 20% more DC
output than competitive products.
Specifications
Model
Forced-draft cooling fan runs
continuously and helps to extend
the life of the power source.
(Subject to change without notice.)
Rated Output at 20% Duty Cycle
Welding
Amperage Range
High
Low
Max. OpenCircuit
Voltage
Amps Input at Rated Output,
50 or 60 Hz
220 V
230 V
40–235
80
—
47.5
70
—
Thunderbolt
XL 225 AC/
150 DC
AC
225 A at 25 VAC, 60 Hz (15% Duty Cycle at 50 Hz)
DC
150 A at 25 VDC, 60 Hz (15% Duty Cycle at 50 Hz)
Thunderbolt
XL 300 AC/
200 DC
AC
300 A at 30 VAC, 50/60 Hz
DC
200 A at 25 VDC, 50/60 Hz
30–150
30 – 160
65–300
40–200
Dimensions
H: 18-3/4 in (476 mm)
W: 12-3/4 in (323 mm)
D: 17-1/2 in (445 mm)
30 – 200
Power source is warranted for 3 years, parts and labor.
Original main power rectifiers are warranted for 5 years.
Miller Electric Mfg. Co.
International Headquarters
Web Site
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
www.MillerWelds.com
Net
Weight
104 lb
(47 kg)
134 lb
(61 kg)
Electrode Charts
ELECTRODE/AMPERAGE CHART
7018
EP
GENERAL
LOW
LOW HYDROGEN,
STRONG
✓ HORIZ. LOW
SMOOTH, EASY,
FASTER
✓
ALL
FLAT
7024 EP, EN
FILLET
Ni-Cl
EP
308L
EP
✓
✓
ALL
LOW
CAST IRON
ALL
LOW
STAINLESS
6013
7014
7018
*EP = ELECTRODE POSITIVE (REVERSE POLARITY)
EN = ELECTRODE NEGATIVE (STRAIGHT POLARITY)
7024
Ni-Cl
1.Power Switch
2.Selector Switch
3.Amperage
Adjustment
Control
3
3
308L
Performance Data
DUTY CYCLE – FOR 225 AC/150 DC MODELS
RATED OUTPUT
WELD AMPERES
3
Typical Installation
300
250
200
150
AC
100
75
50
0
10
DC
15
20
25
30
40
50
60 70 80 90 100
% DUTY CYCLE
DUTY CYCLE – FOR 300 AC/200 DC MODELS
Stick (SMAW) Basic Equipment
Stick Electrode
RATED OUTPUT
WELD AMPERES
Power
Source
300
250
200
150
DC
75
50
0
10
Work Clamp
AC
100
15
20
25
30
40
50
60 70 80 90 100
% DUTY CYCLE
Ordering Information
Power Source
Stock No.
Description
Qty.
®
Thunderbolt XL 225 AC/150 DC #903 642* 230 V, 50/60 Hz. Includes 5 ft (1.5 m) power cord w/230 V plug
Thunderbolt ® XL 300 AC/200 DC #903 686 220 V, 50/60 Hz. Includes 7 ft (2.1 m) power cord
Running Gear
#043 927 Mounts easily to unit and provides convenient portability. Includes two wheels, two feet and handle.
Miscellaneous
Stick Electrodes
Helmet/Gloves/Scratch Brush
Chipping Slag Hammer
Wall Receptacle
See charts above
Date:
*
Total Quoted Price:
Certified to both the Canadian and U.S. Standards for welding equipment.
Distributed by:
Litho in USA
Price
MAX.
MED. SMOOTH, EASY, FAST
MM
2.4
3.2
4.0
4.8
1.6
2.0
2.4
3.2
4.0
4.8
2.4
3.2
4.0
2.4
3.2
4.0
2.4
3.2
4.0
2.4
3.2
4.0
4.8
2.4
3.2
4.0
200A
ALL
IN
3/32
1/8
5/32
3/16
1/16
5/64
3/32
1/8
5/32
3/16
3/32
1/8
5/32
3/32
1/8
5/32
3/32
1/8
5/32
3/32
1/8
5/32
3/16
3/32
1/8
5/32
150A
✓
AMPERAGE RANGE
DIAMETER
100A
PENETRATION
ELECTRODE
POSITION
DEEP
DEEP
LOW
DC*
ALL
ALL
ALL
7014 EP, EN
2
MIN. PREP, ROUGH,
HIGH SPATTER
AC
1
6010
&
6011
6010
EP —
6011
EP
✓
6013 EP, EN ✓
ELECTRODE
3
USAGE
ELECTRODE POLARITY CHART
MIN.
50A
Control Panel
Gold Star Series
Issued Jan. 2009 • Index No. DC/8.1
®
Quick
Specs
Stick Welding
Power Source
Heavy Industrial Applications
Processes
Steel Erection
Pipe Welding
Tank/Pressure Vessel Fabrication
Maintenance/Repair
Shipbuilding
Construction
Refineries
Chemical Manufacturing Facilities
Steel Manufacturing Facilities
Foundries
Stick (SMAW)
TIG (GTAW)
Air Carbon Arc (CAC-A)
Cutting and Gouging
Flux Cored (FCAW)
MIG (GMAW) Spray
Transfer when using
a Voltage-Sensing
Wire Feeder
Input Power
302/402: 3-Phase Power
452/602: 3-Phase Power
652/852: 3-Phase Power
Rated Output
302/402: 300 A at 32 VDC, 60% Duty Cycle
452/602: 450 A at 38 VDC, 60% Duty Cycle
652/852: 650 A at 44 VDC, 60% Duty Cycle
Weight
302/402: 352 lb (160 kg)
452/602: 404 lb (183 kg)
652/852: 505 lb (229 kg)
The Power of Blue .
®
Superior arc welding performance
with Stick and TIG welding.
115 V duplex receptacle provides
15 amps of auxiliary power.
Built-in arc control lets you get in
tight without sticking the electrode.
An electrode compensation circuit
ensures consistent arc control
performance regardless of the
electrode size.
Power efficient, exceptional value
and return on your investment.
Fan-On-Demand™ operates only
when needed reducing noise, power
consumption, and the amount of
airborne contaminants pulled through
the machine.
Hot Start™ makes it easier to start
difficult-to-start Stick electrodes
such as E-6010 and E-7018.
Enclosed circuit boards provide
additional protection from
contaminants resulting in longer
service life.
Simple control panel features
single range amperage adjustment.
Provides easy, efficient operation.
Thermal overload protection light
indicates power shutdown. Helps
prevent machine damage if the duty
cycle is exceeded or airflow is blocked.
Optional digital meters for voltage
and amperage. Large displays are
easy to read, even at 30 ft (9.2 m).
Line voltage compensation ensures
consistent weld performance by
keeping output power constant even if
primary input power varies by ±10%.
Gold Star 452/602
PC board protection prevents the
wire feeder power or other stray
voltages (less than 115 VAC) from
harming the power source PC board.
Power cord strain relief provided for
your convenience at installation.
14-pin receptacle provides quick, direct
connection to Miller 14-pin remote
controls and switches.
Power source is warranted for 3 years, parts and labor.
Original main power rectified parts are warranted for 5 years.
Miller Electric Mfg. Co.
Equipment Sales US and Canada
Web Site
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
www.MillerWelds.com
Gold Star 302/402 Specifications
®
Rated Output
300 A at 32 VDC,
60% Duty Cycle
(Subject to change without notice.)
Amperage
Range
Max. OpenCircuit Voltage
Amps Input at Rated Output, 50/60 Hz
200 V 230 V 380 V 400 V 440 V 460V 575 V KVA KW
15–395 A
68 VDC
70
61
35
33
31
31
25
Net
Weight
Dimensions
24.5 13.8
H: 30 in (762 mm)
including lift eye
W: 23 in (585 mm)
D: 30-1/2 in (775 mm)
including strain relief
352 lb
(160 kg)
Gold Star 302 and 402 (without CE) certified to both the Canadian and U.S. Standards for welding equipment.
50 Hz models with CE Specifications are manufactured according to the Standards IEC-974-1 and EN-60974-1.
All CE models conform to the applicable parts of the IEC 60974 series of standards.
Control Panel
1
5
2
6
7
3
8
4
9
1. Arc Force (DIG) Control
2. Polarity Selector Switch*
3. Output Switch (Contactor)
4. Remote Amperage Control Switch
5. Hot Start Switch
6. Digital Meters (Optional)
7. Amperage Adjustment Control
8. Power Switch with Indicator Light
9. High Temperature Shutdown Light
*Note: Polarity Selector Switch is not standard on 402 model.
Performance Data
DUTY CYCLE CHART
1200
80
1000
70
800
60
600
50
DC VOLTS
WELDING AMPS
VOLT/AMP CURVE CC
RATED OUTPUT
400
SMAW
GTAW
40
SMAW
ARC FORCE
30
SMAW
ARC FORCE
20
300
10
200
15
20
25 30
40
% DUTY CYCLE
2
MIN.
0
10
50 60 70 80 90 100
0
50
MIN.
MAX.
100
150
200
250
DC AMPS
MAX.
300 350
400
450
500
Gold Star 452/602 Specifications
®
Rated Output
450 A at 38 VDC,
60% Duty Cycle
(Subject to change without notice.)
Amperage
Range
Max. OpenCircuit Voltage
Amps Input at Rated Output, 50/60 Hz
200 V 230 V 380 V 400 V 440 V 460 V 575 V KVA KW
20 – 590 A
71 VDC
102
89
54
51
47
45
36
Net
Weight
Dimensions
35.5 23.3
H: 30 in (762 mm)
including lift eye
W: 23 in (585 mm)
D: 38 in (966 mm)
including strain relief
404 lb
(183 kg)
Certified to both the Canadian and U.S. Standards for welding equipment.
50 Hz models with CE Specifications are manufactured according to the Standards IEC-974-1 and EN-60974-1.
All CE models conform to the applicable parts of the IEC 60974 series of standards.
Control Panel
1
5
2
6
7
3
8
4
9
1.
2.
3.
4.
5.
Arc Force (DIG) Control
Polarity Selector Switch*
Output Switch (Contactor)
Remote Amperage Control Switch
Hot Start Switch
6.
7.
8.
9.
Digital Meters (Optional)
Amperage Adjustment Control
Power Switch with Indicator Light
High Temperature Shutdown Light
*Note: Polarity Selector Switch is not standard on 602 model.
Performance Data
DUTY CYCLE CHART
1200
80
1000
70
800
60
600
50
DC VOLTS
WELDING AMPS
VOLT/AMP CURVE CC
RATED OUTPUT
400
SMAW
GTAW
40
SMAW
ARC FORCE
20
300
SMAW
ARC FORCE
30
10
200
MIN
0
10
15
20
25 30
40
% DUTY CYCLE
50 60 70 80 90 100
0
100
MIN
MAX
200
300
400
MAX
500
600
700
DC AMPS
3
Gold Star 652/852 Specifications
®
Rated Output
650 A at 44 VDC,
60% Duty Cycle
(Subject to change without notice.)
Amperage
Range
Max. OpenCircuit Voltage
Amps Input at Rated Output, 50/60 Hz
230 V 380 V 400 V 440 V 460 V 575 V KVA KW
50–850 A
71 VDC
124
75
71
65
62
50
Net
Weight
Dimensions
49.4 36
H: 30 in (762 mm)
including lift eye
W: 23 in (585 mm)
D: 38 in (966 mm)
including strain relief
505 lb
(229 kg)
Gold Star 652 and 852 (without CE) certified to both the Canadian and U.S. Standards for welding equipment.
50 Hz models with CE Specifications are manufactured according to the Standards IEC-974-1 and EN-60974-1.
All CE models conform to the applicable parts of the IEC 60974 series of standards.
Control Panel
1
5
2
6
7
3
8
4
9
1.
2.
3.
4.
5.
Arc Force (DIG) Control
Polarity Selector Switch*
Output Switch (Contactor)
Remote Amperage Control Switch
Hot Start Switch
6.
7.
8.
9.
Digital Meters (Optional)
Amperage Adjustment Control
Power Switch with Indicator Light
High Temperature Shutdown Light
*Note: Polarity Selector Switch is not standard on 852 model.
Performance Data
DUTY CYCLE CHART
1200
80
1000
70
800
60
600
50
DC VOLTS
WELDING AMPS
VOLT/AMP CURVE CC
RATED OUTPUT
400
SMAW
GTAW
40
SMAW
ARC FORCE
30
SMAW
ARC FORCE
20
300
10
MIN.
200
0
10
15
20
25 30
40
% DUTY CYCLE
4
50 60 70 80 90 100
0
100
MAX.
200
300
MIN.
400
500
DC AMPS
MAX.
600 700
800
900 1000
Genuine Miller Options
Digital Meters
#043 812 Field
For Gold Star models after serial no.
KG 283 595
Easy-to-install, front-panel-mount,
digital amp and volt meters.
Air Filter Kit #042 939 Field
Helps protect internal components
from dust and dirt, reducing need for
maintenance and providing extended
service life.
Ground Current Sensor #195 048 Field
Disables power source if weld current is
present on primary ground.
Polarity Switch
#043 313 Field For Gold Star 402
#043 314 Field For Gold Star 602 and 852
Allows operators to switch from DCRP or
DCEN for TIG or Stick applications without
removing cables.
Genuine Miller Accessories
Process Control Selector #042 872
Allows you to easily change weld processes
from TIG to Stick without changing cables.
Can be used with any constant-current,
constant-voltage or multiprocess CC/CV
welding power source.
Standard Cylinder Rack #042 887
Holds two cylinders. Only installs on
Standard Running Gear.
Coolant Systems
For more information, see Miller Coolant
Systems Lit. Index No. AY/7.2.
Stick Hook-Up Kit #173 851
50 ft (15.2 m) 2/0 cable. Kit includes
electrode holder, weld cable and work
cable with clamp.
Standard Running Gear #042 886
The large 10 in (254 mm) rear wheels and
5 in (127 mm) front casters on this running
gear provide excellent mobility on the shop
floor, making it easier to move the power
source around and over cables and cracks.
Very easy to install. Handles double as weld
cable holder.
5
Genuine Miller Accessories
(Continued)
Wire Feeders
HF-251D-1 High-Frequency Arc
Starter/Stabilizer #042 388
This portable 250 amp, 60% duty cycle unit
adds high frequency to the welding circuit
to help start the arc when using the TIG
(GTAW) process. Operates on 115 VAC
50/60/100 Hz. See Lit. Index No. AY 5.1.
RCCS-14 Remote Contactor and Current
Control #043 688
Up-and-down rotary-motion fingertip
control. Great for applications that require
a finer amperage control. Includes 28 ft
(8.5 m) control cord.
Remote Controls and Switches
Remote On/Off Control #042 869
Allows you to turn your Gold Star on or
off from a distance of 20 ft (6 m). This is
especially useful if your power source is
located up in a mezzanine. Connects to
the power source’s terminal strip.
RMLS-14 #129 337
Momentary- and maintained-contact rocker
switch for contactor control. Push forward
for maintained contact and back for
momentary contact. Includes 20 ft (6 m)
cord and 14-pin plug.
RCC-14 Remote Contactor and Current
Control #151 086
Rotary-motion (side to side) fingertip
control. Fastens to TIG torch using two
Velcro strips. Allows complete current and
contactor control at operator’s fingertips.
Includes 28 ft (8.5 m) cord and plug.
6
RHC-14 Hand Control
#129 340 20 ft (6 m) cord
#129 340 0010305 100 ft (30.5 m) cord
Miniature hand control with 14-pin plug for
remote current and contactor control.
Dimensions: 4 x 4 x 3-1/4 in (102 x 102 x
82 mm).
RFCS-14 Foot Control #043 554
Heavy-duty foot current and contactor
control. Includes 20 ft (6 m) cord and
14-pin plug.
Extension Cables for 14-Pin Plugs to
14-Pin Sockets
#122 973 25 ft (7.6 m)
#122 974 50 ft (15.2 m)
#122 975 75 ft (22.8 m)
Extension cords make a direct connection
between the power source and the
accessory control. No messy splicing
or adapting required.
SuitCase 8VS ™ #194 890
X-Treme 12VS ™ #195 500
Lightweight, portable wire feeder for a
variety of wires up to .062 in. Holds up
to an 8 in or 12 in spool of wire.
See Lit. Index Nos. M/6.4 and M/6.41.
Notes
7
Ordering Information
Equipment and Options
Stock No.
Description
Qty.
Gold Star 302
#903 373*
#903 398*
200-208/230/460 V, 60 Hz
230/460/575 V, 60 Hz
Gold Star 402
#907 282**
380/400/440 V, 50 Hz w/CE
Gold Star 452
#903 374*
#903 400*
200-208/230/460 V, 60 Hz
230/460/575 V, 60 Hz
Gold Star 602
#907 283**
380/400/440 V, 50 Hz w/CE
Gold Star 652
#903 402*
230/460/575 V, 60 Hz
Gold Star 852
#907 284**
380/400/440 V, 50 Hz w/CE
Digital Meters
#043 812
Field. For models after serial no. KG 283 595
Air Filter Kit
#042 939
Field
Ground Current Sensor
#195 048
Field
Polarity Switch
#043 313
#043 314
For Gold Star 402
For Gold Star 602 and 852
#173 851
2/0 cable, 50 ft. Includes electrode holder, weld cable and work cable with clamp.
#042 388
HF Arc Starter/Stabilizer. See Lit. Index No. AY/5.1
Power Source
®
®
®
®
®
®
Stick Accessories
Stick Hook-Up Kit
Stick Electrodes
TIG Accessories
HF-251D-1
Torch, Tungsten and Consumables
Gas Cylinder, Gas Hose and Fittings
Remote Controls
Remote On/Off
#042 869
RMLS-14
#129 337
Rocker switch
RCC-14
#151 086
Fingertip control (side to side)
RCCS-14
#043 688
Fingertip control (up and down)
RHC-14
#129 340
#129 340 0010305
Hand control with 20 ft (6 m) cord
Hand control with 100 ft (30.5 m) cord
RFCS-14
#043 554
Extension Cables
Foot control
See page 6
Wire Feeders
SuitCase™ 8VS/X-Treme™ 12VS
#194 890/195 500
See Lit. Index No. M/6.3
Miscellaneous
Process Control Selector
#042 872
Standard Running Gear
#042 886
Cylinder Rack/Lift
#043 005
Standard Cylinder Rack
#042 887
Primary Power Cable
Secondary Welding Cables
Work Cable and Clamp
Date:
*
**
Total Quoted Price:
Certified to both the Canadian and U.S. Standards for welding equipment.
50 Hz models with CE Specifications are manufactured according to the Standards IEC-974-1 and EN-60974-1.
All CE models conform to the applicable parts of the IEC 60974 series of standards.
Conforms with NEMA EW 1 “Electric Arc Welding Power Source,” Class I (100).
Distributed by:
Litho in USA
Price
SRH-500
Quick
Specs
Issued April 2006 • Index No. DC/7.1
Stick Welding
Power Source
Heavy Industrial Applications
Processes
Steel Erection and Pipe Welding
Tank/Pressure Vessel Fabrication
Maintenance/Repair/Construction
Shipbuilding, Refineries, and Foundries
Chemical and Steel Manufacturing Facilities
Stick (SMAW)
Air Carbon Arc (CAC-A)
Cutting and Gouging
Input Power
3-Phase Power
Rated Output
500 A at 40 VDC, 35% Duty Cycle
Weight
755 lb (342 kg)
The Power of Blue .
®
Superior arc welding performance
provides outstanding Stick welding and
eliminates the need for rewelds.
Two wide amperage ranges for fine
adjustment allows exact control of
weld amperage.
Remote amperage control
receptacle can easily connect
remote amperage control.
Electric amperage control provides
reliable and infinite precision amperage
control of time-tested, dependable
technology.
Superior 6010 Stick electrode
performance offers reliable puddle
control with open root, full-penetration
welding.
Easy-to-install running gear has
large wheels for smoother mobility.
Control-circuit overload breaker allows
for quick resetting and eliminates the
need to keep fuses on hand.
Built-in Hot Start™ makes it easy to
start difficult-to-start Stick electrodes,
such as E6010 and E7018.
High/low output terminals conveniently let
you choose between two different amperage
ranges for improved output control.
Optional meters are available for
analog voltmeter and ammeter.
Specifications
(Subject to change without notice.)
Rated Output
Welding
Amperage Range
Max
OCV
Amps Input at Rated Output, Three-Phase, 50/60 Hz
220 V
380 V
440 V
500 Amps at 40 VDC,
35% Duty Cycle
45 – 250
60 – 500
75
103
60
51
Dimensions
H: 30-1/4 in (768 mm)
W: 22-1/2 in (572 mm)
D: 35-3/4 in (908 mm)
Power source is warranted for 3 years, parts and labor.
Original main power rectified parts are warranted for 5 years.
Miller Electric Mfg. Co.
International Headquarters
Web Site
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
www.MillerWelds.com
Net
Weight
755 lb
(342 kg)
Control Panel
Performance Data
WELD AMPERES
DUTY CYCLE CHART
4
1
5
2
3
900
800
700
600
500
RATED OUTPUT
SRH-5
00
500 A
MP
400
300
250
200
150
20
25
30 35 40
50
60 70 80 90 100
% DUTY CYCLE
DC VOLTS
1. Remote Amperage Control Receptacle
2. Remote Amperage Switch
3. Circuit Breaker CB1
4. Amperage Adjustment Control
5. Power Switch
VOLT/AMP CURVE
80
70
60
50
40
30
20
10
0
A = LOW RANGE
B = HIGH RANGE
B
A
0
100 200 300 400 500 600 700 800 900
DC AMPERES
Miller Accessories
RHC-3 Remote Control
#040 056 20 ft (6 m)
Remote hand amperage
control for all SRH
models. Supplied with a
cable and plug.
Wire Feeders
S-32S Wire Feeder
#088 816
A portable, voltagesensing wire feeder
for .035 – 5/64 in
(0.6 – 2.0 mm) flux
cored wire. See Lit.
Index No. M/6.21.
No. 20 Running Gear
#041 581
Four 8 in (203 mm)
poly/rubber blend wheels
with 30 in (762 mm)
towing handle.
S-32SL Wire Feeder
#109 294
A portable, voltagesensing wire feeder
for 5/64 – 7/64 in
(2.0 – 2.8 mm) flux
cored wire. See Lit.
Index No. M/6.21.
Stick Hook-Up Accessories #173 851
Includes 50 ft (15.2 m) No. 2/0 electrode
cable with electrode holder and lug, and 50 ft
(15.2 m) No. 2/0 work cable with work clamp.
SuitCase™ 8VS #194 890
SuitCase™ X-TREME™ 12VS #195 500
An ergonomically sound, lightweight wire
feeder for .023 –.052 in (0.6 –1.3 mm)
8 in spools. See Lit. Index Nos. M/6.4
and M/6.41.
Ordering Information
Power Source and Options
Stock No.
Description
SRH-500
#902 178 01-13
#902 178 01-14
220/380/440 V, 50/60 Hz, with meters
220/380/440 V, 50/60 Hz, without meters
Accessories
RHC-3 Remote Control
No. 20 Running Gear
Stick Hook-Up Accessories
#040 056
#041 581
#173 851
Includes 20 ft (6 m) cable and plug
Wire Feeders
S-32S
S-32SL
SuitCase 8VS
SuitCase X-TREME 12VS
#088 816
#109 294
#194 890
#195 500
See Lit. Index No. M/6.21
See Lit. Index No. M/6.21
See Lit. Index No. M/6.4
See Lit. Index No. M/6.41
Includes 50 ft (15.2 m) No. 2/0 electrode cable with electrode
holder and lug, and 50 ft (15.2 m) work cable with work clamp
Date:
Total Quoted Price:
Distributed by:
Litho in USA
Qty.
Price
Maxstar 150 S
Issued Feb. 2008 • Index No. DC/27.0
®
Quick
Specs
Stick Welding
Power Source
Light Industrial Applications
Process
Maintenance Repair
Shipboard Installation/Repair
Farm/Ranch
Hobbyist
Stick (SMAW)
The Power of Blue .
Input Power 1-Phase Power
Amperage Range 115 VAC: 20 – 100 A (DC)
230 VAC: 20 – 150 A (DC)
Max. Open-Circuit Voltage
Weight 13.2 lb (6.0 kg)
90
®
Designed Exclusively for
STICK WELDING
Auto-Line™ provides state-of-the-art
flexibility to the end user. The
Auto-Line circuitry automatically
connects to 115–230 VAC, singlephase power without removing the
covers to relink the power source.
No longer is there a concern if you
have the correct machine for the
shop or job site.
Miller’s exclusive
multi-voltage
plug (MVP™)
allows connection
to 115 or 230 V
receptacles
without tools —
choose the plug that fits the receptacle
and connect it to the power cord.
Adaptive Hot Start™ for Stick arc
starts automatically increases the
output amperage at the start of a
weld should the start require it.
Prevents the electrode from
sticking and creating an inclusion.
Improved!
Low OCV Stick is a simple design
that reduces the open-circuit
voltage to 12–16 volts when the
welding power source is not in use.
This circuit design is now built into
the Maxstar 150 S eliminating the
need for add-on voltage reducers.
New Case and
MVP Plugs!
Best in class Stick arc
characteristics for those
demanding jobs.
Portable in the shop or at the job
site — at 13.2 lb the shoulder strap
allows the end user to easily move
from location to location.
Thermal overload protection with
indicator light helps prevent
machine damage if the duty cycle is
exceeded or airflow is blocked.
Single amperage range allows
operator to accurately set amperage
on both 115 or 230 V primary power.
Inverter-based, DC power
source has a simple-to-use
operator interface providing
only the necessary controls in
a compact machine.
Maxstar® 150 S with X-CASE™ (#907 134-01-2) comes complete with:
Maxstar 150 S (Stick only)
10 ft (3 m) MVP power cord
MVP™ plugs 5-15P (115 V, 15 A) and 6-50P (230 V, 50 A)
X-CASE™ provides protection in transport and storage
13 ft (4 m) Stick electrode holder with 25 mm Dinse connector
10 ft (3 m) work clamp with 25 mm Dinse connector
Shoulder strap
Power Factor Corrected (PFC)
for optimum performance
especially on 115 V — reduces
nuisance breaker tripping.
Fan-On-Demand™ power source
cooling system operates only when
needed, reducing noise, energy use
and the amount of contaminants
pulled through the machine.
Power source is warranted for 3 years, parts and labor.
Original main power rectifiers are warranted for 5 years.
Miller Electric Mfg. Co.
International Headquarters
Web Site
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
www.MillerWelds.com
Specifications
(Subject to change without notice.)
Input
Power
Welding Amperage
Range
115 VAC
15 A
20–70 A
115 VAC
20 A
20–100 A
230 VAC
20–150 A
Amps Input at Rated
Output, 50/60 Hz
KVA at
Duty Cycle
KW
Max. OpenCircuit Voltage
70 A at 22.8 VDC,
100% Duty Cycle
17.4
2.0
1.9
90, 12–16 V*
70 A at 22.8 VDC,
100% Duty Cycle
17.4
2.0
1.9
90, 12–16 V*
100 A at 24.0 VDC,
35% Duty Cycle
26.4
3.0
3.0
100 A at 24.0 VDC,
100% Duty Cycle
13.1
3.0
2.8
150 A at 26.0 VDC,
30% Duty Cycle
21.6
4.9
4.7
Rated Output
Dimensions
Weight
H: 9 in (229 mm)
W: 5-1/2 in (140 mm)
D: 13-1/4 in (337 mm)
13.2 lb
(6.0 kg)
90, 12–16 V*
*Sense voltage for Stick.
Certified by Canadian Standards Association to both Canadian and U.S. Standards.
Performance Data
Control Panel
DUTY CYCLE CHART
250
3
1
200
OUTPUT AMPERES
4
Stick (230 V)
150
Stick (115 V 20 A)
100
Stick (115 V 15 A)
50
0
10
20
30
40
50
60 70 80 90 100
% DUTY CYCLE
2
5
VOLT/AMP CURVES
100
1. Amperage Adjustment Control
2. Positive Weld Output Receptacle
3. Ready Light
4. Overtemperature Light
5. Negative Weld Output Receptacle
VOLTS
80
230 V Stick
Max
60
115 V Stick Max
40
20
115/230 V
Stick Min
0
0
50
100
150
200
AMPS
Ordering Information
Power Source and Options
Stock No.
Description
Maxstar 150 S (only)
#907 134
Single-phase, 115–230 VAC, 50/60 Hz, includes 13 ft (4 m) electrode holder,
10 ft (3 m) work clamp, shoulder strap, primary cord and MVP plugs
Maxstar® 150 S with X-CASE™
#907 134-01-2
Includes #907 134 plus carrying case
#300 184
Carrying case for Maxstar 150
®
Qty.
Accessories
X-CASE™ (only)
Date:
Total Quoted Price:
Distributed by:
Litho in USA
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
