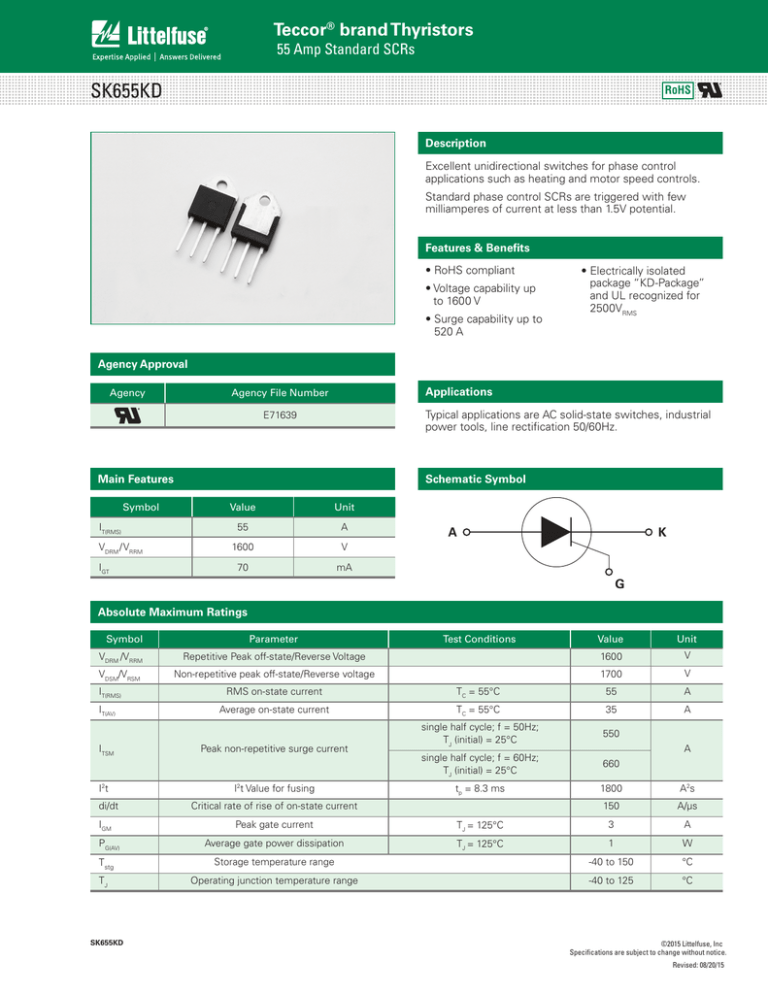

Teccor® brand Thyristors
55 Amp Standard SCRs
SK655KD
RoHS
Description
Excellent unidirectional switches for phase control
applications such as heating and motor speed controls.
Standard phase control SCRs are triggered with few
milliamperes of current at less than 1.5V potential.
Features & Benefits
• RoHS compliant
• Voltage capability up
to 1600 V
• Surge capability up to
520 A
• Electrically isolated
package “KD -Package”
and UL recognized for
2500VRMS
Agency Approval
Agency
Applications
Agency File Number
Typical applications are AC solid-state switches, industrial
power tools, line rectification 50/60Hz.
E71639
Main Features
Symbol
IT(RMS)
VDRM /VRRM
IGT
Schematic Symbol
Value
Unit
55
A
1600
V
70
mA
A
K
G
Absolute Maximum Ratings
Value
Unit
VDRM /VRRM
Symbol
Repetitive Peak off-state/Reverse Voltage
Parameter
1600
V
VDSM/VRSM
Non-repetitive peak off-state/Reverse voltage
1700
V
TC = 55°C
55
A
A
IT(RMS)
RMS on-state current
IT(AV)
Average on-state current
ITSM
I2t
di/dt
IGM
PG(AV)
Tstg
TJ
SK655KD
Peak non-repetitive surge current
I2t Value for fusing
Test Conditions
TC = 55°C
35
single half cycle; f = 50Hz;
TJ (initial) = 25°C
550
single half cycle; f = 60Hz;
TJ (initial) = 25°C
660
tp = 8.3 ms
1800
A2s
150
A/μs
Critical rate of rise of on-state current
A
Peak gate current
TJ = 125°C
3
A
Average gate power dissipation
TJ = 125°C
1
W
Storage temperature range
-40 to 150
°C
Operating junction temperature range
-40 to 125
°C
©2015 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 08/20/15
Teccor® brand Thyristors
55 Amp Standard SCRs
Electrical Characteristics (TJ = 25°C, unless otherwise specified)
Symbol
Test Conditions
IGT
VD = 12V; RL = 30 Ω
VGT
Value
Unit
MAX.
70
mA
MAX.
1.5
V
VD = 2/3 VDRM; gate open; TJ = 125°C
dv/dt
VGD
MIN.
2000
V/μs
VD = VDRM; RL = 3.3 kΩ; TJ = 125°C
MIN.
0.2
V
IT = 500mA (initial)
MAX.
200
mA
TYP.
20
μs
TYP.
5
μs
Value
Unit
IH
IT=0.5A; tp=50µs; dv/dt=5V/µs; di/dt=-30A/µs
tq
IG = 2 x IGT; PW = 15µs; IT = 110A
tgt
Static Characteristics
Symbol
Test Conditions
IT = 110A; tp = 380μs
VTM
IDRM / IRRM
MAX.
TJ = 25°C
VDRM / VRRM
MAX.
TJ = 125°C
1.8
V
10
μA
8
mA
Thermal Resistances
Symbol
Parameter
Value
Junction to case (AC)
Rθ(J-C)
Unit
1.0
Figure 1: Normalized DC Gate Trigger Current
vs. Junction Temperature
°C/W
Figure 2: N
ormalized DC Gate Trigger Voltage
vs. Junction Temperature
2.0
2.0
1.8
1.6
Ration of VGT /VGT (TJ=125o C)
Ration of IGT /IGT (TJ =125o C)
1.6
1.4
1.2
1.0
0.8
0.6
0.4
1.2
0.8
0.4
0.2
0.0
-40
-15
10
35
60
85
Junction Temperature (TJ)-(o C)
SK655KD
110 125
0.0
-40
-15
10
35
60
85
110 125
Junction Temperature (TJ)-(o C)
©2015 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 08/20/15
Teccor® brand Thyristors
55 Amp Standard SCRs
Figure 3: Normalized DC Holding Current
vs. Junction Temperature
Figure 4: O
n-State Current vs. On-State Voltage
(Typical)
2.0
Intantaneous On-state Current (IT) – Amps
160
Ration of IH /IH (TJ=125o C)
1.6
1.2
0.8
0.4
0.0
-40
-15
10
35
60
85
140
120
100
110 125
80
60
40
20
0
0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9
Instantaneous On-state Voltage (vT) – Volts
Junction Temperature (TJ)-(o C)
Figure 5: Power Dissipation (Typical)
vs. RMS On-State Current
Figure 6: M
aximum Allowable Case Temperature
vs. RMS On-State Current
130
120
50
Maximum Allowable Case
Temperature (TC) - °C
Average On-State Power Dissipation
[PD(AV)] - (Watts)
60
40
30
20
10
110
100
90
80
70
60
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 180°
50
0
0
5
10 15 20 25 30 35 40 45 50 55
RMS On-State Current [IT(RMS)] - (Amps)
40
0
10
20
30
40
50
60
RMS On-State Current [IT(RMS)] - Amps
Figure 7: Maximum Allowable Case Temperature
vs. Average On-State Current
Maximum Allowable Case Temperature
(TC) - °C
130
120
110
100
90
80
70
60
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 180°
50
40
0
5
10
15
20
25
30
35
40
Average On-State Current [IT(AVE)] - Amps
SK655KD
©2015 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 08/20/15
Teccor® brand Thyristors
55 Amp Standard SCRs
Figure 8: Surge Peak On-State Current vs. Number of Cycles
Peak Surge (Non-repetitive) On-state Current
(ITSM) – Amps
560
SUPPLY FREQUENCY: 50 Hz Sinusoidal
LOAD: Resistive
RMS On-State Current: [IT(RMS)]: Maximum Rated
Value at Specified Case Temperature
tp=10ms
One cycle
480
400
Notes:
1. G
ate control may be lost during and immediately
following surge current interval.
2. O
verload may not be repeated until junction
temperature has returned to steady-state
rated value.
320
240
160
80
0
1
10
100
1000
Surge Current Duration - Full Cycles
Design Considerations
Environmental Specifications
Careful selection of the correct device for the application’s
operating parameters and environment will go a long way
toward extending the operating life of the Thyristor. Good
design practice should limit the maximum continuous
current through the main terminals to 75% of the device
rating. Other ways to ensure long life for a power discrete
semiconductor are proper heat sinking and selection of
voltage ratings for worst case conditions. Overheating,
overvoltage (including dv/dt), and surge currents are
the main killers of semiconductors. Correct mounting,
soldering, and forming of the leads also help protect
against component damage.
Test
Specifications and Conditions
AC Blocking
Temperature Cycling
Temperature/
Humidity
JESD22-A108C, 80% VDRM @125°C for 168
hours
JESD22-A104D, M-1051,
50 cycles; -50°C to +150°C;
15-min dwell-time
EIA / JEDEC, JESD22-A101
168 hours; 100V - DC: 85°C;
85% rel humidity
Resistance to
Solder Heat
JESD22-B106C
Solderability
ANSI/J-STD-002, category 3, Test A
Dimensions – TO-218AC (KD Package) — Isolated Mounting Tab Common with Center Lead
2-
R0
.5
Dimension
A
H
M
.2
m
m
A
B
P
F
G
R
Φ
4
ax
E
C
L
K
J
SK655KD
D
Note: Maximum torque to
be applied to mounting tab
is 7 in-lbs. (0.8 Nm).
Millimeters
Min.
Typ.
4.40
Inches
Max.
Min.
4.60
0.173
Typ.
0.181
Max.
B
1.45
1.55
0.057
0.061
C
14.35
15.60
0.565
0.614
D
0.50
0.70
0.020
0.028
E
2.70
2.90
0.106
0.114
F
15.80
16.50
0.622
0.650
G
20.40
21.10
0.803
0.831
H
15.10
15.50
0.594
0.610
J
5.40
5.65
0.213
0.222
K
1.10
1.40
0.043
0.055
L
1.35
1.50
0.053
0.059
P
2.80
3.00
0.110
R
4.35
0.118
0.171
©2015 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 08/20/15
Teccor® brand Thyristors
55 Amp Standard SCRs
Product Selector
Part Number
Gate Sensitivity
Type
Package
70mA
Standard SCR
TO-218AC
SK655KD
Packing Options
Part Number
SK655KDTP
Marking
Weight
Packing Mode
Base Quantity
SK655KD
4.8g
Tube
450 (30 per tube)
Part Numbering System
Part Marking System
S K6 55 KD TP
DEVICE TYPE
S: SCR
VOLTAGE RATING
K2: 1200V
K6: 1600V
CURRENT RATING
55: 55A
PACKAGING TYPE
TP: Tube Pack
PACKAGE TYPE
KD: TO-218AC (isolated)
SK655KD
®
YMMXXX
Date Code Marking
Y:Year Code
MM: Month Code
XXX: Lot Serial Code
SK655KD
©2015 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 08/20/15
