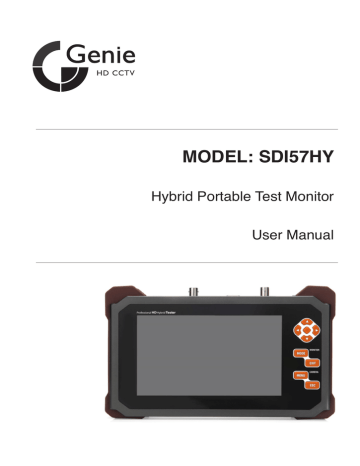

MODEL: SDI57HY
Hybrid Portable Test Monitor
User Manual
Precautions
•
Always handle the unit with care to avoid damaging the LCD display panel. Damage caused by
physical shocks is not covered by the product warranty.
•
Avoid getting fingerprints on the screen. To clean the screen, wipe it with a clean, soft and dry towel,
being careful not to damage the LCD display panel.
•
To reduce the risk of fire or electric shock, do not expose the LCD to rain or moisture.
•
Do not connect power to the video input/output ports. It will cause a malfunction.
•
Only use the approved battery charger included in the package – a fire may be caused if a non
unapproved charger is used (if the red LED flickers during recharging, request after sales service).
•
The built-in Li-Polymer battery (11.1V / 2200mA) has a six month warranty - effective from the
purchase date. Do not use any another type of battery on this portable monitor as it may cause a fire
or explosion.
•
The battery could be damaged if a short circuit is present at the connecting port, or if the polarity of the
power cable is reversed.
•
When supplying power to the camera via the test monitor, always use the enclosed power harness
(DC Jack).
•
When supplying power, connect the power cable to the camera and then apply power. Otherwise, a
short circuit might be induced which automatically switches the unit off to protect the battery. If a short
is produced, turn the monitor off, remove and re-insert the power harness (DC Jack). Then turn the
unit on again.
•
Keep the unit inside the carry bag to protect the LCD screen from scratches.
•
Do not put the monitor on, or near, anything electrically conductive or expose the unit to rain or
moisture.
•
Immediately switch the product off if it emits smoke, makes an abnormal noise or emits strange
odours.
•
If the unit is not working properly, please contact your distributor. Please do not disassemble the unit
yourself as it will invalidate the warranty.
Hybrid Portable Test Monitor
3
1. Introduction
Overview
The SD157HY is a multi-functional Analogue / HD-SDI / HDMI portable test monitor. It can be used for
various purposes, including checking video signals, adjusting camera angle of view and focusing, supplying
power to camera and controlling a speed dome camera.
Features
•
•
•
•
•
•
•
•
7-Inch Wide TFT-LCD Digital LED Backlit Panel
Various inputs: HD-SDI (3G), HDMI (1080 p60), VGA (1600 x1200), CVBS
PTZ control via RS-485 communication for speed dome cameras
Coaxial communication (Up the Coax). Controls camera OSD menu/PTZ over coax cable (Max. 800m on RG6)
Supply power to the camera (DC12V / 500mA)
HD-SDI, HDMI Embedded Audio Output with Speaker
Leather bag and strap
Li-Polymer battery (3 hours of use)
Applications
•
•
•
•
•
•
•
Display video signals or adjust camera angles.
Check speed dome cameras, PTZ camera status or control PTZ.
Control the OSD menu of a camera which supports coax communication.
Check HD-SDI, HDMI Signals.
Check the distance at which HD-SDI Repeaters & Receivers should be installed.
Check DVR VGA outputs
Test and install POC (Power over Coax) Camera (HD-SDI, CVBS) (Optional)
2. Components
Main Unit
Leather Bag
& Shoulder Strap
Accessories
Charger &
Power Cord
4
Hybrid Portable Test Monitor
Power Harness
3. Product Parts and Peripheral Device Connection
Part Names and Functions
1
2
3
4
5
6
7
8
No.
Marking
1
DC12V
Charge the Built-In Li-Polymer Battery (with Included Charger)
or, Supply Power to the Camera (DC12V/500mA) via Power
Harness.
2
RS-485
RS-485 Communication for PTZ Receiver and Speed Dome
Camera
3
HDMI INPUT
4
5
HD-SDI
VGA INPUT
6
7
8
INPUT
VIDEO
POWER
Function
HDMI Signal Input (Max. 1920 x 1080p60Hz)
HD-SDI Signal Input (Max. Resolution : ~3G ) Power Output
(When Using Power Over Coax Feature)
UXGA Input (Max. Resolution: 1600 x1200)
TERM
With Loop Through Output: HI-Z Position
INPUT
CVBS Video Signal Input Coaxial Communication: PTZ Receiver
or Speed Dome Camera Power Output (When Using Power
Over Coax Feature)
Power Switch (ON/OFF)
Hybrid Portable Test Monitor
5
Buttons for Each of the Functions
3
2
HDMI
16:9
1920 x 1080p60
1
Button
6
1
Menu Operation Buttons
Camera Menu
RS-485 & Coax
Mode
Angle Guide
Video Input
MODE
PTZ&OSD Mode
Switch
EXIT
Operate in PTZ
Mode
MENU
Operate in OSD
Mode
Menu ON
ESC
Operate in OSD
Mode
Menu OFF
Multi-Way
Key
Up, Down,
Right, Left
ENTER
Key
ENTER
Source Change
Angle Mode Out
Pan/Tilt/Zoom/
Focus
Zoom In
(Analogue)
Up, Down,
Right, Left
Select Bar
2
Video Status
• Input Mode: HD-SDI, HDMI, VGA, CVBS
• Display Mode: 4:3, Full (16:10), 16:9, Zoom1, Zoom2
• Input Resolution: 1920 x 1080p60 , NTSC , PAL
3
Battery Status
• There are seven steps indicating battery status. 090% 070% 050%
Hybrid Portable Test Monitor
Connection Diagram
※ Only use the included power harness cable when supplying power to a camera.
HD-SDI Input
• Connect to HD-SDI camera / output the power to camera using power over coax feature (Input data
bitrate: ~3G).
Analogue Video Input
• Connect to Analogue Camera
• Output the power (DC12V/500mA) to camera using power over coax feature.
• Using Coax communication feature (Coaxitron), it is possible to control the camera OSD menu or a
PTZ Speed Dome camera via coaxial cable.
VGA Input
• Connect to DVR or Computer and UXGA is supported at maximum resolution; higher resolutions may
not be displayed normally.
HDMI Input
• Connect to DVR, Computer or other device which outputs HDMI signal(Resolution:
PTZ & OSD Control Through RS-485
• Connect to PTZ Receiver and/or Speed Dome Camera as a controller. Also, connect to controller as a
PTZ receiver to check if the controller outputs data accurately.
Hybrid Portable Test Monitor
7
※ Power over coax feature (Video+Power) for Analogue VP camera and VP
transmission devices.
•
Using the Power Over Coax feature of the Hybrid Test monitor, it’s possible to supply power to VP
(Video+Power)
•
Power Over Coax feature for Analogue VP camera (Optional): When it’s necessary to use the
Power POC (Power Over Coax) feature, for installation and maintenance of an analogue VP camera
or other VP Transmission product, press and hold the ‘Enter’ key for 3 seconds or more, and the VP
feature is activated; after detecting if the device automatically supports the POC feature.
4. Menu Setting
SELECT MENU
Press
.
Press the directional buttons to move Up ,
Down ,
Right or Left .
•
•
The menu mode is automatically switched off if you don’t press any buttons for a few minutes.
PICTURE SET
8
• Contrast: To adjust the contrast range ~ 100 steps)
• Brightness: To adjust the brightness (0 ~ 100 steps)
• Hue: To adjust the colour (0 ~ 100 steps)
• Saturation: To adjust the chroma (0 ~ 100 steps)
• Picture Mode: Standard > Movie > Vivid > User
The value of each mode changes automatically
• Scale: To adjust the screen ratio (Full > 4:3 > Zoom1 > Zoom2 > 16:9)
• Reverse: To reverse the upper and lower sides of the LCD screen.
Hybrid Portable Test Monitor
ANGLE MODE
Indication lines: To adjust the viewing angles based on a specific area.
Selecting ANGLE MODE displays a green box and the camera angle zone indication lines.
Press the SET MENU button to select the size of the green box. Press the SET MENU button again
and select the side lines of the box you want to adjust, and press the / / / buttons
to set
the position of each line.
To exit ANGLE MODE, press the EXIT KEY.
•
•
•
RS485 & COAX MODE (PTZ / OSD Control)
•
•
•
•
•
•
MODE: In RS-485 Tx and COAX mode you can control the PTZ & Camera OSD. In Rx. mode, it
receives the PTZ control data (as HEX values) and displays the data on the monitor. In Analyser
mode, it analyses the protocols received through the RS-485 port and displays the HEX value and
command.
PROTOCOL: To select the protocol of the equipment which you want to control.
ADDRESS: To select the address of the equipment which you want to control.
※ In COAX mode, you can control the camera regardless of the address
BAUDRATE: To select the communication speed (2400, 4800, 9600, 19200, 38400).
※ In COAX mode, you can control the camera regardless of the baud rate
START: To start controlling the device after setting all the above menus.
EXIT: To exit from MENU MODE
Hybrid Portable Test Monitor
9
※ Built-in Protocols:
No.
Company
Protocol
Product Model
01
DONGYANG
UNITECH
(OSD)
D-MAX
02
DONGYANG
ELECTRONICS
DY-255RXC
DSC-300S/270S/230S
Series (High Speed PTZ Dome Camera)
DOH-240S Series
(Speed PTZ Dome Camera)
DPC-200
(Mini PTZ Dome camera)
DRX-500, DRX-502A (CCTV PTZ receiver)
INTER-M
VRX-2201
03
DY-255RXC
FINE SYSTEM
FineSystem
CRR-1600i/s
05
HONEYWELL (OSD)
Honeywell
HRX-2000, ScanDome-Ⅱ
07
LG LPT-A100L
LG LPT-A100
PANASONIC
PanasonicN
04
06
LG MultiX (OSD)
08
PANASONIC (OSD)
10
GENIE
VRX-2201
LG MultiX
LPTEP551PS/
EI551PS/OS551HQ/OI551HQ/OI511HQ
LPT-A100L
PanasonicC
CS600, CS650, CS564, CS85X,…
Pelco-D
Genie ASD, Genie NSD
Samsung
SCC-641/3/07,…, SCC-64x Series
SAMSUNG
TECHWIN (OSD)
Techwin
SPD-xxxx Series
15
SYSMANIA
Sysmania
Sungjin
RECEIVER/MPU
17
VICON
Vicon Stn
Vicon Ext
V1311RB,V1310RB, V1200R-LM, etc. receivers
Ikegami35
PCS-35
09
11
12
13
14
16
18
19
20
21
GENIE
SAMSUNG
ELECTRONICS
(OSD)
SUNGJIN
VICON
IKEGAMI
IKEGAMI
NEW BORN
HIGHTECH
CS564CS854/A,…
Pelco-P
Genie ASD, Genie NSD
ORX-1000
Surveyor Dome Series
Ikegami358
PCS-358
NEWBORN
TOKINA
TOKINA DMP
22
ERNITEC (OSD)
BOSCH
Bosch OSRD
24
GSP SYSTEMS
CYBERSCAN1
26
YUJIN SYSTEMS
Yujin Sys.
23
25
HITRON
ERNA
BDR-51x,BDR-55x,BDR-575,ICU
Receiver/Drivers, G1, G2, G3, VEZ, and G4 Series
AutoDomes
Fastrax II
Fastrax II (HID-2404)
EPT-5000S/6000S
27
DYNACOLOR DSCP
Dyna. DSCP
dynacolor DH801, DH701 and DH600
29
HANIL STM
MCU-1200N
MCU-1200N, 1400N, 1500N
28
30
31
32
LADON
LILIN_MLP2
LILIN_FastDome
AMERICAN
DYNAMICS
Ladon
LILIN_MLP2
LILIN Fast
AD SpdDome
The protocols marked with ‘(OSD)’ are available to controlling CAMERA OSD Menu.
10
Hybrid Portable Test Monitor
RS-485 (TX)
• Displays the current setting mode at the top of the screen.
• Press SET KEY in MULTI WAY KEY selection to select PAN/TILT or ZOOM/FOCUS mode.
- RED: P.T.Z MODE - BLUE: OSD MODE
• Press the Mode KEY to select CAMERA OSD control mode.
• Press the MENU KEY to control CAMERA OSD and press the ESC KEY to exit OSD MENU.
• In case of BOX/DOME Camera, hold the ENTER KEY to select the OSD Menu.
• Press EXIT KEY to go to the previous mode
• (in CAMERA OSD mode, switch to PAN/TILT mode first, in order to exit).
• Press / / / buttons
following the OSD guidance on the screen.
※ Caution
• The Hybrid Test monitor has two different PELCO-D Protocols, which are PELCO-D PROTOCOL
and PELCO (CNB).
• For PELCO-D PROTOCOL, it is possible to enter the camera OSD menu by using MENU key.
(SET PRESET COMMAND)
• For PELCO (CNB) PROTOCOL, it is possible to enter the camera OSD menu by using MENU key
(Go to PRESET) or ESC key (Run PRESET)
• Depending on the camera manufacturer, the command to enter the camera OSD Menu is different.
RX
•
•
•
•
•
Displays the current setting mode at the top of the screen.
Displays the connection status of the RS-485 line indicated by a HEX value.
The received data via the RS-485 port is displayed as a maximum in 8 lines in bytes (16 byte).
When the data is more than 128 byte, it’s cleared out automatically. You can also clear it out
temporarily, using the ESC button.
To go to the previous menu, press the EXIT button.
Hybrid Portable Test Monitor
11
COAX [UP THE COAX] Control
• Displays the current setting mode at the top of the screen.
• Press the SET KEY in MULTI WAY KEY selection to select PAN/TILT mode or ZOOM/FOCUS mode.
- RED: P.T.Z MODE - BLUE: OSD MODE
• Press the Mode KEY to select the CAMERA OSD control mode.
• Press the MENU KEY to control the CAMERA OSD, and the ESC KEY to exit OSD MENU.
For BOX/DOME Cameras, Hold the ENTER KEY to select OSD Menu
• Press the EXIT KEY to go to the previous mode. In CAMERA OSD mode, switch to PAN/TILT mode
first in order to exit.
• Press / / / buttons
following the OSD guidance on the screen.
• List of controllable models
No.
Company
Protocol
Product Model
01
Samsung Techwin
PELCO-C
02
Pelco
PELCO-C
All models to support
COAX communication (WINNER 5)
03
Dongyang Unitech
PELCO-C
04
Samsung E
A1
All models to support
COAX communication
All models to support
COAX communication (PIXIM)
All models to support
COAX communication
※ PELCO-C PROTOCOL in Hybrid Test monitor is compatible with all the product models above.
Also, this product can control COAX in a remote side through the automatic NTSC/PAL
recognition without any set-up.
ANALYSER
12
•
Using Analyser mode, the test monitor recognises the received data packet and displays the address
and command.
•
•
•
Addr: Show the address.
Cmd: Show the command
Packet: Show the Hex code of the received data.
Hybrid Portable Test Monitor
SYSTEM SET
•
To set the System
Language: KOR / ENG / JAP / RUS
OSD Dwell Time: To set the time to turn
the monitor menu OFF
BACK LIGHT: To adjust the brightness
of the LED Monitor.
Setting Initialisation: To initialise all
settings.
Version: To display the product
Firmware version and the date.
•
•
•
•
•
5. Specification
LCD
SD157HY Hybrid Test Monitor
DISPLAY RESOLUTION
1024 x 600 (RGB)
SIZE
7 inch (Diagonal)
PIXEL PITCH
0.15mm (H) x 0.15mm (V)
BRIGHTNESS (cd)
Typ: 250
CONTRAST RATIO
Viewing
Angle
VIDEO
Typ: 500
Horizontal
75°
Vertical
75°
RESPONSE (ms)
INPUT
CONNECT PORT
35
HDMI
~1080p 60
CVBS
NTSC/PAL 1.0Vp-p
HD-SDI
~3G
XVGA
Max. 1600 x 1200, 60Hz
HDMI INPUT
HDMI C Type F
HD-SDI INPUT
BNC-F
VGA INPUT
CVBS VIDEO INPUT
RS-485
POWER
INPUT
BNC-F
Pan/Tilt/Zoom/Focus
Control
OSD Control
DC12.6V (exclusive Adapter included)
OUTPUT
DC12V
COLOUR
Dark Grey
BATTERY
POWER
CONSUMPTION
D-SUB 15-Pin RIGHT ANGLE TYPE
With HDMI input
2x Li-Polymer: 11.1V, 2200mA (protection
circuit applied)
With HD-SDI input
With VGA Input
With CVBS Input
6.5W
7.5W
6.5W
6.5W
TEMPERATURE
0℃ ~ +50℃
WEIGHT
SET : 920g , BAG : 640g Total : 1.6kg
HUMIDITY
0% ~ 80%
DIMENSIONS (W x H x D) (Excluding the bag)
Hybrid Portable Test Monitor
240.9 x 153.4 x 50 mm
13
14
15
GENIE CCTV LTD.
CCTV House, City Park, Watchmead, Welwyn Garden City, Hertfordshire, AL7 ILT
Tel: +44 (0) 1707 330541 Fax: +44 (0) 1707 330543
www.geniecctv.com
Edition. GN-February 2013
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
