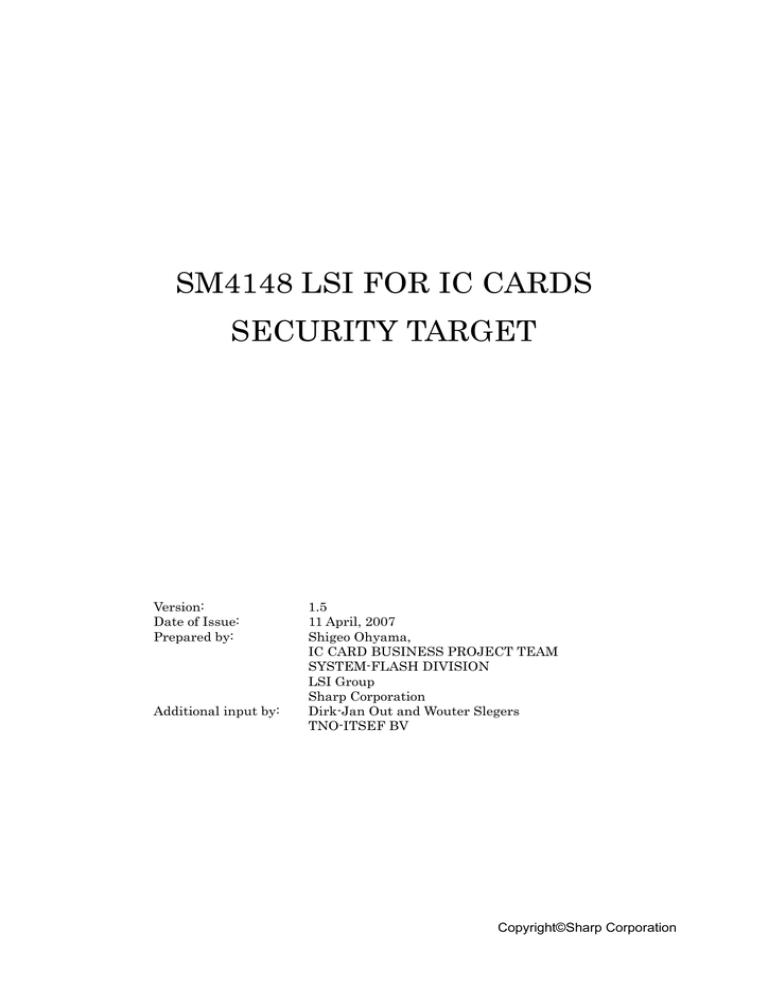

Security Target: 0389b

SM4148 LSI FOR IC CARDS

SECURITY TARGET

Version: 1.5

Date of Issue:

Prepared by:

11 April, 2007

Shigeo Ohyama,

IC CARD BUSINESS PROJECT TEAM

DIVISION

LSI Group

Sharp

Additional input by: Dirk-Jan Out and Wouter Slegers

Copyright©Sharp Corporation

Public Version

Contents

1.

ST INTRODUCTION ...............................................................................................................1

1.1. ST Identification .......................................................................................................... 1

1.2. ST Overview ................................................................................................................. 1

1.3. CC Conformance Claim................................................................................................ 1

2.

TOE DESCRIPTION................................................................................................................2

3.

TOE SECURITY ENVIRONMENT...........................................................................................7

3.1. Assumptions................................................................................................................. 7

3.2. Threats ......................................................................................................................... 7

3.3. Organisational Security Policies.................................................................................. 8

4.

SECURITY OBJECTIVES.......................................................................................................8

4.1. Security Objectives for the TOE .................................................................................. 8

4.2. Security Objectives for the Environment .................................................................... 9

4.2.1.

Clarification of “Usage of Hardware Platform (OE.Plat-Appl)”

................................9

4.2.2.

Clarification of “Treatment of User Data (OE.Resp-Appl)”

.......................................9

4.2.3.

Clarification of “Treatment of User Data (OE.Resp-Appl)”

.......................................9

5.

IT SECURITY REQUIREMENTS ..........................................................................................10

5.1. TOE security functional requirements ...................................................................... 10

5.2. Additional TOE security functional requirements .................................................... 10

5.2.1. Addition #1: “Support of Cipher Schemes”...............................................................10

5.2.2.

Addition #4: “Area based Memory Access Control” ................................................. 11

5.3. Security Requirement for the IT Environment ......................................................... 14

5.4. Security Requirement for the Non-IT Environment ................................................. 15

5.5. TOE Security Assurance Requirements .................................................................... 15

6.

TOE SUMMARY SPECIFICATION .......................................................................................16

6.1. IT Security Functions ................................................................................................ 16

6.2. Strength of Function Claim ....................................................................................... 18

Public Version

6.3. Assurance Measures .................................................................................................. 20

7.

PP CLAIM .............................................................................................................................22

8.

RATIONALE..........................................................................................................................23

8.1. Security Objectives Rationale .................................................................................... 23

8.2. Security Requirements Rationale .............................................................................. 24

8.2.1. Verification of Security Functional Requirements Adequacy..................................24

Assurance

8.2.3. TOE

8.2.4. The

8.2.5. The

8.3. TOE Summary Specification Rationale ..................................................................... 28

8.3.1. IT

8.4. Assurance Requirements and Strength of Function Rationale................................. 30

9.

REFERENCES......................................................................................................................31

9.1. Glossary/List of abbreviations ................................................................................... 31

ABOUT THIS VERSION

• This version is a major update of SM4128(V3) v1.8.5 for general usage.

Public Version

Public Version

1. ST Introduction

1.1. ST Identification

Title:

Version:

LSI Security Target for SM4148 IC Card

1.5

Date of Issue: 11 April, 2007

Prepared by: Shigeo Ohyama,

IC CARD BUSINESS PROJECT TEAM

SYSTEM-FLASH DIVISION

LSI Group, Sharp Corporation

Assisted by: Dirk-Jan Out and Wouter Slegers

BV

SM4148 The TOE

1.2. ST Overview

The Target of Evaluation (TOE) is the SM4148 module (a packaged IC), hereafter called

SM4148. This SHARP dual interface type module has interfaces for contact and contact-less communications, physical and logical protection mechanisms, DES and RSA/ECC coprocessors.

This module is intended for use in high security applications, for example as national ID cards and electronic passports.

The rest of this ST describes the TOE, the TOE security environment, security objectives and security requirements conformant to [EuroPP]. augmented with additions #1 and #4 from

[EuroAug], and provides argumentation why the TOE covers these requirements.

1.3. CC Conformance Claim

Œ

The criteria applied are described in CC version 2.3 parts 1, 2, and 3.

Œ

The methodology applied is described in CEM version 2.3.

Œ

The SFRs are CC Part 2 extended.

Œ

The SARs are CC Part 3 conformant and consist of EAL4 augmented with

ADV_IMP.2, ALC_DVS.2, AVA_MSU.3 and AVA_VLA.4.

Œ

The minimum strength of function claim for the TOE is SOF-high.

Œ

This ST is conformant to [EuroPP]. This PP was augmented with Addition #1

“Support of Cipher Schemes” (Chapter 2) and Addition #4 “Area Based Memory

Access Control” (Chapter 5) taken from [EuroAug].

Note that in concordance with “Usage of this Document” (section 1.2.2.) from [EuroAug], the text from [EuroPP] is used by reference and text from the relevant numbered paragraphs from [EuroAug] is copied in the ST (shown in should be read together with [EuroPP] and [EuroAug]. italics

) as appropriate. This ST

1

Public Version

2. TOE Description

The Target of Evaluation (TOE) is the SM4148 module. This SHARP dual interface type module has interfaces for contact and contact-less communications, physical and logical protection mechanisms, DES and RSA/EC coprocessors. This module is intended for use in high security applications, for example as national ID cards and electronic passports.

The functional features include

1) CPU Sharp original 16 bit CPU

• General purpose register construction, 16 bit x 16

• 62 basic commands including bit manipulation command, bit transfer instruction and bit branch instruction suitable for controlling application.

• High speed multiplication and division instructions (16 bit x 16 bit, 16 bit / 16 bit,

32 bit /16 bit)

• 10 types of addressing mode

• 16M bytes address space

• Data automatic transfer function (DTS) for highly functional interrupt processing.

It is possible to automatically transfer data using hardware instead of interrupt processing when generating the demand for interrupt. Continuous operation of each type of function block is possible using DTS and continuous storage of the results and data is possible.

• CPU clock switching function.

CONTACT Mode: Multiplication x 3 of the CLK PORT which is input from the

CLK pin and x 3/8 can be selected.

CONTACT-LESS Mode: Multiplication x 1 of the RF CLOCK and x 1/8 can be selected.

2) Memory

• ROM 8k Byte

• RAM 8k Byte

• Coprocessor RAM 1664 Byte

• Flash memory 1024k Byte

3) Terminal for IC card ISO/IEC 7816 base

• Communications method

• <Contact operation>

• ISO/IEC 7816 base T=0 & T=1 protocol

• Operating power voltage: 2.7 - 5.5V

• Input clock frequency: 1.0 - 5.0 MHz

• <Contact-less operation>

• ISO14443-2 TypeB 106kbps - 424kbps

• The anti-collision is compatible with the slot marker method

4) Interrupt

• In addition to a total of 15 types of interrupt, software interrupt is also possible.

• Mask capable interrupt 15 types (external 1: internal 14)

• Non-maskable interrupt 6 types

5) Crypto Accelerator

• RSA/ECC Crypto Accelerator. This accelerator is intended to form the basis for

2

Public Version efficient implementation of asymmetric cryptography (RSA up to 1152 bit, ECC up to 512 bit) by providing hardware-based high-speed operations. As the SM4148 does not include any cryptographic software or algorithms the functionality of the crypto accelerator is included in the evaluated hardware configuration but its specific use in cryptographic software is not included.

• DES Circuit integrated containing an effective countermeasure for the DFA

(Differential Fault Analysis), the SPA (Simple Power Analysis) and the DPA

(Differential Power Analysis) attacks.

6) Timer

• 16 bit compare type timer 2

• 8 bit watch dog timer 1

7) Serial interface Asynchronous simultaneous (UART) 1 channel

8) PLL Integrated PLL generates an operating clock for CPU and for Crypto Accelerator in contact operation.

9) Base Register By storing the start address of the applications in Base Register, multi applications are available easily.

10) Hardware seed generator for the software DRNG

11) Watchdog Timer The SM4148 is reset when the time out occurs.

12) Odd Address Access The SM4148 is reset when the violation of the odd address access occurs.

13) Illegal Instruction The SM4148 is reset when the illegal instruction occurs.

14) Sensors The SM4148 is reset when the sensors detect an out of the specified value.

15) Over-voltage Protector The SM4148 limits the internal voltage VCC.

16) Voltage Regulator The SM4148 generates four voltages such as VPPO, VFF, VDD and

VAA from the VCC voltage.

17) Memory Protection The SM4148 is reset when the violation of the memory protection occurs.

18) Bus Scramble The data bus between the CPU and the memory is scrambled as the countermeasure for the physical attacks such as the reading and the rewriting the data bus with the probing.

19) Module The chip is covered with a resin. The module prevents an attacker from looking at the circuits of the chip because it is difficult to scratch the resin off.

20) Passivation The surface of the chip is covered with a passivation. The passivation prevents an attacker from probing the circuits directly.

21) Shielding Layer (Wire Break Down Sensor) The shielding layer covers the circuits.

The wire break down sensor responds and the SM4148 is reset when the shielding

3

Public Version layer is scratched off.

Protect Read/Write

CPU

CPU Read/Write

CPU Bus

Address Bus

Flash

Interface

Flash Control

Flash

Memory

Memory

Protect

Circuit

Timer

(WDT)

Random

Number

Generator

DES

Circuit

External Clock

RF Clock

System Clock

VDD/VFF

PLL Lock

Detector

Sensors

Sensor Error

Hard Error Reset

Reset

Circuit

Hardware Reset

ROM

Work

RAM

I/O Port

UART

Internal

Reset

Contact

Contact-less

Detector

External

Reset

Clock

Circuit

Clock

Port

Coprocessor

RAM

Bus Scramble

Crypt

Accelerator

Protocol

Contoroller

RF

Interface

RF Reset

Test

Circuit

Internal

Reset

RF Internal Clock

RF Circuit

(Regulator)

Sensor Error Hard Error Reset

RF Reset

NOTE: is powered by VDD is powered by VDD/VFF/VPPO is powered by VCC

Figure 2-1: Block diagram of TOE

The TOE physically consists of a packaged module containing the following:

• The circuitry of an IC (hardware, including the physical memories RAM, ROM and

Flash ROM (FROM)) providing a secure execution environment for programs and the physical interaction with the reader/writer.

• TSF data stored in the IC

• The following IC dedicated software:

4

Public Version o

BootROM, IC dedicated software for starting the OS (OS itself is outside of the

TOE) and a DRNG function. o

TestROM (test functionality is disabled before TOE delivery)

• The following guidance documents: o

Programmers Manual of SM4148 Ver.1.1.0 o

Combination Type Smart Card LSI HERMES Bootstrap program Functional

Specification Version 1.0.0. o

Secure Programming Guidance for SM4148 Ver.1.0 o

Handling Guidance for SM4148 Ver.1.0

IC CARD

AP

OS

Software in FROM

Software in FROM

Server BOOT

Software in ROM

Terminal Reder/Writer IC chip Hardware

Figure 2-2 System Configuration (the shaded parts are the TOE)

Smartcard Embedded Software (outside of TOE) may be loaded in and executed from the

FROM (logically outside the TOE).

Interfaces of the TOE

• The physical interface of the TOE to the environment is the entire surface of the module. The physical interface to an attacker consists of the entire surface of the module, the passivation layer, the shielding layer, the flat layout, the narrow wiring and the scrambled data bus.

• The environmental interface of the TOE is the temperature.

• The electrical interface of the TOE to the environment are the ISO7816 contacts, the

ISO14443 contacts, the backside pins, the power pins, the covered and blocked pins and the covered pins.

• The software interface of the TOE to the environment is via memory (including RAM,

ROM, Flash and special function registers), the instruction set and DRNG function in the BootROM.

5

Public Version

Figure 2-3 System Configuration (from [EuroPP])

The TOE is delivered in module form. This means that it is delivered at the end of Phase 4, therefore the relevant phases of the lifecycle model for this TOE are Phases 2, 3 and 4. For more information on this model, see [EuroPP], section 2.1

6

Public Version

3. TOE Security Environment

3.1. Assumptions

The following assumptions were taken from section 3.2 of [EuroPP]:

• A.Process-Card

• A.Plat-Appl

• A.Resp-Appl

As part of Addition #1: Support of Cipher Schemes, the following assumptions was added from section 2.2.2 of [EuroAug]:

The developer of the Smartcard Embedded Software must ensure the appropriate “Usage of

Key-dependent Functions (A.Key-Function)” while developing this software in Phase 1 as specified below.

A.Key-Function: Usage of Key-dependent Functions

Key-dependent functions (if any) shall be implemented in the Smartcard Embedded

Software in a way that they are not susceptible to leakage attacks (as described under

T.Leak-Inherent and T.Leak-Forced).

Note that here the routines which may compromise keys when being executed are part of the Smartcard Embedded Software. In contrast to this the threats T.Leak-Inherent and T.Leak-Forced address (i) the cryptographic routines which are part of the TOE and (ii) the processing of User Data including cryptographic keys.

As part of Addition #4: Area based Memory Access Control, the on assumption was added.

The Smartcard Embedded Software is responsible for its User Data according to the assumption “Treatment of User Data (A.Resp-Appl)” in [3].

3.2. Threats

The following threats were taken from section 3.3 of [EuroPP]:

• T.Leak-Inherent

1

• T.Phys-Probing

• T.Malfunction

• T.Phys-Manipulation

• T.Leak-Forced

• T.Abuse-Func

• T.RND

As part of Addition #1: Support of Cipher Schemes, no threats were added.

As part of Addition #4: Area based Memory Access Control, the following threats were added from section 5.2.3 of [EuroAug]:

However, the Smartcard Embedded Software may comprise different parts, for instance an operating system and one or more applications. In this case, such parts may accidentally or deliberately access data (including code) of other parts which may result in a security violation.

1

From [EuroAug]: Note that the threats T.Leak-Inherent (Inherent Information Leakage) and

T.Leak-Forced (Forced Information Leakage) in the Smartcard IC Platform Protection Profile

(BSI-PP-0002; Version 1.0, July 2001) [3] now also pertain to the disclosure of cryptographic keys while being used to perform cryptographic algorithms (or operations used to build them).

7

Public Version

T.Mem-Access:

Memory Access Violation

Parts of the Smartcard Embedded Software may cause security violations by accidentally or deliberately accessing restricted data (which may include code). Any restrictions are defined by the security policy of the specific application context and must be implemented by the Smartcard Embedded Software.

3.3. Organisational Security Policies

The following OSPs were taken from section 3.4 of [EuroPP].

• P.Process-TOE

As part of Addition #1: Support of Cipher Schemes, the following OSP was added and completed from section 2.2.4 of [EuroAug]:

The TOE provides specific security functionality which can be used by the Smartcard

Embedded Software. In the following specific security functionality is listed which is not derived from threats identified for the TOE’s environment because it can only be decided in the context of the smartcard application, against which threats the Smartcard Embedded Software will use the specific security functionality.

The IC Developer / Manufacturer must apply the policy “Additional Specific Security

Functionality (P.Add-Functions)” as specified below.

• P.Add-Functions (Additional Specific Security Functionality)

The TOE shall provide the following specific security functionality to the Smartcard

Embedded Software: o

[Data Encryption Standard (DES)]

-

4. Security Objectives

4.1. Security Objectives for the TOE

The following security objectives for the TOE were taken from section 4.1 of [EuroPP]:

• O.Phys-Manipulation

• O.Phys-Probing

• O.Malfunction

• O.Leak-Inherent

• O.Leak-Forced

• O.Abuse-Func

• O.Identification

• O.RND

As part of Addition #1: Support of Cipher Schemes, the following objective was added from section 2.3.1 of [EuroAug]:

The TOE shall provide “Additional Specific Security Functionality (O.Add-Functions)” as specified below.

• O.Add-Functions (Additional Specific Security Functionality)

The TOE must provide the following specific security functionality to the Smartcard

Embedded Software: o

[Data Encryption Standard (DES)]

As part of Addition #4: Area based Memory Access Control, the following objective was added from section 5.3.1 of [EuroAug]:

The TOE shall provide “Area based Memory Access Control (O.Mem-Access)” as specified below.

O.Mem-Access (Area based Memory Access Control)

8

Public Version

The TOE must provide the Smartcard Embedded Software with the capability to define restricted access memory areas. The TOE must then enforce the partitioning of such memory areas so that access of software to memory areas is controlled as required, for example, in a multi-application environment.

4.2. Security Objectives for the Environment

The following security objectives for the environment were taken from section 4.2 of [EuroPP]:

• OE.Plat-Appl

• OE.Resp-Appl

• OE.Process-TOE

• OE.Process-Card

As part of Addition #1: Support of Cipher Schemes, no security objectives for the environment were added, but the following clarifications are added:

4.2.1.

Clarification of “Usage of Hardware Platform (OE.Plat-Appl)”

The TOE supports cipher schemes as additional specific security functionality. If required the

Smartcard Embedded Software shall use these cryptographic services of the TOE and their interface as specified. When key-dependent functions implemented in the Smartcard

Embedded Software are just being executed, the Smartcard Embedded Software must provide protection against disclosure of confidential data (User Data) stored and/or processed in the TOE by using the methods described under “Inherent Information Leakage

(T.Leak-Inherent)” and “Forced Information Leakage (T.Leak-Forced)“.

4.2.2.

Clarification of “Treatment of User Data (OE.Resp-Appl)”

By definition cipher or plain text data and cryptographic keys are User Data. The Smartcard

Embedded Software shall treat these data appropriately, use only proper secret keys (chosen from a large key space) as input for the cryptographic function of the TOE and use keys and functions appropriately in order to ensure the strength of cryptographic operation.

This means that keys are treated as confidential as soon as they are generated. The keys must be unique with a very high probability, as well as cryptographically strong.

For example, it must be ensured that it is beyond practicality to derive the private key from a public key if asymmetric algorithms are used. If keys are imported into the TOE and/or derived from other keys, quality and confidentiality must be maintained.

This implies that appropriate key management has to be realised in the environment.

As part of Addition #4: Area based Memory Access Control, no security objectives for the environment were added, but the following clarification was added:

4.2.3.

Clarification of “Treatment of User Data (OE.Resp-Appl)”

The treatment of User Data is still required when a multi-application operating system is implemented as part of the Smartcard Embedded Software on the TOE. In this case the multi-application operating system should not disclose security relevant user data of one application to another application when it is processed or stored on the TOE.

9

Public Version

5. IT Security Requirements

5.1. TOE security functional requirements

The following SFRs are specified in [EuroPP]. Some are CC Part 2 extended and defined in

[EuroPP].

FAU_SAS.1

FCS_RND.1

FDP_IFC.1

FDP_ITT.1

FMT_LIM.1

FMT_LIM.2

FPT_FLS.1

FPT_ITT.1

[EuroPP], Section 8.6

[EuroPP], Section 8.4

CC Part 2

CC Part 2

[EuroPP], Section 8.5

[EuroPP], Section 8.5

CC Part 2

CC Part 2

FPT_PHP.3

FPT_SEP.1

CC Part 2

CC Part 2

FRU_FLT.2 CC Part 2

Except for FCS_RND.1, all operations on the SFRs are performed in [EuroPP].

FCS_RND.1 Quality Metric for random numbers

FCS_RND.1.1 The TSF shall provide a mechanism to generate random numbers that meet

AIS20 K3 requirements

2

.

Dependencies: No dependencies

With respect to Application Note 16 of [EuroPP], no additional generation of audit data is defined for FRU_FLT.2 and FPT_FLS.1.

With respect to Application Note 17 of [EuroPP], no additional requirement is defined for the

TOE.

5.2. Additional TOE security functional requirements

The following SFRs are specified in [EuroAug]. These are drawn from CC Part 2.

5.2.1. Addition #1: “Support of Cipher Schemes”

FCS_COP.1 Cryptographic operation requires a cryptographic operation to be performed in accordance with a specified algorithm and with a cryptographic key of specified sizes. The specified algorithm and cryptographic key sizes can be based on an assigned standard. The dependencies will be discussed in Section 2.6.2.

2

[assignment: a defined quality metric]

10

Public Version

The following additional specific security functionality is implemented in the TOE:

[Data Encryption Standard (DES)]

Application Note 4: Depending on the AND/OR Selection in the above paragraph one or more components “Cryptographic operation (FCS_COP.1)” are to be selected. So, this component may be iterated (used more than once with varying operations).

Application Note 5: Note that the standards might be subject to change. This document references

the currently existing and used standards.

The DES Operation of the TOE shall meet the requirement “Cryptographic operation

(FCS_COP.1)” as specified below.

FCS_COP.1[DES] Cryptographic operation

FCS_COP.1.1[DES]

The TSF shall perform encryption and decryption

3

in accordance with a specified cryptographic algorithm Data Encryption Standard

(DES)

4

and cryptographic key sizes of 56 bit

5

that meet the following

standards

6

: U.S. Department of Commerce / National Bureau of

Standards Data Encryption Standard (DES), FIPS PUB 46-3, 1999

October 25.

Dependencies:

[FDP_ITC.1 Import of user data without security attributes

FCS_CKM.4 Cryptographic key destruction

FMT_MSA.2 Secure security attributes

7

]

5.2.2.

Addition #4: “Area based Memory Access Control”

The following Security Function Policy (SFP) Memory Access Control Policy is defined for the requirement “Security attribute based access control (FDP_ACF.1)”:

Memory Access Control Policy

The TOE shall control

read, write accesses

8 of

all subjects (software) objects (data including code stored in memories)

.

10

9

on

all

The TOE shall restrict the ability to define, to change or at least to finally accept the applied rules (as mentioned in FDP_ACF.1) to

the Software running with the

Memory Protect status Off

11

.

Application Note 33: The term “at least to finally accept the applied rules” has been added to allow that any software may define or change “rules” (the application of permission control information to attributes/properties). However, the TOE ensures that this is only a proposal which needs to be “finally accepted” and therefore made effective by the TSF.

Application Note 34: A Memory Management Unit may or may not perform a translation of logical to

4

5

6

7

3

[assignment: lists of crypto-graphic operations]

[assignment: cryptographic algorithm]

[assignment: cryptographic key sizes]

[assignment: list of standards]

[selection: FDP_ITC.1 Import of user data without security attributes, or FDP_ITC.2 Import of

8 user data with security attributes, or FCS_CKM.1 Cryptographic key generation]

[selection of operations: read, write, delete, execute accesses]

9

10

[assignment of subjects: software residing in memory areas]

[assignment of objects: data including code stored in memory areas].

11

[selection: none, [assignment of privileged subject: software with a specific attribute]]

11

Public Version

physical addresses and vice versa. If it does the terms “memory area” or

“memory location” pertains to physical addresses because different software or data must have different attributes though perhaps being executed in the same logical address space. – If it does not (no address translation is performed), area or location may pertain to physical or logical addresses which are identical.

Application Note 35: For “memory areas” above specify whether this pertains to (i) types of

memories or (ii) address ranges or (iii) a combination of both.

The TOE shall meet the requirement “Subset access control (FDP_ACC.1)” as specified below.

FDP_ACC.1 Subset access control

FDP_ACC.1.1

The TSF shall enforce the Memory Access Control Policy

12

on all subjects

(software), all objects (data including code stored in memories) and all the operations defined in the Memory Access Control Policy

13

.

Dependencies:

FDP_ACF.1 Security attribute based access control

The TOE shall meet the requirement “Security attribute based access control (FDP_ACF.1)” as specified below.

FDP_ACF.1 Security attribute based access control

FDP_ACF.1.1

The TSF shall enforce the Memory Access Control Policy

14

to objects based on the following:

the status of the Memory Protect (On/Off) and the memory area where the access is performed to

15

.

FDP_ACF.1.2

The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled objects is allowed:

If the Memory Protect is On: access to the RAM is allowed except for:

the OS stack area

the OS working area

the co-processor shared RAM area (unless explicitly enabled) access to the remaining memory areas is denied, except for:

the application area

the SCALL Protect Relief area the SRET Protect Relief area

the General Purpose Registers except the SYS register

16

.

12

[assignment: access control SFP]

13

[assignment: list of subjects, objects, and operations among subjects and objects covered by the

SFP]

14

[assignment: access control SFP]

15

[assignment: security attributes, named groups of security attributes]

16

[assignment: rules governing access among controlled subjects and controlled objects using controlled operations on controlled objects]

12

Public Version

FDP_ACF.1.3

The TSF shall explicitly authorize access of subjects to objects based on the following additional rules:

If the Memory Protect is Off: all access is allowed

17

.

FDP_ACF.1.4

The TSF shall explicitly deny access of subjects to objects based on the following additional rules:

none

18

.

Dependencies:

FDP_ACC.1 Subset access control

FMT_MSA.3 Static attribute initialisation

The TOE shall meet the requirement “Static attribute initialisation (FMT_MSA.3)” as specified below.

FMT_MSA.3 Static attribute initialisation

FMT_MSA.3.1

The TSF shall enforce the Memory Access Control Policy

19

to provide

permissive

20

default values for security attributes that are used to enforce the SFP.

FMT_MSA.3.2

The TSF shall allow any subject (provided Memory Protect is off)

21

to specify alternative initial values to override the default values when an object or information is created.

Dependencies:

FMT_MSA.1 Management of security attributes

FMT_SMR.1 Security roles

The TOE shall meet the requirement “Management of security attributes (FMT_MSA.1)” as specified below.

FMT_MSA.1[On] Management of security attributes

FMT_MSA.1.1

The TSF shall enforce the Memory Access Control Policy

22

to restrict the ability to set

23

the security attributes Memory Protect

status to On

24

to the Software running with the Memory Protect

status Off

25

Dependencies:

FDP_ACC.1 Subset access controls management functions, FMT_SMR.1 Security role

26

, FMT_SMF.1 Specification of

17

[assignment: rules, based on security attributes, that explicitly authorize access of subjects to objects]

18

[assignment: rules, based on security attributes, that explicitly deny access of subjects to objects]

19

[assignment: access control SFP, information flow control SFP]

20

[selection: restrictive, permissive other property]

21

[assignment: the authorised identified roles]

22

[assignment: access control SFP, information flow control SFP]

23

[selection: change_default, query, modify, delete, [assignment: other operations]]

24

[assignment: list of security attributes]

25

[assignment: the authorised identified roles]

26

[selection: FDP_ACC.1 Subset access control or FDP_IFC.1 Subset information flow control]

13

Public Version

The TOE shall meet the requirement “Management of security attributes (FMT_MSA.1)” as specified below.

FMT_MSA.1[Off] Management of security attributes

FMT_MSA.1.1

The TSF shall enforce the Memory Access Control Policy

27

to restrict the ability to set

28

the security attributes Memory Protect

status to Off

29

to the Software running with the Memory Protect

status On

30

only by returning control to the Software in the SCALL or SRET relief areas with the SCALL or SRET instruction respectively or to the interrupt handling Software by generating an interrupt

31

.

Dependencies:

FDP_ACC.1 Subset access controls management functions, FMT_SMR.1 Security role

32

, FMT_SMF.1 Specification of

The TOE shall meet the requirement “Specification of Management Functions (FMT_SMF.1)” as specified below.

FMT_SMF.1 Specification of Management Functions

FMT_SMF.1.1 The TSF shall be capable of performing the following security management functions:

• setting the Memory Protect status to Off, and setting the Memory Protect status to On

33

Dependencies: No dependencies

5.3. Security Requirement for the IT Environment

No Security Requirements for the IT Environment are defined by [EuroPP].

The following Security Requirements for the IT Environment from CC part 2 required by

[EuroAug] for Addition #1: Support of Cipher Schemes, are not applicable:

• [FDP_ITC.1 or FDP_ITC.2 or FCS_CKM.1]

• FCS_CKM.4

• FMT_MSA.2

The functional requirements [FDP_ITC.1 or FDP_ITC.2 or FCS_CKM.1], FCS_CKM.4 and

FMT_MSA.2 are not included in this Security Target since the TOE only provides a pure engine for encryption and decryption without additional features for the handling of cryptographic keys. These security functional requirements are explicitly moved to the

"Security Requirements for the IT Environment" because the Smartcard Embedded Software is seen as "IT-Environment" that must fulfil these requirements related to the needs of the realised application.

No Security Requirements for the IT Environment are required by [EuroAug] for Addition #4:

27

[assignment: access control SFP, information flow control SFP]

28

[selection: change_default, query, modify, delete, [assignment: other operations]]

29

[assignment: list of security attributes]

30

[assignment: the authorised identified roles]

31

refinement.

32

[selection: FDP_ACC.1 Subset access control or FDP_IFC.1 Subset information flow control]

33

[assignment: list of security management functions to be provided by the TSF]

14

Public Version

“Area based Memory Access Control”.

5.4. Security Requirement for the Non-IT Environment

The following Security Requirements for the Non-IT Environment are defined by [EuroPP]:

• RE.Phase-1

• RE.Process-Card

The Security Requirements for the Non-IT Environment required by [EuroAug] for Addition

#1: Support of Cipher Schemes, are:

The Smartcard Embedded Software shall meet the requirements “Cipher Schemas

(RE.Cipher)” as specified below.

RE.Cipher Cipher Schemas

The developers of Smartcard Embedded Software must not implement routines in a way which may compromise keys when the routines are executed as part of the

Smartcard Embedded Software. Performing functions which access cryptographic keys could allow an attacker to misuse these functions to gather information about the key which is used in the computation of the function.

Keys must be kept confidential as soon as they are generated. The keys must be unique with a very high probability, as well as cryptographically strong. For example, it must be ensured that it is not possible to derive the private key from a public key if asymmetric algorithms are used. If keys are imported into the TOE and/or derived from other keys, quality and confidentiality must be maintained. This implies that an appropriate key management has to be realised in the environment.

No Security Requirements for the Non-IT Environment are required by [EuroAug] for

Addition #4: “Area based Memory Access Control”.

5.5. TOE Security Assurance Requirements

The TOE SARs consist of EAL4 augmented with ADV_IMP.2, ALC_DVS.2, AVA_MSU.3 and

AVA_VLA.4, as defined by CC part 3 and as refined by [EuroPP] “Refinements of the TOE

Assurance Requirements”.

No TOE SARs are added or refined by [EuroAug] Addition #1: “Support of Cipher Schemes” or

Addition #4: “Area based Memory Access Control”.

15

Public Version

6. TOE Summary Specification

6.1. IT Security Functions

To cover FPT_PHP.3, FDP_ITT.1, FPT_ITT.1, FDP_IFC.1, FPT_SEP.1

SF.Passivation

The complete top layer of the IC, except for the bond pads, is covered with a passivation layer making physical attack difficult.

SF.Module

The IC (including the passivation layer) is covered with resin making physical attack difficult.

SF.Flat_Layout

The TOE’s wiring rule for the logic circuits, which is called “Flat-layout”, does not have hierarchies. This makes it difficult for an attacker to find the signals between the logical circuits (CPU, CPU Bus, Reset Circuit, Clock Circuit, I/O Port, Timer, UART, SCI, Memory

Protect Circuit, Flash Interface, Protocol Controller, Type C Protocol Controller,

Contact/Contact-less Detector, RF Interface, Crypto Accelerator, DES Circuit, PLL Lock

Detector, Test Circuit).

SF.Narrow_Wiring

The wiring space of the IC is very narrow, making it difficult to change the IC or read data from it.

SF.Bus_Scrambling

The bus between the CPU and memories (Flash, ROM, RAM and coprocessor RAM) is scrambled, making it difficult to read data from it.

SF.Shielding_Layer

The two top layers of the IC (part of the TOE) are shielding layers, one passive and one active.If the active shield is broken, the TOE does not operate, making physical attacks difficult.

To cover FPT_FLS.1

SF.Watchdog_Timer

The TOE has a watchdog timer, which resets the TOE when it times out.

SF.Odd_Address

The TOE resets when it detects an odd address violation.

SF.Illegal_Instruction

The TOE resets when it detects an illegal instruction.

SF.Abnormal_Internal_Clock

The TOE resets when it detects that the period of the high level or low level of the internal clock is outside of the range FSYS_tmin specified in [FSP].

SF.Abnormal_RF_Clock

The TOE resets when, in contact-less mode, it detects that the period of the high level or low level of the RF clock outside of the range RFCS_tmin specified in [FSP].

16

Public Version

SF.Abnormal_Temperature

The TOE resets when it detects a temperature higher than TMPS_Tmax or lower than

TMPS_Tmin specified in [FSP].

SF.Abnormal_Voltage_Flash

Flash memory uses 2 power-sources. One is the internal voltage. The other is the internal program voltage.

The TOE resets when it detects the internal voltage for the flash component is less then

VFFS_VL or more then VFFS_VH specified in [FSP]

SF.Abnormal_Voltage_Logic

The TOE resets when it detects an internal voltage for the logic components is less then

VDDS_VL or more then VDDS_VH specified in [FSP]

To cover FRU_FLT.2

SF.Over-Voltage_Protector

Should the voltage of the internal supply power (VCC) become too high, then the TOE will absorb excess power up to a limit. If the absorbed power is too high, the TOE will disable itself permanently.

SF.Power_Regulator

The TOE regulates the internal power voltages VAA, VDD, VFF and VPPO from the internal supply power VCC.

SF.PLL

The TOE regulates the internal clock in contact operation.

To cover FMT_LIM.1, FMT_LIM.2

SF.Blocked_Test_Pins

The test pins, which are defined in [FSP], of the TOE are irreversibly blocked before the TOE is shipped to the customer

To cover FDP_ACC.1, FDP_ACF.1, FMT_MSA.3, FMT_MSA.1[On], FMT_MSA.1[Off],

FMT_SMF.1

The following is shown as the list of security functions.

SF.Memory_Protect: The TOE enforces the following memory protection:

If the Memory Protect is On: read/write access to the RAM is allowed except for:

Read/write access to the OS stack area

Read/write access to the OS working area

Read/write access to the co-processor shared RAM area unless explicitly enabled

read/write access to all other memory areas is denied, except for:

Read access to the application area

Read/write access the General Purpose Registers except the SYS register.

17

Public Version

SF.Memory_Protect_On: The TOE ensures that only Software running with the Memory

Protect Off can turn the Memory Protect On.

SF.Memory_Protect_Off: The TOE ensures that Software running with the Memory Protect

On can turn the Memory protect Off only by:

• returning control to the Software in the SCALL relief area with the SCALL instruction, or

• returning control to the Software in the SRET relief area with the SRET instruction, or

• to the interrupt handling Software by generating an interrupt.

To cover FCS_COP.1[DES] and FDP_ITC.1

The following is shown as the list of security functions.

SF.DES: The TOE has a coprocessor capable of providing DES encryption and decryption.

This coprocessor is difficult to analyse with SPA/DPA and difficult to influence with DFA.

To cover FAU_SAS.1

SF.FLASH: The TOE has flash memory capable of storing initialisation data and/or pre-personalisation data and/or supplements of the Smartcard Embedded Software.

To cover FCS_RNG.1

SF.RNG: The TOE has Deterministic Random Number Generator that meets the AIS20 K3 requirements.

6.2. Strength of Function Claim

The minimum strength of security functions for the TOE is SOF-high (Strength of Functions

High).

The following table shows for each of the SFs whether probabilistic or permutational mechanisms are used. Those SFs for which the table contains ‘Y’ are included in the AVA_SOF analysis Strength of function analysis.

Uses probabilistic or permutational N N N Y N N N N N N N N N N N N N N N N Y* N Y mechanisms

* This SF involves cryptographic algorithms. As shown by chapter ‘Scope’ of CC part 1 the strength of cryptographic algorithms is not covered by Common Criteria and is therefore not included in AVA_SOF.

Note: This SF also includes countermeasures against site channel attack. The site channel attack method involves probabilistic or permutational mechanisms,

18

Public Version which is included in AVA_SOF analysis Strength of function analysis.

19

Public Version

6.3. Assurance Measures

Assurance requirements of this TOE conform to the dependency of assurance components as well as functional components of EAL4 augmented with ADV_IMP.2, ALC_DVS.2,

AVA_MSU.3 and AVA_VLA.4. Those assurance requirements are mainly to check correct implementation of IC chips through deliberate review on sources of evidence supplied by

Sharp Corporation.

For definition of assurance measures necessary for compliance with security assurance requirements set forth in the Article 5.5, TOE offers correlation between assurance requirements and assurance measures intended to satisfy those requirement. As shown in

Table 18, assurance measures will be provided in such a way as related documents may properly address to each of those requirements.

Table 18 List of Documents

Assurance

Measures

Component

ACM_AUT.1

ACM_CAP.4

ACM_SCP.2

Documents List z

SHARP QA templates z

Life Cycle v1.1 z

DesignFlow.xls z

IC Card QC Chart z

Overview of the relevant Department for SM4148 development and production version 6 z

Crushing process, document D200402008, data 20 February 2004 z

Flaw process, document D200402008, date 20 February 2004

ADO_DEL.2

ADO_IGS.1 z

SHARP QA templates z

Overview of the relevant Department for SM4148 development and production version 6 z

Crushing process, document D200402008, data 20 February 2004 z

Flaw process, document D200402008, date 20 February 2004 z

Configuration Title List (Ver 6.0.1), document D200402010, date 23

February 2004

ADV_FSP.2 z

Technical Document of SM4148, version 1.0.0 z

Combination Type Smart Card LSI HERMES Bootstrap program

Functional Specification, version 0.3.0 z

Security Correspondence of SM4148, version 0.3.0

ADV_HLD.2 z Technical Document of SM4148, version 1.0.0 z

Combination Type Smart Card LSI HERMES Bootstrap program

Functional Specification, version 0.3.0 z

Security Correspondence of SM4148, version 0.3.0 z

Hierarchy Map (Logic Part) z

HDL Source Code files

ADV_IMP.2 HDL Source Codes

Layout Chart

ADV_LLD.1 SM4148 Hardware Manual

ADV_RCR.1 SM4148 Hardware Manual

ADV_SPM.1 z Technical Document of SM4148, version 1.0.0 z

Combination Type Smart Card LSI HERMES Bootstrap program

Functional Specification, version 0.3.0 z

SM4148 Security Policy Model, version 1

20

Public Version

AGD_ADM.1

AGD_USR.1 z

Technical Document of SM4148, version 1.0.0 z

Combination Type Smart Card LSI HERMES Bootstrap program

Functional Specification, version 0.3.0 z

SM4148 Security Guidance, version 0.2

ALC_DVS.2

ALC_LCD.1

ALC_TAT.1 z

SHARP QA templates z

Departments TOE development and production z

Life Cycle v1.1 z

DesignFlow.xls z

IC Card QC Chart z

Crushing process, document D200402008, data 20 February 2004

ATE_COV.2 SM4148 Test Manual

ATE_DPT.1 SM4148 Test Manual

ATE_FUN.1 SM4148 Test Manual

ATE_IND.2 SM4148 Test Manual

AVA_CCA.1 SM4148 Evaluation Report

AVA_MSU.3 SM4148 Evaluation Report

AVA_SOF.1 SM4148 Evaluation Report

AVA_VLA.4 SM4148 Evaluation Report

21

Public Version

7. PP Claim

This ST is conformant to the “Smartcard IC Platform Protection Profile”, version 1.0 of July

2001, certified by Bundesambt für Sicherheit in der Informationstechnik (BSI) under registration number BSI-PP-0002.

7.1. PP Tailoring

In chapter 5 the refinements and operations on the security requirements are identified by numbered footnotes. The footnote text contains the original operation while the result of the operation is identified using italic

characters in the security requirement.

7.2. PP additions

In addition to those defined in [EuroPP] the following items are added to this ST (these additional items are taken from [EuroAug]):

-

Objectives

—

O.Add-Functions

—

O.Mem-Access

-

Security Requirements:

—

Those as defined in the subsections of section 5.2 ‘Additional TOE security functional requirements’.

—

RE.Cipher (refer to 5.4 ‘Security Requirement for the Non-IT Environment’)

22

Public Version

8. Rationale

8.1. Security Objectives Rationale

The correlation between security objectives from [EuroPP] and corresponding threats, organizational security policies or assumptions, and the adequacy is described in [EuroPP].

The correlation between security objectives from [EuroAug] addition #1 and corresponding threats, organizational security policies or assumptions, and the adequacy is described below

(literal copy from [EuroAug] 2.6.1):

Application Note 10: Add the following entry to Table 1 in [3].

Assumption, Threat or Security Objective

Note

Organisational Security

Policy

P.Add-Functions O.Add-Functions and

OE.Resp-Appl

Application Note 11: Note that this document makes clarifications for the security objectives “Usage of

Hardware Platform (OE.Plat-Appl)” and “Treatment of User Data (OE.Resp-Appl)”.

The justification related to the security objective “Additional Specific Security Functionality

(O.Add-Functions)” is as follows: Since O.Add-Functions requires the TOE to implement exactly the same specific security functionality as required by P.Add-Functions, the organisational security policy is covered by the objective.

Nevertheless the security objectives O.Leak-Inherent, O.Phys-Probing, O.Malfunction,

O.Phys-Manipulation and O.Leak-Forced define how to implement the specific security functionality required by P.Add-Functions. (Note that these objectives support that the specific security functionality is provided in a secure way as expected from P.Add-Functions.)

Especially O.Leak-Inherent and O.Leak-Forced refer to the protection of confidential data

(User Data or TSF data) in general. User Data are also processed by the specific security functionality required by P.Add-Functions.

Compared to [3] a clarification has been made for the security objective “Usage of Hardware

Platform (OE.Plat-Appl)”: If required the Smartcard Embedded Software shall use these cryptographic services of the TOE and their interface as specified. In addition, the Smartcard

Embedded Software must implement functions which perform operations on keys (if any) in such a manner that they do not disclose information about confidential data. The non disclosure due to leakage A.Key-Function attacks is included in this objective OE.Plat-Appl.

This addition ensures that the assumption A.Plat-Appl is still covered by the objective

OE.Plat-Appl although additional functions are being supported according to

O.Add-Functions.

Compared to [3] a clarification has been made for the security objective “Treatment of User

Data (OE.Resp-Appl)”: By definition cipher or plain text data and cryptographic keys are User

Data. So, the Smartcard Embedded Software will protect such data if required and use keys and functions appropriately in order to ensure the strength of cryptographic operation. Quality and confidentiality must be maintained for keys that are imported and/or derived from other keys. This implies that appropriate key management has to be realised in the environment.

That is expressed by the assumption A.Key—Function which is covered from OE.Resp–Appl.

These measures make sure that the assumption A.Resp-Appl is still covered by the security

23

Public Version

objective OE.Resp-Appl although additional functions are being supported according to

P.Add-Functions.

The justification of the additional policy and the additional assumption show that they do not contradict to the rationale already given in the Protection Profile for the assumptions, policy and threats defined there.

The correlation between security objectives from [EuroAug] addition #4 and corresponding threats, organizational security policies or assumptions, and the adequacy is described below

(literal copy from [EuroAug] 5.6.1):

Application Note 38: Add the following entry to Table 1 in [3].

Assumption, Threat or Security Objective

Organisational Security

Policy

T.Mem-Access O.Mem-Access

Note

The justification related to the threat “Memory Access Violation (T.Mem-Access)” is as follows:

According to O.Mem-Access the TOE must enforce the partitioning of memory areas so that access of software to memory areas is controlled. Any restrictions are to be defined by the

Smartcard Embedded Software. Thereby security violations caused by accidental or deliberate access to restricted data (which may include code) can be prevented (refer to

T.Mem-Access). The threat T.Mem-Access is therefore removed if the objective is met.

The clarification of “Usage of Hardware Platform (OE.Plat-Appl)” makes clear that it is up to the Smartcard Embedded Software to implement the memory management scheme by appropriately administrating the TSF. This is also expressed both in T.Mem-Access and

O.Mem-Access. The TOE shall provide access control functions as a means to be used by the Smartcard Embedded Software. This is further emphasised by the clarification of

“Treatment of User Data (OE.Resp-Appl)” which reminds that the Smartcard Embedded

Software must not undermine the restrictions it defines. Therefore, the clarifications contribute to the coverage of the threat T.Mem-Access.

8.2. Security Requirements Rationale

8.2.1. Verification of Security Functional Requirements Adequacy

The correlation between security objectives from [EuroPP] and functional requirements from

[EuroPP] is shown in [EuroPP], as is the adequacy.

The correlation between security objectives from [EuroAug] addition #1 and functional requirements, and the adequacy is described below (literal copy from [EuroAug] 2.6.2.1).

Application Note 13: Add the following entry to Table 2 in [3].

Objective

TOE Security Functional

Requirements

O.Add-Functions FCS_COP.1 operation“

Security Requirements for the environment

RE.Phase-1 “Design and

Implementation of the

Smartcard Embedded

Software” with RE.Cipher

24

Public Version

The justification related to the security objective “Additional Specific Security Functionality

(O.Add-Functions)” is as follows:

The security functional requirement(s) “Cryptographic operation (FCS_COP.1)” exactly require those functions to be implemented which are demanded by O.Add-Functions.

Therefore, FCS_COP.1 is suitable to meet the security objective.

Nevertheless, the developer of the Smartcard Embedded Software must ensure that the additional functions are used as specified and that the User Data processed by these functions are protected as defined for the application context. These issues are addressed by the requirement RE.Phase-1 and more specific by the security functional requirements

[FDP_ITC.1 Import of user data without security attributes or FCS_CKM.1

Cryptographic key generation],

FCS_CKM.4 Cryptographic key destruction,

FMT_MSA.2 Secure security attributes.

to be met by the environment.

The security functional requirements required to meet the security objectives O.Leak-

Inherent, O.Phys-Probing, O.Malfunction, O.Phys-Manipulation and O.Leak-Forced define how to implement the specific security functionality. However, key-dependent functions could be implemented in the Smartcard Embedded Software. In this case RE.Cipher requires that these functions ensure that confidential data (User Data) can not be disclosed while they are just being processed by the Smartcard Embedded Software. Therefore, with respect to the

Smartcard Embedded Software the issues addressed by the objectives just mentioned are addressed by the requirement RE.Cipher.

The usage of cryptographic algorithms requires to use appropriate keys. Otherwise they do not provide security. The requirement RE.Cipher addresses these specific issues since cryptographic keys and other data are provided by the Smartcard Embedded Software.

RE.Cipher requires that keys must be kept confidential. They must be unique with a very high probability, cryptographically strong etc. If keys are imported into the TOE (usually after TOE

Delivery), it must be ensured that quality and confidentiality is maintained. Therefore, with respect to the environment the issues addressed (i) by the objectives just mentioned and (ii) implicitly by O.Add-Functions are addressed by the requirement RE.Cipher.

The justification of the security objective and the additional requirements (both for the TOE and its environment) show that they do not contradict to the rationale already given in the

Protection Profile for the assumptions, policy and threats defined there.

The correlation between security objectives from [EuroAug] addition #4 and functional requirements, and the adequacy is described below (literal copy from [EuroAug] 5.6.2.1).

Application Note 39: Add the following entry to Table 2 in [3].

Objective

O.Mem-Access

TOE Security Functional Requirements Security Requirements for the environment

FDP_ACC.1 “Subset access control”

FDP_ACF.1 “Security attribute based access control”

FMT_MSA.3 “Static attribute initialisation”

RE.Phase-1 “Design and

Implementation of the

Smartcard Embedded

Software”

FMT_MSA.1 “Management of

25

Public Version

security attributes”

FMT_SMF.1 “Specification of

Management Functions”

The justification related to the security objective “Area based Memory Access Control

(O.Mem-Access)” is as follows:

The security functional requirement “Subset access control (FDP_ACC.1)” with the related

Security Function Policy (SFP) “Memory Access Control Policy” exactly require to implement an area based memory access control as demanded by O.Mem-Access. Therefore,

FDP_ACC.1 with its SFP is suitable to meet the security objective.

Nevertheless, the developer of the Smartcard Embedded Software must ensure that the additional functions are used as specified and that the User Data processed by these functions are protected as defined for the application context. These issues are addressed by the requirement RE.Phase-1.

The security functional requirement “Static attribute initialisation (FMT_MSA.3)” requires that the TOE provides default values for security attributes. These default values can be overwritten by any subject (software) provided that the necessary access is allowed what is further detailed in the security functional requirement “Management of security attributes

(FMT_MSA.1)”: The ability to update the security attributes is restricted to privileged subject(s). These management functions ensure that the required access control can be realised using the functions provided by the TOE.

The security functional requirement “Security attribute based access control (FDP_ACF.1) with the related Security Function Policy (SFP) “Access Control Policy” defines the rules to implement the area based memory access control as demanded by O.MEM_ACCESS.

Therefore, FDP_ACF.1 with its SFP is suitable to meet the security objective.

The security functional requirement “Specification of Management Functions (FMT_SMF.1)” is used for the specification of the management functions to be provided by the TOE as demanded by O.MEM_ACCESS. Therefore, FMT_SMF.1 is suitable to meet the security

objective.

8.2.2. TOE Assurance Requirements Validation

See [EuroPP].

8.2.3. TOE SOF Validation

See [EuroPP].

8.2.4. The requirements are internally consistent

The requirements from [EuroPP] are evaluated to be internally consistent.

The requirements from [EuroAug] additions #1 and #4 apply to subjects, objects and operations unrelated to the subjects, objects and operations in [EuroPP] and therefore do not cause inconsistencies.

The requirements in [EuroAug] additions #1 and #4 handle the subjects, objects and operations consistently as the same access control policy applies for all subjects, objects and operations.

8.2.5. The requirements are mutually supportive

The requirements from [EuroPP] are evaluated to be mutually supportive.

26

Public Version

The requirements [EuroAug] additions #1 and #4 apply to subjects, objects and operations unrelated to the subjects, objects and operations in [EuroPP] and therefore do not undermine the mutual support of [EuroPP] requirements.

The requirements [EuroAug] additions #1 and #4 handle the subjects, objects and operations mutually supportively.

27

Public Version

8.3. TOE Summary Specification Rationale

8.3.1. IT Security Functions Rationale

The correlation of security functions with functional requirements is shown in Table 24 and the adequacy in Table 25.

SF.Passivation

SF.Module

SF.Flat_Layout

SF.Narrow_Wiring

SF.Bus_Scrambling

SF.Shielding_layer

SF.Watchdog_Timer

SF.Odd_Address

SF.Illegal_Instruction

SF.Abnormal_RF_Clock

SF.Power_Regulator

SF.PLL

SF.Blocked_Test_Pins

SF.Memory_Protect

SF.Memory_Protect_On

SF.Memory_Protect_Off

SF.DES

SF.FLASH

SF.RNG

× × × × ×

× × × × ×

× × × × ×

× × × × ×

× × × × ×

× × × × ×

×

×

×

×

×

×

× ×

× × × ×

× × × ×

× × ×

×

× ×

×

×

×

28

Public Version

Table 24 Correlation between IT Security Functions and Functional Requirements

Table 25 IT Security Functional Verification

# Functional

Requirement s

1.

FPT_PHP.3,

FDP_IFC.1,

FDP_ITT.1,

FPT_ITT.1

FPT_SEP.1

IT Security

Functions

SF.Passivation

SF.Module

SF.Flat_Layout

SF.Narrow_Wiring

SF.Bus_Scrambling

SF.Shielding_Layer

2. FPT_FLS.1 SF.Watchdog_Timer

SF.Odd_Address

SF.Illegal_Instructio

n

SF.Abnormal_Intern

al_Clock

SF.Abnormal_RF_Cl

ock

SF.Abnormal_Tempe

rature

SF.Abnormal_Voltag

e_Flash

SF.Abnormal_Voltag

e_Logic

Adequacy

The following security functions protect against physical attacks on the TOE, regardless whether the TOE is powered or not. This covers FPT_PHP.3 and FDP_IFC.1, FDP_ITT.1.

FPT_ITT.1 and FPT_SEP.1 for physical attacks.

SF.Passivation makes it hard for signals to be read out or for the module to be peeled off by covering the uppermost layer of the chip with a passivation layer.

SF.Module makes it harder for signals to be read out or for the module to be peeled off by covering the chip with resin.

SF.Flat_Layout makes it hard to find bus wiring on the chip as the layout is done without hierarchy in the components.

SF.Narrow_Wiring makes it hard for signals to be read out or for the TOE to be modified by using very narrow wiring space.

The following security function protects against physical attacks on the TOE when it is powered and operational. This covers FDP_IFC.1, FDP_ITT.1, FPT_ITT.1 and FPT_SEP.1 for physical attacks.

SF.Shielding_Layer makes it hard to read signals from the

TOE or modify the TOE as it contains a shielding layer.

The following security function protects against eavesdropping attacks on the TOE when it is powered and operational. This covers FDP_IFC.1, FDP_ITT.1, FPT_ITT.1 and FPT_SEP.1 for eavesdropping attacks.

SF.Bus_Scrambling makes it hard to recover the data sent between CPU and RAM by scrambling the bus.

SF.DES makes it difficult to analyse DES encryption and decryption with SPA/PDA.

SF.Watchdog_Timer detects failure of the software to respond within a set timeframe and resets the TOE, making it harder to successfully exploit results from glitching attacks.

SF.Odd_Address detects odd address violations and resets the

TOE, making it harder to successfully exploit results from glitching attacks.

SF.Illegal_Instruction detects illegal instructions and resets the TOE, making it harder to successfully exploit results from glitching attacks.

SF.Abnormal_Internal_Clock detects an abnormal internal clock and resets the TOE.

29

Public Version

3.

4.

FRU_FLT.2 SF.Over-Voltage_Pro

FMT_LIM.1,

FMT_LIM.2

5. FDP_ACC.1

6.

9.

10.

FDP_ACF.1

FMT_MSA.3

FMT_MSA.1[O n]

FMT_MSA.1[Of f]

FMT_SMR.1

FMT_SMF.1

FCS_COP.1[DE

S] tector

SF.Power_Regulator

SF.PLL

SF.Blocked_Test_Pi

ns

SF.Memory_Protect

SF.Memory_Protect_

On

SF.Memory_Protect_

Off

SF.DES

FAU_SAS.1 SF.FLASH

FCS_RND.1 SF.RNG

SF.Abnormal_RF_Clock detects an abnormal RF clock in contact-less mode and resets the TOE.

SF.Abnormal_Temperature detects abnormal temperatures and resets the TOE, preventing temperature attacks.

SF.Abnormal_Voltage_Flash detects abnormal internal flash voltage and resets the TOE.

SF.Abnormal_Voltage_Logic detects abnormal internal logic voltage and resets the TOE.

.

SF.Over-Voltage_Protector detects abnormal internal supply voltage and absorbs the excess power. If the absorbed excess power is too much, the TOE will be permanently disabled

SF.Power_Regulator regulates the internal power voltages for from the internal supply power, keeping the internal power voltages constant.

SF.PLL regulates the internal clock, suppressing fluctuations in the internal clock.

The following security functions protects against misuse of the test functionality by disabling all access to this test functionality prior to TOE delivery. With no access to the test functionality, the capabilities of the test functionality are not relevant. This covers FMT_LIM.1 and FMT_LIM.2.

SF.Blocked_Test_Pins restricts logical access to the test pins by blocking them before TOE delivery.

SF.Memory_Protect enforces access control by state of the memory protect and area of the memory, covering

FDP_ACC.1, FDP_ACF.1 and FMT_MSA.3.

SF.Memory_Protect_On allows Software running with

Memory Protect Off to turn Memory Protect On, covering

FMT_MSA.1[On].

SF.Memory_Protect_Off allows Software running with

Memory Protect On to turn Memory Protect Off but only by returning control to Software in the SCALL or SRET relief areas or the Software in the interrupt service routines, covering FMT_MSA.1[Off].

SF.DES implements DES encryption and decryption, with reduction of the leaked information such that it prevents SPA and DPA attacks.

SF.FLASH supports storage of initialisation data and/or pre-personalisation data and/or supplements of the

Smartcard Embedded Software

SF.RNG implements generation of Random Numbers with the required quality.

8.3.2. SOF claim Rationale

The SOF claim ‘The minimum strength of security functions for the TOE is SOF-high’ is sufficient because it value (SOF-high) is equal to that required for the TOE security functional requirements (SOF-high).

30

Public Version

8.4. Assurance Requirements and Strength of Function Rationale

This ST follows the rationale given in Chap. 7.2.3 of [EuroPP] for the choice of EAL4, assurance augmentations and the strength of function SOF-high.

9. References

[AIS20]

[EuroAug] “Smartcard IC Platform Augmentations”, version 1.00, March 2002”

[3] or [EuroPP] “Eurosmart Smartcard IC Platform PP”, version 1.0, July 2001

[FIPS46-3]

“Functionality Classes and Evaluation Methodology for Deterministic

Random Number Generators”, Version 2.0, 2 December 1999.

National Institute of Standards and Technology (NIST), FIPS Publication

46-3: Data Encryption Standard (DES), 25 Oct 1999. Excluding Appendix 2

(TDES).

[JIL-AAPS 1.0] Joint Interpretation Library, Application of Attack Potential to Smartcards, version 1.0, March 2002

9.1. Glossary/List of abbreviations

CC Common

DPA Differential

DFA Differential

PLL

ROM

Analysis

Phase Locked Loop

Memory

Read Only Memory

31

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
