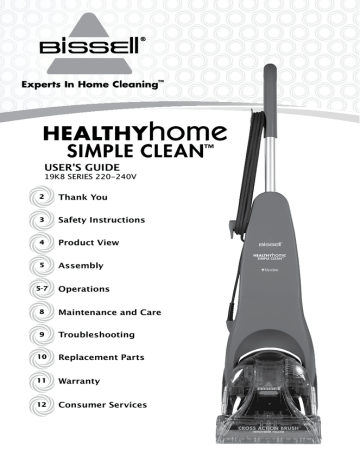

USER'S GUIDE
19K8 SERIES 220-240V
2
Thank You
3
Safety Instructions
4
Product View
5
Assembly
5-7
Operations
8
Maintenance and Care
9
Troubleshooting
10
Replacement Parts
11
Warranty
12
Consumer Services
Thanks for buying a BISSELL Healthy Home Simple Clean™
We’re glad you purchased a BISSELL Healthy Home Simple Clean.
Everything we know about floor care went into the design and
construction of this complete, high-tech home cleaning system.
Your BISSELL Healthy Home Simple Clean is well made, and we
back it with a limited two year warranty. We also stand behind it
with a knowledgeable, dedicated Consumer Services department,
so, should you ever have a problem, you’ll receive fast, considerate
assistance.
My great-grandfather invented the floor sweeper in 1876. Today,
BISSELL is a global leader in the design, manufacture, and
service of high quality homecare products like your BISSELL
Healthy Home Simple Clean.
Thanks again, from all of us at BISSELL.
Mark J. Bissell
Chairman, President & CEO
2
www.bissell.com
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance,
basic precautions should be observed,
including the following:
■Remove plug from electrical outlet before
Read all instructions
before using your deep
cleaner.
children) with reduced physical, sensory or
mental capabilities, or lack of experience
and knowledge,unless they have been
given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
■ Young children should be supervised
to ensure that they do not play with the
appliance
■ Do not pick up toxic material (chlorine
bleach, ammonia, drain cleaner, petrol, etc.)
■ Do not modify the Earthed plug
■ Do not allow to be used as a toy
■ Do not use for any purpose other than
described in this User’s Guide
■ Use only manufacturer’s recommended
attachments
■ Use only cleaning products formulated
by BISSELL for use in this appliance to
prevent internal component damage
■ Keep openings free of dust, lint, hair, etc.
■ Keep appliance on a level surface
■ Turn off all controls before unplugging
■ Be extra careful when cleaning stairs
■ Pay close attention when working
around children
WARNING -
To reduce the risk of
fire, electric shock, or
injury: ■ Use indoors only.
■Do not immerse
■ Use only on surfaces moistened by
cleaning process
■ Do not leave machine when it is
plugged in
■ Do not service machine when it is
plugged in
■ If the supply cord is damaged, it must
■
■
■
■
■
■
■
■
■
■
■
be replaced by the manufacturer or its
service agent in order to avoid a hazard
Do not use machine if it has been
dropped, damaged, left outdoors or
dropped into water
Do not expose to rain, store indoors
Do not pull or carry by cord, use cord as
a handle, close door on cord, pull cord
around sharp corners or edges, run
appliance over cord, or expose cord to
heated surfaces
Do not carry the appliance while in use
Do not unplug by pulling on cord.
unplug by grasping plug not the cord
Do not handle plug or appliance with
wet hands
Do not put any object into appliance
openings, use with blocked opening, or
restrict air flow
Do not expose hair, loose clothing, fingers
or body parts to openings or moving parts
Do not pick up hot or burning objects
Do not pick up flammable or combustible materials (lighter fluid, petrol,
kerosene, etc.) or use in the presence of
explosive liquids or vapour
Do not use appliance in an enclosed space
filled with vapours given off by oil base
paint, paint thinner, some moth proofing
substances, flammable dust, or other
explosive or toxic vapours
www.bissell.com
cleaning or maintaining the appliance
■ Not intended for use by persons (including
SAVE THESE
INSTRUCTIONS
This model is for household use only.
W
ARNING:
This appliance must be earthed.
IMPORTANT
FOR
OPERATION ON A 220/240 VOLT A.C.
50/60 Hz POWER SUPPLY ONLY.
If your appliance is fitted with a nonrewireable
BS 1363 plug it must not be used unless a 13
amp (ASTA approved to BS 1362) fuse is fitted in the carrier contained in the plug. Spares
may be obtained from your BISSELL supplier.
If for any reason the plug is cut off, it must be
disposed of, as it is an electric shock hazard
should it be inserted into a 13 amp socket.
3
Product view
Spray Trigger
Power
Cord
Quick Release
Cord Wrap™
Handle
Assembly
Lower Cord
Wrap
Upper
Body
Clean Water/
Solution Tank
Lower
Body
Vent Cover
(Containing
Foam Filter)
Power
Switch
Collection
Tank
Collection
Tank Latch
Detent
Lever
Removable
Nozzle
Large Easy
Rolling
Wheels
WARNING:
To reduce the risk of fire and electric shock due to internal component
Cleaning formula
damage, use only BISSELL cleaning formlas intended for use with the
deep cleaner. Non-BISSELL cleaning formulas may harm the machine
and void the warranty.
Keep plenty of genuine BISSELL 2X advanced cleaning formula on hand so you can clean and
protect whenever it fits your schedule. Always use genuine BISSELL deep cleaning formulas.
Non-BISSELL cleaning formulas may harm the machine and will void the warranty.
709 mL BISSELL
2X Fibre
Cleansing
Advanced
Formula with
Scotchgard™
protector
#62E5-E
4
709 mL BISSELL
2X Multi-Allergen
Advanced
Formula with
Scotchgard™
protector
#89Q5-E
www.bissell.com
709 mL BISSELL
2X Pet Stain &
Odor Advanced
Formula with
Scotchgard™
protector
#99K5-E
709 mL BISSELL
2X Natural
Orange
Advanced
Formula with
Scotchgard™
protector
#83P3-E
709 mL BISSELL
2X Lavendar
Essence
Advanced
Formula with
Scotchgard™
protector
#34B5-E
473 mL BISSELL
2X Hard Floor
Solutions
#56L9-E
Assembly
1. Slide upper body into lower body.
1.
2.
2. Secure with screws.
3. Slide handle assembly down into upper body
until it will go no further. Align screw slots.
4. Secure with screw.
5. Place clean water/solution tank on back of unit.
3.
4.
5.
Tip:
0perations
Special features
Microban™ antibacterial protection
Microban antibacterial protection helps prevent
the growth of harmful common household bacteria
including E. coli, Salmonella and Staph. a. It helps
to keep the unit fresher and cleaner between uses.
Scotchgard™ Protector
Carpet protection applied at the mill typically
wears down over time from heavy foot traffic
and everyday cleaning, including deep
cleaning. To help restore this important
protection, only BISSELL offers cleaning
formulas with Scotchgard protector. This offers
extra protection against dirt and tough stains
to keep your carpets looking good longer.
To maintain your Scotchgard 5-year limited
stain warranty, you no longer are required
to hire a professional. By using your BISSELL
machine with BISSELL formulas containing
Scotchgard protector every 12 months, your
carpet warranty from 3M remains in effect. No
other home deep cleaning system can do this
for you.
Always vacuum
thoroughly before
you deep clean.
If possible, move
large furniture to an
area you will not
be cleaning.
Before you clean
1. Remove easily moved furniture (chairs,
lamps, coffee/cocktail tables, etc.) from
room if needed.
2. Vacuum carpet thoroughly.
3. Decide where to begin. Plan to leave
a path open to empty soiled water and
refill cleaner.
Note: Carpeting will dry in three
to four hours, depending on carpet
style and air circulation in room. A
floor fan speeds drying
www.bissell.com
5
0perations
Fill the tank
1. Remove the clean water/solution tank by
lifting it straight up, then away from the
lower body.
2.
2. Unscrew the black cap at the bottom of
the clean water/solution tank.
3. Fill to the FORMULA line with BISSELL 2X
cleaning formula. Fill the rest of the tank
with hand hot (not boiling) tap water to
the water fill line. Replace and tighten the
black cap.
4. Place clean water/solution tank on lower
body.
5. Rotate Quick Release Cord Wrap™ to
release the power cord and plug into an
outlet.
Carpet cleaning
1. With your foot, press the red power
switch [located in foot of unit] ON .
2. With foot, press the detent lever on left
side of lower body.
Warning:
To reduce the risk of fire, use only
BISSELL advanced cleaning formulas
for full size machines in your deep
cleaner. Use of cleaning formulas
that contain lemon or pine oil may
damage this appliance and void
warranty. Chemical spot cleaners or
solvent-based soil removers should
not be used. These products may
react with the plastic materials used in
your deep cleaner, causing cracking
or pitting.
Tip:
Deep cleaning spots, spills and high
traffic areas on a regular basis can
prolong carpet life.
3. Depress spray trigger to spray cleaning
solution. Do not overwet.
4. To suction up water, repeat motion over same
area without pressing the spray trigger.
5. Repeat steps 3 and 4 until no more dirt
can be removed.
6. Continue to clean entire carpet, working
in 1m x 1m sections.
7. Empty the collection tank when dirty water
reaches the full line, or when the clean
water/solution tank is empty.
8. If floor nozzle stops spraying, turn power
switch OFF and check water and cleaning
solution levels. Refill if needed.
6
www.bissell.com
Tip:
It is recommended
that every time your
clean water/solution
tank needs refilling, that
you empty the contents
of the collection tank. If
the collection tank gets
too full, you may begin
to see foam spitting out
of the vent cover. If this
happens empty the
collection tank.
0perations
Empty collection tank
2b.
2a.
1. Turn power switch OFF and unplug power
cord from outlet.
2. Remove and empty collection tank.
a.Release collection tank latches [1 each
side] by pulling up from bottom of latch
and then out.
2c.
b.Carefully remove collection tank from
lower body by lifting handle.
c.Carry collection tank to a toilet or sink. To
empty, pour out contents using opening at
back of tank.
d.Rinse collection tank thoroughly.
e.Remove vent cover from top of collection
tank by pulling the tab on top and pulling
3
up. Remove foam filter from vent cover.
Rinse filter thoroughly and replace back
into vent cover. Replace vent cover back
into collection tank, making sure the tab
clicks back into the locked position.
2e.
4
3. Remove lint and hair from red gasket in
base of unit. (Do not remove gasket)
4. Clean nozzle window by lifting latch
and removing from machine. Rinse under
running water. When finished replace
nozzle and secure with latch.
5. Replace collection tank on base of unit and
secure with latches.
www.bissell.com
7
Maintenance and care
When your done
1. Turn power switch OFF.
2. Unplug power cord from outlet.
3. Remove and empty collection tank.
a.Release collection tank latches [1 each
side] by pulling up from bottom of latch
and then out.
b.Carefully remove collection tank from
lower body by lifting handle.
WARNING:
To reduce the risk of injury
from moving parts and/or
electrical shock, turn power
switch OFF and disconnect
plug from electrical outlet
before performing maintenance or troubleshooting
checks.
c.Carry collection tank to a toilet or sink.
To empty, pour out contents using opening at back of tank.
d.Rinse collection tank thoroughly.
e.Remove vent cover from top of collec-
tion tank by pulling the tab on top and
pulling up. Remove foam filter from
vent cover. Rinse filter thoroughly and
replace back into vent cover. Replace
vent cover back into collection tank,
making sure the tab clicks back into the
locked position.
4. Remove lint and hair from red gasket in
base of unit. (Do not remove gasket)
5. Clean nozzle window by lifting latch and
removing from machine. Rinse under running water. When finished replace nozzle
and secure with latch.
6. Replace collection tank on lower body
and secure with latches.
7. Wrap power cord around Quick Release
Cord Wrap™ on side of deep cleaner.
8. Wipe all surfaces with a soft cloth. Store
cleaner upright in a protected, dry area.
NOTE: You may have cleaning solution remaining in the clean water/
solution tank. You may store your
deep cleaner this way for the next
cleaning task, but never keep soiled
solution in the collection tank.
8
www.bissell.com
CAUTION:
Do not store unit where
freezing may occur.
Damage to internal components may result.
Troubleshooting
WARNING:
To reduce the risk of electric shock, or
injury, unplug machine from outlet before
servicing.
Reduced spray or no spray
Possible Cause
Remedy
1. Clean water/solution tank empty
1.Refill tank with water
and formula
2. Clean water/solution 2.Soak tank cap in warm
tank cap clogged water and then rinse under
running water
Deep cleaner not picking up cleaning solution
Possible Cause
Remedy
1. Collection tank not aligned/secured
1.Check tank for proper alignment
and secure with side latches
2. Collection tank full
2.Empty tank
3. Removable nozzle installed improperly 3.Align four "hooks" into bottom
first, then snap into place on top
4. Removable nozzle full of debris
4.Remove nozzle and rinse under
running water
5. Red lint screen under collection tank clogged
5.Remove debris from lint screen
Other maintenance or service not included in the manual should be performed by an authorized service representative.
Thank you for selecting a BISSELL product.
Please do not return this product to the store.
www.bissell.com
9
Replacement parts
While not all of these parts may not have come with your machine, all
are available to you for purchase, if desired.
Item
1
2
3
4
5
6
7
Part No.
Part Name
203-7658Handle Assembly
203-5545
Cross Action Brush
203-5573
Solution Tank (Includes Cap and Insert Assembly)
203-5571
Collection Tank
203-5547Hard Floor Tool
203-5541
Solution Tank Cap and Insert Assembly
203-5527Foam Filter
1
2
3
5
6
7
4
Cleaning Formula: Refer to bottom of page 4 of this guide for a
full selection of cleaning formula available for purchase.
10
www.bissell.com
Warranty - BISSELL Healthy Home Simple Clean™
This warranty gives you specific legal rights, and you may also have other rights which may vary
from country to country. If you need additional instruction regarding this warranty or have questions
regarding what it may cover, please contact BISSELL Consumer Services by E-mail, telephone, regular
mail as described below, or contact your local in country distributor.
Limited Two Year Warranty
Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, BISSELL Homecare, Inc. will repair
or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge
from the date of purchase by the original purchaser, for two years any defective or malfunctioning
part due to manufacturer defect.
See "BISSELL Consumer Services" information below.
This warranty applies to product used for personal, and not commercial or rental service. This
warranty does not apply to fans or routine maintenance components such as filters, belts, or brushes.
Damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not
in accordance with the User's Guide is not covered.
BISSELL Consumer Service:
If your BISSELL product should require service of if you need information about repairs,
authorized service centers in your area, replacement parts or your warranty, please contact BISSELL
Consumer Services, as indicated below, or contact your local in country distributor.
For UK inquiries:
Monday - Thursday 9 am — 5 pm
Friday
9 am — 4 pm
BISSELL Homecare (Overseas) Inc.
The Boat Yard
105 Straight Road
Old Windsor
Berkshire, SL4 2SE
United Kingdom
Telephone: 0844-888-6644
For all other inquiries:
Monday - Friday 8 am — 4 pm
BISSELL Homecare, Inc.
PO Box 1888
Grand Rapids, Michigan 49501 USA
Telephone: 01-616-453-4451
Fax: 01-616-453-1383
BISSELL HOMECARE, INC. IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
OF ANY NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S LIABILITY WILL NOT
EXCEED THE PURCHASE PRICE OF THE PRODUCT.
*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES EITHER ORAL OR
WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO THE TWO YEAR DURATION FROM THE DATE OF PURCHASE AS described above.
www.bissell.com
11
BISSELL consumer services
If your BISSELL product should require service:
Call BISSELL Consumer Services at the numbers below and we will give you the location of a
BISSELL Authorized Service Center in your area. If you have questions about your warranty or
need replacement parts please contact the numbers below.
For UK inquiries:
Monday - Thursday9 am — 5 pm
Friday 9 am — 4 pm
BISSELL Homecare (Overseas) Inc.
The Boat Yard
105 Straight Road
Old Windsor
Berkshire, SL4 2SE
United Kingdom
Telephone: 0844-888-6644
For all other inquiries:
Monday - Friday
8 am — 4 pm
BISSELL Homecare, Inc.
PO Box 1888
Grand Rapids, Michigan 49501 USA
Telephone: 01-616-453-4451
Fax: 01-616-453-1383
Or visit the BISSELL website - www.bissell.com
When contacting BISSELL, have model number of cleaner available.
Please record your Model Number: ___________________
Please record your Purchase Date: ___________________
NOTE: Please keep your original sales receipt. It
provides proof of purchase date in the event of a
warranty claim. See Warranty on page 11 for details.
12
www.bissell.com
©2010 BISSELL Homecare, Inc
Grand Rapids, Michigan
All rights reserved. Printed in China
Part Number 120-4289
Rev 10/10
Visit our website at:
www.bissell.com
Scotchgard is a trademark of 3M
Microban® is a registered trademark
of Microban Products Company
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
