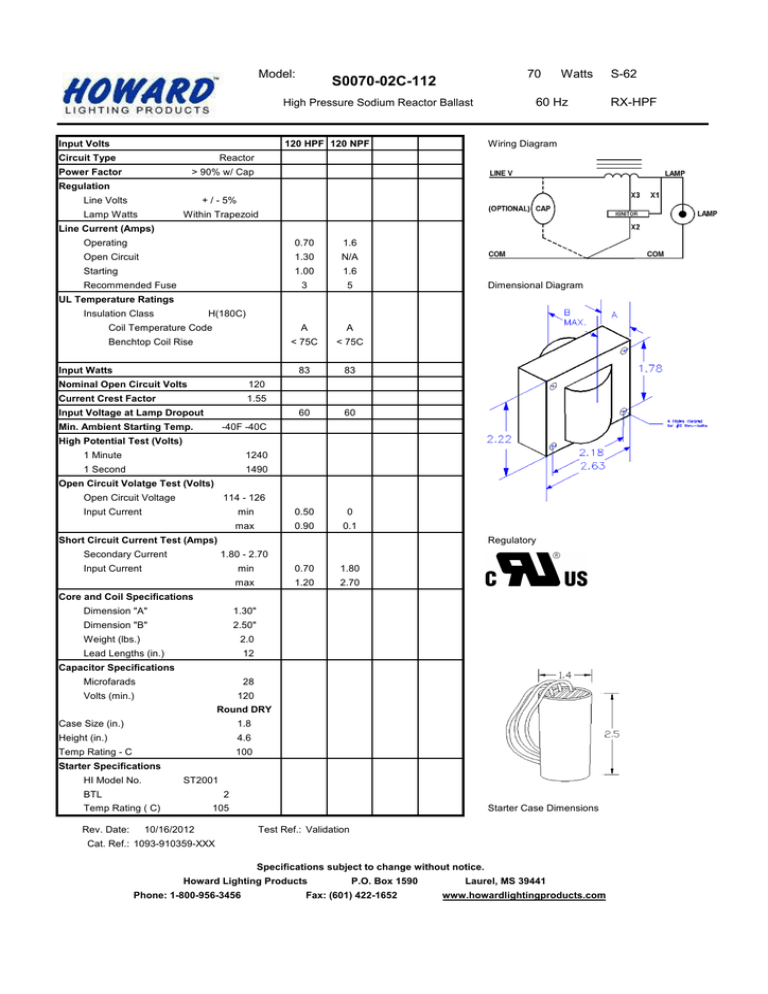

S0070-02C-112 Model: Watts S-62

S0070-02C-112 Model: Watts S-62
Model:
70
S0070-02C-112
High Pressure Sodium Reactor Ballast
Input Volts
120 HPF 120 NPF
Circuit Type
Watts
60 Hz
Wiring Diagram
Reactor
Power Factor
> 90% w/ Cap
Regulation
Line Volts
+ / - 5%
Lamp Watts
Within Trapezoid
Line Current (Amps)
Operating
0.70
1.6
Open Circuit
1.30
N/A
Starting
1.00
1.6
3
5
Recommended Fuse
Dimensional Diagram
UL Temperature Ratings
Insulation Class
H(180C)
Coil Temperature Code
Benchtop Coil Rise
Input Watts
Nominal Open Circuit Volts
120
Current Crest Factor
1.55
Input Voltage at Lamp Dropout
Min. Ambient Starting Temp.
A
A
< 75C
< 75C
83
83
60
60
-40F -40C
High Potential Test (Volts)
1 Minute
1240
1 Second
1490
Open Circuit Volatge Test (Volts)
Open Circuit Voltage
114 - 126
Input Current
min
0.50
0
max
0.90
0.1
Short Circuit Current Test (Amps)
Secondary Current
Regulatory
1.80 - 2.70
Input Current
min
0.70
1.80
max
1.20
2.70
Core and Coil Specifications
Dimension "A"
1.30"
Dimension "B"
2.50"
Weight (lbs.)
2.0
Lead Lengths (in.)
12
Capacitor Specifications
Microfarads
28
Volts (min.)
120
Round DRY
Case Size (in.)
1.8
Height (in.)
4.6
Temp Rating - C
100
Starter Specifications
HI Model No.
ST2001
BTL
Temp Rating ( C)
Rev. Date:
2
105
10/16/2012
Starter Case Dimensions
Test Ref.: Validation
Cat. Ref.: 1093-910359-XXX
Specifications subject to change without notice.
Howard Lighting Products
Phone: 1-800-956-3456
P.O. Box 1590
Fax: (601) 422-1652
Laurel, MS 39441
www.howardlightingproducts.com
S-62
RX-HPF
