Yamaha N-100 Owner`s manual

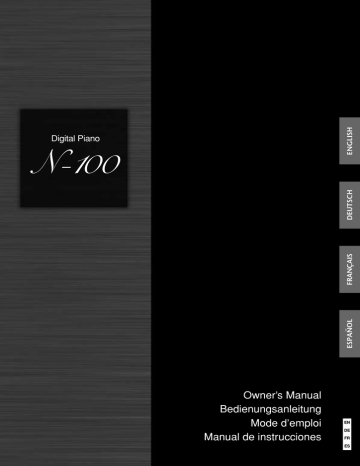

ENGLISH
Digital Piano
ESPAÑOL
FRANÇAIS
DEUTSCH
N-100
Owner’s Manual
Bedienungsanleitung
Mode d’emploi
Manual de instrucciones
EN
DE
FR
ES
SPECIAL MESSAGE SECTION
PRODUCT SAFETY MARKINGS: Yamaha electronic
products may have either labels similar to the graphics
shown below or molded/stamped facsimiles of these graphics on the enclosure. The explanation of these graphics
appears on this page. Please observe all cautions indicated
on this page and those indicated in the safety instruction section.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
See bottom of Keyboard enclosure for graphic symbol markings.
The exclamation point within the equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the
product.
The lightning flash with arrowhead symbol, within the equilateral triangle, is
intended to alert the user to the presence
of uninsulated “dangerous voltage”
within the product’s enclosure that may
be of sufficient magnitude to constitute a
risk of electrical shock.
IMPORTANT NOTICE: All Yamaha electronic products
are tested and approved by an independent safety testing
laboratory in order that you may be sure that when it is properly installed and used in its normal and customary manner,
all foreseeable risks have been eliminated. DO NOT modify
this unit or commission others to do so unless specifically
authorized by Yamaha. Product performance and/or safety
standards may be diminished. Claims filed under the
expressed warranty may be denied if the unit is/has been
modified. Implied warranties may also be affected.
ENVIRONMENTAL ISSUES: Yamaha strives to produce
products that are both user safe and environmentally
friendly. We sincerely believe that our products and the production methods used to produce them, meet these goals. In
keeping with both the letter and the spirit of the law, we
want you to be aware of the following:
Battery Notice: This product MAY contain a small nonrechargeable battery which (if applicable) is soldered in
place. The average life span of this type of battery is approximately five years. When replacement becomes necessary,
contact a qualified service representative to perform the
replacement.
Warning: Do not attempt to recharge, disassemble, or incinerate this type of battery. Keep all batteries away from children. Dispose of used batteries promptly and as regulated by
applicable laws. Note: In some areas, the servicer is required
by law to return the defective parts. However, you do have
the option of having the servicer dispose of these parts for
you.
Disposal Notice: Should this product become damaged
beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and federal regulations that relate to the disposal of products that
contain lead, batteries, plastics, etc.
NOTICE: Service charges incurred due to lack of knowledge relating to how a function or effect works (when the
unit is operating as designed) are not covered by the manufacturer’s warranty, and are therefore the owners responsibility. Please study this manual carefully and consult your
dealer before requesting service.
NAME PLATE LOCATION: The graphic below indicates
the location of the name plate. The model number, serial
number, power requirements, etc., are located on this plate.
You should record the model number, serial number, and the
date of purchase in the spaces provided below and retain this
manual as a permanent record of your purchase.
SPECIFICATIONS SUBJECT TO CHANGE: The
information contained in this manual is believed to be correct at the time of printing. However, Yamaha reserves the
right to change or modify any of the specifications without
notice or obligation to update existing units.
Model
Serial No.
92-469- ➀ (bottom)
2
N-100 Owner’s Manual
Purchase Date
IMPORTANT SAFETY INSTRUCTIONS
INFORMATION RELATING TO PERSONAL INJURY, ELECTRICAL SHOCK,
AND FIRE HAZARD POSSIBILITIES HAS BEEN INCLUDED IN THIS LIST.
WARNING- When using any electrical or electronic product,
basic precautions should always be followed. These precautions
include, but are not limited to, the following:
1.
Read all Safety Instructions, Installation Instructions, Special Message Section items, and any Assembly Instructions
found in this manual BEFORE making any connections, including connection to the main supply.
2.
Main Power Supply Verification: Yamaha products are
manufactured specifically for the supply voltage in the area
where they are to be sold. If you should move, or if any doubt
exists about the supply voltage in your area, please contact your
dealer for supply voltage verification and (if applicable) instructions. The required supply voltage is printed on the name plate.
For name plate location, please refer to the graphic found in the
Special Message Section of this manual.
3.
This product may be equipped with a polarized plug (one
blade wider than the other). If you are unable to insert the plug
into the outlet, turn the plug over and try again. If the problem
persists, contact an electrician to have the obsolete outlet
replaced. Do NOT defeat the safety purpose of the plug.
4.
Some electronic products utilize external power supplies
or adapters. Do NOT connect this type of product to any power
supply or adapter other than one described in the owners manual,
on the name plate, or specifically recommended by Yamaha.
5.
WARNING: Do not place this product or any other
objects on the power cord or place it in a position where anyone
could walk on, trip over, or roll anything over power or connecting cords of any kind. The use of an extension cord is not recommended! If you must use an extension cord, the minimum wire
size for a 25’ cord (or less) is 18 AWG. NOTE: The smaller the
AWG number, the larger the current handling capacity. For
longer extension cords, consult a local electrician.
6.
Ventilation: Electronic products, unless specifically
designed for enclosed installations, should be placed in locations
that do not interfere with proper ventilation. If instructions for
enclosed installations are not provided, it must be assumed that
unobstructed ventilation is required.
7.
Temperature considerations: Electronic products should
be installed in locations that do not significantly contribute to
their operating temperature. Placement of this product close to
heat sources such as; radiators, heat registers and other devices
that produce heat should be avoided.
8.
This product was NOT designed for use in wet/damp locations and should not be used near water or exposed to rain.
Examples of wet/damp locations are; near a swimming pool,
spa, tub, sink, or wet basement.
9.
This product should be used only with the components
supplied or; a cart, rack, or stand that is recommended by the
manufacturer. If a cart, rack, or stand is used, please observe all
safety markings and instructions that accompany the accessory
product.
10. The power supply cord (plug) should be disconnected
from the outlet when electronic products are to be left unused for
extended periods of time. Cords should also be disconnected
when there is a high probability of lightning and/or electrical
storm activity.
11. Care should be taken that objects do not fall and liquids are
not spilled into the enclosure through any openings that may exist.
12. Electrical/electronic products should be serviced by a
qualified service person when:
a. The power supply cord has been damaged; or
b. Objects have fallen, been inserted, or liquids have been
spilled into the enclosure through openings; or
c. The product has been exposed to rain: or
d. The product dose not operate, exhibits a marked change
in performance; or
e. The product has been dropped, or the enclosure of the
product has been damaged.
13. Do not attempt to service this product beyond that
described in the user-maintenance instructions. All other servicing should be referred to qualified service personnel.
14. This product, either alone or in combination with an
amplifier and headphones or speaker/s, may be capable of producing sound levels that could cause permanent hearing loss.
DO NOT operate for a long period of time at a high volume level
or at a level that is uncomfortable. If you experience any hearing
loss or ringing in the ears, you should consult an audiologist.
IMPORTANT: The louder the sound, the shorter the time period
before damage occurs.
15. Some Yamaha products may have benches and/or accessory
mounting fixtures that are either supplied as a part of the product
or as optional accessories. Some of these items are designed to be
dealer assembled or installed. Please make sure that benches are
stable and any optional fixtures (where applicable) are well
secured BEFORE using. Benches supplied by Yamaha are
designed for seating only. No other uses are recommended.
PLEASE KEEP THIS MANUAL
92-469-2
N-100 Owner’s Manual
3
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
* Please keep this manual in a safe place for future reference.
WARNING
ENGLISH
Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical
shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:
Power supply/Power cord
Water warning
• Only use the voltage specified as correct for the instrument. The required
voltage is printed on the name plate of the instrument.
• Check the electric plug periodically and remove any dirt or dust which may have
accumulated on it.
• Do not expose the instrument to rain, use it near water or in damp or wet
conditions, or place containers on it containing liquids which might spill into
any openings.
• Never insert or remove an electric plug with wet hands.
• Use only the supplied power cord/plug.
• Do not place the power cord near heat sources such as heaters or radiators, and
do not excessively bend or otherwise damage the cord, place heavy objects on
it, or place it in a position where anyone could walk on, trip over, or roll anything
over it.
Fire warning
• Do not put burning items, such as candles, on the unit.
A burning item may fall over and cause a fire.
If you notice any abnormality
Do not open
• Do not open the instrument or attempt to disassemble the internal parts or
modify them in any way. The instrument contains no user-serviceable parts. If it
should appear to be malfunctioning, discontinue use immediately and have it
inspected by qualified Yamaha service personnel.
• If the power cord or plug becomes frayed or damaged, or if there is a sudden
loss of sound during use of the instrument, or if any unusual smells or smoke
should appear to be caused by it, immediately turn off the power switch,
disconnect the electric plug from the outlet, and have the instrument inspected
by qualified Yamaha service personnel.
CAUTION
Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage
to the instrument or other property. These precautions include, but are not limited to, the following:
Power supply/Power cord
Location
• When removing the electric plug from the instrument or an outlet, always hold
the plug itself and not the cord. Pulling by the cord can damage it.
• Remove the electric plug from the outlet when the instrument is not to be used
for extended periods of time, or during electrical storms.
• Do not expose the instrument to excessive dust or vibrations, or extreme cold or
heat (such as in direct sunlight, near a heater, or in a car during the day) to
prevent the possibility of panel disfiguration or damage to the internal
components.
• Do not connect the instrument to an electrical outlet using a multiple-connector.
Doing so can result in lower sound quality, or possibly cause overheating in the
outlet.
• Do not use the instrument in the vicinity of a TV, radio, stereo equipment,
mobile phone, or other electric devices. Otherwise, the instrument, TV, or radio
may generate noise.
• Do not place the instrument in an unstable position where it might accidentally
fall over.
Assembly
• Before moving the instrument, remove all connected cables.
• Read carefully the attached documentation explaining the assembly process.
Failure to assemble the instrument in the proper sequence might result in
damage to the instrument or even injury.
• When setting up the instrument, make sure that the AC outlet you are using is
easily accessible. If some trouble or malfunction occurs, immediately turn off
the power switch and disconnect the plug from the outlet.
(1)B-9
4
N-100 Owner’s Manual
1/2
Connections
Handling caution
• Before connecting the instrument to other electronic components, turn off the
power for all components. Before turning the power on or off for all
components, set all volume levels to minimum. Also, be sure to set the volumes
of all components at their minimum levels and gradually raise the volume
controls while playing the instrument to set the desired listening level.
Maintenance
• Take care that the key cover does not pinch your fingers, and do not insert a
finger or hand in any gaps on the key cover or instrument.
• Never insert or drop paper, metallic, or other objects into the gaps on the key
cover, panel or keyboard. If this happens, turn off the power immediately and
unplug the power cord from the AC outlet. Then have the instrument inspected
by qualified Yamaha service personnel.
• Do not place vinyl, plastic or rubber objects on the instrument, since this might
discolor the panel or keyboard.
• When cleaning the instrument, use a soft, lint-free cloth. The cloth should be
dry or slightly damp. Do not use paint thinners, solvents, cleaning fluids, or
chemical-impregnated wiping cloths.
• Do not rest your weight on, or place heavy objects on the instrument, and do not
use excessive force on the buttons, switches or connectors.
ENGLISH
• Do not operate the instrument for a long period of time at a high or
uncomfortable volume level, since this can cause permanent hearing loss. If you
experience any hearing loss or ringing in the ears, consult a physician.
Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.
Always turn the power off when the instrument is not in use.
(1)B-9
2/2
N-100 Owner’s Manual
5
ENGLISH
Introduction
Thank you for purchasing the Yamaha Digital Piano N-100!
We recommend that you read this manual carefully
so that you can fully take advantage of the advanced and
convenient functions of the N-100.
We also recommend that you keep this manual in a safe and
handy place for future reference.
Main Features
Graded Hammer Effect Keyboard
Thanks to our experience as the world’s leading manufacturer of acoustic pianos, we’ve developed a keyboard with
action that’s virtually indistinguishable from the real thing. Just as on a traditional acoustic piano, the keys of the lower
notes have a heavier touch, while the higher ones are more responsive to lighter playing. The keyboard’s sensitivity can
even be adjusted to match your playing style.
Dynamic Stereo Sampling
The Yamaha N-100 Digital piano offers unmatched sonic realism and natural grand-piano type playability as well as
Yamaha’s original AWM Dynamic Stereo Sampling tone generation technology for rich, musical voices.
The Grand Piano 1 voice features totally new samples painstakingly recorded from a full concert grand piano. The
Grand Piano 1 voice features three velocity-switched samples (Dynamic Sampling), special Sustain Sampling (page 15)
that use samples of the unique resonance of an acoustic grand piano’s soundboard and strings when the sustain pedal
is pressed, and Keyoff Samples that add the subtle sound produced when the keys are released. The N-100 comes much
closer to the sound of a true acoustic piano.
6
N-100 Owner’s Manual
About this Owner’s Manual
This manual consists of three main sections: Introduction, Reference and Appendix.
Introduction (page 6):
Please read this section first.
Reference (page 13):
This section explains how to make detailed settings for the N-100’s various functions.
* The illustrations as shown in this owner’s manual are for instructional purposes only, and may appear somewhat different from
those on your instrument.
* Copying of the commercially available musical data including but not limited to MIDI data and/or audio data is strictly prohibited
except for your personal use.
This product incorporates and bundles computer programs and contents in which Yamaha owns copyrights or with respect to
which it has license to use others’ copyrights. Such copyrighted materials include, without limitation, all computer software, style
files, MIDI files, WAVE data, musical scores and sound recordings. Any unauthorized use of such programs and contents outside of
personal use is not permitted under relevant laws. Any violation of copyright has legal consequences. DON’T MAKE, DISTRIBUTE
OR USE ILLEGAL COPIES.
ENGLISH
Appendix (page 32):
This section features a variety of essential, detailed information on the instrument.
• The company names and product names in this Owner’s Manual are the trademarks or registered trademarks of their respective
companies.
Accessories
• Owner’s Manual
This manual contains complete instructions for operating your N-100.
• Quick Operation Guide
• Assembly Parts
Maintenance
Clean the instrument using a dry or slightly damp soft cloth (wring well).
Tuning
Unlike an acoustic piano, this instrument does not need to be tuned. It always stays perfectly in tune.
Transporting
If you move to another location, you can transport this instrument along with your other belongings. You can move
the unit as it is (assembled) or you can disassemble the unit before moving.
Transport the keyboard horizontally. Do not lean it up against a wall or stand it up on its side. Do not subject the
instrument to excessive vibration or shock.
N-100 Owner’s Manual
7
Table of Contents
ENGLISH
Introduction
Main Features...............................................................................................6
About this Owner’s Manual .........................................................................7
Accessories ...................................................................................................7
Table of Contents.........................................................................................8
Application Index .........................................................................................9
Panel Controls and Terminals....................................................................10
Before Using the Digital Piano ..................................................................11
Key Cover..................................................................................................................... 11
Turning the Power On ................................................................................................ 11
Setting the Volume ...................................................................................................... 12
Using Headphones ...................................................................................................... 12
Reference
Listening to the Demo Songs and the 50 Piano Preset Songs..................13
Selecting & Playing Voices.........................................................................15
Selecting Voices ........................................................................................................... 15
Using the Pedals........................................................................................................... 16
Combining Voices (Dual)........................................................................................... 17
Adding Variations to the Sound–Reverb ................................................................... 18
Transposition............................................................................................................... 19
Fine tuning of the Pitch............................................................................................... 19
Touch Sensitivity ......................................................................................................... 20
Connections ...............................................................................................21
Connectors................................................................................................................... 21
Connecting MIDI Instruments................................................................................... 22
Connecting a Personal Computer .............................................................................. 22
MIDI Functions ...........................................................................................23
MIDI Transmit/Receive Channel Selection ............................................................... 23
Local Control ON/OFF ............................................................................................... 23
Program Change ON/OFF .......................................................................................... 24
Control Change ON/OFF ........................................................................................... 24
Troubleshooting.........................................................................................25
Optional Equipment...................................................................................25
Keyboard Stand Assembly .........................................................................26
Index...........................................................................................................31
Appendix
Preset Song List .........................................................................................32
MIDI Data Format .....................................................................................33
MIDI Implementation Chart ......................................................................37
Specifications ............................................................................................38
8
N-100 Owner’s Manual
Application Index
Use this index to find reference pages that may be helpful for your particular application and situation.
Listening
Listening to demo songs with different voices............... Listening to the Demo Songs and the 50 Piano Preset Songs → (page 13)
Using the pedal........................................................................................................................................Using the Pedals → (page 16)
Changing the key of the N-100 to facilitate playing in difficult/unfamiliar key signatures .................... Transposition → (page 19)
Fine tuning the pitch of the entire instrument when you play the N-100 along with other instruments or CD music
......................................................................................................................................................Fine tuning of the Pitch → (page 19)
Selecting a touch sensitivity type...........................................................................................................Touch Sensitivity → (page 20)
Changing voices
Viewing the list of voices .........................................................................................................................Selecting Voices → (page 15)
Simulating a concert hall ............................................................................... Adding Variations to the Sound – Reverb → (page 18)
Combining two voices .............................................................................................................Combining Voices (Dual) → (page 17)
ENGLISH
Playing
Connecting the N-100 to other devices
What is MIDI? ............................................................................................................................................... About MIDI → (page 21)
Connecting a computer ..............................................................................................Connecting a Personal Computer → (page 22)
N-100 Owner’s Manual
9
Panel Controls and Terminals
Panel Controls and Terminals
2
3
4
8
7
6
1
ENGLISH
5
1 [POWER] switch ........................... page 12
For turning the power on or off.
2 [MASTER VOLUME] dial............... page 12
For adjusting the volume level of the entire sound.
3 [DEMO] button .................... pages 13, 14
For playing the demo songs and the 50 piano preset
songs. When you press the [DEMO] button, the button name will blink for a second.
4 [PIANO/VOICE] button
................................. pages 15, 17, 18, 20
For selecting voices from 10 internal sounds including Grand Piano 1 and 2 (page 15). You can also
combine two voices (page 17) or add reverb effects to
the selected voice for your keyboard performance
(page 18). When you press the [PIANO/VOICE] button, the button name will blink for a second.
7 AUX OUT [L] [R](LEVEL FIXED) jacks
.....................................................page 21
For outputting the sound of the N-100 to an external
audio system, or connecting it to another device (MD
recorder, etc.) to record your performance.
8 [PHONES] jack..............................page 12
For connecting a set of standard stereo headphones,
allowing private practice.
9 Soft pedal (left), Sostenuto pedal
(center), Damper pedal (right)
.....................................................page 16
For producing a range of expressive effects similar to
those produced by the pedals on an acoustic piano.
5 [SELECT] button................... pages 13, 15
For selecting a demo song for each voice, or one of
the 50 piano preset songs. You can also change the ten
Voices by pressing the [SELECT] button. When you
press the [SELECT] button, the button name will
blink for a second.
6 MIDI [IN] [OUT] terminals........... page 21
For connecting external MIDI devices, allowing the
use of various MIDI functions.
10
N-100 Owner’s Manual
9
Before Using the Digital Piano
Before Using the Digital Piano
Key Cover
To open the key cover:
Using the hand grip in the center on the front, lift open
the key cover.
ENGLISH
To close the key cover:
Grip the hand grip at the center of the panel, and close
the key cover.
CAUTION
Be careful to avoid catching your fingers
when opening or closing the cover.
CAUTION
Hold the cover with both hands when opening or closing it. Do not release it until it is fully opened or closed. Be careful to avoid
catching fingers (yours or others, especially children’s) between the cover and main unit.
CAUTION
Do not place objects, such as a piece of metal or paper, on top of the key cover. Small objects placed on the key cover may fall
inside the unit when the cover is opened and may be nearly impossible to remove. This could cause electric shock, short circuit,
fire or other serious damage to the instrument.
Turning the Power On
1. Connect the power cord.
First insert the plug of the power cable into the AC connector on the N-100, then plug the other end of the cable
into the proper AC outlet on the wall.
In some areas, a plug adaptor may be provided to match the pin configuration of AC wall outlets in your area.
q
w
(bottom surface)
(The shape of the plug differs
depending on locale.)
WARNING
Make sure your N-100 is rated for the AC voltage supplied in the area in which it is to be used (voltage rating appears on
the name plate on the bottom panel). In some areas, a voltage selector may be provided on the bottom panel of the
main keyboard unit near the power cord. Make sure that the voltage selector is set for the voltage in your area. Connecting the unit to the wrong AC supply can cause serious damage to the internal circuitry and may even pose a shock hazard!
Use only the AC power cord supplied with the N-100. If the supplied cord is lost or damaged and needs to be replaced,
contact your Yamaha dealer. The use of an inappropriate replacement can pose a fire and shock hazard!
The type of AC power cord provided with the N-100 may be different depending on the country in which it is purchased.
(In some areas a plug adaptor may be provided to match the pin configuration of the AC wall outlets in your area.) Do
NOT modify the plug provided with the N-100. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.
N-100 Owner’s Manual
11
Before Using the Digital Piano
2. Turn the power on.
Press the [POWER] switch located on the right of the keyboard to turn the power on.
The power indicator located below the left end of the keyboard and the button names on the panel light up.
[POWER]
ENGLISH
Power indicator
To turn the power off, press the [POWER] switch again.
The power indicator and the button names turn off.
Power indicator
If you forget to turn off the power to the piano and close the key cover, the power indicator will remain lit, indicating that the power is still on.
Setting the Volume
To adjust the volume, use the [MASTER VOLUME] dial located at the left of the panel. Play the keyboard and listen to the
sound while you adjust the volume.
The level decreases.
TERMINOLOGY
The level increases.
MASTER VOLUME:
The volume level of the entire keyboard sound
CAUTION
Do not use the N-100 at a high volume level for a long period of time, or your hearing may be damaged.
Using Headphones
Connect a set of headphones to one of the [PHONES] jacks.
Two [PHONES] jacks are provided.
You can connect two sets of standard stereo headphones. (If you are using
only one set of headphones, you can plug them into either jack.)
bottom surface
CAUTION
To protect your hearing, avoid listening to the N-100 at a high volume level
for long periods of time.
Standard stereo mini plug
12
N-100 Owner’s Manual
Reference
Listening to the Demo Songs and the 50 Piano Preset Songs
Listening to the Demo Songs and the 50
Piano Preset Songs
The N-100 contains Demo songs that effectively showcase the voices of the instrument, and
includes performance data of 50 different popular piano songs for your listening enjoyment.
1. Press the [POWER] switch to turn the power on.
The power indicator located below the left end of the
keyboard and the button names on the panel light up.
NOTE
2. Adjust the volume.
NOTE
The demo songs and 50 piano
preset songs will not be transmitted via MIDI.
Initially set the [MASTER VOLUME] dial about half
way between the “MIN” and “MAX” settings. Then,
when you start playing, re-adjust the [MASTER VOLUME] dial to the most comfortable listening level.
ENGLISH
Refer to the voice list on page 15
for more information on the characteristics of each preset voice.
3. Press the [DEMO] button to listen
to the demo songs.
NOTE
The GRAND PIANO 1 demo song will start. Demo
songs provided for each voice and the 50 piano preset
songs will play back in sequence until you press the
[DEMO] button. You can change to the next demo
song or piano song during playback by pressing the
[SELECT] button.
When you press the [DEMO],
[PIANO/VOICE] and [SELECT]
button, the button name will blink
for a second.
Changing a Demo Song
The number of each voice is assigned to the C1–A1 keys. For selecting a demo
song using the keyboard, press one of the C1–A1 keys while holding down the
[DEMO] button.
C0
C1
NOTE
Selecting a Demo song automatically changes the voice to that
pre-programmed for the Demo
song.
A1
Demo Song List
Key
Voice Name
Title
Composer
C1
Grand Piano 1
Nocturne op.9-2
F.F. Chopin
G#1
Harpsichord
Gavotte
J.S. Bach
• The demonstration pieces listed above are short rearranged excerpts of the original
compositions.
• All other songs are original (© 2005 Yamaha Corporation).
N-100 Owner’s Manual
13
Listening to the Demo Songs and the 50 Piano Preset Songs
Change the 50 Piano Preset Songs
The number of each piano preset song is assigned to the C2–C#6 keys.
To select one of the 50 preset piano songs, simultaneously hold down the
[DEMO] button and press the key corresponding to the song (as shown in the
illustration below). To play all preset songs automatically in succession, simultaneously hold down the [DEMO] button and press the D6 key.
1st
song
10th
song
20th
song
30th
song
40th
song
50th
song (C#6)
TERMINOLOGY
Song:
On the N-100, performance data
is called a “Song.” This includes
the demonstration song and
piano preset song.
Preset:
Preset Data supplied with the
internal memory of the N-100
shipped from the factory.
NOTE
ENGLISH
C2
C4
4. Press the [DEMO] button to stop
playback.
14
C3
N-100 Owner’s Manual
C5
Consecutive
playback (D6)
When you select a different song
(or a different song is selected
during chained playback), an
appropriate reverb type will be
selected accordingly.
Selecting & Playing Voices
Selecting & Playing Voices
Selecting Voices
1. Select the Grand Piano 1 voice by pressing the
[PIANO/VOICE] button.
Pressing the [SELECT] button switches among the following ten voices.
Voice Name
C1
Grand
Piano 1
C#1
Grand
Piano 2
Piano &
Strings
Electronic
Piano 1
D1
Description
Recorded samples from a full concert grand piano. Also includes three
levels of dynamic sampling, sustain samples, and key-off samples for
exceptionally realistic acoustic grand piano sound. Perfect for classical
compositions as well as any other style that requires acoustic piano.
Spacious and clear piano with bright reverb. Good for popular music.
NOTE
To familiarize yourself with the
characteristics of the voices, listen to the demo songs for each
voice (page 13).
TERMINOLOGY
A Dual voice combining grand piano and strings – perfect for slow,
orchestral piano music.
D#1
An electronic piano sound created by FM synthesis.
Exceptional musical response with varying timbre according to keyboard dynamics. Good for standard popular music.
E1 Electronic
The sound of an electric piano using hammer-struck metallic tines. Soft
Piano 2
tone when played lightly, and an aggressive tone when played hard.
F1 Church
This is a typical pipe organ sound (8 feet + 4 feet + 2 feet).
Organ
Good for sacred music from the Baroque period.
F#1 Jazz Organ The sound of a tonewheel type electric organ. Often heard in jazz and
rock idioms.
G1 Strings
Stereo-sampled, large-scale strings ensemble with realistic reverb. Try
combining this voice with piano in the DUAL.
G#1 Harpsichord The definitive instrument for baroque music. Since harpsichord uses
plucked strings, there is no touch response.
There is, however, a characteristic additional sound when the keys are
released.
A1 Vibraphone Vibraphone played with relatively soft mallets. The tone becomes more
metallic the harder you play.
Voice:
On the N-100, the term “voice”
means “instrument sound.”
ENGLISH
Key
NOTE
When you select a voice, an
appropriate reverb type will be
selected automatically (page 18).
While holding down the [PIANO/VOICE] button, press one of the C1–A1 keys
to select a voice.
C0
C1
A1
To instantly call up the Grand Piano 1 voice again, simply press the [PIANO/
VOICE] button.
2. Adjust the volume.
Re-adjust the [MASTER VOLUME] dial for the most comfortable listening level
during your performance.
N-100 Owner’s Manual
15
Selecting & Playing Voices
Using the Pedals
ENGLISH
The N-100 has three foot pedals: damper pedal (right),
sostenuto pedal (center), and soft pedal (left) that produce a range of expressive effects similar to those produced by the pedals on an acoustic piano.
Damper pedal (right)
When you press the damper pedal, the
notes you play have a longer sustain.
When you select Grand Piano 1, pressing
the damper pedal activates the instrument’s
special “Sustain Samples” to accurately recreate the unique resonance of an acoustic
grand piano’s soundboard and strings. A
“half-pedal” effect lets you use the damper
pedal to create partial sustain effects,
depending on how far down you press the
pedal.
NOTE
When you press the damper
pedal here, the notes you play
before you release the pedal
have a longer sustain.
Sostenuto pedal (center)
If you play a note or chord on the keyboard
and press the sostenuto pedal while holding
the note(s), the notes will sustain as long as
the pedal is held. All subsequent notes will
not sustain.
NOTE
Organ and string voices will continue to sound for as long as the
sostenuto pedal is depressed.
When you press the sostenuto
pedal here while holding the
note(s), the notes will sustain
as long as you hold the pedal.
Soft pedal (left)
The soft pedal reduces the volume and slightly changes the timbre of notes
played while the pedal is pressed. (The soft pedal will not affect notes that are
already playing when it is pressed. Press the pedal immediately before you play
the target notes.)
16
N-100 Owner’s Manual
If the damper pedal doesn’t work,
or notes are sustained even when
the pedal is not pressed, make
sure that the pedal cord is properly plugged into the main unit
(page 30).
Selecting & Playing Voices
Combining Voices (Dual)
You can play voices simultaneously across the entire range of the keyboard. In this way, you can
combine similar voices to create a thicker sound.
1. While holding down the [PIANO/VOICE] button,
press two keys in the range of C1 through A1 simultaneously (or press one key while holding another)
to engage Dual.
ENGLISH
Refer to “Selecting Voices” on page 15 for more information on the voices that
are assigned to the keys.
C0
C1
A1
The voice assigned to the lower key will be designated as Voice 1, and the voice
assigned to the higher key will be designated as Voice 2.
You can make the following settings for Voices 1 and 2 in Dual:
Setting the Octave
You can shift the pitch up and down in octave steps for Voice 1 and Voice 2 independently. Depending on which voices you combine in Dual, the combination
may sound better if one of the voices is shifted up or down an octave.
NOTE
Reverb in Dual
The reverb type assigned to
Voice 1 will take priority. If the
reverb assigned to Voice 1 is set
to OFF, the reverb assigned to
Voice 2 will be in effect.
While holding down the [PIANO/VOICE] button, press one of the C5–F5 keys.
Voice1 Voice2
C5
Voice 1
C5
C#5
D5
-1
0
+1
Voice 2
F5
C6
D#5
E5
F5
C7
-1
0
+1
Setting the Balance
You can adjust the volume balance between two voices. For example, you can set
one voice as the main voice with a louder setting, and make the other voice
softer.
While holding down the [PIANO/VOICE] button, press one of the F#5–F#6
keys.
A setting of “0” produces an equal balance between the two Dual voices. Settings
below “0” increase the volume of Voice 2 in relation to Voice 1, and settings
above “0” increase the volume of Voice 1 in relation to Voice 2.
F#5 (-6)
C5
C6 (0)
F#6 (+6)
C7
2. While holding down the [PIANO/VOICE] button,
press one of the C1–A1 keys (or press the [PIANO/
VOICE] button) to exit Dual and return to the normal single-voice play.
N-100 Owner’s Manual
17
Selecting & Playing Voices
Adding Variations to the Sound–Reverb
This control enables you to select four different types of reverb effect that add extra depth and
expression to the sound to create a realistic acoustic ambience.
ENGLISH
Key
Reverb Type
Description
C2
Room
This setting adds a continuous reverb effect to the sound, similar to the
acoustic reverberation you would hear in a room.
C#2
Hall 1
For a “bigger” reverb sound, use the HALL 1 setting. This effect simulates
the natural reverberation of a small-size concert hall.
D2
Hall 2
For a truly spacious reverb sound, use the HALL 2 setting. This effect simulates the natural reverberation of a large concert hall.
D#2
Stage
Simulates the reverb of a stage environment.
E2
Off
No effect is applied.
Selecting a Reverb Type
While holding down the [PIANO/VOICE] button, press one of the C2–E2 keys
to select a reverb type.
C0
C1
C2 E2
Adjusting Reverb Depth
While holding down the [PIANO/VOICE] button, press one of the C3–G#4 keys
to adjust the reverb depth for the selected voice.
G#4: Depth 20
C0
C1
C2
C3: Depth 0
C4
NOTE
Reverb depth range:
0 (no effect)–
20 (maximum depth)
A4
The depth value increases as you press higher keys.
While holding down the [PIANO/VOICE] button, press the A4 key to set the
reverb to the depth most suitable for the selected voice.
18
N-100 Owner’s Manual
NOTE
The default reverb type (including
OFF) and depth settings are different for each voice.
Selecting & Playing Voices
Transposition
The N-100’s Transpose function makes it possible to shift the pitch of the entire keyboard up or
down in semitone intervals to facilitate playing in difficult key signatures, and to let you easily
match the pitch of the keyboard to the range of a singer or other instruments. For example, if you
set the transposition amount to “+5,” playing key C produces pitch F. In this way, you can play a
song as though it were in C major, and the N-100 will transpose it to the key of F.
Setting the amount of transposition
While holding down the [DEMO] and [PIANO/VOICE] buttons, press one of the
F#2–F#3 keys to set the desired amount of transposition.
C0
C1
F#3
ENGLISH
F#2
TERMINOLOGY
Transpose:
Changing the key signature. On
the N-100, transposing shifts the
pitch of the entire keyboard.
C2
-6 -4 -2
+1 +3
+6
-5 -3 -1 0 +2 +4 +5
To transpose the pitch down (in semitone steps)
While holding down the [DEMO] and [PIANO/VOICE] buttons, press any key
between F#2 and B2.
To transpose the pitch up (in semitone steps)
While holding down the [DEMO] and [PIANO/VOICE] buttons, press any key
between C#3 and F#3.
NOTE
Transposition range:
F#2 (-6 semitones)–
C3 (normal pitch)–
F#3 (+6 semitones)
To restore the normal pitch
While holding down the [DEMO] and [PIANO/VOICE] buttons, press the C3
key.
Fine tuning of the Pitch
You can fine tune the pitch of the entire instrument. This function is useful when you play the N100 along with other instruments or CD music.
Setting the Pitch
To raise the pitch
(in steps of roughly 0.2 Hz):
Hold down the A-1 and B-1 keys
simultaneously and press any key
between C3 and B3.
A-1 B-1
C3
B3
TERMINOLOGY
Hz (Hertz):
C0
To lower the pitch
(in steps of roughly 0.2 Hz):
Hold down the A-1 and A#-1 keys
simultaneously and press any key
between C3 and B3.
A#-1
A-1
To restore standard pitch:
Hold down the A-1, A#-1 and B-1
simultaneously and press any key
between C3 and B3.
A#-1
A-1 B-1
C1
This unit of measurement refers to
the frequency of a sound and represents the number of times a
sound wave vibrates in a second.
C2
Default setting:
C3
C0
C1
B3
The “Default setting” refers to the
factory setting obtained when you
first turn on the power to the N100.
C2
NOTE
C3
C0
C1
B3
Setting range: 427.0–453.0 Hz
Standard pitch: 440.0 Hz
C2
N-100 Owner’s Manual
19
Selecting & Playing Voices
Touch Sensitivity
You can adjust the volume level that changes depending on how fast or strong you hit the keys.
The following four settings are available.
ENGLISH
Key
Touch Sensitivity
Description
A6
FIXED
The volume level does not change at all regardless of whether you play
the keyboard soft or hard.
A#6
SOFT
The volume level does not change much when you play the keyboard soft
or hard.
B6
MEDIUM
This is the standard piano touch response (default setting).
C7
HARD
The volume level changes very widely from pianissimo to fortissimo to
facilitate dynamic and dramatic expression. You have to hit the keys hard
to produce a loud sound.
Setting the Touch Sensitivity Type
While holding down the [PIANO/VOICE] button, press one of the A6–C7 keys
to select the desired touch sensitivity.
NOTE
The touch sensitivity settings may
have little or no effect with Church
Organ and Harpsichord voices
that are not normally responsive
to keyboard dynamics.
Default setting: B6
A6 C7
20
N-100 Owner’s Manual
Connections
Connections
Connectors
CAUTION
2
ENGLISH
Before connecting the N-100 to other electronic components, turn off the power to all the
components. Before doing this, set all volume levels to minimum (0). Otherwise, electrical
shock or damage to the components may result.
1
1 MIDI [IN] [OUT] terminals
NOTE
Use MIDI cables to connect external MIDI devices to these connectors.
MIDI [IN]: Receives MIDI data.
MIDI [OUT]: Transmits MIDI data.
Refer to the “Connecting a Personal Computer” on page 22.
About MIDI
MIDI (Musical Instrument Digital Interface) is a standard format for data transmission/reception. It enables the transfer of performance data and commands
between MIDI devices and personal computers. Using MIDI, you can control a
connected MIDI device from the N-100, or control the N-100 from a connected
MIDI device or computer.
2 AUX OUT [L] [R](LEVEL FIXED) jacks
Since MIDI data that can be
transmitted or received varies
depending on the type of MIDI
device, check the “MIDI Implementation Chart” to find out what
MIDI data and commands your
devices can transmit or receive.
The N-100’s MIDI Implementation
Chart appears on page 37.
NOTE
You can connect these jacks to a stereo system to amplify the N-100 or to a cassette
tape recorder to record your performance. Refer to the diagram below and use
audio cables to make the connections.
Use audio cables and adaptor
plugs with zero resistance.
CAUTION
When the N-100’s AUX OUT jacks are connected to an external audio system, first turn
on the power to the N-100, then to the external audio system. Reverse this order when
you turn the power off.
N-100
Stereo
AUX OUT
RCA pin plug
AUX IN
RCA pin plug
audio cable
When these are connected (with RCA pin plug; LEVEL FIXED), the sound is output to the external device at a fixed level, regardless of the [MASTER VOLUME]
dial setting.
N-100 Owner’s Manual
21
Connections
Connecting MIDI Instruments
The N-100 features MIDI IN/OUT terminals, allowing you to connect the N-100 to other instruments and devices—including computers—and take advantage of the various performance and
recording capabilities in MIDI applications.
CAUTION
Before connecting the instrument to other electronic components, turn off the power of all the
components.
ENGLISH
● Transferring performance data to and from another
MIDI device
MIDI [OUT]
terminal
MIDI [IN] terminal
MIDI cables
(optional)
MIDI [OUT] terminal
MIDI [IN] terminal
NOTE
You cannot transmit the voice
demo songs and the 50 piano
preset songs from the N-100 to
another MIDI device.
For MIDI connections, use a standard (optional) MIDI cable, available at most musical instrument
stores.
Instrument
● Transferring MIDI data to and from a computer
MIDI [OUT]
terminal
MIDI [IN]
terminal
USB terminal
Instrument
Computer
USB-MIDI
interface
Connecting a Personal Computer
By connecting a computer to the MIDI terminals, you can transfer data between the N-100 and the
computer via MIDI.
CAUTION
When connecting the N-100 to a computer, first turn off the power to both the N-100 and the
computer before connecting any cables. After making connections, turn on the power of the computer first, then that of the N-100.
Connecting the USB port on the computer to the
N-100 via a USB-MIDI interface (such as the UX16,
UX96, or UX256)
Use a USB-MIDI interface device to connect the USB port on your computer to the N100’s MIDI terminals. You must install the USB-MIDI interface (such as the UX16,
UX96, or UX256) driver. For more information, refer to the user’s manual that came
with the USB-MIDI interface device.
MIDI [OUT]
terminal
MIDI [IN]
terminal
USB terminal
Instrument
Computer
USB-MIDI
interface
22
N-100 Owner’s Manual
NOTE
When the N-100 is used as a tone
module, performance data with
voices that are not found on the
N-100 will not be played correctly.
NOTE
In order to properly transfer MIDI
data between the N-100 and a
computer, special MIDI driver
software must be installed to the
computer.
MIDI Functions
MIDI Functions
These operations let you make detailed adjustments to MIDI settings.
In any MIDI control setup, the MIDI channels of the transmitting and
receiving devices must be matched for proper data transfer.
This parameter enables you to specify the channel on which the N-100
transmits or receives MIDI data.
While holding down the [DEMO] and [PIANO/VOICE] buttons, press one of the
C1–E2 keys.
Setting the Receive Channel
While holding down the [DEMO] and [PIANO/VOICE] buttons, press one of the
C4–F5 keys.
E2
F5
C1
2 4
In Dual, Voice 1 data is transmitted on its specified channel and
Voice 2 data is transmitted on the
next greater channel number relative to the specified channel. In
this case, no data is transmitted if
the transmit channel is set to
“OFF.”
ALL:
Setting the Transmit Channel
C0
NOTE
7 9 11
C4
14 16
2 4
7 9 11
“Multi-timbre” Receive. This
allows simultaneous reception of
different parts on all 16 MIDI
channels, enabling the N-100 to
play multi-channel song data
received from a music computer
or sequencer.
ENGLISH
MIDI Transmit/Receive Channel
Selection
1+2:
“1+2” Receive. This allows simultaneous reception on channels 1
and 2 only, enabling the N-100 to
play 1 and 2 channel song data
received from a music computer
or sequencer.
14 16
1 3 5 6 8 10 12 13 15 OFF
1 3 5 6 8 10 12 13 15 1+2 ALL
Transmit Channel
(C1–E2)
Receive Channel
(C4–F5)
Program change and other like
channel messages received will
not affect the N-100’s panel settings or the notes you play on the
keyboard.
Data for the demo song and 50
piano preset songs cannot be
transmitted via MIDI.
Local Control ON/OFF
“Local Control” refers to the fact that, normally, the N-100 keyboard controls its internal tone generator, allowing the internal voices to be played directly from the keyboard. This situation is “Local
Control On,” since the internal tone generator is controlled locally by its own keyboard.
Local control can be turned OFF, however, so that the N-100 keyboard does not play the internal
voices, but the appropriate MIDI information is still transmitted via the MIDI OUT terminal when
notes are played on the keyboard. At the same time, the internal tone generator responds to MIDI
information received via the MIDI IN terminal.
While holding down the [DEMO] and [PIANO/VOICE] buttons, press the C6
key. Pressing the C6 key repeatedly toggles between Local Control On and Off.
C6
Default setting: ON
C7
N-100 Owner’s Manual
23
MIDI Functions
Program Change ON/OFF
ENGLISH
Normally the N-100 will respond to MIDI program change numbers received from an external keyboard or other MIDI device, causing the same numbered voice to be selected on the corresponding
channel (the keyboard voice does not change). The N-100 will normally also send a MIDI program
change number whenever one of its voices is selected, causing the same numbered voice or program to be selected on the external MIDI device if the device is set up to receive and respond to
MIDI program change numbers. This function makes it possible to cancel program change number
reception and transmission so that voices can be selected on the N-100 without affecting the external MIDI device.
While holding down the [DEMO] and [PIANO/VOICE] buttons, press the C#6
key. Pressing the C#6 key repeatedly toggles between Program Change On and
Off.
C#6
C7
NOTE
For information on program
change numbers for each of the
N-100’s voices, refer to MIDI Data
Format on page 33.
Default setting: ON
Control Change ON/OFF
Normally the N-100 will respond to MIDI control change data received from an external MIDI
device or keyboard, causing the voice on the corresponding channel to be affected by pedal and
other “control” settings received from the controlling device (the keyboard voice is not affected).
The N-100 also transmits MIDI control change information when the pedal or other appropriate
controls are operated.
This function makes it possible to cancel control change data reception and transmission so that,
for example, the N-100’s pedal and other controls can be operated without affecting an external
MIDI device.
While holding down the [DEMO] and [PIANO/VOICE] buttons, press the D6
key. Pressing the D6 key repeatedly toggles between Control Change On and
Off.
D6
C7
NOTE
For information on control
changes that can be used with
the N-100, refer to MIDI Data Format on page 33.
Default setting: ON
24
N-100 Owner’s Manual
Troubleshooting / Optional Equipment
Troubleshooting
Possible Cause and Solution
The N-100 does not turn on.
The N-100 has not been plugged in properly. Securely insert the female plug into the
socket on the N-100, and the male plug into a proper AC outlet (page 11).
Noise is heard from the speakers or headphones.
The noise may be due to interference caused by the use of a mobile phone in close
proximity to the N-100. Turn off the mobile phone, or use it further away from the N100.
The overall volume is low, or no sound is
heard.
• The Master Volume is set too low; set it to an appropriate level using the [MASTER
VOLUME] dial.
• Make sure a pair of headphones is not connected to the headphones jack
(page 12).
• Make sure that Local Control (page 23) is ON.
The damper pedal has no effect, or the
sound continuously sustains even when the
damper pedal is not pressed.
The pedal cord may not be properly connected. Make sure to securely insert the
pedal cord into the [PEDAL] connector (page 30).
ENGLISH
Problem
Optional Equipment
Headphones (HPE-30)
N-100 Owner’s Manual
25
Keyboard Stand Assembly
Keyboard Stand Assembly
CAUTION
• Be careful not to confuse parts, and be sure to install all parts in the correct direction. Please assemble the unit in the appropriate sequence.
• Assembly should be carried out by at least two persons.
• Be sure to use the included screws only, and insert screws of the correct size in the correct hole locations. Do not use any other
screws. Use of incorrect screws can cause damage or malfunction of the product.
• Be sure to tighten all screws upon completing assembly of each unit.
• To disassemble, reverse the assembly sequence.
ENGLISH
Have a Phillips-head (+) screwdriver ready.
Remove all parts from the box. Confirm that all parts shown in the illustration are provided.
A
D
D
Pedal cord
C
Front leg
Pedal box
AC power cord
(The shape of plug differs
depending on locale.)
B
Front leg
Speaker box
6 x 20 mm long screws x4
6 x 16 mm short screws x12
• Before starting installation, remove the vinyl ties that bundle the pedal cord and AC power cord.
1. Lean A against the wall.
1-1 Spread a large soft cloth such as a blanket on the
1-2 Lay A on the soft cloth with its keyboard side facing toward you.
floor in front of the wall.
A
26
N-100 Owner’s Manual
Keyboard Stand Assembly
1-3 Open the key cover, then raise the keyboard side
of A until it leans against the wall.
Be careful not to allow the A to fall or slip.
Also, insert the soft cloth between the A and the
wall to protect the unit from being damaged by
hitting the wall or any other object.
2. Attach C to B.
CAUTION
Please do not touch the speaker net (cloth cover) or
the speaker underneath it.
2-1 Remove the plastic groove cover from B.
ENGLISH
A
A
B
CAUTION
• Do not place the A with the front side facing
down.
2-2 Stand B upside down on the floor and support it
with your hands.
• Do not lay the A upside-down on the floor.
B
N-100 Owner’s Manual
27
Keyboard Stand Assembly
2-3 While supporting B with your hand, pass the
pedal cord (attached to C) through from the
inside to the outside of B.
Position C upside down, then insert it into the
slot on B. Be sure to push C until it stops.
B
2-7 Replace the plastic cover onto the groove of B.
Do not insert the feet of the groove cover between
the groove socket and groove wall.
B
Correct
ENGLISH
Incorrect
C
B
3. Fix B to A.
3-1 Place B in front of A, with the speaker net on B
2-4 While holding and pressing C securely into the
slot, fix it to B using four long screws (6x20mm).
facing upward.
3-2 Insert the speaker cord plug into the connector on
the bottom surface of A, with the plug’s tab facing
to the rear.
A
C
B
B
2-5 Turn B so that its bottom side of (the side on
which C is attached) is on the floor.
2-6 Pass the pedal cord and power cord into the
groove on B, then attach them to the top of B
using the four vinyl ties.
Be sure to have the end of the power cord extend
past the top edge of B by 20cm or more (roughly
half the length of B).
At least 20cm
20cm
B
28
N-100 Owner’s Manual
Keyboard Stand Assembly
3-3 While holding B with your hands, fix B to A using
four short screws (6x16mm).
At this time, be careful not to pinch the pedal
cord and power cord between the bracket on B
and the bottom of A.
Be sure not to scratch the speaker net (cloth
cover) when you fix B to A.
5. Raise A.
Use B as support to raise A.
A
A
B
B
A
ENGLISH
A
B
B
6. Connect the AC power cord.
Insert the AC power cord plug into the AC INLET.
3-4 Lower B slowly.
A
B
4. Attach D.
Fix D to the bottom of A, using four short screws
(6x16mm) on each leg.
A
D
D
If the screw holes do not align, loose the other
screws and adjust the position of D.
N-100 Owner’s Manual
29
Keyboard Stand Assembly
7. Connect the pedal cord.
Insert the pedal cord plug into the pedal connector.
CAUTION
When moving the instrument after assembly, always
hold the bottom of the main unit.
Do not hold the key cover, and the stepped part on the
front, side or rear of the unit. Improper handling can
result in damage to the instrument or personal injury.
ENGLISH
Do not hold here.
Hold here.
8. Set the adjuster.
Do not
hold here.
Place the N-100 so that its rear panel is at least 10 cm
away from the wall.
Rotate the adjuster until it comes in firm contact
with the floor surface.
After completing the assembly, please check the following.
• Are there any parts left over?
→ Review the assembly procedure and correct any
errors.
• Is the N-100 clear of doors and other movable fixtures?
→ Move the N-100 to an appropriate location.
• Does the N-100 make a rattling noise when you
shake it?
→ Tighten all screws.
• Does the pedal box rattle or give way when you step
on the pedals?
→ Turn the adjuster so that it is set firmly against
the floor.
• Are the pedal and power cords inserted securely
into the sockets?
→ Check the connection.
• If the main unit creaks or is otherwise unsteady
when you play on the keyboard, refer to the assembly diagrams and retighten all screws.
30
N-100 Owner’s Manual
Index
Index
Numerics
P
50 Piano Preset Songs .....................................................13
Panel controls and terminals.......................................... 10
PEDAL ....................................................................... 10, 16
A
Accessories .........................................................................7
Assembly ..........................................................................26
[PHONES] jack............................................................... 12
[PIANO/VOICE] button............ 15, 17, 18, 19, 20, 23, 24
[POWER] switch....................................................... 12, 13
C
Center pedal.....................................................................16
Preset songs ➝ 50 Piano Preset Songs ........................... 13
R
Combining voices (Dual) ...............................................17
Connecting a personal computer ...................................22
ENGLISH
PRECAUTIONS............................................................ 4, 5
Reverb.............................................................................. 18
Right pedal ...................................................................... 16
D
S
Damper pedal ..................................................................16
Default setting .................................................................19
[DEMO] button ........................................................13, 14
Demo Songs.....................................................................13
Dual..................................................................................17
[SELECT] button ................................................ 13, 14, 15
Soft pedal ......................................................................... 16
Song ................................................................................. 14
Sostenuto pedal ............................................................... 16
Specifications................................................................... 38
H
Hz (Hertz) .......................................................................19
Start/stop playback.......................................................... 13
50 Piano Preset Song................................................. 13
Demo songs ............................................................... 13
Sustain pedal ................................................................... 16
K
Key cover .........................................................................11
T
Touch sensitivity ............................................................. 20
L
Left pedal .........................................................................16
M
[MASTER VOLUME] dial..............................................12
MIDI [IN] [OUT] ...........................................................21
Transposition .................................................................. 19
Troubleshooting.............................................................. 25
Tuning ➝Fine tuning of the Pitch................................. 19
V
Voice ................................................................................ 15
MIDI Data Format ..........................................................33
MIDI Implementation Chart..........................................37
MIDI terminals................................................................21
O
Optional equipment........................................................25
N-100 Owner’s Manual
31
Appendix
Preset Song List / Liste der voreingestellten Songs /
Liste des morceaux prédéfinis /
Lista de canciones preseleccionadas
No.
32
Title
Composer
1
Invention No. 1
J.S.Bach
2
Invention No. 8
J.S.Bach
3
Gavotte
J.S.Bach
4
Prelude (Wohltemperierte Klavier I No.1)
J.S.Bach
5
Menuett G dur BWV.Anh.114
J.S.Bach
6
Le Coucou
L-C.Daquin
7
Piano Sonate No.15 K.545 1st mov.
W.A.Mozart
8
Turkish March
W.A.Mozart
9
Menuett G dur
W.A.Mozart
10
Little Serenade
J.Haydn
11
Perpetuum mobile
C.M.v.Weber
12
Ecossaise
L.v.Beethoven
13
Für Elise
L.v.Beethoven
14
Marcia alla Turca
L.v.Beethoven
15
Piano Sonate op.13 “Pathétique” 2nd mov.
L.v.Beethoven
16
Piano Sonate op.27-2 “Mondschein” 1st mov.
L.v.Beethoven
17
Piano Sonate op.49-2 1st mov.
L.v.Beethoven
18
Impromptu op.90-2
F.P.Schubert
19
Moments Musicaux op.94-3
F.P.Schubert
20
Frühlingslied op.62-2
J.L.F.Mendelssohn
21
Jägerlied op.19b-3
J.L.F.Mendelssohn
22
Fantaisie-Impromptu
F.F.Chopin
23
Prelude op.28-15 “Raindrop”
F.F.Chopin
24
Etude op.10-5 “Black keys”
F.F.Chopin
25
Etude op.10-3 “Chanson de l’adieu”
F.F.Chopin
26
Etude op.10-12 “Revolutionary”
F.F.Chopin
27
Valse op.64-1 “Petit chien”
F.F.Chopin
28
Valse op.64-2
F.F.Chopin
29
Valse op.69-1 “L’adieu”
F.F.Chopin
30
Nocturne op.9-2
F.F.Chopin
31
Träumerei
R.Schumann
32
Fröhlicher Landmann
R.Schumann
33
La prière d’une Vierge
T.Badarzewska
34
Dolly’s Dreaming and Awakening
T.Oesten
35
Arabesque
J.F.Burgmüller
36
Pastorale
J.F.Burgmüller
37
La chevaleresque
J.F.Burgmüller
38
Liebesträume Nr.3
F.Liszt
39
Blumenlied
G.Lange
40
Barcarolle
P.I.Tchaikovsky
41
Melody in F
A.Rubinstein
42
Humoresque
A.Dvorák
ˇ
43
Tango (España)
I.Albéniz
44
The Entertainer
S.Joplin
45
Maple Leaf Rag
S.Joplin
46
La Fille aux Cheveux de Lin
C.A.Debussy
47
Arabesque 1
C.A.Debussy
48
Clair de lune
C.A.Debussy
49
Rêverie
C.A.Debussy
50
Golliwog’s Cakewalk
C.A.Debussy
N-100 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones
MIDI Data Format / MIDI-Datenformat /
Format des données MIDI / Formato de datos MIDI
If you’re already very familiar with MIDI, or are using a computer to control your music hardware with computer-generated MIDI
messages, the data provided in this section can help you to control the N-100.
Falls Sie bereits mit MIDI vertraut sind oder einen Computer zur Erzeugung von MIDI-Steuermeldungen für die Instrumente verwenden,
können Sie sich zur Steuerung des N-100 nach den im folgenden Abschnitt aufgeführten Spezifikationen richten.
Si vous êtes très familier avec l’interface MIDI ou si vous utilisez un ordinateur pour commander votre matériel de musique au moyen de
messages MIDI générés par ordinateur, les données suivantes vous seront utiles et vous aideront à commander le N-100.
SI usted está ya familiarizado con MIDI, o si emplea una computadora para controlar sus aparatos musicales con mensajes MIDI
generados por computadora, los datos proporcionados en esta sección le ayudarán a controlar la N-100.
1. NOTE ON/OFF
3. MODE MESSAGES
Data format: [9nH] -> [kk] -> [vv]
Data format: [BnH] -> [cc] -> [vv]
9nH = Note ON/OFF event (n = channel number)
kk =
Note number (Transmit: 09H–78H = A-2–C8 /
Receive: 00H–7FH = C-2–G8)
vv =
Velocity (Key ON = 01H–7FH, Key OFF = 00H)
Data format: [8nH] -> [kk] -> [vv] (reception only)
8nH = Note OFF event (n = channel number)
kk =
Note number: 00H–7FH = C-2–G8)
vv =
Velocity
2. CONTROL CHANGE
Data format: [BnH] -> [cc] -> [vv]
BnH = Control change (n = channel number)
cc =
Control number
vv =
Data Range
(1) Bank Select
ccH
Parameter
Data Range (vvH)
00H
Bank Select MSB
00H:Normal
20H
Bank Select LSB
00H...7FH
Bank selection processing does not occur until receipt of
next Program Change message.
(2) Main Volume
ccH
Parameter
07H
Volume MSB
Data Range (vvH)
00H...7FH
(3) Expression (reception only)
ccH
Parameter
Data Range (vvH)
0BH Expression MSB
00H...7FH
(4) Sustain
ccH
Parameter
40H
Sustain MSB
Data Range (vvH)
00H...7FH
(5) Sostenuto (reception only)
ccH
Parameter
Data Range (vvH)
42H
Sostenuto
00H...3FH:off, 40H...7FH:on
(6) Soft Pedal (reception only)
ccH
Parameter
Data Range (vvH)
43H
Soft Pedal
00H...3FH:off, 40H...7FH:on
(7) Effect1 Depth (Reverb Send Level)
ccH
Parameter
Data Range (vvH)
5BH Effect1 Depth
00H...7FH
Adjusts the reverb send level.
(8) Effect4 Depth (Variation Effect Send Level)
ccH
Parameter
Data Range (vvH)
5EH Effect4 Depth
00H...7FH
(9) RPN
65H
RPN
MSB
64H
RPN
LSB
06H
Data Entry
MSB
26H
Data Entry
LSB
60H
Data
Increment
61H
Data
Decrement
* Parameters that are controllable with RPN:
• Coarse Tune
• Fine Tune
• Pitch Bend Range
BnH = Control event (n = channel number)
cc =
Control number
vv =
Data Range
(1) All Sound Off
ccH
Parameter
78H
All Sound Off
(2) Reset All Controllers
ccH
Parameter
79H
Reset All Controllers
Resets controllers as follows.
Controller
Expression
Sustain Pedal
Sostenuto
Soft Pedal
Data Range (vvH)
00H
Data Range (vvH)
00H
Value
127 (max)
0 (off)
0 (off)
0 (off)
(3) Local Control (reception only)
ccH
Parameter
Data Range (vvH)
7AH Local Control
00H (off), 7FH (on)
(4) All Notes Off
ccH
Parameter
Data Range (vvH)
7BH All Notes Off
00H
Switches OFF all the notes that are currently ON on the specified channel. Any notes being held by the sustain or sostenuto pedal will continue to sound until the pedal is released.
(5) Omni Off (reception only)
ccH
Parameter
Data Range (vvH)
7CH Omni Off
00H
Same processing as for All Notes Off.
(6) Omni On (reception only)
ccH
Parameter
Data Range (vvH)
7DH Omni On
00H
Same processing as for All Notes Off.
(7) Mono (reception only)
ccH
Parameter
Data Range (vvH)
7EH Mono
00H
Same processing as for All Sound Off.
(8) Poly (reception only)
ccH
Parameter
Data Range (vvH)
7FH
Poly
00H
Same processing as for All Sound Off.
• When Control Change is turned OFF, Control Change messages will not be transmitted or received.
• Local on/off, OMNI on/off are not transmitted. (The appropriate note off number is supplied with “All Note Off” transmission).
• When a voice bank MSB/LSB is received, the number is
stored in the internal buffer regardless of the received order,
then the stored value is used to select the appropriate voice
when a program change message is received.
• Poly mode is always active. This mode will not change when
the instrument receives a MONO/POLY mode message.
N-100 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones
33
4. PROGRAM CHANGE
7. SYSTEM EXCLUSIVE MESSAGES
(Universal System Exclusive)
Data format: [CnH] -> [ppH]
CnH = Program event (n = channel number)
ppH = Program change number
P.C.#= Program Change number
Voice Name
Grand Piano 1
Grand Piano 2
Piano & Strings
Electronic Piano 1
Electronic Piano 2
Church Organ
Jazz Organ
Strings
Harpsichord
Vibraphone
MSB
0
0
0
0
0
0
0
0
0
0
LSB
122
112
125
122
122
123
122
122
122
122
P.C.#
1
1
1
6
5
20
17
49
7
12
• When program change reception is turned OFF, no program
change data is transmitted or received.
• When you specify a program change as a number in the
range of 0–127, specify a number that is one less than the
program change number listed above. For example, to specify
program change number 1, you would specify a value of 0.
5. Pitch Bend Change (reception only)
[EnH] -> [ccH] -> [ddH]
ccH = LSB
ddH = MSB
6. SYSTEM REALTIME MESSAGES
[rrH]
F8H: Timing clock
FAH: Start
FCH: Stop
FEH: Active sensing
Data
F8H
Transmission
Transmitted every
96 clocks
FAH
Song start
FCH
Song stop
FEH
Transmitted every
200 milliseconds
Reception
Received as 96-clock tempo timing
when MIDI clock is set to External.
Song start
Not received when the MIDI clock is
set to Internal.
Song stop
Not received when the MIDI clock is
set to Internal.
If a signal is not received via MIDI for
more than 400 milliseconds, the
same processing will take place for All
Sound Off, All Notes Off and Reset All
Controllers as when those signals are
received.
• If an error occurs during MIDI reception, the Sustain, Sostenuto, and Soft effects for all channels are turned off and an All
Note Off occurs.
34
(1) Universal Realtime Message
Data format: [F0H] -> [7FH] -> [XnH] -> [04H] -> [01H] ->
[llH] -> [mmH] -> [F7H]
MIDI Master Volume
• Simultaneously changes the volume of all channels.
• When a MIDI master volume message is received, the volume
only has affect on the MIDI receive channel, not the panel
master volume.
F0H = Exclusive status
7FH = Universal Realtime
7FH = ID of target device
04H = Sub-ID #1=Device Control Message
01H = Sub-ID #2=Master Volume
llH = Volume LSB
mmH = Volume MSB
F7H = End of Exclusive
or
F0H = Exclusive status
7FH = Universal Realtime
XnH = When received, n=0–F.
X = irrelevant
04H = Sub-ID #1=Device Control Message
01H = Sub-ID #2=Master Volume
llH = Volume LSB
mmH = Volume MSB
F7H = End of Exclusive
(2) Universal Non-Realtime Message (GM On)
General MIDI Mode On
Data format: [F0H] -> [7EH] -> [XnH] -> [09H] -> [01H] ->
[F7H]
F0H = Exclusive status
7EH = Universal Non-Realtime
7FH = ID of target device
09H = Sub-ID #1=General MIDI Message
01H = Sub-ID #2=General MIDI On
F7H = End of Exclusive
or
F0H = Exclusive status
7EH = Universal Non-Realtime
XnH = When received, n=0–F.
X = irrelevant
09H = Sub-ID #1=General MIDI Message
01H = Sub-ID #2=General MIDI On
F7H = End of Exclusive
When the General MIDI mode ON message is received, the
MIDI system will be reset to its default settings.
This message requires approximately 50ms to execute, so
sufficient time should be allowed before the next message is
sent.
N-100 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones
8. SYSTEM EXCLUSIVE MESSAGES (XG Standard)
(1) XG Native Parameter Change
Data format: [F0H] -> [43H] -> [1nH] -> [4CH] -> [hhH] ->
[mmH] -> [llH] -> [ddH] -> [F7H]
F0H = Exclusive status
43H = YAMAHA ID
1nH = When received, n=0–F.
When transmitted, n=0.
4CH = Model ID of XG
hhH = Address High
mmH = Address Mid
llH = Address Low
ddH = Data
|
F7H = End of Exclusive
Data size must match parameter size (2 or 4 bytes).
When the XG System On message is received, the MIDI system will be reset to its default settings.
The message requires approximately 50ms to execute, so
sufficient time should be allowed before the next message is
sent.
(2) XG Native Bulk Data (reception only)
Data format: [F0H] -> [43H] -> [0nH] -> [4CH] -> [aaH] ->
[bbH] -> [hhH] -> [mmH] -> [llH] ->[ddH] ->...->
[ccH] -> [F7H]
F0H = Exclusive status
43H = YAMAHA ID
0nH = When received, n=0–F.
When transmitted, n=0.
4CH = Model ID of XG
aaH = ByteCount
bbH = ByteCount
hhH = Address High
mmH = Address Mid
llH = Address Low
ddH = Data
|
|
|
|
ccH = Check sum
F7H = End of Exclusive
10. SYSTEM EXCLUSIVE MESSAGES (Special Control)
Data format: [F0H] -> [43H] -> [73H] -> [7FH] -> [4H]B ->
[11H] -> [0nH] -> [ccH] -> [vvH] -> [F7H]
F0H =
43H =
73H =
7FH =
4BH =
11H =
0nH =
cc =
vv =
F7H =
Exclusive status
Yamaha ID
Digital Piano ID
Extended Product ID
Product ID
Special control
Control MIDI change (n=channel number)
Control number
Value
End of Exclusive
Control
Channel
ccH
vvH
Channel Detune ch: 00H–0FH 43H (Sets the Detune value
for each channel)
00H–7FH
Voice Reserve ch: 00H–0FH 45H
00H : Reserve off
7FH : on*
* When Volume, Expression is received for Reserve On, they
will be effective from the next Key On. Reserve Off is normal.
11. SYSTEM EXCLUSIVE MESSAGES (Others)
Data format: [F0H] -> [43H] -> [1nH] -> [27H] -> [30H] -> [00H]
-> [00H] -> [mmH] -> [llH] -> [ccH] -> [F7H]
Master Tuning (XG and last message priority) simultaneously
changes the pitch of all channels.
F0H = Exclusive Status
43H = Yamaha ID
1nH = When received, n=0–F.
When transmitted, n=0.
27H = Model ID of TG100
30H = Sub ID
00H
=
00H
=
mmH = Master Tune MSB
llH = Master Tune LSB
ccH = irrelevant (under 7FH)
F7H = End of Exclusive
• Receipt of the XG SYSTEM ON message causes reinitialization of relevant parameters and Control Change values. Allow
sufficient time for processing to execute (about 50 msec)
before sending the N-100 another message.
• XG Native Parameter Change message may contain two or
four bytes of parameter data (depending on the parameter
size).
• For information about the Address and Byte Count values,
refer to Table 1 below. Note that the table’s Total Size value
gives the size of a bulk block. Only the top address of the
block (00H, 00H, 00H) is valid as a bulk data address.
9. SYSTEM EXCLUSIVE MESSAGES
(Digital Piano MIDI Format)
Data format: [F0H] -> [43H] -> [73H] -> [01H] -> [nnH] -> [F7H]
F0H =
43H =
73H =
01H =
nnH =
02H
03H
F7H =
Exclusive status
Yamaha ID
Digital Piano ID
Product ID (digital piano common)
Substatus
Internal MIDI clock
External MIDI clock
End of Exclusive
N-100 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones
35
<Table 1>
MIDI Parameter Change table (SYSTEM)
Address (H) Size (H)
Data (H)
00 00 00
4
020C–05F4(*1)
01
02
03
04
1
7E
7F
TOTAL SIZE 07
00–7F
00
00
Parameter
MASTER TUNE
MASTER VOLUME
XG SYSTEM ON
RESET ALL PARAMETERS
Description
-50–+50[cent]
1st bit 3–0 ➝ bit 15–12
2nd bit 3–0 ➝ bit 11–8
3rd bit 3–0 ➝ bit 7–4
4th bit 3–0 ➝ bit 3–0
0–127
00=XG sytem ON
00=ON (receive only)
Default value (H)
00 04 00 00
400
7F
*1: Values lower than 020CH select -50 cents. Values higher than 05F4H select +50 cents.
<Table 2>
MIDI Parameter Change table (EFFECT 1)
Refer to the “Effect MIDI Map” for a complete list of Reverb, Chorus and Variation type numbers.
Address (H)
02 01 00
Size (H)
2
02 01 40
2
Data (H)
00–7F
00–7F
Parameter
REVERB TYPE MSB
REVERB TYPE LSB
00–7F
VARIATION TYPE MSB
00–7F
VARIATION TYPE LSB
• “VARIATION” refers to the EFFECT on the panel.
Description
Refer to Effect MIDI Map
00 : basic type
Default value (H)
01 (=HALL1)
00
Refer to Effect MIDI Map
00 : basic type
00 (=Effect off)
00
Description
0–127
Default value (H)
7F
<Table 3>
MIDI Parameter Change table (MULTI PART)
Address (H) Size (H)
08 nn 11
1
nn = Part Number
Data (H)
00–7F
Parameter
DRY LEVEL
• Effect MIDI Map
REVERB
ROOM
HALL 1
HALL 2
STAGE
OFF
MSB
02H
01H
01H
03H
00H
LSB
10H
10H
11H
10H
00H
MSB
42H
48H
46H
47H
00H
LSB
10H
10H
10H
10H
00H
EFFECT
CHORUS
PHASER
TREMOLO
ROTARY SP
OFF
36
N-100 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones
MIDI
Implementation Chart
YAMAHA [ Digital Piano ]
Date : 08-APR-2005
Version : 1.0
Model N-100 MIDI Implementation Chart
Function
Transmitted
Recognized
Basic
Channel
Default
Changed
1
1 - 16
1 - 16
1 - 16
Mode
Default
Messages
Altered
3
x
**************
3
x
x
0 - 127
**************
0 - 127
0 - 127
Note
Number : True voice
Velocity
Note ON o 9nH,v=1-127
Note OFF x
o 9nH,v=1-127
x
After
Touch
Key's
Ch's
x
x
x
x
x
o 0 - 24 semi
0,32
1
7
10
11
6,38
64,66,67
84
91,94
96-97
100-101
o
x
x
x
x
x
o
x
o
x
x
o
o
o
o
o
o
o
o
o
o
o
o 0 - 127
**************
o 0 - 127
True #
o
o
: Song Pos. x
: Song Sel. x
: Tune
x
x
x
x
Pitch Bend
Control
Change
Prog
Change
:
System Exclusive
Common
System
: Clock
Real Time : Commands
o
o
o
o
:
:
:
Mes- :
sages:
:
o
o
x
o
o
x
o
o
o
o
o
x
Aux
All Sound Off
Reset All Cntrls
Local ON/OFF
All Notes OFF
Active Sense
Reset
Remarks
Bank Select
Modulation
Main Volume
Panpot
Expression
Data Entry
Portamento Control
Effect Depth
RPN Inc,Dec
RPN LSB,MSB
(120,126,127)
(121)
(122)
(123-125)
Notes:
Mode 1 : OMNI ON , POLY
Mode 3 : OMNI OFF, POLY
Mode 2 : OMNI ON ,MONO
Mode 4 : OMNI OFF,MONO
o : Yes
x : No
N-100 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones
37
Specifications / Technische Daten /
Caractéristiques techniques / Especificaciones
Keyboard
GH keyboard 88 keys (A-1–C7)
Sound Source
AWM Dynamic Stereo Sampling
Polyphony (Max.)
64
Voice Selection
10
Effect
Reverb
Volume
Master Volume
Controls
Dual, Transpose, Touch (Hard/Medium/Soft/Fixed)
Pedal
Demo Songs
Jacks/Connectors
Main Amplifiers
Speakers
Dimensions (W × D × H)
Weight
Accessories
Damper (with half-pedal), Sostenuto, Soft
10 voice Demo Songs, 50 preset Songs
MIDI (IN/OUT), PHONES × 2, AUX OUT (LEVEL FIXED) (L, R)
20 W × 2
(12 cm × 6 cm) × 2 + 16 cm × 2
1,460 mm x 542 mm x 793 mm (57-1/2" x 21-1/3" x 31-1/4")
46 kg (101 lbs. 7 oz.)
Owner’s Manual, Quick Operation Guide, Assembly Parts
* Specifications and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves the right to change or modify
products or specifications at any time without prior notice. Since specifications, equipment or options may not be the same in every locale, please
check with your Yamaha dealer.
* Die technischen Daten und Beschreibungen in dieser Bedienungsanleitung dienen nur der Information. Yamaha Corp. behält sich das Recht vor,
Produkte oder deren technische Daten jederzeit ohne vorherige Ankündigung zu verändern oder zu modifizieren. Da die technischen Daten, das
Gerät selbst oder Sonderzubehör nicht in jedem Land gleich sind, setzen Sie sich im Zweifel bitte mit Ihrem Yamaha-Händler in Verbindung.
* Les caractéristiques techniques et les descriptions du mode d’emploi ne sont données que pour information. Yamaha Corp. se réserve le droit de
changer ou modifier les produits et leurs caractéristiques techniques à tout moment sans aucun avis. Du fait que les caractéristiques techniques, les
équipements et les options peuvent différer d’un pays à l’autre, adressez-vous au distributeur Yamaha le plus proche.
* Las especificaciones y descripciones de este manual del propietario tienen sólo el propósito de servir como información. Yamaha Corp. se reserva el
derecho a efectuar cambios o modificaciones en los productos o especificaciones en cualquier momento sin previo aviso. Puesto que las especificaciones, equipos u opciones pueden no ser las mismas en todos los mercados, solicite información a su distribuidor Yamaha.
38
N-100 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones
MEMO
N-100 Owner’s Manual / Bedienungsanleitung / Mode d’emploi / Manual de instrucciones
39
FCC INFORMATION (U.S.A.)
other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur
in all installations. If this product is found to be the
source of interference, which can be determined by
turning the unit “OFF” and “ON”, please try to eliminate
the problem by using one of the following measures:
Relocate either this product or the device that is being
affected by the interference.
Utilize power outlets that are on different branch (circuit
breaker or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient
the antenna. If the antenna lead-in is 300 ohm ribbon
lead, change the lead-in to co-axial type cable.
If these corrective measures do not produce satisfactory results, please contact the local retailer authorized
to distribute this type of product. If you can not locate
the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600
Orangethorpe Ave, Buena Park, CA90620
The above statements apply ONLY to those products
distributed by Yamaha Corporation of America or its
subsidiaries.
1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by
Yamaha may void your authority, granted by the FCC, to
use the product.
2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality
shielded cables. Cable/s supplied with this product
MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.
3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations,
Part 15 for Class “B” digital devices. Compliance with
these requirements provides a reasonable level of
assurance that your use of this product in a residential
environment will not result in harmful interference with
other electronic devices. This equipment generates/
uses radio frequencies and, if not installed and used
according to the instructions found in the users manual,
may cause interference harmful to the operation of
* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.
IMPORTANT NOTICE FOR THE UNITED KINGDOM
Connecting the Plug and Cord
IMPORTANT. The wires in this mains lead are coloured in accordance
with the following code:
BLUE
: NEUTRAL
BROWN : LIVE
As the colours of the wires in the mains lead of this apparatus may not
correspond with the coloured makings identifying the terminals in your
plug proceed as follows:
The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.
Making sure that neither core is connected to the earth terminal of the
three pin plug.
• This applies only to products distributed by Yamaha-Kemble Music (U.K.) Ltd.
(2 wires)
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU
FOND.
• This applies only to products distributed by Yamaha Canada Music Ltd.
(polarity)
• Ceci ne s’applique qu’aux produits distribués par Yamaha Canada Musique Ltée.
(class B)
For details of products, please contact your nearest Yamaha
representative or the authorized distributor listed below.
Pour plus de détails sur les produits, veuillez-vous adresser à Yamaha ou
au distributeur le plus proche de vous figurant dans la liste suivante.
NORTH AMERICA
CANADA
Yamaha Canada Music Ltd.
135 Milner Avenue, Scarborough, Ontario,
M1S 3R1, Canada
Tel: 416-298-1311
Die Einzelheiten zu Produkten sind bei Ihrer unten aufgeführten
Niederlassung und bei Yamaha Vertragshändlern in den jeweiligen
Bestimmungsländern erhältlich.
Para detalles sobre productos, contacte su tienda Yamaha más cercana
o el distribuidor autorizado que se lista debajo.
THE NETHERLANDS/
BELGIUM/LUXEMBOURG
Yamaha Music Central Europe GmbH,
Branch Benelux
Clarissenhof 5-b, 4133 AB Vianen, The Netherlands
Tel: 0347-358 040
FRANCE
U.S.A.
Yamaha Corporation of America
6600 Orangethorpe Ave., Buena Park, Calif. 90620,
U.S.A.
Tel: 714-522-9011
CENTRAL & SOUTH AMERICA
MEXICO
Yamaha de México S.A. de C.V.
Calz. Javier Rojo Gómez #1149,
Col. Guadalupe del Moral
C.P. 09300, México, D.F., México
Tel: 55-5804-0600
Yamaha Musique France
BP 70-77312 Marne-la-Vallée Cedex 2, France
Tel: 01-64-61-4000
ITALY
Yamaha Musica Italia S.P.A.
Viale Italia 88, 20020 Lainate (Milano), Italy
Tel: 02-935-771
SPAIN/PORTUGAL
Yamaha-Hazen Música, S.A.
Ctra. de la Coruna km. 17, 200, 28230
Las Rozas (Madrid), Spain
Tel: 91-639-8888
GREECE
BRAZIL
Yamaha Musical do Brasil Ltda.
Av. Reboucas 2636-Pinheiros CEP: 05402-400
Sao Paulo-SP. Brasil
Tel: 011-3085-1377
ARGENTINA
Yamaha Music Latin America, S.A.
Sucursal de Argentina
Viamonte 1145 Piso2-B 1053,
Buenos Aires, Argentina
Tel: 1-4371-7021
PANAMA AND OTHER LATIN
AMERICAN COUNTRIES/
CARIBBEAN COUNTRIES
Yamaha Music Latin America, S.A.
Torre Banco General, Piso 7, Urbanización Marbella,
Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, Panamá
Tel: +507-269-5311
EUROPE
THE UNITED KINGDOM
Yamaha-Kemble Music (U.K.) Ltd.
Sherbourne Drive, Tilbrook, Milton Keynes,
MK7 8BL, England
Tel: 01908-366700
IRELAND
Danfay Ltd.
61D, Sallynoggin Road, Dun Laoghaire, Co. Dublin
Tel: 01-2859177
GERMANY
Yamaha Music Central Europe GmbH
Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: 04101-3030
SWITZERLAND/LIECHTENSTEIN
Yamaha Music Central Europe GmbH,
Branch Switzerland
Seefeldstrasse 94, 8008 Zürich, Switzerland
Tel: 01-383 3990
AUSTRIA
Yamaha Music Central Europe GmbH,
Branch Austria
Schleiergasse 20, A-1100 Wien, Austria
Tel: 01-60203900
CZECH REPUBLIC/SLOVAKIA/
HUNGARY/SLOVENIA
Yamaha Music Central Europe GmbH,
Branch Austria, CEE Department
Schleiergasse 20, A-1100 Wien, Austria
Tel: 01-602039025
POLAND
Philippos Nakas S.A. The Music House
147 Skiathou Street, 112-55 Athens, Greece
Tel: 01-228 2160
ASIA
THE PEOPLE’S REPUBLIC OF CHINA
Yamaha Music & Electronics (China) Co.,Ltd.
25/F., United Plaza, 1468 Nanjing Road (West),
Jingan, Shanghai, China
Tel: 021-6247-2211
HONG KONG
Tom Lee Music Co., Ltd.
11/F., Silvercord Tower 1, 30 Canton Road,
Tsimshatsui, Kowloon, Hong Kong
Tel: 2737-7688
INDONESIA
PT. Yamaha Music Indonesia (Distributor)
PT. Nusantik
Gedung Yamaha Music Center, Jalan Jend. Gatot
Subroto Kav. 4, Jakarta 12930, Indonesia
Tel: 21-520-2577
KOREA
Yamaha Music Korea Ltd.
Tong-Yang Securities Bldg. 16F 23-8 Yoido-dong,
Youngdungpo-ku, Seoul, Korea
Tel: 02-3770-0660
MALAYSIA
Yamaha Music Malaysia, Sdn., Bhd.
Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,
Petaling Jaya, Selangor, Malaysia
Tel: 3-78030900
SWEDEN
Yamaha Scandinavia AB
J. A. Wettergrens Gata 1
Box 30053
S-400 43 Göteborg, Sweden
Tel: 031 89 34 00
PHILIPPINES
DENMARK
YS Copenhagen Liaison Office
Generatorvej 6A
DK-2730 Herlev, Denmark
Tel: 44 92 49 00
FINLAND
F-Musiikki Oy
Kluuvikatu 6, P.O. Box 260,
SF-00101 Helsinki, Finland
Tel: 09 618511
Yupangco Music Corporation
339 Gil J. Puyat Avenue, P.O. Box 885 MCPO,
Makati, Metro Manila, Philippines
Tel: 819-7551
SINGAPORE
Yamaha Music Asia Pte., Ltd.
#03-11 A-Z Building
140 Paya Lebor Road, Singapore 409015
Tel: 747-4374
TAIWAN
NORWAY
Norsk filial av Yamaha Scandinavia AB
Grini Næringspark 1
N-1345 Østerås, Norway
Tel: 67 16 77 70
ICELAND
Skifan HF
Skeifan 17 P.O. Box 8120
IS-128 Reykjavik, Iceland
Tel: 525 5000
Yamaha KHS Music Co., Ltd.
3F, #6, Sec.2, Nan Jing E. Rd. Taipei.
Taiwan 104, R.O.C.
Tel: 02-2511-8688
THAILAND
