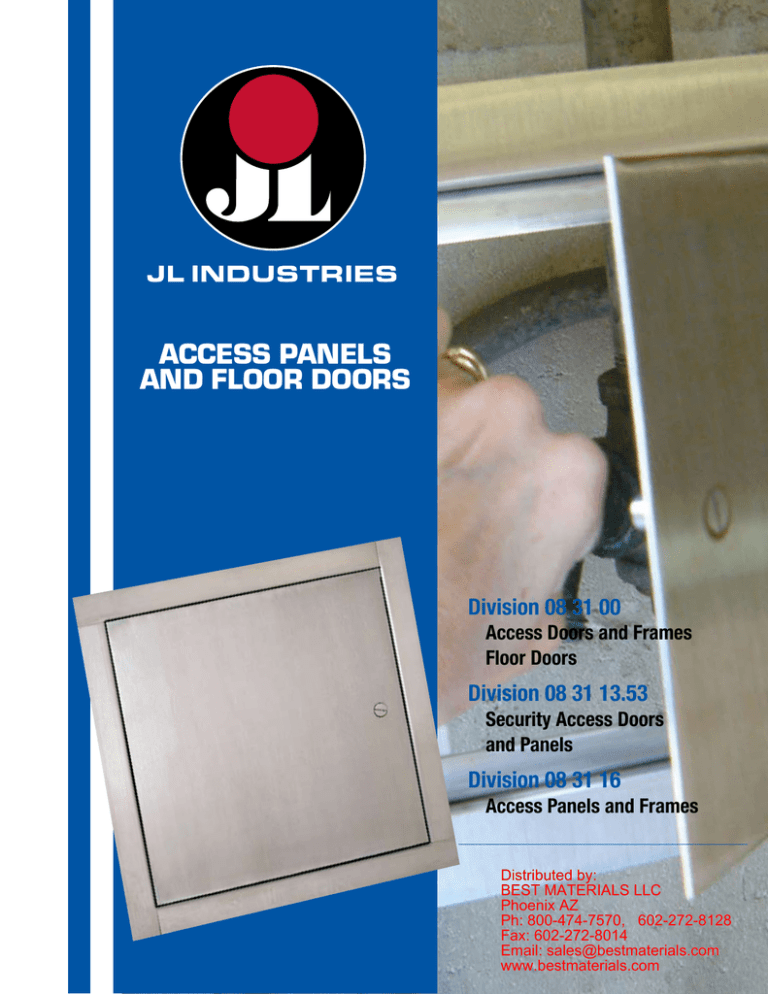

Access PAnels And Floor doors Division 08 31 00 Division 08 31 13.53

Access PAnels And Floor doors Division 08 31 00 Division 08 31 13.53
Access Panels
and Floor Doors
Division 08 31 00
Access Doors and Frames
Floor Doors
Division 08 31 13.53
Security Access Doors
and Panels
Division 08 31 16
Access Panels and Frames
Distributed by:
BEST MATERIALS LLC
Phoenix AZ
Ph: 800-474-7570, 602-272-8128
Fax: 602-272-8014
Email: [email protected]
www.bestmaterials.com
Interior Access Panels: Fire-Rated
FIRE-RATED & INSULATED CONCEALED FRAME
ACCESS PANELS: FD & FDPW Series
FDWB: Wallboard Bead (Wall or Ceiling):
Frame: 16 gauge with 1” drywall bead that can be taped for a smooth appearance.
Door: 2” thick, insulated 20 gauge steel with continuous hinge.
Finish: Gray powder coat primer.
Latch: Universal turn ring and key lock (U).
FDPW: Plaster (Wall or Ceiling):
Frame: 16 gauge with 3/4” plasterguard.
Door: 2” thick, insulated 20 gauge steel with continuous hinge.
Finish: Gray powder coat primer.
Latch: Universal turn ring and key lock (U).
Options: Custom Colors, Galvanized Finish, Mortise Slam Lock Prep (UM) or
Mortise Slam Lock Installed (UMI), 3” Metal Lath for FDPW.
Model FDWB with Wallboard Bead
See Optional Colors on Page 12.
Fire-Rating of FDWB & FDPW:
Wall Installation: 1-1/2 hour UL“B” label in a 2 hour fire barrier.
File # R13067-1. Maximum size 48” x 48”
Ceiling Installation: Warnock Hersey listed for floor or ceiling installations
with 3 hour non-combustible rating or 1 hour combustible rating.
File # WHI-495-PSH-0163. Maximum size 24” x 36”
CSFM: This product has been approved by the California State Fire Marshall
(CSFM) pursuant to Section 13144.1 of the California Health and Safety Code.
See CSFM Listing No 3330-1223:101 for allowable values and/or conditions for
use concerning material presented in this document. It is subject reexamination,
revision and possible cancellation.
Model FDPW with Plasterguard
FDWB
Wall Installation
FDWB
FDPW
Ceiling Installation
FDPW
FD SERIES ACCESS PANELS - MODELS FD, FDSS, HGFD, FDWB & FDPW
A
Model Size
Width x Height
02
8" x 8"
10" x 10"
12" x 12"
14" x 14"
16" x 16"
18" x 18"
20" x 20"
22” x 30”
22” x 22”
22" x 30"
22" x 36"
24" x 24"
24" x 36"
24" x 48"
30" x 30"
32" x 32"
36" x 36"
36" x 48"
B
Outside
Frame Dimensions
Width
10"
12"
14"
16"
18"
20"
22"
24”
24”
24"
24"
26"
26"
26"
32"
34"
38"
38"
Height
10"
12"
14"
16"
18"
20"
22"
32”
24”
32"
38"
26"
38"
50"
32"
34"
38"
50"
C-Wall Opening Dimensions
D-Opening Dimensions
1 1/2 Hour UL “B” Rated Wall
3-Hour Non-Combustible Ceiling
1-Hour Combustible Ceiling
Allowance for Fire-Rated Liner of
Opening
Width
8 3/8"
10 3/8"
12 3/8"
14 3/8"
16 3/8"
18 3/8"
20 3/8"
22 3/8”
22 3/8”
22 3/8"
22 3/8"
24 3/8"
24 3/8"
24 3/8"
30 3/8"
32 3/8"
36 3/8"
36 3/8"
Height
8 3/8"
10 3/8"
12 3/8"
14 3/8"
16 3/8"
18 3/8"
20 3/8"
30 3/8”
22 3/8”
30 3/8"
36 3/8"
24 3/8"
36 3/8"
48 3/8"
30 3/8"
32 3/8"
36 3/8"
48 3/8"
Width
9 5/8"
11 5/8"
13 5/8"
15 5/8"
17 5/8"
19 5/8"
21 5/8"
21 5/8”
23 5/8”
23 5/8"
23 5/8"
25 5/8"
25 5/8"
-
Height
9 5/8"
11 5/8"
13 5/8"
15 5/8"
17 5/8"
19 5/8"
21 5/8"
31 5/8”
23 5/8”
31 5/8"
37 5/8"
25 5/8"
37 5/8"
-
Custom Sizes and Modifications Available Upon Request
To order call
1-800-474-7570
Approximate
Shipping Weight
FD
6 lbs.
8 lbs.
10 lbs.
12 lbs.
15 lbs.
17 lbs.
21 lbs.
28 lbs.
26 lbs.
29 lbs.
36 lbs.
27 lbs.
37 lbs.
54 lbs.
38 lbs.
43 lbs.
52 lbs.
61 lbs.
FDSS
6 lbs.
8 lbs.
10 lbs.
12 lbs.
15 lbs.
18 lbs.
22 lbs.
29 lbs.
27 lbs.
30 lbs.
37 lbs.
28 lbs.
38 lbs.
56 lbs.
40 lbs.
41 lbs.
54 lbs.
64 lbs.
Latch(es)
HGFD
11 lbs.
15 lbs.
17 lbs.
22 lbs.
24 lbs.
30 lbs.
51 lbs.
53 lbs.
51 lbs.
53 lbs.
58 lbs.
47 lbs.
60 lbs.
85 lbs.
62 lbs.
81 lbs.
92 lbs.
114 lbs.
1
1
1
1
1
1
1
1
1
1
2
1
2
2
2
2
2
2
Interior Access Panels: Fire-Rated
FIRE-RATED FLUSH ACCESS PANELS: FD Series
FD: Standard Panel (Wall or Ceiling):
Frame & Trim: 16 gauge steel with a 1” flange. Welded-on masonry anchor.
Door: 2” thick, insulated 20 gauge steel with continuous hinge.
Finish: Gray powder coat primer.
Latch: Universal turn ring and key lock (U).
FDSS: Stainless Steel (Wall or Ceiling):
Frame: 16 gauge stainless steel with 1” wall flange. Welded on masonry anchor.
Door: 2” thick, insulated 20 gauge stainless steel with continuous hinge.
Finish: 304 stainless steel - #4 satin finish.
Latch: Universal turn ring and key lock (U).
HGFD: Heavy Gauge and Security (Wall):
Frame: 14 gauge steel with 1” wall flange. Welded-on masonry anchor.
Door: 2” thick, insulated 14 gauge steel with continuous hinge.
Finish: Gray powder coat primer.
Latch: Universal turn ring and key lock (U).
Options: Custom Colors, Galvanized Finish, Mortise Slam Lock Prep (UM) or Mortise
Slam Lock Installed (UMI). See Optional Colors on Page 12. See also non-rated
security panels on page 8.
Model FD
Fire-Rating of FD, FDSS & HGFD:
Wall Installation:1-1/2 hour UL“B” label in a 2 hour fire barrier.
File # R13067-1. Maximum size 48” x 48”
Ceiling Installation: Warnock Hersey listed for floor or ceiling installations
with 3 hour non-combustible rating or 1 hour combustible rating.
File # WHI-495-PSH-0163. Maximum size 24” x 36”
CSFM: This product has been approved by the California State Fire Marshall
(CSFM) pursuant to Section 13144.1 of the California Health and Safety Code.
See CSFM Listing No 3330-1223:101 for allowable values and/or conditions for
use concerning material presented in this document. It is subject reexamination,
revision and possible cancellation.
Universal Turn Ring
and key lock included
VERSATILE
MANUFACTURING
CAPABILITIES
All Fire-Rated Models Shown in Chart at Left:
We’re Ready to Help—Just Ask Us!
Wall Installation - FD-FDSS-HGFD Top View
Order Format
For Fire-Rated Models:
Ceiling Installation - FD-FDSS-HGFD Side View
Style Code
Width
Height
Latch
(U Standard, UM & UMI Optional)
Optional Color Code FD &
HGFD (Pg 12)
Example: HGFD-1212UMI-W
To order call
03
Distributed by: BEST MATERIALS LLC
Ph: 800-474-7570, 602-272-8128
Email: [email protected]
www.bestmaterials.com
Interior Access Panels: Flush
Multi-Purpose FLUSH STEEL ACCESS PANEL:
TM and TMS Series
TM: Standard Panel (Wall or Ceiling)
Frame: 16 gauge steel with a 1" wall flange.
Door: 16 gauge steel access door mounted with mounted with 90° continuous,
concealed hinge.
Finish: Gray powder coat primer.
Lock: Flush screwdriver-operated steel cam (C).
TMS: Standard Stainless Steel Panel (Wall or Ceiling)
Frame: 16 gauge stainless steel with 1" wall flange.
Door: 16 gauge stainless steel access door mounted with 90° continuous,
concealed hinge.
Finish: 304 stainless - #4 satin finish.
Lock: Flush screwdriver-operated cam (C).
Options: Custom Colors, Double Door, Louvered Vents, Plexiglass View Window,
Removeable Door (no hinge), Rainhood, Gasketing, Galvanized Finish (TMG), Cylinder
Lock, Mortise Cam Latch, Mortise Deadbolt Lock, Mortise Slam Latch, Knob Cam,
Torx, Spanner or Hex Head Cam.
model tm
See Optional Colors and Locks on Page 12.
Model TM
Model TMS
model tms stainless steel
Door Sizes and Wall/Ceiling Openings: Models TM and TMS
A-Model
Size
Width x
Height
6" x 6"
8" x 8"
8" x 12"
10" x 10"
12" x 12"
12" x 16"
12" x 18"
12" x 24"
14" x 14"
16" x 16"
16" x 20"
Width
Height
Width
Height
Dimensions in Inches • Weight in Pounds
A-Model
B-Outside Frame
Shipping Latch(es)
Size
Dimensions
Weight
Width x
Width
Height
Height
8"
10"
10"
12"
14"
14"
14"
14"
16"
18"
18"
8"
10"
14"
12"
14"
18"
20"
26"
16"
18"
22"
6 3/8"
8 3/8"
8 3/8"
10 3/8"
12 3/8"
12 3/8"
12 3/8"
12 3/8"
14 3/8"
16 3/8"
16 3/8"
6 3/8"
8 3/8"
12 3/8"
10 3/8"
12 3/8"
16 3/8"
18 3/8"
24 3/8"
14 3/8"
16 3/8"
20 3/8"
4 lbs.
4 lbs.
6 lbs.
6 lbs.
7 lbs.
9 lbs.
10 lbs.
12 lbs.
9 lbs.
11 lbs.
13 lbs.
B-Outside Frame
Dimensions
C-Wall Opening
Dimensions
1
1
1
1
1
1
1
2
1
1
1
18" x 18"
20" x 24"
20" x 30"
22" x 22"
22" x 30"
22" x 36"
24" x 24"
24" x 30"
24" x 36"
30" x 30"
36" x 36"
20"
22"
22"
24"
24"
24"
26"
26"
26"
32"
38"
20"
26"
32"
24"
32"
38"
26"
32"
38"
32"
38"
C-Wall Opening
Dimensions
Width
Height
Approx.
Shipping Latch(es)
Weight
18 3/8"
20 3/8"
20 3/8"
22 3/8"
22 3/8"
22 3/8"
24 3/8"
24 3/8"
24 3/8"
30 3/8"
36 3/8"
18 3/8"
24 3/8"
30 3/8"
22 3/8"
30 3/8"
36 3/8"
24 3/8"
30 3/8"
36 3/8"
30 3/8"
36 3/8"
12 lbs.
15 lbs.
20 lbs.
17 lbs.
22 lbs.
24 lbs.
18 lbs.
22 lbs.
25 lbs.
30 lbs.
41 lbs.
1
2
4
4
4
5
4
5
5
5
5
Custom Sizes and Special Modifications Available Upon Request
Order Format
04
For Above Models:
Style Code
Width
Height
Lock (C Standard or Optional)
Example: TM-2424C-W
Distributed by: BEST MATERIALS LLC
800-474-7570, 602-272-8128
Email: [email protected]
www.bestmaterials.com
To order call Ph:
Optional TM Color
Interior Access Panels: Concealed Frame
CONCEALED FRAME FLUSH ACCESS PANELS FOR
DRYWALL OR PLASTER: WB, PW, and PWE, Series
WB: Wallboard Bead (Wall or Ceiling)
Frame: 16 gauge with 1" drywall bead that can be taped and mudded.
Door: 16 gauge steel with concealed continuous hinge.
Finish: Gray powder coat primer.
Lock: Flush screwdriver-operated cam (C).
PW: Plaster (Wall or Ceiling)
Frame: 16 gauge steel with 3/4" plasterguard for application of plaster.
Door: 16 gauge steel with concealed continuous hinge.
Finish: Gray powder coat primer.
Lock: Flush screwdriver-operated cam (C).
PWE: Plaster (Wall or Ceiling)
Frame: 16 gauge steel with 3/4" plasterguard with an additional 3" wide wing of
metal lath for a plaster application to the edge of the door.
Door: 16 gauge steel with concealed continuous hinge.
Finish: Gray powder coat primer.
Lock: Flush screwdriver-operated cam (C).
model WB
Options: Cylinder Lock, Knob Cam, Torx, Spanner or Hex Head Cam, Custom Colors,
Plexiglass View Window, Removeable Door (no hinge). WB, & PW Options: Also
include Mortise Cam Latch, Mortise Deadbolt Lock and Mortise Slam Latch.
See Optional Colors and Locks on Page 12.
Model WB
Model PW
Model PW
Door Sizes and Wall Openings
A-Model
Size
8" x 8"
10" x 10"
12" x 12"
14" x 14"
16" x 16"
16" x 20"
18" x 18"
22" x 22"
22" x 30"
24" x 24"
C-Wall Opening Dimension
WB
8 1/2" x 8 1/2"
10 1/2" x 10 1/2"
12 1/2" x 12 1/2"
14 1/2" x 14 1/2"
16 1/2” x 16 1/2”
18 1/2" x 18 1/2"
22 1/2" x 22 1/2"
22 1/2" x 30 1/2"
24 1/2" x 24 1/2"
Shipping Weight
PW & PWE
-
WB,PW,PWE
12 1/4" x 12 1/4"
16 1/4" x 16 1/4"
16 1/4" x 20 1/4"
18 1/4" x 18 1/4"
24 1/4" x 24 1/4"
4 lbs.
5 lbs.
7 lbs.
8 lbs.
10 lbs.
12 lbs.
12 lbs.
16 lbs.
21 lbs.
19 lbs.
Latch(es)
1
1
1
1
1
1
3
4
4
4
Custom Sizes and Special Modifications Available Upon Request
Model PWE
Order Format
For Above Models:
Style Code
Width
Height
Lock (C Standard or Optional)
Optional Color Code Pg 12
Example: WB-1212SCH-R
Distributed by: BEST MATERIALS LLC
800-474-7570, 602-272-8128
Email: [email protected]
www.bestmaterials.com
To order call Ph:
05
Interior Access Panels: Concealed Frame
CONCEALED FRAME FLUSH ACCESS PANELS FOR
PLASTER OR TILE/WALLBOARD INSERT:
CP, CT and CTWB Series
CTWB: Recessed Door for Wallboard Insert: (Wall or Ceiling):
Door face is recessed 1” to accept wallboard insert to match
surrounding surface. This access door provides the most seamless
look of all JL models.
Frame: 16 gauge steel.
Door: 18 gauge steel, recessed 1” for drywall covering, with continuous hinge.
Finish: White powder-coat finish.
Lock: Flush screwdriver-operated cam (C).
CT: Recessed Door for Acoustic Tile Insert: (Wall or Ceiling):
Not for use with suspended ceiling -requires installation into joists.
Door face is recessed 1” to accept application of acoustic tile or wallboard
to match surrounding surface.
Frame: 16 gauge steel.
Door: 18 gauge steel, recessed 1” for tile or drywall covering with continuous hinge.
Finish: White power-coat finish.
Lock: Flush screwdriver-operated cam (C).
Model CTWB
CP: Recessed Panel for Plaster (Wall or Ceiling)
Door face has Plasterguard in 1/2” Recess, and the frame features 3”
expanded metal lath wings to accept application of plaster to match
surrounding plaster walls.
Frame: 16 gauge Steel with 3/4” plasterguard and with an additional 3” wide wing
of metal lath for a plaster application to the edge of the door.
Door: Metal lath over 18 gauge steel with continuous hinge.
Finish: Gray powder coat primer.
Lock: Flush screwdriver-operated cam (C).
See Optional Colors and Locks on Page 12.
Options: Cylinder Lock, Torx, Spanner or Hex Head Cam. CT and CTWB are available
with recessed door depth from 1/4” to 7/8”.
Door Sizes and Wall Openings
Model CT
A-Model
Size
C-Wall Opening Dimension
12" x 12"
12" x 24"
18" x 18"
22" x 30"
24" x 24"
24" x 36"
12 1/4" x 12 1/4"
12 1/4" x 24 1/4"
18 1/4" x 18 1/4"
22 1/4" x 30 1/4"
24 1/4" x 24 1/4"
24 1/4" x 36 1/4"
CT, CTWB & CP
Approx. Shipping Weight
CT
CTWB
CP
7 lbs.
11 lbs.
12 lbs.
21 lbs.
19 lbs.
27 lbs.
7 lbs.
11 lbs.
12 lbs.
21 lbs.
19 lbs.
27 lbs.
9 lbs.
14 lbs.
14 lbs.
21 lbs.
20 lbs.
31 lbs.
Latch(es)
1
2
3
4
4
5
Custom Sizes and Special Modifications Available Upon Request
Model CTWB
for Wallboard Insert
Model CP
Order Format
06
For Above Models:
Style Code
Width
Height
Lock (C Standard or Optional)
Example: CTWB-1212CA
To order call
Model CT
for Acoustic Tile Insert
Distributed by: BEST MATERIALS LLC
Ph: 800-474-7570, 602-272-8128
Email: [email protected]
Optional Color Code
exterior Access Panels
WEATHER-RESISTANT FLUSH ACCESS PANEL: XP Series
XPA: Weather-resistant Flush Access Panel
Frame: 16 Gauge Galvanized Steel Frame with 1" Flange.
Door: 2" Thick Insulated .040 Aluminum Door with Continuous Stainless Steel Hinges
and EPDM Foam Rubber Bulb Seal Gasketing.
Finish: Gray powder coat primer.
Lock: Chrome-plated Locking (HL) or Non-locking (H) Die Cast Zinc Handles for
Exterior, Interior has Non-locking handle.
XPS: Weather-resistant Stainless Steel Access Panel
Frame: 16 Gauge Stainless Steel Frame with 1" Flange.
Door: 2" Thick Insulated 20 Gauge Stainless Steel Door with Continuous Stainless
Steel Hinges and EPDM Foam Rubber Bulb Seal Gasketing.
Finish: #304 Stainless ­– #4 Finish.
Lock: Chrome-plated Locking (HL) or Non-locking (H) Die Cast Zinc Handles for
Exterior, Interior has Non-locking handle.
XPA-PWE: Weather-resistant Access Panel For Plaster and Stucco Exteriors
Frame: 16 Gauge Galvanized Steel Frame with 3" Galvanized Lath Wing.
Door: 2" Thick Insulated .040 Aluminum Door with Continuous Stainless Steel Hinges
and EPDM Foam Rubber Bulb Seal Gasketing.
Finish: Gray powder coat primer.
Lock: Chrome-plated Locking (HL) or Non-locking (H) Die Cast Zinc Handles for
Exterior, Interior has Non-locking handle.
model XPA
XPS-PWE: Weather-resistant Stainless Steel Access Panel For Plaster and
Stucco Exteriors
Frame: 16 Gauge Stainless Steel Frame with 3" Galvanized Lath Wing.
Door: 2" Thick Insulated 20 Gauge Stainless Steel Door with Continuous Stainless
Steel Hinges and EPDM Foam Rubber Bulb Seal Gasketing.
Finish: #304 Stainless ­– #4 Stainless Steel.
Lock: Chrome-plated Locking (HL) or Non-locking (H) Die Cast Zinc Handles for
Exterior, Interior has Non-locking handle.
See Optional Colors on Page 12.
model XPA-PWE
Model XPA
Door Sizes and Wall Openings: Models XPA, XPS, XPA-PWE, AND XPS-PWE
A-Models XPA
and XPS Sizes
12" x 12"
C-Wall Opening
WxH
12 3/8" x 12 3/8"
Number of
Handles
1
Approximate
Shipping Weight
11 lbs.
A-Models XPA
and XPS Sizes
C-Wall Opening
WxH
24" x 30"
Number of
Handles
24 3/8" x 30 3/8"
2
Approximate
Shipping Weight
40 lbs.
14" x 14"
14 3/8" x 14 3/8"
1
15 lbs.
24" x 36"
24 3/8" x 36 3/8"
2
42 lbs.
18" x 18"
18 3/8" x 18 3/8"
1
19 lbs.
24" x 48"
24 3/8" x 48 3/8"
2
57 lbs.
20" x 24"
20 3/8" x 24 3/8"
1
30 lbs.
30" x 30"
30 3/8" x 30 3/8"
2
44 lbs.
20" x 30"
20 3/8" x 30 3/8"
1
32 lbs.
30" x 36"
30 3/8" x 36 3/8"
2
56 lbs.
22" x 30"
22 3/8" x 30 3/8"
1
34 lbs.
36" x 36"
36 3/8" x 36 3/8"
2
61 lbs.
22" x 36"
22 3/8" x 36 3/8"
2
40 lbs.
36" x 48"
36 3/8" x 48 3/8"
2
75 lbs.
24" x 24"
24 3/8" x 24 3/8"
2
27 lbs.
48" x 48"
48 3/8" x 48 3/8"
4
108 lbs.
Custom Sizes Available Upon Request
Order Format
For Above Models:
Style Code
Width
Height
Lock (H or HL)
Optional Color Code Pg 12
Example: XPA-1212HL- B
Distributed by: BEST MATERIALS LLC
800-474-7570, 602-272-8128
Email: [email protected]
www.bestmaterials.com
To order call Ph:
07
Security Access Panels
Flat Frame Steel Security Panel: SP Series
Frame: 2” x 2” x 3/16” angle frame with 2” Flange, welded at corners
Door: 10 gauge plate steel door mounted on two heavy-duty detention hinges
welded to the frame.
Finish: Gray powder coat primer.
Lock: Detention Deadlock Prep (DDP) provided standard with SP and HSP
access panels. Lock to be provided by others. See page 9 for lock options.
Anchors: Heavy duty steel masonry anchors welded to frame at factory.
Flat Frame Steel High Security Panel: HSP Series
Frame: 2” x 3” x 3/16” angle frame with 2” Flange, welded at corners.
Door: 7 gauge box-formed steel door mounted on two heavy-duty 4” butt hinges
welded to the frame.
Finish: Gray powder coat primer .
Lock: Detention Deadlock Prep (DDP) provided standard with SP and HSP
access panels. Lock to be provided by others. See page 9 for lock options.
Anchors: Heavy duty steel masonry anchors welded to frame at factory.
model sp
Shown with Detention Deadbolt Lock Installed
Options for SP and HSP: #4 Finish Stainless Steel, Detention Slam Lock
Prep (DSP), Mortise Deadbolt Prep (MDP) or Mortise Cylinder Cam Lock Prep
(MP)- Locks to be Provided by Others. Detention Deadlock Installed (DDI5010),
Detention Slam Lock Installed (DD15017), Mortise Deadbolt Installed (MDP-SLAMP or MDP-SL-1E74), Mortise Cylinder Cam Lock Installed (MP-SL-AMP or
MP-SL-1E74).
See Optional Colors on Page 12
See Lock Selections on Page 9.
model Hsp
Shown with Mortise Deadbolt Lock Installed
Door Sizes and Wall Openings: Model SP and HSP
A-Door Size
Width x Height
C
2"
A
(5.1 cm)
8" x 8"
10" x 10"
12" x 12"
14" x 14"
16" x 16"
18" x 18"
24" x 24"
24" x 36"
24" x 48"
2"
(5.1 cm)
B
Model SP
CORNER DETAIL
Door 10 Gauge (0.3cm) Plate
Stop Angle 1" x 1" x 1/2" (2.5cm x 2.5cm x 0.3cm)
Angle Frame 2" x 2" x 3/16"
B-Outside Frame
Dimensions
Width
Height
12"
14"
16"
18"
20"
22"
28"
28"
28"
12"
14"
16"
18"
20"
22"
28"
40"
52"
C-Wall Opening
Width
Height
8 3/4"
10 3/4"
12 3/4"
14 3/4"
16 3/4"
18 3/4"
24 3/4"
24 3/4"
24 3/4"
8 3/4"
10 3/4"
12 3/4"
14 3/4"
16 3/4"
18 3/4"
24 3/4"
36 3/4"
48 3/4"
Approx.
Shipping Latch(es)
Weight
16 lbs.
20 lbs.
24 lbs.
29 lbs.
32 lbs.
38 lbs.
52 lbs.
72 lbs.
90 lbs.
1
1
1
1
1
1
1
2
2
Add 1 lb. for Mortise Deadbolt Prep, or 4 lbs. for Detention Lock installed. **For Model
SP Panels of 32" or Larger, We Recommend Security Screws be Installed with Lock
for Additional Security. Custom Sizes and Modifications Available Upon Request
Masonry Anchor
1/8" x 1" x 6" (.03cm x 2.5cm x 15.2cm)
Detention Deadlock Prep (DDP)
Provided standard with the SP or HSP access panels.
The door will be prepped for a right or left-handed, heavy-duty lock to be provided and installed by others.
The prep plate is factory welded, primed & painted as an integral part of the door.
Order Format
For Above Models:
08
`
Style Code
Width
Height
Lock (DDP Standard or Optional)
Example: HSP-1212MDP-SL-AMP-FBK
Color Code (page 12)
Security Locking Options
Detention Slam Lock Prep (DSP)
This option is available at no additional cost and includes a door which is prepped for a detention slam latch to
be provided and installed by others. The prep plate is factory welded, primed & painted as an integral part of
the door. Lock and mounting bolts are not included. Please specify the manufacturer and model number of the
lock to ensure compatibility. (Not available on Security Fire Extinguisher Cabinets)
Mortise Deadbolt Prep (MDP)
This option is available at additional cost and includes a lock mechanism which is prepped for a mortise cylinder and cam to be provided and installed by others. The prep includes a 2-1/2” x 3-1/2” x 1-3/4” case with
installed Lori assembly with 1” x 5/8” throw. Lock and mounting bolts are not included. The mortise cylinder
must be 1-1/8” (3.2cm) in diameter and the recommended cylinder length is 1-1/2” (3.8 cm). (A longer cylinder can be adapted to it by using a rose spacer. The cam must be an Adam Rite cam.)
Mortise Cylinder Cam Lock Prep (MP)
This option is available at no additional cost and includes a door which is prepped for a mortise cylinder and
cam to be provided for and installed by others. Lock and mounting bolts are not included. The mortise cylin-der
must be 1-1/8” (3.2cm) in diameter and the recommended cylinder length is 1-1/2” (3.8 cm). (A longer cylinder
can be adapted to it by using a rose spacer) The cam must be 3/4” (1.91 cm) long, as measured from the edge
of the cylinder to the tip of the cam.
Detention Deadlock Installed (DDI5010)
Right-handed, heavy-duty detention lock installed at the factory. The prep plate is factory welded, primed
& painted as an integral part of the door. Model 5010 is a medium security deadbolt with a single piece,
paracentric key cylinder in a high tensile strength, alloy steel case, keyed 1 side. The deadbolt is fabricated of
1-1/2” x 3/4” hot rolled steel with a 5/8” throw. All steel parts are plated for corrosion resistance. Dimensions
1-1/4” x 4-1/2” x 3”. Keys to be ordered separately, please specify the number of keys to be ordered with this
lock. Security Torx bolts secure the lock to the door.
Detention Slam Lock Installed (DDI5017)
Right-handed, heavy-duty detention lock installed at the factory. The prep plate is factory welded, primed &
painted as an integral part of the door. Model 5017 is a medium security slam latch with a stainless steel
latchbolt with 1” x 7/16” throw. Slam-locks automatically when door is closed. Lock is constructed with a
single piece, bronze alloy paracentric key cylinder, 5 tempered brass lever tumblers keyed one side(K1) in a
high-tensile strength alloy steel case. All steel parts plated for corrosion resistance. Dimensions: 1 1/4” x 4” x
2 3/4”. Keys to be ordered separately, please specify the number of keys to be ordered with this lock. Security
Torx bolts secure the lock to the door.
Mortise Deadbolt Installed (MDP-SL-AMP or MDP-SL-1E74)
Mortise deadbolt installed at the factory includes a 2-1/2” x 3-1/2” x 1-3/4” case welded to the door with
installed Lori assembly with 1” x 5/8” throw. Select from lock models 9130 (AMP) in satin chrome with Yale
Standard cam and keys (drilled 6 pin, keyed 5 pin), or 1E74 with a blank construction core to be keyed on site.
Both locks are machined from solid brass bar stock. The mortise cylinder is 1-1/8” (3.2cm) in diameter and the
cylinder length is 1-1/2” (3.8 cm). Security Torx bolts secure the lock to the door.
Mortise Cylinder Cam Lock Installed (MP-SL-AMP or MP-SL-1E74)
Cylinder lock with heavy-duty 7/16” cam installed at the factory. The prep plate is factory welded, primed &
painted as an integral part of the door. Select from lock models 9130 (AMP) with 2 Yale Standard keys, or 1E74
with a blank construction core to be keyed on site. Both locks are machined from solid brass bar stock. The
mortise cylinder is 1-1/8” (3.2cm) in diameter and the cylinder length is 1-1/2” (3.8 cm)..
09
interior Access Panels: specialty
GASKETED ACCESS PANEL: ATM Series
This Gasketed Panel is ideal for laboratories, pressurized rooms, climatecontrolled rooms, dusty or high-moisture environments. The frame and
door are specially designed to form a tight seal reducing air infiltration.
Frame & Trim: 16 gauge CRS with 3/8” retainer channel for gasket, and 1"
trim flange.
Door: 16 gauge rolled and welded. Cam-operated closure with knurled knob
compresses door tightly to gasket.
Gasket: Fully gasketed on all sides with EPDM rubber.
Finish: Gray powder coat primer.
Options: See Optional Colors on Page 12.
A-Model Size
Width x Height
12" x 12"
18" x 18"
24" x 24"
24" x 36"
B-Outside Frame
Dimensions
Width
14"
20"
26"
26"
Height
14"
20"
26"
38"
C-Wall Opening
Dimensions
Width
Height
12 3/8"
18 3/8"
24 3/8"
24 3/8"
12 3/8"
18 3/8"
24 3/8"
36 3/8"
Approx.
Shipping Latch(es)
Weight
7 lbs.
16 lbs.
28 lbs.
42 lbs.
1
1
2
2
Model ATM Panel
Model ATM
SURFACE-MOUNT ACCESS PANEL: SMT Series
The SMT is an economical surface-mounting panel that quickly and easily
installs with screws through the corners of the frame. It is suitable for
installation in wallboard or plaster.
Trim & Door: 1” wide,16 gauge trim with screw holes in each corner for mounting.
16 gauge door operates on a continuous hinge.
Finish: Gray powder coat primer.
Lock: Screwdriver-operated cam lock (C).
Options: #4 Satin Finish Stainless Steel, Custom Colors, Cylinder Lock, Mortise Cam
Latch, Mortise Deadbolt Lock, Mortise Slam Latch, Knob Cam, Torx, Spanner or Hex
Head Cam.
See Optional Colors and locks on Page 12.
A-Model Size
Width x Height
8" x 8"
12” x 12”
16" x 16"
24" x 24"
B-Outside Frame
Dimensions
Width
10"
14"
18"
26"
Height
10"
14"
18"
26"
C-Wall Opening
Dimensions
Width
8"
12"
16"
24"
Height
8"
12"
16"
24"
Approx.
Shipping Latch(es)
Weight
3 lbs.
7 lbs.
12 lbs.
27 lbs.
1
1
1
4
Model SMT Panel
Order Format
10
For Above Models:
`
Style Code
Width
Height
Lock for SMT Only (C Standard or Optional)
Example: ATM-1818
Color Code (page 12)
Floor Access Doors
Aluminum Angle Floor Door: AAF Series
Construction: Frames are extended aluminum shapes specially designed for floor
doors. This door is made from reinforced 1/4 diamond plate for greater strength.
Hardware: Stainless steel hinges are bolted to the door and frame to minimize
galvanic corrosion. All fastners are tamperproof stainless steel bolts. Stainless steel
slam locks, gas assist opener, hold open arm.
Finish: Mill with bituminous coating below grade.
Load: 300 lbs./ft.2
Model
Clear Opening
Single (S) Door
Approx.
Weight
AAF-2424S
23" x 23"
S
60 lbs.
AAF-2436S
23" x 35"
S
76 lbs.
AAF-3030S
29" x 29"
S
81 lbs.
AAF-3036S
29" x 35"
S
92 lbs.
AAF-3636S
35" x 35"
S
100 lbs.
AAF-4848D
47" x 47"
D
154 lbs.
AAF-3048S
29" x 47"
S
115 lbs.
AAF-4860D
47" x 59"
D
173 lbs.
AAF-3648S
35" x 47"
S
118 lbs.
AAF-4872D
47" x 71"
D
208 lbs.
AAF-4242S
41" x 41"
S
120 lbs.
AAF-6060D
59" x 59"
D
215 lbs.
Model
Custom Sizes Available Upon Request
Clear Opening
Double (D) Door
Approx.
Weight
Custom Sizes Available Upon Request
Aluminum Gutter Floor Door: AGF Series
Construction: The door frames are an engineered gutter frame design in extruded
aluminum shapes specially designed for floor doors. The gutter is equipped with
1 1/2" FTP drain coupling allowing for water runoff. The door is made from reinforced
1/4" diamond plate for greater strength. The door is hinged such that when open,
the door does not penetrate the gutter, thus preventing problems due to freezing or
contaminating build-up.
Hardware: Stainless steel hinges are bolted to the door and frame to minimize
galvanic corrosion. All fastners are tamperproof stainless steel bolts. Stainless steel
slam locks, gas assist opener, hold open arm.
Finish: Mill with bituminous coating below grade.
Load: 300 lbs./ft.2
Model
Clear Opening
Single (S) Door
Approx.
Weight
AGF-2424S
20 1/2" x 20 1/2"
S
60 lbs.
AGF-2436S
20 1/2" x 32 1/2"
S
76 lbs.
AGF-3030S
26 1/2" x 26 1/2"
S
81 lbs.
AGF-3036S
26 1/2" x 32 1/2"
S
92 lbs.
AGF-3636S
32 1/2" x 32 1/2"
S
100 lbs.
AGF-4848D
44 1/2" x 44 1/2"
D
154 lbs.
AGF-3048S
26 1/2" x 44 1/2"
S
115 lbs.
AGF-4860D
44 1/2" x 56 1/2"
D
173 lbs.
AGF-3648S
32 1/2" x 44 1/2"
S
118 lbs.
AGF-4872D
44 1/2" x 68 1/2"
D
208 lbs.
AGF-4242S
38 1/2" x 38 1/2"
S
120 lbs.
AGF-6060D
56 1/2" x 56 1/2"
D
215 lbs.
Custom Sizes Available Upon Request
Model
Clear Opening
Double (D) Door
Approx.
Weight
Custom Sizes Available Upon Request
11
Distributed by: BEST MATERIALS LLC
Ph: 800-474-7570, 602-272-8128
Email: [email protected]
www.bestmaterials.com
Lock Options FOR: TM, TMS, WB, PWE, SMT AND PW Series
Cylinder Lock (l)
mortise cam latch (MP)
Torx HEAD CAM (CT)
hex head cam (CA)
mortise deadbolt lock (LLI) mortise slam latch (UMI)
spanner head cam (SHC)
rainhood (RH)
Knob CAM (KK)
gasketing (CG)
Color Options:
White (W)
Sand (S)
Gray Primer Std.
Red (R)
AMS Beige (AB)
Bronze (B)
Black (BK)
SC Flat Beige (SB)
Satin Aluminum (SA)
FLAT Black (FBK)
Note: Colors are approximate. For color/finish samples contact customer service.
Warranty: All access panel products carry a one year warranty after date of shipment against defects in materials and workmanship.
We will replace or repair any product found defective within this period at our discretion. No other warranty express or implied is valid.
of the products sold under the JL label and distributes JL products on the West Coast. Thomas Enterprises is our Southeast distributor for JL products and has a state-of-the-art aluminum fabrication facility for
AP0910
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
