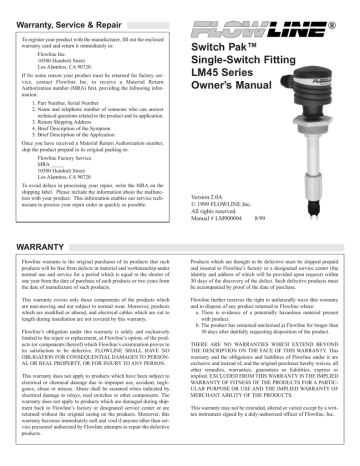

LM45
Warranty, Service & Repair
To register your product with the manufacturer, fill out the enclosed
warranty card and return it immediately to:
Flowline Inc.
10500 Humbolt Street
Los Alamitos, CA 90720.
If for some reason your product must be returned for factory service, contact Flowline Inc. to receive a Material Return
Authorization number (MRA) first, providing the following information:
®
Switch Pak™
Single-Switch Fitting
LM45 Series
Owner’s Manual
1. Part Number, Serial Number
2. Name and telephone number of someone who can answer
technical questions related to the product and its application.
3. Return Shipping Address
4. Brief Description of the Symptom
5. Brief Description of the Application
Once you have received a Material Return Authorization number,
ship the product prepaid in its original packing to:
Flowline Factory Service
MRA _____
10500 Humbolt Street
Los Alamitos, CA 90720
To avoid delays in processing your repair, write the MRA on the
shipping label. Please include the information about the malfunction with your product. This information enables our service technicians to process your repair order as quickly as possible.
Version 2.0A
© 1999 FLOWLINE Inc.
All rights reserved.
Manual # LM900004
8/99
WARRANTY
Flowline warrants to the original purchaser of its products that such
products will be free from defects in material and workmanship under
normal use and service for a period which is equal to the shorter of
one year from the date of purchase of such products or two years from
the date of manufacture of such products.
Products which are thought to be defective must be shipped prepaid
and insured to Flowline’s factory or a designated service center (the
identity and address of which will be provided upon request) within
30 days of the discovery of the defect. Such defective products must
be accompanied by proof of the date of purchase.
This warranty covers only those components of the products which
are non-moving and not subject to normal wear. Moreover, products
which are modified or altered, and electrical cables which are cut to
length during installation are not covered by this warranty.
Flowline further reserves the right to unilaterally wave this warranty
and to dispose of any product returned to Flowline where:
a. There is evidence of a potentially hazardous material present
with product.
b. The product has remained unclaimed at Flowline for longer than
30 days after dutifully requesting disposition of the product.
Flowline’s obligation under this warranty is solely and exclusively
limited to the repair or replacement, at Flowline’s option, of the products (or components thereof) which Flowline’s examination proves to
its satisfaction to be defective. FLOWLINE SHALL HAVE NO
OBLIGATION FOR CONSEQUENTIAL DAMAGES TO PERSONAL OR REAL PROPERTY, OR FOR INJURY TO ANY PERSON.
This warranty does not apply to products which have been subject to
electrical or chemical damage due to improper use, accident, negligence, abuse or misuse. Abuse shall be assumed when indicated by
electrical damage to relays, reed switches or other components. The
warranty does not apply to products which are damaged during shipment back to Flowline’s factory or designated service center or are
returned without the original casing on the products. Moreover, this
warranty becomes immediately null and void if anyone other than service personnel authorized by Flowline attempts to repair the defective
products.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND
THE DESCRIPTION ON THE FACE OF THIS WARRANTY. This
warranty and the obligations and liabilities of Flowline under it are
exclusive and instead of, and the original purchaser hereby waives, all
other remedies, warranties, guarantees or liabilities, express or
implied. EXCLUDED FROM THIS WARRANTY IS THE IMPLIED
WARRANTY OF FITNESS OF THE PRODUCTS FOR A PARTICULAR PURPOSE OR USE AND THE IMPLIED WARRANTY OF
MERCHANT ABILITY OF THE PRODUCTS.
This warranty may not be extended, altered or varied except by a written instrument signed by a duly-authorized officer of Flowline, Inc.
SPECIFICATIONS
Step One
Smart Trak Fitting:
Fitting length:
Fitting tolerance:
Temperature range:
6” to 8’ (15 cm to 2.4 m)
1/8” (3 mm) typical
F: -40° to 194°
C: -40° to 90°
psi: 0 to 150
bar: 0 to 10
Polypropylene (PP)
Polyvinylidene Fluoride (PVDF)
Polyvinylchloride (PVC)
2" NPT (2” G)
Viton (2”) metric only
Pressure range:
Fitting material:
Mounting thread:
Mounting gasket:
Switch Pak Fitting
LM45 - _ 0 _ 1
Fitting Material
1 - PP
5 - PVDF
7 - PVC
Mounting Thread
0 - 2” NPT
6 - 2” G
Junction Box:
Enclosure rating:
Enclosure material:
Enclosure rotation:
Conduit connection:
Termination:
Temperature range:
NEMA 4X (IP65)
Polypropylene, U.L. 94 VO
300° swivel base
1/2" NPT
12 pole socket terminal strip
F: -40° to 158°
C: -40° to 70°
Side Mount Bracket:
Bracket material:
Mounting thread:
Installation:
Polypropylene
2" NPT (2” G)
Bold or plastic weld
Switch Adders for FLOWLINE Level Switch
Nominal Switch Adders
Adder
Technology
3.5"
Tuning Fork
Ultrasonic
* 2.0"
4.0"
SuperGuard
RF Capacitance
* 2.0"
Optic
* 2.0"
4.3"
Vertical Buoyancy
2.0"
Vertical Float
* Based on short length switch
User Supplied Pipe Sizes:
Part Number
LM45-1001
LM45-5001
LM45-7001
Material
PP
PVDF
PVC
Pipe Size
25 mm (Metric)
25 mm (Metric)
3/4" (Schedule 40)
FLOWLINE Compact Controller /
Compact Junction Box Mounted on
Switch Pak
SAFETY PRECAUTIONS
Step Two
INTRODUCTION
Step Three
About this Manual:
About Switch Pak™:
PLEASE READ THE ENTIRE MANUAL PRIOR TO
INSTALLING OR USING THIS PRODUCT. This manual
includes information on all models of Switch Pak: LM45-_0_1.
The units are identical except for material of construction and
thread sizes.
Flowline’s Switch Pak™ is an industrial mounting system for
installing a liquid level switch vertically within a tank. FLOWLINE’s
LC05 or LC06 compact junction boxes, and LC10, LC11 or LC30
compact relay controllers are designed to be mounted directly to the
3/4" NPT fitting at the top of the assembly. Smart Trak mounts vertically through a standard 2" NPT tank adapter, or on a side mount
bracket (such as the LM50-1001).
User's Responsibility for Safety:
Flowline manufactures a wide range of liquid level sensors, controllers, and mounting systems. It is the user's responsibility to
select components that are appropriate for the application, install
them properly, perform tests of the installed system, and maintain
all components. The failure to do so could result in property damage or serious injury.
Proper Installation and Handling:
Use a proper sealant with all installations. Never overtighten the
components. Always check for leaks prior to system start-up.
Material Compatibility:
The pipe, fitting and coupling for all the LM45 models are made of
either Polypropylene (PP), a polyolefin, Polyvinylidene Fluoride
(PVDF) or Polyvinylchloride (PVC). Make sure that the application liquids are compatible with the materials that will be wetted.
To determine the chemical compatibility between the components
and its application liquids, refer to the Compass Corrosion Guide,
available from Compass Publications (phone 619-589-9636).
Temperature and Pressure:
Switch Pak is designed for use in application temperatures up to
90° C (194° F). It is designed for use in application pressures up to
150 psi (10 bar).
Wiring and Electrical:
Electrical wiring of any liquid level control system should be performed in accordance with all applicable national, state, and local
codes. Take care not to cut or break the outer insulation jacket of
wiring that may be immersed while routing cables in the Switch
Pak system. Such breaks of the liquid seal of the sensor system may
lead to component failure.
Flammable, Explosive and Hazardous Applications:
Switch Pak may be used within flammable or explosive applications
only if the associated components are rated intrinsically safe for
such use. Refer to the National Electric Code (NEC) for all applicable installation requirements in hazardous locations. In hazardous
applications, use redundant measurement and control points, each
having a different sensing technology.
Make a Fail-Safe System:
Design a fail-safe system that accommodates the possibility of
transmitter or power failure. In critical applications, Flowline recommends the use of redundant backup systems and alarms in addition to the primary system.
Pipe:
The Switch Pak™ features a standard 3/4” pipe as the extension for
the switch. When assembling a Switch Pak™, use a thermal weld for
the LM45-10_1 (PP) and LM45-50_1 (PVDF) and a solvent weld for
the LM45-70_1 (PVC). Welds must be made for the 2” NPT fitting
and for the 3/4” coupling.
2" NPT fitting:
The pipe slides into the center of a large fitting which has a 3/4”
threads on the top, and 2" NPT-standard threads on the bottom. The
3/4” thread is available for attaching a junction box or conduit.
Coupling:
A 3/4” thread attaches the level switch to the Switch Pak™.
ASSEMBLY OF SWITCH PAK
INSTALLATION
Step Four
Step Five
Switch Pak Assembly Drawing (Side View)
Switch Pak™ In-Tank Installation:
3/4” Thread
2” NPT Thread
FLOWLINE’s Switch Pak™ mounting system is an in-tank fitting,
which enables the users to install any technology. Switch Pak may be
installed through the top wall of any tank or flange, using a standard
2” NPT tank adapter or blind flange. If the tank top is not available,
FLOWLINE's side mount bracket, LM50-1001, enables Switch Pak
to be installed directly to the side wall or lip of the tank.
Tank Adapter:
Pipe Socket
Pipe
Flange Mounting:
Coupling w/
3/4” Thread
Inventory:
One Switch Pak kit (LM45-_0_1) includes the following parts:
1 Fitting
1 Coupling
1 Customer specified pipe
Side Mount Bracket:
Lip of Tank
Side-Wall
