Siemens HK 280 Series User guide

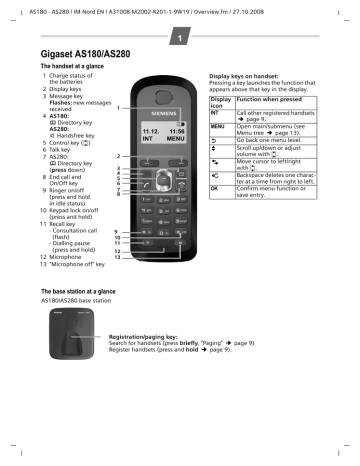

AS180 - AS280 / IM-Nord EN / A31008-M2002-R201-1-9W19 / Overview.fm / 27.10.2008 1 Gigaset AS180/AS280 The handset at a glance 1 Charge status of the batteries 2 Display keys 3 Message key Flashes: new messages received 4 AS180: h Directory key AS280: d Handsfree key 5 Control key (u) 6 Talk key 7 AS280: h Directory key (press down) 8 End call and On/Off key 9 Ringer on/off (press and hold in idle status) 10 Keypad lock on/off (press and hold) 11 Recall key - Consultation call (flash) - Dialling pause (press and hold) 12 Microphone 13 "Microphone off" key Display keys on handset: Pressing a key launches the function that appears above that key in the display. Display Function when pressed icon INT Call other registered handsets page 9. MENU Open main/submenu (see Menu tree page 13). Go back one menu level. “ Scroll up/down or adjust U volume with u. Move cursor to left/right T with u. Backspace deletes one charac˜ ter at a time from right to left. OK Confirm menu function or save entry. 1 11.12. INT ¢ V 11:56 MENU 2 3 4 5 6 7 8 9 10 11 12 13 The base station at a glance AS180/AS280 base station Registration/paging key: Search for handsets (press briefly, "Paging" page 9) Register handsets (press and hold page 9). ¢ ¢ ¢ AS180 - AS280 / IM-Nord EN / A31008-M2002-R201-1-9W19 / Overview.fm / 27.10.2008 2 Safety precautions Read this user guide and the safety precautions carefully before use. Explain their content and the potential hazards associated with using the telephone to your children. $ Only use the mains adapter supplied. ¢ Fit only the recommended, rechargeable batteries ( page 11), i.e. never use any other battery type or non-rechargeable batteries as this could result in significant health risks and personal injury. The operation of medical appliances may be affected. Be aware of the technical conditions in your particular environment, e.g. doctor's surgery. Do not hold the rear of the handset to your ear when it is ringing. Otherwise you risk serious and permanent damage to your hearing. The handset may cause an unpleasant humming noise in hearing aids. Do not install the phone in a bathroom or shower room. The handset and base station are not splashproof. Do not use your phone in environments with a potential explosion hazard, e.g. paint shops. ƒ If you give your Gigaset to someone else, make sure you also give them the user guide. Please remove faulty base stations from use or have them repaired by Service, as they could interfere with other wireless services. Disposal Batteries should not be disposed of in general household waste. Observe the local waste disposal regulations, details of which can be obtained from your local authority or the dealer you purchased the product from. All electrical and electronic equipment must be disposed of separately from general household waste using the sites designated by local authorities. If a product displays this symbol of a crossed-out rubbish bin, the product is subject to European Directive 2002/96/EC. The appropriate disposal and separate collection of used equipment serve to prevent potential harm to the environment and to health. They are a precondition for the re-use and recycling of used electrical and electronic equipment. For further information on disposing of your used equipment, please contact your local authority, your refuse collection service or the dealer you purchased the product from. ¢ Emergency numbers cannot be dialled if the keypad lock ( page 1) is activated! Not all of the functions described in this user guide are available in all countries. Care Wipe the base station, charging cradle and handset with a damp cloth (do not use solvent) or an antistatic cloth. Never use a dry cloth. This can cause static. Contact with liquid ! If the handset has come into contact with liquid: ◆ Switch off the handset and remove the battery pack immediately. ◆ Allow the liquid to drain from the handset. ◆ Pat all parts dry, then place the handset with the battery compartment open and the keypad facing down in a dry, warm place for at least 72 hours (not in a microwave, oven etc.). ◆ Do not switch on the handset again until it is completely dry. When it has fully dried out, you will normally be able to use it again. ECO DECT You are helping to protect the environment with your Gigaset AS180/AS280. Reduced energy consumption Your telephone has a power-saving adapter plug and uses less power. Reduced transmission power The transmission power of your telephone is reduced automatically: The handset's transmission power is reduced depending on the distance to the base station. The transmission power on the base station is reduced to virtually zero when only one handset is registered and the handset is in the base station. You can reduce the transmission power of the handset and base station even more by using Eco Mode/Eco Mode+ (see Menu tree page 14): ◆ Eco Mode: 80% transmission power reduction in standby mode and during a call (the range of the base station is reduced). ◆ Eco Mode+: 100% transmission power deactivation in standby mode (top left display icon ½). Press and hold the talk key c to check that the base station can be reached. You will hear the ringing tone if the base station can be reached. ¢ AS180 - AS280 / IM-Nord EN / A31008-M2002-R201-1-9W19 / starting.fm / 27.10.2008 3 First steps Check the pack contents ◆ ◆ ◆ ◆ ◆ ◆ ◆ one Gigaset AS180/AS280 base station, one mains adapter, one Gigaset AS18H/AS28H handset, one phone cord, two batteries, one battery cover, one user guide. If you have purchased a model with multiple handsets, the package should contain two batteries, a battery cover and a charging cradle with mains adapter for each additional handset. Setting up the base station and charging cradle (if included) The base station and charging cradle are designed for use in enclosed dry rooms with a temperature range of +5°C to +45°C. Set up the base station at a central location on a flat, non-slip surface in your house or apartment. ¤ Please note Pay attention to the range of the base station. This is up to 300 m in unobstructed outdoor areas and up to 50 m inside buildings. The range is reduced when Eco Mode ( page 14) is activated. ¢ The phone's feet do not usually leave any marks on surfaces. However, due to the multitude of different varnishes and polishes used on today's furnishings, the occurrence of marks on the surfaces cannot be completely ruled out. You can also mount the base station and charging cradle on the wall. Please note: ◆ Never expose the telephone to the influence of heat sources, direct sunlight or other electrical devices. ◆ Protect your Gigaset from moisture, dust, corrosive liquids and vapours. Connecting the base station ¤ First connect the mains adapter 1. ¤ Then connect the telephone jack 2 and insert the cables into the cable ducts. Please note: ◆ The mains adapter must always be connected, as the phone will not operate without mains connection. ◆ Only use the mains adapter and phone cord supplied. Pin connections on telephone cables can vary. 2 1 1 1 AS180 - AS280 / IM-Nord EN / A31008-M2002-R201-1-9W19 / starting.fm / 27.10.2008 4 Connecting the charging cradle (if included) 2 1 ¤ Connect the flat plug from the power supply 1. ¤ Plug the mains adapter into the plug socket 2. 2 If you need to disconnect the plug from the charging cradle, press the release button 1 and disconnect the plug 2. 1 Setting up the handset for use The display is protected by a plastic film. Please remove the protective film! Inserting the batteries and closing the battery cover Warning Use only the rechargeable batteries ( page 11) recommended by Gigaset Communications GmbH*. Never use conventional (non-rechargeable) batteries, as this could result in significant health risks and damage to property. For example, the outer casing of the batteries could be destroyed or the batteries could explode. The phone could also malfunction or be damaged as a result of using batteries that are not of the recommended type. ¢ *Gigaset Communications GmbH is a trademark licensee of Siemens AG AS180 - AS280 / IM-Nord EN / A31008-M2002-R201-1-9W19 / starting.fm / 27.10.2008 5 ¤ Insert the batteries the right + – way round. The polarity is indicated in/on the battery compartment. ¤ Slide the battery cover back into the main casing until it clicks into place. If you need to open the battery cover, for instance to replace the batteries, place your fingertip in the grooved area on the top of the cover and slide down. Placing the handset in the base station and registering V Put into base MENU Before you can use the phone, you must first register the handset to the base station. ¤ Place the handset with the display facing up in the base station. V Registering V INT MENU The handset registers automatically. Registration can take up to 5 minutes. Do not remove the handset from the base station during this time. After successful registration, the idle screen is displayed. Charge status of the batteries: – = e V U (flat to full) – = flashes: batteries almost flat – e V U flashes: charging If you have purchased a model with multiple handsets, repeat the registration process for each individual handset. Handsets are assigned the lowest available internal number (1–4). If more than one handset is registered to the base station, the internal handset AS180 - AS280 / IM-Nord EN / A31008-M2002-R201-1-9W19 / starting.fm / 27.10.2008 6 number appears in the top left of the display, e.g. 2. If the internal numbers 1–4 are already assigned to other devices, number 4 will be overwritten. Please note ◆ Each key press interrupts the automatic registration. ◆ If automatic registration does not work, the handset will have to be registered manually ( ¢ page 9). ◆ Only place the handset in the base station or charging cradle that is intended for it. Initial charging and discharging of the batteries The correct charge level can only be displayed if the batteries are first fully charged and discharged. ¤ Place the handset in the base station or charging cradle for eight hours. ¤ Then remove the handset from the base station or charging cradle 8h and do not replace it until the batteries are fully discharged. Please note ◆ After the first battery charge and discharge you may replace your handset in the base station or charging cradle after every call. ◆ Always repeat the charging and discharging procedure if you remove the batteries from the handset and reinsert them. ◆ The batteries may warm up during charging. This is not dangerous. ◆ After a while, the charge capacity of the batteries will decrease for technical reasons. Setting the date and time Set the date and time so that the correct date and time can be assigned to incoming calls, and so that the alarm can be used. ¢ ¢ ¢ ¢ MENU Settings OK Date/Time OK Date: ~ (enter the day, month and year in 6-digit format) OK Time: ~ (enter hours and minutes in 4-digit format) OK (display message: Saved) a (press and hold to return to idle status) ¢ ¢ ¢ ¢ ¢ ¢ ¢ Please note When entering the time and date, you can move the position of an entry to the left or right by pressing the control button up or down. Display in idle status V Once the phone is registered and the time set, the idle display is shown as in this example. Activating/deactivating the handset Press and hold the end call key a to activate or deacti- 11.12. 11:56 INT MENU vate the handset. If you place a deactivated handset in the base station or charging cradle, it will automatically activate. Your phone is now ready for use! If you have any questions about using your phone, please read the tips on troubleshooting ("Questions and answers" page 11) or contact our Customer Care team page 12. ¢ ¢ AS180 - AS280 / IM-Nord EN / A31008-M2002-R201-1-9W19 / main.fm / 27.10.2008 7 Making calls Handsfree talking (AS280 only) Making external calls and ending calls To activate while dialling: Enter the number ~ and press the handsfree key d. External calls are calls using the public telephone network. ~ (Enter the phone number) c. The phone number is dialled. (Or you can first press and hold c [dial tone] and then enter the number.) During the call you can adjust the earpiece volume using t and set the volume with u. End the call/cancel dialling: Press the end call key a. You can automatically insert a network provider dialling code before any phone number (see Menu tree "Preselection" page 14). ¢ ¢ Accepting a call The handset indicates an incoming call by ringing and by a display on the screen. Press the talk key c to accept the call. When Auto Answer is activated (see Menu tree page 14), simply remove the handset from the base station/charging cradle. In idle status, use t to activate the menu for setting the call volume and use u to set the volume. ¢ Calling Line Identification Switching between earpiece and handsfree mode: During a call and when listening to the answer machine (AS285 only), press the handsfree key d to activate or deactivate handsfree talking. During a call, use t to activate the menu for setting the handsfree volume and use u to set the volume. Using the directory and lists Directory To open the directory: press h. You can store up to 40 (AS180) or 80 (AS280) numbers (max. 32 digits) and associated names (max. 14 characters). Enter letters/characters page 11. ¢ Saving the first number in the directory h ¢ New Entry? ¢ OK ¢ ~ (enter number) ¢ OK ¢ ~ (enter name) ¢ OK When you receive a call, the caller's number will be displayed on your handset; the caller's name will be displayed if it is stored in the directory. Requirements: 1 You have asked your network provider for the caller's number (CLIP) to be displayed on your handset screen. 2 The caller has asked the network provider for his number to be identified (CLI). ® appears in the display if you have not requested Calling Line Identification, Withheld appears if the caller has withheld CLI, and Unavailable appears if CLI has not been requested. Storing a number in the directory h ¢ MENU ¢ New Entry ¢ OK ¢ ~ (enter number) ¢ OK ¢ ~ (enter name) ¢ OK Switch to mute Dialling with the directory h ¢ u (select entry) ¢ c You can mute your handset when making external calls. Your caller can no longer hear you. Press the "Microphone off" key m during the call to activate/deactivate the function. Selecting a directory entry Open the directory with h. You have the following options: ◆ Use u to scroll through the entries until the required name is selected. ◆ Enter the first character of the name and scroll to the entry with u, if required. Using other functions h ¢ u (select entry) ¢ MENU AS180 - AS280 / IM-Nord EN / A31008-M2002-R201-1-9W19 / main.fm / 27.10.2008 8 The following functions can be selected with u: Calls list/voicemail (network mailbox) list New Entry Save new phone number. Show Number Display the phone number. Use Number Edit or add to the number. Then dial or select other functions from the MENU. Edit Entry Edit selected entry. Delete Entry Delete selected entry. Send Entry Send a single entry to another handset ( page 8). Delete List Delete all directory entries. Please note: If calls are saved in the network mailbox, you will receive a message if the appropriate settings have been set (depending on your network provider). Send List Send the complete list to another handset ( page 8). Calls list Shortcut For shortcuts, assign the current entry to a key. ¢ ¢ Using shortcut keys You can assign directory entries to the keys 0 and 2–9: h ¢ u (select entry) ¢ MENU ¢ Shortcut ¢ OK ¢ ~ (press the key you want to assign the entry to) To dial, press and hold the required shortcut key. Transferring the directory to another handset Requirements: ◆ The sending and receiving handsets must both be registered to the same base station. ◆ The other handset and the base station can send and receive directory entries. h ¢ u (select entry) ¢ MENU ¢ Send Entry / Send List ¢ OK ¢ ~ (enter the internal number of the receiving handset) ¢ OK Last number redial list An advisory tone sounds and the message key flashes as soon as a new entry appears in the calls list/voicemail list. A message appears in the display. When you press the f key, all the lists are displayed. If only one list contains new messages, this will be opened automatically. ¢ Precondition: CLIP ( page 7) Depending on the type of list set, the calls list contains ( page 14) ◆ answered calls ◆ missed calls Depending on the type of list set, all numbers of the last 25 incoming calls are saved or just the missed calls are saved. The calls list is displayed as follows: ¢ CallsList 01+02 Number of new entries + number of old, read entries Open the calls list f ¢ CallsList 01+02 ¢ OK The last incoming call is displayed. If necessary, use u to select another entry. Using other functions u (select entry) ¢ MENU The following functions can be selected with u: Delete Entry Delete current entry. This list contains the ten last dialled numbers. Copy to Dir. Copy an entry to the directory. Dialling from the last number redial list c (press briefly) ¢ u (select entry) ¢ c Date/Time Call date and time (if set). Status New Call: new missed call. Old Call: entry already read. Answ.: call taken. Delete List Warning! All old and new entries will be deleted. Managing entries in the last number redial list c (press briefly) ¢ u (select entry) ¢ MENU You can select the following settings: Use Number Edit or add to the number. Then dial or select other functions from the MENU. Copy to Dir. Copy an entry to the directory. Delete Entry Delete selected entry. Delete List Delete all entries. Calling back a caller from the calls list f ¢ CallsList 01+02 ¢ OK ¢ u (select entry) ¢c AS180 - AS280 / IM-Nord EN / A31008-M2002-R201-1-9W19 / main.fm / 27.10.2008 9 Assigning key 1 for fast access to the network mailbox Simply press and hold key 1 on the handset and you will be connected directly to the network mailbox. See Menu tree page 13. ¢ Locating a handset ("paging") You can locate your handset using the base station. ◆ Briefly press the registration/paging key on the base station ( page 1). ◆ All handsets will ring simultaneously ("paging"), even if the ringer tones are deactivated. End paging: briefly press the registration/paging key on the base station ( page 1) or the talk key c on a handset. ¢ ¢ Registering handsets You can register up to four handsets on your base station (Gigaset AS18H/AS28H) recommended). Please note: Each additional handset must be registered on the base station in order for it to work properly! For automatic registration of handsets to Gigaset AS180/AS280 page 5. ¢ Manual registration of handsets to Gigaset AS180/ AS280 ¢ Settings ¢ OK ¢ Handset ¢ OK ¢ Register HS ¢ OK ¢ Enter the system PIN of the base station (default is 0000) ¢ OK. 1. On the handset: MENU Registering flashes in the display. 2. On the base station: within 60 seconds of entering the system PIN, press and hold the registration/paging key ( page 1) (min. 3 seconds). Registration takes approx. 1 minute. ¢ De-registering handsets Handsets can only be de-registered by resetting the base station to its default settings. This will also reset other settings page 10. If you have only registered handsets for other GAPcompatible devices, these can only be de-registered with a hardware reset page 10. ¢ ¢ Using several handsets Making internal calls Internal calls are free calls to other handsets that are registered to the same base station. To make a call to other handsets, press ¢ ¢ ~ (1...4, enter internal number of the handset), the handset is called or ◆ INT star key P, all handsets are called. When a participant answers you can speak to them. To end the call, press the end call key a. ◆ INT Internal consultation call/connecting a call You are in conversation with an external participant. Press the INT key and call one or all handsets. The external participant hears the hold music. ◆ Before the internal participant has answered, press the end call key a; the call is diverted to the participant who answers the call. ◆ After the internal participant has answered, you can talk to him. Press the end call key a; the call is diverted, or press the display key ”; you are reconnected to the external participant. Listening in to an external call You are conducting an external call. An internal participant can listen in on this call and take part in the conversation (conference). Precondition: The Listening in function must be activated. Activating/deactivating listening in ¢ ¢ ¢ ¢ MENU Settings OK Base Listening in OK (‰ = on) ¢ ¢ OK Internal listening in (conference) You want to listen in to an existing external call. Press and hold the c key. You can listen in to the call. All participants hear a signal tone. To end: press the end call key a. All participants hear a signal tone. If the first internal participant presses the end call key a, the handset that has "listened in" remains connected to the external participant. AS180 - AS280 / IM-Nord EN / A31008-M2002-R201-1-9W19 / main.fm / 27.10.2008 10 Setting the alarm clock Software reset ¢ MENU Alarm Clock OK (‰ = on) ¢ ¢ ¢ OK ¢ Activation ¢ Set the wake-up time ¢ OK When the alarm clock rings, press any key to switch it off for 24 hours. If the alarm clock is set, the wake-up icon l will appear on the screen and the wake-up time will be displayed instead of the date. Setting the wake-up time ¢ Alarm Clock ¢ OK ¢ Wake-up time ¢ OK Enter the wake-up time in hours and minutes, then press OK. Phone settings For details on how to set audio settings, see Menu tree page 13. For details on how to set the system PIN on the base station, see the Menu tree page 14. ¢ ¢ Changing the display language ¢ ¢ ¢ ¢ ¢ ¢ MENU Settings OK Handset OK Language OK select the language ¢ The current language is indicated by ‰ . ¢ OK If you accidentally choose a language you do not understand: MENU ¢ ¢ Base ¢ OK ¢ Hardware reset Disconnect the power cord from the base station. Hold down the registration/paging key ( page 1) on the base station while reconnecting the power cable to the base station. Release the key after approximately 5 seconds. ¢ When activated: MENU ¢ MENU Settings OK Base Reset OK Activating/deactivating the alarm clock ¢ 4 2 1 (press the keys one after the other) Select the correct language with u and press OK. Resetting the handset Repeater mode With a repeater you can increase the range of your base station. You will need to activate repeater mode ( page 14). Repeater mode and Eco mode or Eco mode+ ( page 1) cancel each other out. ¢ ¢ Operating the base station on the PABX The following settings are only necessary if your PABX requires them, see the user guide for your PABX. When entering the digits, enter them slowly one after the other. Changing the dialling mode MENU ¢ 4 I O 1 1 ¢ The number for the set dialling mode flashes: 0 = touch tone dialling (DTMF); 1 = dial pulsing (DP) enter number OK. ¢ ¢ Setting recall MENU ¢ 4 I O 1 2 ¢ The number for the current recall flashes: 0 = 80 ms; 1 = 100 ms; 2 = 120 ms; 3 = 400 ms; 4 = 250 ms; 5 = 300 ms; 6 = 600 ms; enter number OK. 7 = 800 ms ¢ ¢ You can reset individual settings and changes that you have made. Entries in the directory, the calls list and the handset's registration to the base station will be retained. Changing pause after line seizure MENU Settings Reset Handset MENU 4IO1O The number for the current pause length flashes: 1 = 1 sec.; 2 = 3 sec.; 3 = 7 sec. enter number OK. ¢ ¢ ¢ OK ¢ Handset ¢ OK ¢ OK Cancel the reset with a. Restoring the base station to the factory settings When restoring factory settings: ◆ All handsets are de-registered ◆ Individual settings are reset ◆ All lists are deleted ◆ The system PIN is reset to the original code 0000 Only the date and time are retained. You can set the length of the pause inserted between pressing the talk key c and sending the phone number. ¢ ¢ ¢ ¢ Changing the pause after the recall key MENU ¢ 4 I O 1 4 ¢ The number for the current pause length flashes: 1 = 800 ms; 2 = 1600 ms; 3 = 3200 ms enter number OK. ¢ ¢ AS180 - AS280 / IM-Nord EN / A31008-M2002-R201-1-9W19 / main.fm / 27.10.2008 11 Appendix Questions and answers Entering letters/characters If you have any queries about the use of your telephone, visit our website at www.gigaset.com/customercare for 24-hour support. The table below contains a list of common problems and possible solutions. Press the relevant key the number of times indicated. Briefly press the hash key # to switch from "Abc" to "123" mode, from "123" to "abc" mode and from "abc" to "Abc" mode. Standard characters 1 2 I 4 5 L M N O Q P # 1x 2x 1) 1 a b d e g h j k m n p q t u w x . , * / Abc --> 123 123 --> abc 3x £ c f i l o r v y ? ( # 4x $ 2 3 4 5 6 s 8 z ! ) @ 5x ¥ ä ë ï 6x 7x 8x 9x 10x 11x 12x 13x 14x ¤ á à â ã ç é è ê í ì î ö ñ 7 ß ü ú 9 ÿ 0 + < = \ & ó ò ô ù û ý æ ø - : ¿ > % § õ å ¡ " ’ ; _ Specifications Recommended batteries Technology: Nickel-metal-hydride (NiMH) Size: AAA (Micro, HR03) Voltage: 1.2 V Capacity: 400–800 mAh We recommend the following types of battery: ◆ GP 550/700 mAh ◆ Yuasa Phone 700/800 mAh ◆ Peacebay 550/650 mAh (Valid at the time of going to press) The handset is supplied with recommended batteries. Base station power consumption approx. 1.3 W approx. 1.3 W approx. 1.5 W General specifications DECT standard GAP standard Range Base station power supply Environmental conditions in operation Cause Solution Nothing The handset is not Press the end call appears in the switched on. key a for approx. display. 5 seconds or place the handset in the base station. The batteries are Charge or replace the flat. batteries. No wireless The handset is Move the handset connection to outside the range closer to the base the base sta- of the base stastation. tion, Base tion. flashes in the The handset is not Register the handset display. registered. page 9. The base station is Check the mains not turned on. connector on the base station page 3. You cannot The phone cord Please always use the hear a ringer/ supplied has not phone cord supplied dialling tone been used or has or ensure that the from the fixed been replaced by pin connections are line network. a new cord with correct when purchasthe wrong jack ing from a retailer: connections. 3-4 assignment of telephone leads/EURO CTR37. Error tone You have entered Reset the system PIN sounds after the wrong to the default 0000 system PIN. system PIN page 10. prompt. All handsets are deregistered. All setPIN forgotten. tings are reset. All lists are deleted. ¢ 1) Space In standby mode – Handset in base station – Handset outside base station During a call Problem is supported is supported up to 300 m outdoors up to 50 m indoors 230 V ~/50 Hz +5°C to +45°C, 20% to 75% relative humidity ¢ ¢ Authorisation This device is intended for analogue phone lines in your network. Country-specific requirements have been taken into consideration. We, Gigaset Communications GmbH, declare that this device meets the essential requirements and other relevant regulations laid down in Directive 1999/5/EC. A copy of the 1999/5/EC Declaration of Conformity is available at this Internet address: www.gigaset.com/docs. AS180 - AS280 / IM-Nord EN / A31008-M2002-R201-1-9W19 / main.fm / 27.10.2008 12 Service (Customer Care) You can get assistance easily when you have technical questions or questions about how to use your device by using our online support service on the Internet at: www.gigaset.com/customercare This site can be accessed at any time wherever you are. It will give you 24/7 support for all our products. It also a list of FAQs and answers plus user guides for you to download. You will also find frequently asked questions and answers in the Questions and Answers section of this user guide in the appendix. If the device needs to be repaired, please contact one of our Customer Care Centers: Abu Dhabi. . . . . . . . . . . . .97 12 62 23 800 Argentina . . . . . . . . . . . . . 0800-888-9878 Australia . . . . . . . . . . . . . . . .1300 665 366 Austria . 05 17 07 50 04 (0,065 Euro/Min.) Bahrain . . . . . . . . . . . . . . .97 31 73 11 173 Belgium . . . . . . . . . . . . . . . . 0 78 15 66 79 Bosnia Herzegovina . . . . . . . . 033 276 649 Brazil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Grande Capitais e Regiões Metropolitanas: . . . . . . . . . . . . . . . . . . . . . (11) 4003 3020 . . . . . . . . . . . . . . . . . .R$ 0,14 (US$ 0,069) Demais localidades: . . . . . 0800 888 3020 . . . . . . . . . . . . . . . . . .R$ 0,20 (US$ 0,098) Bulgaria. . . . . . . . . . . . . . . . . 02 873 94 88 Canada . . . . . . . . . . . . . . . . .866 247 8758 China . . . . 0 21 400 670 6007 (RMB 0.11) Croatia . . . . . . . . 01 / 2456 555 (0,23 Kn) Czech Republic . . . . . . . . . . . . 233 032 727 Denmark . . . . . . . . . . . . . . . . . 35 25 86 00 Dubai . . . . . . . . . . . . . . . .97 14 39 69 944 Egypt. . . . . . . . . . . . . . . . . . . 202 7623441 Finland . . . . . . . . . . . . . . . . 09 23 11 34 25 France. . . 01 56 38 42 00 (Appel national) Germany . . . . . . . . . . . . . . .01805 333 222 (0,14 Euro/Min. aus dem Festnetz der Deutschen Telekom. Für Anrufe aus den Mobilfunknetzen können abweichende Preise gelten) Greece . . . . . . 801 1000 500 (0,026 Euro) Hong Kong . . . . . . . . . . . . . . . . 2763 0203 . . . . . . . . . . . . . . . . . . . . . . . . . 2389 7285 Hungary . . . . . . . . . 06 14 71 24 44 (27 Ft) India . . . . . . . . . . . . . . .Please refer to your . . . . . . . . . . . . . . . . . . . local warranty card Ireland . . . . . . . . . . . . . . . . 18 50 77 72 77 Israel . . . . . . . . . . . . . . . . . . 1 700 700 727 Italy. . . . . . . . . . . . . . . . . . . . 220.127.116.11 Jordan . . . . . . . . . . . 00962 6 5625460/1/2 Kuwait . . . . . . . . . . . . . . . 00965-2464993 Latvia . . . . . . . . . . . . . . . . . . . . . 7 50 11 18 Lebanon. . . . . . . . . . . . . . 00961-1236110 Luxembourg . . . . . . . . . . . 40 66 61 56 40 Malaysia. . . . . . . . . . . . . . . .603 77124304 Malta . . . . . . . . . . . . . . +353 21 4940 632 Mexico . .01800 999 4442738 (01800 999 Gigaset) Netherlands . . . . . . . . .0900-3333102 (0,25 Euro/min.) New Zealand . . . . . . . . . . . 08 00 27 43 63 Norway . . . . . . . . . . . . . . . . . . 22 70 84 00 Oman. . . . . . . . . . . . . . . . 96 82 47 09 281 Poland . . . . . . . . . . . . . . . . . 0 801 140 160 Portugal . . . . . . . . . . . . (351) 808 781 223 Romania . . . . . . . . . . . . +4.021.529.7114. Russia. . . . . . . . . . . . . . . 8 (495) 228 1312 Serbia. . . . . . . . . . . . . . . . . . 0800 222 111 Singapore . . . . . . . . . . . . . . . . . 6735 9100 Slovak Republic . . . . . . . . . . . . . 02 59 68 22 66 (4,428 sk) Slovenija . . . . . . . . . . . . . . . 0 14 74 63 36 South Africa. . . . . . . . . . . . 08 60 10 11 57 Spain . . . . . . . . . . . . . . . . . . . . 902 103935 Sweden . . . . . . . . . . . . . . . . . 08 750 99 11 Switzerland . . . . . . . . . . 0848 212 000 (0,08 SFr./Min.) Taiwan . . . . . . . . . . . . . . . . . 02 266 24343 Thailand. . . . . . . . . . . . . . . . . 02 722 1118 Turkey . . . . . . . . . . . . . . . .0216 459 98 59 Ukraine . . . . . . . . . . . .+380-44-451-71-72 United Arab Emirates . . . . . 0 43 66 03 86 United Kingdom . . . . . . . 0 84 53 67 08 12 USA . . . . . . . . . . . . . . . . . 1-866 247-8758 . . . . . . . . . . . . . . . . . . . . . . . . . . . (toll free) Please have your record of purchase ready when calling. Replacement or repair services are not offered in countries where our product is not sold by authorised dealers. AS180 - AS280 / IM-Nord EN / A31008-M2002-R201-1-9W19 / main.fm / 27.10.2008 13 Menu tree Your phone has an extensive range of features. These are offered in the form of menus. To select a function while the phone is in idle status, press MENU (open menu), use the t and v keys to scroll to the function you require and press OK to confirm. To return to idle status: press and hold the a key. 1 Activating/deactivating the alarm clock 1-2 Wake-up time Input format: HHMM ¢ 4 1 ¢ OK Audio Settings 2-1 Handset Volume 2-1 Handset Volume 2-2 Ringer Volume 2-3 Ringer Melody Can be set to one of 3 levels (AS180) 2-1-1 Earpiece Can be set to one of 3 levels (AS280) 2-1-2 Speaker Can be set to one of 5 levels (AS280) 5 levels + "crescendo" available 2-3-1 External Calls 10 ringer melodies available for external calls 2-3-2 Internal Calls 10 ringer melodies available for internal calls 2-3-3 Alarm Clock 10 ringer melodies available for alarm clock 2-4 Advis. Tones Activate/deactivate 2-5 Battery Low 2-5-1 Off 2-5-2 On 2-5-3 During Call 3 MENU Alarm Clock 1-1 Activation 2 As an alternative to selecting functions using the t and v buttons, you can also enter the digit combination that is in front of the function in the menu tree. For setting the time and date, for example: Voice Mail 3-1 Set Key 1 (all devices) 3-1-1 Netw. Mailbx Warning tone to indicate battery is almost flat: never always only during a call Assign key 1 with network mailbox and enter the network mailbox number (in idle status, press and hold key 1 to dial). Netw. Mailbx: your network provider's answer machine; must be requested separately. The network mailbox list can be displayed if your network provider supports this function and if key 1 has been assigned with the network mailbox. AS180 - AS280 / IM-Nord EN / A31008-M2002-R201-1-9W19 / main.fm / 27.10.2008 14 4 Settings 4-1 Date/Time 4-2 Handset 4-3 Base Enter date (DDMMYY format), then time (HHMM format) ¢ page 10 4-2-1 Language Set the display language 4-2-2 Auto Answer Automatically activate/deactivate auto answer 4-2-3 Register HS Manually register the handset 4-2-4 Reset Handset Reset the handset 4-3-2 Call list type ¢ page 9 ¢ page 10 4-3-2-1 Missed Calls ¢ page 8 4-3-2-2 All Calls ¢ page 8 4-3-3 System PIN Change system PIN (default is 0000) 4-3-4 Base Reset Restore factory settings 4-3-5 Additional 4-3-6 Listening in 4-3-7 Preselection ¢ page 7 ¢ page 10 ¢ page 10 ¢ page 2 4-3-5-3 Eco Mode activate/deactivate ¢ page 2 Activate/deactivate the function ¢ page 9 4-3-5-1 Repeater activate/deactivate 4-3-5-2 Eco Mode+ activate/deactivate 4-3-7-1 Presel. Number Network provider dialling code, should be inserted automatically before the dialled phone number. 4-3-7-2 With Preselect First digits of the dialling codes, should be dialled with preselection. 4-3-7-3 Without Presel First digits of dialling codes, should be dialled without preselection.
