1. Features ......................................................................................................... 4
2. Before Using ................................................................................................. 4
3. Names of Components .............................................................................. 6
4. Functions Unique to Solar-Powered Watches .................................. 10
• Insufficient Charge Warning Feature
• When the Watched has Stopped due to Insufficient Charging
• Overcharging Prevention Feature
• Power Save Feature
5. General Reference for Charging Times .............................................. 16
6. Notes Regarding Handling of this Watch ........................................... 17
• Charging Precautions
7. Replacing the Secondary Battery ......................................................... 18
8. Switching the Mode (Display Function) .............................................. 19
2
9. Hand 0-Position Check and Correction .............................................. 20
• 0-Position Check
• 0-Position Correction
10. Setting the Time and Date .................................................................... 24
• Setting the Time
• Setting the Date
• When Date is not in Center of Calendar Window
11. Using the Chronograph ......................................................................... 30
12. Using Alarm 1 and Alarm 2 .................................................................. 33
13. All-Reset .................................................................................................... 36
14. Precautions .............................................................................................. 40
15. Specifications .......................................................................................... 46
English
CONTENTS
3
1. Features
This watch is a solar-powered watch that contains a solar cell in its face that
drives the watch by converting light energy into electrical energy. It is equipped
with numerous functions including a daily alarm function that be set based on a
24-hour clock, and a chronograph function that allows measurement of time in
1/20 second unit up to 59 minutes 59.95 seconds.
2. Before Using
This watch is a solar-powered watch. Please fully charge the watch before
using by exposing it to light.
VPower Save Feature:
When power generation stops as a result of light not shining on the solar cell
during the time/calendar (TME mode), the second hand stops at the 12:00 position
and only the hour and minute hands move to save power. When light once again
begins to shine on the solar cell, the second hand advances rapidly to the current
seconds and returns to moving at one second intervals. Although varying
according to the design, the power save feature is activated when light does not
shine continuously for 30 minutes or more, and the second hand has reached the
12:00 position.
<Proper Use of this Watch>
To use this watch comfortably, make sure to recharge it before it stops running
completely. Since there is no risk of overcharging (Overcharging Prevention
Feature), it is recommended that the watch be recharged everyday.
A secondary battery is used in this watch to store electrical energy. This
secondary battery is a clean energy battery that does not contain mercury or other
toxic substances. Once fully charged, the watch will continue to run for about one
year without additional charging (when the power save feature is operating).
4
5

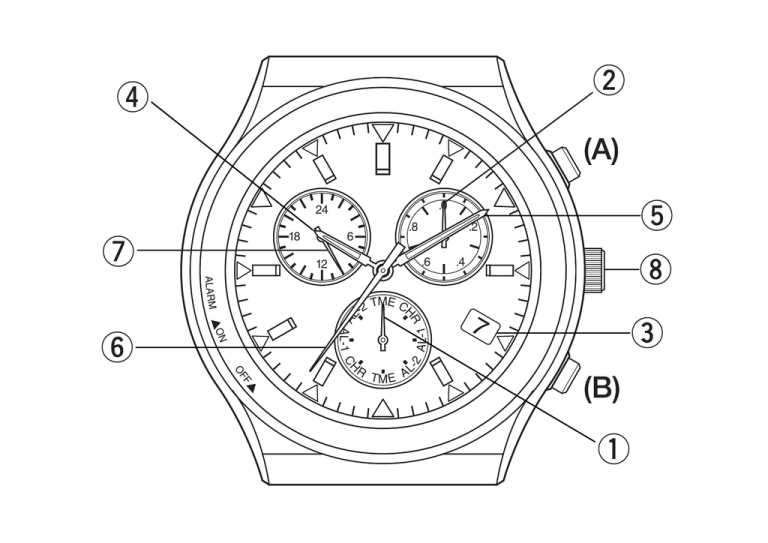

3. Names of Components
Name/Mode
A Mode hand
6
Time/Calendar
Chronograph
Alarm 1
Alarm 2
TME
CHR
AL-1
AL-2
B Function hand
Stop at 0-position
Chronograph minutes,
1/20th seconds
Stops at 0-position
Stops at 0-position
C Date
Displays date
Displays date
Displays date
Displays date
D Hour hand
Displays hours
Displays hours
Displays alarm hours
Displays alarm hours
E Minute hand
Displays minutes
Display minutes
Displays alarm minutes
Displays alarm minutes
F Second hand
Displays seconds
Chronograph seconds
Displays ON/OFF
Displays ON/OFF
G 24 hour hand
24-hour time display in
coordination with hour hand
24-hour time display in
coordination with hour hand
24-hour alarm time display in
coordination with hour hand
24-hour alarm time display in
coordination with hour hand
7
Name
H Crown
Button (A)
Button (B)
8
Crown
position
Normal
position
Time/Calendar
Chronograph
Alarm 1
Alarm 2
Mode switching
Mode switching
Mode switching
Mode switching
Position 1
Calendar correction
0-position check/correction
(function hand)
Alarm ON/OFF setting
Alarm ON/OFF setting
Position 2
Time correction
0-position check/correction (second hand,
24 hour hand, hour hand, minute hand)
Normal
position
Not used
Start/stop, reset (pressing
continuously for at least 2 seconds)
Alarm time correction (including
ON/OFF switching)
Alarm tone monitor (pressing
continuously for at least 2 seconds)
Alarm time correction (including
ON/OFF switching)
Alarm tone monitor (pressing
continuously for at least 2 seconds)
Position 1
Not used
ON/OFF switching
ON/OFF switching
Position 2
Not used
ON/OFF switching
ON/OFF switching
Normal
position
Not used
Not used
Not used
Position 1
Not used
Not used
Not used
Not used
Position 2
Not used
Not used
Not used
Not used
Function hand 0-position
correction
Second hand 0-position
correction
Recalls 1/20 seconds when
stopped
9
4. Functions Unique to Solar-Powered Watches
[Insufficient Charging
Warning Feature]
The second hand switches
from 1-second interval
movement to 2-second
interval movement
L
TME A
.8
6
7
.2
.6
12
AL
AL
AL
.0
24
18
TME C
-2
R
A L -1
A L -1
-2
A L -1
-2
R
.4
7
L
TME A
If charged
Time is incorrect as a result
of the watch having stopped
due to being insufficiently
charged. Sufficiently charge
the watch and set the time
before use.
10
TME C
-2
.4
H
A L-1 C
When power generation
once again begins when
light shines on the solar
cell
7
L
TME A
.2
.6
H
A L-1 C
H
A L-1 C
R
.8
6
12
If watch is continued
to be used without
charging
HR
TME C
-2
18
.4
HR
7
L
TME A
.2
.6
.0
24
.8
6
12
HR
H
A L-1 C
R
HR
TME C
-2
18
.4
A L -1
.2
.6
If insufficiently
charged
.0
24
.8
6
12
[Normal Time Display]
AL
.0
24
18
When power generation stops
due to light not shining on the
solar cell continuously for 30
minutes or more
-2
[Power Save Feature]
[Stopped]
The second hand rapidly
advances to the 12:00
position and stops
-2
When the watch becomes insufficiently charged, the following warning features
will be activated to inform the wearer that the watch is insufficiently charged.
The watch hands begin to move when the watch is charged
by exposing to light.
1. If the watch has stopped as a result of being insufficiently
charged, it takes at least 30 minutes for the watch to switch
to the normal time display even if exposed to light. Continue
charging until the second hand begins to move.
11
<When the Watch has Stopped due to Insufficient Charging>
When the capacity of the secondary battery decreases as a result of the watch not
being exposed to light after though the insufficient charge warning feature has
been activated, the watch will stop due to being insufficiently charged. When this
happens, sufficiently charge the watch by exposing to light so that it returns to the
normal time display (1-second interval movement).
Notes:
• Since the time is incorrect when the watch has
stopped as a result of being insufficient charged,
make sure to reset the time before using.
• If the watch has stopped as a result of being
insufficient charged, it takes at least 30 minutes until
the watch returns to the normal time display even if
it is exposed to light. Continue charging until the
7
second hand begins to move.
.0
24
18
.8
6
.2
.6
12
.4
TME C
-2
A L -1
-2
R
HR
H
A L-1 C
12
When the capacity of the secondary battery decreases as a result of light not shining
on the solar cell, the second hand switches from 1-second interval movement to 2second interval movement (insufficient charge warning feature). Although the
watch continues to keep time accurately at this time, the watch stops after about 4
days have elapsed after the second hand has switched to 2-second interval movement.
When this happens, charge the watch by exposing it to light until the second hand
returns to 1-second interval movement.
Notes:
• When the chronograph, alarm 1 or alarm 2 mode is
displayed, the watch automatically switches to the time
display and begins 2-second interval movement.
However, the mode hand indicates the original mode.
The watch returns to the original mode when it is
2sec
sufficient charged and the insufficient charge warning
2sec
feature is canceled.
• Chronograph measurement stop and the chronograph is
reset even when measurement is in progress.
<2-second interval
• The alarm will not sound even if it is set.
movement>
• Crown (mode switching) and button operations will
not function.
AL
<Insufficient Charging Warning Feature>
L
TME A
<Stopped due to insufficient
charging>
13
<Overcharging Prevention Feature>
The overcharging prevention feature is activated when the secondary battery is
fully charged so that it is not charged further.
<Power Save Feature>
When power is no longer generated as a result of light not shining continuously
for 30 minutes or more on the solar cell during the
time/calendar (TME mode) with the crown in the
normal position or Position 1, the second hand
stops when it has reached the 12:00 position and
the power save feature is activated to reduce
current consumption. The 24 hour hand, hour
hand and minute hand continue to keep the
7
correct time even though the second hand has
stopped. Furthermore, the calendar is corrected in
coordination with the 24 hour hand and hour
hand.
.0
24
18
.8
6
.2
.6
.4
TME C
-2
A L -1
-2
H
A L-1 C
R
HR
AL
12
L
TME A
<Second hand stopped at 12:00>
14
Notes:
• During the time the secondary battery is fully charged and the overcharging
prevention feature is operating, the power save feature does not operate even when
power generation is interrupted as a result of not exposing the solar cell to light.
Similarly, the power save feature will also not operate when the secondary battery
temporarily becomes fully charged as a result of exposure to intense light.
• When the power save feature has been activated when the crown is at Position 1
(calendar correction position), the date can be corrected by turning the crown.
• If the alarm is set (ON), the alarm will sound when the set alarm time is reached.
• The time until the power save feature is activated varies according to the model.
Canceling Power Save Feature
1. When power generation begins as a result of light shining on the solar cell, the
power save feature is canceled and the second hand begins 1-second interval
movement.
2. Power save is also canceled when the position of the crown has been changed
(from the normal position to Position 1 or Position 2) or the mode has been
switched (chronograph or alarm mode) by turning the crown while in the normal
position.
15
5. General Reference for Charging Times
6. Notes Regarding Handling of this Watch
The time required for recharging varies according to the model of the watch (color of
the dial, etc.). The following times are shown below to serve only as a reference.
* Recharging time refers to the amount of time the watch is continuously exposed to
light.
<Try to keep this watch charged at all times.>
Please note that if your wear long sleeves, the watch can easily become
insufficiently charged as a result of being concealed and unable to be exposed to
light.
• When you take the watch off, try to place it in as bright a location as possible to
ensure that it is continuously kept charged continues to keep the correct time.
Illuminance
(lx)
Environment
Charging time
Charging time Charging time from
the stopped state until
for 1 day of
1-second interval
operation
movement
Full
recharging
time
500
Inside an ordinary office
4 hours
100 hours
----
1,000
60-70 cm (24-28 in.) under fluorescent
light (30 W)
2 hours
45 hours
----
3,000
20 cm (8 in.) under fluorescent light (30 W)
40 minutes
15 hours
150 hours
10,000
Outdoors, cloudy weather
12 minutes
4 hours 30 minutes
45 hours
100,000
Outdoors, summer, under direct sunlight
3 minutes
1 hour 30 minutes
9 hours
Full recharging time: Time required for recharging the watch from the stopped state to fully charged
Charging time for 1 day of operation: Time required for recharging the watch to run for 1 day at 1-second
interval movement
16
CAUTION: Charging Precautions
• Avoid recharging at high temperatures (over about 60°C / 140°F) since this may
result in damage to the watch during recharging.
Examples: Charging the watch in close proximity to an incandescent lamp,
halogen lamp or other light source that can easily reach high
temperatures, or charging the watch in a location that reaches high
temperatures such as on a car dashboard.
• When charging the watch with an incandescent lamp, always make sure the
watch is at least 50 cm (20 in.) away from the lamp so that it does not reach
excessively high temperatures during charging.
17
7. Replacing the Secondary Battery
8. Switching the Mode (Display Function)
Unlike ordinary silver-based batteries, the secondary battery used in this watch
does not have to be periodically replaced since it is able to be charged and
discharged repeatedly.
This watch is equipped with four modes consisting of time/calendar, chronograph,
alarm 1 and alarm 2. The mode changes when the crown is turned. The current
mode can be confirmed with the mode hand.
TME C
-2
A L -1
AL-2
Alarm 2 Mode
TME
Time/Calendar Mode
AL-1
Alarm 1 Mode
CHR
Chronograph/0-Position
Correction Mode
7
-2
H
A L-1 C
R
HR
AL
[Modes/Display Functions]
L
TME A
Mode hand
18
19
9. Hand 0-Position Check and Correction
Before using this watch, check that the functions of the watch operate properly by
performing the following procedure.
0-Position: This refers to the base position of each hand for enabling this
watch to function properly.
.0
24
18
.8
6
.2
.6
TME C
-2
A L -1
.4
1
(1)
-2
H
A L-1 C
R
HR
AL
12
L
TME A
0-position correction
20
[0-Position Check]
1. Turn the crown to switch the watch to the
chronograph [CHR] mode.
2. Pull the crown out to Position 1 to switch
the watch to the 0-position correction
mode. The 24 hour hand, hour hand,
minute hand, second hand and function
hand rapidly advance. Check that each
hand indicates the 0-position.
0 Positions of Each Hand (Base Position)
24 hour hand : 24:00
Hour hand, minute hand : 00:00
Second hand : 00 seconds
Function hand : 0-position (12:00 position)
Perform the “0-Position Correction” procedure when the hands are not at the
positions indicated above.
[0-Position Correction]
0-Position Correction of Function Hand:
1. Pull the crown out to Position 1 in the chronograph [CHR] mode to correct the
function hand.
(1) Press button (A) to align the function hand at the 0-position immediately
after the date has changed (12:00 position).
• Pressing button (A) advances the function hand by one second each time it
is pressed. Continuously pressing button (A) causes the function hand to
advance continuously.
• The date changes by one day when the function hand completes four
revolutions.
21
Note: • Turning the crown by one revolution to the left causes the function hand
to advance continuously (make four revolutions) and the date to be
corrected by one day.
0-Position Correction of 24 Hour Hand, Hour Hand, Minute Hand and
Second Hand:
1. Pull the crown out to Position 2 in the chronograph [CHR] mode to correct
each of the hands.
(1) Press button (A) to align the second hand at the 0 seconds position.
• Pressing button (A) causes the second hand to advance by one second each
time it is pressed. Pressing button (A) continuously causes the second hand
to advance continuously.
(2) Turn the crown to set the 24 hour hand at the 24:00 position, and the hour
and minute hands at the 0-position (12:00 position).
• Turning the crown by one revolution to the right causes the 24 hour hand,
hour hand and minute hand to move forward (clockwise).
• Turning the crown by one revolution to the left causes the 24 hour hand,
hour hand and minute hand to move backward (counter-clockwise).
• Turning the crown continuously by two or more revolutions causes each
22
hand to advance continuously. When stopping the hands while they are
advancing continuously, turn the crown by one revolution to the right or
left. When the continuous advance of the hands is not stopped manually,
they stop automatically after advancing by 12 hours.
Note: • After returning the crown to the normal position, correctly reset the time
and date in the time/calendar (TME) mode. In addition, reset the other
modes as well before using the watch.
23
10. Setting the Time and Date
[Setting the Time]
Minute hand
Hour hand
Function hand
Button (A)
(1) Date correction position
.0
24
18
.8
6
.2
.6
TME C
-2
A L -1
Crown
.4
(2) Time correction position
7
(0) Normal position
-2
H
A L-1 C
R
HR
AL
12
L
TME A
24 hour hand
Second hand
Mode hand
24
Date
1. Turn the crown to align the mode hand at the time/calendar [TME] mode.
2. Pull the crown out to Position 2 (time correction position).
• When the crown is pulled out to Position 2, the second hand rapidly advances
to the 0 seconds position and stops.
Notes:
• When the second hand does not stop at the 0 seconds position, reset the 0position (base position) in the “0-Position Correction Mode”.
• If the crown is pulled out to Position 2 when the date is changing, the date
stops changing at that time, and after the second hand rapidly advances to
the 0 seconds position, resumes changing until the date has finished
changing.
3. Turn the crown to set the time.
(1) Turning the crown by one revolution to the right causes the 24 hour hand,
hour hand and minute hand to move forward (clockwise).
(2) Turning the crown by one revolution to the left causes the 24 hour hand,
hour hand and minute hand to move backward (counter-clockwise).
• Turning the crown continuously by two or more revolutions causes each
hand to advance continuously. When stopping the hands while they are
advancing continuously, turn the crown by one revolution to the right or
25
left. When the continuous advance of the hands is not stopped manually,
they stop automatically after advancing by 12 hours.
• During the time correction, the date does not change even if the hands pass
12:00 AM. Refer to the section on “Setting the Date” for the procedure for
correcting the date.
4. Return the crown to the normal position in synchronization with a telephone
time signal or other time service.
[Setting the Date]
The calendar function used by this watch is based on a 31-day month. The date
must be changed manually from the last day of the current month to the first day
of the next month by operating the crown in months having less than 31 days.
Function hand
Button (A)
24
18
(1) Date correction position
.0
.8
6
.2
.6
TME C
-2
A L -1
.4
7
(0) Normal position
-2
H
A L-1 C
R
HR
AL
12
L
TME A
Button (B)
Date
26
27
1. Turn the crown to switch the watch to the time/calendar [TME] mode.
2. Pull the crown out to Position 1 (date correction position).
3. Turn the crown to the left to set the date.
(1) Turning the crown to the left causes the function hand to make four
revolutions and the date to be corrected by one day.
• The date is corrected one day at a time. The date will not change
continuously even if the crown is turned continuously. When correcting the
date by several days, first check that correction of the date by one day has
been completed, and then turn the crown again to correct the date by an
additional day until the date is corrected for the desired number of days.
4. Always make sure to return the crown to the normal position after correcting
the date.
28
[When Date is not in Center of Calendar Window]
When the date display has shifted from the center of the calendar window as a
result of the watch having been subjected to a strong impact or other reason,
properly center the date in the calendar window in the chronograph mode.
1. Turn the crown to switch the watch to the chronograph [CHR] mode.
2. Pull the crown out to Position 1.
3. Pressing button (A) causes the function hand and date to move slightly.
• Press button (A) several times until the number of the date is located in the
center of the calendar window.
• After setting the date, press button (A) several times until the function hand
reaches the 0 position (12:00 position).
4. Always make sure to return the crown to the normal position after correcting.
29
11. Using the Chronograph
The chronograph is able to measure time up to a maximum of 59 minutes 59.95
seconds in 1/20th second unit, after which it resets to 0 seconds.
Second hand (chronograph seconds)
Button (A)
18
.8
6
.2
.6
TME C
-2
A L -1
.4
7
-2
H
A L-1 C
R
HR
AL
12
30
Function hand (chronograph minutes
or chronograph 1/20th seconds)
.0
24
L
TME A
Button (B)
[Explanation of Hands During Chronograph Measurement]
When the crown is turned and the mode hand is set to the chronograph [CHR]
mode, the second hand and function hand are rapidly advanced to the 0 position
(12:00 position), and the watch enters the chronograph mode.
• Second hand: Switches to chronograph seconds.
· The second hand advances rapidly and makes one revolution only when
starting at 0 seconds, after which it moves in 1 second increments to measure
chronograph seconds.
• Function hand: Switches to either chronograph minutes or chronograph 1/20th
seconds.
· Moves in 1 minute increments to measure chronograph minutes.
· When button (B) is pressed when the chronograph is stopped, the function
hand switches to 1/20th seconds during the time button (B) is pressed.
• 24 hour hand, hour hand, minute hand:
· Continue to display the current time when the watch has been switched from
the time/calendar mode.
· Continue to display the alarm set time when the watch has been switched from
the alarm mode.
31
[Chronograph Measurement]
1. Turn the crown to set the mode hand to the chronograph [CHR] mode.
2. Press button (A) to start and stop the chronograph. A confirmation tone is
heard whenever button (A) is pressed.
3. Continuously pressing button (A) when the chronograph is stopped causes the
chronograph second hand and chronograph minute hand to be reset to the 0position (12:00 position).
12. Using Alarm 1 and Alarm 2
With the exception of the alarm tone, the procedure for setting the alarm and other
operating procedures are the same for Alarm 1 and Alarm 2. The alarm function
uses a 24-hour clock. Once the alarm has been set, the alarm sounds for 15
seconds when the set time is reached once a day.
Button (A)
Button (A)
(1) Alarm ON/OFF switching position
Button (A)
.0
24
18
H
A L-1 C
1/20th seconds
displayed while
button (B) is
pressed
.6
TME C
-2
R
Button (A) pressed continuously
HR
Button (A)
6
12
A L -1
Stop
(2) Alarm setting position
.2
.4
7
(0) Normal position
-2
Measurement
AL
Reset
.8
TME
AL
Button (B)
Second hand (alarm ON/OFF)
32
33
[Setting the Alarm Time]
1. Turn the crown to set the mode hand to the Alarm 1 [AL-1] or Alarm 2 [AL-2]
mode.
• Second hand: Moves rapidly to the ON position (42 seconds) or OFF position
(38 seconds).
• 24 hour hand, hour hand, minute hand: Move to the previously set alarm time.
• Function hand: Stops at the 0-position.
2. Pull the crown out to Position 2 (alarm setting position).
• The alarm setting is turned ON automatically.
3. Turn the crown to set the alarm time.
(1) Turning the crown by one revolution to the right causes the 24 hour hand,
hour hand and minute hand to move forward (clockwise).
(2) Turning the crown by one revolution to the left causes the 24 hour hand,
hour hand and minute hand to move backward (counter-clockwise).
• Turning the crown continuously by two or more revolutions causes each
hand to advance continuously. When stopping the hands while they are
advancing continuously, turn the crown by one revolution to the right or
left. When the continuous advance of the hands is not stopped manually,
34
they stop automatically after advancing by 12 hours.
• Set the alarm while making sure not to mistake AM and PM by referring to
the 24 hour hand.
4. Return the crown to the normal position after setting the alarm time.
[Switching Alarm ON and OFF]
The alarm is switched ON and OFF each time button (A) is pressed when the
crown is pulled out to Position 1 or Position 2 in the alarm mode.
[Alarm Tone Monitor]
When button (A) is pressed with the crown in the normal position in the alarm
mode, the alarm tone sounds for as long as button (A) is pressed.
[Stopping the Alarm Tone]
Press either button (A) or (B) to stop the alarm tone while it is sounding.
35
13. All-Reset
Button (A)
24
18
.8
6
.6
TME C
-2
R
A L -1
.4
1
(0) Normal position
-2
AL
12
(2) 0-position correction
.2
HR
36
.0
H
A L-1 C
• This watch may not function properly as a result of being subjected to the
effects of static electricity, strong impact and so forth. When this happens,
perform the All-Reset and Base Position Alignment procedures described
below. If the base position alignment procedure is not performed after
performing the all-reset procedure, the base positions of each hand will be
incorrect, and the time will not be displayed correctly even if it has been set.
In addition, failure to perform the base position alignment procedure will also
prevent the alarm and chronograph modes from operating properly.
• When performing the all-reset procedure, first make sure that the watch is
sufficiently charged and the second hand is moving in one second increments.
If the all-reset procedure is performed when the watch is insufficiently
charged, it may not function properly or remain stopped following the allreset procedure.
L
TME A
Button (B)
[All-Reset Procedure]
1. Turn the crown to set the mode hand to the chronograph [CHR] mode.
2. Pull the crown out to Position 2 (0-position correction mode).
• With the exception of the mode hand, each hand moves to its respective 0position stored in memory and stops. (A hand may stop at a position other
than the 12:00 position if its 0-position has shifted.)
3. Press buttons (A) and (B) simultaneously and then release.
37
• Following a confirmation tone, each hand performs a demonstration
movement in the order of the function hand, 24 hour hand, hour hand, minute
hand and second hand to indicate that the all-reset procedure is finished.
This completes the all-reset procedure. Next, perform the base position alignment
procedure.
Note: • Do not press in the crown to the normal position until the base alignment
procedure has finished following the all-reset procedure.
38
[Base Position Alignment Following All-Reset]
1. Press button (A) to align the second hand at the 0 seconds position (12:00
position).
• Pressing button (A) advances the second hand by one second each time it is
pressed. Continuously pressing button (A) causes the function hand to
advance continuously.
2. Turn the crown to set the 24 hour hand at the 24:00 position, and the hour and
minute hands at the 0-position (12:00 position).
• Turning the crown by one revolution to the right causes the 24 hour hand,
hour hand and minute hand to move forward (clockwise).
• Turning the crown by one revolution to the left causes the 24 hour hand, hour
hand and minute hand to move backward (counter-clockwise).
• Turning the crown continuously by two or more revolutions causes each hand
to advance continuously. When stopping the hands while they are advancing
continuously, turn the crown by one revolution to the right or left. When the
continuous advance of the hands is not stopped manually, they stop
automatically after advancing by 12 hours.
3. Push in the crown to Position 1.
4. Press button (A) to set the function hand at the 0-position immediately after the
date has changed (12:00 position).
• Pressing button (A) advances the function hand by one second each time it is
pressed. Continuously pressing button (A) causes the function hand to
advance continuously.
• The date changes by one day when the function hand completes four
revolutions.
Note: • Turning the crown by one revolution to the left causes the function hand
to advance continuously (make four revolutions) and the date to be
corrected by one day.
5. After returning the crown to the normal position, correctly reset the time and
date in the time/calendar (TME) mode. In addition, reset the other modes as
well before using the watch.
39
For correct use within the design limits of the watch, confirm the level of waterresistance of your watch, as indicated on the dial and case, and consult the table.
14. Precautions
CAUTION:
Water-resistance performance
There are several types of water-resistant watches, as
shown in the following table.
Examples of use
The unit "bar" is roughly equal to 1 atmosphere.
* WATER RESIST(ANT) xx bar may also be indicated
as W.R. xx bar.
Indication
40
Specification
Minor exposure to water
(washing face, rain, etc.)
Moderate exposure to
water (washing, kitchen
work, swimming, etc.)
Marine sports
(skin diving)
Scuba diving
(with air tank)
Operation of the
crown or button with
moisture visible
Dial
Case (Case back)
WATER RESIST or
no indication
WATER
RESIST(ANT)
Water-resistant to 3
atmospheres
OK
NO
NO
NO
NO
WR 50 or WATER
RESIST 50
WATER
RESIST(ANT) 5 bar or
WATER RESIST(ANT)
Water-resistant to 5
atmospheres
OK
OK
NO
NO
NO
WR 100/200 or
WATER RESIST 100/200
WATER RESIST(ANT)
10bar/20 bar or
WATER RESIST(ANT)
Water-resistant to
10 / 20 atmospheres
OK
OK
OK
NO
NO
41
• Water-resistance for daily use (to 3 atmospheres): This type of watch is waterresistant to minor exposure to water. For example, you may wear the watch
while washing your face; however, it is not designed for use underwater.
• Upgraded water-resistance for daily use (to 5 atmospheres): This type of watch
is water-resistant to moderate exposure to water. You may wear the watch while
swimming; however, it is not designed for use while skin diving.
• Upgraded water-resistance for daily use (to 10/20 atmospheres): This type of
watch may be used for skin diving; however, it is not designed for scuba or
saturated diving using helium gas.
42
• If moisture has entered the watch, or if the inside of the crystal is fogged up and
does not become clear within a day, immediately take the watch to your dealer
or Citizen Service Center for repair. Leaving the watch in such a state will allow
corrosion to form inside.
• If seawater enters the watch, place the watch in a box or plastic bag and
immediately take it in for repair. Otherwise, pressure inside the watch will
increase, and parts (crystal, crown, buttons, etc.) may come off.
CAUTION:
CAUTION
Keep your watch clean.
• Dust and dirt tend to be deposited in gaps in the back of the case or band.
Deposited dust and dirt may cause corrosion and soil your clothing. Clean the
watch occasionally.
• Do NOT operate the crown or button with wet fingers or when the watch is wet.
Water may enter the watch and compromise water-resistance.
• If the watch is used in seawater, rinse with fresh water afterward and wipe with
a dry cloth.
Cleaning the Watch
• Use a soft cloth to wipe off dirt, perspiration and water from the case and
crystal.
43
• Use a soft, dry cloth to wipe off perspiration and dirt from the leather band.
• To clean a metal, plastic, or rubber watchband, wash away dirt with mild soap
and water. Use a soft brush to remove dust and dirt jammed in the gaps in the
metal band. If your watch is not water-resistant, take it to your dealer.
NOTE: Avoid using solvents (thinner, benzine, etc.), as they may mar the finish.
CAUTION: Operating environment
• Use the watch within the operating-temperature range specified in the
instruction manual.
Using the watch where temperatures are outside the specified range, may result
in deterioration of functions or even stoppage of the watch.
• Do NOT use the watch in places where it is exposed to high temperature, such
as in a sauna.
Doing so may result in a skin burn.
• Do NOT leave the watch in a place where it is exposed to high temperature,
such as the glove compartment or dash-board of a car.
Doing so may result in deterioration of the watch, such as deformation of plastic
parts.
• Do NOT place the watch close to a magnet.
44
Timekeeping will become inaccurate if you place the watch close to magnetic
health equipment such as a magnetic necklace or a magnetic latch of a
refrigerator door or handbag clasp or the earphone of a mobile phone. If this has
occurred, move the watch away from the magnet and reset the time.
• Do NOT place the watch close to household appliances that generate static
electricity.
Timekeeping may become inaccurate if the watch is exposed to strong static
electricity, such as is emitted from a TV screen.
• Do NOT subject the watch to a strong shock such as dropping it onto a hard
floor.
• Avoid using the watch in an environment where it may be exposed to chemicals
or corrosive gases.
If solvents, such as thinner and benzine, or substances containing such solvents
come in contact with the watch, discoloration, melting, cracking, etc. may result.
If the watch comes in contact with mercury used in thermometers, the case, band
or other parts may become discolored.
45
15. Specifications
• Model: E86*
• Type: Analog solar-powered watch
• Accuracy: Within ±15 seconds per month on average (when worn at normal
temperatures of +5°C to +35°C/41°F to 95°F)
• Operating temperature range: -10°C to +60°C
• Display functions
Time: 24 hours, hours, minutes, seconds
Calendar: Date display by a date wheel
• Additional functions:
Power save feature
Insufficient charging warning feature
Overcharging prevention feature
Chronograph (60 minute measurement, 1/20th second units)
Alarm 1 (24 hour clock, alarm monitor, alarm ON/OFF)
Alarm 2 (24 hour clock, alarm monitor, alarm ON/OFF)
46
• Continuous running times:
· Fully charged to stopped without charging:
Roughly 1 year (when stored in a dark location where the power save
feature operates continuously)
Roughly 6 months (when the power save feature is activated for about
7.5 hours per day)
* Continuous running times differ depending on the conditions under which
the alarm and chronograph functions are used.
2-second interval movement to stopped: Roughly 4 days
• Battery: Secondary battery
* Specifications are subject to change without notice.
47
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
