Yamaha CLP-970A Owner's manual

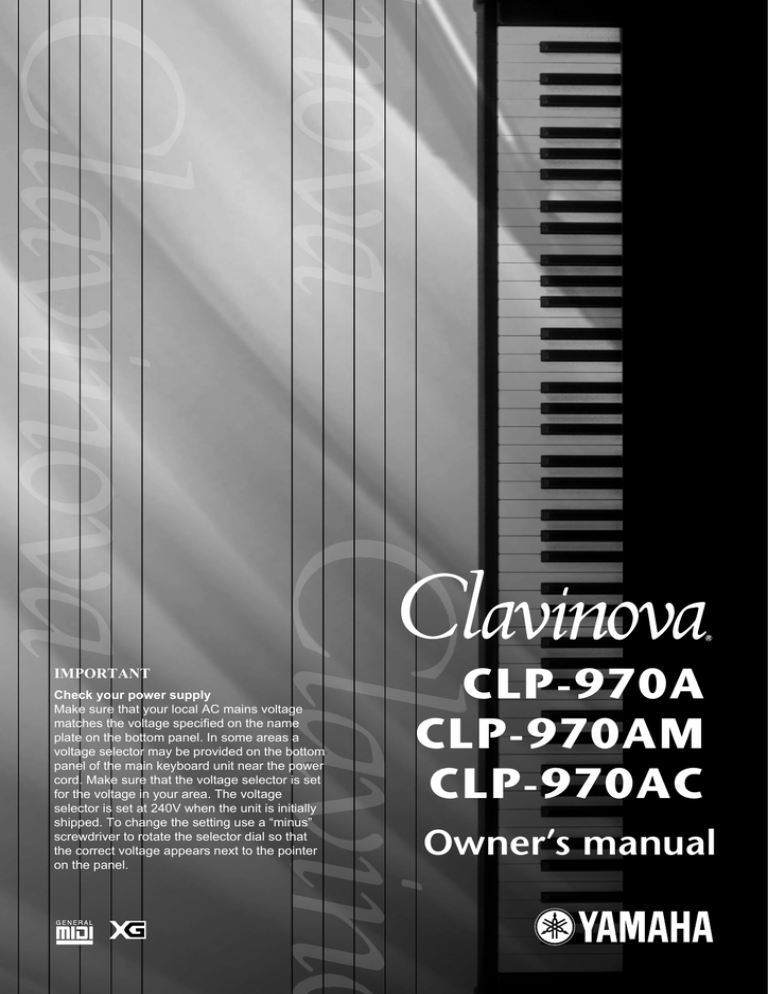

IMPORTANT
Check your power supply
Make sure that your local AC mains voltage
matches the voltage specified on the name
plate on the bottom panel. In some areas a
voltage selector may be provided on the bottom
panel of the main keyboard unit near the power
cord. Make sure that the voltage selector is set
for the voltage in your area. The voltage
selector is set at 240V when the unit is initially
shipped. To change the setting use a “minus”
screwdriver to rotate the selector dial so that
the correct voltage appears next to the pointer
on the panel.
CLP-970A
CLP-970AM
CLP-970AC
Owner’s manual
SPECIAL MESSAGE SECTION
PRODUCT SAFETY MARKINGS: Yamaha electronic
products may have either labels similar to the graphics
shown below or molded/stamped facsimiles of these
graphics on the enclosure. The explanation of these
graphics appears on this page. Please observe all cautions
indicated on this page and those indicated in the safety
instruction section.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
See bottom of Keyboard enclosure for graphic symbol markings
The exclamation point within the
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the product.
The lightning flash with arrowhead
symbol, within the equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical
shock.
IMPORTANT NOTICE: All Yamaha electronic products
are tested and approved by an independent safety testing
laboratory in order that you may be sure that when it is
properly installed and used in its normal and customary
manner, all foreseeable risks have been eliminated. DO
NOT modify this unit or commission others to do so
unless specifically authorized by Yamaha. Product performance and/or safety standards may be diminished.
Claims filed under the expressed warranty may be denied
if the unit is/has been modified. Implied warranties may
also be affected.
SPECIFICATIONS SUBJECT TO CHANGE: The
information contained in this manual is believed to be
correct at the time of printing. However, Yamaha reserves
the right to change or modify any of the specifications
without notice or obligation to update existing units.
ENVIRONMENTAL ISSUES: Yamaha strives to pro-
duce products that are both user safe and environmentally
friendly. We sincerely believe that our products and the
production methods used to produce them, meet these
goals. In keeping with both the letter and the spirit of the
law, we want you to be aware of the following:
92-469 1
Battery Notice: This product MAY contain a small non-
rechargable battery which (if applicable) is soldered in
place. The average life span of this type of battery is
approximately five years. When replacement becomes
necessary, contact a qualified service representative to
perform the replacement.
Warning: Do not attempt to recharge, disassemble, or
incinerate this type of battery. Keep all batteries away
from children. Dispose of used batteries promptly and as
regulated by applicable laws. Note: In some areas, the
servicer is required by law to return the defective parts.
However, you do have the option of having the servicer
dispose of these parts for you.
Disposal Notice: Should this product become damaged
beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and
federal regulations that relate to the disposal of products
that contain lead, batteries, plastics, etc.
NOTICE: Service charges incurred due to lack of knowl-
edge relating to how a function or effect works (when the
unit is operating as designed) are not covered by the manufacturer’s warranty, and are therefore the owners responsibility. Please study this manual carefully and consult
your dealer before requesting service.
NAME PLATE LOCATION: The graphic below indicates the location of the name plate. The model number,
serial number, power requirements, etc., are located on
this plate. You should record the model number, serial
number, and the date of purchase in the spaces provided
below and retain this manual as a permanent record of
your purchase.
CLP-970A/970AM/970AC
Model
Serial No.
Purchase Date
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
* Please keep these precautions in a safe place for future reference.
WARNING
Always follow the basic precautions listed below to avoid the possibility of serious injury or even
death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions
include, but are not limited to, the following:
• Do not open the instrument or attempt to disassemble the internal parts or modify them in any way. The
instrument contains no user-serviceable parts. If it should appear to be malfunctioning, discontinue use
immediately and have it inspected by qualified Yamaha service personnel.
• Do not expose the instrument to rain, use it near water or in damp or wet conditions, or place containers on
it containing liquids which might spill into any openings.
• If the power cord or plug becomes frayed or damaged, or if there is a sudden loss of sound during use of
the instrument, or if any unusual smells or smoke should appear to be caused by it, immediately turn off the
power switch, disconnect the electric plug from the outlet, and have the instrument inspected by qualified
Yamaha service personnel.
• Only use the voltage specified as correct for the instrument. The required voltage is printed on the name
plate of the instrument.
• Before cleaning the instrument, always remove the electric plug from the outlet. Never insert or remove an
electric plug with wet hands.
• Check the electric plug periodically and remove any dirt or dust which may have accumulated on it.
(1) B-6
CLP-970A
3
PRECAUTIONS
CAUTION
Always follow the basic precautions listed below to avoid the possibility of physical injury to you or
others, or damage to the instrument or other property. These precautions include, but are not limited
to, the following:
• Do not place the power cord near heat sources such as heaters or radiators, and do not excessively bend
or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone could walk
on, trip over, or roll anything over it.
• When removing the electric plug from the instrument or an outlet, always hold the plug itself and not the
cord. Pulling by the cord can damage it.
• Do not connect the instrument to an electrical outlet using a multiple-connector. Doing so can result in lower
sound quality, or possibly cause overheating in the outlet.
• Remove the electric plug from the outlet when the instrument is not to be used for extended periods of time,
or during electrical storms.
• Before connecting the instrument to other electronic components, turn off the power for all components.
Before turning the power on or off for all components, set all volume levels to minimum. Also, be sure to set
the volumes of all components at their minimum levels and gradually raise the volume controls while playing
the instrument to set the desired listening level.
• Do not expose the instrument to excessive dust or vibrations, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day) to prevent the possibility of panel disfiguration or damage to
the internal components.
• Do not use the instrument near other electrical products such as televisions, radios, or speakers, since this
might cause interference which can affect proper operation of the other products.
• Do not place the instrument in an unstable position where it might accidentally fall over.
• Before moving the instrument, remove all connected cables.
• When cleaning the instrument, use a soft, dry or slightly damp cloth. Do not use paint thinners, solvents,
cleaning fluids, or chemical-impregnated wiping cloths. Also, do not place vinyl, plastic or rubber objects on
the instrument, since this might discolor the panel or keyboard.
• Do not rest your weight on, or place heavy objects on the instrument, and do not use excessive force on the
buttons, switches or connectors.
• Take care that the key cover does not pinch your fingers, and do not insert a finger or hand in the key cover
gap.
• Never insert or drop paper or metallic or other objects between the slits of the key cover and the keyboard.
If this happens, immediately turn off the power and remove the electric plug from the outlet and have the
instrument inspected by qualified Yamaha service personnel.
• Do not place the instrument against a wall (allow at least 3 cm/one-inch from the wall), since this can cause
inadequate air circulation, and possibly result in the instrument overheating.
• Read carefully the attached documentation explaining the assembly process. Failure to assemble the
instrument in the proper sequence might result in damage to the instrument or even injury.
• Do not operate the instrument for a long period of time at a high or uncomfortable volume level, since this
can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.
(1) B-6
4
CLP-970A
CLP-970A.E.book Page 5 Monday, December 11, 2000 5:41 PM
PRECAUTIONS
■ USING THE BENCH (If included)
• Do not play carelessly with or stand on the bench. Using it as a tool or step-ladder or for any other purpose
might result in accident or injury.
• Only one person should sit on the bench at a time, in order to prevent the possibility of accident or injury.
• If the bench screws become loose due to extensive long-term use, tighten them periodically using the
included tool.
■ SAVING USER DATA
• Save all data to an external device such as the Yamaha MIDI Data Filer MDF3 in order to help prevent the
loss of important data due to a malfunction or user operating error.
Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument,
or data that is lost or destroyed.
Always turn the power off when the instrument is not in use.
(1) B-6
CLP-970A
5
CLP-970A.E.book Page 6 Monday, December 11, 2000 5:41 PM
Thank you for choosing the Yamaha Clavinova CLP-970A/970AM/970AC. In order to make the
most of your Clavinova’s performance potential and features, please read this Owner’s Manual
thoroughly, and keep it in a safe place for later reference.
About this Owner’s Manual and Reference Booklet
This manual consists of four main sections: “Introduction,” “Basic Operation,” “Detailed Settings,” and “Appendix.” Also,
a separate “Reference Booklet” is provided.
Introduction:
Please read this section first. In the “Application Index” section on page 11 and “Features” on
page 14, you can learn how to use the Clavinova and its functions in particular situations.
Basic Operation:
This main section explains how to use the basic functions. Refer to this section while you
play the Clavinova. If you have questions or come across the words you do not know, refer to
the section entitled “Questions about Operations and Functions” on page 89, or the “Index”
on page 99.
Detailed Settings:
This section explains how to make detailed settings for the Clavinova’s various functions.
Refer to this section as necessary.
Appendix:
This section introduces troubleshooting, a description of preset voices, and other reference
material.
Reference Booklet: XG Voice List, MIDI Data Format, etc.
* The models CLP-970AM and CLP-970AC will be referred to as the CLP-970A in this Owner’s Manual.
• The illustrations and LCD screens as shown in this Owner’s Manual are for instructional purposes only, and
may appear somewhat different from those on your instrument.
■ Trademarks
• Apple and Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
• IBM-PC/AT is a trademark of International Business Machines Corporation.
• Windows is the registered trademark of Microsoft® Corporation.
All other trademarks are the property of their respective holders.
“The Clavinova-Computer Connection” is a supplementary guidebook that describes, for beginners, what
you can do with your Clavinova and a personal computer and how to set up a Clavinova-Computer system
(the manual is not written for any specific models). The document is available as a PDF file (in English) at
the following Internet address:
Clavinova Web site:
http://www.yamaha.co.jp/english/product/cl/
Yamaha Manual Library (Electronic Musical Instruments)
http://www2.yamaha.co.jp/manual/english/
(For the Manual Library, you need to register first. Check the Clavinovas [Digital Piano] web page.)
6
CLP-970A
Table of contents
Introduction.......................................................... 2
PRECAUTIONS ........................................................................................................................................ 3
About this Owner’s Manual and Reference Booklet..................................................................................................... 6
Table of contents ................................................................................................................................... 7
Application Index
Use this index to find reference pages that may be helpful for your application and situation. ................................. 11
Maintenance ........................................................................................................................................ 13
Included Accessories ............................................................................................................................ 13
Features ................................................................................................................................................ 14
Before Using the Clavinova.................................................................................................................. 16
Key cover ....................................................................................................................................................................... 16
Music stand ................................................................................................................................................................... 16
Turning the power on................................................................................................................................................... 17
Adjusting the display contrast ...................................................................................................................................... 18
Setting the volume ........................................................................................................................................................ 18
Using headphones......................................................................................................................................................... 18
Basic Operation .................................................. 19
Part Names ........................................................................................................................................... 20
Listening to the Demonstration Tunes................................................................................................ 22
Listening to 50 Piano Preset Songs ..................................................................................................... 24
Playing the 50 piano preset songs ................................................................................................................................ 24
Practicing a one-hand part using 50 preset songs ....................................................................................................... 26
Selecting and Playing Voices ............................................................................................................... 28
Selecting Voices............................................................................................................................................................. 28
Using the pedals ............................................................................................................................................................ 29
Adding variation to the sound [BRILLIANCE]/[REVERB]/[CHORUS].................................................................. 30
Transposition ... [TRANSPOSE].................................................................................................................................. 32
Combining two voices (Dual mode)............................................................................................................................ 33
Splitting the keyboard range and playing two different voices (Split mode) ............................................................ 35
Using the metronome ................................................................................................................................................... 38
Recording Your Performance............................................................................................................... 39
Recording a New Song.................................................................................................................................................. 39
Recording to [TRACK 1]........................................................................................................................................ 39
Re-recording TRACK 1........................................................................................................................................... 41
Re-recording TRACK 1 partially............................................................................................................................ 42
Recording to [TRACK2]......................................................................................................................................... 43
Recording to the third or more tracks [EXTRA TRACKS] .................................................................................. 44
Other recording techniques.......................................................................................................................................... 44
Adding data to or recording over an existing song ............................................................................................... 44
Changing a voice or tempo after recording ........................................................................................................... 45
CLP-970A
7
Table of contents
Adjusting the volume balance between playback and your performance [SONG BALANCE] ......................... 46
Recording in Dual or Split mode ........................................................................................................................... 47
Saving Recorded Songs and Handling the Files...[FILE] ...................................................................... 48
Clavinova memory.................................................................................................................................................. 48
Basic file operation.................................................................................................................................................. 49
Saving recorded or other songs to Clavinova Storage memory...[SaveToMemory]................................................. 50
Deleting songs in Clavinova Storage memory... [DeleteSong]................................................................................... 51
Renaming a song...[RenameSong] ............................................................................................................................... 52
Changing the type of characters on screen...[CharacterCode]................................................................................... 52
Playing Back Recorded Songs .............................................................................................................. 53
Playing back a song ....................................................................................................................................................... 53
Turning track playback on and off............................................................................................................................... 55
Connections ......................................................................................................................................... 56
Connectors .................................................................................................................................................................... 56
Connecting a personal computer ................................................................................................................................. 58
Detailed Settings ................................................ 63
Detailed Settings.................................................................................................................................. 64
Parameter List ............................................................................................................................................................... 64
Making detailed settings ............................................................................................................................................... 66
Detailed settings for recording and playback [SONG SETTING] ........................................................ 68
Correcting note timing [Quantize].............................................................................................................................. 68
Specifying whether playback starts immediately along with the first voicing [QuickPlay] ...................................... 69
Auditioning the channels [ChannelListen] ................................................................................................................. 69
Deleting data from each channel [ChannelClear]....................................................................................................... 69
Specifying the range and playing back repeatedly [FromToRepeat] ......................................................................... 69
Playing back a song repeatedly [SongRepeat] ............................................................................................................. 70
Detailed settings for the metronome METRONOME [SETTING] ........................................................ 71
Setting the metronome time signature [TimeSignature]............................................................................................ 71
Setting the metronome volume level [MetronomeVolume]...................................................................................... 71
Selecting the metronome voice [MetronomeSound] ................................................................................................. 71
Detailed settings for the voices [VOICE SETTING] .............................................................................. 72
Setting the octave [Octave]*......................................................................................................................................... 72
Setting the volume level [Volume]*............................................................................................................................. 72
Setting the position of right and left channels [Pan]* ................................................................................................ 73
Fine tuning the pitch (only in Dual mode) [Detune] ................................................................................................. 73
Selecting the reverb type [ReverbType] ....................................................................................................................... 73
Setting the reverb depth [ReverbSend]* ...................................................................................................................... 73
Selecting the chorus type [Chorus Type]..................................................................................................................... 74
Setting the chorus depth [ChorusSend]*..................................................................................................................... 74
Setting the chorus on/off [ChorusOnOff]................................................................................................................... 74
Selecting the variation effect type [VariationType] .................................................................................................... 74
Setting the variation effect depth [VariationSend]* ................................................................................................... 75
Setting the touch sensitivity [TouchSense]*................................................................................................................ 75
8
CLP-970A
Table of contents
Setting the right pedal function [RPedal].................................................................................................................... 75
Setting the center pedal function [MPedal] ................................................................................................................ 76
Setting the left pedal function [LPedal] ....................................................................................................................... 76
Setting the auxiliary pedal function [AuxPedal] ......................................................................................................... 76
MIDI [MIDI SETTING]........................................................................................................................... 77
About MIDI................................................................................................................................................................... 77
Setting the MIDI transmit channel [MidiOutChannel] ............................................................................................. 78
Setting the MIDI receive channel (Port A) [MidiInAChannel] ................................................................................. 78
Setting the MIDI receive channel (Port B) [MidiInAChannel] ................................................................................. 79
Setting Local control on/off [LocalControl]................................................................................................................ 79
Selecting performance from the keyboard or song data for MIDI transmission [MidiOutSelect].......................... 79
Selecting a type of data received via MIDI [ReceiveParameter]................................................................................. 79
Selecting a type of data transmitted via MIDI [TransmitParameter] ........................................................................ 80
Executing song data bulk dump [SongBulkDump].................................................................................................... 80
Transmitting the initial settings on the panel [InitialSetup] ...................................................................................... 80
Executing voice data bulk dump [VoiceBulkDump].................................................................................................. 80
Other settings ...................................................................................................................................... 81
Selecting a touch response [TouchResponse] ............................................................................................................. 81
Fine tuning the pitch [Tune]........................................................................................................................................ 81
Selecting a tuning curve for a piano voice [PianoTuningCurve] ............................................................................... 81
Selecting a scale [Scale] ................................................................................................................................................. 82
Depth of string resonance [StringResonanceDepth] .................................................................................................. 82
Depth of sustain sampling for the damper pedal [SustainSamplingDepth].............................................................. 82
Setting the speed of vibraphone’s vibrato effect [VibraphoneRotorSpeed] .............................................................. 83
Selecting a pedal function for vibraphone [VibraphonePedalMode] ........................................................................ 83
Assigning the START/PAUSE function to a pedal [PedalStart/Pause]...................................................................... 83
Selecting a type of auxiliary pedal [AuxPedalType].................................................................................................... 83
Setting the point at which the damper pedal starts to affect the sound [HalfPedalPoint] ....................................... 84
Pitch bend range [PitchBendRange]............................................................................................................................ 84
Replacing the XG voices with preset voices [XGAlternative]..................................................................................... 84
Selecting items saved at shutdown [MemoryBackUp] ............................................................................................... 85
Restoring the normal (default) settings [FactorySet] ................................................................................................. 85
Other method for restoring the normal settings ......................................................................................................... 85
Message List ......................................................................................................................................... 86
Questions about Operations and Functions ........................................................................................ 89
CLP-970A
9
Table of contents
Appendix ............................................................ 91
Troubleshooting................................................................................................................................... 92
Preset Voice List ................................................................................................................................... 93
Voice Combination Examples (Dual and Split) ................................................................................... 95
CLP-970A/970AM/970AC: Keyboard Stand Assembly ........................................................................ 96
Index..................................................................................................................................................... 99
10
CLP-970A
Application Index
Use this index to find reference pages that may be helpful for your application
and situation.
Listening
Listening to demo songs...............................................“Listening to the Demonstration Tunes” on page 22
“Playing the 50 piano preset songs” on page 24
Listening to demo songs with different voices ............“Listening to the Demonstration Tunes” on page 22
Listening to songs from “50 greats for the Clavinova” .......“Playing the 50 piano preset songs” on page 24
Listening to my recorded performance ............................................ “Recording to [TRACK 1]” on page 39
“Playing back a song” on page 53
Playing
Using three pedals.............................................................................................“Using the pedals” on page 29
Playing an accompaniment that matches pitch ................... “Transposition ... [TRANSPOSE]” on page 32
Changing tonal color
Viewing the list of voices .................................................................................. “Preset Voice List” on page 93
Simulating a concert hall........................................................................................... “[REVERB]” on page 31
Combining two voices ..................................................... “Combining two voices (Dual mode)” on page 33
Playing different sounds with left and right hands
........................... “Splitting the keyboard range and playing two different voices (Split mode)” on page 35
Making a voice brighter and sharper, or softer and smoother ........................“[BRILLIANCE]” on page 30
Adding spread to the sound .................................................................................... “[CHORUS]” on page 31
Practicing
Muting the right- or left-hand part ........... “Practicing a one-hand part using 50 preset songs” on page 26
Practicing with an accurate and steady tempo.......................................“Using the metronome” on page 38
Practicing using your recorded song .......................................... “Recording Your Performance” on page 39
“Turning track playback on and off ” on page 55
Recording
Recording your performance ...................................................... “Recording Your Performance” on page 39
Saving recorded songs to memory .....“Saving Recorded Songs and Handling the Files...[FILE]” on page 48
CLP-970A
11
Application Index
Use this index to find reference pages that may be helpful for your application and situation.
Settings
Making detailed settings for recording and playback
............................................“Detailed settings for recording and playback [SONG SETTING]” on page 68
Making detailed settings for the metronome
......................................... “Detailed settings for the metronome METRONOME [SETTING]” on page 71
Making detailed settings for the voices
................................................................. “Detailed settings for the voices [VOICE SETTING]” on page 72
Making detailed settings for MIDI .................................................... “MIDI [MIDI SETTING]” on page 77
Making detailed settings for the Clavinova .........................................................“Other settings” on page 81
Connecting the Clavinova to other devices
What is MIDI?..................................................................................... “MIDI [MIDI SETTING]” on page 77
Recording your performance ..................................................... “AUX OUT [R], [L/L+R] jacks” on page 56
Raising the volume ..................................................................... “AUX OUT [R], [L/L+R] jacks” on page 56
Outputting other instruments’ sound from the Clavinova .......... “AUX IN [R], [L/L+R] jacks” on page 57
Connecting a computer........................................................ “Connecting a personal computer” on page 58
Assembling
Assembling and disassembling the Clavinova
............................................................. “CLP-970A/970AM/970AC: Keyboard Stand Assembly” on page 96
Quick solution
What the Clavinova offers............................................................................. “Application Index” on page 11
“Features” on page 14
Returning to the main screen..............................................................................“[EXIT] button” on page 21
Resetting the Clavinova to the default setting
................................................................“Restoring the normal (default) settings [FactorySet]” on page 85
Meaning of the messages........................................................................................ “Message List” on page 86
If you have questions about operations and functions
.............................................................................. “Questions about Operations and Functions” on page 89
Troubleshooting............................................................................................... “Troubleshooting” on page 92
12
CLP-970A
Maintenance
Clean the instrument using a dry, soft cloth or slightly damp, soft cloth (wring well).
Do not use benzine, thinner, detergent, or chemical cloth for cleaning. Do not place vinyl, plastic, or rubber
products on the instrument.
Otherwise, the panel or keys may be discolored or degraded.
Before using the Clavinova, be sure to read “Precautions” on pages 3-5.
Tuning
Unlike an acoustic piano, the Clavinova does not need to be tuned. It always stays perfectly in tune.
Transporting
If you move to another location, you can transport the Clavinova along with other stuff. You can move the unit as it
is (assembled) or you can disassemble the unit down to the condition when you first open the package. Transport the
keyboard horizontally. Do not lean it to the wall and the like.
Included Accessories
“50 greats for the Clavinova” Score Collection
Owner’s Manual
Bench
(included or optional depending on locale)
Reference Booklet
CLP-970A
13
Features
The Yamaha Clavinova CLP-970A digital piano offers unmatched sonic realism and natural grand-piano type playability as well as Yamaha’s original “AWM Dynamic Stereo Sampling” tone generation technology for rich, musical
voices, and a special “Graded Hammer” keyboard that provides graded key weight and response throughout the keyboard range. The CLP-970A GrandPiano1 voice features totally new samples painstakingly recorded from a full concert grand piano. The CLP-970A GrandPiano1 voice features five velocity-switched samples (Dynamic Sampling), a
“Soundboard Reverb” (page 31) effect that accurately simulates the resonance of a piano soundboard, “String Resonance” (page 82) that recreates resonance of piano strings, special “Sustain Sampling” (page 82)that samples the
unique resonance of an acoustic grand piano’s soundboard and strings when the damper pedal is pressed, and “Keyoff Samples” that add the subtle sound produced when the keys are released. The CLP-970A comes much closer to
the sound of a true acoustic piano.
The music stand can be removed to allow
placement of a laptop-type personal computer or
other equipment on top of the instrument. (page 16)
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
STOP
START/
PAUSE
REC
SONG
SETTING
METRONOME
START/STOP SETTING
A
B
CONTRAST
PIANO
E. PIANO/
BASS
HARPSICHORD
PIANO/
E. PIANO
HARPSI/
MALLET
MALLET
ORGAN
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
MIN
MAX
TRANSPOSE
NEW SONG
SONG BALANCE
NO
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
C
VOICE
SETTING
LEFT
D
TEMPO
SONG
EFFECT
VOICE
POWER
Connect the pedal
cord here to use the
Clavinova’s pedals.
(page 58)
PHONES
Connect an optional
pedal here and assign
one of the various
functions to the pedal.
(page 57)
MIDI
THRU
Mac
PC-1
R
L / L+R
AUX OUT
A set of standard
stereo headphones
can be plugged in
here for private
practice. (page 18)
R
L /L+R
AUX IN
14
CLP-970A
IN
AUX PEDAL
TO HOST
These jacks allow you to connect
an external tone generator to
reproduce the sound via the
Clavinova’s internal sound system
and speakers. (page 57)
Connect recording equipment
(such as a cassette tape
recorder) here to record your
performance. (page 56)
OUT
MIDI
PC-2
HOST SELECT
PEDAL
Connect a MIDI device
here to use various
MIDI functions.
(page 58, 61)
(About MIDI—page 77)
This jack and selector switch allow direct
connection to a personal computer for
sequencing and other music applications.
(page 57-62)
Features
The display allows
accurate control
and operation.
(page 21)
The Clavinova includes 50 preset
songs.
This section enables you to listen to
these songs, practice using a
convenient practice function, record
and play back your performance.
(page 24, 39, 53)
MAIN voice gruop buttons
Select voices from 25 internal sounds
including Grand Piano 1. (page 28)
You can also combine two voices at a
time. (page 33)
[FILE]
Save recorded songs and
manage song files. (page 48)
[METRONOME]
Use the
metronome
functions.
(page 38)
[DEMO]
Demonstration playback
is available for each
voice. (page 22)
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
STOP
START/
PAUSE
REC
SONG
SETTING
[MIDI SETTING]
Make detailed MIDI
settings, such as MIDI
receive/transmit
channels. (page 77)
METRONOME
START/STOP SETTING
[CONTRAST]
Adjust the
brightness of
the display
using this
control.
(page 18)
B
A
[REVERB]/
[CHORUS]
Add reverb
(reverberation) and
spread (chorus) to
the sound.
(page 31)
CONTRAST
PIANO
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
MIN
MAX
TRANSPOSE
NEW SONG
SONG BALANCE
NO
DOWN
YES
SPLIT
POINT
UP
EXIT
VOICE
SETTING
LEFT
SYNCHRO START
MASTER VOLUME
[MASTER
VOLUME]
Adjust the
volume level
using this
slider.
(page 18)
SONG
TEMPO
C
[SONG SETTING]
Make detailed
settings for song
recording and
playback. (page 68)
TRANSPOSE [ ] [ ]
You can shift the pitch
of the entire keyboard
up or down so that the
pitch will match that of
another instrument or
singer, while you play
the same keys.
(page 32)
TEMPO [DOWN]
[UP]
You can change the
song tempo
(speed).
(page 25, 38, 40, 54)
D
VOICE
EFFECT
[EXIT]
The screen returns to
its main display when
you press this button.
(page 21)
[VOICE
SETTING]
You can make
detailed settings
for tone and
effects.
(page 72)
LEFT voice group buttons/
[SPLIT POINT]
You can play different voices on
the left- and right-hand sections of
the keyboard. (page 35)
BRILLIANCE
[ ][ ]
Adjust the
brightness of
the tone using
these buttons.
(page 30)
[OTHER SETTING]
Fine-tune the touch response
and pitch, etc. (page 81)
CLP-970A
15
Before Using the Clavinova
Key cover
To open the key cover:
Lift the cover slightly, then push and slide it open.
To close the key cover:
Slide the cover toward you and gently lower the
cover over the keys.
Be careful to avoid catching your fingers
when opening or closing the cover.
CAUTION
Hold the cover with both hands when opening or closing it. Do not release it until it is fully opened or closed. Be
careful to avoid catching fingers (yours or others, especially children’s between the cover and the unit.
Do not place objects such as a piece of metal or paper on top of the key cover. Small objects placed on the key
cover may fall inside the unit when the cover is opened and may be nearly impossible to remove. This could
cause electric shock, short circuit, fire or other serious damage to the instrument.
Music stand
To install the music stand:
Hold the upper and bottom sides of the music stand with both hands and insert the peg on the speaker box
into the holes on the rear of the stand.
• The music stand can be removed to allow
placement of a laptop personal computer or
other equipment on top of the instrument.
To remove the music stand:
Lift the music stand slightly, then pull it toward you to remove it.
16
CLP-970A
Before Using the Clavinova
Turning the power on
1. Connect the power cable.
First insert the plug of the power cable into the AC connector on the Clavinova, then plug the other end of
the cable into the proper AC outlet on the wall.
In some areas a plug adaptor may be provided to match the pin configuration of the AC wall outlets in
your area.
1
The power connector is located on the bottom of the keyboard, set back deeply.
2
(The shape of plug differs
depending on locale.)
WARNING!
Make sure your CLP-970A is rated for the AC voltage supplied in the area in which it is to be used (voltage rating appears on
the name plate on the bottom panel). In some areas, a voltage selector may be provided on the bottom panel of the main keyboard unit near the power cord. Make sure that the voltage selector is set for the voltage in your area. Connecting the unit to the
wrong AC supply can cause serious damage to the internal circuitry and may even pose a shock hazard!
Use only the AC power cord supplied with the CLP-970A. If the supplied cord is lost or damaged and needs to be replaced, contact your Yamaha dealer. The use of an inappropriate replacement can pose a fire and shock hazard!
The type of AC power cord provided with the CLP-970A may be different depending on the country in which it is purchased. (In
some areas a plug adaptor may be provided to match the pin configuration of the AC wall outlets in your area.) Do NOT modify
the plug provided with the CLP-970A. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.
2. Turn on the power to the Clavinova.
Press the [POWER] switch located on the right of the keyboard to turn the power on.
• The screen located in the center of the front panel and the power indicator located below the left end of the keyboard lights up.
TIP
Power indicator
If you close the key cover
without turning the power
off, the power indicator
remains lit, indicating that
the power is still on.
[POWER] switch
Power indicator
A
B
NO
C
YES
D
When you turn on the power to the Clavinova, a voice name
appears on the screen.
Press the [POWER] switch again to turn off the power to the Clavinova.
• The screen and the power indicator turn off.
CLP-970A
17
Before Using the Clavinova
Adjusting the display contrast
You can adjust the contrast of the display by turning the [CONTRAST] knob located to the right of the LCD.
Use this knob.
A
CONTRAST
B
NO
YES
TERMINOLOGY
CONTRAST:
difference between brightness and darkness
EXIT
C
D
Setting the volume
While playing the keyboard, adjust the volume level by moving the [MASTER VOLUME] slider on the left of
the front panel to the left or right.
MIN
MAX
Do not use the Clavinova at
a high volume level for a
long period of time, or your
hearing may be damaged.
MASTER VOLUME
The level decreases.
The level increases.
TERMINOLOGY
MASTER VOLUME:
The volume level of the
entire keyboard sound
TIP
You can also adjust the
[PHONES] output level and
the AUX IN input level using
the [MASTER VOLUME]
slider.
Using headphones
Connect a pair of headphones to
one of the [PHONES] jacks. When
the headphones are plugged into
either of the [PHONES] jacks, the
internal speaker system is automatically shut off.
Two [PHONES] jacks are provided.
Two sets of standard stereo headphones can be plugged in. (If you
are using only one pair of headphones, you can plug them into
either of these jacks.)
PHONES
bottom surface
standard stereo phone plug
18
CLP-970A
TIP
Optional headphones
HPE-160 Yamaha headphones.
Basic Operation
19
CLP-970A
CLP-970A
19
Part Names
D
H
F
A
B
CONTRAST
PIANO
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
L M
O
REVERB CHORUS
MIDI
SETTING
VOICE
SETTING
BRILLIANCE
OTHER
SETTING
K
N
STRINGS/
CHOIR
MAIN
NO
YES
SPLIT
POINT
EXIT
C
LEFT
D
G
E
CLP-970
MIN
7
3
5
DEMO
SONG SELECT
MAX
TRANSPOSE
NEW SONG
SONG BALANCE
4
6
VOICE
I
J
EFFECT
P
B
8
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
STOP
START/
PAUSE
REC
SONG
SETTING
METRONOME
START/STOP SETTING
DOWN
UP
SYNCHRO START
MASTER VOLUME
2
DEMO
CLP-970
0
SONG
9
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
STOP
START/
PAUSE
REC
SONG
SETTING
METRONOME
START/STOP SETTING
A
A
B
TEMPO
C
CONTRAST
PIANO
E. PIANO/
BASS
HARPSICHORD
PIANO/
E. PIANO
HARPSI/
MALLET
MALLET
ORGAN
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
MIN
MAX
TRANSPOSE
NEW SONG
SONG BALANCE
NO
DOWN
YES
SPLIT
POINT
UP
EXIT
VOICE
SETTING
\
LEFT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
C
D
VOICE
EFFECT
POWER
1
A-1 B-1 C0 D0 E0 F0 G0 A0 B0 C1 D1 E1 F1 G1 A1 B1 C2 D2 E2 F2 G2 A2 B2 C3 D3 E3 F3 G3 A3 B3 C4 D4 E4 F4 G4 A4 B4 C5 D5 E5 F5 G5 A5 B5 C6 D6 E6 F6 G6 A6 B6 C7
PHONES
Center “C”
Q
R
S
T
Top panel
1 [POWER]..............................................P17
2 [MASTER VOLUME].............................P18
3 [DEMO] ...............................................P22
4 TRANSPOSE [ ] [ ] ..........................P32
5 SONG SELECT [ ] [ ]..........P24, 39, 53
6 SONG BALANCE [ ] [ ]....................P46
7 [TRACK1] [TRACK2] /
section .................................................P28
I [SPLIT POINT] .....................................P36
J Voice group buttons for the LEFT
[EXTRA TRACKS] ............... P28, 41–46, 55
section .................................................P35
8 [FILE] ...................................................P48
9 SONG [STOP] /
K [VOICE SETTING] ................................P72
L [REVERB]..............................................P31
M [CHORUS] ............................................P31
N BRILLIANCE [ ] [ ] ...........................P30
O [MIDI SETTING]...................................P77
P [OTHER SETTING] ...............................P81
Q [PHONES] ............................................P18
R Soft pedal ............................................P29
S Sostenuto pedal ..................................P29
T Damper pedal .....................................P29
[START/PAUSE] .......................P24, 40, 54
0 [REC]....................................................P40
A [SONG SETTING] ................................P68
B METRONOME [START/STOP] /
[SETTING]......................................P38, 71
C TEMPO [DOWN] [UP] .......P25, 38, 40, 54
D LCD buttons A [–] [+] / B [– (NO)] [+ (YES)] /
C [–] [+] / D [–] [+]...............................P21
20
E LCD screen ..........................................P21
F [CONTRAST] knob...............................P18
G [EXIT]...................................................P21
H Voice group buttons for the MAIN
CLP-970A
Part Names
Connectors
U AUX OUT [R] [L/L+R]..........................P56
V AUX IN [R] [L/L+R] .............................P57
W [AUX PEDAL] ......................................P57
X [TO HOST] ..........................................P57
Y HOST SELECT ..................................... P57
Z MIDI [IN] [OUT] [THRU] .................... P58
[ [PEDAL] .............................................. P58
MIDI
THRU
Mac
PC-1
R
L / L+R
AUX OUT
U
R
L / L+R
OUT
IN
MIDI
PC-2
AUX PEDAL
AUX IN
W
TO HOST
HOST SELECT
X
Y
V
PEDAL
Z
[
\ Panel logos
GM System Level 1
“GM System Level 1” is an addition to the MIDI standard which guarantees that any data conforming to the
standard will play accurately on any GM-compatible
tone generator or synthesizer from any manufacturer.
You can connect your computer or sequencer to the MIDI
IN or TO HOST connector on the CLP-970A to play “GM
System Level 1”-conformed music data on the CLP-970A
and control it from a connected computer or sequencer.
bottom surface
XG Format
XG is a new Yamaha MIDI specification which significantly expands and
improves on the “GM System Level 1” standard with greater voice handling
capacity, expressive control, and effect capability while retaining full compatibility with GM.
You can connect your computer or sequencer to the MIDI IN or TO HOST
connector on the CLP-970A to play “XG”-conformed music data on the CLP970A and control it from a connected computer or sequencer.
D LCD buttons
E LCD
Use the LCD button A, B, C, or D to select the contents displayed on the LCD.
Check the screen located in the center of the top panel after every operation. A
voice name appears on the screen when you turn on the power to the unit.
A
B
NO
C
YES
D
G[EXIT] button
When you press this button, the unit returns to the default screen (the screen that indicates a voice
name(s) and is displayed when the power is turned on).
CLP-970A
21
Listening to the Demonstration
Tunes
The Clavinova provides demonstration tunes that effectively demonstrate each of the MAIN voice groups.
Refer to the table below for voice names and corresponding demo songs.
Demonstration tunes
Voice group
Tunes
PIANO
E.PIANO/BASS
HARPSICHORD
MALLET
ORGAN
STRINGS/CHOIR
Composer
Chanson de l’adieu
Original
Le Coucou
Original
Organ Concerto Op.4 No.2
Original
F.F. Chopin
–
L.C. Daguin
–
G.F. Händel
–
23
14
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
PIANO/
E. PIANO
HARPSI/
MALLET
MALLET
ORGAN
ORGAN/
STRINGS
BASS
MAIN voice
group buttons
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
TRANSPOSE
MAX
SONG BALANCE
STOP
START/
PAUSE
REC
SONG
SETTING
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
C
3
VOICE
SETTING
LEFT
D
VOICE
EFFECT
4
Procedure
1.
Engage the demo mode.
Press the [DEMO] button to engage the demo mode.
The MAIN voice group (upper row) button indicators light up in
sequence.
A
B
NO
C
2.
YES
D
Select a tune and start playback.
Press the voice group button (upper row) of the desired
demonstration tune.
The corresponding voice button indicator lights up and playback
starts. Until you stop playback, the selected tune will be played
repeatedly using different voices (in the following order: PIANO →
E. PIANO/BASS → HARPSICHORD → MALLET → ORGAN →
STRINGS/CHOIR).
22
CLP-970A
TERMINOLOGY
Mode:
A mode is a status under
which you can execute a
certain function. In demo
mode, you can play back
demonstration tunes.
NOTE
To adjust the volume level of
the demo songs, use the
[MASTER VOLUME] slider.
Listening to the Demonstration Tunes
3.
4.
Stop the playback.
Press the button of the voice group being played or the
[STOP] button.
Exit from demo mode.
Press the [DEMO] or [EXIT] button to exit from demo
mode.
CLP-970A
23
Listening to 50 Piano Preset
Songs
The Clavinova provides performance data of 50 piano songs. You can just listen to these songs (page 24) or
use them for practice (page 26). You can also refer to the included “50 greats for the Clavinova” that contains
the scores for 50 piano preset songs.
Playing the 50 piano preset songs
1
DEMO
CLP-970
METRONOME [START/STOP]
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
PIANO/
E. PIANO
HARPSI/
MALLET
MALLET
ORGAN
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
TRANSPOSE
MAX
SONG BALANCE
STOP
START/
PAUSE
REC
SONG
SETTING
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
3 2
TEMPO
C
D
VOICE
SETTING
LEFT
VOICE
EFFECT
4
TEMPO [DOWN] [UP]
Procedure
1.
Select a song.
Press one of the [SONG SELECT] buttons repeatedly to
select the desired piano song from P-001 to P-050.
Song select screen
A
B
NO
C
TERMINOLOGY
Song:
On the Clavinova, performance data is called a
“Song.” This includes demonstration tunes and piano
preset tunes.
YES
D
The song number appears on the display.
2.
Play a preset song.
Press the [START/PAUSE] button to start playback.
the number of measures
A
B
NO
C
YES
D
TIP
• You can also use the C
[–]/[+] buttons to select a
song after pressing the
[SONG SELECT] button.
• [P-000: NewSong] is a
blank song provided for
you to record your performance. (See page 39.)
• Use the SongRepeat
parameter in the “SONG
SETTING” menu to
select repeat playback of
all songs or repeat playback of a single song.
(See page 70.)
TIP
You can play the keyboard
along with the preset song
playback. You can change the
voice playing on the keyboard.
24
CLP-970A
CLP-970A.E.book Page 25 Monday, December 11, 2000 5:42 PM
Listening to 50 Piano Preset Songs
Adjusting the tempo
You can use the TEMPO [DOWN]/[UP] buttons to adjust the playback
tempo as required. The default tempo (the song’s original tempo) is set when
you press the [DOWN] and [UP] buttons simultaneously.
Press either of the SONG SELECT [ ]/[ ] buttons to return to the song
select screen.
A
B
NO
C
3.
YES
TIP
You can also use the D[–]/[+]
buttons to change the tempo.
NOTE
Resetting the tempo
Whenever you select a new
preset song, the tempo is
automatically reset to the
song’s original value.
D
Stop the song playback.
When playback is complete, it automatically stops and the Clavinova
locates the top of the song. To stop playback in the middle of a song,
press the [STOP] button. You can also pause playback by pressing the
[START/PAUSE] button. Playback stops when you press the button.
Fast forward and rewind
You can perform the following operations in the song select screen:
• Use the B [–]/[+] buttons to move back and forth (rewind and fast forward) through the song while the song is played or stopped.
• Press the SONG SELECT [ ] or the C [–] button during playback to
restart playback from the top of the song.
• Press the SONG SELECT [ ] or the C [+] button during playback to start
playback from the next song.
• Press the SONG SELECT [ ] or the C [–] button while playback is
stopped in the middle of the song to locate the top of the song.
4.
Return to the default screen.
Press the [EXIT] button.
TERMINOLOGY
Default screen:
The default screen is a voice
select screen (page 28) that
appears when you turn on
the power to the Clavinova.
CLP-970A
25
Listening to 50 Piano Preset Songs
Practicing a one-hand part using 50 preset songs
The 50 preset songs have separate left- and right-hand parts on individual tracks. You can turn the left- and
right-hand parts on or off as required so you can practice the corresponding part (the part that is turned off)
on the keyboard. The right-hand part is played by [TRACK 1] and the left-hand part is played by [TRACK 2].
1
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
STOP
START/
PAUSE
REC
SONG
SETTING
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
MAX
TRANSPOSE
SONG BALANCE
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
C
VOICE
SETTING
LEFT
D
VOICE
EFFECT
3 2
procedure
1.
Turn off the playback part you wish to practice.
After you select a song to practice, press the [TRACK1] or
[TRACK2] button to turn off the corresponding part.
TIP
You can turn parts on or off,
even during playback.
When you first select a song, both [TRACK1] and [TRACK2] indicators light up, indicating that you can play back both parts. When you
press one of the buttons to turn off playback, the corresponding button indicator turns off and the corresponding part playback is muted.
Pressing the buttons repeatedly toggles between playback on and off.
2.
Start playback and playing.
Press the [START/PAUSE] button to start playback. Play the
part you just turned off.
Starting playback automatically as you start playing the
keyboard (Synchro Start)
You can start playback as soon as you start playing the keyboard. This
is called the “Synchro Start” function.
To enter Synchro Start standby mode, press and hold down the
[STOP] button and press the [START/PAUSE] button. The [START/
PAUSE] indicator flashes.
Now play the keyboard. Playback starts simultaneously.
To cancel the Synchro Start function, press the [STOP] button while
the Clavinova is in Synchro Start standby mode.
26
CLP-970A
TERMINOLOGY
Synchro:
Synchronous;occurring at the
same time
Listening to 50 Piano Preset Songs
3.
Stop playback.
When playback is complete, it automatically stops and the Clavinova
locates the top of the song. If you wish to stop playback in the middle
of a song, press the [STOP] button. You can also pause playback by
pressing the [START/PAUSE] button. Playback stops when you press
the button.
TIP
Resetting the part playback
Both parts are automatically
turned ON whenever you
select a new song.
You can also assign a phrase in a song to repeatedly practice that part. Refer to
the [FromToRepeat] option in the “SONG SETTING” menu on page 69.
CLP-970A
27
Selecting and Playing Voices
Selecting Voices
1
2
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
STOP
START/
PAUSE
REC
SONG
SETTING
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
MAIN voice
group buttons
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
MAX
TRANSPOSE
SONG BALANCE
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
C
D
VOICE
SETTING
LEFT
VOICE
EFFECT
Procedure
1.
2.
Select a voice group.
Press one of the MAIN voice group buttons (upper row).
TIP
To learn characteristics of
the voices, listen to demo
songs for each voice group
(page 22). Refer to “Preset
Voice List” on page 93 for
more information on characteristics of each preset voice.
Select a voice.
Use the A [–]/[+] buttons to select a voice.
TERMINOLOGY
Voice
On the Clavinova, a voice
means “tone” or “tonal color.”
Voice group
PIANO
E.PIANO/
BASS
HARPSICHORD
28
CLP-970A
Voice name
GrandPiano1
GrandPiano2
E.Piano1
E.Piano2
SynthPiano
WoodBass
ElectricBass
Bass&Cymbal
Harpsichord8'
Harpsichord8'+4'
ElectricClavichord
Voice group
MALLET
ORGAN
STRINGS/
CHOIR
Voice name
Vibraphone
Marimba
Celesta
PipeOrganPrincipal
PipeOrganFlute1
PipeOrganFlute2
PipeOrganTutti
JazzOrgan
Strings
SynthStrings
SlowStrings
Choir
SlowChoir
Scat
TIP
You can control the loudness
of a voice by how hard you
play the keyboard, although
different playing styles (touch
sensitivities) have little or no
effect with the sound of certain musical instruments.
Refer to “Preset Voice List” on
page 93.
Selecting and Playing Voices
Using the pedals
The Clavinova has three foot pedals: damper pedal (right), sostenuto
pedal (center), and soft pedal (left) that produce a range of expressive
effects similar to those produced by the pedals on an acoustic piano.
Damper (right) pedal
When you press the damper pedal, the notes
you play have a longer sustain.
When you select Grand Piano 1, pressing the
damper pedal activates the instrument’s special
“Sustain Samples” to accurately recreate the
unique resonance of an acoustic grand piano’s
soundboard and strings.
h
q
q. q. .
When you press the damper
pedal here, the notes you
play before you release the
pedal have a longer sustain.
Sostenuto (center) pedal
If you play a note or chord on the keyboard
and press the sostenuto pedal while holding
the note(s), the notes will sustain as long as
the pedal is held. All subsequent notes will
not sustain.
h
q
q. q. .
TIP
If the damper pedal doesn’t
work, or notes are sustained
even when the pedal is not
pressed, make sure that the
pedal cord is properly
plugged into the PEDAL jack
on the unit (see step 5 on
page 97). Also, make sure
that the RPedal parameter
in the “VOICE SETTING”
menu is set to ON (see page
75).
TIP
You can adjust the depth of
the resonance produced by
the “Sustain Samples” using
the Sustain Sampling Depth
parameter in the “OTHER
SETTING” menu. (See page
82.)
When you press the sostenuto
pedal here while holding the
note(s), the notes will sustain
as long as you hold the pedal.
Soft pedal (left)
The soft pedal reduces the volume and slightly changes the timbre of notes
played while the pedal is pressed. (The soft pedal will not affect notes that are
already playing when it is pressed. Press the pedal immediately before you
play the target notes.)
With the Vibraphone and Jazz Organ voices, this pedal turns vibrato on and
off or toggles the speed of vibrato. (See page 76.)
TIP
You can assign a function to
each pedal via the “R
Pedal”, “M Pedal”, and “L
Pedal” parameters in the
“VOICE SETTING” menu.
(See page 75, 76.)
TIP
The center and left pedals
can also be assigned to
song start/stop operation
(START/PAUSE function) via
the “PedalStart/Pause”
parameter in the “OTHER
SETTING” menu (on page
83).
CLP-970A
29
Selecting and Playing Voices
Adding variation to the sound
[BRILLIANCE]/[REVERB]/[CHORUS]
The Effect function enables you to add expression to the sound. The Clavinova effects include Brilliance,
Reverb, and Chorus.
[REVERB] [CHORUS]
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
PIANO/
E. PIANO
HARPSI/
MALLET
MALLET
ORGAN
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
TRANSPOSE
MAX
SONG BALANCE
STOP
START/
PAUSE
REC
SONG
SETTING
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
C
VOICE
SETTING
LEFT
D
VOICE
EFFECT
BRILLIANCE [ ] [ ]
[BRILLIANCE]
You can use this control to adjust the brilliance of the tone and change the tonality to suit your preference.
Procedure
Press one of the BRILLIANCE [ ]/ [ ] buttons to select the
desired tonality.
A
B
NO
C
YES
D
Dark.................... Dark tone
Mellow ................ Soft and mellow tone
Normal ............... Standard tone
Bright ................. Bright tone
Metallic............... Sharp metallic tone
Press the [EXIT] button to return to the main screen.
TIP
You can also use the D [–]/
[+] buttons after you press
one of the [BRILLIANCE]
buttons to select the desired
option.
TIP
Normal setting = Normal
TERMINOLOGY
Normal setting:
The “Normal setting” refers
to the default setting (factory
setting) obtained when you
first turn on the power to the
Clavinova.
NOTE
If you select [Bright] or
[Metallic] as the type of brilliance, the volume level will
increase slightly. Under this
condition, if you raise the
[MASTER VOLUME] slider
setting, the sound may
become distorted. In this
case, lower the volume
accordingly.
30
CLP-970A
Selecting and Playing Voices
[REVERB]
This control adds reverberation to the sound by simulating the natural reverberation of a concert hall.
Procedure
Pressing the [REVERB] button repeatedly toggles the reverb
on and off.
Even if the reverb effect is turned off, a “soundboard reverb” effect
will be applied when the GrandPiano1 or GrandPiano2 voice is
selected.
TIP
You can select a reverb type
via the Reverb Type parameter in the “VOICE SETTING” menu, and adjust the
reverb depth for the selected
voice via the Reverb Send
parameter. (See page 73.)
TIP
Normal setting = ON
[CHORUS]
This control adds spread and spaciousness to the sound.
Procedure
Pressing the [CHORUS] button repeatedly toggles the chorus on and off.
You can turn the chorus effect on and off by pressing the [CHORUS]
ON/OFF buttons on the panel and by setting the Chorus On Off
parameter in the VOICE SETTING menu (see page 74). The [CHORUS] ON/OFF button setting on the panel is temporary. That is, if
you select another voice, the chorus setting for the previous voice is
cancelled. The Chorus On Off parameter setting is saved for each
voice. That is, if you select a given voice, the chorus setting is automatically turned on or off according to the saved chorus setting.
TIP
You can select a chorus type
via the Chorus Type parameter in the “VOICE SETTING” menu, and adjust the
chorus depth for the
selected voice via the
Reverb Send parameter. You
can also turn chorus on or
off via the Chorus On Off
parameter. (See page 74.)
TIP
Normal Setting
The normal chorus on/off
setting is different for each
voice.
CLP-970A
31
Selecting and Playing Voices
Transposition ... [TRANSPOSE]
The Clavinova’s Transpose function makes it possible to shift the pitch of the entire keyboard up or down in
semitone intervals to facilitate playing in difficult key signatures, and to let you easily match the pitch of the
keyboard to the range of a singer or other instruments. For example, if you set the transposition amount to
“5,” playing key C produces pitch F. In this way, you can play the song as if it were in C major, and the Clavinova will transpose it to the key of F.
You can also change the key signature of playback songs, in addition to your own performance.
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
TRANSPOSE
MAX
SONG BALANCE
STOP
START/
PAUSE
REC
SONG
SETTING
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
13
C
D
2
VOICE
SETTING
LEFT
VOICE
EFFECT
34
Procedure
1.
Display the Transpose screen.
Press one of the TRANSPOSE [ ] and [ ] buttons.
A
B
NO
C
2.
YES
TERMINOLOGY
Transpose:
Changing the key signature
of a song. On the Clavinova,
transposing shifts the pitch
of the entire keyboard.
D
Select a type of transposition from Manual or Song.
Use the C [–] and [+] buttons to select Manual or Song.
Manual ............... Your manual performance
Song .................... Playback song
3.
Set the transposition amount.
Use the D [–] and [+] or TRANSPOSE [ ] and [ ] buttons
to set the transposition amount.
To set the amount of transposition to “0,” press the D [–] and [+] buttons or the TRANSPOSE [ ] and [ ] buttons simultaneously.
4.
32
CLP-970A
Return to the main screen.
Press the [EXIT] button.
TIP
The transposition range is
from “–12 semitones” (down
one octave) through “0” (normal pitch) to “12 semitones”
(up one octave).
Selecting and Playing Voices
Combining two voices (Dual mode)
You can play two voices simultaneously across the entire range of the keyboard. In this way, you can simulate
a melody duet or combine two similar voices to create a thicker sound. Refer to “Voice Combination Examples (Dual and Split)” on page 95 for examples of effective voice combinations.
The numbers on the upper row indicate the steps
in Dual mode using voices from different groups.
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
STOP
START/
PAUSE
REC
SONG
SETTING
2
METRONOME
START/ STOP SETTING
MAIN voice
2
A
B
1 3 group buttons
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
TRANSPOSE
MAX
SONG BALANCE
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
The numbers on the bottom row indicate the steps
in Dual mode using voices from the same group.
C
LEFT
D
2
VOICE
SETTING
3
VOICE
14
EFFECT
MAIN voice
group buttons
Dual mode using voices in different voice groups
Procedure
1.
Enter Dual mode.
Press two MAIN voice group buttons (upper row) simultaneously.
A
B
NO
C
D
1st voice
2.
YES
2nd voice
Select a voice.
Use the A [–]/[+] buttons and B [–]/[+] buttons to select a
voice.
The voices listed in the upper row in “Preset Voice List” on page 93 are
called 1st voices, and those listed in the bottom row are called 2nd
voices.
3.
Exit Dual mode and return to normal play mode.
Press any MAIN voice group button.
CLP-970A
33
Selecting and Playing Voices
Dual mode using voices in the same voice group
Procedure
1.
2.
3.
Select a voice group.
In normal play mode, press the desired MAIN voice group
button.
Select a voice.
Use the A [–]/[+] buttons to select a voice.
Select another voice.
Use the B [–]/[+] buttons to select another voice in the
same voice group.
To use the identical voices, press the B [–]/[+] buttons once. To use
different voices within the same voice group, press the B [–]/[+] buttons repeatedly.
A
B
NO
C
4.
34
CLP-970A
YES
D
Exit Dual mode and return to normal play mode.
Press any MAIN voice group button.
Selecting and Playing Voices
Splitting the keyboard range and playing two different voices (Split mode)
Split mode enables you to play two different voices on the keyboard — one with the left hand and another
with the right hand. For example, you can play a bass part using the Wood Bass or Electric Bass voice with the
left hand, and a melody with the right hand. Refer to “Voice Combination Examples (Dual and Split)” on
page 95 for examples of effective voice combinations.
2
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
METRONOME
START/ STOP SETTING
2
A
B
PIANO
CONTRAST
MAIN voice
group buttons
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
TRANSPOSE
MAX
SONG BALANCE
STOP
START/
PAUSE
REC
SONG
SETTING
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
C
D
3
VOICE
SETTING
LEFT
4
VOICE
4
135
EFFECT
LEFT voice
group buttons
Procedure
1.
Enter Split mode.
Press one of the LEFT voice group buttons (bottom row).
A
B
NO
C
2.
3.
YES
D
Select a voice for the right hand.
Use the MAIN voice group buttons (upper row) and the A
[–]/[+] buttons.
Select a voice for the left hand.
Use the LEFT voice group buttons (bottom row) and the C
[–]/[+] buttons.
CLP-970A
35
Selecting and Playing Voices
Voice group
MAIN
PIANO
LEFT
PIANO/E.PIANO
E.PIANO/BASS
BASS
HARPSICHORD
HARPSICHORD/MALLET
MALLET
ORGAN
ORGAN/STRINGS
STRINGS/CHOIR
4.
F2
CLP-970A
GrandPiano1
GrandPiano2
E.Piano1
E.Piano2
SynthPiano
WoodBass
ElectricBass
Bass&Cymbal
Harpsichord8'
Harpsichord8'+4'
EcelctricClavichord
Vibraphone
Marimba
Celesta
PipeOrganPrincipal
PipeOrganFlute1
PipeOrganFlute2
PipeOrganTutti
JazzOrgan
Strings
SynthStrings
SlowStrings
Choir
SlowChoir
Scat
Specify the split point (the border between the rightand left-hand range).
I
The normal setting of the split point is “F 2.”
36
Voice name
Center “C”
TIP
A specified “split point” key
is included in the left-hand
range.
Selecting and Playing Voices
To change the split point setting:
Press the [SPLIT POINT] button, then use the D [–]/[+] buttons to specify the split point.
(Optional) Press and hold down the [SPLIT POINT] button
and play the key you wish to assign as the split point.
A
B
NO
C
YES
D
Press the [EXIT] button to return to the main screen.
5.
Exit Split mode and return to normal play mode.
Press the voice group button that you pressed for the lefthand range.
In Split mode, you can use Dual mode (see page 33) for the MAIN and
LEFT ranges respectively.
A
B
NO
C
YES
D
CLP-970A
37
Selecting and Playing Voices
Using the metronome
The Clavinova is built-in metronome (a device that keeps an accurate tempo) is a convenient feature for
practice.
12
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
PIANO/
E. PIANO
HARPSI/
MALLET
MALLET
ORGAN
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
MAX
TRANSPOSE
SONG BALANCE
STOP
START/
PAUSE
REC
SONG
SETTING
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
C
VOICE
SETTING
LEFT
D
VOICE
EFFECT
TEMPO [DOWN] [UP]
Procedure
1.
Start the metronome.
Press the METRONOME [START/STOP] button.
When the metronome is sounding, the beat indicator flashes at the
current tempo.
Adjusting the tempo
TIP
The default tempo is 120. (If
a song has been selected,
the song tempo is used.)
Press the TEMPO [DOWN] or [UP] button.
A
B
NO
C
YES
D
To adjust the tempo (number of beats per minute: 10–400), use the TEMPO
[DOWN]/[UP] or the D [–]/[+] buttons. To reset the tempo to the normal
(default) setting, press the [DOWN] and [UP] keys or the D [–] and [+] keys
simultaneously.
Press the [EXIT] button to return to the normal screen.
2.
38
CLP-970A
Stop the metronome.
Press the METRONOME [START/STOP] button.
TIP
You can set the time signature, metronome volume,
and metronome tone using
the METRONOME [SETTING] button. (See page 71.)
Recording Your Performance
TIP
You can record your performance (audio data) to a cassette tape recorder or other
recording devices via the
AUX OUT connector. (see
page 56.)
This chapter explains how to record your performance using the Clavinova
recording function.
You can, for example, play back what you have played on the Clavinova keyboard for an effective practice aid. You can also record just the left-hand part,
then practice the right-hand part while playing back the recorded left-hand
part.
Since you can record up to sixteen tracks separately, you could record the leftand right-hand parts separately, or record each part of a four-handed performance or ensemble song one by one to build a song.
TERMINOLOGY
Recording vs. Saving:
The format of performance data recorded on a cassette tape differs from that of data recorded on the Clavinova. A cassette tape records audio signals. On the other hand, the Clavinova “saves” information regarding note timing, voices, and
a tempo value, but not audio signals. When you play back recorded songs, the Clavinova produces sound based on the
saved information. Therefore, recording on the Clavinova may be more accurately called “saving information.” However,
this book often uses the word “recording” because it seems to make more sense.
A message (information or confirmation dialog) sometimes appears on the screen to facilitate operation.
Refer to the “Message List” on page 86 for an explanation of each message, appropriate actions to take, and
troubleshooting information.
Recording a New Song
Recording to [TRACK 1]
1 3
DEMO
CLP-970
SONG SELECT
2
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
STOP
START/
PAUSE
REC
SONG
SETTING
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
TRANSPOSE
MAX
SONG BALANCE
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
C
D
VOICE
SETTING
LEFT
VOICE
EFFECT
45 3
45
Procedure
1.
Select “NewSong” for recording.
Press the SONG SELECT [
neously.
][
] buttons simulta-
New Song screen
A
B
NO
C
NOTE
If you select a song other
than “P-000: NewSong” and
record on a track that already
has data, the existing data on
the track will be lost.
YES
D
CLP-970A
39
Recording Your Performance
2.
3.
Select a voice.
Select a voice (or voices) for recording (see page 28).
NOTE
Set the tempo in Step 3.
Set the other parameters, such as reverb and chorus.
Adjust the [MASTER VOLUME] slider to set the volume level to suit
your preference. You can also use the slider to adjust the level during
playback.
After you set the tempo or if the record standby screen does not
appear, press one of the SONG SELECT [ ] [ ] buttons once to
return to the New Song screen.
NOTE
See page 47 for more information on recording in Dual/
Split mode.
Enter record mode and select a recording track.
Press and hold down the [REC] button and press the
[TRACK 1] button.
The [TRACK 1] indicator flashes in red. (To cancel recording, press
the [REC] or [STOP] button.)
Record standby screen
A
B
NO
C
YES
D
Set the tempo, if necessary.
If this record standby screen does not appear, press one of the SONG
SELECT [ ] [ ] buttons once.
4.
Start and stop recording.
Recording begins automatically as soon as you play a
note on the keyboard.
(Optional) Press the [START/PAUSE] button to start recording.
The recording screen displays the current measure number.
Record screen
A
B
NO
C
YES
TIP
You can record data while
using the metronome. The
metronome is not recorded.
TIP
When you press the
[START/PAUSE] button during recording, recording is
paused. To resume recording, press the [START/
PAUSE] button again or play
a note on the keyboard.
D
Measure number in recording
To stop recording, press the [STOP] button. The Clavinova
locates the top of the song.
The [TRACK 1] indicator lights up in green. (Record mode is automatically cancelled.)
40
CLP-970A
TIP
When you press the [REC]
button, recording pauses.
Recording Your Performance
5.
Play back the recorded performance.
Press the [START/PAUSE] button to play back the recorded
performance.
When playback is complete, it automatically stops and the Clavinova
locates the top of the song. To stop playback in the middle of a song,
press the [STOP] button. You can also pause playback by pressing the
[START/PAUSE] button. Playback stops when you press the button.
NOTE
To erase recorded data from
a track, use the Channel
Clear parameter in the
“SONG SETTING” menu.
(See page 69.)
When you turn off the power to the Clavinova, the recorded performance
data will be lost. If you wish to keep the recording, save the data using the
SaveToMemory parameter (page 50) in the File menu.
Re-recording TRACK 1
This section explains how to record again in case your performance was not satisfactory.
Procedure
1.
Select a voice or voices for recording, if necessary.
Repeat Step 2 on page 40 if you wish to change the previous settings.
Follow the procedure from Step 3 on page 40 to re-record.
The original performance data will be overwritten by new performance data.
CLP-970A
41
Recording Your Performance
Re-recording TRACK 1 partially
This section explains how to record part of a song again.
Procedure
1.
Pause the song at the beginning of the part you wish
to re-record.
Use the B [–]/[+] buttons while the playback screen is displayed to move through the measures or play back the
recording and press the [START/PAUSE] button to locate a
point slightly prior to the beginning of the part you wish
to re-record.
Playback screen
A
B
NO
C
2.
3.
3-1
YES
D
Select a voice or voices for recording, if necessary.
Repeat Step 2 on page 40 if you wish to change the previous settings.
Select the recording method and enter record mode.
Press and hold down the [REC] button, and press the
C [–]/[+] buttons repeatedly to specify how the
recording should start and press the D [–]/[+] buttons
repeatedly to specify how the recording should end.
While you are holding down the [REC] button, the following recording method select screen appears.
A
B
NO
C
YES
D
Starting methods:
Norm (Normal) — The existing data will be erased after re-recording
starts.
Key On — Data that exists prior to the point where you start playing a
note will not be erased.
42
CLP-970A
NOTE
If the playback screen is not
displayed, press one of the
SONG SELECT [
][ ]
buttons once.
Recording Your Performance
Ending methods:
Replace – The data after the point you stop recording will also be
erased.
Punch Out — The data after the point you stop recording will remain.
3-2
Keep holding down the [REC] button and press the
[TRACK 1] button.
TIP
If you cancel recording by
pressing the [REC] button,
recording stops when you
press the button. If you cancel recording by pressing
the [STOP] button, the Clavinova locates the top of the
song.
The [TRACK 1] indicator flashes in red.
(To stop recording, press the [REC] button again or press the [STOP]
button.)
Follow the procedure beginning with Step 4 on page 40.
Recording to [TRACK2]
This section explains how to record another part on the second track.
1
2
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
STOP
START/
PAUSE
REC
SONG
SETTING
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
MAX
TRANSPOSE
SONG BALANCE
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
C
VOICE
SETTING
LEFT
D
VOICE
EFFECT
2
Procedure
1.
2.
Select a voice.
Select a voice (or voices) for recording.
Repeat Step 2 on page 40.
Enter record mode and select a recording track.
Press and hold down the [REC] button and press the
[TRACK 2] button.
The [TRACK 2] indicator flashes in red. (To cancel recording, press
the [REC] or [STOP] button.)
TIP
Pressing the [TRACK 1] button repeatedly toggles
between playback on (the
indicator lights up in green)
and off (the indicator turns
off).
Make the recording by following the procedure beginning with Step 4 on page 40.
You can record a new part while listening to playback of the recorded [TRACK 1] data.
CLP-970A
43
Recording Your Performance
Recording to the third or more tracks [EXTRA TRACKS]
You can continue recording other parts into tracks 3–16 [EXTRA TRACKS] one by one.
Procedure
1.
Hold down the [REC] button in step 2 in the “Recording to [TRACK2]” on page 43 and use the B [–]/[+] buttons to select a recording track (3–16).
select a recording track (3-16)
A
B
NO
C
2.
YES
D
While holding down the [REC] key, press the [EXTRA
TRACKS] button.
Then, follow the procedure beginning with Step 4 on page 40.
Other recording techniques
Adding data to or recording over an existing song
The previous section explains how to record your performance from the beginning by selecting a blank “P000: NewSong.” You can also add your performance to or overwrite existing songs (such as 50 preset songs
[P-001—P-050], or your old recorded performances [see page 48]).
Procedure
1.
Select a song for recording (P-001 – P-050).
Select one of the preset songs (P-001–P-050) instead of “P-000:
NewSong” as described in Step 1 of “Recording to [TRACK1]” on
page 39. To select a song from already-recorded data, see Steps 1 and 2
on page 53.
NOTE
If you record on a track that
already has data, the existing data on the track will be
lost.
To continue recording, follow the procedure described in “Recording a New Song” from page 39 to 44.
44
CLP-970A
Recording Your Performance
Changing a voice or tempo after recording
You can change the voice and tempo after recording to change a song’s feel or to set a more suitable tempo.
You can also change these elements in the middle of a song.
Procedure
1.
2.
3.
4.
Select a song you wish to change by using the SONG
SELECT [ ] [ ] buttons.
To change the voice or tempo in the middle of the
song, specify the measure to change using the B [–]/
[+] buttons.
Change the settings (voice, reverb, etc.).
For example, if you wish to change the recorded E.Piano1 voice to E.
Piano2, use the MAIN voice group buttons and the A [–]/[+] buttons
to select E.Piano2.
When the setting is complete, press one of the SONG SELECT [ ]
[ ] buttons once to return to the song select screen.
Press and hold down the [REC] button and select the
track to change.
The indicator for the selected track lights up in red.
Change the tempo setting now, if necessary.
At this point, do not play the keyboard or press the [START/PAUSE]
button. Otherwise, recording will start, erasing the recorded data.
5.
TIP
Refer to “Questions about
Operations and Functions”
on page 89 for information
on the settings that can be
changed here.
TIP
Change the tempo in Step 4.
CAUTION
The edited settings (except
for the tempo setting) will be
saved in memory and you
will not be able to restore the
previous settings. Proceed
with caution.
Press the [STOP] or [REC] button to exit record mode.
CLP-970A
45
Recording Your Performance
Adjusting the volume balance between playback and your performance [SONG
BALANCE]
While recording multiple parts into tracks one by one, you can adjust the volume balance between the playback of the recorded parts and your current performance.
Procedure
1.
Press one of the SONG BALANCE [ ] [ ] buttons.
A
B
NO
C
2.
YES
D
Adjust the song balance using the SONG BALANCE
[ ] [ ] or D [–]/[+] buttons.
To lower the volume of the playback sound, press the SONG BALANCE [ ] or D [–] button.
To lower the volume of the performance sound, press the SONG BALANCE [ ] or D [+] button.
Setting range:
127:127 – 1:127 (Lowering the volume of the playback sound)
127:127 – 127:1 (Lowering the volume of the performance sound)
Normal setting: 127:127
46
CLP-970A
TIP
The song balance setting is
also used during playback.
(See page 53.)
Recording Your Performance
Recording in Dual or Split mode
When you record in Dual or Split mode, the Clavinova records each voice onto a separate track. The following table shows how tracks are assigned to each voice.
CAUTION
When you record multiple parts into tracks one by one, or when you record new data over an existing song (see
page 44), the existing data will be erased. Proceed with caution.
In the following example, Tracks 1, 2, and EXTRA TRACKn have been selected for recording.
Tracks assigned for
recording
Tracks
used for
recording
Dual
Split
Split+Dual
TRACK1
TRACK2
EXTRA
TRACKn
TRACK1
TRACK2
EXTRA
TRACKn
TRACK1
TRACK2
EXTRA
TRACKn
↓
↓
↓
↓
↓
↓
↓
↓
↓
MAIN
(1st voice)
TRACK1
TRACK2
TRACKn
LEFT
(1st voice)
–
MAIN
(2nd voice)
TRACK3
LEFT
(2nd voice)
–
TRACK4
TRACKn +2
TRACK1
TRACKn
TRACK1
TRACKn
TRACK2
TRACKn+1
TRACK2
TRACKn +1
–
TRACK3
TRACKn +2
–
TRACK4
TRACKn +3
Note: TRACKn = TRACK 3 – TRACK 16
If “n+1,” “n+2,” and “n+3” exceed 16, TRACKs 1, 2, and 3 are used.
TIP
Switching between Dual and Split mode in a song is not recorded.
CLP-970A
47
Saving Recorded Songs and
Handling the Files...[FILE]
File screens (accessed via the [FILE] button) enables you to handle song files
(e.g., save, delete, and rename recorded songs), and change the characters on
the screen.
The following parameters are provided for these operations:
Settings
Parameter
name
Reference
page
Saves recorded and other songs in Clavinova memory
SaveToMemory
50
Deletes song data from Clavinova memory
DeleteSong
51
Changes the title of songs
RenameSongs
52
Change the type of characters on the screen
CharacterCode
52
Clavinova memory
The Clavinova has the following three types of memory:
• Current memory:
This is a temporary memory area where you can temporarily place and edit
the currently-selected song before playback or recording.
• Preset song memory:
This read-only memory area saves 50 piano preset songs.
• Storage memory:
This memory area enables you to save recorded songs.
When you select a song in the song select screen, it is loaded from Preset song
memory, or Storage memory, into Current memory.
You will use Current memory to play back and record songs. When you turn
off the power to the Clavinova, songs saved in Preset song memory and Storage memory are not erased. On the other hand, songs in Current memory are
lost. If you wish to keep a song in Current memory, you must save it in Storage memory (see page 50, 51).
In this manual, a song located in a song recorded in Current memory, is
referred to as a “Current song,” and a song in Storage memory is a “Memory
song.”
Clavinova
Preset song
memory
Storage memory
Current memory
A
48
CLP-970A
TERMINOLOGY
File
A file contains a group of
data. On the Clavinova, a
song file includes song data
and a song number.
Memory
Memory is a location inside
the Clavinova in which you
can save and edit data.
Character code
Type of characters
Saving Recorded Songs and Handling the Files...[FILE]
Basic file operation
A message (information or confirmation dialog) sometimes appears on the screen to facilitate operation.
Refer to the “Message List” on page 86 for an explanation of each message, appropriate actions to take, and
troubleshooting information.
[FILE]
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
PIANO/
E. PIANO
HARPSI/
MALLET
MALLET
ORGAN
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
TRANSPOSE
MAX
SONG BALANCE
STOP
START/
PAUSE
REC
SONG
SETTING
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
C
VOICE
SETTING
LEFT
D
VOICE
EFFECT
Procedure
1.
Select a song.
2.
Access the File menu.
Select a song you wish to save or rename.
Press the [FILE] button.
A
B
NO
C
YES
D
To close the File menu, press the [EXIT] button once or twice.
3.
Select the desired parameter.
4.
Set the parameter or execute the command.
5.
Close the File menu.
Press the [FILE] or A [–]/[+] buttons repeatedly to display the desired
item from the following:
“SaveToMemory”, “DeleteSong”, “RenameSong”, “CharacterCode”.
Use the B [– (NO)]/[+ (YES)], C [–]/[+], D [–]/[+] buttons.
For more information regarding this procedure, refer to the corresponding section below.
Press the [EXIT] button.
CLP-970A
49
Saving Recorded Songs and Handling the Files...[FILE]
Saving recorded or other songs to Clavinova Storage
memory...[SaveToMemory]
If you record a song, then turn off the power to the Clavinova, the song will be erased. To save the recorded
song, you must save it into the Clavinova Storage memory. You can also save the preset songs and additional
or overwriting recordings (page 44) to Storage memory.
A
B
NO
C
YES
D
Procedure
See page 49 the basic operation information. The following is a detailed procedure of Step 4.
4-1
Name the song.
To move the cursor (a small underline), use the C [–]/[+] buttons.
To insert a space, press the C [–]/[+] buttons simultaneously.
To select a character on the cursor, use the D [–]/[+] buttons.
To delete a character, press the D [–]/[+] buttons simultaneously.
You can use up to 58 characters for a song name. If the name is longer
than the screen, use the C [–]/[+] buttons to move the cursor and
scroll the name.
4-2
Execute the operation.
Press the B [+ (YES)] button located next to “Execute?→”
“Sure?→.” appears on the screen. Press the B [+ (YES)] button again
to confirm the operation. (To cancel the operation, press the B [–
(NO)] button.)
The Clavinova displays “Executing” on the screen during the operation. When the operation is complete, “Completed” appears.
The song is automatically numbered as “Mxx,” where “M” means
“Memory” and “xx” is a number.
TIP
If Storage memory contains one or more songs, and you save a new song, the Clavinova automatically sorts the songs alphabetically and renumbers them.
50
CLP-970A
TIP
• You can change the type
of characters on the
screen using the CharacterCode parameter.
• When you select a saved
song later, the name with
an extension “.MID” will
appear.
TERMINOLOGY
“Execute?→”: Do you wish
to execute the operation?
“Sure?→”: Are you sure?
“Executing”: The Clavinova
is executing the operation.
“Completed”: The operation
is complete.
CAUTION
Do not turn off the power
while the screen displays
“Executing.”
Saving Recorded Songs and Handling the Files...[FILE]
Deleting songs in Clavinova Storage memory...
[DeleteSong]
You can delete Memory songs, but not Preset songs or Current songs.
A
B
NO
C
YES
D
TIP
To delete a Current song,
select “ALL” for the ChannelClear parameter in the
“SONG SETTING” menu
(page 69). Alternatively,
press the SONG SELECT
[ ]/[ ] buttons simultaneously to display “Song
Changed Save?”. This
means “A song has been
edited. Do you wish to save
the change?” Press the B [–
(NO)] button. The Current
song is deleted and a blank
“NewSong” is selected.
Procedure
See page 49 for basic operation information. The following is a detailed procedure of Step 4.
4-1
Select a song to delete.
Use the C [–]/[+] buttons to select a song.
4-2
Execute the operation.
Press the B [+ (YES)] button located next to “Execute?→.”
Follow the instructions on screen.
TIP
If you select a Memory
song, deleting the song
does not erase song data
from Current memory. However, if you return to the
song select screen, song
information other than the
song name is replaced by
“--------------”.
TIP
After you delete a song, the
Clavinova automatically
updates the song numbers.
CAUTION
Do not turn off the power
while the screen displays
“Executing.”
CLP-970A
51
Saving Recorded Songs and Handling the Files...[FILE]
Renaming a song...[RenameSong]
You can change a song’s title (except for the preset songs and [P-000: NewSong].
A
B
NO
C
YES
D
Procedure
See page 49 for basic operation information. The following is a detailed procedure for Step 4.
4.
Name the song as described in the [SaveToMemory]
section (page 50).
CAUTION
Do not turn off the power
while the screen displays
“Executing.”
TIP
After you rename a song,
the Clavinova sorts songs
alphabetically and renumbers them.
Changing the type of characters on screen...[CharacterCode]
You can change the type of characters that appear on screen.
The default setting is “International.” To input katakana, change this setting to “Japanese.”
A
B
NO
C
Options: International, Japanese
Character list
[International]
[Japanese]
52
CLP-970A
YES
D
Playing Back Recorded Songs
You can play back songs recorded using the Record function (page 39). You
can also play the keyboard along with the playback.
Playing back a song
1 2-2
DEMO
CLP-970
SONG SELECT
TRACK
1
2-1
TRACK
2
EXTRA
TRACKS
FILE
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
TRANSPOSE
MAX
SONG BALANCE
STOP
START/
PAUSE
REC
SONG
SETTING
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
D
2-2
43
SONG BALANCE [ ] [ ]
C
VOICE
SETTING
LEFT
VOICE
EFFECT
5
TEMPO [DOWN] [UP]
Procedure
1.
Display the song select screen.
Press either the SONG SELECT [ ]/[
] buttons.
Song select screen
A
B
NO
C
2.
2-1
YES
D
Select the desired song.
Use the A [–]/[+] buttons to select the song type: “PresetSong,” or “MemorySong.”
If the internal Storage memory contains one or more songs, the Clavinova displays “MemorySong.”
2-2
Use the C [–]/[+] or SONG SELECT [
to select a song.
TIP
You can enjoy ensemble
performance by yourself.
Record the parts for a fourhanded song or a piano
duet, then play the recorded
part while playing the other
part on the keyboard.
]/[
TIP
Use the SongRepeat
parameter in the “SONG
SETTING” menu (page 70)
to select repeat playback of
all songs or repeat playback
of a single song.
] buttons
CLP-970A
53
Playing Back Recorded Songs
3.
Start playback.
Press the [START/PAUSE] button.
Starting playback automatically as you start playing the keyboard (Synchro Start)
You can start playback as soon as you start playing the keyboard. This is called
the “Synchro Start” function.
To enter Synchro Start standby mode, press and hold down the [STOP] button and press the [START/PAUSE] button. The [START/PAUSE] indicator
flashes.
Now play the keyboard. Playback starts simultaneously.
To cancel the Synchro Start function, press the [STOP] button while the
Clavinova is in Synchro Start standby mode.
You can move back and forth (rewind and fast forward) through the bars by
using the B [–]/[+] buttons in the song select screen while the Clavinova is
playing or stopped.
The bar number in playback
A
B
NO
C
YES
]/[
] buttons to return to the song
Adjusting the tempo
You can use the TEMPO [DOWN]/[UP] buttons to adjust the playback
tempo as required before or during playback. The default tempo (the song’s
original tempo) is set when you press the [DOWN] and [UP] buttons simultaneously.
Press either of the SONG SELECT [
select screen.
4.
54
CLP-970A
TIP
You can play the metronome
along with the song playback. When you stop playback, the metronome is also
stopped.
D
You can play the keyboard while the Clavinova is playing back a song. You can
also play the notes in a voice different from the playback voice by selecting the
voice from the panel, and adjusting the volume balance between the playback
parts and your current performance using the SONG BALANCE [ ] [ ]
buttons. (See page 46.)
Press either of the SONG SELECT [
select screen.
TERMINOLOGY
Bar: measure
]/[
] buttons to return to the song
Stop playback.
When playback is complete, the Clavinova automatically stops and
locates the top of the song. To stop playback in the middle of a song,
press the [STOP] button. You can also pause playback by pressing the
[START/PAUSE] button. Playback stops when you press the button.
TIP
In the song select screen:
• Press the SONG
SELECT [
] or the C[–]
button while playback is
stopped in the middle of
the song to locate the
top of the song.
• Press the SONG
SELECT [
] or the C[–]
button during playback
to restart playback from
the top of the song.
• Press the SONG
SELECT [
] or the
C[+] button during playback to start playback
from the next song.
Playing Back Recorded Songs
5.
Return to the main screen.
Press the [EXIT] button.
Turning track playback on and off
When you select a song on the Clavinova, the indicators for tracks that contain data ([TRACK 1], [TRACK 2], [EXTRA TRACKS]) are lit in green. While
the Clavinova is playing or stopped, pressing these track buttons turn off the
indicators, and the data on those tracks will not be played. Pressing the track
buttons toggles track playback on and off. You can play the part that is turned
off.
TIP
You can practice a part or
phrase using the FromToRepeat (page 69) in the
“SONG SETTING” menu.
CLP-970A
55
Connections
Connectors
CAUTION
Before connecting the Clavinova to other electronic components, turn off the power to all the components. Before
turning the power on or off to all components, set all volume levels to minimum (0). Otherwise, electrical shock or
damage to the components may occur.
MIDI
THRU
Mac
PC-1
R
L / L+R
R
L / L+R
AUX OUT
3
TO HOST
HOST SELECT
PEDAL
4
5
7
2
6
1 AUX OUT [R], [L/L+R] jacks
You can connect these jacks to a stereo system to amplify the Clavinova or to a
cassette tape recorder to record your performance. Refer to the diagram below
and use audio cables for connection.
Adjust the volume level on the stereo system or cassette tape recorder, not
using the Clavinova’s [MASTER VOLUME] slider.
CAUTION
When the Clavinova’s AUX OUT jacks are connected to an external audio system, first turn on the power to the Clavinova, then to the external audio system.
Reverse this order when you turn the power off.
Clavinova
R
IN
AUX PEDAL
AUX IN
1
OUT
MIDI
PC-2
cassette tape recorder
stereo system
L / L+R
CAUTION
Do not route the output from
the AUX OUT jacks to the
AUX IN jacks. That is, when
you connect an external
audio device to the AUX
OUT jacks, do not connect
the audio device to the
Clavinova’s AUX IN jacks. If
you make this connection,
the signal input at the AUX
IN jacks is output from the
AUX OUT. This creates an
audio loop, causing audio
oscillation and abnormal
playback, leading to malfunction of both pieces of
equipment.
AUX OUT
phone plug
(standard)
RCA phono
→phone adapter plug
AUX OUT
alternatively
RCA phono plug
AUX IN
TIP
Use audio cables and
adapter plugs with no resistance.
RCA phono plug
audio cable
56
CLP-970A
TIP
The Clavinova’s [MASTER
VOLUME] slider setting
does not affect the signal
output from the AUX OUT
jacks.
Connections
2 AUX IN [R], [L/L+R] jacks
The stereo outputs from another instrument can be connected to these jacks,
allowing the sound of an external instrument to be reproduced via the Clavinova’s speakers. Refer to the diagram below and use audio cables for connection.
CAUTION
When the Clavinova’s AUX IN jacks are connected to an external device, first
turn on the power to the external divice, then to the Clavinova. Reverse this order
when you turn the power off.
Clavinova
R
TIP
The Clavinova’s [MASTER
VOLUME] slider setting
affects the input signal from
the AUX IN jacks, but the
[REVERB], [CHORUS], and
[BRILLIANCE] (page 30) settings do not.
TIP
If you connect the Clavinova to a monaural device,
use only the AUX IN [L/L+R]
jack or AUX OUT [L/L+R]
jack.
Plug shape depends
on the divece.
L / L+R
AUX IN
AUX OUT (OUTPUT)
AUX IN
phone plug
(standard)
Tone Generator
audio cable
3 AUX PEDAL jack
Connect an optional foot controller FC7 or foot switch FC4 or FC5 here.
Using the FC7 enables you to add expression to your performance by controlling the volume level of the notes you play. Using the FC4 or FC5 enables you
to turn the assigned function on and off. Use the AuxPedal parameter in the
“VOICE SETTING” menu. You can also assign the [START/PAUSE] button
function to this foot switch. (See page 83.)
4 TO HOST jack
This jack allows direct connection to a personal computer. (Refer to “Connecting a personal computer” on page 58 for more information.)
5 HOST SELECT switch
This switch should be set according to the type of connected MIDI device or
personal computer. (Refer to “Connecting a personal computer” on page 58
for more information.)
CLP-970A
57
CLP-970A.E.book Page 58 Monday, December 11, 2000 5:42 PM
Connections
6 MIDI [IN], [OUT], [THRU] connectors
Use MIDI cables to connect external MIDI devices to these connectors.
Make sure you set the HOST SELECT switch (described on the privious page)
to MIDI when you use these connectors.
7 PEDAL jack
Connect the pedal cord from the pedal box. (Refer to “Keyboard Stand
Assembly” on pages 96-98.)
Connecting a personal computer
You can enjoy computer music data on the Clavinova by connecting a computer to the TO HOST (or MIDI)
jack.
You can also play music data that conforms to the “GM System Level 1” and “XG” standards from the computer’s sequence software.
“The Clavinova-Computer Connection” is a supplementary guidebook that describes, for beginners, what
you can do with your Clavinova and a personal computer and how to set up a Clavinova-Computer system (the manual is not written for any specific models). The document is available as a PDF file (in
English) at the following Internet address:
Clavinova Web site:
http://www.yamaha.co.jp/english/product/cl/
Yamaha Manual Library (Electronic Musical Instruments):
http://www2.yamaha.co.jp/manual/english/
(For the Manual Library, you need to register first. Check the Clavinovas [Digital Piano] web page.)
There are the three methods by which to connect the Clavinova to a personal computer:
1. Connecting the serial port on the computer to the Clavinova’s TO HOST jack (page 59)
2. Using a MIDI interface and the Clavinova’s MIDI connectors (page 61)
3. Using the USB port on the computer and the UX256, a USB interface (page 62)
For more information, refer to the following pages.
TIP
When connecting the Clavinova to a personal computer, first turn off the power to both the Clavinova and the computer
before connecting any cables and setting the HOST SELECT switch. After making connections and switch settings, turn
on the power to the computer first, then to the Clavinova.
TIP
If you do not use the TO HOST jack of the Clavinova, make sure you disconnect the cable from the jack. If the cable is left
connected, the Clavinova may not function properly.
TIP
When the HOST SELECT switch is set to “PC-1,” PC-2,” or “Mac,” you can use the TO HOST jack, but the MIDI connectors are disabled since no data transfer occurs via the MIDI connectors. On the other hand, when the HOST SELECT
switch is set to “MIDI,” you can use the MIDI connectors, but not the TO HOST jack since no data is transferred via the TO
HOST jack.
58
CLP-970A
Connections
1.
Connecting the serial port on the computer to the Clavinova’s TO HOST jack
Connect the computer’s serial port (RS-232C or RS-422) to the Clavinova’s TO HOST jack.
In this connection, the Clavinova functions as a MIDI interface. Therefore, you do not need a special
MIDI interface.
Connection
Use a special serial cable (page 60) to connect the computer’s serial port (RS-232C or RS-422) to the Clavinova’s TO HOST jack.
Clavinova
Mac
PC-1
TO HOST
MIDI
PC-2
HOST SELECT
TO HOST
RS-232C (D-sub 9-pin)
RS-232C (D-sub 25-pin)
modem port
Windows
Windows
Macintosh
Note for Windows 95/98 users (regarding MIDI driver)
To transfer data via the computer’s serial port and the Clavinova’s TO HOST jack, you need to install a
specified MIDI driver (Yamaha CBX driver for Windows 95/98). You can download this driver from the
following XG Library on the Yamaha Web site:
http://www.yamaha-xg.com
CLP-970A
59
Connections
Type of serial cables and connection pin assignments
According to the type of computer you connect, use one of the following serial cables.
• Windows (with a serial port of D-sub 9-pin)
8-pin mini DIN plug → D-sub 9-pin plug
(Yamaha CCJ-PC2 or equivalent)
mini DIN 1
2
8-pin
8 (CTS)
7 (RTS)
2 (RxD)
5 (GND)
3
4
8
5
D-sub
9-pin
• Macintosh
System peripheral plug → 8-pin plug
(Yamaha CCJ-MAC or equivalent)
mini DIN 1
2
8-pin
3
4
5
6
7
8
3 (TxD)
• Windows (with a serial port of D-sub 25-pin)
8-pin mini DIN plug → D-sub 25-pin plug
(Yamaha CCJ-PC1NF or equivalent)
2 (HSK i) mini DIN
1 (HSK O) 8-pin
5 (RxD-)
4 (GND)
3 (TxD-)
8 (RxD+)
7 (GP-)
6 (TxD+)
• Pin assignment
The following diagram shows the pin assignments
for each cable.
Pin numbers (view from front)
mini DIN
8-pin
1
2
3
4
8
5
5 (CTS)
4 (RTS)
3 (RxD)
7 (GND)
D-sub
25-pin
mini DIN 8-pin
D-sub 25-pin
D-sub 9-pin
6 7 8
3 4
5
1 2
1 2 3 4 5 6 7 8 9 10 11 12 13
5 4 3 2 1
14 15 16 17 18 19 20 21 22 23 24 25
9 8 7 6
2 (TxD)
Clavinova HOST SELECT switch setting
Set the Clavinova HOST SELECT switch properly according to the type of connected computer.
• Macintosh: “Mac” (data transfer rate: 31,250bps, 1MHz clock)
• Windows: “PC-2” (data transfer rate: 38,400bps)
TIP
If your system does not work properly with the connections and settings listed above, your software may require different
settings. Check your software operation manual and set the HOST SELECT switch to the proper data transfer rate. (Data
transfer rate of “PC-1” is 31,250bps.)
60
CLP-970A
Connections
2.
Using a MIDI interface and the Clavinova’s MIDI connectors
Connection
Use a MIDI interface device to connect a computer to the Clavinova using special MIDI cables.
Clavinova
MIDI
THRU
Mac
PC-1
OUT
IN
MIDI
PC-2
HOST SELECT
MIDI
OUT
MIDI
IN
MIDI
IN
MIDI
OUT
MIDI
OUT
MIDI
IN
MIDI interface
MIDI interface
Windows
Macintosh
Clavinova HOST SELECT switch setting
Set the Clavinova HOST SELECT switch to “MIDI.”
CLP-970A
61
Connections
3.
Using the USB port on the computer and the UX256, a USB interface
Connect the USB port of the computer to the UX256 using a USB cable, install the driver (that came
with the UX256) on the computer, and connect the UX256 to the Clavinova using a serial cable or
MIDI cables.
For more information, refer to the instruction manual for the UX256.
UX256: Yamaha USB-MIDI Interface.
Connecting the UX256 to the Clavinova using a serial cable
or
PC-1
TO HOST
USB cable
Mac
HOST SELECT
Standard Machintosh 8-pin system peripheral cable
computer
Clavinova
UX256
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
STOP
START/
PAUSE
REC
SONG
SETTING
MAX
TRANSPOSE
NEW SONG
SONG BALANCE
B
A
METRONOME
START/STOP SETTING
−
MIN
+
−
CONTRAST
PIANO
+
NO
DOWN
SPLIT
POINT
−
+
E. PIANO/
BASS
HARPSICHORD
PIANO/
E. PIANO
HARPSI/
MALLET
MALLET
ORGAN
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
YES
UP
−
+
EXIT
VOICE
SETTING
LEFT
SYNCHRO START
MASTER VOLUME
D
C
TEMPO
SONG
EFFECT
VOICE
POWER
Connecting the UX256 to the Clavinova using MIDI cables
MIDI
THRU
OUT
IN
MIDI
USB cable
HOST SELECT
MIDI cables
computer
Clavinova
UX256
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
STOP
START/
PAUSE
REC
SONG
SETTING
MAX
TRANSPOSE
NEW SONG
SONG BALANCE
B
A
METRONOME
START/STOP SETTING
−
MIN
+
−
CONTRAST
+
NO
DOWN
PIANO
SPLIT
POINT
−
+
E. PIANO/
BASS
HARPSICHORD
PIANO/
E. PIANO
HARPSI/
MALLET
MALLET
ORGAN
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
YES
UP
−
+
EXIT
VOICE
SETTING
LEFT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
C
D
VOICE
EFFECT
POWER
62
CLP-970A
Detailed Settings
CLP-970A
63
Detailed Settings
You can set various parameters to make the best use of Clavinova functions, such as fine tuning the pitch,
selecting a voice for the metronome, repeating playback, etc. See page 66 for the normal (default) setting for
each parameter.
Parameter List
The following parameters are available.
Recording and playback [SONG SETTING]
Settings
Correcting note timing
Specifying whether playback starts immediately
along with the first voicing
Auditioning the channels
Deleting data by each channel
Specifying the range and playing back repeatedly
Playing back a song repeatedly
Parameter name
Reference page
Quantize
68
QuickPlay
69
ChannelListen
ChannelClear
FromToRepeat
SongRepeat
69
69
69
70
Metronome METRONOME [SETTING]
Settings
Metronome time signature
Metronome volume level
Metronome voice
Parameter name
TimeSignature
MetronomeVolume
MetronomeSound
Reference page
71
71
71
Voices [VOICE SETTING]
In Dual mode, parameters with the “*” mark are set for Voice 1 and Voice 2 individually.
Settings
Octave*
Volume level*
Position of right and left channels*
Fine pitch adjustment (only in Dual mode)
Reverb type
Reverb depth*
Chorus type
Chorus depth*
Chorus on/off
Variation effect type
Variation effect depth*
Touch sensitivity*
64
CLP-970A
Parameter name
Octave
Volume
Pan
Detune
ReverbType
ReverbSend
ChorusType
ChorusSend
ChorusOnOff
VariationType
VariationSend
TouchSense
Reference page
72
72
73
73
73
73
74
74
74
74
75
75
Detailed Settings
Right pedal function
Center pedal function
Left pedal function
Auxiliary pedal function
RPedal
MPedal
LPedal
AuxPedal
75
76
76
76
MIDI [MIDI SETTING]
Settings
MIDI transmit channel
MIDI receive channel (Port A)
MIDI receive channel (Port B)
Local control on/off
Selecting performance from the keyboard or song
data for MIDI transmission
Type of data received via MIDI
Type of data transmitted via MIDI
Song data bulk dump
Transmitting the initial settings
Voice data bulk dump
Parameter name
Reference page
MidiOutChannel
MidiInAChannel
MidiInBChannel
LocalControl
78
78
79
79
MidiOutSelect
79
ReceiveParameter
TransmitParameter
SongBulkDump
InitialSetup
VoiceBulkDump
79
80
80
80
80
[OTHER SETTING]
Settings
Selecting a touch response
Fine tuning of the pitch
Selecting a tuning curve for a piano voice
Selecting a scale
Depth of string resonance
Depth of sustain sampling for the damper pedal
Setting the speed of vibraphone’s vibrato effect
Selecting a pedal function for vibraphone
Assigning the START/PAUSE function to a pedal
Selecting a type of auxiliary pedal
Setting the point at which the damper pedal starts
to affect the sound
Pitch bend range
Replacing the preset voices with XG voices
Selecting the items saved at the time of shutdown
Restoring the normal (default) settings
Parameter name
Reference page
TouchResponse
Tune
PianoTuningCurve
Scale
StringResonanceDepth
SustainSamplingDepth
VivraphoneRotorSpeed
VibraphonePedalMode
PedalStart/Pause
AuxPedalType
81
81
81
82
82
82
83
83
83
83
HalfPedalPoint
84
PitchBendRange
XGAlternative
MemoryBackUp
FactorySet
84
84
85
85
CLP-970A
65
Detailed Settings
Making detailed settings
METRONOME [SETTING]
A [–] [+]
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
STOP
START/
PAUSE
REC
SONG
SETTING
METRONOME
START/ STOP SETTING
B [– (NO) ] [+ (YES) ]
A
B
PIANO
CONTRAST
[MIDI SETTING]
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
MAX
TRANSPOSE
SONG BALANCE
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
TEMPO
[SONG SETTING]
C
C [–] [+]
VOICE
SETTING
LEFT
D
D [–] [+]
VOICE
EFFECT
[VOICE SETTING]
[OTHER SETTING]
Procedure
1.
Access a setting menu.
Press the desired setting button ([SONG SETTING], METRONOME [SETTING], [VOICE SETTING], [MIDI SETTING],
or [OTHER SETTING]) to access the corresponding setting
menu.
Press the [EXIT] button any time to close the setting menu.
2.
3.
Select the desired parameter or part.
Press the setting button, A [–]/[+], and/or C [–]/[+] buttons repeatedly as required.
Set the parameter or part.
Some parameters or parts lead you to more options. Use
the B [– (NO)]/[+ (YES)], C [–]/[+], and D [–]/[+] buttons
to select or set the option.
To restore the normal parameter value, press the [–] and [+] buttons
simultaneously.
66
CLP-970A
Detailed Settings
4.
Write, execute, or save the data.
There are two ways to respond to the messages.
If “Execute?→” or “Start?→” appears:
Press the B [+(YES)] button to display confirmation ([Sure?→]). To
proceed, press the B [+(YES)] button again. The Clavinova displays
“Executing” and writes the data. When the operation is complete, it
displays “Completed” for three seconds, then returns to the previous
screen.
To cancel the operation, press the B [–(NO)] button instead of the B
[+(YES)] button.
A
B
NO
C
YES
D
If “Set?→” appears:
Press the B [+(YES)] button to execute the setting. The Clavinova displays “Executing” and saves the data. When the operation is complete,
it displays “Completed” for three seconds, then returns to the previous screen.
A
B
NO
C
5.
YES
D
Close the setting menu.
Press the [EXIT] button.
CLP-970A
67
Detailed settings for recording
and playback [SONG SETTING]
You can make detailed settings for the selected song. First, select the desired song from preset songs (“PresetSong”),
or memory songs (“MemorySong”) (see page 53).
Procedure
Select the desired song and press the [SONG SETTING] button to access the “Song Setting” menu.
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
TRANSPOSE
MAX
SONG BALANCE
STOP
START/
PAUSE
REC
SONG
SETTING
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
C
TEMPO
VOICE
SETTING
LEFT
D
VOICE
EFFECT
[SONG SETTING]
Correcting note timing [Quantize]
You can correct the timing of notes. For example, you
can adjust recorded notes to precise eighth or sixteenth
notes, or make the entire feel of a song more lively
(with a swing type of rhythm).
• Changes are made by song.
• You can also listen to the sound while changing the
setting. To change the data, you need to respond to
“Execute?→.”
See the procedure on page 66.
Stores the changed value.
A
If you select “1/8” for correction:
Performance data
Swing rate = 50% : not swinging
Swing rate = 75% (51% or higher) :
The timing of even beat notes is slightly delayed.
Swing rate = 25% (49% or lower) :
The timing of even beat notes is slightly early.
B
NO
C
YES
D
Specifies the type of note.
Swing rate = 67% :
The timing of the even beat notes is moved to
the third beat of the triplets.
3
Notes for which you can adjust the timing:
[OFF]
[1/4]
quarter note
[1/8]
eighth note
[1/16]
sixteenth note
3
[1/12]
eighth note triplets
3
[1/24]
sixteenth note triplets
If you select “1/8” or “1/16” for correction, the Clavinova displays “SwingRate=xx%”, which enables you to
make the entire feel of a song more lively and swinging.
Setting range:
0% - 100%
68
CLP-970A
TIP
Save the edited song data to memory. (See page 48.)
3
Detailed settings for recording and playback [SONG SETTING]
Specifying whether playback
starts immediately along with the
first voicing [QuickPlay]
This parameter enables you to specify whether a song
that starts from the middle of a bar, or a song with a
silence prior to the first note, should be played from
the first note or from the top of the bar (rest or blank).
See the procedure on page 66.
A
B
NO
C
You can delete data from each of 16 channels.
See the procedure on page 66.
Press this button to delete data.
A
B
NO
C
YES
D
Use these buttons to select the desired channel
for deletion.
YES
Setting range:
D
Ch1 - Ch16, ALL (all channels)
Setting range:
[On] Playing from the first note
[Off] Playing from the top of the bar (including a rest
or blank)
Auditioning the channels [ChannelListen]
You can select a single channel to listen to its contents.
Playback starts from the first note.
See the procedure on page 66.
Playback continues as long
as you press and hold down this button.
A
B
NO
C
Deleting data from each channel
[ChannelClear]
YES
D
Use these buttons to select the desired channel
for playback.
TIP
• Channels that do not contain any data are not displayed.
• Save the edited song data to memory. (See page 48.)
Specifying the range and playing
back repeatedly [FromToRepeat]
You can specify a range (in steps of beats) in a song to
play back repeatedly.
• Playback repeats after it reaches just prior to the beat
specified as the end point.
• If you start playing back a song with “Repeat On”
selected, the count down starts, followed by the
repeated playback of the specified part until you
press the [STOP] button.
• If you select “Repeat Off,” normal playback starts.
See the procedure on page 66.
Use these buttons to select “Repeat On.”
A
Setting range:
B
NO
YES
Ch1 - Ch16
TIP
Channels that do not contain any data are not displayed.
C
Use these buttons
to specify the start point
of the repeated range.
D
Use these buttons
to specify the end point
of the repeated range.
NOTE
When you select another song, the specified range is automatically cancelled and the Repeat function is turned off.
CLP-970A
69
Detailed settings for recording and playback [SONG SETTING]
Playing back a song repeatedly
[SongRepeat]
You can repeatedly play back all songs or a single song
selected from the 50 preset songs or from memory
songs.
• When you start playback, the Clavinova plays the
song you selected using the front panel, then starts
repeat playback of the specified songs until you press
the [STOP] button.
See the procedure on page 66.
Use these buttons to select “On.”
A
B
NO
C
YES
D
Use these buttons to specify the repeated songs.
Setting range:
[MemorySongs] All songs in the Clavinova’s memory
[PresetSongs]
All 50 preset songs
[ALL]
All songs from “MemorySongs,” and
“PresetSongs”
[OneSong]
One song selected from the front
panel
70
CLP-970A
Detailed settings for the metronome METRONOME [SETTING]
You can set the time signature, volume level, and voice of the Clavinova metronome.
Procedure
Press the [METRONOME SETTING] button to access the Metronome Setting menu.
METRONOME [SETTING]
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
STOP
START/
PAUSE
REC
SONG
SETTING
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
MAX
TRANSPOSE
SONG BALANCE
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
C
TEMPO
Setting the metronome time signature [TimeSignature]
LEFT
VOICE
EFFECT
Selecting the metronome voice
[MetronomeSound]
See the procedure on page 66.
See the procedure on page 66.
A
A
B
NO
C
Use these buttons
to set the numerator
of the time signature.
D
VOICE
SETTING
B
NO
YES
C
D
Use these buttons
to set the denominator
of the time signature.
For example, to specify “3/4,” use the C [–]/[+] buttons
to select “3” and the D [–]/[+] buttons to select “4.”
Setting range for the numerator:
1 - 16
Setting options for the denominator:
2, 4, and 8
YES
D
Setting range:
[BellOff]
[EnglishVoice]
[GermanVoice]
[JapaneseVoice]
[FrenchVoice]
[SpanishVoice]
[BellOn]
Click (standard metronome sound)
Click and “1, 2, 3, 4” in English
Click and “1, 2, 3, 4” in German
Click and “1, 2, 3, 4” in Japanese
Click and “1, 2, 3, 4” in French
Click and “1, 2, 3, 4” in Spanish
Click and bell
TIP
To mute the beat count, select “BellOff.”
Setting the metronome volume
level [MetronomeVolume]
See the procedure on page 66.
A
B
NO
C
YES
D
Setting range:
0-127
CLP-970A
71
Detailed settings for the voices
[VOICE SETTING]
This menu enables you to make various detailed settings for the voices in Dual or Split mode and the effects. You can
make these settings for each voice (or each combination of voices) individually. You can listen to the notes you play
on the keyboard while changing the settings.
Procedure
1.
Select a voice and press the [VOICE SETTING] button to access the
“Voice Setting” menu.
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
STOP
START/
PAUSE
REC
SONG
SETTING
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
MAX
TRANSPOSE
SONG BALANCE
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
C
TEMPO
D
VOICE
SETTING
LEFT
VOICE
EFFECT
[VOICE SETTING]
2.
Press the A [–]/[+] buttons to select the part for which you wish to
change the voice.
The range of the displayed part varies depending on the selected voice.
[Main]
MAIN voices (displayed with a single voice or in Split mode)
[Main × Layer] MAIN Voice 1 and Voice 2 (displayed when the MAIN side is in Dual
mode)
[Left]
LEFT voice (displayed in Split mode)
[Left × Layer] LEFT Voice 1 and Voice 2 (displayed when the LEFT side is in Dual mode)
TIP
In Dual mode, parameters with the “*” mark are set for Voice 1 and Voice 2 individually.
Setting the octave [Octave]*
You can shift the pitch up and down in octave steps.
See the procedure on page 66.
A
B
NO
YES
Setting the volume level
[Volume]*
You can set the volume level for each voice part.
See the procedure on page 66.
A
B
NO
C
C
In Dual mode:
A
B
NO
C
YES
D
Voice for editing (Voice 1 or Voice 2)
Setting range:
–2 (two octaves lower - 0 (no pitch shift) - +2 (two
octaves higher)
72
CLP-970A
YES
D
D
Detailed settings for the voices [VOICE SETTING]
Setting range:
In Dual mode:
A
B
NO
C
YES
–20 - +20 (With positive values, the pitch of Voice 1 is
raised and the pitch of Voice 2 is lowered. With negative values, the pitch of Voice 1 is lowered and the pitch
of Voice 2 is raised.)
D
Voice for editing (Voice 1 and Voice 2)
Selecting the reverb type
[ReverbType]
Setting range:
0 - 127
Setting the position of right and
left channels [Pan]*
You can specify the position in the stereo image from
which you hear the sound.
See the procedure on page 66.
A
TIP
You cannot set this parameter for the voice parts “Left” and
“LeftXLayer.”
See the procedure on page 66.
A
B
NO
YES
B
NO
YES
C
D
Setting range:
C
D
In Dual mode:
A
B
NO
C
YES
D
Voice for editing (Voice 1 or Voice 2)
Room Simulates reverberation in a room.
Hall Simulates reverberation in a concert hall.
Hall2 Reverberation is slightly longer than that of
“Hall1.”
Stage Reverberation suitable for a solo instrument
sound.
Plate Reverberation from the vibration of a metal
plate.
Setting range:
L64 (hard left) - C (center) - R63 (hard right)
Setting the reverb depth
[ReverbSend]*
Fine tuning the pitch (only in
Dual mode) [Detune]
TIP
The reverb effect is not applied if the ReverbSend parameter
is set to “0.”
You can slightly shift the pitch of two voices selected
for Dual mode.
See the procedure on page 66.
A
See the procedure on page 66.
A
B
B
NO
NO
C
C
YES
YES
D
D
CLP-970A
73
Detailed settings for the voices [VOICE SETTING]
In Dual mode:
In Dual mode:
A
B
NO
C
A
B
YES
D
NO
C
Voice for editing (Voice 1 or Voice 2)
YES
D
Voice for editing (Voice 1 or Voice 2)
Setting range:
Setting range:
0 - 127
0 - 127
Selecting the chorus type [Chorus
Type]
TIP
You cannot set this parameter for the voice parts “Left” and
“Left × Layer.”
Setting the chorus on/off
[ChorusOnOff]
You can set the [CHORUS] button on or off for each
voice. When you select a voice, the chorus on/off setting for the voice automatically changes according to
this parameter.
See the procedure on page 66.
A
B
NO
C
YES
See the procedure on page 66.
D
A
Setting range:
Chorus
Celeste
Flanger
TIP
Even if this parameter is turned on, the chorus effect is disabled if the ChorusSend parameter is set to 0.
Adds a rich, spacious sound.
Adds swell and a spacious sound.
Adds swell effects of an ascending or
descending jet plane.
B
NO
C
YES
D
Setting range:
On/Off
Setting the chorus depth [ChorusSend]*
Selecting the variation effect
type [VariationType]
See the procedure on page 66.
A
B
NO
YES
You can select other effects (than reverb and chorus).
See the procedure on page 66.
A
C
B
D
NO
C
74
CLP-970A
YES
D
Detailed settings for the voices [VOICE SETTING]
Setting range:
DelayLCR
Delay applied at left, center, and right
positions.
DelayLR
Delay applied at left and right positions.
Echo
Echo-like delay
CrossDelay
Left and right delays are crossed.
Symphonic
Adds a rich and deep acoustic effect.
RotarySpeaker Adds the vibrato effect of a rotary
speaker.
Tremolo
The volume level changes in rapid
cycles.
VibeRotor
The vibrato effect of a vibraphone.
AutoPan
The sound pans left to right and back
and forth.
Phaser
The phase changes periodically,
swelling the sound.
AutoWah
The center frequency of the wah filter
changes periodically.
SoundBoardRev Simulates the reverberation of a
piano soundboard.
Off
No effect.
Setting the touch sensitivity
[TouchSense]*
This parameter enables determines the manner and
degree to which the volume level changes in response
to your touch on the keyboard (how hard you play).
Since the volume level of the harpsichords and pipe
organs do not change regardless of how you play the
keyboard, the normal setting for these voices is 127.
(See the setting range below.)
See the procedure on page 66.
A
B
NO
C
YES
D
In Dual mode:
A
B
NO
C
YES
D
Voice for editing (Voice 1 or Voice 2)
Setting the variation effect depth
[VariationSend]*
See the procedure on page 66.
A
Setting range:
0 (softest) - 64 (largest changes in the level) - 127
(loudest and fixed)
B
NO
C
YES
Setting the right pedal function
[RPedal]
D
See the procedure on page 66.
In Dual mode:
A
A
B
B
NO
NO
C
C
D
D
Voice for editing (Voice 1 or Voice 2)
Setting range:
0 - 127
YES
YES
Setting range:
SustainCont Damper function that sustains the
sound longer as you press the pedal
deeper.
Sustain
On/Off switch type damper function.
PitchBend
Changes the pitch continuously.
Off
No function.
Normal setting:
SustainCount
CLP-970A
75
Detailed settings for the voices [VOICE SETTING]
Setting the center pedal function
[MPedal]
See the procedure on page 66.
A
You can assign a function to the pedal connected to the
Clavinova’s AUX PEDAL jack.
See the procedure on page 66.
B
NO
Setting the auxiliary pedal function [AuxPedal]
YES
A
C
NO
D
Setting range:
Sostenuto
Sostenuto pedal function. (See page 29.)
RotarySpeed Changes the number of rotations of the
rotary speaker effect in the JazzOrgan voice.
(Pressing the pedal repeatedly toggles
between fast and slow rotation speeds.)
VibeRotor
Turns vibrato of the Vibraphone voice
on and off. (Pressing the pedal repeatedly toggles between on and off.)
Off
No function.
Normal Setting:
Sostenuto
Setting the left pedal function
[LPedal]
See the procedure on page 66.
A
B
NO
B
YES
C
YES
D
Setting range:
Expression
Sustain
Makes the sound softer or louder.
On/Off switch type damper function.
(See page 29.)
SustainCont Damper function that sustains the
sound longer as you press the pedal
deeper. (See page 29.)
PitchBend
Changes the pitch continuously.
Sostenuto
Sostenuto pedal function. (See page 29.)
Soft
Soft pedal function. (See page 29.)
RotarySpeed Changes the number of rotations of the
rotary speaker effect in the JazzOrgan
voice. (Pressing the pedal repeatedly toggles
between fast and slow rotation speeds.)
VibeRotor
Turns the vibrato of the Vibraphone
voice on and off. (Pressing the pedal
repeatedly toggles between on and off.)
Off
No function.
Normal setting:
C
D
Setting range:
Soft
Soft pedal function. (See page 29.)
RotarySpeed Changes the number of rotations of the
rotary speaker effect in the JazzOrgan voice.
(Pressing the pedal repeatedly toggles
between fast and slow rotation speeds.)
VibeRotor
Turns the vibrato of the Vibraphone
voice on and off. (Pressing the pedal
repeatedly toggles between on and off.)
Off
No function.
Normal Setting:
Soft (for all voices other than JazzOrgan and VibraPhone)
Rotary Speed (JazzOrgan), Vibraphone (VibeRotor)
76
CLP-970A
Expression
TIP
Optional pedals
• Yamaha FC7 foot controller
This foot controller is suitable for controlling Expression,
SustainCont, and PitchBend.
• Yamaha FC4 foot controller
Yamaha FC5 foot controller
These foot switches are suitable for controlling Sustain,
Sostenuto, Soft, RotarySpeed, and VibeRotor.
MIDI [MIDI SETTING]
You can make detailed MIDI settings, such as setting up MIDI transmit/receive channels.
About MIDI
MIDI (Musical Instrument Digital Interface) is a standard format for data transmission/reception. It enables the
transfer of performance data and commands between MIDI devices and personal computers.
Using MIDI, you can control a connected MIDI device from the Clavinova, or control the Clavinova from a connected MIDI device or computer.
You can connect your computer or sequencer to the MIDI IN or TO HOST connector on the CLP-970A to play
“GM System Level 1” or “XG”-conformed music data on the CLP-970A, and control it from a connected computer or sequencer.
TIP
MIDI performance data and
commands are transferred in
the form of numeric values.
MIDI connectors
MIDI
THRU
Mac
PC-1
OUT
IN
MIDI
PC-2
HOST SELECT
MIDI [IN]: Receives MIDI data.
MIDI [OUT]: Transmits MIDI data.
MIDI [THRU]: Transmits data received at the MIDI [IN] connector as it is.
TIP
Prepare dedicated MIDI cables.
Since MIDI data that can be
transmitted or received varies depending on the type of
MIDI device, check the “MIDI
Implementation Chart” to find
out what MIDI data and commands your devices can
transmit or receive. The Clavinova’s MIDI Implementation
Chart is listed on pages 29
and 30 in the “Reference
Booklet” for the CLP-970A.
When you are using the
MIDI connectors, set the
[HOST SELECT] switch to
“MIDI.” (See page 58.)
[TO HOST] connector
Use this connector to connect the Clavinova to a computer.
Mac
PC-1
TO HOST
MIDI
PC-2
HOST SELECT
TIP
The type connecting cable varies depending on the computer. Refer to “Connecting a Personal Computer” on page 58 for more information.
TIP
When you are using the [TO
HOST] connector, set the
[HOST SELECT] switch correctly, according to the type
of computer you are using.
(See page 58.)
You can also obtain detailed
information about MIDI from
various music magazines
and books.
CLP-970A
77
MIDI [MIDI SETTING]
Procedure
Press the [MIDI SETTING] button to enter MIDI setting mode.
[MIDI SETTING]
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
MAX
TRANSPOSE
SONG BALANCE
STOP
START/
PAUSE
REC
SONG
SETTING
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
C
TEMPO
Setting the MIDI transmit channel [MidiOutChannel]
This parameter enables you to specify the channel on
which the Clavinova transmits MIDI data.
See the procedure on page 66.
A
B
NO
C
Select a voice part.
VOICE
See the procedure on page 66.
A
B
YES
D
Specify the channel.
NO
C
Select a channel.
Setting for:
Ch1 - Ch16
Setting range:
Setting range:
Ch1 - Ch16, Off (Not transmitted.)
On/Off
Normal setting:
Normal setting:
Main — Ch1
Left — Ch2
Layer — Ch3
Left Layer— Ch4
On for all channels
Setting the MIDI receive channel
(Port A) [MidiInAChannel]
This parameter enables you to specify for each channel
whether the Clavinova receives data at the MIDI [IN]
connector or the [TO HOST] port A (CBX driver’s
port A).
YES
D
Main, Left, Layer, Left Layer
CLP-970A
EFFECT
TIP
The received data is played back using the XG voices (page
6 in the “Reference Booklet” for the CLP-970A). You can also
assign the Clavinova’s preset voices to part of the data. (See
“XG Alternative” on page 84.)
Setting for:
78
VOICE
SETTING
LEFT
D
Select On or Off.
MIDI data
MIDI IN
TO HOST
Port A
Port B
Sound source A
Channels 1-16
Sound source B
Channels 1-16
Used for song playback
Used for performance
and playback
MIDI [MIDI SETTING]
Setting the MIDI receive channel
(Port B) [MidiInAChannel]
This parameter enables you to specify for each channel
whether the Clavinova receives data at the MIDI [IN]
connector or the [TO HOST] port B (CBX driver’s
port B).
TIP
The received data is played back using the preset voices
(page 93).
See the procedure on page 66.
A
Setting range:
On/Off
Normal setting:
On
Selecting performance from the
keyboard or song data for MIDI
transmission [MidiOutSelect]
You can select whether your performance data or song
playback data (including demo songs) is sent via
MIDI.
See the procedure on page 66.
B
A
NO
B
YES
NO
C
D
C
Select a channel.
YES
D
Select On or Off.
Setting range:
Setting for:
Ch1 - Ch16
Keyboard (performance data played on the keyboard)
Song
(song playback data)
Setting range:
Normal setting:
On/Off
Keyboard
Normal setting:
On for all channels
Selecting a type of data received
via MIDI [ReceiveParameter]
Setting Local control on/off
[LocalControl]
“Local Control On” is a state in which the Clavinova
produces the sound from its tone generator when you
play the keyboard. In “Local Control Off ” state, the
keyboard and the tone generator are cut off from each
other. This means that even if you play the keyboard,
the Clavinova will not produce the sound. Instead, the
keyboard data can be transmitted via MIDI to a connected MIDI device, which can produce the sound.
The “Local Control Off ” setting is useful when you
wish to play an external sound source while playing the
keys on the Clavinova.
See the procedure on page 66.
A
C
A
B
NO
C
Select a type of data.
YES
D
Select On or Off.
Type of data:
Note, Control, Program, Pitch Bend, SysEx (System
Exclusive)
Setting range:
On/Off
B
NO
This parameter enables you to specify which MIDI
data the Clavinova can receive.
See the procedure on page 66.
YES
Normal setting:
On for all types of data
D
CLP-970A
79
MIDI [MIDI SETTING]
Selecting a type of data transmitted via MIDI [TransmitParameter]
This parameter enables you to specify which MIDI
data the Clavinova can transmit.
See the procedure on page 66.
A
B
NO
C
YES
Transmitting the initial settings
on the panel [InitialSetup]
You can transmit the panel data, such as voice selection, to a connected sequencer. Before you record performance data to a connected MDF3 or sequencer, it is
useful if you first send and record (at the beginning of
the performance data) the panel setup data for your
performance during playback.
See the procedure on page 66.
D
A
Select a type of data.
Select On or Off.
B
NO
YES
Type of data:
Note, Control, Program, Pitch Bend, SystemRealTime,
SysEx (System Exclusive)
Setting range:
Normal setting:
On for all types of data
You can transmit the voice data specified in the “Voice
Setting” menu (page 72) as MIDI bulk data. You can
interrupt voice data bulk dump transmission by pressing the B [– (NO)] button.
See the procedure on page 66.
Executing song data bulk dump
[SongBulkDump]
You can save current song data on the Clavinova as
MIDI bulk data by transferring it to a connected MIDI
data filer (such as an MDF3) or a sequencer. To play
back the saved song data, send the bulk data back from
the storage device to the Clavinova and follow the
usual playback procedure.
You can interrupt song data bulk dump transmission
by pressing the B [– (NO)] button.
See the procedure on page 66.
A
B
NO
80
CLP-970A
D
Executing voice data bulk dump
[VoiceBulkDump]
On/Off
C
C
YES
D
A
B
NO
C
YES
D
Other settings
You can make detailed settings for touch, tuning, scale, etc.
Procedure
Press the [OTHER SETTING] button to enter Other Setting mode.
DEMO
CLP-970
SONG SELECT
TRACK
1
TRACK
2
EXTRA
TRACKS
FILE
METRONOME
START/ STOP SETTING
A
B
PIANO
CONTRAST
E. PIANO/
BASS
HARPSICHORD
MALLET
ORGAN
PIANO/
E. PIANO
HARPSI/
MALLET
ORGAN/
STRINGS
BASS
STRINGS/
CHOIR
REVERB CHORUS
MIDI
SETTING
BRILLIANCE
OTHER
SETTING
MAIN
NO
NEW SONG
MIN
MAX
TRANSPOSE
SONG BALANCE
STOP
START/
PAUSE
REC
SONG
SETTING
DOWN
YES
SPLIT
POINT
UP
EXIT
SYNCHRO START
MASTER VOLUME
SONG
C
TEMPO
D
VOICE
SETTING
LEFT
VOICE
EFFECT
[OTHER SETTING]
Selecting a touch response
[TouchResponse]
Fine tuning the pitch [Tune]
You can fine tune the pitch of the entire instrument.
This function is useful when you play the Clavinova
along with other instruments or CD music.
See the procedure on page 66.
You can specify a touch response (how the sound
responds to the way you play the keys).
See the procedure on page 66.
A
A
B
B
NO
NO
C
C
D
D
Setting range:
Light
YES
YES
With a soft touch, the Clavinova produces a
loud sound. The volume level of tones tends
to be consistent.
Medium Standard touch response.
Heavy You must hit the key very hard to generate a
loud volume. This allows for versatile expression, from pianissimo to fortissimo tones.
Fixed
No touch response. The volume level will be
the same regardless of how hard you play the
keys. Use the B [–]/[+] buttons to set the volume level.
Setting range:
A3=427.0Hz - 453.0Hz (0.1Hz steps)
Selecting a tuning curve for a
piano voice [PianoTuningCurve]
You can select a tuning curve from “GrandPiano1” and
“GrandPiano2.” Select “Flat” if you feel the tuning
curve of the piano voice does not quite match that of
other instruments voices.
See the procedure on page 66.
A
B
Setting range of the “Fixed” volume level:
NO
1 - 127
C
YES
D
Setting range:
Stretch
Flat
Tuning curve particularly for pianos
Tuning curve in which the frequency is
octave doubled over the entire keyboard
range
CLP-970A
81
Other settings
If you select a scale other than Equal, you need to specify the root note using the B [–]/[+] buttons.
Selecting a scale [Scale]
You can select various scales.
Equal Temperament is the most common contemporary piano tuning scale. However, history has known
numerous other scales, many of which serve as the
basis for certain genres of music. You can experience
the tunings of these genres.
See the procedure on page 66.
A
YES
Equal One octave is divided into twelve equal intervals. Currently most popular piano tuning
scale.
PureMajor/PureMinor
Based on natural overtones, three major chords
using these scales produce a beautiful, pure
sound. They are sometimes used for chorus
parts.
Pythagorean
This scale, designed by Pythagoras, a Greek
philosopher, is composed of only five pitches.
The 3rd produces swells, but the 4th and 5th
are beautiful and suitable for some leads.
MeanTone
This scale is an improvement of the
Pythagorean in that the swell of the 3rd has
been eliminated. It spread during the late 16th
century through the late 18th century. Handel
used this scale.
WerckMeister/KirnBerger
These scales combine Mean Tone and
Pythagorean in different ways. With these
scales, modulation changes the impression and
feel of the songs. They were often used in the
era of Bach and Beethoven. They are also often
used now to reproduce the music of that era on
harpsichords.
Equal
82
CLP-970A
NO
C
YES
D
I b
I
b
b
C, C , D, E , E, F, F , G, A , A, B , B
Setting range:
Depth of string resonance
[StringResonanceDepth]
D
Setting range:
Normal setting:
B
B
NO
C
A
This parameter is effective only on “GrandPiano1.”
See the procedure on page 66.
A
B
NO
C
YES
D
Setting range:
1 - 10, Off
Depth of sustain sampling for the
damper pedal [SustainSamplingDepth]
This parameter is effective only on “GrandPiano1.”
See the procedure on page 66.
A
B
NO
C
Setting range:
1 - 10, Off
YES
D
Other settings
Setting the speed of vibraphone’s
vibrato effect [VibraphoneRotorSpeed]
This parameter enables you to set the speed of vibrato
when you select the Vibraphone voice and use a vibe
rotor pedal.
See the procedure on page 66.
A
TIP
If you assign the START/PAUSE function to a pedal and turn
the function On, the pedal function assigned to the pedal in
the Voice Setting menu (pages 75 and 76) is disabled.
See the procedure on page 66.
B
NO
Assigning the START/PAUSE function to a pedal [PedalStart/
Pause]
YES
A
B
NO
C
C
Setting range:
1 - 10, Off
Select a pedal to assign the function.
Set to On or Off.
Left, Middle, AUX
Setting range:
On/Off
This parameter enables you to select whether the
sound is sustained while you press the keys on the keyboard (“PianoLike”) or the sound is sustained only
while you press and hold down the sustain pedal, like
playing a real vibraphone (“Normal”).
See the procedure on page 66.
A
D
Setting for:
Selecting a pedal function for
vibraphone
[VibraphonePedalMode]
B
NO
C
YES
D
YES
D
Normal setting:
Off for all pedals
Selecting a type of auxiliary pedal
[AuxPedalType]
A pedal connected to the [AUX PEDAL] connector
may switch on and off differently. For example, some
pedals turn on the effects and others turn them off
when you press them.
Use this parameter to reverse this mechanism.
See the procedure on page 66.
Setting range:
PianoLike, Normal
A
B
NO
Normal setting:
YES
PianoLike
C
D
Setting range:
Make, Break
CLP-970A
83
Other settings
Setting the point at which the
damper pedal starts to affect the
sound [HalfPedalPoint]
You can specify how far down you should press on the
right pedal until the damper effect (page 29) starts
working. This setting is effective when the right pedal
function (page 75) is set to either SustainCont or Sustain.
See the procedure on page 66.
A
B
NO
C
YES
D
Replacing the XG voices with preset voices [XGAlternative]
You can connect your computer or sequencer to the
MIDI IN or TO HOST connector on the CLP-970A to
play “GM System Level 1” or “XG”-conformed music
data on the CLP-970A, and control it from a connected
computer or sequencer.
The CLP-970A provides the XG tone generator for the
purpose of playing GM or XG music data. You can
replace some XG voices with the preset voices on the
panel for playback. This parameter enables you to
select “Native” (using the preset voices) or “XG” (using
the XG voices).
See the procedure on page 66.
A
Setting range:
B
NO
–2 (effective with the shallowest press) - 0 - +2 (effective with the deepest press)
C
Pitch bend range
[PitchBendRange]
B
NO
YES
D
Setting range:
–12 (Pitch is lowered by 12 semitones [one octave]
when you press the pedal.) - +12 (Pitch is raised by 12
semitones [one octave] when you press the pedal.)
–2
84
CLP-970A
Select on or off.
Setting for:
A
Normal setting:
D
Select the desired item.
This parameter enables you to set the range of continuous pitch change made by the Pitch Bend function.
• This parameter is effective only on the keyboard
performance sound.
• You can set the range in semitone steps.
See the procedure on page 66.
C
YES
All preset voices on the panel
Setting range:
Native Using the preset voices
XG
Using the XG voices
Normal setting:
GrandPiano1
Other voices
Native
XG
(using the preset voices)
(using the XG voices)
Other settings
Selecting items saved at shutdown [MemoryBackUp]
Restoring the normal (default)
settings [FactorySet]
You can back up some settings, such as voice selection
and metronome setting, so that they will not be lost
after you turn off the power to the Clavinova.
• Memory songs (saved in the Clavinova’s memory),
the backup on/off setting (this parameter setting),
and the “CharacterCode” parameter setting
(page 52) are always backed up.
See the procedure on page 66.
A
B
NO
You can reset the Clavinova to its normal (factory
default) settings.
• The CharacterCode parameter setting in the File
menu does not change.
• The MemoryBackUp parameter setting (On/Off)
(left column) is reset to the normal setting.
• You can specify whether the memory songs are
erased or kept.
See the procedure on page 66.
Reset the Clavinova.
YES
A
C
Select the desired item.
B
NO
D
YES
Select on or off.
Setting for:
Transpose, Brilliance, ReverbOnOff, SplitPoint, Main/
LeftVoice, MetronomeSetting, SongSetting, SongBalance, MidiSetting, and OtherSetting
Setting range:
C
D
Select a value for memory songs.
Selecting for “MemorySong”:
MemorySongExcluded
MemorySongIncluded
Memory songs are kept.
Memory songs are erased.
On/Off
Normal setting:
The Transpose, Main/LeftVoice, and MetronomeSetting parameters are set to Off. Other parameters are set
to On.
Other method for restoring the
normal settings
Press and hold down the white key on the right end
(C7) and press the [POWER] switch to turn on the
power to the Clavinova. In this case, the Memory songs
saved in the storage memory are not erased.
If you wish to erase Memory songs at this time, press
and hold down the right-most white key (C7) and
black key (Bb6) and press the [POWER] switch to turn
on the power to the Clavinova.
B 6
C7
[POWER]
CLP-970A
85
Message List
The messages are listed in alphabetical order.
Message
Meaning
This message is displayed following the message “BulkDataReceiving Song/
Voice.” Receiving bulk data is complete. After this message appears, you can
proceed to the next step.
Receiving bulk data has failed. Check the parameter settings and try again.
The Clavinova is receiving the song bulk data while this message is displayed. Wait until the message disappears, then proceed to the next step.
The Clavinova is receiving the voice setting bulk data while this message is
displayed. Wait until the message disappears, then proceed to the next step.
You have cancelled the “SongBulkDump” (page 80) or “VoiceBulkDump”
(page 80) transmission by pressing the B [–(NO)] button.
This message is displayed following the message “Executing.” The Clavinova’s internal processing is complete. You may proceed to the next step.
You tried to save a song by changing its title (using the “RenameSong” (page
52), or “SaveToMemory” (page 50), but a song with the same name already
exists in memory. Three seconds after this message appears, the previous
screen is restored. Rename the song.
This message prompts you to execute a file-related operation. Press the B [+
(YES)] button to proceed, or press the [EXIT] button to cancel.
The Clavinova is processing the data internally. Wait until the message disappears, then proceed to the next step.
The normal (factory default) settings (except for the memory song setting)
(“FactorySet” on page 85) have been restored. This message also appears if
you press and hold down the C7 key and turn on the power to the Clavinova
(page 85).
86
CLP-970A
Message List
Message
Meaning
The normal (factory default) settings (including the memory song setting)
(“FactorySet” on page 85) have been restored. This message also appears if
you press and hold down the C7 and Bb6 keys and turn on the power to the
Clavinova (page 85).
The Clavinova’s flash memory (storage memory) has expired. Consult your
Yamaha dealer. If this message appears, the Clavinova will not back up the
songs and settings in memory. Press the [EXIT] button to return to the previous screen.
You turned off the power to the Clavinova while it was writing a song to
storage memory. This message appears next time you turn on the power.
The Clavinova checks if the contents of storage memory can be recovered.
This message appears following the message “LastPowerOffIllegalMemorySongChecking,” indicating that the Clavinova recovered data in the storage memory as much as possible.
This message appears following the message “LastPowerOffIllegalMemorySongChecking,” indicating that the Clavinova could not recover data in
the storage memory and that all memory songs were deleted.
There is not enough memory space left and you cannot save any more songs.
Delete some songs in the storage memory (page 51), then save new data to
memory.
You tried to delete a song that does not exist in the storage memory. You
cannot delete the song.
This message prompts you to select whether you wish to overwrite the existing data with new data when you add recordings to a song. Press the B [+
(YES)] button to allow overwriting. Press the B [– (NO)] button to cancel.
You tried to start playing a song or perform another operation right after
you select the song. Wait until the message disappears.
This message prompts you to select whether you wish to save the edited settings. Press the B [+ (YES)] button to save the settings. Press the [EXIT] button to cancel.
CLP-970A
87
Message List
Message
Meaning
You tried to perform another operation before saving the recorded song to
storage memory. If you continue the operation, the recorded song will be
lost. To delete the new recording, press the B [– (NO)] button. To keep the
recording, press the B [+ (YES)] button. The Clavinova displays the
“SaveToMemory” (page 50) parameter screen. Save the recorded song, then
proceed to another operation.
The Clavinova has found some defects in the selected (or playing) song.
Select the song and play it again. If you still see this message, the song data
may be damaged.
The Current memory space is full during recording. Recording stops automatically. The data recorded up to that point remains. This message also appears
when you try to enter recording mode to make an additional recording but the
song data already fills the Current memory. In this case, you cannot make an
additional recording. Use the “ChannelClear” parameter (page 69) to delete
unnecessary tracks (if any) to make more room in memory.
This message prompts you to start the operation. To start, press the B [+
(YES)] button. Press the [EXIT] button to cancel the operation.
This message prompts you to confirm the execution. Press the B [+ (YES)]
button to continue. Press the B [– (NO)] button to cancel.
There is a malfunction with the TO HOST connector.
When you are using the CLP-970A with a connected computer:
The power to the computer is turned off, the cables are connected incorrectly, the [HOST SELECT] switch is set incorrectly, or the driver or MIDI
application on the computer works incorrectly. Turn off the power to the
CLP-970A and the computer, then check the cable connections and the
[HOST SELECT] switch setting. Then, turn on the power to the computer
and the CLP-970A in this order and check to see if the driver and MIDI
application on the computer work properly.
When you are using only the CLP-970A:
This message appears if a cable is connected to the TO HOST connector on
the CLP-970A. In this case, turn off the power to the CLP-970A, remove the
cable from the TO HOST connector, then turn on the power to the CLP970A. If the cable is left connected to the TO HOST connector, the CLP970A may not work correctly.
You used a period or space at the beginning of a song name or you tried to
change a song name that includes a character (or characters) not supported by
the CLP-970A, and the CLP-970A could not process the name. The Clavinova
displays the previous screen in three seconds. Rename the song correctly.
88
CLP-970A
Questions about Operations
and Functions
■ The buttons do not respond.
While you are using a function, some buttons not
used for the function are disabled. If the song is
playing, stop the playback. Otherwise, press the
[EXIT] button to return to the main screen. Then,
perform the desired operation.
■ The sound sustains and does not decay when I
press the sostenuto pedal.
With the voices in the ORGAN or STRINGS/
CHOIR group, the sound continues sustaining
while you are holding down the sostenuto pedal.
■ Higher or lower notes does not sound correctly
when the transpose or octave setting is made.
The setting range for the transposition and octave
setting is C2 - G8. (With the normal setting, the
Clavinova’s 88 keys covers the range of A1 - C7.) If
the lowest key is set to a note lower than C2, it will
produce a sound one octave higher. If the highest
key is set to a note higher than G8, it will produce a
sound one octave lower.
■ How can I return to the recording or song select
screen during song recording or playback?
Press one of the SONG SELECT [
tons once.
] or [
] but-
■ The tempo does not change even though I
recorded with tempo changes.
Depending on the timing of tempo changes, the
changed tempo may not be recorded. In this case,
the recording will be played back at the original
tempo.
Make tempo changes when the recording track is
selected and a red track indicator is flashing. The
same trick applies to editing the tempo after recording.
■ Performance in Dual or Split mode is not
recorded.
Track data is lost unexpectedly.
For Dual or Split mode recording, the recording
track for the second voice (that is, the voice for the
left-hand part) is automatically assigned (page 46).
Therefore, if the track already has data, the data will
be overwritten during recording. Also, switching to
Dual mode or Split mode in the middle of the song
is not recorded. Therefore, the notes you played
with the second voice (or the notes lower than the
Split point) are not recorded.
■ What type of data is recorded?
Data recorded in the tracks:
• Note data (notes you play)
• Voice selection
• Clavinova pedals and external pedals on/off
• Reverb depth “ReverbSend”
• Chorus depth “ChorusSend”
• Variation effect depth “VariationSend”
• Voice octave setting “Octave”
• Voice volume level “Volume”
• Stereo image of each voice “Pan”
• Fine tuning of two voice pitch (Dual mode)
“Detune”
• Volume level changes for each voice with
response to the way you play “TouchSense”
Data recorded globally in all tracks:
• Tempo
• Time signature
• Reverb type
• Chorus type
• Variation effect type
You can change all data except for note data after recording.
You can change the time signature at the beginning of the
song, or at a position in the song to which you move, by
using the B [–]/[+] buttons while the song is stopped.
CLP-970A
89
Questions about Operations and Functions
■ I cannot change the key signature in the song
after recording.
Press the [STOP] button to locate the top of the
song, use the B [–]/[+] buttons to locate the measure in which you wish to change the key signature,
then change it.
■ How much data can I record?
• Current memory (page 48): About 600KB
• Storage memory (page 48): About 750KB
■ The on/off setting of the pedal connected to the
AUX PEDAL jack is reversed.
Some types of pedals may turn on and off in opposite fashion. Use the “AuxPedalType” parameter
(page 83) in the “OTHER SETTING” menu to
change the external pedal setting.
90
CLP-970A
■ The song title is not correct.
The “CharacterCode” setting may be different than
that used when you named the song. Also, if the
song was recorded on another instrument, the title
might be displayed incorrectly. Use the “CharacterCode” parameter (page 52) in the FILE menu to
change the setting.
■ What is the difference between “TouchSense”
and “TouchResponse” MIDI data?
“TouchSense” determines the manner and degree
to which the volume level changes in response to
your touch on the keyboard. It causes MIDI exclusive data (that controls the tone generator) to be
output.
“TouchResponse” determines the touch sensitivity
as an instrument and causes MIDI note-on velocity
data to be output.
Appendix
CLP-970A
91
Troubleshooting
Problem
The Clavinova does not turn on.
A click or pop is heard when the
power is turned on or off.
Noise is heard from the Clavinova’s
speakers.
The overall volume is low, or no
sound is heard.
Cause
The Clavinova has not been
plugged in properly.
Electrical current is being applied to
the instrument.
The noise may be due to interference caused by the use of a mobile
phone in close proximity to the
Clavinova.
The [MASTER VOLUME] is set too
low.
Headphones are connected.
The Local Control function is turned
off.
The damper pedal has no effect, or
the sound continuously sustains
even when the damper pedal is not
pressed.
The pitch and/or tone of the piano
voices in certain ranges do not
sound right.
Mechanical noise is heard during
performance.
92
CLP-970A
The pedal cord plug is not connected.
The Clavinova’s piano voices
attempt to precisely simulate actual
piano sounds. However, as a result
of sampling algorithms, overtones
in some ranges may sound exaggerated, producing a somewhat different pitch or tone.
The Clavinova’s keyboard mechanism simulates the keyboard mechanism of a piano. Mechanical noise
is also heard on a piano.
Solution
Securely insert the female plug into
the socket on the Clavinova, and
the male plug into a proper AC outlet. (See page 17.)
This is normal, and is no cause for
concern.
Turn off the mobile phone, or use it
further away from the Clavinova.
Raise the [MASTER VOLUME]
level. (See page 18.)
Unplug the headphones. (See page
18.)
Turn the Local Control function on.
(See page 79.)
Securely insert the pedal cord plug
into the proper jack. (See step 5 on
page 97.)
This is normal.
This is normal.
Preset Voice List
Voice name
Stereo
sampling
Touch
Sense
Dynamic
sampling
Key-off
samples
String
resonance
Voice description
GrandPiano1
●
●
●
●
●
This voice has been sampled from a full concert grand piano. It features five-stage dynamic
sampling, tone changes with damper pedal
operation, and a subtle voicing at the release
of the keys. It simulates the ultimate acoustic
piano sound. It also reproduces a string resonance that is typical of acoustic pianos. This
voice is suitable not only for classical music but
for piano music of any genre.
GrandPiano2
●
●
×
×
×
A bright, expansive piano sound which is ideal
for rock and popular genres.
E.Piano1
●
●
●
×
×
An electronic piano sound created by FM synthesis. Extremely “musical” response with varying timbre according to keyboard dynamics.
E.Piano2
×
●
●
●
×
The sound of an electric piano using hammerstruck metallic “tines.” Soft tone when played
lightly, and an aggressive tone when played hard.
SynthPiano
×
●
×
×
×
This voice simulates the electric piano sound
produced by synthesizers in popular music. It
also goes well with the acoustic piano sound.
WoodBass
●
●
●
●
×
This voice simulates the sound of an upright
bass played with the fingers, and is suitable for
jazz and Latin music. Stereo sampling has
improved the acoustic feel.
ElectricBass
×
●
●
×
×
Electric bass for a wide range of music styles,
jazz, rock, popular, and more.
Bass&Cymbal
●
●
●
×
×
WoodBass sound and stereo-sampled cymbal
sound are layered. This voice is very effective
for a jazz walking bass.
Harpsichord8'
●
×
×
●
×
The harpsichord is often used for Baroque
music. The volume level is always consistent
regardless of how you play. The instrument
generates a peculiar voice when you release
the keys. “8’” means that it produces the same
octave sound as the keys.
Harpsichord8'+4'
●
×
×
●
×
This voice combines the 8’ and 4’ harpsichord
sounds. “4’” means that it produces a sound
one octave higher than the actual keys.
×
This is the voice of a keyboard that produces
sound by striking the strings with magnetic
pickups. This funky sound is popular in black
contemporary music. Because of its unique
structure, the instrument produces a peculiar
sound when you release the keys.
×
This voice simulates a vibraphone played with a soft mallet.
The harder you play, the more metallic it sounds. Use the
“VibraphonePedalMode” parameter in the “OTHER SETTING” menu to select whether the sound sustains while
you hold down the keys, or the sound sustains only when
you press the pedal. An actual vibraphone has a rotor
inside the resonance tube, which rotates via the motor to
create the vibrato effect. Pressing the left pedal applies this
effect; pressing the pedal again turns the effect off.
ElectricClavichord
Vibraphone
×
●
●
●
×
●
●
×
CLP-970A
93
Preset Voice List
Voice name
Marimba
Touch
Sense
Dynamic
sampling
Key-off
samples
String
resonance
Voice description
●
●
●
×
×
This voice simulates a concert-type marimba
sound. Stereo sampling helps reproduce a real
acoustic spread.
Celesta
●
●
●
×
×
A celesta is a percussive instrument. When
you play the keyboard, the hammer hits a
metallic board to produce the sound. This
instrument is famous for the impressive sound
in “Dance of the Suger-Plum Fairy” of The Nutcracker Suite by Tchaikovsky.
PipeOrganPrincipal
●
×
×
×
×
This voice features the combination of pipes
(8'+4'+2') of a principal (brass instrument)
organ. It is suitable for Baroque church music.
×
This voice features the combination of pipes
(8'+4') of a flute (woodwind instrument) organ.
Its soft sound is suitable for the accompaniment of hymns.
PipeOrganFlute1
94
Stereo
sampling
●
×
×
×
PipeOrganFlute2
●
×
×
×
×
This voice features the combination of pipes
(8'+4'+1 1/3') of a flute organ. It sounds more
brilliant than PipeOrganFlute1 and is suitable
for solo performance.
PipeOrganTutti
●
×
×
×
×
This voice features a full coupler of a pipe
organ, famous for the sound used in Toccatta
and Fugue by Bach.
JazzOrgan
×
×
×
×
×
The sound of a “tonewheel” type electric organ.
Often heard in jazz and rock idioms.
Strings
●
●
×
×
×
This voice features a string ensemble that
accurately simulates all string instruments,
including contrabass, cello, viola, and violin.
SynthStrings
●
●
×
×
×
Sampled strings, processed for spread and
warmth. This voice is suitable for a pad in
ensemble music.
SlowStrings
●
●
×
×
×
This voice features a string ensemble sound
with a slow attack. It is suitable for a duet with
piano or electric piano.
Choir
●
●
×
×
×
A big, spacious choir voice. Perfect for creating
rich harmonies in slow pieces.
SlowChoir
●
●
×
×
×
This voice features a chorus sound with a slow
attack. It is suitable for a duet with piano or
electric piano.
Scat
●
●
●
×
×
You can enjoy jazz “scatting” with this voice.
Depending on how hard and what note range
you play, different sounds will be produced.
CLP-970A
Voice Combination Examples
(Dual and Split)
Dual
MAIN + MAIN
GrandPiano1 + E.Piano1
GrandPiano1 + E.Piano2
GrandPiano1 + SynthPiano
MAIN + MAIN
GrandPiano2 + GrandPiano2
MAIN + MAIN
E.Piano1 + SlowChoir
MAIN + MAIN
E.Piano2 + ElectricClavichord
MAIN + MAIN
Harpsichord8' + Strings
MAIN + MAIN
Celesta + SynthStirngs
MAIN + MAIN
This combination is often used in popular music.
This produces a fantasy, spacious piano sound.
This combination sounds as if you are playing
two notes that are two octaves apart. It is suitable for the accompaniment of Salsa music.
This is suitable for romantic ballads.
This is suitable for funk, rhythm & blues, and soul
music.
This combination is very suitable for Baroque
music.
This combination adds strings and bell sound. A
delay effect is automatically applied.
Split
MAIN / LEFT
GrandPiano1 / WoodBass
or Bass&Cymbal
MAIN / LEFT
Celesta / Choir
MAIN / LEFT
Choir / GrandPiano1
MAIN / LEFT
Scat / WoodBass
MAIN / LEFT
E.Piano2 / Scat
This is recommended for light Jazz music. The
damper pedal is effective on the voice assigned
to the right-hand range.
This is suitable for a peaceful, somewhat cute
song.
Play these voices elegantly along with piano
arpeggio. Playing the Choir voice in chords
would be more effective.
This combination features a cool (stylish) jazz
chorus. The Scat voice is touch sensitive, adding
a variety of expressions.
Playing the Scat voice for a bass part may create
an interesting sound.
Dual + Split
MAIN + MAIN / LEFT
GrandPiano1 + SynthString /
GrandPiano1
MAIN + MAIN / LEFT
GrandPiano2 + E.Piano1 /
ElectricBass
MAIN + MAIN / LEFT + LEFT
Harpsichord8' + 4' + Strings /
Harpsichord8' + Strings
This combination creates the thick sound of a
layered piano and strings.
This sound is suitable for fusion. Deeper reverb
and chorus (pages 73 and 74) will improve the
groove. The damper pedal is effective on the
voice assigned to the right-hand range.
This combination makes a very brilliant sound.
CLP-970A
95
CLP-970A.E.book Page 96 Monday, December 11, 2000 5:42 PM
CLP-970A/970AM/970AC:
Keyboard Stand Assembly
CAUTION
• Be careful not to confuse parts, and be sure to install all parts in the correct direction. Please assemble in accordance with the sequence given below.
• Assembly should be carried out by at least two persons.
• Be sure to use the correct screw size, as indicated below. Use of incorrect screws can cause damage.
• Be sure to tighten up all screws upon completing assembly of each unit.
• To disassemble, reverse the assembly sequence given below.
Have a Phillips-head (+) screwdriver ready.
1.
Attach the side panels to the pedal box.
Place the plastic bag that contained the side
panels on the floor when assembling the stand
to prevent scratches to the floor or stand.
Make sure the
indented surface on
the side panel and the
rear surface on the
pedal box will match
correctly, without
creating a step.
The parts shown in the “Assembly Parts” illustration will be used. Follow the assembly instructions
and select the parts as needed.
side panel
(right)
Assembly Parts
6 x 16 mm
2
flat-head screws x4
4
4 x 20 mm
tapping screws x4
Cord holders x 2
3
4 x 12 mm
round-head screws x2
(2) Use the four long
round-head
screws 1 to
attach the pedal
box. First attach
one side panel,
then attach the
other side panel.
2.
side panel
(left)
(1) Untie and straighten out the
bundled cord attached to the
bottom of the pedal box.
Don’t discard the vinyl tie,
you’ll need it later in step 6.
Attach the rear panel.
(2) Secure the top of the
rear panel to the side
panel brackets using
two thin round-head
screws 3.
side
panel
(left)
rear panel
side
panel
(right)
pedal box
Bundled pedal cord inside
96
CLP-970A
AC power cord
(1) With the rear
panel on the
feet’s
protruding
edge, align the
panel with the
groove and
secure the top
of the panel.
R
main unit
(3) Secure the
bottom of the
rear panel to the
pedal box using
four tapping
screws 4.
L
1
6 x 25 mm
round-head screws x4
CLP-970A/970AM/970AC: Keyboard Stand Assembly
3.
Mount the main unit.
CAUTION
• Fingers can become pinched between the main
unit and the rear or side panels, be extra careful
so as not to drop the main unit.
• Do not hold the keyboard in any position other
than the position shown in the above illustration.
Be sure to place your hands at least
10 centimeters from either end of the
main unit when positioning it.
5.
Connect the pedal cord.
(1) Pass the pedal cord plug
from the rear as shown,
and insert the plug into the
PEDAL jack.
6.
Secure the pedal cord.
(2) Use a vinyl tie to
take up any slack in
the pedal cord.
at least
10 cm
Fix the main unit.
(1) Center the main unit to produce equal clearance
on the left and right sides.
7.
Set the voltage selector and connect
the power cord.
Voltage Selector
Before connecting the
AC power cord, check
the setting of the
voltage selector which
is provided in some
127
areas. To set the
selector for 110V, 127V,
220V or 240V main
voltages, use a “minus”
screwdriver to rotate the selector dial so that the correct
voltage for your region appears next to the pointer on the
panel. The voltage selector is set at 240V when the unit is
initially shipped.
After the proper voltage has been selected, connect the AC
power cord to the AC INLET and an AC wall outlet. A plug
adaptor may be also provided in some areas to match the
pin configuration of the AC wall outlets in your area.
110
(2) Use short flat-head screws 2 to
secure the main unit from the
front.
* Use the rear hole on the front
brackets to attach the screws.
220
240
4.
(1) Attach the cord
holders to the rear
panel as shown, then
clip the cord into the
holders.
CAUTION
• An improper voltage setting can cause serious damage
to the Clavinova or result in improper operation.
CLP-970A
97
CLP-970A.E.book Page 98 Monday, December 11, 2000 5:43 PM
CLP-970A/970AM/970AC: Keyboard Stand Assembly
8.
Set the adjuster.
When moving the instrument after assembly,
always hold the bottom of the main unit.
Do not hold the keyboard cover or speaker box.
Improper handling can result in damage to the
instrument or personal injury.
Rotate the adjuster until it comes in
firm contact with the floor surface.
Key cover
Speaker box
After completing the assembly, please check the
following.
• Are there any parts left over?
• Review the assembly procedure and correct any
errors.
• Is the Clavinova clear of doors and other movable
fixtures?
• Move the Clavinova to an appropriate location.
• Does the Clavinova make a rattling noise when
you shake it?
• Tighten all screws.
• Does the pedal box rattle or give way when you
step on the pedals?
• Turn the adjuster so that it is set firmly against the
floor.
• Are the pedal and power cords inserted securely
into the sockets?
• Check the connection.
• If the main unit creaks or is otherwise unsteady
when you play on the keyboard, refer to the assembly diagrams and retighten all screws.
98
CLP-970A
Index
You can search the desired section using not only the terminology in this manual but also commonly-used words.
The * mark indicates that the corresponding page includes the terminology explanation in the right column.
Numerics
D
L
50 greats for the Clavinova 13
50 Piano Preset Songs 24
Practicing a one-hand part 26
Damper (right) pedal 29
Default (Normal) setting* 30
Demonstration tunes 22
Detailed Settings 64
Metronome 71
MIDI 77
Other settings 81
recording and playback 68
voices 72
Display contrast 18
DOWN (TEMPO)
50 Piano Preset Songs 25
metronome 38
Dual
Detailed settings 72
Recording 47
Dual mode
→ combining two voices 33
LCD → Display
Contrast 18
LCD → Screen 21
Left pedal 29
Left pedal function 76
LEFT voice group buttons 35
List
Demonstration tunes 22
Detailed Settings 64
Message 86
Preset Voice 93
A
Adding reverberation to the sound
→ REVERB 31
Adding variation to the sound
→ Effect function 30
Assembly 96
Assigning the START/PAUSE
function to a pedal 83
AUX IN jacks 57
AUX OUT jacks 56
AUX PEDAL jacks 57
Auxiliary pedal function 76
B
BackUp 85
Bench 13
BRILLIANCE 30
C
Center pedal 29
Center pedal function 76
Character Code 52
Characters 52
CHORUS 31
combining two voices
→ Dual mode 33
computer 58
Connection
Audio 56
MIDI 61
Other Components 56
Serial 59
Speaker 57
USB 62
Connectors
MIDI IN/OUT/THRU 58, 61
CONTRAST 18
E
Effect function 30
EXIT 21
EXTRA TRACKS
→ the third or more tracks 44
F
FactorySet 85
Fast forward 25, 54
FILE 48
H
M
MAIN voice group buttons 28
Maintenance 13
MASTER VOLUME 18
Memory 48
Memory song 48
MemoryBackUp 85
Message List 86
Metronome 38
Detailed settings 71
METRONOME SETTING 71
MIDI 77
Detailed settings 77
MIDI cables 61
MIDI connectors 58, 61
MIDI driver 59
MIDI SETTING 77
Music stand 16
Headphones 18
HOST SELECT switch 57
N
J
New Song 39
Normal setting* 30
Jacks
AUX IN 57
AUX OUT 56
AUX PEDAL 57
PEDAL 58
PHONES 18
TO HOST 57, 59
O
Other settings 81
CLP-970A
99
Index
P
Pedal Function
Auxiliary 76
Center 76
Left 76
Right 75
PEDAL jack 58
Pedals 29
Personal computer 58
PHONES jacks 18
Playback
50 Piano Preset Songs 24
Demo Songs 22
Recorded Songs 54
Playing back repeatedly (song) 70
Playing back repeatedly
(specifying the range) 69
playing two voices → Split mode 35
POWER 17
Practicing a one-hand part
(50 preset songs) 26
PRECAUTIONS 3
Preset song memory 48
Preset Voice List 93
R
Recording
Tape Recorder 56
Recording in Dual 47
Recording in Split 47
Recording Your Performance 39
Re-recording 41
REVERB 31
Rewind 25, 54
Right pedal 29
Right pedal function 75
S
Scale 82
Screen 21
Select
50 piano preset songs 24
Demo Songs 22
Recorded Songs 53
Selecting a touch response 81
100
CLP-970A
SETTING
metronome 71
Volume 18
Soft (left) pedal 29
Song
Delete 51
Detailed settings 68
Playing back repeatedly 70
Rename 52
Store 48
SONG BALANCE 46
SONG SELECT
50 Piano Preset Songs 24
Recorded Songs 53
Recording 39
SONG SETTING 68
Sostenuto (center) pedal 29
Sound
brilliance 30
expression 30
reverberation 31
spread and spaciousness 31
Soundboard reverb 31
Split
Detailed settings 72
Recording 47
Split mode → playing two voices 35
Split point 36
Splitting the keyboard range and
playing two different voices 35
START/PAUSE
50 Piano Preset Songs 24
Recorded Songs 54
Recording 40
START/STOP
metronome 38
STOP
50 Piano Preset Songs 25
Recorded Songs 54
Recording 40
Storage memory 48
StringResonance 82
SustainSampling 82
Synchro Start
50 preset songs 26
Recorded Songs 54
T
TEMPO
50 Piano Preset Songs 25
metronome 38
Recorded Songs 54
the third or more tracks
→ EXTRA TRACKS 44
TO HOST jack 57, 59
TouchResponse 81
Track playback on and off 55
TRACK1/TRACK2
50 Piano Preset Songs 26
Recording 39, 43
TRANSPOSE 32
Transposition 32
Troubleshooting 92
Tune 81
Type of characters 52
Type of data (recorded) 89
U
UP (TEMPO)
50 Piano Preset Songs 25
metronome 38
V
VOICE SETTING 72
Voices 28
Detailed settings 72
Volume
Balance (SONG BLANCE) 46
Setting 18
IMPORTANT SAFETY INSTRUCTIONS
INFORMATION RELATING TO PERSONAL INJURY, ELECTRICAL SHOCK,
AND FIRE HAZARD POSSIBILITIES HAS BEEN INCLUDED IN THIS LIST.
WARNING- When using any electrical or electronic product,
basic precautions should always be followed. These precautions
include, but are not limited to, the following:
1.
Read all Safety Instructions, Installation Instructions, Special Message Section items, and any Assembly Instructions
found in this manual BEFORE making any connections, including connection to the main supply.
2.
Main Power Supply Verification: Yamaha products are
manufactured specifically for the supply voltage in the area
where they are to be sold. If you should move, or if any doubt
exists about the supply voltage in your area, please contact your
dealer for supply voltage verification and (if applicable) instructions. The required supply voltage is printed on the name plate.
For name plate location, please refer to the graphic found in the
Special Message Section of this manual.
3.
This product may be equipped with a polarized plug (one
blade wider than the other). If you are unable to insert the plug
into the outlet, turn the plug over and try again. If the problem
persists, contact an electrician to have the obsolete outlet
replaced. Do NOT defeat the safety purpose of the plug.
4.
Some electronic products utilize external power supplies
or adapters. Do NOT connect this type of product to any power
supply or adapter other than one described in the owners manual,
on the name plate, or specifically recommended by Yamaha.
5.
WARNING: Do not place this product or any other
objects on the power cord or place it in a position where anyone
could walk on, trip over, or roll anything over power or connecting cords of any kind. The use of an extension cord is not recommended! If you must use an extension cord, the minimum wire
size for a 25’ cord (or less) is 18 AWG. NOTE: The smaller the
AWG number, the larger the current handling capacity. For
longer extension cords, consult a local electrician.
6.
Ventilation: Electronic products, unless specifically
designed for enclosed installations, should be placed in locations
that do not interfere with proper ventilation. If instructions for
enclosed installations are not provided, it must be assumed that
unobstructed ventilation is required.
7.
Temperature considerations: Electronic products should
be installed in locations that do not significantly contribute to
their operating temperature. Placement of this product close to
heat sources such as; radiators, heat registers and other devices
that produce heat should be avoided.
8.
This product was NOT designed for use in wet/damp locations and should not be used near water or exposed to rain.
Examples of wet/damp locations are; near a swimming pool, spa,
tub, sink, or wet basement.
9.
This product should be used only with the components
supplied or; a cart, rack, or stand that is recommended by the
manufacturer. If a cart, rack, or stand is used, please observe all
safety markings and instructions that accompany the accessory
product.
10.
The power supply cord (plug) should be disconnected
from the outlet when electronic products are to be left unused for
extended periods of time. Cords should also be disconnected
when there is a high probability of lightning and/or electrical
storm activity.
11. Care should be taken that objects do not fall and liquids are
not spilled into the enclosure through any openings that may exist.
12.
Electrical/electronic products should be serviced by a
qualified service person when:
a. The power supply cord has been damaged; or
b. Objects have fallen, been inserted, or liquids have been
spilled into the enclosure through openings; or
c. The product has been exposed to rain: or
d. The product dose not operate, exhibits a marked change
in performance; or
e. The product has been dropped, or the enclosure of the
product has been damaged.
13. Do not attempt to service this product beyond that
described in the user-maintenance instructions. All other servicing should be referred to qualified service personnel.
14.
This product, either alone or in combination with an
amplifier and headphones or speaker/s, may be capable of producing sound levels that could cause permanent hearing loss. DO
NOT operate for a long period of time at a high volume level or
at a level that is uncomfortable. If you experience any hearing
loss or ringing in the ears, you should consult an audiologist.
IMPORTANT: The louder the sound, the shorter the time period
before damage occurs.
15.
Some Yamaha products may have benches and/or accessory
mounting fixtures that are either supplied as a part of the product
or as optional accessories. Some of these items are designed to be
dealer assembled or installed. Please make sure that benches are
stable and any optional fixtures (where applicable) are well
secured BEFORE using. Benches supplied by Yamaha are
designed for seating only. No other uses are recommended.
PLEASE KEEP THIS MANUAL
92-469-2
FCC INFORMATION (U.S.A.)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by
Yamaha may void your authority, granted by the FCC, to
use the product.
2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality
shielded cables. Cable/s supplied with this product
MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.
3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations,
Part 15 for Class “B” digital devices. Compliance with
these requirements provides a reasonable level of
assurance that your use of this product in a residential
environment will not result in harmful interference with
other electronic devices. This equipment generates/
uses radio frequencies and, if not installed and used
according to the instructions found in the users manual,
may cause interference harmful to the operation of
other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur
in all installations. If this product is found to be the
source of interference, which can be determined by
turning the unit “OFF” and “ON”, please try to eliminate
the problem by using one of the following measures:
Relocate either this product or the device that is being
affected by the interference.
Utilize power outlets that are on different branch (circuit
breaker or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient
the antenna. If the antenna lead-in is 300 ohm ribbon
lead, change the lead-in to co-axial type cable.
If these corrective measures do not produce satisfactory results, please contact the local retailer authorized
to distribute this type of product. If you can not locate
the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600
Orangethorpe Ave, Buena Park, CA90620
The above statements apply ONLY to those products
distributed by Yamaha Corporation of America or its
subsidiaries.
* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.
IMPORTANT NOTICE FOR THE UNITED KINGDOM
Connecting the Plug and Cord
IMPORTANT. The wires in this mains lead are coloured in
accordance with the following code:
BLUE
: NEUTRAL
BROWN : LIVE
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured makings identifying the terminals in your plug proceed as follows:
The wire which is coloured BLUE must be connected to
the terminal which is marked with the letter N or coloured
BLACK.
The wire which is coloured BROWN must be connected to
the terminal which is marked with the letter L or coloured
RED.
Making sure that neither core is connected to the earth terminal of the three pin plug.
(2 wires)
• This applies only to products distributed by Yamaha-Kemble Music
(U.K.) Ltd.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE
LA FICHE DANS LA BORNE CORRESPONDANTE DE LA
PRISE ET POUSSER JUSQU’AU FOND.
(polarity)
• This applies only to products distributed by Yamaha Canada Music
Ltd.
• Ceci ne s’applique qu’aux produits distribués par Yamaha Canada
Musique Ltée.
(class B)
SPECIAL MESSAGE SECTION
PRODUCT SAFETY MARKINGS: Yamaha electronic
Battery Notice: This product MAY contain a small non-
products may have either labels similar to the graphics
shown below or molded/stamped facsimiles of these
graphics on the enclosure. The explanation of these
graphics appears on this page. Please observe all cautions
indicated on this page and those indicated in the safety
instruction section.
rechargable battery which (if applicable) is soldered in
place. The average life span of this type of battery is
approximately five years. When replacement becomes
necessary, contact a qualified service representative to
perform the replacement.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
See bottom of Keyboard enclosure for graphic symbol markings
The exclamation point within the
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the product.
The lightning flash with arrowhead
symbol, within the equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical
shock.
Warning: Do not attempt to recharge, disassemble, or
incinerate this type of battery. Keep all batteries away
from children. Dispose of used batteries promptly and as
regulated by applicable laws. Note: In some areas, the
servicer is required by law to return the defective parts.
However, you do have the option of having the servicer
dispose of these parts for you.
Disposal Notice: Should this product become damaged
beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and
federal regulations that relate to the disposal of products
that contain lead, batteries, plastics, etc.
NOTICE: Service charges incurred due to lack of knowl-
edge relating to how a function or effect works (when the
unit is operating as designed) are not covered by the manufacturer’s warranty, and are therefore the owners responsibility. Please study this manual carefully and consult
your dealer before requesting service.
NAME PLATE LOCATION: The graphic below indi-
cates the location of the name plate. The model number,
serial number, power requirements, etc., are located on
this plate. You should record the model number, serial
number, and the date of purchase in the spaces provided
below and retain this manual as a permanent record of
your purchase.
ENVIRONMENTAL ISSUES: Yamaha strives to produce products that are both user safe and environmentally
friendly. We sincerely believe that our products and the
production methods used to produce them, meet these
goals. In keeping with both the letter and the spirit of the
law, we want you to be aware of the following:
NORTH AMERICA
CANADA
Yamaha Canada Music Ltd.
135 Milner Avenue, Scarborough, Ontario,
M1S 3R1, Canada
Tel: 416-298-1311
U.S.A.
Yamaha Corporation of America,
Keyboard Division
6600 Orangethorpe Ave., Buena Park, Calif. 90620,
U.S.A.
Tel: 714-522-9011
MEXICO
Yamaha de Mexico S.A. De C.V.,
Departamento de ventas
Javier Rojo Gomez No.1149, Col. Gpe Del
Moral, Deleg. Iztapalapa, 09300 Mexico, D.F.
Tel: 686-00-33
BRAZIL
Yamaha Musical do Brasil LTDA.
Av. Rebouças 2636, São Paulo, Brasil
Tel: 011-853-1377
ARGENTINA
Yamaha Music Argentina S.A.
Viamonte 1145 Piso2-B 1053,
Buenos Aires, Argentina
Tel: 1-4371-7021
PANAMA AND OTHER LATIN
AMERICAN COUNTRIES/
CARIBBEAN COUNTRIES
Yamaha de Panama S.A.
Torre Banco General, Piso 7, Urbanización Marbella,
Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, Panamá
Tel: 507-269-5311
EUROPE
THE UNITED KINGDOM
Yamaha-Kemble Music (U.K.) Ltd.
Sherbourne Drive, Tilbrook, Milton Keynes,
MK7 8BL, England
Tel: 01908-366700
IRELAND
Danfay Ltd.
61D, Sallynoggin Road, Dun Laoghaire, Co. Dublin
Tel: 01-2859177
GERMANY/SWITZERLAND
Yamaha Europa GmbH.
Siemensstraße 22-34, 25462 Rellingen,
F.R. of Germany
Tel: 04101-3030
CLP-970A/970AM/970AC
AUSTRIA
Yamaha Music Austria
Schleiergasse 20, A-1100 Wien Austria
Tel: 01-60203900
THE NETHERLANDS
SPECIFICATIONS SUBJECT TO CHANGE: The
information contained in this manual is believed to be
correct at the time of printing. However, Yamaha reserves
the right to change or modify any of the specifications
without notice or obligation to update existing units.
Pour plus de détails sur les produits, veuillez-vous adresser à Yamaha ou
au distributeur le plus proche de vous figurant dans la liste suivante.
CENTRAL & SOUTH AMERICA
IMPORTANT NOTICE: All Yamaha electronic products
are tested and approved by an independent safety testing
laboratory in order that you may be sure that when it is
properly installed and used in its normal and customary
manner, all foreseeable risks have been eliminated. DO
NOT modify this unit or commission others to do so
unless specifically authorized by Yamaha. Product performance and/or safety standards may be diminished.
Claims filed under the expressed warranty may be denied
if the unit is/has been modified. Implied warranties may
also be affected.
For details of products, please contact your nearest Yamaha or the
authorized distributor listed below.
Yamaha Music Nederland
Kanaalweg 18G, 3526KL, Utrecht, The Netherlands
Tel: 030-2828411
Model
Serial No.
BELGIUM
Yamaha Music Belgium
Keiberg Imperiastraat 8, 1930 Zaventem, Belgium
Tel: 02-7258220
Para detalles sobre productos, contacte su tienda Yamaha más cercana
o el distribuidor autorizado que se lista debajo.
ASIA
FRANCE
Yamaha Musique France,
Division Claviers
BP 70-77312 Marne-la-Vallée Cedex 2, France
Tel: 01-64-61-4000
ITALY
Yamaha Musica Italia S.P.A.,
Home Keyboard Division
Viale Italia 88, 20020 Lainate (Milano), Italy
Tel: 02-935-771
SPAIN/PORTUGAL
Yamaha-Hazen Electronica Musical, S.A.
Ctra. de la Coruna km. 17, 200, 28230
Las Rozas (Madrid) Spain
Tel: 91-201-0700
GREECE
Philippe Nakas S.A.
Navarinou Street 13, P.Code 10680, Athens, Greece
Tel: 01-364-7111
SWEDEN
Yamaha Scandinavia AB
J. A. Wettergrens Gata 1
Box 30053
S-400 43 Göteborg, Sweden
Tel: 031 89 34 00
INDONESIA
PT. Yamaha Music Indonesia (Distributor)
PT. Nusantik
Gedung Yamaha Music Center, Jalan Jend. Gatot
Subroto Kav. 4, Jakarta 12930, Indonesia
Tel: 21-520-2577
KOREA
Cosmos Corporation
1461-9, Seocho Dong, Seocho Gu, Seoul, Korea
Tel: 02-3486-0011
MALAYSIA
Yamaha Music Malaysia, Sdn., Bhd.
Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,
Petaling Jaya, Selangor, Malaysia
Tel: 3-703-0900
Yupangco Music Corporation
339 Gil J. Puyat Avenue, P.O. Box 885 MCPO,
Makati, Metro Manila, Philippines
Tel: 819-7551
YS Copenhagen Liaison Office
Generatorvej 8B
DK-2730 Herlev, Denmark
Tel: 44 92 49 00
FINLAND
F-Musiikki Oy
Kluuvikatu 6, P.O. Box 260,
SF-00101 Helsinki, Finland
Tel: 09 618511
SINGAPORE
Yamaha Music Asia Pte., Ltd.
11 Ubi Road #06-00, Meiban Industrial Building,
Singapore
Tel: 65-747-4374
TAIWAN
Yamaha KHS Music Co., Ltd.
10F, 150, Tun-Hwa Northroad,
Taipei, Taiwan, R.O.C.
Tel: 02-2713-8999
NORWAY
Norsk filial av Yamaha Scandinavia AB
Grini Næringspark 1
N-1345 Østerås, Norway
Tel: 67 16 77 70
ICELAND
Skifan HF
Skeifan 17 P.O. Box 8120
IS-128 Reykjavik, Iceland
Tel: 525 5000
THAILAND
Siam Music Yamaha Co., Ltd.
121/60-61 RS Tower 17th Floor,
Ratchadaphisek RD., Dindaeng,
Bangkok 10320, Thailand
Tel: 02-641-2951
THE PEOPLE’S REPUBLIC OF CHINA
AND OTHER ASIAN COUNTRIES
OTHER EUROPEAN COUNTRIES
Yamaha Europa GmbH.
Siemensstraße 22-34, 25462 Rellingen,
F.R. of Germany
Tel: 04101-3030
AFRICA
Yamaha Corporation,
Asia-Pacific Music Marketing Group
Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: 053-460-2312
MIDDLE EAST
TURKEY/CYPRUS
Yamaha Europa GmbH.
Siemensstraße 22-34, 25462 Rellingen,
F.R. of Germany
Tel: 04101-3030
Yamaha Music Gulf FZE
LB21-128 Jebel Ali Freezone
P.O.Box 17328, Dubai, U.A.E.
Tel: 971-4-881-5868
Tom Lee Music Co., Ltd.
11/F., Silvercord Tower 1, 30 Canton Road,
Tsimshatsui, Kowloon, Hong Kong
Tel: 2737-7688
PHILIPPINES
DENMARK
OTHER COUNTRIES
HONG KONG
Yamaha Corporation,
Asia-Pacific Music Marketing Group
Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: 053-460-2317
OCEANIA
AUSTRALIA
Yamaha Music Australia Pty. Ltd.
Level 1, 99 Queensbridge Street, Southbank, Victoria
3006, Australia
Tel: 3-9693-5111
NEW ZEALAND
Music Houses of N.Z. Ltd.
146/148 Captain Springs Road, Te Papapa,
Auckland, New Zealand
Tel: 9-634-0099
COUNTRIES AND TRUST
TERRITORIES IN PACIFIC OCEAN
Yamaha Corporation,
Asia-Pacific Music Marketing Group
Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: 053-460-2312
Purchase Date
HEAD OFFICE Yamaha Corporation, Pro Audio & Digital Musical Instrument Division
Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: 053-460-3273
[CL] 21
92-469 1
Die Einzelheiten zu Produkten sind bei Ihrer unten aufgeführten
Niederlassung und bei Yamaha Vertragshändlern in den jeweiligen
Bestimmungsländern erhältlich.
R
CLP-970A/CLP-970AM/CLP-970AC
Owner’s manual
IMPORTANT
Check your power supply
Make sure that your local AC mains voltage
matches the voltage specified on the name
plate on the bottom panel. In some areas a
voltage selector may be provided on the the bottom
panel of the main keyboard unit near the power
cord. Make sure that the voltage selector is set
for the voltage in your area. The voltage
selector is set at 240V when the unit is initially
shipped. To change the setting use a “minus”
screwdriver to rotate the selector dial so that
the correct voltage appears next to the pointer
on the panel.
Clavinova Web Site (English only)
http://www.yamaha.co.jp/english/product/cl/
M.D.G., PA • DMI Division, Yamaha Corporation
© 2000 Yamaha Corporation
V?????? ???AP?????.?-??B0 Printed in Indonesia
Yamaha Manual Library (English versions only)
http://www2.yamaha.co.jp/manual/english/
CLP-970A
CLP-970AM
CLP-970AC
Owner’s manual
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
