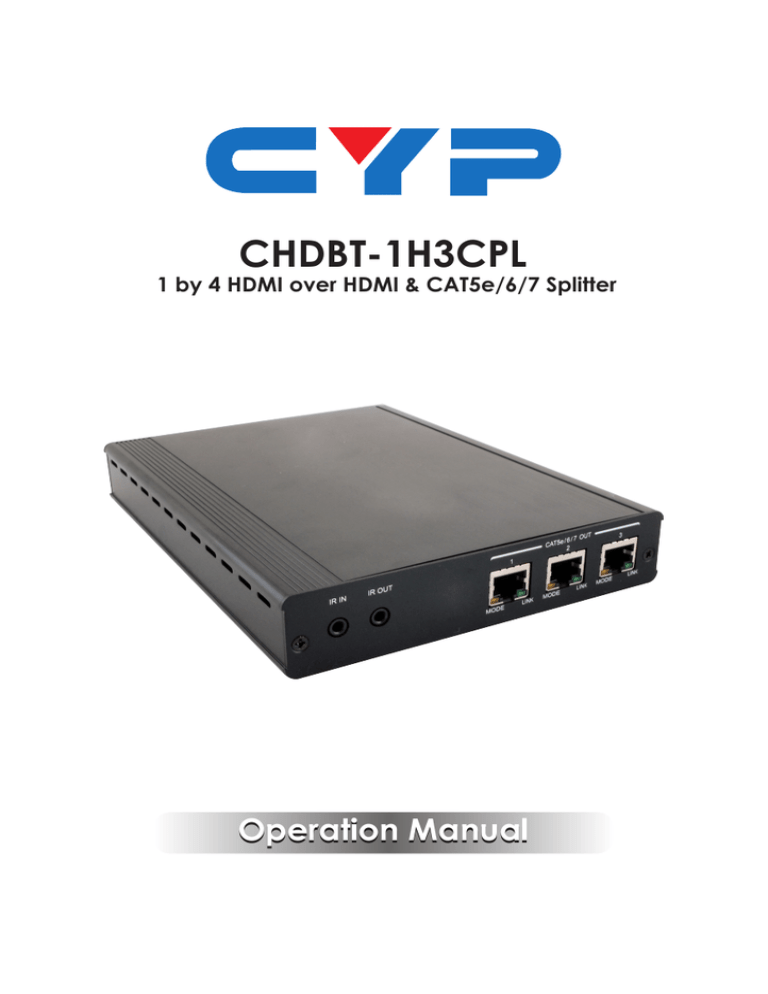

CHDBT-1H3CPL

1 by 4 HDMI over HDMI & CAT5e/6/7 Splitter

DISCLAIMERS

The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.

Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means— electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—without express written permission and consent from

Cypress Technology.

© Copyright 2014 by Cypress Technology.

All Rights Reserved.

Version 1.0 August 2014

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.

• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO.

DATE DD/MM/YY SUMMARY OF CHANGE

RDV1 06/08/14 Preliminary Release

CONTENTS

1. Introduction ............................................ 1

2. Applications ........................................... 1

3. Package Contents ................................ 1

4. System Requirements ............................ 1

5. Features .................................................. 2

6.1 Front Panel ........................................3

6.2 Rear Panel .........................................4

6.3 IR Cable Pin Assignment..................5

7. Connection Diagram ............................ 6

8. Specifications ........................................ 7

8.1 CAT5e/6/7 Cable Specification .....8

9. Acronyms ............................................... 8

1. INTRODUCTION

The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and 2-way IR control to up to three CAT5e/6/7 outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats. The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three CAT5e/6/7 outputs can be connected to CAT5e/6/7 to HDMI Receivers to extend the operating distance up to 60 meters with Power Over Cable feature.

2. APPLICATIONS

• Household entertainment sharing and control

• Lecture room display and control

• Showroom display and control

• Meeting room presentation and control

• Classroom display and control

3. PACKAGE CONTENTS

• HDMI over HDMI & CAT5e/6/7 Splitter

• IR Receiver x 1

• IR Blaster x 1

• 24V DC Power Adaptor

• Power Cord

• Operation Manual

4. SYSTEM REQUIREMENTS

• Source equipment with HDMI output connector

• Display TV/Monitor with HDMI input connector

• HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables

1

5. FEATURES

• HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant

• Simultaneous HDMI and CAT5e/6/7 outputs

• Supports data rate from 250Mbps up to 3Gbps

• Supports wide range of PC resolutions from VGA to WUXGA(RB) and HDTV resolutions up to 4Kx2K ([email protected]/25/30Hz & 50/60

YUV_420 and [email protected] & 50/60 YUV_420).

• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD

Master Audio transmission (32~192kHz sample rate)

• Supports distances up to 60 meters through CAT5e/6/7 cables

• Supports selection of Standard or TV EDID settings

• Supports Power over Cable (PoC) feature

• Supports USB service port

• Supports Bidirectional IR control

• The 3D signal display follow by display TV’s EDID

Note:

1. This system was tested with CAT6/23AWG cables, results may vary with cables of a different specification.

2. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI cable and display in order for proper image displaying.

3. The PoC function is designed for powering compatible Receiver units only non-PoC Receivers will need their own power supply.

Receivers of another brand may not be compatible.

2

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

HDMI IN

SYNC

HDMI OUT

LINK EDID SERVICE

STD TV

POWER

DC 24V

1 2 3 4 5 6 7 8

1

HDMI IN: Connect with source equipment such as DVD/Blu-ray or

PS3 player.

2

SYNC: This LED will illuminate when the HDMI input port connected to an active source.

3

HDMI OUT: Connect to HDMI display for instant image display or cascade with another family type Transmitter.

4

HDMI LINK: This LED will illuminate when HDMI output is connected to TV or display monitor.

5

EDID STD/TV: The default factory setting is on STD, leave as it is when the display is properly. When in TV mode, the unit will detect the 1 st

CAT5e/6/7 output’s EDID when it obtain a 4Kx2K EDID and send out the signal accordingly to other output ports. If the 1 st

CAT5e/6/7 output is without a 4Kx2K's EDID the unit will detect all output's EDID and send out the signal that all outputs can accept.

This device obtain the last memory function therefore, the device

will use the last output port 1's EDID when output port 1 is not connected to a display after power cycling or switching in between the EDID setting.

STD EDID’s video at [email protected] and audio at LPCM 2CH.

6

SERVICE: This slot is reserved for factory service only.

7

POWER LED: Once the power supply is connected the LED will illuminate

8

DC 24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet.

3

6.2 Rear Panel

IR IN

IR OUT

1

CAT5e / 6 / 7 OUT

2 3

MODE LINK MODE LINK MODE LINK

1 2 3

1

IR IN: Connect with IR Extender to receive IR signal from Transmitter side and blast out at Receiver side. Ensure that remote controller being used is within the direct line-of-sight of the IR Extender.

2

IR OUT: Connect with IR Blaster to blast out the IR signal received from the Receiver side. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.

3

CAT5e/6/7 OUT 1~3: Connect these ports to CAT5e/6/7 to HDMI

Receivers with CAT5e/6/7 cable to extend the signal up to 60m.

4

6.3 IR Cable Pin Assignment

IR Blaster

1

2

3

Power

IR Blaster Signal

NC

IR Extender

1

2

3

IR Signal

Power

Grounding

5

7. CONNECTION DIAGRAM

Blu-ray or PS3 Player

3D TV/Display

HDMI

HDMI

1.5m

60°

IR BLASTER

3m

60°

3m

IR RECEIVER

HDMI IN

SYNC

HDMI OUT

LINK EDID SERVICE

STD TV

POWER

DC 24V

IR IN IR OUT

1

CAT5e / 6 / 7 OUT

2 3

MODE LINK MODE LINK MODE LINK

Power

IR2 Blaster

IR1 Extender

Link

CAT5e/6 In

3D TV/Display

6

8. SPECIFICATIONS

Video Bandwidth

Input ports

Output ports

Resolution

340Mbps/10.2Gbps

1 x HDMI,

1 x IR IN,

1 x USB (Service only)

1 x HDMI,

1 x IR OUT,

3 x CAT5e/6/7

Up to 4Kx2K ([email protected]/25/30Hz &

50/60 YUV_420/[email protected] & 50/60

YUV_420)

Up to [email protected] 8/12-bit

HDMI Input & Output

Cable Distance

CAT5e/6/7 Output

Cable Distance

IR Frequency

Power Supply

Dimensions

Weight

Chassis Material

Silkscreen Color

ESD Protection

Up to 60m

30~50kHz

24V / 2.7A DC (US/EU standards, CE/FCC/

UL certified)

145 mm(W) x 190 mm(D) x 30 mm(H)/

Jacks Excluded

145 mm(W) x 199 mm(D) x 30 mm(H)/

Jacks Included

592 g

Metal

Black

Human body model:

±8kV (air-gap discharge)

±4kV (contact discharge)

Operating Temperature 0°C ~ 40°C

Storage Temperature

-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F

Relative Humidity

Power Consumption

20 ~ 90% RH (non-condensing)

33W

7

8.1 CAT5e/6/7 Cable Specification

Cable

Type

Range Pixel clock rate

Video Data

Rate

CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps

(HD Video)

Supported Video

Up to 1080p, 60 Hz, 36 bits, 3D (data rates lower than 5.3 Gbps or below 225MHz

TMDS clock)

4K2K, 30Hz video formats

CAT6/7

40 m >225 MHz > 5.3 Gbps

(Ultra HD

Video)

60 m >225 MHz > 5.3 Gbps

(Ultra HD

Video)

4K2K, 30Hz video formats

9. ACRONYMS

ACRONYM

4Kx2K

COMPLETE TERM

3840x2160 / 4096x2160

DTS

EDID

HDCP

HDMI

HDTV

Digital Theater System

Extended Display Identification Data

High-bandwidth Digital Content Protection

High-Definition Multimedia Interface

High-Definition Television

8
